Nissan Qashqai (2007-2010). Manual - part 1229

SEC-116

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

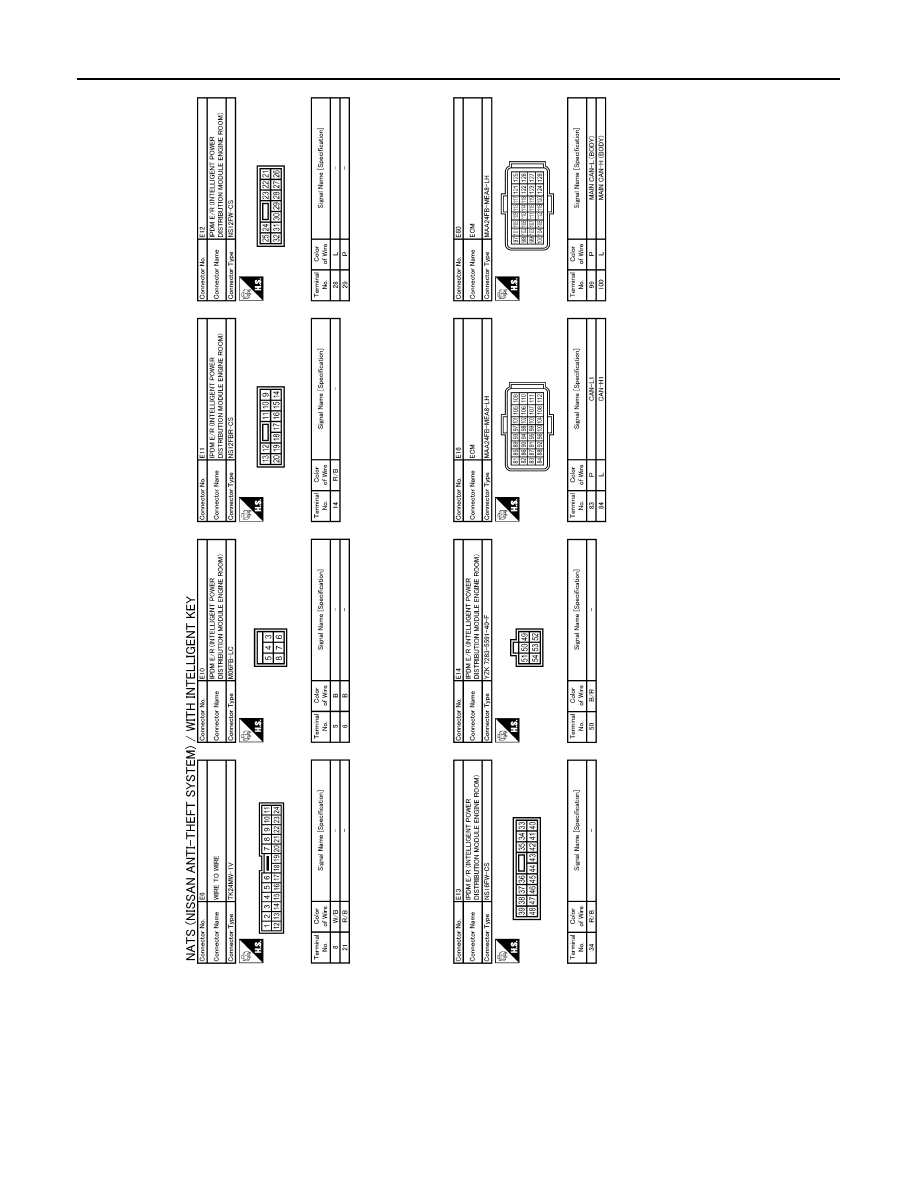

Wiring Diagram - NATS -

INFOID:0000000001102232

JCKWA0311GB

INTELLIGENT KEY UNIT

SEC-117

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

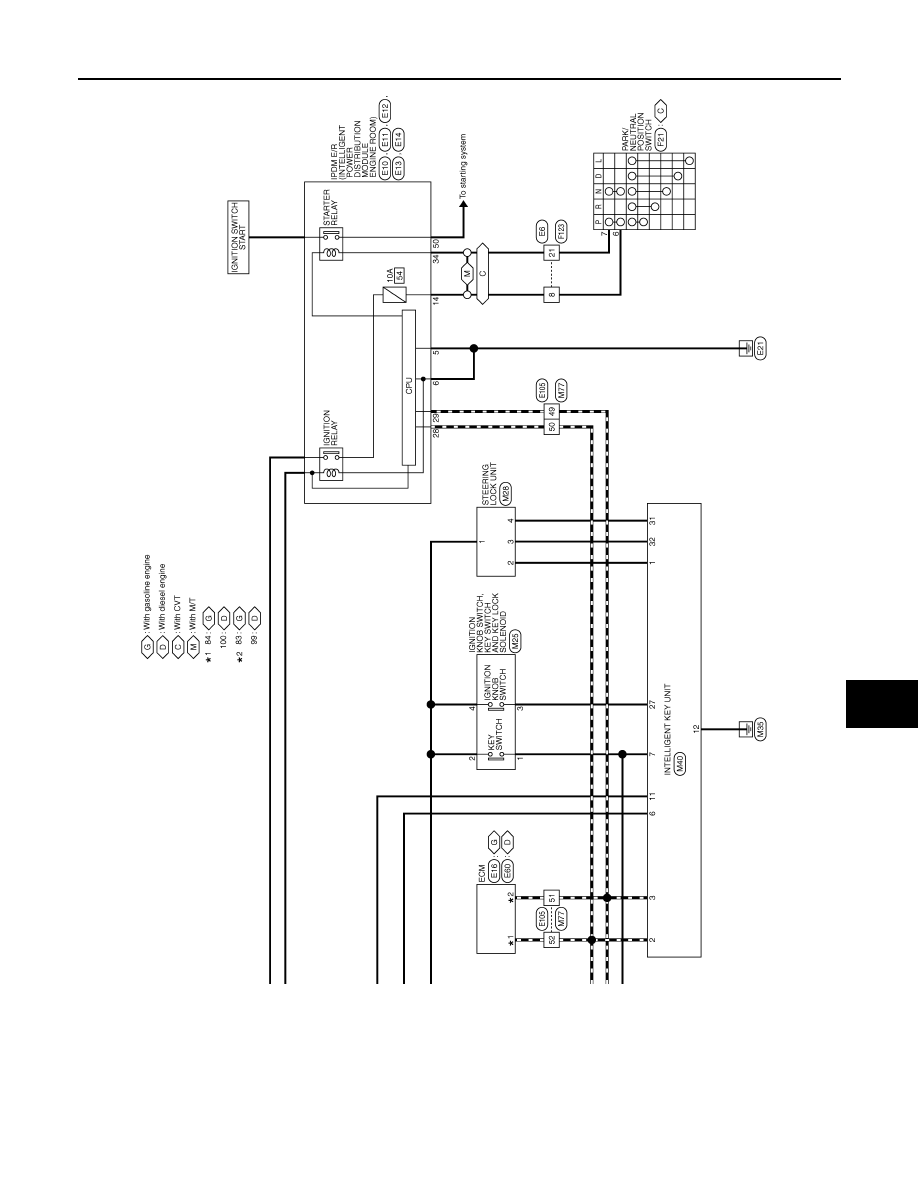

JCKWA0312GB

SEC-118

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

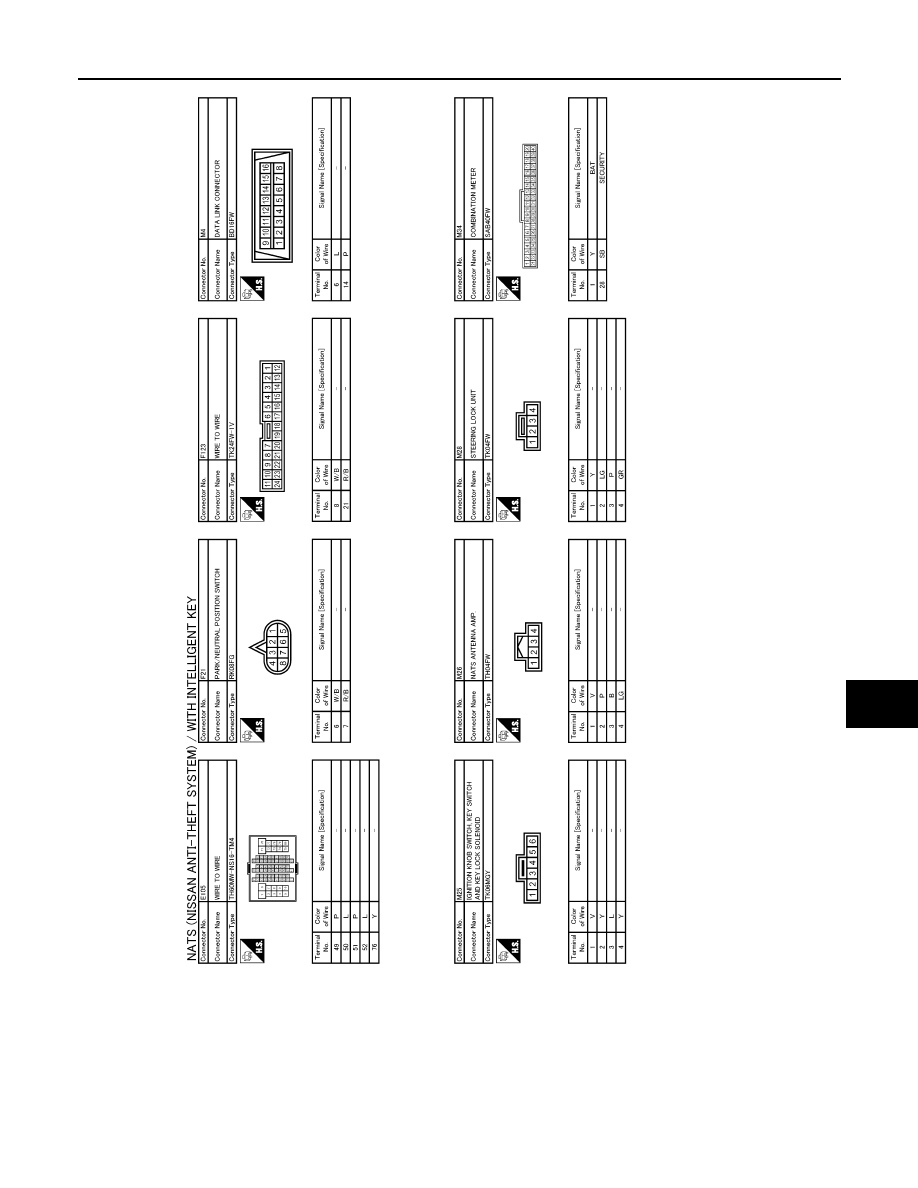

JCKWA0313GB

INTELLIGENT KEY UNIT

SEC-119

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

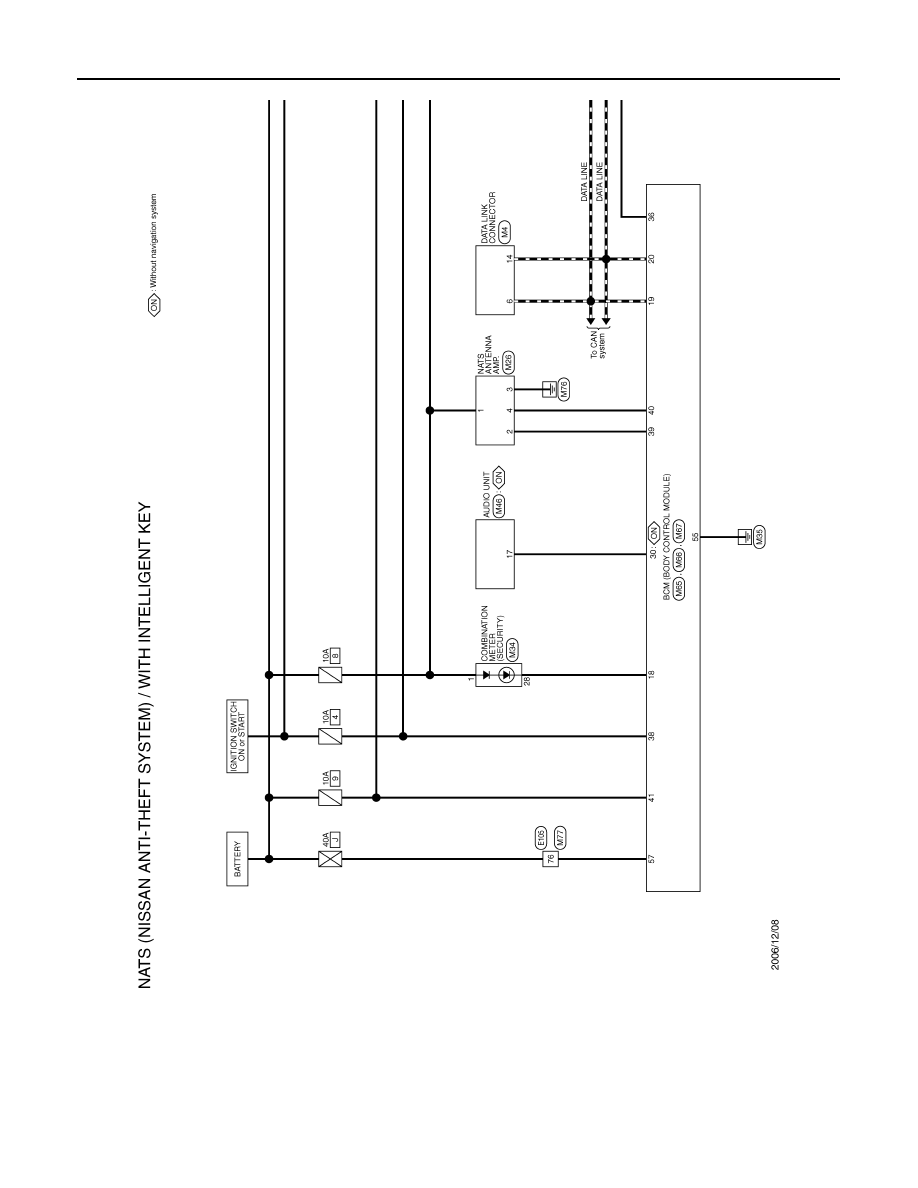

JCKWA0314GB
