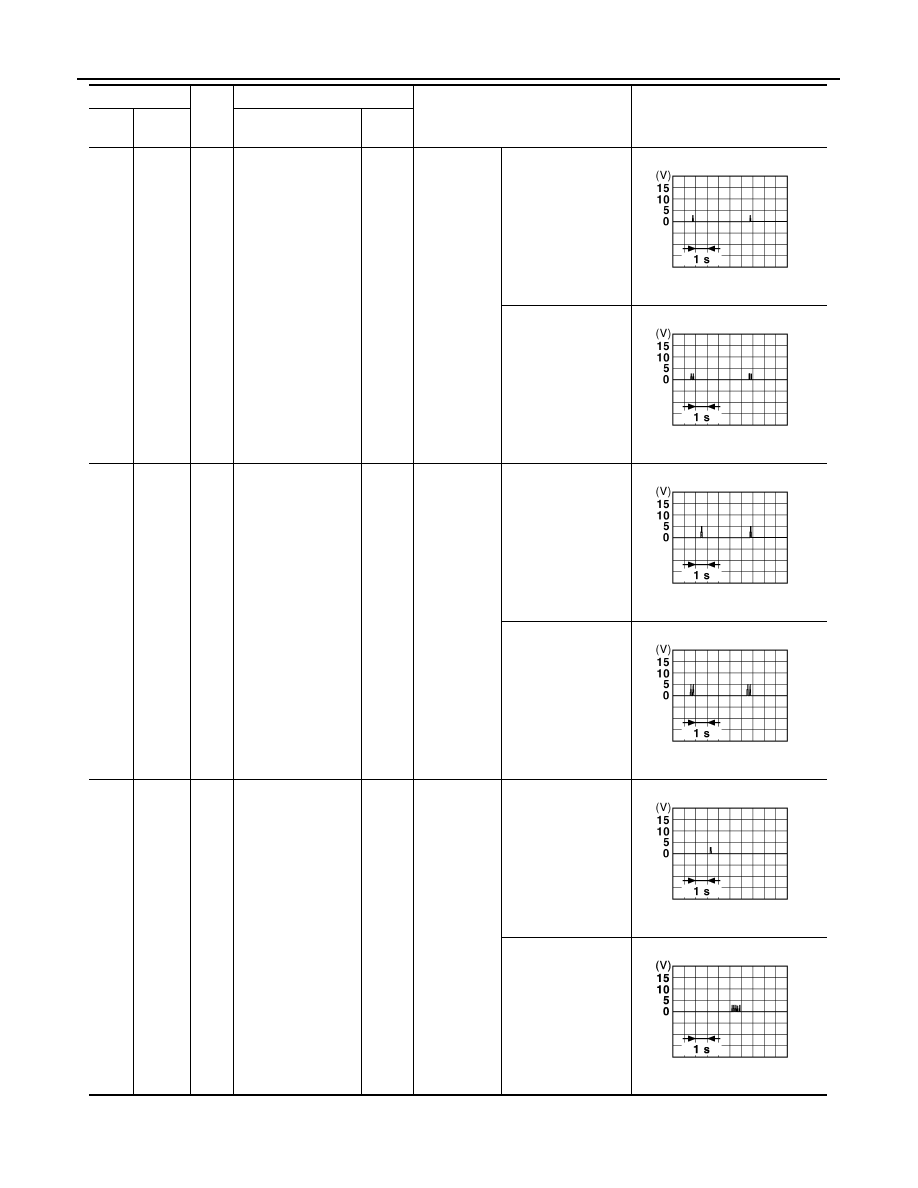

SEC-100

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

17

Ground

SB

Outside key antenna
(+) (rear bumper)

Output

When the
back door re-
quest switch
is operated
with ignition
switch OFF

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is not in the antenna
detection area

18

Ground

V

Outside key antenna
(-) (rear bumper)

Output

When the
back door re-
quest switch
is operated
with ignition
switch OFF

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is not in the antenna
detection area

19

Ground

L

Outside key antenna
(+) (driver side)

Output

When the
front door re-
quest switch
(driver side)
is operated
with ignition
switch OFF

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is not in the antenna
detection area

Terminal No.

Wire

color

Description

Condition

Value [V]

(Approx.)

Signal name

Input/

Output

+

–

JMKIA0397ZZ

JMKIA0514ZZ

JMKIA0395ZZ

JMKIA0515ZZ

JMKIA0397ZZ

JMKIA0514ZZ

INTELLIGENT KEY UNIT

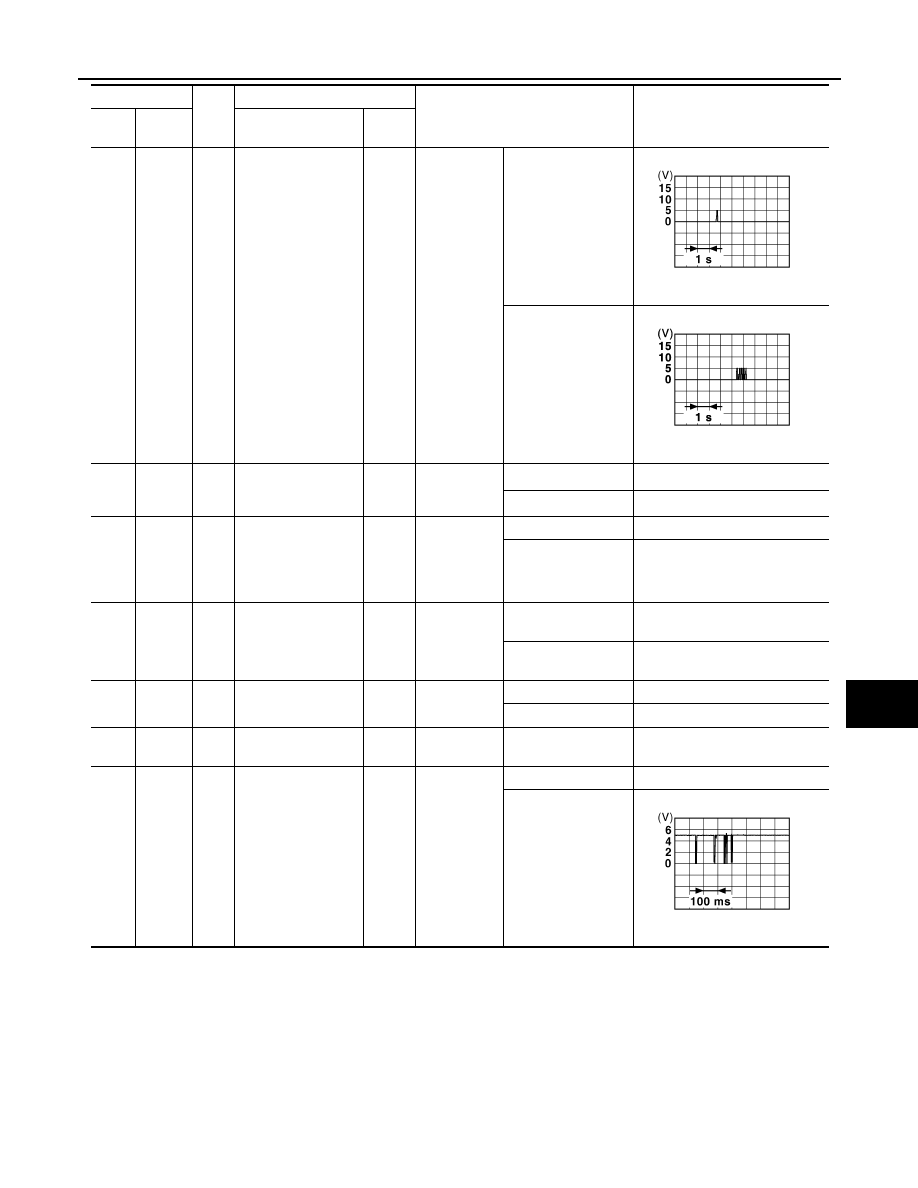

SEC-101

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

20

Ground

BR

Outside key antenna
(-) (driver side)

Output

When the
front door re-
quest switch
(driver side)
is operated
with ignition
switch OFF

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is not in the antenna
detection area

22

*1

Ground

W

Key lock solenoid

Output

Key lock so-
lenoid

LOCK

*2

Battery voltage

UNLOCK

*2

0

25

Ground

BR

Front door request
switch
(passenger side)

Input

Front door
request
switch
(passenger
side)

ON (Pressed)

0

OFF (Released)

5

27

Ground

L

Ignition knob switch

Input

Ignition
switch OFF

When ignition knob
switch is pressed

Battery voltage

When ignition knob
switch is released

0

29

Ground

GR

Back door request
switch

Input

Back door re-
quest switch

ON (Pressed)

0

OFF (Released)

5

31

Ground

GR

Steering lock unit
ground

—

—

—

0

32

Ground

P

Steering lock unit
communication

Input/

Output

Steering lock

LOCK status

5

LOCK or UNLOCK

Terminal No.

Wire

color

Description

Condition

Value [V]

(Approx.)

Signal name

Input/

Output

+

–

JMKIA0395ZZ

JMKIA0515ZZ

JMKIA0433ZZ

SEC-102

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

33

Ground

O

Inside key antenna
(+)
(instrument center)

Output

Ignition knob
is pressed.

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is not in the antenna
detection area

34

Ground

G

Inside key antenna
(-)
(instrument center)

Output

Ignition knob
is pressed.

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is not in the antenna
detection area

37

Ground

L

Outside key antenna
(+) (passenger side)

Output

When the
front door re-
quest switch
(passenger
side) is oper-
ated with ig-
nition switch
OFF

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is in the antenna de-
tection area

Terminal No.

Wire

color

Description

Condition

Value [V]

(Approx.)

Signal name

Input/

Output

+

–

JMKIA0393ZZ

JMKIA0391ZZ

JMKIA0392ZZ

JMKIA0390ZZ

JMKIA0397ZZ

JMKIA0514ZZ

INTELLIGENT KEY UNIT

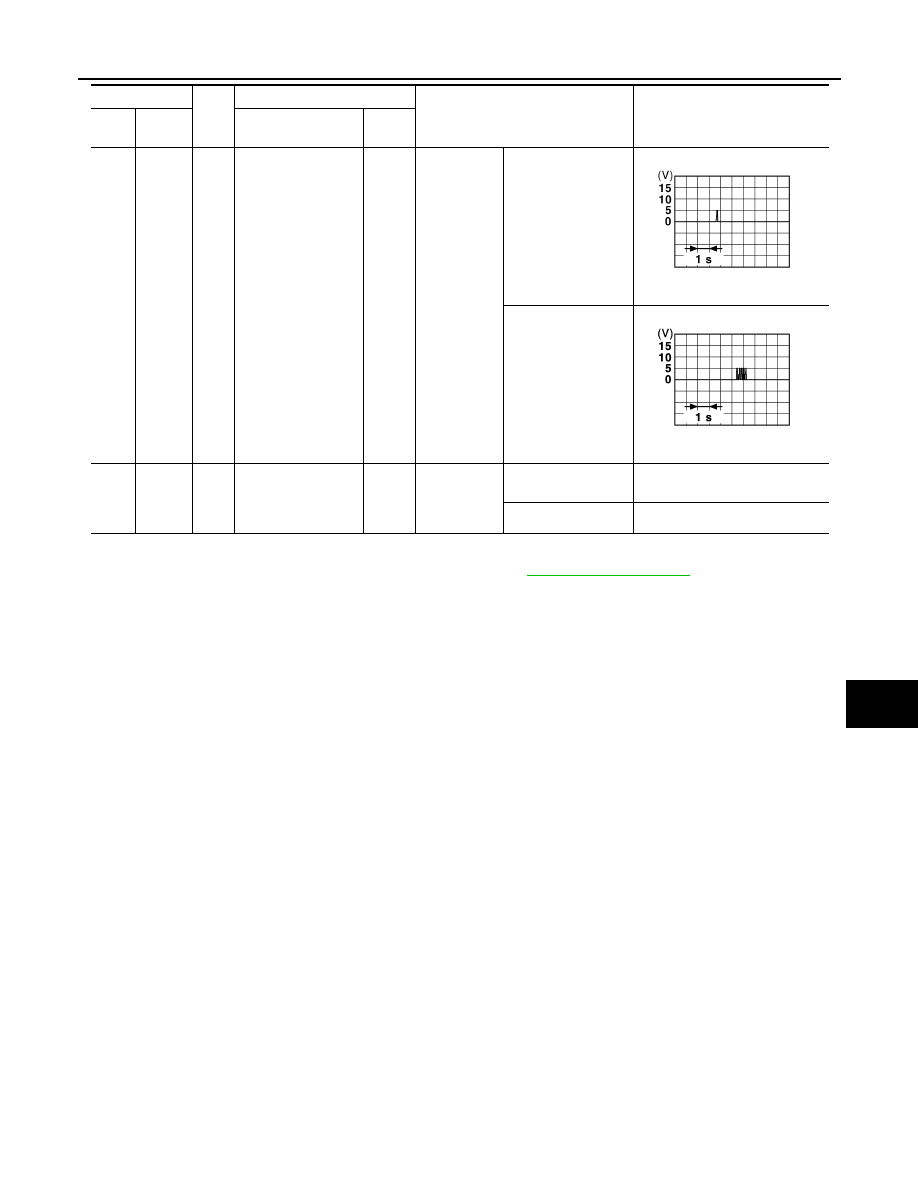

SEC-103

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

*1

: Only for MT model.

*2

: Key interlock operation is only for M/T model for operation condition, refer to

SEC-9, "System Description"

.

38

Ground

O

Outside key antenna
(-) (passenger side)

Output

When the
front door re-
quest switch
(passenger
side) is oper-
ated with ig-
nition switch
OFF

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is not in the antenna
detection area

40

Ground

Y

Passenger side anti-
hijack relay

Input

Press front
door request
switch (pas-
senger side)

Anti-hijack operation

Battery voltage

→

 0

→

 Battery

voltage

Other than above

Battery voltage

Terminal No.

Wire

color

Description

Condition

Value [V]

(Approx.)

Signal name

Input/

Output

+

–

JMKIA0395ZZ

JMKIA0515ZZ
