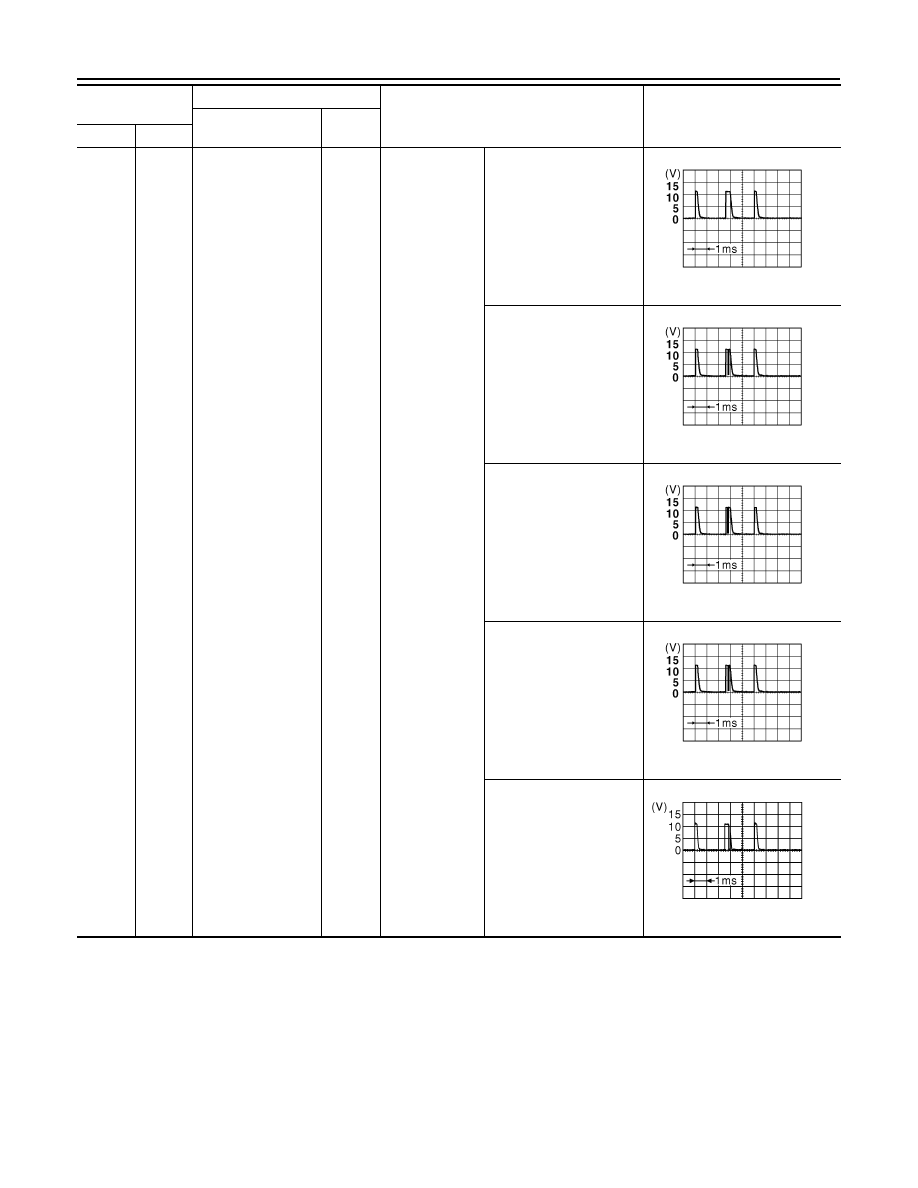

SEC-72

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

32

(G)

Ground

Combination switch
INPUT 2

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

1.4 V

Lighting switch PASS

1.3 V

Lighting switch 2ND

1.3 V

Front wiper switch INT

1.3 V

Front wiper switch HI

1.3 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

JPMIA0165GB

JPMIA0167GB

JPMIA0166GB

JPMIA0168GB

JPMIA0196GB

BCM (BODY CONTROL MODULE)

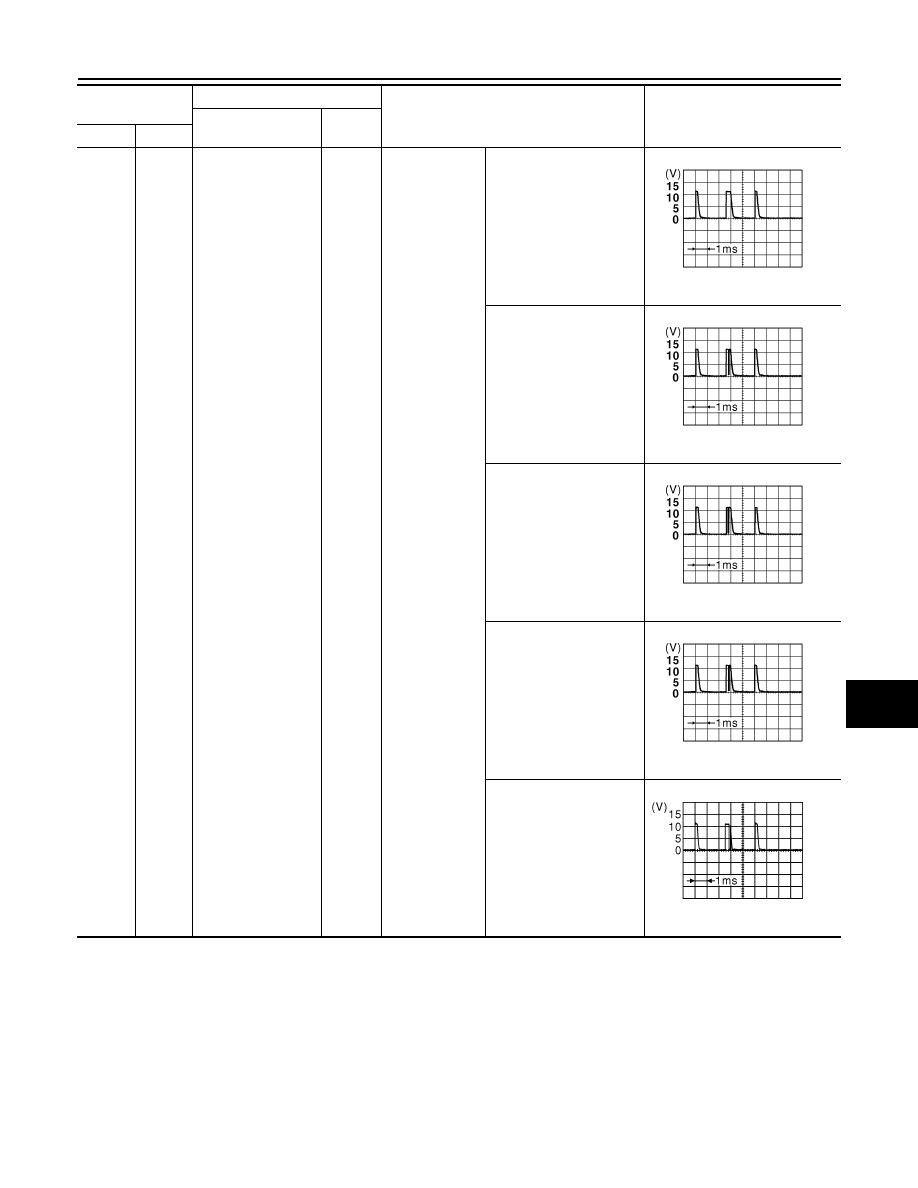

SEC-73

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

33

(V)

Ground

Combination switch
INPUT 1

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

1.4 V

Turn signal switch LH

1.3 V

Turn signal switch RH

1.3 V

Front wiper switch LO

1.3 V

Front washer switch ON

1.3 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

JPMIA0165GB

JPMIA0167GB

JPMIA0166GB

JPMIA0168GB

JPMIA0196GB

SEC-74

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

34

(GR)

Ground

Combination switch
INPUT 4

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

1.4 V

Lighting switch AUTO
(Wiper intermittent dial 4)

1.3 V

Lighting switch 1ST
(Wiper intermittent dial 4)

1.3 V

Rear wiper INT
(Wiper intermittent dial 4)

1.3 V

Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 6

1.3 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

JPMIA0165GB

JPMIA0167GB

JPMIA0166GB

JPMIA0167GB

JPMIA0196GB

BCM (BODY CONTROL MODULE)

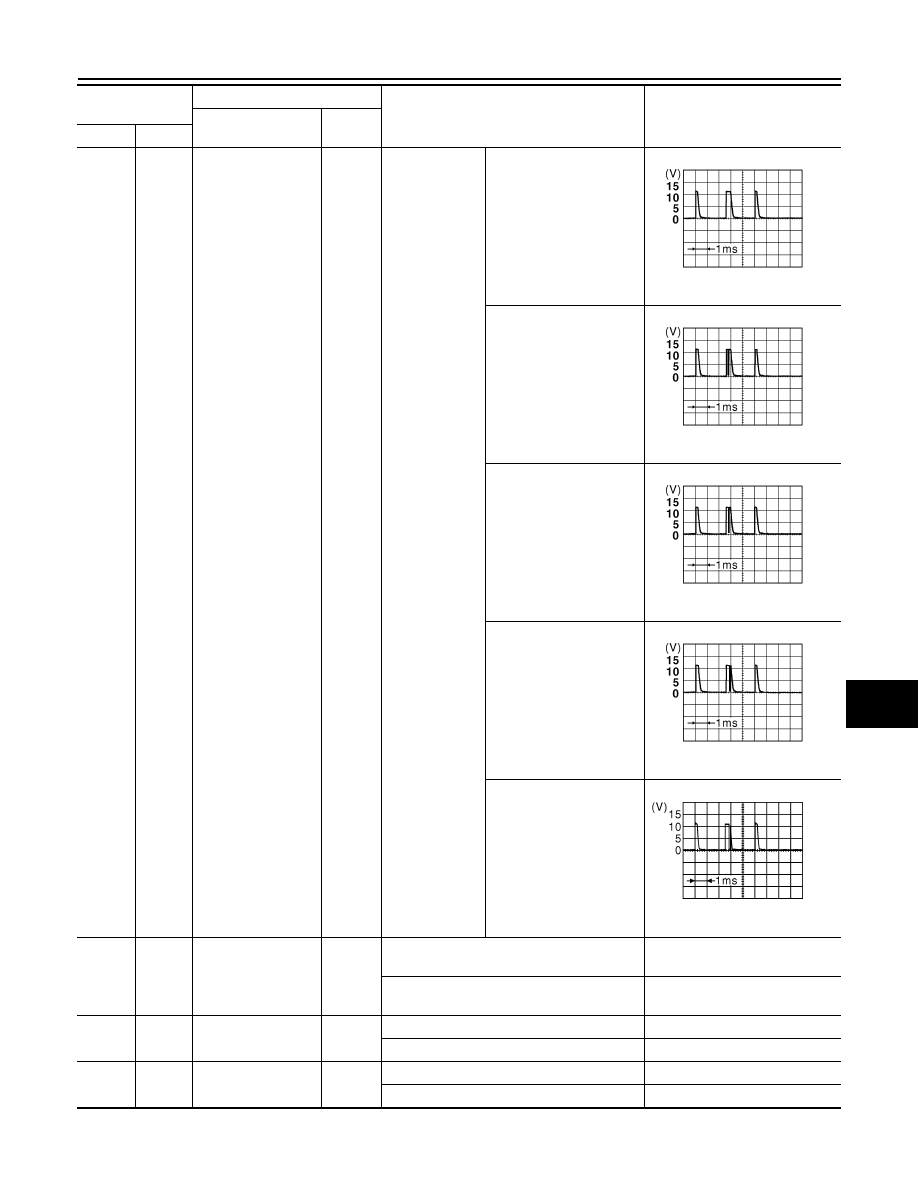

SEC-75

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

35

(L)

Ground

Combination switch
INPUT 3

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

1.4 V

Lighting switch HI
(Wiper intermittent dial 4)

1.3 V

Lighting switch 2ND
(Wiper intermittent dial 4)

1.3 V

Rear wiper switch ON

1.3 V

Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 3

1.3 V

36

(V)

Ground

Key switch

Output

Insert mechanical key into ignition key cylin-
der

Battery voltage

Remove mechanical key from ignition key
cylinder

0 V

37

(R)

Ground

ACC power supply

Output

Ignition switch OFF

0 V

Ignition switch ACC or ON

Battery voltage

38

(W/L)

Ground

Ignition power sup-
ply

Output

Ignition switch OFF or ACC

0 V

Ignition switch ON

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

JPMIA0165GB

JPMIA0166GB

JPMIA0167GB

JPMIA0169GB

JPMIA0196GB
