Nissan Qashqai (2007-2010). Manual - part 120





WATER OUTLET AND THERMOSTAT ASSEMBLY

CO-63

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

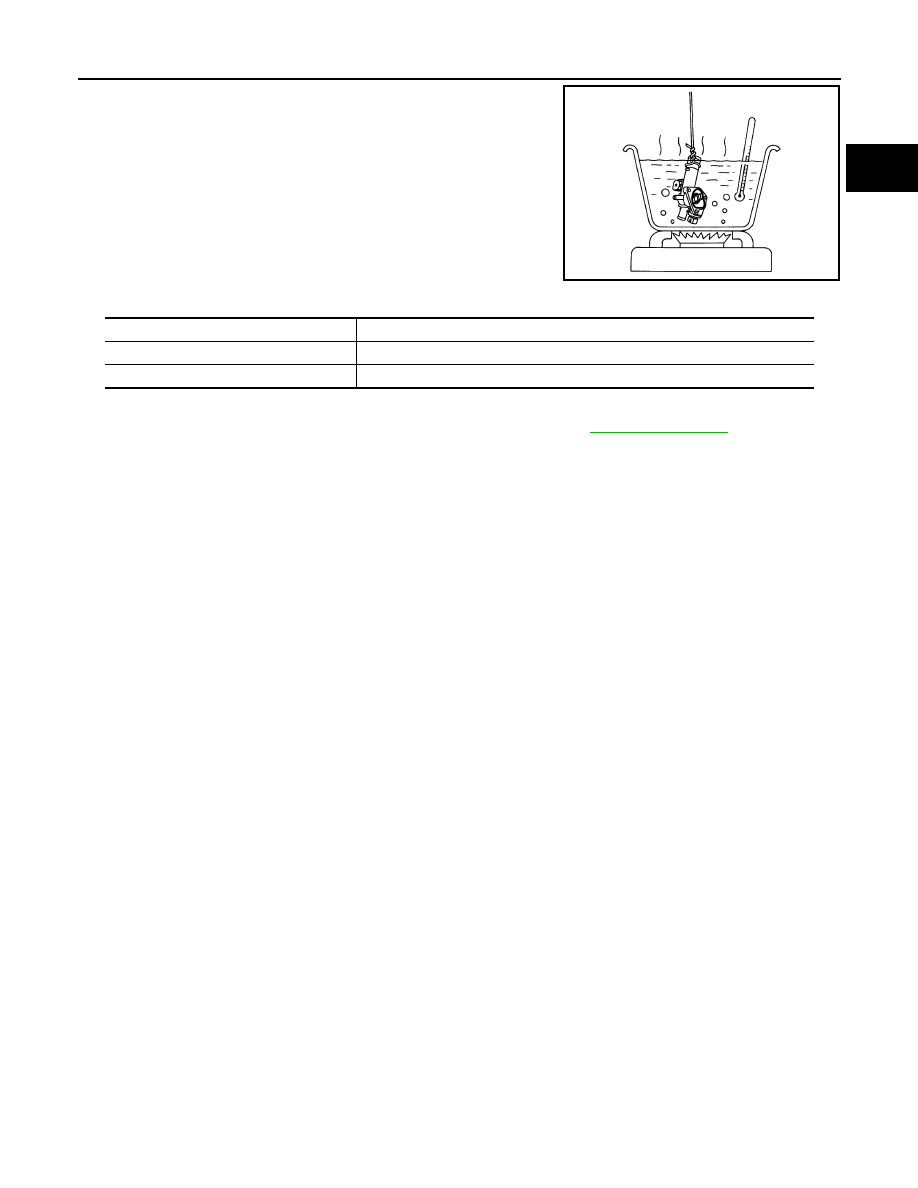

• Place a thread so that it is caught in the valves of the thermostat.

Immerse fully in a container filled with water. Heat while stirring.
(The example in the figure shows the thermostat.)

• The valve opening temperature is the temperature at which the

valve opens and falls from the thread.

• Continue heating. Check the full-open lift amount.
• After checking the full-open lift amount, lower the water tempera-

ture and check the valve closing temperature.

• If the measured value is out of the standard value or unusual valve

seating condition is found, replace water inlet and thermostat
assembly.

INSPECTION AFTER INSTALLATION

• Check for engine coolant leaks using reservoir tank cap tester. Refer to

CO-52, "Inspection"

.

E1BIA0038ZZ

Temperature

°

C (

°

F)

Start of opening

89 (192)

End of opening

97 - 101 (207 - 214)

CO-64

< SERVICE DATA AND SPECIFICATIONS (SDS)

[K9K]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000001062354

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:

 (Imp qt)

Radiator

INFOID:0000000001062355

Unit: kPa (kg/cm

2

, psi, bar)

Thermostat

INFOID:0000000001062356

Unit:

°

C (

°

F)

Engine coolant capacity [With reservoir tank (“MAX” level)]

7.0 (6-1/8)

Reservoir tank engine coolant capacity (At “MAX” level)

0.8 (3/4)

Reservoir tank cap relief pressure

130 - 150 (1.33 - 1.53, 18.9 - 21.8, 1.3 - 1.5)

Leakage testing pressure

10 (0.10, 1.5, 0.1)

Temperature of start opening

89 (192)

Temperature of end opening

97 - 101 (207 - 214)

EC-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EC

A

EC

N

O

P

CONTENTS

ENGINE CONTROL SYSTEM

HR16DE (WITH EURO-OBD)

BASIC INSPECTION  ...................................

22

DIAGNOSIS AND REPAIR WORKFLOW  .........

22

Work Flow  ...............................................................

22

Diagnostic Work Sheet ............................................

24

INSPECTION AND ADJUSTMENT ....................

26

BASIC INSPECTION  .................................................

26

BASIC INSPECTION : Special Repair Require-
ment ........................................................................

26

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ........................................................

29

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ................................

29

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .....

29

IDLE SPEED  ..............................................................

29

IDLE SPEED : Description  ......................................

29

IDLE SPEED : Special Repair Requirement  ...........

30

IGNITION TIMING ......................................................

30

IGNITION TIMING : Description ..............................

30

IGNITION TIMING : Special Repair Requirement

....

30

ACCELERATOR PEDAL RELEASED POSITION
LEARNING ................................................................

30

ACCELERATOR PEDAL RELEASED POSITION
LEARNING : Description .........................................

30

ACCELERATOR PEDAL RELEASED POSITION
LEARNING : Special Repair Requirement  ..............

30

THROTTLE VALVE CLOSED POSITION LEARN-
ING .............................................................................

31

THROTTLE VALVE CLOSED POSITION
LEARNING : Description .........................................

31

THROTTLE VALVE CLOSED POSITION
LEARNING : Special Repair Requirement  ..............

31

IDLE AIR VOLUME LEARNING  ................................

31

IDLE AIR VOLUME LEARNING : Description  .........

31

IDLE AIR VOLUME LEARNING : Special Repair
Requirement ............................................................

31

MIXTURE RATIO SELF-LEARNING VALUE
CLEAR .......................................................................

33

MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Description ................................................

33

MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Special Repair Requirement .....................

33

FUNCTION DIAGNOSIS ..............................

34

ENGINE CONTROL SYSTEM  ..........................

34

System Diagram .....................................................

34

System Description ..................................................

34

Component Parts Location ....................................

35

Component Description  ...........................................

39

MULTIPORT FUEL INJECTION SYSTEM  .......

40

System Diagram .....................................................

40

System Description ..................................................

40

Component Parts Location ....................................

42

Component Description  ...........................................

47

ELECTRIC IGNITION SYSTEM  ........................

48

System Diagram .....................................................

48

System Description ..................................................

48

Component Parts Location ....................................

49

Component Description  ...........................................

53

AIR CONDITIONING CUT CONTROL  ..............

54

System Diagram  ......................................................

54

System Description ..................................................

54

Component Parts Location ....................................

55

Component Description  ...........................................

59

AUTOMATIC SPEED CONTROL DEVICE
(ASCD) ..............................................................

60

System Diagram  ......................................................

60

System Description ..................................................

60

EC-2

Component Parts Location ...................................

61

Component Description .........................................

66

CAN COMMUNICATION  ...................................

67

System Description .................................................

67

COOLING FAN CONTROL  ...............................

68

System Diagram  .....................................................

68

System Description .................................................

68

Component Parts Location ...................................

69

Component Description  ..........................................

73

EVAPORATIVE EMISSION SYSTEM  ...............

74

System Diagram  .....................................................

74

System Description .................................................

75

Component Parts Location ...................................

75

Component Description .........................................

80

INTAKE VALVE TIMING CONTROL .................

81

System Diagram  .....................................................

81

System Description .................................................

81

Component Parts Location ...................................

81

Component Description  ..........................................

86

ON BOARD DIAGNOSTIC (OBD) SYSTEM  .....

87

Diagnosis Description  .............................................

87

CONSULT-III Function  ..........................................

100

Diagnosis Tool Function ......................................

107

COMPONENT DIAGNOSIS  .......................

109

TROUBLE DIAGNOSIS - SPECIFICATION
VALUE .............................................................

109

Description .............................................................

109

Component Function Check  ..................................

109

Diagnosis Procedure  .............................................

109

POWER SUPPLY AND GROUND CIRCUIT  ...

117

Diagnosis Procedure  .............................................

117

U1001 CAN COMM CIRCUIT  ..........................

121

Description .............................................................

121

DTC Logic ..............................................................

121

Diagnosis Procedure  .............................................

121

U1010 CONTROL UNIT (CAN)  .......................

122

Description .............................................................

122

DTC Logic ..............................................................

122

Diagnosis Procedure  .............................................

122

P0011 IVT CONTROL ......................................

123

DTC Logic ..............................................................

123

Diagnosis Procedure  .............................................

124

Component Inspection ...........................................

125

P0102, P0103 MAF SENSOR ..........................

127

Description .............................................................

127

DTC Logic ..............................................................

127

Diagnosis Procedure  .............................................

128

Component Inspection ...........................................

129

P0112, P0113 IAT SENSOR  ............................

132

Description ............................................................

132

DTC Logic  .............................................................

132

Diagnosis Procedure .............................................

133

Component Inspection  ..........................................

133

P0117, P0118 ECT SENSOR  ...........................

135

Description ............................................................

135

DTC Logic  .............................................................

135

Diagnosis Procedure .............................................

136

Component Inspection  ..........................................

136

P0122, P0123 TP SENSOR ..............................

138

Description ............................................................

138

DTC Logic  .............................................................

138

Diagnosis Procedure .............................................

138

Component Inspection  ..........................................

139

Special Repair Requirement  .................................

140

P0132 HO2S1  ...................................................

141

Description ............................................................

141

DTC Logic  .............................................................

141

Diagnosis Procedure .............................................

142

Component Inspection  ..........................................

143

P0133 HO2S1  ...................................................

145

Description ............................................................

145

DTC Logic  .............................................................

145

Diagnosis Procedure .............................................

146

Component Inspection  ..........................................

148

P0134 HO2S1  ...................................................

151

Description ............................................................

151

DTC Logic  .............................................................

151

Diagnosis Procedure .............................................

152

Component Inspection  ..........................................

153

P0135 HO2S1 HEATER  ...................................

156

Description ............................................................

156

DTC Logic  .............................................................

156

Diagnosis Procedure .............................................

156

Component Inspection  ..........................................

158

P0138 HO2S2  ...................................................

159

Description ............................................................

159

DTC Logic  .............................................................

159

Diagnosis Procedure .............................................

160

Component Inspection  ..........................................

161

P0139 HO2S2  ...................................................

164

Description ............................................................

164

DTC Logic  .............................................................

164

Component Function Check  .................................

166

Diagnosis Procedure .............................................

167

Component Inspection  ..........................................

168

P0141 HO2S2 HEATER  ...................................

171

Description ............................................................

171

DTC Logic  .............................................................

171

Diagnosis Procedure .............................................

172

Component Inspection  ..........................................

173















Content   ..  118  119  120  121   ..
