BCM (BODY CONTROL MODULE)

DLK-807

< ECU DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

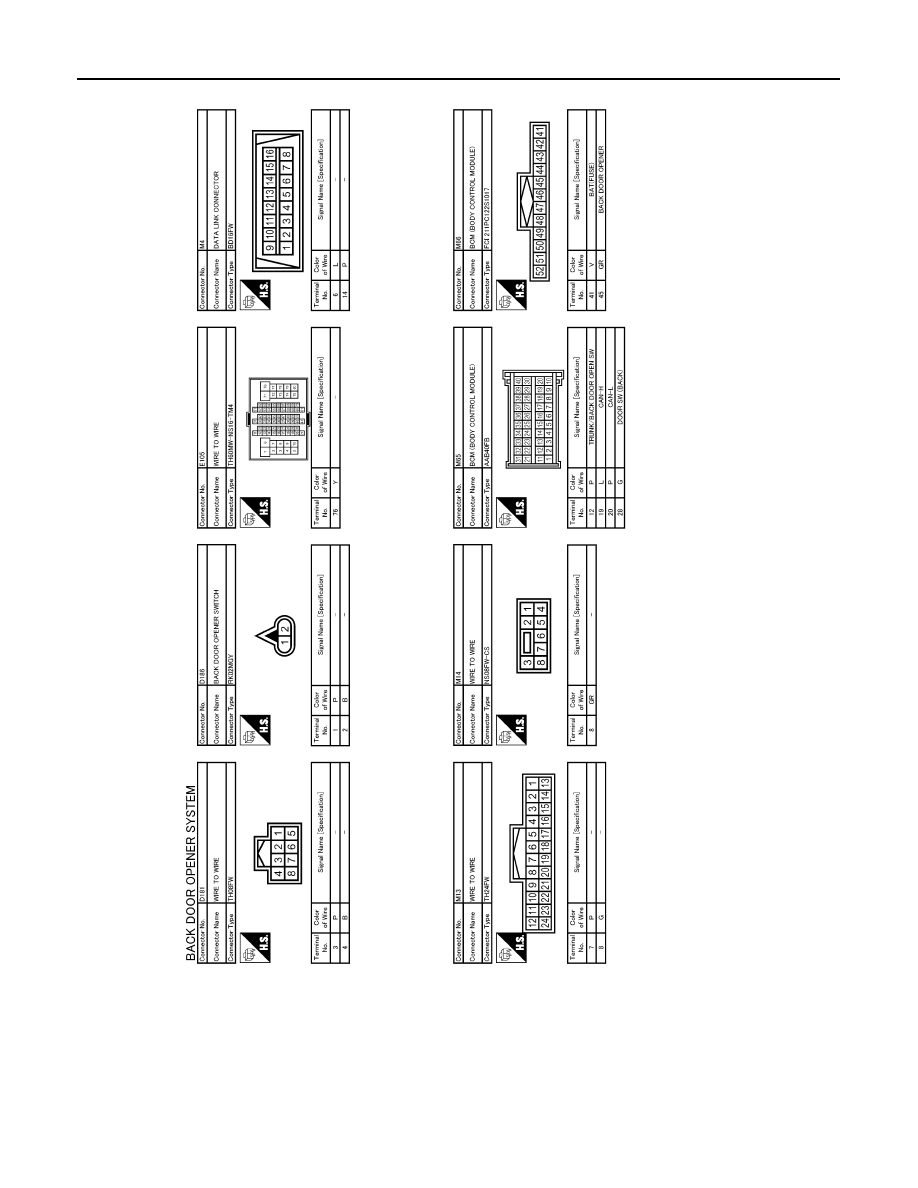

JCKWA0296GB

DLK-808

< ECU DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

BCM (BODY CONTROL MODULE)

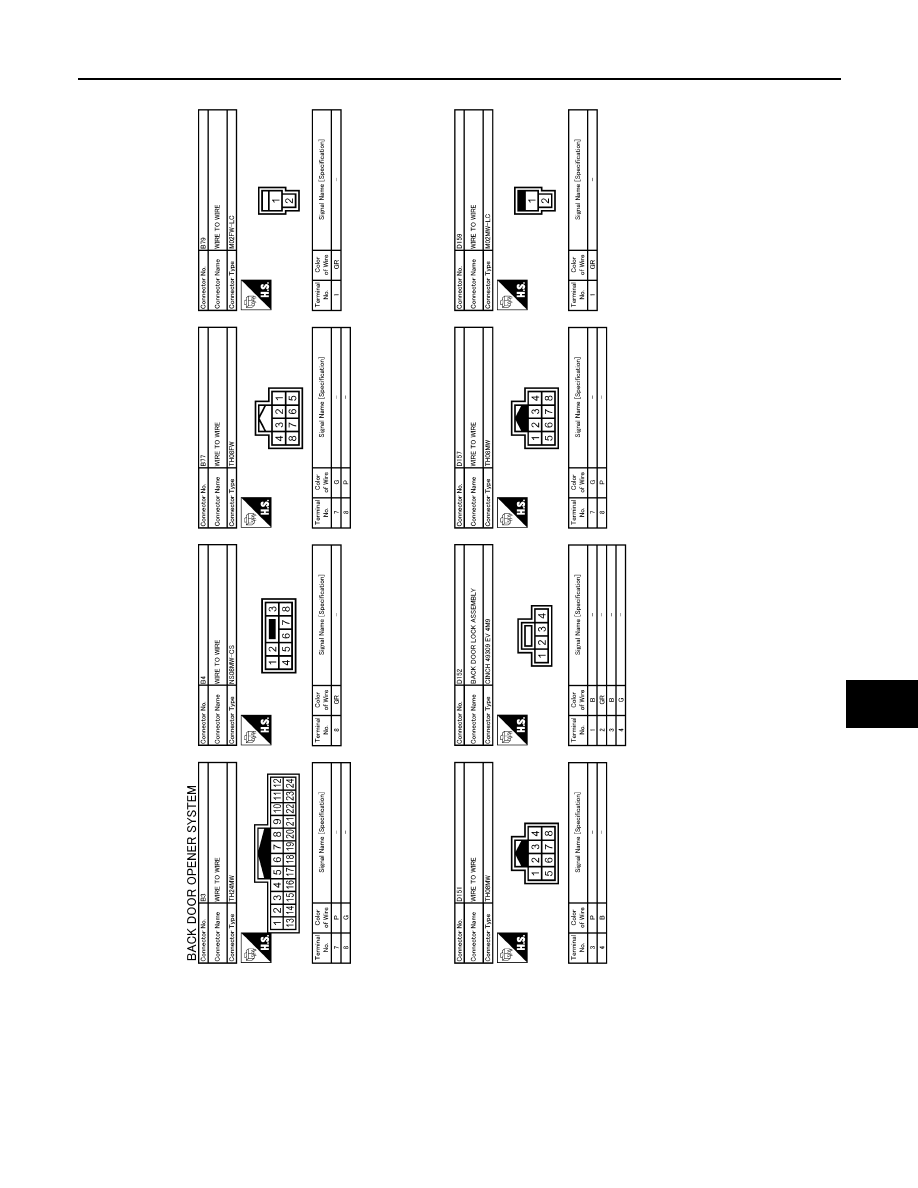

JCKWA0297GB

BCM (BODY CONTROL MODULE)

DLK-809

< ECU DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Fail Safe

INFOID:0000000001097503

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

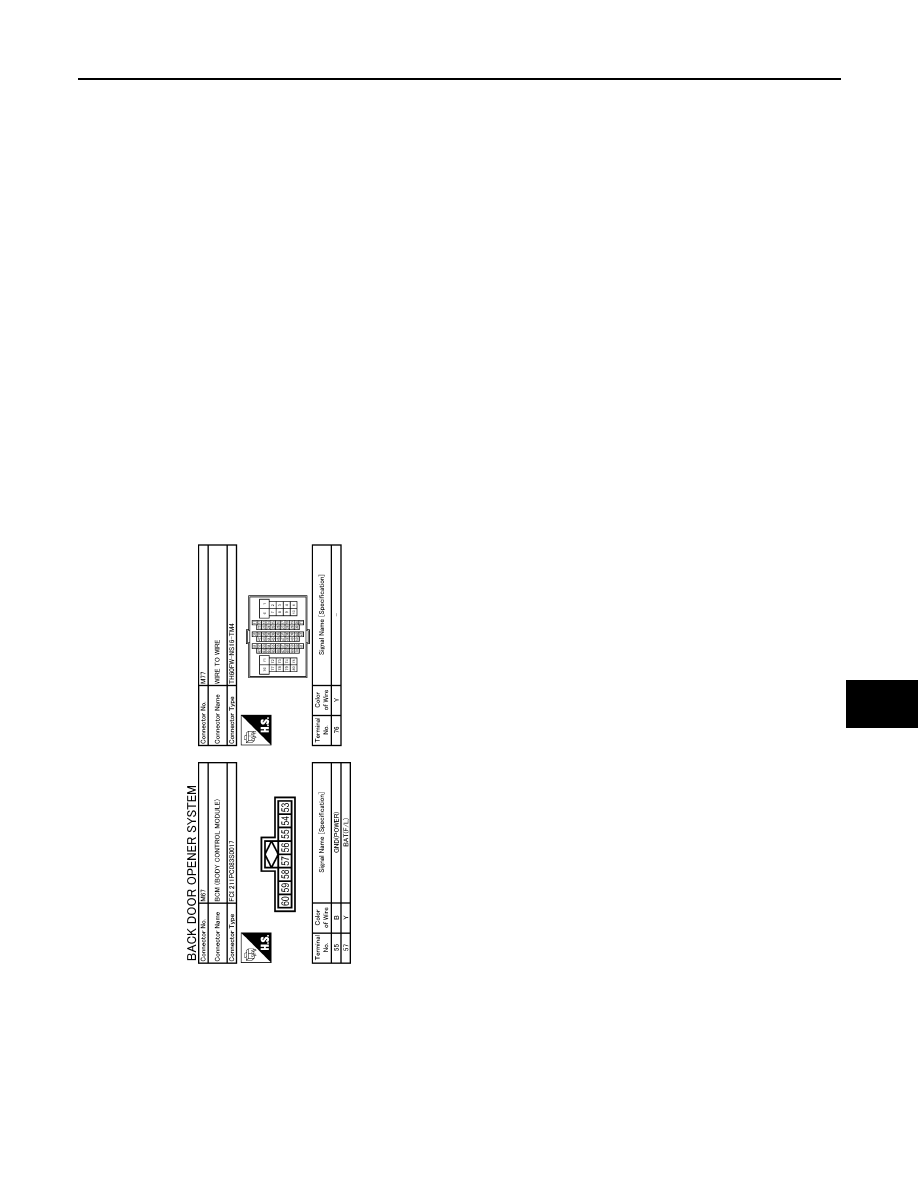

JCKWA0298GB

DLK-810

< ECU DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

BCM (BODY CONTROL MODULE)

REAR WIPER CONTROL

BCM detects a rear wiper stopping position according to a rear wiper auto stop signal.
When a rear wiper auto stop signal is in the condition listed below, BCM stops power supply to rear wiper after
rear wiper is activated for five seconds.

NOTE:
The above operation is repeated when operating the rear wiper switch one minute after the stop of the rear
wiper caused by Fail-safe.

TURN SIGNAL LAMP CONTROL

BCM detects the turn signal lamp circuit status from the terminal voltage.
BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn signal
lamp operating.
NOTE:
The blinking speed is normal while activating the hazard warning lamp.

LIGHT & RAIN SENSOR MALFUNCTION DETECTION FUNCTION

BCM controls the following items when LIGHT & RAIN sensor has a malfunction.

Auto Light Control

Headlamp is turned ON.

Front Wiper Control

The condition just before the activation of Fail-safe is maintained until the front wiper switch is turned OFF.

DTC Inspection Priority Chart

INFOID:0000000001097504

Display contents of CONSULT

Fail-safe

Cancellation

B2190: NATS ANTENNA AMP

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2191: DIFFERENCE OF KEY

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2192: ID DISCORD BCM-ECM

Fuel cut (ECM)

Erase DTC

B2193: CHAIN OF BCM-ECM

Fuel cut (ECM)

Erase DTC

B2194: DISCORD BCM-I-KEY

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2195: ANTI SCANNING

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2196: DONGLE NG

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

Ignition switch

Rear wiper switch

Auto stop signal

ON

OFF

Rear wiper stop position signal cannot be
input 5 seconds.

ON

The signal does not change for 5 seconds.
