BUZZER (COMBINATION METER)

Description

INFOID:0000000001116451

Performs operation method guide and warning with buzzer.

Component Function Check

INFOID:0000000001116452

1.

CHECK FUNCTION

With CONSULT-III

1.

Check the operation with “WARNING BUZZER” in the Active Test.

2.

Touch “KEY REMINDER WARN” on screen.

Is the inspection result normal?

Yes

>> Warning buzzer into combination meter is OK.

No

>> Refer to

DLK-775, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001116453

1.

CHECK METER BUZZER CIRCUIT

Refer to

WCS-20, "Component Function Check"

.

Is the inspection result normal?

Yes

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

No

>> Repair or replace meter buzzer circuit.

DLK-776

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

HAZARD WARNING LAMPS

HAZARD WARNING LAMPS

Description

INFOID:0000000001115760

Perform answer-back for each operation with number of blinks.

Component Function Check

INFOID:0000000001115761

1.

CHECK FUNCTION

With CONSULT-III

Check hazard warning lamp “FLASHER” in Active test.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-776, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001115762

1.

CHECK HAZARD SWITCH CIRCUIT

Check hazard switch circuit.
Refer to

EXL-72, "Component Function Check"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

NO

>> Repair or replace hazard warning switch circuit.

VEHICLE SPEED SIGNAL CIRCUIT

DLK-777

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

VEHICLE SPEED SIGNAL CIRCUIT

Description

INFOID:0000000001115763

Display the vehicle speed signal received from combination meter by numerical value (km/h).

Component Function Check

INFOID:0000000001115764

1.

CHECK FUNCTION

Check the vehicle speed more than 12km/h (7MPH), all doors are automatically locked.

Is the inspection result normal?

YES

>> Vehicle speed signal circuit is OK.

NO

>> Refer to

DLK-778, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001115765

1.

CHECK VEHICLE SPEED SIGNAL CIRCUIT

Check vehicle speed signal “VEHICLE SPEED” in Data monitor.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

NO

>> Repair or replace hazard warning switch circuit.

DLK-778

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

KEYFOB BATTERY

KEYFOB BATTERY

Description

INFOID:0000000001102464

Remote door lock and unlock control entry function available when operating on button.
• Door lock and unlock

Component Function Check

INFOID:0000000001102465

1.

CHECK KEYFOB FUNCTION

Does door lock and unlock operate with operating keyfob switch?
Is the inspection result normal?

YES

>> Keyfob is OK.

NO

>> Refer to

DLK-778, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001102466

1.

CHECK KEYFOB BATTERY

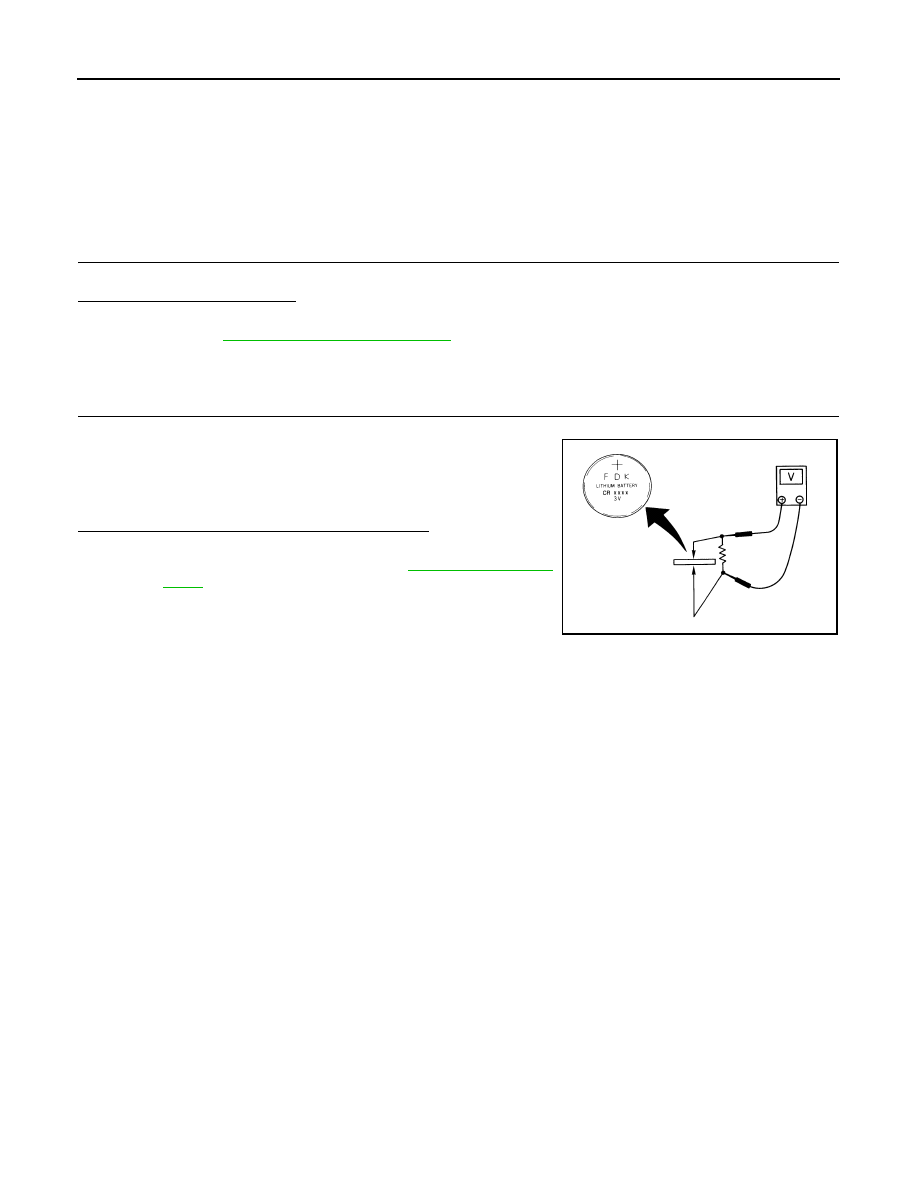

Check by connecting a resistance (approximately 300

Ω

) so that the

current value becomes about 10 mA.

Is the measurement value within the specification?

YES

>> Replace keyfob.

NO

>> Replace keyfob battery. Refer to

DLK-879, "Exploded

View"

.

Standard

: Approx. 2.5 - 3.0V
