BACK DOOR OPENER FUNCTION

DLK-731

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR OPENER SWITCH : Component Description

INFOID:0000000001088059

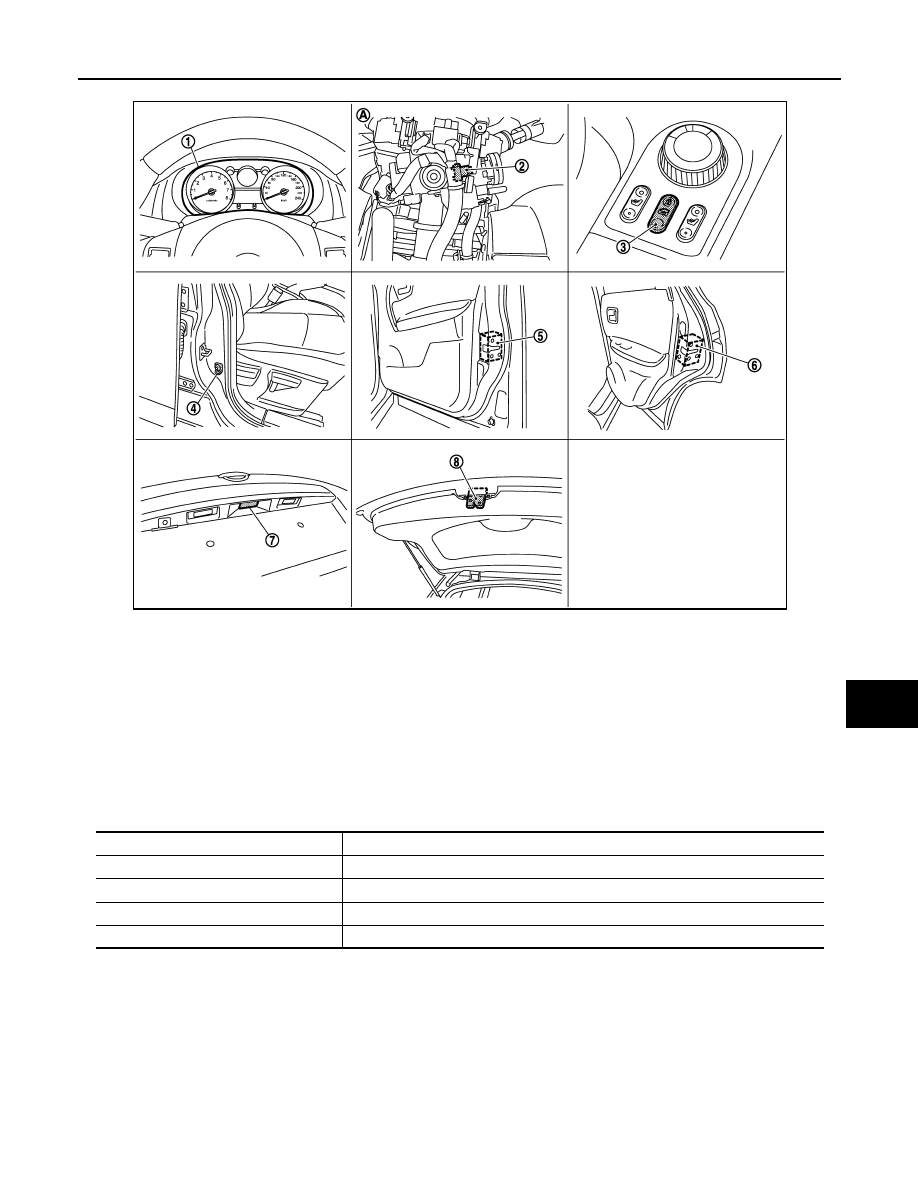

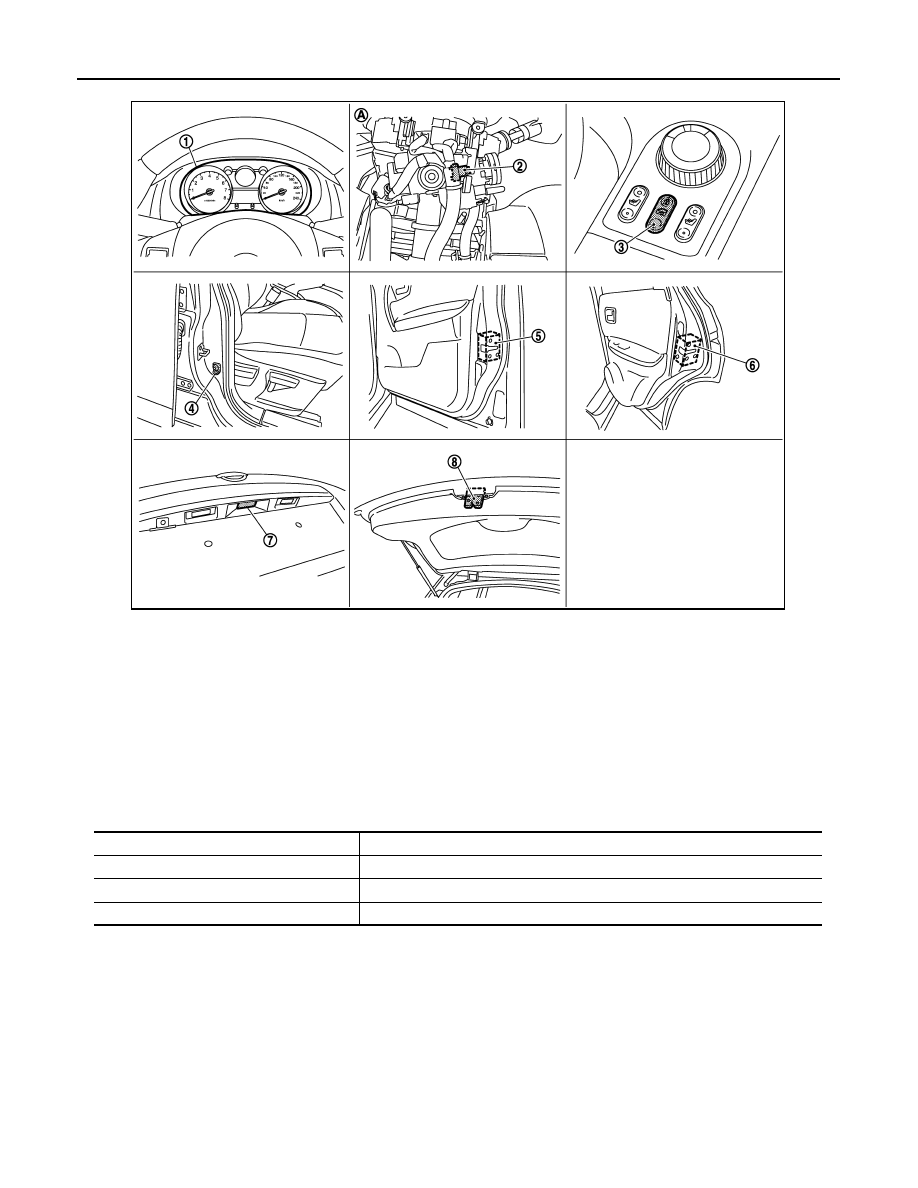

JMKIA0490ZZ

1.

Combination meter
M34

2.

Key switch
M24

3.

Door lock and unlock awitch
M89

4.

Front door switch (driver side)
B34

5.

Front door lock actuator (driver side)
D29

6.

Rear door lock actuator RH
D95

7.

Back door opener switch
D186

8.

Back door lock assembly
D152

A.

View with steering column cover re-
moved

Item

Function

BCM

Controls the back door opener function.

Back door opener switch

Transmits back door opener switch operation signal to BCM.

Back door opener actuator

Opens the back door with the back door open signal from BCM.

Combination meter

Transmits vehicle speed signal to BCM via CAN communication.

DLK-732

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

WARNING FUNCTION

WARNING FUNCTION

System Diagram

INFOID:0000000001088073

BACK DOOR OPEN WARNING

System Description

INFOID:0000000001088074

BACK DOOR OPEN WARNING OPERATION

Back door opener switch is operated, when door lock is locked with door lock and unlock switch, by speed
sensing lock or when only the driver side is unlocked by the anti-hijack function, the buzzer (built in combina-
tion meter) will sound.

KEY REMINDER OPERATION

• The buzzer (combination meter) will sound and the doors will not lock if the door lock and unlock switch is

pressed while the driver door is open and mechanical key is inserted ignition key cylinder.

• The buzzer (combination meter) will sound and the doors will not lock if the door lock and unlock switch is

pressed while any door other than the driver door is open.

Component Parts Location

INFOID:0000000001117089

JMKIA0410GB

WARNING FUNCTION

DLK-733

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

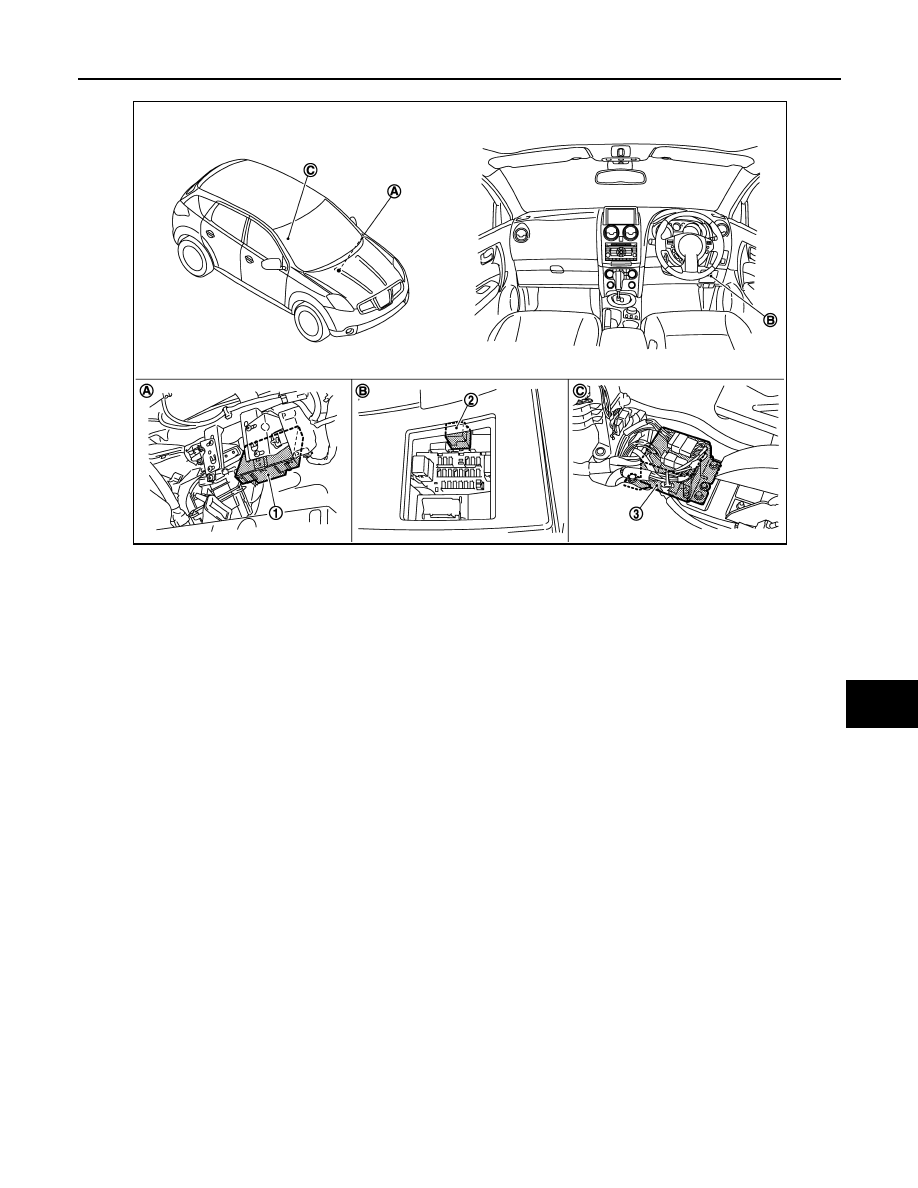

JMKIA0489ZZ

1.

BCM
M65, M66, M67

2.

Passenger side anti-hijack relay
M90

3.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

View with fuse box lid removed

C. View with center console removed

DLK-734

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

WARNING FUNCTION

Component Description

INFOID:0000000001088076

JMKIA0490ZZ

1.

Combination meter
M34

2.

Key switch
M24

3.

Door lock and unlock awitch
M89

4.

Front door switch (driver side)
B34

5.

Front door lock actuator (driver side)
D29

6.

Rear door lock actuator RH
D95

7.

Back door opener switch
D186

8.

Back door lock assembly
D152

A.

View with steering column cover re-
moved

Item

Function

BCM

Controls the warning function.

Combination meter

Sounds the buzzer by the request signal from BCM via CAN communication.

Back door opener switch

Transmit back door open signal to BCM
