VEHICLE SPEED SIGNAL CIRCUIT

DLK-611

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

VEHICLE SPEED SIGNAL CIRCUIT

Description

INFOID:0000000001115721

Display the vehicle speed signal received from combination meter by numerical value (km/h).

Component Function Check

INFOID:0000000001115722

1.

CHECK FUNCTION

Check the vehicle speed more than 12km/h (7MPH), all doors are automatically locked.

Is the inspection result normal?

YES

>> Vehicle speed signal circuit is OK.

NO

>> Refer to

DLK-611, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001115723

1.

CHECK VEHICLE SPEED SIGNAL CIRCUIT

Check vehicle speed signal “VEHICLE SPEED” in Data monitor.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

NO

>> Repair or replace hazard warning switch circuit.

DLK-612

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

KEYFOB BATTERY

KEYFOB BATTERY

Description

INFOID:0000000001099062

Remote door lock and unlock control entry function available when operating on button.
• Door lock and unlock

Component Function Check

INFOID:0000000001099063

1.

CHECK KEYFOB FUNCTION

Does door lock and unlock operate with operating keyfob switch?
Is the inspection result normal?

YES

>> Keyfob is OK.

NO

>> Refer to

DLK-612, "Diagnosis Procedure"

.

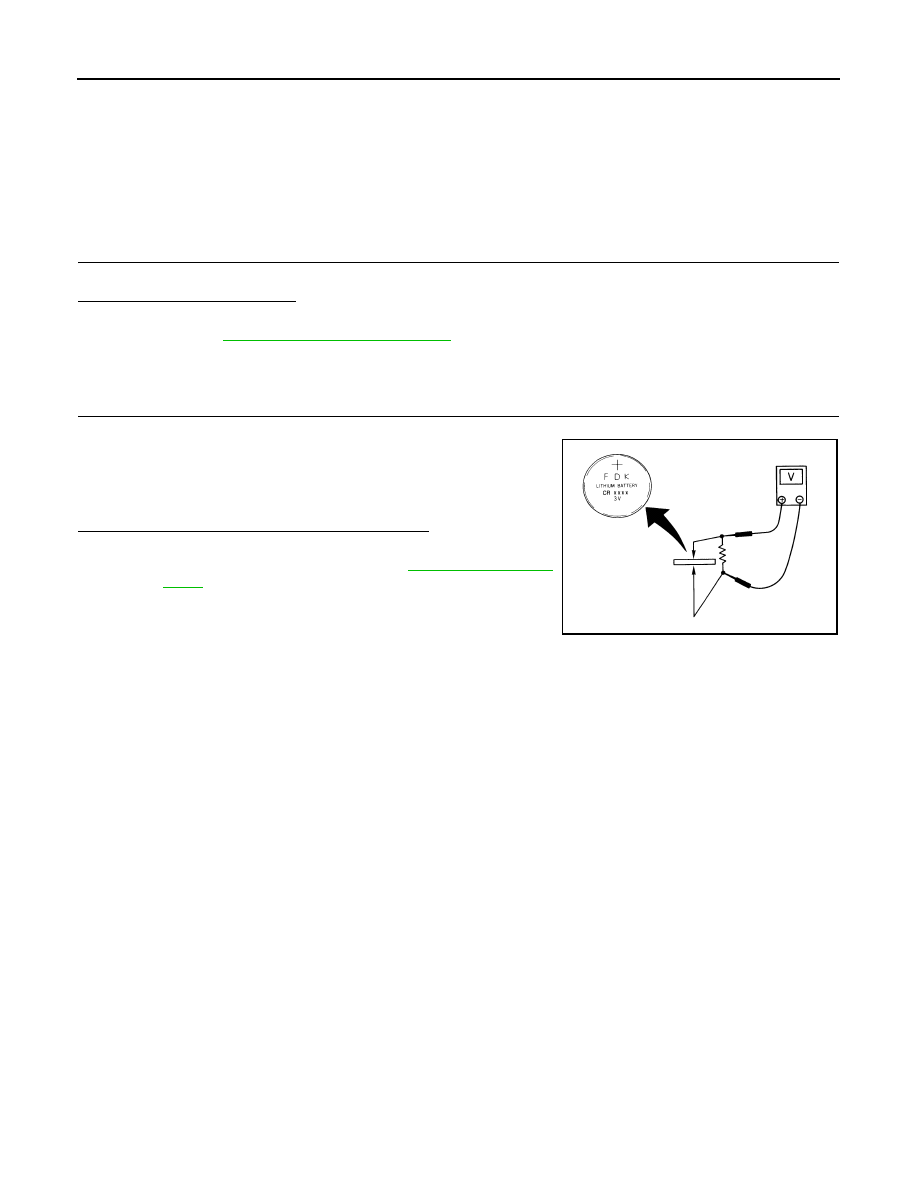

Diagnosis Procedure

INFOID:0000000001099064

1.

CHECK KEYFOB BATTERY

Check by connecting a resistance (approximately 300

Ω

) so that the

current value becomes about 10 mA.

Is the measurement value within the specification?

YES

>> Replace keyfob.

NO

>> Replace keyfob battery. Refer to

DLK-712, "Exploded

View"

.

Standard

: Approx. 2.5 - 3.0V

OCC0607D

BCM (BODY CONTROL MODULE)

DLK-613

< ECU DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000001116443

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

ACC ON SW

Ignition switch OFF

OFF

Ignition switch ACC or ON

ON

AIR COND SW

A/C switch OFF

OFF

A/C switch ON

ON

AUT LIGHT SYS

Outside of the room is dark

OFF

Outside of the room is bright

ON

AUTO LIGHT SW

Lighting switch OFF

OFF

Lighting switch AUTO

ON

BACK DOOR SW

Back door closed

OFF

Back door opened

ON

BATTERY VOLT
NOTE:
Diesel engine models
only

Ignition switch ON

Approximately the same as power
supply voltage

BUCKLE SW

Driver's seat belt unfastened

OFF

Driver's seat belt fastened

ON

CDL LOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the LOCK side

ON

CDL UNLOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the UNLOCK side

ON

DOOR SW-AS

Passenger door closed

OFF

Passenger door opened

ON

DOOR SW-DR

Driver door closed

OFF

Driver door opened

ON

DOOR SW-RL

Rear LH door closed

OFF

Rear LH door opened

ON

DOOR SW-RR

Rear RH door closed

OFF

Rear RH door opened

ON

ELEC PWR CUT
NOTE:
Diesel engine models
only

Engine running

Fan switch ON (when engine coolant is
cool)
NOTE:
Depending on the ambient tempera-
ture, battery voltage, etc.

OFF

The current status maintained with the
signal from ECM received.

FREEZ

• Fan  switch  OFF
• Fan switch ON after engine warming

UP
NOTE:
Depending on the engine coolant
temperature, ambient temperature,
battery voltage, etc.

INHBT

DLK-614

< ECU DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

BCM (BODY CONTROL MODULE)

ENG COOLNT T
NOTE:
Diesel engine models
only

Engine running

Approximately the same as water
temperature gauge reading

ENGINE RPM
NOTE:
Diesel engine models
only

Engine running

Approximately the same as tachom-
eter reading

ENGINE RUN

Engine stopped

OFF

Engine running

ON

ENGINE STATUS
NOTE:
Diesel engine models
only

Engine stopped

STOP

While the engine stalls

STALL

Engine running

RUN

At engine cranking

CRA

FAN ON SIG

Fan switch OFF

OFF

Fan switch ON

ON

FR FOG SW

Front fog lamp switch OFF

OFF

Front fog lamp switch ON

ON

FR WASHER SW

Front washer switch OFF

OFF

Front washer switch ON

ON

FR WIPER LOW

Front wiper switch OFF

OFF

Front wiper switch LO

ON

FR WIPER HI

Front wiper switch OFF

OFF

Front wiper switch HI

ON

FR WIPER INT

Front wiper switch OFF

OFF

Front wiper switch INT

ON

FR WIPER STOP

Any position other than front wiper stop position

OFF

Front wiper stop position

ON

HAZARD SW

When hazard switch is not pressed

OFF

When hazard switch is pressed

ON

HEAD LAMP SW 1

Lighting switch OFF

OFF

Lighting switch 2ND

ON

HEAD LAMP SW 2

Lighting switch OFF

OFF

Lighting switch 2ND

ON

HI BEAM SW

Lighting switch OFF

OFF

Lighting switch HI

ON

HOOD SW

Close the hood
NOTE:
Vehicles without theft warning system are OFF-fixed

OFF

Open the hood

ON

H/L WASH SW

NOTE:
The item is indicated, but not monitored

OFF

IGN ON SW

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

IGN SW CAN

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

1 - 7

Monitor Item

Condition

Value/Status
