3.
Disconnect the front door harness connector.
4.

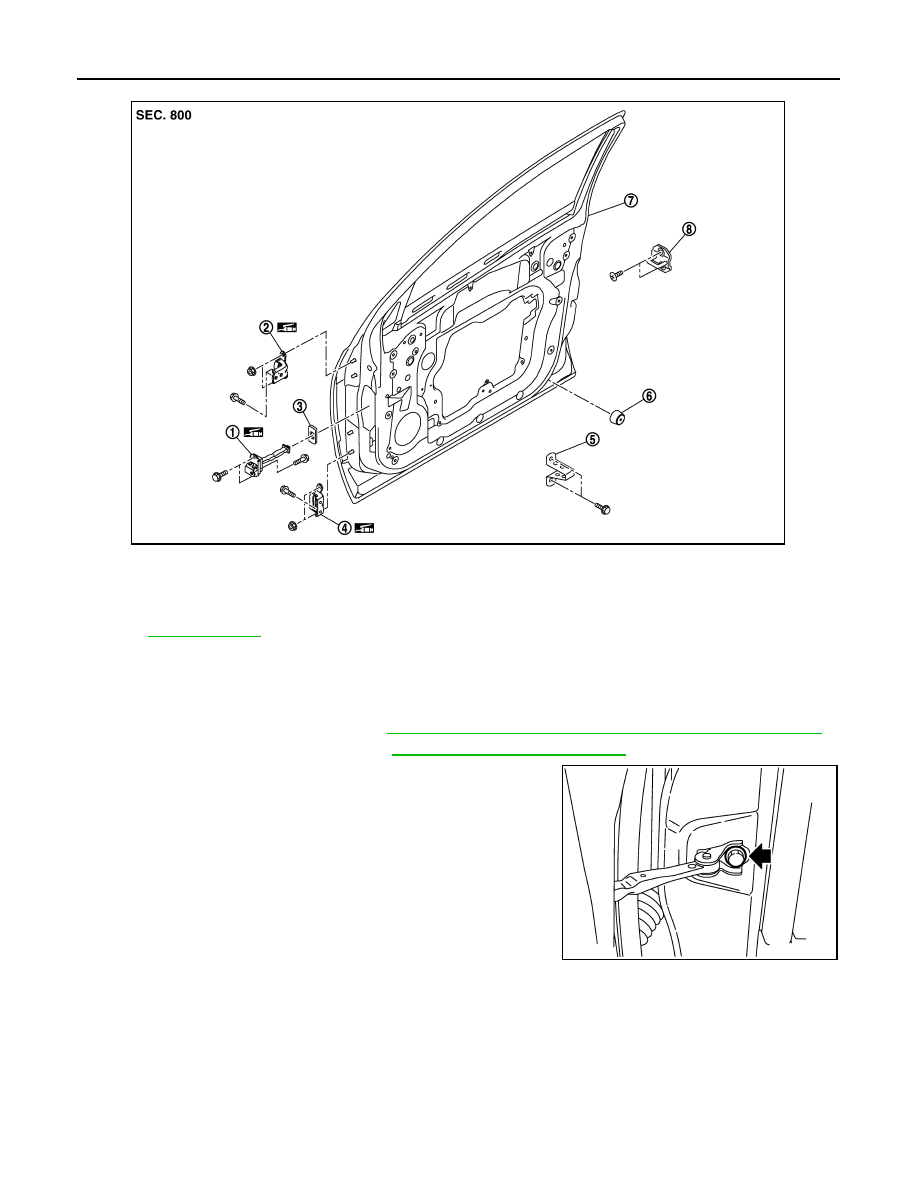

Remove the door hinge mounting nuts (door side), and then remove the door assembly.
CAUTION:
• When removing and installing the front door assembly, support the door with a jack and cloth to
protect the door and body.
• Perform work with 2 workers, because of its heavy weight.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
• When removing and installing the front door assembly, perform the fitting adjustment. Refer to
842, "DOOR ASSEMBLY : Adjustment"
.
• After installation, apply touch-up paint (the body color) onto the head of the door hinge mounting
nuts.
• Check the door hinge rotating part for poor lubrication. If necessary, apply body grease.
• Check the front door open/close operation after installation.

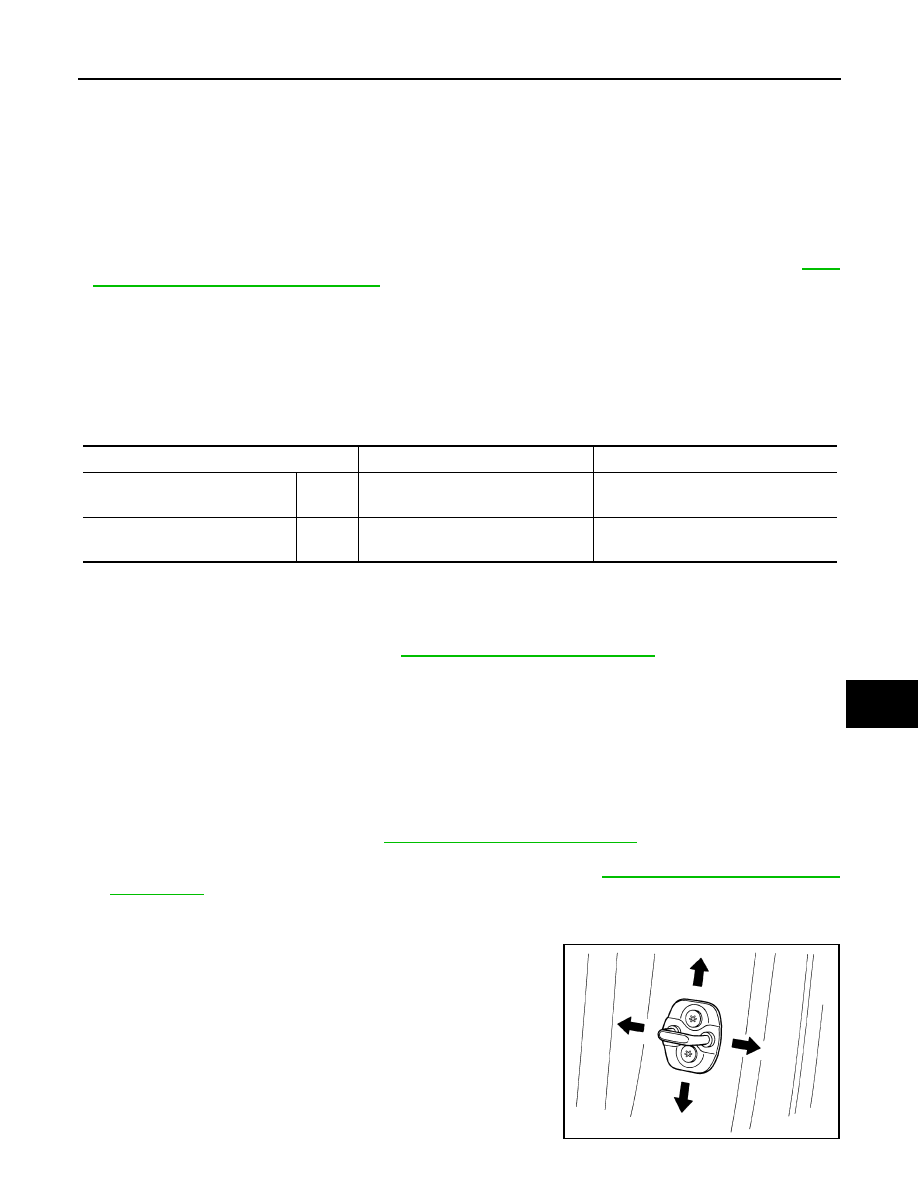

DOOR ASSEMBLY : Adjustment
INFOID:0000000001098481
CLEARANCE, SURFACE HEIGHT AND SURFACE MISMATCH ADJUSTMENT
1.
Check the clearance and surface height and surface mismatch between the front door and each part
visually and by touching. (Fitting standard dimension in the table below shall be satisfied.)
2.
In case any parts are out of specification, adjust them according to the procedures shown below.
3.
Remove the front fender. Refer to refer to
DLK-838, "Removal and Installation"
4.
Loosen the door hinge mounting nuts on door side.
5.
Adjust the surface height and surface mismatch of the front door according to the fitting standard dimen-
sion.
6.
Temporarily tighten the hinge mounting nuts on door side.
7.
Loosen the door hinge mounting bolts on body side.
8.
Raise the front door at rear end to adjust clearance of the front door according to the fitting standard
dimension.
9.
After adjustment tighten bolts and nuts to the specified torque.
10. Install the front fender. Refer to refer to
DLK-838, "Removal and Installation"
.
CAUTION:
After installation, check the front fender adjustment. Refer to

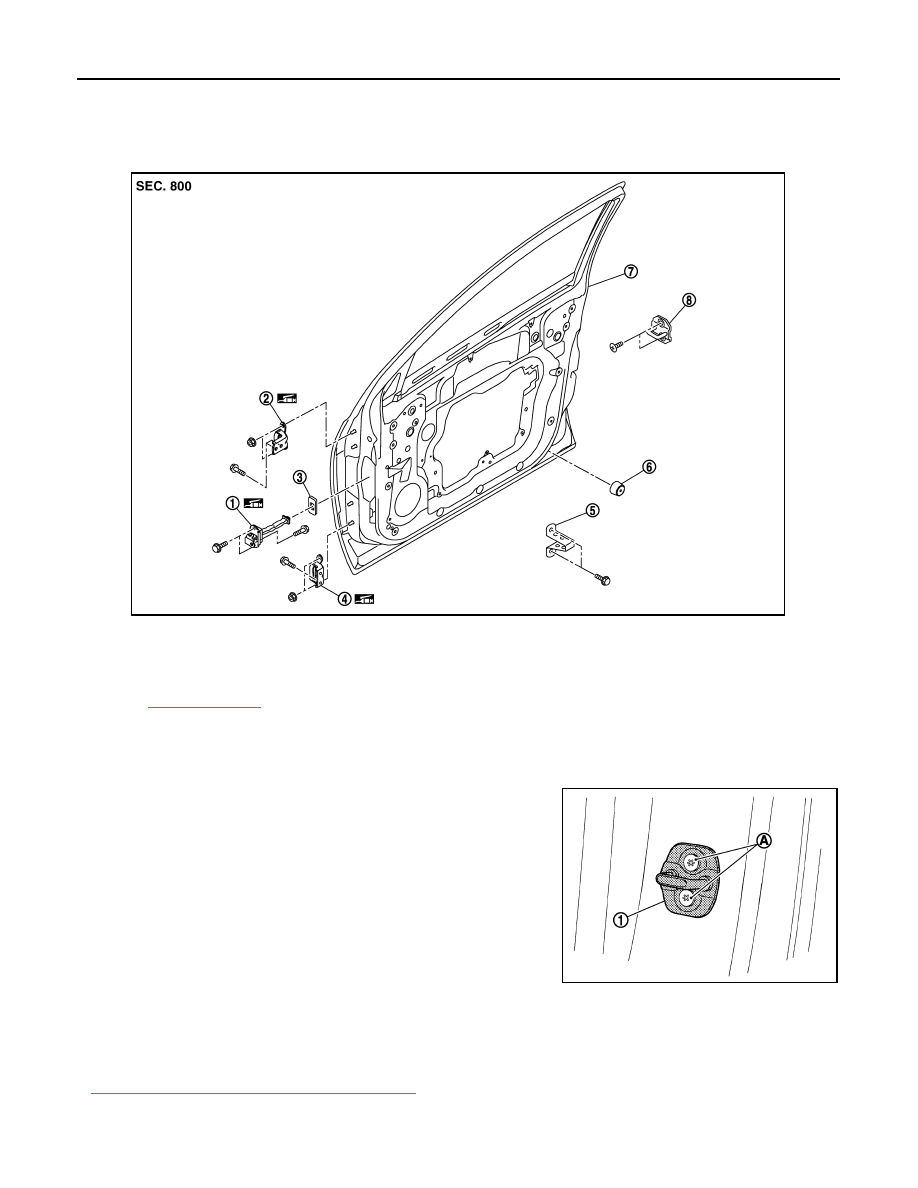

DOOR STRIKER ADJUSTMENT
Adjust the door striker so that it becomes parallel with the lock inser-
tion direction.
Portion
Clearance
Surface height
Front fender – Front door
A – A
3.5 – 5.0 mm
(0.138 – 0.197 in)
- 1.5 – 0.5 mm
(- 0.059 – 0.020 in)
Front door – Rear door
B – B
3.5 – 5.0 mm
(0.138 – 0.197 in)
- 1.5 – 0.5 mm
(- 0.059 – 0.020 in)
PIIB2804J
