ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000001090922

BASIC INSPECTION

1.

CHECK POWER DOOR LOCK AND UNLOCK SWITCH OPERATION

Check door lock and unlock operation by operating door lock and unlock switch.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

DLK-473, "DOOR LOCK AND UNLOCK SWITCH : Symptom Table"

.

2.

CHECK INTELLIGENT KEY OPERATION

Check door lock and unlock operation by operating the Intelligent Key remote control button.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Refer to

DLK-473, "INTELLIGENT KEY : Symptom Table"

.

3.

CHECK DOOR REQUEST SWITCH OPERATION

Check door lock and unlock operation by operating door request switch.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Refer to

DLK-474, "DOOR REQUEST SWITCH : Symptom Table"

.

4.

CHECK KEY REMINDER OPERATION

Check key reminder operation. Refer to

DLK-299, "KEY REMINDER : System Description"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Refer to

DLK-475, "KEY REMINDER : Symptom Table"

.

5.

CHECK AUTO DOOR LOCK OPERATION

Check auto door lock operation. Refer to

DLK-302, "AUTO DOOR LOCK : System Description"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Refer to

DLK-475, "AUTO DOOR LOCK : Symptom Table"

.

6.

CHECK VEHICLE SPEED SENSING AUTO DOOR LOCK OPERATION

Check vehicle speed sensing auto door lock operation. Refer to

DLK-305, "VEHICLE SPEED SENSING

AUTO DOOR LOCK : System Description"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Refer to

DLK-476, "VEHICLE SPEED SENSING AUTO DOOR LOCK : Symptom Table"

.

7.

CHECK BACK DOOR OPENER OPERATION

Check back door opener operation by operating the back door opener switch.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Refer to

DLK-477, "BACK DOOR OPENER SWITCH : Symptom Table"

.

8.

CHECK WARNING FUNCTION

Check warning function. Refer to

DLK-316, "System Description"

.

Is the inspection result normal?

YES

>> GO TO 9.

DLK-492

< ON-VEHICLE MAINTENANCE >

[WITH I-KEY & SUPER LOCK]

PRE-INSPECTION FOR DIAGNOSTIC

NO [Buzzer (combination meter)]>>  Refer  to

DLK-478, "BUZZER (COMBINATION METER) : Symptom

Table"

.

NO (Intelligent Key warning buzzer)>> Refer to

DLK-478, "INTELLIGENT KEY WARNING BUZZER : Symp-

tom Table"

.

NO (Warning lamp)>> Refer to

DLK-479, "WARNING LAMP : Symptom Table"

.

NO (Back door open warning)>> Refer to

DLK-479, "BACK DOOR : Symptom Table"

.

9.

CHECK HAZARD AND BUZZER REMINDER FUNCTION

Check hazard and buzzer reminder function by Intelligent Key or request switch. Refer to

DLK-322, "System

Description"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO (Hazard warning lamp)>> Refer to

DLK-481, "HAZARD WARNING LAMP : Symptom Table"

.

NO (Intelligent Key warning buzzer)>> Refer to

DLK-481, "INTELLIGENT KEY WARNING BUZZER : Symp-

tom Table"

.

10.

CHECK OUT

CHECK OUT.

>> INSPECTION END

HOOD

DLK-493

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ON-VEHICLE REPAIR

HOOD

HOOD ASSEMBLY

HOOD ASSEMBLY : Exploded View

INFOID:0000000001098453

REMOVAL

ADJUSTMENT

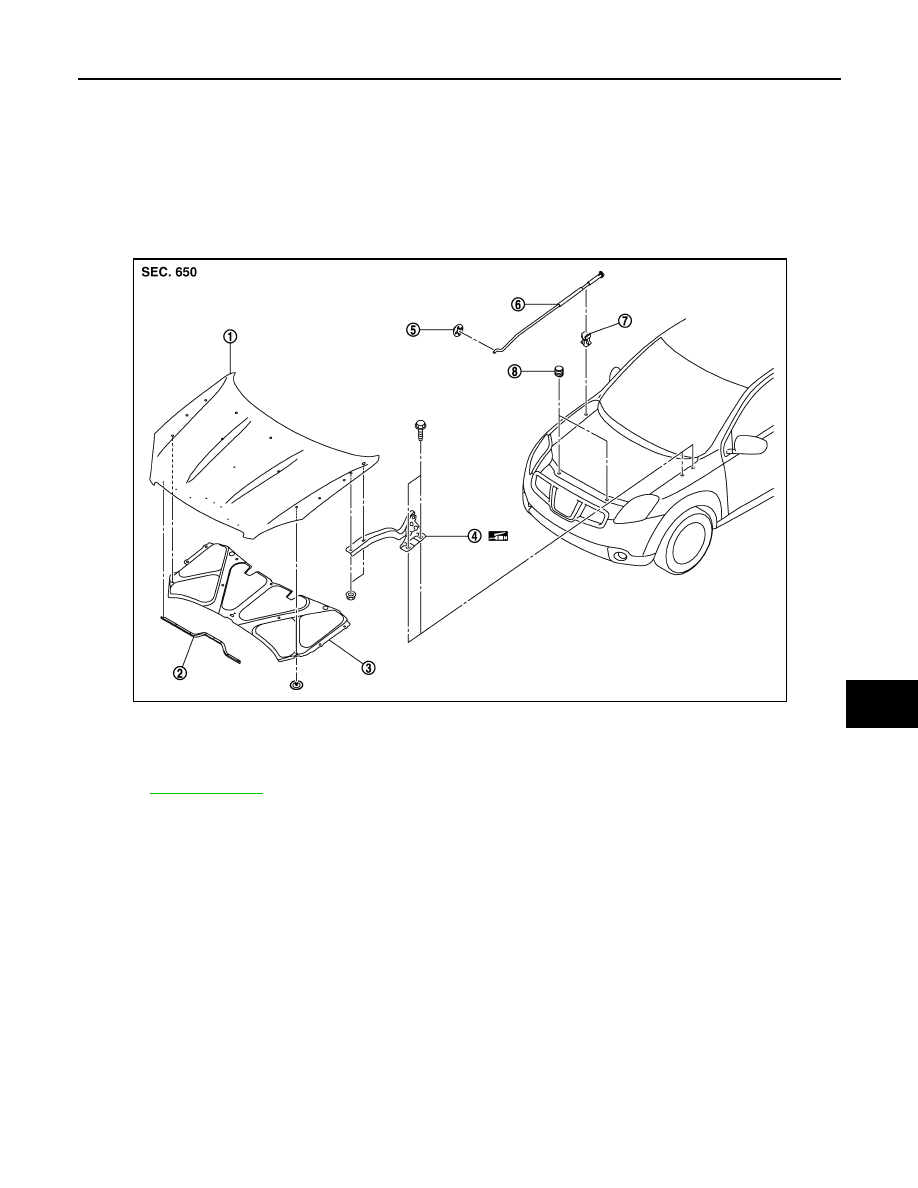

1.

Hood assembly

2.

Hood sealing rubber

3.

Hood insulator

4.

Hood hinge

5.

Grommet

6.

Hood support rod

7.

Clamp

8.

Hood bumper rubber

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0175ZZ

DLK-494

< ON-VEHICLE REPAIR >

[WITH I-KEY & SUPER LOCK]

HOOD

HOOD ASSEMBLY : Removal and Installation

INFOID:0000000001098454

REMOVAL

1.

Support the hood lock assembly with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the hood open when removing the hood
stay.

2.

Remove the hood hinge mounting nuts on the hood to remove the hood assembly.

CAUTION:

Perform work with 2 workers, because of its heavy weight.

3.

Remove the following parts after removing the hood assembly.
• Hood insulator
• Hood sealing rubber

INSTALLATION

Install in the reverse order of removal.

CAUTION:

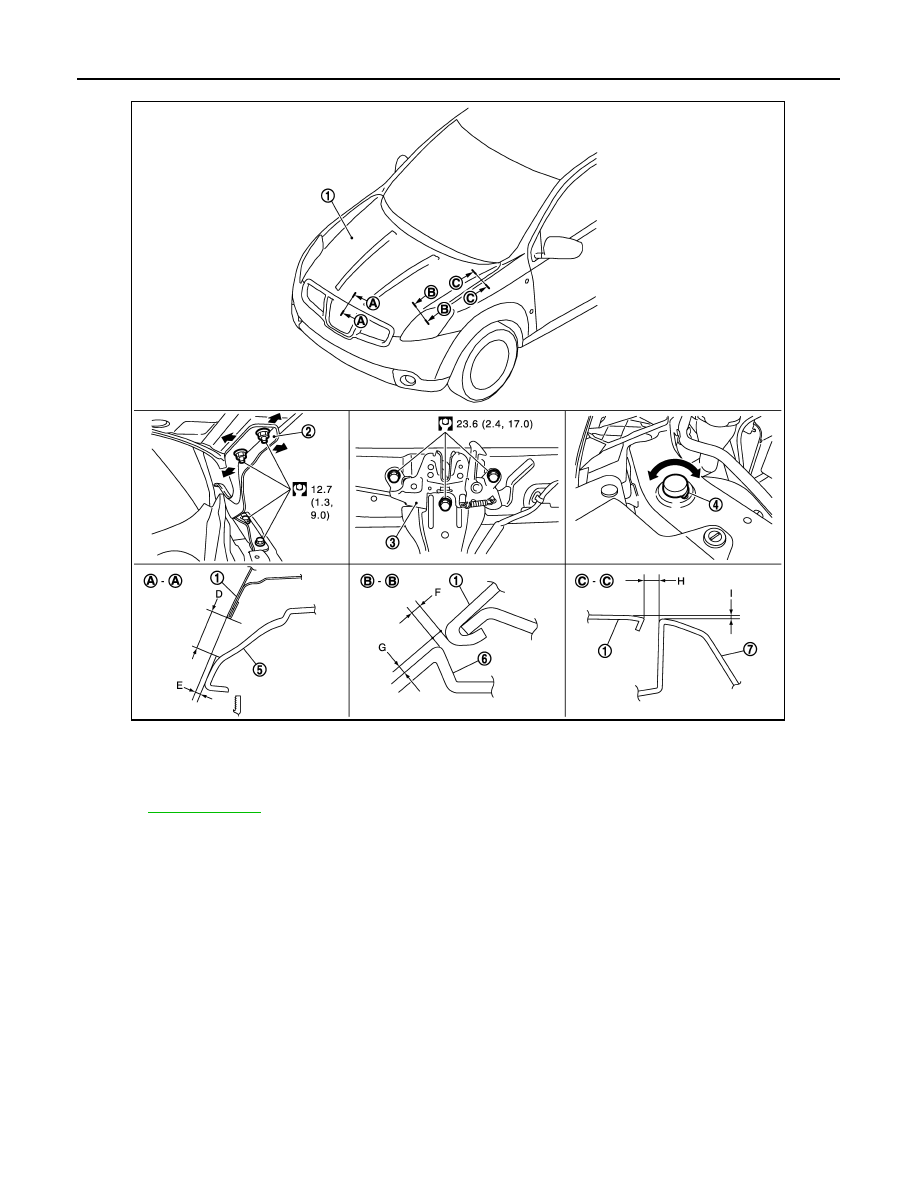

1.

Hood assembly

2.

Hood hinge

3.

Hood lock assembly

4.

Hood bumper rubber

5.

Front grille

6.

Front combination lamp

7.

Front fender

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0185GB
