DOOR LOCK FUNCTION

DLK-311

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Item

Function

BCM

Controls the door lock function.

Air bag diagnosis sensor unit

Transmits air bag deployment signal to BCM.

Door lock actuator

Receives door lock/unlock signal from BCM and lock and unlock each door.

DLK-312

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

BACK DOOR OPENER FUNCTION

BACK DOOR OPENER FUNCTION

BACK DOOR OPENER SWITCH

BACK DOOR OPENER SWITCH : System Diagram

INFOID:0000000001081238

BACK DOOR OPENER OPERATION

BACK DOOR OPENER SWITCH : System Description

INFOID:0000000001081239

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM opens back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are not satisfied, back door opener operation is not performed.

BACK DOOR OPENER SWITCH : Component Parts Location

INFOID:0000000001117079

JMKIA0402GB

Back door opener switch operation

Operation condition

Back door open

• Vehicle speed is less than 5 km/h (3 MPH).
• All doors are unlocked.

BACK DOOR OPENER FUNCTION

DLK-313

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JMKIA0483ZZ

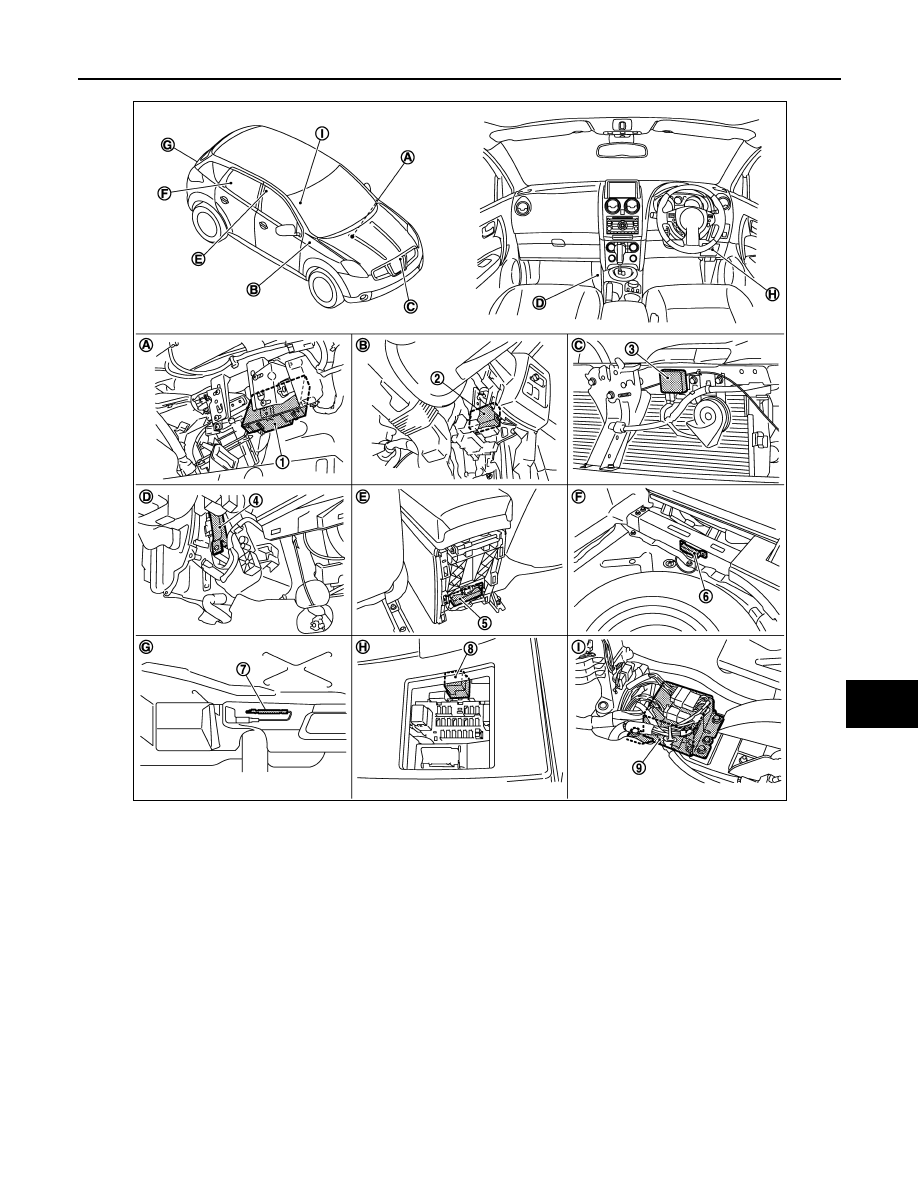

1.

BCM
M65, M66, M67

2.

Intelligent Key unit
M40

3.

Intelligent Key warning buzzer
E25

4.

Inside key antenna (instrument center)
M70

5.

Inside key antenna (center console)
M61

6.

Inside key antenna (rear seat)
B45

7.

Inside key antenna (rear bumper)
B81

8.

Passenger side anti-hijack relay
M90

9.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

Over the instrument lower panel (driver
side)

C. View with front bumper removed

D.

View with lower instrument cover re-
moved

E.

View with center console rear finisher re-
moved

F.

View with luggage floor spacer (LH)
removed

G.

View with rear bumper fascia removed

H.

View with fuse box lid removed

I.

View with center console removed

DLK-314

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

BACK DOOR OPENER FUNCTION

BACK DOOR OPENER SWITCH : Component Description

INFOID:0000000001081241

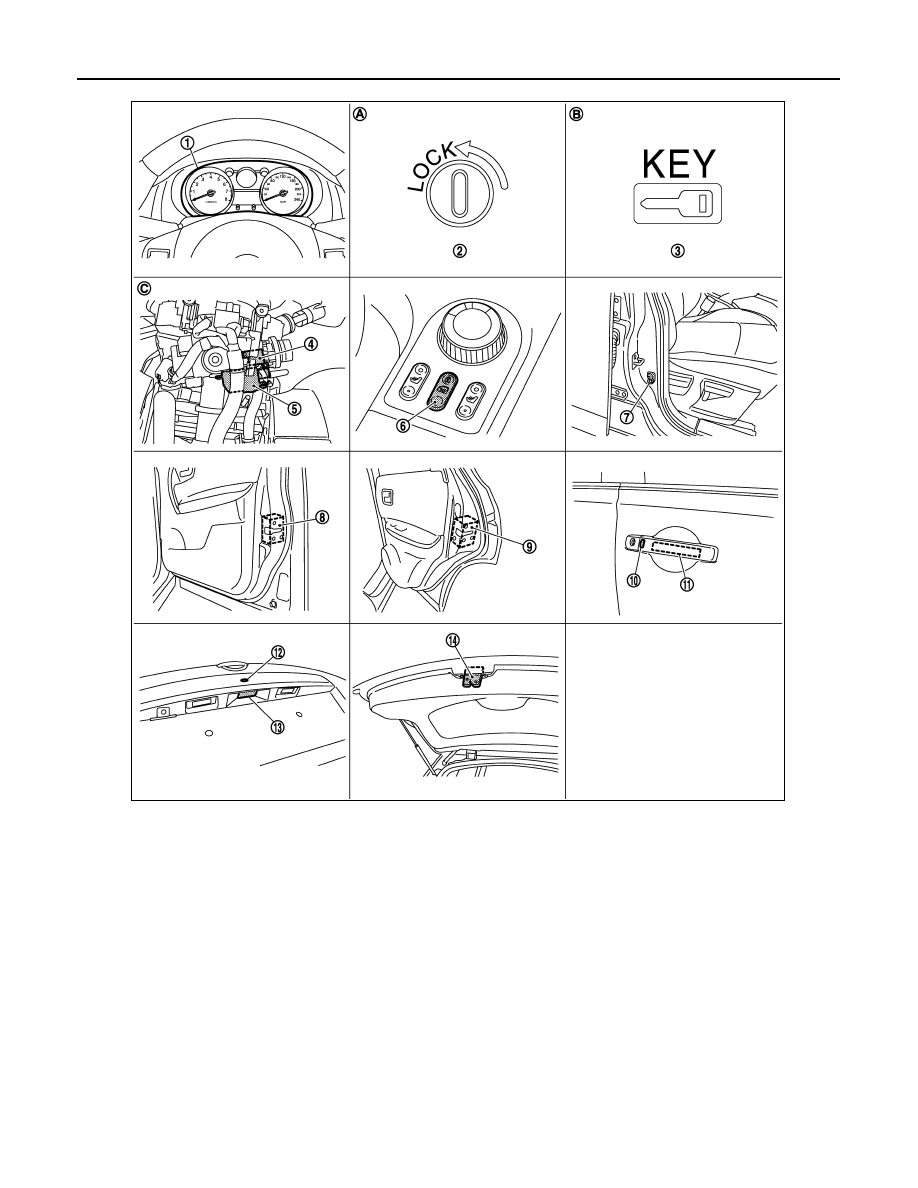

1.

Combination meter
M34

2.

Lock warning lamp
M34

3.

Key warning lamp
M34

4.

Ignition knob switch, key switch and
key lock solenoid (key switch)
M25

5.

Ignition knob switch, key switch and key
lock solenoid (key lock solenoid)
M25

6.

Door lock and unlock switch
M89

7.

Front door switch (driver side)
B34

8.

Front door lock actuator (driver side)
D29

9.

Rear door lock actuator RH
D95

10. Front door request switch (driver side)

D30

11. Outside key antenna (driver side)

D31

12. Back door request switch

D187

13. Back door opener switch

D186

14. Back door lock assembly

D152

A.

Inside the combination meter

B.

Inside the combination meter

C.

View with steering column cover re-
moved

JMKIA0484ZZ
