Nissan Qashqai (2007-2010). Manual - part 1027

BCM (BODY CONTROL MODULE)

DLK-187

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

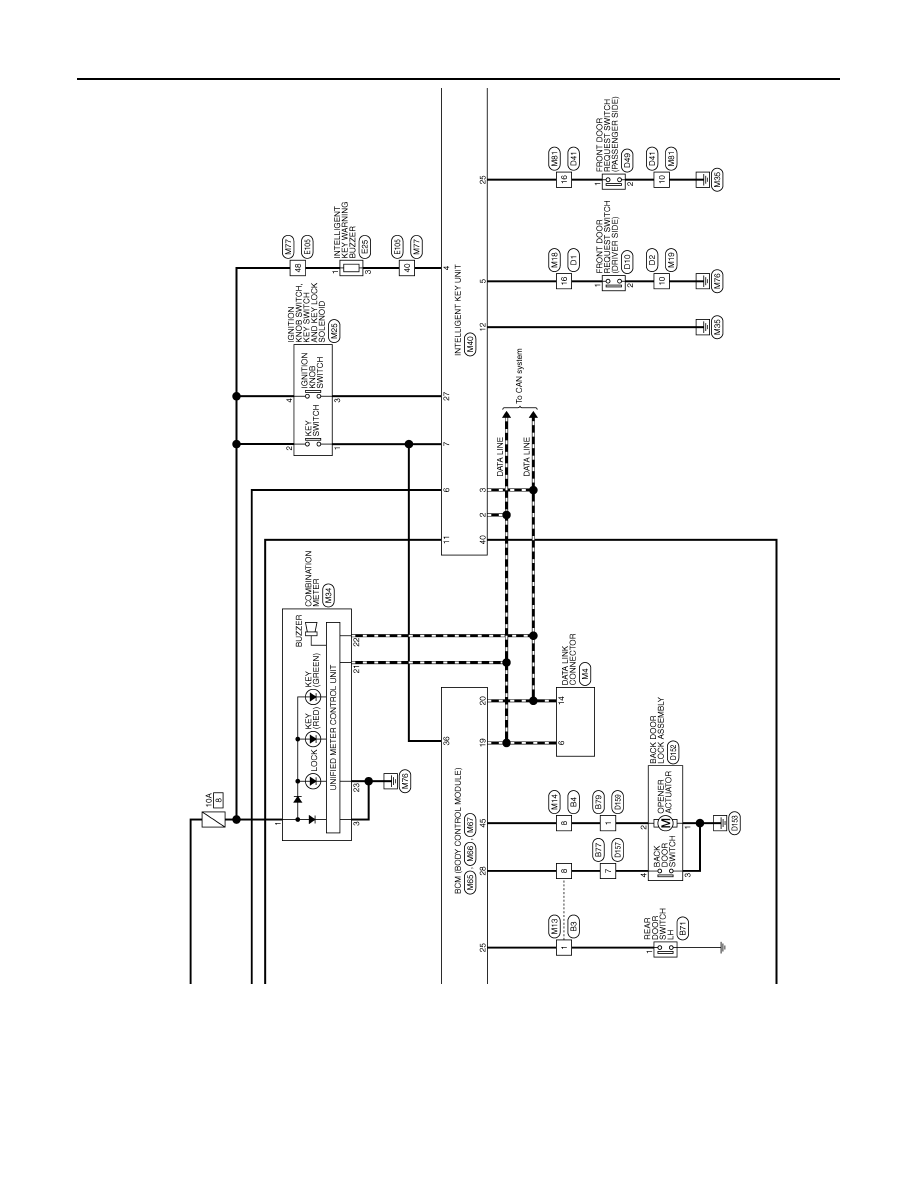

Wiring Diagram - INTELLIGENT KEY CONTROL SYSTEM -

INFOID:0000000001125423

JCKWA0271GB

DLK-188

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

BCM (BODY CONTROL MODULE)

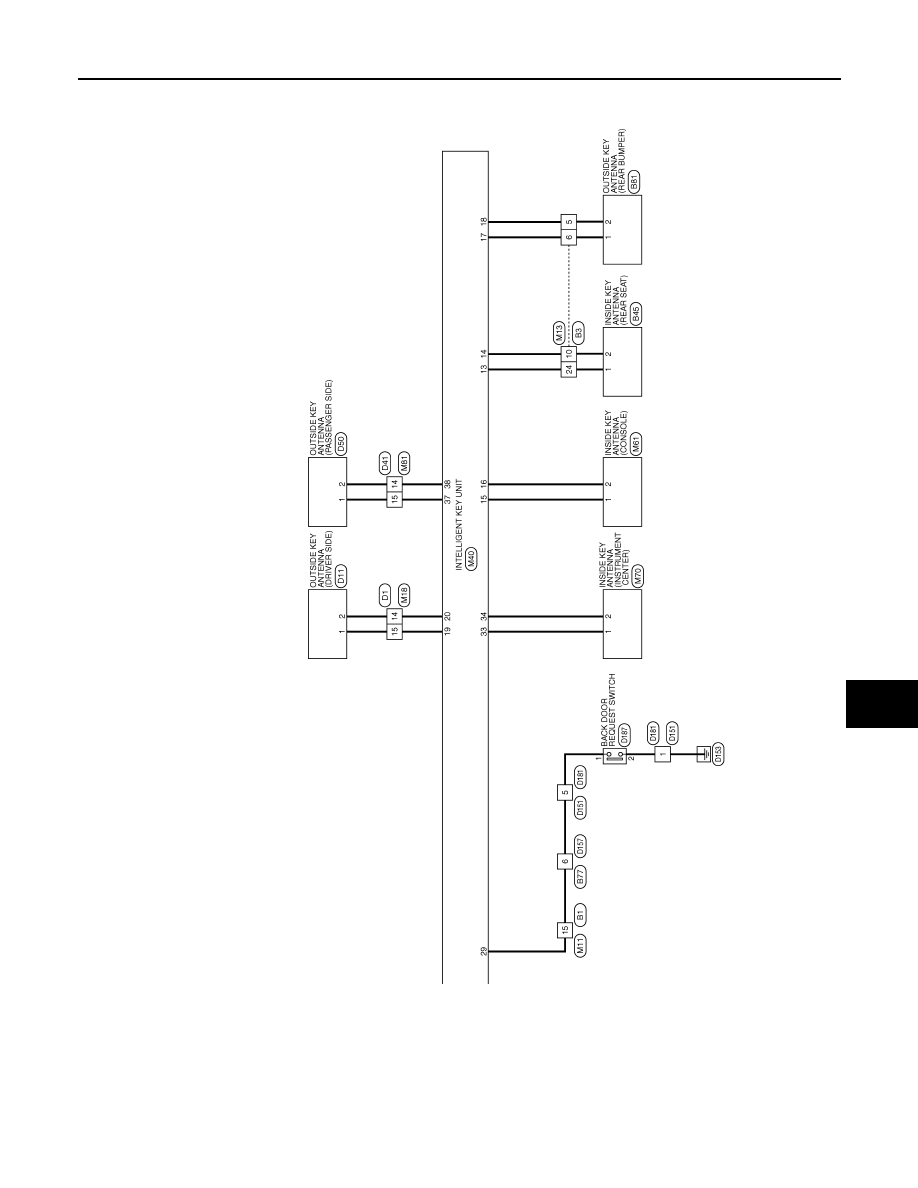

JCKWA0272GB

BCM (BODY CONTROL MODULE)

DLK-189

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

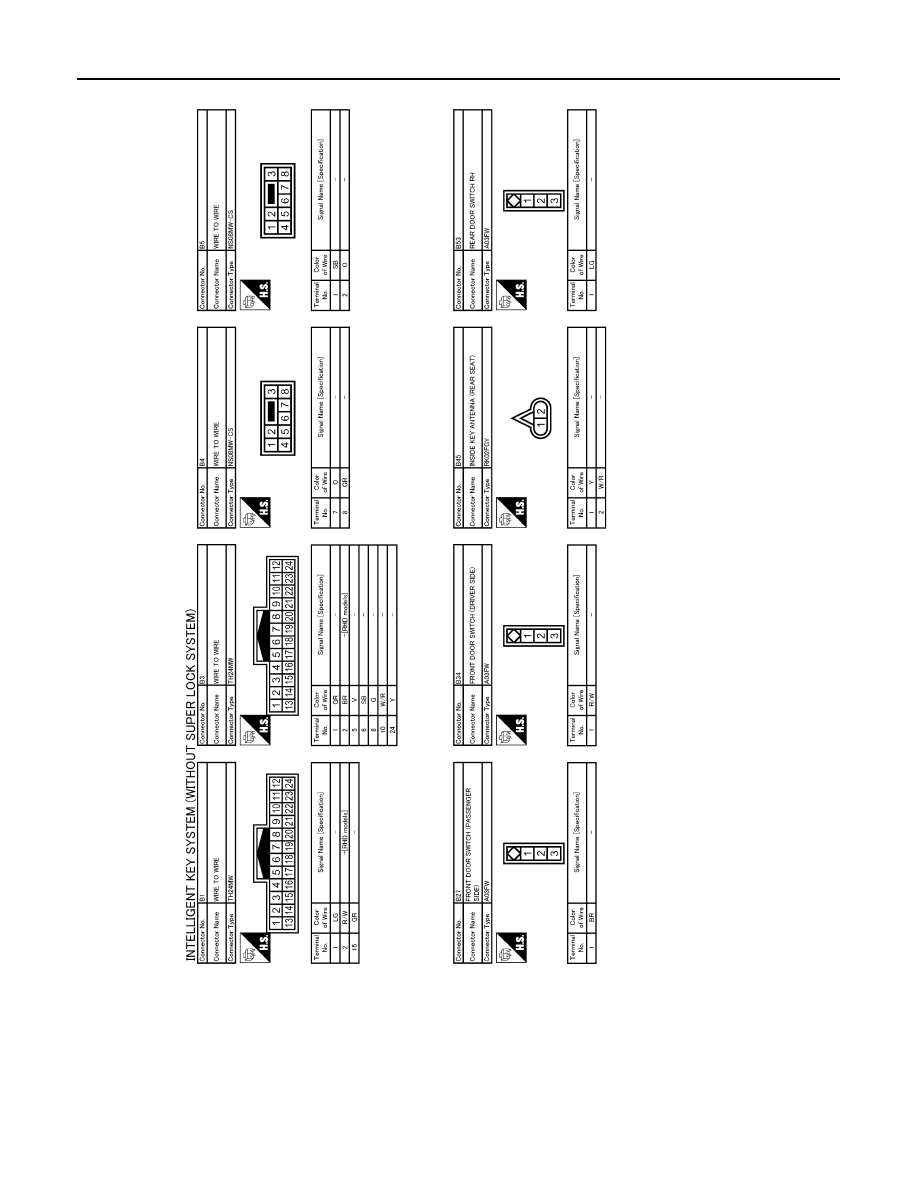

JCKWA0273GB

DLK-190

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

BCM (BODY CONTROL MODULE)

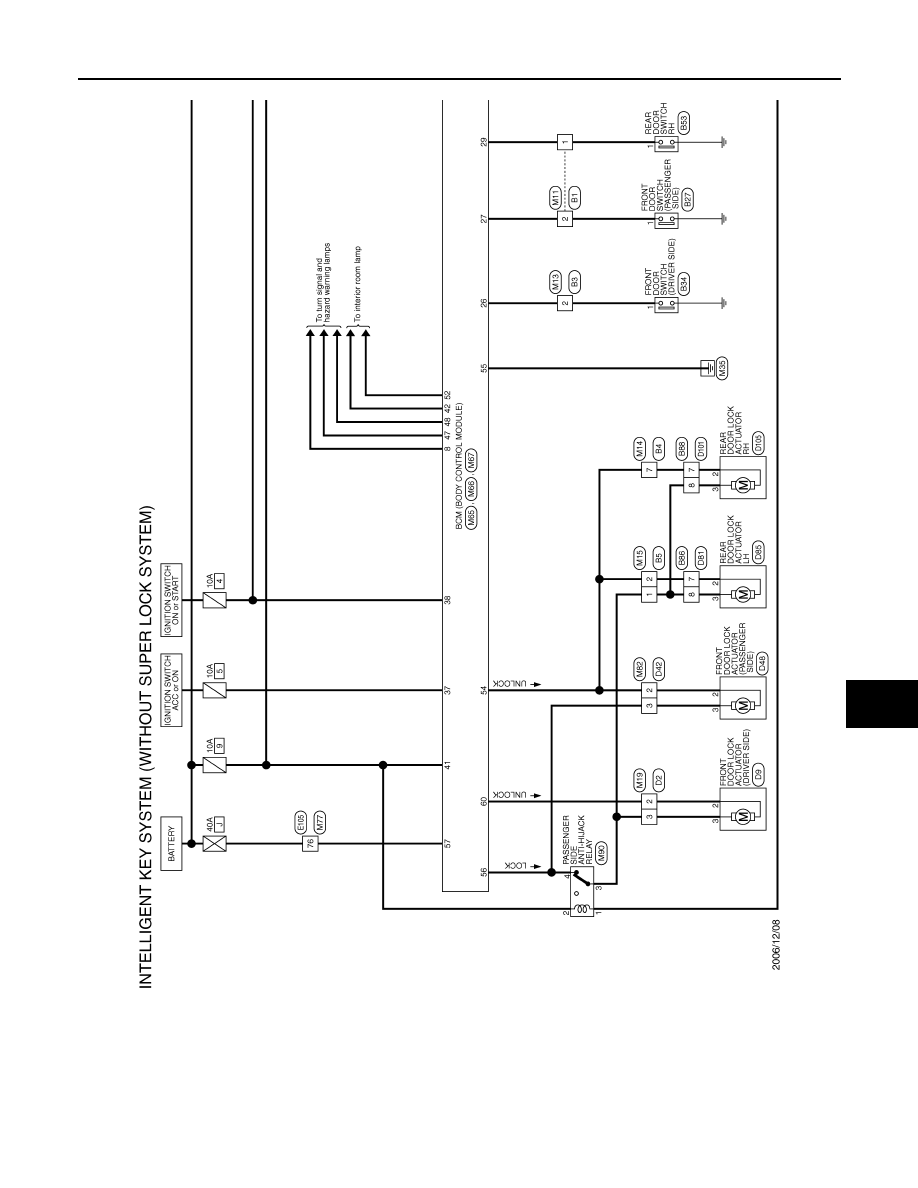

JCKWA0274GB
