LOCK WARNING LAMP

DLK-131

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

LOCK WARNING LAMP

Description

INFOID:0000000001097590

Performs operation method guide and warning together with buzzer.

Component Function Check

INFOID:0000000001097591

1.

CHECK FUNCTION

With CONSULT-III

Check the operation with “INDICATOR” in “Active Test”.

Is the inspection result normal?

Yes

>> Lock warning lamp in combination meter is OK.

No

>> Refer to

DLK-131, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001097592

1.

CHECK LOCK WARNING LAMP CIRCUIT

Refer to

WCS-20, "Component Function Check"

.

Is the inspection result normal?

Yes

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

No

>> Repair or replace lock warning lamp circuit.

Test item

Condition

INDICATOR

:KNOB ON

Lock warning lamp illuminates

:KNOB IND

Lock warning lamp flashes

DLK-132

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

HAZARD WARNING LAMPS

HAZARD WARNING LAMPS

Description

INFOID:0000000000939175

Performs answer-back for each operation with the number of blinks.

Component Function Check

INFOID:0000000000939176

1.

CHECK FUNCTION

With CONSULT-III

Check hazard warning lamp “FLASHER” in “Active test”.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-132, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000000939177

1.

CHECK HAZARD SWITCH CIRCUIT

Check hazard switch circuit.
Refer to

EXL-72, "Component Function Check"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

NO

>> Repair or replace hazard warning switch circuit.

VEHICLE SPEED SIGNAL CIRCUIT

DLK-133

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

VEHICLE SPEED SIGNAL CIRCUIT

Description

INFOID:0000000001078356

Displays the vehicle speed signal received from combination meter as a numerical value (km/h).

Component Function Check

INFOID:0000000001078357

1.

CHECK FUNCTION

Check that all doors are automatically locked at the vehicle speed of more than 12 km/h (7 MPH).

Is the inspection result normal?

YES

>> Vehicle speed signal circuit is OK.

NO

>> Refer to

DLK-133, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001078358

1.

CHECK VEHICLE SPEED SIGNAL CIRCUIT

Check vehicle speed signal “VEHICLE SPEED” in “Data Monitor”.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

NO

>> Repair or replace vehicle speed signal circuit.

DLK-134

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

INTELLIGENT KEY BATTERY

INTELLIGENT KEY BATTERY

Description

INFOID:0000000000939159

The following functions are available when having and carrying electronic ID.
• Door lock and unlock
• Engine start
Remote control entry function and panic alarm function are available when operating the button.

Component Function Check

INFOID:0000000000939160

1.

CHECK INTELLIGENT KEY FUNCTION

Does door lock and unlock operate when operating Intelligent Key switch?

Is the inspection result normal?

YES

>> Intelligent Key is OK.

NO

>> Refer to

DLK-134, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000000939161

1.

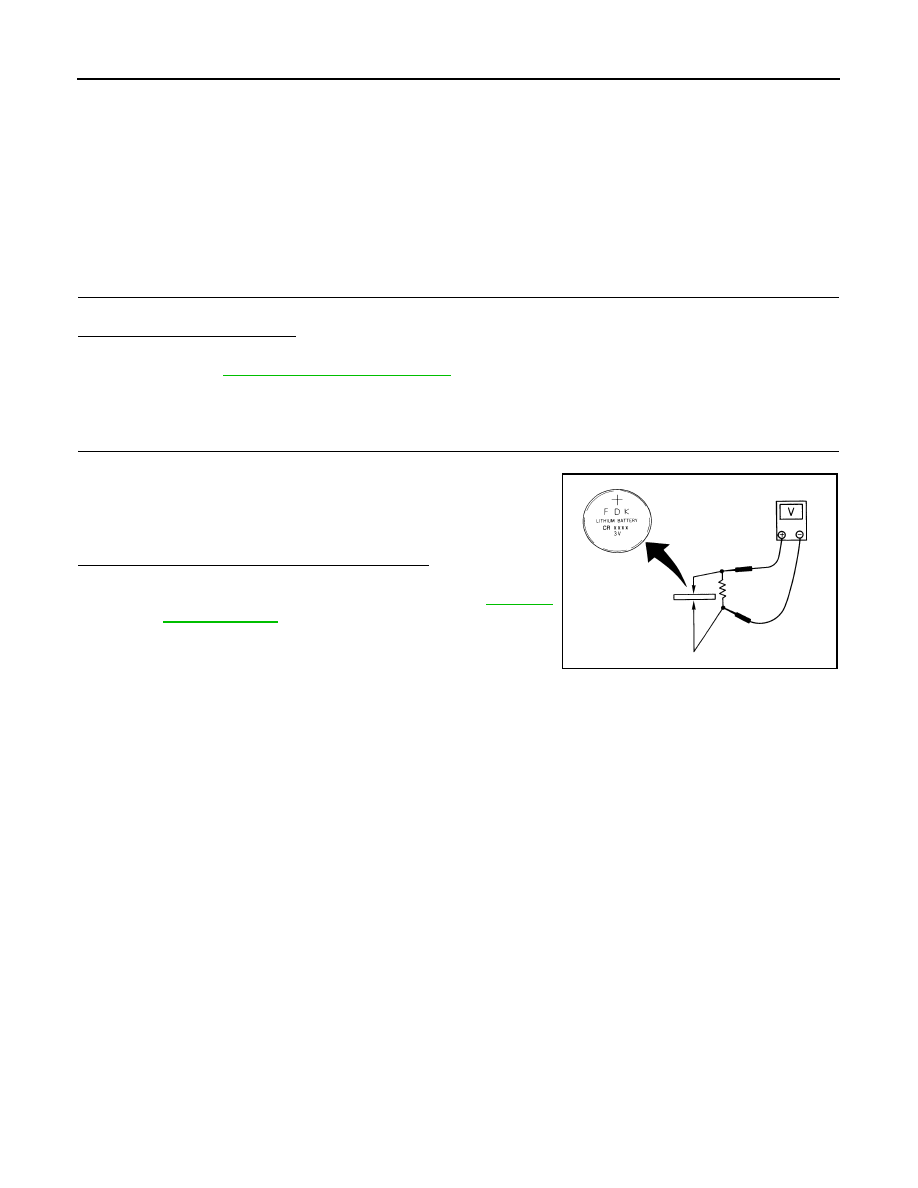

CHECK INTELLIGENT KEY BATTERY

Check by connecting a resistance (approximately 300

Ω

) so that the

current value becomes about 10 mA.

Is the measurement value within the specification?

YES

>> Replace Intelligent Key.

NO

>> Replace Intelligent Key battery. Refer to

DLK-281,

"Exploded View"

.

Standard

: Approx. 2.5 - 3.0V

OCC0607D
