Nissan Qashqai (2007-2010). Manual - part 97

LU-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

LU

A

LU

N

O

P

CONTENTS

ENGINE LUBRICATION SYSTEM

HR16DE

FUNCTION DIAGNOSIS ...............................

3

DESCRIPTION ....................................................

3

Engine Lubrication System  .......................................

3

Engine Lubrication System Schematic ......................

3

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Liquid Gasket  ............................................................

4

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tools ................................................

5

Commercial Service Tools  ........................................

5

ON-VEHICLE MAINTENANCE .....................

6

ENGINE OIL  ........................................................

6

Inspection ..................................................................

6

Draining .....................................................................

7

Refilling .....................................................................

7

OIL FILTER  .........................................................

9

Removal and Installation ...........................................

9

Inspection ..................................................................

9

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

10

SERVICE DATA AND SPECIFICATIONS
(SDS) ..................................................................

10

Periodical Maintenance Specification  .....................

10

Engine Oil Pressure  ................................................

10

MR20DE

FUNCTION DIAGNOSIS ..............................

11

DESCRIPTION ...................................................

11

Engine Lubrication System  .....................................

11

Engine Lubrication System Schematic  ....................

11

PRECAUTION ..............................................

12

PRECAUTIONS .................................................

12

Liquid Gasket ...........................................................

12

PREPARATION ...........................................

13

PREPARATION .................................................

13

Special Service Tools  ..............................................

13

Commercial Service Tools .......................................

13

ON-VEHICLE MAINTENANCE ....................

14

ENGINE OIL  ......................................................

14

Inspection ................................................................

14

Draining ...................................................................

15

Refilling ....................................................................

15

OIL FILTER  .......................................................

17

Removal and Installation  .........................................

17

Inspection ................................................................

17

ON-VEHICLE REPAIR .................................

18

OIL COOLER  ....................................................

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

Inspection ................................................................

19

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

20

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

20

Periodical Maintenance Specification ......................

20

Engine Oil Pressure .................................................

20

K9K

PRECAUTION ..............................................

21

PRECAUTIONS .................................................

21

LU-2

Precaution for Liquid Gasket  ..................................

21

PREPARATION ...........................................

22

PREPARATION  .................................................

22

Special Service Tools  .............................................

22

Commercial Service Tools ......................................

22

ON-VEHICLE MAINTENANCE ...................

23

ENGINE OIL .......................................................

23

Inspection ...............................................................

23

Draining ..................................................................

23

Refilling ...................................................................

24

OIL FILTER  ........................................................

25

Replacement ..........................................................

25

ON-VEHICLE REPAIR ................................

26

OIL FILTER BRACKET  .....................................

26

Exploded View  ........................................................

26

Removal and Installation .........................................

26

OIL COOLER .....................................................

27

Exploded View  ........................................................

27

Removal and Installation .........................................

27

Inspection ................................................................

28

OIL PUMP ..........................................................

29

Exploded View  ........................................................

29

Removal and Installation .........................................

29

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

30

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

30

Periodical Maintenance Specification ....................

30

Engine Oil Pressure ..............................................

30

DESCRIPTION

LU-3

< FUNCTION DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

FUNCTION DIAGNOSIS

DESCRIPTION

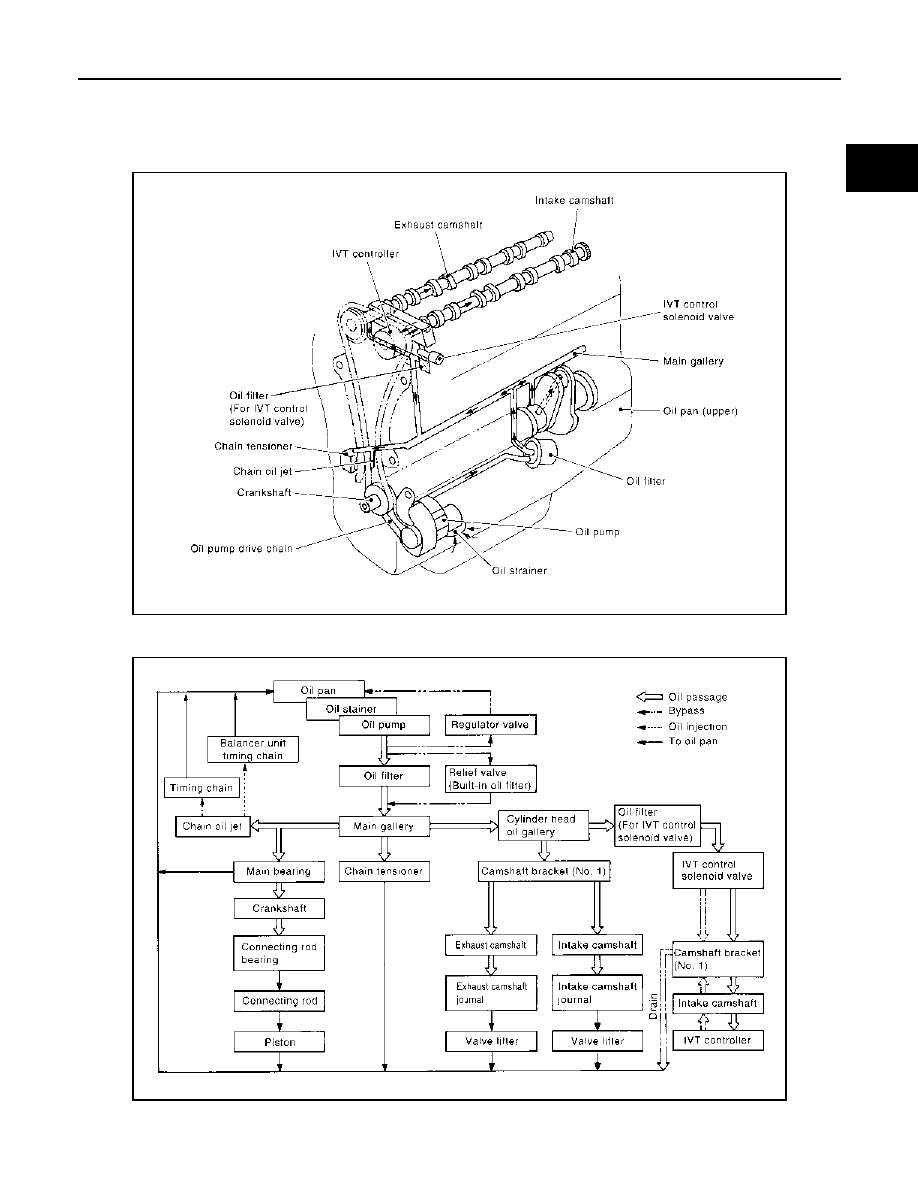

Engine Lubrication System

INFOID:0000000000902409

Engine Lubrication System Schematic

INFOID:0000000000902410

JPBIA0325GB

JPBIA0326GB

LU-4

< PRECAUTION >

[HR16DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Liquid Gasket

INFOID:0000000000902406

LIQUID GASKET APPLICATION PROCEDURE

1.

Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
• Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt

holes.

2.

Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.

3.

Apply liquid gasket to the liquid gasket application surface.
Use Genuine liquid gasket or equivalent.
• Within five minutes of liquid gasket application, install the mating component.
• If liquid gasket protrudes, wipe it off immediately.
• Do not retighten mounting bolts or nuts after the installation.
• After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.
