EM-308

< DISASSEMBLY AND ASSEMBLY >

[K9K]

CYLINDER HEAD

• Head diameter (D)

• Valve length (L)

• Valve margin (T)

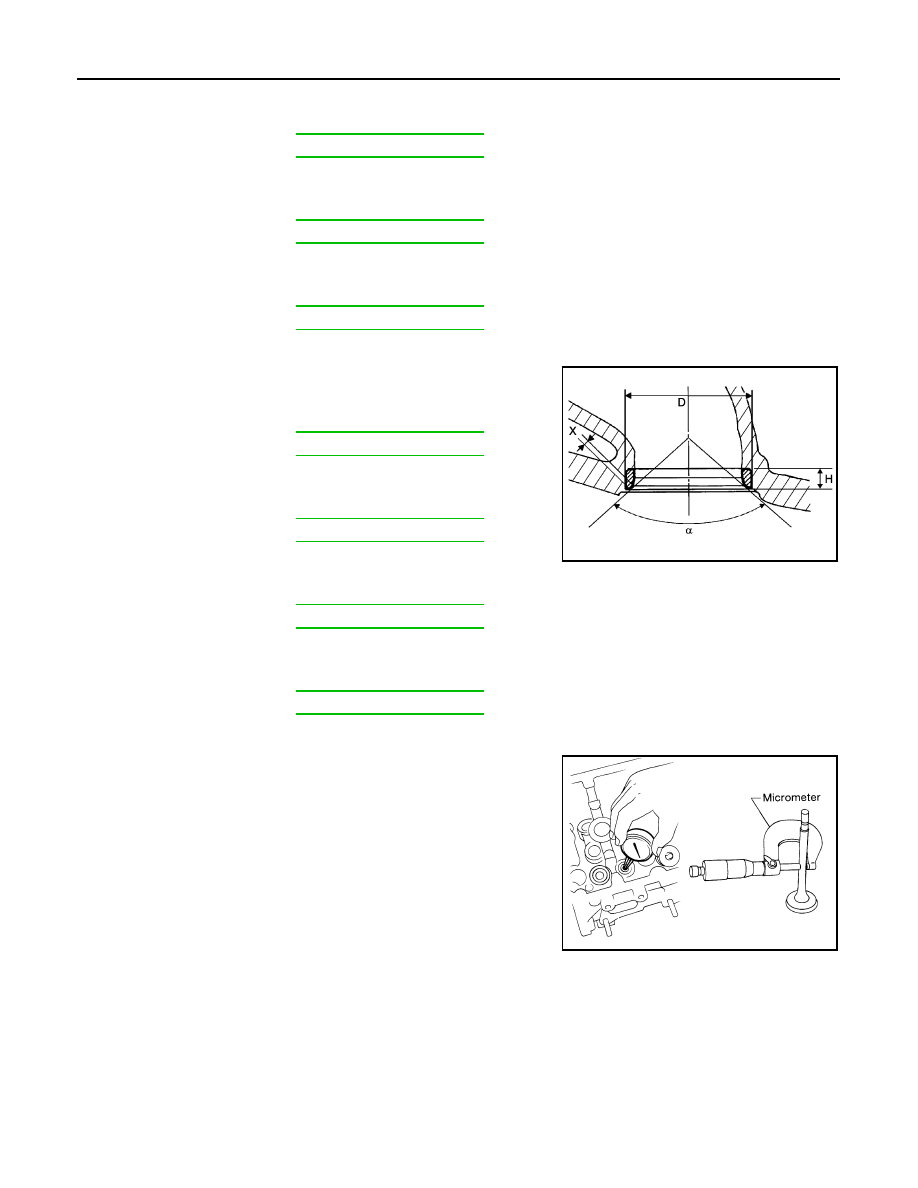

Valve Seat

Measure the valve seats as follows.
• Seat angle (

α

)

• Contacting width (X)

• Seat outer diameter (D):

• Cylinder head seat recess diameter (D)

Valve Guide Clearance

1.

Measure diameter of valve stem with micrometer.

2.

Measure inner diameter of valve guide with inside micrometer.

3.

Calculate the valve guide clearance.
(Valve guide clearance) = (Valve guide inner diameter) – (Valve
stem diameter)

• If it exceeds the limit, replace and/or valve guide.

Valve Spring

Intake

: Refer to

EM-331, "Cylinder Head"

Exhaust

: Refer to

EM-331, "Cylinder Head"

Intake

: Refer to

EM-331, "Cylinder Head"

Exhaust

: Refer to

EM-331, "Cylinder Head"

Intake

: Refer to

EM-331, "Cylinder Head"

Exhaust

: Refer to

EM-331, "Cylinder Head"

Intake

: Refer to

EM-331, "Cylinder Head"

Exhaust

: Refer to

EM-331, "Cylinder Head"

Intake

: Refer to

EM-331, "Cylinder Head"

Exhaust

: Refer to

EM-331, "Cylinder Head"

Intake

: Refer to

EM-331, "Cylinder Head"

Exhaust

: Refer to

EM-331, "Cylinder Head"

Intake

: Refer to

EM-331, "Cylinder Head"

Exhaust

: Refer to

EM-331, "Cylinder Head"

E1BIA0066ZZ

Intake

: 0.020 - 0.050 mm (0.0008 - 0.0020 in)

Exhaust

: 0.030 - 0.063 mm (0.0012 - 0.0025 in)

SEM938C

CYLINDER HEAD

EM-309

< DISASSEMBLY AND ASSEMBLY >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

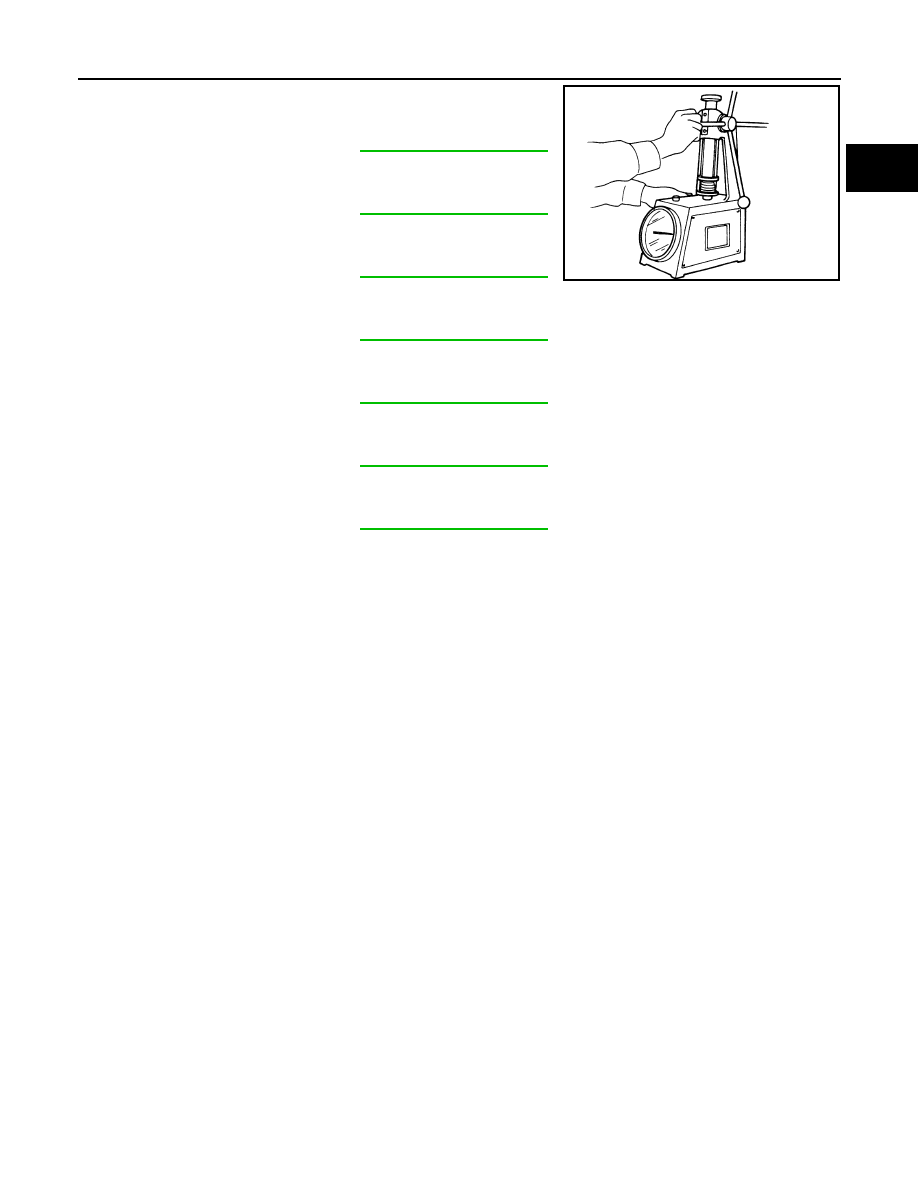

Measure the valve spring as follows.
• Free height

• Length under load

• Full pressed height

• Wire diameter

• Inner diameter

• Outer diameter

• Squareness

Intake and exhaust

: Refer to

EM-331, "Cylinder Head"

Intake and exhaust

: Refer to

EM-331, "Cylinder Head"

Intake and exhaust

: Refer to

EM-331, "Cylinder Head"

Intake and exhaust

: Refer to

EM-331, "Cylinder Head"

Intake and exhaust

: Refer to

EM-331, "Cylinder Head"

Intake and exhaust

: Refer to

EM-331, "Cylinder Head"

Intake and exhaust

: Refer to

EM-331, "Cylinder Head"

SEM113

EM-310

< DISASSEMBLY AND ASSEMBLY >

[K9K]

CYLINDER BLOCK

CYLINDER BLOCK

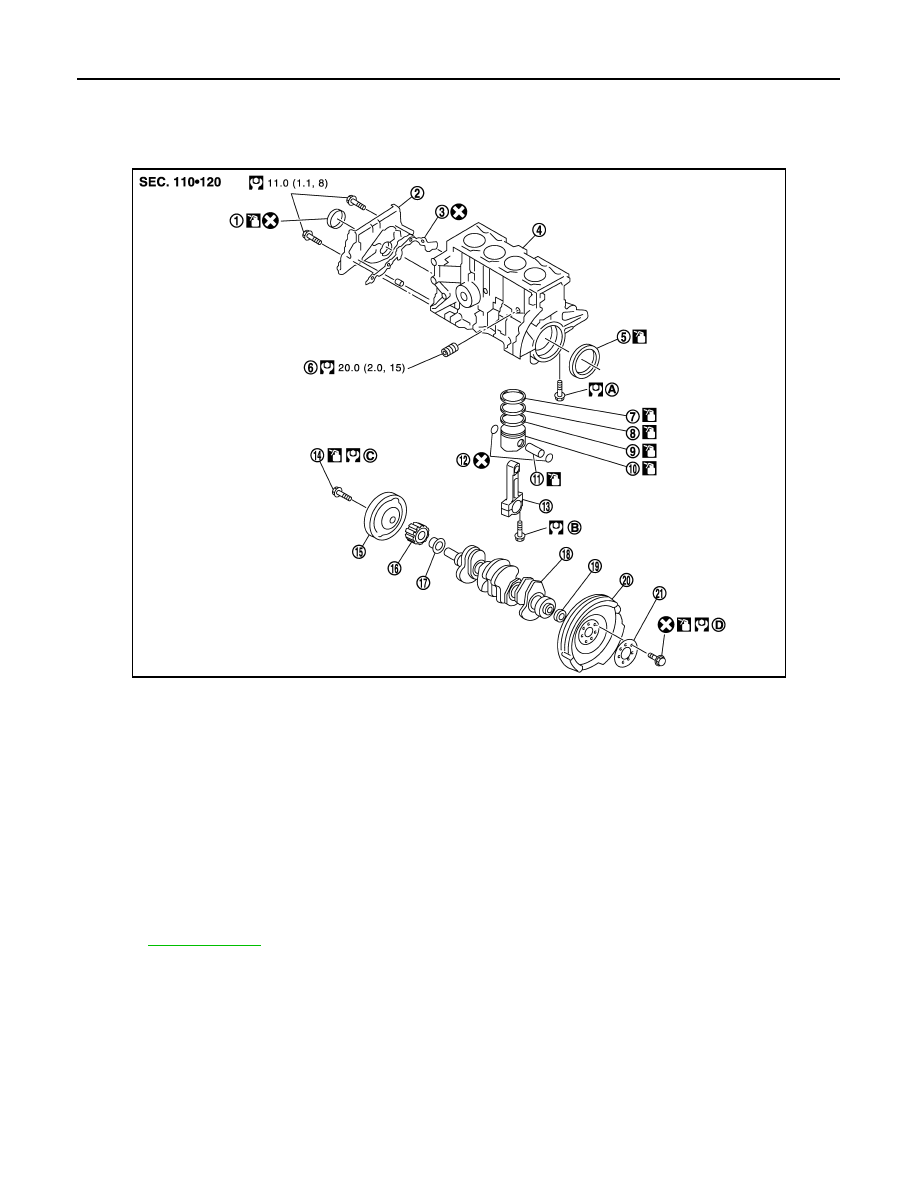

Exploded View

INFOID:0000000001063240

Disassembly and Assembly

INFOID:0000000001063268

DISASSEMBLY

E1BIA0017GB

1.

Oil seal

2.

Crankshaft cover

3.

Gasket

4.

Cylinder block

5.

Oil seal

6

TDC pin plug

7.

Top ring

8.

Second ring

9.

Oil ring

10. Piston

11.

Piston pin

12. Snap ring

13. Connecting rod

14. Crankshaft pulley bolt

15. Crankshaft pulley

16. Crankshaft sprocket (timing belt)

17.

Crankshaft sprocket (oil pump drive
chain)

18. Crankshaft

19. Pilot bushing

20. Flywheel

21. Reinforcement plate

A.

25.0 N·m (2.6 kg-m, 18 ft-lb) and 47 degrees

B.

20.0 N·m (2.0 kg-m, 15 ft-lb) and 45 degrees

C.

120.0 N·m (12 kg-m, 89 ft-lb) and 95 degrees

D.

20.0 N·m (2.0 kg-m, 15 ft-lb) and 36 degrees

Refer to

GI-4, "Components"

 for symbols in the figure.

CYLINDER BLOCK

EM-311

< DISASSEMBLY AND ASSEMBLY >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

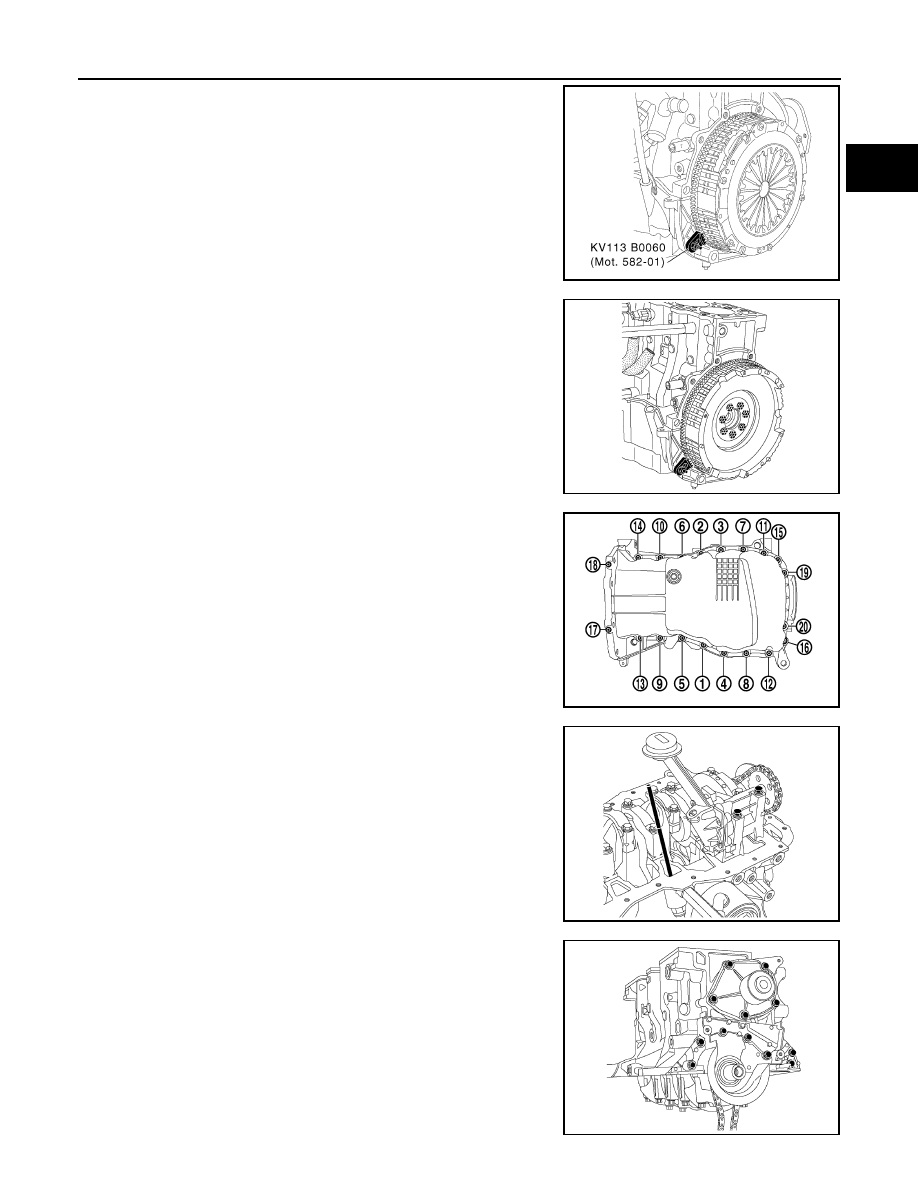

1.

Install the ring gear stopper [SST: KV113B0060 (Mot. 582-01)].

2.

Remove the clutch housing.

3.

Remove the flywheel.

4.

Remove the oil pan bolt in reverse order as shown.

5.

Remove the oil level sensor.

6.

Remove the oil pump.

7.

Remove the crankshaft cover.

8.

Remove the water pump.

MBIB0397E

MBIB0439E

MBIB1257E

MBIB0442E
