Nissan Qashqai (2007-2010). Manual - part 85

EM-288

< ON-VEHICLE REPAIR >

[K9K]

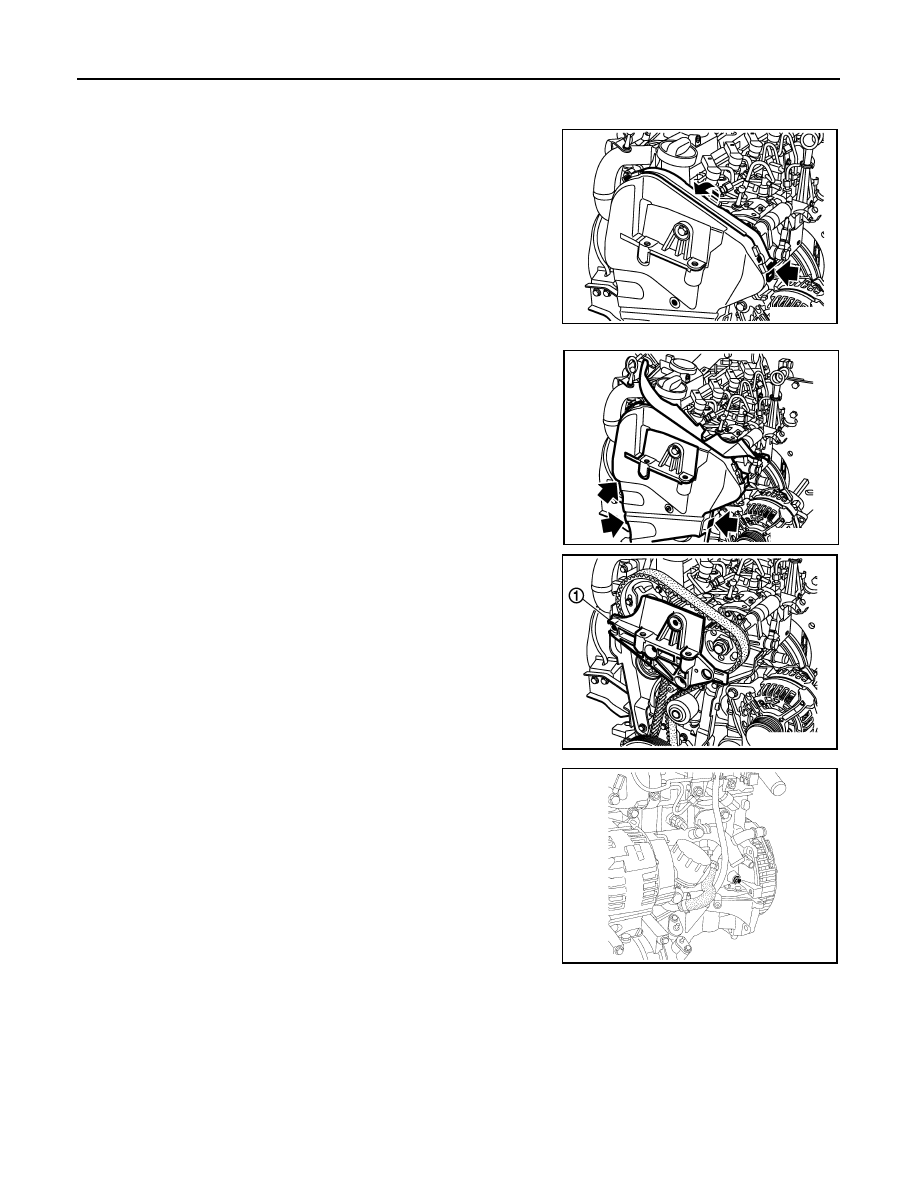

TIMING BELT

6.

Remove RH engine mounting.

7.

Remove RH engine mounting support bracket, RH engine mounting insulator and reservoir tank.

8.

Remove upper timing cover.

9.

Remove cylinder head suspended mounting bracket (1).

10. Remove timing belt lower cover.

11. Remove the TDC pin plug.

E1BIA0040ZZ

E1BIA0041ZZ

E1BIA0042ZZ

MBIB0392E

TIMING BELT

EM-289

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

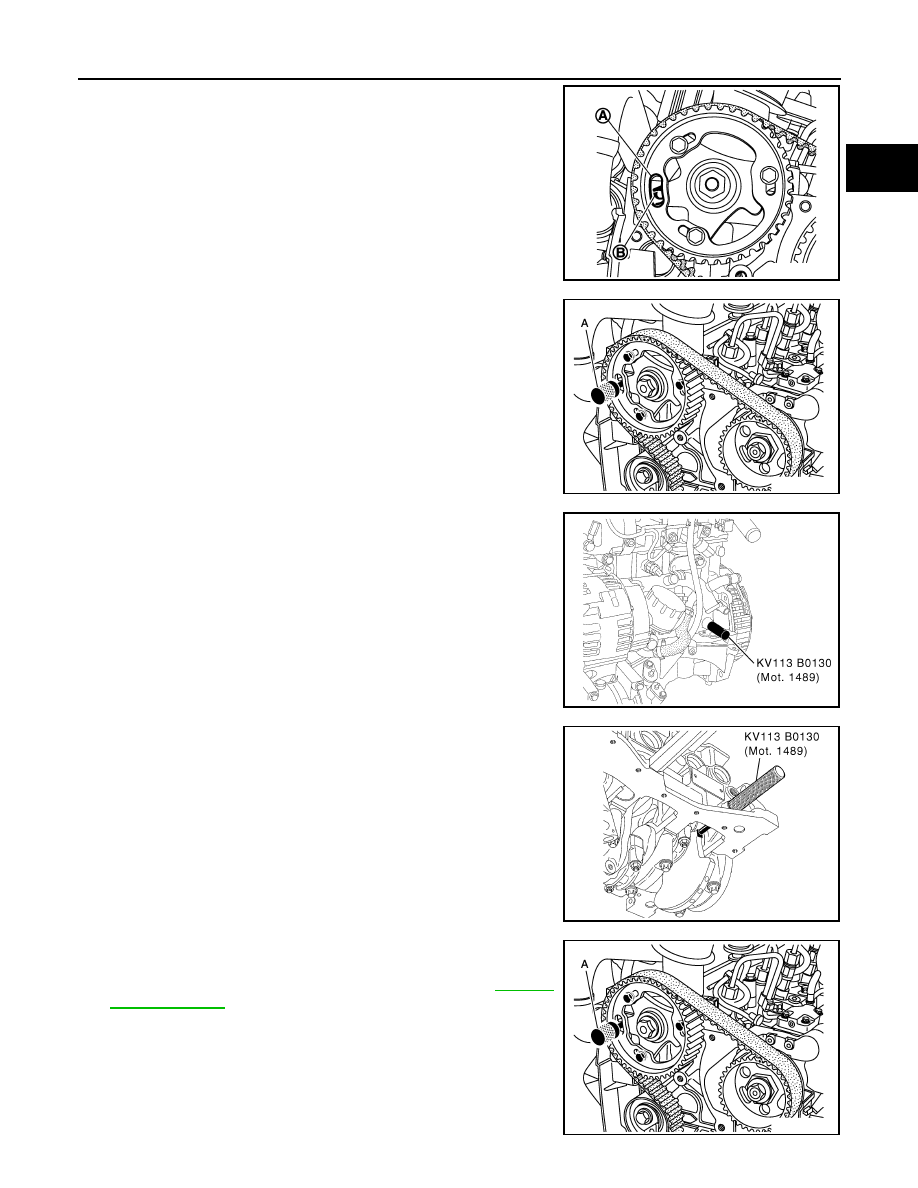

12. Rotate the crankshaft clockwise, until the position (A) of the

came shaft pulley becomes opposite of the position (B) on the
cylinder head.

13. Insert TDC set pin [SST: KV113B0110 (Mot.1430)] (A) into the

camshaft sprocket and cylinder head hole.

14. Screw in the TDC set pin [SST: KV113 B0130 (Mot. 1439)].

15. Turn the engine clockwise (timing side) until the crankshaft

touches the TDC set pin.

16. The pin [SST: KV113B0110 (Mot.1430)] (A) must engage in the

camshaft pulley and cylinder head holes.

17. Remove crankshaft position sensor. Refer to

EM-280,

"Exploded View"

.

E1BIA0043ZZ

E1BIA0044ZZ

MBIB0394E

MBIB0395E

E1BIA0044ZZ

EM-290

< ON-VEHICLE REPAIR >

[K9K]

TIMING BELT

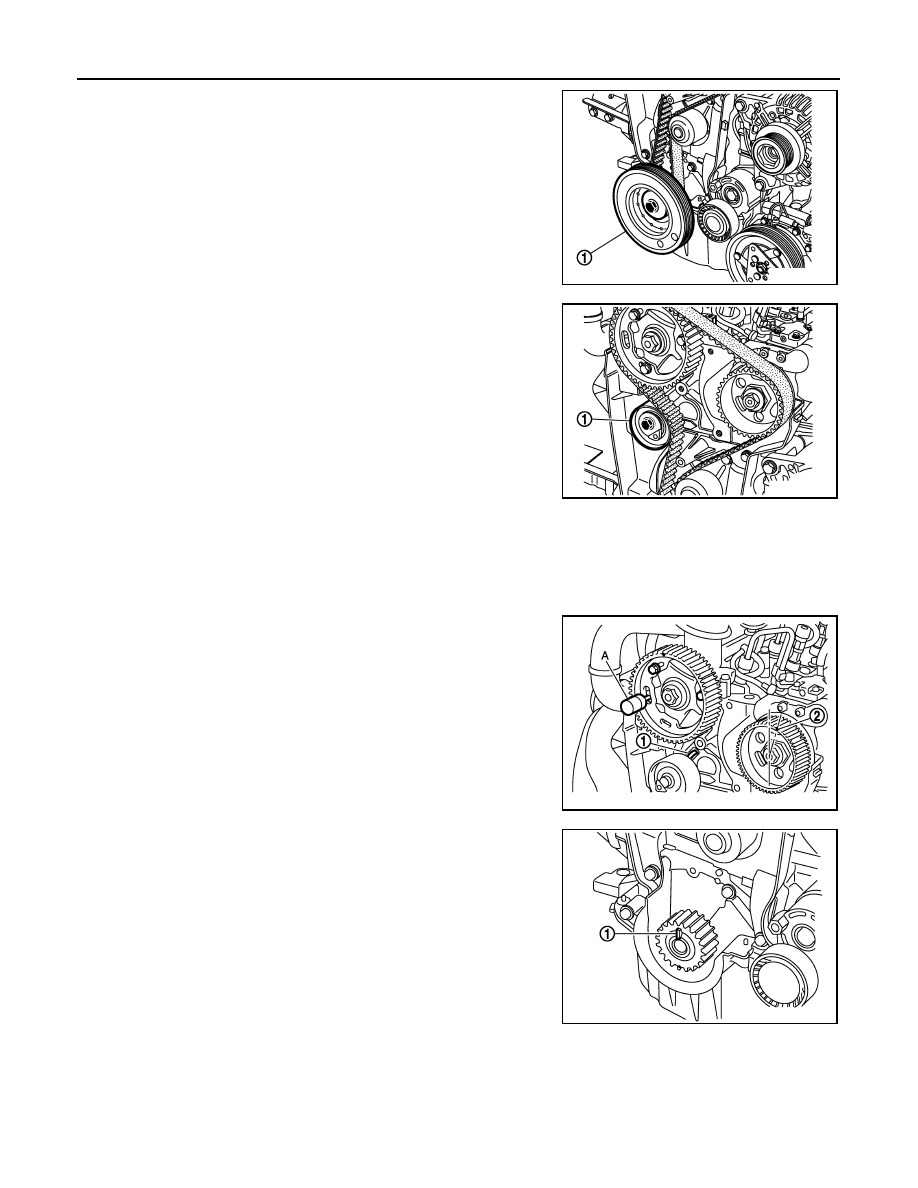

18. Insert flat-bladed screwdriver into place of crankshaft position

sensor to block crankshaft and loosen crankshaft pulley bolt (1).

19. Remove crankshaft pulley.

CAUTION:

Do not remove fixing bolts. Keep loosened fixing bolts in
place to protect removed crankshaft pulley from dropping.

20. Slacken the timing belt by loosening the bolt of tensioner (1),

then remove timing belt.

INSTALLATION

CAUTION:

It is essential to degrease the end of the crankshaft, the bore of the crankshaft sprocket and the bear-
ing faces of the drive belt pulley to prevent any slip between the timing and the crankshaft which
would risk destroying the engine.

1.

Install timing belt tensioner.
NOTE:
Put the timing belt tensioner spigot (1) in the cylinder head
groove.

2.

Insert TDC set pin [SST: KV113B0110 (Mot. 1430)] (A) in the
camshaft pulley and cylinder head holes.

3.

Check that high pressure supply pump sprocket mark (2) has
shifted one tooth to the right of vertical axle.

4.

Turn crankshaft to set TDC set pin [SST: KV113B0130 (Mot.
1489)] (the crankshaft groove (1) must be facing upwards).

E1BIA0045ZZ

E1BIA0046ZZ

E1BIA0060ZZ

E1BIA0061ZZ

TIMING BELT

EM-291

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

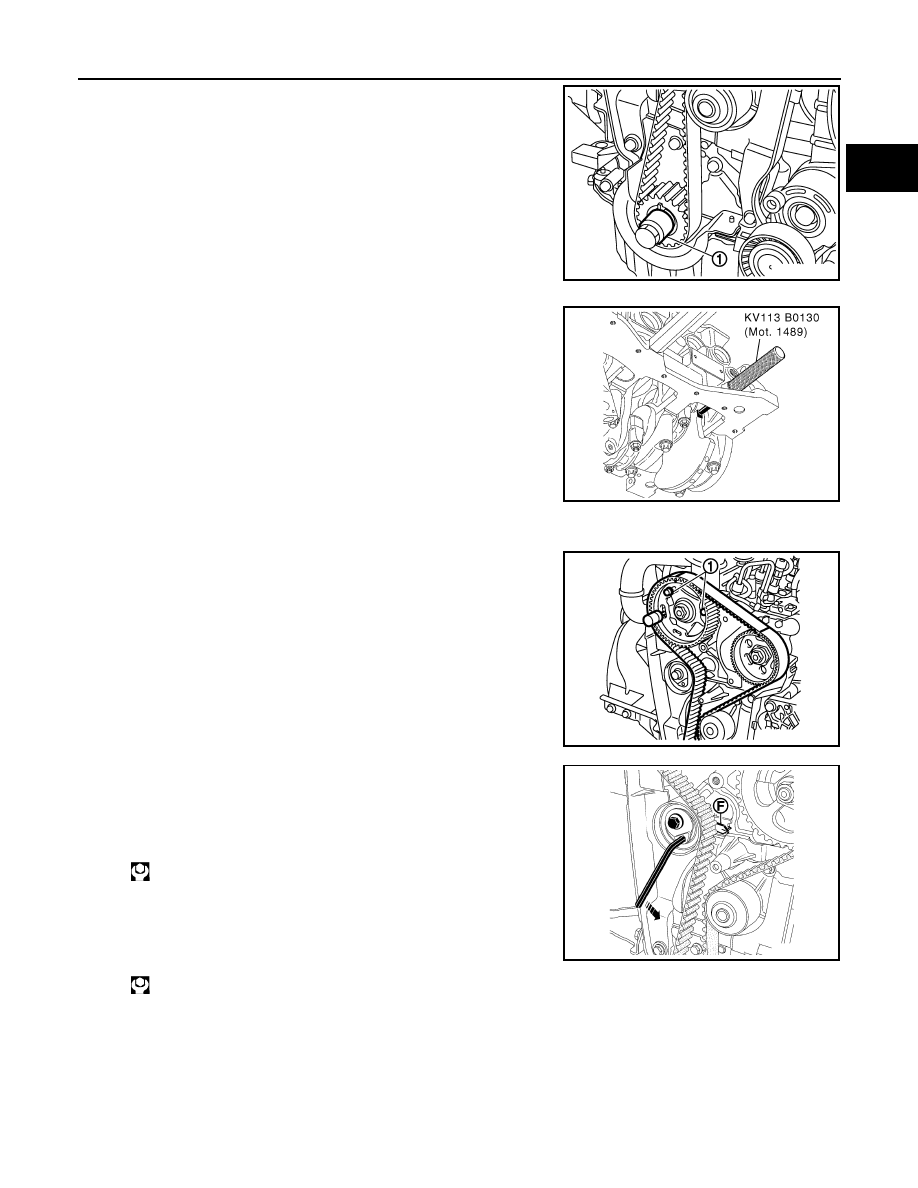

5.

Tighten old crankshaft pulley bolt with a spacer (1) (which does
not cover the timing sprocket mark).

6.

Insert TDC set pin [SST: KV113B0130 (Mot.1489)] to crankshaft.

7.

Remove one wheel bolt from camshaft sprocket, and then
loosen the other two bolts (1).

8.

Install the timing belt, aligning the marks on the bolt with those
on the camshaft and high pressure supply pump sprockets (19
teeth spaces on the belt between the marks on the camshaft
and pump sprockets).

9.

Using a 6 mm (0.24 in) Allen key, move the movable index (F) of
the drive belt tensioner into the position as shown in the figure,
by turning the key counterclockwise.

10. Tighten timing belt tensioner bolt.

11. Check that the camshaft sprocket bolts are not fully up against

the camshaft sprocket wheel.

12. Install and tighten camshaft sprocket wheel bolts.

13. Remove TDC set pin [SST: KV113B0130 (Mot. 1489)] and TDC set pin [SST: KV113B0110 (Mot. 1430)].

E1BIA0059ZZ

MBIB0395E

E1BIA0062ZZ

: 27.0 N·m (2.8 kg-m, 20 ft-lb)

: 14.0 N·m (1.4 kg-m, 10 ft-lb)

MBIB0509E
