CYLINDER BLOCK
• If measured value is out of the standard, replace flywheel.
Movement Amount in Radial (Rotation) Direction
Check the movement amount of radial (rotation) direction with the following procedure:
1.

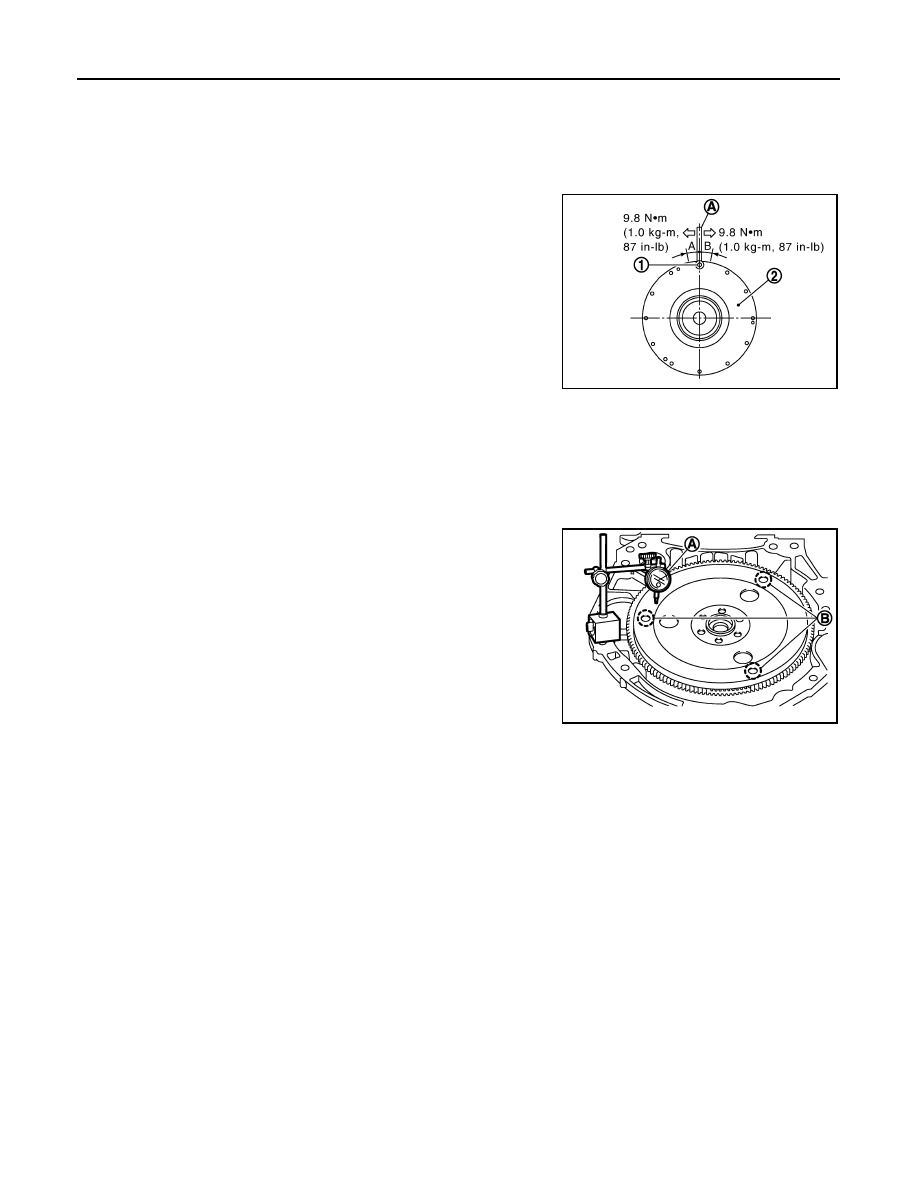

Install clutch cover mounting bolt (1) to clutch cover mounting
hole, and place a torque wrench (A) on the extended line of the
flywheel (2) center line.
• Tighten bolt at a force of 9.8 N·m (1.0 kg-m, 87 in-lb) to keep it
from loosening.
2.
Put a mating mark on circumferences of the two flywheel
masses without applying any load (Measurement standard
points).
3.
Apply a force of 9.8 N·m (1.0 kg-m, 87 in-lb) in each direction,
and mark the movement amount on the mass on the transaxle
side.
4.
Measure the dimensions of movement amounts “A” and “B” on
circumference of the flywheel on the transaxle side.
• If measured value is out of the standard, replace flywheel.
DRIVE PLATE DEFLECTION (CVT MODELS)
• Measure the deflection of drive plate contact surface to torque con-
verter with a dial indicator (A).
• Measure the deflection at the area limited between 12.4 mm
(0.488 in) dia and 20.0 mm (0.787 in) dia around hole (B).
• If measured value is out of the standard, replace drive plate.
Standard
: 1.8 mm (0.071 in) or less
Limit
: 33.2 mm (1.307 in) or less.
PBIC4007E
Limit : 0.35 mm (0.0138 in) or less.
PBIC4008E
