EM-176

< ON-VEHICLE REPAIR >

[MR20DE]

CAMSHAFT

c.

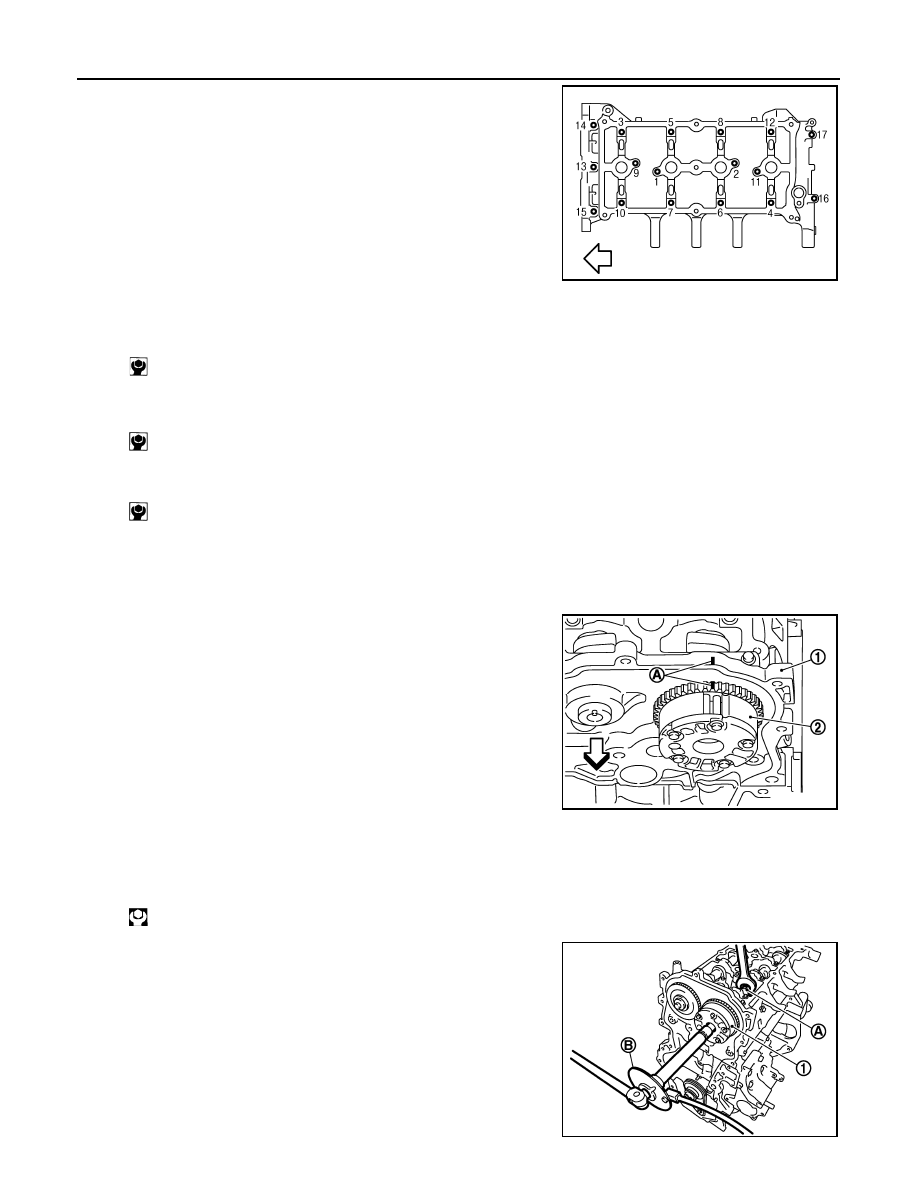

Tighten mounting bolts of camshaft brackets in the following
steps, in numerical order as shown in the figure.

• There are two types of mounting bolts. Refer to the following

for locating bolts.

i.

Tighten mounting bolts in numerical order.

ii.

Tighten mounting bolts in numerical order.

iii.

Tighten mounting bolts in numerical order.

CAUTION:

After tightening mounting bolts of camshaft brackets, be sure to wipe off excessive liquid gasket
from the mating surface of cylinder head.

4.

Install the camshaft sprocket (INT) to the camshaft (INT) with the following procedure.

a.

When the camshaft sprocket (INT) (2) is removed, refer to the
paint mark (A) put according to step “3”. Securely align the
knock pin and the pin hole, and then install them.

b.

Tighten bolts in the following steps.
• Secure the hexagonal part of camshaft (INT) using wrench to tighten mounting bolt.

i.

Tighten camshaft (INT) mounting bolt.

ii.

Turn 67 degrees clockwise (angle tightening).

CAUTION:

Check the tightening angle by using an angle wrench [SST:
KV10112100] (B) or protractor. Never judge by visual
inspection without an angle wrench.

: Engine front

M6 bolts [thread length: 57.5 mm (2.264 in)]

: 13, 14 and 15 in the figure

M6 bolts [thread length: 35.00 mm (1.378 in)]

: Except the above

: 1.96 N·m (0.20 kg-m, 17 in-lb)

: 5.88 N·m (0.60 kg-m, 52 in-lb)

: 9.5 N·m (0.97 kg-m, 84 in-lb)

1

: Camshaft bracket

: Engine front

PBIC3176J

PBIC3992J

: 35.0 N·m (3.6 kg-m, 26 ft-lb)

1

: Camshaft sprocket (INT)

A

: Camshaft (INT) hexagonal part

PBIC3455J

CAMSHAFT

EM-177

< ON-VEHICLE REPAIR >

[MR20DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

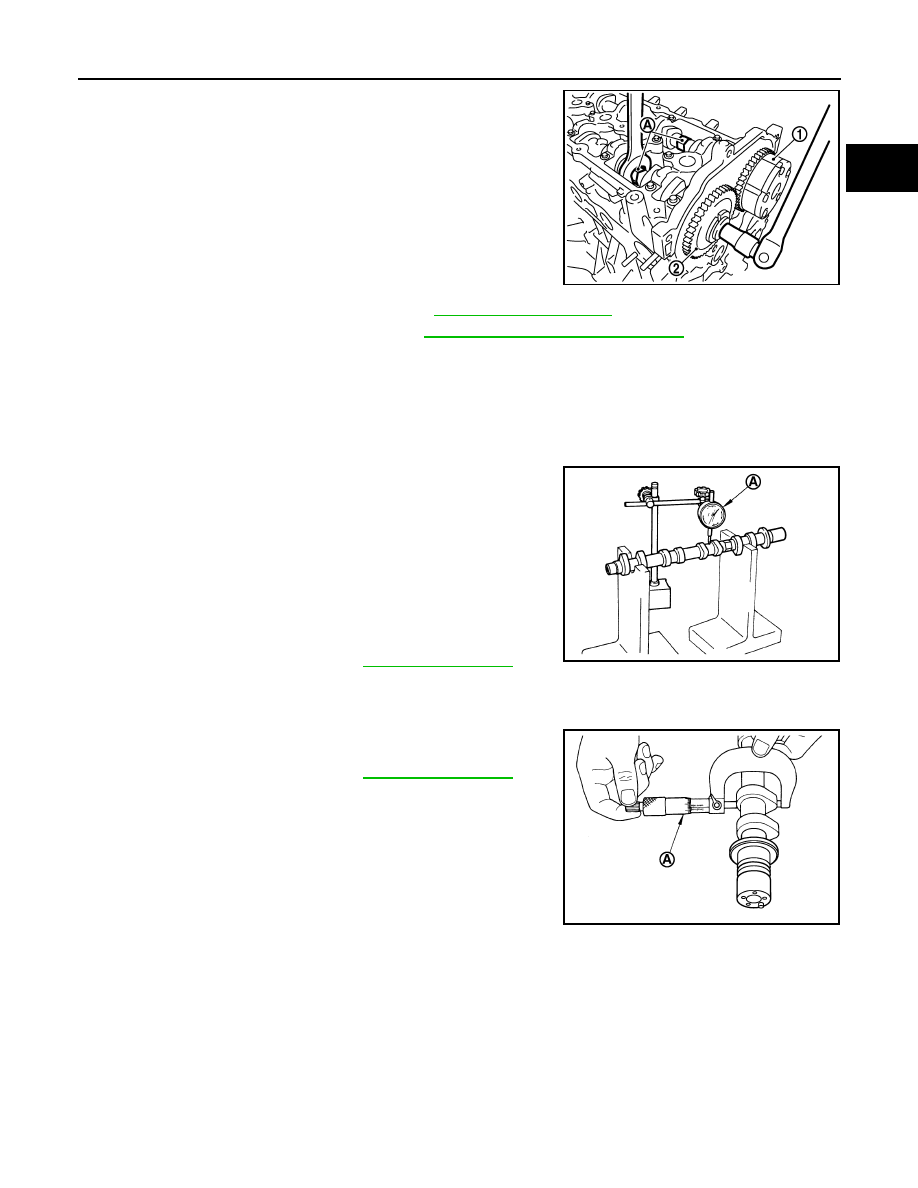

5.

Install camshaft sprocket (EXH) (2).

• Secure the hexagonal part (A) of camshaft (EXH) using

wrench to tighten mounting bolt.

6.

Install timing chain and related parts. Refer to

EM-162, "Exploded View"

.

7.

Inspect and adjust valve clearance. Refer to

EM-139, "Inspection and Adjustment"

.

8.

Install remaining parts in the reverse order of removal.

Inspection

INFOID:0000000000893952

INSPECTION AFTER REMOVAL

Camshaft Runout

1.

Put V-block on a precise flat table, and support No. 2 and 5 jour-
nal of camshaft.

CAUTION:

Never support No. 1 journal (on the side of camshaft
sprocket) because it has a different diameter from the other
four locations.

2.

Set dial indicator (A) vertically to No. 3 journal.

3.

Turn camshaft to one direction with hands, and measure the
camshaft runout on dial indicator. (Total indicator reading)

4.

If it exceeds the limit, replace camshaft.

Camshaft Cam Height

1.

Measure the camshaft cam height with a micrometer (A).

2.

If it exceeds the limit, replace camshaft.

Camshaft Journal Oil Clearance

CAMSHAFT JOURNAL OUTER DIAMETER

1

: Camshaft sprocket (INT)

PBIC3454J

Standard and Limit

: Refer to

EM-237, "Camshaft"

.

PBIC3177J

Standard and Limit

: Refer to

EM-237, "Camshaft"

.

PBIC3178J

EM-178

< ON-VEHICLE REPAIR >

[MR20DE]

CAMSHAFT

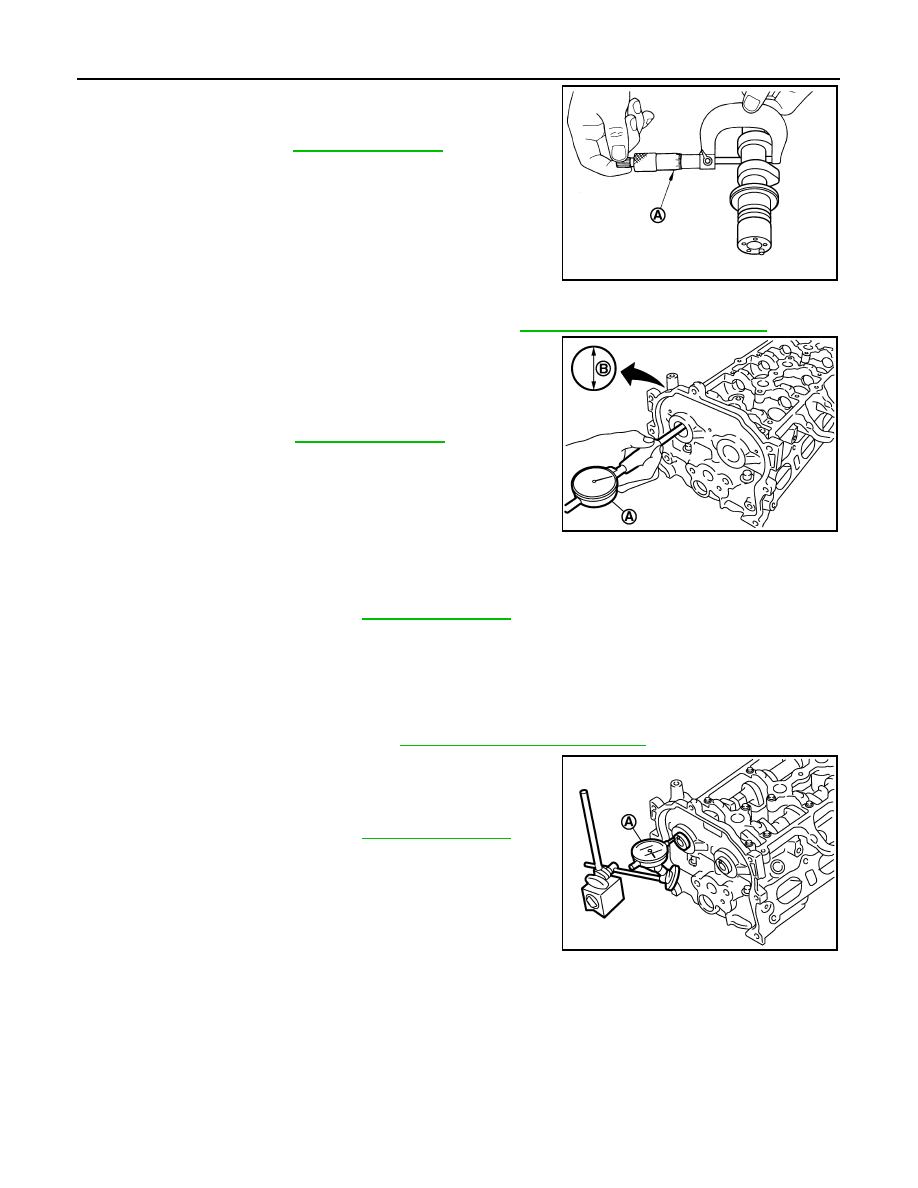

Measure the outer diameter of camshaft journal with a micrometer
(A).

CAMSHAFT BRACKET INNER DIAMETER
• Tighten camshaft bracket bolts with specified torque. Refer to

EM-173, "Removal and Installation"

.

• Measure the inner diameter of camshaft bracket with a bore gauge

(A).

CAMSHAFT JOURNAL OIL CLEARANCE
• (Oil clearance) = (Camshaft bracket inner diameter) – (Camshaft journal diameter)

• If it exceeds the limit, replace camshaft or cylinder head, or both.

NOTE:
Camshaft bracket cannot be replaced as a single part, because it is machined together with cylinder head.
Replace whole cylinder head assembly.

Camshaft End Play

1.

Install camshaft in cylinder head. Refer to

EM-173, "Removal and Installation"

.

2.

Install dial indicator in thrust direction on front end of camshaft.
Read the end play of dial indicator (A) when camshaft is moved
forward/backward (in direction to axis).

Standard :

Refer

to

EM-237, "Camshaft"

.

PBIC3179J

B

: Measuring direction of inner diameter

Standard

: Refer to

EM-237, "Camshaft"

.

PBIC3180J

Standard and Limit

: Refer to

EM-237, "Camshaft"

.

Standard and Limit

: Refer to

EM-237, "Camshaft"

.

PBIC3181J

CAMSHAFT

EM-179

< ON-VEHICLE REPAIR >

[MR20DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

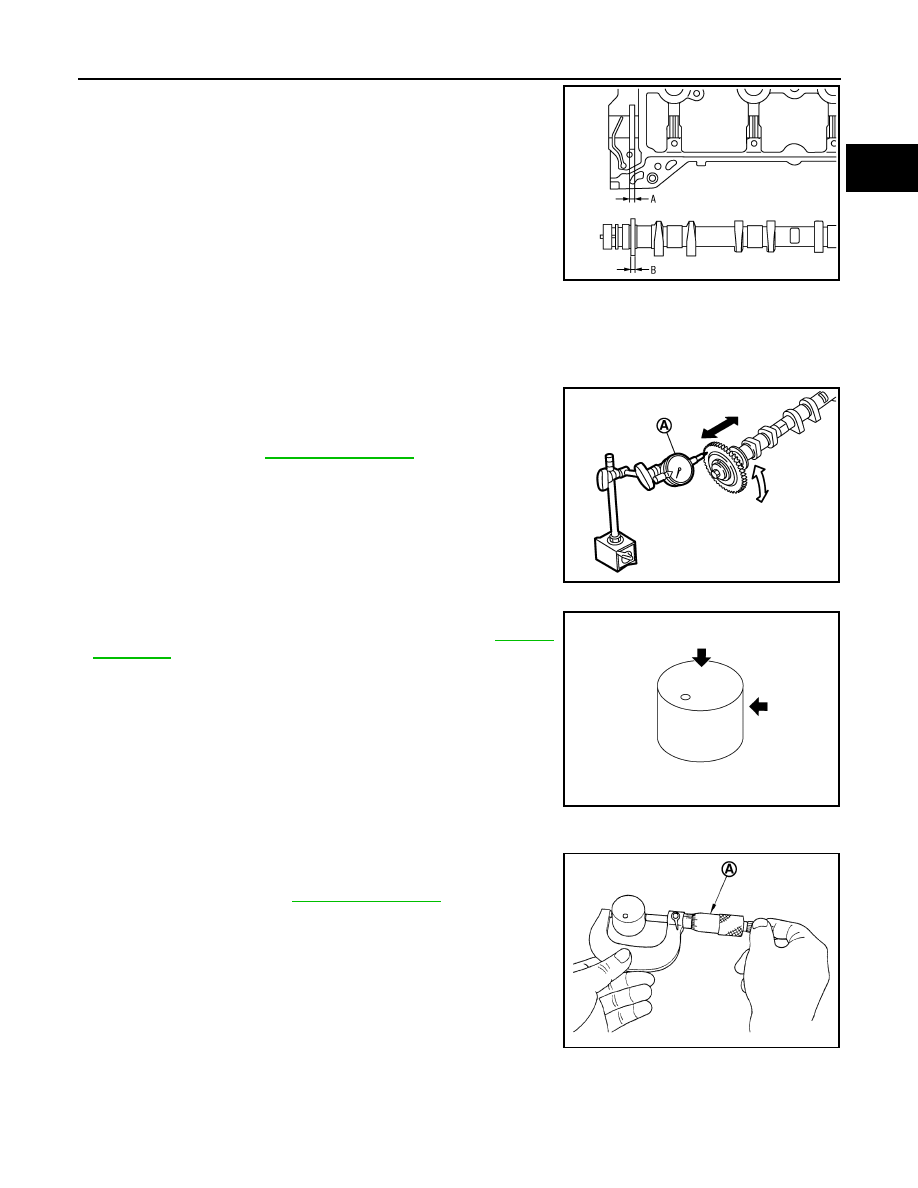

• Measure the following parts if out of the standard.
- Dimension “A” for groove of cylinder head No. 1 journal

- Dimension “B” for camshaft flange

• Refer to the standards above, and then replace camshaft and/

or cylinder head.

Camshaft Sprocket Runout

1.

Put V-block on precise flat table, and support No. 2 and 5 journals of camshaft.

CAUTION:

Never support No. 1 journal (on the side of camshaft sprocket) because it has a different diameter
from the other four locations.

2.

Measure the camshaft sprocket runout with a dial indicator (A).
(Total indicator reading)

• If it exceeds the limit, replace camshaft sprocket.

Valve Lifter

Check if surface of valve lifter has any wear or cracks.
• If anything above is found, replace valve lifter. Refer to

EM-237,

"Camshaft"

.

Valve Lifter Clearance

VALVE LIFTER OUTER DIAMETER
• Measure the outer diameter of valve lifter with a micrometer (A).

VALVE LIFTER HOLE DIAMETER

Standard

: 4.000 - 4.030 mm (0.1575 - 0.1587 in)

Standard

: 3.877 - 3.925 mm (0.1526 - 0.1545 in)

PBIC3183J

Limit

: Refer to

EM-237, "Camshaft"

.

PBIC3182J

KBIA0182E

Standard

: Refer to

EM-237, "Camshaft"

.

PBIC3185J
