< SERVICE DATA AND SPECIFICATIONS (SDS)
[HR16DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
UNDERSIZE TABLE
Unit: mm (in)

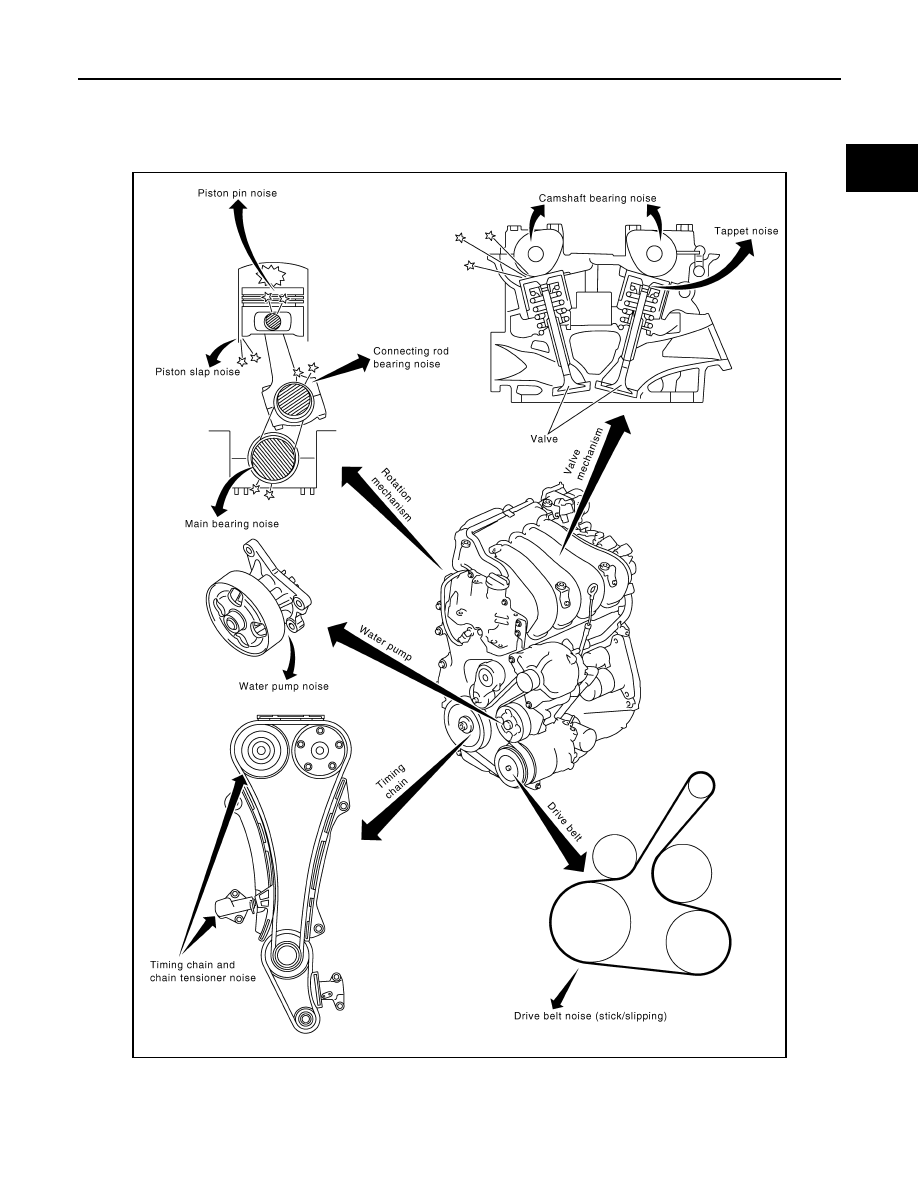

CONNECTING ROD BEARING OIL CLEARANCE
Unit: mm (in)
Main Bearing
INFOID:0000000000893905

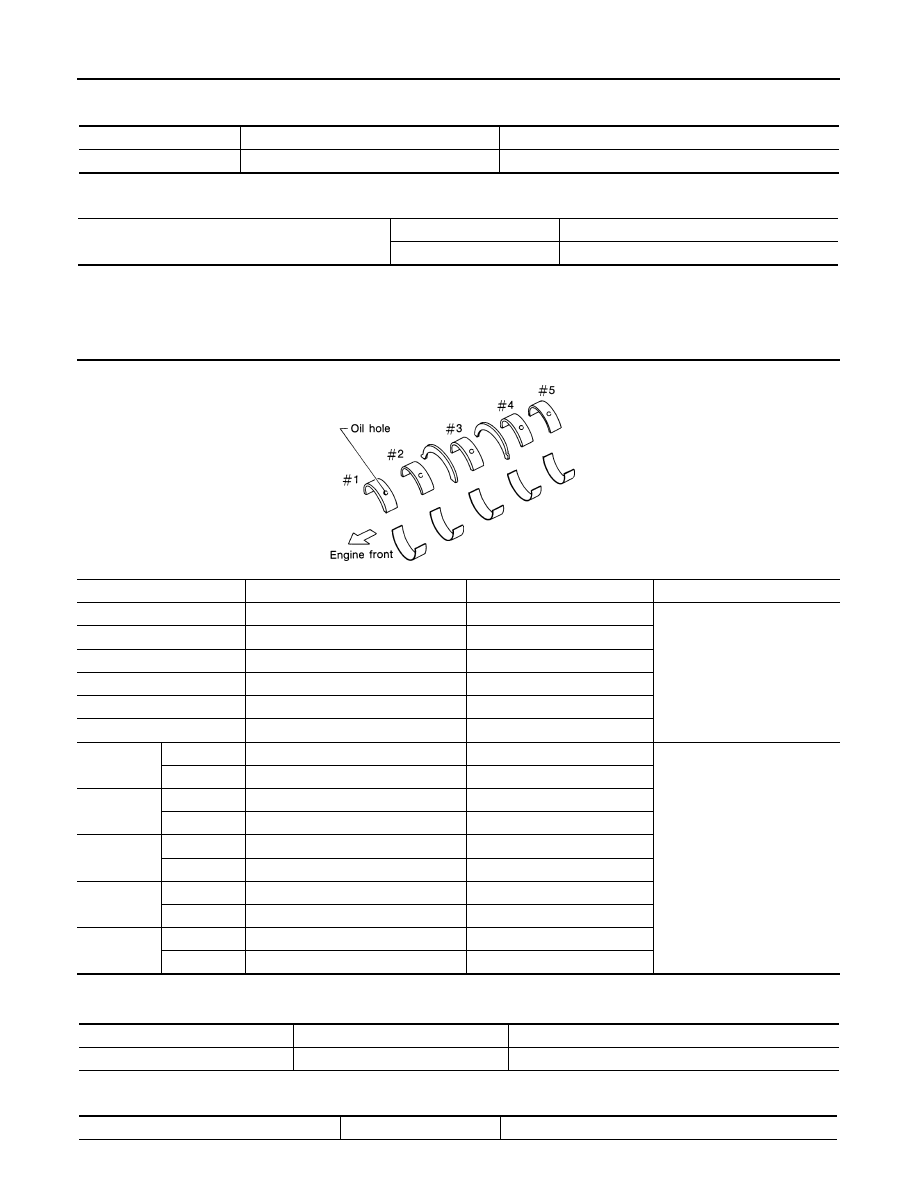

MAIN BEARING GRADE TABLE
Unit: mm (in)
UNDERSIZE TABLE
Unit: mm (in)
MAIN BEARING OIL CLEARANCE
Unit: mm (in)
Item
Thickness
Crankshaft pin journal diameter
US 0.25 (0.0098)
1.627 - 1.635 (0.0641 - 0.0644)
Grind so that bearing clearance is the specified value.
Connecting rod bearing oil clearance
Standard
0.029 - 0.039 (0.0011 - 0.0015)
Limit
0.10 (0.0039)
Grade number
Thickness
Identification color
Remarks
0
1.996 - 1.999 (0.0786 - 0.0787)
Black
Grade and color are the same
for upper and lower bearings.
1
1.999 - 2.002 (0.0787 - 0.0788)
Brown
2
2.002 - 2.005 (0.0788 - 0.0789)
Green
3
2.005 - 2.008 (0.0789 - 0.0791)
Yellow
4
2.008 - 2.011 (0.0791 - 0.0792)
Blue
5
2.011 - 2.014 (0.0792 - 0.0793)
Pink
01
UPR
1.996 - 1.999 (0.0786 - 0.0787)
Black
Grade and color are different
for upper and lower bearings.
LWR
1.999 - 2.002 (0.0787 - 0.0788)
Brown
12
UPR
1.999 - 2.002 (0.0787 - 0.0788)
Brown
LWR
2.002 - 2.005 (0.0788 - 0.0789)
Green
23
UPR
2.002 - 2.005 (0.0788 - 0.0789)
Green
LWR
2.005 - 2.008 (0.0789 - 0.0791)
Yellow
34
UPR
2.005 - 2.008 (0.0789 - 0.0791)
Yellow
LWR
2.008 - 2.011 (0.0791 - 0.0792)
Blue
45
UPR
2.008 - 2.011 (0.0791 - 0.0792)
Blue
LWR
2.011 - 2.014 (0.0792 - 0.0793)
Pink
SEM685D
Items
Thickness
Main journal diameter
0.25 (0.0098)
2.126 - 2.134 (0.0837 - 0.0840)
Grind so that bearing clearance is the specified value.
Main bearing oil clearance
Standard
0.024 - 0.034 (0.0009 - 0.0013)
