Mitsubishi ASX (2018 year). Manual - part 1

Instruments and controls

E00100109149

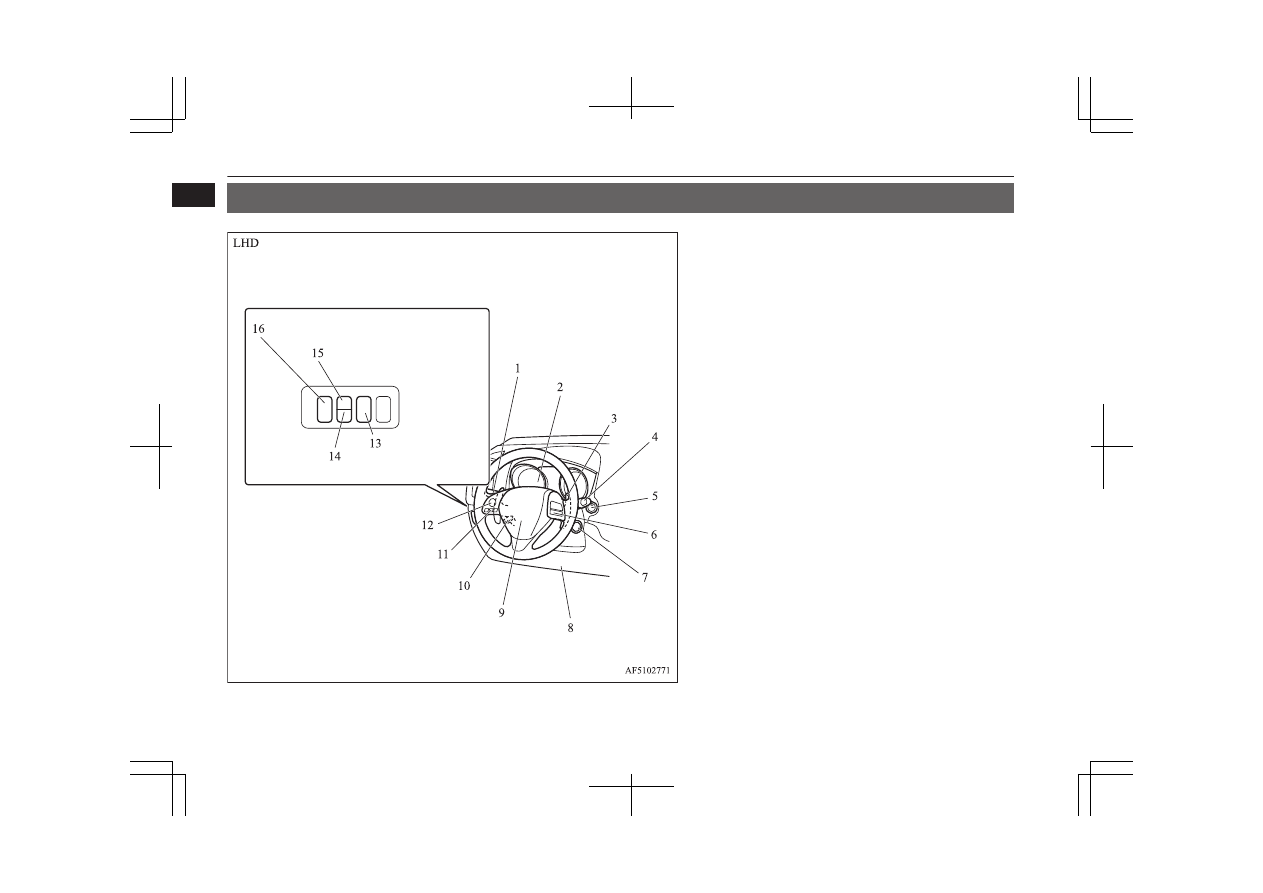

1. Combination headlamps and dipper switch p. 5-50

Turn-signal lever p. 5-57
Front fog lamp switch* p. 5-58
Rear fog lamp switch p. 5-58

2. Instruments p. 5-02
3. Shift paddles* p. 6-36
4. Windscreen wiper and washer switch p. 5-59

Rear window wiper and washer switch p. 5-63
Headlamp washer switch* p. 5-64

5. Engine switch* p. 3-13
6. Cruise control switch* p. 6-54
7. Ignition switch* p. 6-12
8. Supplemental restraint system (SRS) - driver’s knee airbag*

p. 4-29

9. Supplemental restraint system (SRS) - airbag (for driver’s seat)

p. 4-24, 4-29
Horn switch p. 5-65

10. Tilt & Telescopic steering lever p. 6-08
11. Bluetooth® 2.0 interface* p. 7-46
12. Steering wheel audio remote control switches* p. 7-23
13. Sonar switch* p. 6-79
14. Lane Departure Warning (LDW)* p. 6-68
15. FCM ON/OFF switch* p. 6-63
16. Headlamp levelling switch* p. 5-55

Instruments and controls

1-02

OGAE18E1

Overview

1

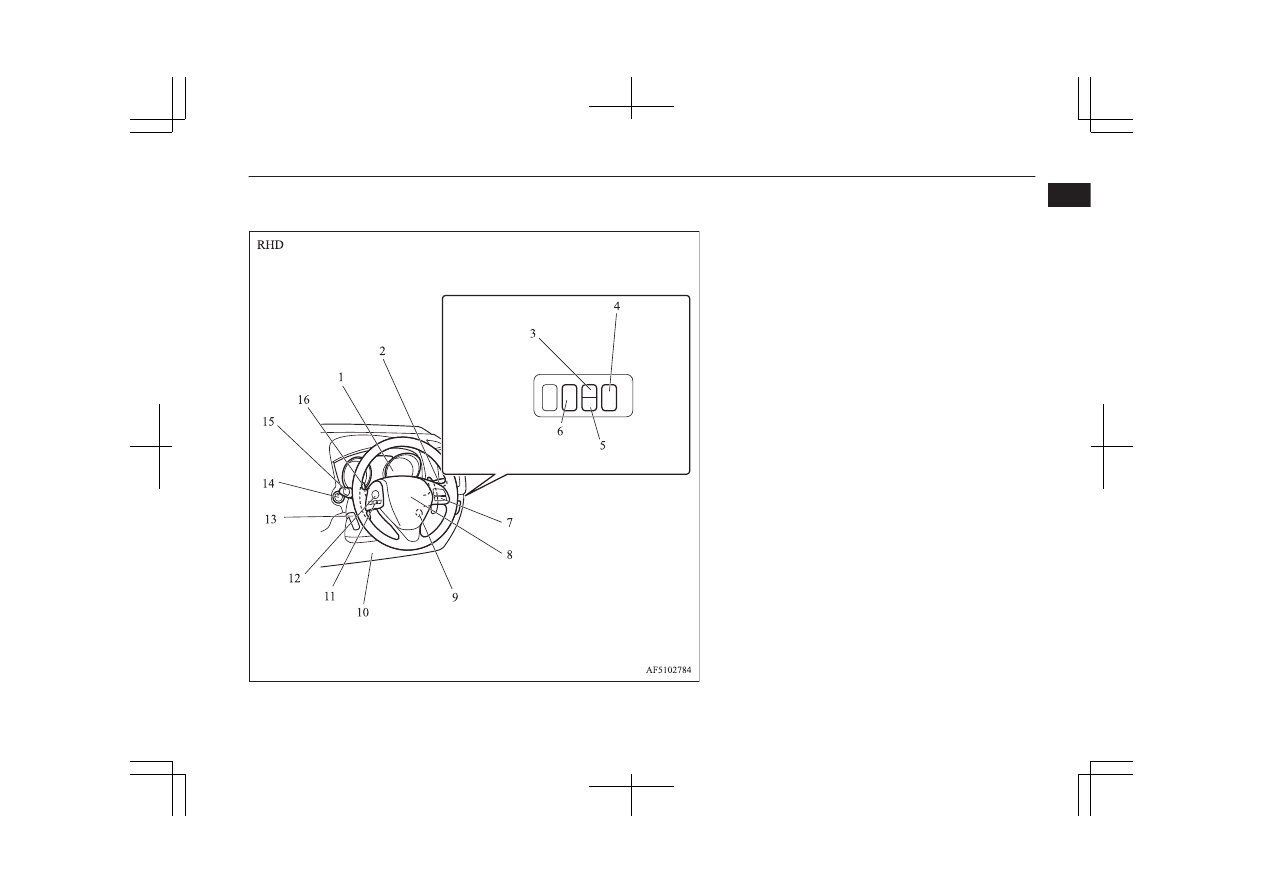

1. Instruments p. 5-02
2. Windscreen wiper and washer switch p. 5-59

Rear window wiper and washer switch p. 5-63
Headlamp washer switch* p. 5-64

3. FCM ON/OFF switch* p. 6-63
4. Headlamp levelling switch* p. 5-55
5. Lane Departure Warning (LDW)* p. 6-68
6. Sonar switch* p. 6-79
7. Cruise control switch* p. 6-54
8. Supplemental restraint system (SRS) - airbag (for driver’s seat)

p. 4-24, 4-29
Horn switch p. 5-65

9. Ignition switch* p. 6-12

10. Supplemental restraint system (SRS) - driver’s knee airbag*

p. 4-29

11. Bluetooth® 2.0 interface* p. 7-46
12. Steering wheel audio remote control switches* p. 7-23
13. Tilt & Telescopic steering lever p. 6-08
14. Engine switch* p. 3-13
15. Combination headlamps and dipper switch p. 5-50

Turn-signal lever p. 5-57
Front fog lamp switch* p. 5-58
Rear fog lamp switch p. 5-58

16. Shift paddles* p. 6-36

Instruments and controls

1-03

OGAE18E1

Overview

1

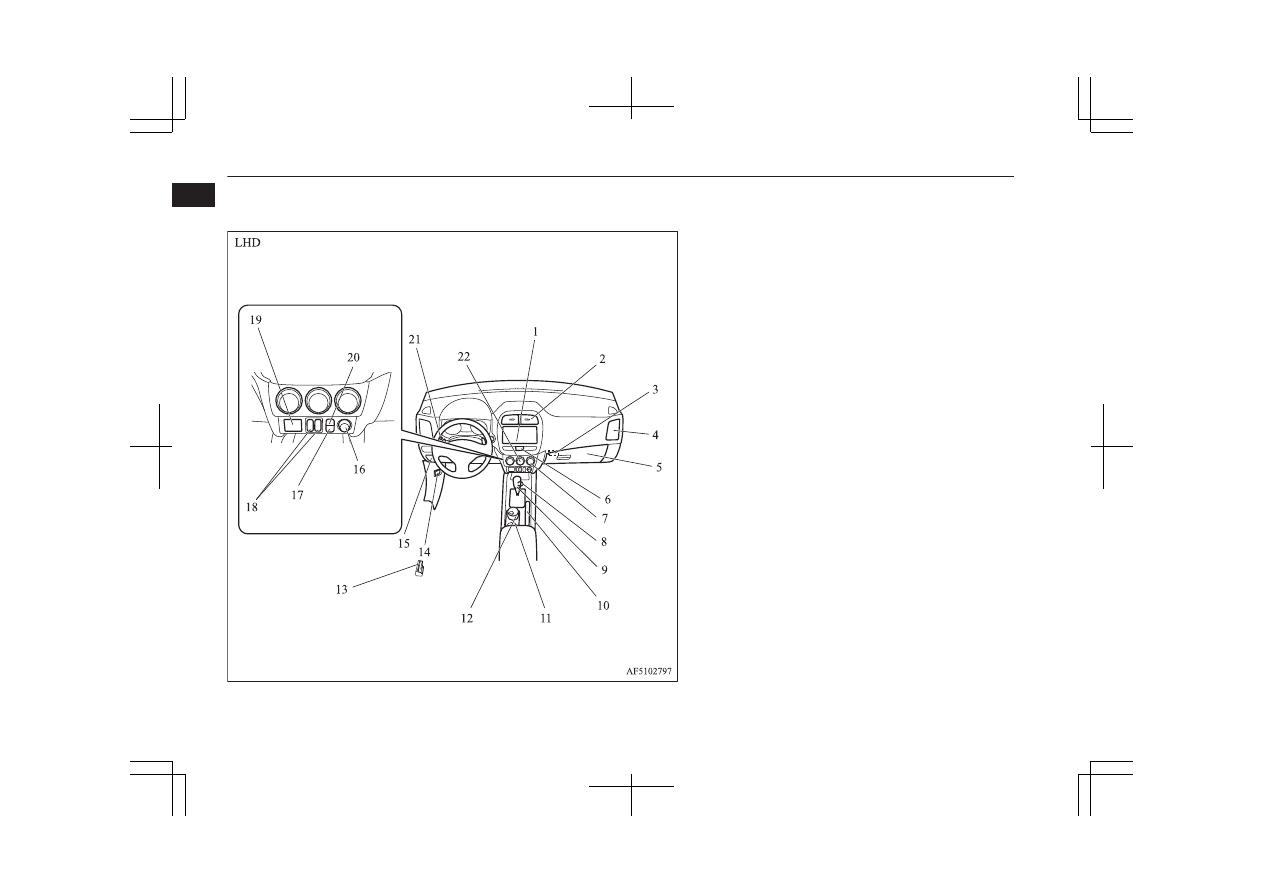

1. Audio system* p. 7-11

MITSUBISHI Multi-Communication System*
DISPLAY AUDIO*
Smartphone Link Display Audio*
Refer to the separate owner’s manual

2. Centre ventilators p. 7-02
3. Key slot* p. 3-20
4. Side ventilators p. 7-02
5. Front passenger’s airbag ON-OFF switch p. 4-27

Glove box p. 7-76

6. Hazard warning flasher switch p. 5-57
7. Rear window demister switch p. 5-64
8. Drive mode selector* p. 6-39
9. Gearshift or selector lever p. 6-23, 6-26, 6-33

10. Parking brake lever p. 6-06
11. Cup holder p. 7-79
12. Ashtray* p. 7-71
13. Fuel tank filler door release lever p. 2-03
14. Bonnet release lever p. 10-03
15. Fuse box p. 10-19
16. Accessory Socket* p. 7-72

Cigarette lighter* p. 7-71

17. Auto Stop & Go (AS&G) OFF switch* p. 6-19
18. Heated seat switch* p. 4-06
19. USB input terminal* p. 7-67
20. Active stability control (ASC) OFF switch* p. 5-04
21. Multi-information meter switch p. 5-04
22. Air conditioning* p. 7-03

Instruments and controls

1-04

OGAE18E1

Overview

1

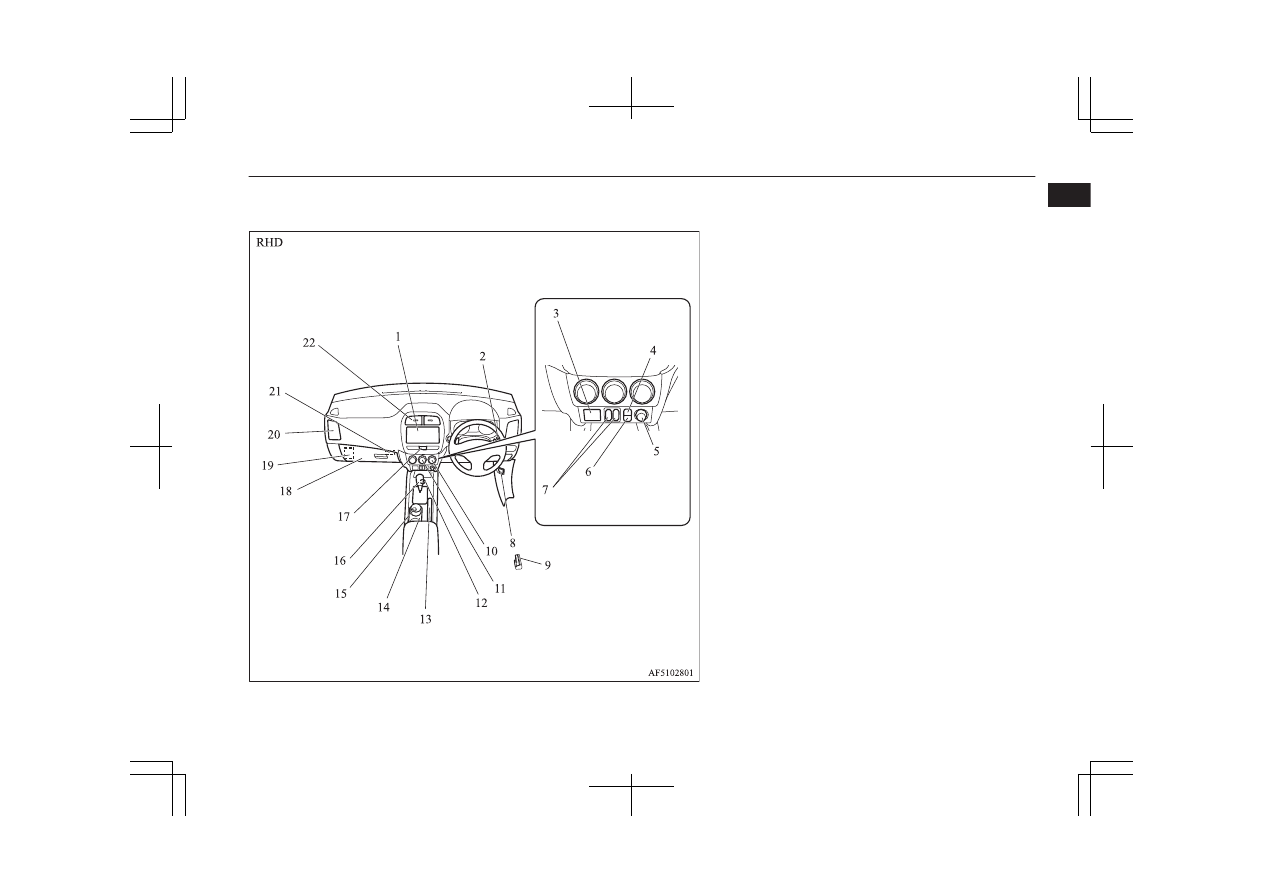

1. Audio system* p. 7-11

MITSUBISHI Multi-Communication System*
DISPLAY AUDIO*
Smartphone Link Display Audio*
Refer to the separate owner’s manual

2. Multi-information meter switch p. 5-04
3. USB input terminal* p. 7-67
4. Active stability control (ASC) OFF switch* p. 5-04
5. Accessory Socket p. 7-72
6. Auto Stop & Go (AS&G) OFF switch* p. 6-19
7. Heated seat switch* p. 4-06
8. Bonnet release lever p. 10-03
9. Fuel tank filler door release lever p. 2-03

10. Rear window demister switch p. 5-64
11. Air conditioning* p. 7-03
12. Drive mode selector* p. 6-39
13. Parking brake lever p. 6-06
14. Cup holder p. 7-79
15. Ashtray* p. 7-71
16. Gearshift or selector lever p. 6-23, 6-26, 6-33
17. Hazard warning flasher switch p. 5-57
18. Front passenger’s airbag ON-OFF switch p. 4-27

Glove box p. 7-76

19. Fuse box p. 10-19
20. Side ventilators p. 7-02
21. Key slot* p. 3-20
22. Centre ventilators p. 7-02

Instruments and controls

1-05

OGAE18E1

Overview

1

Interior

E00100206660

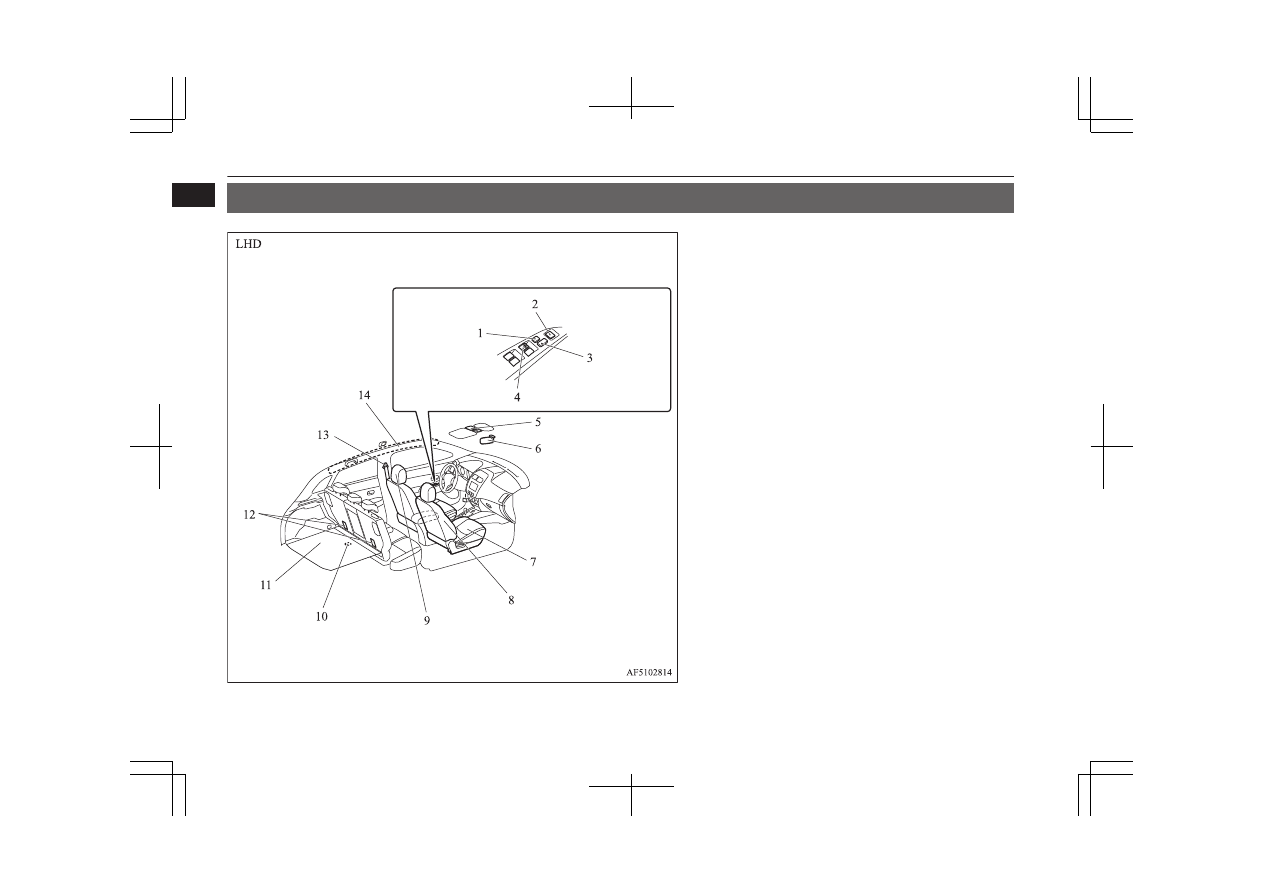

1. Lock switch p. 3-40
2. Electric remote-controlled outside rear-view mirrors switch

p. 6-10

3. Central door lock switch p. 3-26
4. Electric window control switch p. 3-39
5. Sunshade illumination dimming control switch* p. 7-75
6. Inside rear-view mirror p. 6-08
7. Front seat p. 4-03

Heated seat* p. 4-06

8. Supplemental restraint system (SRS) - side airbag (for front

seats)* p. 4-32

9. Head restraints p. 4-07

10. Luggage room lamp p. 7-74
11. Luggage floor box* p. 7-78
12. Tether anchorages for child restraint system p. 4-22
13. Seat belts p. 4-09

Adjustable seat belt anchor p. 4-12

14. Supplemental restraint system (SRS) - curtain airbag* p. 4-33

Interior

1-06

OGAE18E1

Overview

1

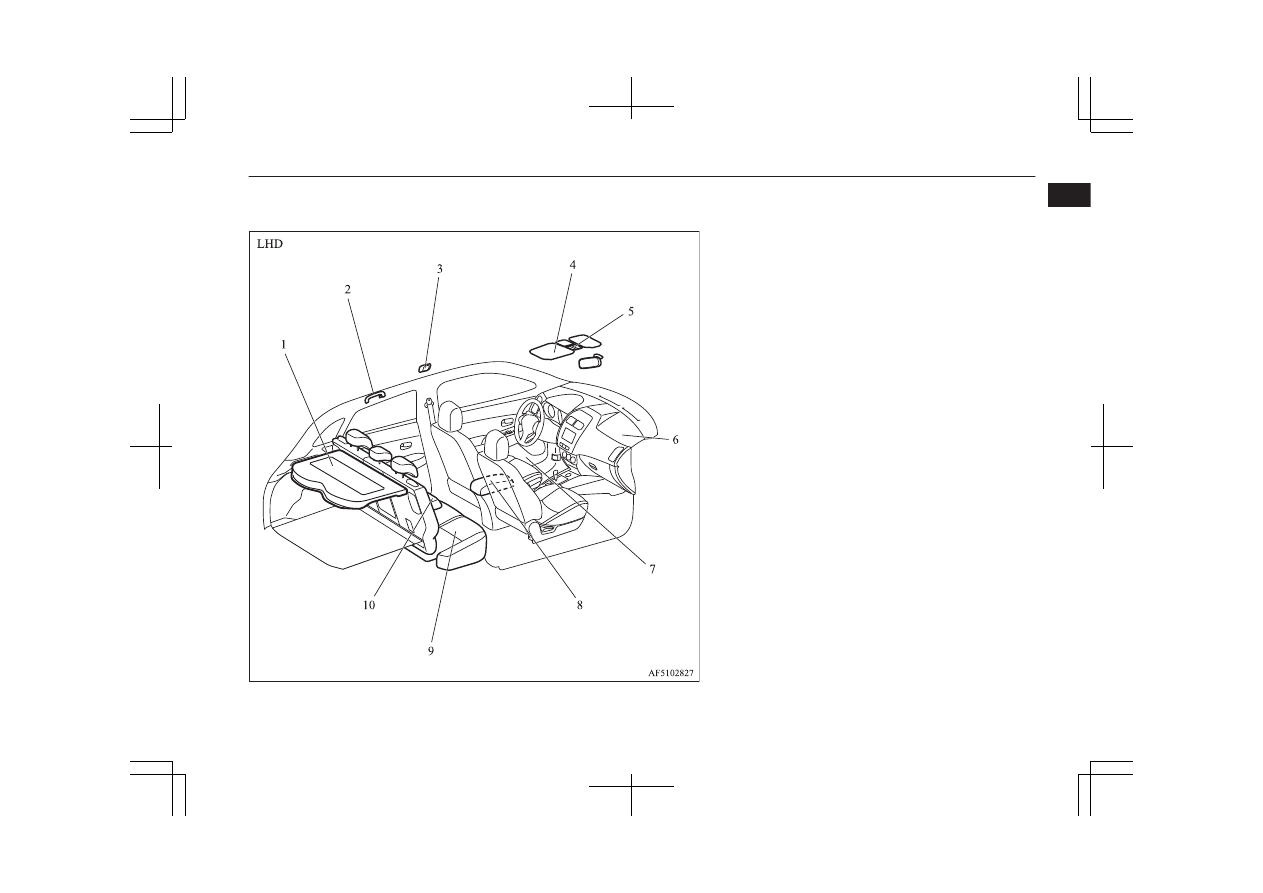

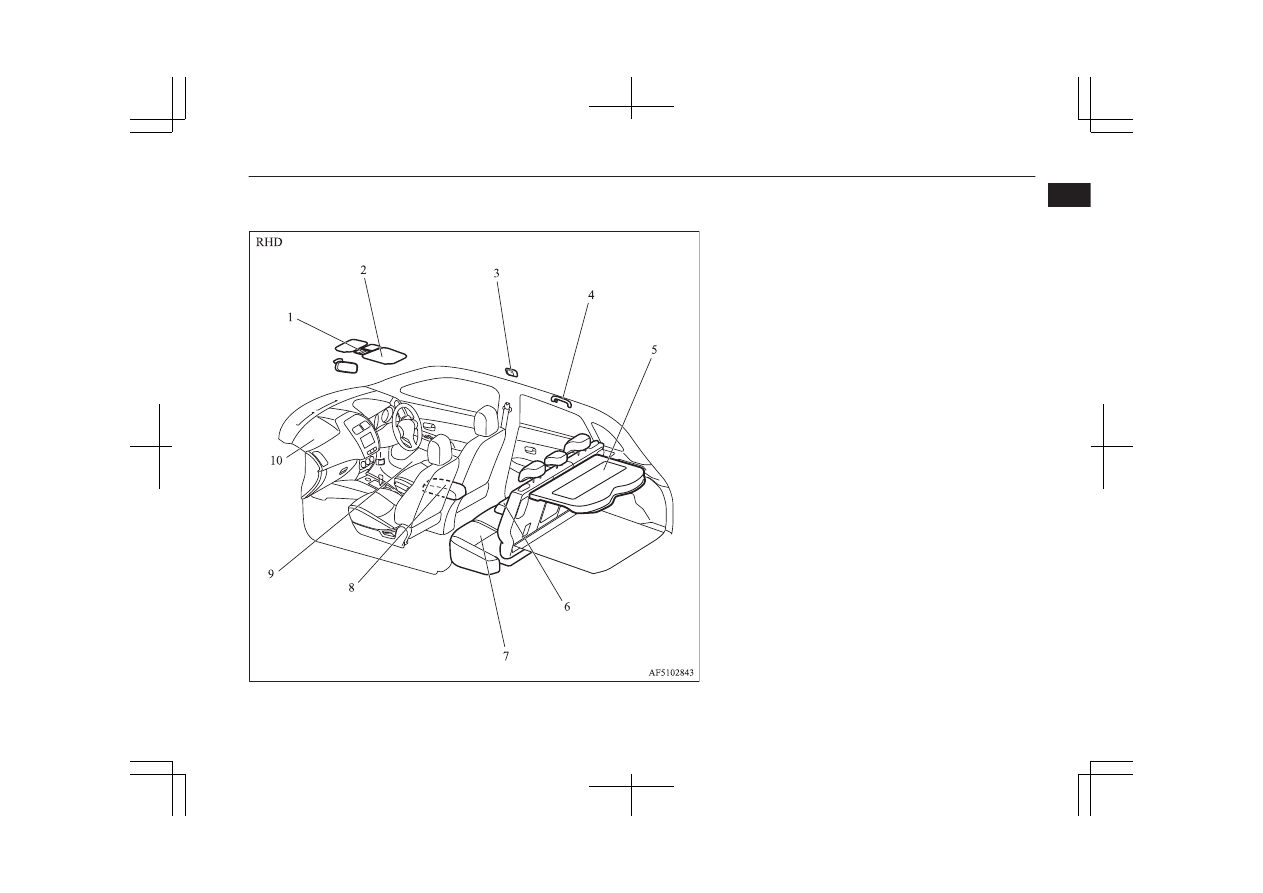

1. Rear shelf panel p. 7-80
2. Assist grip p. 7-80

Coat hook p. 7-81

3. Room lamp (rear)* p. 7-74
4. Sun visors p. 7-70

Vanity mirror p. 7-70
Card holder p. 7-70

5. Map lamp & room lamp (front) p. 7-73

Sunshade switch* p. 3-41
Microphone (for Bluetooth

®

 2.0 interface)* p. 7-47

6. Supplemental restraint system (SRS) - airbag (for front passen-

ger’s seat) p. 4-24, 4-29

7. Bottle holder p. 7-79
8. Armrest Accessory socket p. 7-72
9. Rear seat p. 4-06

10. Armrest* p. 4-06

Cup holder* p. 7-79

Interior

1-07

OGAE18E1

Overview

1

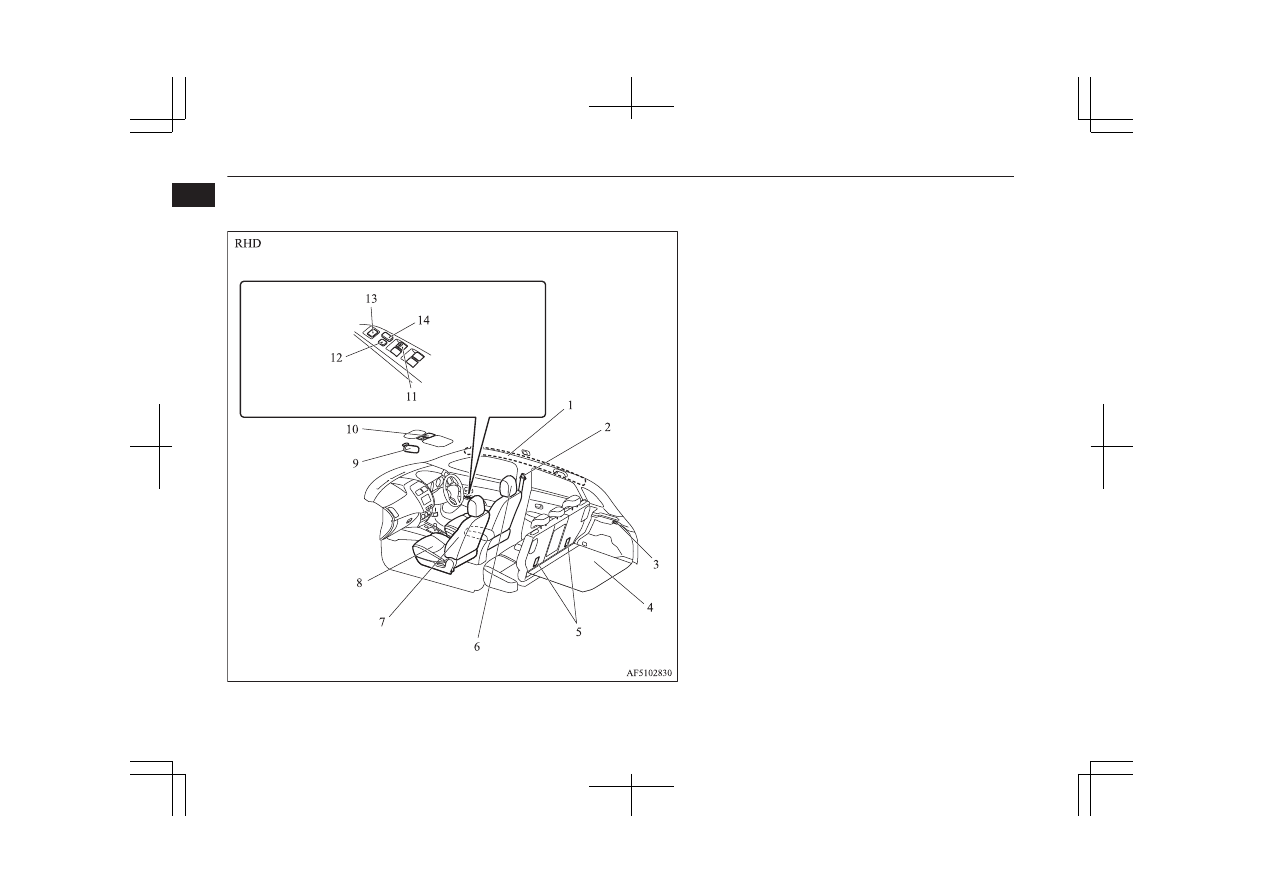

1. Supplemental restraint system (SRS) - curtain airbag* p. 4-33
2. Seat belts p. 4-09

Adjustable seat belt anchor p. 4-12

3. Luggage room lamp p. 7-74
4. Luggage floor box* p. 7-78
5. Tether anchorages for child restraint system p. 4-22
6. Head restraints p. 4-07
7. Supplemental restraint system (SRS) - side airbag (for front

seats)* p. 4-32

8. Front seat p. 4-03

Heated seat* p. 4-06

9. Inside rear-view mirror p. 6-08

10. Sunshade illumination dimming control switch* p. 7-75
11. Electric window control switch p. 3-39
12. Lock switch p. 3-40
13. Electric remote-controlled outside rear-view mirrors switch

p. 6-10

14. Central door lock switch p. 3-26

Interior

1-08

OGAE18E1

Overview

1

1. Map lamp & room lamp (front) p. 7-73

Sunshade switch* p. 3-41
Microphone (for Bluetooth

®

 2.0 interface)* p. 7-47

2. Sun visors p. 7-70

Vanity mirror p. 7-70
Card holder p. 7-70

3. Room lamp (rear)* p. 7-74
4. Assist grip p. 7-80

Coat hook p. 7-81

5. Rear shelf panel p. 7-80
6. Armrest* p. 4-06

Cup holder* p. 7-79

7. Rear seat p. 4-06
8. Armrest Accessory socket p. 7-72
9. Bottle holder p. 7-79

10. Supplemental restraint system (SRS) - airbag (for front passen-

ger’s seat) p. 4-24, 4-29

Interior

1-09

OGAE18E1

Overview

1

Luggage compartment

E00100402996

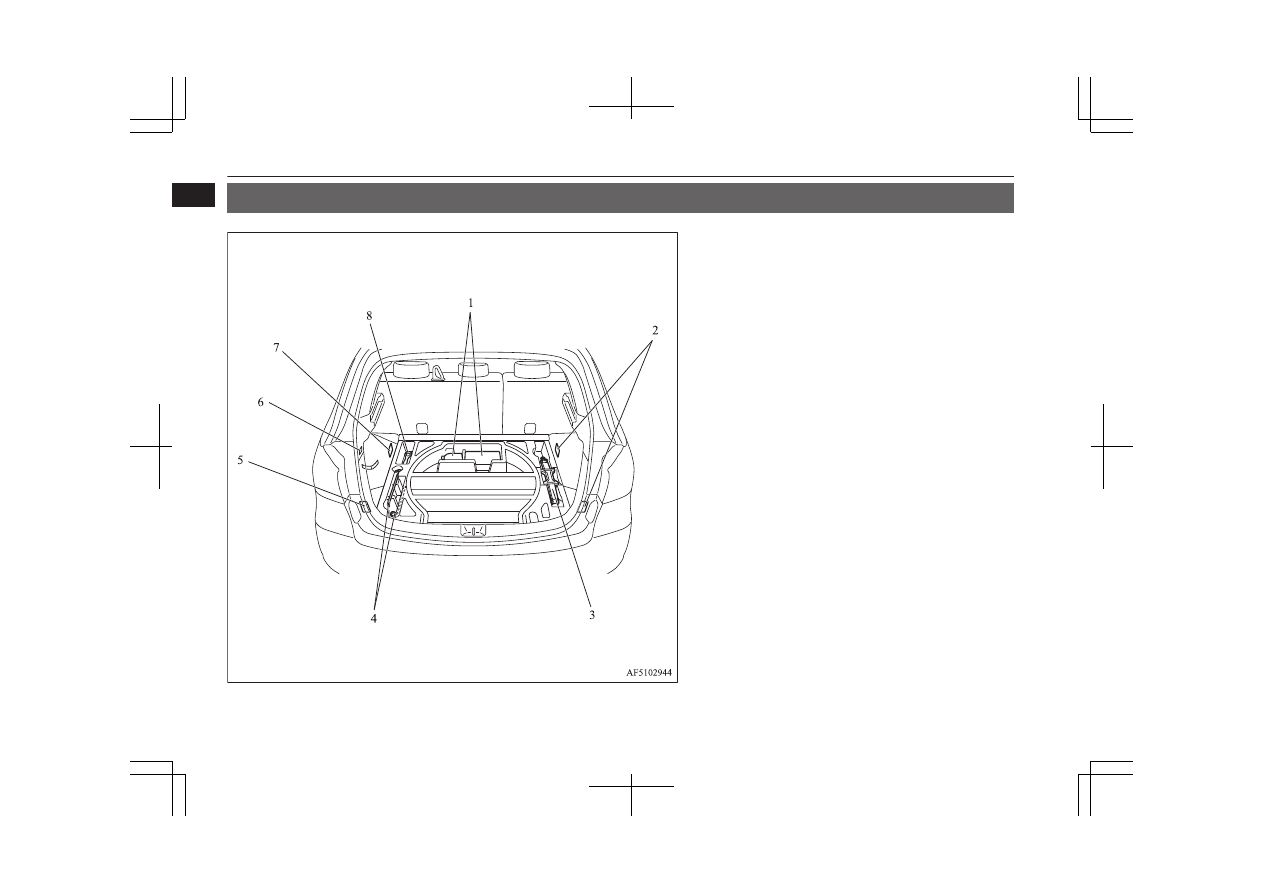

Vehicle with tyre repair kit

1. Tyre repair kit p. 8-07
2. Luggage hook p. 7-81
3. Jack p. 8-07
4. Tools p. 8-06
5. Luggage hook p. 7-81
6. Hook
7. Luggage hook p. 7-81
8. Tools p. 8-06

Luggage compartment

1-10

OGAE18E1

Overview

1

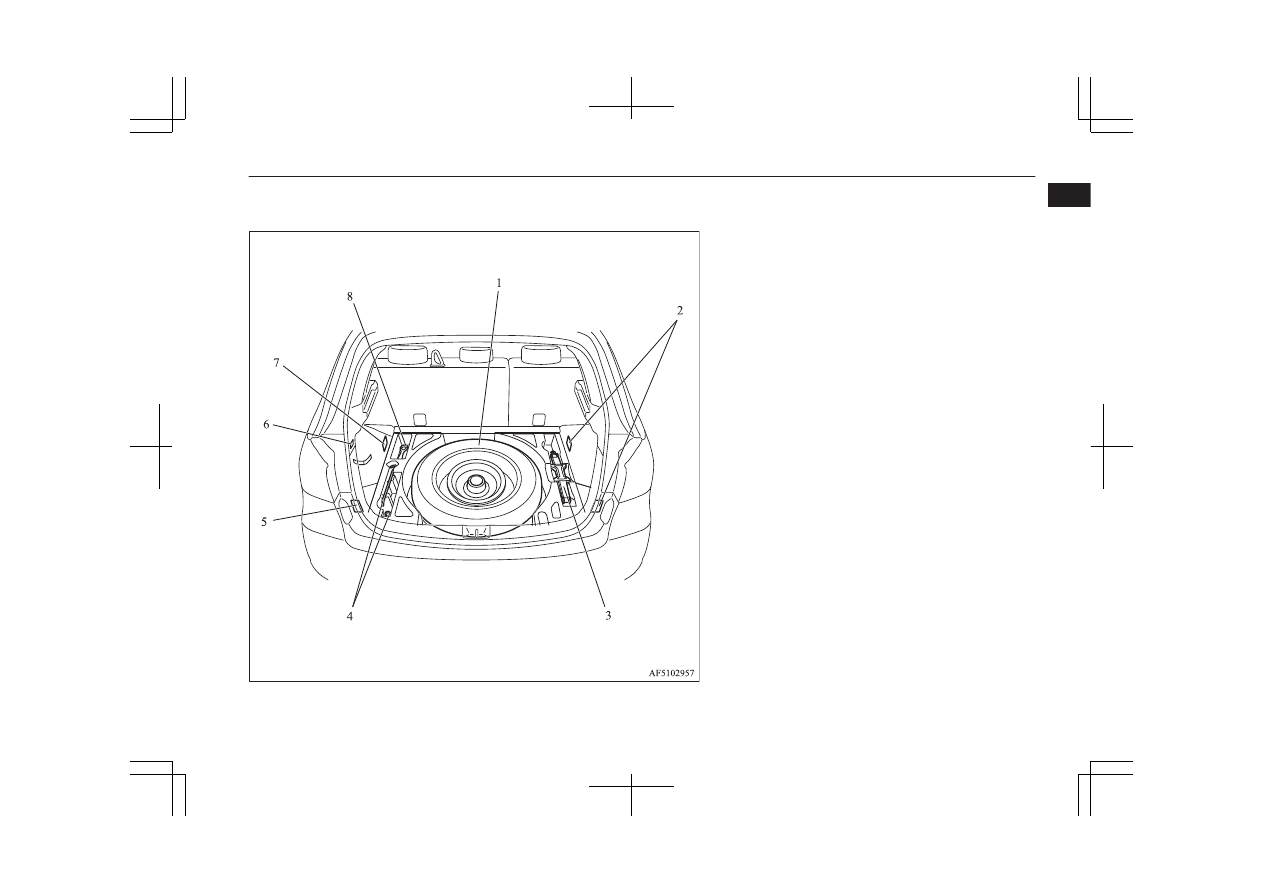

Vehicle with the spare tyre

1. Spare wheel p. 8-14
2. Luggage hook p. 7-81
3. Jack p. 8-07
4. Tools p. 8-06
5. Luggage hook p. 7-81
6. Hook
7. Luggage hook p. 7-81
8. Tools p. 8-06

Luggage compartment

1-11

OGAE18E1

Overview

1

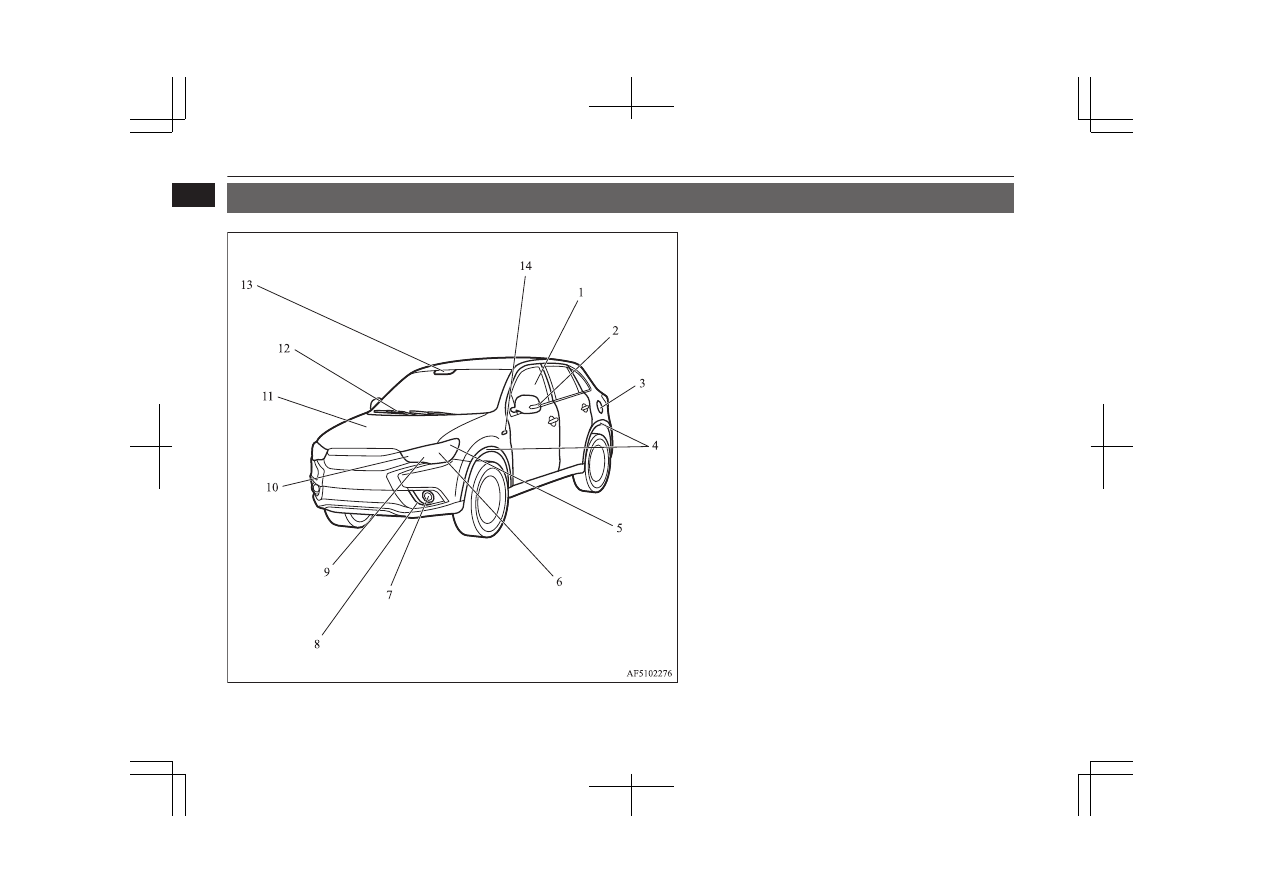

Exterior

E00100507790

1. Electric window control p. 3-39
2. Outside rear-view mirror p. 6-10

Side turn-signal lamps* p. 5-57, 10-26, 10-32

3. Fuel tank filler p. 2-03
4. Wheel lip molding*

For details, refer to Vehicle dimensions p. 11-04.

5. Position lamps (Type 1)* p. 5-50, 10-26, 10-30
6. Headlamps, low beam p. 5-50, 10-26, 10-28, 10-29
7. Front fog lamps* p. 5-58, 10-26, 10-32
8. Daytime running lamps* p. 5-53, 10-26, 10-33

Position lamps (Type 2)* p. 5-53, 10-26, 10-33

9. Headlamps, high-beam p. 5-50, 10-26, 10-29

10. Front turn-signal lamps p. 5-57, 10-26, 10-31
11. Bonnet p. 10-03
12. Windscreen wipers p. 5-59
13. Sensor* [for Forward Collision Mitigation system (FCM) and

Lane Departure Warning (LDW)] p. 6-59, 6-68
Rain sensor* p. 5-60

14. Side turn-signal lamps* p. 5-57, 10-26, 10-32

Exterior

1-12

OGAE18E1

Overview

1

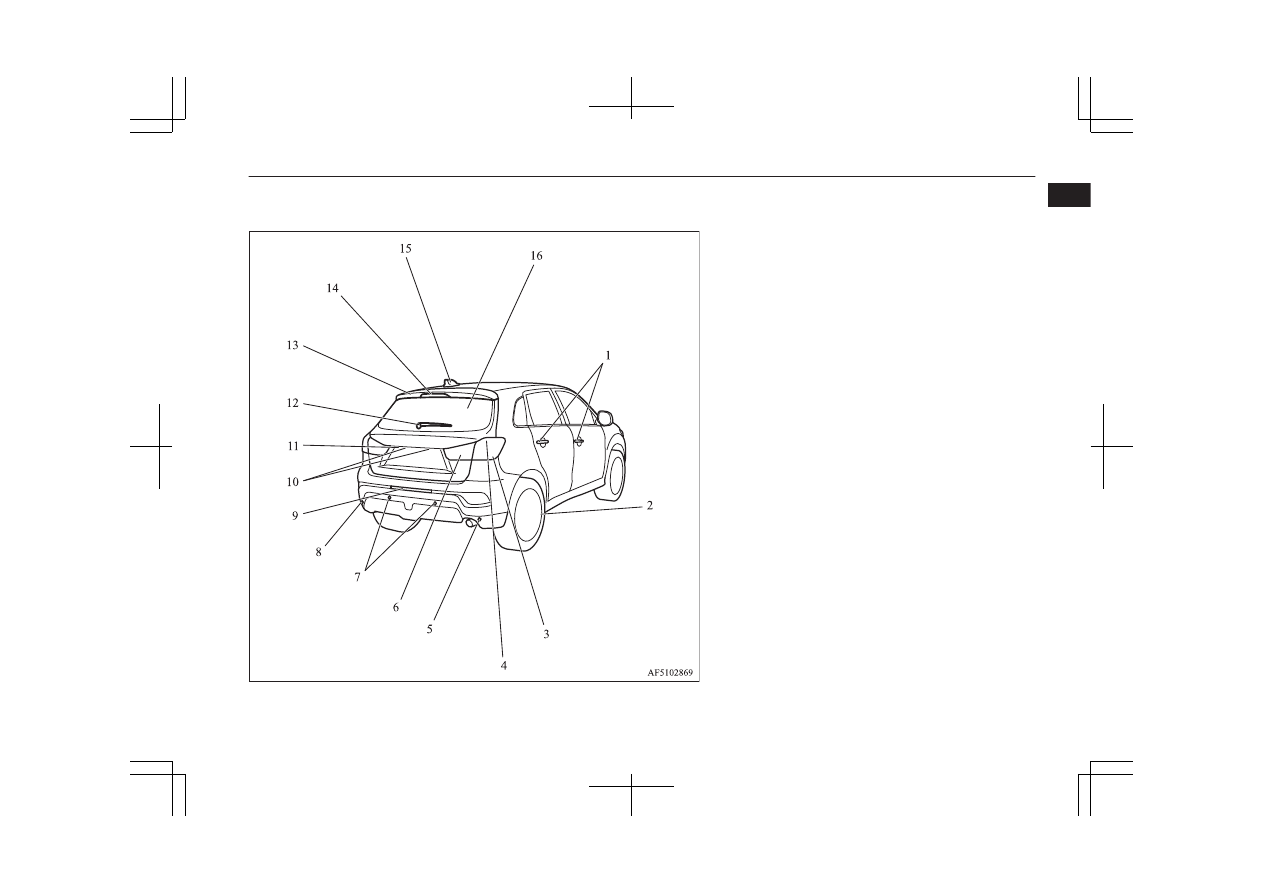

1. Keyless entry system* p. 3-04, 3-22

Keyless operation system* p. 3-07
Locking and unlocking the doors p. 3-25

2. Changing tyres p. 8-13

Tyre inflation pressures p. 10-13
Tyre rotation p. 10-15
Tyre chains p. 10-16
Size of tyres and wheels p. 11-12
Tyre pressure monitoring system* p. 6-71

3. Rear turn-signal lamps/Hazard warning lamps p. 5-57, 5-57,

10-26, 10-34

4. Stop lamps/Tail lamps p. 5-50, 10-26, 10-34
5. Corner sensors* p. 6-77
6. Reversing lamps p. 10-26, 10-34
7. Back sensors* p. 6-77
8. Corner sensors* p. 6-77
9. Rear fog lamp* p. 5-58, 10-26, 10-34

10. Licence plate lamps p. 5-50, 10-26, 10-35
11. Rear-view camera* p. 6-81
12. Rear window wiper p. 5-63
13. Rear spoiler
14. High-mounted stop lamp p. 10-26
15. Antenna
16. Tailgate p. 3-30

Exterior

1-13

OGAE18E1

Overview

1



























































OGAE18E1

Fuel selection...................................................................................... 2-02
Filling the fuel tank............................................................................. 2-03
Installation of accessories................................................................... 2-05
Modification/alterations to the electrical or fuel systems................... 2-06
Genuine parts...................................................................................... 2-06
Safety and disposal information for used engine oil...........................2-06
Disposal information for used batteries.............................................. 2-07
Auto Stop & Go (AS&G) system*..................................................... 2-07

General information



OGAE18E1

2

Fuel selection

E00200105113

Recom-
mended
fuel

Petrol-powered vehicles

Unleaded  petrol  octane
number (EN228)

1600 models

95 RON or higher

2000 models

90 RON or higher

Diesel-powered vehicles

Cetane number (EN590)

51 or higher

CAUTION

l

For petrol-powered vehicles, the use of lea-
ded fuel can result in serious damage to the
engine  and  catalytic  converter.  Do  not  use
leaded fuel.

l

Diesel-powered vehicles are designed to use
only diesel fuel that meets the EN 590 stand-
ard.
Use of any other type of diesel fuel (bio die-
sel,  methyl  ester,  etc.)  would  adversely  af-
fect the engine’s performance and durability.

NOTE

l

Petrol-powered vehicles have the knock con-
trol system so that you can use unleaded pet-
rol 90 RON as an emergent measure in case
unleaded  petrol  95  RON  or  higher  is  not
available on journey, etc.
In such a case, you don’t need to adjust the
engine  specially.  In  case  of  using  unleaded
petrol 90 RON, the engine performance lev-
el is reduced.

l

For diesel fuel, due to the separation of par-
affin,  the  fluidity  of  the  fuel  decreases  con-
siderably as the temperature falls.
Because  of  this  fact  there  are  two  kinds  of
fuel: “summer” and “winter”.
This must be considered in winter use.
Select either of the two kinds of fuel in ac-
cordance with ambient temperature.

Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel

When travelling abroad, find out in advance
about  the  fuels  served  in  local  service  sta-
tions.

NOTE

l

Repeatedly  driving  short  distances  at  low
speeds can cause deposits to form in the fuel
system and engine, resulting in poor starting
and poor acceleration. If these problems oc-
cur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the ve-
hicle. The additive will remove the deposits,
thereby  returning  the  engine  to  a  normal
condition.  Be  sure  to  use  a  MITSUBISHI
MOTORS  GENUINE  FUEL  SYSTEM
CLEANER.  Using  an  unsuitable  additive
could make the engine malfunction. For de-
tails,  please  contact  a  MITSUBISHI
MOTORS Authorized Service Point.

l

Poor quality petrol can cause problems such
as  difficult  starting,  stalling,  engine  noise
and hesitation. If you experience these prob-
lems, try another brand and/or grade of pet-
rol.
If  the  check  engine  warning  lamp  flashes,
have the system checked as soon as possible
at  a  MITSUBISHI  MOTORS  Authorized
Service Point.

Fuel selection

2-02

OGAE18E1

General information

2

Graphical expression for con-

sumer information

Identifier for petrol-type fuels

E5: Petrol fuel containing up to 2.7 % (m/m)
oxygen  or  up  to  5.0  %  (V/V)  ethanol  –  Eg.
EN 228 compliant unleaded petrol
E10:  Petrol  fuel  containing  up  to  3.7  %
(m/m) oxygen or up to 10.0 % (V/V) ethanol
– Eg. EN 228 compliant unleaded petrol
The  petrol  engine  are  compatible  with  E5
type petrol (containing 5 % ethanol) and E10
type  petrol  (containing  10  %  ethanol)  con-
forming to European standards EN 228.

CAUTION

Do not use more than 10 % concentration of etha-
nol (grain alcohol) by volume.
Use of more than 10 % concentration may lead to
damage  to  your  vehicle  fuel  system,  engine,  en-
gine sensors and exhaust system.

Identifier for diesel-type fuels

B7: Diesel fuel containing up to 7.0 % (V/V)
Fatty Acid Methyl Esters – Eg. EN 590 com-
pliant diesel
The  diesel  engine  are  compatible  with  B7
type diesel (containing 7 % fatty acid methyl
esters)  conforming  to  European  standards
EN590.

CAUTION

Do not use more than 7 % concentration of fatty
acid methyl esters (bio diesel) by volume.
Use  of  more  than  7  %  concentration  would  ad-
versely affect the engine’s performance and dura-
bility.

Filling the fuel tank

E00200204289

WARNING

l

When handling fuel, comply with the safe-
ty  regulations  displayed  by  garages  and
filling stations.

WARNING

l

Gasoline  is  highly  flammable  and  explo-
sive. You could be burned or seriously in-
jured  when  handling  it.  When  refueling
your  vehicle,  always  turn  the  engine  off
and  keep  away  from  flames,  sparks,  and
smoking materials. Always handle fuel in
well-ventilated outdoor areas.

l

Before  removing  the  fuel  cap,  be  sure  to
get rid of your body’s static electricity by
touching  a  metal  part  of  the  car  or  the
fuel  pump.  Any  static  electricity  on  your
body could create a spark that ignites fuel
vapour.

l

Perform  the  whole  refueling  process
(opening the fuel tank filler door, remov-
ing the fuel cap, etc.) by yourself. Do not
let  any  other  person  come  near  the  fuel
tank filler. If you allowed a person to help
you  and  that  person  was  carrying  static
electricity, fuel vapour could be ignited.

l

Do not move away from the fuel tank fill-
er until refueling is finished. If you moved
away  and  did  something  else  (for  exam-
ple,  sitting  on  a  seat)  part-way  through
the refueling process, you could pick up a
fresh charge of static electricity.

l

If the tank cap must be replaced, use only
a MITSUBISHI MOTORS genuine part.

Fuel tank capacity

Petrol-pow-
ered

vehi-

cles

2WD models

63 litres

4WD models

60 litres

Filling the fuel tank

2-03

OGAE18E1

General information

2
