Mercedes-Benz ML320. Service manual - part 776

AR77.20-P-0001GH

Removing and installing switch for pop-up/sliding roof

29.4.97

MODEL

163 with CODE (414a)  Electric glass pop-up/sliding roof

P77.20-0449-11

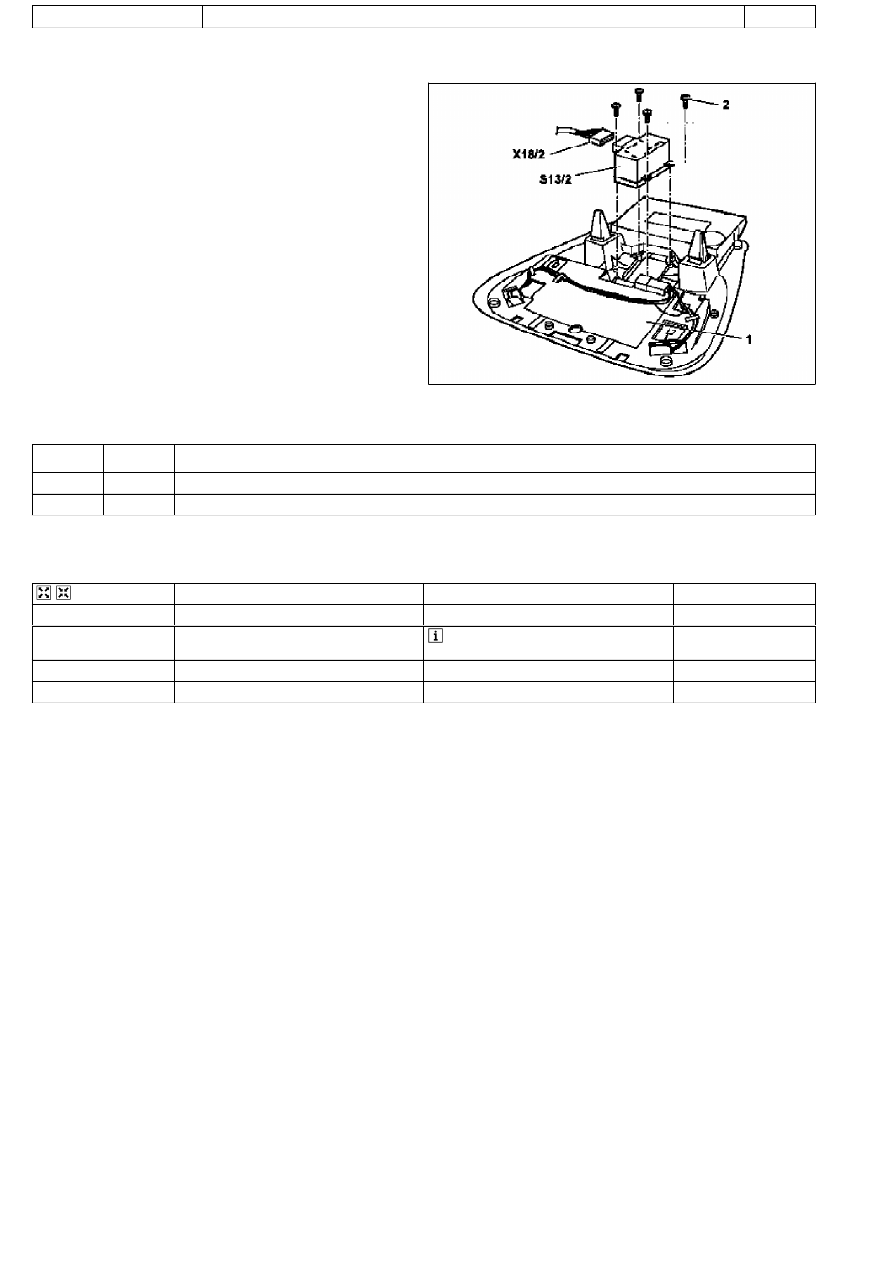

1

Overhead control panel

2

Screws

S13/2

Sliding/pop-up roof switch

X18/2

Interior/roof connector

Operation no. of operation texts or of standard texts and flat rates

Division

Operation
no.

Operation text

P

772650

REPLACING CONTROL SWITCH FOR SLIDING ROOF DRIVE

P

825602

REMOVING AND INSTALLING FRONT INTERIOR LAMP (1), REPLACING ACCORDING TO CONDITION



Removal, installation

1

Remove overhead control panel (1)

AR82.20-P-1100GH

2

Remove sliding/pop-up roof switch (S13/2)
from overhead control panel control module (1)

 Unscrew screws (2) from overhead

control panel (1)

3

Disconnect connector (X18/2)

4

Install in opposite order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR82.20-P-1100GH

Remove/install front overhead control panel

27.5.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P68.00-0650-06

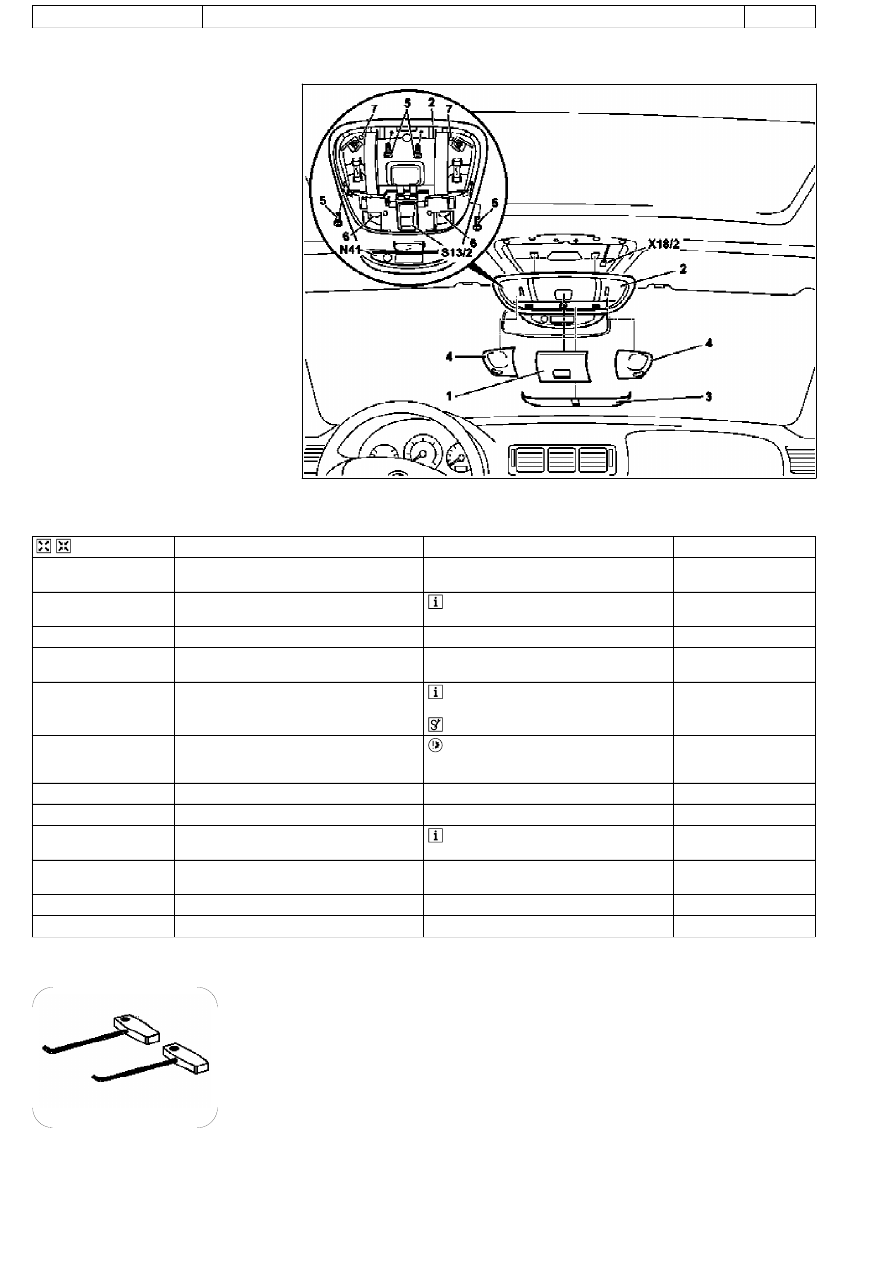

1

Garage door opener flap

2

Overhead control panel

3

Cover

4

Glass covers

5

Bolts

6

Retaining clip

7

Clips (black)

N41

Trip computer control module

S13/2

SR switch

X18/2

Interior/roof connector



Remove/install

1

Remove garage door opener flap (1) from
overhead control panel (2)

2

Unclip cover (3) on the sliding/tilting roof
switch (S13/2)

 4 clips.

3

Unclip glass covers (4) from interior lights

4

Unscrew screws (5) below garage door
opener flap (1) and glass covers (4)

5

Unclip clips (black) (7) next to the light
switches



Installation: Counterhold mounting plate

with puller hooks inside of headliner.

 Hooked extraction tool

*140589023300

6

Press both retaining clips (6) to rear and
simultaneously press overhead control panel
(2) to front



 Position narrow plastic wedge or

screwdriver in front of retaining lugs.

7

Remove overhead control panel (2) downward

8

Remove sliding/tilting roof switch (S13/2)

AR77.20-P-0001GH

9.1

Remove trip computer control module (TRIP)
(N41)

 With code 245, trip computer, only.

AR54.50-P-0001GH

10

Detach interior/roof connector (X18/2) from
overhead control panel (2)

11

Remove overhead control panel (2)

12

Install in the reverse order

Hooked extraction tool

140 589 02 33 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR54.65-P-0002GH

Remove/install Parktronic system (PTS) sensors in rear bumper

19.4.01

MODEL

163.113 /128 /154 /157 /174 /175 with CODE (220a) Parktronic System (PTS)

P54.65-2412-06

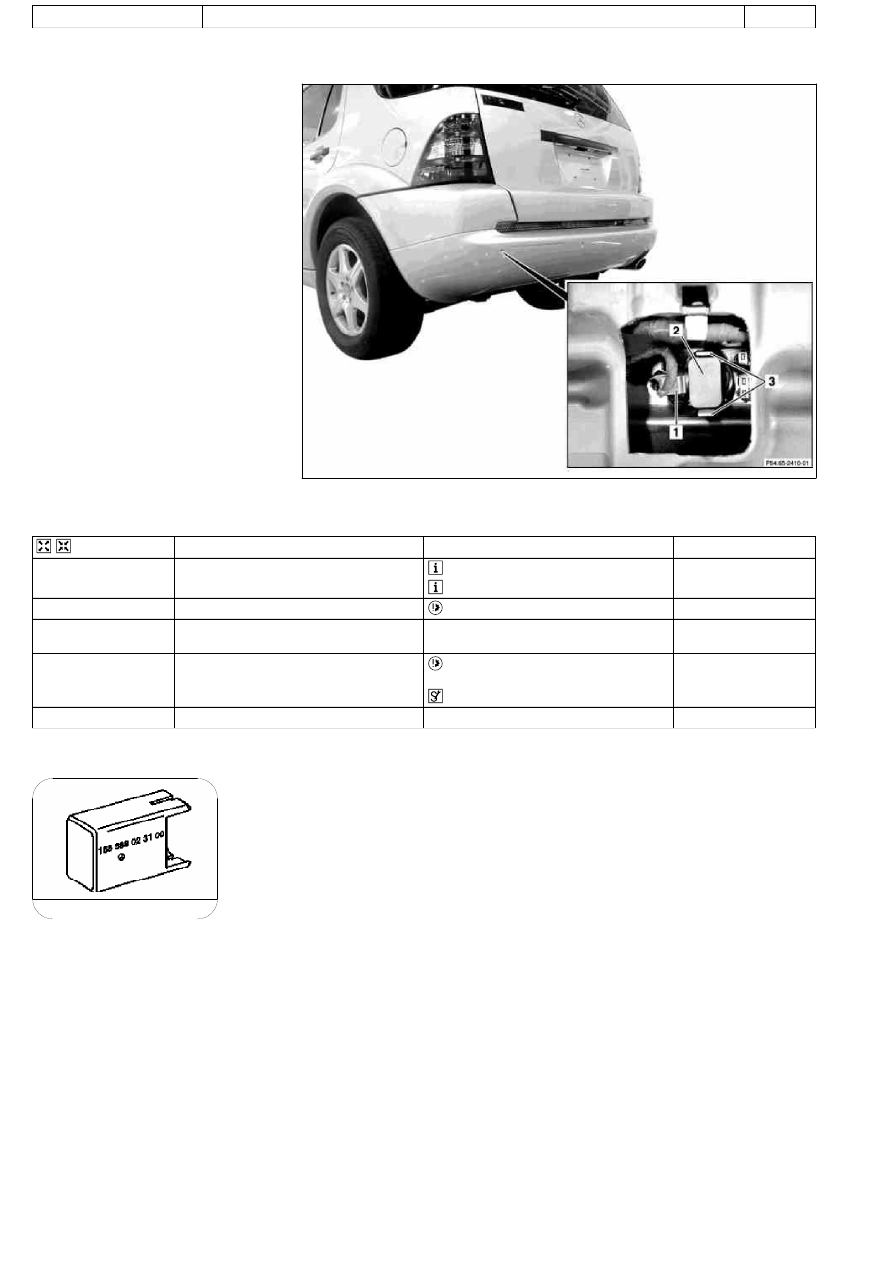

1

Plug connection

2

Parktronic system sensor

3

Retaining clamps



Remove/install

1

Remove rear bumper

 with styling package, code U49.

AR88.20-P-2200GJ

As of 01.09.01.

AR88.20-P-2200GK

2

Put down bumper safely in a suitable place

 Do not damage paintwork.

3

Disconnect connector (1) from Parktronic
system sensor(2)

4

Remove Parktronic system sensor (2) from
the bumper

 Bo not brake off the retaining clamps (3).

 Release tool

*168589023100

5

Install in the reverse order

Release tool

168 589 02 31 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR67.10-P-1000-07P

Prepare glue cartridge

Commercially available tools (see Workshop Equipment Manual)

Number

Designation

Make (e. g.)

Order number

WH58.30-Z-1015-20A

Betapower II (2-component electric cartridge gun)

DOW Automotive
(Deutschland) GmbH

Am Güterbahnhof

D-35683 Dillenburg

Tel.: +49 (0)
39484/8714-0

995.182

Auxiliary repair materials

Number

Designation

Order number

BR00.45-Z-1036-02A

2-component repair kit for glazing bonded windows

220 670 00 93

BR00.45-Z-1055-02A

2-component glue kit

168 670 00 93

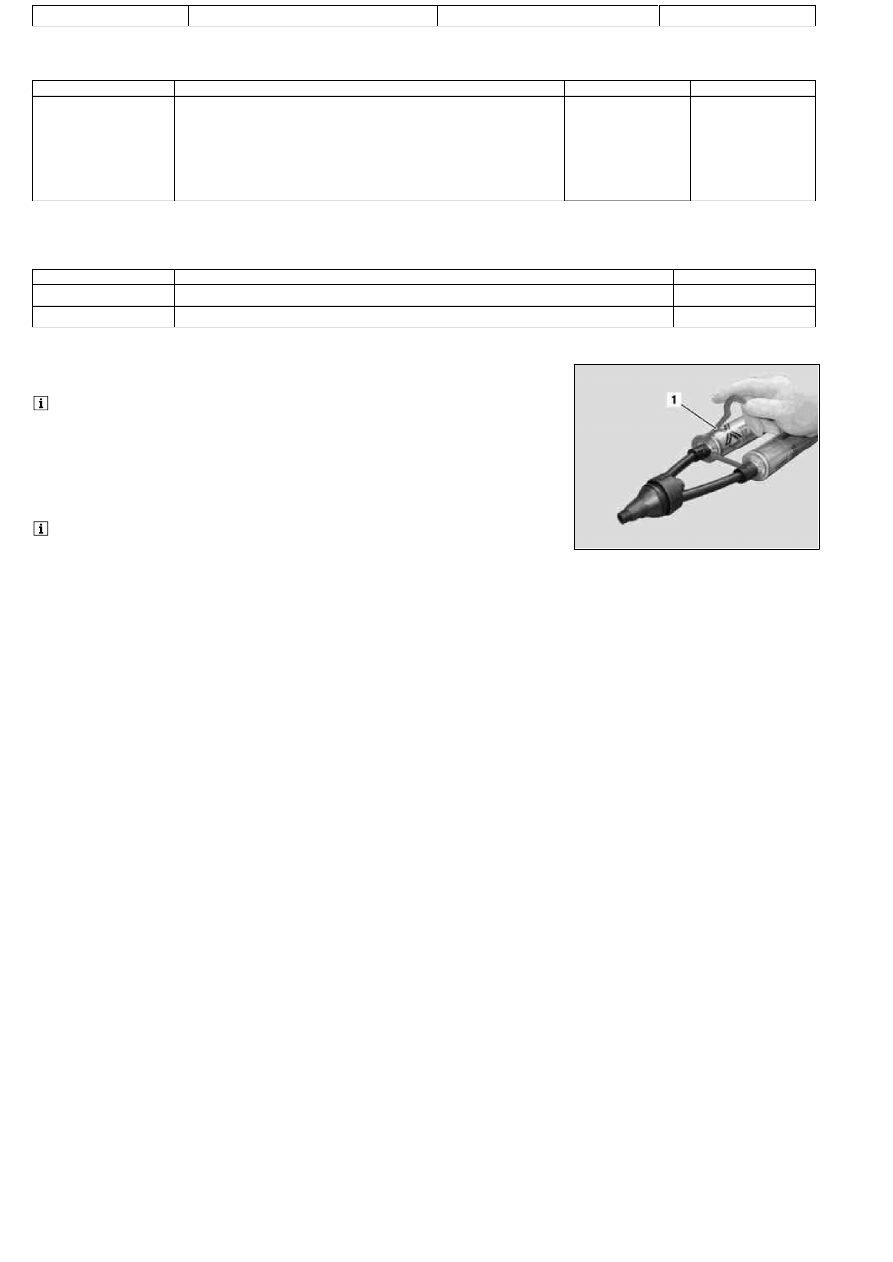

P67.10-2034-01

1

Remove both cartridges from repair kit



Always process cartridges together.

2

Remove retainer (1) from cartridges.

3

Screw on application nozzle.

4

Insert cartridges into Betagun 2-component electric cartridge gun

The 2-component glue set includes plastic and glass primer, the 2-component repair set for

glazing bonded windows includes only glass primer.
