Mercedes-Benz ML320. Service manual - part 731

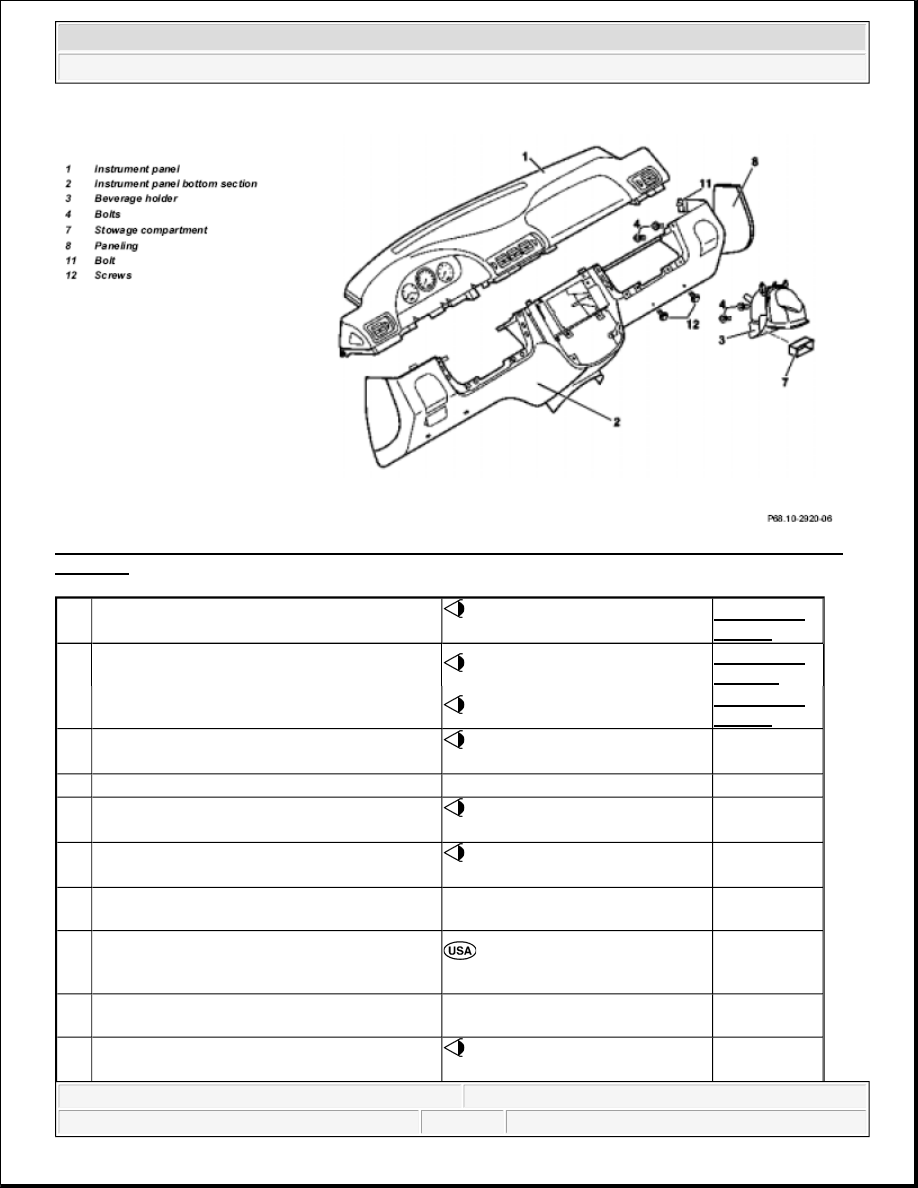

Fig. 31: Identifying Stowage Compartment Components (Passenger Side Vehicles As Of VIN A145273,
X708319)

1.1

Remove cover below instrument panel on
passenger side

 Only as of VIN A145273,

X708319.

AR68.10-P-
1520GI

2

Remove glove compartment

 Up to VIN A145272, X708318.

AR68.10-P-
1400GH





 As of VIN A145273, X708319.

AR68.10-P-
1400GI

3.1

Unscrew screws (12) from bottom side of
instrument panel

 Only as of VIN A145273,

X708319.



4

Remove stowage compartment (7).





5.1

Remove entry lamp from bottom side of
instrument panel.

 Only as of VIN A145273,

X708319.



6.1 Remove paneling (8).

 Only as of VIN A145273,

X708319.



7

Unscrew screw (11) from right side of
instrument panel.





8

Loosen instrument panel bottom section (2) at
side on instrument panel (1) and pull
downward.

 Carefully pull downward to

prevent damaging instrument panel.



9

Unscrew screws (4) from beverage holder (3) at
inside of instrument panel bottom section (2)





10.1

Unscrew screws (5) at outside of instrument
panel bottom section (2)

 Up to VIN A145272, X708318

on stowage compartment (7).





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



REMOVE/INSTALL CENTER CONSOLE - AR68.20-P-2000GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

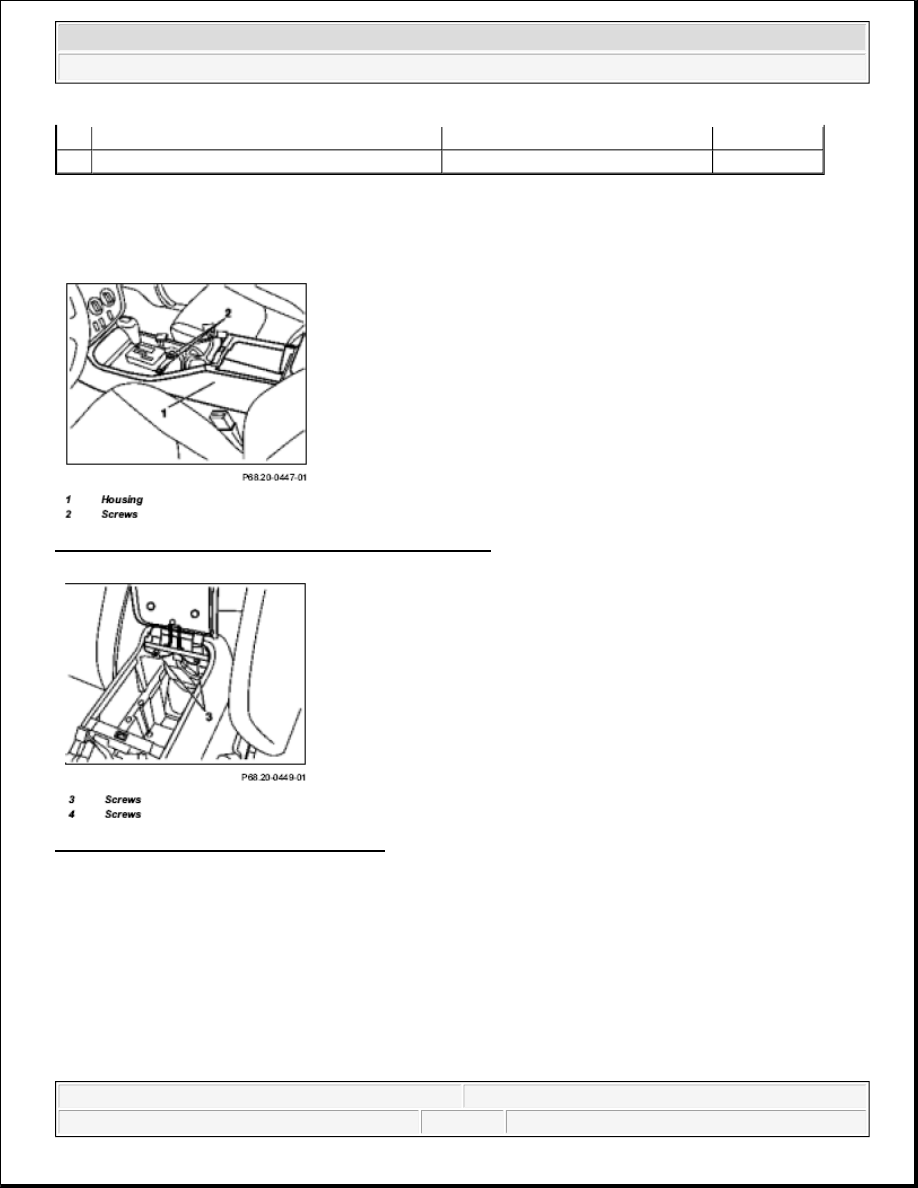

Fig. 32: Identifying Center Console Housing And Screws

Fig. 33: Identifying Center Console Screws

11

Remove beverage holder (3)





12

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



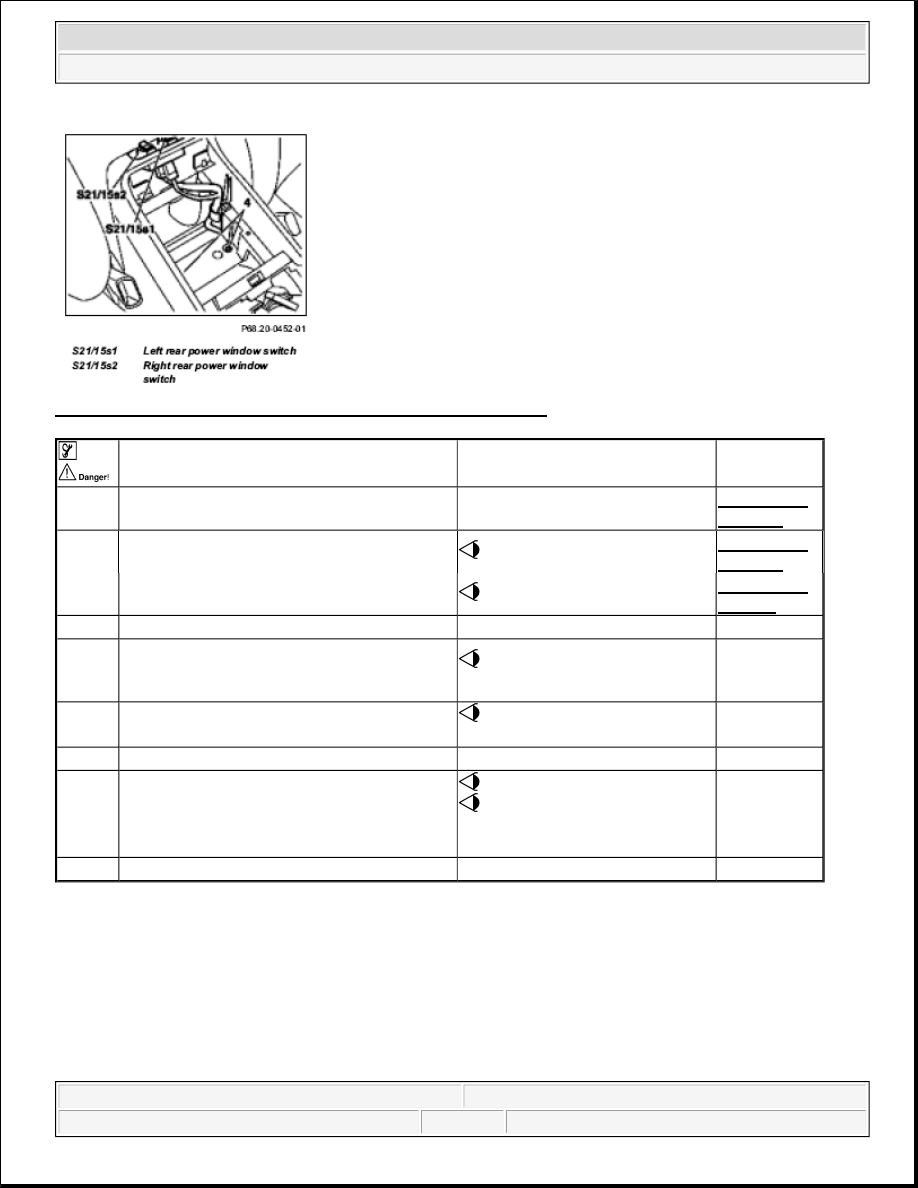

Fig. 34: Identifying Left And Right Rear Power Window Switch

REMOVING AND INSTALLING REAR SECTION OF CENTER CONSOLE - AR68.20-P-2020GH

MODEL 163.113 /136 /154 /172 /174 as of 1.9.99 up to 31.8.01





Remove, Install





1

Remove armrest cover from center console



AR68.20-P-
2370GH

2

Remove cover on gearshift lever

 Up to 31.08.01

AR68.20-P-
2310GH





 As of 01.09.01

AR68.20-P-
2310GI

3

Unscrew screws (2) from front of housing (1)



4.1

Disconnect electrical connector on right and
left rear power window switches (S21/15s1
and S21/15s2)

Up to 31.08.01: Remove wiring

harness from mount.



4.2

Disconnect connector from floor in center
console

Up to 31.08.01: Remove wiring

harness from mount.



5

Unscrew screws (4) from rear of housing (1)





6

Remove housing (1)

 Set selector lever to position N
 Installation: As of 01.09.01,

ensure that air duct is installed
tightly.



7

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



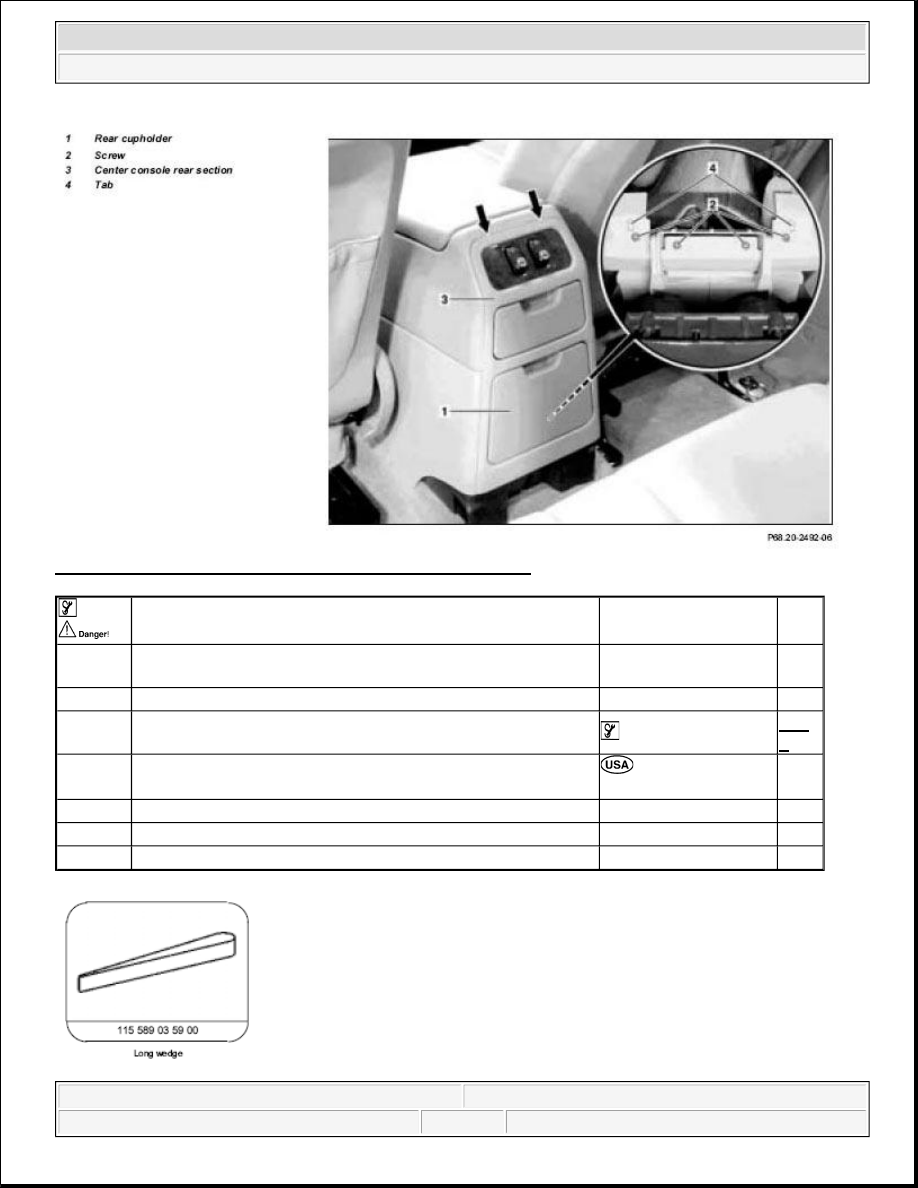

Fig. 35: Identifying Center Console Rear Section Components





Remove, install





1

Open rear cupholder (1), release from center console and fold
down





2

Remove screws (2)





3

Unclip rear section (3) at top (arrows)



Fig.
6

4

Release tabs (4) at bottom

 Danger of

breaking.



5

Pull rear section (3) away from center console





6

Unplug connectors for rear window switches





7

Install in reverse order
