Fig. 3: Identifying Front Axle Components

Position in major assemblies compartment (left and right)

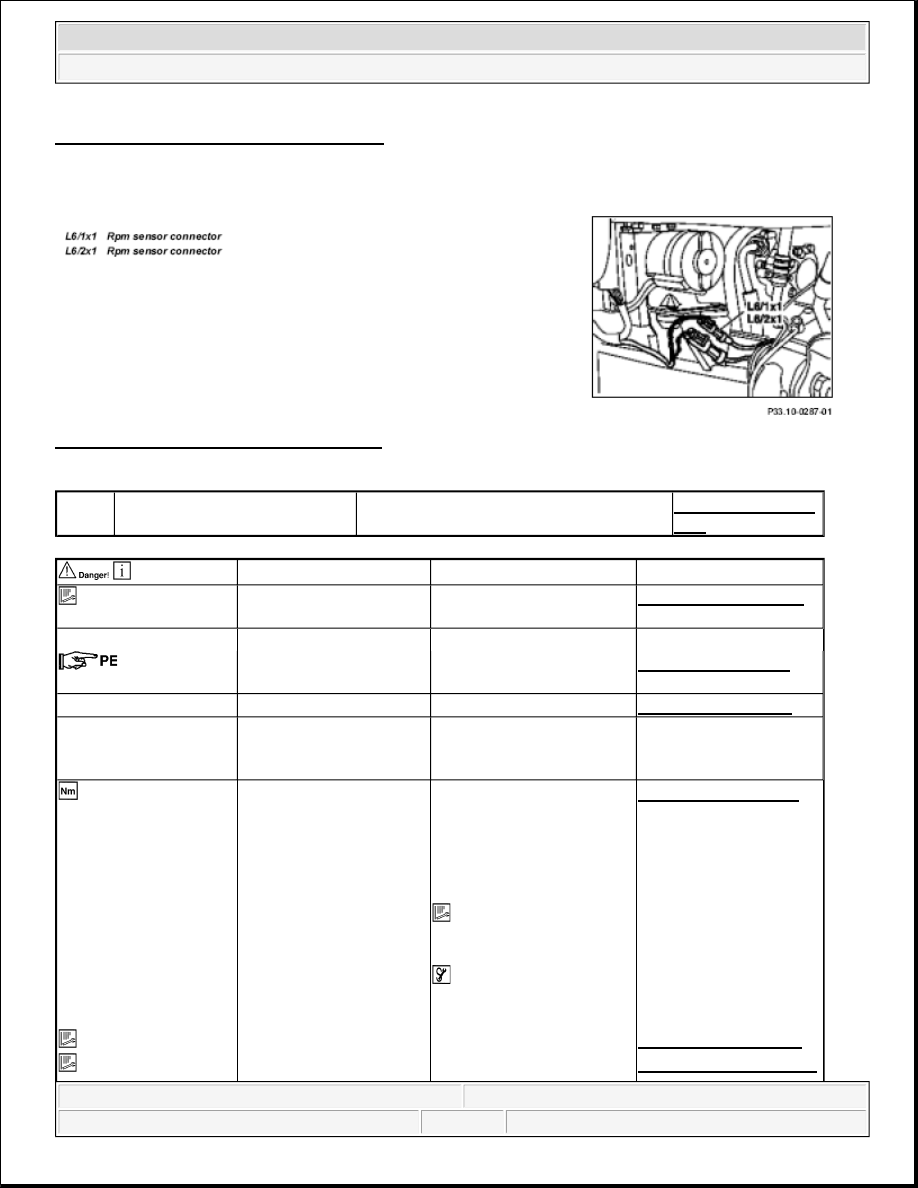

Fig. 4: Identifying RPM Sensor Connector

Modification notes

7.11.00

Figure modified from 170 Nm to
200 Nm

Value in BA33.10-P-1001-01C changed
for Model 163

*BA33.10-P-1001-
01C





Remove/install







Notes on self-locking nuts
and bolts

All models

AH00.00-N-0001-01A

1

Remove front wheels







Remove/install wheels,
rotate if necessary

AP40.10-P-4050GH

2

Remove shock absorber



AR32.25-P-0105GH

3

Unplug speed sensor
connector (L6/1x1,
L6/2x1)







Risk of poisoning caused
by swallowing brake
fluid. Risk of injury
caused by brake fluid
coming into contact with
skin and eyes.

Pour brake fluid only into
suitable and appropriately
marked containers. Wear
protective clothing and eye
protection when handling
brake fluid.

AS42.50-Z-0001-01A

4

Unscrew brake pipe from
brake hose

Seal off line connections

with plugs to prevent brake
fluid from running out.

 Installation: The brake

hose must not be twisted
after tightening.





Brake fluid notes

All models

AH42.50-P-0001-01A



Notes on installation of

Model Series 163

AH42.10-P-9406-01GH



2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me



brake hoses



*BA42.10-P-1001-04A

 Ring wrench socket

Fig. 5

5

Unbolt propeller shaft at
flange on front axle
transmission



*BA41.20-P-1001-01A

6

Remove left and right
front springs



AR32.20-P-0200GH

7.1

Remove lower engine
compartment paneling

Model
163.157 /172 /174 /175

AR61.20-P-1105GH

Model 163.113/ 128

AR94.30-P-5400GH

8

Detach torsion bar (28) at
vehicle frame



*BA32.20-P-1001-02G

9

Detach upper transverse
control arm (6) from
vehicle frame

 Installation: Tighten

new nuts slightly. Tighten
bolt fully only when
vehicle is on its wheels and
ready to drive.





*BA33.20-P-1006-01D

10

Detach bracket for oil
lines from transmission to
oil cooler on front axle
carrier





11

Unclip brake line at rear
of front-axle
crossmember





12.1

Remove vehicle level
controller connecting rod
(95b) at lower transverse
control arm on right

 Vehicles with xenon

headlamps.



13

Extract fluid from power
steering pump reservoir

 Hand pump

Fig. 6

14

Turn steering wheel to
center position (front
wheels in straight-ahead
position) and secure

The steering wheel must

not be turned when the
steering coupling has been
removed. This will damage
the fanfare horns and airbag
clock spring contact
beyond repair.

 Remove ignition key

and turn steering wheel so
that it locks.



15.1

Detach plug-in connector
for speed-sensitive power
steering to timing case

 Vehicles with speed-

sensitive power steering
only.





2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me



16

Unscrew nut (25d) and
bolt from steering
coupling (25) and pull
lower steering shaft (80a)
up out of steering
coupling (25)

 Do not use force as the

corrugated tube is sensitive
to lateral forces. Enlarge
clamping groove a little
with a screwdriver if
necessary.

 Installation: ?



Turn rack-and-pinion
steering (23) to center
position, install steering
coupling (25).

 Replace self-locking

nuts (25d).

AR46.20-P-0600-01GH



*BA46.10-P-1001-01D

17

Unscrew return line (30f)
and high-pressure
expansion hose (30i)

 Connecting fitting or

banjo bolts depending on
the version.

Seal off line connections

with plugs.

 Installation: Replace

sealing rings.

 Return line connection

fitting: ?





High pressure expansion

hose connection fitting: ?

*BA46.20-P-1001-01D



 Return line banjo bolt: ?

*BA46.20-P-1002-01D



High pressure expansion

hose connection fitting: ?

*BA46.20-P-1004-01D



*BA46.20-P-1005-01D

18

Detach bleeding and
venting hose from
differential





19

Prop front axle carrier (1)
with pit or installation lift

 Use assembly adapter.

AR33.10-P-0100-03GH



*WE58.40-Z-1019-11A

20

Unscrew bolts (1f) from
front axle carrier (1)

 The bolts (1f)are self-

tapping, so the following
points must be observed:



Never re-tap thread
in side member.



Replace bolts.





2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me



 Front axle carrier

 Wheel control, hub

 Front axle torsion strut

 Propeller shaft of front axle gear



Use original bolts
only.



Do not position bolts
at an angle when
screwing in.



Do not use an impact
wrench.



Observe the
tightening torque.



*BA33.10-P-1001-01C

21

Lower front axle carrier
(1), pushing all hoses to
one side

 Installation: Contact

surfaces of front axle
carrier to longitudinal
member must be cleaned
and flat.
Insert the locating pins of
the front axle carrier into
the holes in the side
member.



22

Check front axle carrier
(1) for damage





23

Install in the reverse order



24

Fill power steering pump
and bleed

Engine 112, 113

AR46.30-P-0010B

Engine 111, 612

AR46.30-P-0010P

25

Bleed brake system



AR42.10-P-0010GH

26

Perform chassis
alignment



AR40.20-P-0200GH

Number

Designation

Model Series 163

BA33.10-P-1001-01C

Bolt of front axle carrier to frame

Nm 200

Number

Designation

Model Series 163

BA33.20-P-1006-01D

Bolt, upper transverse control arm to frame

Nm 120

Number

Designation

Model Series 163

BA32.20-P-1001-02G

Bolt, retaining bracket to frame

Nm 100

Number

Designation

Model Series 163
