Mercedes-Benz ML320. Service manual - part 272

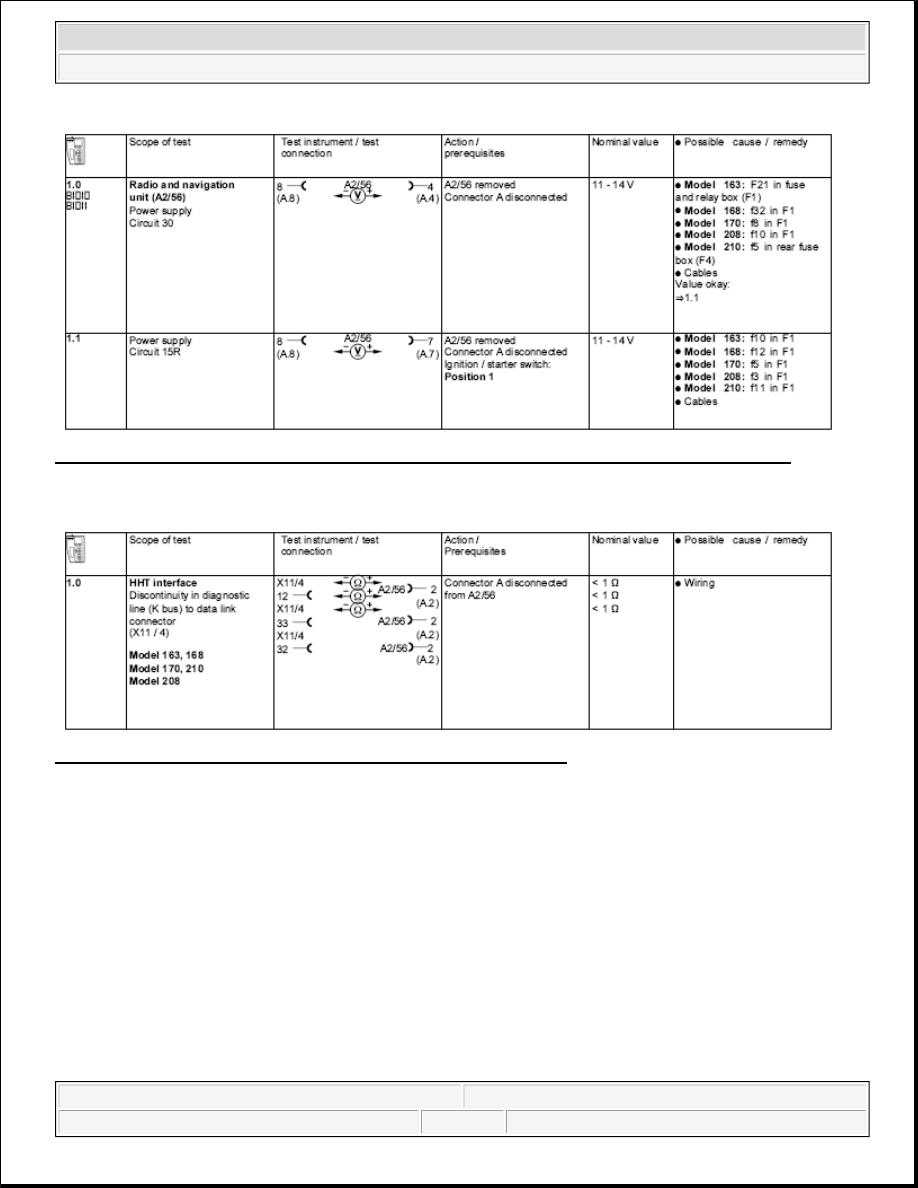

Fig. 126: Radio And Navigation Unit, Power Supply, Checking Electrical System, Audio 30 APS

HHT INTERFACE, TESTING, ELECTRICAL SYSTEM, AUDIO 30 APS - AD82.61-P-6001-02A

Fig. 127: HHT Interface, Testing, Electrical System, Audio 30 APS

AUDIO 30 APS TEST OF ELECTRICAL SYSTEM WHEEL SPEED SIGNAL - AD82.61-P-6001-03A

&(AD42.45-P-1002BZ)



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me

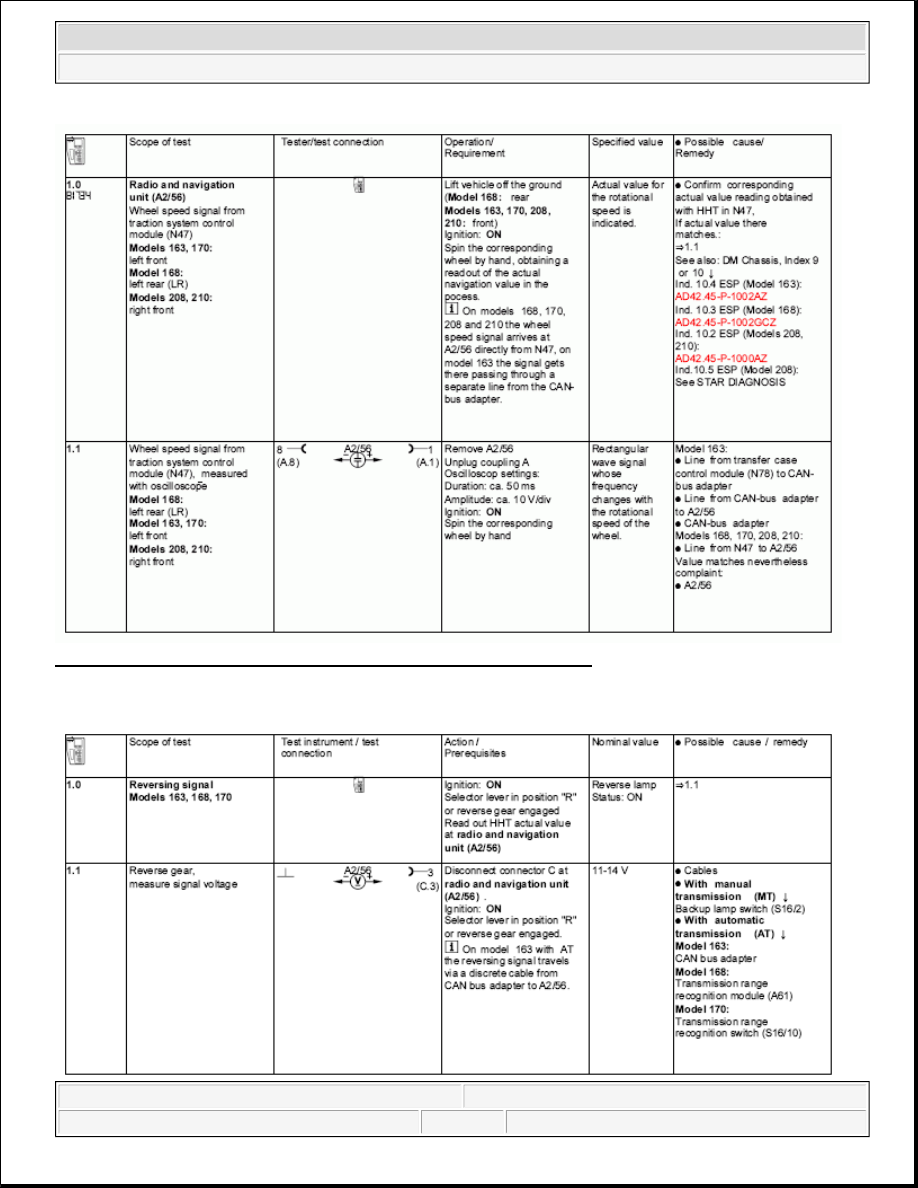

Fig. 128: Audio 30 APS Test Of Electrical System Wheel Speed Signal

REVERSE SIGNAL, TESTING, ELECTRICAL SYSTEM, AUDIO 30 APS - AD82.61-P-6001-04A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Fig. 129: Reverse Signal, Testing, Electrical System, Audio 30 APS

AUDIO 30 APS TEST OF ELECTRICAL SYSTEM GPS ANTENNA - AD82.61-P-6001-05B

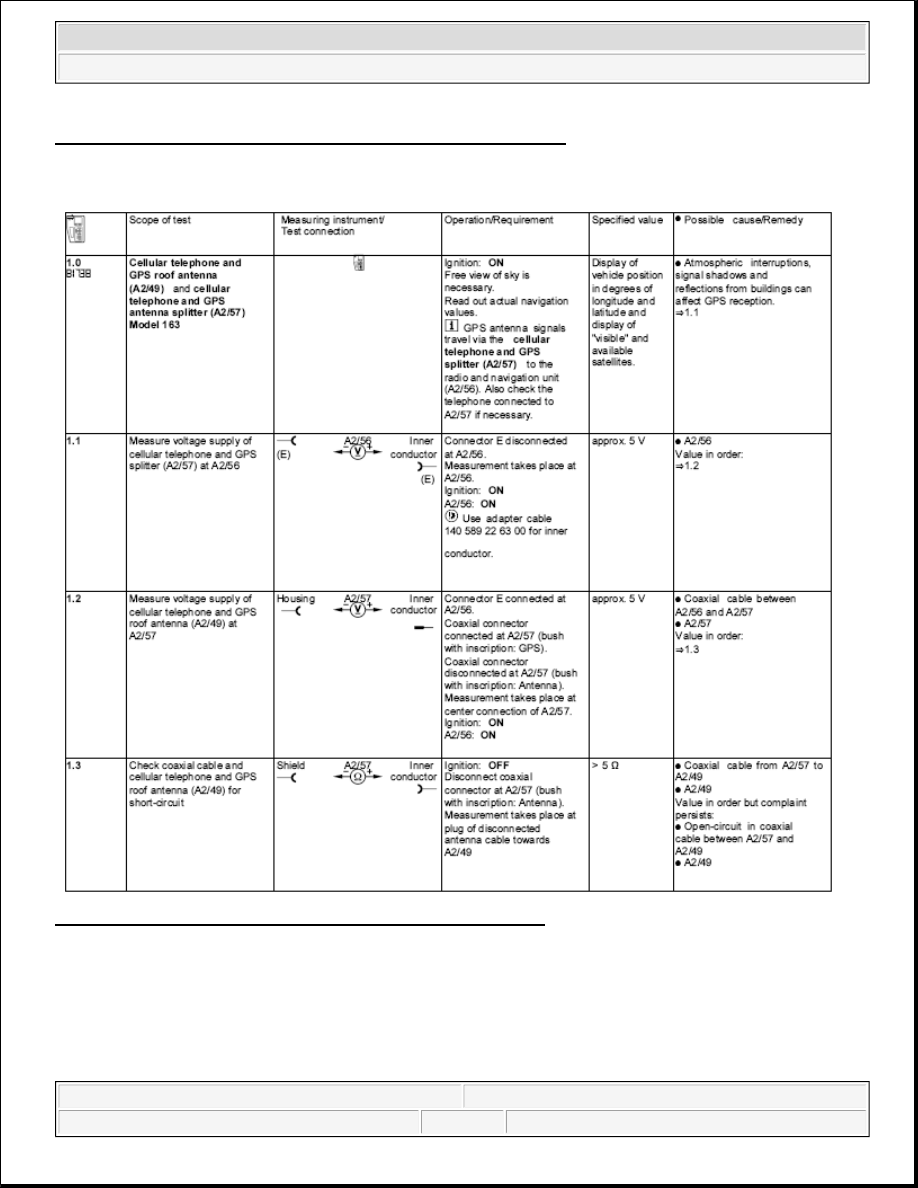

Fig. 130: Audio 30 APS Test Of Electrical System GPS Antenna

RADIO AND NAVIGATION UNIT, ILLUMINATION, TESTING, ELECTRICAL SYSTEM, AUDIO SYSTEM 30 APS -
AD82.61-P-6001-06A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



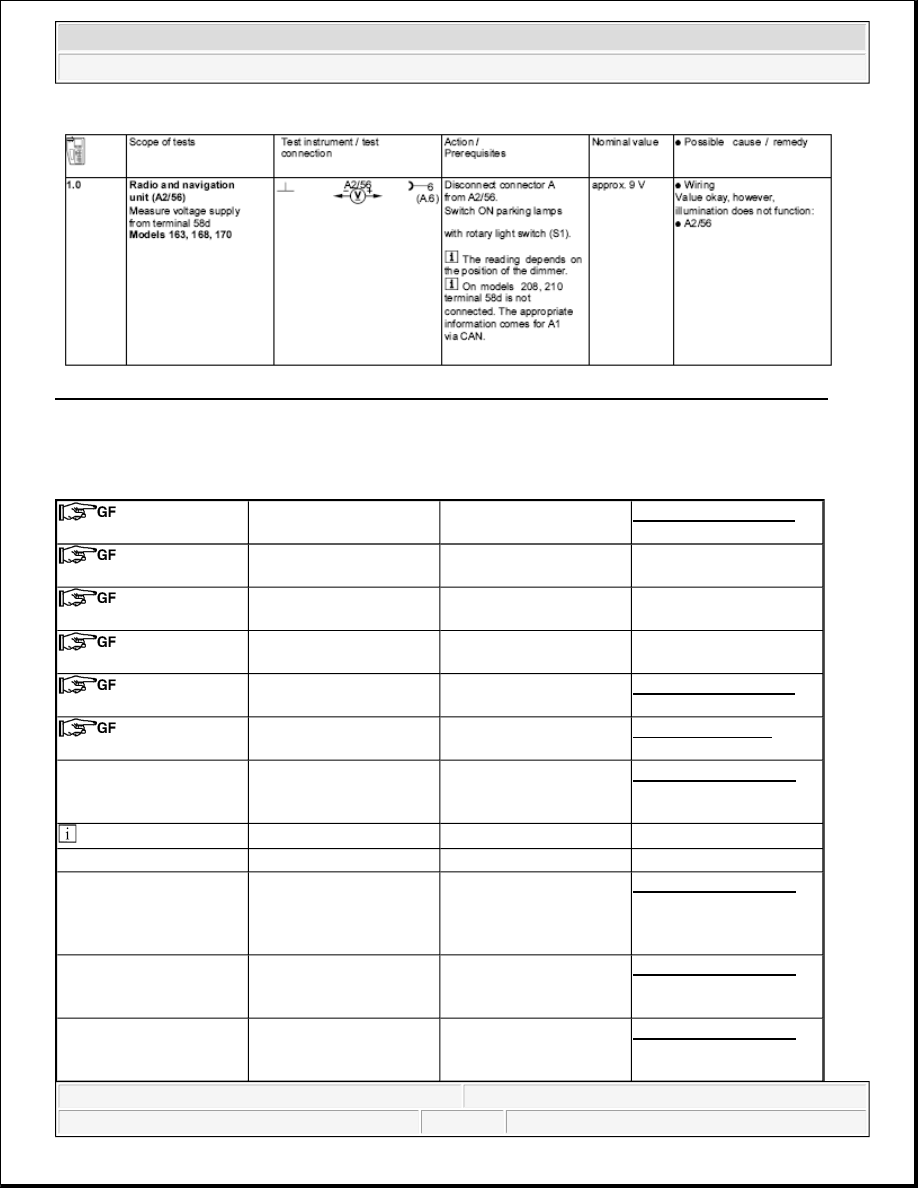

Fig. 131: Radio And Navigation Unit, Illumination, Testing, Electrical System, Audio System 30 APS

AUDIO 30 APS, TESTING, ELECTRICAL SYSTEM - AD82.61-P-6001A

MODEL 163,168,170, 208, 210 with CODE (353) Audio 30 APS



Audio 30 APS, location
of components

Model 163

GF82.61-P-0002-01D



Audio 30 APS, location
of components

Model 168

GF82.61-P-0002-01B



Audio 30 APS, location
of components

Model 170

GF82.61-P-0002-01A



Audio 30 APS, location
of components

Model 208, 210

GF82.61-P-0002-01C



Audio 30 APS operating
instructions



GF82.61-P-0002-03A



Audio 30 APS diagnosis,
basic knowledge



AD82.61-P-2001A



Connector assignments
on radio and navigation
unit



AD82.61-P-2001-02A



Battery voltage 11 -14 V





Testing





1

Radio and navigation unit
power supply, testing,
electrical system, Audio
30 APS



AD82.61-P-6001-01A

2

HHT interface, testing,
electrical system, Audio
30 APS



AD82.61-P-6001-02A

3

Wheel speed signal,
testing, electrical system,
Audio 30 APS



AD82.61-P-6001-03A
