In the valve housing of the shift plate. See Fig. 69.

Working Pressure Regulating Valve, Task

Regulates the primary pressure of the hydraulic system.

Working Pressure Regulating Valve, Function

See WORKING PRESSURE REGULATING VALVE, FUNCTION.

Working Pressure Regulating Valve, Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me





2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

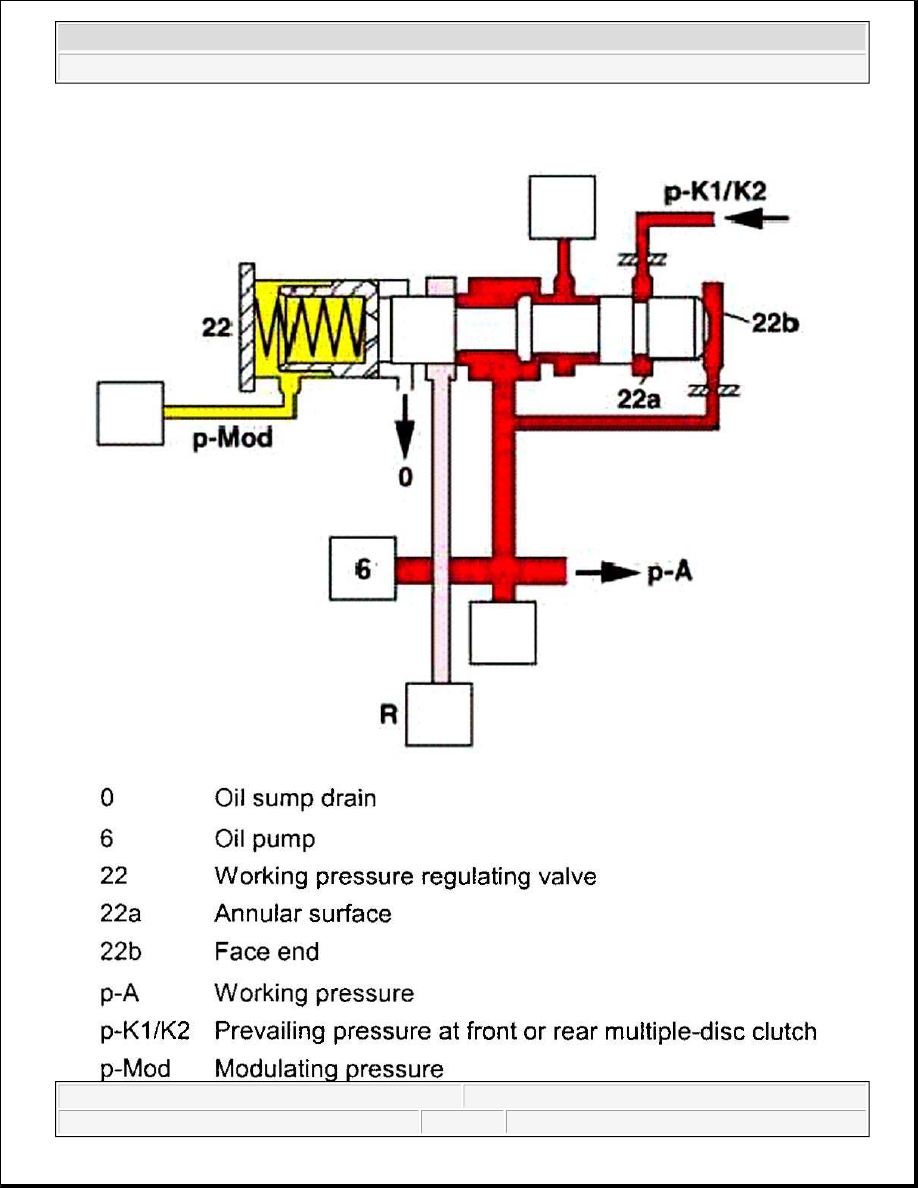

Fig. 70: Shift Pressure Regulating Solenoid Valve, Design
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Operation - The working pressure (p-A) is regulated at the working pressure regulating valve (22) depending
on the load (modulating pressure (p-Mod)) and depending on the gear (p-K1, p-K2). See Fig. 70. A minimum
level (basic pressure) is adjusted by the spring in the working pressure regulating valve (22).

Regulating Valve Pressure Regulating Valve, Location/Task/Function

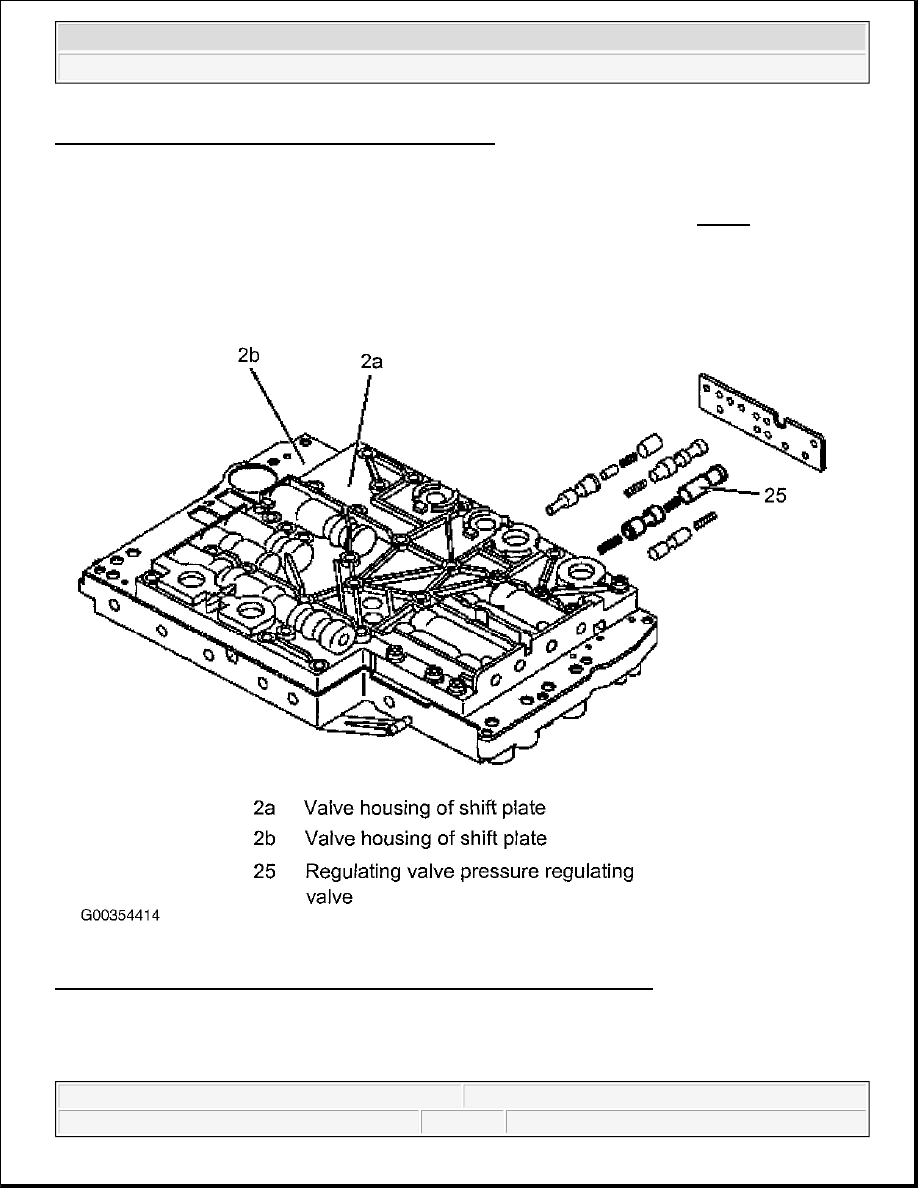

Fig. 71: Regulating Valve Pressure Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Regulating Valve Pressure Regulating Valve, Location




2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



In the valve housing of shift plate (2b). See Fig. 71.

Regulating Valve Pressure Regulating Valve, Task

Controls the regulating valve pressures.

Regulating Valve Pressure Regulating Valve, Function

See REGULATING VALVE PRESSURE REGULATING VALVE, FUNCTION.

Regulating Valve Pressure Regulating Valve, Function

Operation - The regulating valve pressure (p-RV) is controlled up to the maximum pressure at the regulating
valve pressure regulating valve (25) depending on the working pressure (p-A). See Fig. 72.
