3. Turn the socket and bulb assembly

counterclockwise and remove it.

4. Remove the bulb by pushing it in

slightly and turning it
counterclockwise.

5. Install the new bulb in the reverse order

of removal.

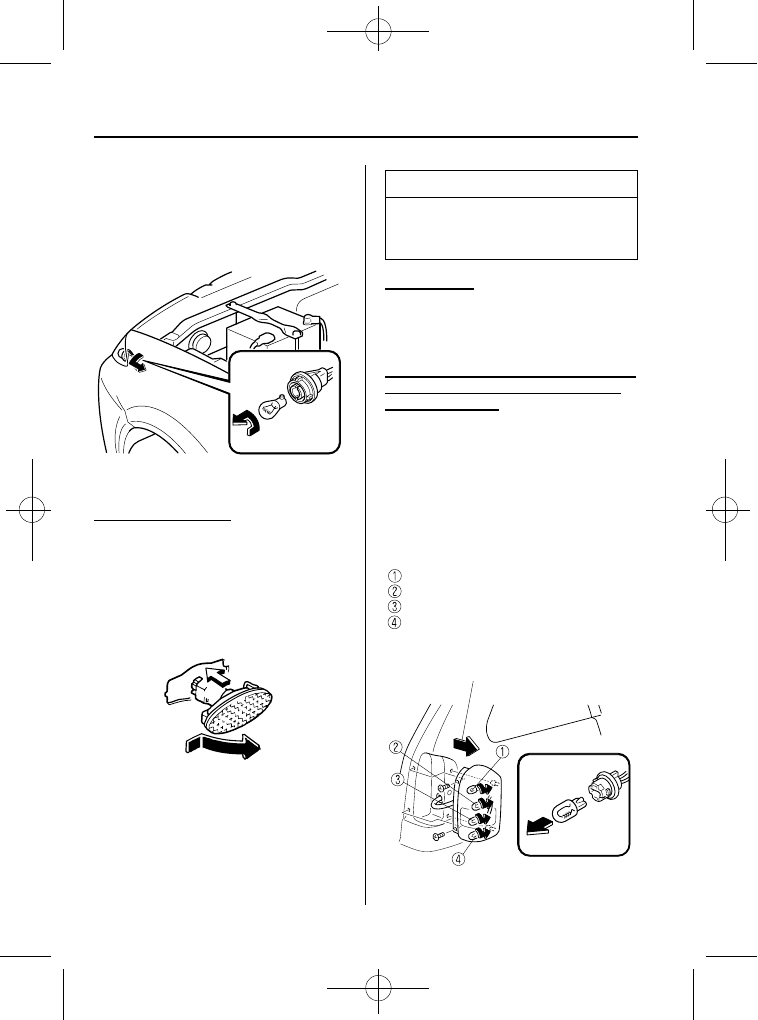

Side turn signal lights

1. Slide the unit as shown in the figure to

remove it.

2. Detach the electrical connector from

the unit by pulling it to the rear.

3. Install the new side turn signal unit in

the reverse order of removal.

NOTE

Bulb replacement is not possible
because it is built into the unit. Replace
the unit.

Parking lights

Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.

Brake lights/Taillights, Rear turn signal
lights, Reverse lights, Taillights/Rear-
side marker lights

1. Remove the bolts with a Phillips

screwdriver and remove the rear
combination component.

2. Turn the socket and bulb assembly

counterclockwise and remove it.

3. Disconnect the bulb from the socket.

Taillights/Rear side-marker lights

Reverse lights

Rear turn signal lights

Brake lights/Taillights

Pull outward

8-36

Maintenance and Care

Owner Maintenance

Mazda MPV_8U61-EA-05G_Edition1 Page296
Tuesday, June 21 2005 9:38 AM

Black plate (297,1)

4. Install the new bulb in the reverse order

of removal.

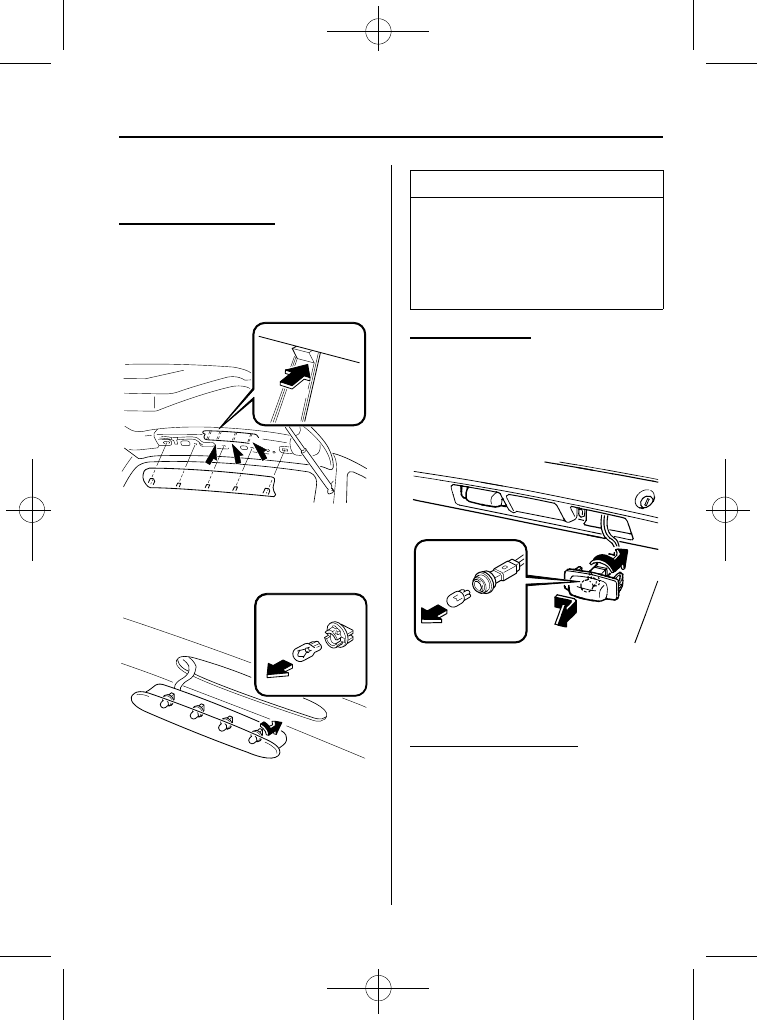

High-mount brake lights

1. Remove the liftgate upper trim.

2. Push the tab as shown in the figure,

and then remove the high-mount brake
light unit.

3. Turn the socket and bulb assembly

counterclockwise and remove it.

4. Disconnect the bulb from the socket.

5. Install the new bulb in the reverse order

of removal.

NOTE

An unsecured high-mount brake light
will allow water to leak into the vehicle.
Make sure the high-mount brake light is
tightly fastened to the vehicle and if
water still leaks, consult an Authorized
Mazda Dealer.

License plate lights

1. Slide the unit as shown in the figure to

remove it.

2. Turn the socket and bulb assembly

counterclockwise and remove it.

3. Disconnect the bulb from the socket.

4. Install the new bulb in the reverse order

of removal.

qReplacing Interior Light Bulbs

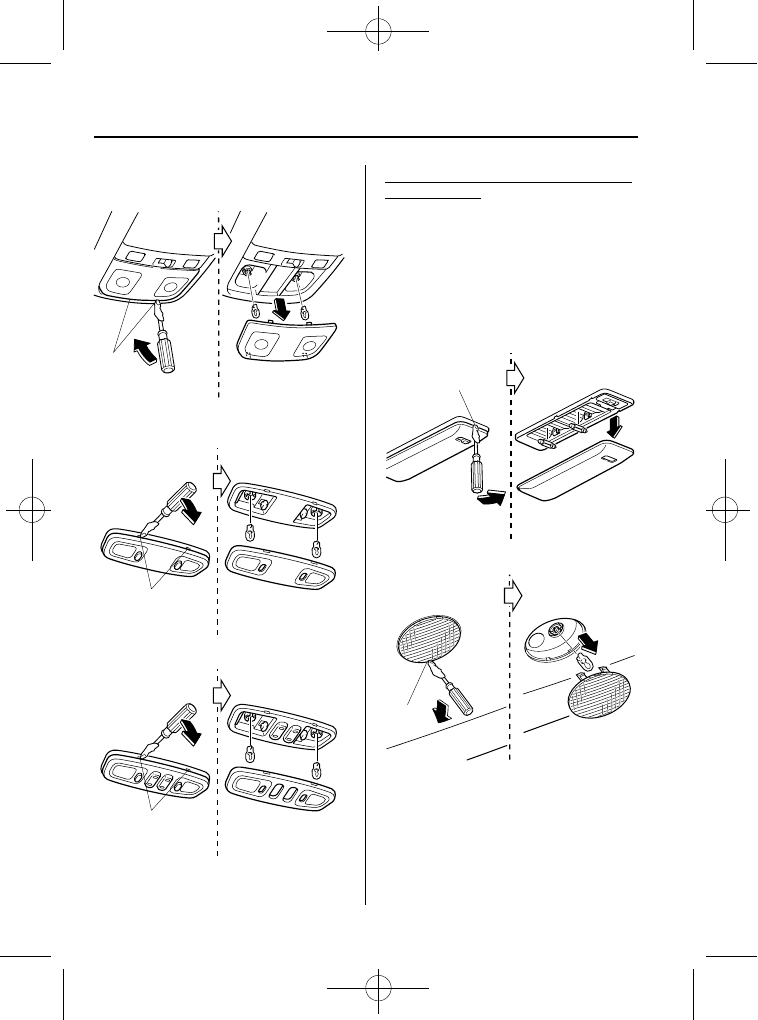

Overhead light/Map lights

1. Wrap a small flathead screwdriver with

a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
screwdriver.

2. Disconnect the bulb by pulling it out.

Maintenance and Care

Owner Maintenance

8-37

Mazda MPV_8U61-EA-05G_Edition1 Page297
Tuesday, June 21 2005 9:38 AM

Black plate (298,1)

Without moonroof, with overhead
console

Edge

Without either moonroof or overhead
console

Edge

With moonroof

Edge

3. Install the new bulb in the reverse order

of removal.

Overhead light, Courtesy lights, Vanity
mirror lights

1. Wrap a small flathead screwdriver with

a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
screwdriver.

2. Disconnect the bulb by pulling it out.

Overhead light

Edge

Courtesy lights

Edge

8-38

Maintenance and Care

Some models.

Owner Maintenance

Mazda MPV_8U61-EA-05G_Edition1 Page298
Tuesday, June 21 2005 9:38 AM

Black plate (299,1)

Vanity mirror lights

Edge

3. Install the new bulb in the reverse order

of removal.

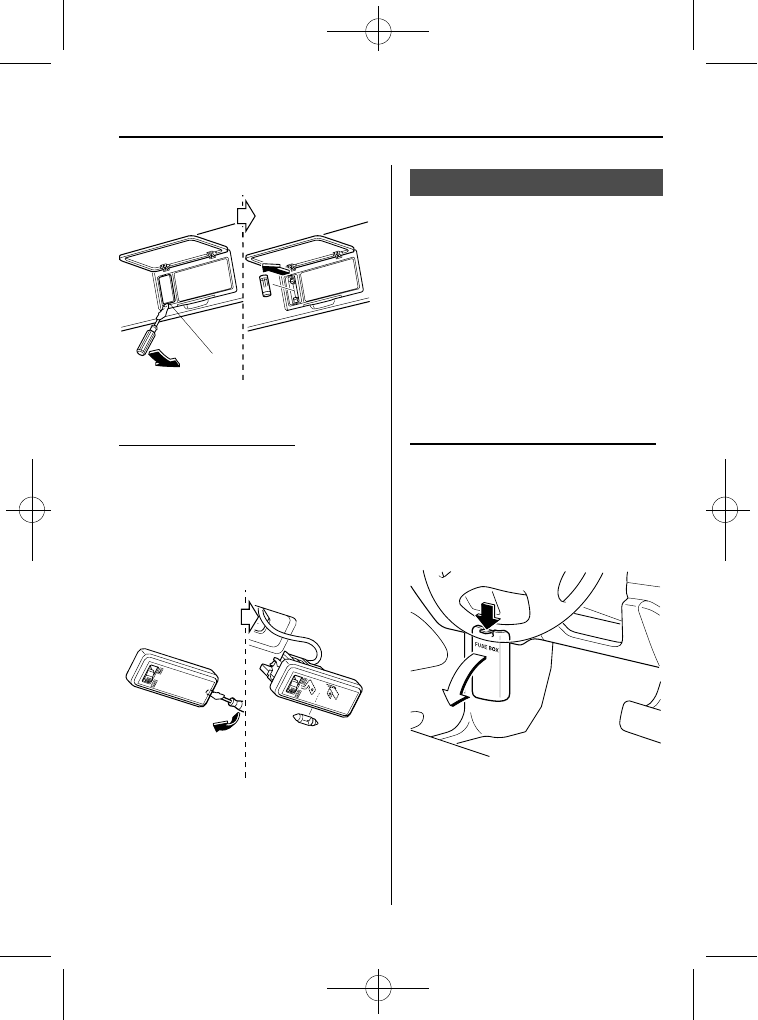

Luggage compartment light

1. Wrap a flathead screwdriver with a soft

cloth to prevent damage to the trim and
gently insert it in the luggage
compartment light as shown in the
figure, and then remove the luggage
compartment light unit.

2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverse order

of removal.

Fuses

Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

qFuse Replacement

Replacing the fuses on the driver's side

If the electrical system doesn't work, first
inspect fuses on the driver's side.

1. Turn off the ignition switch and other

switches.

2. Open the fuse panel cover.

Maintenance and Care

Owner Maintenance

8-39

Mazda MPV_8U61-EA-05G_Edition1 Page299
Tuesday, June 21 2005 9:38 AM

Black plate (300,1)

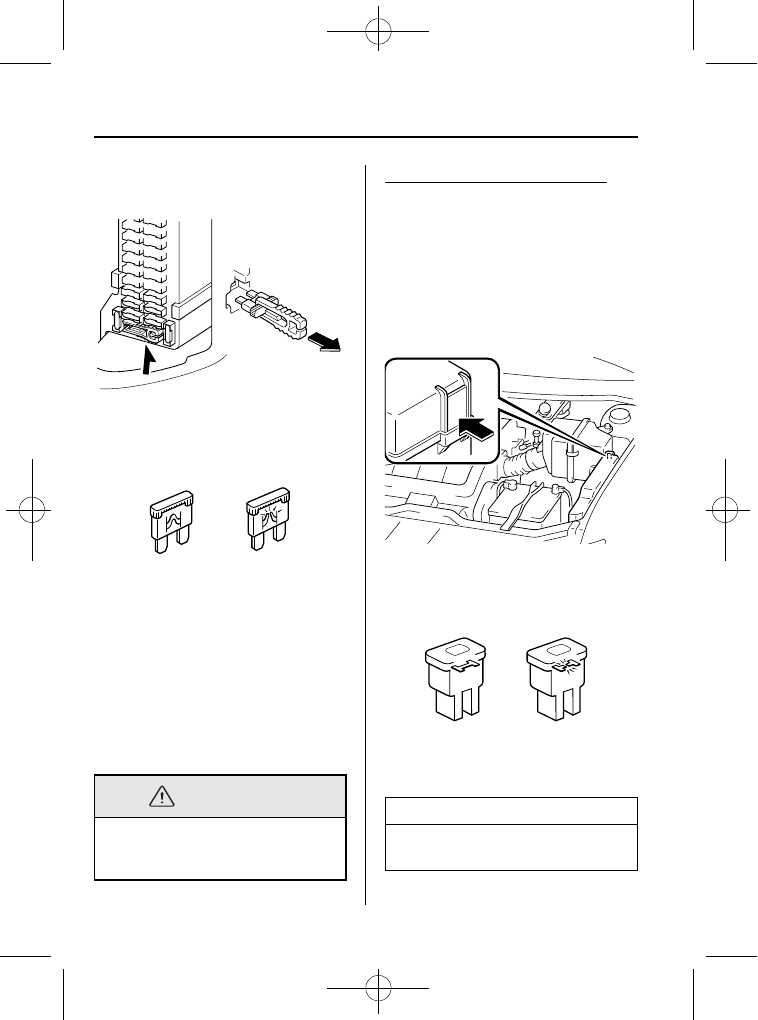

3. Pull the fuse straight out with the fuse

puller provided on the fuse panel.

4. Inspect it and replace if it's blown.

Normal

Blown

5. Push in a new fuse of the same

amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.

WARNING

Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.

Replacing the fuses under the hood

If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:

1. Turn off the ignition switch and all

other switches.

2. Remove the fuse block cover.

3. If a fuse is blown, replace it with a new

one of the same amperage rating.

Normal

Blown

NOTE

To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-41).

8-40

Maintenance and Care

Owner Maintenance

Mazda MPV_8U61-EA-05G_Edition1 Page300
Tuesday, June 21 2005 9:38 AM

Black plate (301,1)

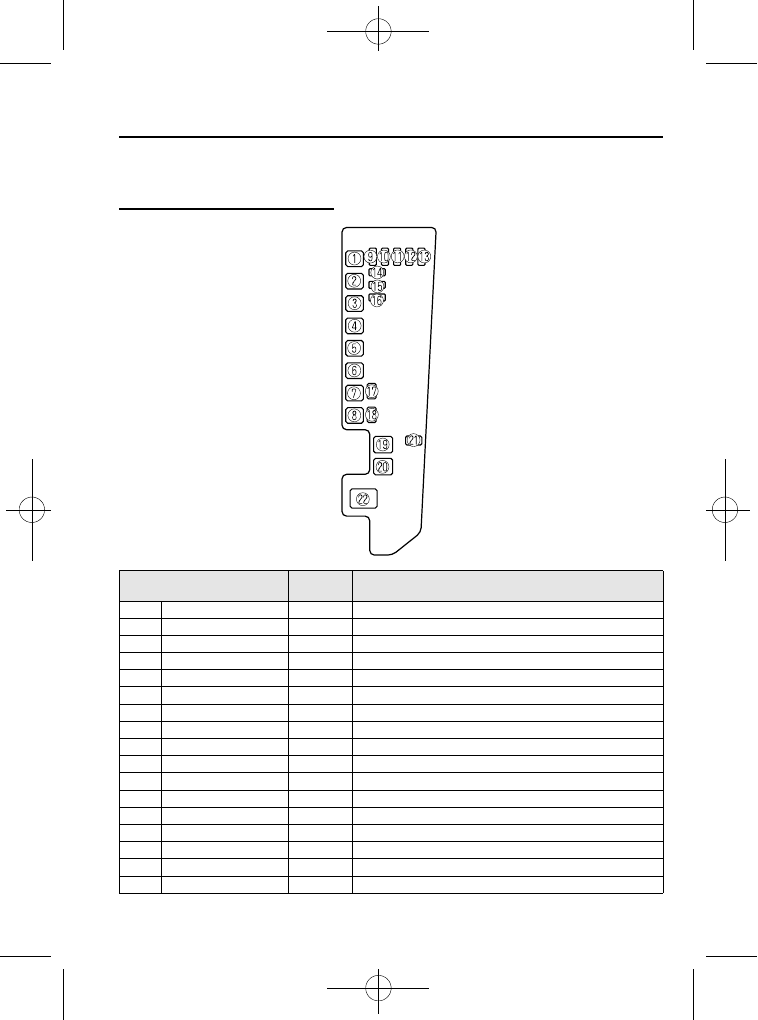

qFuse Panel Description

Fuse block (Engine compartment)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

DEFOG

40A

Rear window defroster

BTN

60A

STOP, HAZARD, ROOM, D.LOCK and DRL fuses

ABS

60A

Antilock brake system

, For protection of various circuits

FAN1

30A

Cooling fan

FAN2

30A

Cooling fan

HEATER

40A

Heater

R.HEAT

30A

Rear heater

, For protection of various circuits

IG KEY2

40A

A/C, P.WIND

, MOONROOF

and R.WIP fuses

A/C

10A

Air conditioner, For protection of various circuits

TAIL

15A

Taillights

AC PWR

15A

Inverter

HORN

15A

Horn

FOG

15A

For protection of various circuits

EEC

For protection of various circuits

HEAD L

15A

Headlight-left

HEAD R

15A

Headlight-right

HID L

20A

―

Maintenance and Care

Owner Maintenance

8-41

Some models.

Mazda MPV_8U61-EA-05G_Edition1 Page301
Tuesday, June 21 2005 9:38 AM

Black plate (302,1)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

HID R

20A

―

IG KEY1

60A

METER, ENGINE and WIPER fuses

EGI INJ

30A

For protection of various circuits

FUEL PUMP

20A

Fuel pump

MAIN

120A

For protection of all circuits

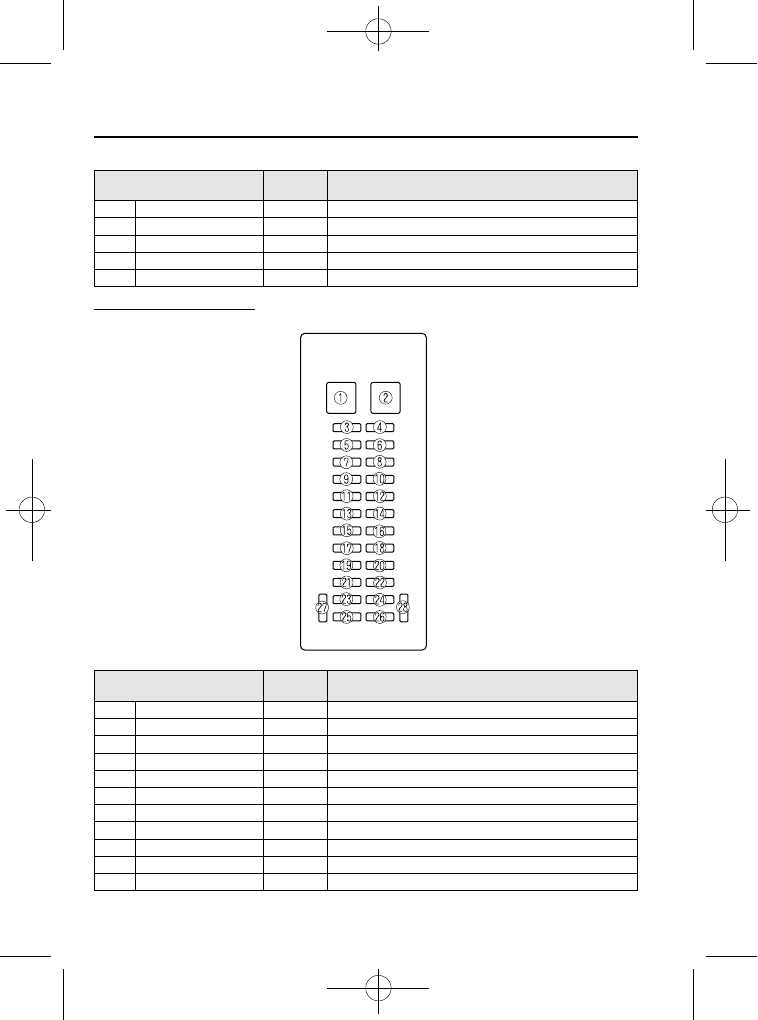

Fuse block (Driver's side)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

P.WIND

40A

Power windows

, For protection of various circuits

WIPER

20A

Windshield wipers and washer

SUN ROOF

15A

Moonroof

, For protection of various circuits

R.WIP

10A

Rear window wiper and washer

SEAT

20A

For protection of various circuits

M.DEF

10A

Mirror defroster

, For protection of various circuits

A/C

10A

Air conditioner, For protection of various circuits

DRL

10A

For protection of various circuits

―

H/CLEAN

20A

For protection of various circuits

―

8-42

Maintenance and Care

Some models.

Owner Maintenance

Mazda MPV_8U61-EA-05G_Edition1 Page302
Tuesday, June 21 2005 9:38 AM

Black plate (303,1)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

HAZARD

10A

Hazard warning flashers

ROOM

15A

Overhead lights, Map lights, Luggage compartment light

AUX POWER

25A

Accessory socket

CLOSER LH

20A

For protection of various circuits

AUDIO

10A

Audio system, For protection of various circuits

D.LOCK

30A

Power door locks

, For protection of various circuits

P/SEAT

30A

Power seat

ENGINE

10A

Engine control system

METER

10A

Instrument cluster

STOP

15A

Brake lights

CLOSER RH

20A

For protection of various circuits

ACC.DELAY

30A

Power windows delay, For protection of various circuits

METER

15A

Instrument cluster, INH switch

ST.SIGN

10A

Starter signal

CIGAR

25A

Lighter

―

Maintenance and Care

Owner Maintenance

8-43

Some models.

Mazda MPV_8U61-EA-05G_Edition1 Page303
Tuesday, June 21 2005 9:38 AM

Black plate (304,1)

How to Minimize
Environmental Paint Damage

The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.

Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.

Here are some examples of possible
damage, with tips on how to prevent
them.

qEtching Caused by Acid Rain or

Industrial Fallout

Occurrence

Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.

Prevention

It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.

qDamage Caused by Bird

Dropping, Insects, or Tree Sap

Occurrence

Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.

When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.

Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.

Prevention

It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.

Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.

Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.

8-44

Maintenance and Care

Appearance Care

Mazda MPV_8U61-EA-05G_Edition1 Page304
Tuesday, June 21 2005 9:38 AM

Black plate (305,1)

qWater Marks

Occurrence

Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.

Prevention

It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.

qPaint Chipping

Occurrence

Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.

How to avoid paint chipping

Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.

NOTE

The paint chipping zone varies with
the speed of the vehicle. For
example, when traveling at 90 km/h
(56 mph), the paint chipping zone is
50 m (164 ft).

In low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.

Chipped paint can lead to rust
forming on your Mazda. Before this
happens, repair the damage by using
Mazda touch-up paint according to
the instructions in this section.
Failure to repair the affected area
could lead to serious rusting and
expensive repairs.

Maintenance and Care

Appearance Care

8-45

Mazda MPV_8U61-EA-05G_Edition1 Page305
Tuesday, June 21 2005 9:38 AM

Black plate (306,1)

Exterior Care

Follow all label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.

qMaintaining the Finish

Washing

To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.

Scratches occur on the paint surface
when:

The vehicle is washed without first
rinsing off dirt and other foreign
matter.

The vehicle is washed with a rough,
dry, or dirty cloth.

The vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.

Cleansers or wax containing abrasives
are used.

NOTE

Mazda is not responsible for
scratches caused by automatic car
washes or improper washing.

Scratches are more noticeable on
vehicles with darker paint finishes.

To minimize scratches on the vehicle's
paint finish:

Rinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.

Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.

Rub gently when washing or drying the
vehicle.

Take your vehicle only to a car wash
that keeps its brushes well maintained.

Don't use abrasive cleansers or wax
that contain abrasives.

CAUTION

Don't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.

To prevent damaging the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.

Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.

8-46

Maintenance and Care

Appearance Care

Mazda MPV_8U61-EA-05G_Edition1 Page306
Tuesday, June 21 2005 9:38 AM

Black plate (307,1)

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Don't allow soap
to dry on the finish.

After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.

WARNING

Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.

Waxing

Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.

1. Use wax which contains no abrasives.

Waxes containing abrasive will remove
paint and could damage bright metal
parts.

2. Use a good grade of natural wax for

metallic, mica, and solid colors.

3. When waxing, coat evenly with the

sponge supplied or a soft cloth.

4. Wipe off the wax with a soft cloth.

NOTE

A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle doesn't need it.

qRepairing Damage to the Finish

Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.

CAUTION

If your Mazda is damaged and needs
metal parts repaired or replaced, make
sure the body shop applies anti-
corrosion materials to all parts, both
repaired and new. This will prevent
them from rusting.

qBright-Metal Maintenance

Use tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.

To prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.

During cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.

Maintenance and Care

Appearance Care

8-47

Mazda MPV_8U61-EA-05G_Edition1 Page307
Tuesday, June 21 2005 9:38 AM

Black plate (308,1)

CAUTION

Don't use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on chrome-
plated or anodized aluminum parts.
This may result in damage to the
protective coating and cause
discoloration or paint deterioration.

qUnderbody Maintenance

Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.

Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.

Pay special attention to these areas
because they easily hide mud and dirt. It
will do more harm than good to wet
down the road grime without removing
it.

The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.

WARNING

qAluminum Wheel Maintenance

A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.

NOTE

Don't use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.

Only use a mild soap or neutral
detergent and always use a sponge or
soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean the
wheels after driving on dusty or
salted roads. This helps prevent
corrosion.

Avoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.

If your aluminum wheels lose luster,
wax the wheels.

8-48

Maintenance and Care

Appearance Care

Mazda MPV_8U61-EA-05G_Edition1 Page308
Tuesday, June 21 2005 9:38 AM

Black plate (309,1)

Interior Care

qDashboard Precautions

Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.

CAUTION

Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.

qCleaning the Upholstery and

Interior Trim

Vinyl

Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.

Leather

Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.

Wipe it with a damp soft cloth; then dry
and buff it with a dry soft cloth.

Fabric

Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.

To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.

CAUTION

Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.

qCleaning the Lap/Shoulder Belt

Webbing

Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.

After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.

WARNING

Damaged Seat Belt:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection. Have an Authorized Mazda
Dealer replace damaged belts
immediately.

Maintenance and Care

Appearance Care

8-49

Some models.

Mazda MPV_8U61-EA-05G_Edition1 Page309
Tuesday, June 21 2005 9:38 AM

Mazda MPV (2006 year). Manual - part 19
