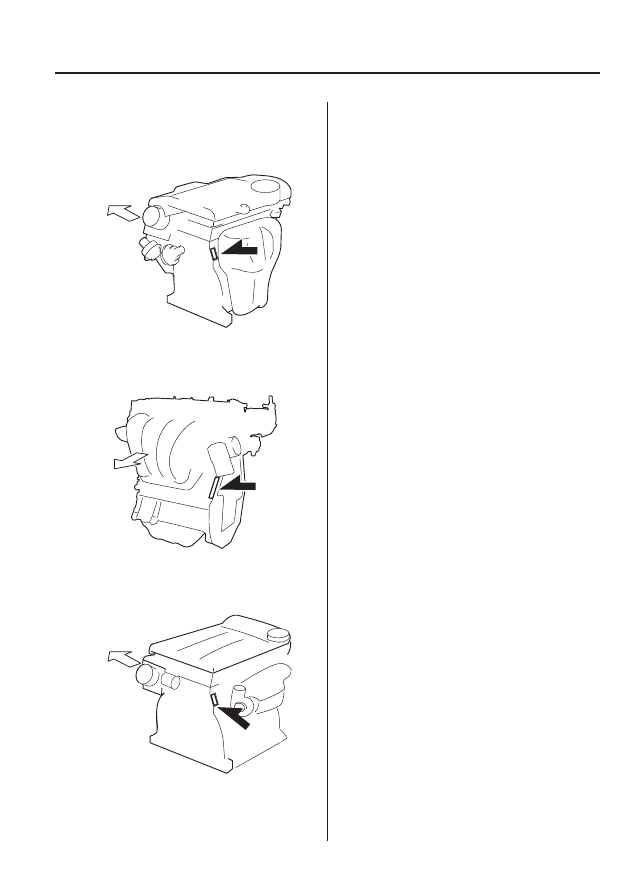

Specifications

qEngine

Item

Specification

MZR 2.0

SKYACTIV-G 2.0

Type

DOHC-16V in-line, 4-cylinder

Bore × Stroke

87.5 × 83.1 mm (3.44 × 3.27 in)

83.5 × 91.2 mm (3.29 × 3.59 in)

Displacement

1,999 ml (1,999 cc, 122.0 cu in)

1,998 ml (1,998 cc, 121.9 cu in)

Compression ratio

10.0

12.0

Item

Specification

MZR 2.3 DISI Turbo

MZR 2.5

Type

DOHC-16V in-line, 4-cylinder

Bore × Stroke

87.5 × 94.0 mm (3.44 × 3.70 in)

89.0 × 100 mm (3.50 × 3.94 in)

Displacement

2,261 ml (2,261 cc, 138.0 cu in)

2,488 ml (2,488 cc, 151.8 cu in)

Compression ratio

9.5

9.7

qElectrical System

Item

Classification

MZR 2.0

SKYACTIV-G 2.0

Battery

12V-50Ah/20HR or 12V-65Ah/20HR

12V-60Ah/20HR or 12V-65Ah/20HR

Spark-plug number

Mazda Genuine
spark plug

LFJD-18-110 or

L3Y2-18-110

Mazda Genuine
spark plug

PE5R-18-110 or

PE5S-18-110

Item

Classification

MZR 2.3 DISI Turbo

MZR 2.5

Battery

12V-60Ah/20HR or 12V-65Ah/20HR

12V-50Ah/20HR, 12V-60Ah/20HR, or

12V-65Ah/20HR

Spark-plug number

Mazda Genuine
spark plug

L3BD-18-110 or

L3YD-18-110

Mazda Genuine
spark plug

LFJD-18-110 or

L3Y2-18-110

*1 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda

Dealer for details.

CAUTION

When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.

10-4

Specifications

qLubricant Quality

Lubricant

Classification

Engine oil

Refer to Recommended Oil on page 8-21.

Manual transaxle oil

API Service

GL-4

SAE

75W-80

Automatic transaxle fluid

5-speed transaxle

Mazda Genuine ATF M-V

6-speed transaxle

Mazda Genuine ATF FZ

Power steering fluid

Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)

Brake/Clutch fluid

SAE J1703 or FMVSS116 DOT-3

NOTE

Refer to Introduction on (page 8-2) for owner's responsibility in protecting your investment.

Specifications

10-5

qCapacities

(Approximate Quantities)

Item

Capacity

Engine oil

MZR 2.0

With oil filter
replacement

4.3 L (4.5 US qt, 3.8 Imp qt)

Without oil filter
replacement

3.9 L (4.1 US qt, 3.4 Imp qt)

SKYACTIV-G 2.0

With oil filter
replacement

4.2 L (4.4 US qt, 3.7 Imp qt)

Without oil filter
replacement

4.0 L (4.2 US qt, 3.5 Imp qt)

MZR 2.3 DISI Turbo

With oil filter
replacement

5.7 L (6.0 US qt, 5.0 Imp qt)

Without oil filter
replacement

5.3 L (5.6 US qt, 4.7 Imp qt)

MZR 2.5

With oil filter
replacement

5.0 L (5.3 US qt, 4.4 Imp qt)

Without oil filter
replacement

4.6 L (4.9 US qt, 4.0 Imp qt)

Coolant

SKYACTIV-G 2.0

Manual transaxle

7.4 L (7.8 US qt, 6.5 Imp qt)

Automatic transaxle

8.2 L (8.7 US qt, 7.2 Imp qt)

Except SKYACTIV-G 2.0

7.5 L (7.9 US qt, 6.6 Imp qt)

Manual
transaxle oil

MZR 2.0

2.77 L (2.93 US qt, 2.44 Imp qt)

SKYACTIV-G 2.0

1.70 L (1.80 US qt, 1.50 Imp qt)

MZR 2.3 DISI Turbo

2.5 L (2.6 US qt, 2.2 Imp qt)

MZR 2.5

2.85 L (3.01 US qt, 2.51 Imp qt)

Automatic
transaxle fluid

5-speed transaxle

8.14 L (8.60 US qt, 7.16 Imp qt)

6-speed transaxle

7.8 L (8.2 US qt, 6.9 Imp qt)

Fuel tank

MZR 2.0, SKYACTIV-G 2.0

55.0 L (14.5 US gal, 12.1 Imp gal)

MZR 2.3 DISI Turbo, MZR 2.5

60.0 L (15.9 US gal, 13.2 Imp gal)

Check oil and fluid levels with dipsticks or reservoir gauges.

10-6

Specifications

qDimensions

Except Mexico

4 Door

Item

Vehicle specification

Overall length

4,595 mm (180.9 in)

Overall width

1,755 mm (69.1 in)

Overall height

1,470 mm (57.9 in)

Front tread

16-inch wheel vehicle

1,535 mm (60.4 in)

17-inch wheel vehicle

1,530 mm (60.2 in)

Rear tread

16-inch wheel vehicle

1,520 mm (59.8 in)

17-inch wheel vehicle

1,515 mm (59.6 in)

Wheelbase

2,640 mm (103.9 in)

5 Door
(Except MZR 2.3 DISI Turbo)

Item

Vehicle specification

Overall length

4,505 mm (177.4 in)

Overall width

1,755 mm (69.1 in)

Overall height

1,470 mm (57.9 in)

Front tread

16-inch wheel vehicle

1,535 mm (60.4 in)

17-inch wheel vehicle

1,530 mm (60.2 in)

Rear tread

16-inch wheel vehicle

1,520 mm (59.8 in)

17-inch wheel vehicle

1,515 mm (59.6 in)

Wheelbase

2,640 mm (103.9 in)

(MZR 2.3 DISI Turbo)

Item

Vehicle specification

Overall length

4,510 mm (177.6 in)

Overall width

1,770 mm (69.7 in)

Overall height

1,460 mm (57.5 in)

Front tread

1,535 mm (60.4 in)

Rear tread

1,525 mm (60.0 in)

Wheelbase

2,640 mm (103.9 in)

Specifications

10-7

Mexico

4 Door

Item

Vehicle specification

Overall length

Without license plate
holder

4,580 mm (180.3 in)

With license plate holder

4,595 mm (180.9 in)

Overall width

1,755 mm (69.1 in)

Overall height

1,470 mm (57.9 in)

Front tread

16-inch wheel vehicle

1,535 mm (60.4 in)

17-inch wheel vehicle

1,530 mm (60.2 in)

Rear tread

16-inch wheel vehicle

1,520 mm (59.8 in)

17-inch wheel vehicle

1,515 mm (59.6 in)

Wheelbase

2,640 mm (103.9 in)

5 Door
(Except MZR 2.3 DISI Turbo)

Item

Vehicle specification

Overall length

Without license plate
holder

4,490 mm (176.8 in)

With license plate holder

4,505 mm (177.4 in)

Overall width

1,755 mm (69.1 in)

Overall height

1,470 mm (57.9 in)

Front tread

1,530 mm (60.2 in)

Rear tread

1,515 mm (59.6 in)

Wheelbase

2,640 mm (103.9 in)

(MZR 2.3 DISI Turbo)

Item

Vehicle specification

Overall length

4,510 mm (177.6 in)

Overall width

1,770 mm (69.7 in)

Overall height

1,460 mm (57.5 in)

Front tread

1,535 mm (60.4 in)

Rear tread

1,525 mm (60.0 in)

Wheelbase

2,640 mm (103.9 in)

10-8

Specifications

qWeights

Except Mexico

4 Door
(MZR 2.0)

Item

Weight

Manual transaxle

Automatic transaxle

GVWR (Gross Vehicle Weight Rating)

1,768 kg (3,898 lbs)

1,800 kg (3,968 lbs)

GAWR (Gross Axle Weight Rating)

Front

933 kg (2,057 lbs)

967 kg (2,132 lbs)

Rear

835 kg (1,841 lbs)

833 kg (1,836 lbs)

(SKYACTIV-G 2.0)

Item

Weight

Manual transaxle

Automatic transaxle

GVWR (Gross Vehicle Weight Rating)

1,772 kg (3,907 lbs)

1,803 kg (3,975 lbs)

GAWR (Gross Axle Weight Rating)

Front

944 kg (2,081 lbs)

977 kg (2,154 lbs)

Rear

828 kg (1,825 lbs)

826 kg (1,821 lbs)

(MZR 2.5)

Item

Weight

Manual transaxle

Automatic transaxle

GVWR (Gross Vehicle Weight Rating)

1,816 kg (4,004 lbs)

1,851 kg (4,081 lbs)

GAWR (Gross Axle Weight Rating)

Front

971 kg (2,141 lbs)

1,002 kg (2,209 lbs)

Rear

845 kg (1,863 lbs)

849 kg (1,872 lbs)

5 Door
(MZR 2.0 (Canada))

Item

Weight

Manual transaxle

Automatic transaxle

GVWR (Gross Vehicle Weight Rating)

1,764 kg (3,889 lbs)

1,788 kg (3,942 lbs)

GAWR (Gross Axle Weight Rating)

Front

931 kg (2,052 lbs)

964 kg (2,125 lbs)

Rear

833 kg (1,836 lbs)

824 kg (1,817 lbs)

(SKYACTIV-G 2.0)

Item

Weight

Manual transaxle

Automatic transaxle

GVWR (Gross Vehicle Weight Rating)

1,778 kg (3,920 lbs)

1,810 kg (3,990 lbs)

GAWR (Gross Axle Weight Rating)

Front

941 kg (2,075 lbs)

975 kg (2,149 lbs)

Rear

837 kg (1,845 lbs)

835 kg (1,841 lbs)

(MZR 2.3 DISI Turbo)

Item

Weight

GVWR (Gross Vehicle Weight Rating)

1,922 kg (4,237 lbs)

GAWR (Gross Axle Weight Rating)

Front

1,062 kg (2,341 lbs)

Rear

860 kg (1,896 lbs)

Specifications

10-9

(MZR 2.5)

Item

Weight

Manual transaxle

Automatic transaxle

GVWR (Gross Vehicle Weight Rating)

1,837 kg (4,050 lbs)

1,863 kg (4,107 lbs)

GAWR (Gross Axle Weight Rating)

Front

977 kg (2,154 lbs)

1,006 kg (2,218 lbs)

Rear

860 kg (1,896 lbs)

857 kg (1,889 lbs)

Mexico

4 Door
(MZR 2.0)

Item

Weight

Manual transaxle

Automatic transaxle

GVW (Gross Vehicle Weight)

Total

1,765 kg (3,891 lbs)

1,795 kg (3,957 lbs)

Front

930 kg (2,050 lbs)

965 kg (2,127 lbs)

Rear

835 kg (1,841 lbs)

830 kg (1,830 lbs)

GAW (Permissible axle load)

Front

930 kg (2,050 lbs)

965 kg (2,127 lbs)

Rear

840 kg (1,852 lbs)

835 kg (1,841 lbs)

(MZR 2.5)

Item

Weight

Manual transaxle

Automatic transaxle

GVW (Gross Vehicle Weight)

Total

1,815 kg (4,001 lbs)

1,845 kg (4,067 lbs)

Front

970 kg (2,138 lbs)

1,000 kg (2,205 lbs)

Rear

845 kg (1,863 lbs)

GAW (Permissible axle load)

Front

970 kg (2,138 lbs)

1,000 kg (2,205 lbs)

Rear

850 kg (1,874 lbs)

5 Door
(MZR 2.3 DISI Turbo)

Item

Weight

GVWR (Gross Vehicle Weight Rating)

1,922 kg (4,237 lbs)

GAWR (Gross Axle Weight Rating)

Front

1,062 kg (2,341 lbs)

Rear

860 kg (1,896 lbs)

(MZR 2.5)

Item

Weight

Manual transaxle

Automatic transaxle

GVW (Gross Vehicle Weight)

Total

1,835 kg (4,045 lbs)

1,860 kg (4,101 lbs)

Front

975 kg (2,149 lbs)

1,005 kg (2,216 lbs)

Rear

860 kg (1,896 lbs)

855 kg (1,885 lbs)

GAW (Permissible axle load)

Front

975 kg (2,149 lbs)

1,005 kg (2,216 lbs)

Rear

865 kg (1,907 lbs)

860 kg (1,896 lbs)

10-10

Specifications

qAir Conditioner

Item

Classification

Refrigerant Type

HFC134a (R-134a)

qLight Bulbs

Exterior light

Light bulb

Category

Wattage

ECE R

Trunk light (4 Door)

―

Luggage compartment light (5 Door)

―

Overhead light (Front)/Map lights

―

Overhead light (Rear)

―

Vanity mirror lights

―

Specifications

10-11

Some models.

qTires

NOTE

The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.

Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-40.

Standard tire

(Except MZR 2.3 DISI Turbo)

Tire size

Inflation pressure

Front

Rear

P205/55R16
89H

SKYACTIV-G 2.0

250 kPa (36 psi)

Except
SKYACTIV-G
2.0

240 kPa (35 psi)

P205/50R17 88V

220 kPa (32 psi)

(MZR 2.3 DISI Turbo)

Tire size

Inflation pressure

Front

Rear

P225/40R18 88Y

240 kPa (35 psi)

230 kPa (34 psi)

Temporary spare tire

Tire size

Inflation pressure

T115/70D15 90M

420 kPa (60 psi)

T125/70D16 96M

420 kPa (60 psi)

T125/70D17 98M

420 kPa (60 psi)

qFuses

Refer to Fuses on page 8-58.

10-12

Specifications

Personalization Features

The following

“Personalization Features” are available. These settings can only be changed by an Authorized

Mazda Dealer.

Item

Feature

Factory Setting

Available Settings

Illumination entry

The time required for the interior lamp to turn
off automatically after all doors are closed can
be changed.

15 seconds

7.5/30/60 seconds

The time required for the interior lamp to
illuminate after unlocking any door can be
changed.

30 seconds

7.5/15/60 seconds

The function allowing the interior lamp to
illuminate automatically when the ignition is
switched off can be deactivated.

Activated

Deactivated

The function allowing the interior lamp to
illuminate automatically when the doors are
unlocked can be deactivated.

Activated

Deactivated

The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed.

Activated

Deactivated

The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar).

30 minutes

60/10 minutes

Keyless entry

The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed.

30 seconds

60/90 seconds

The flashing of the hazard warning lights when
the doors are locked/unlocked can be changed.

Activated

Deactivated

The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be deactivated.

Activated

Deactivated

Smart turn

The function allowing the turn signal lights to
flash three times with a momentary turn switch
operation (when changing lanes) can be
changed.

Deactivated

Activated

Personalization Features

10-13

Item

Feature

Factory Setting

Available Settings

Advanced keyless
entry and Start
system

The method for unlocking the doors using the
request switch can be selected.

Press × 2

Press × 1

The function to automatically lock the doors
when leaving the vehicle while carrying the key
can be activated.

Deactivated

Activated

The advanced key's remaining battery level
warning light in the instrument cluster can be
deactivated.

Activated

Deactivated

The volume of the answer-back beep during
keyless entry system operation can be adjusted.

High

Low/Deactivated

The volume of the warning beep for the
advanced keyless entry system can be adjusted.

High

Low

The advanced key function can be deactivated.

Activated

Deactivated

The function allowing the power supply to turn
off automatically after the ignition has been left
in the ACC position for a long period of time
can be deactivated.

Activated

Deactivated

The time required for the doors to relock
automatically after unlocking with the request
switch/transmitter can be changed.

30 seconds

60/90 seconds

The order in which the ignition position
transitions when pressing the push button start
can be changed.

→ Off

→ ACC → Off

Auto headlight on/off

The headlight illumination on/off timing based
on surrounding lightness/darkness can be
changed.

Standard

(Illuminates

under average

levels of

darkness)

Earlier/

Somewhat earlier/

Somewhat later/

Later

10-14

Personalization Features

Item

Feature

Factory Setting

Available Settings

Power door lock

The system can be changed to a function which
unlocks all doors using a single operation.

Driver's door

All doors

The vehicle-speed-response auto lock function
can be deactivated.

Activated

Deactivated

Locking/unlocking of the doors can be set in
conjunction with the selector lever position.

Deactivated

1. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock all doors
2. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock the driver's
door only
3. Not in Park (P)
position: Lock all
doors
Park (P) position:
Inoperable

The function for unlocking the doors
simultaneously when the ignition is switched
off can be changed.

Unlock all doors

Unlock driver's
door/Inoperable

Personalization Features

10-15

Mazda Mazdaspeed 3 (2013 year). Manual - part 37
