6. (Vehicles with sub-woofer)

Disconnect the sub-woofer connector.


Connector

7. (Vehicles with sub-woofer)

Turn the hold-down bolt
counterclockwise and remove the
sub-woofer and the spare tire.


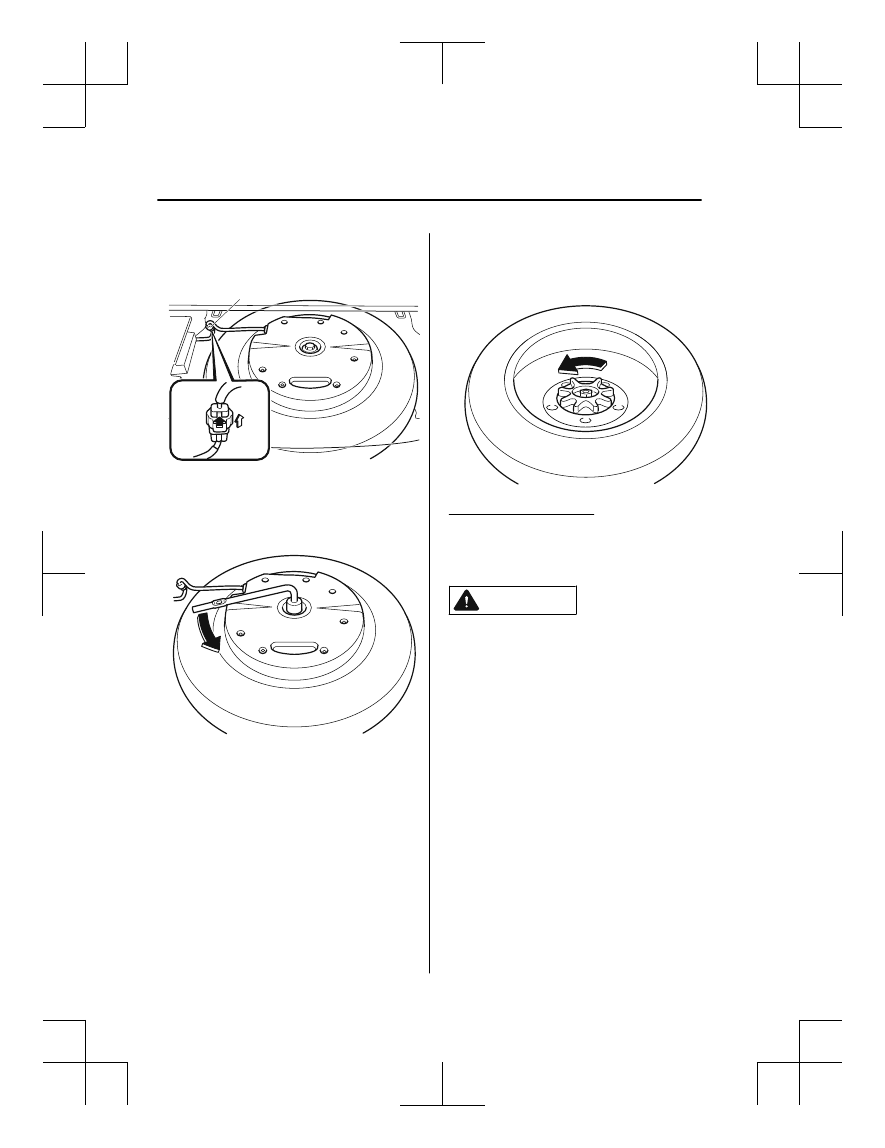

(Vehicles without sub-woofer)

Turn the hold-down bolt
counterclockwise and remove the spare
tire.


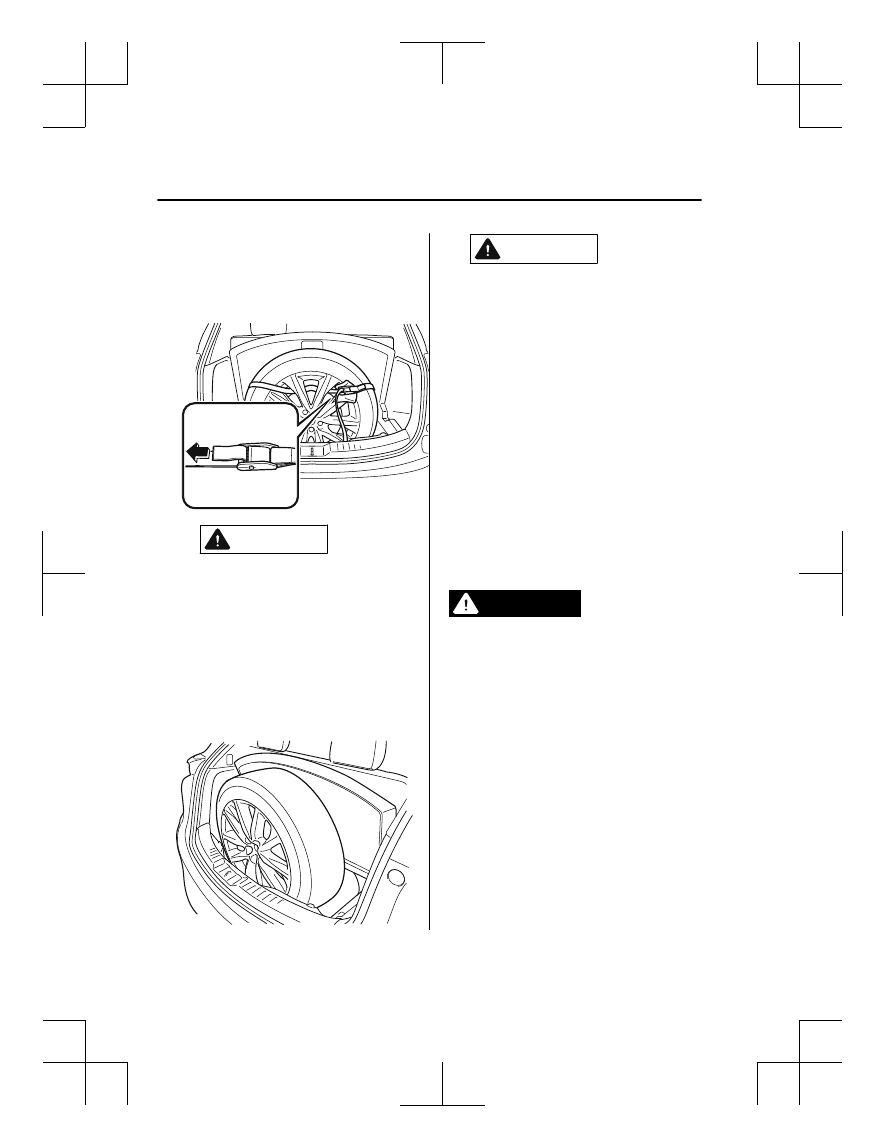

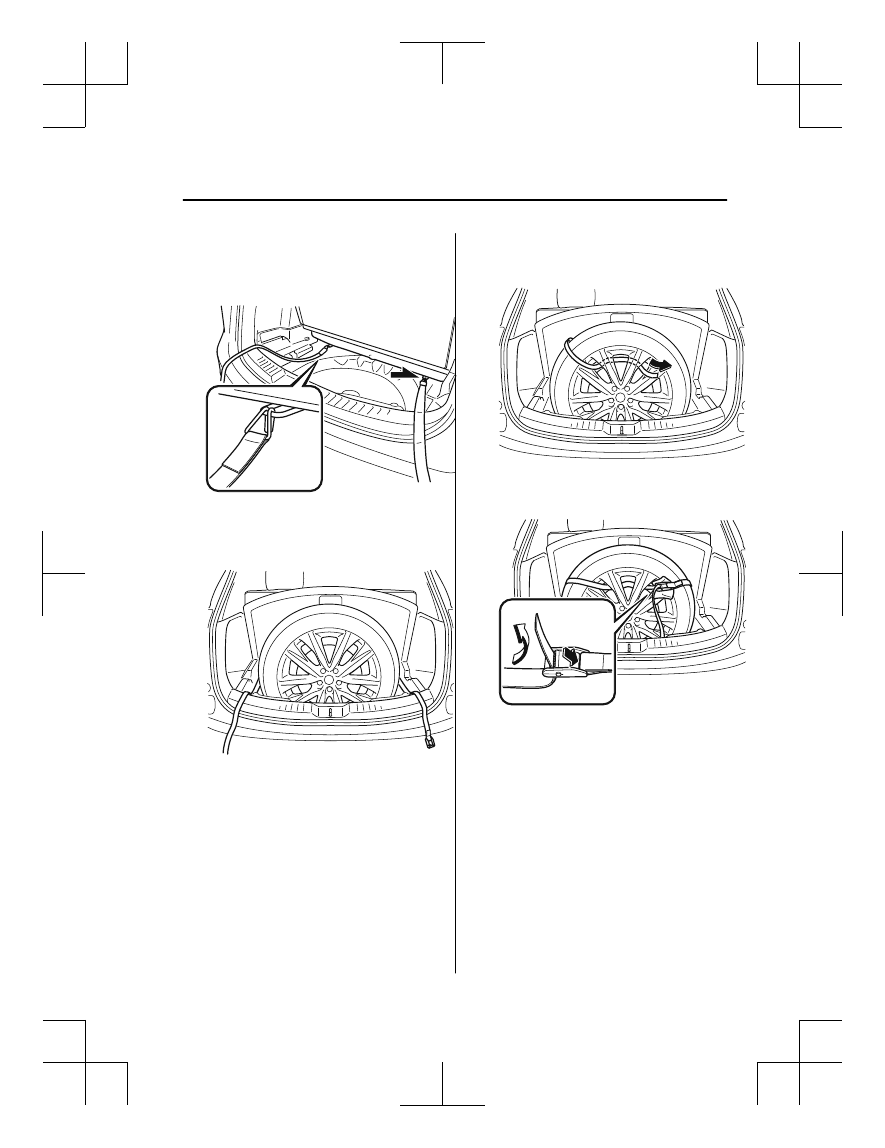

To secure the spare tire

Store the spare tire in the reverse order of
removal. After storing, verify that the
spare tire is stored securely.

CAUTION

(Vehicles with sub-woofer)

Secure the sub-woofer in its correct

position. If the sub-woofer is not installed
to the correct position, it may move while
the vehicle is driven which may damage
the sub-woofer or the wiring harness.

Store the tool bag on the right side of the

vehicle. If the tool bag is stored on the left
side of the vehicle, it may move while the
vehicle is driven which may damage the
wiring harness.

Refer to Spare Tire and Tool Storage on
page 7-3.

If Trouble Arises

Flat Tire

7-8

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

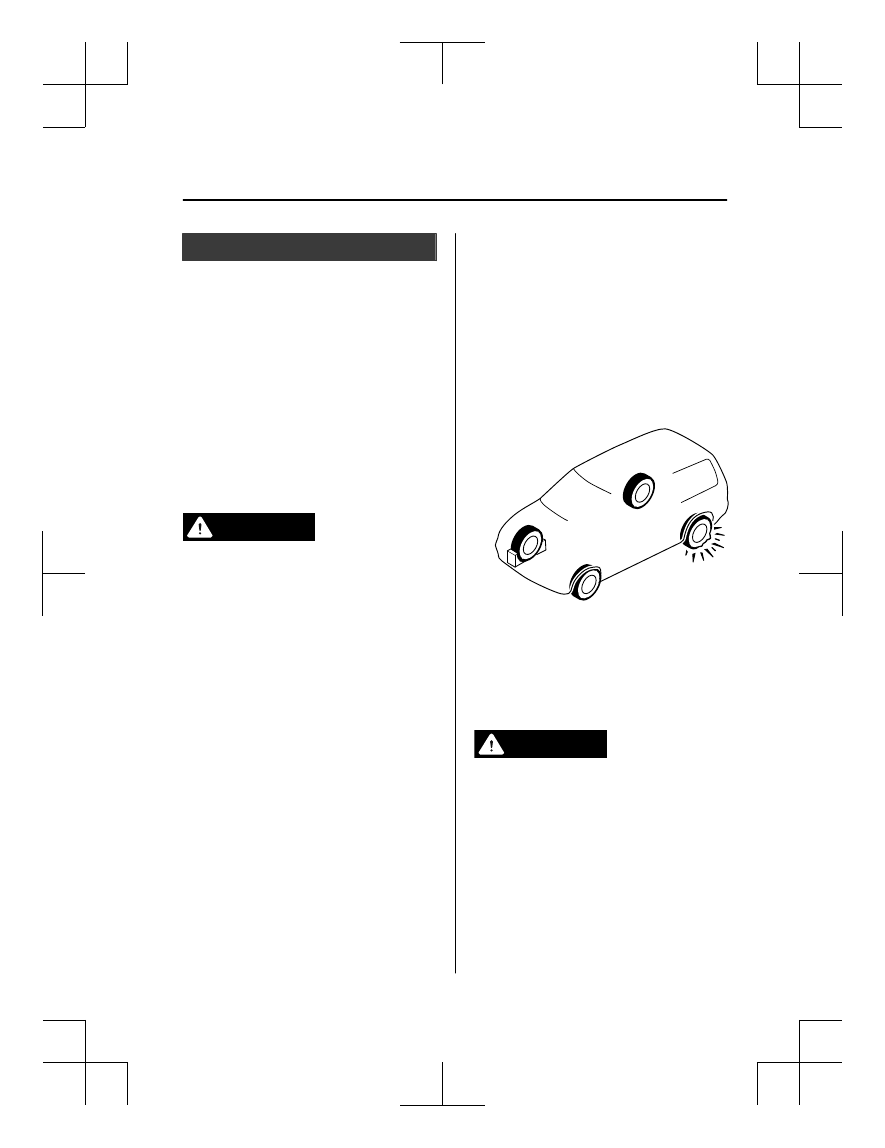

Changing a Flat Tire

NOTE
If the following occurs while driving, it
could indicate a flat tire.



Steering becomes difficult.



The vehicle begins to vibrate
excessively.



The vehicle pulls in one direction.

If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.

WARNING

Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not done
properly. The vehicle can slip off the jack
and seriously injure someone.
No person should place any portion of their
body under a vehicle that is supported by a
jack.

Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in a vehicle
supported by a jack is dangerous. The
occupant could cause the vehicle to fall
resulting in serious injury.

NOTE
Make sure the jack is well lubricated
before using it.

1. Park on a hard, level surface off the

right-of-way and firmly set the parking
brake.

2. Shift into Park (P) and turn off the

engine.

3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle

and away from the vehicle and traffic.

5. Remove the jack, tool, and spare tire

(page 7-3).

6. Block the wheel diagonally opposite

the flat tire. When blocking a wheel,
place a tire block both in front and
behind the tire.

NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size if
possible to hold the tire in place.

▼ Removing a Flat Tire

WARNING

When jacking-up a vehicle, always shift the
selector lever to P, apply the parking brake,
and place wheel blocks in the position
diagonally opposed to the jack:
Changing a flat tire without using wheel
blocks is dangerous because the vehicle
may move and fall off the jack even with
the select lever is in P, which could result in
an accident.

If Trouble Arises

Flat Tire

7-9

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

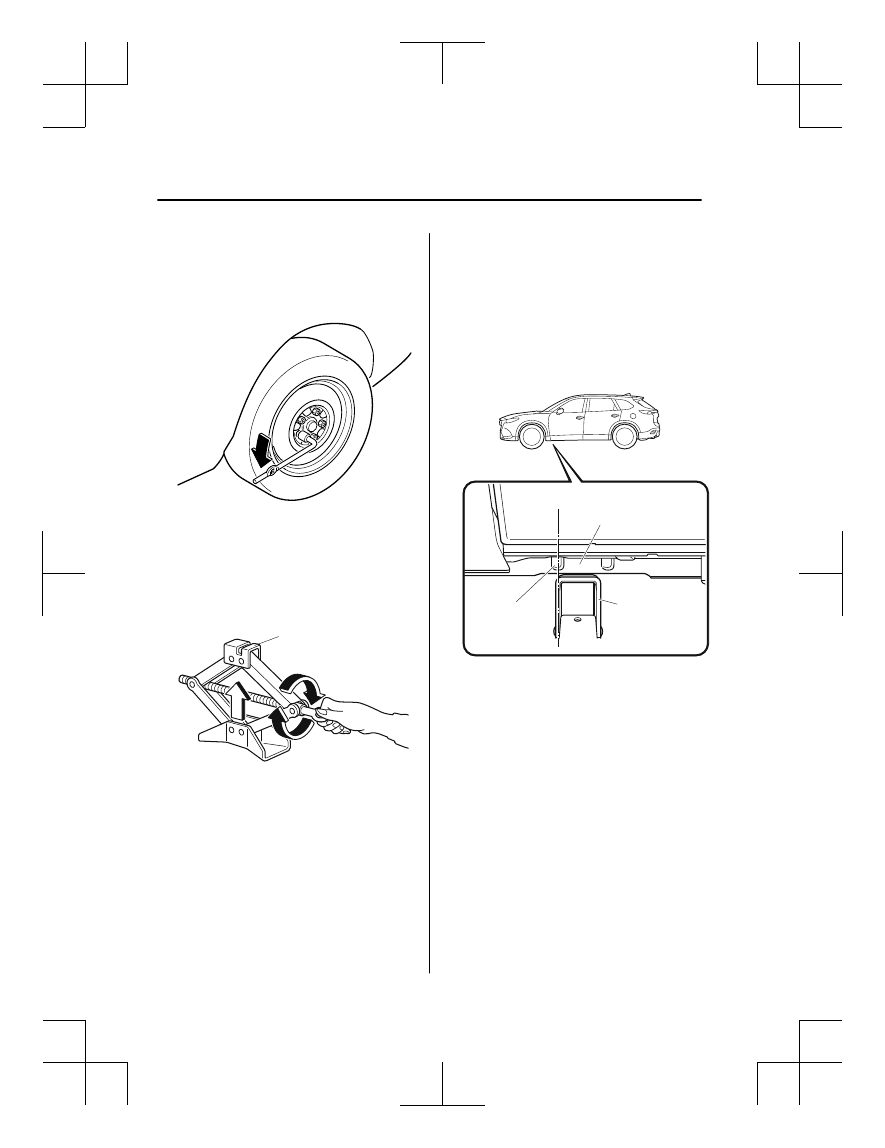

1. Loosen the lug nuts by turning them

counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.


2. Place the jack on the ground.
3. Turn the jack screw in the direction

shown in the figure and adjust the jack
head so that it is close to the jack-up
position.


Jack head

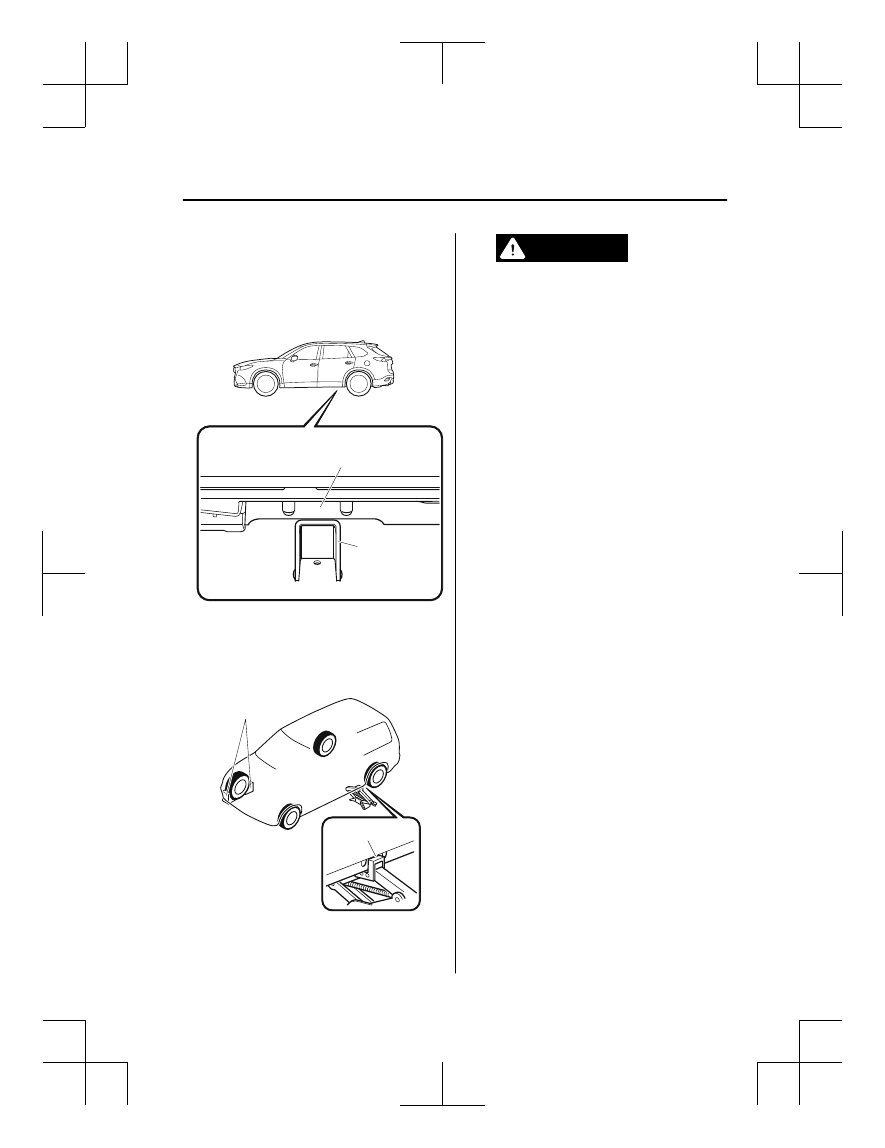

4. Set the jack to the designated jack-up

position closest to the tire being
removed.
(Jacking-up the vehicle front)
Set the groove on the top of the jack
head at a right angle into the center of
the designated jack-up position guide
projection closest to the vehicle front.


Jacking
position

Jacking head

Guide
projection

NOTE
Always set the jack into the designated
jack-up position shown in the figure
correctly.

If Trouble Arises

Flat Tire

7-10

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

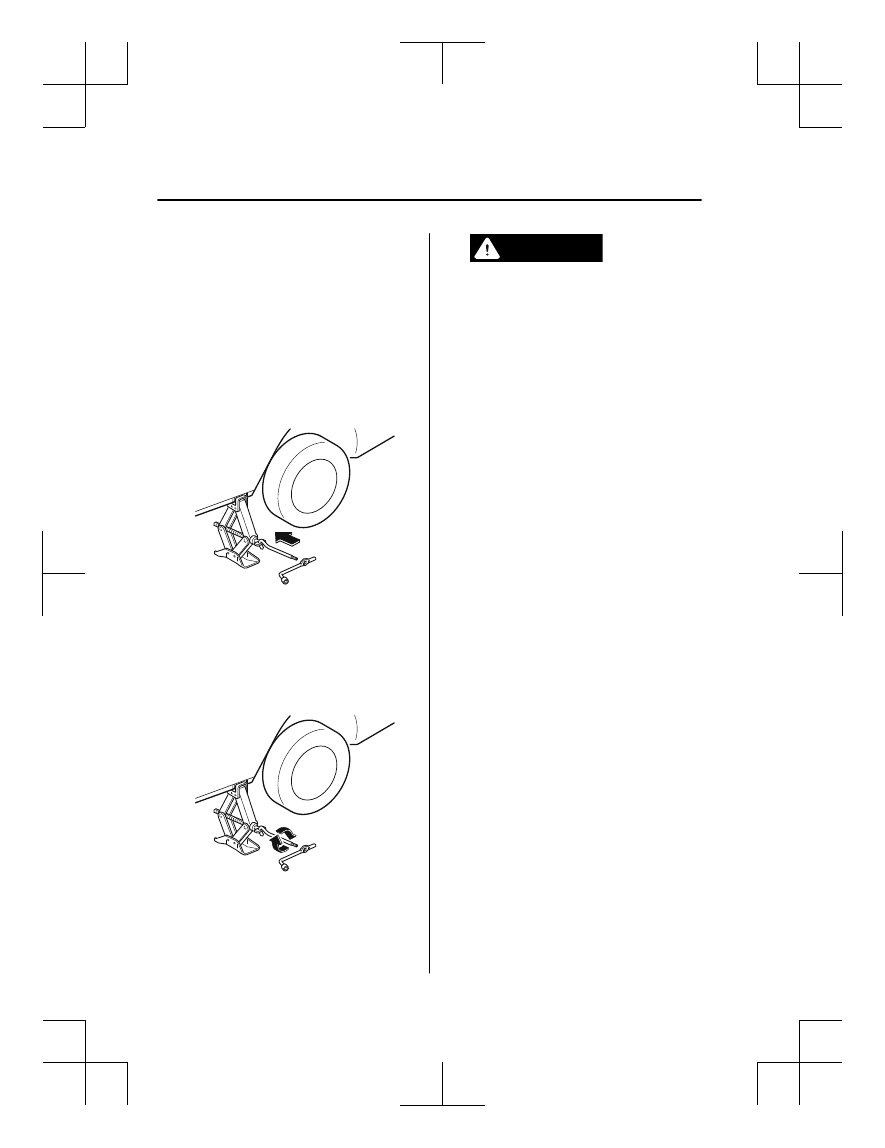

(Jacking-up the vehicle rear)
Set the groove on the top of the jack
head at a right angle between the
designated jack-up position guide
projections.


Jacking
position

Jacking head

5. Continue raising the jack head

gradually by rotating the screw with
your hand until the jack head is
inserted into the jack-up position.


Tire blocks

Jacking position

WARNING

Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even kill
someone. Use only the front and rear
jacking positions recommended in this
manual.

Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or under
the jack is dangerous as it could deform
the vehicle body or the vehicle could fall
off the jack resulting in an accident.

Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.

Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.

If Trouble Arises

Flat Tire

7-11

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

NOTE
When raising the jack head into the
jacking position and aligning the
groove in the jack head with the rail
under the vehicle body, the top of the
jack head contacts the vehicle's
underbody without the rail contacting
the bottom of the groove.

6. Insert the jack lever and attach the lug

wrench to tire jack.


7. Turn the jack handle clockwise and

raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.


WARNING

Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.

Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.

Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could result
in death or serious injury if the vehicle
were to fall off the jack.

8. Remove the lug nuts by turning them

counterclockwise; then remove the
wheel and center cap.

If Trouble Arises

Flat Tire

7-12

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

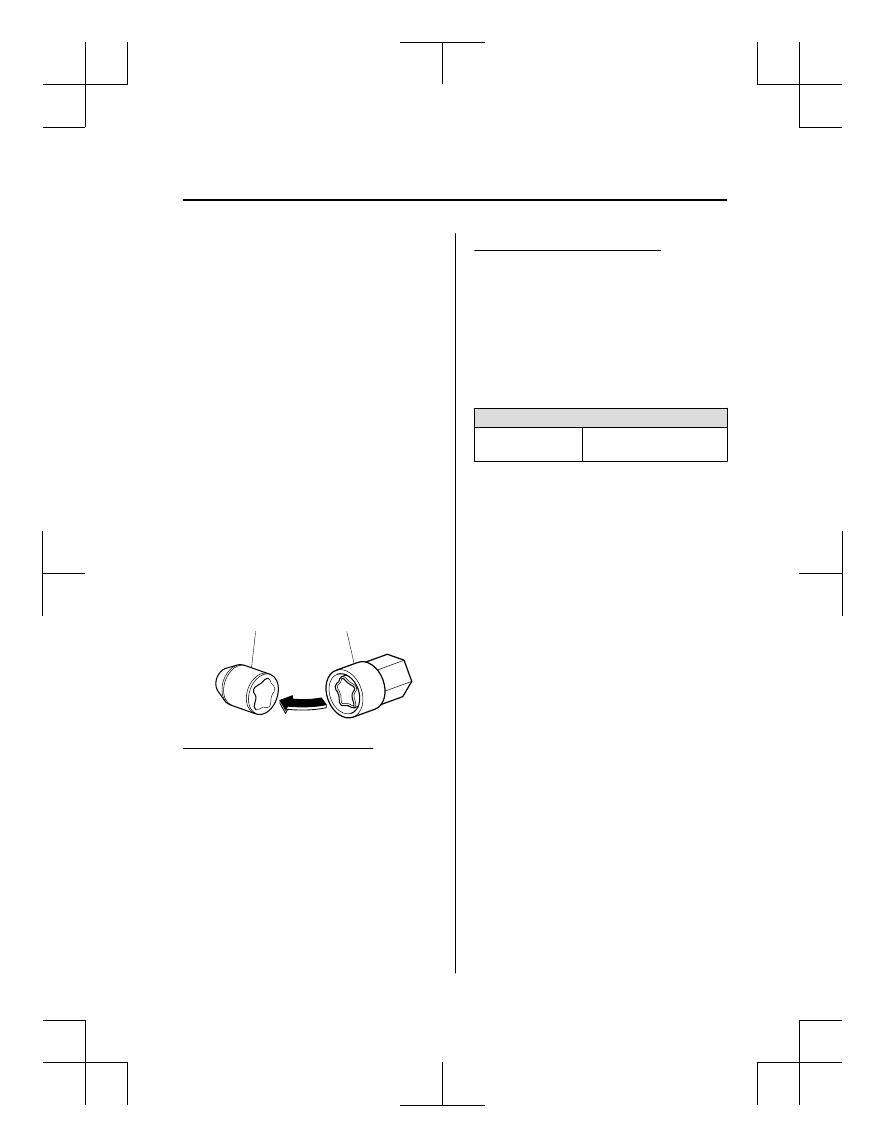

▼ Locking Lug Nuts

If your vehicle has Mazda optional
antitheft wheel lug nuts, each wheel will
have one locking lug nut that locks the
wheel and tire, and you must use a special
key to unlock the locking lug nut. This key
is stored in the glove compartment.
Register the key and lug nuts with the lock
manufacturer by filling out the card
provided in the glove compartment and
mailing it in the accompanying envelope.
If you lose this key, consult an Authorized
Mazda Dealer or use the lock
manufacturer's order form, which is with
the registration card.
Accessory wheel locks cannot be used on
steel wheels. This includes situations when
the spare tire is installed. If the spare tire is
installed, one of the original lug nuts
(which should still be in the vehicle) must
be installed in place of the wheel lock.

Special key

Antitheft lug nut

To remove an antitheft lug nut

1. Obtain the special key for the antitheft

lug nut.

2. Place the special key on top of the

antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.

3. Place the lug wrench on top of the key

and apply pressure. Turn the wrench
counterclockwise.

To install the antitheft lug nut

1. Place the special key on top of the nut,

and be sure to hold the key square to it.
If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.

2. Place the lug wrench on top of the

special key, apply pressure, and turn it
clockwise.

Nut tightening torque

N·m (kgf·m, ft·lbf)

108―147 (12―14,

80―108)

If Trouble Arises

Flat Tire

7-13

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

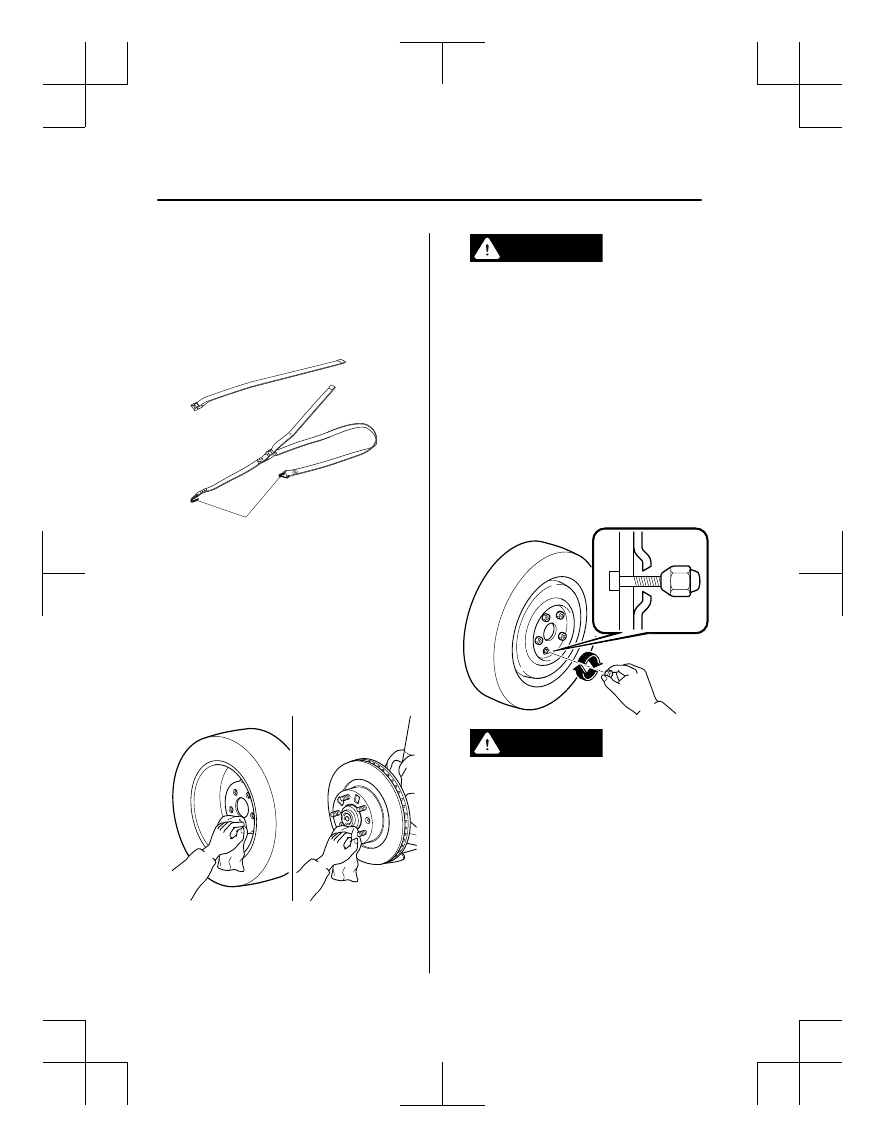

▼ Mounting the Spare Tire

NOTE
The number and shape of the flat tire belt
differ depending on the vehicle
specification.


Belt clips



The flat tire belts with the clips are for
securing a flat tire.



The flat tire belts without the clips are
for securing the sub-woofer.

1. Remove dirt and grime from the

mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.


WARNING

Make sure the mounting surfaces of the
wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire, not
removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.

2. Mount the spare tire.
3. Install the lug nuts with the beveled

edge inward; tighten them by hand.


WARNING

Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident. In
addition, lug nuts and bolts could be
damaged if tightened more than
necessary.

If Trouble Arises

Flat Tire

7-14

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

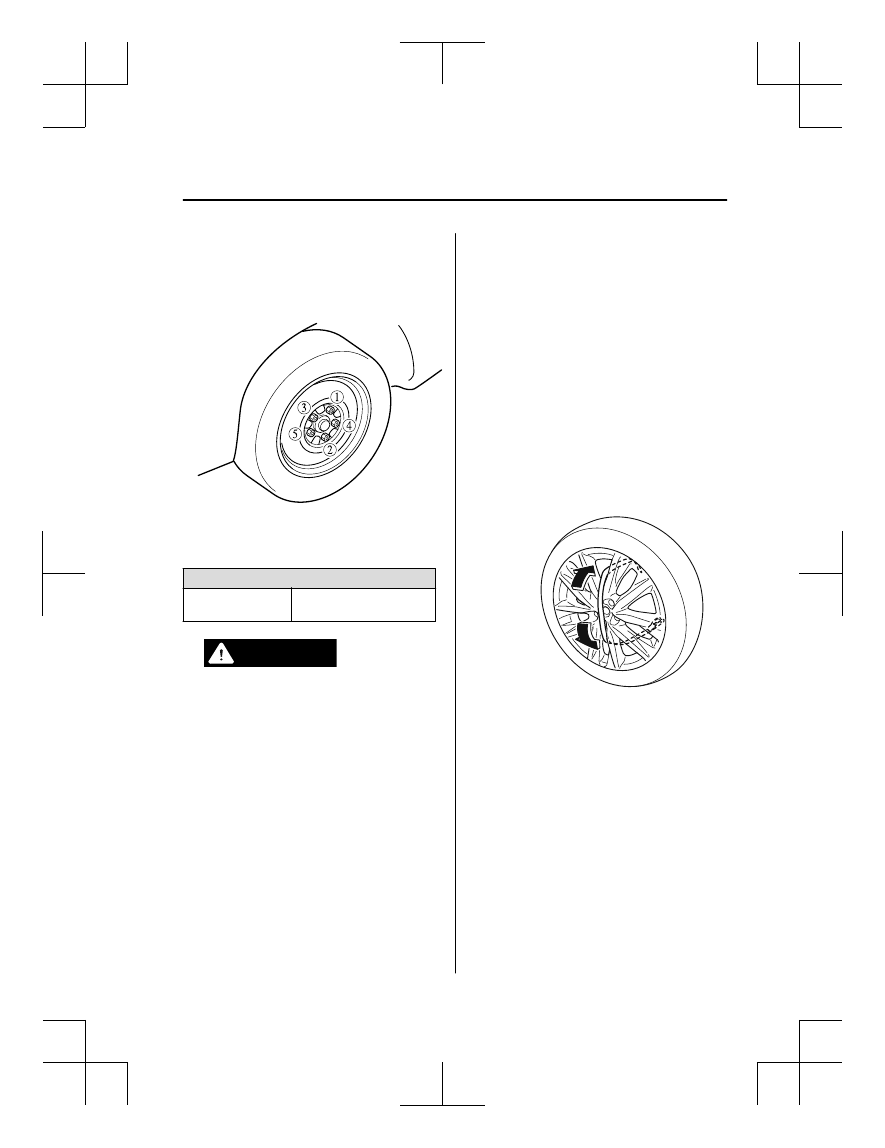

4. Turn the lug wrench counterclockwise

and lower the vehicle.

5. Use the lug wrench to tighten the nuts

in the order shown.


If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.

Nut tightening torque

N·m (kgf·m, ft·lbf)

108―147 (12―14,

80―108)

WARNING

Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result in
loss of vehicle control and cause a
serious accident.

Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident.

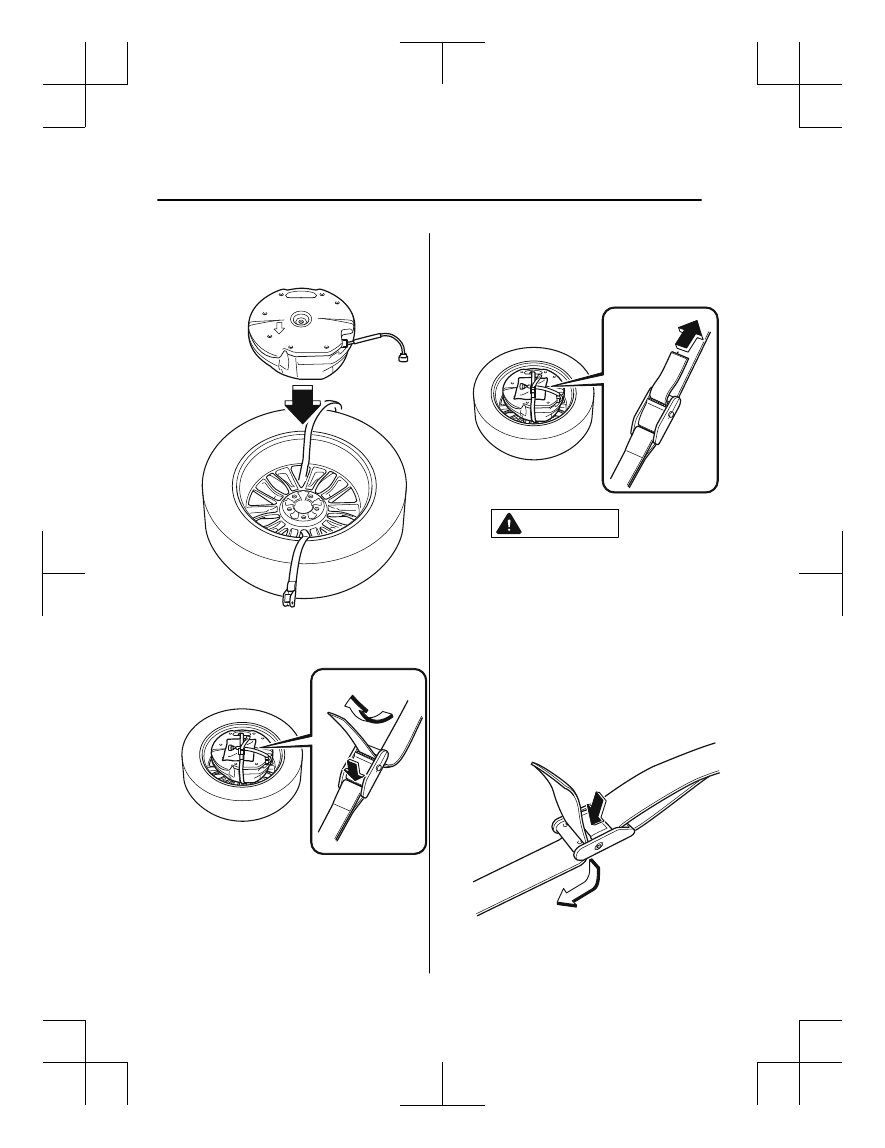

6. (Vehicles with sub-woofer)

Secure the sub-woofer to the flat tire
using the flat tire belt.
1. Pass the flat tire belt through the

wheel of the flat tire.


If Trouble Arises

Flat Tire

7-15

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

2. Install the sub-woofer to the flat

tire.


3. Pass the flat tire belt through the

buckle.


4. Pull the end of the flat tire belt and

secure the sub-woofer and the
wiring harness to the flat tire.


CAUTION

When pulling the flat tire belt, wrap
the buckle with a cloth. If the buckle
directly contacts the sub-woofer,
the sub-woofer may be damaged.

7. (Vehicles except for Mexico)

Secure the flat tire in the luggage
compartment using the flat tire belt.
1. Pull the flat tire belts out of the

buckle to separate them into two
belts.


If Trouble Arises

Flat Tire

7-16

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

2. Hook the clips of the flat tire belts

to the hooks under the third-row
seat.


3. Place the flat tire in the luggage

compartment so that it leans
against the luggage board.


4. Pass the flat tire belts through the

wheel of the flat tire.


5. Pass the flat tire belts through the

buckle.


If Trouble Arises

Flat Tire

7-17

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

6. While pressing the flat tire against

the third-row seat, pull the ends of
the flat tire belts and secure the flat
tire.


CAUTION

When pulling the flat tire belts,
wrap the buckle with a cloth. If the
buckle directly contacts the
aluminum wheel, the wheel may be
damaged.

8. (Vehicles for Mexico)

Place the flat tire in the luggage
compartment so that it leans against
the luggage board.


CAUTION

Tuck a cloth between the flat tire and
the vehicle trim. If the flat tire directly
contacts the vehicle trim, the trim may
be damaged.

9. Slowly close the liftgate while making

sure that the liftgate trim does not
contact the flat tire.

NOTE
If the liftgate trim contacts the flat tire,
adjust the position of the flat tire.

10. Make sure that the liftgate closes

securely.

11. Check the tire inflation pressure.

Refer to the specification charts on
page 9-8.

12. Have the flat tire repaired or replaced

as soon as possible.

WARNING

Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air pressure
is dangerous. Tires with incorrect pressure
could affect handling and result in an
accident. When you check the regular tires'
air pressure, check the spare tire, too.

NOTE
To prevent the jack and tool from rattling,
store them properly.

If Trouble Arises

Flat Tire

7-18

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Jump-Starting

Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you feel
unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.

WARNING

 Follow These Precautions Carefully:

To ensure safe and correct handling of the battery, read the following precautions carefully
before using the battery or inspecting it.

 Keep flames and sparks away from open battery cells and do not allow metal tools to

contact the positive ( ) or negative ( ) terminal of the battery when working near a battery.
Do not allow the positive ( ) terminal to contact the vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.

 Keep all flames and sparks away from open battery cells because hydrogen gas is

produced from open battery cells while charging the battery or adding battery fluid:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.

Do not jump-start a frozen battery or one with a low fluid level:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may rupture or
explode, causing serious injury.

Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative ( ) terminal of the discharged
battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.

If Trouble Arises

Battery Runs Out

7-19

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.

CAUTION

Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and other
electrical parts beyond repair with a 24 V power supply (two 12 V batteries in series or a 24 V
motor generator set).



Connect cables in numerical order and disconnect in reverse order.

Jumper cables

Booster battery

Discharged battery

1. Remove the battery cover.



2. Make sure the booster battery is 12 V

and that its negative terminal is
grounded.

3. If the booster battery is in another

vehicle, do not allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.

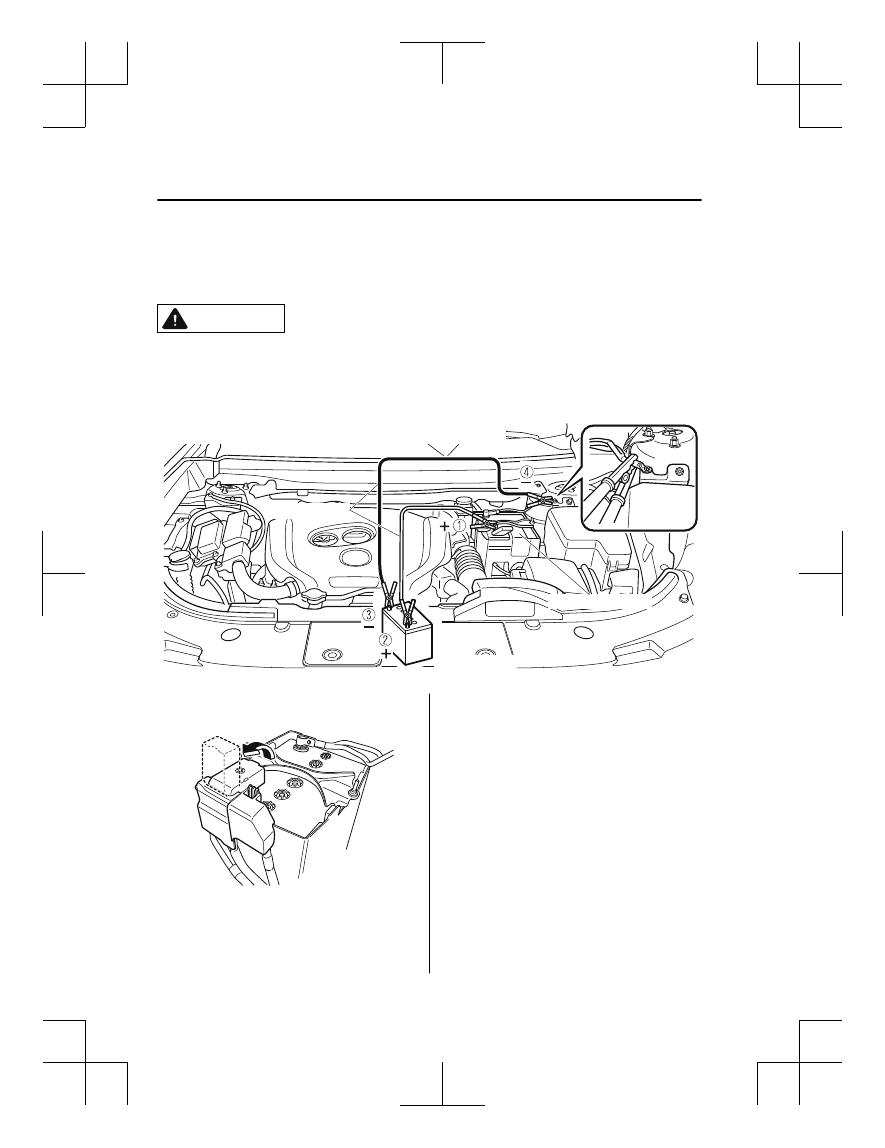

4. Connect the jumper cables in the exact

sequence as in the illustration.



Connect one end of a cable to the
positive terminal on the discharged
battery (1).



Attach the other end to the positive
terminal on the booster battery (2).

If Trouble Arises

Battery Runs Out

7-20

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27



Connect one end of the other cable
to the negative terminal of the
booster battery (3).



Connect the other end to the ground
point indicated in the illustration
away from the discharged battery
(4).

5. Start the engine of the booster vehicle

and run it a few minutes. Then start the
engine of the other vehicle.

6. When finished, carefully disconnect

the cables in the reverse order
described in the illustration.

7. If the battery cover has been removed,

install it in the reverse order of
removal.

NOTE
Verify that the covers are securely
installed.

If Trouble Arises

Battery Runs Out

7-21

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Starting a Flooded Engine

If the engine fails to start, it may be
flooded (excessive fuel in the engine).

Follow this procedure:

1. If the engine does not start within 5

seconds on the first try, wait 10
seconds and try again.

2. Make sure the parking brake is on.
3. Depress the accelerator all the way and

hold it there.

4. Depress the brake pedal, then press the

push button start. If the engine starts,
release the accelerator immediately
because the engine will suddenly rev
up.

5. If the engine fails to start, crank it

without depressing the accelerator.


If the engine still does not start using the
previous procedure, have your vehicle
inspected by an Authorized Mazda Dealer.

Push-Starting

Do not push-start your Mazda.

WARNING

Never tow a vehicle to start it:
Towing a vehicle to start it is dangerous.
The vehicle being towed could surge
forward when its engine starts, causing the
2 vehicles to collide. The occupants could
be injured.

NOTE
You cannot start a vehicle with an
automatic transaxle by pushing it.

If Trouble Arises

Emergency Starting

7-22

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Overheating

If the temperature gauge indicates
overheating or the high engine coolant
temperature warning light turns on, the
vehicle loses power, or you hear a loud
knocking or pinging noise, the engine is
probably too hot.

WARNING

Pull over to a safe location, then switch

the ignition off and make sure the fan is
not running before attempting to work
near the cooling fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if the
engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.

Do not remove either cooling

system cap when the engine and radiator
are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot out
under pressure and cause serious injury.

Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.

If the temperature gauge indicates
overheating or the high engine coolant
temperature warning light turns on:

1. Drive safely to the side of the road and

park off the right-of-way.

2. Shift into park (P).
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is

escaping from the engine
compartment.

If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.

If neither coolant nor steam is
escaping:
Open the hood and idle the engine
until it cools.

CAUTION

If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.

6. Make sure the cooling fan is operating,

then turn off the engine after the
temperature has decreased.

7. When cool, check the coolant level.

If Trouble Arises

Overheating

7-23

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27
