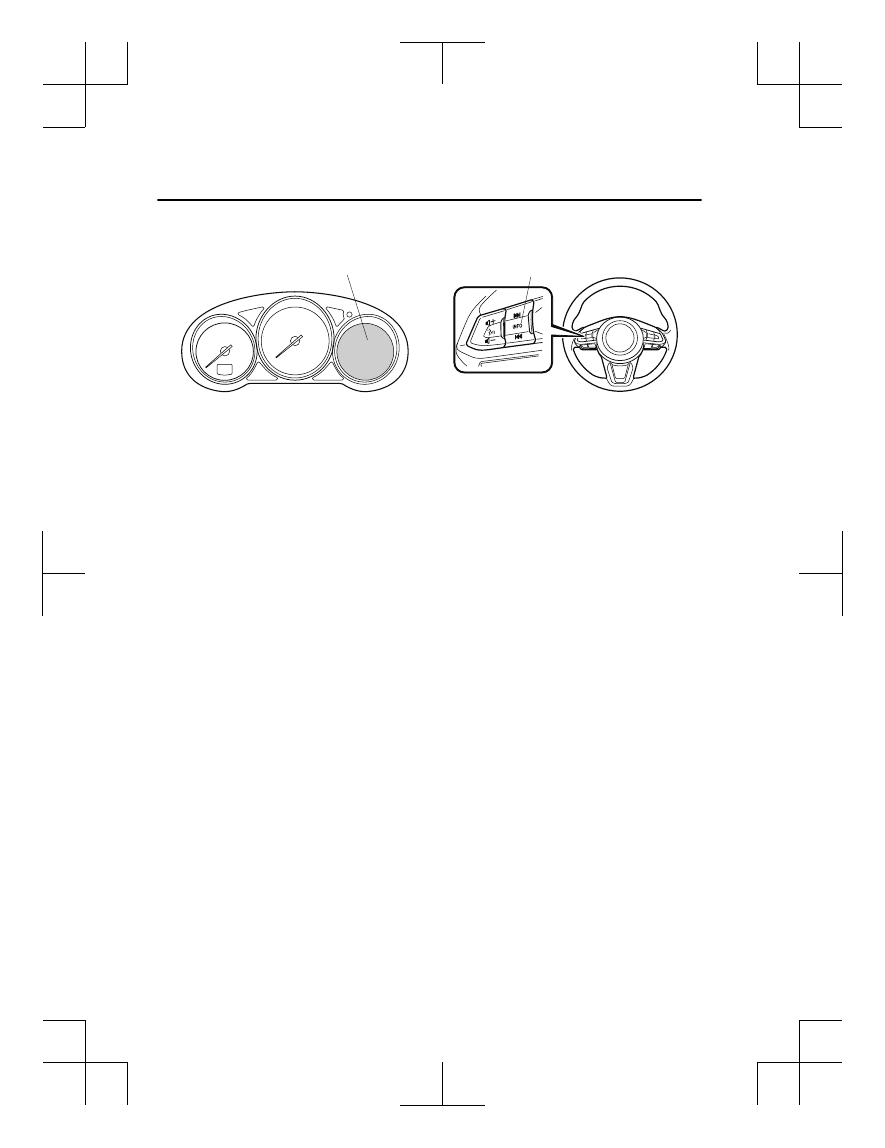

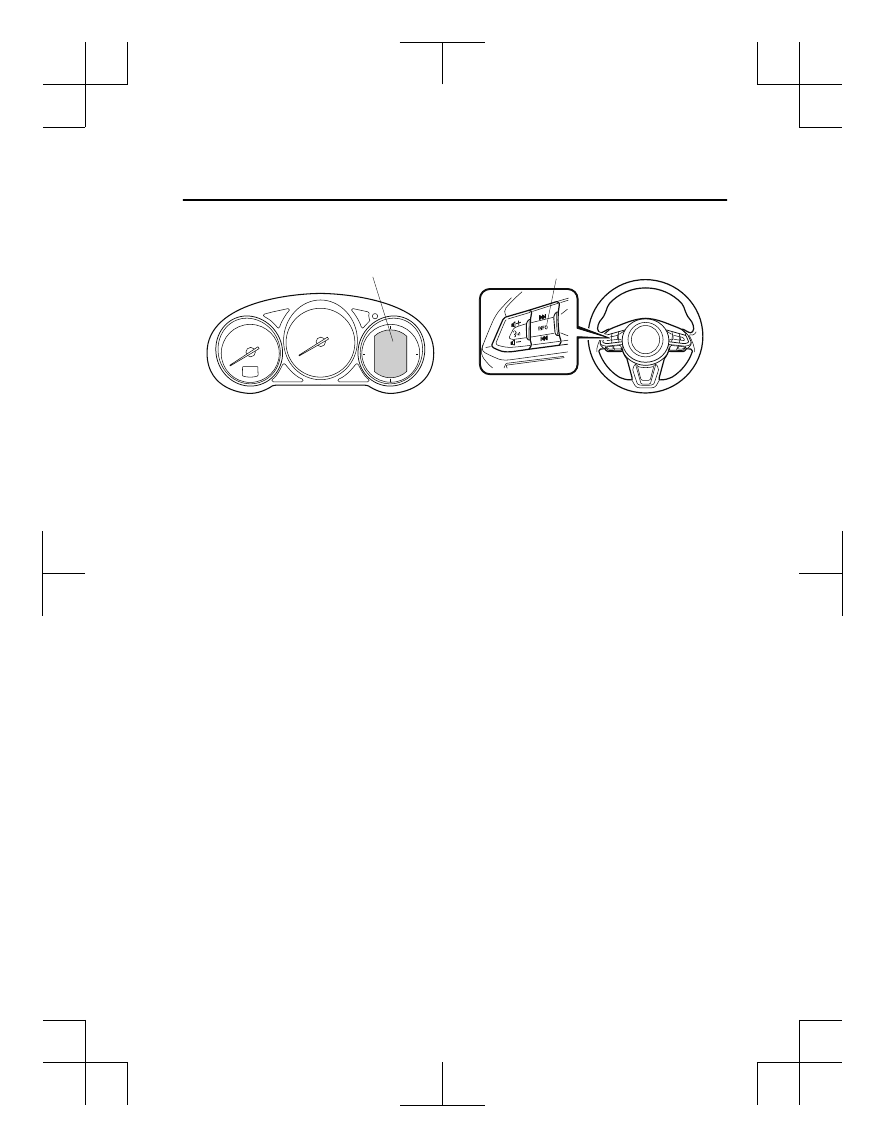

▼ Multi-information Display (Type B)

INFO switch

Multi-information Display (Type B)

The multi-information display indicates the following information.



Odometer



Trip meter



Engine coolant temperature gauge



Fuel gauge



Outside temperature



Distance-to-empty



Average fuel economy



Current fuel economy



Maintenance Monitor



Blind Spot Monitoring (BSM) Display



Distance Recognition Support System (DRSS) Display



Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)
System Display



Lane Departure Warning System (LDWS) Display



Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display



Cruise Control Display



Compass Display



Warning message

When Driving

Instrument Cluster and Display

4-30

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

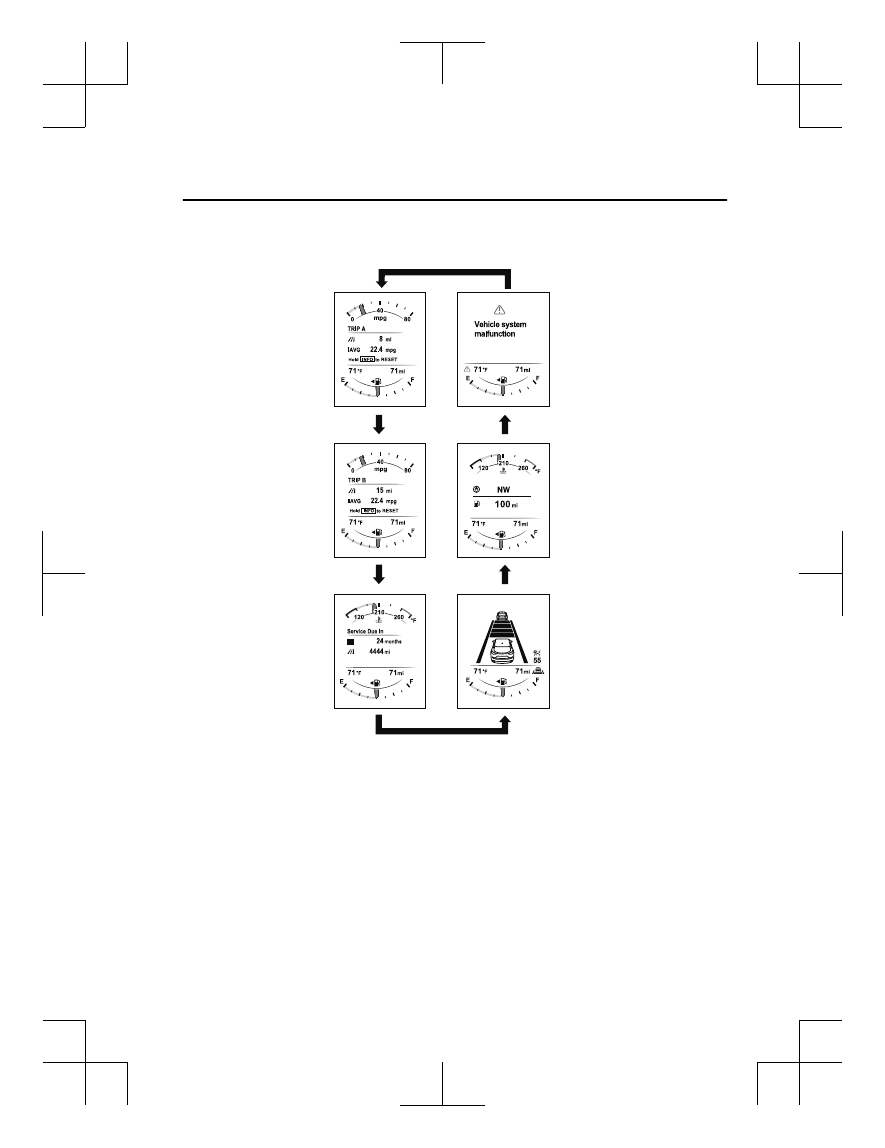

The screen content changes each time the INFO switch is pressed.

Press the INFO switch

Press the INFO switch

Press the INFO switch

Press the INFO switch

Press the INFO switch

Press the INFO switch

Current Fuel Economy,
Trip Meter A, Average
Fuel Economy, Outside
Temperature,
Odometer, Fuel Gauge

Current Fuel Economy,
Trip Meter B, Average
Fuel Economy, Outside
Temperature,
Odometer, Fuel Gauge

Engine Coolant
Temperature Gauge,
Maintenance Monitor,
Outside Temperature,
Odometer, Fuel Gauge

i-ACTIVSENSE display,
Outside Temperature,
Odometer, Fuel Gauge

Warning message,
Outside Temperature,
Odometer, Fuel Gauge

*1

*1: Displayed only when a warning occurs.

Engine Coolant
Temperature Gauge,
Compass,
Distance-to-empty,
Outside Temperature,
Odometer, Fuel Gauge

When Driving

Instrument Cluster and Display

4-31

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

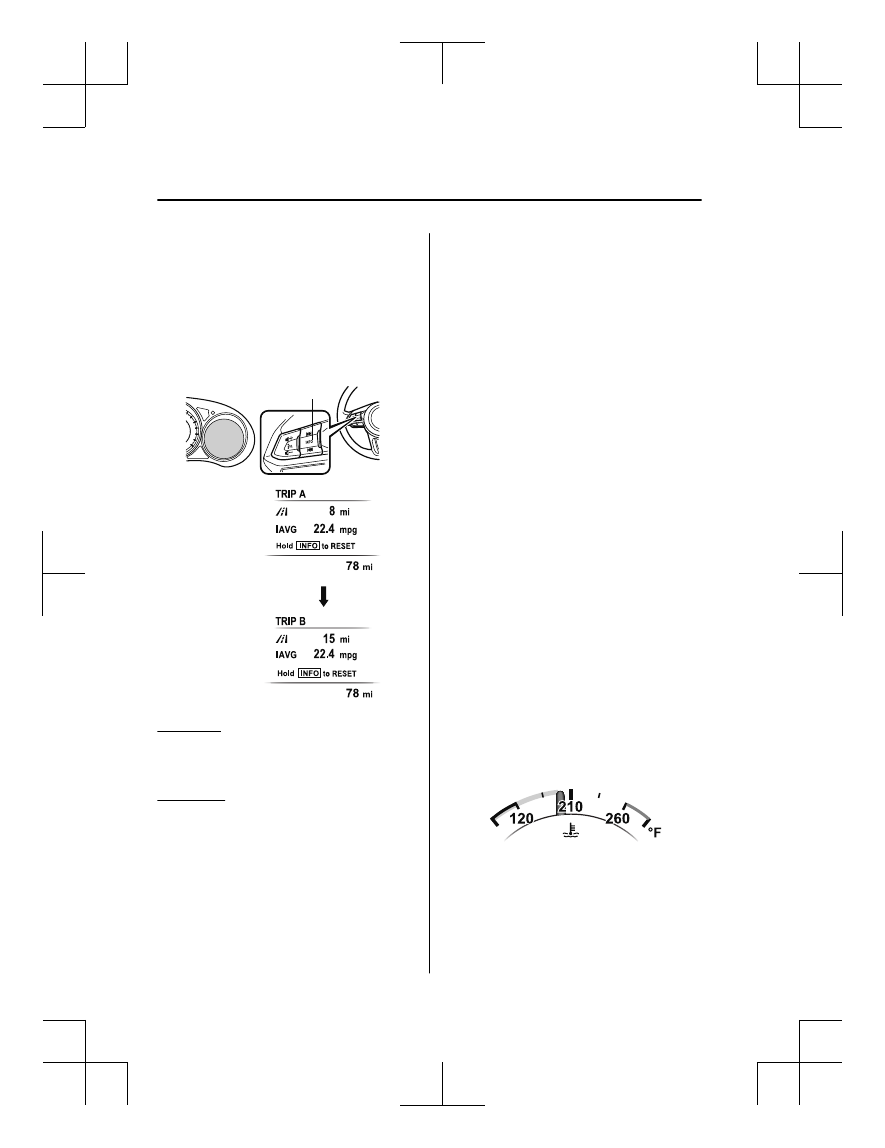

▼ Odometer, Trip Meter and Trip

Meter Selector

The odometer is constantly displayed on
the screen when the ignition is switched
ON, and the TRIP A or TRIP B screen can
be displayed by operating the INFO
switch.


Press the INFO switch

INFO switch

Odometer,
Trip meter A

Odometer,
Trip meter B

Odometer

The odometer records the total distance
the vehicle has been driven.

Trip meter

The driving distance for a specified
interval is indicated. Two types (TRIP A,
TRIP B) of interval distance and the
average fuel economy for each can be
measured.


For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter and average fuel economy
can be reset by pressing the INFO switch
for 1.5 seconds or more while in each
mode.

NOTE



Only the trip meters record tenths of
kilometers (miles).



The trip record will be erased when:



The power supply is interrupted
(blown fuse or the battery is
disconnected).



The vehicle is driven over 9999.9 km
(mile).

▼ Engine Coolant Temperature Gauge

Displays the engine coolant temperature.
The blue gauge indicates that the engine
coolant temperature is low, and the red
gauge indicates that the engine coolant
temperature is high and overheating.


When Driving

Instrument Cluster and Display

4-32

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

CAUTION

If the high engine coolant temperature
warning light (red) flashes, there is a
possibility of overheating. Drive slowly to
reduce engine load until you can find a safe
place to stop the vehicle and wait for the
engine to cool down.
Refer to Overheating on page 7-18.

NOTE



(SKYACTIV-G 2.5T)

If the engine coolant temperature is high
or the engine is hot, the engine output
may be limited.



The temperature unit (Centigrade/
Fahrenheit) of the engine coolant gauge
display changes in conjunction with the
temperature unit of the outside
temperature display.
Refer to Personalization Features on
page 9-12.



During normal driving, the engine
coolant temperature stabilizes at 100 °C
(210 °F) or less, and the gauge indicates
a range lower than 100 °C (210 °F).

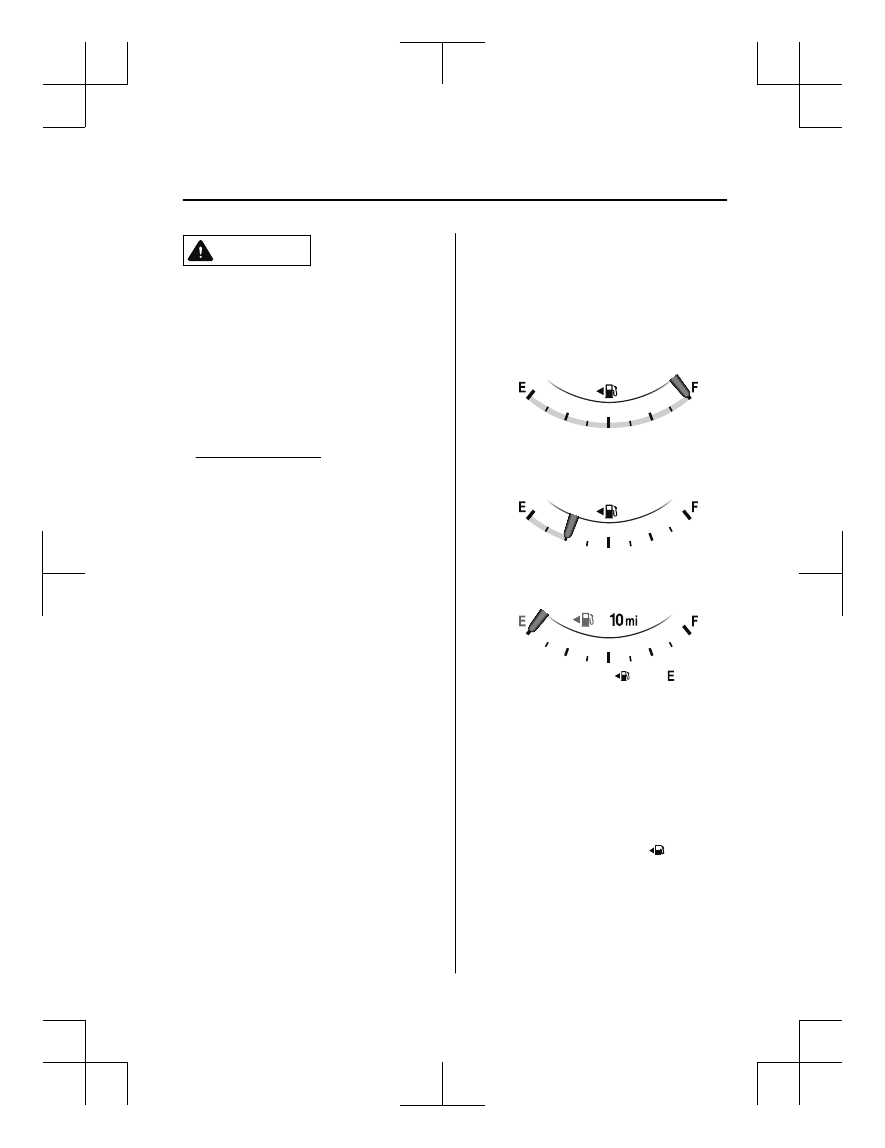

▼ Fuel Gauge

The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.


Full

1/4 Full

Empty

If the fuel level is low, ( ) and ( ) turn an
amber color. Refuel as soon as possible.
Refer to Taking Action on page 7-32.

NOTE



After refueling, it may require some time
for the indicator to stabilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.



The direction of the arrow ( ) indicates
that the fuel-filler lid is on the left side
of the vehicle.

When Driving

Instrument Cluster and Display

4-33

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Dashboard Illumination

When the lights are turned on with the
ignition switched ON, the brightness of
the dashboard illumination is dimmed.
However, when the light sensor detects
that the surrounding area is bright such as
when the lights are turned on in the
daytime, the dashboard illumination does
not dim.

NOTE



When the ignition is switched ON in the
early evening or at dusk, the dashboard
illumination is dimmed for several
seconds until the light sensor detects the
brightness of the surrounding area,
however, the dimming may cancel after
the brightness is detected.



When the lights are turned on, the
lights-on indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-71.

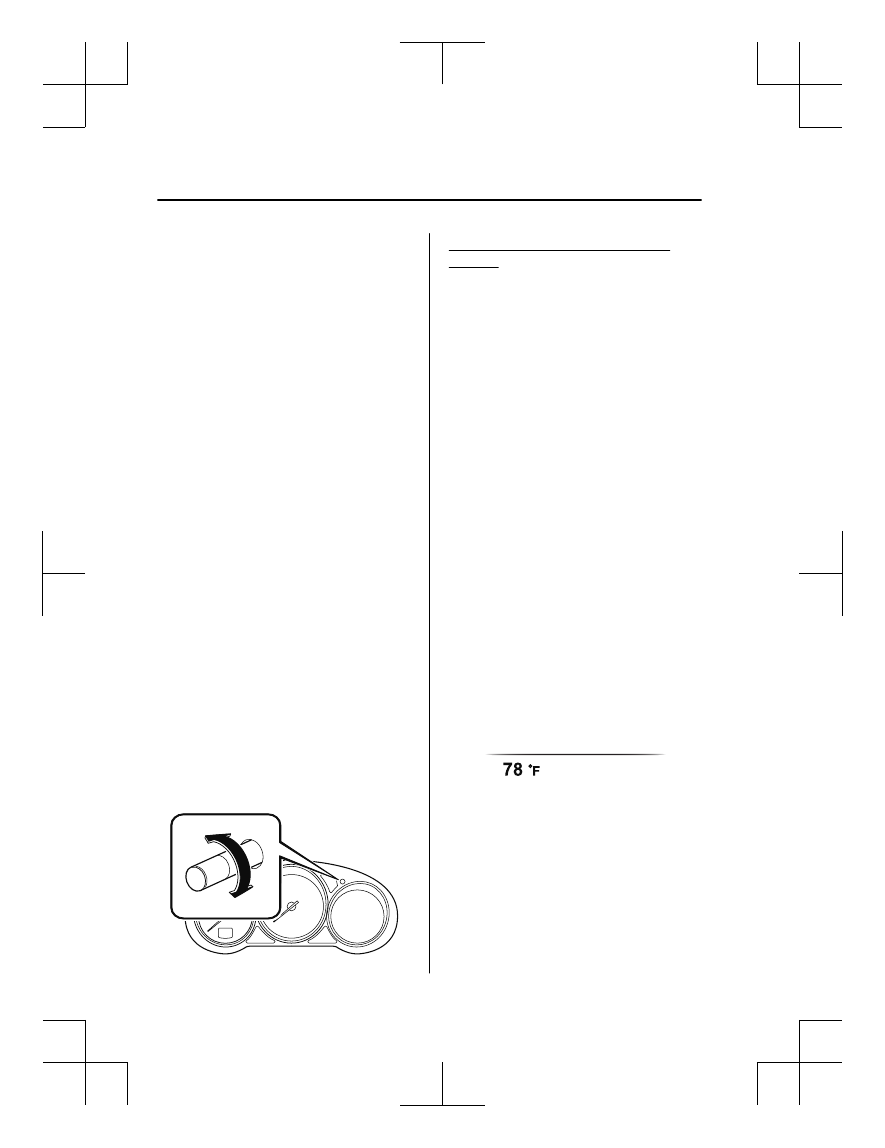

The brightness of the instrument cluster
and dashboard illuminations can be
adjusted by rotating the knob.



The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.



The brightness increases by rotating the
knob to the right.

Dim

Bright

Function for canceling illumination
dimmer

The illumination dimmer can be canceled
by rotating the dashboard illumination
knob to the right until a beep sound is
heard while the instrument cluster is
dimmed with the ignition switched ON. If
the instrument cluster's visibility is
reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.

NOTE



The illumination dimmer can be
canceled by pressing the dashboard
illumination knob.



When the illumination dimmer is
canceled, the instrument cluster cannot
be dimmed even if the lights are turned
on.



When the illumination dimmer is
canceled, the screen in the center
display switches to constant display of
the daytime screen.

▼ Outside Temperature Display

When the ignition is switched ON, the
outside temperature is displayed.


NOTE



Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:



Significantly cold or hot temperatures.



Sudden changes in outside
temperature.

When Driving

Instrument Cluster and Display

4-34

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47



The vehicle is parked.



The vehicle is driven at low speeds.

Changing the Temperature Unit of the
Outside Temperature Display

The outside temperature unit can be
switched between Celsius and Fahrenheit.
Settings can be changed by operating the
center display screen.
Refer to Personalization Features on page
9-12.

NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.

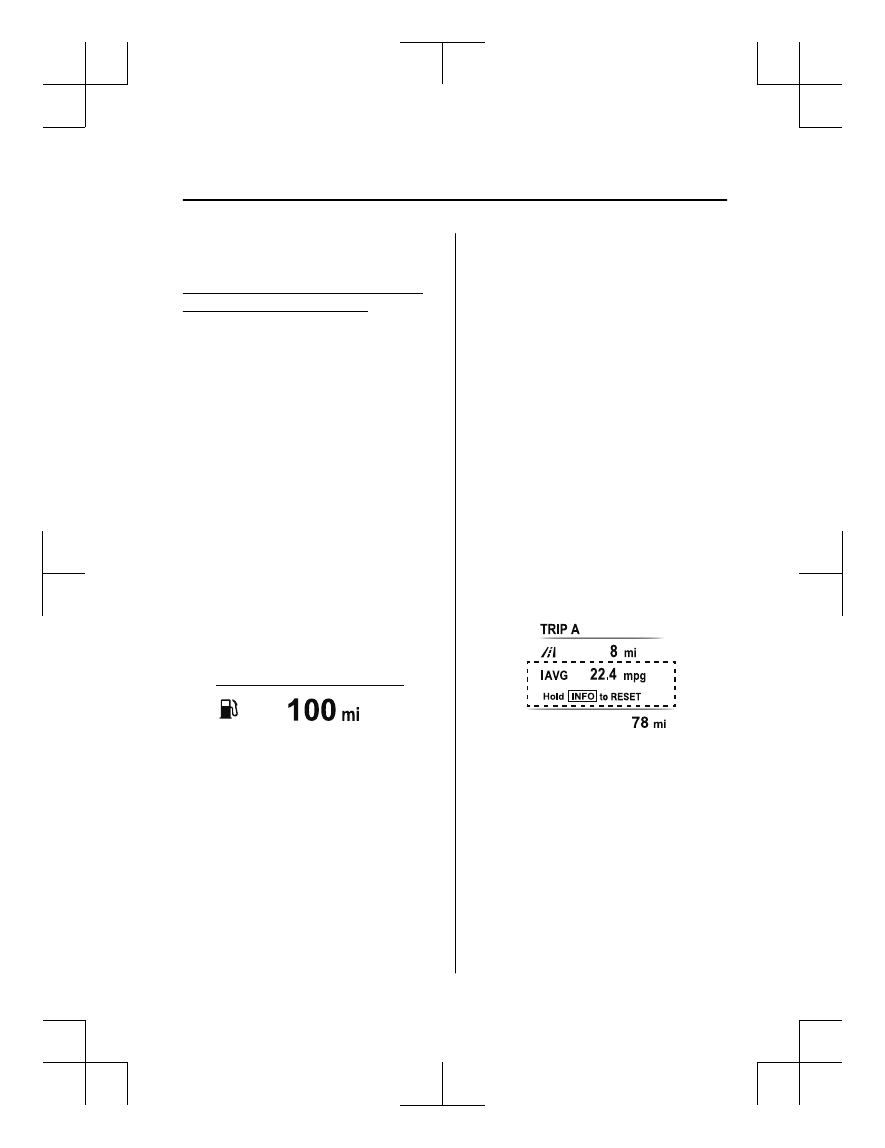

▼ Distance-to-empty

This displays the approximate distance
you can travel on the remaining fuel based
on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.


NOTE



Even though the distance-to-empty
display may indicate a sufficient amount
of remaining driving distance before
refueling is required, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.



The display will not change unless you
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.



The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
indicating the remaining fuel supply
disappear.



If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.

▼ Average Fuel Economy

The average fuel economy is calculated
every minute from the total traveled
distance on the trip meter and the total fuel
consumption, and the average fuel
economy for either TRIP A or TRIP B is
displayed.


The average fuel economy and trip meters
can be reset by pressing the INFO switch
for 1.5 seconds or more while in each
mode. After the data is cleared, the fuel
consumption is recalculated and the - - -
km/L (- - - mpg) for the 1 minute prior to
it being displayed is indicated.

When Driving

Instrument Cluster and Display

4-35

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

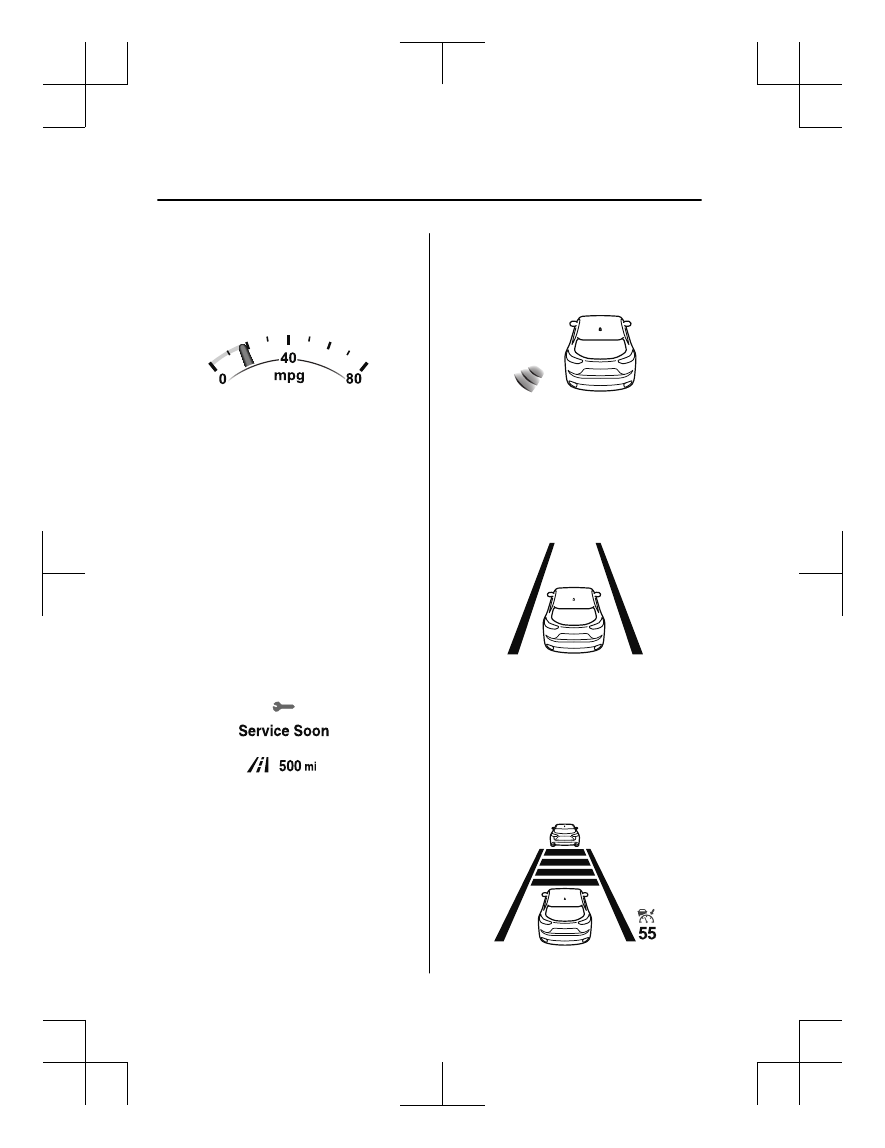

▼ Current Fuel Economy

This displays the current fuel economy by
calculating the amount of fuel
consumption and the distance traveled.


NOTE
Indicates the 0 position when the vehicle
speed is about 5 km/h (3 mph) or slower.

▼ Maintenance Monitor

The following maintenance period
notifications can be displayed by turning
the Maintenance Monitor on.



Scheduled Maintenance



Tire Rotation



Oil Change

When the remaining days to the
maintenance period is 15 days or less, or
the remaining distance is 1,000 km (600
miles) or shorter, a message is indicated
when the ignition is switched ON.

For the setting method and indications for
the maintenance monitor, refer to the
Maintenance Monitor.
Refer to Maintenance Monitor on page
6-16.

▼ Blind Spot Monitoring (BSM)

Display

Displays the system status.


Refer to Blind Spot Monitoring (BSM) on
page 4-123.

▼ Lane-keep Assist System (LAS) &

Lane Departure Warning System
(LDWS) Display

*

Displays the system status.


Refer to Lane-keep Assist System (LAS)
& Lane Departure Warning System
(LDWS) on page 4-156.

▼ Mazda Radar Cruise Control with

Stop & Go function (MRCC with
Stop & Go function) Display

*

Displays the currently set system status.


When Driving

Instrument Cluster and Display

4-36

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Refer to Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop &
Go function) on page 4-142.

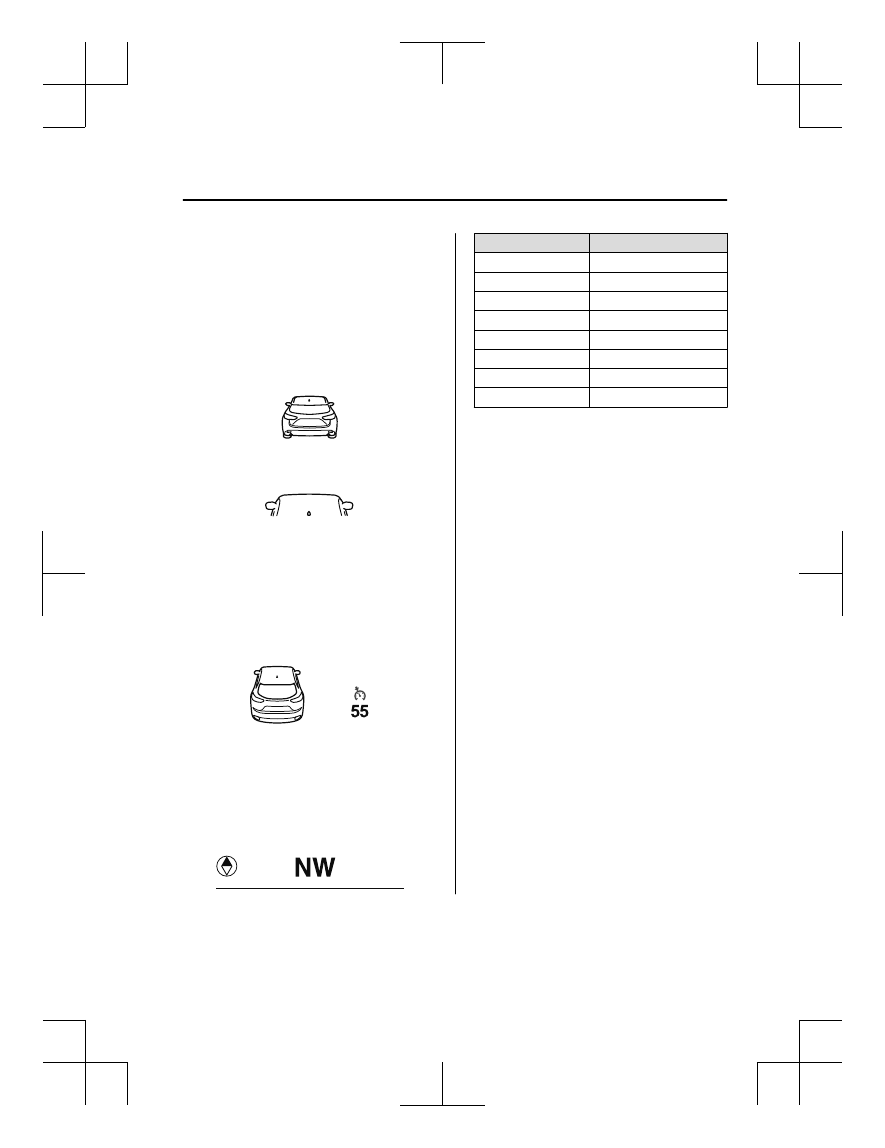

▼ Distance Recognition Support

System (DRSS) Display

*

Displays the distance between your
vehicle and the vehicle ahead.


Refer to Distance Recognition Support
System (DRSS) on page 4-134.

▼ Cruise Control Set Vehicle Speed

Display

*

The vehicle speed preset using the cruise
control is displayed.


Refer to Cruise Control on page 4-214.

▼ Compass Display

The direction the vehicle is moving is
displayed in one of eight directions while
the vehicle is being driven.


Display

Direction

N

North

S

South

E

East

W

West

NE

Northeast

NW

Northwest

SE

Southeast

SW

Southwest

▼ Warning (Display Indication)

A message is displayed to notify the user
of the system operation status and
malfunctions or abnormalities.
If the warning light turns on/flashes
simultaneously or a symbol is indicated in
the display, check the information
regarding the warning light or symbol.
Refer to If a Warning Light Turns On or
Flashes on page 7-23.
For messages not indicating a symbol,
follow the instructions indicated in the
multi-information display.
Refer to Message Indicated in
Multi-information Display on page 7-38.

When Driving

Instrument Cluster and Display

*Some models.

4-37

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

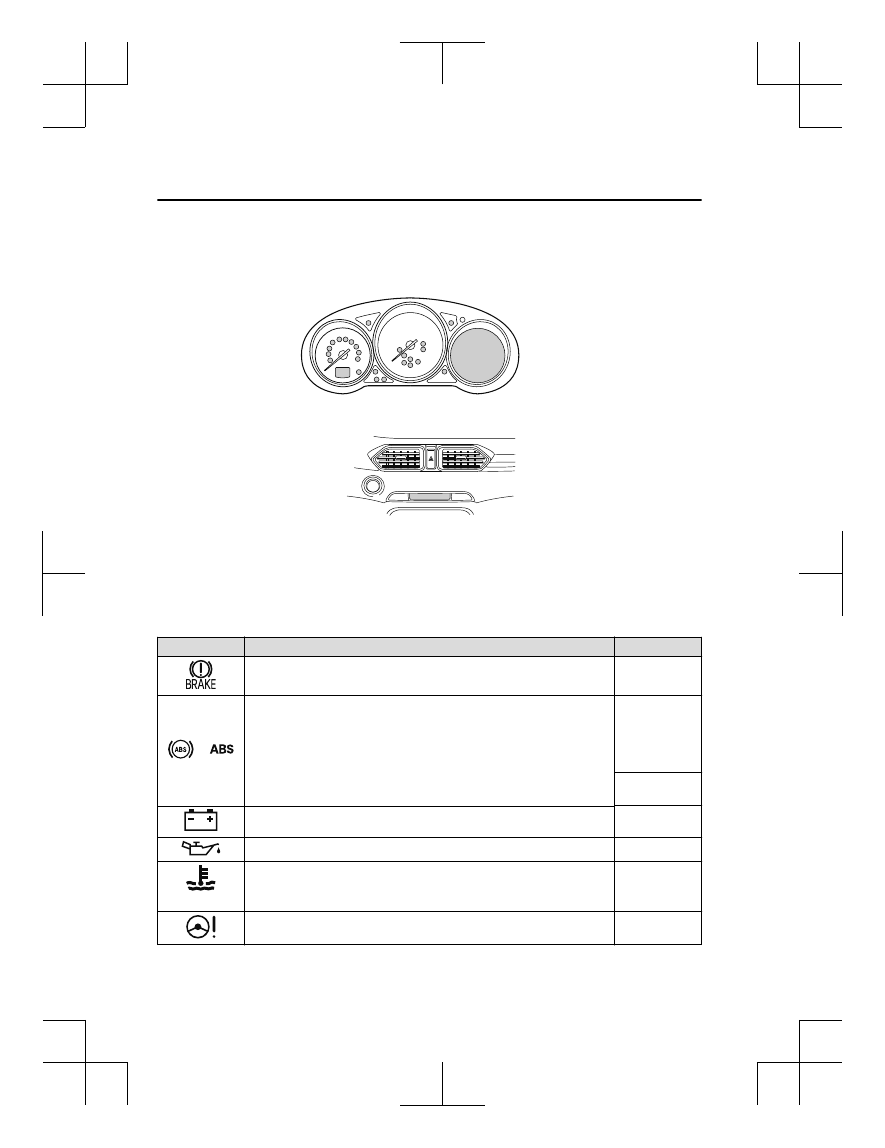

▼ Warning/Indicator Lights

Instrument Cluster varies depending on model and specifications.

Instrument Cluster

Center of Dashboard

Warning lights will appear in any of the highlighted areas

▼ Warning Indication/Warning Lights

These lights turn on or flash to notify the user of the system operation status or a system
malfunction.

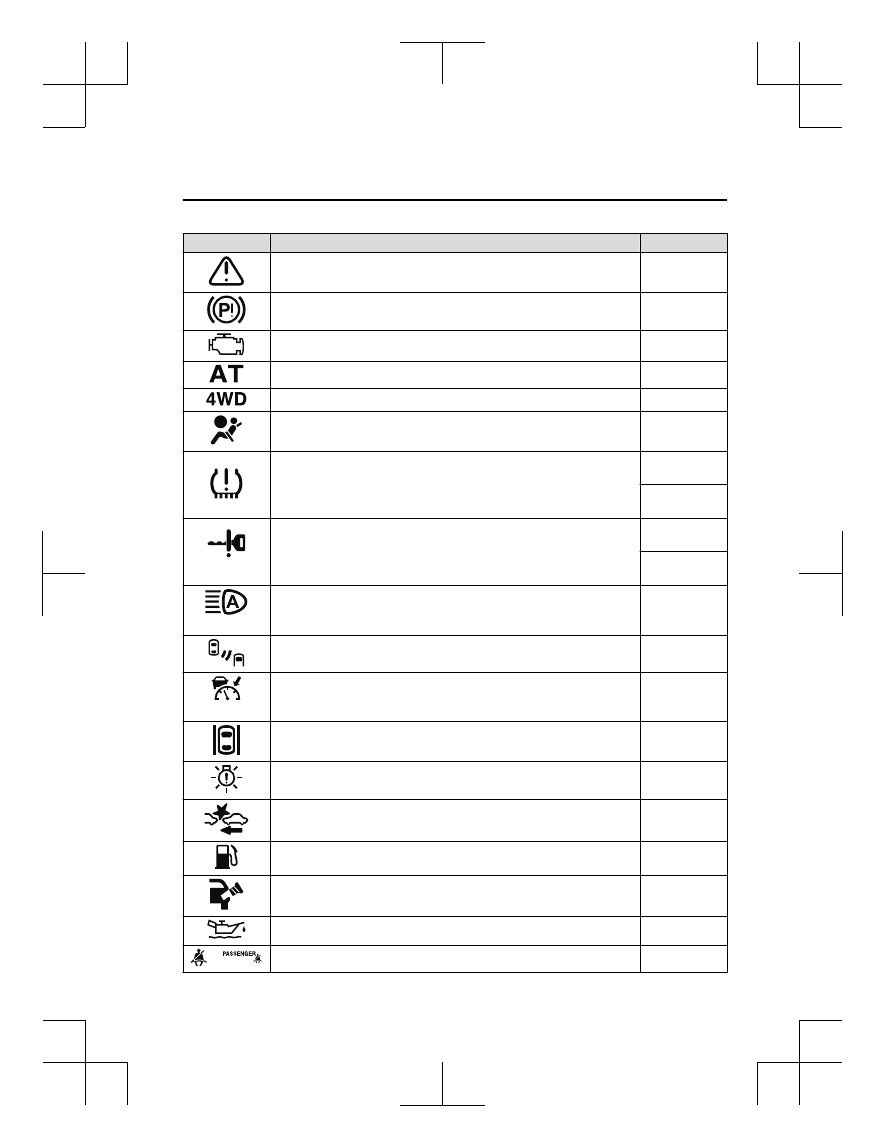

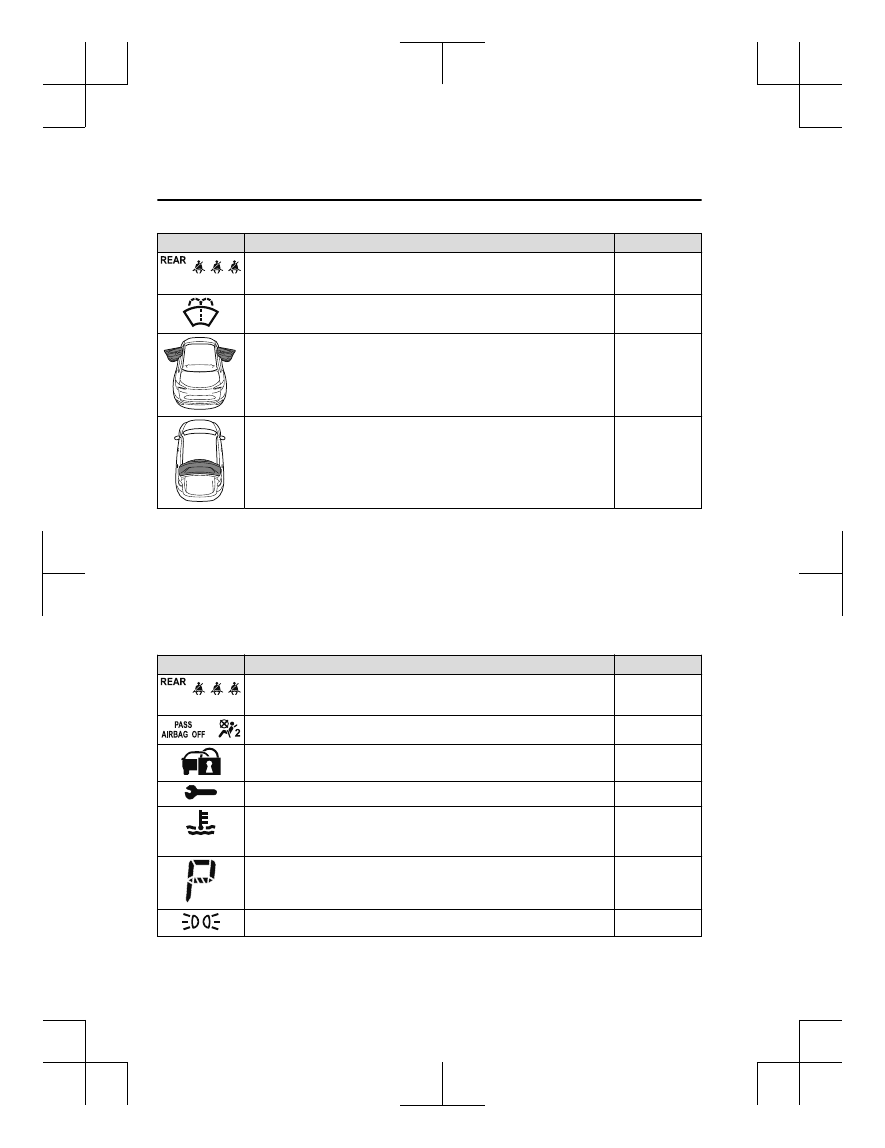

Signal

Warning

Page

Brake System Warning Indication/Warning Light

*1*2

7-24

ABS Warning Light

*1

Electronic Brake

Force Distribu‐

tion System

Warning

7-24

ABS warning

7-26

Charging System Warning Indication/Warning Light

*1

7-24

Engine Oil Warning Light

*1

7-24

(Red)

High Engine Coolant Temperature Warning Light

*1

7-24

Power Steering Malfunction Indication

7-24

When Driving

Instrument Cluster and Display

4-38

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Signal

Warning

Page

Master Warning Indication/Warning Light

7-26

Electric Parking Brake (EPB) Warning Indication/Warning Light

*1

7-26

Check Engine Light

*1

7-26

Automatic Transaxle Warning Indication

7-26

*

AWD Warning Indication

7-26

Air Bag/Front Seat Belt Pretensioner System Warning Light

*1

7-26

*

Tire Pressure Monitoring System Warning Light

*1

Flashing

7-26

Turns on

7-32

(Amber/White)

KEY Warning Indication

Amber

7-26

White

7-32

(Amber)

*

High Beam Control System (HBC) Warning Indication/Warning Light

*1

7-26

*

Blind Spot Monitoring (BSM) Warning Indication

7-26

(Amber)

*

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop

& Go function) Warning Indication

7-26

*

Lane-keep Assist System (LAS) & Lane Departure Warning System

(LDWS) Warning Indication

7-26

LED Headlight Warning Light

*1

7-26

*

Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning In‐

dication

7-32

Low Fuel Warning Indication

7-32

Check Fuel Cap Warning Indication/Warning Light

*1

7-32

Engine Oil Level Warning Light

*1

7-32

Seat Belt Warning Light (Front seat)

7-32

When Driving

Instrument Cluster and Display

*Some models.

4-39

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Signal

Warning

Page

(Red)

Seat Belt Warning Light (Rear seat)

7-32

*

Low Washer Fluid Level Warning Indication

7-32

Door-Ajar Warning Indication

7-32

Liftgate-Ajar Warning Indication

7-32

*

1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or

when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.

*

2 The light turns on continuously when the parking brake is applied.

▼ Indication/Indicator Lights

These lights turn on or flash to notify the user of the system operation status or a system
malfunction.

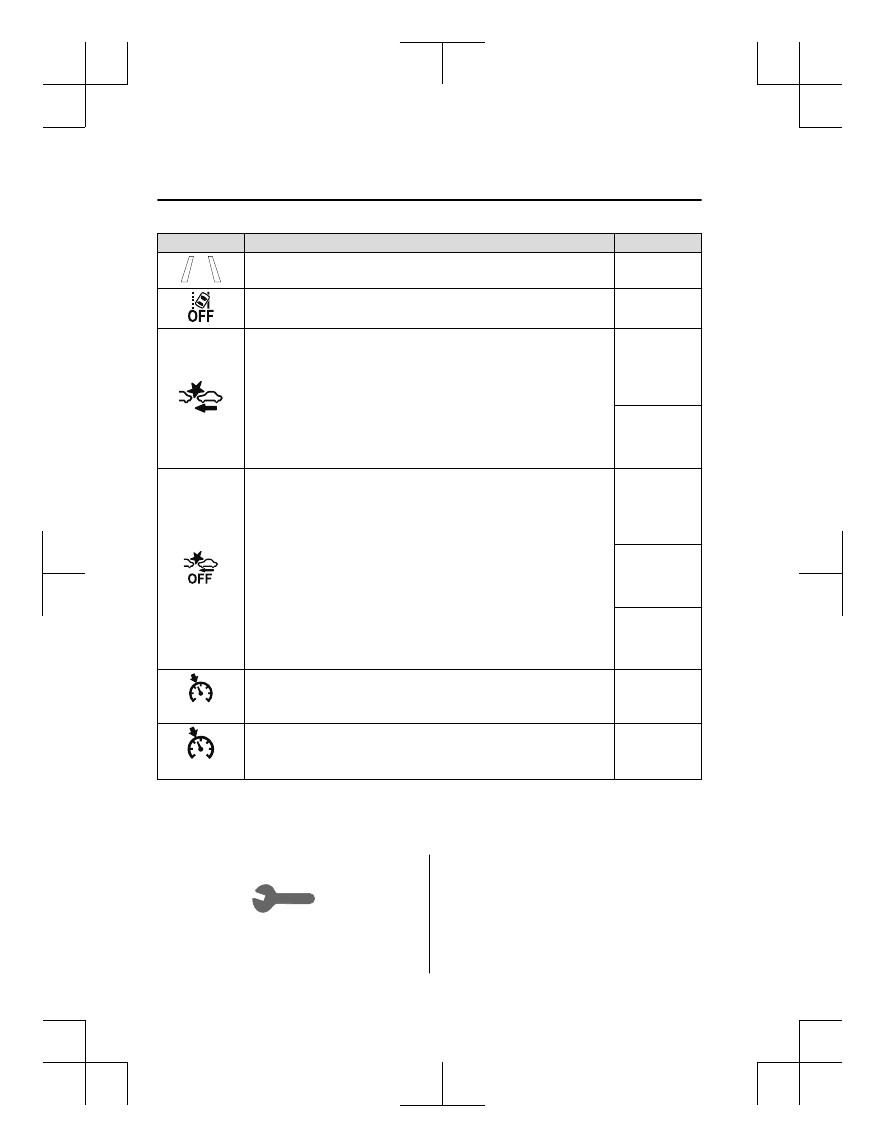

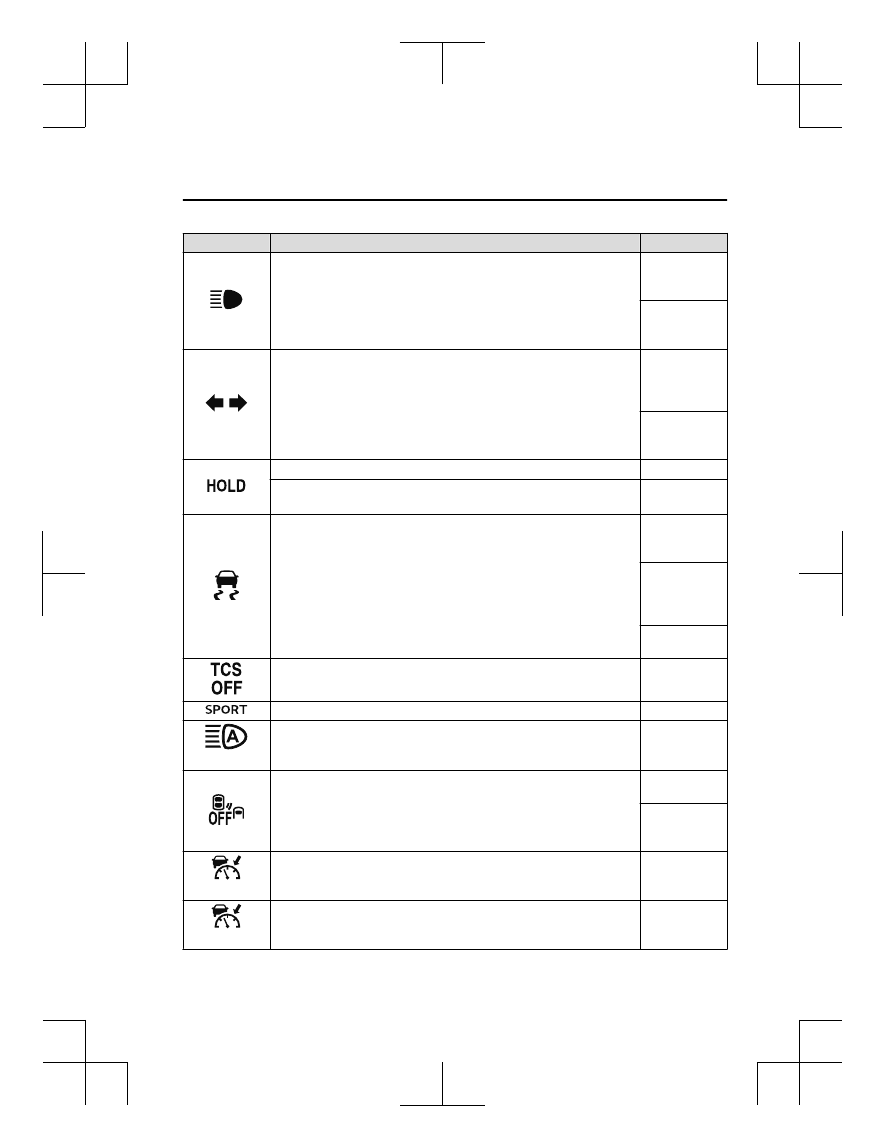

Signal

Indicator

Page

(Green)

Seat Belt Indicator Light (Rear seat)

2-71

*

Front Passenger Air Bag Deactivation Indicator Light

*1

2-71

Security Indicator Light

*1

3-44

Wrench Indication

4-42

(Blue)

Low Engine Coolant Temperature Indicator Light

4-43

Shift Position Indication

4-64

Lights-On Indication/Indicator Light

4-71

When Driving

Instrument Cluster and Display

4-40

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Signal

Indicator

Page

Headlight High-Beam Indicator Light

Headlight

High-Low Beam

4-74

Flashing the

Headlights

4-74

Turn Signal/Hazard Warning Indicator Lights

Turn and

Lane-Change

Signals

4-77

Hazard Warning

Flasher

4-84

AUTOHOLD Active Indicator Light

*1

4-100

*

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop

& Go function) indicator Light

4-152

TCS/DSC Indicator Light

*1

Traction Control

System (TCS)

4-105

Dynamic Stabil‐

ity Control

(DSC)

4-107

Turns on

7-26

TCS OFF Indicator Light

*1

4-106

Select Mode Indication

4-111

(Green)

*

High Beam Control System (HBC) Indicator Light

4-121

*

Blind Spot Monitoring (BSM) OFF Indicator Light

*1

Malfunction

7-26

Except malfunc‐

tion

4-127

(White)

*

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop

& Go function) Main Indication

4-147

(Green)

*

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop

& Go function) Set Indication

4-147

When Driving

Instrument Cluster and Display

*Some models.

4-41

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Signal

Indicator

Page

*

Lane-keep Assist System (LAS) & Lane Departure Warning System

(LDWS) Indication

4-159

*

Lane-keep Assist System (LAS) & Lane Departure Warning System

(LDWS) OFF Indicator Light

*1

4-163

*

Smart City Brake Support (SCBS) Indication

Advanced Smart

City Brake Sup‐

port (Advanced

SCBS)

4-169

Smart City

Brake Support

(SCBS)

4-172

*

Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indica‐

tor Light

*1

Advanced Smart

City Brake Sup‐

port (Advanced

SCBS)

4-169

Smart City

Brake Support

(SCBS)

4-172

Smart Brake

Support (SBS)

System

4-175

(White)

*

Cruise Main Indication

4-215

(Green)

*

Cruise Set Indication

4-215

*

1 The light turns on when the ignition is switched on for an operation check, and turns off

a few seconds later or when the engine is started. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.

▼ Wrench Indication

The wrench indication is displayed under
the following conditions.



When the preset maintenance period has
arrived.
Refer to Maintenance Monitor on page
6-16.



When the engine oil replacement period
has arrived.

When Driving

Instrument Cluster and Display

4-42

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

NOTE



The wrench indication may display
earlier than the preset period depending
on vehicle usage conditions.



Whenever the engine oil is replaced, a
reset of the vehicle engine control unit is
necessary.
Refer to Maintenance Monitor on page
6-16.



▼ Low Engine Coolant Temperature

Indicator Light (Blue)

The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.

When Driving

Instrument Cluster and Display

4-43

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

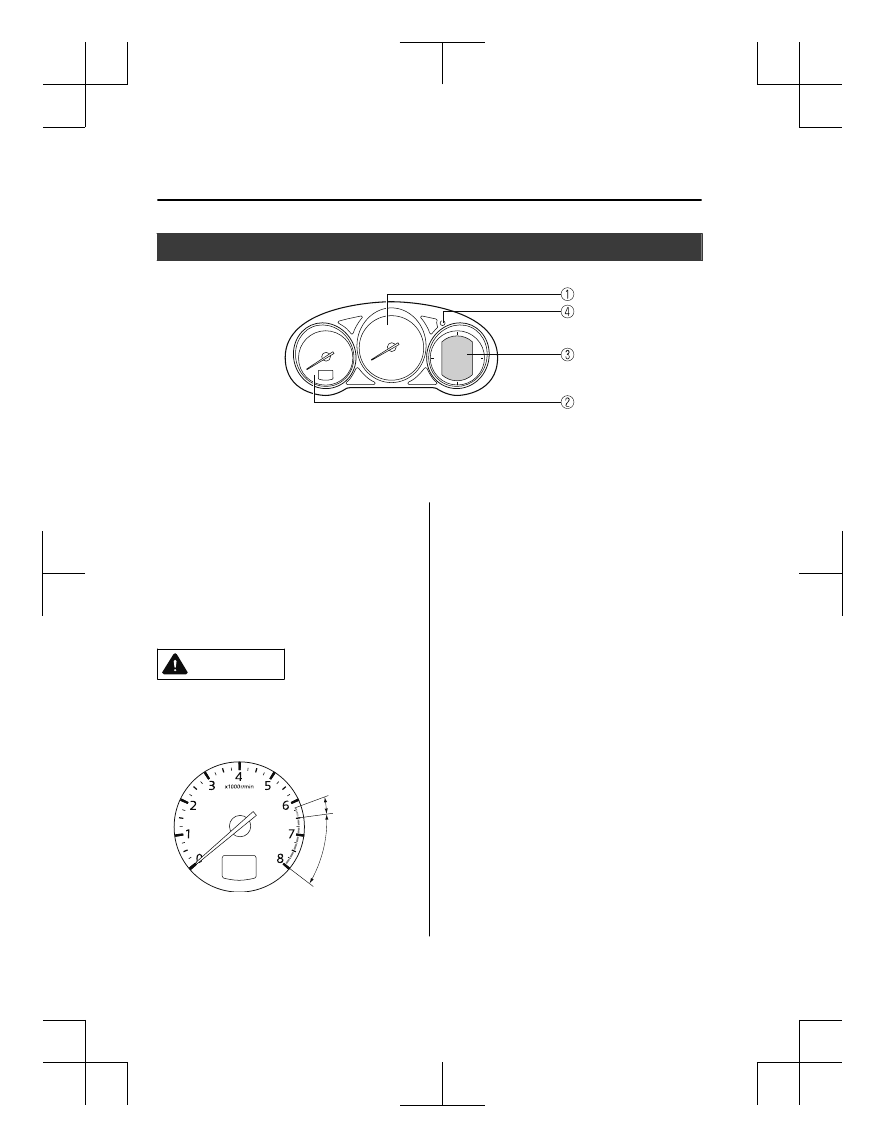

Instrument Cluster (Type C)



①

Speedometer..........................................................................................................page 4-44

②

Tachometer............................................................................................................ page 4-44

③

Multi-information Display (Type C)..................................................................... page 4-45

④

Dashboard Illumination.........................................................................................page 4-48

▼ Speedometer

The speedometer indicates the speed of the
vehicle.

▼ Tachometer

The tachometer shows engine speed in
thousands of revolutions per minute (rpm).

CAUTION

Do not run the engine with the tachometer
needle in the RED ZONE.
This may cause severe engine damage.


STRIPED
ZONE

RED ZONE

*

1

The range varies depending on the type
of gauge.

*

1

*

1

NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.

When Driving

Instrument Cluster and Display

4-44

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Multi-information Display (Type C)

INFO switch

Multi-information Display (Type C)

The multi-information display indicates the following information.



Odometer



Trip meter



Engine coolant temperature gauge



Fuel gauge



Outside temperature



Trip Computer



Cruise Control Display



Compass Display

When Driving

Instrument Cluster and Display

4-45

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47
