Lifan 620. Service manual - part 87





Fig. 7-34

349



























350

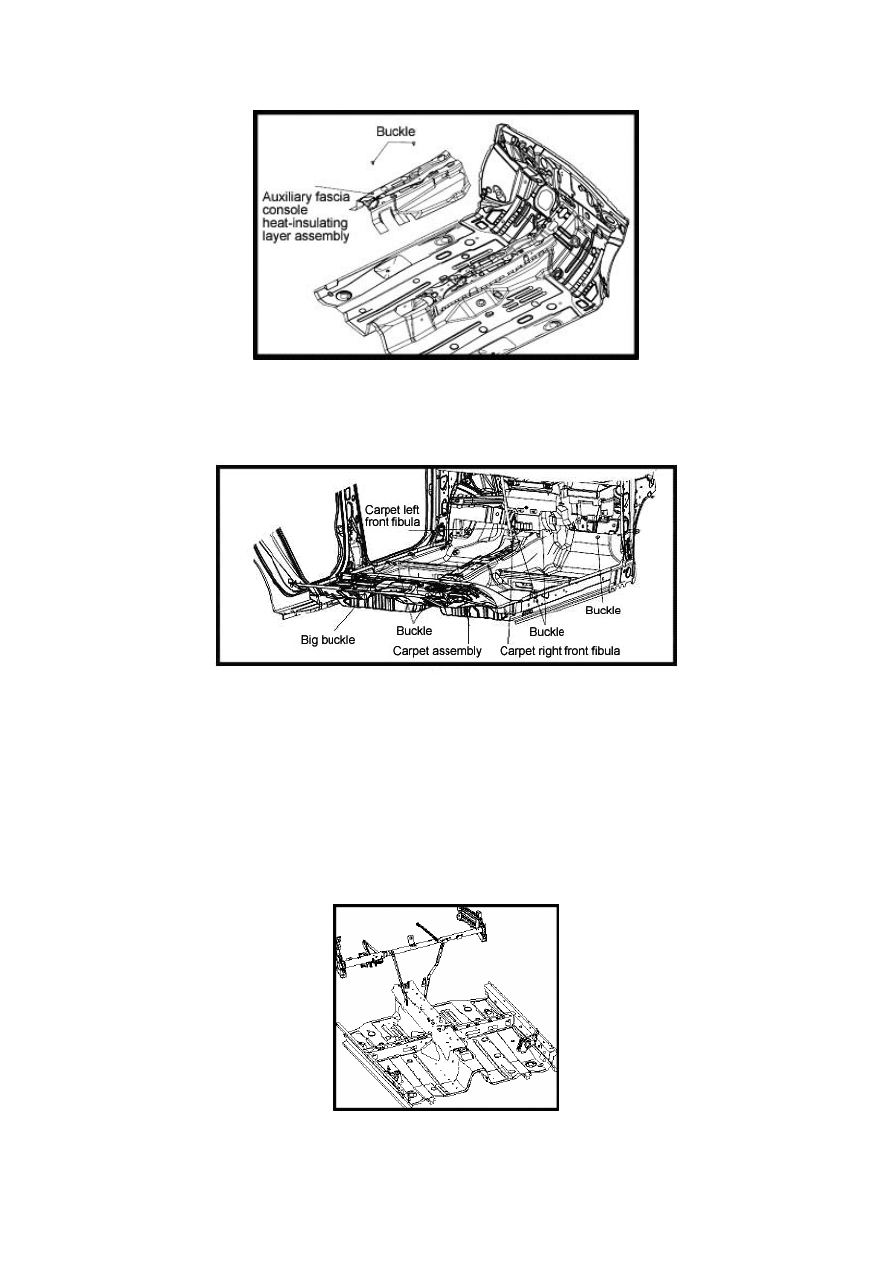

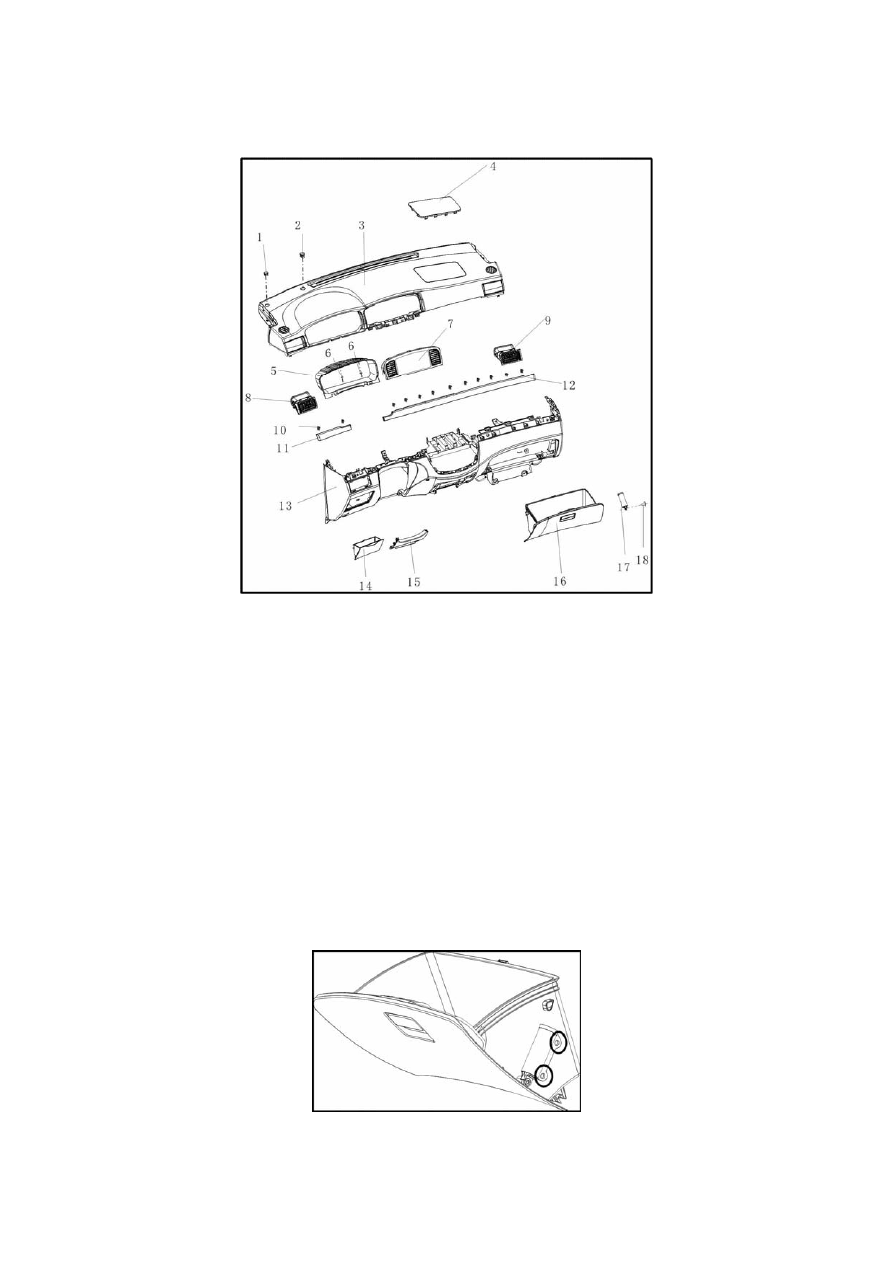

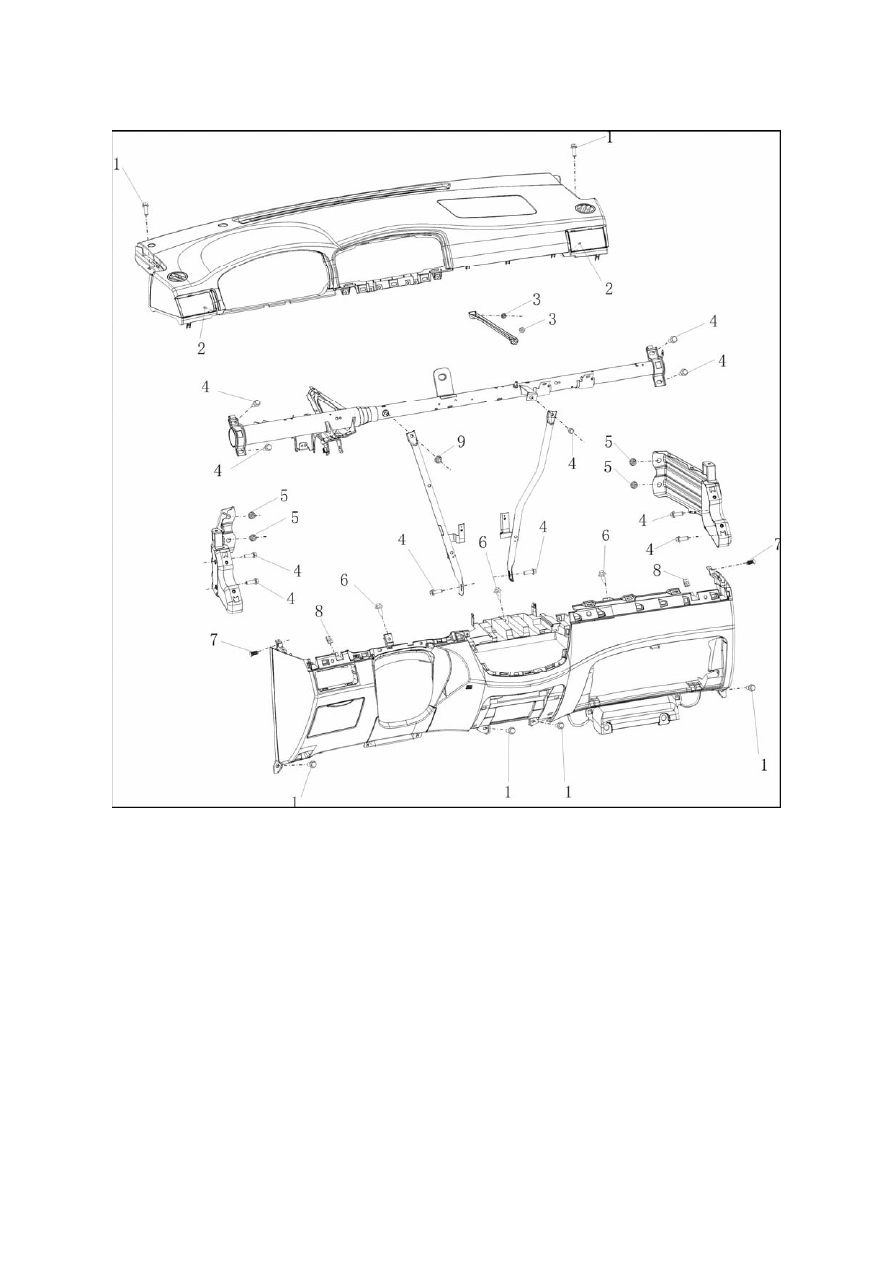

X. Main instrument desk, as shown in Fig. 7-36




spring hole into the buckle corner (as shown in the circle of Fig. 7-37).



Fig. 7-37

351

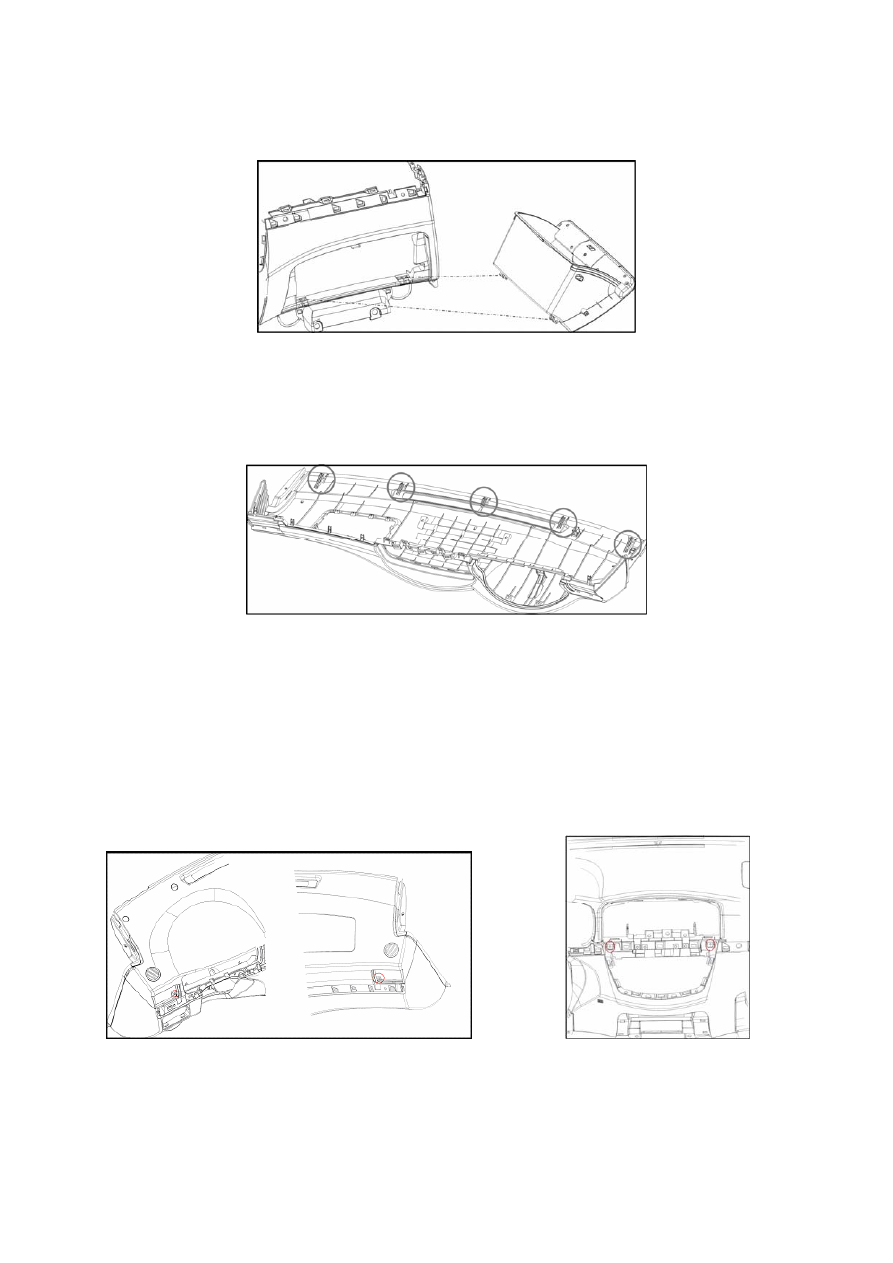

Then insert lower part of sundries box as shown in Fig. 7-38.













Fig. 7-40                                                                            Fig. 7-41



Seen from back side, 5 buckles and 4 screws are needed to connect the upper and lower guard

panels.

352
