Lifan 620. Service manual - part 82

acceptable.

(2) Make sure that screw the fixing bolt to the designated torque, refer to the Fig. above.

(3) Tightening torque (a): 45N·m



II. Rear seat safety belt:

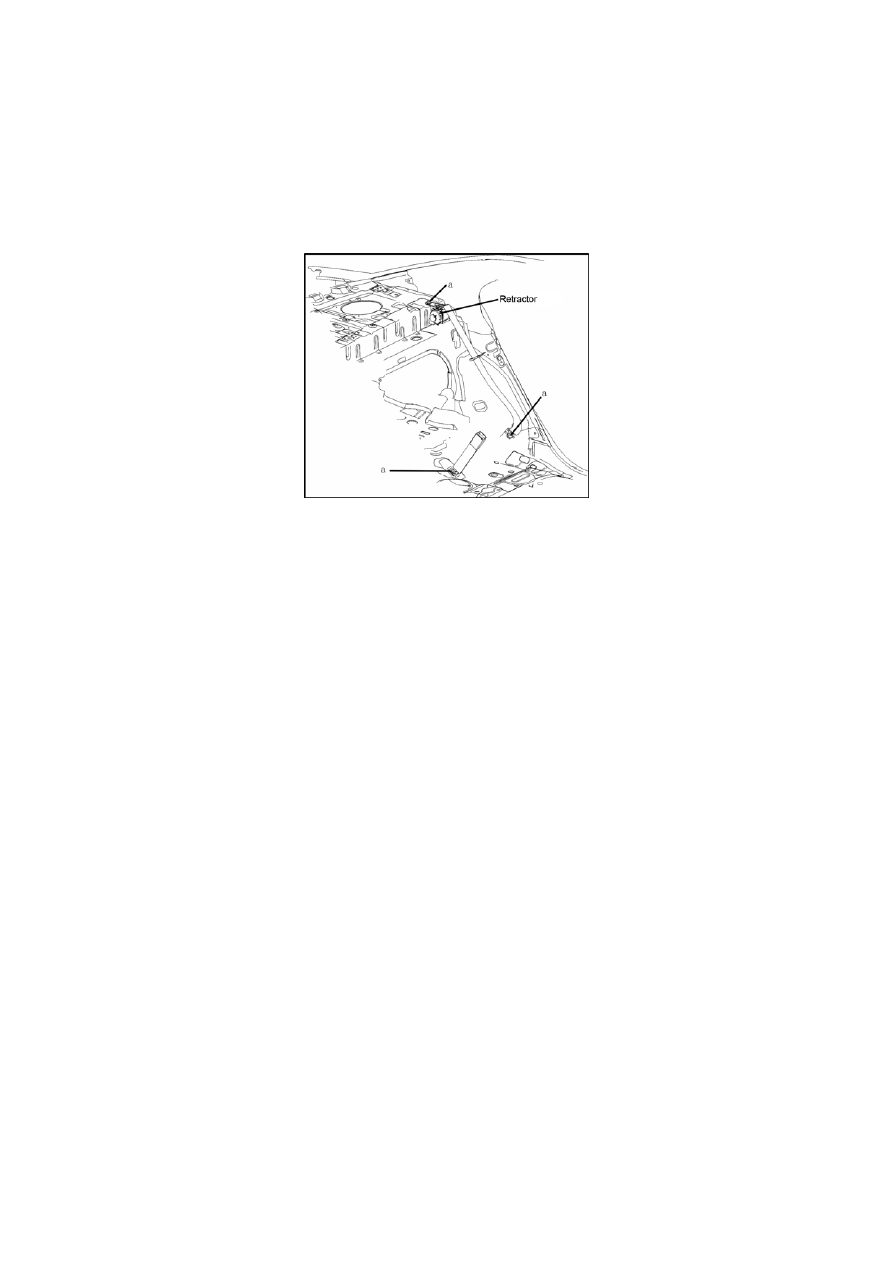

1. Removal, as shown in Fig. 7-4.



4. Don’t blanch or dye the belt (only the cleanout with the mild soap and warm water is

acceptable).

5. Hold the pre-tightening screw to avoid the floss when installing the safety belt.

6. Don’t try to repair the retractor or the retractor cap; renew the deficient assembly with the new

one.

7. Keep the belt dry and clean.

8. Renew the deficient components if necessary.

9. Renew the belt cut off or damaged by other ways.

10. Don’t fill the hole of the ornamental panel, gone through by the safety belt, with any stuffs.

329

Section IV    Front Side Door

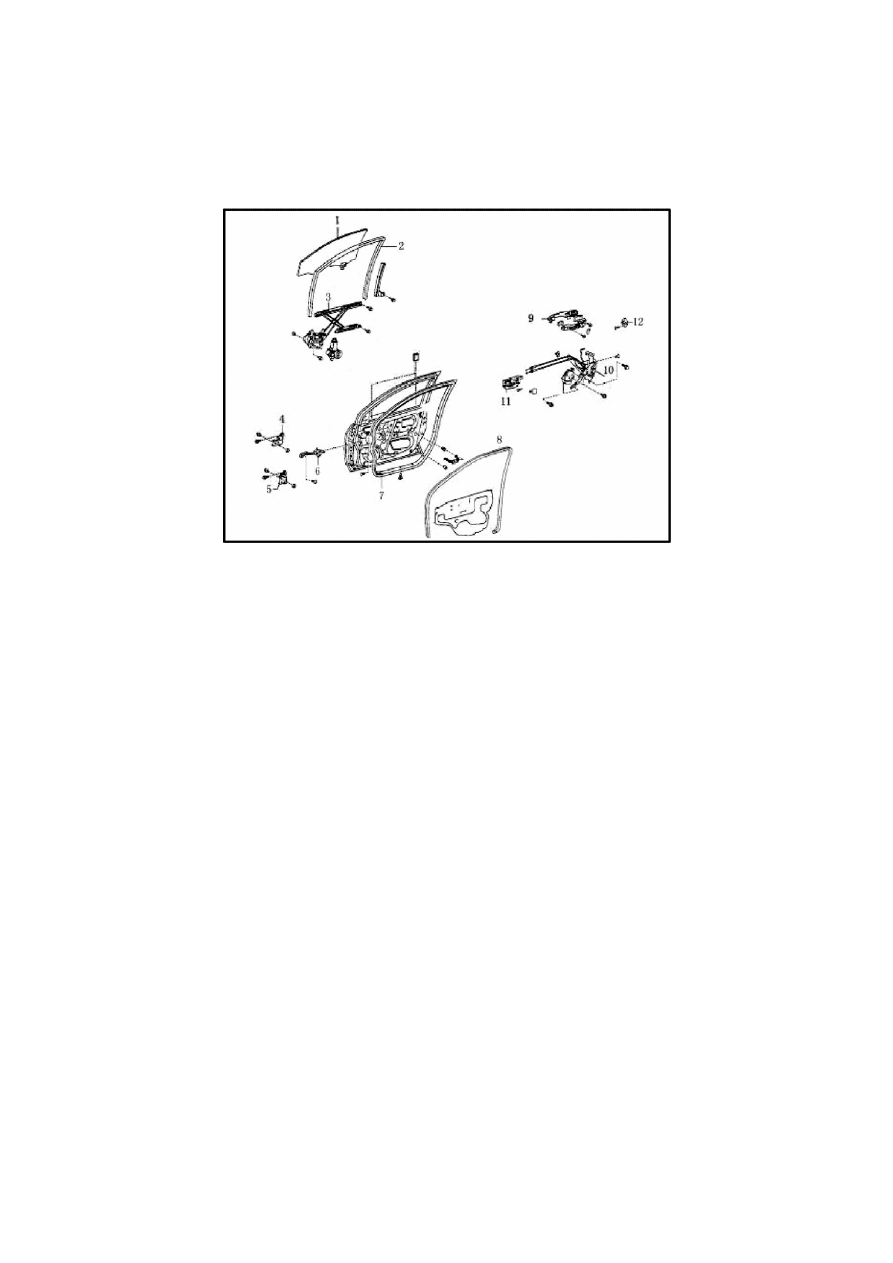

I. Decomposition Diagram. See Fig. 7-5:



(6) Dismantle the glass of the front door.

2. Installation: install the glass of the door as per the opposite process, and pay attention to the

following notes:

(1) Check whether the top of the glass and the sliding channel contact evenly or not, and the

up-and-down movement is stable or not during the installation.

(2) Adhere the door sealing film firmly with the adhesive.



III. Glass frame riser:

1. Removal

330

(1) Remove the front side door glass referring to the front side door glass removal process.

(2) Disconnect the motor harness of the electric glass frame riser.

(3) Remove the bolt of the glass frame riser, and take out the glass frame riser.

2. Exam:

1) Check whether the components for movement and rotation of the glass frame riser need

lubricating or not.

2) Check whether the trolley is frayed or damaged.

3. Installation:

Install the front window glass frame riser as per the reverse order.



①





points:

(1) Coat the hinge installing surface with the sealant and the rotation components with grease

lubricant.

(2) The induration of the strip will lead to the leakage. In such conditions, renew the strip.

(3) Adjust the position of the door locking ring according to “door lock installation”, so as to locate

the door correctly.

(4) Keep the door contact with the body when closed.

(5) Check the door gap through opening and closing the door after installation. When the gap

exists, adjust the door.

331

Section V  Rear Side Door

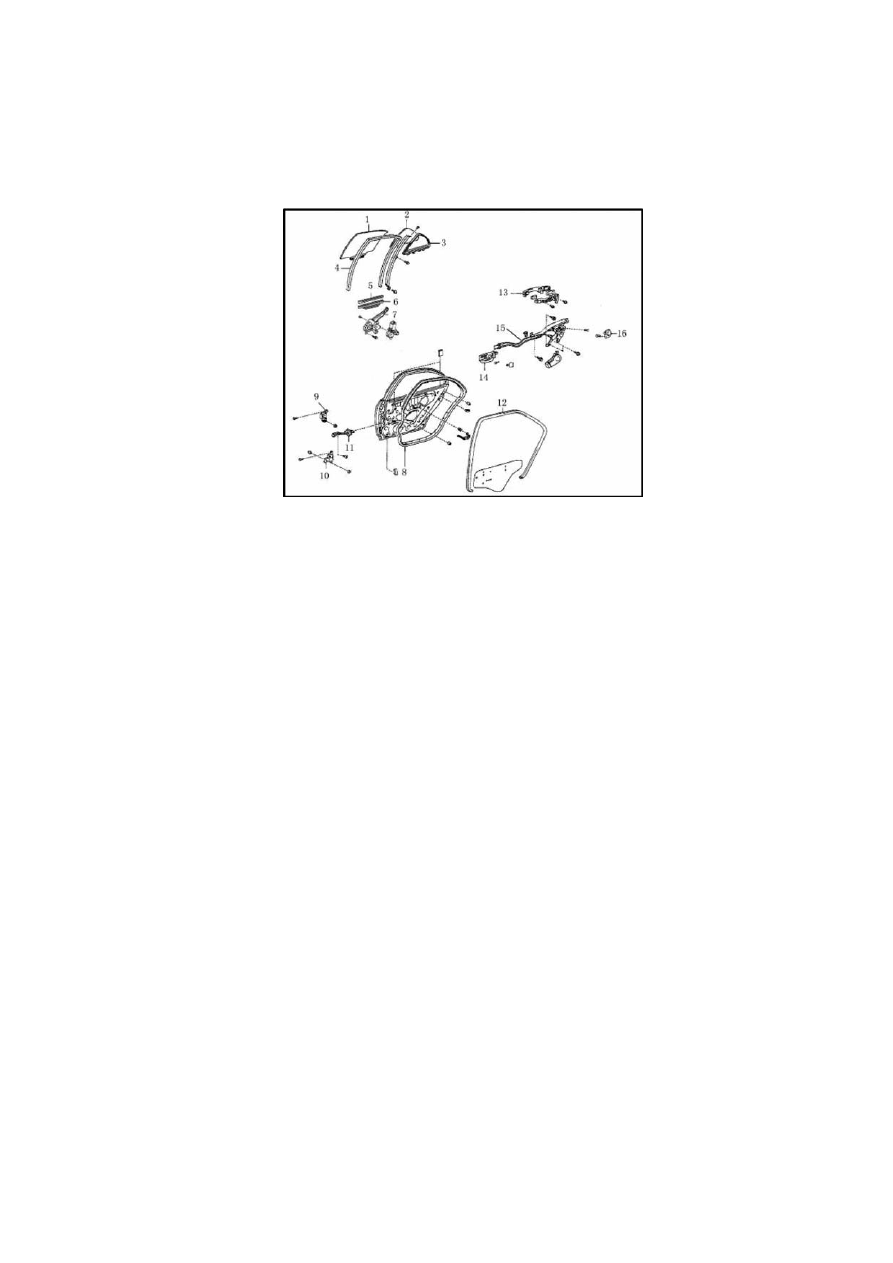

I. Decomposition Diagram. See Fig. 7-6:

2. Installation: install the glass of the door as per the opposite process, and pay attention to the

following notes:

(1) Check whether the top of the glass and the sliding channel contact evenly or not, and the

up-and-down movement is stable or not during the installation.

(2) Adhere the door sealing film firmly with the adhesive.


III. Glass frame riser:

1. Removal:

1) Remove the rear side door glass referring to the rear side door glass removal process.

332
