Lifan 620. Service manual - part 63

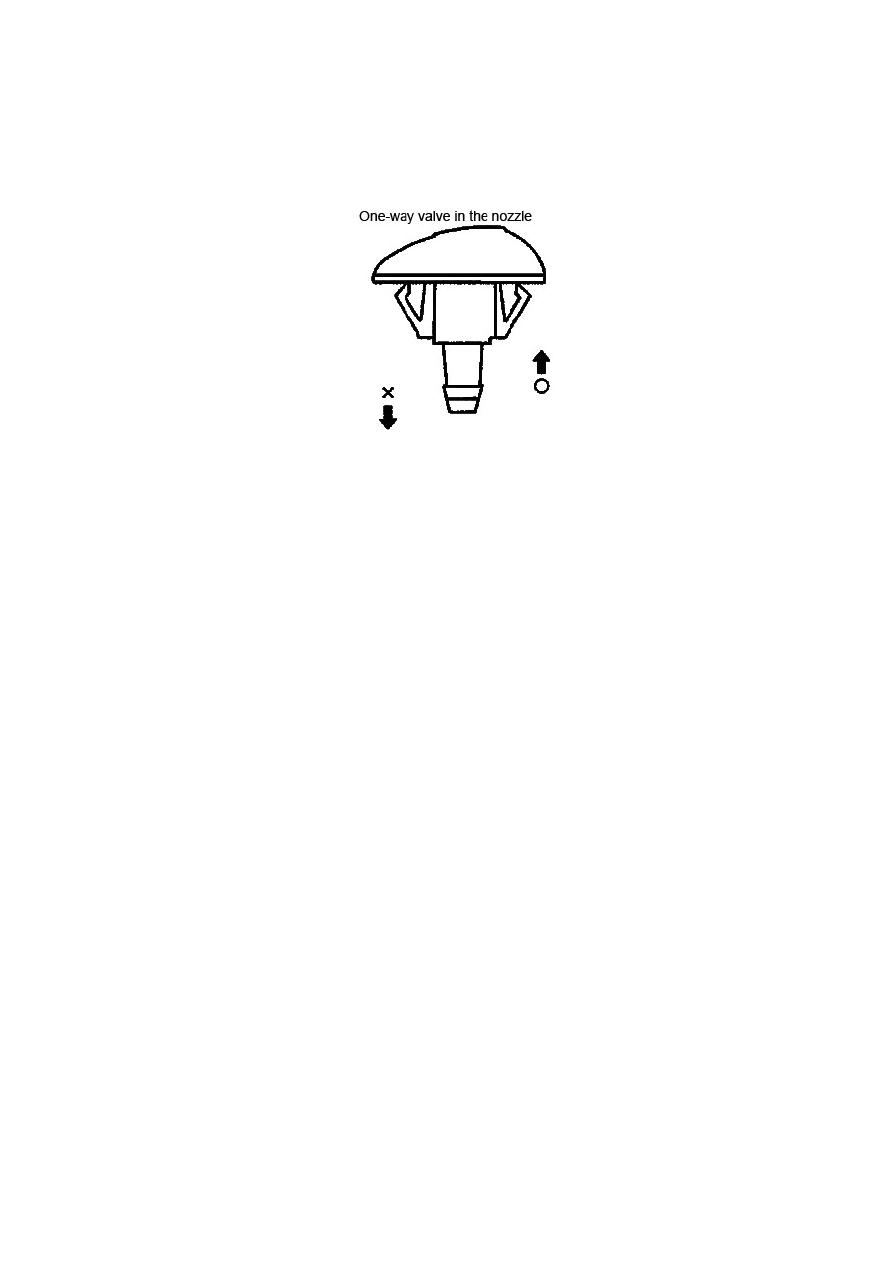

4. Check the washer nozzle
Blow air to the direction of washer spraying and confirm the airflow only pass in a single way,
rather than in a reverse direction. See Fig. 4-103.

































253

Section VII  Audio System


I. Overview

This system combines digital video and various devices to decorate your car to be a tiny music
theater and satisfy you with CD music, USB interface, AM/FM radio. It is composed of: (1) antenna
amplifier, (2) AM/FM printed antenna, (3) CD assembly, (4) speaker and (5) USB interface.


254

II. Definitions of Interfaces of Audio System





B4－body

Gr/B

Right front speaker drive output (-)

Audio system in process

-

B5－body

W

Left front speaker drive output (+)

Audio system in process

-

B6－body

W/B

Left front speaker drive output (-)

Audio system in process

-

B7－body

N

Left rear speaker drive output (+)

Audio system in process

-

B8－body

N/B

Left rear speaker drive output (-)

Audio system in process

-






255

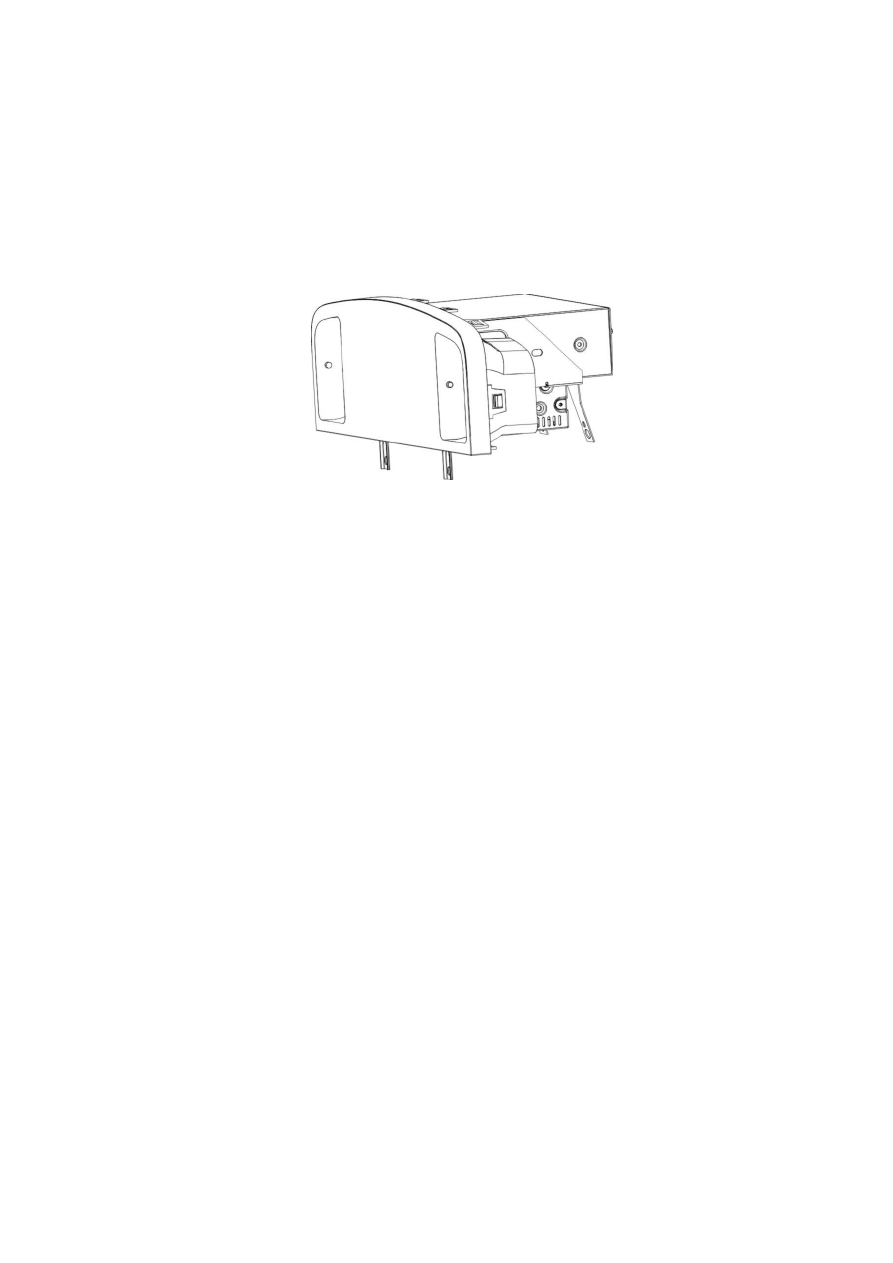

Radio assembly of audio system: Fig. 4-106















256
