4-5. Using the driving support systems

4

Driving

• While steering into the direction of

oncoming traffic

■

Situations in which the system may not

operate properly

●

In some situations such as the following,

an object may not be detected by the

radar sensor and front camera, prevent-

ing the system from operating properly:

• When a detectable object is approaching

your vehicle

• When your vehicle or a detectable object

is wobbling

• If a detectable object makes an abrupt

maneuver (such as sudden swerving,

acceleration or deceleration)

• When your vehicle approaches a detect-

able object rapidly

• When a detectable object is not directly

in front of your vehicle

• When a detectable object is near a wall,

fence, guardrail, manhole cover, vehicle,

steel plate on the road, etc.

• When a detectable object is under a

structure

• When  part  of  a  detectable object is hid-

den by an object, such as large baggage,

an umbrella, or guardrail

• When there are many things which can

reflect the radio waves of the radar in the

vicinity (tunnels, truss bridges, gravel

roads, snow covered road that have

tracks, etc.)

• When there is an effect on the radio

waves to the radar that is installed on

another vehicle

• When multiple detectable objects are

close together

• If the sun or other light is shining directly

on a detectable object

• When a detectable object is a shade of

white and looks extremely bright

• When a detectable object appears to be

nearly the same color or brightness as its

surroundings

• If a detectable object cuts or suddenly

emerges in front of your vehicle

• When the front of your vehicle is hit by

water, snow, dust, etc.

• When a very bright light ahead, such as

the sun or the headlights of oncoming

traffic, shines directly into the front cam-

era

• When approaching the side or front of a

vehicle ahead

• If a vehicle ahead is a motorcycle

• If a vehicle ahead is narrow, such as a

personal mobility vehicle

• If a preceding vehicle has a small rear

end, such as an unloaded truck

• If a preceding vehicle has a low rear end,

such as a low bed trailer

• If a vehicle ahead has extremely high

ground clearance

• If a vehicle ahead is carrying a load which

protrudes past its rear bumper

• If a vehicle ahead is irregularly shaped,

such as a tractor or side car

• If a vehicle ahead is a child sized bicycle,

a bicycle that is carrying a large load, a

182

4-5. Using the driving support systems

bicycle ridden by more than one person,

or a uniquely shaped bicycle (bicycle with

a child seat, tandem bicycle, etc.)

• If a pedestrian/or the riding height of a

bicyclist ahead is shorter than approxi-

mately 3.2 ft. (1 m) or taller than approxi-

mately 6.5 ft. (2 m)

• If a pedestrian/bicyclist is wearing over-

sized clothing (a rain coat, long skirt,

etc.), making their silhouette obscure

• If a pedestrian is bending forward or

squatting or bicyclist is bending forward

• If a pedestrian/bicyclist is moving fast

• If a pedestrian is pushing a stroller,

wheelchair, bicycle or other vehicle

• When driving in inclement weather such

as heavy rain, fog, snow or a sandstorm

• When driving through steam or smoke

• When the surrounding area is dim, such

as at dawn or dusk, or while at night or in

a tunnel, making a detectable object

appear to be nearly the same color as its

surroundings

• When driving in a place where the sur-

rounding brightness changes suddenly,

such as at the entrance or exit of a tunnel

• After the engine has started the vehicle

has not been driven for a certain amount

of time

• While making a left/right turn and for a

few seconds after making a left/right turn

• While driving on a curve and for a few

seconds after driving on a curve

• If your vehicle is skidding

• If the front of the vehicle is raised or low-

ered

• If the wheels are misaligned

• If a wiper blade is blocking the front cam-

era

• The vehicle is being driven at extremely

high speeds

• When driving on a hill

• If the radar sensor or front camera is mis-

aligned

• When driving in a traffic lane separated

by more than one lane where oncoming

vehicles are driving while making a

right/left turn

• When largely out of place with the oppo-

site facing targeted oncoming vehicle

during a right/left turn

• While making a right/left turn, when a

pedestrian approaches from behind or

side of your vehicle

●

In addition to the above, in some situa-

tions, such as the following, the emer-

gency steering assist may not operate.

• When the white (yellow) lane lines are

difficult to see, such as when they are

faint, diverging/merging, or a shadow is

cast upon them

• When  the  lane  is  wider or narrower than

normal

• When there is a light and dark pattern on

the road surface, such as due to road

repairs

• When the target is too close

• When there is insufficient safe or unob-

structed space for the vehicle to be

steered into

• If oncoming vehicle is present

• If VSC function is operating

●

In some situations such as the following,

sufficient braking force or steering force

may not be obtained, preventing the sys-

tem from performing properly:

• If the braking functions cannot operate to

their full extent, such as when the brake

183

4-5. Using the driving support systems

4

Driving

parts are extremely cold, extremely hot,

or wet

• If the vehicle is not properly maintained

(brakes or tires are excessively worn,

improper tire inflation pressure, etc.)

• When the vehicle is being driven on a

gravel road or other slippery surface

• When the road surface has deep wheel

tracks

• When driving on a hill road

• When driving on a road that has inclines

to the left or right

■

If VSC is disabled

●

If VSC is disabled (



P.245), the pre-

collision brake assist and pre-collision

braking functions are also disabled.

●

The PCS warning light will turn on and

“VSC Turned off Pre-Collision Brake

System Unavailable” will be displayed on

the multi-information display.

LTA (Lane Tracing Assist)

While driving on a road with clear
white (yellow) lane lines, the LTA
system warns the driver if the vehi-
cle may deviate from the current
lane or course

*

, and also can

slightly operate the steering wheel
to help avoid deviation from the
lane or course

*

. Also, while the

dynamic radar cruise control with
full-speed range (



P.195) is oper-

ating, this system will operate the
steering wheel to maintain the vehi-
cle’s lane position.

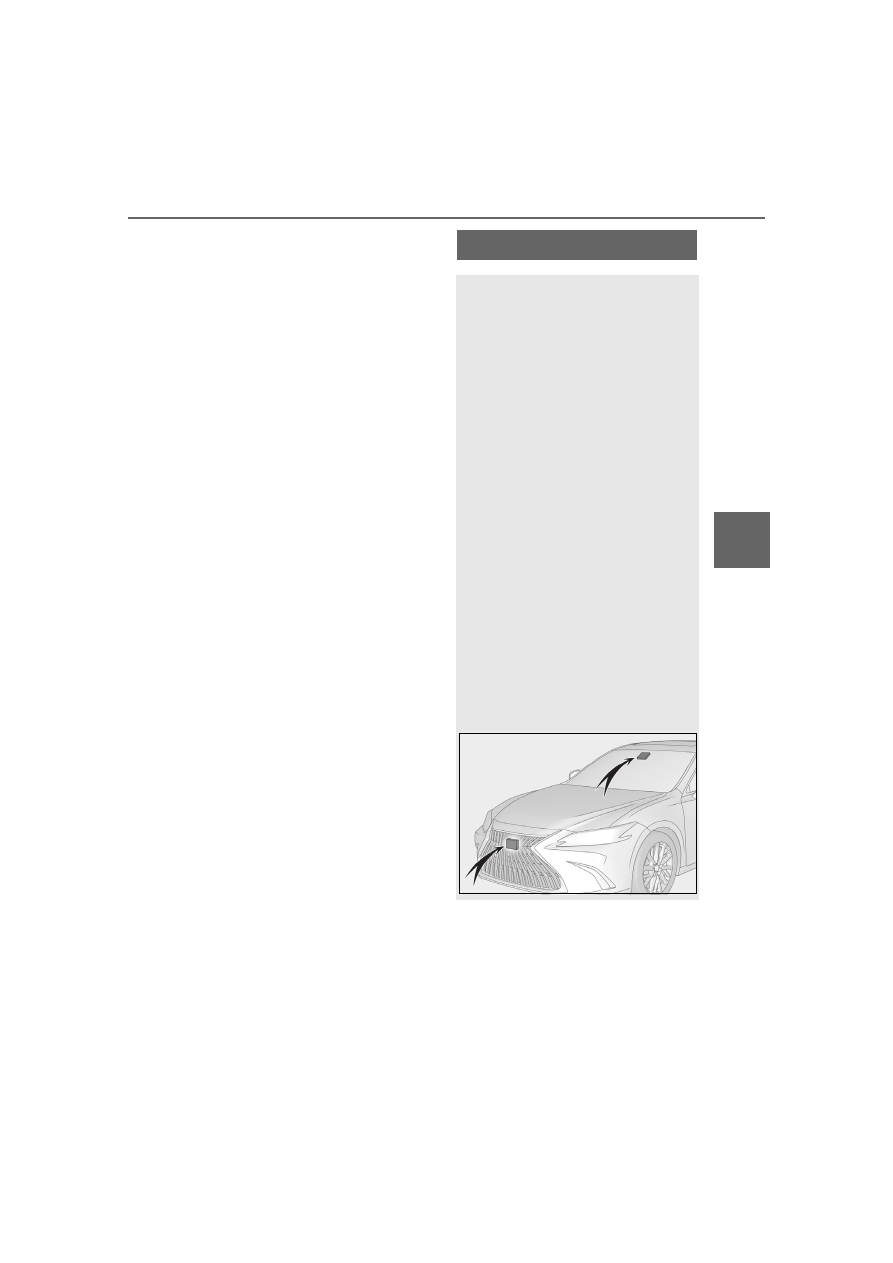

The LTA system recognizes white
(yellow) lane lines or a course

*



using the front camera. Addition-
ally, it detects preceding vehicles
using the front camera and radar.

*

: Boundary between asphalt and the

side of the road, such as grass, soil, or
a curb

184

4-5. Using the driving support systems

WARNING

■

Before using LTA system

●

Do not rely solely upon the LTA sys-

tem. The LTA system does not auto-

matically drive the vehicle or reduce

the amount of attention that must be

paid to the area in front of the vehicle.

The driver must always assume full

responsibility for driving safely by pay-

ing careful attention to the surround-

ing conditions and operating the

steering wheel to correct the path of

the vehicle. Also, the driver must take

adequate breaks when fatigued, such

as from driving for a long period of

time.

●

Failure to perform appropriate driving

operations and pay careful attention

may lead to an accident, resulting in

death or serious injury.

■

Situations unsuitable for LTA system

In the following situations, use the LTA

switch to turn the system off. Failure to do

so may lead to an accident, resulting in

death or serious injury.

●

Vehicle is driven on a road surface

which is slippery due to rainy weather,

fallen snow, freezing, etc.

●

Vehicle is driven on a snow-covered

road.

●

White (yellow) lines are difficult to see

due to rain, snow, fog, dust, etc.

●

Vehicle is driven in a temporary lane

or restricted lane due to construction

work.

●

Vehicle is driven in a construction

zone.

●

A spare tire, tire chains, etc. are

equipped.

●

When the tires have been excessively

worn, or when the tire inflation pres-

sure is low.

●

During emergency towing

■

Preventing LTA system malfunctions

and operations performed by mistake

●

Do not modify the headlights or place

stickers, etc. on the surface of the

lights.

●

Do not modify the suspension etc. If

the suspension etc. needs to be

replaced, contact your Lexus dealer.

●

Do not install or place anything on the

hood or grille. Also, do not install a

grille guard (bull bars, kangaroo bar,

etc.).

●

If your windshield needs repairs, con-

tact your Lexus dealer.

■

Conditions in which functions may

not operate properly

In the following situations, the functions

may not operate properly and the vehi-

cle may depart from its lane. Drive safely

by always paying careful attention to

your surroundings and operate the

steering wheel to correct the path of the

vehicle without relying solely on the func-

tions.

●

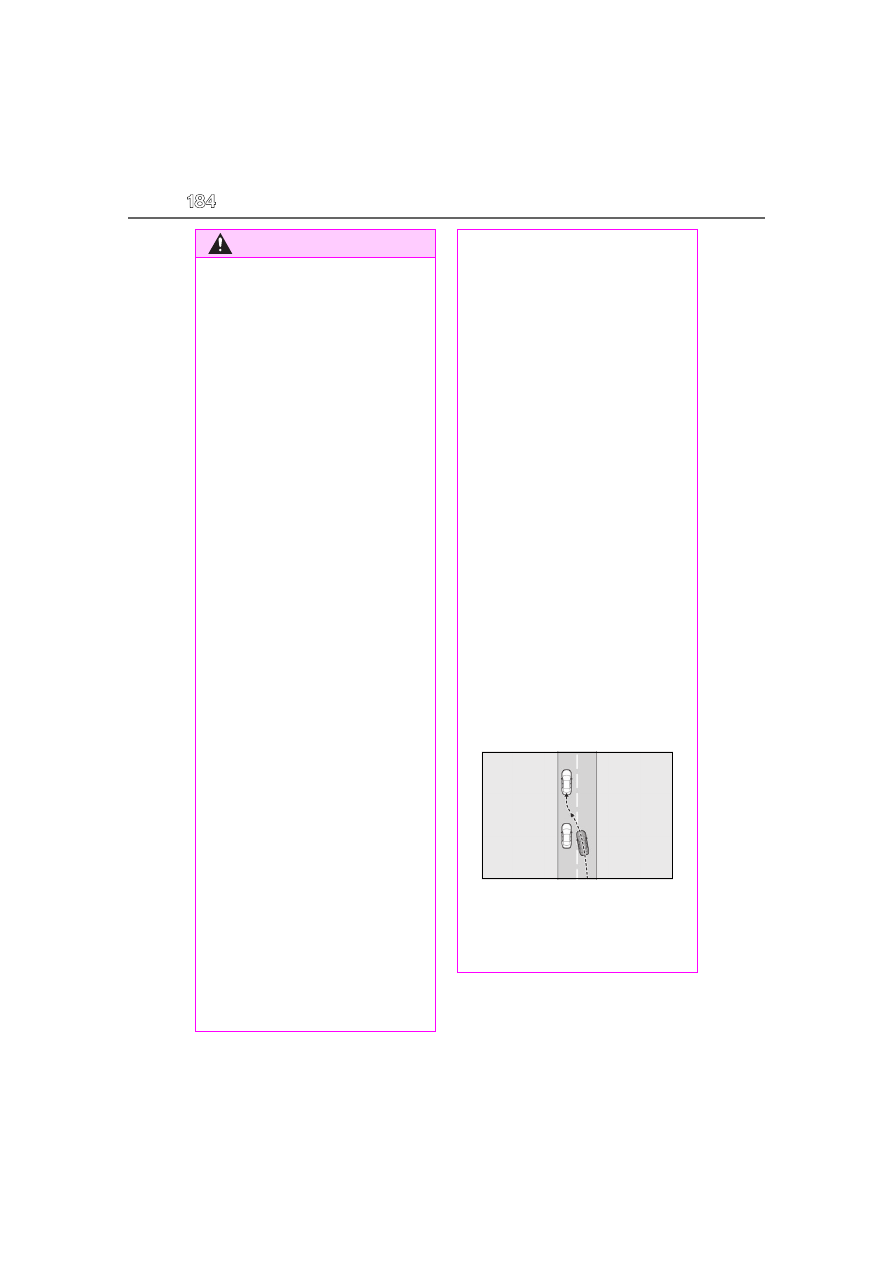

When the follow-up cruising display is

displayed (



P.188) and the preced-

ing vehicle changes lanes. (Your vehi-

cle may follow the preceding vehicle

and also change lanes.)

●

When the follow-up cruising display is

displayed (



P.188) and the preced-

ing vehicle is swaying. (Your vehicle

may sway accordingly and depart from

the lane.)

185

4-5. Using the driving support systems

4

Driving

WARNING

●

When the follow-up cruising display is

displayed (



P.188) and the preced-

ing vehicle departs from its lane. (Your

vehicle may follow the preceding vehi-

cle and depart from the lane.)

●

When the follow-up cruising display is

displayed (



P.188) and the preced-

ing vehicle is being driven extremely

close to the left/right lane line. (Your

vehicle may follow the preceding vehi-

cle and depart from the lane.)

●

Vehicle is being driven around a sharp

curve.

●

Objects or patterns that could be mis-

taken for white (yellow) lines are pres-

ent on the side of the road (guardrails,

reflective poles, etc.).

●

Vehicle is driven where the road

diverges, merges, etc.

●

Repair marks of asphalt, white (yellow)

lines, etc. are present due to road

repair.

●

There are shadows on the road that

run parallel with, or cover, the white

(yellow) lines.

●

The vehicle is driven in an area without

white (yellow) lines, such as in front of

a tollgate or checkpoint, or at an inter-

section, etc.

●

The white (yellow) lines are cracked,

“Botts’ dots”, “Raised pavement

marker” or stones are present.

●

The white (yellow) lines cannot be

seen or are difficult to see due to sand,

etc.

●

The vehicle is driven on a road surface

that is wet due to rain, puddles, etc.

●

The traffic lines are yellow (which may

be more difficult to recognize than

lines that are white).

●

The white (yellow) lines cross over a

curb, etc.

●

The vehicle is driven on a bright sur-

face, such as concrete.

●

If the edge of the road is not clear or

straight.

●

The vehicle is driven on a surface that

is bright due to reflected light, etc.

●

The vehicle is driven in an area where

the brightness changes suddenly, such

as at the entrances and exits of tunnels,

etc.

186

4-5. Using the driving support systems

■

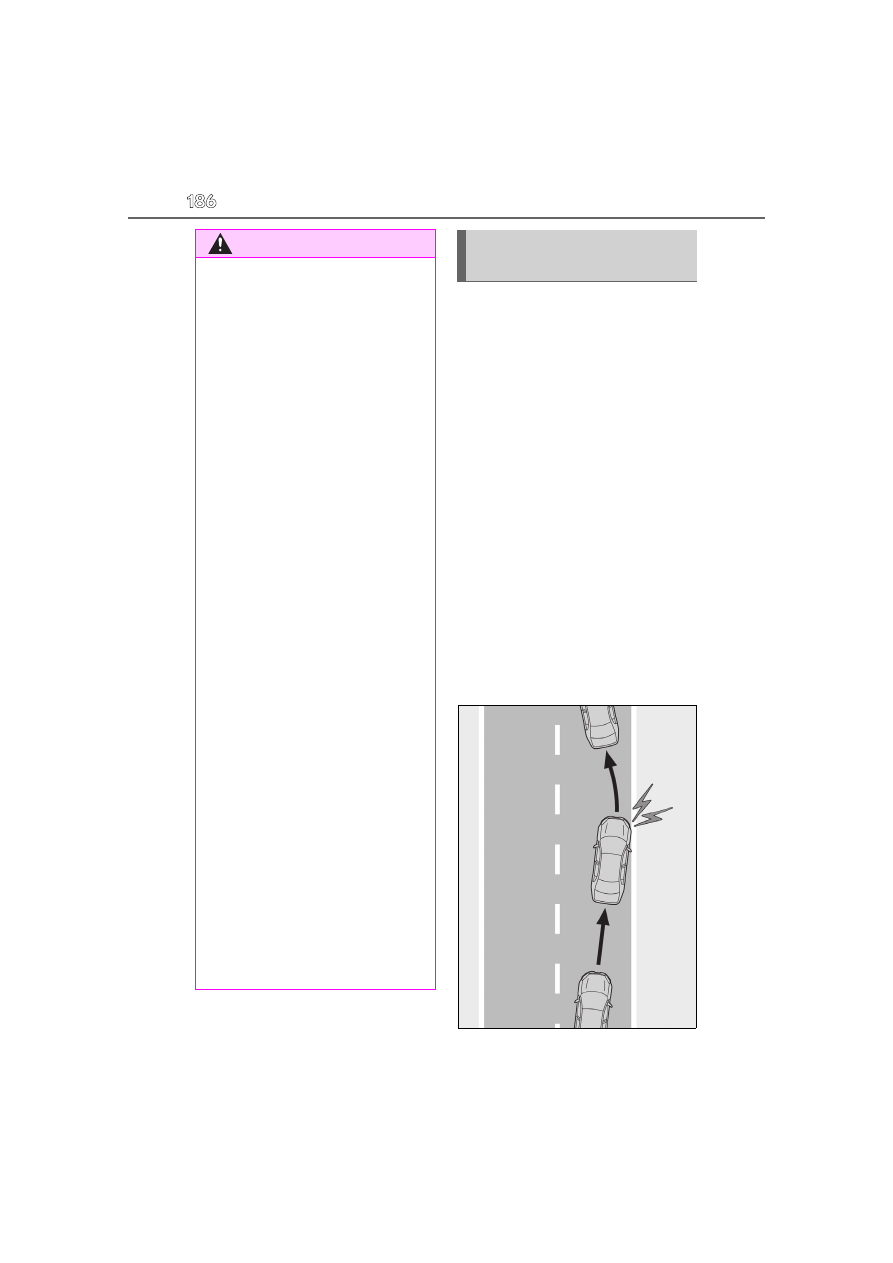

Lane departure alert function

When the system determines that the
vehicle might depart from its lane or
course

*

, a warning is displayed on the

multi-information display, and either a
warning buzzer will sound or the steer-
ing wheel will vibrate to alert the driver.

When the warning buzzer sounds or the
steering wheel vibrates, check the area
around your vehicle and carefully operate
the steering wheel to move the vehicle
back to the center of the lane.
When the system determines that the vehi-
cle might depart from its lane and that the
possibility of a collision with an overtaking
vehicle in the adjacent lane is high, the lane
departure alert will operate even if the turn
signals are operating.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

WARNING

●

Light from the headlights of an oncom-

ing vehicle, the sun, etc. enters the

camera.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road which

tilts left or right, or a winding road.

●

The vehicle is driven on an unpaved or

rough road.

●

The traffic lane is excessively narrow

or wide.

●

The vehicle is extremely tilted due to

carrying heavy luggage or having

improper tire pressure.

●

The distance to the preceding vehicle

is extremely short.

●

The vehicle is moving up and down a

large amount due to road conditions

during driving (poor roads or road

seams).

●

When driving in a tunnel or at night

with the headlights off or when a head-

light is dim due to its lens being dirty or

it being misaligned.

●

The vehicle is struck by a crosswind.

●

The vehicle is affected by wind from a

vehicle driven in a nearby lane.

●

The vehicle has just changed lanes or

crossed an intersection.

●

Tires which differ by structure, manu-

facturer, brand or tread pattern are

used.

●

When tires of a size other than speci-

fied are installed.

●

Snow tires, etc. are equipped.

●

The vehicle is being driven at

extremely high speeds.

Functions included in LTA sys-
tem

187

4-5. Using the driving support systems

4

Driving

■

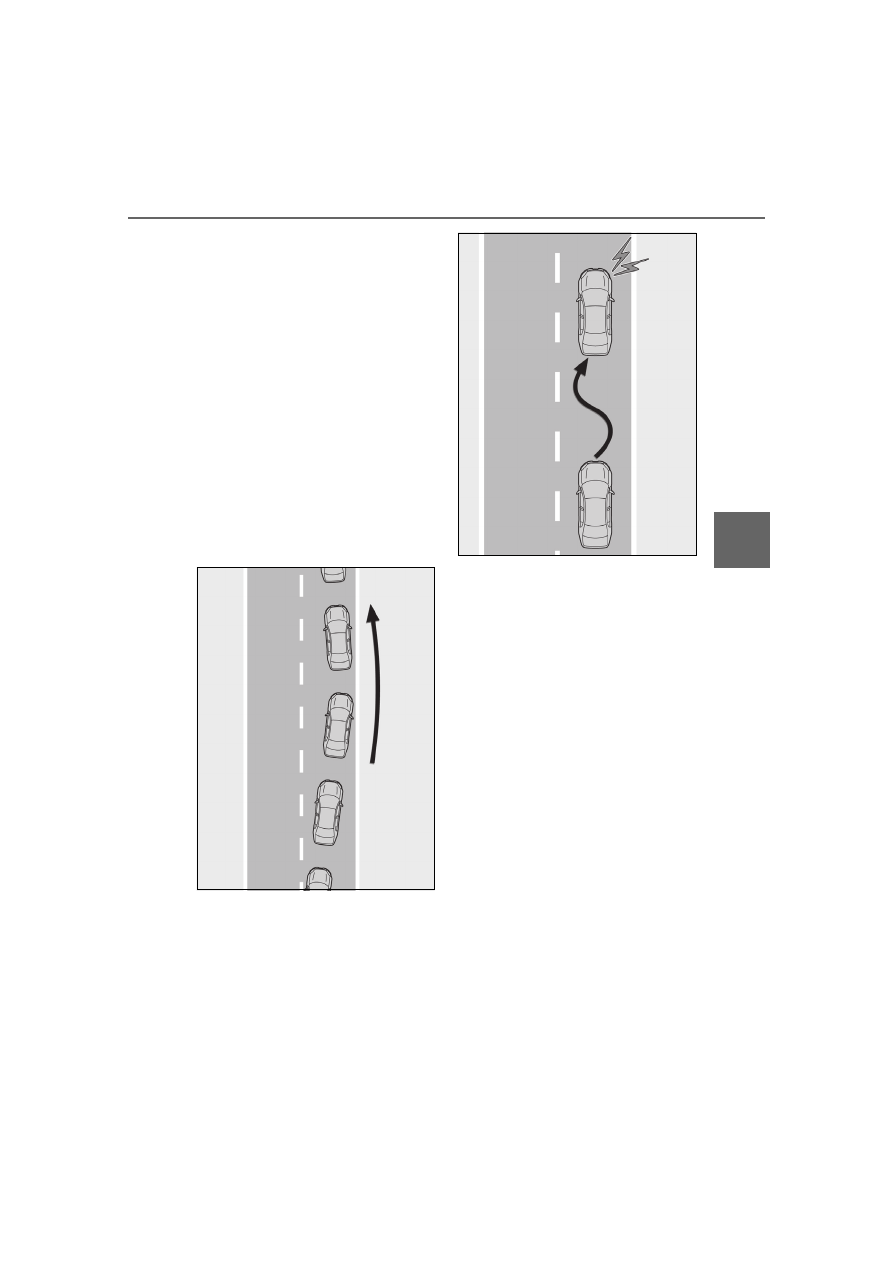

Steering assist function

When the system determines that the
vehicle might depart from its lane or
course

*

, the system provides assis-

tance as necessary by operating the
steering wheel in small amounts for a
short period of time to keep the vehicle
in its lane.

When the system determines that the vehi-
cle might depart from its lane and that the
possibility of a collision with an overtaking
vehicle in the adjacent lane is high, the
steering assist function will operate even if
the turn signals are operating.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

■

Vehicle sway warning function

When the vehicle is swaying within a
lane, the warning buzzer will sound
and a message will be displayed on the
multi-information display to alert the
driver.

■

Lane centering function

This function is linked with dynamic
radar cruise control with full-speed
range and provides the required assis-
tance by operating the steering wheel
to keep the vehicle in its current lane.

When dynamic radar cruise control with
full-speed range is not operating, the lane
centering function does not operate.
In situations where the white (yellow) lane
lines are difficult to see or are not visible,
such as when in a traffic jam, this function
will operate to help follow a preceding
vehicle by monitoring the position of the
preceding vehicle.

188

4-5. Using the driving support systems

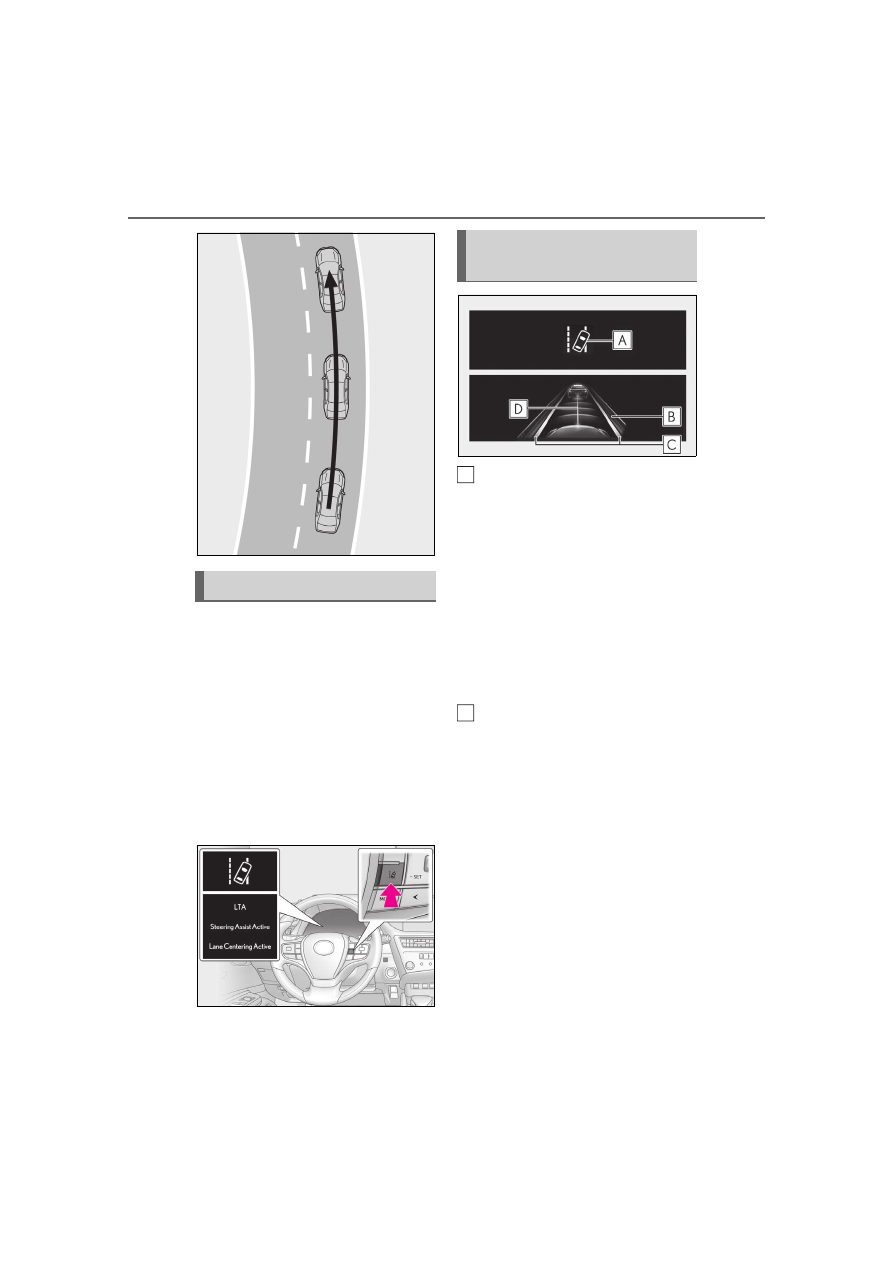

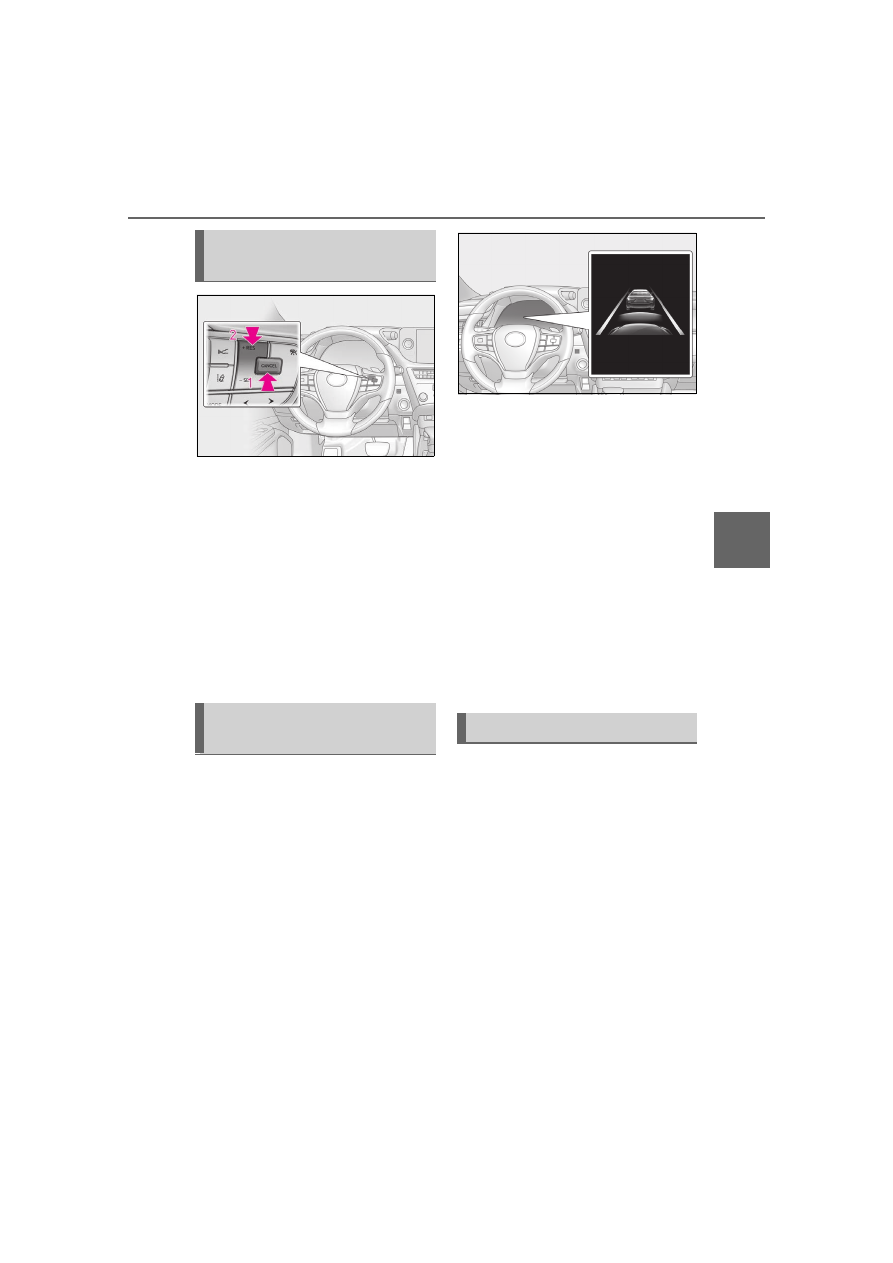

Press the LTA switch to turn the LTA
system on.

The LTA indicator illuminates and a mes-
sage is displayed on the multi-information
display.

Press the LTA switch again to turn the
LTA system off.

When the LTA system is turned on or off,
operation of the LTA system continues in
the same condition the next time the
engine is started.

LTA indicator

The illumination condition of the indicator
informs the driver of the system operation
status.
Illuminated in white:
LTA system is operating.
Illuminated in green:
Steering wheel assistance of the steering
assist function or lane centering function is
operating.
Flashing in orange:
Lane departure alert function is operating.

Operation display of steering
wheel operation support

Displayed when the multi-information dis-
play is switched to the driving support sys-
tem information display.
Indicates that steering wheel assistance of
the steering assist function or lane center-
ing function is operating.
Both outer sides of the lane are displayed:
Indicates that steering wheel assist of the
lane centering function is operating.
One outer side of the lane is displayed:
Indicates that steering wheel assist of the
steering assist function is operating.
Both outer sides of the lane are flashing:
Alerts the driver that their input is neces-
sary to stay in the center of the lane (lane

Turning LTA system on

Indications on multi-information
display

A

B

189

4-5. Using the driving support systems

4

Driving

centering function).

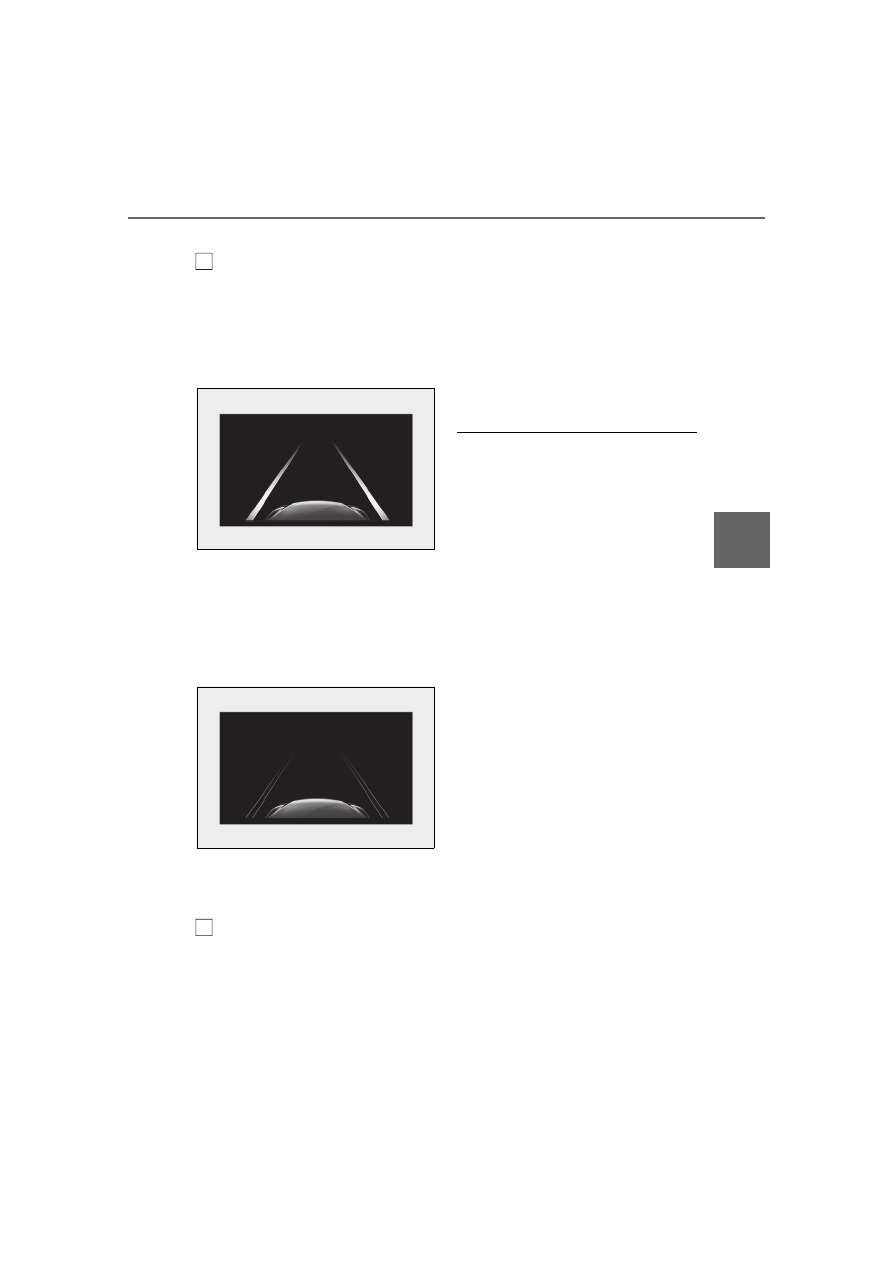

Lane departure alert function dis-
play

Displayed when the multi-information dis-
play is switched to the driving support sys-
tem information display.



Inside of displayed lines is white

Indicates that the system is recognizing
white (yellow) lines or a course

*

. When the

vehicle departs from its lane, the white line
displayed on the side the vehicle departs
from flashes orange.



Inside of displayed lines is black

Indicates that the system is not able to rec-
ognize white (yellow) lines or a course

*

 or

is temporarily canceled.

Follow-up cruising display

Displayed when the multi-information dis-
play is switched to the driving support sys-
tem information display.
Indicates that steering assist of the lane
centering function is operating by monitor-

ing the position of a preceding vehicle.
When the follow-up cruising display is dis-
played, if the preceding vehicle moves,
your vehicle may move in the same way.
Always pay careful attention to your sur-
roundings and operate the steering wheel
as necessary to correct the path of the
vehicle and ensure safety.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

■

Operation conditions of each function

●

Lane departure alert function

This function operates when all of the fol-
lowing conditions are met.
• LTA is turned on.

• Vehicle speed is approximately 32 mph

(50 km/h) or more.

*1

• System recognizes white (yellow) lane

lines or a course

*2

. (When a white [yel-

low] line or course

*2

 is recognized on

only one side, the system will operate

only for the recognized side.)

• Width of traffic lane is approximately 9.8

ft. (3 m) or more.

• Turn signal lever is not operated. (Except

when another vehicle is in the lane on the

side where the turn signal was operated)

• Vehicle is not being driven around a

sharp curve.

• No system malfunctions are detected.

(



P.191)

*1

: The function operates even if the vehicle

speed is less than approximately 32 mph
(50 km/h) when the lane centering
function is operating.

*2

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

●

Steering assist function

This function operates when all of the fol-
lowing conditions are met in addition to the
operation conditions for the lane departure
alert function.
• Vehicle is not accelerated or decelerated

by a fixed amount or more.

C

D

190

4-5. Using the driving support systems

• Steering wheel is not operated with a

steering force level suitable for changing

lanes.

• ABS, VSC, TRAC and PCS are not

operating.

• TRAC or VSC is not turned off.

●

Vehicle sway warning function

This function operates when all of the fol-
lowing conditions are met.
• Setting for “Warning” in

 of the multi-

information display is set to “On”.
(



P.76)

• Vehicle speed is approximately 32 mph

(50 km/h) or more.

• Width of traffic lane is approximately 9.8

ft. (3 m) or more.

• No system malfunctions are detected.

(



P.191)

●

Lane centering function

This function operates when all of the fol-
lowing conditions are met.
• LTA is turned on.
• Setting for “Lane Center” in

 of the

multi-information display is set to “On”.
(



P.76)

• This function recognizes white (yellow)

lane lines or the position of a preceding

vehicle (except when the preceding vehi-

cle is small, such as a motorcycle).

• The dynamic radar cruise control with

full-speed range is operating in vehicle-

to-vehicle distance control mode.

• Width of traffic lane is approximately 10

to 13 ft. (3 to 4 m).

• Turn signal lever is not operated.

• Vehicle is not being driven around a

sharp curve.

• No system malfunctions are detected.

(



P.191)

• Vehicle does not accelerate or deceler-

ate by a fixed amount or more.

• Steering wheel is not operated with a

steering force level suitable for changing

lanes.

• ABS, VSC, TRAC and PCS are not

operating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning is not

displayed. (



P.191)

• The vehicle is being driven in the center

of a lane.

• Steering assist function is not operating.

■

Temporary cancelation of functions

●

When operation conditions are no lon-

ger met, a function may be temporarily

canceled. However, when the operation

conditions are met again, operation of

the function is automatically restored.

(



P.189)

●

If the operation conditions (



P.189) are

no longer met while the lane centering
function is operating, the steering wheel
may vibrate and the buzzer may sound to
indicate that the function has been tem-
porarily canceled. However, if the “Alert”
customization setting is set to

, the

system will notify the driver by vibrating
the steering wheel instead of sounding
the buzzer.

■

Steering assist function/lane centering

function

●

Depending on the vehicle speed, lane

departure situation, road conditions, etc.,

the driver may not feel the function is

operating or the function may not oper-

ate at all.

●

The steering control of the function is

overridden by the driver’s steering wheel

operation.

●

Do not attempt to test the operation of

the steering assist function.

■

Lane departure alert function

●

The warning buzzer may be difficult to

hear due to external noise, audio play-

back, etc. Also, it may be difficult to feel

steering wheel vibrations due to the road

conditions, etc.

●

If the edge of the course

*

 is not clear or

straight, the lane departure alert function

may not operate.

●

It may not be possible for the system to

determine if there is a danger of a colli-

sion with a vehicle in an adjacent lane.

●

Do not attempt to test the operation of

the lane departure alert function.

191

4-5. Using the driving support systems

4

Driving

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

■

Hands off steering wheel warning

In the following situations, a warning mes-

sage urging the driver to hold the steering

wheel and the symbol shown in the illustra-

tion are displayed on the multi-information

display to warn the driver. The warning

stops when the system determines that the

driver holds the steering wheel. Always

keep your hands on the steering wheel

when using this system, regardless of warn-

ings.

●

When the system determines the driver is

not holding the steering wheel while the

lane centering function is operating.

If the driver continues to keep their hands
off of the steering wheel, the buzzer sounds,
the driver is warned and the function is tem-
porarily canceled. This warning also oper-
ates in the same way when the driver
continuously operates the steering wheel
only a small amount.
The buzzer also sounds even if the alert
type is set to

.

●

When the system determines that the

vehicle may deviate from the lane while

driving around a curve while the lane

centering function is operating.

Depending on the vehicle condition and
road conditions, the warning may not oper-
ate.

●

When the system determines that the

driver is driving without holding the steer-

ing wheel while the steering wheel assist

of the steering assist function is operat-

ing.

If the driver continues to keep their hands

off of the steering wheel and the steering
wheel assist is operating, the buzzer sounds
and the driver is warned. Each time the
buzzer sounds, the continuing time of the
buzzer becomes longer.
The buzzer also sounds even if the alert
type is set to

.

■

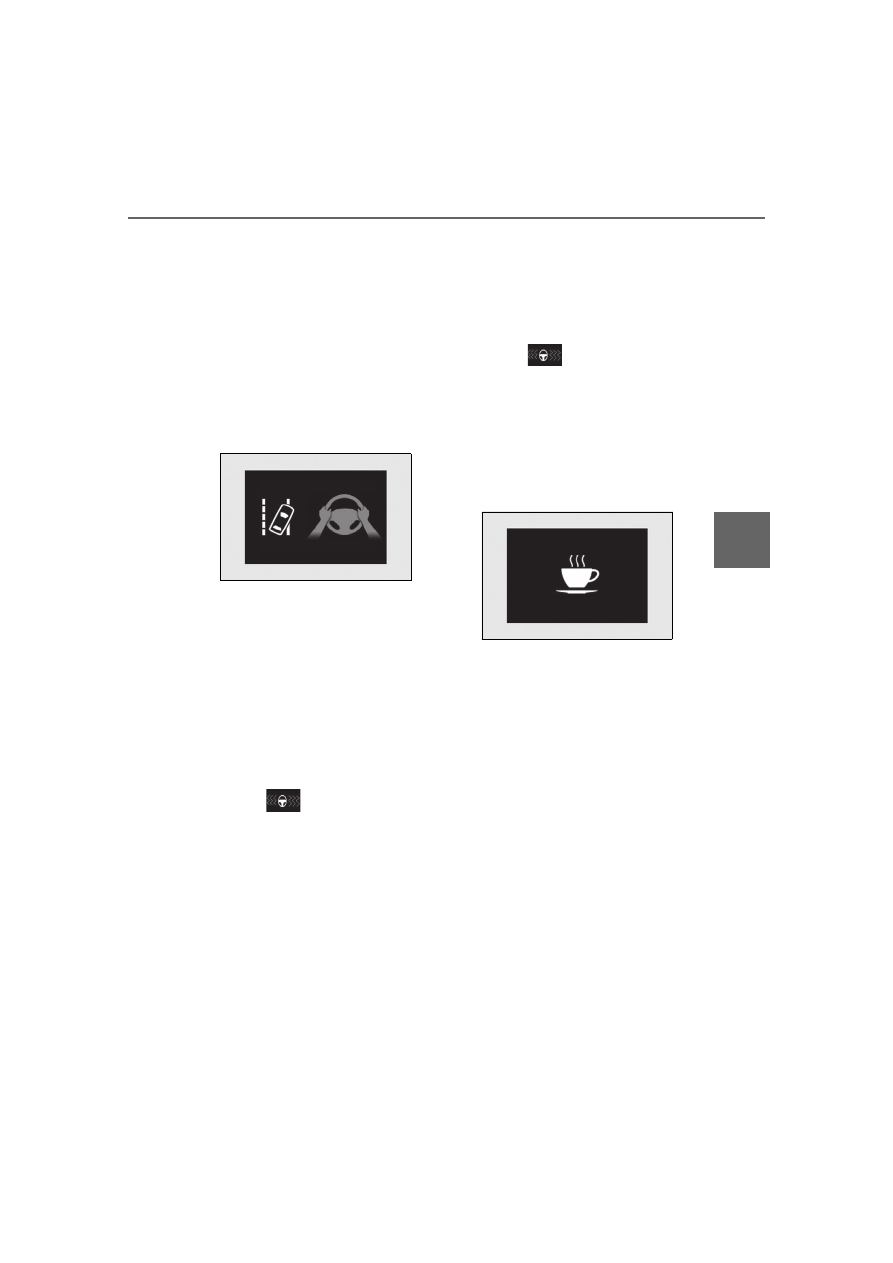

Vehicle sway warning function

When the system determines that the vehi-

cle is swaying while the vehicle sway warn-

ing function is operating, a buzzer sounds

and a warning message urging the driver to

rest and the symbol shown in the illustration

are simultaneously displayed on the multi-

information display.

Depending on the vehicle and road condi-

tions, the warning may not operate.

■

Warning message

If the following warning message is dis-

played on the multi-information display and

the LTA indicator illuminates in orange, fol-

low the appropriate troubleshooting proce-

dure. Also, if a different warning message is

displayed, follow the instructions displayed

on the screen.

●

“LTA Malfunction Visit Your Dealer”

The system may not be operating properly.
Have the vehicle inspected by your Lexus
dealer.

●

“LTA Unavailable”

The system is temporarily canceled due to a
malfunction in a sensor other than the front
camera. Turn the LTA system off, wait for a
little while, and then turn the LTA system
back on.

●

“LTA Unavailable at Current Speed”

192

4-5. Using the driving support systems

The function cannot be used as the vehicle
speed exceeds the LTA operation range.
Drive slower.

■

Customization

Function settings can be changed.
(Customizable features:



P.404)

*

: If equipped

When the front camera recognizes a
sign and/or information of a sign is

RSA (Road Sign Assist)

*

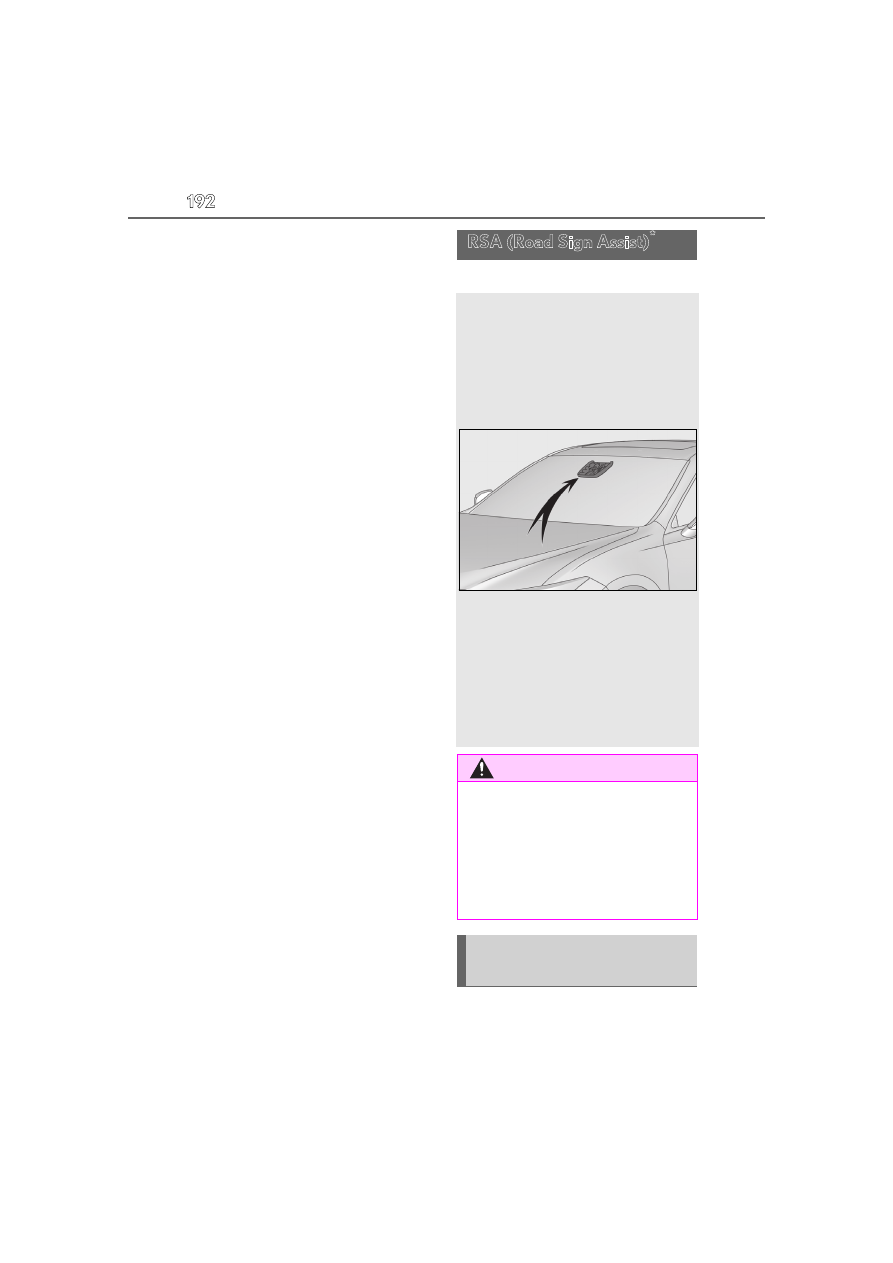

The RSA system recognizes spe-
cific road signs using the front cam-
era and/or navigation system
(when speed limit information is
available) to provide information to
the driver via the display.

If the system judges that the vehicle
is being driven over the speed limit,
performing prohibited actions, etc.
according to the recognized road
signs, it notifies the driver through a
visual notification and notification
buzzer.

WARNING

■

Before using the RSA

Do not rely solely upon the RSA system.

RSA is a system which supports the

driver by providing information, but it is

not a replacement for a driver’s own

vision and awareness. Drive safely by

always paying careful attention to the

traffic rules.

Indication on the multi-informa-
tion display

193

4-5. Using the driving support systems

4

Driving

available from the navigation system,
the sign will be displayed on the multi-
information display.



When the driving support system
information is selected, a maximum
of 3 signs can be displayed.
(



P.76)



When a tab other than the driving
support system information is
selected, the following types of road
signs will be displayed. (



P.76)

• Speed limit sign
• Do Not Enter sign (when notification is

necessary)

If signs other than speed limit signs are rec-
ognized, they will be displayed in an over-
lapping stack under the current speed limit
sign.

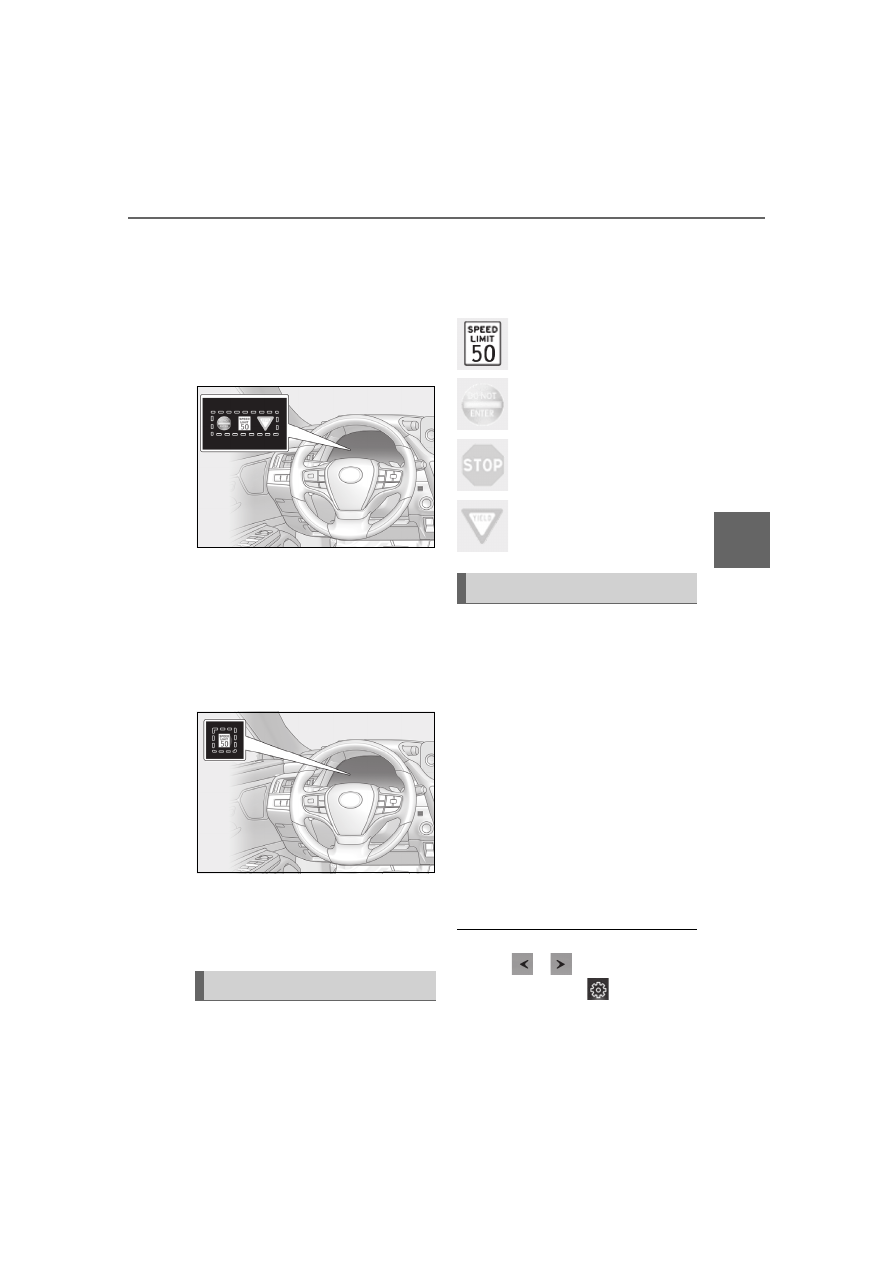

The following types of road signs,

including electronic signs and blinking
signs, are recognized.

A non-official or a recently introduced traf-
fic sign may not be recognized.

 : Speed limit

 : Do Not Enter

 : Stop

 : Yield

In the following situations, the RSA sys-
tem will notify the driver.



When the vehicle speed exceeds
the speed notification threshold of
the speed limit sign displayed, the
sign display will be emphasized and
a buzzer will sound.



When the RSA system recognizes a
do not enter sign and determines
that your vehicle has entered a no-
entry area, the displayed sign will
flash and a buzzer will sound.

Depending on the situation, a notifica-
tion function may not operate properly.

■

Setting procedure

1

Press

 or

 of the meter control

switches and select

Supported types of road signs

Notification function

194

4-5. Using the driving support systems

2

Press

 or

 of the meter control

switches and select “Vehicle Settings”,
then press “OK”

3

Press

 or

 of the meter control

switches and select

, then press

“OK”

4

Press

 or

 of the meter control

switches and select “RSA”, then press
“OK”

■

Automatic turn-off of RSA sign display

In the following situations, a displayed

speed limit sign and/or do not enter sign

will stop being displayed automatically:

●

No sign has been recognized for a cer-

tain distance.

●

The road changes due to a left or right

turn, etc.

In the following situations, stop and yield

signs will stop being displayed automati-

cally:

●

The system determines that your vehicle

has passed the sign.

●

The road changes due to a left or right

turn, etc.

■

Conditions in which the function may

not operate or detect correctly

In the following situations, RSA does not

operate normally and may not recognize

signs, display the incorrect sign, etc. How-

ever, this does not indicate a malfunction.

●

The front camera is misaligned due to a

strong impact being applied to the sen-

sor, etc.

●

Dirt, snow, stickers, etc. are on the wind-

shield near the front camera.

●

In inclement weather such as heavy rain,

fog, snow or sand storms.

●

Light from an oncoming vehicle, the sun,

etc. enters the front camera.

●

The sign is dirty, faded, tilted or bent.

●

The contrast of electronic sign is low.

●

All or part of the sign is hidden by the

leaves of a tree, a pole, etc.

●

The sign is only visible to the front camera

for a short amount of time.

●

The driving scene (turning, lane change,

etc.) is judged incorrectly.

●

If a sign not appropriate for the currently

traveled lane, but the sign exists directly

after a freeway branches, or in an adja-

cent lane just before merging.

●

Stickers are attached to the rear of the

preceding vehicle.

●

A sign resembling a system compatible

sign is recognized.

●

Side road speed signs may be detected

and displayed (if positioned in sight of the

front camera) while the vehicle is travel-

ing on the main road.

●

Roundabout exit road speed signs may

be detected and displayed (if positioned

in sight of the front camera) while travel-

ing on a roundabout.

●

The front of the vehicle is raised or low-

ered due to the carried load.

●

The surrounding brightness is not suffi-

cient or changes suddenly.

●

When a sign intended for trucks, etc. is

recognized.

●

The navigation system map data is out-

dated.

●

The navigation system is not operating.

●

The speed information displayed on the

meter and on the navigation system may

be different due to the navigation system

using map data.

■

Speed limit sign display

If the engine switch was last turned off while

a speed limit sign was displayed on the

multi-information display, the same sign dis-

plays again when the engine switch is

turned to IGNITION ON mode.

■

If “RSA Malfunction Visit Your Dealer”

is shown

The system may be malfunctioning. Have

the vehicle inspected by your Lexus dealer.

■

Customization

Some functions can be customized. (Cus-

tomizable features:



P.404)

195

4-5. Using the driving support systems

4

Driving

■

Meter display

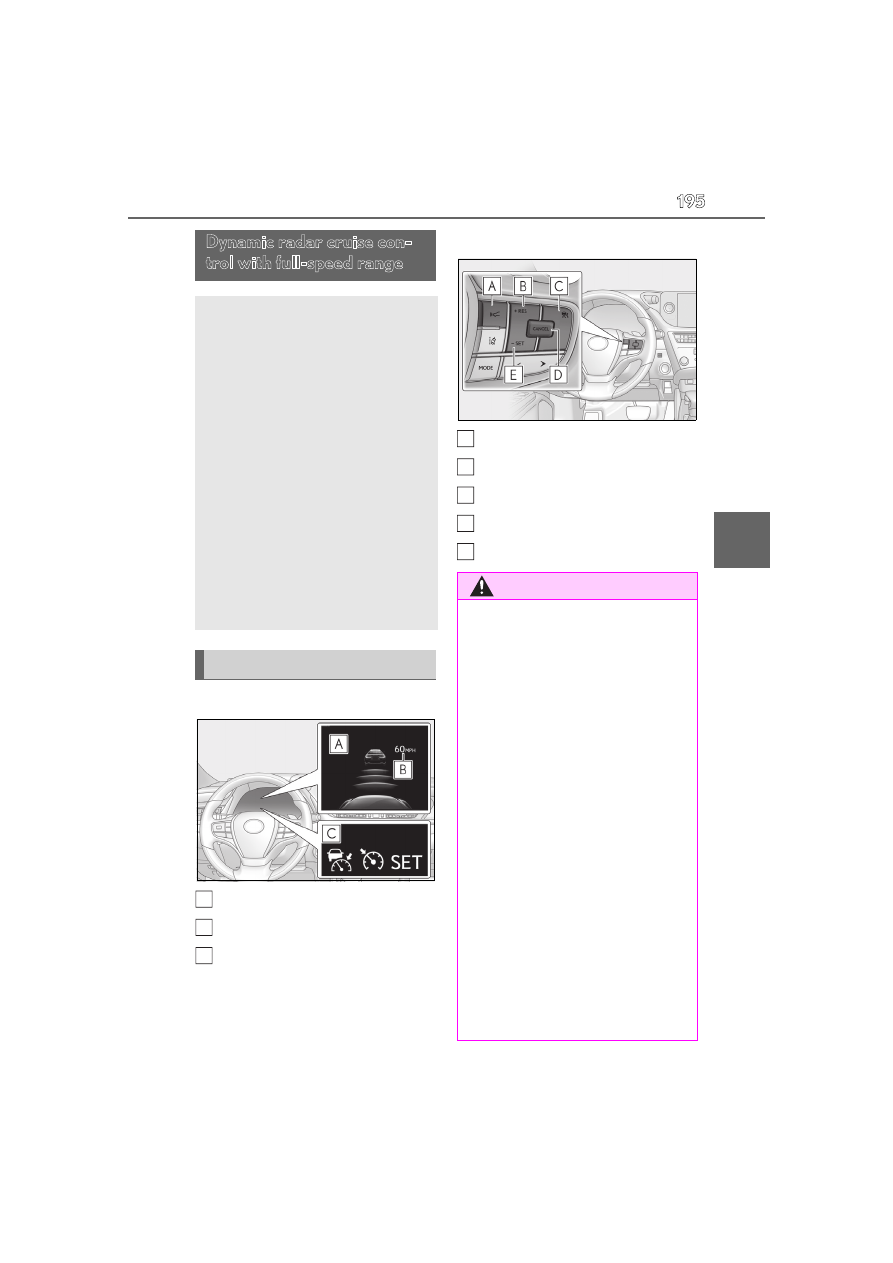

Multi-information display

Set speed

Indicators

■

Operation switches

Vehicle-to-vehicle distance switch

“+RES” switch

Cruise control main switch

Cancel switch

“-SET” switch

Dynamic radar cruise con-
trol with full-speed range

In vehicle-to-vehicle distance con-
trol mode, the vehicle automati-
cally accelerates, decelerates and
stops to match the speed changes
of the preceding vehicle even if the
accelerator pedal is not depressed.
In constant speed control mode,
the vehicle runs at a fixed speed.
Use the dynamic radar cruise con-
trol with full-speed range on free-
ways and highways.



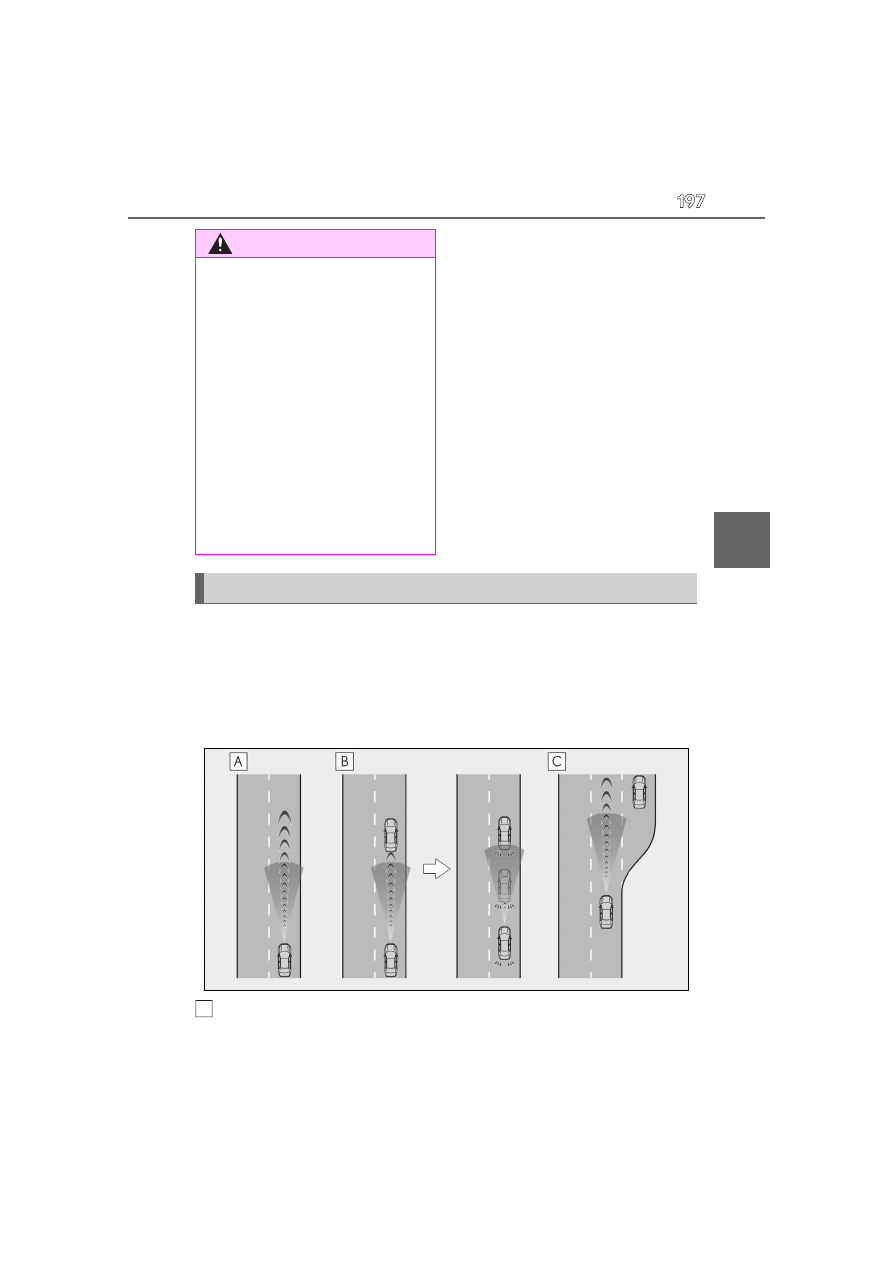

Vehicle-to-vehicle distance con-
trol mode (



P.197)



Constant speed control mode
(



P.202)

System Components

A

B

C

WARNING

■

Before using dynamic radar cruise

control with full-speed range

●

Driving safely is the sole responsibility

of the driver. Do not rely solely on the

system, and drive safely by always pay-

ing careful attention to your surround-

ings.

●

The dynamic radar cruise control with

full-speed range provides driving

assistance to reduce the driver’s bur-

den. However, there are limitations to

the assistance provided.

Read the following conditions care-

fully. Do not overly rely on this system

and always drive carefully.

• When the sensor may not be correctly

detecting the vehicle ahead



P.204

• Conditions under which the vehicle-

to-vehicle distance control mode may

not function correctly



P.204

●

Set the speed appropriately depend-

ing on the speed limit, traffic flow, road

conditions, weather conditions, etc.

The driver is responsible for checking

the set speed.

A

B

C

D

E

196

4-5. Using the driving support systems

WARNING

●

Even when the system is functioning

normally, the condition of the preced-

ing vehicle as detected by the system

may differ from the condition

observed by the driver. Therefore, the

driver must always remain alert, assess

the danger of each situation and drive

safely. Relying solely on this system or

assuming the system ensures safety

while driving can lead to an accident,

resulting in death or serious injury.

●

Switch the dynamic radar cruise con-

trol with full-speed range setting to off,

using the cruise control main switch

when not in use.

■

Cautions regarding the driving assist

systems

Observe the following precautions, as

there are limitations to the assistance

provided by the system.

Failure to do so may cause an accident

resulting in death or serious injury.

●

Assisting the driver to measure follow-

ing distance

The dynamic radar cruise control with

full-speed range is only intended to

help the driver in determining the fol-

lowing distance between the driver’s

own vehicle and a designated vehicle

traveling ahead. It is not a mechanism

that allows careless or inattentive driv-

ing, and it is not a system that can assist

the driver in low-visibility conditions.

It is still necessary for driver to pay

close attention to the vehicle’s sur-

roundings.

●

Assisting the driver to judge proper

following distance

The dynamic radar cruise control with

full-speed range determines whether

the following distance between the

driver’s own vehicle and a designated

vehicle traveling ahead is within a set

range. It is not capable of making any

other type of judgement. Therefore, it

is absolutely necessary for the driver to

remain vigilant and to determine

whether or not there is a possibility of

danger in any given situation.

●

Assisting the driver to operate the

vehicle

The dynamic radar cruise control with

full-speed range does not include

functions which will prevent or avoid

collisions with vehicles ahead of your

vehicle. Therefore, if there is ever any

possibility of danger, the driver must

take immediate and direct control of

the vehicle and act appropriately in

order to ensure the safety of all

involved.

■

Situations unsuitable for dynamic

radar cruise control with full-speed

range

Do not use dynamic radar cruise control

with full-speed range in any of the follow-

ing situations.

Doing so may result in inappropriate

speed control and could cause an acci-

dent resulting in death or serious injury.

●

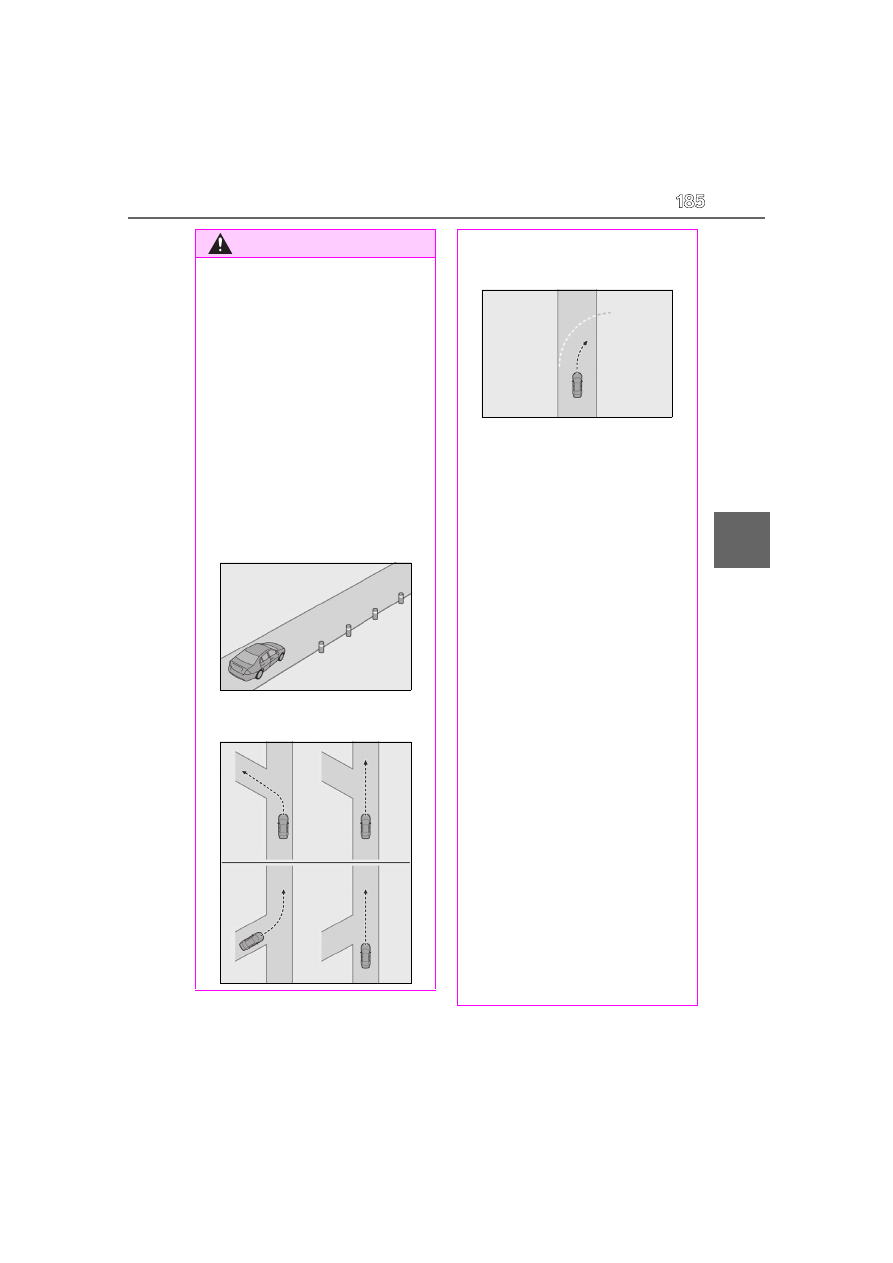

Roads where there are pedestrians,

cyclists, etc.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as those cov-

ered with rain, ice or snow

●

On steep downhills, or where there

are sudden changes between sharp up

and down gradients

Vehicle speed may exceed the set

speed when driving down a steep hill.

197

4-5. Using the driving support systems

4

Driving

This mode employs a radar to detect the presence of vehicles up to approximately
328 ft. (100 m) ahead, determines the current vehicle-to-vehicle following dis-
tance, and operates to maintain a suitable following distance from the vehicle
ahead. The desired vehicle-to-vehicle distance can also be set by operating the
vehicle-to-vehicle distance switch.

When driving on downhill slopes, the vehicle-to-vehicle distance may become shorter.

Example of constant speed cruising
When there are no vehicles ahead

WARNING

●

At entrances to freeways and high-

ways

●

When weather conditions are bad

enough that they may prevent the sen-

sors from detecting correctly (fog,

snow, sandstorm, heavy rain, etc.)

●

When there is rain, snow, etc. on the

front surface of the radar or front cam-

era

●

In traffic conditions that require fre-

quent repeated acceleration and

deceleration

●

During emergency towing

●

When an approach warning buzzer is

heard often

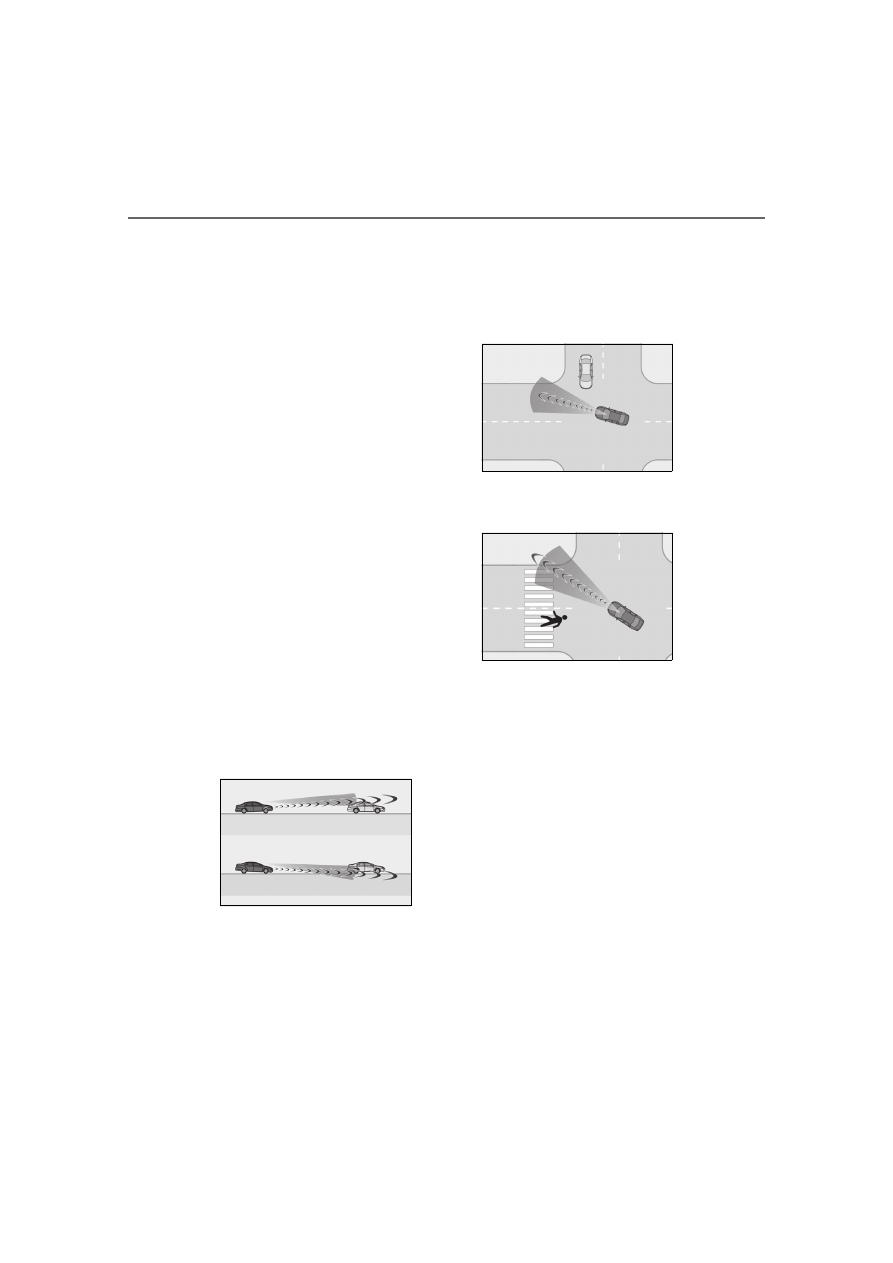

Driving in vehicle-to-vehicle distance control mode

A

198

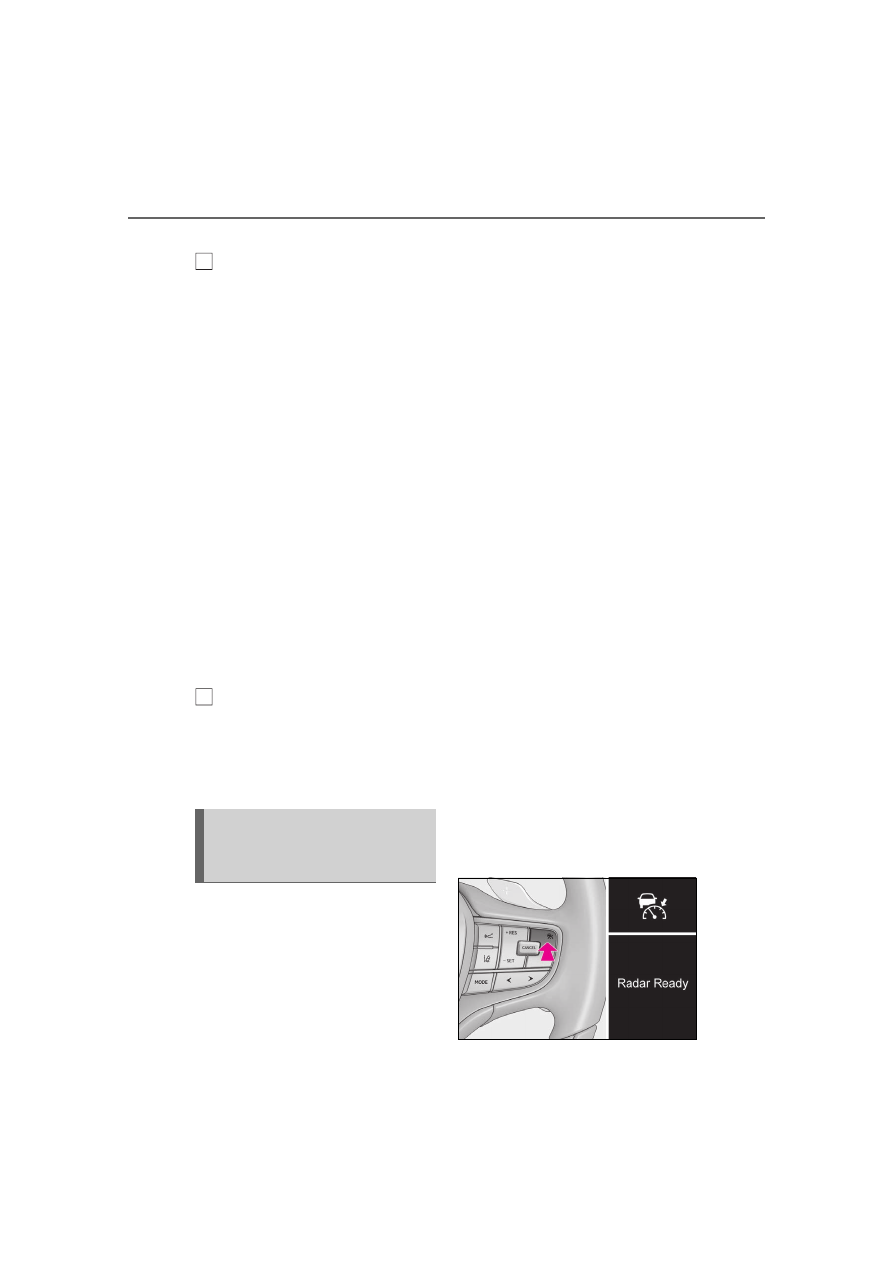

4-5. Using the driving support systems

The vehicle travels at the speed set by the driver.

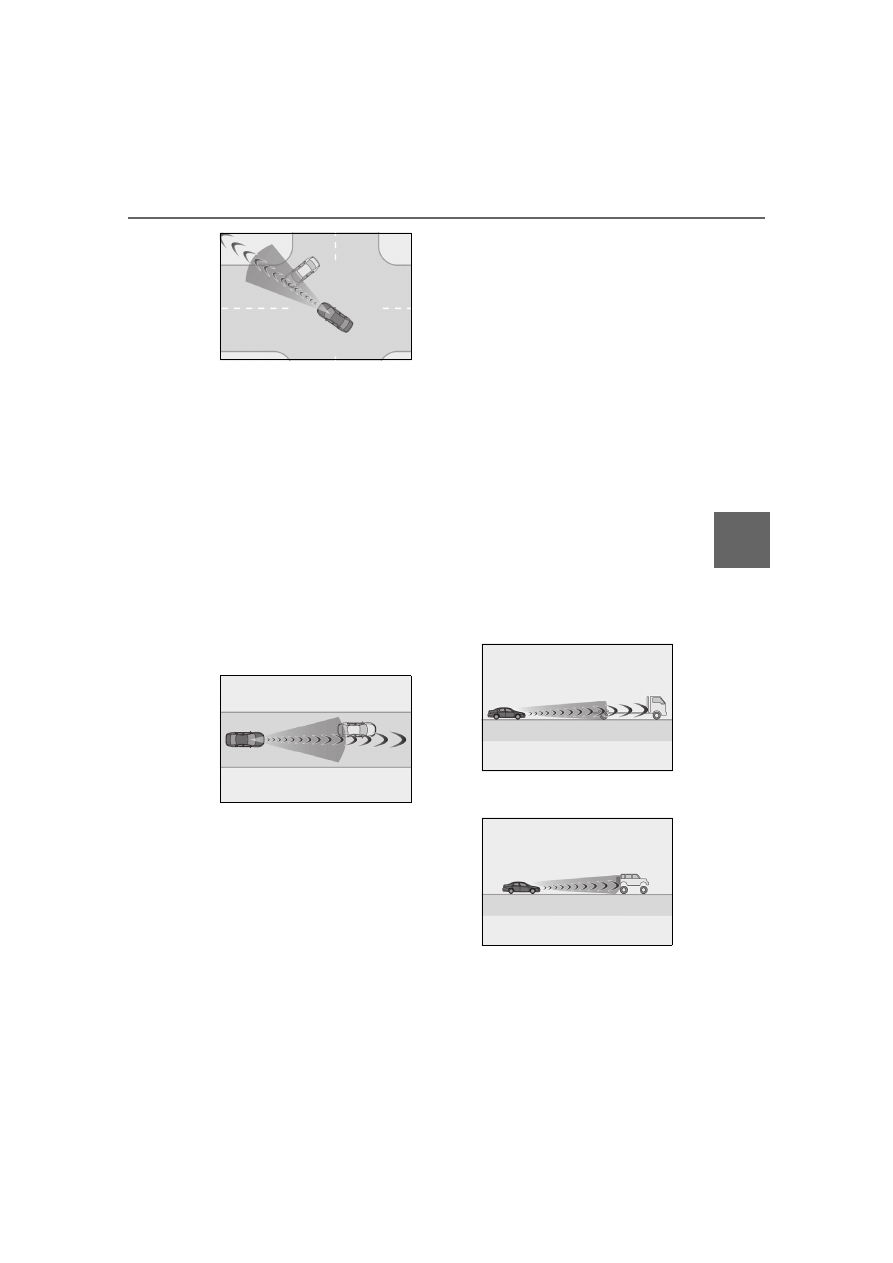

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed appears

When a vehicle is detected running ahead of you, the system automatically decelerates
your vehicle. When a greater reduction in vehicle speed is necessary, the system applies
the brakes (the stop lights will come on at this time). The system will respond to changes in
the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle distance set by
the driver. Approach warning warns you when the system cannot decelerate sufficiently to
prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is stopped by sys-
tem control). After the vehicle ahead starts off, pressing the “+RES” switch or depressing
the accelerator pedal (start-off operation) will resume follow-up cruising. If the start-off
operation is not performed, system control continues to keep your vehicle stopped.
When the turn signal lever is operated and your vehicle moves to an overtaking lane while
driving at 50 mph (80 km/h) or more, the vehicle will accelerate to help to overtake a
passing vehicle.
The system’s identification of what is an overtaking lane may be determined solely based on
the location of the steering wheel in the vehicle (left side driver position versus right side
driver position.) If the vehicle is driven to a region where the overtaking lane is on a differ-
ent side from where the vehicle is normally driven, the vehicle may accelerate when the
turn signal lever is operated in the opposite direction to the overtaking lane (e.g., if the
driver normally operates the vehicle in a region where the overtaking lane is to the right but
then drives to a region where the overtaking lane is to the left, the vehicle may accelerate
when the right turn signal is activated).

Example of acceleration
When there are no longer any preceding vehicles driving slower than the set
speed

The system accelerates until the set speed is reached. The system then returns to constant
speed cruising.

1

Press the cruise control main
switch to activate the cruise con-
trol.

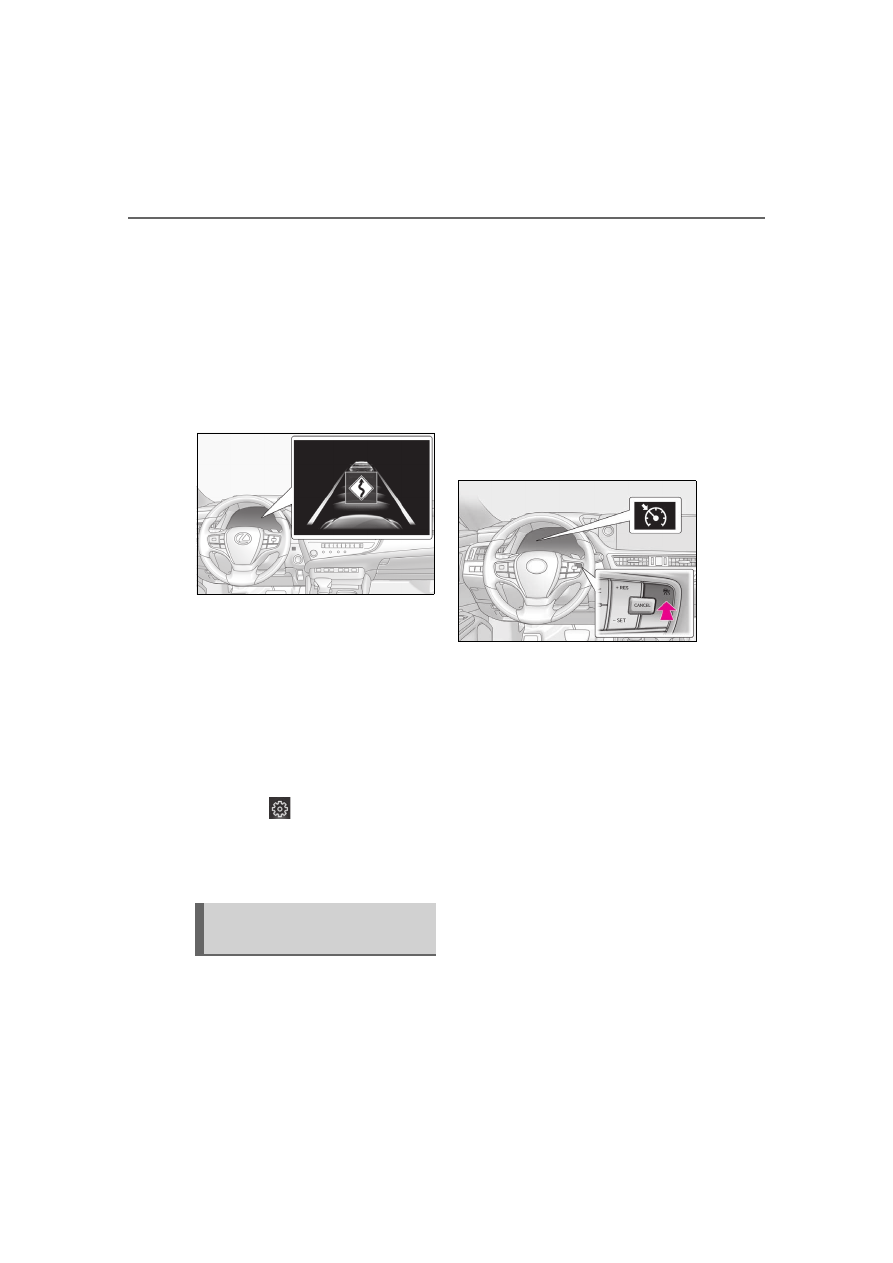

Dynamic radar cruise control indicator will

come on and a message will be displayed

on the multi-information display. Press the

switch again to deactivate the cruise con-

trol.

If the cruise control main switch is pressed

and held for 1.5 seconds or more, the sys-

tem turns on in constant speed control

mode. (



P.202)

B

C

Setting the vehicle speed (vehi-
cle-to-vehicle distance control
mode)

199

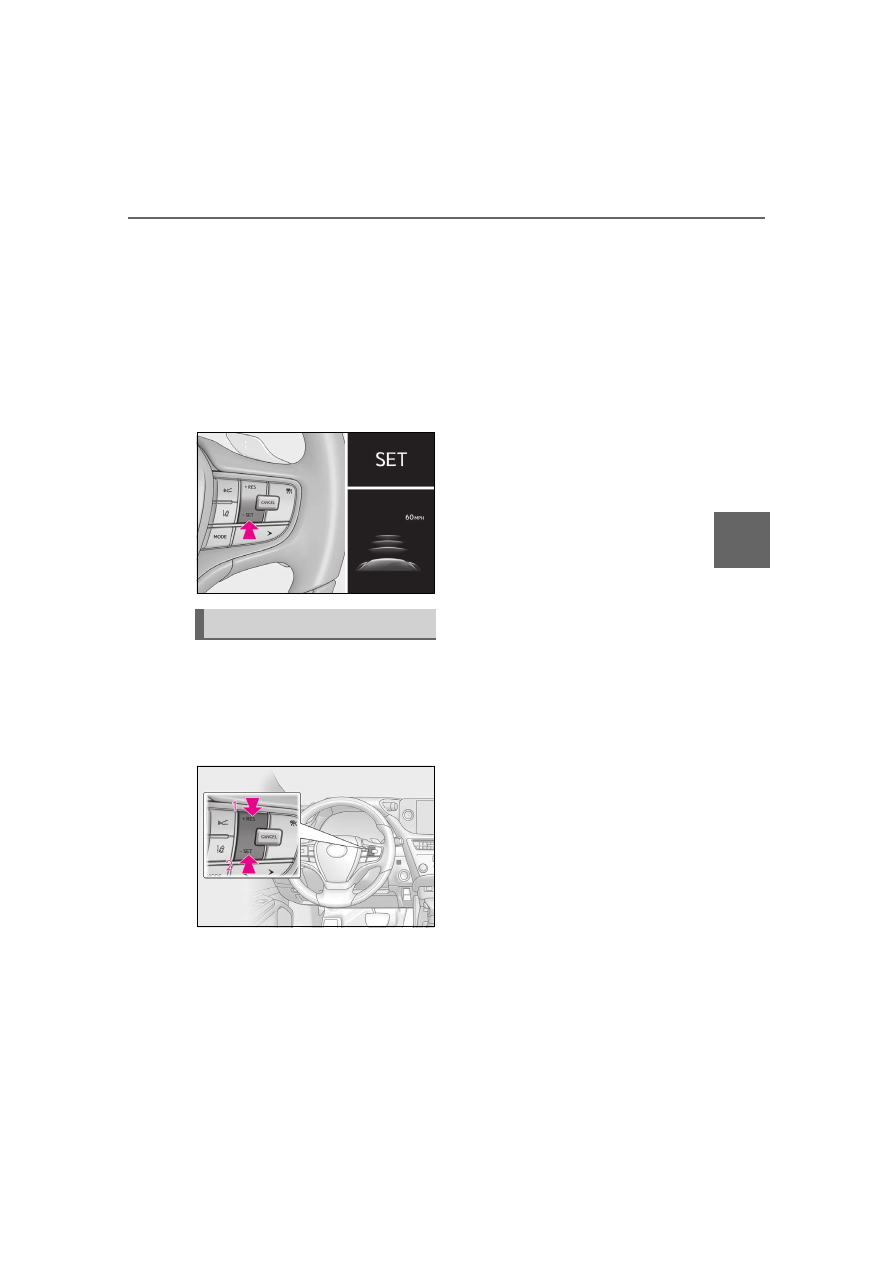

4-5. Using the driving support systems

4

Driving

2

Accelerate or decelerate, with
accelerator pedal operation, to the
desired vehicle speed (at or above
approximately 20 mph [30 km/h])
and press the “-SET” switch to set
the speed.

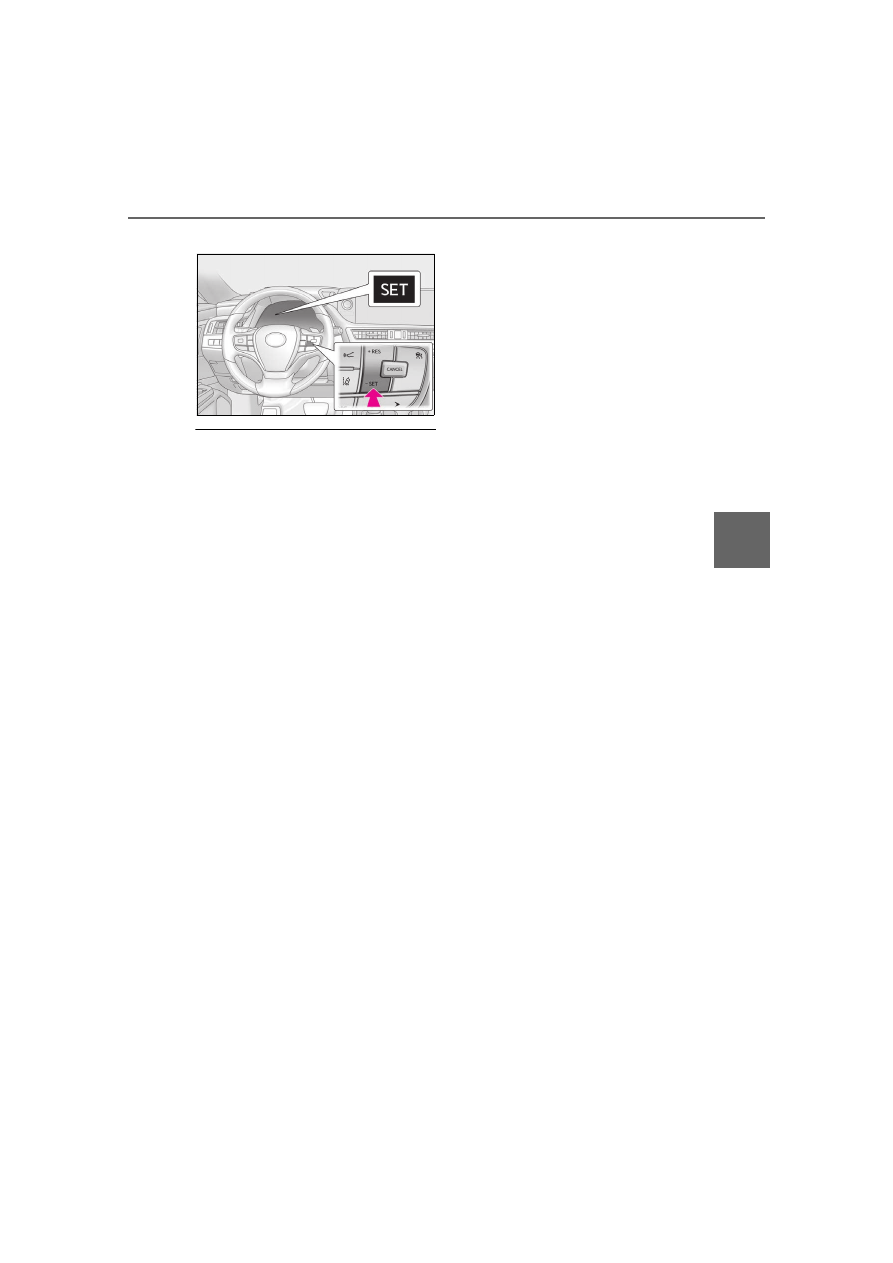

Cruise control “SET” indicator will come

on.
The vehicle speed at the moment the

switch is released becomes the set speed.



Adjusting the set speed by the
switch

To change the set speed, press the
“+RES” or “-SET” switch until the
desired set speed is displayed.

1

Increases the speed

(Except when the vehicle has been
stopped by system control in vehicle-to-
vehicle distance control mode)

2

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold the
switch to change the speed, and
release when the desired speed is
reached.
In the vehicle-to-vehicle distance con-
trol mode, the set speed will be
increased or decreased as follows:



For the U.S. mainland and Hawaii

Fine adjustment: By 1 mph (1.6 km/h)

*1

 or 1

km/h (0.6 mph)

*2

 each time the switch is

pressed
Large adjustment: Increases or decreases
in 1mph (1.6 km/h)

*1

 or 1 km/h (0.6 mph)

*2



increments for as long as the switch is held



Except for the U.S. mainland and
Hawaii

Fine adjustment: By 1 mph (1.6 km/h)

*1

 or 1

km/h (0.6 mph)

*2

 each time the switch is

pressed
Large adjustment: Increases or decreases
in 5 mph (8 km/h)

*1

 or 5 km/h (3.1 mph)

*2



increments for as long as the switch is held

In the constant speed control mode
(



P.202), the set speed will be

increased or decreased as follows:

Fine adjustment: By 1 mph (1.6 km/h)

*1

 or 1

km/h (0.6 mph)

*2

 each time the switch is

pressed
Large adjustment: The speed will continue
to change while the switch is held.

*1

: When the set speed is shown in “MPH”

*2

: When the set speed is shown in “km/h”



Increasing the set speed by the
accelerator pedal

Adjusting the set speed

200

4-5. Using the driving support systems

1

Accelerate with accelerator pedal
operation to the desired vehicle
speed

2

Press the “-SET” switch

Pressing the switch changes the vehi-
cle-to-vehicle distance as follows:

1

Long

2

Medium

3

Short

If a vehicle is running ahead of you, the pre-
ceding vehicle mark

 will also be dis-

played.

Select a distance from the table below.
Note that the distances shown corre-
spond to a vehicle speed of 50 mph
(80 km/h). Vehicle-to-vehicle dis-
tance increases/decreases in accor-
dance with vehicle speed. When the
vehicle is stopped by system control,
the vehicle stops at a certain vehicle-

to-vehicle distance depending on the
situation.

After the vehicle ahead of you starts
off, press the “+RES” switch.
Your vehicle will also resume follow-
up cruising if the accelerator pedal is
depressed after the vehicle ahead of
you starts off.

Changing the vehicle-to-vehicle
distance (vehicle-to-vehicle dis-
tance control mode)

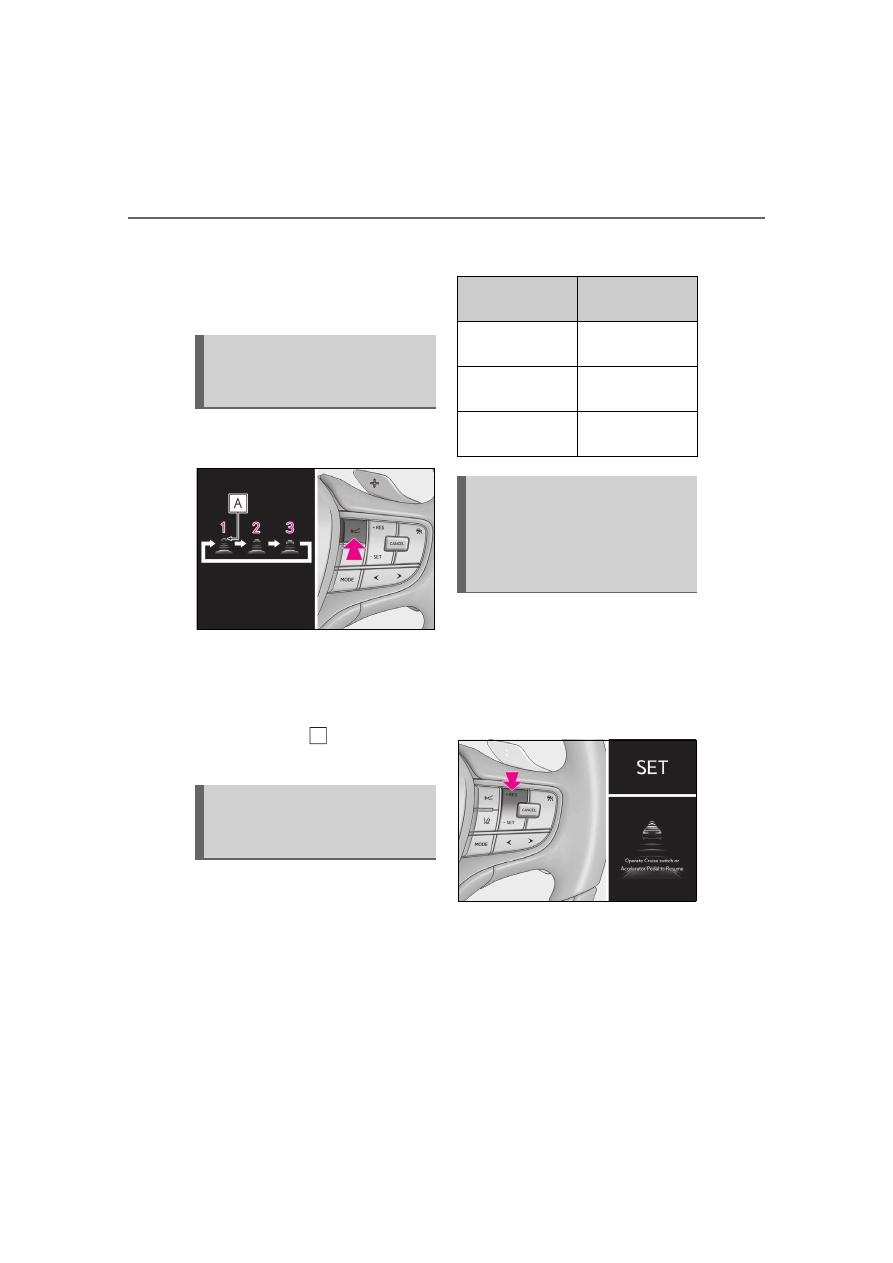

Vehicle-to-vehicle distance set-
tings (vehicle-to-vehicle dis-
tance control mode)

A

Distance options

Vehicle-to-vehicle

distance

Long

Approximately 160

ft. (50 m)

Medium

Approximately 130

ft. (40 m)

Short

Approximately 100

ft. (30 m)

Resuming follow-up cruising
when the vehicle has been
stopped by system control (vehi-
cle-to-vehicle distance control
mode)

201

4-5. Using the driving support systems

4

Driving

1

Pressing the cancel switch cancels
the speed control.

The speed control is also canceled when
the brake pedal is depressed.
(When the vehicle has been stopped by
system control, depressing the brake pedal
does not cancel the setting.)

2

Pressing the “+RES” switch
resumes the cruise control and
returns vehicle speed to the set
speed.

When your vehicle is too close to a
vehicle ahead, and sufficient automatic
deceleration via the cruise control is
not possible, the display will flash and
the buzzer will sound to alert the
driver. An example of this would be if
another driver cuts in front of you while
you are following a vehicle. Depress
the brake pedal to ensure an appropri-
ate vehicle-to-vehicle distance.

■

Warnings may not occur when

In the following instances, warnings
may not occur even when the vehicle-
to-vehicle distance is small.



When the speed of the preceding
vehicle matches or exceeds your
vehicle speed



When the preceding vehicle is trav-
eling at an extremely slow speed



Immediately after the cruise control
speed was set



When depressing the accelerator
pedal

While driving in vehicle-to-vehicle dis-
tance control mode, this function will
reduce the vehicle speed, if it is deter-
mined to be necessary.

■

Function operation

When the steering wheel begins to be
turned, the vehicle speed will begin
being reduced. When the steering
wheel is returned to the center posi-
tion, the vehicle speed reduction will
end.
Depending on the situation, the vehicle
speed will then return to the vehicle-to-

Canceling and resuming the
speed control

Approach warning (vehicle-to-
vehicle distance control mode)

Curve speed reduction function

202

4-5. Using the driving support systems

vehicle distance control mode set
speed.
In situations where vehicle-to-vehicle
distance control needs to operate,
such as when a preceding vehicle cuts
in front of your vehicle, the curve
speed reduction function will be can-
celed.

■

Operation display

Displayed when the vehicle speed is
being reduced.

When the vehicle speed reduction ends,
the display will disappear.

■

Changing the settings of the curve
speed reduction function

The curve speed reduction function
can be enabled/disabled and the vehi-
cle speed reduction strength can be
adjusted on

 (



P.76) of the multi-

information display.

The setting will change each time the “OK”
meter control switch is pressed.

When constant speed control mode is
selected, your vehicle will maintain a
set speed without controlling the vehi-
cle-to-vehicle distance. Select this

mode only when vehicle-to-vehicle
distance control mode does not func-
tion correctly due to a dirty radar, etc.

1

With the cruise control off, press
and hold the cruise control main
switch for 1.5 seconds or more.

Immediately after the switch is pressed, the

dynamic radar cruise control indicator will

come on. Afterwards, it switches to the

cruise control indicator.
Switching to constant speed control mode

is only possible when operating the switch

with the cruise control off.

2

Accelerate or decelerate, with
accelerator pedal operation, to the
desired vehicle speed (at or above
approximately 20 mph [30 km/h])
and press the “-SET” switch to set
the speed.

Cruise control “SET” indicator will come

on.
The vehicle speed at the moment the

switch is released becomes the set speed.
Adjusting the speed setting:



P.199

Canceling and resuming the speed setting:

Selecting constant speed con-
trol mode

203

4-5. Using the driving support systems

4

Driving



P.201

■

Dynamic radar cruise control with full-

speed range can be set when

●

The shift lever is in D.

●

The desired set speed can be set when

the vehicle speed is approximately 20

mph (30 km/h) or more. (However,

when the vehicle speed is set while driv-

ing at below approximately 20 mph [30

km/h], the set speed will be set to

approximately 20 mph [30 km/h].)

■

Accelerating after setting the vehicle

speed

The vehicle can accelerate by operating the

accelerator pedal. After accelerating, the

set speed resumes. However, during vehi-

cle-to-vehicle distance control mode, the

vehicle speed may decrease below the set

speed in order to maintain the distance to

the preceding vehicle.

■

When the vehicle stops while follow-up

cruising

●

Pressing the “+RES” switch while the

vehicle ahead stops will resume follow-

up cruising if the vehicle ahead starts off

within approximately 3 seconds after the

switch is pressed.

●

If the vehicle ahead starts off within 3 sec-

onds after your vehicle stops, follow-up

cruising will be resumed.

■

Automatic cancelation of vehicle-to-

vehicle distance control mode

Vehicle-to-vehicle distance control mode is

automatically canceled in the following situ-

ations.

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is

turned off.

●

The sensor cannot detect correctly

because it is covered in some way.

●

When the brake control or output

restriction control of a driving support

system operates. (For example: Pre-Col-

lision System, Drive-Start Control)

●

The parking brake is operated.

●

The vehicle is stopped by system control

on a steep incline.

●

The following are detected when the

vehicle has been stopped by system con-

trol:

• The driver is not wearing a seat belt.

• The driver’s door is opened.

• The vehicle has been stopped for about 3

minutes

If vehicle-to-vehicle distance control mode

is automatically canceled for any reasons

other than the above, there may be a mal-

function in the system. Contact your Lexus

dealer.

■

Automatic cancelation of constant

speed control mode

Constant speed control mode is automati-

cally canceled in the following situations:

●

Actual vehicle speed is more than

approximately 10 mph (16 km/h) below

the set vehicle speed.

●

Actual vehicle speed falls below approxi-

mately 20 mph (30 km/h).

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is

turned off.

●

When the brake control or output

restriction control of a driving support

system operates. (For example: Pre-Col-

lision System, Drive-Start Control)

●

The parking brake is operated.

If constant speed control mode is automati-

cally canceled for any reasons other than

the above, there may be a malfunction in

the system. Contact your Lexus dealer.

204

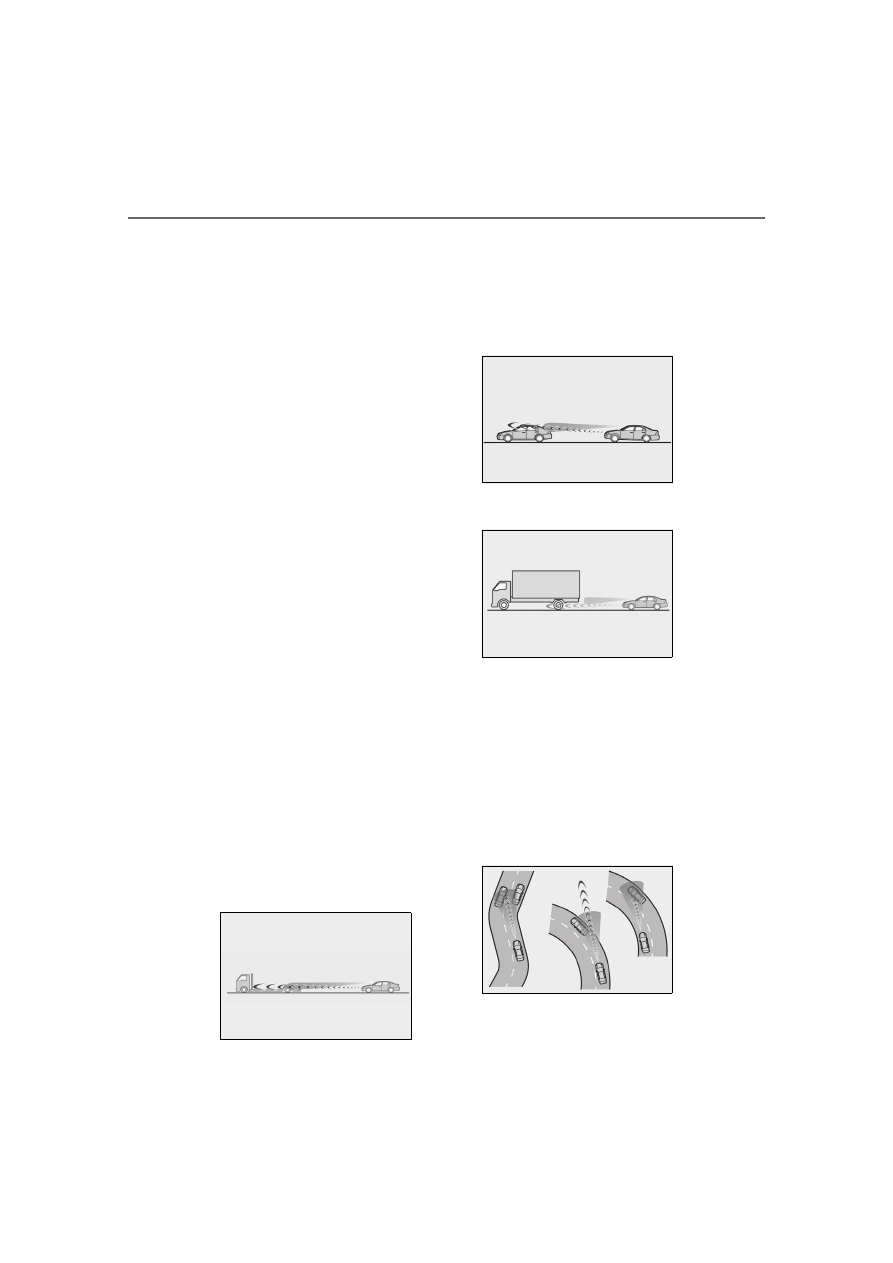

4-5. Using the driving support systems

■

Situations in which the curve speed

reduction function may not operate

In situations such as the following, the curve

speed reduction function may not operate:

●

When the vehicle is being driven around

a gentle curve.

●

When the accelerator pedal is being

depressed.

●

When the vehicle is being driven around

an extremely short curve.

■

Brake operation

A brake operation sound may be heard and

the brake pedal response may change, but

these are not malfunctions.

■

Warning messages and buzzers for

dynamic radar cruise control with full-

speed range

Warning messages and buzzers are used to

indicate a system malfunction or to inform

the driver of the need for caution while driv-

ing. If a warning message is shown on the

multi-information display, read the message

and follow the instructions. (



P.172, 357)

■

When the sensor may not be correctly

detecting the vehicle ahead

In the case of the following and depending

on the conditions, operate the brake pedal

when deceleration of the system is insuffi-

cient or operate the accelerator pedal

when acceleration is required.

As the sensor may not be able to correctly

detect these types of vehicles, the approach

warning (



P.201) may not be activated.

●

Vehicles that cut in suddenly

●

Vehicles traveling at low speeds

●

Vehicles that are not moving in the same

lane

●

Vehicles with small rear ends (trailers

with no load on board, etc.)

●

Motorcycles traveling in the same lane

●

When water or snow thrown up by the

surrounding vehicles hinders the detect-

ing of the sensor

●

When your vehicle is pointing upwards

(caused by a heavy load in the luggage

compartment, etc.)

●

Preceding vehicle has an extremely high

ground clearance

■

Conditions under which the vehicle-to-

vehicle distance control mode may not

function correctly

In the case of the following conditions,

operate the brake pedal (or accelerator

pedal, depending on the situation) as nec-

essary.

As the sensor may not be able to correctly

detect vehicles ahead, the system may not

operate properly.

●

When the road curves or when the lanes

are narrow

●

When steering wheel operation or your

position in the lane is unstable

205

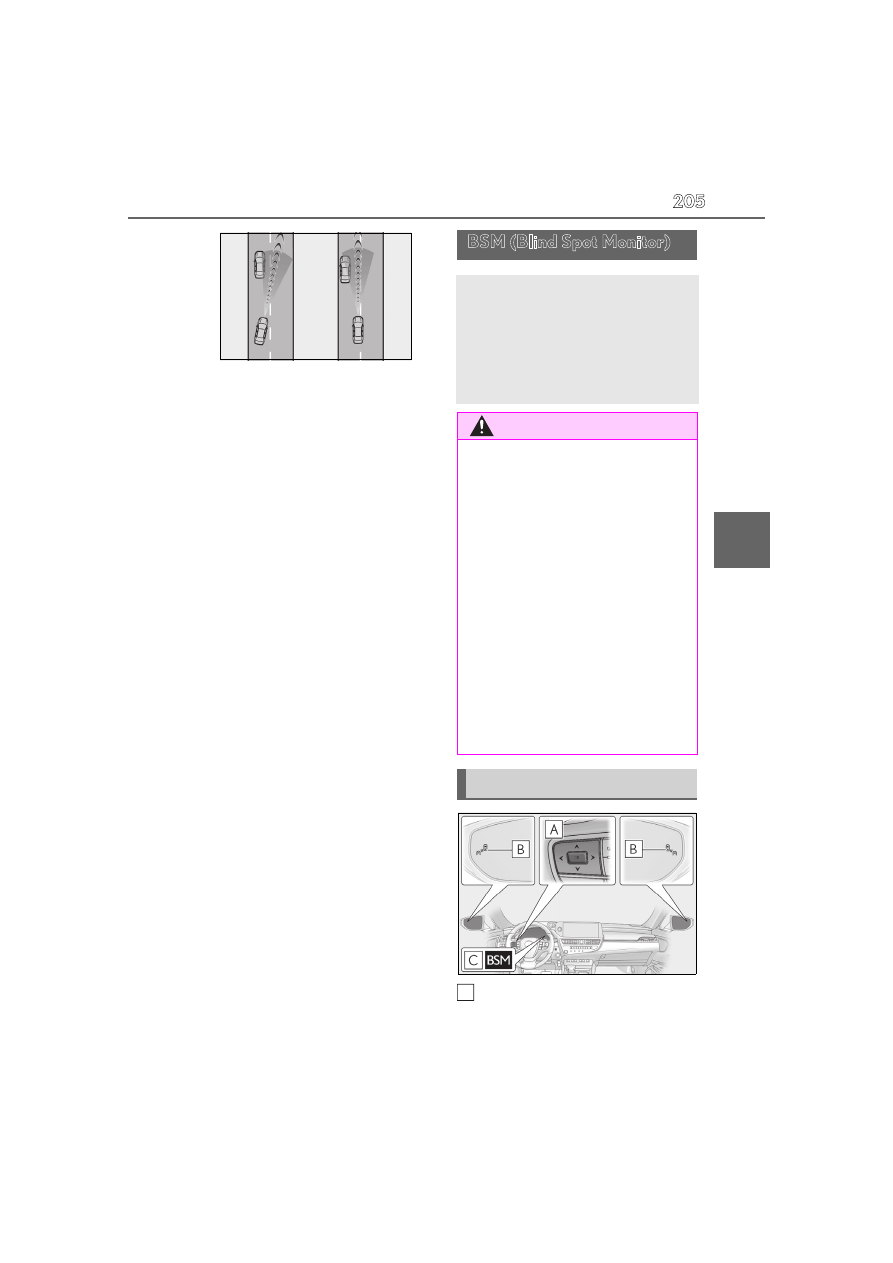

4-5. Using the driving support systems

4

Driving

●

When the vehicle ahead of you deceler-

ates suddenly

●

When driving on a road surrounded by a

structure, such as in a tunnel or on a

bridge

●

While the vehicle speed is decreasing to

the set speed after the vehicle acceler-

ates by depressing the accelerator pedal

■

Situations in which the curve speed

reduction function may not operate

properly

In situations such as the following, the curve

speed reduction function may not operate

properly:

●

When the vehicle is being driven around

a curve on an incline/decline

●

When the course of the vehicle differs

from the shape of the curve

●

When the vehicle speed is excessively

high when entering a curve

●

When the steering wheel is suddenly

operated

Meter control switches

Turn the Blind Spot Monitor on/off.

BSM (Blind Spot Monitor)

The Blind Spot Monitor is a system
that uses rear side radar sensors
installed on the inner side of the
rear bumper on the left and right
side to assist the driver in confirm-
ing safety when changing lanes.

WARNING

■

Cautions regarding the use of the

function

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The Blind Spot Monitor is a supplemen-

tary function which alerts the driver that a

vehicle is in a blind spot of the outside

rear view mirrors or is approaching rap-

idly from behind into a blind spot. Do not

overly rely on the Blind Spot Monitor. As

the function cannot judge if it is safe to

change lanes, over reliance could lead to

an accident resulting in death or serious

injury.
As the system may not function correctly

under certain conditions, the driver’s

own visual confirmation of safety is nec-

essary.

System components

A

206

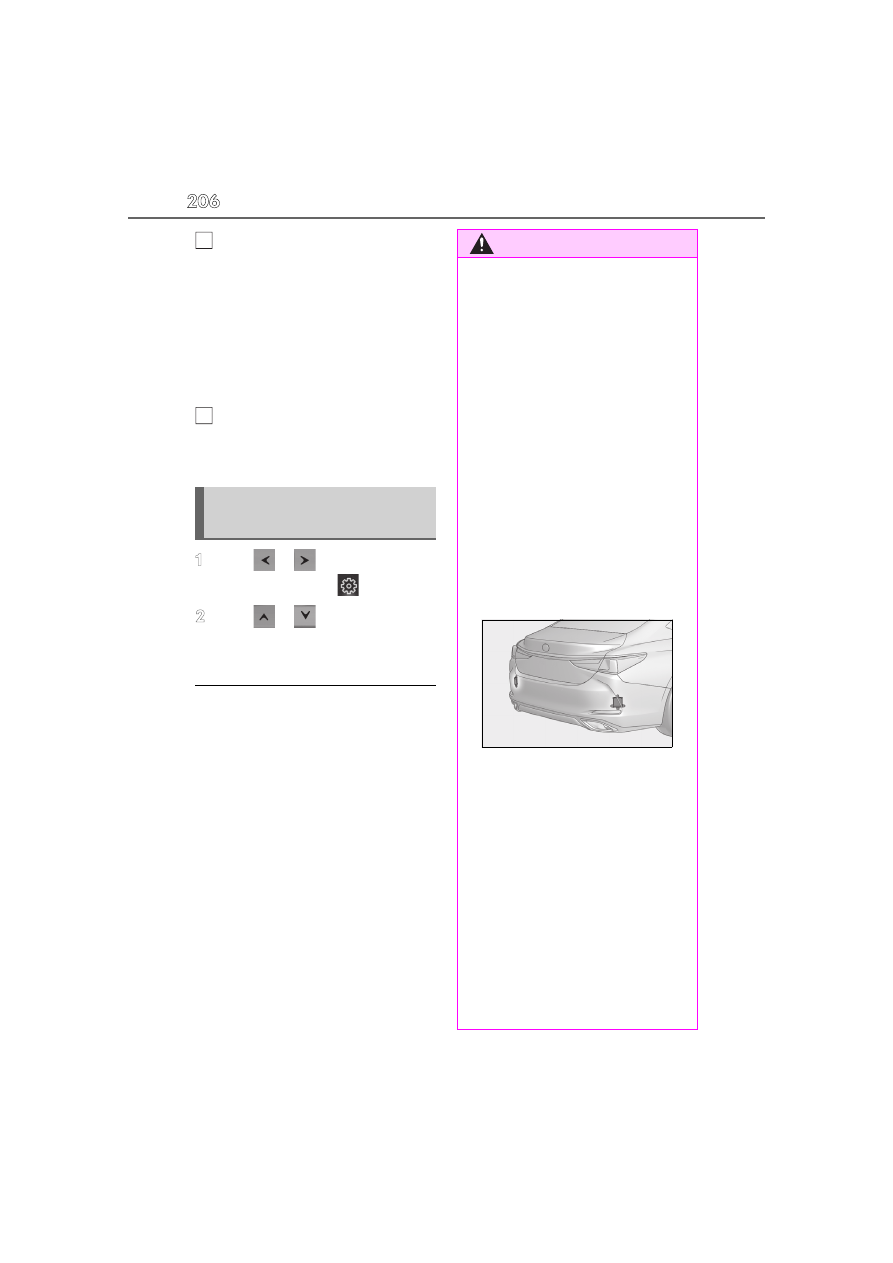

4-5. Using the driving support systems

Outside rear view mirror indicators

When a vehicle is detected in a blind spot
of the outside rear view mirrors or
approaching rapidly from behind into a
blind spot, the outside rear view mirror
indicator on the detected side will illumi-
nate. If the turn signal lever is operated
toward the detected side, the outside rear
view mirror indicator will flash.

BSM indicator

When the Blind Spot Monitor is turned on,
the indicator comes on.

1

Press

 or

 of the meter con-

trol switches, select

.

2

Press

 or

 of the meter con-

trol switches, select “BSM”, and
then press “OK”.

■

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

■

When “Blind Spot Monitor Unavailable”

is shown on the multi-information dis-

play

Ice, snow, mud, etc., may be attached to the

rear bumper around the sensors.

(



P.206) Remove the ice, snow, mud, etc.,

attached to the rear bumper around the

sensors to return the function to normal.

Additionally, the sensors may not operate

normally when driving in extremely hot or

cold environments.

■

Customization

Some functions can be customized. (Cus-

tomizable features:



P.404)

Turning the Blind Spot Monitor
on/off

B

C

WARNING

■

To ensure the system can operate

properly

Blind Spot Monitor sensors are installed

behind the left and right sides of the rear

bumper respectively. Observe the fol-

lowing to ensure the Blind Spot Monitor

can function correctly.

●

Keep the sensors and the surrounding

areas on the rear bumper clean at all

times.

If a sensor or its surrounding area on

the rear bumper is dirty or covered

with snow, the Blind Spot Monitor may

not operate and a warning message

(



P.206) will be displayed. In this sit-

uation, clear off the dirt or snow and

drive the vehicle with the operation

conditions of the BSM function

(



P.208) satisfied for approximately

10 minutes. If the warning message

does not disappear, have the vehicle

inspected by your Lexus dealer.

●

Do not subject a sensor or its sur-

rounding area on the rear bumper to a

strong impact.

If a sensor is moved even slightly off

position, the system may malfunction

and vehicles may not be detected cor-

rectly.

In the following situations, have your

vehicle inspected by your Lexus

dealer.

• A sensor or its surrounding area is

subject to a strong impact.

• If the surrounding area of a sensor is

scratched or dented, or part of them

has become disconnected.

●

Do not disassemble the sensor.

207

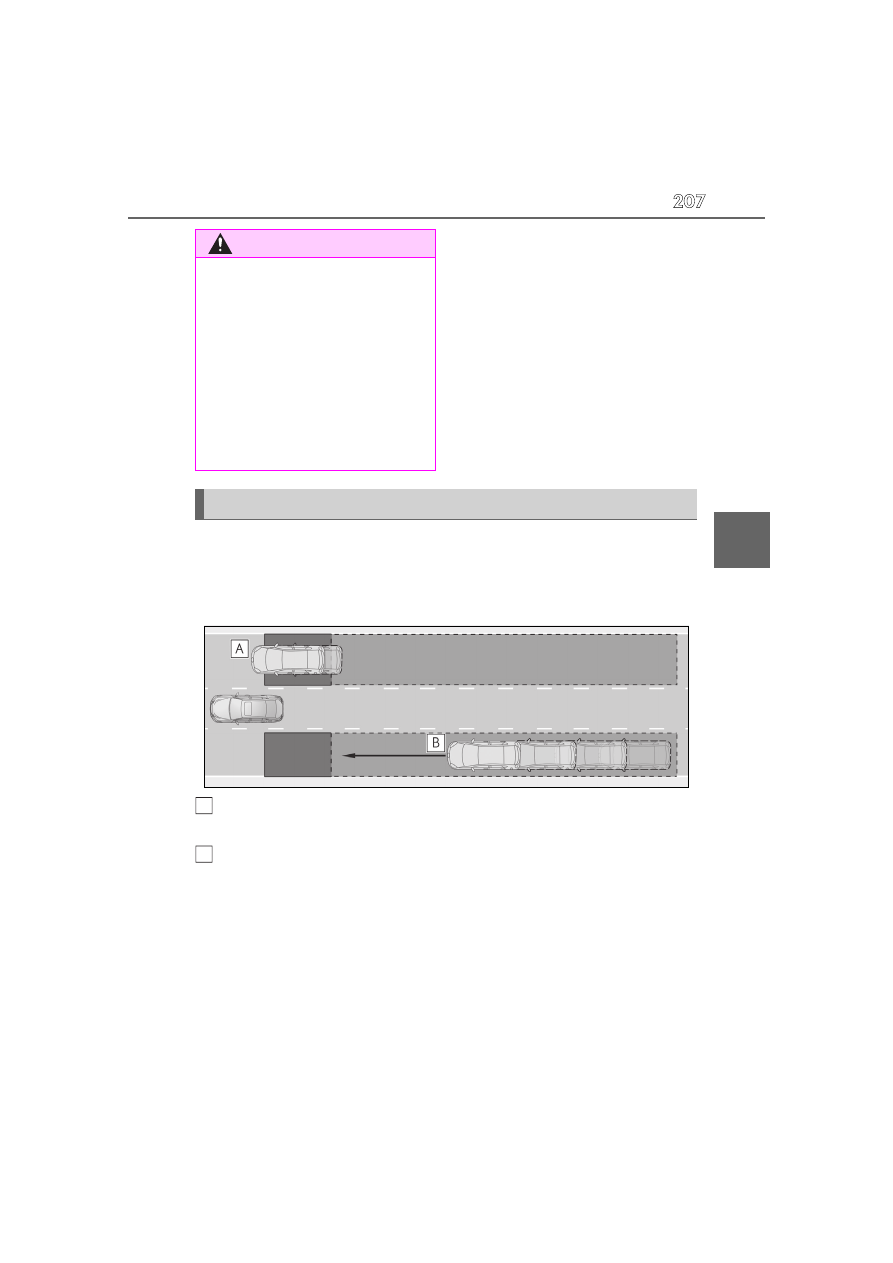

4-5. Using the driving support systems

4

Driving

■

Vehicles that can be detected by the Blind Spot Monitor

The Blind Spot Monitor uses rear side radar sensors to detect the following vehi-
cles traveling in adjacent lanes and advises the driver of the presence of such vehi-
cles via the indicators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)

Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

■

Blind Spot Monitor detection areas

The areas that vehicles can be detected in are outlined below.

WARNING

●

Do not attach accessories, stickers

(including transparent stickers), alumi-

num tape, etc. to a sensor or its sur-

rounding area on the rear bumper.

●

Do not modify the sensor or surround-

ing area on the rear bumper.

●

If a sensor or the rear bumper needs to

be removed/installed or replaced,

contact your Lexus dealer.

●

Do not paint the rear bumper any

color other than an official Lexus color.

Blind Spot Monitor operation

A

B

208

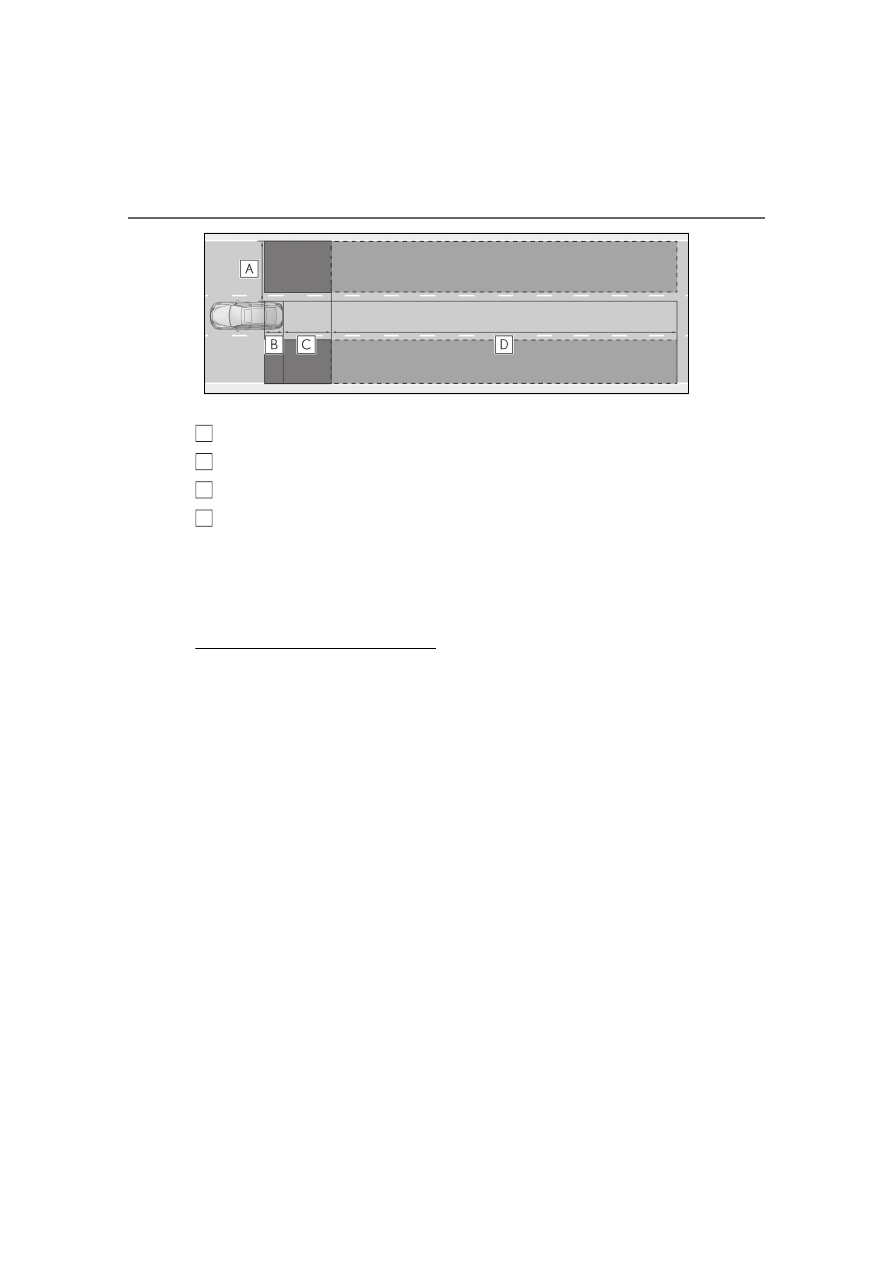

4-5. Using the driving support systems

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of the vehicle

*1

Approximately 3.3 ft. (1 m) forward of the rear bumper

Approximately 9.8 ft. (3 m) from the rear bumper

Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear bumper

*2

*1

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side of the vehicle

cannot be detected.

*2

: The greater the difference in speed between your vehicle and the detected vehicle is,

the farther away the vehicle will be detected, causing the outside rear view mirror indi-
cator to illuminate or flash.

■

The Blind Spot Monitor is operational

when

The Blind Spot Monitor is operational when

all of the following conditions are met:

●

The Blind Spot Monitor is on.

●

The shift lever is in a position other than R.

●

The vehicle speed is greater than

approximately 10 mph (16 km/h).

■

The Blind Spot Monitor will detect a

vehicle when

The Blind Spot Monitor will detect a vehicle

present in the detection area in the follow-

ing situations:

●

A vehicle in an adjacent lane overtakes

your vehicle.

●

You overtake a vehicle in adjacent lane

slowly.

●

Another vehicle enters the detection

area when it changes lanes.

■

Conditions under which the system will

not detect a vehicle

The Blind Spot Monitor is not designed to

detect the following types of vehicles

and/or objects:

●

Small motorcycles, bicycles, pedestrians,
etc.

*

●

Vehicles traveling in the opposite direc-

tion

●

Guardrails, walls, signs, parked vehicles
and similar stationary objects

*

●

Following vehicles that are in the same
lane

*

●

Vehicles traveling 2 lanes away from
your vehicle

*

●

Vehicles which are being overtaken rap-
idly by your vehicle.

*

*

: Depending on the conditions, detection

of a vehicle and/or object may occur.

A
B
C
D

209

4-5. Using the driving support systems

4

Driving

■

Conditions under which the system may

not function correctly

●

The Blind Spot Monitor may not detect

vehicles correctly in the following situa-

tions:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When the distance between your vehicle

and a following vehicle is short

• When there is a significant difference in

speed between your vehicle and the

vehicle that enters the detection area

• When the difference in speed between

your vehicle and another vehicle is

changing

• When a vehicle enters a detection area

traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehi-

cle remains in the detection area

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When vehicle lanes are wide, or when

driving on the edge of a lane, and the

vehicle in an adjacent lane is far away

from your vehicle

• When an accessory (such as a bicycle

carrier) or towing eyelet is installed to the

rear of the vehicle

• When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

• Immediately after the Blind Spot Monitor

is turned on

●

Instances of the Blind Spot Monitor

unnecessarily detecting a vehicle and/or

object may increase in the following situ-

ations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When the distance between your vehicle

and a guardrail, wall, etc. that enters the

detection area is short

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When vehicle lanes are narrow, or when

driving on the edge of a lane, and a vehi-

cle traveling in a lane other than the adja-

cent lanes enters the detection area

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle

and a following vehicle is short

• When an accessory (such as a bicycle

carrier) or towing eyelet is installed to the

rear of the vehicle

210

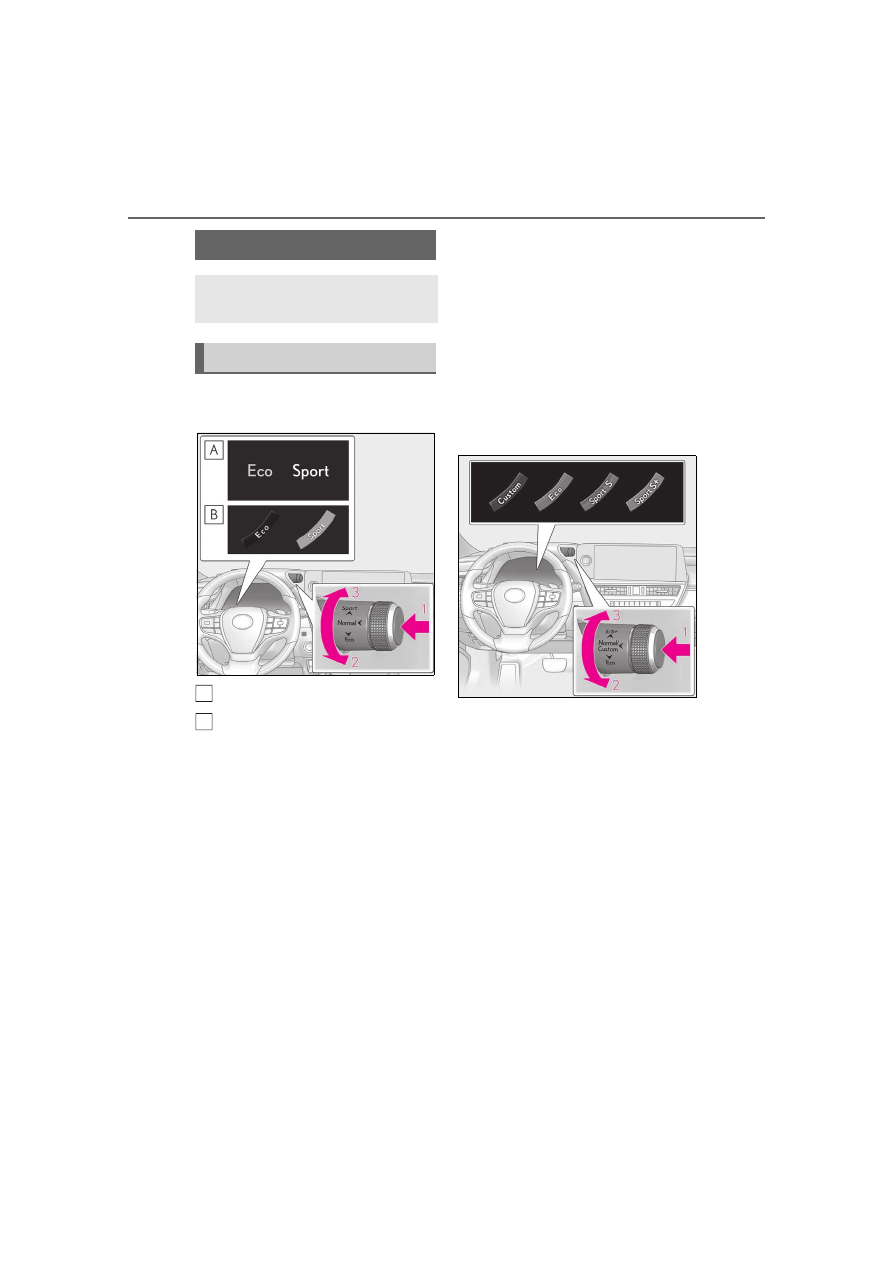

4-5. Using the driving support systems



Vehicles without Adaptive Variable
Suspension system

Except F SPORT models

F SPORT models

1

Normal mode

Provides an optimal balance of fuel econ-
omy, quietness, and dynamic performance.
Suitable for city driving.
Press the switch to change to normal mode
when not in normal mode.

2

Eco drive mode

Helps the driver accelerate in an eco-
friendly manner and improve fuel economy
through moderate throttle characteristics
and by controlling the operation of the air
conditioning system (heating/cooling).
When not in Eco drive mode, if the Driving
Mode Select switch is turned toward you,
the Eco drive mode indicator comes on.

3

Sport mode

Controls the transmission and engine to
provide quick, powerful acceleration. This
mode is suitable for when agile driving
response is desired, such as when driving
on roads with many curves.
When not in SPORT mode, if the Driving
Mode Select switch is turned away from
you, the Sport mode indicator comes on.



Vehicles with Adaptive Variable
Suspension system

1

Normal mode/Custom mode

Normal mode and custom mode are
selected by pressing the Driving Mode
Select switch. Each time the switch is
pressed, the driving mode changes
between normal mode and custom mode.
When custom mode is selected, the Cus-
tom mode indicator comes on.
Press the switch to change the driving
mode to normal mode when not in normal
mode.
• Normal mode
Provides an optimal balance of fuel econ-
omy, quietness, and dynamic performance.
Suitable for city driving.
• Custom mode
Allows you to drive with the power train,

Driving Mode Select switch

The driving modes can be selected
to suit driving condition.

Selecting the driving mode

A
B

211

4-5. Using the driving support systems

4

Driving

chassis and air conditioning system func-
tions set to your preferred settings.
Custom mode settings can only be
changed on the drive mode customization
display of the Center Display. (



P.404)

2

Eco drive mode

Helps the driver accelerate in an eco-
friendly manner and improve fuel economy
through moderate throttle characteristics
and by controlling the operation of the air
conditioning system (heating/cooling).
When not in Eco drive mode, if the Driving
Mode Select switch is turned toward you,
the Eco drive mode indicator comes on.

3

Sport mode

• Sport  S  mode
Controls the transmission and engine to
provide quick, powerful acceleration. This
mode is suitable for when agile driving
response is desired, such as when driving
on roads with many curves.
When not in Sport S mode, if the Driving
Mode Select switch is turned away from
you, the Sport S mode indicator comes on.
• Sport  S+  mode
Helps to ensure steering performance and
driving stability by simultaneously con-
trolling the steering and suspension in
addition to the transmission and engine.
Suitable for sportier driving.
When in Sport S mode, if the Driving
Mode Select switch is turned away from
you, the Sport S+ mode indicator comes
on.

■

Operation of the air conditioning sys-

tem in Eco drive mode

Eco drive mode controls the heating/cool-

ing operations and fan speed of the air con-

ditioning system to enhance fuel efficiency.

To improve air conditioning performance,

perform the following operations:

●

Turn off eco air conditioning mode

(



P.259)

●

Adjust the fan speed (



P.255)

●

Turn off Eco drive mode (



P.210)

■

Automatic deactivation of sport mode

and custom mode (if equipped)

If the engine switch is turned off after driv-

ing in sport mode or custom mode, the

drive mode will be changed to normal

mode.

■

Driving mode pop-up display

When the driving mode is changed, the

selected driving mode will be temporarily

displayed on the Center Display. (Except

for Normal mode)
For Custom mode, select “Settings” on the

display to customize the driving mode.

■

Customization (vehicles with Adaptive

Variable Suspension system)

Settings (e.g. custom mode) can be

changed.
(Customizable features:



P.404)

212

4-5. Using the driving support systems

*

: If  equipped

■

Intuitive parking assist

Ultrasonic sensors are used to detect
static objects in the detection area
when driving at a low speed or backing
up. (



P.213)

■

RCTA (Rear Cross Traffic Alert)
function

Rear side radar sensors are used to
detect approaching vehicles in the
detection areas behind the vehicle
when backing up. (



P.221)

■

RCD (Rear Camera Detection)
function (if equipped)

A rear camera sensor is used to detect
pedestrians in the detection area
behind the vehicle when backing up.
(



P.227)

■

Adjusting the buzzer volume

The buzzer volume can be adjusted on
the multi-information display. The vol-
ume of buzzers for the intuitive parking
assist, RCTA function and RCD func-
tion will be adjusted simultaneously.
Use the meter control switches to
change settings. (



P.77)

1

Press

 or

 to select

.

2

Press

 or

 to select “PKSA”

and then press “OK”.

3

Press

 or

 to select

 and

then press “OK”.

Each time the switch is pressed, the vol-

ume level will change between 1, 2, and 3.

■

Muting a buzzer temporarily

A mute button will be displayed on the
multi-information display or Center
Display (vehicles with 12.3-inch Cen-
ter Display and Lexus parking assist
monitor) when an object or pedestrian
is detected. To mute the buzzer, press
“OK” or

.

The buzzers for the intuitive parking
assist, RCTA function and RCD func-
tion will be muted simultaneously.
Mute will be automatically canceled in
the following situations:



When the shift position is changed.



When there is a malfunction in a
sensor or the system is temporarily
unavailable.



When the function is disabled while
it is operating.

PKSA (Parking Support
Alert)

*

The Parking Support Alert system
consists of the following functions
that operate when driving at a low
speed or backing up, such as when
parking. When the system deter-
mines that the possibility of a colli-
sion with a detected object, such as
a wall, or pedestrian is high, a warn-
ing operates to urge the driver to
take evasive action.

PKSA (Parking Support Alert)
system

Setting the buzzer volume
