56

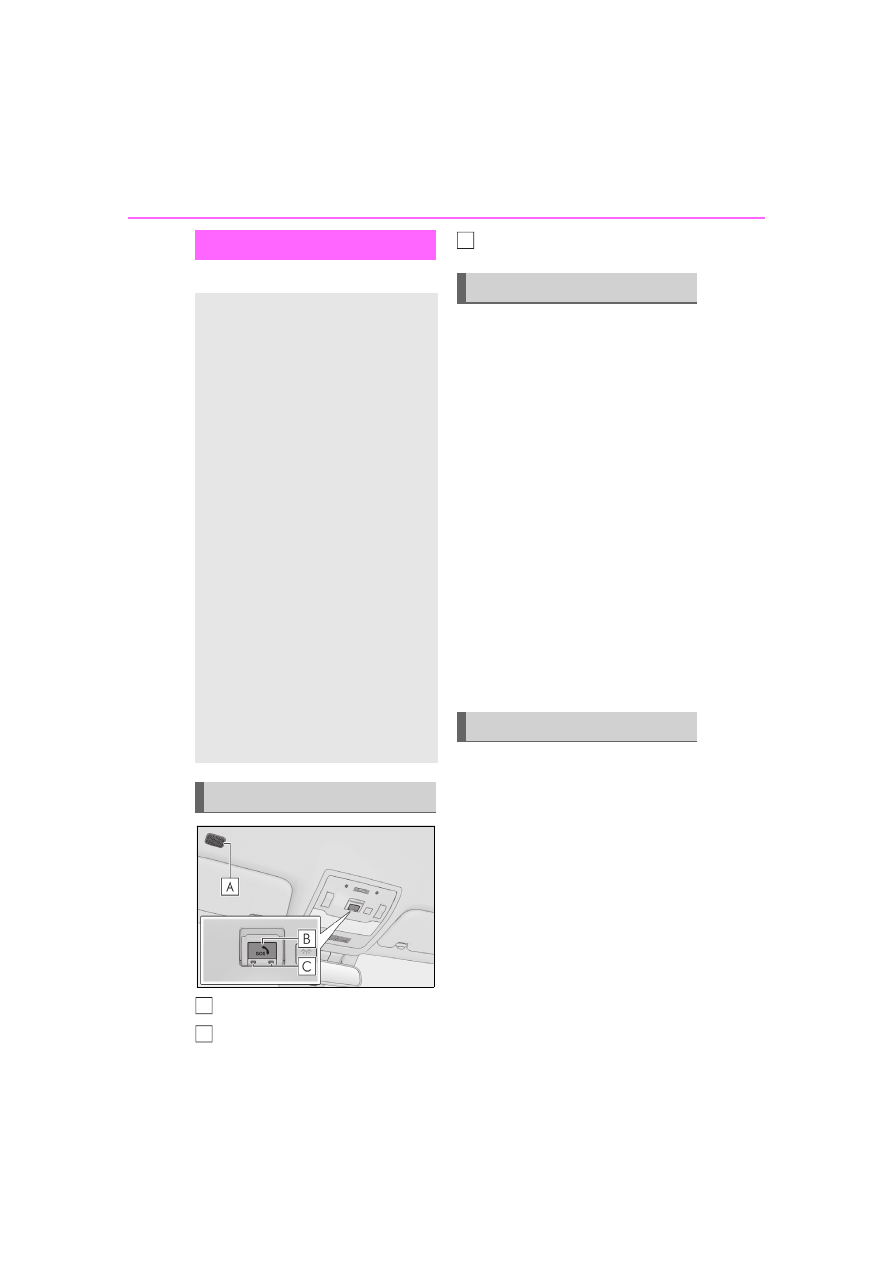

1-3. Safety Connect

1-3.Safety Connect

*

: If  equipped

Microphone

“SOS” button

LED light indicators

Subscribers have the following Safety
Connect services available:

Automatic Collision Notification

*

Helps drivers receive necessary response
from emergency service providers.
(

P.57

)

*

: U.S. Patent No. 7,508,298 B2

Stolen Vehicle Location

Helps drivers in the event of vehicle theft.
(

P.58

)

Emergency Assistance Button
(“SOS”)

Connects drivers to response-center sup-
port. (

P.58

)

Enhanced Roadside Assistance

Provides drivers various on-road assis-
tance. (

P.58

)

After you have signed the Telematics
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.
• The United States

1-800-25-LEXUS (1-800-255-3987)

• Canada

1-800-26-LEXUS (1-800-265-3987)

• Puerto  Rico

Safety Connect

*

Safety Connect is a subscription-
based telematics service that uses
Global Positioning System (GPS)
data and embedded cellular tech-
nology to provide safety and secu-
rity features to subscribers. Safety
Connect is supported by Lexus’
designated response center, which
operates 24 hours per day, 7 days
per week.

Safety Connect service is available
by subscription on select, telemat-
ics hardware-equipped vehicles.

By using the Safety Connect ser-
vice, you are agreeing to be bound
by the Connected Services Terms
of Use, as in effect and amended
from time to time, a current copy of
which is available at Lexus.com. All
use of the Safety Connect service is
subject to such then-applicable
Terms and Conditions.

System components

A
B

Services

Subscription

C

57

1-3. Safety Connect

1

For safety and security

1-877-539-8777

Safety Connect Services Information

Phone calls using the vehicle’s
Bluetooth

®

 technology will not be possi-

ble during Safety Connect.

Bluetooth

®

 is a registered trademark of

Bluetooth SIG, Inc.

Safety Connect is available beginning

Fall 2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

When contacting the response center

You may be unable to contact the response

center if the network is busy.

When the power switch is turned to
ON, the red indicator light comes on
for 2 seconds then turns off. Afterward,
the green indicator light comes on,
indicating that the service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:

Green indicator light on = Active
service

Green indicator light flashing =
Safety Connect call in process

Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)

No indicator light (off) = Safety
Connect service not active

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding
agent receives the vehicle’s location
and attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-

Safety Connect LED light Indi-
cators

Safety Connect services

58

1-3. Safety Connect

tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS (1-800-255-
3987) in the United States, 1-877-
539-8777 in Puerto Rico or 1-800-
265-3987 in Canada, and follow the
prompts for Safety Connect to initiate
this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-

ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio
transmitter and receiver. It receives
and also sends out radio frequency
(RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.

ANSI (American National Stan-
dards Institute) C95.1 [1992]

NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]

ICNIRP (International Commission
on Non-Ionizing Radiation Protec-

Safety information for Safety
Connect

59

1-3. Safety Connect

1

For safety and security

tion) [1996]

Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-
plies with the FCC guidelines in addi-
tion to those standards.

Free/Open Source Software Informa-

tion

This product contains Free/Open Source

Software (FOSS). The license information

and/or the source code of such FOSS can

be found at the following URL.
https://www.denso.com/global/en/

opensource/dcm/toyota/

60

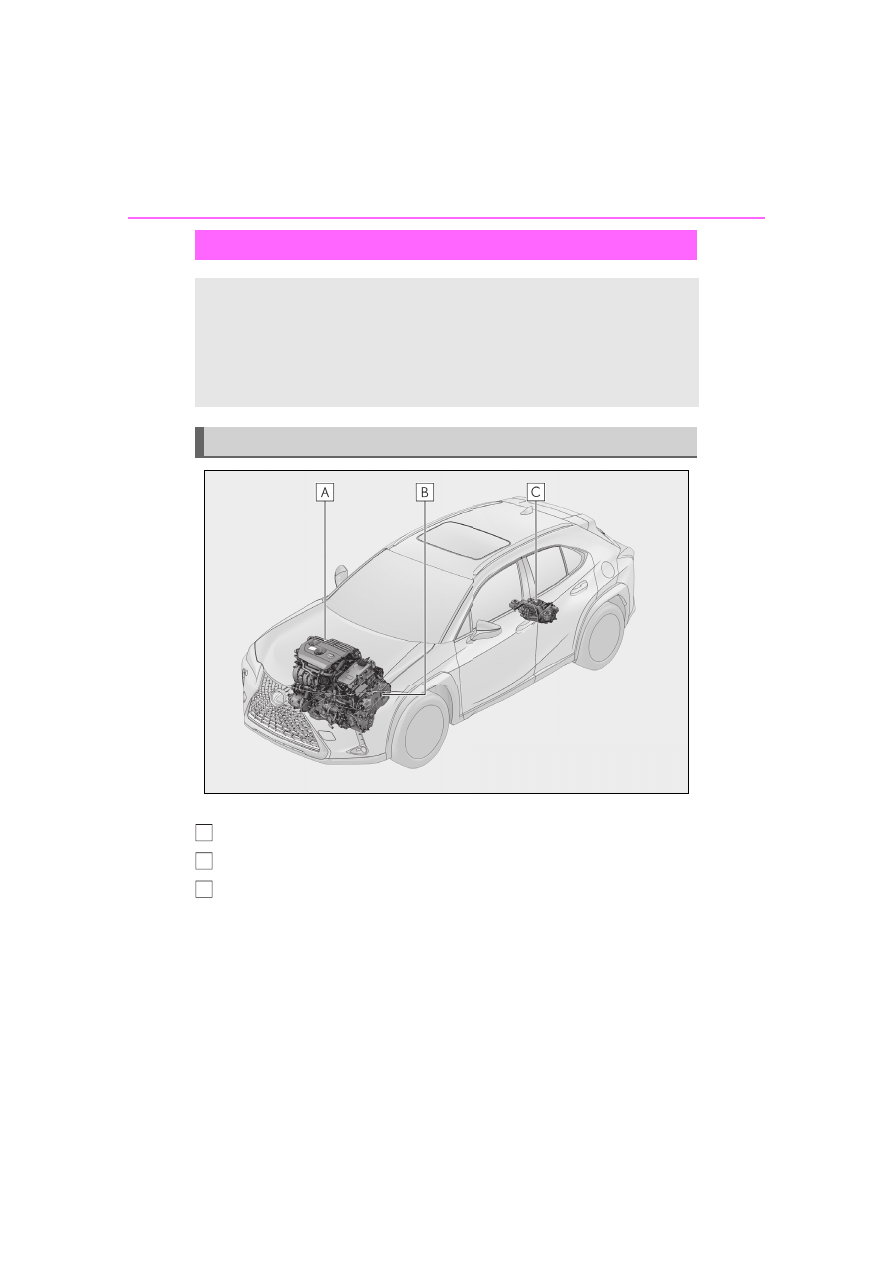

1-4. Hybrid system

1-4.Hybrid system

The illustration is an example for explanation and may differ from the actual item.

Gasoline engine

Front electric motor (traction motor)

Rear electric motor (traction motor)

*

*

: AWD  models  only

When stopped/during start off

The gasoline engine stops

*

 when the

vehicle is stopped. During start off, the
electric motor (traction motor) drives
the vehicle. At slow speeds or when

traveling down a gentle slope, the
engine is stopped

*

 and the electric

motor (traction motor) is used.
When the shift lever is in N, the hybrid
battery (traction battery) is not being

Hybrid system features

Your vehicle is a Hybrid Electric Vehicle. It has characteristics different from
conventional vehicles. Be sure you are closely familiar with the characteristics
of your vehicle, and operate it with care.
The hybrid system combines the use of a gasoline engine and an electric
motor (traction motor) according to driving conditions, improving fuel effi-
ciency and reducing exhaust emissions.

System components

A
B
C

61

1-4. Hybrid system

1

For safety and security

charged.

*

: When the hybrid battery (traction bat-

tery) requires charging or the engine is
warming up, etc., the gasoline engine will
not automatically stop. (

P.61)

During normal driving

The gasoline engine is predominantly
used. The electric motor (traction
motor) charges the hybrid battery
(traction battery) as necessary.

When accelerating sharply

When the accelerator pedal is
depressed heavily, the power of the
hybrid battery (traction battery) is
added to that of the gasoline engine via
the electric motor (traction motor).

When braking (regenerative brak-
ing)

The wheels operate the electric motor
(traction motor) as a power generator,
and the hybrid battery (traction bat-
tery) is charged.

Regenerative braking

In the following situations, kinetic energy is

converted to electric energy and decelera-

tion force can be obtained in conjunction

with the recharging of the hybrid battery

(traction battery).

The accelerator pedal is released while

driving with the shift lever in D or S.

The brake pedal is depressed while driv-

ing with the shift lever in D or S.

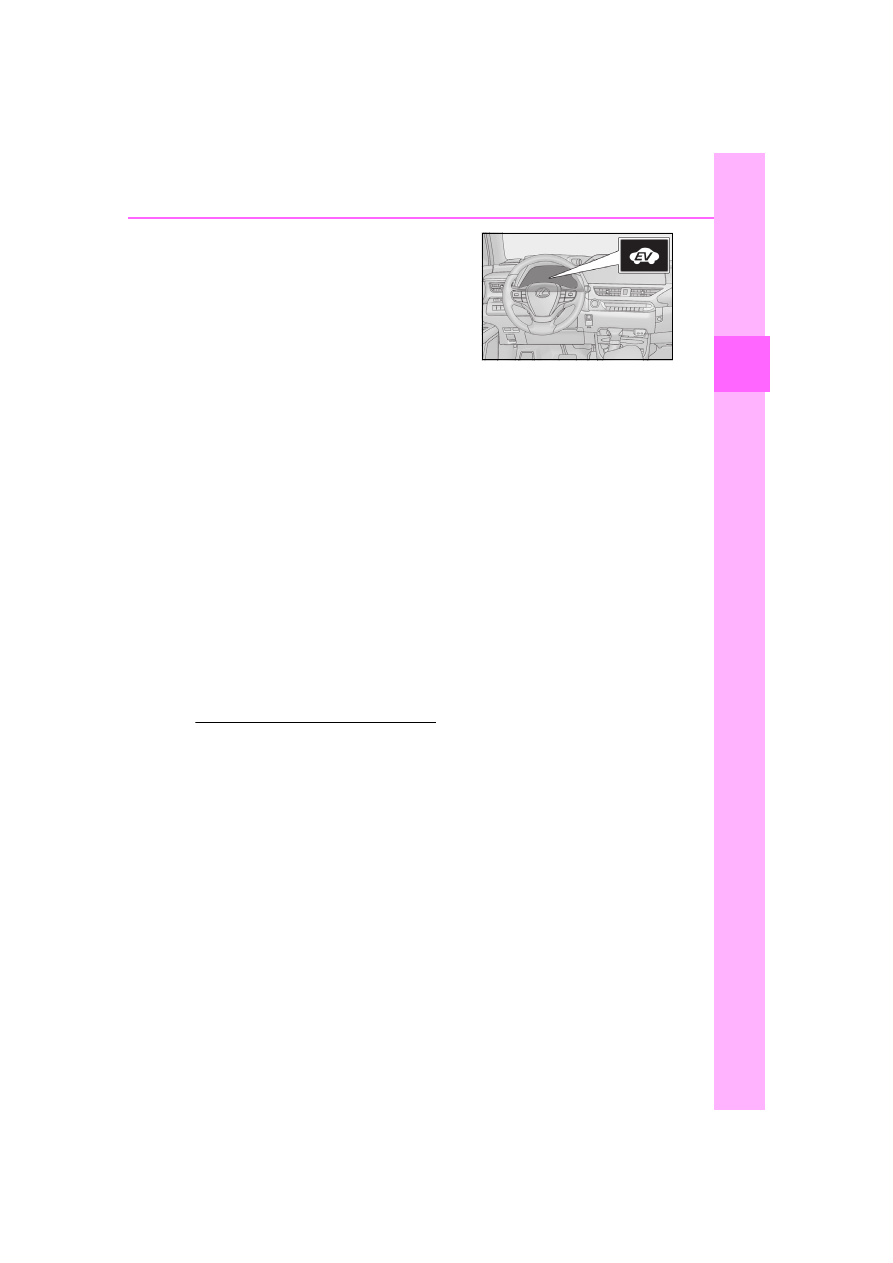

EV indicator

The EV indicator comes on when the vehi-

cle is driven using only the electric motor

(traction motor) or the gasoline engine is

stopped.

Conditions in which the gasoline engine

may not stop

The gasoline engine starts and stops auto-

matically. However, it may not stop auto-
matically in the following conditions

*

:

During gasoline engine warm-up

During hybrid battery (traction battery)

charging

When the temperature of the hybrid bat-

tery (traction battery) is high or low

When the heater is switched on

*

: Depending on the circumstances, the

gasoline engine may also not stop auto-
matically in other situations.

Charging the hybrid battery (traction

battery)

As the gasoline engine charges the hybrid

battery (traction battery), the battery does

not need to be charged from an outside

source. However, if the vehicle is left

parked for a long time the hybrid battery

(traction battery) will slowly discharge. For

this reason, be sure to drive the vehicle at

least once every few months for at least 30

minutes or 10 miles (16 km). If the hybrid

battery (traction battery) becomes fully dis-

charged and you  are unable to start the

hybrid system, contact your Lexus dealer.

Charging the 12-volt battery

P.400

After the 12-volt battery has discharged

or when the terminal has been removed

and installed during exchange, etc.

The gasoline engine may not stop even if

the vehicle is being driven by the hybrid

battery (traction battery). If this continues

for a few days, contact your Lexus dealer.

62

1-4. Hybrid system

Sounds and vibrations specific to a

Hybrid Electric Vehicle

There may be no engine sound or vibration

even though the vehicle is able to move with

the “READY” indicator is illuminated. For

safety, apply the parking brake and make

sure to shift the shift lever to P when parked.
The following sounds or vibrations may

occur when the hybrid system is operating

and are not a malfunction:

Motor sounds may be heard from the

engine compartment.

Sounds may be heard from the hybrid

battery (traction battery) behind the rear

seats when the hybrid system starts or

stops.

Relay operating sounds such as a snap or

soft clank will be emitted from the hybrid

battery (traction battery), behind the rear

seats, when the hybrid system is started

or stopped.

Sounds from the hybrid system may be

heard when the back door is open.

Sounds may be heard from the hybrid

transmission when the gasoline engine

starts or stops, when driving at low

speeds, or during idling.

Engine sounds may be heard when

accelerating sharply.

Sounds may be heard due to regenera-

tive braking when the brake pedal is

depressed or as the accelerator pedal is

released.

Vibration may be felt when the gasoline

engine starts or stops.

Cooling fan sounds may be heard from

the air intake vent under the right side of

the rear seat.

Maintenance, repair, recycling, and dis-

posal

Contact your Lexus dealer regarding main-

tenance, repair, recycling and disposal. Do

not dispose of the vehicle yourself.

Customization

Settings (e.g. on/off operation of the EV

indicator) can be changed.

(Customizable features:

P.427)

When driving with the gasoline engine
stopped, a sound, which changes in
accordance with the driving speed, will
be played in order to warn people
nearby of the vehicle’s approach. This
sound may be heard inside the vehicle.
The sound will stop when the vehicle
speed exceeds approximately 22 mph
(35 km/h).

Acoustic Vehicle Alerting System

In the following cases, the Acoustic Vehicle

Alerting System may be difficult for sur-

rounding people to hear.

In very noisy areas

In the wind or the rain

Also, as the Acoustic Vehicle Alerting Sys-

tem is installed on the front of the vehicle, it

may be more difficult to hear from the rear

of the vehicle compared to the front.

*

: This function can only be used in the

mainland U.S.A. It cannot be used in
other states and territories, including
Alaska and Hawaii.

This system operates based on the
driving situation and traffic information
to enhance fuel economy.
For details about Predictive efficient
drive, refer to “MULTIMEDIA
OWNER’S MANUAL”.

Predictive deceleration support

When the vehicle approaches to pre-
dictive deceleration support points
registered in the navigation system, the
engine braking force will be increased

Acoustic Vehicle Alerting Sys-
tem

Predictive efficient drive

*

63

1-4. Hybrid system

1

For safety and security

according to the driving conditions to
more efficiently charge the hybrid bat-
tery (traction battery) after the accel-
erator pedal is released.

Predictive SOC

*

 control

The following types of control are per-
formed based on data such as road
and traffic information during route
guidance by the navigation system to
help ensure that the vehicle efficiently
uses electricity.

When there is a long downhill slope
along the route, the system reduces
the hybrid battery (traction battery)
level before reaching the slope to
help ensure charging capacity for
regenerative braking while traveling
downhill.

When traffic congestion is pre-
dicted along the route, the system
helps ensure a certain battery level
before reaching congested roads to
reduce the frequency of starting the
engine to charge the hybrid battery
(traction battery) due to low battery
levels.

*

: SOC means state of charge

64

1-4. Hybrid system

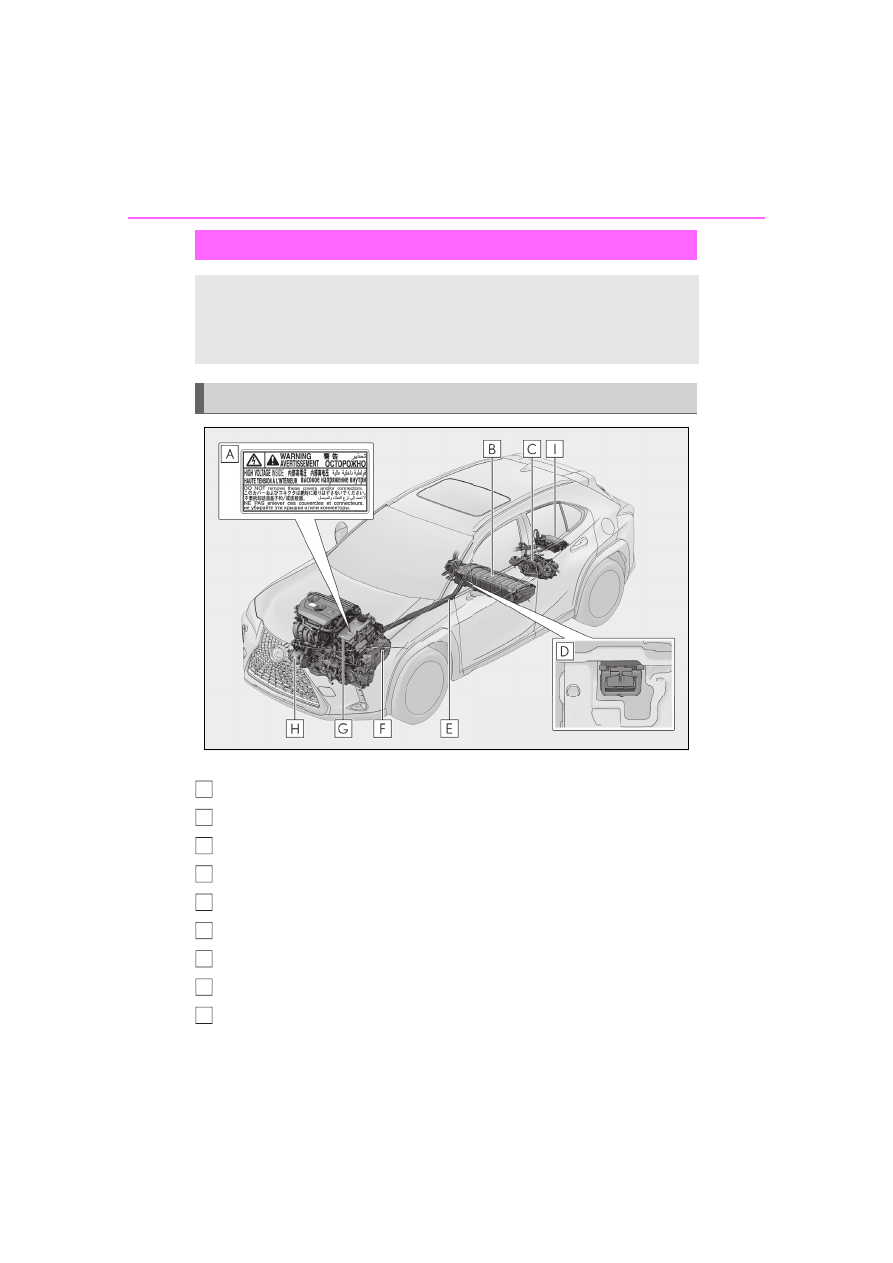

The illustration is an example for explanation and may differ from the actual item.

Warning label

Hybrid battery (traction battery)

Rear electric motor (traction motor)

*

Service plug

High voltage cables (orange)

Front electric motor (traction motor)

Power control unit

Air conditioning compressor

Rear inverter

*

Hybrid system precautions

Take care when handling the hybrid system, as it is a high voltage system
(about 650 V at maximum) as well as contains parts that become extremely
hot when the hybrid system is operating. Obey the warning labels attached to
the vehicle.

System components

A
B
C
D

E
F

G

H

I

65

1-4. Hybrid system

1

For safety and security

*

: AWD models only

Running out of fuel

When the vehicle has run out of fuel and the

hybrid system cannot be started, refuel the

vehicle with at least enough gasoline to

make the low fuel level warning light

(

P.382) go off. If there is only a small

amount of fuel, the hybrid system may not

be able to start. (The standard amount of

fuel is about 1.8 gal. [7.0 L, 1.5 Imp.gal.],

when the vehicle is on a level surface. This

value may vary when the vehicle is on a

slope. Add extra fuel when the vehicle is

inclined.)

Electromagnetic waves

High voltage parts and cables on Hybrid

Electric Vehicles incorporate electro-

magnetic shielding, and therefore emit

approximately the same amount of elec-

tromagnetic waves as conventional gaso-

line powered vehicles or home electronic

appliances.

Your vehicle may cause sound interfer-

ence in some third party-produced radio

parts.

Hybrid battery (traction battery)

The hybrid battery (traction battery) has a

limited service life. The lifespan of the

hybrid battery (traction battery) can change

in accordance with driving style and driving

conditions.

WARNING

High voltage precautions

This vehicle has high voltage DC and AC

systems as well as a 12-volt system. DC

and AC high voltage is very dangerous

and can cause severe burns and electric

shock that may result in death or serious

injury.

Never touch, disassemble, remove or

replace the high voltage parts, cables

or their connectors.

The hybrid system will become hot

after starting as the system uses high

voltage. Be careful of both the high

voltage and the high temperature, and

always obey the warning labels

attached to the vehicle.

Never try to open the service plug

access hole located underneath the

rear seats. The service plug is used

only when the vehicle is serviced and is

subject to high voltage.

Road accident cautions

Observe the following precautions to

reduce the risk of death or serious injury:

Pull your vehicle off the road, shift the

shift lever to P, apply the parking

brake, and turn the hybrid system off.

Do not touch the high voltage parts,

cables and connectors.

If electric wires are exposed inside or

outside your vehicle, an electric shock

may occur. Never touch exposed

electric wires.

If a fluid leak occurs, do not touch the

fluid as it may be strong alkaline elec-

trolyte from the hybrid battery (trac-

tion battery). If it comes into contact

with your skin or eyes, wash it off

immediately with a large amount of

water or, if possible, boric acid solu-

tion. Seek immediate medical atten-

tion.

66

1-4. Hybrid system

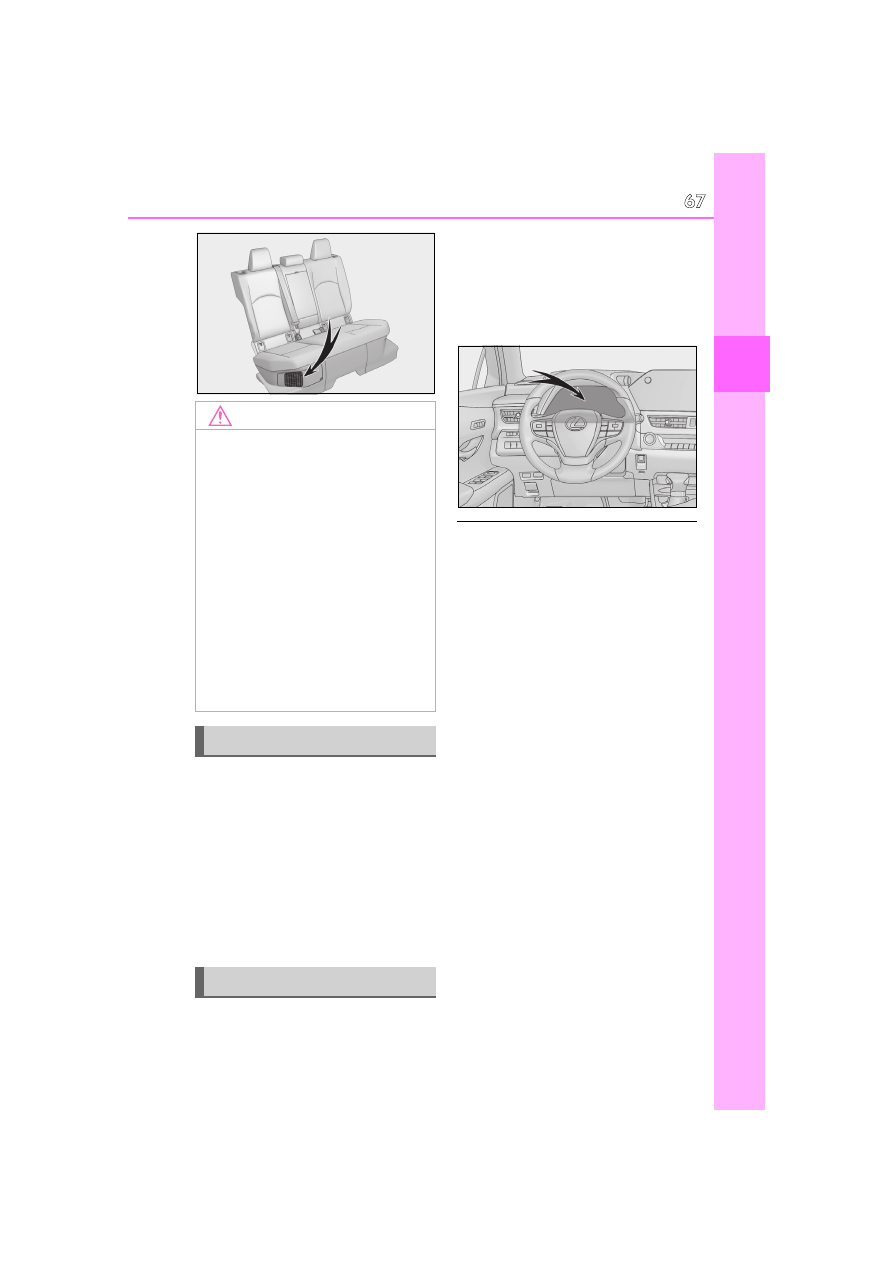

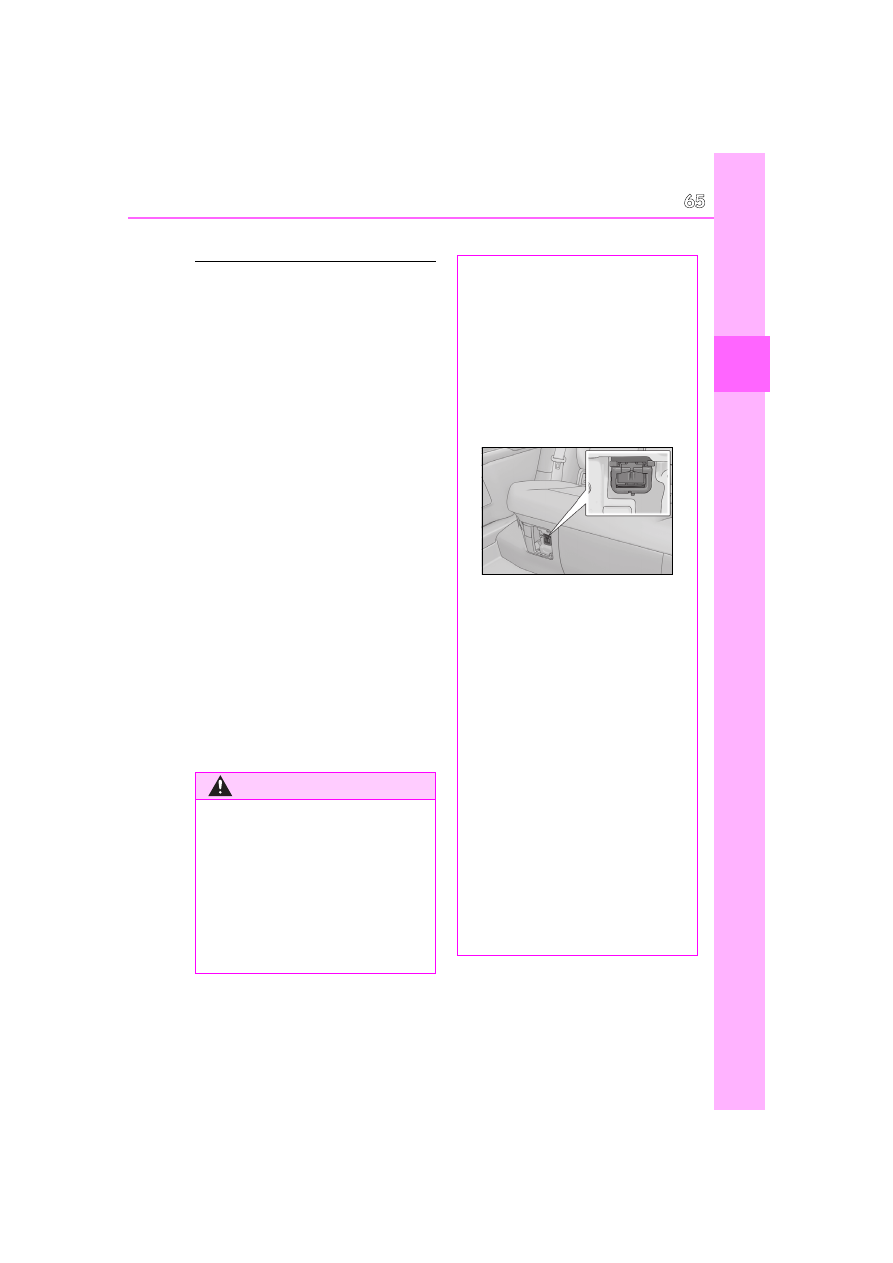

There is an air intake vent under the
right side of the rear seat with the pur-
pose of cooling the hybrid battery
(traction battery).
If the vent is blocked, it may interfere
with the cooling of the hybrid battery
(traction battery).

If input/output of the hybrid battery (trac-
tion battery) becomes limited and the dis-
tance that the vehicle can be driven using
the electric motor (traction motor) is
reduced, the fuel economy may be
reduced.

WARNING

If a fire occurs in the Hybrid Electric

Vehicle, leave the vehicle as soon as

possible. Never use a fire extinguisher

that is not meant for electric fires.

Using even a small amount of water

may be dangerous.

If your vehicle needs to be towed, do

so with front wheels (2WD models) or

four wheels (AWD models) raised. If

the wheels connected to the electric

motor (traction motor) are on the

ground when towing, the motor may

continue to generate electricity. This

may cause a fire. (

P.373)

Carefully inspect the ground under the

vehicle. If you find that liquid has

leaked onto the ground, the fuel sys-

tem may have been damaged. Leave

the vehicle as soon as possible.

Hybrid battery (traction battery)

Never resell, hand over or modify the

hybrid battery. To prevent accidents,

hybrid batteries that have been

removed from a disposed vehicle are

collected through Lexus dealers. Do

not dispose of the battery yourself.

Unless the battery is properly collected,
the following may occur, resulting in
death or serious injury:
• The hybrid battery may be illegally dis-

posed of or dumped, and it is hazard-

ous to the environment or someone

may touch a high voltage part, result-

ing in an electric shock.

• The hybrid battery is intended to be

used exclusively with your Hybrid

Electric Vehicle. If the hybrid battery is

used outside of your vehicle or modi-

fied in any way, accidents such as elec-

tric shock, heat generation, smoke

generation, an explosion and electro-

lyte leakage may occur.

When reselling or handing over your

vehicle, the possibility of an accident is

extremely high because the person

receiving the vehicle may not be aware

of these dangers.

If your vehicle is disposed of without

the hybrid battery having been

removed, there is a danger of serious

electric shock if high voltage parts,

cables and their connectors are

touched. In the event that your vehicle

must be disposed of, the hybrid battery

must be disposed of by your Lexus

dealer or a qualified service shop. If the

hybrid battery is not disposed of prop-

erly, it may cause electric shock that

can result in death or serious injury.

NOTICE

Hybrid battery (traction battery)

Do not carry large amounts of water

such as water cooler bottles in the vehi-

cle. If water spills onto the hybrid battery

(traction battery), the battery may be

damaged. Have the vehicle inspected by

your Lexus dealer.

Hybrid battery (traction battery)
air intake vent

67

1-4. Hybrid system

1

For safety and security

When a certain level of impact is
detected by the impact sensor, the
emergency shut off system blocks the
high voltage current and stops the fuel
pump to minimize the risk of electrocu-
tion and fuel leakage. If the emergency
shut off system activates, your vehicle
will not restart. To restart the hybrid
system, contact your Lexus dealer.

A message is automatically displayed
when a malfunction occurs in the

hybrid system or an improper opera-
tion is attempted.
If a warning message is shown on the
multi-information display, read the
message and follow the instructions.

If a warning light comes on, a warning

message is displayed, or the 12-volt bat-

tery is disconnected

The hybrid system may not start. In this

case, try to start the system again. If the

“READY” indicator does not come on, con-

tact your Lexus dealer.

NOTICE

Hybrid battery (traction battery) air

intake vent

Make sure not to block the air intake

vent with anything, such as a seat

cover, luggage, or carpet. The

input/output of the hybrid battery

(traction battery) may be restricted,

leading to a reduction in hybrid battery

(traction battery) output and a mal-

function.

Periodically clean the air intake vent to

prevent it from clogging. (

P.356)

Do not get water or foreign materials

in the air intake vent as this may cause

a short circuit and damage the hybrid

battery (traction battery).

Emergency shut off system

Hybrid warning message

68

1-5. Theft deterrent system

1-5.Theft deterrent system

The security indicator flashes after the
power switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the power switch has been turned to
ACC or ON to indicate that the sys-
tem has been canceled.

System maintenance

The vehicle has a maintenance-free type

immobilizer system.

Conditions that may cause the system to

malfunction

If the grip portion of the key is in contact

with a metallic object

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

Immobilizer system

The vehicle’s keys have built-in
transponder chips that prevent the
hybrid system from starting if a key
has not been previously registered
in the vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not guar-
antee absolute security against all
vehicle thefts.

Operating the system

NOTICE

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

69

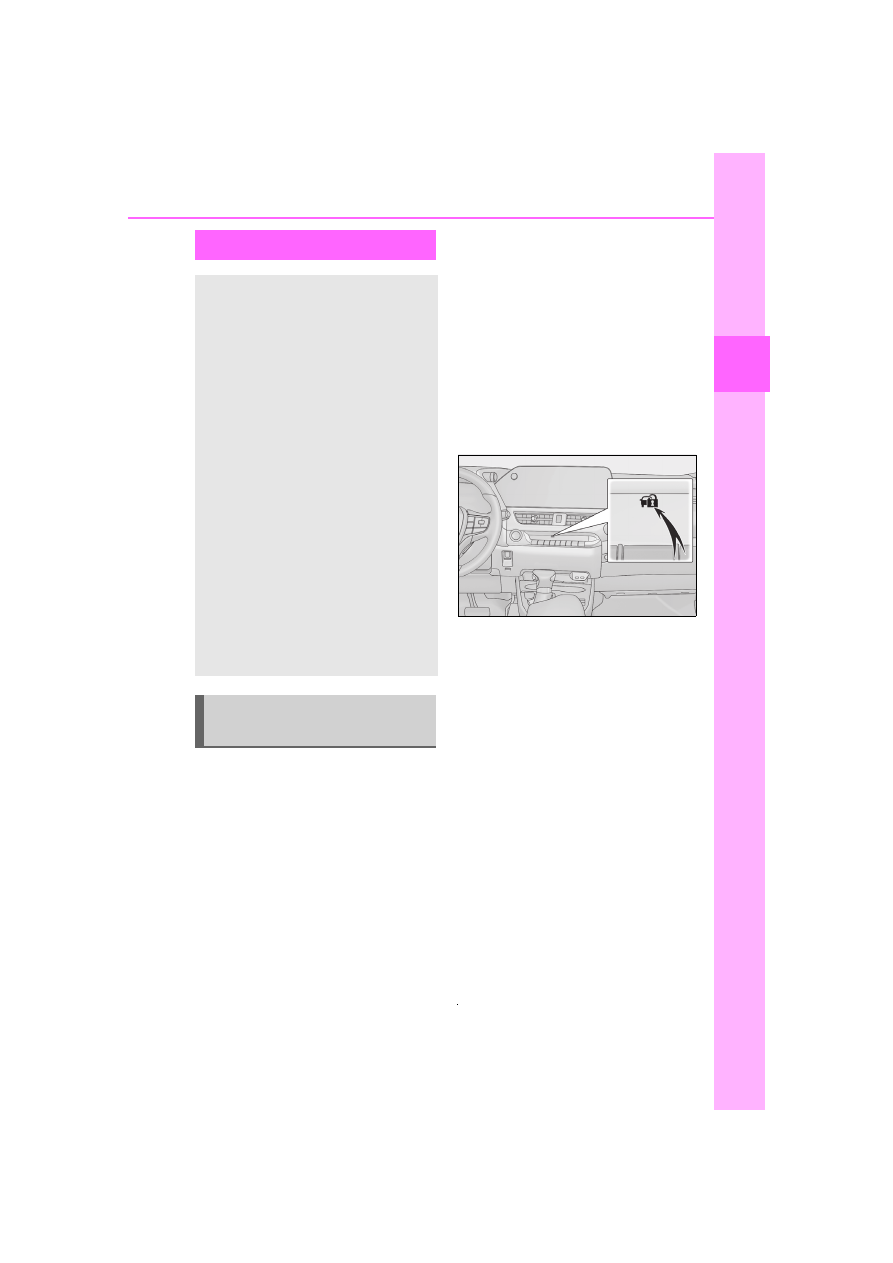

1-5. Theft deterrent system

1

For safety and security

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:

Nobody is in the vehicle.

The windows and moon roof (if
equipped) are closed before the
alarm is set.

No valuables or other personal
items are left in the vehicle.

Setting

Close the doors and hood, and lock all
the doors using the entry function or
wireless remote control. The system
will be set automatically after 30 sec-
onds.
Except for Canada, the alarm can also
be set using the mechanical key.

The security indicator changes from being
on to flashing when the system is set.

Canceling or stopping

Do one of the following to deactivate
or stop the alarm:

Except for Canada:

Unlock the doors.

Turn the power switch to ACC or
ON, or start the hybrid system. (The
alarm will be deactivated or stopped
after a few seconds.)

For Canada

Unlock the doors using the entry
function or wireless remote control.

Turn the power switch to ACC or
ON, or start the hybrid system. (The
alarm will be deactivated or stopped
after a few seconds.)

System maintenance

The vehicle has a maintenance-free type

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.

The alarm is triggered in the follow-
ing situations when the alarm is set:

Except for Canada: A locked
door is unlocked or opened in any
way other than using the entry
function, wireless remote control
or mechanical key. (The doors will
lock again automatically.)

For Canada: A locked door is
unlocked or opened in any way
other than using the entry func-
tion or wireless remote control.
(The doors will lock again auto-
matically.)

The hood is opened.

Setting/canceling/stopping the
alarm system

70

1-5. Theft deterrent system

alarm system.

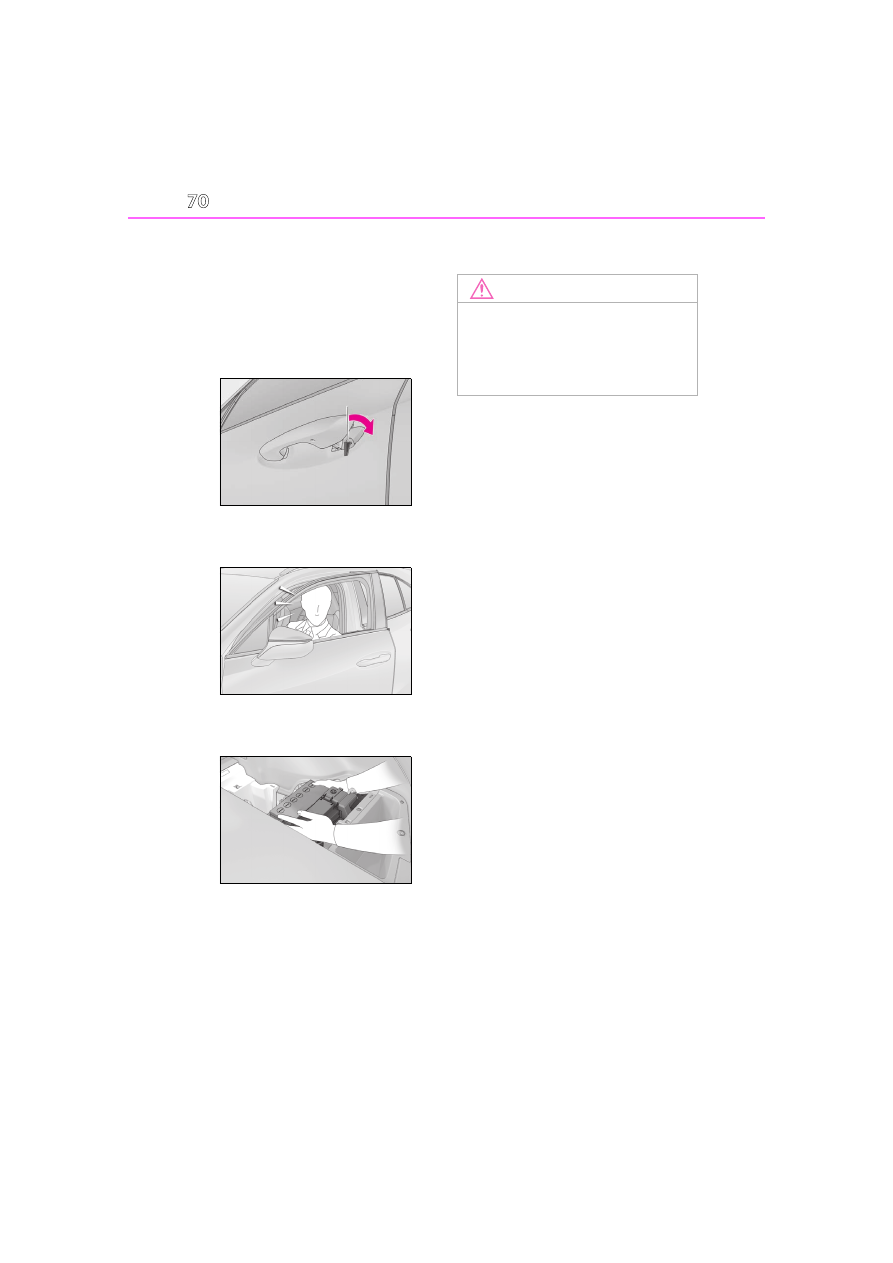

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

For Canada: The doors are unlocked

using the mechanical key.

A person inside the vehicle opens a door

or hood, or unlocks the vehicle using an

inside lock button.

The 12-volt battery is recharged or

replaced when the vehicle is locked.

(

P.398)

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

When recharging or replacing the 12-

volt battery.

NOTICE

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

71

1-5. Theft deterrent system

1

For safety and security

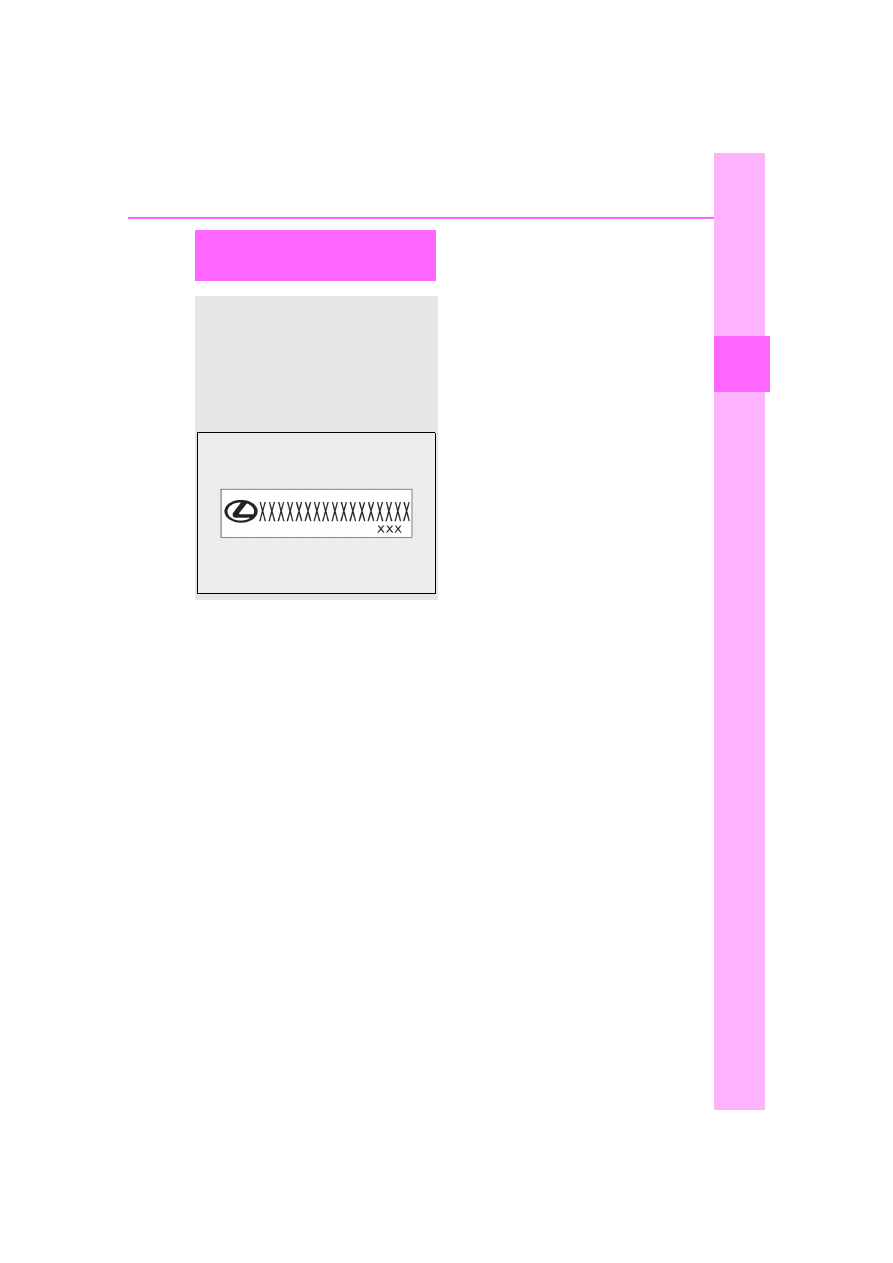

Theft prevention labels (for
the U.S.A.)

These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.

72

1-5. Theft deterrent system

73

2

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indicators.

74

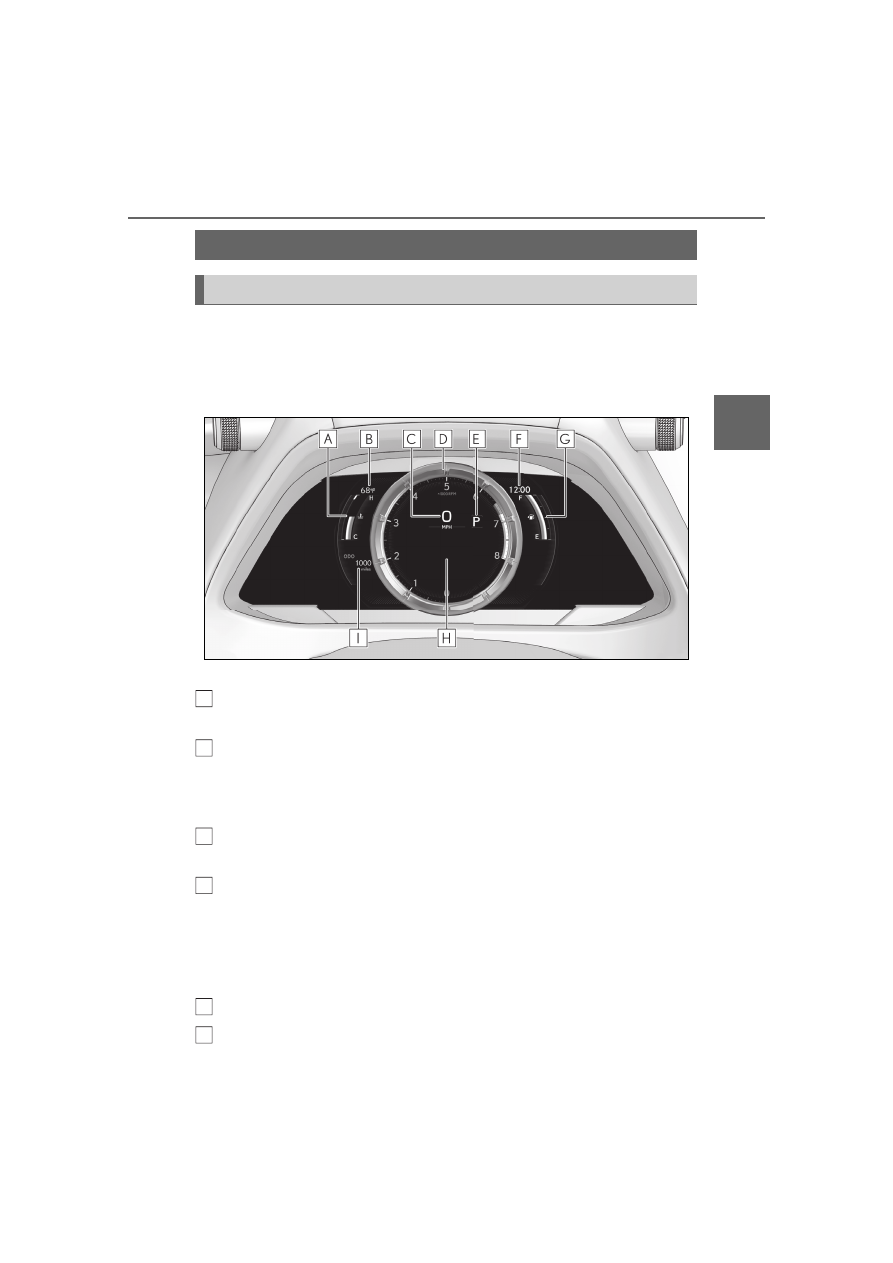

Gauges and meters (except F

SPORT models) ........................

79

Gauges and meters (F SPORT

models)..........................................

83

Multi-information display..........

89

Head-up display ...........................

95

Energy monitor/consumption

screen ............................................

99

74

2-1. Instrument cluster

2-1.Instrument cluster

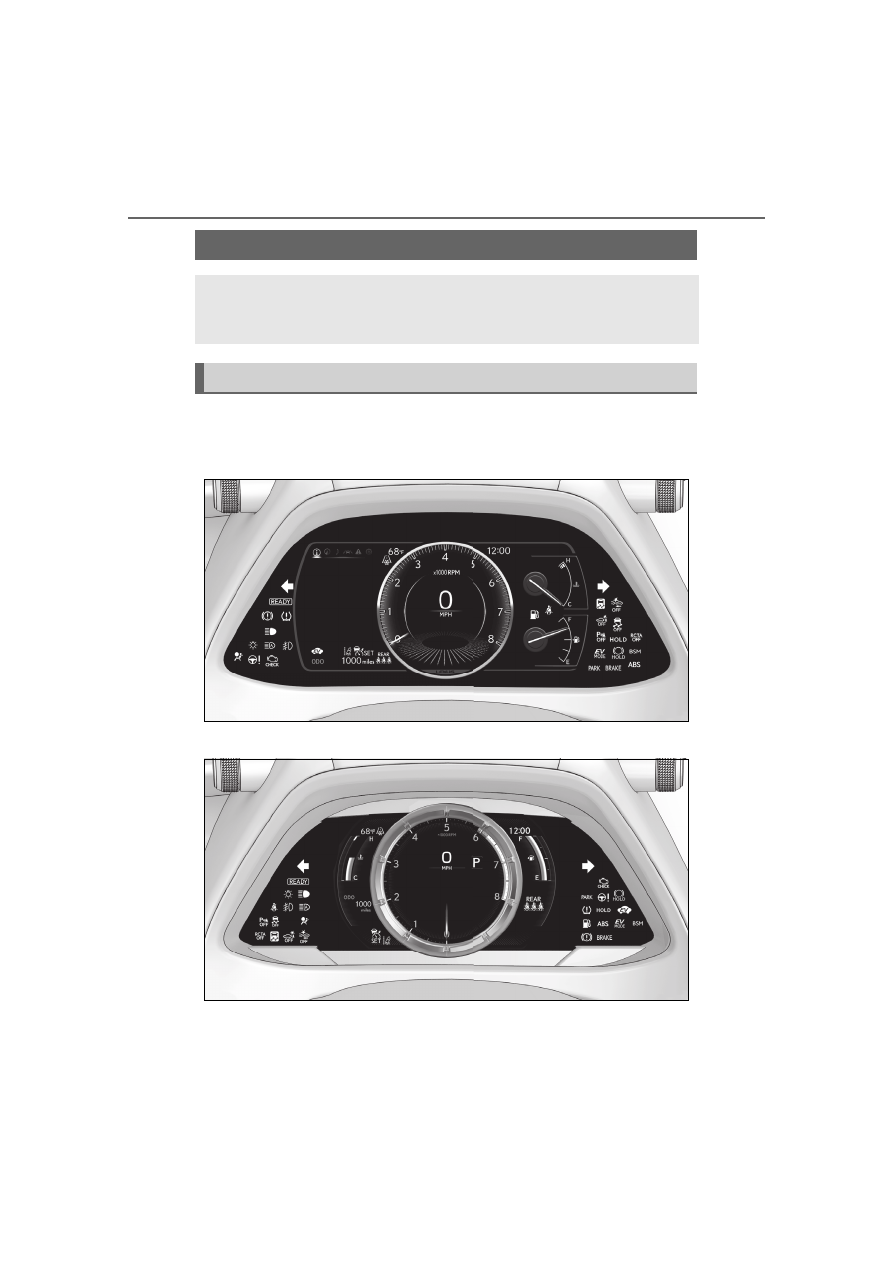

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.

Except F SPORT models

F SPORT models

The location of warning lights and indicators may differ depending on the main
meter position.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.

Warning lights and indicators displayed on the instrument cluster

75

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

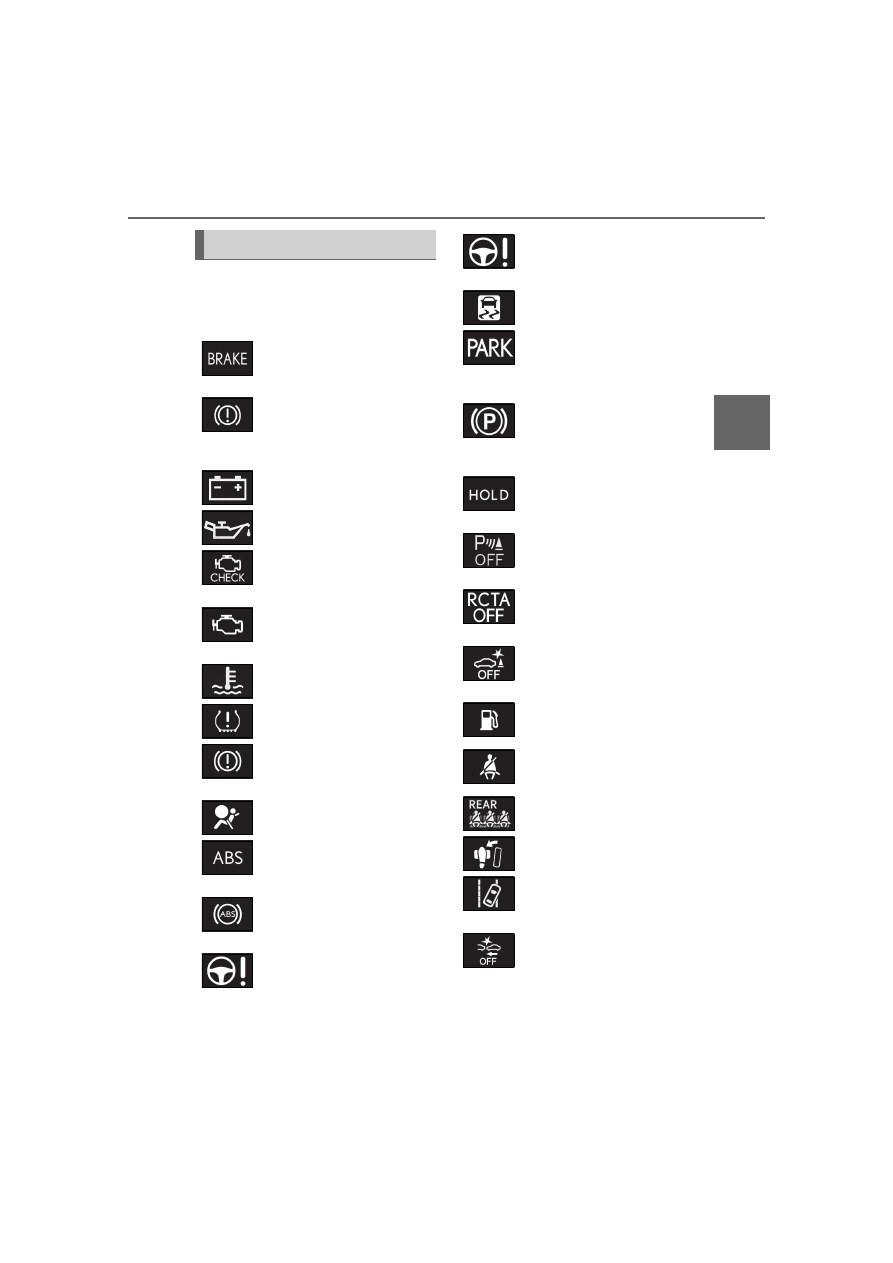

Warning lights inform the driver of
malfunctions in the indicated vehicle’s
systems.

Warning lights

(U.S.A.)

Brake system warning light

*1



(

P.378)

(red)

(Canada)

Brake system warning light

*1



(

P.378)

Charging system warning
light

*2

 (

P.378)

Low engine oil pressure warn-
ing light

*2

 (

P.378)

(U.S.A.)

Malfunction indicator lamp

*1



(

P.379)

(Canada)

Malfunction indicator lamp

*1



(

P.379)

High coolant temperature
warning light

*2

 (

P.379)

Tire pressure warning light

*1



(

P.379)

(yellow)

Brake system warning light

*1



(

P.379)

SRS warning light

*1

 (

P.380)

(U.S.A.)

ABS warning light

*1

 (

P.380)

(Canada)

ABS warning light

*1

 (

P.380)

(red)

Electric power steering system
warning light

*1

 (

P.380)

(yellow)

Electric power steering system
warning light

*1

 (

P.380)

Slip indicator

*1

 (

P.380)

(Flashes)

(U.S.A.)

Parking brake indicator
(

P.381)

(Flashes)

(Canada)

Parking brake indicator
(

P.381)

(Flashes)

Brake hold operated indica-
tor

*1

 (

P.381)

(Flashes)

Intuitive parking assist OFF indi-
cator

*1

 (if equipped) (

P.381)

(Flashes)

RCTA OFF indicator

*1

 (if

equipped) (

P.382)

(Flashes)

PKSB OFF indicator

*1

 (if

equipped) (

P.382)

Low fuel level warning light
(

P.382)

Driver’s and front passenger’s
seat belt reminder light
(

P.382)

Rear passengers’ seat belt
reminder lights

*2

 (

P.383)

Inappropriate pedal operation
warning light

*2

 (

P.383)

(orange)

LTA indicator

*2

 (

P.384)

(Flashes or

illuminates)

PCS warning light

*1

 (

P.384)

76

2-1. Instrument cluster

*1

: These lights come on when the power

switch is turned to ON to indicate that a
system check is being performed. They
will go off after the hybrid system is on,
or after a few seconds. There may be a
malfunction in a system if the lights do
not come on, or go off. Have the vehicle
inspected by your Lexus dealer.

*2

: This light illuminates on the multi-infor-

mation display.

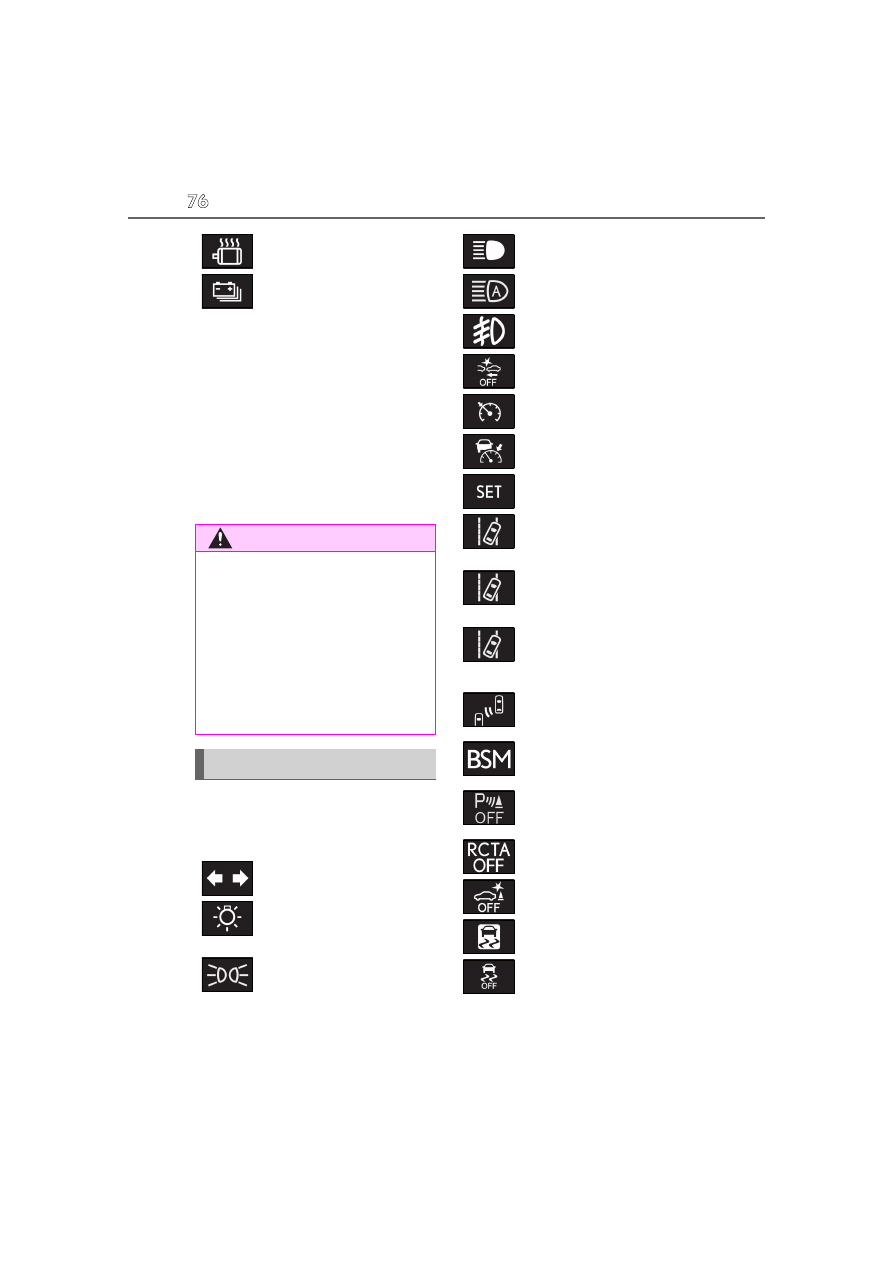

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

Hybrid system overheat warn-
ing light

*2

(

P.384)

(orange)

Low traction battery charge
warning light

*2

 (

P.384)

WARNING

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the hybrid system, this

could mean that these systems are not

available to help protect you in an acci-

dent, which could result in death or seri-

ous injury. Have the vehicle inspected by

your Lexus dealer immediately if this

occurs.

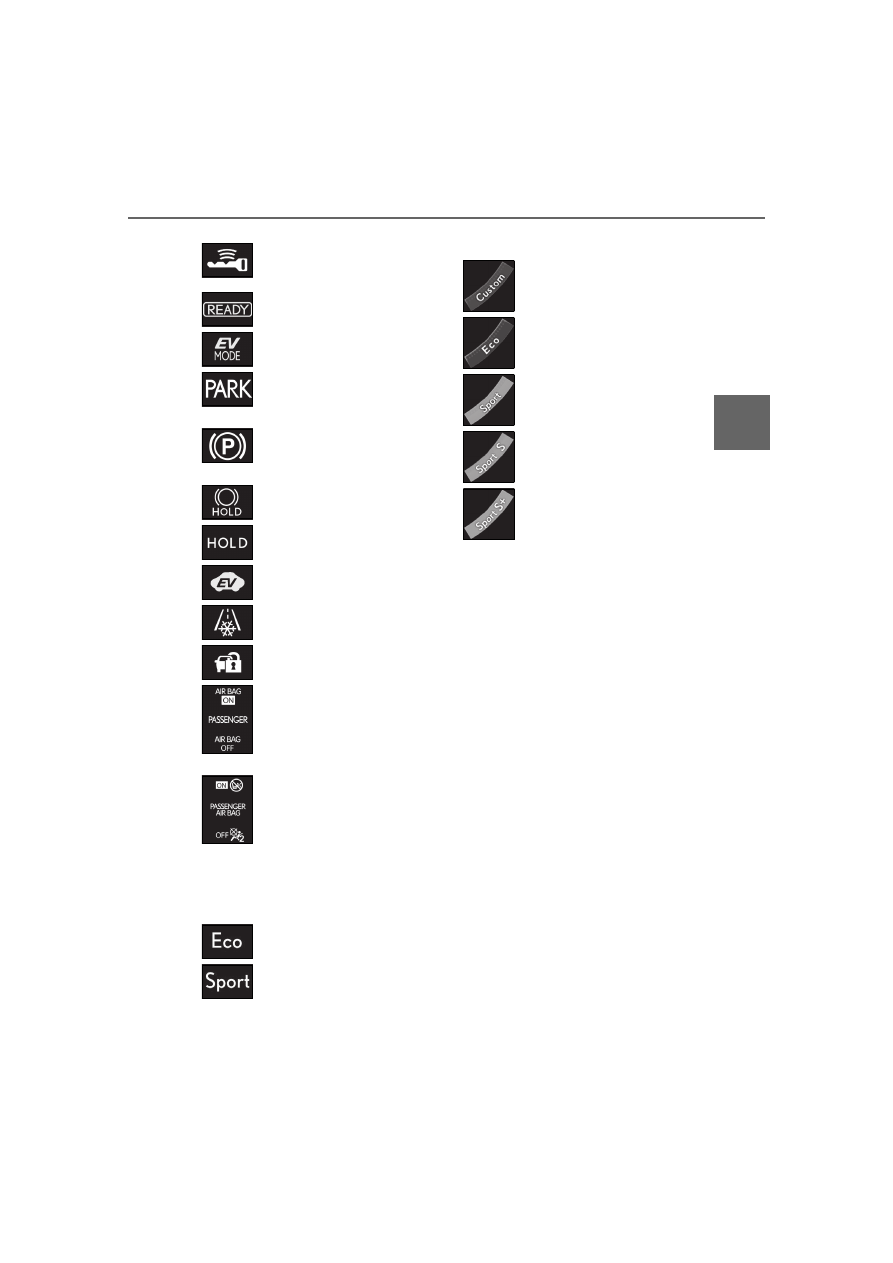

Indicators

Turn signal indicator (

P.173)

(U.S.A.)

Headlight indicator (

P.180)

(Canada)

Tail light indicator (

P.180)

Headlight high beam indicator
(

P.182)

Automatic High Beam indica-
tor

*1

 (

P.183)

Fog light indicator (if equipped)
(

P.186)

PCS warning light

*1, 2



(

P.199)

Cruise control indicator

*3



(

P.221)

Dynamic radar cruise control
indicator

*3

 (

P.221)

Cruise control “SET” indica-
tor

*3

 (

P.221)

(white)

LTA indicator

*3, 4

 (

P.214)

(green)

LTA indicator

*3, 4

 (

P.214

199)

(orange)

LTA indicator

*3, 4, 5

 (

P.214)

BSM outside rear view mirror
indicators

*1, 6

 (if equipped)

(

P.232)

BSM indicator (if equipped)
(

P.232)

Intuitive parking assist OFF indi-
cator

*1, 2

 (if equipped)

(

P.238)

RCTA OFF indicator

*1, 2

 (if

equipped) (

P.245)

PKSB OFF indicator

*1, 2

 (if

equipped) (

P.251)

Slip indicator

*1, 5

 (

P.261)

VSC OFF indicator

*1, 2



(

P.261)

77

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Drive mode indicators

Except F SPORT models

F SPORT models

*1

: These lights come on when the power

switch is turned to ON to indicate that a
system check is being performed. They
will go off after the hybrid system is on,
or after a few seconds. There may be a
malfunction in a system if the lights do
not come on, or go off. Have the vehicle
inspected by your Lexus dealer.

*2

: This light comes on when the system is

turned off.

*3

: This light illuminates on the multi-infor-

mation display.

*4

: Depending on the operating condition,

the color and illuminating/flashing state
of the light change.

*5

: This light flashes to indicate that the sys-

tem is operating.

*6

: This light illuminates on the outside rear

view mirrors.

*7

: Except F SPORT models: This light illu-

minates on the multi-information dis-
play.

*8

: When the outside temperature is

approximately 37°F (3°C) or lower,
this indicator will flash for approxi-

Smart access system with push-
button start indicator

*3



(

P.163)

“READY” indicator (

P.163)

EV drive mode indicator
(

P.167)

(U.S.A.)

Parking brake indicator
(

P.174)

(Canada)

Parking brake indicator
(

P.174)

Brake hold standby indicator

*1



(

P.177)

Brake hold operated indica-
tor

*1

 (

P.177)

EV indicator

*7

 (

P.61)

Low outside temperature indi-
cator

*3, 8

 (

P.79, 83)

Security indicator

*9

 (

P.68,

69)

(U.S.A.)

“AIR BAG ON/OFF” indica-
tor

*10

 (

P.39)

(Canada)

“AIR BAG ON/OFF” indica-
tor

*10

 (

P.39)

Eco drive mode indicator
(

P.258)

Sport mode indicator
(

P.258)

Custom mode indicator (if
equipped) (

P.258)

Eco drive mode indicator
(

P.258)

Sport mode indicator (if
equipped) (

P.258)

Sport S mode indicator (if
equipped) (

P.258)

Sport S+ mode indicator (if
equipped) (

P.258)

78

2-1. Instrument cluster

mately 10 seconds, then stay on.

*9

: This light illuminates on the center

panel.

*10

: This light illuminates on the center dis-

play.

79

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Locations of gauges and meters

The units of measure may differ depending on the intended destination of the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (

P.89)

Displays warning messages if a malfunction occurs (

P.387)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F
(3°C) or lower

Speedometer

Displays the vehicle speed

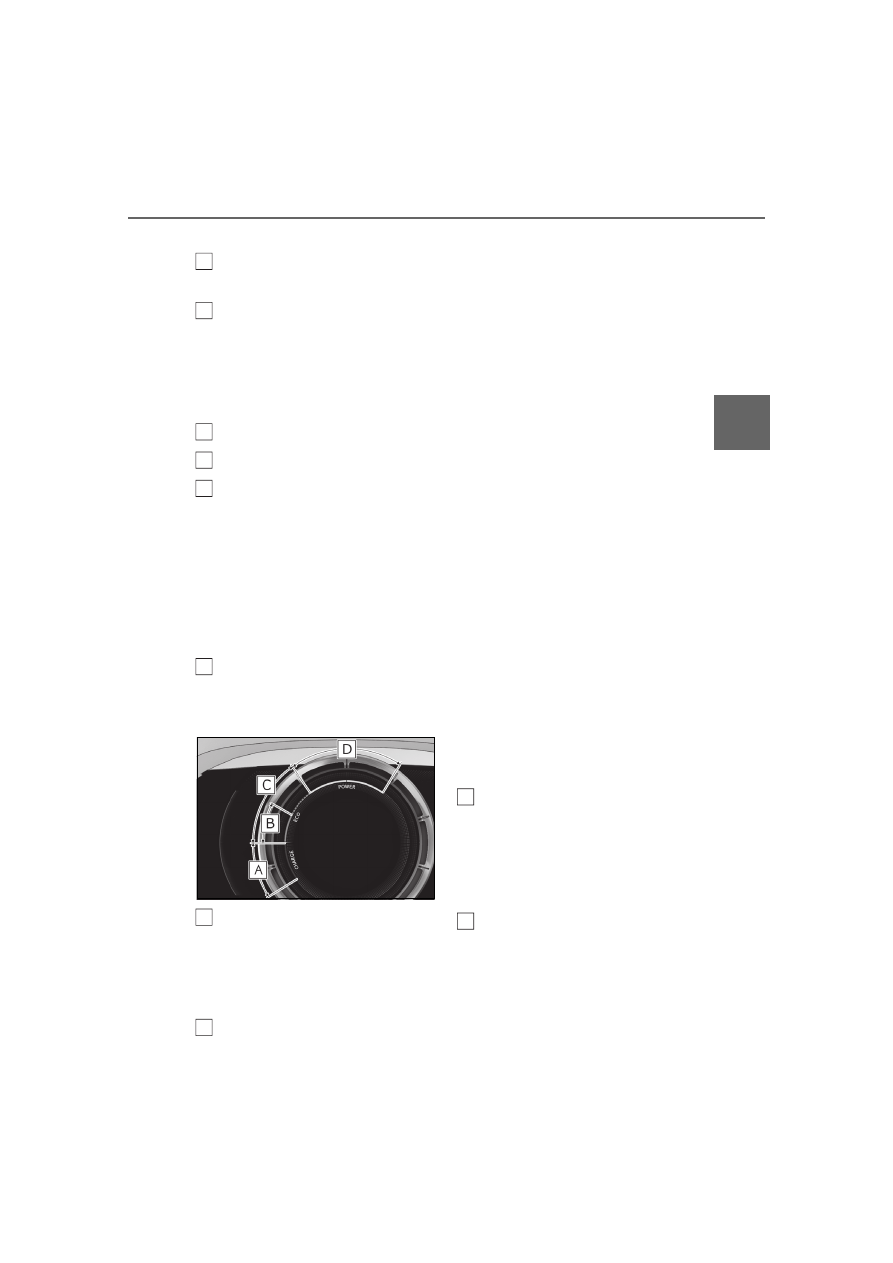

Hybrid System Indicator/tachometer

Displays hybrid system output or regeneration level (

P.80)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (

P.93, 258)

Clock

The GPS clock’s time is automatically adjusted by utilizing GPS time information. For
details, refer to the “MULTIMEDIA OWNER’S MANUAL”.

Engine coolant temperature gauge

Displays the engine coolant temperature

Fuel gauge

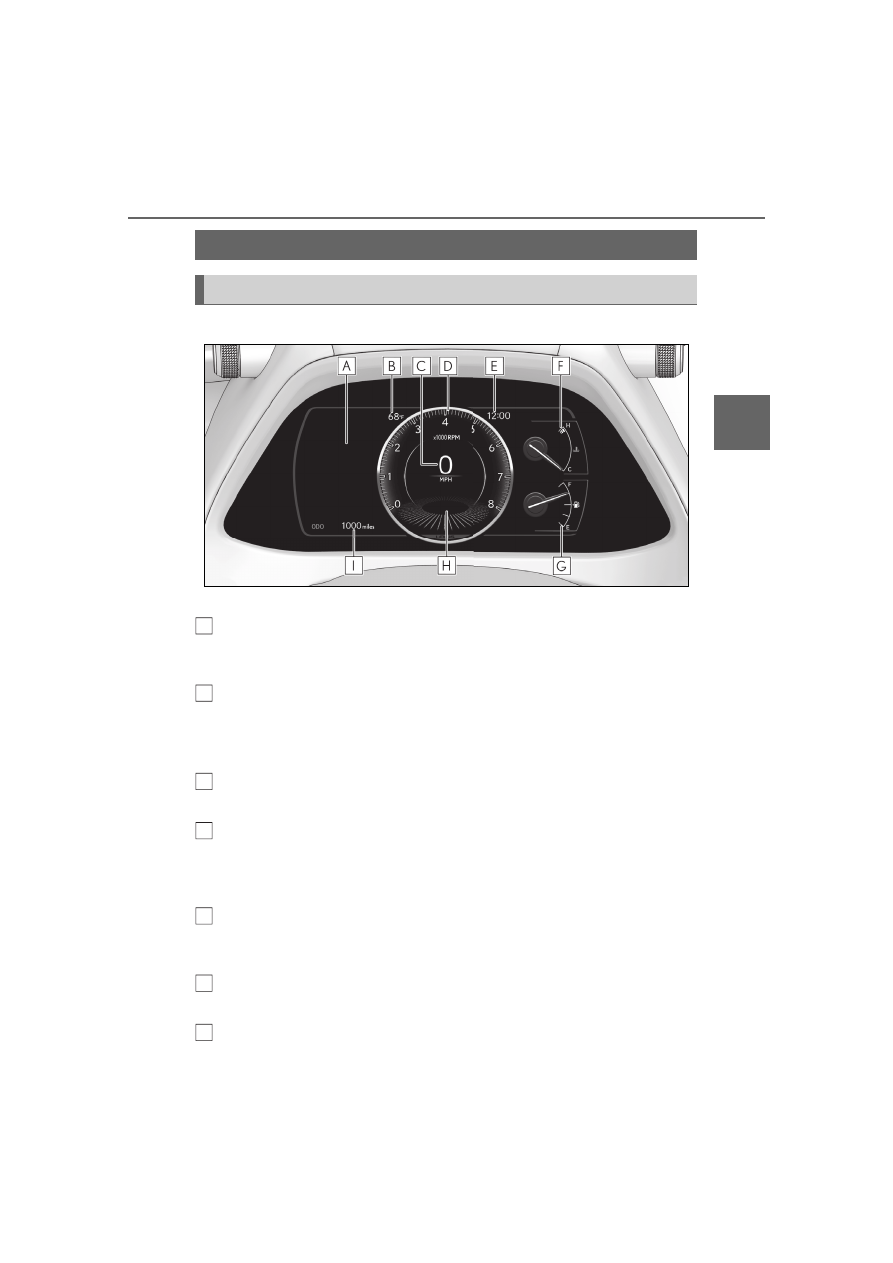

Gauges and meters (except F SPORT models)

Meter display

A

B

C

D

E

F

G

80

2-1. Instrument cluster

Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.80 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Shift position/shift range (

P.169)

Odometer and trip meter display (

P.81)

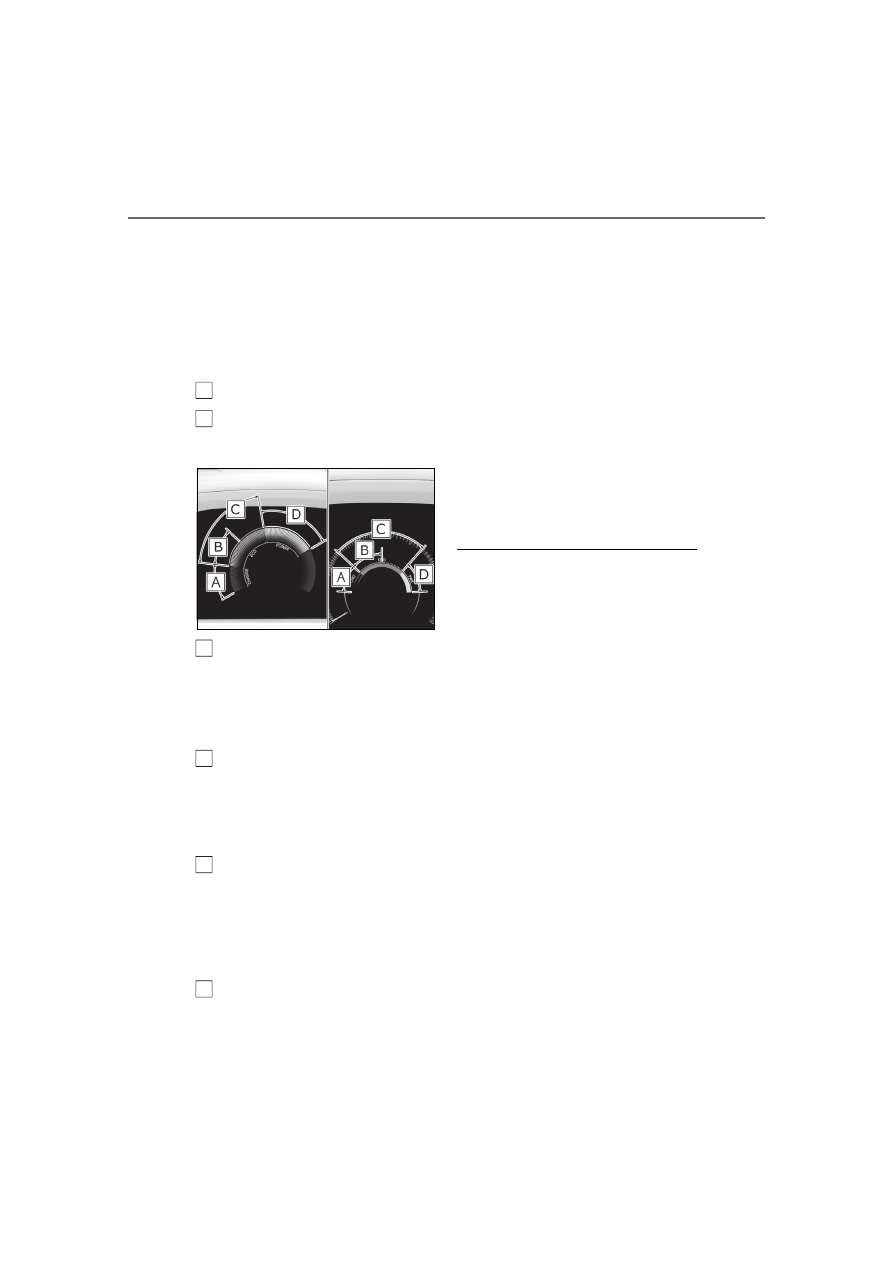

Hybrid System Indicator

Charge area

Shows regeneration

*

 status.

Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving

etc.)

*

: When used in this manual, regeneration

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

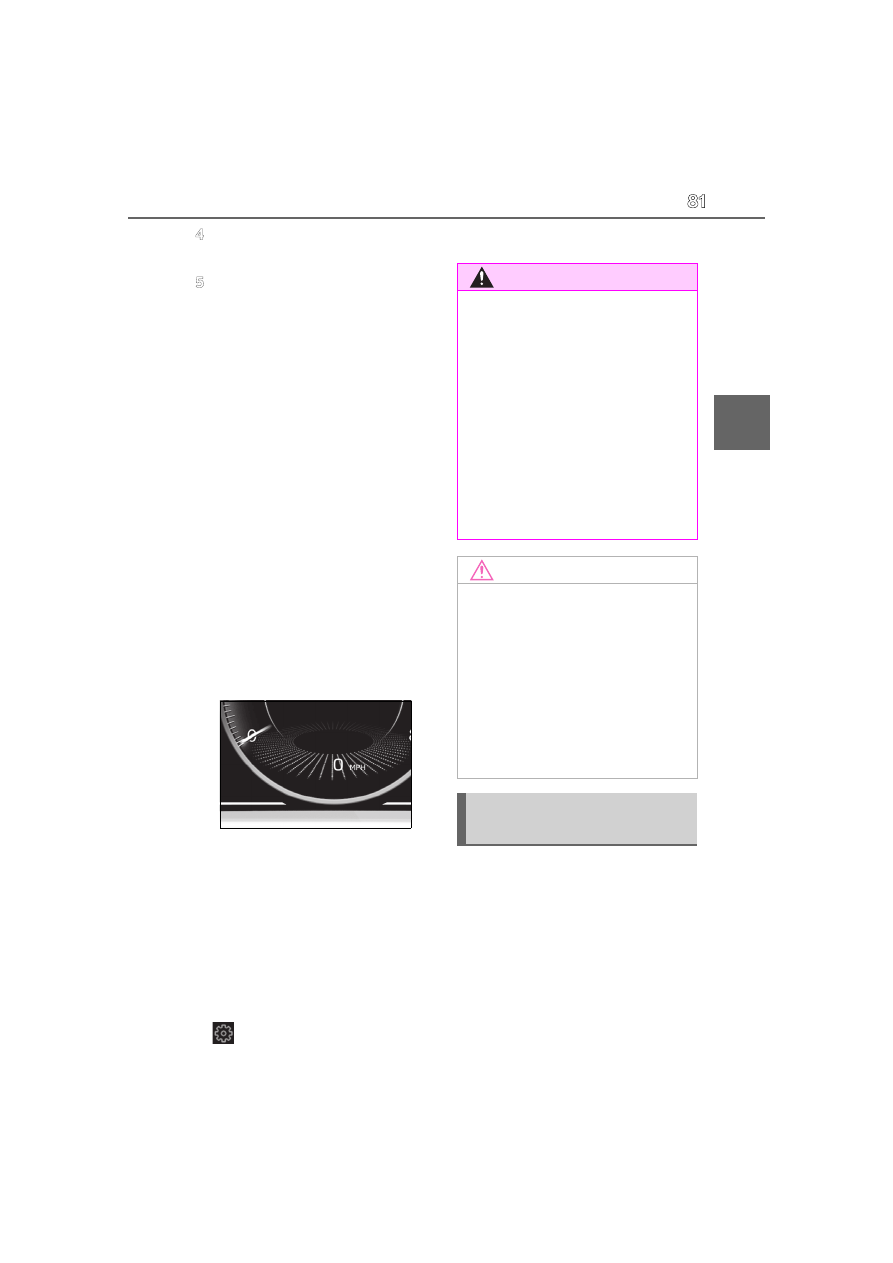

Engine speed

On Hybrid Electric Vehicles, engine speed

is precisely controlled in order to help

improve fuel efficiency and reduce exhaust

emissions etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

Hybrid System Indicator is displayed

when

The Hybrid System Indicator is displayed in

the following situations:

The shift lever is in D or S.

The driving mode is other than Sport

mode.

Manually updating the fuel gauge and

possible driving range

The fuel gauge and the possible driving

range are linked. If the displays of the fuel

gauge and possible driving range do not

update after adding a small amount of fuel,

the displays can be updated by performing

the following procedure.

1

Stop the vehicle on a level surface.

2

Press the “ODO TRIP” switch to

change the odometer and trip meter

display to odometer.

3

Turn the power switch off.

H

I

A

B

C

D

81

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

4

While pressing and holding the “ODO

TRIP” switch, turn the power switch to

ON mode.

5

Continue to hold the “ODO TRIP”

switch for approximately 5 seconds,

and then release it once the odometer

begins flashing.

Updating is complete once the odometer

flashes for approximately 5 seconds and

then the display returns to normal.

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

Speed unit setting for the speedometer

When the speed unit has been changed

from the default setting, the vehicle speed in

the default unit is also displayed in the

meter.

GPS automatic adjustment of the clock

When the system is malfunctioning, the

clock adjustment screen may be displayed

on the multi-information display. In this

case, have the vehicle inspected by your

Lexus dealer.

Liquid crystal display

P.90

Customization

The gauges and meters can be customized
on

 of the multi-information display.

(

P.427)

Display items

Odometer

Displays the total distance the vehicle has
been driven.

Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.

WARNING

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.
For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

NOTICE

To prevent damage to the engine and

its components

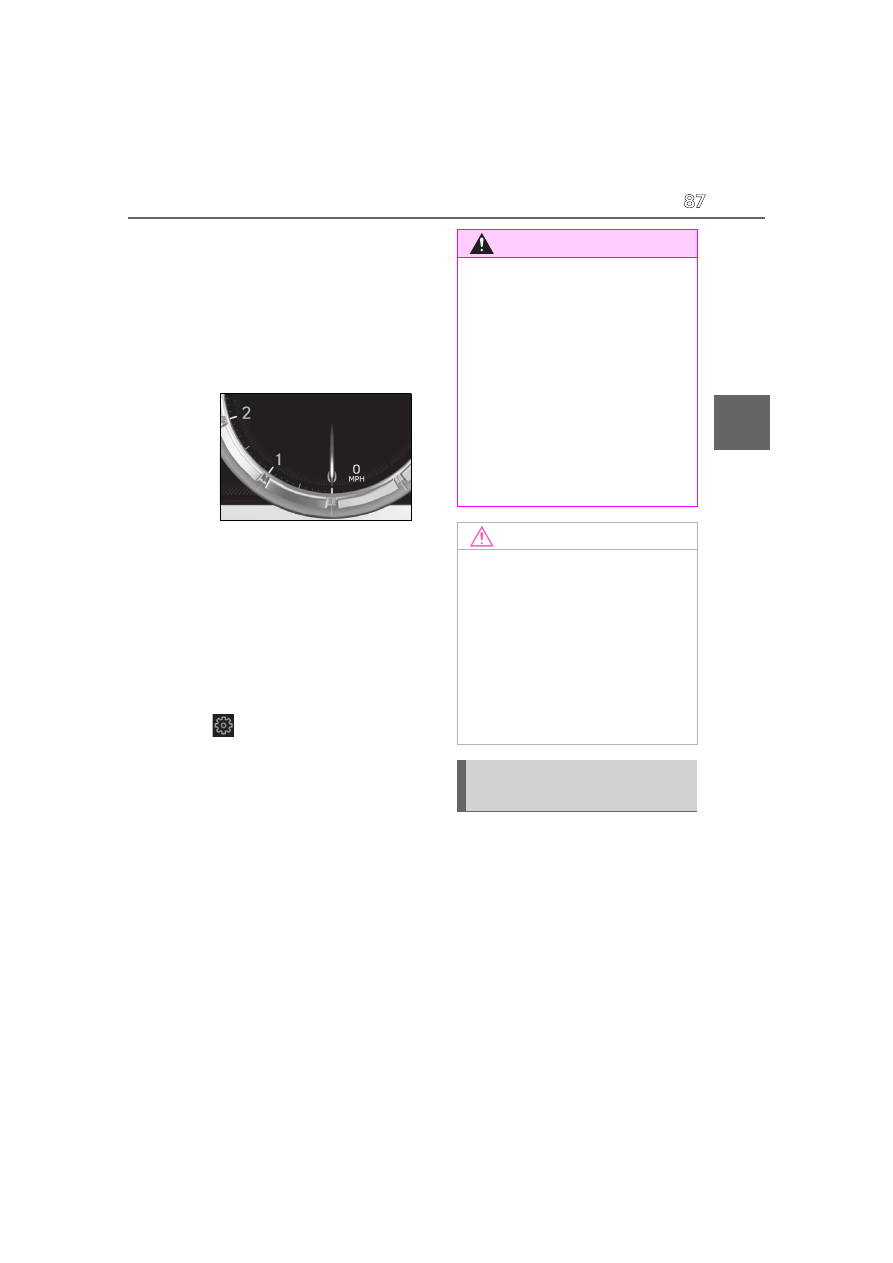

Do not let the indicator of the tachom-

eter enter the red zone, which indi-

cates the maximum engine speed.

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (

P.402)

Odometer and trip meter dis-
play

82

2-1. Instrument cluster

Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

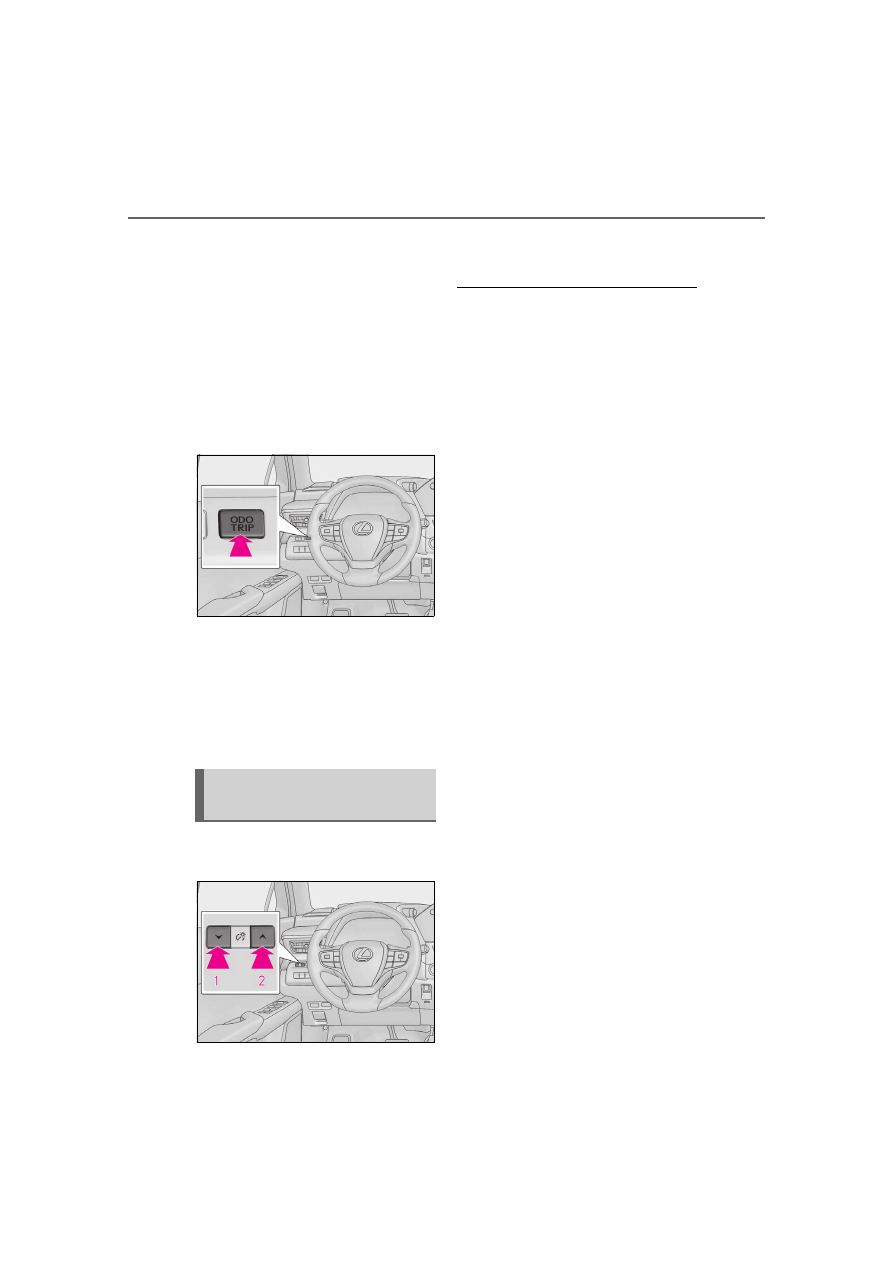

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

Pop-up display

Distance until the next engine oil
change will be displayed when a warn-
ing message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

1

Darker

2

Brighter

Instrument panel brightness adjustment

The instrument panel brightness levels

when the surroundings are bright (daytime

etc.) and dark (nighttime etc.) can be

adjusted individually.

Changing the instrument panel
light brightness

83

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Locations of gauges and meters

When the main meter is in the side position, some of the meter displays and the
gauge layout will change.

When the main meter is in the center position

The units of measure may differ depending on the intended destination of the vehicle.

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F
(3°C) or lower

Speedometer

Displays the vehicle speed

Hybrid System Indicator/tachometer

Displays hybrid system output or regeneration level (

P.85)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (

P.93, 258)

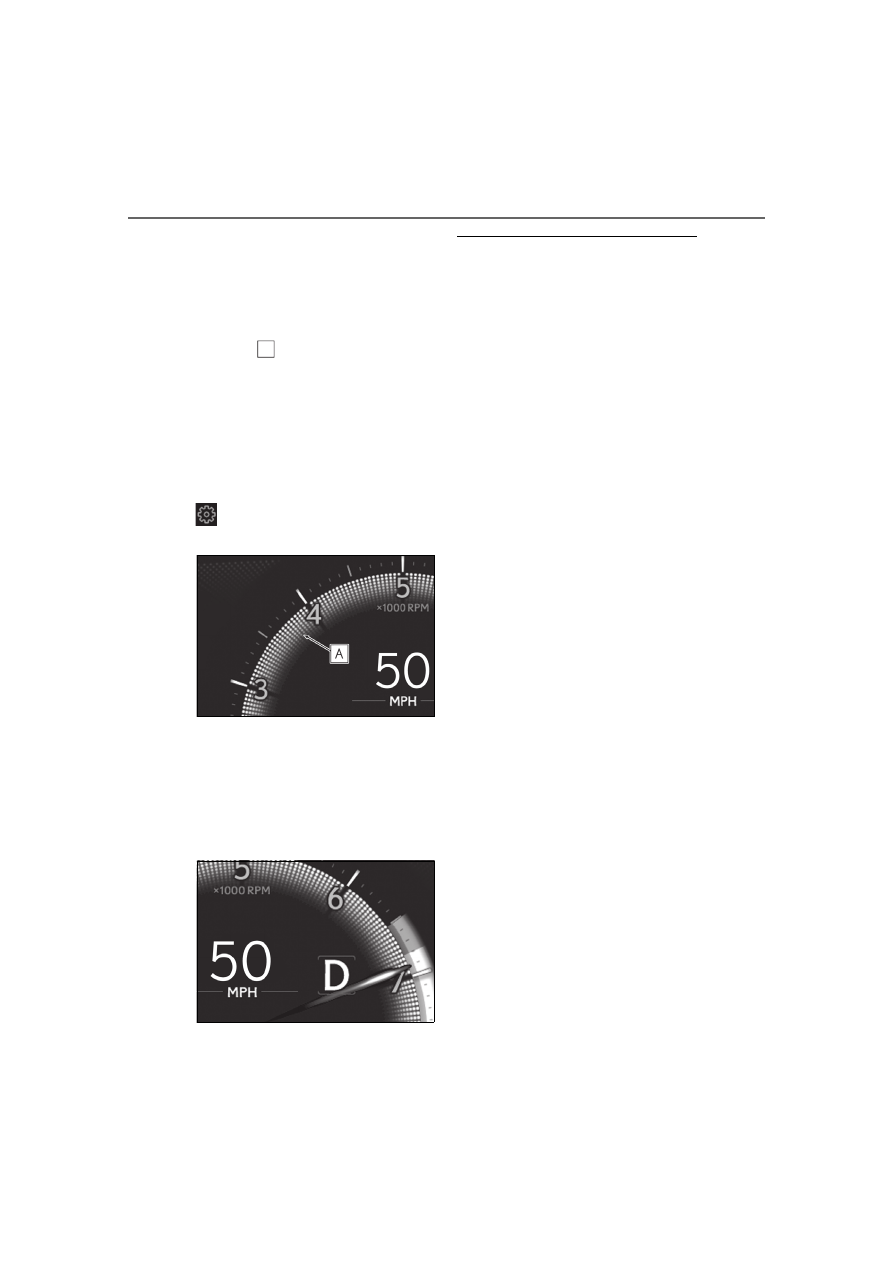

• Rev indicator
• Rev  peak

Shift position/shift range (

P.169)

Clock

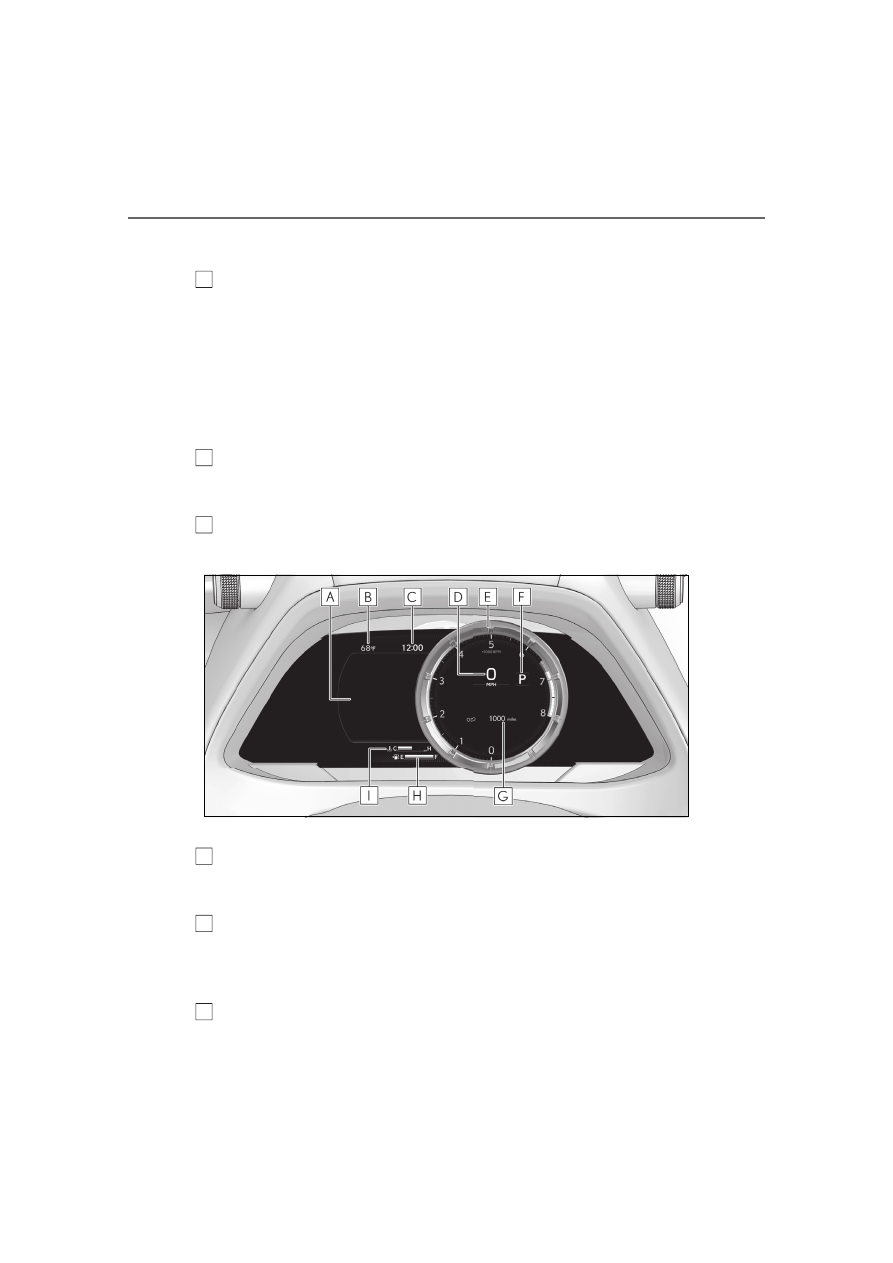

Gauges and meters (F SPORT models)

Meter display

A

B

C

D

E
F

84

2-1. Instrument cluster

The GPS clock’s time is automatically adjusted by utilizing GPS time information. For
details, refer to the “MULTIMEDIA OWNER’S MANUAL”.

Fuel gauge

Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.86 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Multi-information display

Presents the driver with a variety of vehicle data (

P.89)

Displays warning messages if a malfunction occurs (

P.387)

Odometer and trip meter display (

P.87)

When the main meter is in the side position

The units of measure may differ depending on the intended destination of the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (

P.89)

Displays warning messages if a malfunction occurs (

P.387)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F
(3°C) or lower

Clock

The GPS clock’s time is automatically adjusted by utilizing GPS time information. For

G

H

I

A

B

C

85

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

details, refer to the “MULTIMEDIA OWNER’S MANUAL”.

Speedometer

Displays the vehicle speed

Hybrid System Indicator/tachometer

Displays hybrid system output or regeneration level (

P.85)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (

P.93, 258)

• Rev indicator
• Rev  peak

Shift position/shift range (

P.169)

Odometer and trip meter display (

P.87)

Fuel gauge

Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.86 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Engine coolant temperature gauge

Displays the engine coolant temperature

Hybrid System Indicator

Charge area

Shows regeneration

*

 status.

Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)

*

: When used in this manual, regeneration

refers to the conversion of energy cre-

D

E

F

G

H

I

A

B

C

D

86

2-1. Instrument cluster

ated by the movement of the vehicle into
electrical energy.

Rev indicator

When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator (

) will be displayed on the

tachometer.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on

 of the multi-information display.

(

P.89)

Rev peak

When the engine speed reaches or
exceeds 4000 rpm, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

Engine speed

On Hybrid Electric Vehicles, engine speed

is precisely controlled in order to help

improve fuel efficiency and reduce exhaust

emissions etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

Hybrid System Indicator is displayed

when

The Hybrid System Indicator is displayed in

the following situations:

The shift lever is in D or S.

The driving mode is other than Sport

mode.

Manually updating the fuel gauge and

possible driving range

The fuel gauge and the possible driving

range are linked. If the displays of the fuel

gauge and possible driving range do not

update after adding a small amount of fuel,

the displays can be updated by performing

the following procedure.

1

Stop the vehicle on a level surface.

2

Press the “ODO TRIP” switch to

change the odometer and trip meter

display to odometer.

3

Turn the power switch off.

4

While pressing and holding the “ODO

TRIP” switch, turn the power switch to

ON mode.

5

Continue to hold the “ODO TRIP”

switch for approximately 5 seconds,

and then release it once the odometer

begins flashing.

Updating is complete once the odometer

flashes for approximately 5 seconds and

then the display returns to normal.

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit

A

87

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

Speed unit setting for the speedometer

When the speed unit has been changed

from the default setting, the vehicle speed in

the default unit is also displayed in the

meter.

GPS automatic adjustment of the clock

When the system is malfunctioning, the

clock adjustment screen may be displayed

on the multi-information display. In this

case, have the vehicle inspected by your

Lexus dealer.

Liquid crystal display

P.90

Customization

The gauges and meters can be customized
on

 of the multi-information display.

(

P.427)

Display items

Odometer

Displays the total distance the vehicle has
been driven.

Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.

Distance until next engine oil

WARNING

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.
For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

NOTICE

To prevent damage to the engine and

its components

Do not let the indicator of the tachom-

eter enter the red zone, which indi-

cates the maximum engine speed.

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (

P.402)

Odometer and trip meter dis-
play















Content      ..      1      2      3      ..
