Illumination/flash-

ing pattern

Vehicle condition

Not illuminated

●

When the charging schedule is on standby

●

When charging is completed

INFORMATION

■

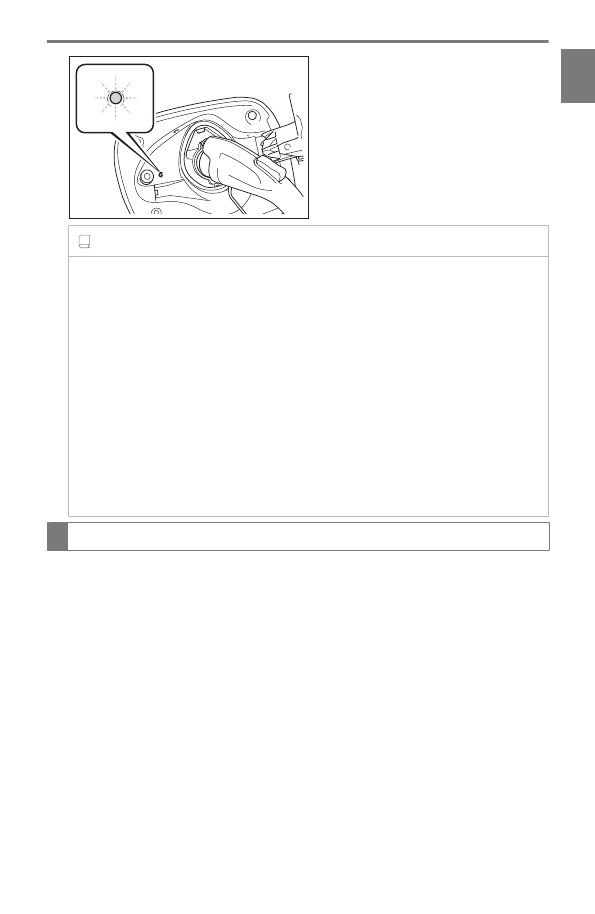

Charging indicator of the charging port

When a system malfunction occurs while charging, the charging indicator rapidly flashes
for a certain period of time, and then turns off.
If this occurs, when a door is opened with the power switch off, a message is displayed
on the multi-information display. When a message is displayed, follow the instructions
displayed on the screen.

AC charging cable

The function, correct operating procedure, etc. of the AC charging cable are
explained.

WARNING

Observe the following precautions when using the AC charging cable and CCID
(Charging Circuit Interrupting Device).

●

Do not attempt to disassemble or repair the AC charging cable, charging connector,
plug or CCID (Charging Circuit Interrupting Device).
If a problem arises with the AC charging cable or the CCID (Charging Circuit
Interrupting Device), stop charging immediately and contact your Lexus dealer.

●

Do not subject the AC charging cable, charging connector, plug or CCID (Charging
Circuit Interrupting Device) to strong force or impact.

●

Do not apply excessive force to the AC charging cable by forcefully folding, twisting,
pulling or dragging the AC charging cable.

●

Do not damage the AC charging cable with sharp objects.

●

Do not fold the charging connector or plug or insert foreign objects into them.

●

Do not put the charging connector and plug into water.

●

Do not bring the AC charging cable to a high-temperature item such as a heating
device.

*3 :

Flashes for a certain period of time, and then turns off.

1-3. Charging with the plug-in hybrid system

Befor

e driving

WARNING

●

Do not apply a load to the AC charging cable and plug-cord (such as wrapping the
AC charging cable around the CCID (Charging Circuit Interrupting Device) and the
charging connector).

●

Do not use or leave the AC charging cable in situations where a load is applied to the
outlet and the plug (such as when the CCID (Charging Circuit Interrupting Device) is
hanging in the air without contacting the ground).

NOTICE

■

Precautions when handling AC charging cable

Make sure to observe the following precautions. Failure to observe these precautions
may result in damage to the AC charging cable and AC charging inlet.

●

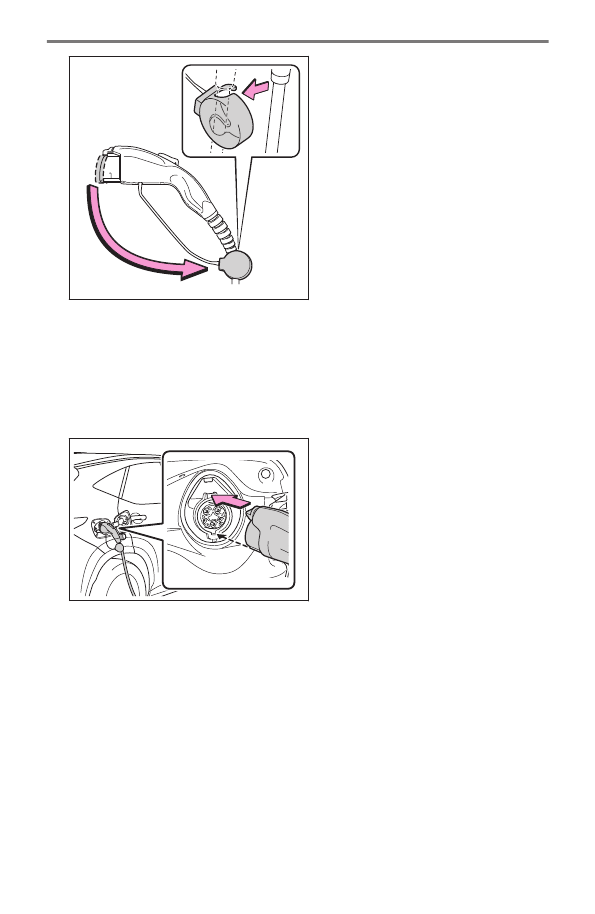

Insert the charging connector straight into the AC charging inlet.

●

After inserting the charging connector, do not apply excessive force to or twist the
connector. Also, do not lean on the connector or hang any objects from it.

●

Do not step on or trip over the AC charging cable.

●

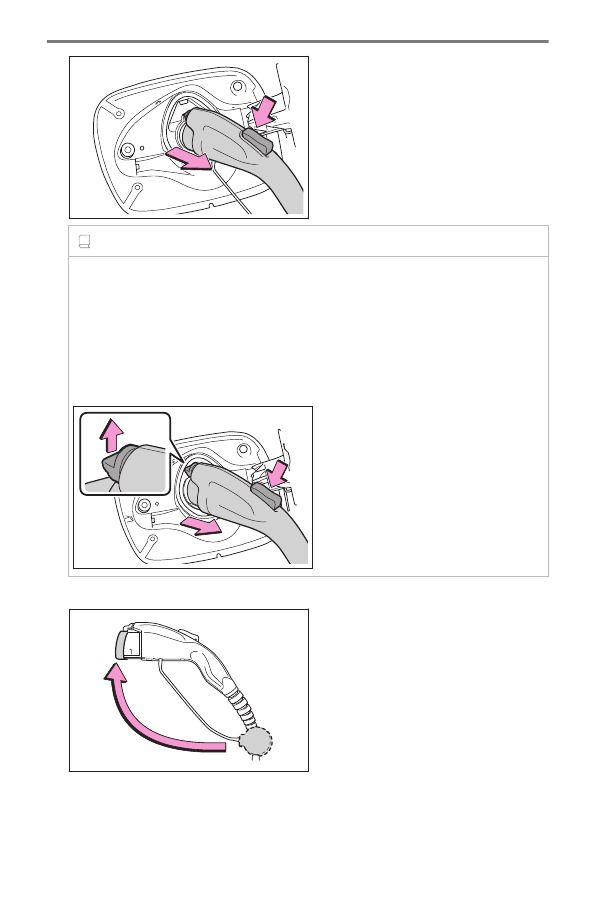

Before removing the charging connector, make sure that it is unlocked.

●

After removing the AC charging cable, promptly return it to its proper location.

●

After removing the charging connector, securely install the AC charging inlet cap.

■

Precautions for low temperatures

In low temperatures, the AC charging cable and plug-cord may become hard. Therefore,
make sure to not apply excessive force when they are hard. If excessive force is applied to
the hardened AC charging cable and plug-cord, they may be damaged.

1-3. Charging with the plug-in hybrid system

■

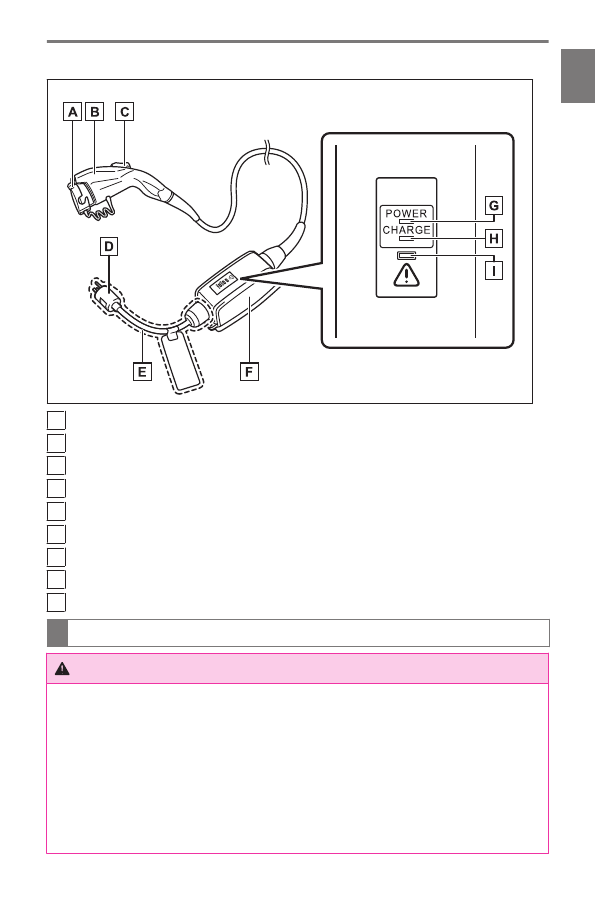

The names of each part of the AC charging cable

Charging connector cap

Charging connector

Latch release button

Plug

Plug-cord

CCID (Charging Circuit Interrupting Device)

Power indicator

Charging indicator

Error warning indicator

Inspecting and maintaining the AC charging cable

WARNING

■

Routine inspection

Check the following points regularly.
Failure to do so may lead to an accident.

●

The AC charging cable, plug, charging connector, CCID (Charging Circuit Interrupt-
ing Device) etc. have not been damaged.

●

The outlet has not been damaged.

●

The plug can be securely inserted into the outlet.

1-3. Charging with the plug-in hybrid system

Befor

e driving

WARNING

●

The plug does not get extremely hot during use.

●

The tip of the plug has not been deformed.

●

The plug is not dirtied by dust etc.

Remove the plug from the outlet before inspecting it. If any abnormalities are found in the
AC charging cable as a result of the inspection, immediately stop use and consult your
Lexus dealer.

■

Maintaining the AC charging cable

When the AC charging cable is dirty, first remove the dirt with a hard, wringed cloth, and
then wipe the cable with a dry cloth.
However, never wash it with water. If the AC charging cable is washed with water, fire or
electric shock may occur during charging.

■

When not using the AC charging cable for a long time

Remove the plug from the outlet. Dust could accumulate on the plug or in the outlet,
possibly causing overheating which could lead to a fire.
Also, keep the cable in a place free from moisture.

Safety functions

The CCID (Charging Circuit Interrupting Device) has the following safety features.

■

Electrical leakage detection function

If an electrical leakage is detected during charging, the power source will be
automatically interrupted, thus preventing fires or electrical shocks caused by
electrical leakage.

If the power source is interrupted, the error warning indicator flashes.

■

Automatic check function

This is an automatic system check that is run before charging begins to check for
problems in the operation of the electrical leakage detection function.

If a malfunction is found in the electrical leakage detection function as a result of the check,
the error warning indicator flashes to inform the user.

■

Temperature detection function

A temperature detection function is equipped to the plug. While charging, if heat is
generated due to looseness on the outlet side etc., this function suppresses heat by
controlling the charging current.

1-3. Charging with the plug-in hybrid system

■

Conditions for supplying current to the vehicle

The CCID (Charging Circuit Interrupting Device) is designed to prevent electrical
current from being supplied to the charging connector when it is not connected to
the vehicle, even if the plug is inserted into the outlet.

Operation of CCID (Charging Circuit Interrupting Device) indicators

■

Indicator operation

3 indicators are used to indicate the following conditions.

Power indicator

Illuminates when electricity is flowing to the
CCID (Charging Circuit Interrupting Device).

Charging indicator

Illuminates when charging is in progress.

Error warning indicator

Flashes when there is an electrical leakage or
when a malfunction occurs in the CCID (Charg-
ing Circuit Interrupting Device).

Power sources that can be used

An external power source that fulfills the following criteria is necessary for charg-
ing this vehicle. Confirm this before charging.

WARNING

■

Warnings for electrical faults

Make sure to observe the precautions in this Owner’s Manual when charging the vehicle.
Failure to use a power source that fulfills the requirements, or failure to observe regula-
tions while charging could lead to an accident.

■

Power sources precautions

Make sure to observe the following precautions regarding the use of an external power
source.

●

Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit-Inter-
rupter (GFCI) and supplied by a circuit breaker per your local code. Use of a 15 A
individual circuit is strongly recommended.

●

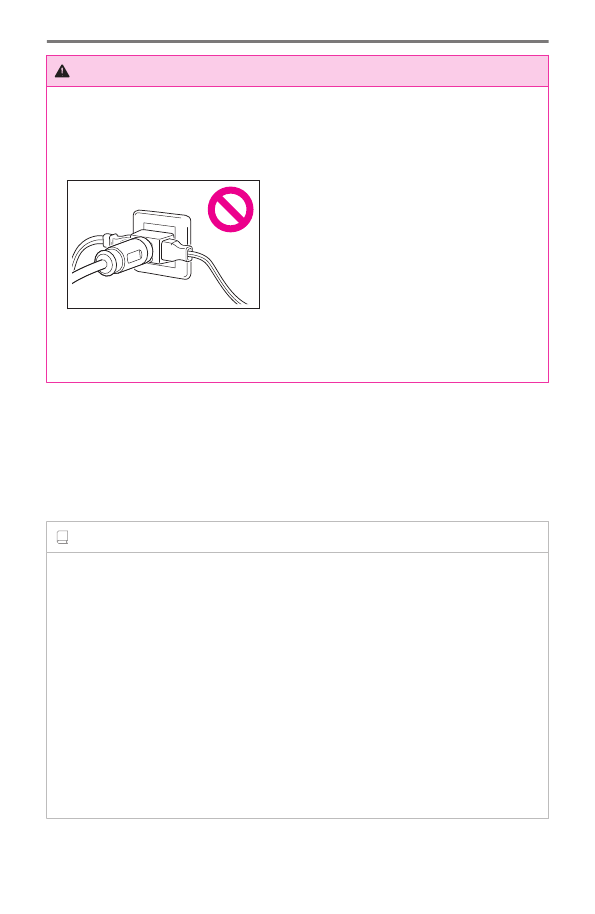

Do not connect the AC charging cable to a multi-socket adaptor, multi-plugs, or
conversion plug.

●

Connecting the AC charging cable to an extension cord is strictly prohibited.

1-3. Charging with the plug-in hybrid system

Befor

e driving

WARNING

The extension cord may overheat and does not contain a Ground- Fault Circuit-In-
terrupter (GFCI). The leakage detection function of the CCID (Charging Circuit
Interrupting Device) may not operate correctly.

●

Do not connect to a branch electrical socket.

●

Make sure to connect the charging connector and AC charging inlet directly.
Do not connect a converting adaptor or extension cord between the charging con-
nector and AC charging inlet.

●

Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit-In-
terrupter (GFCI) and a circuit breaker. Use of a 15 A individual circuit is strongly
recommended to ensure AC charging cable will operate properly.

●

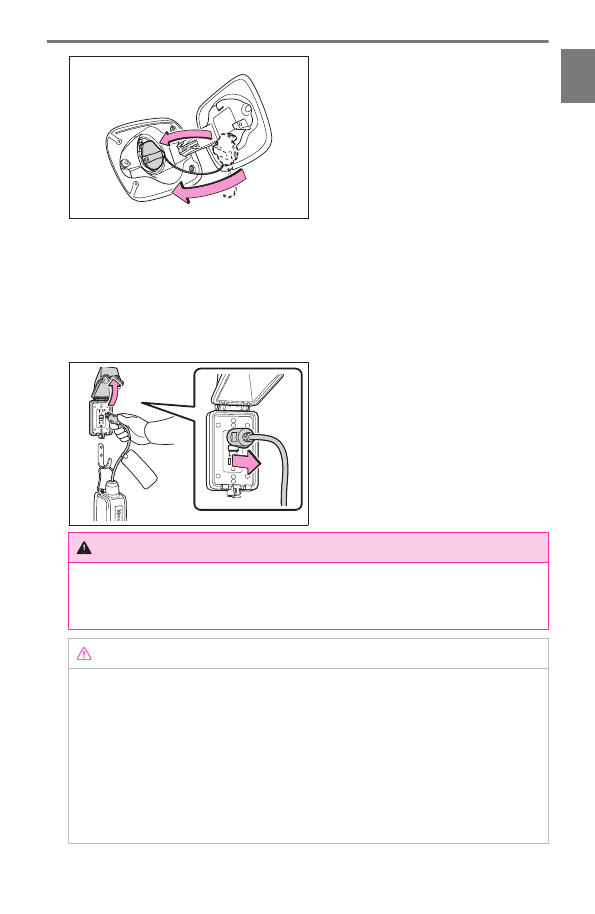

When charging outdoors, make sure to connect to a weatherproof outlet that
is certified for outdoor use. Checking Ground-Fault Circuit- Interrupter (GFCI)
operation before its use is recommended.

INFORMATION

■

The charging environment

For safe charging, the following charging equipment and settings are recommended.

●

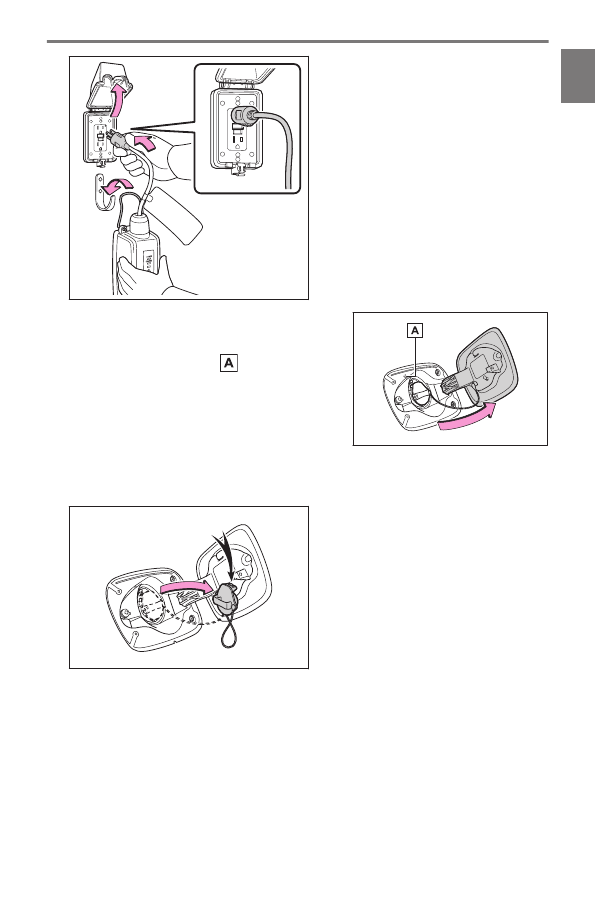

Weatherproof outlet
When charging outdoors, connect the plug to a weatherproof outlet, and ensure that
the plug remains waterproof while the plug is connected.

●

Dedicated circuit

•

To reduce the risk of fire, connect only to an at least 15 A branch circuit with
an over-current protection in accordance with the National Electric Code, ANSI/
NFPA 70.

•

To reduce the risk of electric shock when working with the plug, connect to a outlet
with a Ground- Fault Circuit-Interrupter (GFCI) or that has an Earth Leakage
Circuit Breaker installed.

1-3. Charging with the plug-in hybrid system

Sockets that can be connected

The plug is designed to be connected to a NEMA 5-15R outlet.
The illustration is an example shown for demonstration purposes, and may differ
from the actual configuration.

Preventing the circuit breaker from tripping during charging

When your circuit breaker trips during charging, the upper limit of the charging
current can be changed in [Vehicle customize] on the center display.

*4*5

Select

on the center display.

Select [Vehicle customize].

Select [Charging].

Select [Charging current].

Select [16A]

or [8A] on the charging current screen, and then press [OK].

During charging, the maximum charging current will be restricted to the set current or
lower.

If the breaker still trips while charging, even after changing the upper limit of the
charging current, check if the connected power source meets the specified charging
conditions.

Charging tips

This section explains methods for using the charging function for this vehicle and
checking information related to charging.
To enable the use of EV mode or AUTO EV/HV mode, we recommend systemati-
cally charging the vehicle.

■

Before leaving home

In order to use EV mode or AUTO EV/HV mode, charge the hybrid battery
(traction battery) at home before leaving.

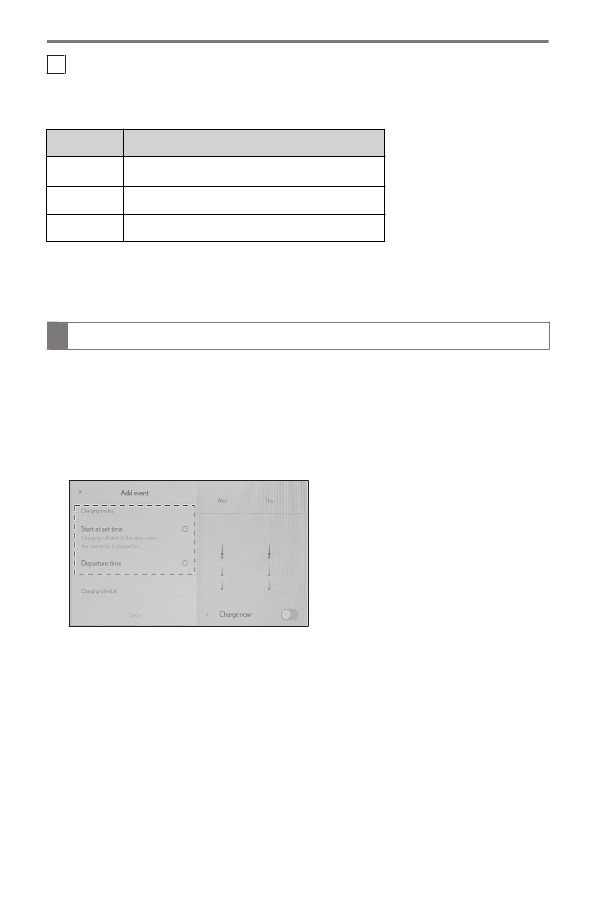

The charging schedule function can be used to set the system to automatically fully charge
the hybrid battery (traction battery) before your desired departure time.

■

At your destination

Use a public charging station to charge the hybrid battery (traction battery).
If there are no public charging stations at your destination, the hybrid battery
(traction battery) can be charged using the hybrid battery (traction battery) charge
mode.

■

After returning home

In order to drive the next time, charge the hybrid battery (traction battery).

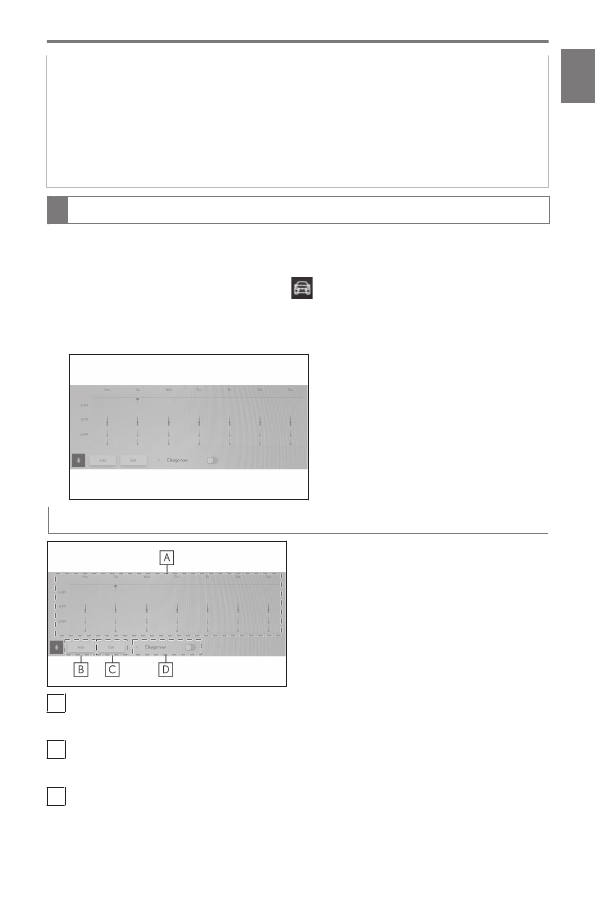

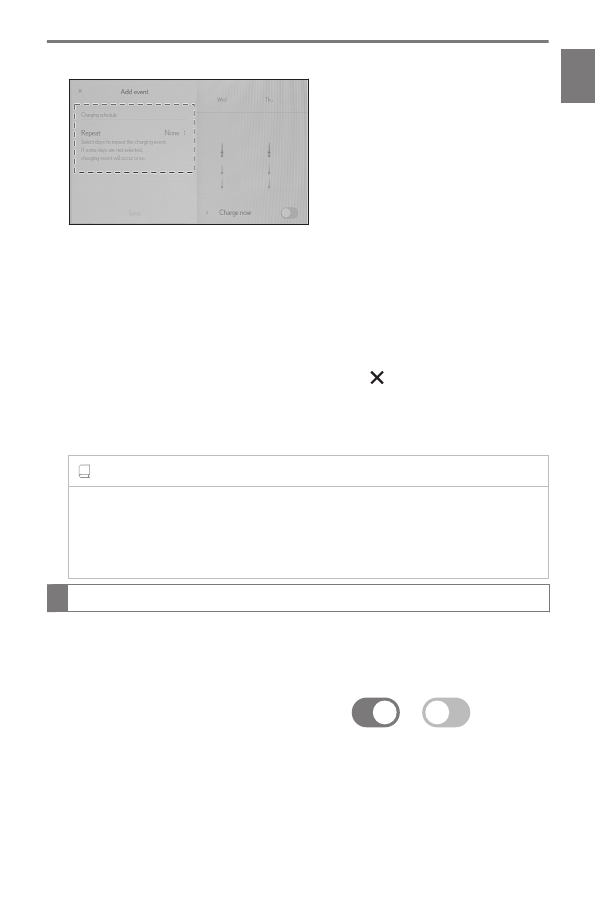

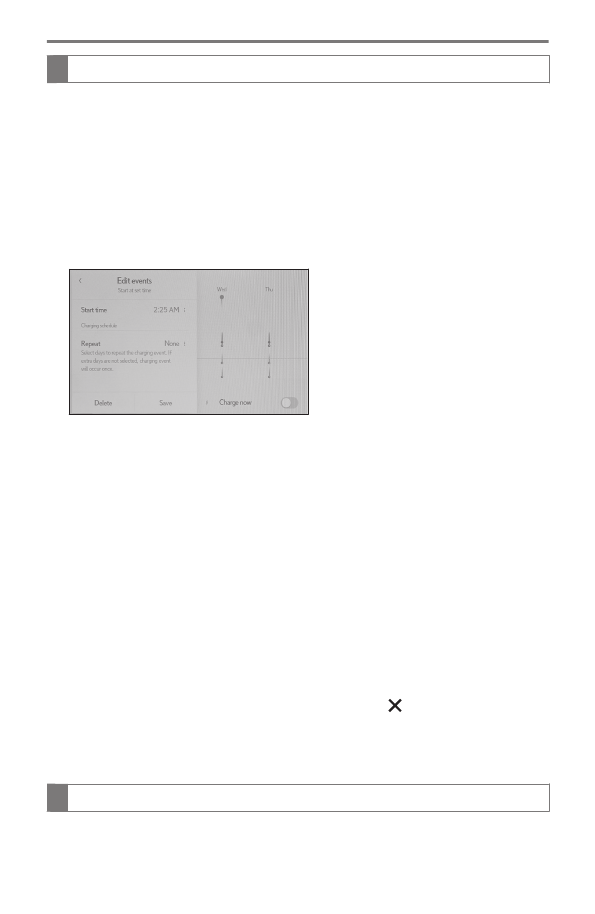

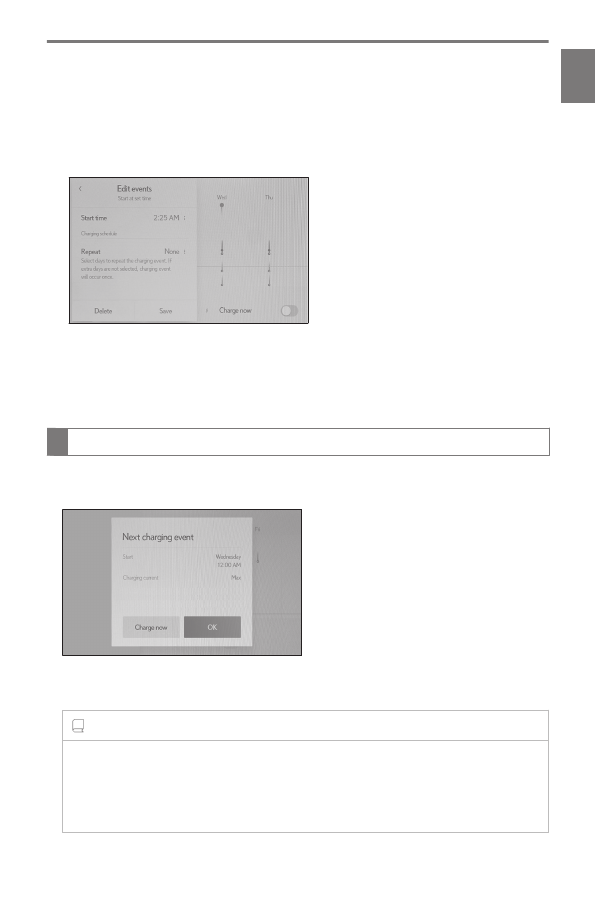

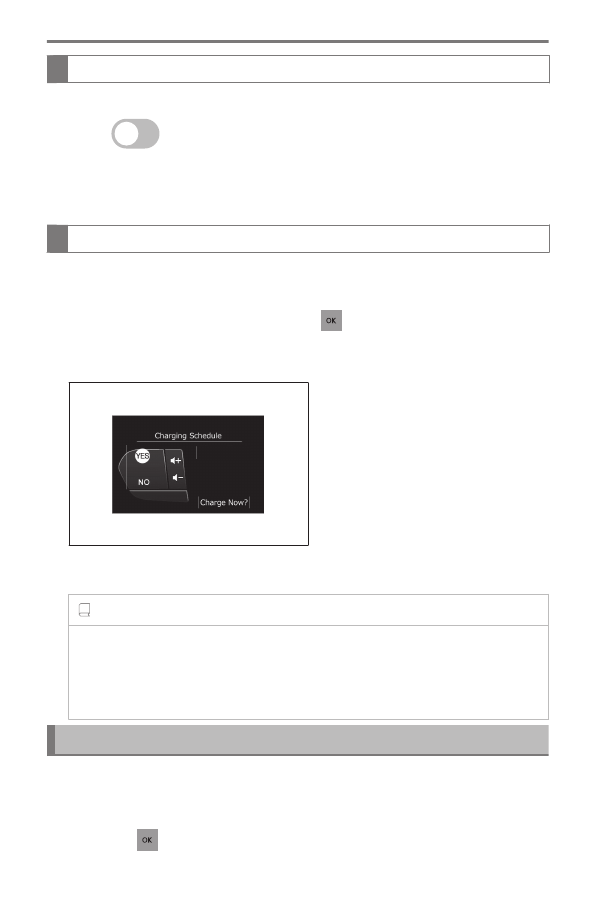

Settings the charging schedule allows you to charge the hybrid battery (traction battery)
at the desired time such as late at night or early in the morning. Furthermore, the charging
schedule can be set to automatically charge the hybrid battery (traction battery) every day
or at the same time on certain days.

Checking information related to charging

Information related to charging is displayed and can be checked on the multi-infor-
mation display.

■

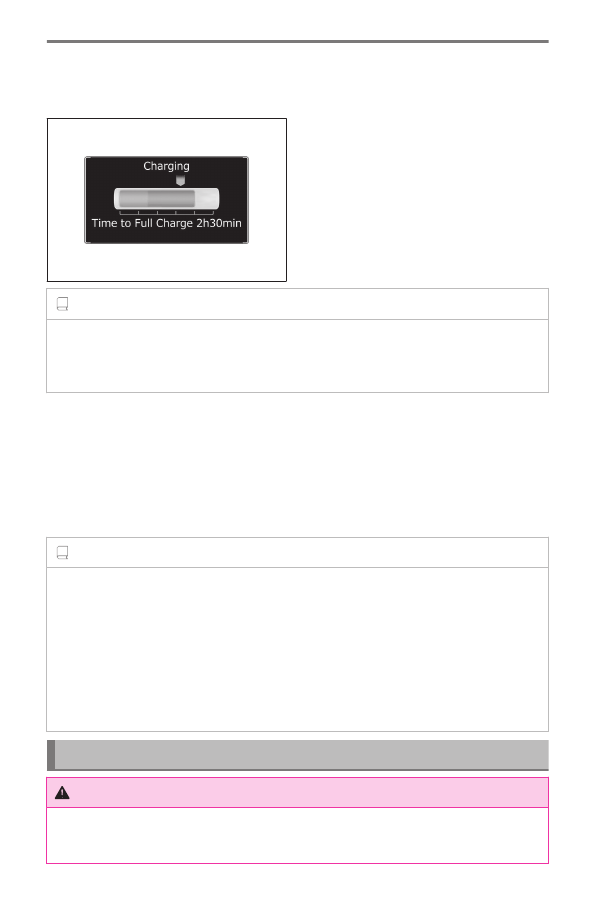

While charging

*3 :

When using the hybrid battery (traction battery) charge mode while parked, make

sure that no flammable objects are near the vehicle and the vehicle is parked in a

well-ventilated area.

*4 :

Various information related to charging can also be checked remotely.

1-3. Charging with the plug-in hybrid system

Befor

e driving

When any door is opened with the power switch off, the current charging condition
and approximate time remaining until charging is complete are displayed for a
certain period of time.

INFORMATION

■

Multi-information display during charging

If approximately 100 seconds elapse after the power switch is turned to ON during
charging, the power switch will automatically turn off and the display will disappear.

■

After charging is complete

When any door is opened with the power switch off after charging is complete,
a message detailing the results of the charging is displayed for a while. Also, a
message is displayed if an operation that stops charging is performed or a situation
where charging cannot be performed occurs.

When a message is displayed, follow the instructions displayed on the screen.

INFORMATION

■

The following indicate that charging has been carried out properly.

●

The charging indicator of the charging port turns off

●

"Charging Complete" is displayed on the multi-information display when a door is
opened with the power switch off.

Regardless of the type of power source or whether the charging schedule function is
used, charging is completed if the above can be confirmed.

How to charge

WARNING

■

When charging

Failure to do so may cause an unexpected accident.

1-3. Charging with the plug-in hybrid system

WARNING

●

Connect to a power source suitable for charging.

●

Check that the AC charging cable, plug and socket are free of foreign matter.

●

Before charging, check that the AC charging inlet is not deformed, damaged or
corroded, and check that the inlet is free of foreign matter such as dirt, snow and ice.
If there is dirt or dust in these areas, remove completely before inserting the charging
connector.

●

Do not get the terminals of the AC charging inlet wet.

●

Only use sockets where the plug can be securely inserted.

●

Do not bundle or wind the AC charging cable while charging, as doing so may result in
overheating.

●

Do not touch the terminals of the charging connector or AC charging inlet with your
hands or sharp metal objects, such as wire, or short them with anything.

●

When charging outdoors, make sure to connect to a rain-tight socket for outdoor use.
Ensure the rain-tight cover closes completely. If the rain-tight cover cannot be closed,
install a rain-tight cover that will close.

●

In order to stop charging at the charging station, follow the instructions of the charger.

●

If any heat, smoke, odors, noise or other abnormalities are noticed during charging,
stop charging immediately.

●

Do not insert the plug if the socket is submerged in water or snow.

●

When charging while it is raining or snowing, do not connect or disconnect the plug if
your hands are wet. Also, do not get the plug or outlet wet.

●

Do not charge the vehicle during a lightning storm.

●

Prevent the AC charging cable from being caught in the door or back door.

●

Do not let the wheels on the AC charging cable, plug, charging connector and CCID
(Charging Circuit Interrupting Device).

●

Firmly insert the plug into the socket.

●

Do not use an extension cord and converting adaptor.

●

Close the hood before using the charging system.
The cooling fan may start operating suddenly. Touching or getting close to rotating
parts such as the fan may cause your hands or clothes (especially a necktie or scarf) to
become caught and result in a serious injury.

●

If the power indicator on the CCID (Charging Circuit Interrupting Device) does
not illuminate after plugging the AC charging cable into the socketoutlet, unplug it
immediately.

●

After connecting the charging cable, confirm that it is not wound around anything.

1-3. Charging with the plug-in hybrid system

Befor

e driving

WARNING

■

If the error warning indicator on the CCID (Charging Circuit Interrupting Device)
illuminates or flashes during charging

There may be an electrical leakage in the power source path, or there may be a
malfunction in the AC charging cable or CCID (Charging Circuit Interrupting Device).
Refer to

→

P.726

and follow the correction procedure. If the error warning indicator

does not turn off even after performing the correction procedure, immediately stop
charging, remove the AC charging cable and contact your Lexus dealer. Continuing to
charge the vehicle in that condition may lead to unforeseen accidents or serious injury.

■

Onboard traction battery charger

The onboard traction battery charger is located under the rear seats. Make sure to ob-
serve the following precautions regarding the onboard traction battery charger. Failure to
observe these precautions may result in death or serious injury such as burns and electric
shocks.

●

The onboard traction battery charger is hot during charging. Do not touch the
onboard traction battery charger, as doing so may result in burns.

●

Do not disassemble, repair or modify the onboard traction battery charger. When the
onboard traction battery charger needs to be repaired, consult your Lexus dealer.

NOTICE

■

When using the AC charging cable and related parts

To prevent damage to the AC charging cable and related parts, observe the following
precautions.

●

When interrupting or canceling charging, remove the charging connector before
removing the plug.

●

When removing the AC charging cable, check that the charging connector is un-
locked.

●

Do not forcefully pull the charging connector cap and AC charging inlet cap.

●

Do not apply a vibration to the charging connector while charging.
Charging may be stopped.

●

Do not insert anything but the charging connector into the AC charging inlet.

●

When inserting the plug into or removing the plug from the socket, make sure to hold
the body of the plug.

●

Do not damage the AC charging inlet cap with a sharp object.

●

Do not forcefully pull the AC charging cable that is caught or entangled.
If the cable is entangled, disentangle it before using.

1-3. Charging with the plug-in hybrid system

NOTICE

●

Do not disassemble, repair or modify the AC charging inlet.
When the AC charging inlet needs to be repaired, consult your Lexus dealer.

■

When charging

Do not insert the plug into the AC charging inlet.
The AC charging inlet may be damaged.

■

Using private power generator

Do not use private power generators as a power source for charging.
Doing so may make charging unstable, the voltage may be insufficient, and the error
warning indicator on the CCID (Charging Circuit Interrupting Device) of the AC charg-
ing cable may flash.

■

Charging station

Due to the environment in which the power equipment is located, charging may be
unstable due to noise, the voltage may be insufficient, and the error warning indicator on
the CCID (Charging Circuit Interrupting Device) of the AC charging cable may flash.

■

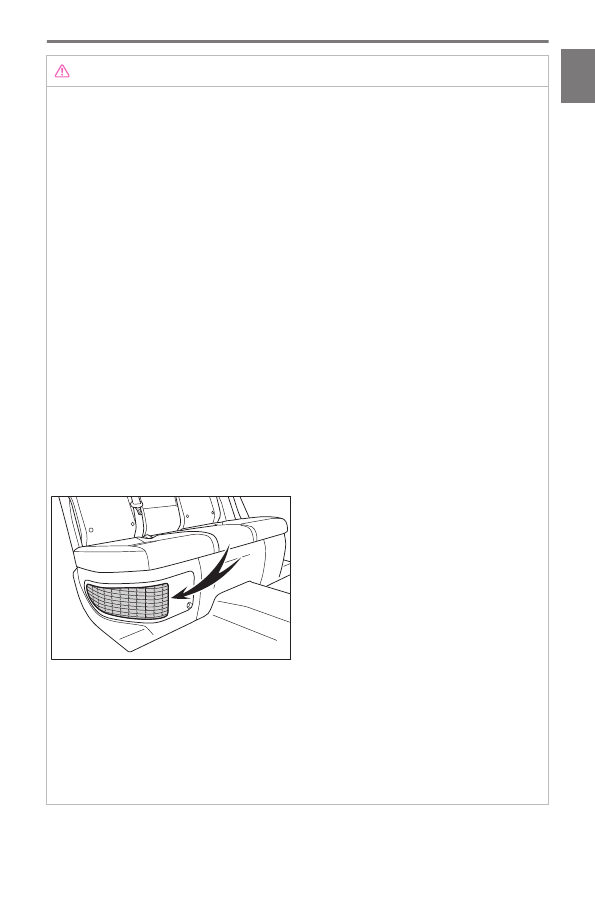

Onboard traction battery charger cooling air intake vent

Cooling air intake vent for the onboard traction battery charger is installed under the rear
seats. Make sure to observe the following precautions regarding the cooling air intake
vent. Failure to observe these precautions may result in a charging system malfunction.

●

Do not block the air intake vent with seat covers or luggage

●

If the air intake vent is clogged with dust, clean it with a vacuum cleaner

●

Do not allow water or foreign matter to enter the air intake vent

●

Do not spill large amounts of water near the air intake vent
If water is spilled, have the vehicle inspected by your Lexus dealer and do not charge
the hybrid battery (traction battery) before the inspection.

1-3. Charging with the plug-in hybrid system

Befor

e driving

INFORMATION

■

Safety function

If the latch release button is pressed, charging will not begin even if the AC charging
cable is connected.
Also, charging will be stopped if the latch release button is pressed and held for several
seconds during charging. When restarting charging, reinsert the charging connector
after pulling it out, and check that the charging indicator of the charging port illuminates.

■

Protection function of AC charging inlet overheating (vehicles with 7 kW onboard
traction battery charger)

By installing a temperature sensor to the AC charging inlet, prevents parts from melting
when the temperature rises due to foreign matter entering the AC charging connector.
When a certain temperature increase is detected, charging is stopped immediately
and a message is displayed on the multi-information display. After the temperature has
decreased, charging resumes by performing the operation to start charging again.

■

When the outside temperature is low or high

The level shown on the SOC (State of Charge) gauge may drop slightly when the power
switch is turned to ON, even if charging has been completed and the hybrid battery
(traction battery) is fully charged. However, this does not indicate a malfunction.

Starting charging

Prepare the AC charging cable.

Insert the AC charging cable into the outlet of the external power source.

Make sure to hold the body of the plug and insert it firmly into the outlet.
Check that the power indicator on the CCID (Charging Circuit Interrupting Device) is
illuminated.
In order to reduce the load on the electrical socket and plug, when inserting the plug,
use a string, etc., to hang the CCID (Charging Circuit Interrupting Device) on a hook
or equivalent.

1-3. Charging with the plug-in hybrid system

Unlock the doors and push the charging port
lid to open it.

The AC charging inlet light

will illuminate.

Remove the AC charging inlet cap and secure it into the holder on the
charging port lid.

Remove the AC charging connector cap and secure it to the cable.

1-3. Charging with the plug-in hybrid system

Befor

e driving

Insert the charging connector into the AC charging inlet.

Align the guide position on the bottom of the charging connector, and push the
charging connector straight into the AC charging inlet as far as possible.
Once a click sound is heard, check that the charging connector is securely locked.
When the charging connector is inserted straight as far as possible, it will automatically
lock.

Confirm that the charging indicator of the charging port is illuminated.

Charging will not start if the charging indicator does not illuminate when the charging
connector is inserted.
If the charging indicator is flashing, the charging schedule is registered.
The charging indicator will turn off when charging is completed.
The charging indicator will also turn off when charging is interrupted.

1-3. Charging with the plug-in hybrid system

INFORMATION

■

If the charging indicator of the charging port flashes after connecting the AC
charging cable

The charging schedule is registered and charging cannot be performed. To cancel
charging using the charging schedule and start charging, perform any of the follow-
ing procedures.

●

Turn [Charge now] ON

●

While the charging indicator is flashing, remove and reconnect the charging
connector immediately

■

While charging

When the power switch is turned to ON and the energy monitor is displayed on the
center display, the AC charging connector is displayed on the energy monitor and
the flow of electricity during charging is displayed.

Handling the charging cable after charging has completed

Unlock the doors to unlock the charging connector.

The charging connector will be unlocked and the AC charging inlet light will illuminate
when the doors are unlocked.

Pull the charging connector towards you while pressing the latch release
button.

If the latch release button is pressed during charging (while the charging indicator is
illuminated), charging will be interrupted.

1-3. Charging with the plug-in hybrid system

Befor

e driving

INFORMATION

■

When removing the charging connector

Press the latch release button, check that the lever raises up, and then pull the
charging connector towards you.
If the lever does not raise up even after the latch release button is pressed, the
charging connector is locked. If this occurs, unlock the doors using the smart access
system with push-button start or wireless remote control to unlock the charging
connector.

Attach the charging connector cap.

Attach the AC charging inlet cap and close the charging port lid.

Lock the doors to lock the charging port lid.

1-3. Charging with the plug-in hybrid system

Remove the plug from the outlet when the charging equipment will not be used
for a prolonged period of time.

Hold the body of the plug when removing.
Make sure to put the cable away immediately after disconnecting.
When leaving the plug inserted, inspect the plug and connector once a month to check
if dirt or dust has accumulated.

WARNING

Remove the plug if it will not be used for a long time. Dirt and dust may accumulate
plug or outlet, which could cause a malfunction or fire, possibly leading to death or
serious injury.

NOTICE

●

Store the AC charging cable out of reach from infants and children.

●

After disconnecting the charging connector from the AC charging inlet, make
sure to put on the AC charging inlet cap and close the charging port lid. If the
AC charging inlet cap is not put on, water or foreign objects may enter the AC
charging inlet, which could lead to vehicle damage.

●

After removing the plug from the outlet, keep it in a safe place free from moisture
and dust. The AC charging cable or plug may be damaged if the cable is stepped
on or ridden over by the vehicle.

1-3. Charging with the plug-in hybrid system

Befor

e driving

Useful plug-in hybrid system charging functions

Charging schedule function and operation

Charging can be carried out at the desired time by registering the charging
schedule on the center display

. Also, it is possible to set the charging schedule to

one’s preferences, such as having charging complete by a certain departure time
or be carried out at the same time on certain days.
When registering the charging schedule, the following settings can be changed.

■

Select the charging mode

Charging modes can be selected.

●

[Start at set time]
Starts charging at the set time

*2*3

and finishes charging when fully charged.

●

[Departure time]
Starts charging to finish at the set time.

*4*5

■

[Repeat] setting

The periodic charging schedule can be set by selecting your desired day of the
week.

If no days are selected, charging is only carried out once.

■

Turning [Charge now] on and off

If even one charging schedule is registered, charging does not start until the
set time, even if the AC charging cable is connected to the vehicle. To start
charging without changing the charging schedule setting, turn [Charge now] on

*1 :

For details on how to operate the center display screen, refer to "MULTIMEDIA

OWNER'S MANUAL".

*2 :

There might be a slight error in the timing when charging starts due to the state of the

hybrid battery (traction battery).

*3 :

Charging schedule function is performed in accordance with the clock in the multi-in-

formation display. Before registering the charging schedule, check the clock settings

to the proper time.
Before registering a charging time to the charge schedule, make sure that [Set time

automatically] on the center display is turned on.

*4 :

When the system determines that there is no time to finish charging by the set

scheduled departure time, it starts charging. Check the charging schedules.

*5 :

If sudden changes in temperature or changes in the condition of the power source

occur while charging, charging may not end exactly at the time estimated by the

system.

1-3. Charging with the plug-in hybrid system

to temporarily cancel the charging schedule and enable charging after connecting
the AC charging cable.

*6*7

WARNING

When performing the setting operation while the hybrid system is operated, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter
the vehicle. This may lead to a serious health hazard.

NOTICE

To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
setting up the display features.

INFORMATION

■

Calendar settings

The current date and time is automatically set using GPS. However, if the automatic
setting of the clock is turned off on the center display, it will be necessary to manually set
the date and time. For details, refer to the "MULTIMEDIA OWNER'S MANUAL".
If the calendar information is wrong, the charging schedule function will not operate
normally.

■

Charging schedule

●

The charging schedule cannot be set while driving.

●

A maximum of 15 charging schedules can be registered.

■

To make sure that the charging schedule function operates correctly

Check the following items.

●

Adjust the clock to the correct time

●

The calendar is set to the correct date

●

Check that the power switch is turned off

●

After registering the charging schedule, connect the AC charging cable
The charging start time is determined based on the charging schedule at the time that
the AC charging cable was connected.

*6 :

[Charge now] can also be turned on/off on the multi-information display.

*7 :

If the charging connector is disconnected when the charging schedule is set and

[Charge now] is on, [Charge now] will turn off.

*8 :

For the setting procedure for the clock and calendar, refer to the "MULTIMEDIA

OWNER'S MANUAL".

1-3. Charging with the plug-in hybrid system

Befor

e driving

●

After connecting the AC charging cable, check that the charging indicator of the
charging port flashes

●

Do not use an socket that has a power cut off function (including a timer function)
Use an socket that constantly supplies electricity. For sockets where the power is cut
off due to a timer function, etc., charging may not be carried out according to plan if
the power is cut off during the set time.

■

When the AC charging cable remains connected to the vehicle

Even if multiple consecutive charging schedules are registered, the next charge will
not be carried out according to the charging schedule until the AC charging cable
is removed and reconnected after charging completes. Also, when the hybrid battery
(traction battery) is fully charged, charging according to the charging schedule will not be
carried out.

■

Smartphone link

It may be necessary to use a smartphone with a dedicated app to change the next
charging schedule.

■

When charging schedule setting operations are canceled

When the vehicle is in the following conditions, charging schedule setting operations are
canceled.

●

The power switch is turned off before the settings are confirmed

●

The vehicle starts off

●

A display with a higher priority than that of the charging schedule setting is shown

■

When charging schedules are ignored

When the following operations are performed while the charging schedule is on standby,
charging schedule is temporarily canceled and charging is started.

●

When turning My Room Mode on

●

When turning [Charge now] on

●

When the AC charging cable is disconnected then reconnected immediately

■

Effects of outside temperature

When the charging mode is set to[Departure time], charging schedule may be ignored
due to the outside temperature and charging may start.

■

Traction battery heater/Traction battery cooler

When charging is carried out using the charging schedule, the hybrid battery (traction
battery) heating or cooling function may operate according to the temperature of the
hybrid battery (traction battery).

●

When the charging mode is set to [Start at set time], the function starts at the set
charging start time.

1-3. Charging with the plug-in hybrid system

●

Traction battery heater: When the charging mode is set to [Departure time], the
function starts automatically to complete heating by the desired departure time.

●

Traction battery cooler: When the charging mode is set to [Departure time], cooling
starts approximately 30 minutes before the charging start time. However, if there is no
time to finish charging by the charging schedule, the hybrid battery (traction battery)
cooling time may be shortened and traction battery cooler may not operate.

Displaying the charging schedule screen on the center display

Setting operations related to the charging schedule are performed on the charging
schedule screen.

With the power switch in ON, select

on the center display.

Select [Charging schedule].

The charging schedule screen will be displayed.

How to read the charging schedule screen on the center display

Charging schedules

Displays the week-long registered charging schedule in a list using icons.

[Add] switch

Select to add a new item to the charging schedule.

[Edit] switch

Select to change or delete registered items on the charging schedule.

*9 :

Charging schedule settings cannot be changed when the power switch is in ACC.

1-3. Charging with the plug-in hybrid system

Befor

e driving

[Charge now] switch

Select to [Charge now] to on.

The following content is displayed on the calendar.

Display

Content

Gray line

*10

Current time

Green icon The charging mode is set to [Departure time].

Blue icon

The charging mode is set to [Start at set time].

It may be necessary to use a smartphone with a dedicated app to change the next
charging schedule.
When [Charge now] is set to on, the icon moves to the position of the gray line.

Registering the charging schedule on the center display

Display the charging schedule screen.

Select [Add].

The edit charging event screen will be displayed on the screen.

Change the schedule to the desired time.

▶

Charging mode

Select [Start at set time] or [Departure time] to set the desired charging mode.
When [Start at set time] is selected:
Set the time to start charging (start time) and then select [OK].
[Departure time] is selected:
Set the time which you would like charging to end (departure time) and then select
[OK].

*10 :

A row with a gray line indicates the current time.

1-3. Charging with the plug-in hybrid system

▶

[Repeat] setting

Charging will be repeated for the set day(s) on the charging schedule. It is possible to
turn more than one day on.
If no days are selected, charging is only carried out once according to the charging
schedule for the next 24 hours.

After setting operations are complete, select [Save].

The charging schedule is registered and an icon is added to the calendar.

To cancel registration of the charging schedule, select

After setting operations are complete, when the power switch is turned off and the AC
charging cable is connected to the vehicle, charging is carried out according to the
charging schedule settings.

INFORMATION

■

When a charging schedule has been registered

When all the items in the charging schedule are turned off, icons are not displayed
on the charging schedule screen. The icons will be displayed when they are set to on
using the scheduled events screen.

Switching charging schedules between on and off on the center display

Display the charging schedule screen.

Select [Edit].

The scheduled events screen will be displayed on the screen.

From the items displayed on the screen, select

in the row

of the charging schedule you wish to change.

If the charging schedule you wish to change is not displayed on the screen, scroll the list
up and down to display it.
Each time the switch is selected, Charging Schedule will turn on/off.

1-3. Charging with the plug-in hybrid system

Befor

e driving

Changing the registered charging schedules on the center display

Display the charging schedule screen.

Select [Edit].

The scheduled events screen will be displayed on the screen.

Select [Edit].

From the items displayed on the screen, select the charging schedule you wish
to change.

Set the desired time/day.

When changing the [Start at set time] of the charging schedule:
Set the time (start time)/day to start charging and then select [OK].
When changing the [Departure time] of the charging schedule:
Set the time which you would like charging to end (departure time) and then select
[OK].
[Repeat]setting:
Charging will be repeated for the set day(s) on the charging schedule. It is possible to
turn more than one day on.
If no days are selected, charging is only carried out once according to the charging
schedule for the next 24 hours.

After setting operations are complete, select [Save].

When a setting is changed, its icon on the calendar also changes.

To cancel changes made to the charging schedule, select

After setting operations are complete, when the power switch is turned off and the AC
charging cable is connected to the vehicle, charging is carried out according to the
charging schedule settings.

Deleting a registered charging schedule on the center display

Display the charging schedule screen.

Select [Edit].

1-3. Charging with the plug-in hybrid system

The scheduled events screen will be displayed on the screen.

Select [Edit].

From the items displayed on the screen, select the charging schedule you wish
to delete.

Select [Delete].

A deletion confirmation message will be displayed.

Select [Delete] to delete the selected charging schedule.

To cancel deletion, select [Cancel].
When a charging schedule is deleted, its icon is also deleted from the calendar.

Displaying the [Next charging event] on the center display

●

Turn the power switch off.

According to the set charging schedule, the [Next charging event] will be displayed.

When [OK] is selected: The next scheduled charging screen will be closed.
When [Charge now] is selected: [Charge now] will be turned on.

INFORMATION

■

[Next charging event]

After charging completes, the [Next charging event] on the display will not change
until the AC charging cable is removed, after charging is performed according to the
[Next charging event].

1-3. Charging with the plug-in hybrid system

Befor

e driving

Turning on [Charge now] on the center display

Display the charging schedule screen.

Select

of [Charge now].

Each time the switch is selected, [Charge now] will turn on/off.
After setting operations are complete, charging starts when the AC charging cable is
connected.

Turning on [Charge Now] on the multi-information display

Turn the power switch off.

The closing display screen is displayed on the multi-information display.

Vehicles without a head-up display: Press

of the meter control switch.

*11

Ve-

hicles with a head-up display: Press the steering wheel switch at the position
where [YES] is displayed on the multi-information display.

After setting operations are complete, charging starts when the AC charging cable is
connected.

INFORMATION

■

When the power switch is turned off

When the power switch is turned off, the charging schedule (next scheduled charg-
ing) will be displayed on the closing display and the registered details can be
checked.

*12

My Room Mode mode function and operation

When the AC charging cable is connected to the vehicle, electrical components
such as the air conditioning system or audio system can be used using the external
power source.

*11 :

Each time

is pressed, [Charge Now] will turn on/off.

*12 :

The closing display screen may not be displayed during charging.

1-3. Charging with the plug-in hybrid system

INFORMATION

■

While using My Room Mode

Any of the following may occur.

●

When the remaining charge of the hybrid battery (traction battery) reaches the lower
limit, the air conditioning system automatically turns off.
In this situation, the air conditioning system cannot be used until the remaining charge
of the hybrid battery (traction battery) increases. Turn the power switch off and use
My Room Mode after the remaining charge of the hybrid battery (traction battery) is
restored.

●

When the outside temperature is low, the heater output may be limited due to the air
conditioning system operation being restricted.

●

Warning lights and indicators such as electric power steering system warning light
(yellow) and malfunction indicator lamp may turn on, but this is not a malfunction.

■

When a charging schedule is registered

When My Room Mode starts while the charging schedule is on standby, charging
schedules are ignored and charging starts.

■

Meter display during charging

If My Room Mode is not turned on for approximately 100 seconds after the power switch
is turned on during charging, the power switch will automatically turn off.

Starting My Room Mode

WARNING

When using My Room Mode, make sure to observe the following precautions.

●

Do not leave children, people who need assistance, or pets inside the vehicle.
The system may turn off automatically and the interior temperature may become
high or low, resulting in heat stroke, dehydration or hypothermia. Devices such as the
wipers can also be used, which may lead to mistaken operation and an accident.

●

Check the safety around the vehicle carefully before use.

Connect the AC charging cable to the vehicle and start charging.

Turn the power switch on during charging.

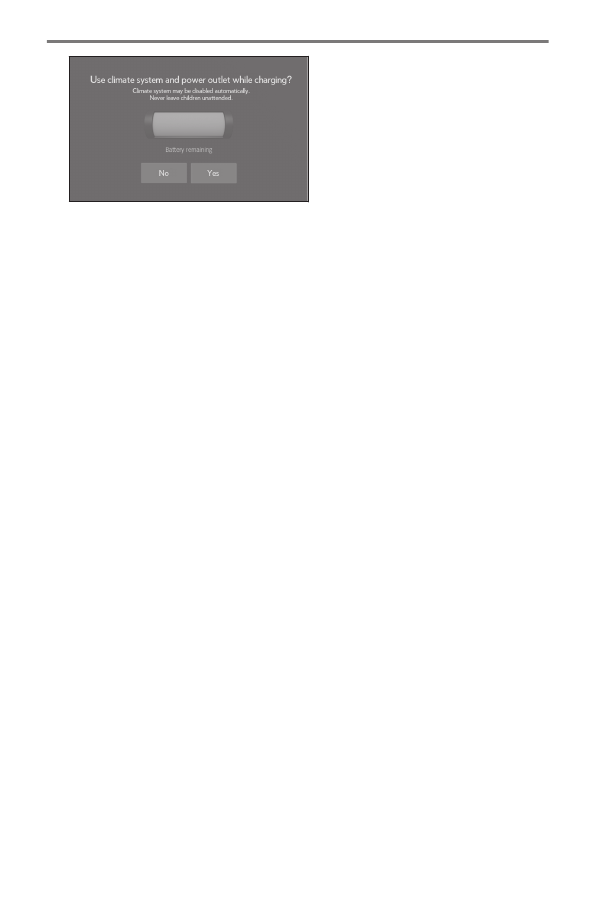

The setting screen of My Room Mode is displayed automatically on the center display.

Select [Yes].

My Room Mode starts and systems such as the air conditioning system and audio
system can be used inside the vehicle.
When not using My Room Mode, select [No].

1-3. Charging with the plug-in hybrid system

Befor

e driving

Lexus NX450H+ (2024 year). Manual in english - page 2
