8-1. Specifications

Vehi

cle

spec

ifi

tions



LC500

■

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. When actually adding the
engine oil, make sure that the oil level is
between the low level mark and refill
upper limit mark. (



P.343) Warm up

and turn off the engine, wait about 5
minutes, and check the oil level on the
dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade:
ILSAC GF-6A multigrade engine oil
Recommended viscosity:
SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 oil may be used. However, it
should be replaced with SAE 5W-30
at the next oil change.

Outside temperature

Oil viscosity (5W-30 is explained here
as an example):
• The 5W in 5W-30 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 30 in 5W-30 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

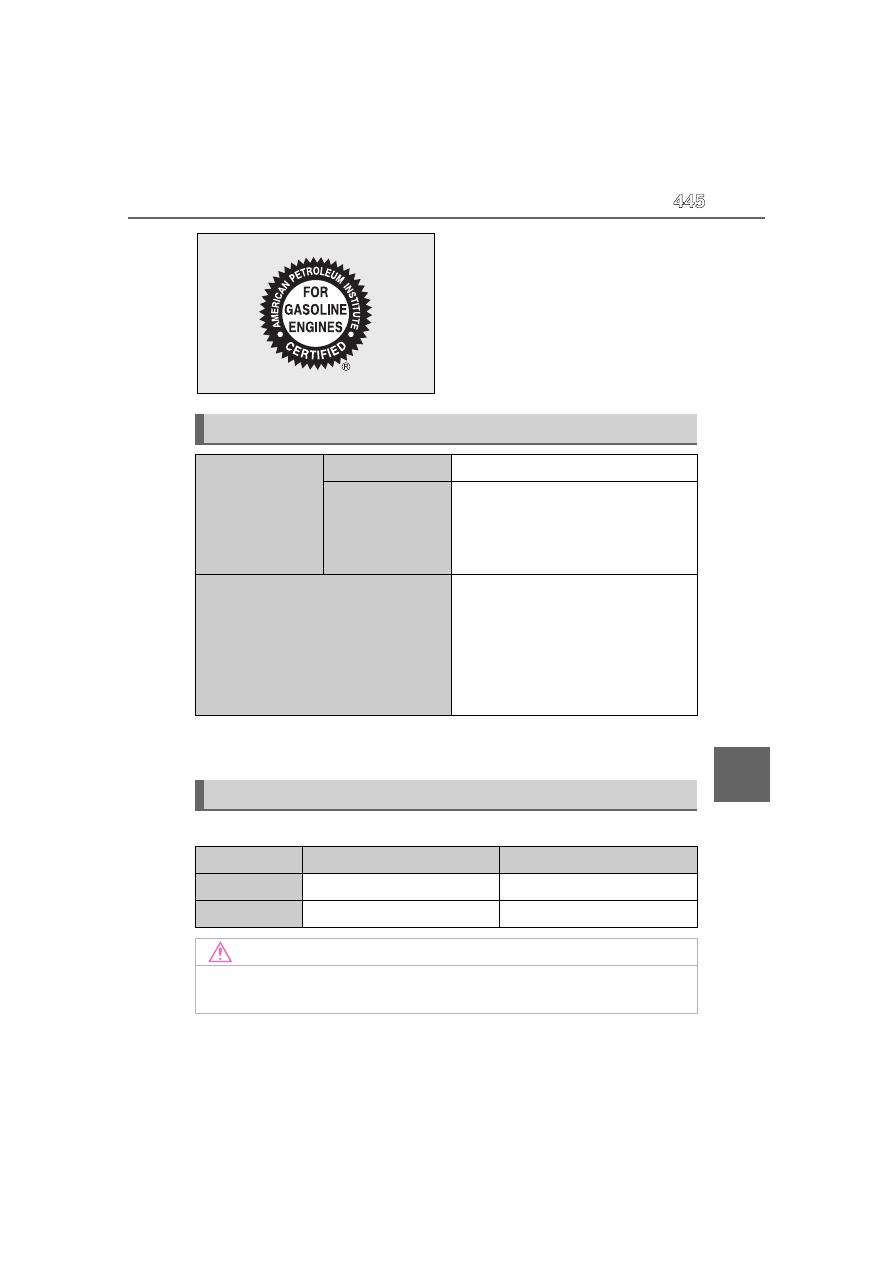

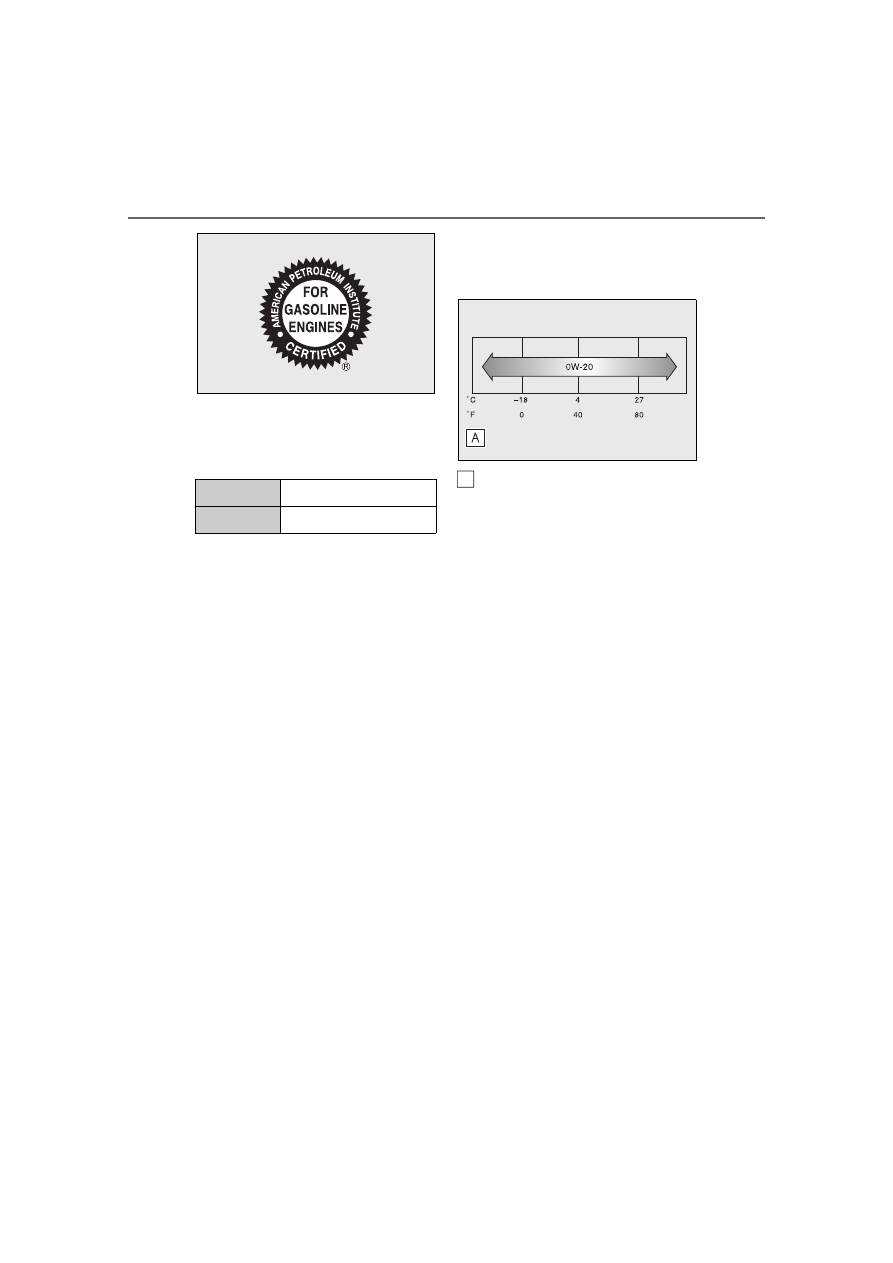

How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil
you should use.

Lubrication system

With filter

9.1 qt. (8.6 L, 7.6 Imp. qt.)

Without filter 8.4 qt. (7.9 L, 7.0 Imp. qt.)

444

8-1. Specifications



LC500h

■

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. When actually adding the
engine oil, make sure that the oil level is
between the low level mark and refill
upper limit mark. (



P.343) Warm up

the engine and turn off the hybrid sys-
tem, wait about 5 minutes, and check the
oil level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade:
ILSAC GF-6A multigrade engine oil
Recommended viscosity:
SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE

5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at
the next oil change.

Outside temperature

Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 20 in 0W-20 indicates the vis-

How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil
you should use.

With filter

6.0 qt. (5.7 L, 5.0 Imp. qt.)

Without filter 5.8 qt. (5.5 L, 4.8 Imp. qt.)

445

8-1. Specifications

icle

ifi

tio

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

■

Spark plug

Cooling system

Capacity

LC500

12.8 qt. (12.1 L, 10.6 Imp. qt.)

LC500h



Gasoline engine

11.5 qt. (10.9L, 9.6 Imp. qt.)



Power control unit

2.4 qt. (2.3L, 2.0 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology

Do not use plain water alone.

Ignition system

LC500

LC500h

Make

DENSO FK20HBR-J8

DENSO FK20HBR8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

446

8-1. Specifications

■

12-volt battery



LC500



LC500h

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

Electrical system

Open voltage at 68°F (20°C):

12.3 V or higher
(Turn the engine switch off and turn on the headlights
for 20 to 30 seconds.)

Charging rates

5 A max.

Open voltage at 68°F (20°C):

12.0 V or higher
(Turn the power switch off and turn on the high beam
headlights for 30 seconds.)

Charging rates

5 A max.

Automatic transmission (LC500)

Fluid capacity



Without air-cooled fluid cooler

9.3 qt. (8.8 L, 7.7 Imp. qt.)



With air-cooled fluid cooler

9.5 qt. (9.0 L, 7.9 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-

tion, or damage the transmission of your vehicle.

Hybrid transmission (LC500h)

Fluid capacity

7.2 qt. (6.8 L, 6.0 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

447

8-1. Specifications

icle

ifi

tio

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of match-
ing quality to satisfy the above specification. Please contact your Lexus dealer for further
details.

: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N, 51.0 kgf)

while the engine is running <hybrid system is operating>.
When performing the brake pedal inspection, also be sure to check that the brake sys-
tem warning light is not illuminated when the engine is running <hybrid system is operat-
ing>. (If the brake system warning light is illuminated, refer to P.385.)

: Make sure to confirm that the brake system warning light (yellow) does not illuminate. (If

NOTICE

■

Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-

tion, or ultimately damage the transmission of your vehicle.

Differential

Oil capacity

0.90 qt. (0.85 L, 0.75 Imp. qt.)

Oil type and viscosity



Without LSD (Limited Slip Differential)

Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent



With LSD (Limited Slip Differential)

Toyota Genuine Differential gear oil LX
75W-85 GL-5 or equivalent

Brakes

Pedal clearance

5.2 in. (132 mm) Min.

Pedal free play

0.04



0.24 in. (1.0



6.0 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Parking brake lining wear limit

0.04 in. (1.0 mm)

Parking brake indicator

When pushing the parking brake switch for
1 to 4 seconds: comes on
When pulling the parking brake switch for 1
to 4 seconds: turns off

Fluid type

SAE J1703 or FMVSS No.116 DOT 3, SAE
J1704 or FMVSS No. 116 DOT 4

448

8-1. Specifications

the brake system warning light illuminates, refer to P.389.)

Steering

Free play

Less than 1.2 in. (30 mm)

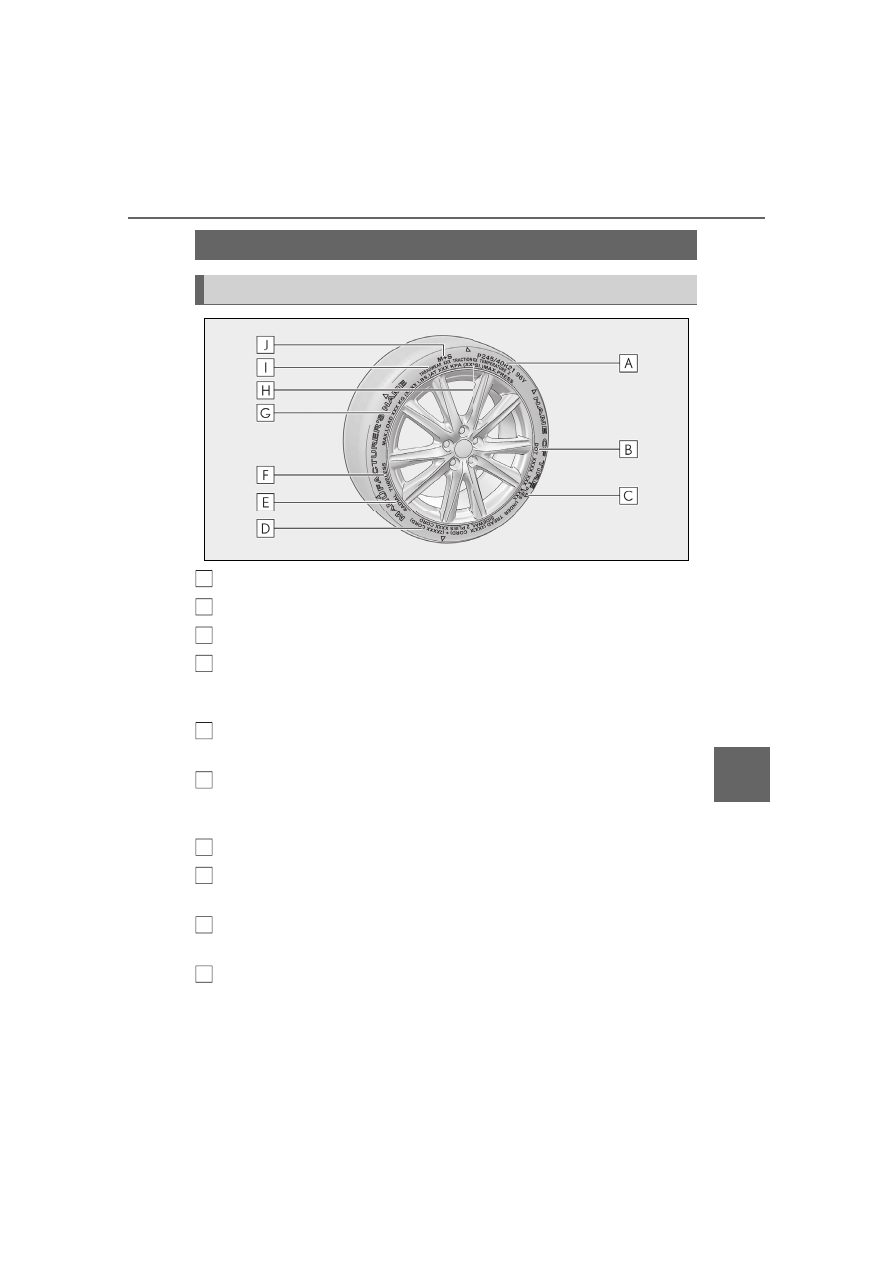

Tires and wheels

Tire size

Front tires: 245/40R21 96Y
Rear tires: 275/35R21 99Y

Tire inflation pressure
(Recommended cold tire inflation pressure)

Driving under normal conditions:

Front: 33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear: 33 psi (230 kPa, 2.3 kgf/cm

or bar)

Driving at high speeds (above 137 mph
[220 km/h]) (in countries where such
speeds are permitted by law):

Add 10 psi (70 kPa, 0.7 kgf/cm

or bar) to

the front tires and rear tires. Never exceed
the maximum cold tire inflation pressure
indicated on the tire sidewall.

Wheel size

Front wheels: 21



8 1/2J

Rear wheels: 21



9 1/2J

Wheel bolt torque

103.3 ft•lbf (140 N•m, 14.3 kgf•m)

Light bulbs

Bulb No.

Type

Vanity lights



Double end

bulbs

449

8-1. Specifications

Vehi

cle

spec

ifi

tions

■

Gasoline quality

In very few cases, driveability problems may

be caused by the brand of gasoline you are

using. If driveability problems persist, try

changing the brand of gasoline. If this does

not correct the problem, consult your Lexus

dealer.

■

Recommendation of the use of gasoline

containing detergent additives

●

Lexus recommends the use of gasoline

that contains detergent additives to avoid

the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains

minimum detergent additives to clean

and/or keep clean intake systems, per

EPA’s lowest additives concentration

program.

●

Lexus strongly recommends the use of

Top Tier Detergent Gasoline. For more

information on Top Tier Detergent Gas-

oline and a list of marketers, please go to

the official website www.toptiergas.com.

■

Recommendation of the use of low

emissions gasoline

Gasolines containing oxygenates such as

ethers and ethanol, as well as reformulated

gasolines, are available in some cities.

These fuels are typically acceptable for use,

providing they meet other fuel require-

ments.
Lexus recommends these fuels, since the

formulations allow for reduced vehicle

emissions.

■

Non-recommendation of the use of

blended gasoline

●

Use only gasoline containing up to 15%
ethanol.

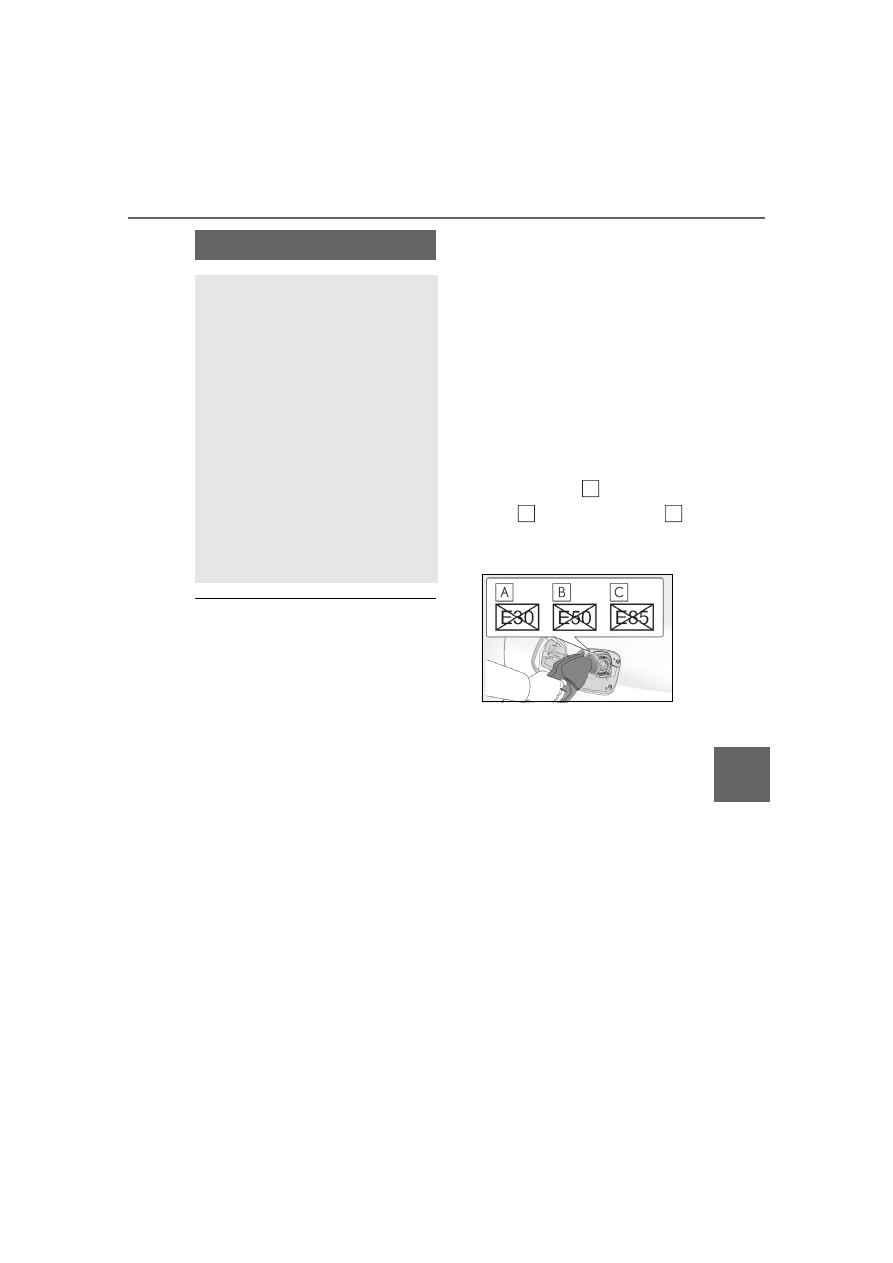

DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30 (30% ethanol [

]), E50 (50%

ethanol [

]), E85 (85% ethanol [

])

(which are only some examples of fuel
containing more than 15% ethanol).

●

If you use gasohol in your vehicle, be sure

that it has an octane rating no lower than

91.

●

Lexus does not recommend the use of

gasoline containing methanol.

■

Non-recommendation of the use of gas-

oline containing MMT

Some gasoline contains an octane enhanc-

ing additive called MMT (Methylcyclopen-

tadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gas-

oline that contains MMT. If fuel containing

MMT is used, your emission control system

may be adversely affected.
The malfunction indicator lamp on the

instrument cluster may come on. If this hap-

pens, contact your Lexus dealer for service.

■

If your engine knocks

●

Consult your Lexus dealer.

Fuel information

You must only use unleaded gaso-
line.

Select premium unleaded gasoline
with an octane rating of 91
(Research Octane Number 96) or
higher required for optimum
engine performance and fuel econ-
omy. If the octane rating is less than
91, damage to the engine may
occur and may void the vehicle
warranty.

At minimum, the gasoline you use
should meet the specifications of
ASTM D4814 in the U.S.A..

450

8-1. Specifications

●

You may occasionally notice light knock-

ing for a short time while accelerating or

driving uphill. This is normal and there is

no need for concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper

fuels are used, the engine will be dam-

aged.

●

Do not use leaded gasoline.

Leaded gasoline can cause damage to

your vehicle’s three-way catalytic con-

verters causing the emission control

system to malfunction.

●

Do not use gasohol other than the type

previously stated.

Other gasohol may cause fuel system

damage or vehicle performance prob-

lems.

●

Using unleaded gasoline with an

octane number or rating lower than

the level previously stated may cause

persistent heavy knocking.

At worst, this may lead to engine dam-

age and will void the vehicle warranty.

■

Fuel-related poor driveability

If poor driveability (poor hot starting,

vaporization, engine knocking, etc.) is

encountered after using a different type

of fuel, discontinue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It can

damage your vehicle’s paint.

451

8-1. Specifications

Vehi

cle

spec

ifi

tions

Tire size (



P.452)

DOT and Tire Identification Number (TIN) (



P.452)

Location of treadwear indicators (



P.349)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies
in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a
tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure (



P.454)

Maximum cold tire inflation pressure (



P.454)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires (



P.350)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer tire.

Tire information

Typical tire symbols

A
B
C
D

452

8-1. Specifications



Type A

DOT symbol

Tire Identification Number (TIN)

Tire manufacturer’s identification
mark

Tire size code

Manufacturer’s optional tire type
code (3 or 4 letters)

Manufacturing week

Manufacturing year

: The DOT symbol certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.



Type B

DOT symbol

Tire Identification Number (TIN)

Tire manufacturer’s identification
mark

Manufacturer’s code

Manufacturing week

Manufacturing year

: The DOT symbol certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.

■

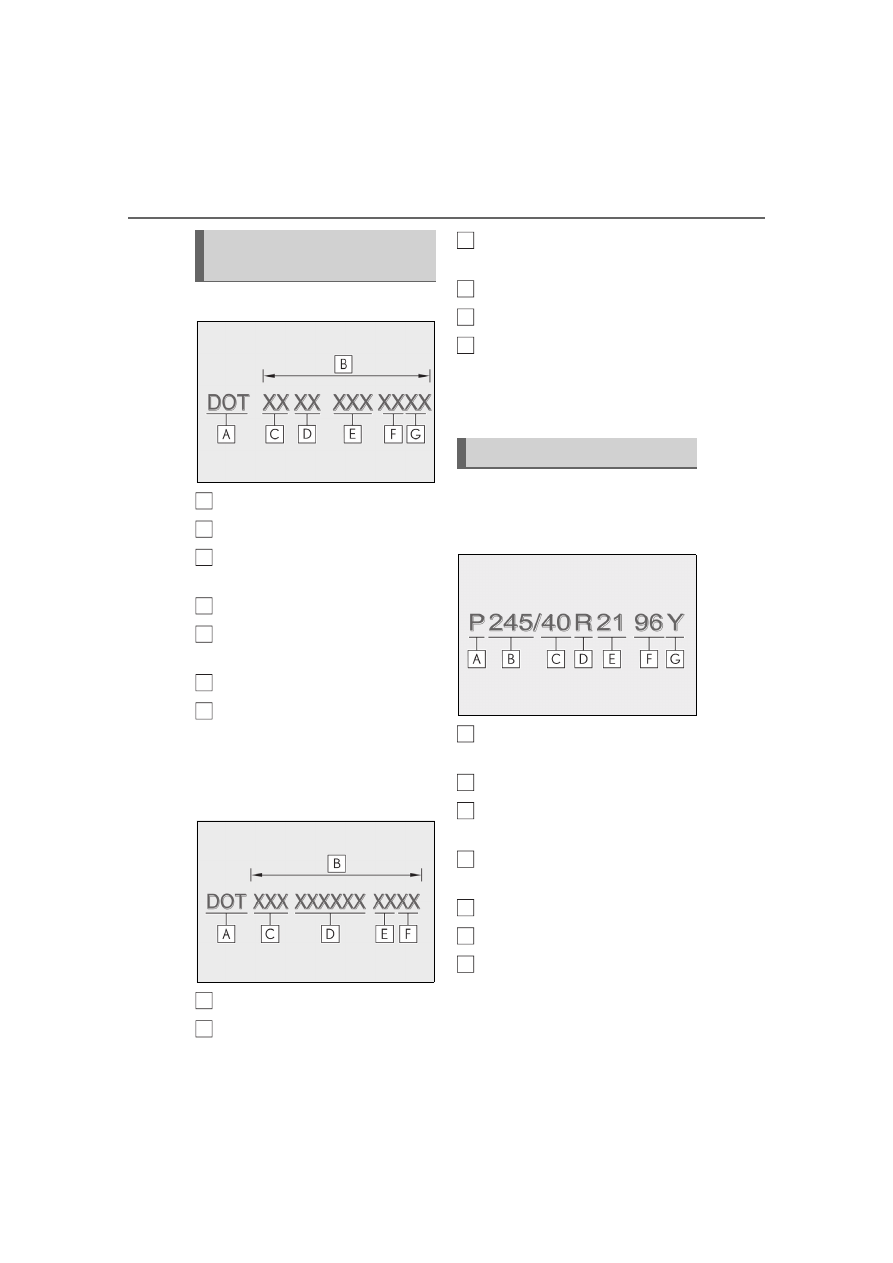

Typical tire size information

The illustration indicates typical tire
size.

Tire use (P = Passenger car, T =
Temporary use)

Section width (millimeters)

Aspect ratio (tire height to section
width)

Tire construction code (R = Radial,
D = Diagonal)

Wheel diameter (inches)

Load index (2 digits or 3 digits)

Speed symbol (alphabet with one
letter)

Typical DOT and Tire Identifica-
tion Number (TIN)

A
B
C

A
B

Tire size

E
F

B
C

E
F

453

8-1. Specifications

Vehi

cle

spec

ifi

tions

■

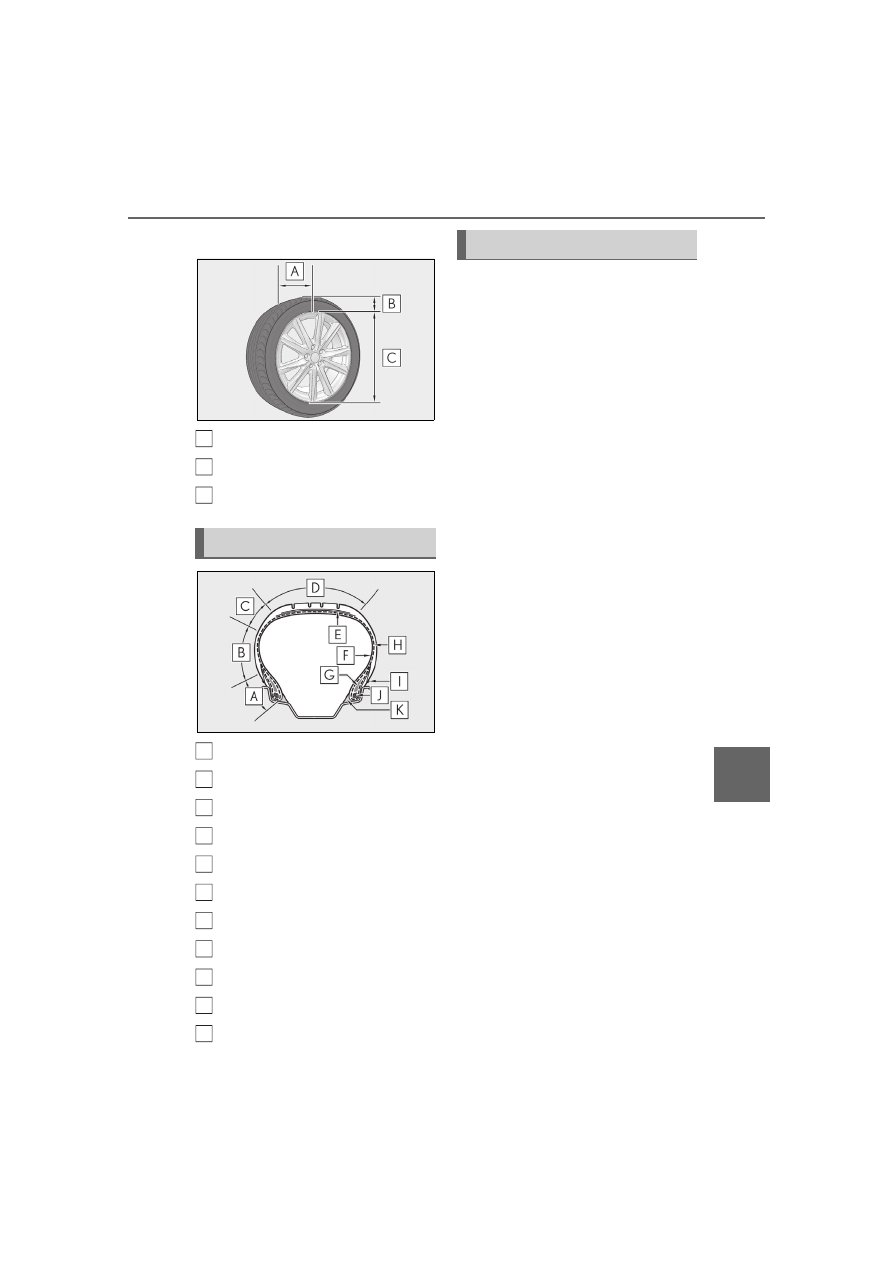

Tire dimensions

Section width

Tire height

Wheel diameter

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

This information has been prepared in
accordance with regulations issued by
the National Highway Traffic Safety
Administration of the U.S. Department
of Transportation.
It provides the purchasers and/or pro-
spective purchasers of Lexus vehicles
with information on uniform tire quality
grading.

Your Lexus dealer will help answer any
questions you may have as you read this
information.

■

DOT quality grades

All passenger vehicle tires must con-
form to Federal Safety Requirements
in addition to these grades. Quality
grades can be found where applicable
on the tire sidewall between tread
shoulder and maximum section width.

For example: Treadwear 200 Traction AA
Temperature A

■

Treadwear

The treadwear grade is a comparative
rating based on the wear rate of the
tire when tested under controlled con-
ditions on a specified government test
course.

For example, a tire graded 150 would
wear one and a half (1 - 1/2) times as well
on the government course as a tire graded
100.
The relative performance of tires depends
upon the actual conditions of their use.
Performance may differ significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.

Tire section names

A
B
C

A
B
C
D

E
F

Uniform Tire Quality Grading

454

8-1. Specifications

■

Traction AA, A, B, C

The traction grades, from highest to
lowest, are AA, A, B and C, and they
represent the tire’s ability to stop on
wet pavement as measured under con-
trolled conditions on specified govern-
ment test surfaces of asphalt and
concrete.

A tire marked C may have poor traction
performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.

■

Temperature A, B, C

The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat

when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.

Sustained high temperature can cause the
material of the tire to degenerate and
reduce tire life, and excessive temperature
can lead to sudden tire failure.
Grade C corresponds to a level of perfor-
mance which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.
Warning: The temperature grades of a tire
assume that it is properly inflated and not
overloaded.
Excessive speed, underinflation, or exces-
sive loading, either separately or in combi-
nation, can cause heat buildup and
possible tire failure.

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation
pressure

Tire pressure when the vehicle has been parked for three hours or
more, or has not been driven more than 1 mile or 1.5 km under that
condition

Maximum inflation
pressure

The maximum cold inflated pressure to which a tire may be inflated,
shown on the sidewall of the tire

Recommended
inflation pressure

Cold tire inflation pressure recommended by a manufacturer

Accessory weight

The combined weight (in excess of those standard items which may
be replaced) of automatic transmission <hybrid transmission>, power
steering, power brakes, power windows, power seats, radio and
heater, to the extent that these items are available as factory-installed
equipment (whether installed or not)

Curb weight

The weight of a motor vehicle with standard equipment, including the
maximum capacity of fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional engine

455

8-1. Specifications

Vehi

cle

spec

ifi

tions

Maximum loaded
vehicle weight

The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

Normal occupant
weight

150 lb. (68 kg) times the number of occupants specified in the sec-
ond column of Table 1

that follows

Occupant distribu-
tion

Distribution of occupants in a vehicle as specified in the third column
of Table 1

below

Production options
weight

The combined weight of installed regular production options weigh-
ing over 5 lb. (2.3 kg) in excess of the standard items which they
replace, not previously considered in curb weight or accessory
weight, including heavy duty brakes, ride levelers, roof rack, heavy
duty 12-volt battery, and special trim

Rim

A metal support for a tire or a tire and tube assembly upon which the
tire beads are seated

Rim diameter
(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation Rim diameter and width

Rim type designa-
tion

The industry manufacturer’s designation for a rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle capacity
weight (Total load
capacity)

The rated cargo and luggage load plus 150 lb. (68 kg) times the
vehicle’s designated seating capacity

Vehicle maximum
load on the tire

The load on an individual tire that is determined by distributing to
each axle its share of the maximum loaded vehicle weight, and divid-
ing by two

Vehicle normal load
on the tire

The load on an individual tire that is determined by distributing to
each axle its share of curb weight, accessory weight, and normal
occupant weight (distributed in accordance with Table 1

below),

and dividing by two

Weather side

The surface area of the rim not covered by the inflated tire

Tire related term

Meaning

456

8-1. Specifications

Bead

The part of the tire that is made of steel wires, wrapped or reinforced
by ply cords and that is shaped to fit the rim

Bead separation

A breakdown of the bond between components in the bead

Bias ply tire

A pneumatic tire in which the ply cords that extend to the beads are
laid at alternate angles substantially less than 90 degrees to the cen-
terline of the tread

Carcass

The tire structure, except tread and sidewall rubber which, when
inflated, bears the load

Chunking

The breaking away of pieces of the tread or sidewall

Cord

The strands forming the plies in the tire

Cord separation

The parting of cords from adjacent rubber compounds

Cracking

Any parting within the tread, sidewall, or innerliner of the tire extend-
ing to cord material

A pneumatic tire with an inverted flange tire and rim system in which
the rim is designed with rim flanges pointed radially inward and the
tire is designed to fit on the underside of the rim in a manner that
encloses the rim flanges inside the air cavity of the tire

Extra load tire

A tire designed to operate at higher loads and at higher inflation
pressures than the corresponding standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The layer(s) forming the inside surface of a tubeless tire that contains
the inflating medium within the tire

Innerliner separa-
tion

The parting of the innerliner from cord material in the carcass

Intended outboard
sidewall

(a) The sidewall that contains a whitewall, bears white lettering, or
bears manufacturer, brand, and/or model name molding that is
higher or deeper than the same molding on the other sidewall of the
tire, or
(b) The outward facing sidewall of an asymmetrical tire that has a
particular side that must always face outward when mounted on a
vehicle

Light truck (LT) tire

A tire designated by its manufacturer as primarily intended for use
on lightweight trucks or multipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to carry for a given inflation
pressure

Tire related term

Meaning

457

8-1. Specifications

Vehi

cle

spec

ifi

tions

Maximum load rat-
ing

The load rating for a tire at the maximum permissible inflation pres-
sure for that tire

Maximum permissi-
ble inflation pres-
sure

The maximum cold inflation pressure to which a tire may be inflated

Measuring rim

The rim on which a tire is fitted for physical dimension requirements

Open splice

Any parting at any junction of tread, sidewall, or innerliner that
extends to cord material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The linear distance between the exteriors of the sidewalls of an
inflated tire, including elevations due to labeling, decorations, or pro-
tective bands or ribs

Passenger car tire

A tire intended for use on passenger cars, multipurpose passenger
vehicles, and trucks, that have a gross vehicle weight rating (GVWR)
of 10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A parting of rubber compound between adjacent plies

Pneumatic tire

A mechanical device made of rubber, chemicals, fabric and steel or
other materials, that, when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid that sustains the load

Radial ply tire

A pneumatic tire in which the ply cords that extend to the beads are
laid at substantially 90 degrees to the centerline of the tread

Reinforced tire

A tire designed to operate at higher loads and at higher inflation
pressures than the corresponding standard tire

Section width

The linear distance between the exteriors of the sidewalls of an
inflated tire, excluding elevations due to labeling, decoration, or pro-
tective bands

Sidewall

That portion of a tire between the tread and bead

Sidewall separation

The parting of the rubber compound from the cord material in the
sidewall

Tire related term

Meaning

458

8-1. Specifications

: Table 1



Occupant loading and distribution for vehicle normal load for various desig-

nated seating capacities

Snow tire

A tire that attains a traction index equal to or greater than 110, com-
pared to the ASTM E-1136 Standard Reference Test Tire, when
using the snow traction test as described in ASTM F-1805-00, Stan-
dard Test Method for Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and which is marked with

an Alpine Symbol (

) on at least one sidewall

Test rim

The rim on which a tire is fitted for testing, and may be any rim listed
as appropriate for use with that tire

Tread

That portion of a tire that comes into contact with the road

Tread rib

A tread section running circumferentially around a tire

Tread separation

Pulling away of the tread from the tire carcass

Treadwear indica-
tors (TWI)

The projections within the principal grooves designed to give a visual
indication of the degrees of wear of the tread

Wheel-holding fix-
ture

The fixture used to hold the wheel and tire assembly securely during
testing

Designated seating capacity,

Number of occupants

Vehicle normal load, Num-

ber of occupants

Occupant distribution in a

normally loaded vehicle

2 through 4

2 in front

5 through 10

2 in front, 1 in second seat

11 through 15

2 in front, 1 in second seat, 1 in

third seat, 1 in fourth seat

16 through 20

2 in front, 2 in second seat, 2

in third seat, 1 in fourth seat

Tire related term

Meaning

459

8-2. Customization

icle

ifi

tio

8-2.Customization

■

Changing by using the meter con-
trol switches

Press

of the meter con-

trol switches, and select

Press

of the meter con-

trol switches, select the item, and
press “OK”.

Press

of the meter con-

trol switches, select the desired set-
ting, and press “OK”.

To go back to the previous screen or
exit the customize mode, press

■

Changing using the Center Dis-
play

Select

on the main menu.

Select “Vehicle customize” on the
sub menu.

For functions that can be turned on/off,
select

(on) /

(off).

For functions whose level can be
adjusted, such as volume, sensor sensi-
tivity, etc., slide the icon on the bar.

■

When customizing using the Center

Display

Stop the vehicle in a safe place, apply the

parking brake, and shift the shift position to

P. Also, to prevent 12-volt battery dis-

charge, leave the engine running <hybrid

system operating> while customizing the

features.

Some function settings are changed simultaneously with other functions being cus-
tomized. Contact your Lexus dealer for further details.

Settings that can be changed using the Center Display

Settings that can be changed using the meter control switches

Customizable features

Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. The
settings of these features can be
changed by using the meter control
switches, the Center Display or at
your Lexus dealer.

Customizing vehicle features

WARNING

■

During customization

As the engine <hybrid system> needs to

be running <operating> during customi-

zation, ensure that the vehicle is parked

in a place with adequate ventilation. In a

closed area such as a garage, exhaust

gases including harmful carbon monox-

ide (CO) may collect and enter the vehi-

cle. This may lead to death or a serious

health hazard.

NOTICE

■

During customization

To prevent 12-volt battery discharge,

ensure that the engine is running <hybrid

system is operating> while customizing

features.

Customizable features

460

8-2. Customization

Settings that can be changed by your Lexus dealer

Definition of symbols: O = Available,



= Not available

■

Gauges, meters and multi-information display (



P.100, 106, 110)

Function

Default setting Customized setting

Language

English

French



Spanish

Units

miles (MPG)

km (km/L)



km (L/100 km)

miles (MPG Impe-

rial)

Eco Driving Indicator Light

Off

(Self-lighting)



EV indicator

(Self-lighting)

Off



Drive information 1

Current fuel

economy



Average fuel

economy

(after reset)

Drive information 2

Distance

(driving range)



Average vehi-

cle speed

(after reset)

Pop-up display

Off



Ring position memory

Off



Rev indicator

Off



Rev indicator red zone setting

5000 rpm

4000 rpm

2000 - 7300

rpm

2000 - 6600

rpm



Rev peak

Off



461

8-2. Customization

Vehi

cle

spec

ifi

tions

: For details about each function:



P.106, 114

: The default setting varies according to country.

: LC500

: LC500h

: 2 of the following items: current fuel consumption, average fuel economy (after reset),

average fuel economy (after start), average fuel economy (after refuel), average vehicle
speed (after reset), average vehicle speed (after start), elapsed time (after reset),
elapsed time (after start), distance (driving range), distance (after start), blank.

: Refer to the “MULTIMEDIA OWNER’S MANUAL”.

■

HUD (Head-up Display)

(



P.117)

: If equipped

: LC500

: LC500h

Suggestion function

(when the vehicle is

stopped)



Off

Function

Default setting Customized setting

Gauge information

Tachometer

Eco Driving Indica-

tor Light



Hybrid System Indi-

cator

No display

Driving support display (Naviga-
tion system)

Off



Driving support display (Lane dis-
play)

Off



Driving support display (Driving
assist)

Off



Driving support display (Compass)

Off



Driving support display (Audio)

Off



Function

Default setting Customized setting

462

8-2. Customization

■

LTA (Lane Tracing Assist) (



P.235)

■

PCS (Pre-Collision System) (



P.225)

: The system is automatically enabled each time the engine switch <power switch> is

turned to ON.

■

RSA (Road Sign Assist)

(



P.244)

: If equipped

■

Dynamic radar cruise control with full-speed range (



P.247)

■

BSM (Blind Spot Monitor) (



P.266)

Function

Customized setting

Lane centering function

On, Off



Alert sensitivity

Standard, High



Vehicle sway warning

On, Off



Vehicle sway warning sensitivity

Low, Standard, High



Function

Customized setting

PCS (Pre-Collision System)

On, Off



Adjust alert timing

Early, Middle, Late



Function

Customized setting

RSA (Road Sign Assist)

On, Off



Excess speed notification method

Display only, No notification, Display

and buzzer



Excess speed notification level

1 mph (2 km/h), 3 mph (5 km/h), 5

mph (10 km/h)



Other notifications method (No-
entry notification)

Display only, No notification, Display

and buzzer



Function

Customized setting

Curve speed reduction function

High, Low, Off



Function

Default setting Customized setting

BSM (Blind Spot Monitor)

Off



RCTA (Rear Cross Traffic Alert)

Off



463

8-2. Customization

Vehi

cle

spec

ifi

tions

: BSM function only

■

Active rear wing

(



P.275)

: If equipped

■

Door lock (



P.130, 134, 415)

Outside rear view mirror indicator
brightness

Bright

Dim



Alert timing for presence of
approaching vehicle (sensitivity)

(Intermediate)

(Early)



(Late)

(Only when in blind

spot)

RCTA buzzer volume

Level 2

Level 1



Level 3

Function

Default setting Customized setting

Operation of the active rear wing

Off



Function

Default setting Customized setting

Unlocking using a mechanical key

Driver’s door

unlocked in one

step, both side

doors unlocked

in two steps

Both side doors

unlocked in one

step

 

Automatic door lock

Shifting the shift

position to

position other

than P

Off



Vehicle speed is

approximately 12

mph (20 km/h) or

higher

Function

Default setting Customized setting

464

8-2. Customization

■

Smart access system with push-button start and wireless remote control
(



P.128, 137)

■

Smart access system with push-button start (



P.137)

Automatic door unlock

Shifting the shift

position to P

Off



Driver’s door is

opened

Locking/unlocking of the trunk
when both side doors are
locked/unlocked

Off

 

Time elapsed before the door lock
indicator lights turn off

30 seconds

1 minute

 

10 minutes

20 minutes

Function

Default setting Customized setting

Operating signal (Buzzers)

Off



1 to 7

Operation signal (Emergency
flashers)

Off



Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked

60 seconds

Off



30 seconds

120 seconds

Open door warning buzzer

Off

 

Function

Default setting Customized setting

Smart access system with push-
button start

Off

 

Smart door unlocking

Driver’s door

Both side doors



Number of consecutive door lock
operations

2 times

As many as desired

 

Function

Default setting Customized setting

465

8-2. Customization

Vehi

cle

spec

ifi

tions

■

Wireless remote control (



P.128)

■

Driving position memory (



P.145)

■

Outside rear view mirrors (



P.153)

Function

Default setting Customized setting

Wireless remote control

Off

 

Unlocking operation

Driver’s door

unlocked in one

step, both side

doors unlocked

in two steps

Both side doors

unlocked in one

step



Trunk unlocking operation

Press and hold

(short)

One short press

 

Push twice

Press and hold

(long)

Off

Alarm (panic mode)

Off

 

Reservation lock

Off



Function

Default setting Customized setting

Selecting the door linking driving
position memory with door unlock
operation

Driver’s door

Both side doors

 

Driver’s seat slide movement when
exiting the vehicle

Full

Off



Partial

Steering wheel movement

Tilt only

Telescopic only



Tilt & telescopic

Off

Function

Default setting Customized setting

Automatic mirror folding and
extending operation

Linked to the

lock-

ing/unlocking

of the doors

Off

 

Linked to operation

of the engine switch

466

8-2. Customization

■

Power windows (



P.156)

■

Turn signal lever (



P.203)

■

Automatic light control system (



P.208)

■

Lights (



P.208)

: U.S.A. only

Function

Default setting Customized setting

Mechanical key linked operation

Off

 

Wireless remote control linked
operation

Off

(Open only)

 

Wireless remote control linked
operation signal (buzzer)

Off

 

Function

Default setting Customized setting

The number of times the turn signal
lights flash automatically when the
turn signal lever is moved to the
first position during a lane change

 

Off

Function

Default setting Customized setting

Light sensor sensitivity

Normal

Brighter



Bright

Dark

Darker

Time elapsed before headlights
automatically turn off after doors
are closed

30 seconds

Off



60 seconds

90 seconds

Windshield wiper linked headlight
illumination

Off

 

Function

Default setting Customized setting

Daytime running lights

Off



Welcome light illumination control

Off

 

467

8-2. Customization

Vehi

cle

spec

ifi

tions

■

Automatic air conditioning system (



P.292)

■

Seat heater/seat ventilators (



P.299)

■

Heated steering wheel

(



P.299)

: If equipped

■

Illumination (



P.302)

Function

Default setting Customized setting

A/C auto switch operation

Off



Exhaust gas sensor sensitivity

Standard

-3 to 3



Function

Default setting Customized setting

Driver’s seat temperature prefer-
ence in automatic mode

Standard

-2 (cooler) to 2

(warmer)



Passenger’s seat temperature
preference in automatic mode

Standard

-2 (cooler) to 2

(warmer)



Function

Default setting Customized setting

Steering wheel heating preference
in automatic mode

Standard

-2 (low) to 2 (high) O



Function

Default setting Customized setting

Time elapsed before the interior
lights turn off

15 seconds

Off



7.5 seconds

30 seconds

Operation after the engine switch
<power switch> is turned off

Off

 

Operation when the doors are
unlocked

Off

 

Operation when you approach the
vehicle with the electronic key on
your person

Off

 

Footwell lighting

Off

 

Door trim ornament lights

Off

 

468

8-2. Customization

■

Alarm (Convertible) (



P.95)

: The default setting for Canada is different.

■

Rain-sensing windshield wipers (



P.214)

■

Seat belt reminder buzzer (



P.389)

■

Intuitive parking assist

(



P.259)

Time elapsed before the outside
door handle lights turn off

15 seconds

Off



7.5 seconds

30 seconds

Operation of the outside door han-
dle lights when the doors are
unlocked

Off

 

Operation of the outside door han-
dle lights when a door is opened

Off

 

Fading out of the outside door han-
dle lights when they turn off

Long

Short

 

Function

Default setting Customized setting

Cancellation when the mechanical
key is used to unlock

Off



Function

Default setting Customized setting

Wiper operation when the wiper
switch is in the AUTO position

Rain-sensing

operation

Intermittent opera-

tion linked to vehicle

speed (with interval

adjuster)

 

Function

Default setting Customized setting

Speed-linked seat belt reminder
function

Off

 

Function

Default setting Customized setting

Intuitive parking assist

Off



Function

Default setting Customized setting

469

8-2. Customization

Vehi

cle

spec

ifi

tions

: If equipped

■

Driving mode select switch (



P.257)

■

Vehicle customization

●

When the Smart access system with

push-button start is off, the entry unlock

function cannot be customized.

●

When the doors remain closed after

unlocking the doors and the timer acti-

vated automatic door lock function acti-

vates, signals will be generated in

accordance with the operation buzzer

volume and operational signal (Emer-

gency flashers) function setting.

●

Some settings can be changed using a

switch or the Center Display. If a setting

is changed using a switch, the changed

setting will not be reflected on the Center

Display until the engine switch <power

switch> is turned off and then to ON.

Buzzer volume

Level 2

Level 1



Level 3

Function

Default setting Customized setting

Powertrain control in custom
mode

Normal

Power

 

Eco

Chassis control in custom mode

Normal

Sport

 

Comfort

Air conditioning operation in cus-
tom mode

Normal

Eco

 

Function

Default setting Customized setting

470

8-3. Items to initialize

8-3.Items to initialize

Items to initialize

The following items must be initialized for normal system operation after such
cases as the 12-volt battery being reconnected, or maintenance being per-
formed on the vehicle:

List of the items to initialize

Item

When to initialize

Reference

Tire pressure warning system

• When rotating the tires.
• When the tire inflation pressure is

changed by changing tire size.
(When there are multiple speci-
fied pressures)

• After registering the ID codes.
• When the tire inflation pressure is

changed such as when changing
traveling speed.

P.353

Power windows

• When functioning abnormally

P.157

Lexus parking assist monitor

• The steering wheel has been

moved while the 12-volt battery
was being reinstalled.

• 12-volt battery power is low.

Refer to “MUL-

TIMEDIA

OWNER’S

MANUAL”.

Message indicating maintenance is
required

• After the maintenance is per-

formed

P.330

Oil maintenance (LC500h)

• After the maintenance is per-

formed

P.343

471

For owners

9-1. For owners

Reporting safety defects for U.S.

owners ........................................

472

Reporting safety defects for

Canadian owners...................

472

Seat belt instructions for Cana-

dian owners (in French).......

473

SRS airbag instructions for Cana-

dian owners (in French).......

475

Headlight aim instructions for

Canadian owners (in French)
........................................................

484

472

9-1. For owners

9-1.For owners

Reporting safety defects for
U.S. owners

If you believe that your vehicle has
a defect which could cause a crash
or could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addi-
tion to notifying the Lexus Division
of Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-25-LEXUS).

If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of vehicles,
it may order a recall and remedy
campaign. However, NHTSA can-
not become involved in individual
problems between you, your
dealer, or Lexus Division of Toyota
Motor Sales, U.S.A., Inc.

To contact NHTSA, you may call
the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-
424-9153); go to

http://www.saf-

ercar.gov

; or write to: Administra-

tor, NHTSA, 1200 New Jersey
Ave. SE., Washington, DC 20590.
You can also obtain other informa-
tion about motor vehicle safety
from

http://www.safercar.gov.

Reporting safety defects for
Canadian owners

Canadian customers who wish to
report a safety-related defect to
Transport Canada, Defects Investi-
gations and Recalls, may telephone
the toll-free hotline 1-800-333-
0510, mail Transport Canada -
ASFAD, 330 Sparks Street,
Ottawa, ON, K1A 0N5, or com-
plete the online form at

https://www.tc.gc.ca/recalls.

473

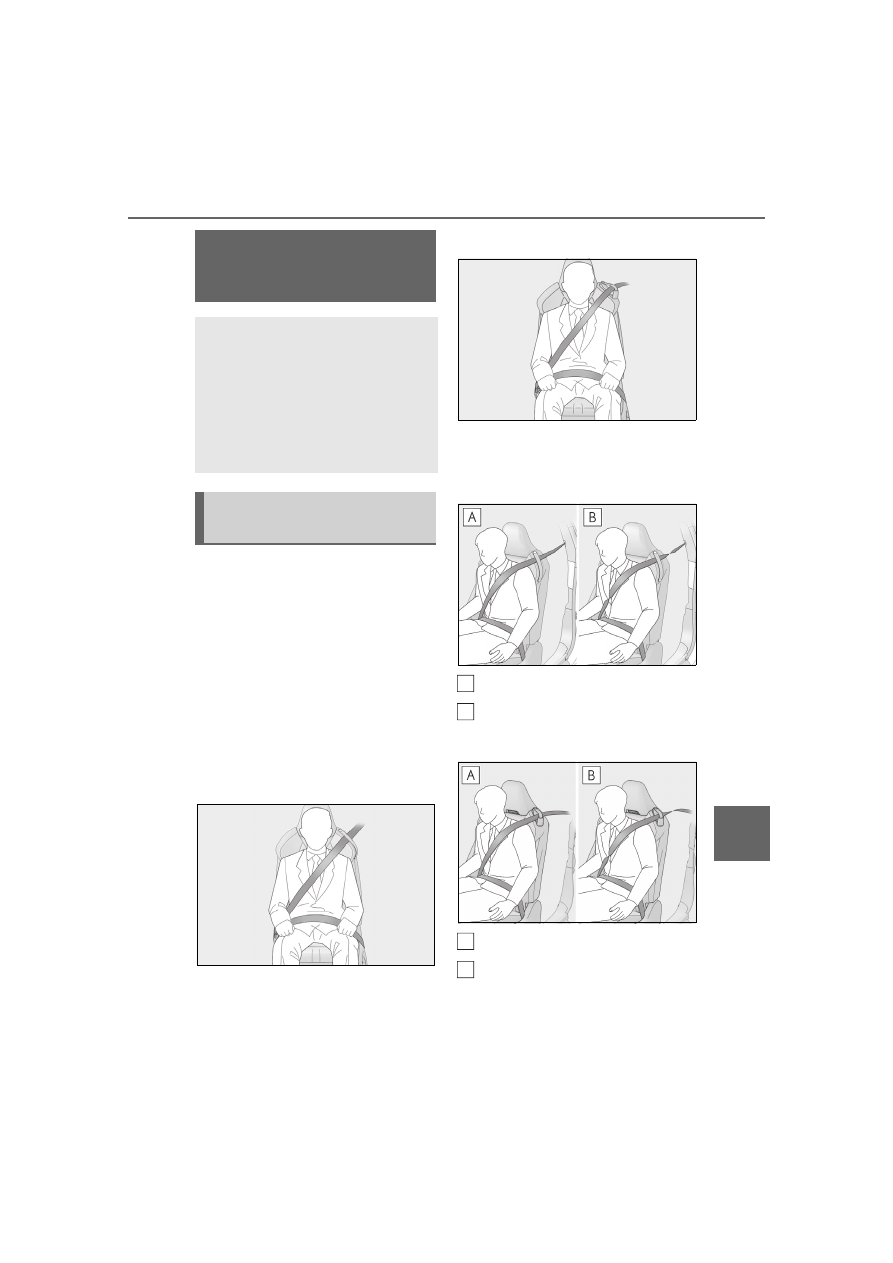

9-1. For owners

For owners



Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre entière-
ment l’épaule; elle ne doit cepen-
dant pas toucher le cou ni glisser de
l’épaule.



Placez la ceinture abdominale le
plus bas possible sur les hanches.



Réglez la position du dossier.
Tenez-vous assis bien au fond du
siège, le dos droit.



Except Convertible



Convertible



Ne vrillez pas la ceinture de sécu-
rité.



Except Convertible

Non vrillée

Vrillée



Convertible

Non vrillée

Vrillée

Seat belt instructions for
Canadian owners (in
French)

The following is a French explana-
tion of seat belt instructions
extracted from the seat belt section
in this manual.

See the seat belt section for more
detailed seat belt instructions in
English.

Utilisation adéquate des cein-
tures de sécurité

A
B

474

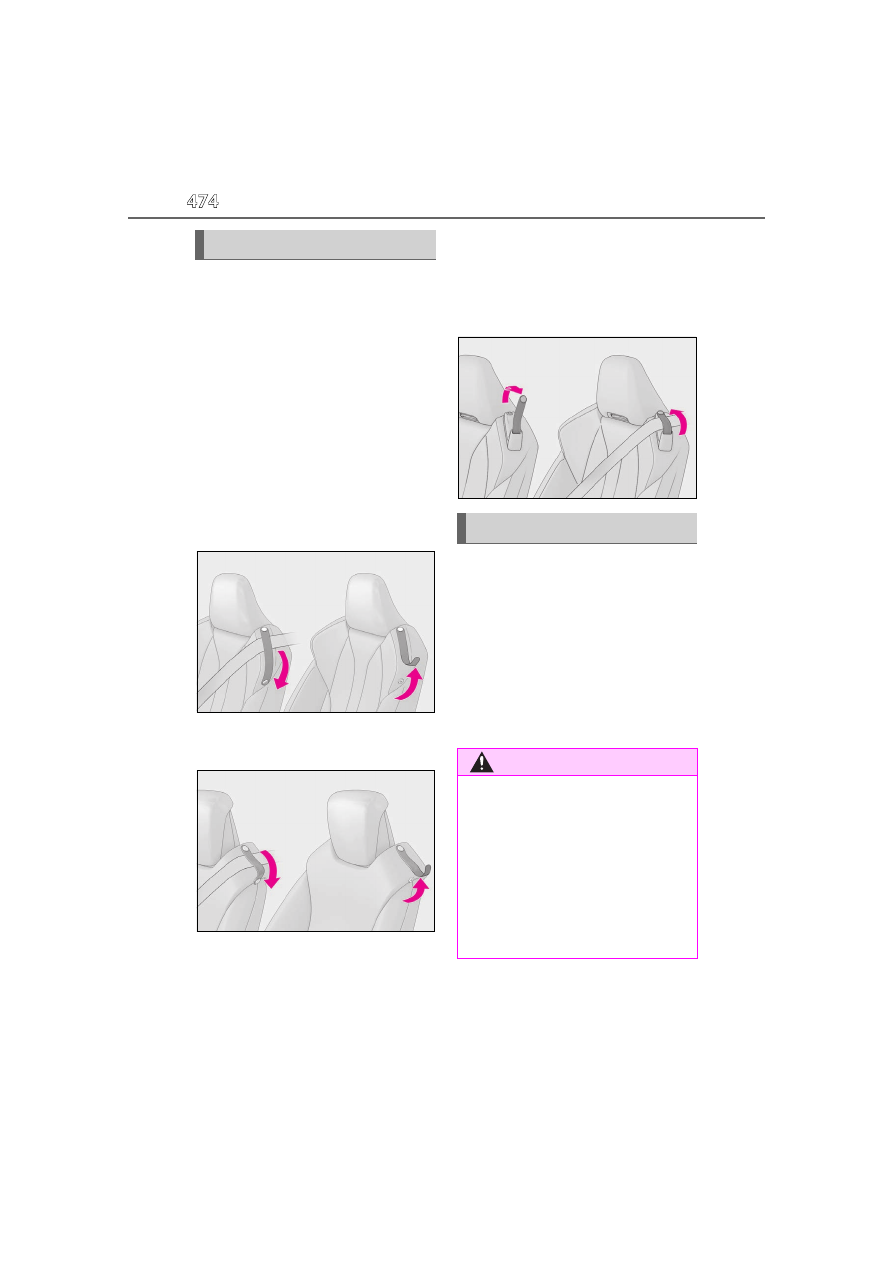

9-1. For owners



Except Convertible

Les sièges avant sont dotés de guides
pour permettre à la ceinture de sécu-
rité de se dérouler facilement. Lorsque
vous n’arrivez pas à dérouler facile-
ment la ceinture de sécurité, faites-la
passer dans le guide.

Lorsque vous vous asseyez sur un siège
arrière ou que vous sortez du véhicule,
retirez la ceinture de sécurité de son
guide.



Véhicules dotés d’appuis-tête de
type manuel



Véhicules dotés d’appuis-tête de
type assisté



Convertible

Les sièges avant sont dotés de guides à
travers desquels la ceinture de sécurité
doit passer. Lorsque vous utilisez la
ceinture de sécurité, assurez-vous que

la ceinture passe à travers le guide.

Lorsque vous vous asseyez sur un siège
arrière ou que vous sortez du véhicule,
retirez la ceinture de sécurité de son
guide.

■

Manipulation des ceintures de
sécurité

Avec un chiffon ou une éponge, net-
toyez à l’aide d’un savon doux et de
l’eau tiède. Vérifiez aussi les ceintures
régulièrement pour vous assurer
qu’elles ne présentent pas d’usure
excessive, d’effilochage ou de cou-
pures.

Guide de ceinture de sécurité

Entretien et soin

AVERTISSEMENT

■

Dommages et usure de la ceinture de

sécurité

Vérifiez périodiquement le système de

ceintures de sécurité. Vérifiez qu’il n’y a

pas de coupures, d’effilochures ni de

pièces desserrées. N’utilisez pas une

ceinture de sécurité endommagée avant

qu’elle ne soit remplacée. Les ceintures

de sécurité endommagées ne peuvent

pas protéger les occupants contre les

blessures graves, voire mortelles.

Lexus LC500h (2024 year). Manual in english - page 14
