1-2. Child safety

For safety and security

■

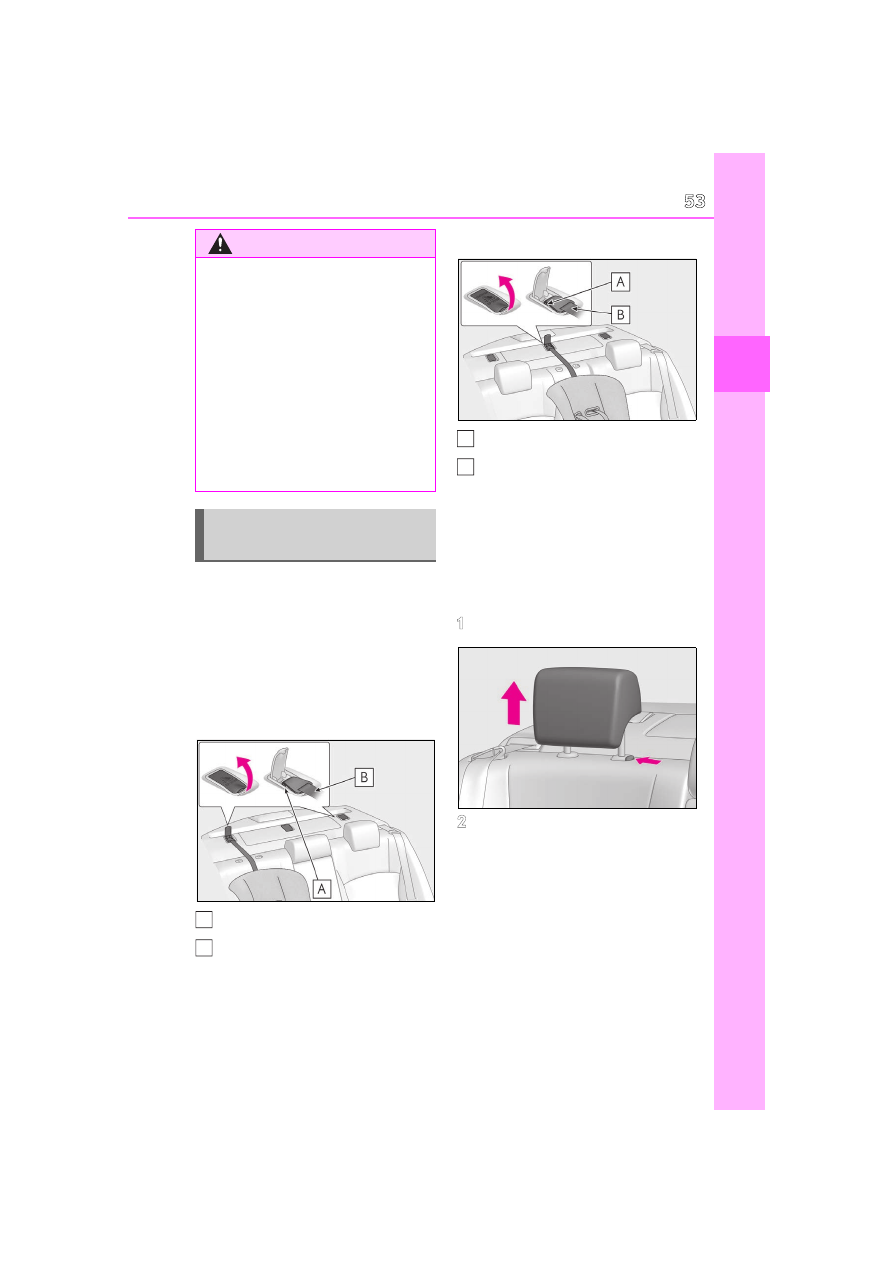

Anchor brackets (for top tether
strap)

Anchor brackets are provided for each
rear seat.
Use anchor brackets when fixing the
top tether strap.



Outboard rear seats

Anchor brackets

Top tether strap



Rear center seat

Anchor bracket

Top tether strap

■

Fixing the top tether strap to the
anchor bracket

Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys-
tem.

Remove the head restraint.

Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.

Make sure the top tether strap is securely

latched. (



P.50)

WARNING

●

When securing some types of child

restraint systems in rear seats, it may

not be possible to properly use the

seat belts in positions next to the child

restraint without interfering with it or

affecting seat belt effectiveness. Be

sure your seat belt fits snugly across

your shoulder and low on your hips. If it

does not, or if it interferes with the

child restraint, move to a different

position. Failure to do so may result in

death or serious injury.

●

If the seat is adjusted, reconfirm the

security of the child restraint system.

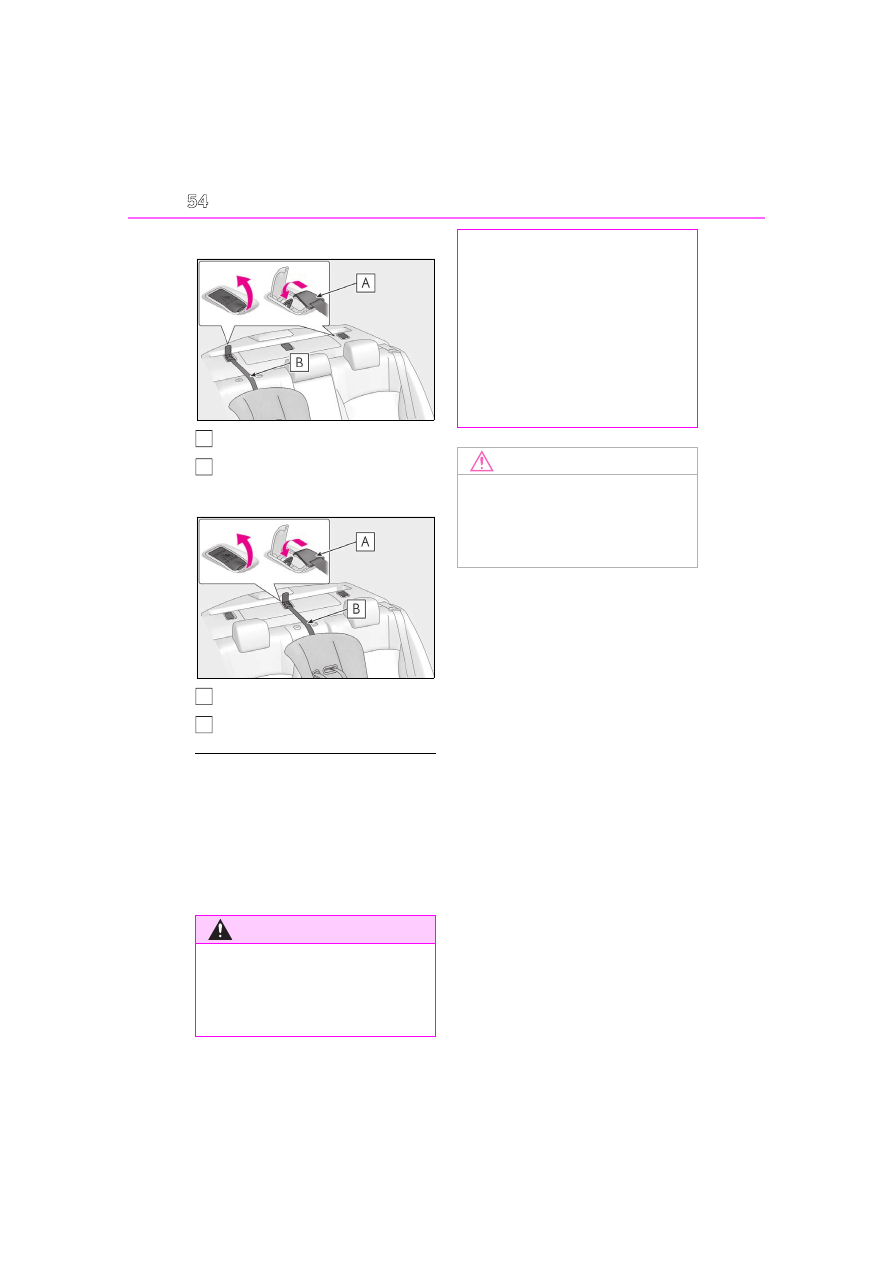

Using an anchor bracket (for top
tether strap)

1-2. Child safety



Outboard rear seats

Hook

Top tether strap



Rear center seat

Hook

Top tether strap

■

Laws and regulations pertaining to

anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming to

FMVSS213 or CMVSS213 specifications

can be used.

This vehicle is designed to conform to SAE

J1819.

WARNING

■

When installing a child restraint sys-

tem

Observe the following precautions.

Failure to do so may result in death or

serious injury.

●

Firmly attach the top tether strap and

make sure that the belt is not twisted.

●

Do not attach the top tether strap to

anything other than the anchor

bracket.

●

After securing a child restraint system,

never adjust the seat.

●

Follow all installation instructions pro-

vided by the child restraint system

manufacturer.

NOTICE

■

Anchor brackets (for top tether

strap)

When not in use, make certain to close

the lid. If it remains open, the lid may be

damaged.

1-3. Lexus Enform

For safety and security

1-3.Lexus Enform

: If equipped

“SOS” button

LED light indicators

Microphone

Subscribers have the following Safety
Connect services available:



Automatic Collision Notification

Helps drivers receive necessary response
from emergency service providers.
(



P.56

)

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle theft.
(



P.57

)



Emergency Assistance Button
(“SOS”)

Connects drivers to response-center sup-
port. (



P.57

)



Enhanced Roadside Assistance

Provides drivers various on-road assis-
tance. (



P.57

)

After you have signed the Telematics
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.
• The United States

1-800-25-LEXUS (1-800-255-3987)

• Canada

1-800-26-LEXUS (1-800-265-3987)

• Puerto Rico

Safety Connect

Safety Connect is a subscription-
based telematics service that uses
Global Positioning System (GPS)
data and embedded cellular tech-
nology to provide safety and secu-
rity features to subscribers. Safety
Connect is supported by Lexus’
designated response center, which
operates 24 hours per day, 7 days
per week.

Safety Connect service is available
by subscription on select, telemat-
ics hardware-equipped vehicles.

By using the Safety Connect ser-
vice, you are agreeing to be bound
by the Connected Services Terms
of Use, as in effect and amended
from time to time, a current copy of
which is available at Lexus.com. All
use of the Safety Connect service is
subject to such then-applicable
Terms and Conditions.

System components

A
B

Services

Subscription

1-3. Lexus Enform

1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicle’s
Bluetooth

technology will not be possi-

ble during Safety Connect.

●

Safety Connect is available beginning

Fall 2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

When the engine switch is turned to
IGNITION ON mode, the red indica-
tor light comes on for 2 seconds then
turns off. Afterward, the green indica-
tor light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:



Green indicator light on = Active
service



Green indicator light flashing =
Safety Connect call in process



Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)



No indicator light (off) = Safety
Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding
agent receives the vehicle’s location
and attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-

Safety Connect LED light Indi-
cators

Safety Connect services

1-3. Lexus Enform

For safety and security

tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS (1-800-255-
3987) in the United States, 1-877-
539-8777 in Puerto Rico or 1-800-
265-3987 in Canada, and follow the
prompts for Safety Connect to initiate
this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-

ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio
transmitter and receiver. It receives
and also sends out radio frequency
(RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.



ANSI (American National Stan-
dards Institute) C95.1 [1992]



NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]



ICNIRP (International Commission
on Non-Ionizing Radiation Protec-

Safety information for Safety
Connect

1-4. Theft deterrent system

For safety and security

1-4.Theft deterrent system

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.

■

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

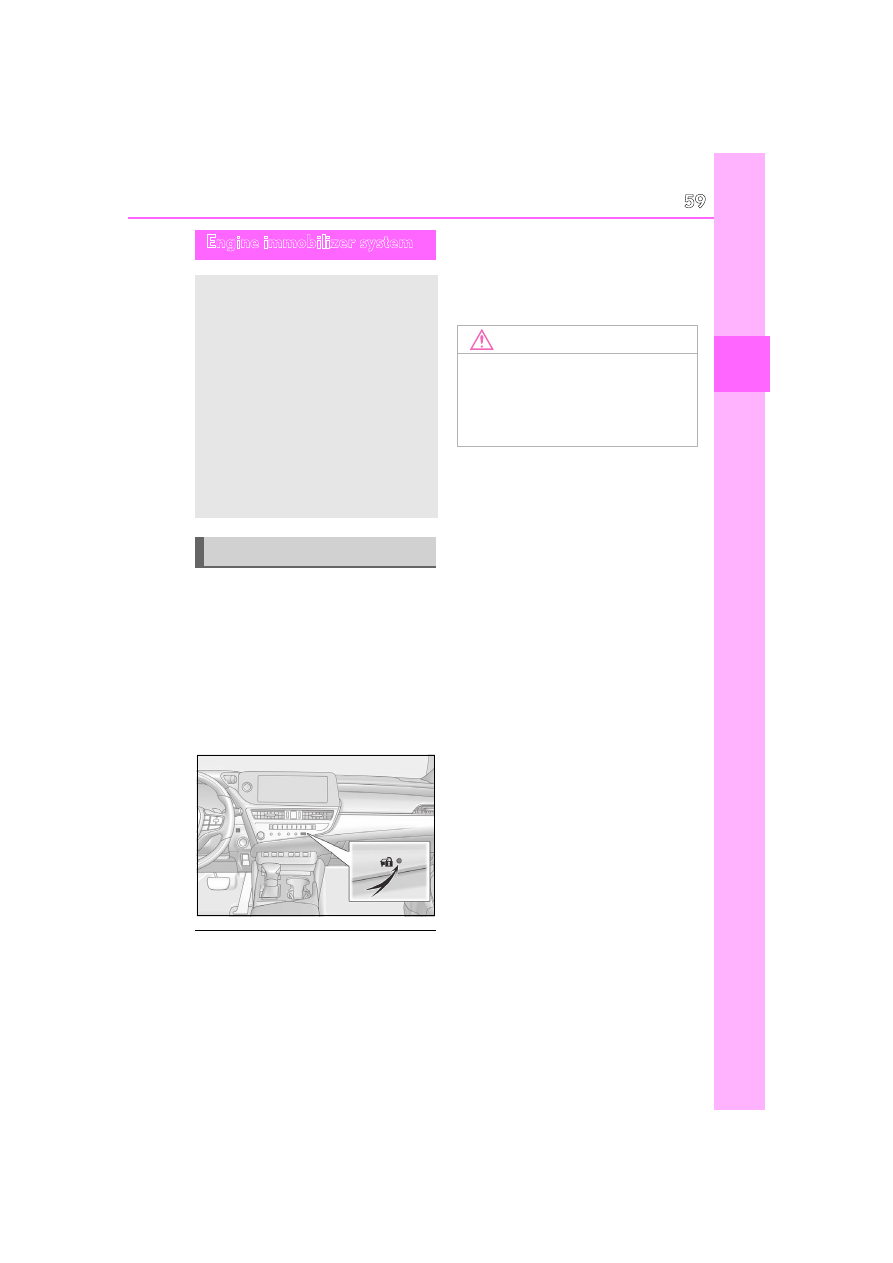

Engine immobilizer system

The vehicle’s keys have built-in
transponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not guar-
antee absolute security against all
vehicle thefts.

Operating the system

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

1-4. Theft deterrent system

■

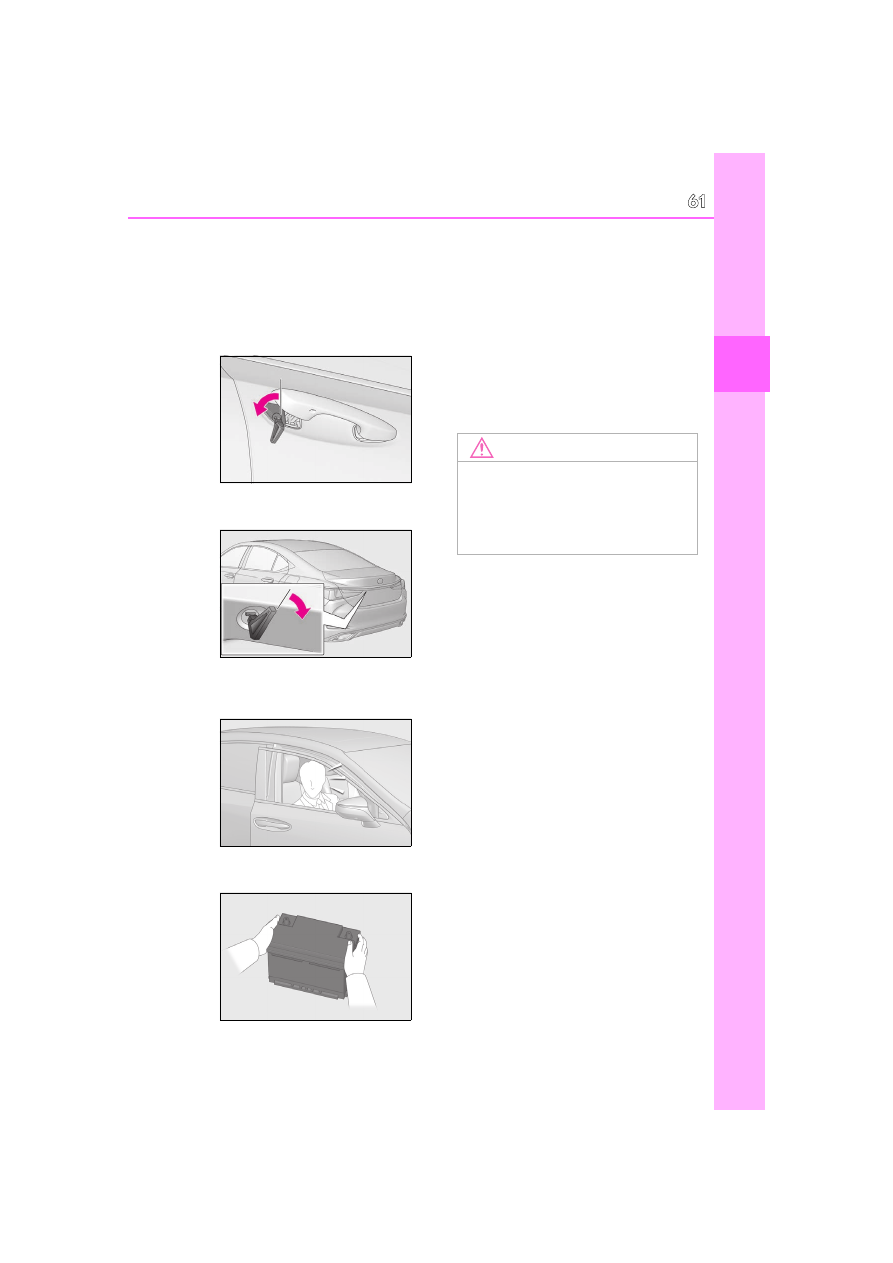

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows and moon roof (if
equipped) or panoramic moon roof
(if equipped) are closed before the
alarm is set.



No valuables or other personal
items are left in the vehicle.

■

Setting

Close the doors, trunk and hood, and
lock all the doors using the entry func-
tion or wireless remote control. The
system will be set automatically after
30 seconds.
Except for Canada, the alarm can also
be set using the mechanical key.

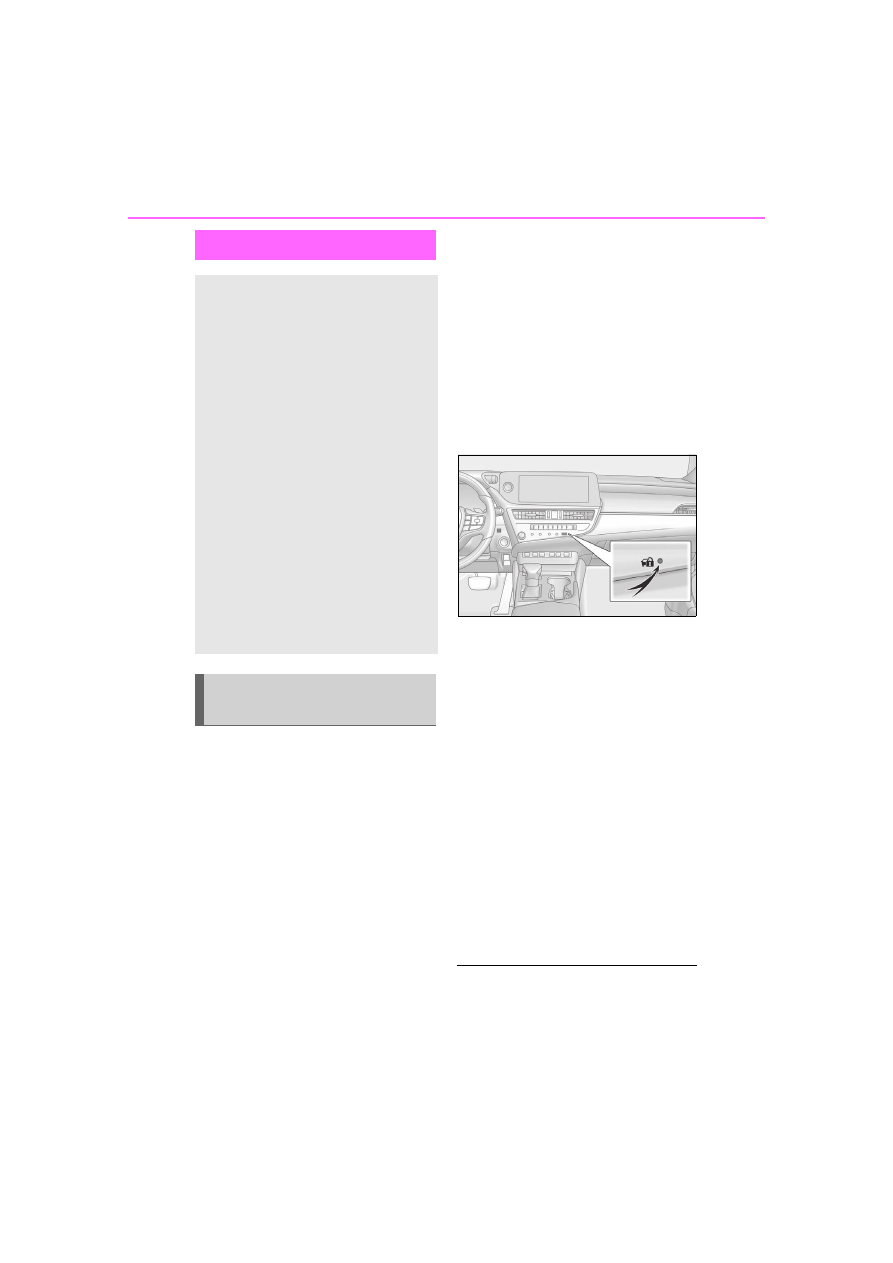

The indicator light changes from being on
to flashing when the system is set.

■

Canceling or stopping

Do one of the following to deactivate
or stop the alarm:



Except for Canada: Unlock the
doors using the entry function, wire-
less remote control or mechanical
key.



For Canada: Unlock the doors using
the entry function or wireless
remote control.



Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



A locked door is unlocked or
opened in any way other than
using the entry function, wireless
remote control or mechanical
key

. (The doors will lock again

automatically.)



A locked trunk is unlocked or
opened in any way other than
using the entry function or wire-
less remote control.



The hood is opened.

: Except for Canada

Setting/canceling/stopping the
alarm system

1-4. Theft deterrent system

For safety and security

■

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

For Canada: The doors are unlocked

using the mechanical key.

●

The trunk is unlocked using the mechani-

cal key.

●

A person inside the vehicle opens a door,

the trunk or hood, or unlocks the vehicle

using a door lock switch.

●

The battery is recharged or replaced

when the vehicle is locked. (



P.377)

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

When recharging or replacing the bat-

tery

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Warning lights inform the driver of
malfunctions in the indicated vehicle’s
systems.

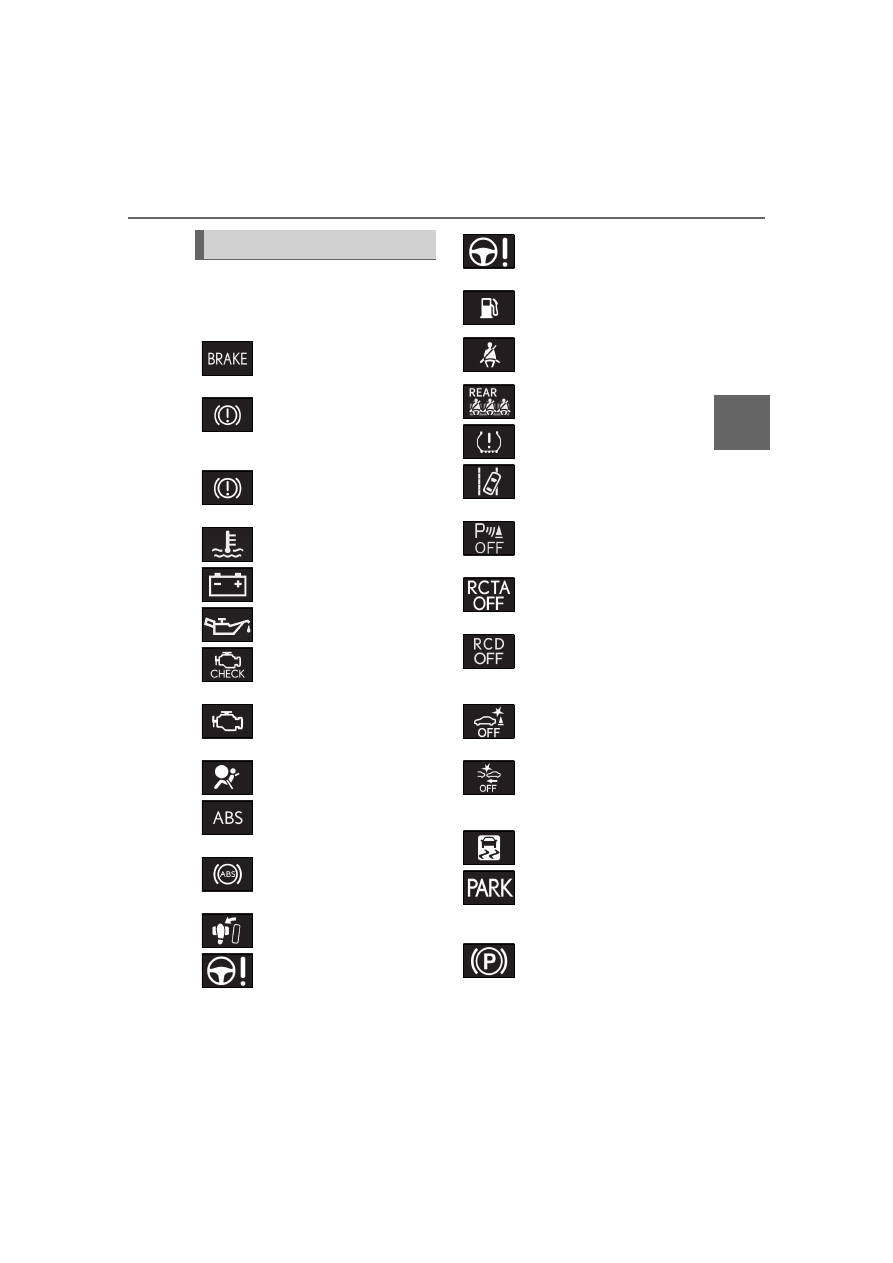

Warning lights

(U.S.A.)

Brake system warning light

(



P.347)

(red)

(Canada)

Brake system warning light

(



P.347)

(yellow)

Brake system warning light

(



P.347)

High coolant temperature
warning light

(



P.347)

Charging system warning
light

(



P.348)

Low engine oil pressure warn-
ing light

(



P.348)

(U.S.A.)

Malfunction indicator lamp

(



P.348)

(Canada)

Malfunction indicator lamp

(



P.348)

SRS warning light

(



P.348)

(U.S.A.)

ABS warning light

(



P.349)

(Canada)

ABS warning light

(



P.349)

Inappropriate pedal operation
warning light

(



P.349)

(red)

Electric power steering system
warning light

(



P.349)

(yellow)

Electric power steering system
warning light

(



P.349)

Low fuel level warning light
(



P.350)

Driver’s and front passenger’s
seat belt reminder light
(



P.350)

Rear passengers’ seat belt
reminder lights

(



P.350)

Tire pressure warning light

(



P.351)

(orange)

LTA indicator

(



P.351)

(flashes)

Intuitive parking assist OFF indi-
cator

(if equipped) (



P.351)

(flashes)

RCTA OFF indicator

(



P.352)

(flashes or

illuminates)

RCD OFF indicator (if
equipped) (



P.352)

(flashes)

PKSB OFF indicator

(if

equipped) (



P.352)

(flashes or

illuminates)

PCS warning light

(



P.353)

Slip indicator

(



P.353)

(flashes)

(U.S.A.)

Parking brake indicator
(



P.353)

(flashes)

(Canada)

Parking brake indicator
(



P.353)

2-1. Instrument cluster

: These lights come on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

: This light illuminates on the multi-infor-

mation display.

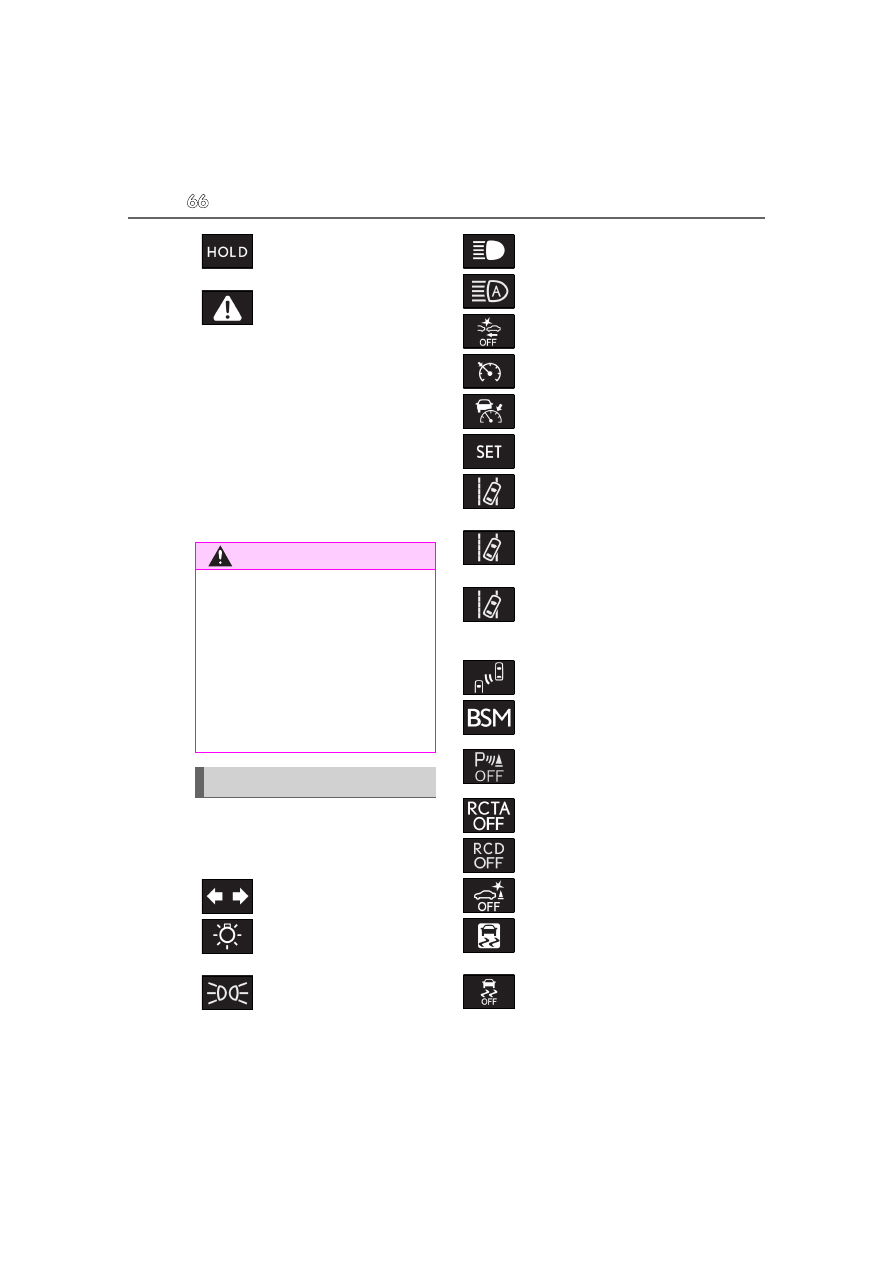

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

(flashes)

Brake hold operated indica-
tor

(



P.354)

Master warning light

(



P.354)

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine, this could

mean that these systems are not avail-

able to help protect you in an accident,

which could result in death or serious

injury. Have the vehicle inspected by

your Lexus dealer immediately if this

occurs.

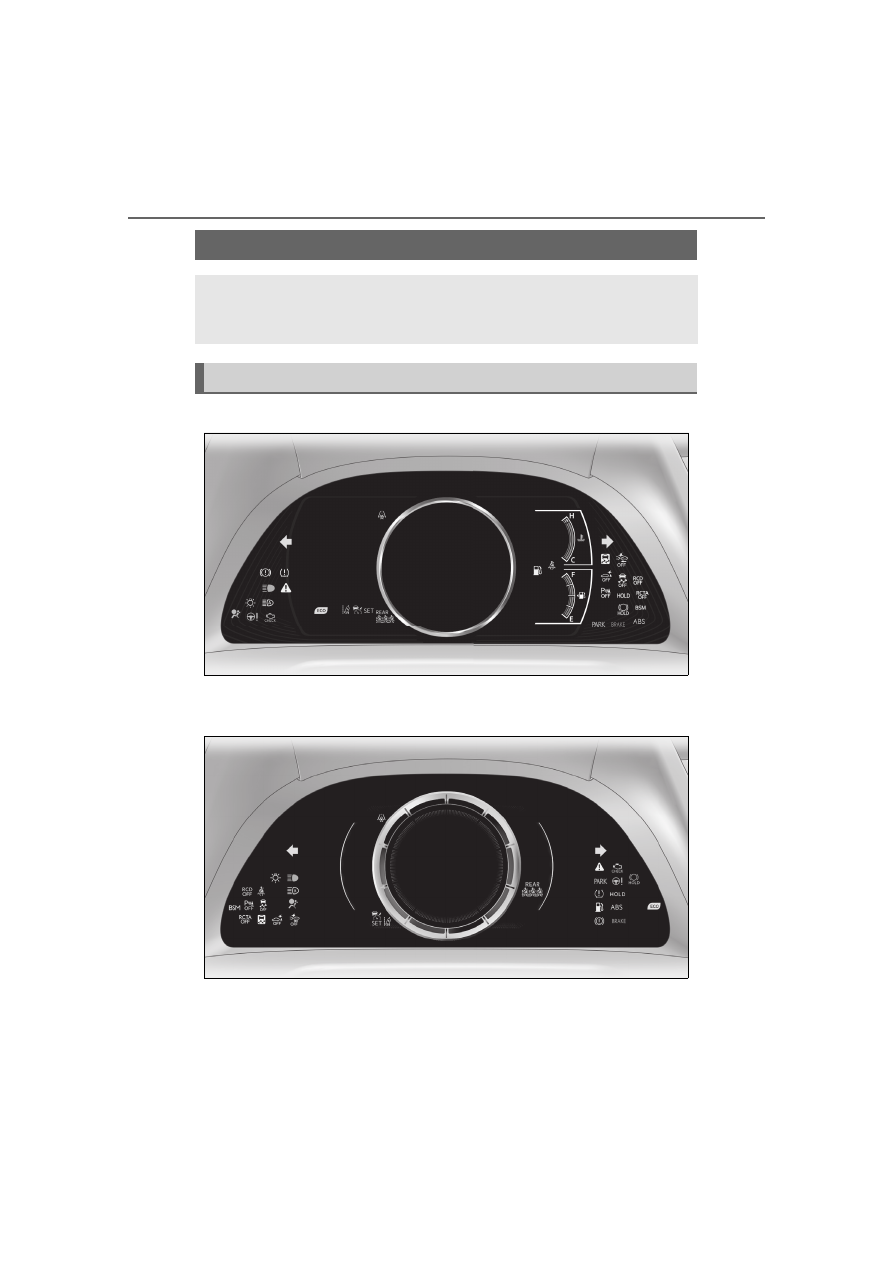

Indicators

Turn signal indicator (



P.151)

(U.S.A.)

Headlight indicator (



P.156)

(Canada)

Tail light indicator (



P.156)

Headlight high beam indicator
(



P.158)

Automatic High Beam indicator
(



P.159)

PCS warning light

*1, 2

(



P.173)

Cruise control indicator

(



P.195)

Dynamic radar cruise control
indicator

(



P.195)

Cruise control “SET” indica-
tor

(



P.195)

(white)

LTA indicator

(



P.188)

(green)

LTA indicator

(



P.173, 188)

(orange)

(flashes)

LTA indicator

(



P.188)

BSM outside rear view mirror
indicators

*1, 4

(



P.205, 221)

BSM indicator (



P.205)

Intuitive parking assist OFF indi-
cator

*1, 2

(if equipped)

(



P.214)

RCTA OFF indicator

*1, 2

(



P.222)

RCD OFF indicator

(if

equipped) (



P.227)

PKSB OFF indicator

*1, 2

(if

equipped) (



P.232)

(flashes)

Slip indicator

(



P.245)

VSC OFF indicator

*1, 2

(



P.245)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators



Drive mode indicators



Except F SPORT models



F SPORT models

: These lights come on when the engine

: This light comes on when the system is

turned off.

: This light illuminates on the multi-infor-

mation display.

: This light illuminates on the outside rear

view mirrors.

: Except F SPORT models: This light illu-

minates on the multi-information dis-
play.

: When the outside temperature is

approximately 37°F (3°C) or lower,
this indicator will flash for approxi-
mately 10 seconds, then stay on.

: This light illuminates on the center

panel.

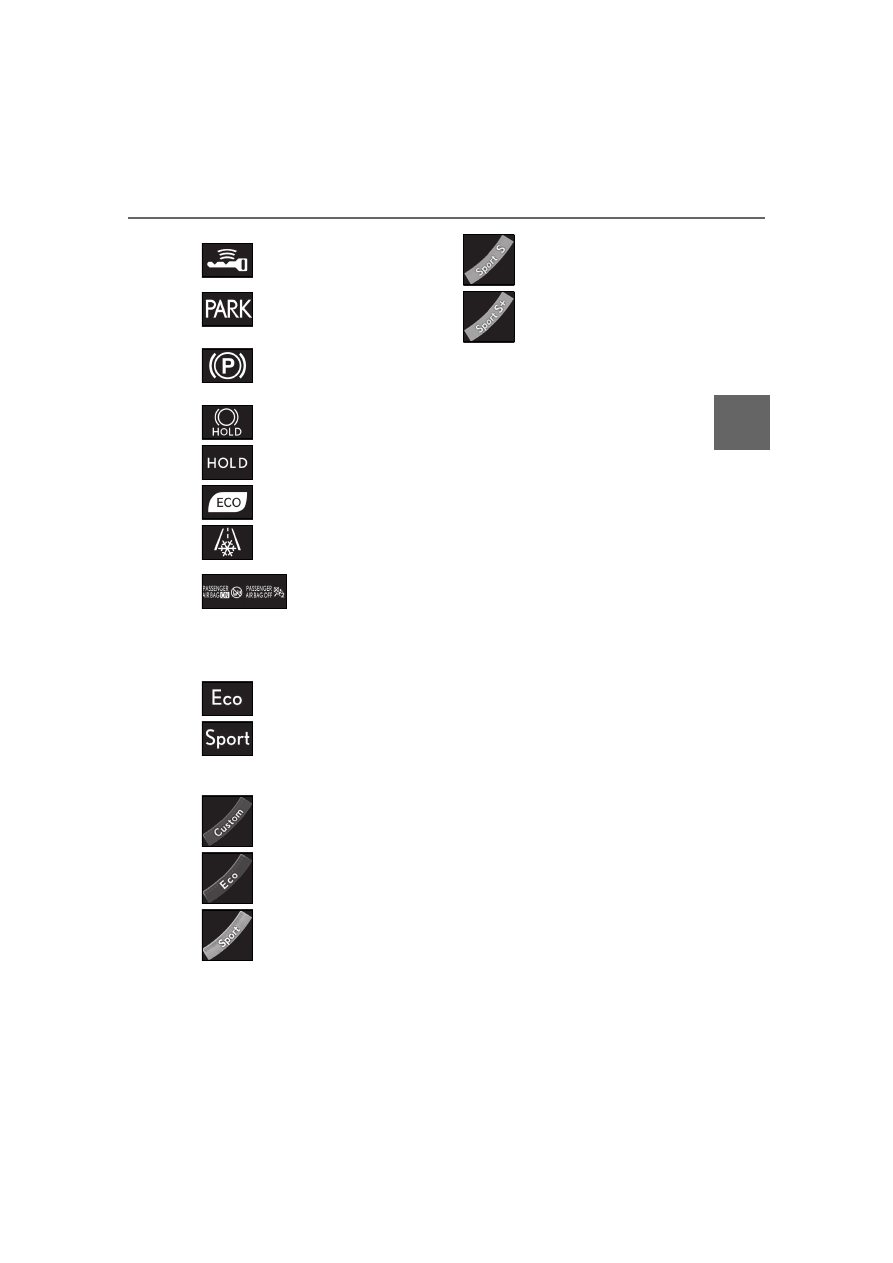

Smart access system with push-
button start indicator

(



P.142)

(U.S.A.)

Parking brake indicator
(



P.151)

(Canada)

Parking brake indicator
(



P.151)

Brake hold standby indicator

(



P.154)

Brake hold operated indica-
tor

(



P.154)

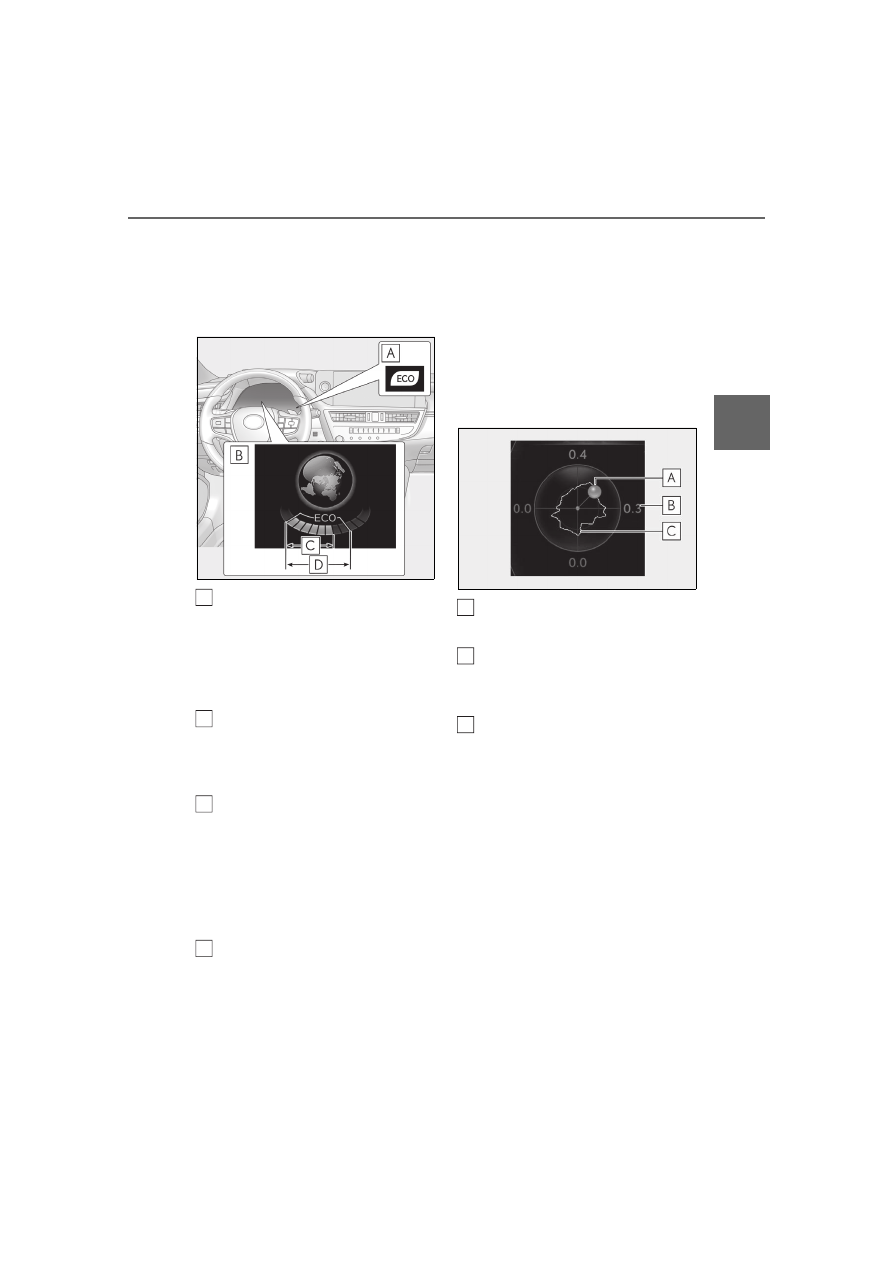

Eco Driving Indicator Light

*1, 5

(



P.79)

Low outside temperature indi-
cator

*3, 6

(



P.68, 71)

“PASSENGER AIR
BAG” indicator lights

*1, 7

(



P.37)

Eco drive mode indicator
(



P.210)

Sport mode indicator (



P.210)

Custom mode indicator (if
equipped) (



P.210)

Eco drive mode indicator
(



P.210)

Sport mode indicator (if
equipped) (



P.210)

Sport S mode indicator (if
equipped) (



P.210)

Sport S+ mode indicator (if
equipped) (



P.210)

2-1. Instrument cluster

■

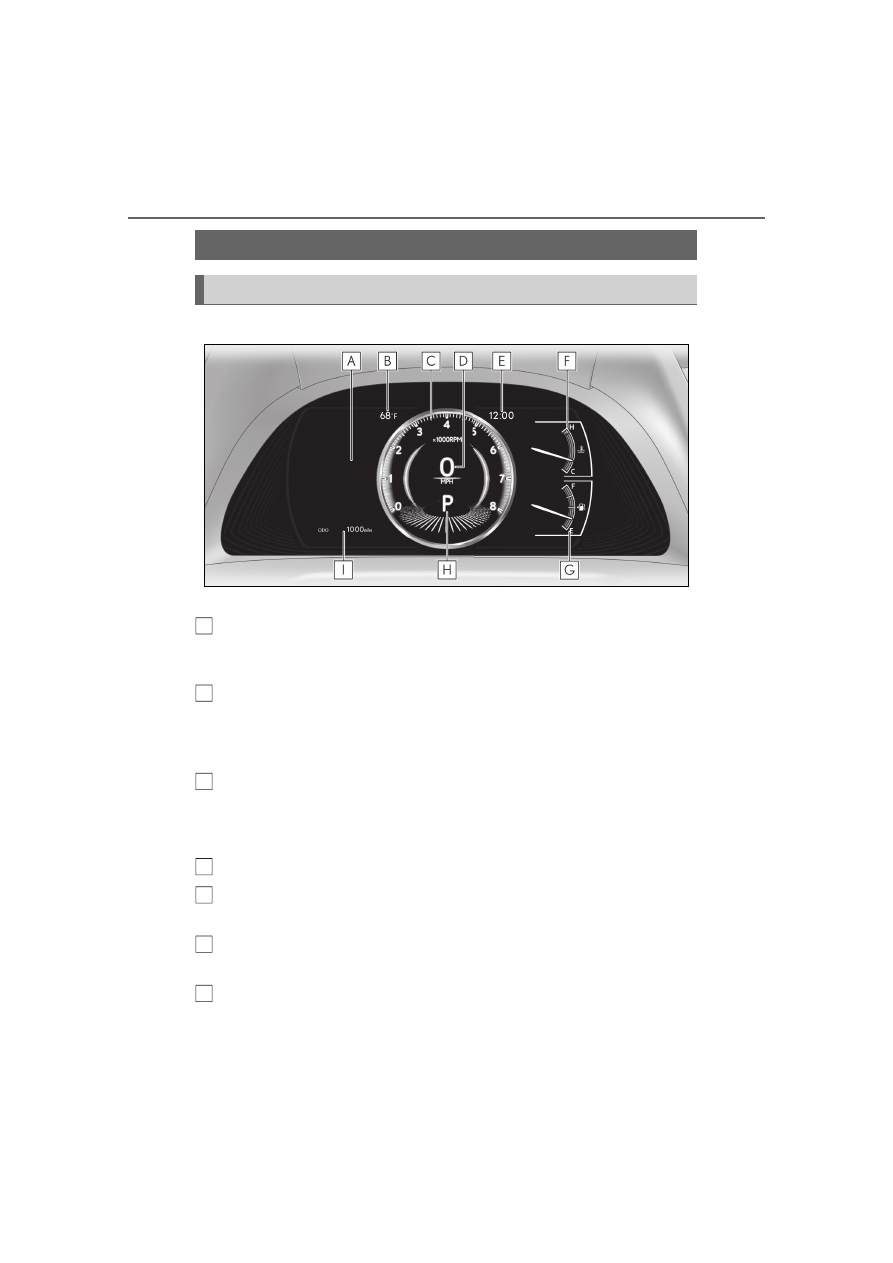

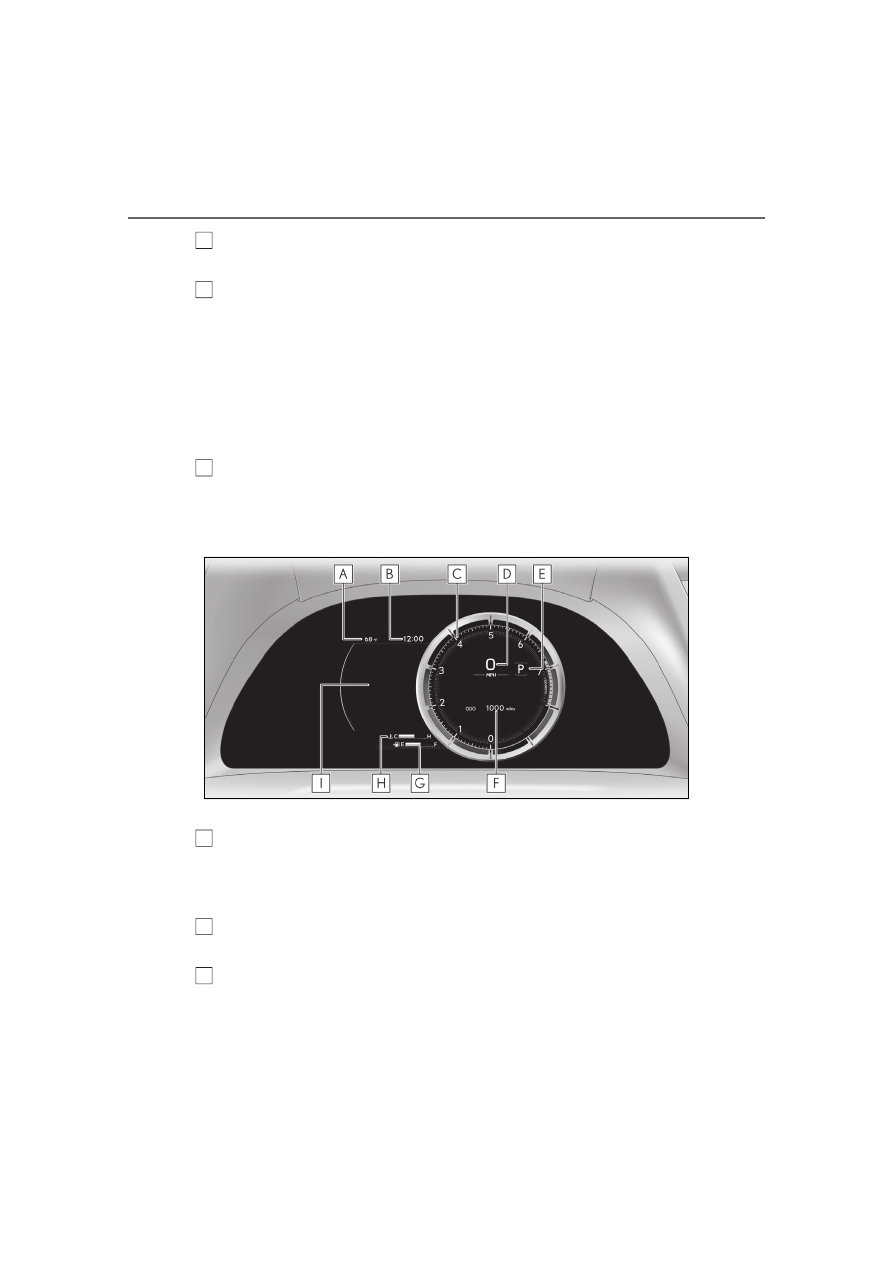

Locations of gauges and meters

The units of measure may differ depending on the intended destination of the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (



P.76)

Displays warning messages if a malfunction occurs (



P.357)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F
(3°C) or lower

Tachometer

Displays the engine speed in revolutions per minute

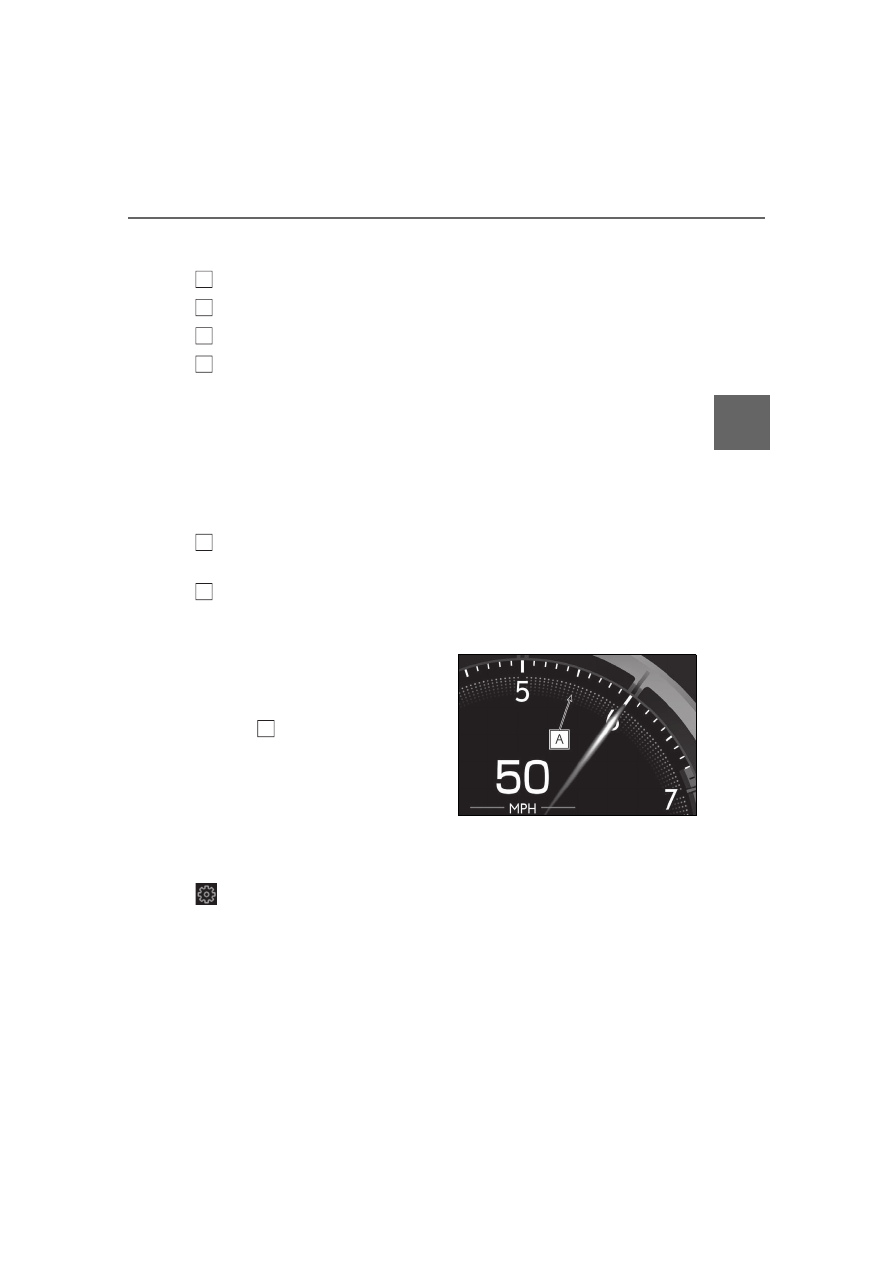

When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Speedometer

Clock

Time displayed is linked to the analog clock on the center panel. (



P.272)

Engine coolant temperature gauge

Displays the engine coolant temperature

Fuel gauge

Displays the quantity of fuel remaining in the tank

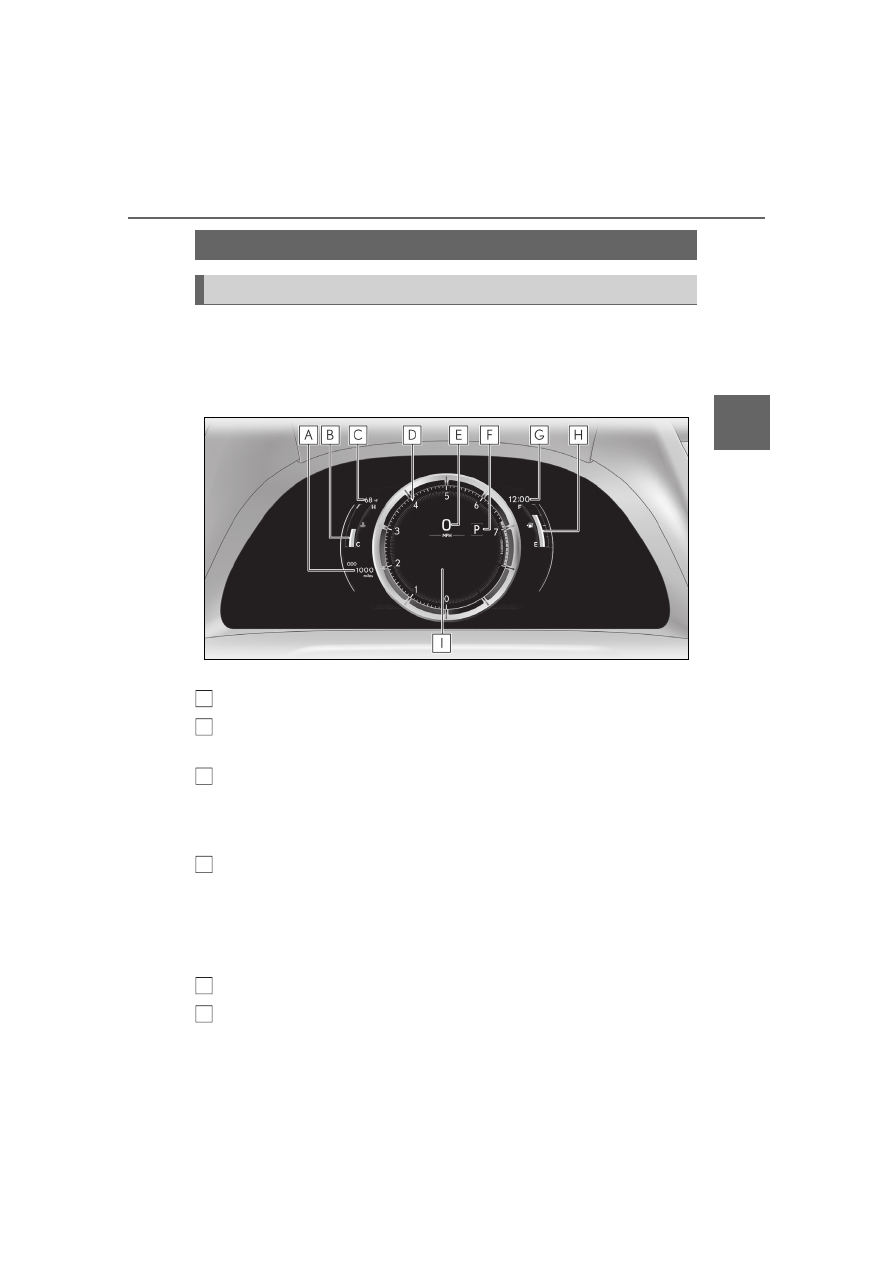

Gauges and meters (except F SPORT models)

Meter display

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.69 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Shift position and shift range (



P.146)

Odometer and trip meter display (



P.70)

■

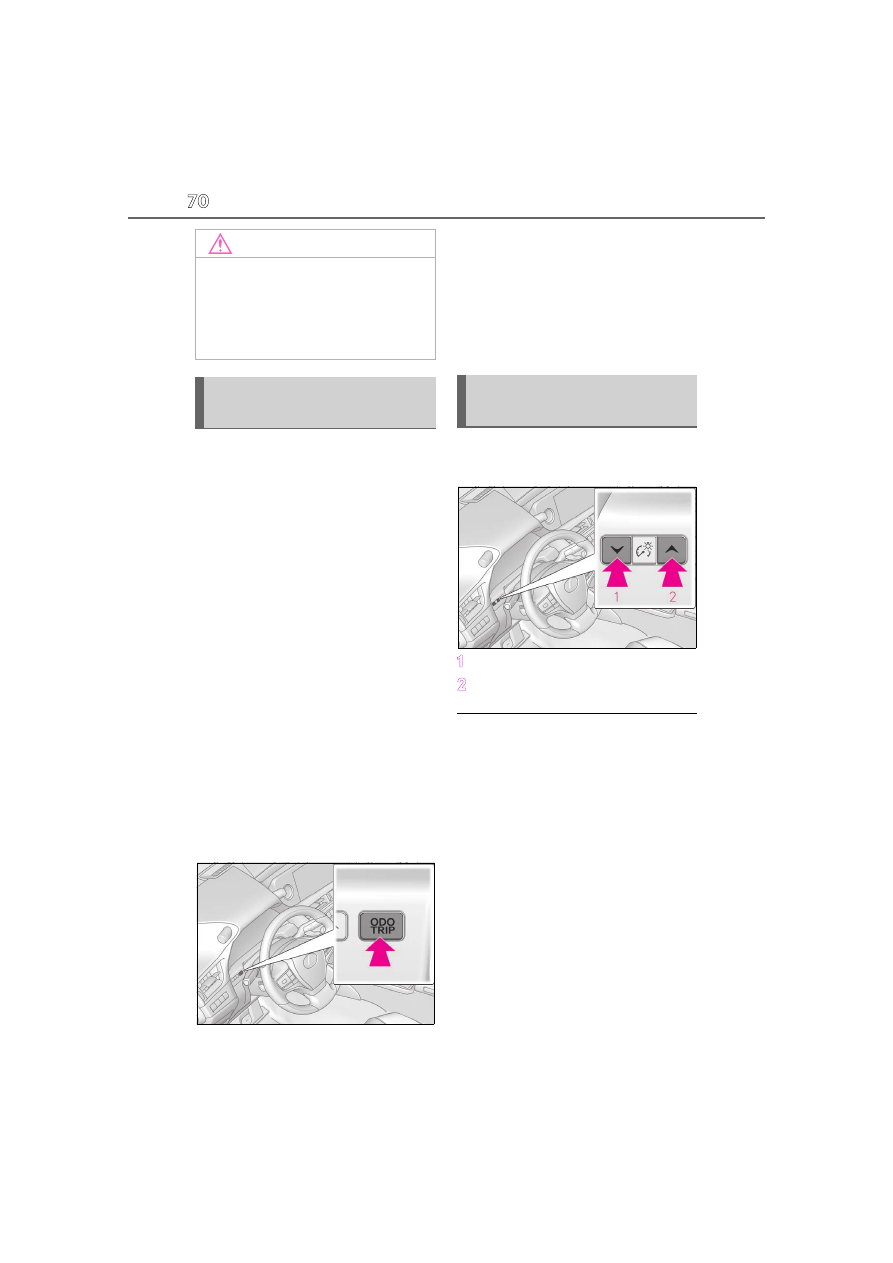

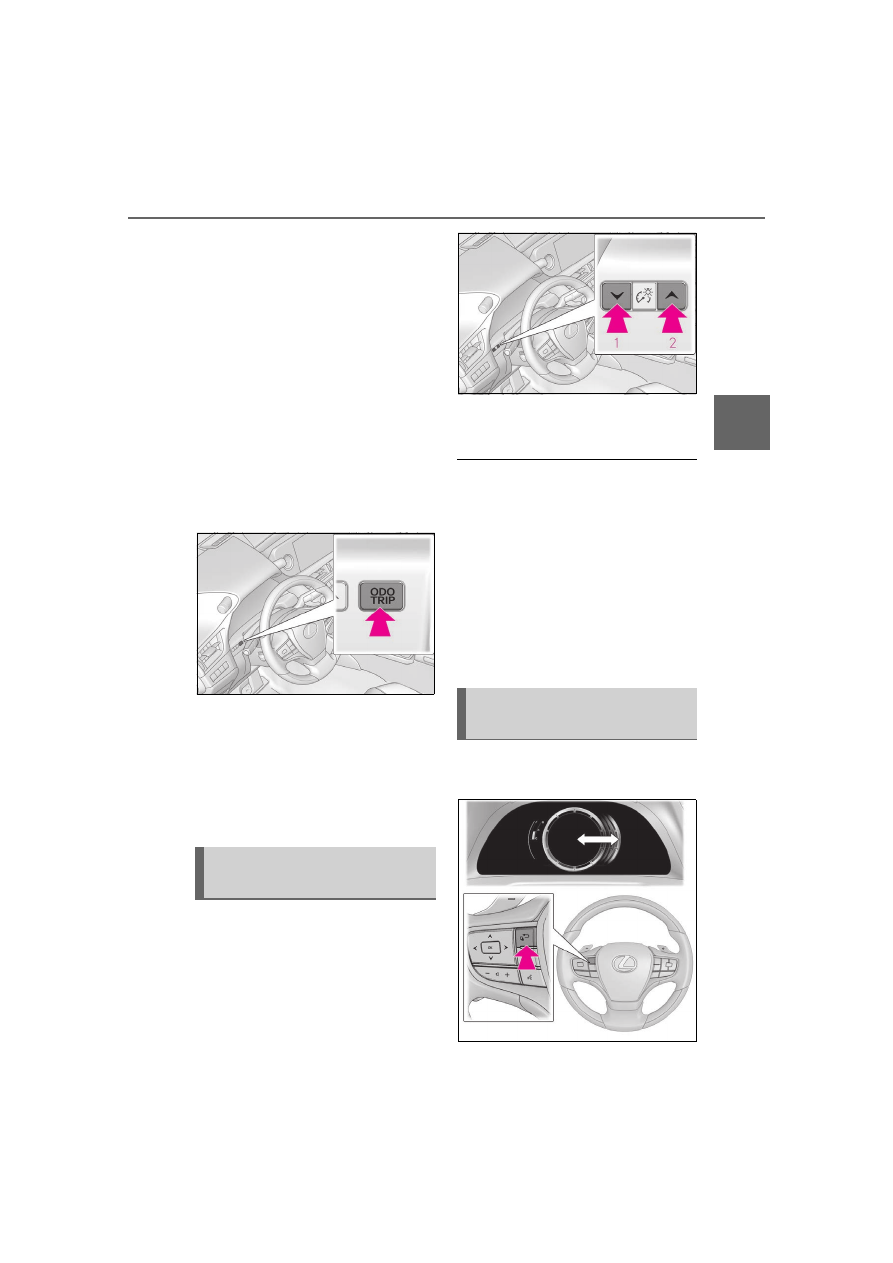

Manually updating the fuel gauge and

possible driving range

The fuel gauge and the possible driving

range are linked. If the displays of the fuel

gauge and possible driving range do not

update after adding a small amount of fuel,

the displays can be updated by performing

the following procedure.

Stop the vehicle on a level surface.

Press the “ODO TRIP” switch to

change the odometer and trip meter

display to odometer.

Turn the engine switch off.

While pressing and holding the “ODO

TRIP” switch, turn the engine switch to

IGNITION ON mode.

Continue to hold the “ODO TRIP”

switch for approximately 5 seconds,

and then release it once the odometer

begins flashing.

Updating is complete once the odometer

flashes for approximately 5 seconds and

then the display returns to normal.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

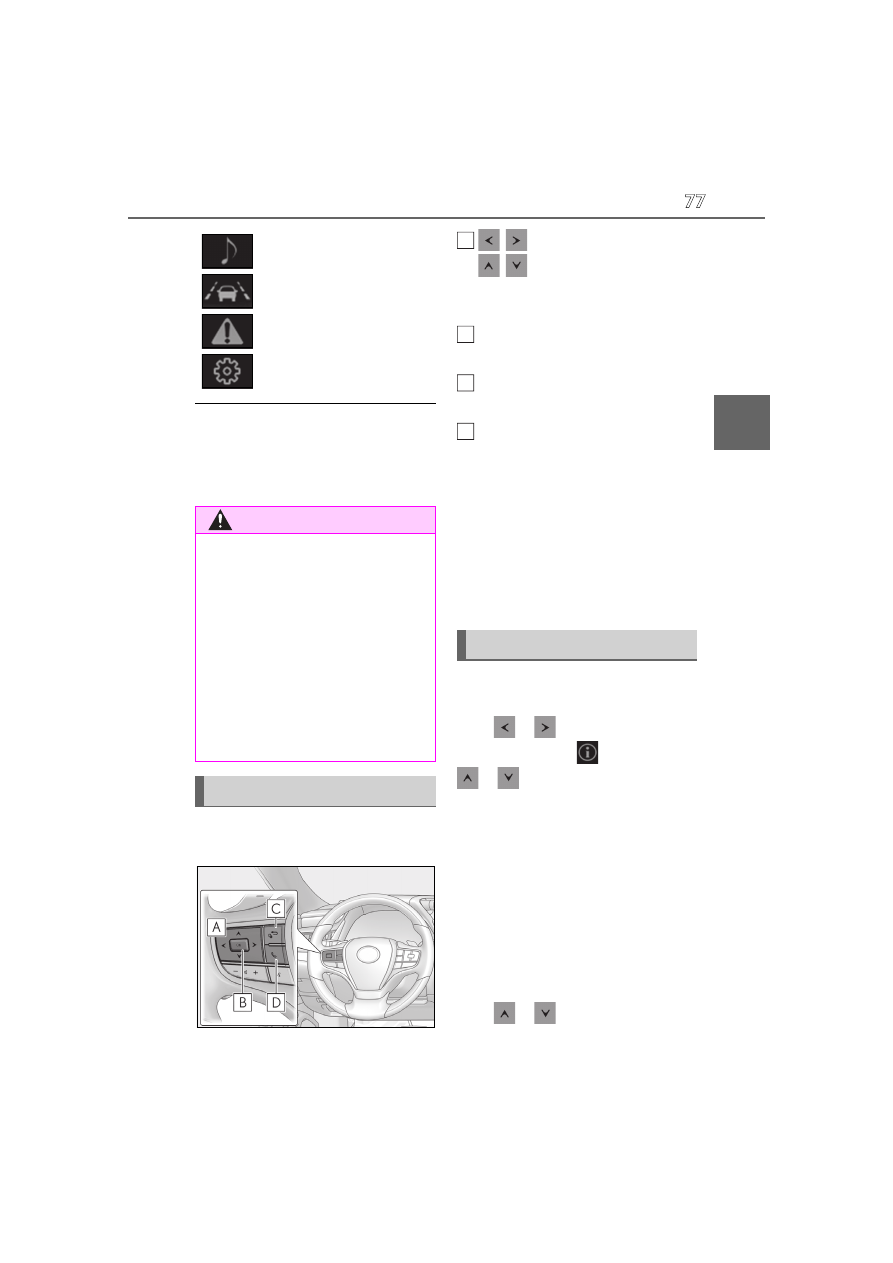

Liquid crystal display



P.77

■

Customization

The gauges and meters can be customized
on

of the multi-information display.

(



P.80)

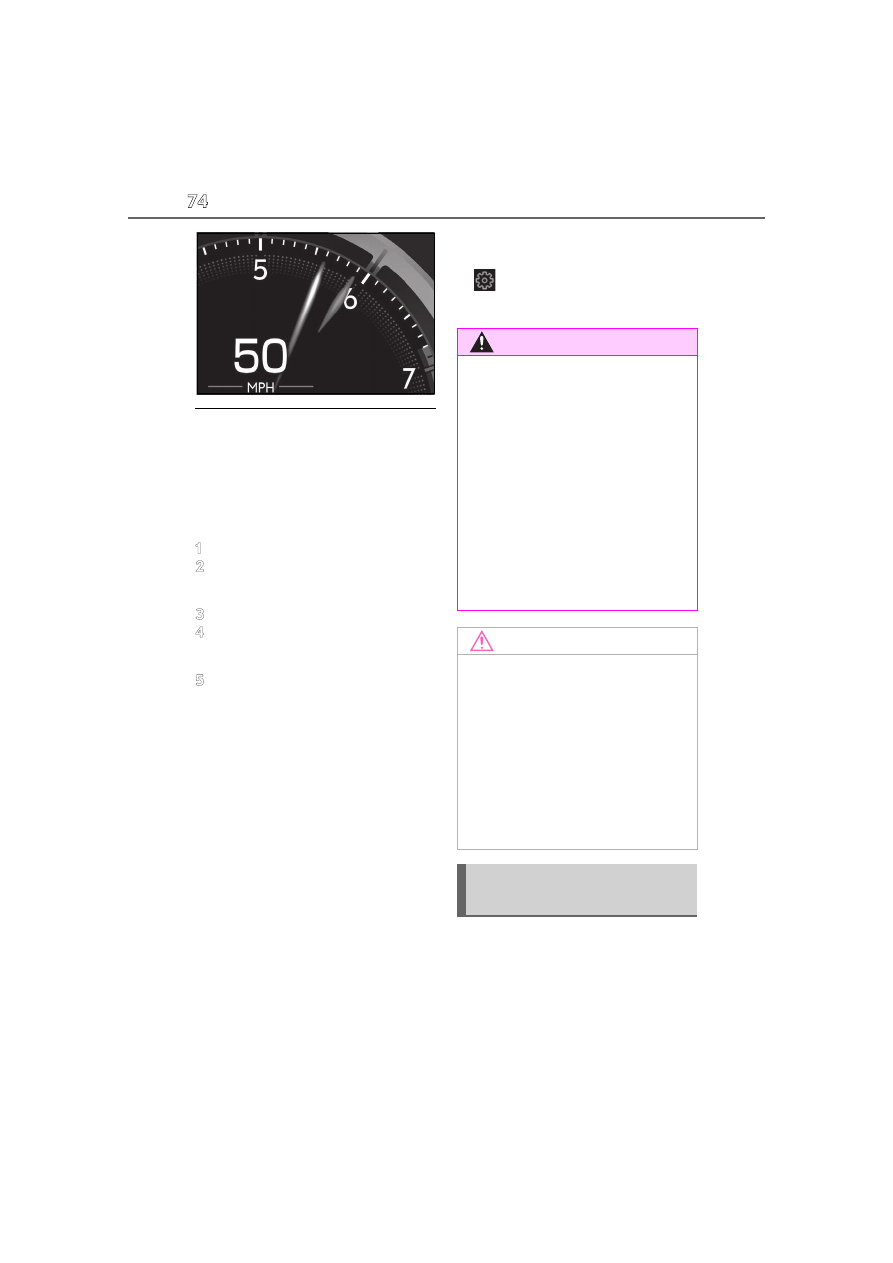

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

2-1. Instrument cluster

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Pop-up display

Distance until the next engine oil
change will be displayed when a warn-
ing message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

■

Brightness of the meter lights (day mode

and night mode)

The brightness of the meter lights can be

adjusted individually.
In the following situations, the meters

changes between day mode and night

mode.

●

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

NOTICE

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.378)

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Locations of gauges and meters

When the main meter is moved to the right, some of the meter displays and the
gauge layout will change. (



P.75)



Main meter in center position

The units of measure may differ depending on the intended destination of the vehicle.

Odometer and trip meter display (



P.74)

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F
(3°C) or lower

Tachometer



P.73)

• Rev peak (



P.73)

Speedometer

Shift position/shift range/gear position (



P.146)

Gauges and meters (F SPORT models)

Meter display

A
B

E
F

2-1. Instrument cluster

Clock

Time displayed is linked to the analog clock on the center panel. (



P.272)

Fuel gauge

Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.74 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Multi-information display

Presents the driver with a variety of vehicle data (



P.76)

Displays warning messages if a malfunction occurs (



P.357)



Main meter moved to the right

The units of measure may differ depending on the intended destination of the vehicle.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F
(3°C) or lower

Clock

Time displayed is linked to the analog clock on the center panel. (



P.272)

Tachometer

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

• Rev indicator (



P.73)

• Rev peak (



P.73)

Speedometer

Shift position and shift range (



P.146)

Odometer and trip meter display (



P.74)

Fuel gauge

Engine coolant temperature gauge

Displays the engine coolant temperature

Multi-information display

Presents the driver with a variety of vehicle data (



P.76)

Displays warning messages if a malfunction occurs (



P.357)

■

Rev indicator

When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator (

) will be displayed on the

tachometer.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on

of the multi-information display.

(



P.80)

■

Rev peak

When the engine speed reaches or
exceeds 5000 rpm, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

E
F

2-1. Instrument cluster

■

Manually updating the fuel gauge and

possible driving range

The fuel gauge and the possible driving

range are linked. If the displays of the fuel

gauge and possible driving range do not

update after adding a small amount of fuel,

the displays can be updated by performing

the following procedure.

Stop the vehicle on a level surface.

Press the “ODO TRIP” switch to

change the odometer and trip meter

display to odometer.

Turn the engine switch off.

While pressing and holding the “ODO

TRIP” switch, turn the engine switch to

IGNITION ON mode.

Continue to hold the “ODO TRIP”

switch for approximately 5 seconds,

and then release it once the odometer

begins flashing.

Updating is complete once the odometer

flashes for approximately 5 seconds and

then the display returns to normal.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Liquid crystal display



P.77

■

Customization

The gauges and meters can be customized
on

of the multi-information display.

(



P.80)

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.378)

Odometer and trip meter dis-
play

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Pop-up display

Distance until the next engine oil
change will be displayed when a warn-
ing message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

■

Brightness of the meter lights (day mode

and night mode)

The brightness of the meter lights can be

adjusted individually.
In the following situations, the meters

changes between day mode and night

mode.

●

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

The display can be switched between
the center and side positions.

Changing the instrument panel
light brightness

Changing the main meter loca-
tion

2-1. Instrument cluster

■

Display (except F SPORT models)

By selecting menu icons on the multi-
information display, a variety of driv-
ing-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

■

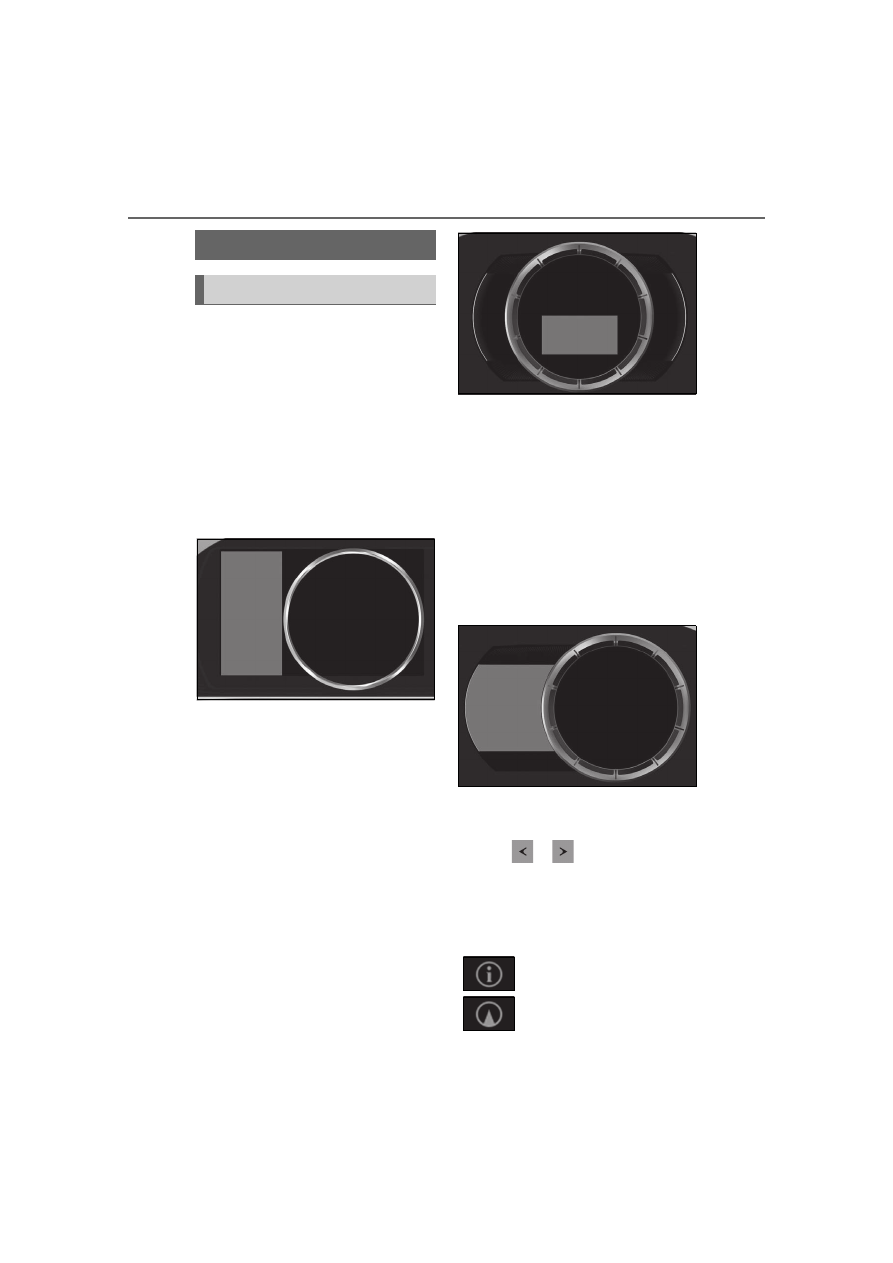

Display (F SPORT models)



Main meter in center position

The multi-information display presents
the driver with a variety of driving-
related information.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.



Main meter moved to the right

■

Menu icons

The menu icons will be displayed by
pressing

of the meter con-

trol switches.

F SPORT models: The menu icons can be
displayed when the main meter is moved
to the right.

Multi-information display

Display and menu icons

Driving information display
(



P.77)

Navigation system-linked dis-
play (if equipped) (



P.80)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

The multi-information display is oper-
ated using the meter control switches.

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen and
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Move the main meter

and return

to the previous screen

Call sending/receiving and history
display
Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S
MANUAL”.

: F SPORT models

■

Display items (except F SPORT
models)

Press

of the meter control

switches and select

. Then press

to display the following

items:



Drive information 1



Drive information 2



Eco Driving Indicator



Tire pressure (



P.319)



Display off

■

Display items (F SPORT models)



Main meter in center position

Press

of the meter control

switches to display the following items:

Audio system-linked display
(



P.80)

Driving support system infor-
mation display (



P.80)

Warning message display
(



P.357)

Settings display (



P.80)

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around

the vehicle.

●

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

■

The information display at low tem-

peratures



P.69, 74

Changing the meter display

Content of driving information

2-1. Instrument cluster



Drive information 1



Drive information 2



Gear position



Tire pressure (



P.319)



Units



Display off



Main meter moved to the right

Press

of the meter control

switches and select

. Then press

to display the following

items:



Drive information 1



Drive information 2



Eco Driving Indicator



G-force



Gear Position



Tire pressure (



P.319)



Display off

■

Drive information 1/Drive informa-
tion 2

Displays drive information such as the
following:

Use the displayed values as a reference
only.



Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)

Displayed items (listed below) can be
changed on

. (



P.80)



Current fuel consumption

Bar type: Displays instantaneous current
fuel consumption



Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

After start: Displays average fuel con-
sumption since engine start
After refuel: Displays average fuel con-
sumption since refuel



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since engine start



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since
engine start



Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven
since engine start



Other

Blank: No item

: To reset, display the desired item and

press and hold “OK” of the meter con-
trol switches.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.

■

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.

Zone of Eco driving

■

Boost gauge

Displays the boost pressure. The dis-
play will change color if the specified

pressure is exceeded.

This display is intended for use as a guide-
line. Depending on factors such as the
road surface condition, temperature and
vehicle speed, the display may not show
the actual condition of the vehicle.

■

G-force (F SPORT models)

Displays lateral G-forces on the vehi-
cle.

Acceleration G-force on the vehi-
cle

Current G-force value (analyzed
value of front/rear and left/right G-
forces)

Record of the maximum G-forces



Resetting the record of maximum
G-forces

Press and hold “OK” of the meter control
switches to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

2-1. Instrument cluster

■

Gear Position (F SPORT models)

Displays the current shift range or gear
position when the shift lever is in D or S.

■

Units (F SPORT models)

The units of measure used can be
changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

■

Eco Driving Indicator

Eco Driving Indicator will not operate

under the following conditions:

●

The shift lever is in any position other than

●

A paddle shift switch is operated.

●

The driving mode is set to other than nor-

mal mode or Eco drive mode.

●

The vehicle speed is approximately 80

mph (130 km/h) or higher.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display (heading-up dis-
play)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.183)



Dynamic radar cruise control with
full-speed range (



P.195)



RSA (Road Sign Assist) (if
equipped) (



P.192)

■

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display (except F
SPORT models)

Select to set the display of the speedome-
ter to digital or analog.



Drive information 1/Drive informa-
tion 2

Select to select up to 2 items (



P.78) that

will be displayed on each Drive information
screen (Drive information 1 screen and
Drive information 2 screen) respectively.



Clock

Select to switch between 12-hour display
and 24-hour display.



Pop-up display

Select to enable/disable some pop-up dis-
plays for each relevant system.

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

Settings display

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators



Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.



Rev peak (F SPORT models)

Select to enable/disable the rev peak.



Eco Driving Indicator Light

Select to enable/disable the Eco Driving
Indicator Light.



Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed



P.404

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

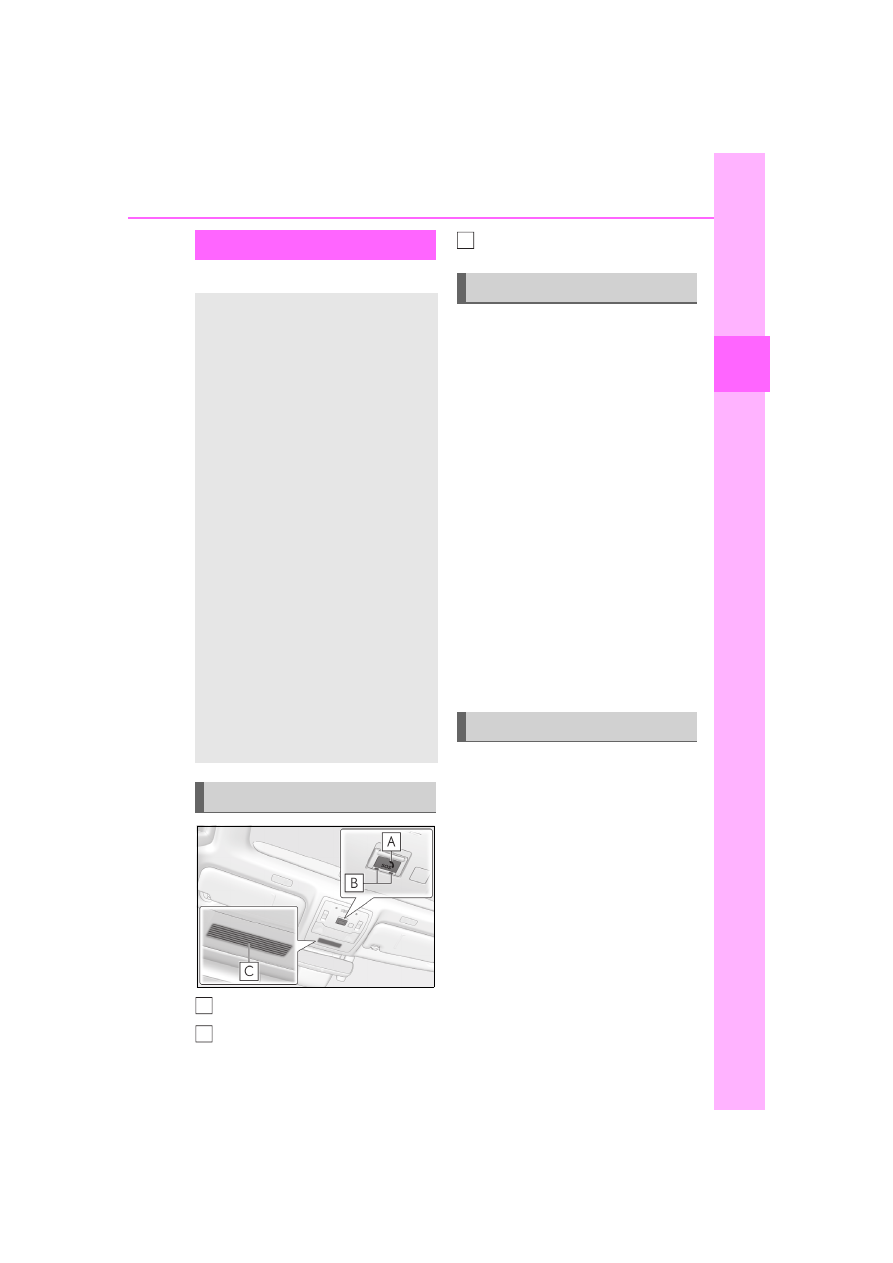

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

■

Suggestion to turn on the head-
lights

If the headlights turn off, and the vehi-
cle speed is 3 mph (5 km/h) or higher
for a certain amount of time when the
surroundings are dark, a suggestion
message will be displayed.

■

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight
switch in

after the engine switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.

If a front door is opened after the engine
switch is turned off, this suggestion mes-
sage will not be displayed.

■

Customization

Some functions can be customized.

(



P.404)

WARNING

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge, ensure

that the engine is running while setting up

the display features.

Suggestion function

2-1. Instrument cluster

: If equipped

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

Driving support system display area (



P.84)

Navigation system-linked display area (if equipped)

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

Driving information display area

Displays the following items:
• Speed limit of the current road (linked to the navigation system) (U.S.A. only)
• RSA (Road Sign Assist) display (if equipped) (



P.192)

• Speedometer
• Shift position and shift range (



P.146)

Tachometer/Eco Driving Indicator display area (



P.85)

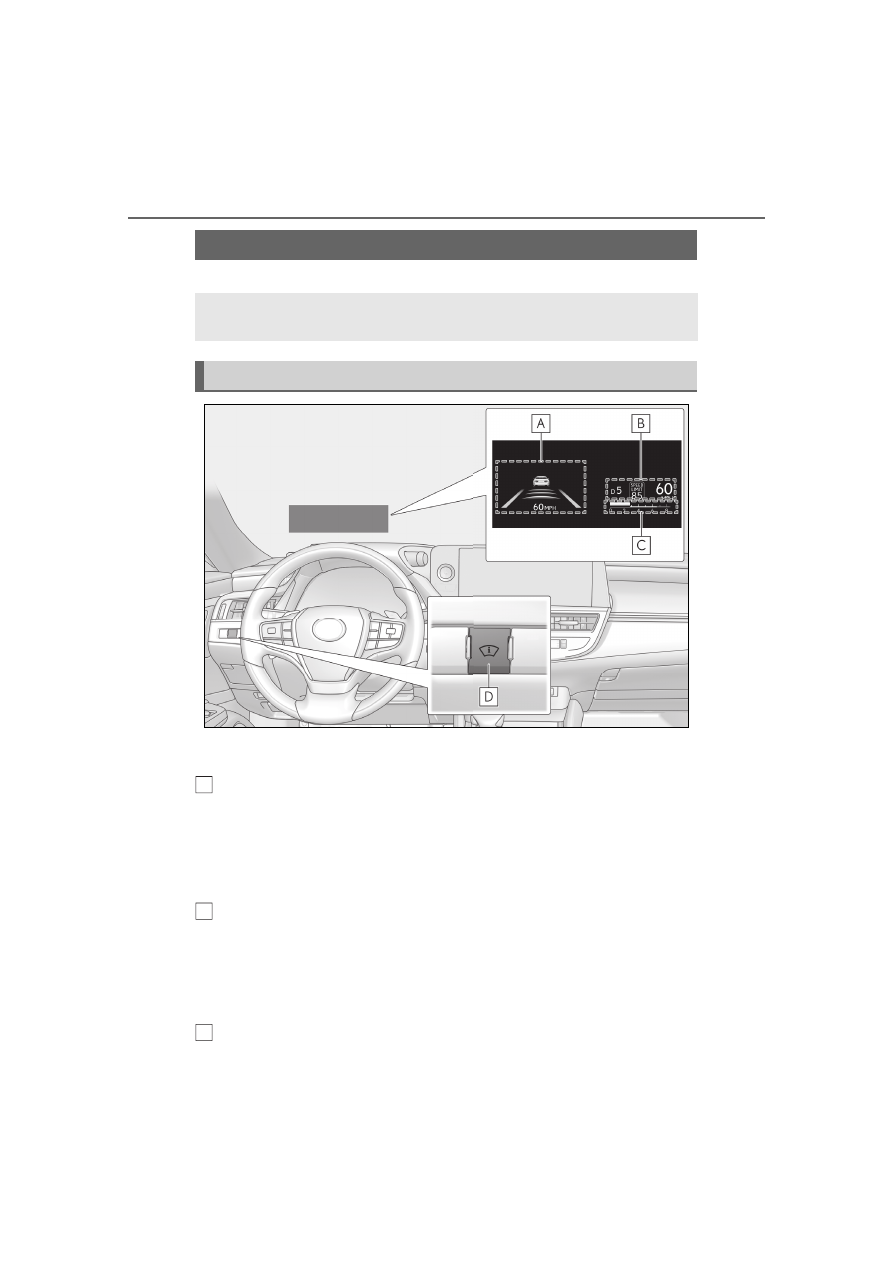

Head-up display

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.

System components

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

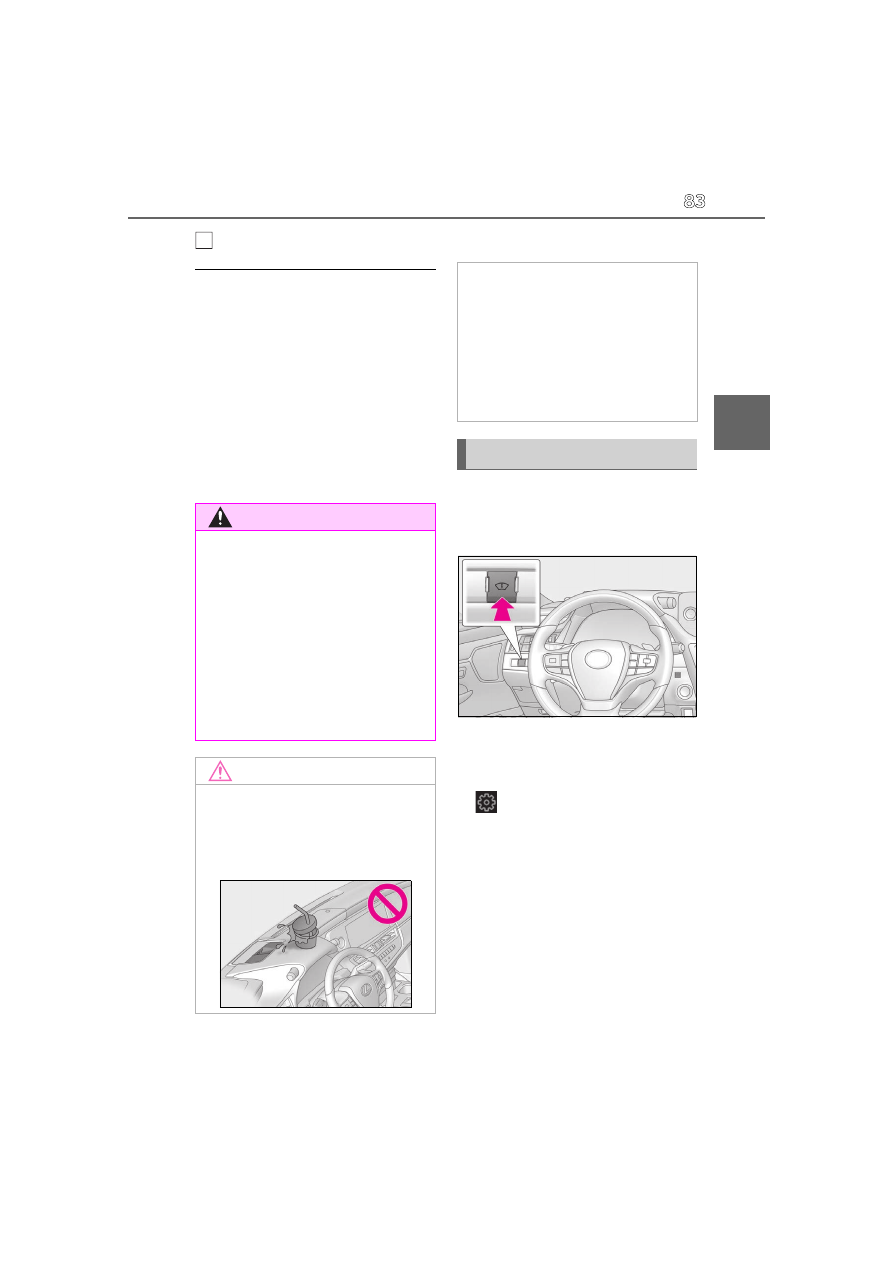

Head-up display switch

■

Head-up display will operate when

The engine switch is in IGNITION ON

mode.

■

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are included in the

map data will be displayed.

■

Enabling/disabling the head-up
display

Press the Head-up display switch.

■

Changing settings of the head-up
display

The following settings can be changed
on

of the multi-information display.

(



P.76)



Brightness and vertical position of
the head-up display

Select to adjust the brightness or vertical
position of the head-up display.



Tachometer/Eco Driving Indicator

Select to display the tachometer, Eco Driv-
ing Indicator or no content.



Display content

Select to enable/disable the following

WARNING

■

When using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

Using the head-up display

2-1. Instrument cluster

items:
• Route guidance to destination/street

name

• Driving support system display

• Compass (heading-up display)
• Audio system operation status

: Make sure to enable this display when

using the driving support systems



Display angle

Select to adjust the angle of the head-up
display.

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the engine switch is

turned off then back to IGNITION ON

mode.

■

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted
according to the ambient brightness.

■

Head-up display automatic position

adjustment

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(



P.111)

■

When the battery is disconnected

The customize settings of the head-up dis-

play will be reset.

Displays the operational status of the
following systems:



LTA (Lane Tracing Assist)
(



P.183)



Dynamic radar cruise control with
full-speed range (



P.195)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

■

Driving support systems

Displays a warning/suggestion/advice

WARNING

■

Caution for changing settings of the

head-up display

As the engine needs to be running while

changing the settings of the head-up dis-

play, ensure that the vehicle is parked in a

place with adequate ventilation. In a

closed area such as a garage, exhaust

gases including harmful carbon monox-

ide (CO) may collect and enter the vehi-

cle. This may lead to death or a serious

health hazard.

NOTICE

■

When changing the settings of the

head-up display

To prevent battery discharge, ensure

that the engine is running while changing

the settings of the head-up display.

Driving support system display
area

Pop-up display

Lexus ES350 (2024 year). Manual in english - page 2
