4-5. Using the driving support systems

Driving

phase, a buzzer will sound continu-
ously and a message will be displayed
to warn the driver, and the vehicle will
slowly decelerate and stop. After the
vehicle stops, the system will enter the
stop and hold phase.

After the vehicle is stopped, the park-
ing brake will be applied automatically.
After entering the stop and hold phase,
the buzzer will continue sounding con-
tinuously and the emergency flashers
(hazard lights) will flash to warn other
drivers of the emergency.

■

Restricted functions after the operation

is canceled

After shifting to the deceleration stop

phase, the following functions will not be

available until the hybrid system is

re-started even though the emergency driv-

ing stop system is canceled:

●

LTA

●

LCA (if equipped)

●

Traffic Jam Assist (if equipped)

: If equipped

Traffic Jam Assist is a system which,
through confirmation of the conditions
by the driver, provides lane keeping,
accelerating/decelerating, stopping,
and starting off support on some high-
ways and expressways. Also, in an
emergency, the system can decelerate
and stop, to help avoid a collision or
help reduce the impact of a collision.

■

Precautions for use



P.256



Sensors which detect the surround-
ing conditions (



P.253)



Sensors which detect the driver
condition (



P.254)

■

Situations in which some or all of the

functions of the system cannot operate



P.258

■

Changes in brake operation sound and

pedal response



P.258

■

Situations in which the driver monitor

may not operate properly



P.258



P.311

Stop hold phase

Traffic Jam Assist

Function Outline

Sensors that support the Traffic
Jam Assist

Emergency Driving Stop System

314

4-5. Using the driving support systems



P.295

The Traffic Jam Assist function, through
confirmation of the conditions by the
driver, provides lane keeping, acceler-
ating/decelerating and stopping sup-
port on some highways and
expressways.
This function is operable when all of the
operation conditions are met.
When this function is operating, it is
possible to take your hands off of the
steering wheel. (



P.316)

Before using the Traffic Jam Assist function,
familiarize yourself with the content of the
dynamic radar cruise control and the LTA
(Lane Tracing Assist).
Make sure that the driver steers the vehicle
when entering a service area/parking area
or toll gate, or when changing lanes.

When the operation of Traffic Jam
Assist is started, the following message
will be displayed:



“Allow Driver Monitor Camera
Recording?”

When recording is approved, the system
records images of the area around the
driver in certain crash or near crash-like
situations, such as an SRS airbag being
deployed or the vehicle hitting an object on
the road. (



P.9)

Extended resume time of
Dynamic radar cruise control

Traffic Jam Assist Function

Driver monitor camera record-
ing

WARNING

■

For safe use

●

Driving safely is solely the responsibil-

ity of the driver. Do not overly rely on

this system, and pay careful attention

to the surrounding conditions in order

to ensure safe driving.

●

The Traffic Jam Assist function is not an

automated driving system.

This function provides the driver with

information and driving assistance

according to the road shape and con-

ditions, traffic conditions, and the con-

dition of the driver themself. Always

pay careful attention to the surround-

ing conditions as use of the system is

the responsibility of the driver.

●

Depending on the condition of the sur-

rounding area, the road, or the driver,

the Traffic Jam Assist function may not

operate or operation may be sus-

pended. Also, it may not always be

able to achieve the same level of per-

formance. Read the operating condi-

tions of the function carefully. Do not

overly rely on this function and always

drive carefully.

●

As the recognition performance and

control performance of the Traffic Jam

Assist function are limited, driver oper-

ation is necessary to ensure safety

while the system is operating. Also, the

steering assist of this system is

designed to operate only for slow

steering operations during a traffic

jam. While this function is operating,

the lane deviation control function of

the LDA will not operate. If, for some

reason, the vehicle is about to deviate

the lane, it is the driver’s responsibility

to drive properly.

315

4-5. Using the driving support systems

Driving

WARNING

●

Even if Traffic Jam Assist is operating

properly, the surrounding conditions

as recognized by the driver and

detected by the system may differ.

Therefore, it is necessary for the driver

to pay attention, assess risks, and

ensure safety. Over-reliance on this

system to drive the vehicle safely may

lead to an accident resulting in death

or serious injury.

●

While the Traffic Jam Assist function is

operating, as driver operation may

become necessary, the driver must

ensure they have clear visibility of their

surroundings.

●

In certain situations, a message urging

the driver to hold the steering wheel

may be displayed by the Traffic Jam

Assist function. In this case, hold the

steering wheel and drive the vehicle

manually to ensure safety.

●

The Traffic Jam Assist function cannot

detect the following objects. Operate

the steering wheel, accelerator pedal,

or brake pedal as necessary to avoid a

collision. As the function will not be

able to provide appropriate control,

using it may lead to an accident result-

ing in death or serious injury.

• Objects on the road surface

• Vehicles outside of a lane (such as on

the shoulder of the road)

• Potholes, cracks, ruts, or other road

damage

• Road construction zones

• Vehicles running in parallel with your

vehicle or nearby walls

• Animals

■

Situations in which Traffic Jam Assist

Function should not be used

Do not use Traffic Jam Assist Function in

situations such as the following. As the

system will not be able to provide appro-

priate control, using it may lead to an

accident resulting in death or serious

injury.

●

When it is necessary to disable the sys-

tem



P.252

●

Situations in which the sensors may not

operate properly



P.257

●

Situations in which the lane may not be

detected



P.258

■

Situations in which the function may

not operate properly

In situations such as the following, the

Traffic Jam Assist function may not oper-

ate properly. Manually operate the vehi-

cle as necessary.

●

When a sensor is splashed by water

●

When the ambient temperature is high

or low

●

When a vehicle cuts in front of your

vehicle

●

When another lane merges into the

lane in the same traveling direction as

your vehicle

●

When driving in low visibility condition

●

When the vehicle posture is changing

●

When the traction on the road surface

differs greatly between the left and

right side tires

●

When driving on an expressway with

no median strips or when driving on an

expressway equipped with temporary

median markers, such as poles.

316

4-5. Using the driving support systems

■

Operating conditions of the function

This function is operable when all of the fol-

lowing conditions are met:

●

The system detects lane lines and the

path of preceding or surrounding vehi-

cles.

●

The dynamic radar cruise control and the

lane tracing assist are operating.

●

The turn signal lever is not being oper-

ated.

●

The vehicle is not being driven around a

sharp curve.

●

The vehicle is being driven in the center

of a lane.

●

The driver monitor camera is detecting

that the driver is facing front of the vehi-

cle.

●

The vehicle is driving in traffic jam on a

highway or expressway at approximately

25 mph (40 km/h) or less. (In some situ-

ations, such as when a traffic jam starts,

this function may be operational at

approximately 20 mph [30 km/h] or

less.)

●

Vehicles with a connected navigation

(display audio): Safety Connect is being

subscribed to.

●

The driver’s door is closed.

●

The driver’s seat belt is fastened.

●

Customized setting of the Traffic Jam

Assist is not set to off.

●

Functions and components composing

the system are in proper condition.

●

Customized setting of the PCS (Pre-Col-

lision System) is not set to off.

●

Customized setting of the dynamic radar

cruise control (re-start time extension) is

not set to off.

■

Temporary cancelation of the function

●

When the operating conditions are no

longer met, a function may be temporar-

ily canceled. However, when the opera-

tion conditions are met again, operation

of the function will automatically be

restored.

●

If the operating conditions of a function

are no longer met while the function is

operating, a buzzer may sound with a dis-

play to indicate that the function has been

temporarily canceled. If no driver’s

responses to the indication are detected,

the driver emergency stop assist function

may operate. For types of display and

action to be taken, see the page men-

tioned below. (



P.317)

■

Driving operations during controlled

driving

●

Accelerator pedal

As with normal driving, acceleration can
be performed by depressing the accelera-
tor pedal. In some situations, such as when
driving at approximately 6 mph (10 km/h)
or more and the accelerator pedal is
depressed, this function will be canceled.

●

Brake pedal

As with normal driving, deceleration can
be performed by depressing the brake
pedal. However, controlled driving will be
cancelled.

●

Steering wheel

As with normal driving, the steering wheel

WARNING

●

When there is a significant difference

in speed between your vehicle and the

other vehicle

●

The map data has not been updated

properly.

■

To prevent malfunction of the radar

sensors



P.254

■

To prevent malfunction of the front

camera



P.255

■

Front camera installation area on the

windshield



P.256

317

4-5. Using the driving support systems

Driving

can be operated. If the steering wheel is
operated more than a certain amount, con-
trolled driving will be cancelled.

■

When a warning message is displayed

●

“Traffic Jam Asst System Malfunction

Visit Your Dealer”

The Traffic Jam Assist function may not be
operating properly.

●

“Traffic Jam Asst Unavailable Stop Assist

Activated”

The system temporarily cannot be used as
the driver emergency stop assist function
has operated.



The setting of Traffic Jam Assist can
be enabled/disabled through a cus-
tomize setting. (



P.590)



The setting of driver monitor cam-
era recording can be enabled/dis-
abled through a customize setting.
(



P.590)

The following displays indicate the operating status of the Traffic Jam Assist func-
tion:

Changing Traffic Jam Assist set-
tings

Displays and system operation

Display

Status

Action to be taken

Traffic Jam Assist function is
operating



(Grey)

Traffic Jam Assist function is
about to end

Hold the steering wheel.

(Orange)

Traffic Jam Assist function has
ended

Hold the steering wheel.

(Red)

Operation of either or both of
dynamic radar cruise control
/LTA (Lane Tracing Assist)
ended

Manually operate the steering
wheel immediately.

319

4-5. Using the driving support systems

Driving

Center display

Turning the Blind Spot Monitor on/off.

Outside rear view mirror indica-
tors/buzzer

When a vehicle is detected in a blind spot
of the outside rear view mirrors or
approaching rapidly from behind into a
blind spot, the outside rear view mirror
indicator on the detected side will illumi-
nate. If the turn signal lever is operated
toward the detected side, the outside rear
view mirror indicator will flash and a
buzzer will sound.

Driving assist information indicator

Illuminates when the Blind Spot Monitor is
turned off. At this time, “Blind Spot Monitor
OFF” will be displayed on the multi-infor-
mation display.

■

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

■

Buzzer

If the volume setting of the audio system is

high or the surrounding area is loud, it may

be difficult to hear the buzzer.

■

Customization

Some functions can be customized.

(



P.590)

BSM (Blind Spot Monitor)

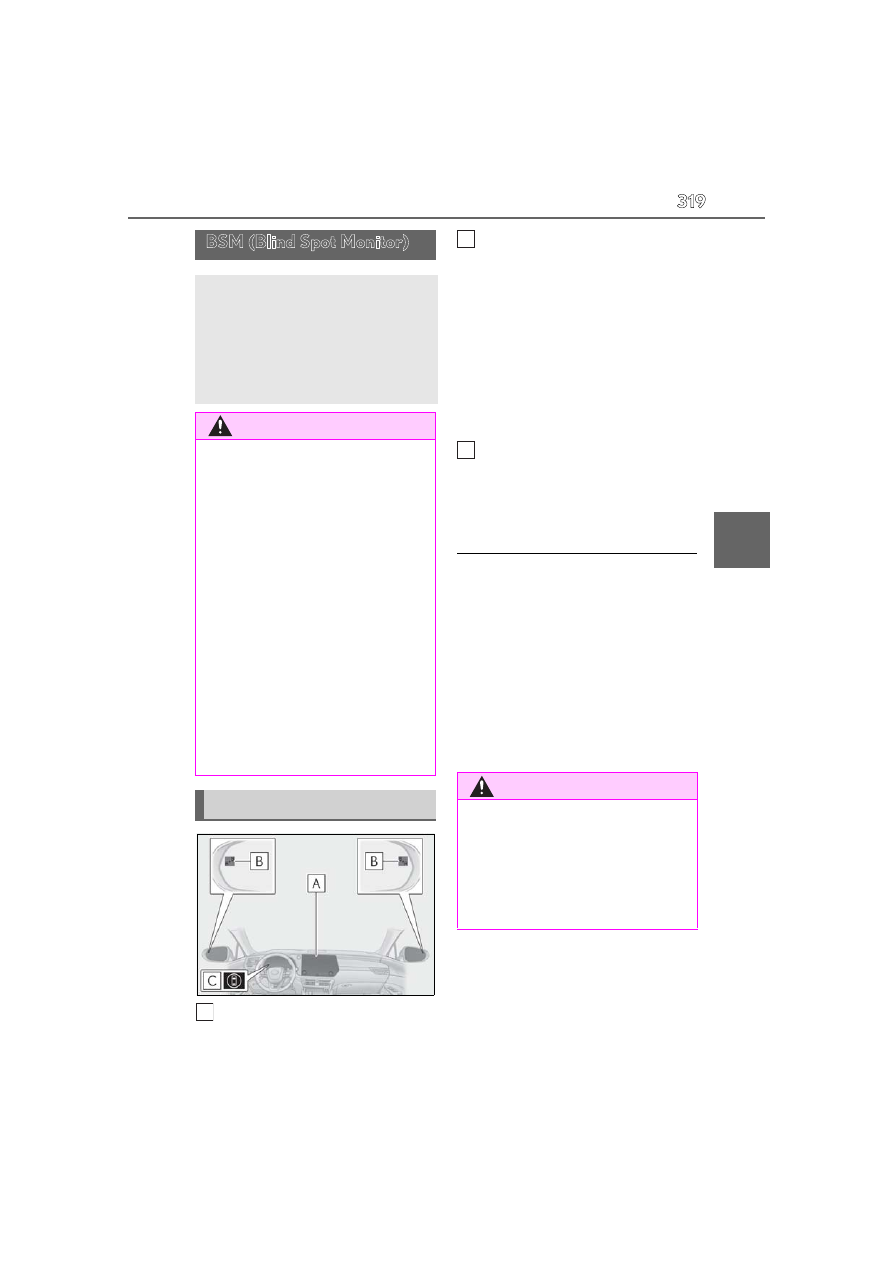

The Blind Spot Monitor is a system
that uses rear side radar sensors
installed on the inner side of the
rear bumper on the left and right
side to assist the driver in confirm-
ing safety when changing lanes.

WARNING

■

Cautions regarding the use of the sys-

tem

●

The driver is solely responsible for safe

driving. Always drive safely, taking

care to observe your surroundings.

●

The Blind Spot Monitor is a supple-

mentary function which alerts the

driver that a vehicle is in a blind spot of

the outside rear view mirrors or is

approaching rapidly from behind into a

blind spot. Do not overly rely on the

Blind Spot Monitor. As the function

cannot judge if it is safe to change

lanes, over reliance could lead to an

accident resulting in death or serious

injury.

As the system may not function cor-

rectly under certain conditions, the

driver’s own visual confirmation of

safety is necessary.

System components

WARNING

■

To ensure the system can operate

properly

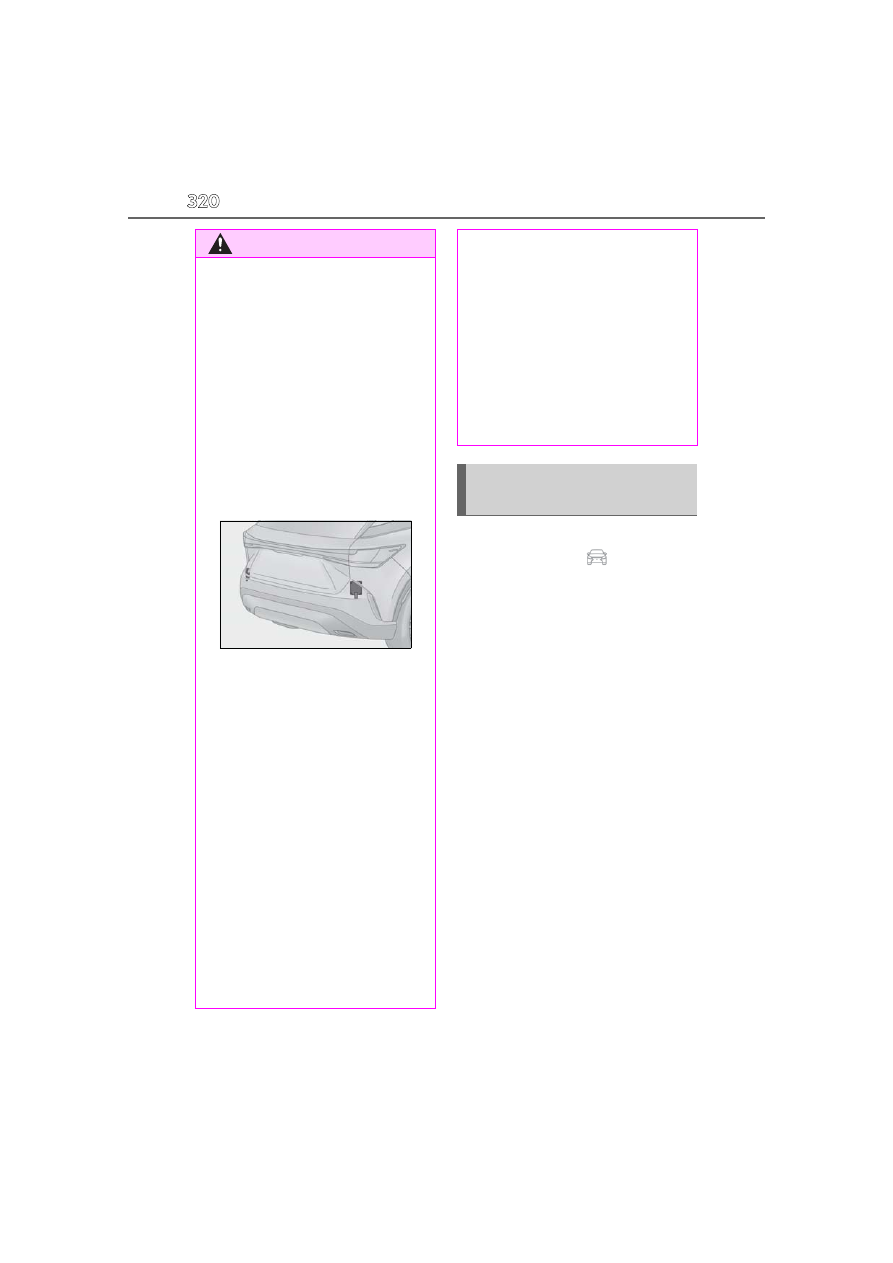

Blind Spot Monitor sensors are installed

behind the left and right sides of the rear

bumper respectively. Observe the fol-

lowing to ensure the Blind Spot Monitor

can operate correctly.

320

4-5. Using the driving support systems

The blind spot monitor can be
enabled/disabled on

of the center

display. (



P.590)

When the Blind Spot Monitor is off, the
driving assist information indicator
(



P.88) will illuminate. At this time,

“Blind Spot Monitor OFF” will be dis-
played on the multi-information dis-
play.
Each time the power switch is turned to
ON, the Blind Spot Monitor is enabled.

WARNING

●

Keep the sensors and the surrounding

areas on the rear bumper clean at all

times.

If a sensor or its surrounding area on the
rear bumper is dirty or covered with
snow, the Blind Spot Monitor may not
operate and a warning message will be
displayed. In this situation, clear off the
dirt or snow and drive the vehicle with
the operation conditions of the BSM
function (



P.322) satisfied for approxi-

mately 10 minutes. If the warning mes-
sage does not disappear, have the
vehicle inspected by your Lexus dealer.

●

Do not attach accessories, stickers

(including transparent stickers), alumi-

num tape, etc. to a sensor or its sur-

rounding area on the rear bumper.

●

Do not subject a sensor or its sur-

rounding area on the rear bumper to a

strong impact.

If a sensor is moved even slightly off

position, the system may malfunction

and vehicles may not be detected cor-

rectly.

In the following situations, have your

vehicle inspected by your Lexus

dealer.

• A sensor or its surrounding area is

subject to a strong impact.

• If the surrounding area of a sensor is

scratched or dented, or part of them

has become disconnected.

●

Do not disassemble the sensor.

●

Do not modify the sensor or surround-

ing area on the rear bumper.

●

If a sensor or the rear bumper needs to

be removed/installed or replaced,

contact your Lexus dealer.

●

The sensors are likely to be affected by

paint on the rear bumper. If the rear

bumper is not repaired correctly, the

Blind Spot Monitor may not operate

with a warning message displayed. If

any paint repair is needed, contact

your Lexus dealer.

Turning the Blind Spot Monitor
on/off

321

4-5. Using the driving support systems

Driving

■

Objects that can be detected while driving

The Blind Spot Monitor uses rear side radar sensors to detect the following vehi-
cles traveling in adjacent lanes and advises the driver of the presence of such vehi-
cles via the indicators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

■

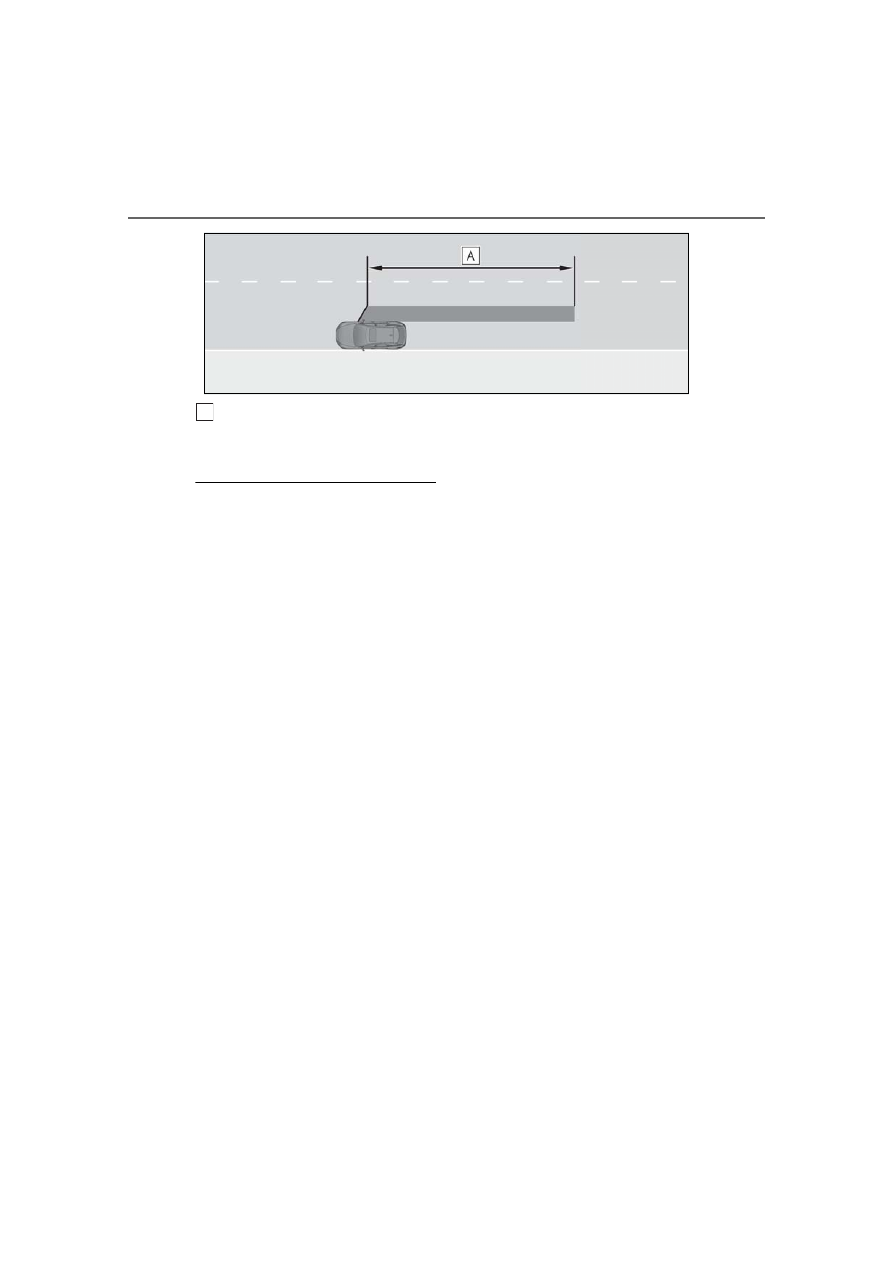

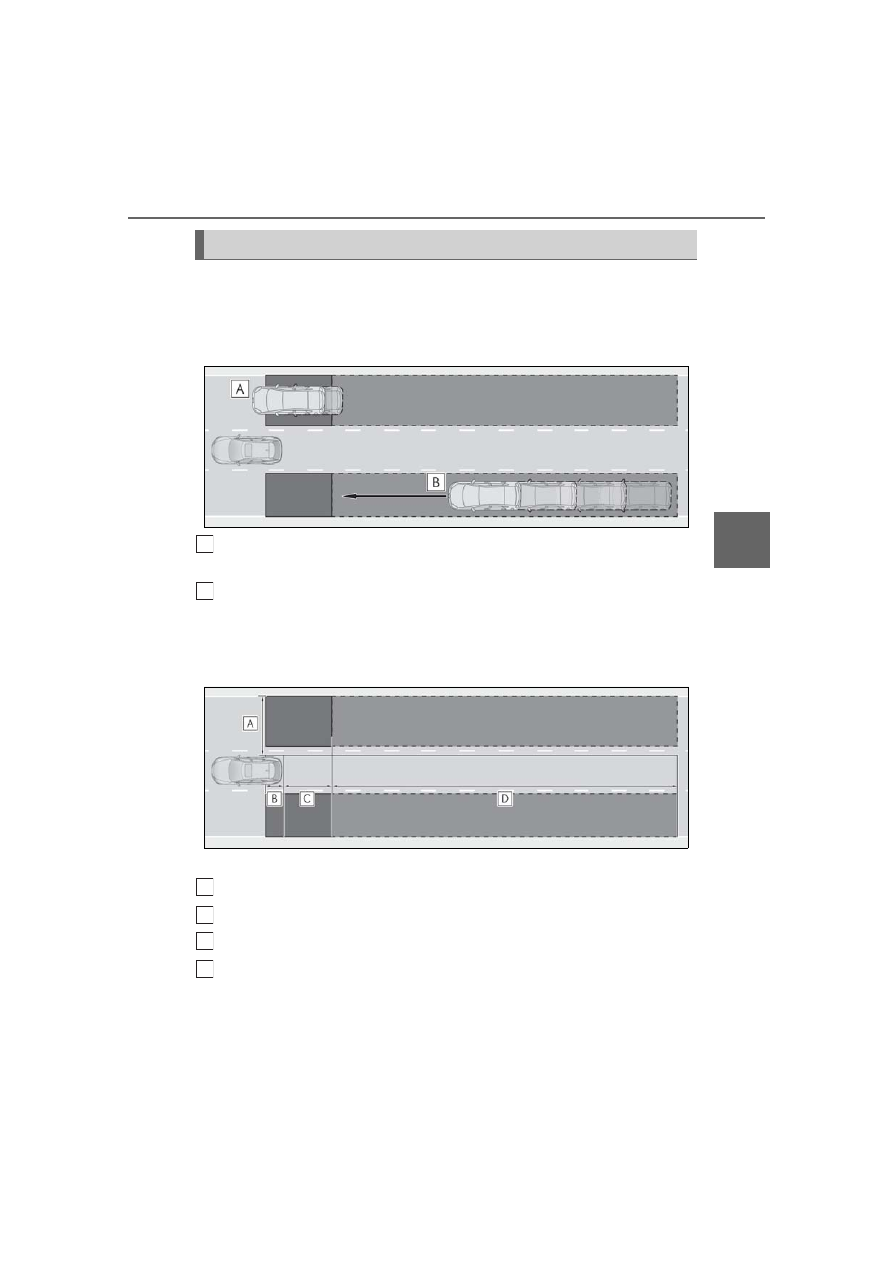

Detection range while driving

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of the vehicle

Approximately 3.3 ft. (1 m) forward of the rear bumper

Approximately 9.8 ft. (3 m) from the rear bumper

Approximately 9.8 ft. (3 m) to 230 ft. (70 m) from the rear bumper

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side of the vehicle

cannot be detected.

: While the vehicle is to being overtaken, up to approximately 9.8 ft. (3 m) forward of the

Blind Spot Monitor operation

A
B
C
D

322

4-5. Using the driving support systems

rear bumper will be detected.

: The greater the difference in speed between your vehicle and the detected vehicle is,

the farther away the vehicle will be detected, causing the outside rear view mirror indi-
cator to illuminate or flash.

■

The Blind Spot Monitor linked
function

The LDA (Lane Departure Alert) has a
function that uses information of
detected vehicles driving in an adja-
cent lane. For details about the function
and its operating conditions, P.279

■

The Blind Spot Monitor is operational

when

The Blind Spot Monitor is operational when

all of the following conditions are met:

●

The power switch is in ON.

●

The Blind Spot Monitor is on.

●

The shift position is in a position other

than R.

●

The vehicle speed is greater than approx-

imately 7 mph (10 km/h).

■

The Blind Spot Monitor will detect a

vehicle when

The Blind Spot Monitor will detect a vehicle

present in the detection area in the follow-

ing situations:

●

A vehicle in an adjacent lane overtakes

your vehicle.

●

You overtake a vehicle in an adjacent lane

slowly.

●

Another vehicle enters the detection

area when it changes lanes.

■

Situations in which the blind spot moni-

tor cannot detect vehicles.

The blind spot monitor cannot detect the

following vehicles and other objects:

●

Small motorcycles, bicycles, pedestrians,
etc.

●

Vehicles traveling in the opposite direc-

tion

●

Guardrails, walls, signs, parked vehicles

and similar stationary objects

●

Following vehicles that are in the same
lane

●

Vehicles traveling 2 lanes away from your
vehicle

●

Vehicles which are being overtaken rap-
idly by your vehicle

: Depending on the conditions, detection

of a vehicle and/or object may occur.

■

Conditions under which the System may

not function correctly

●

The Blind Spot Monitor may not detect

vehicles correctly in the following situa-

tions:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When the distance between your vehicle

and a following vehicle is short

• When there is a significant difference in

speed between your vehicle and the vehi-

cle that enters the detection area

• When the difference in speed between

your vehicle and another vehicle is

changing

• When a vehicle enters a detection area

traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehi-

cle remains in the detection area

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

323

4-5. Using the driving support systems

Driving

• When vehicle lanes are wide, or when

driving on the edge of a lane, and the

vehicle in an adjacent lane is far away

from your vehicle

• When an accessory (such as a bicycle

carrier) is installed to the rear of the vehi-

cle

• When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

• Immediately after the Blind Spot Monitor

is turned on

• When towing with the vehicle

●

Instances of the Blind Spot Monitor

unnecessarily detecting a vehicle and/or

object may increase in the following situ-

ations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When the distance between your vehicle

and a guardrail, wall, etc. that enters the

detection area is short

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When vehicle lanes are narrow, or when

driving on the edge of a lane, and a vehi-

cle traveling in a lane other than the adja-

cent lanes enters the detection area

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle

and a following vehicle is short

• When an accessory (such as a bicycle

carrier) is installed to the rear of the vehi-

cle

• When towing with the vehicle

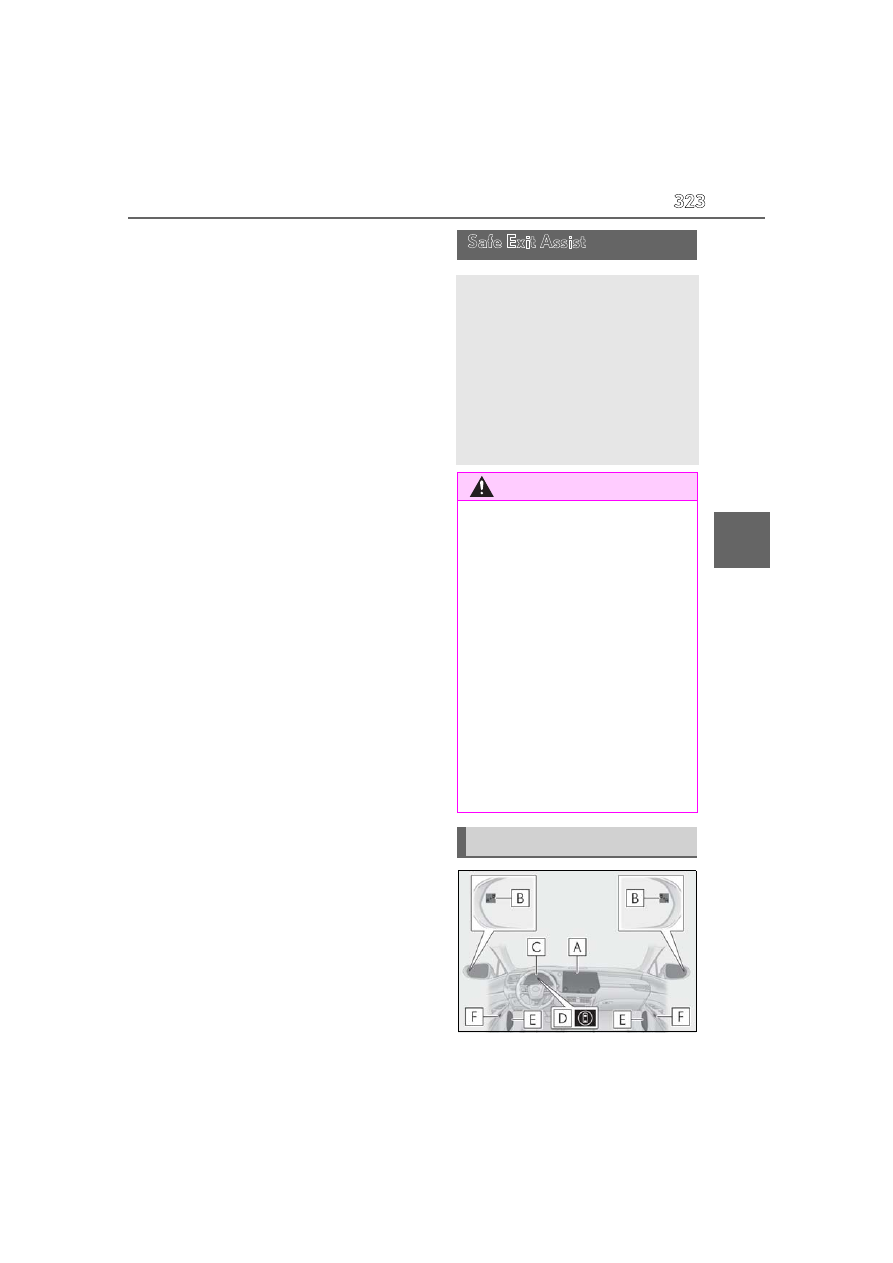

Safe Exit Assist

The safe exit assist (with door open-
ing control) is a system that uses
rear side radar sensors installed on
the inner side of the rear bumper to
help occupants judge if an
approaching vehicle or bicycle may
collide with a door when exiting or
cancel opening of a door, to help
reduce the possibility of a collision.

WARNING

■

Cautions regarding the use of the sys-

tem

●

The driver is solely responsible for safe

driving. Always drive safely, taking

care to observe your surroundings.

●

The safe exit assist is a supplementary

system that, when the vehicle is

stopped, informs occupants of the

existence of approaching vehicles and

bicycles. As this system alone cannot

be used to judge safety, over-reliance

on this system may lead to an accident

resulting in death or serious injury.

In certain situations, this system may not

function to its fullest extent. Therefore it is

necessary for the occupants to visually

check for safety directly and using the

mirrors.

System components

324

4-5. Using the driving support systems

Center display

Turning the safe exit assist on/off.

Outside rear view mirror indicators

When a vehicle or bicycle which may col-
lide with a door (other than the back door)
when opened is detected, the outside rear
view mirror indicator on the detected side
will illuminate. If the door on the detected
side is open, or opening of the door is can-
celed, the outside rear view mirror indica-
tor will blink.

Meter

If collision with a door is likely and the door
is opened or opening of the door is can-
celed, the door will be displayed on the
multi-information display. Also, if a door is
opened when an outside rear view mirror
indicator is illuminated, a buzzer will sound
as a warning.

Driving assist information indicator

Illuminates when the safe exit assist is
turned off. At this time, “Safe Exit Assist
OFF” will be displayed on the multi-infor-
mation display.

Speakers

When the outside rear view mirror indica-
tor blinks, the driver is informed through
voice guidance that the system has oper-
ated. After the notification through voice
guidance is made, no more voice guidance
notifications will be made again until the
door is fully closed.

Door opener switch (manual
release handle)

If a door opener switch is operated to open
a door while the outside rear view mirror
indicator on that side is illuminated, open-
ing of the door will be canceled.

■

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

■

Buzzer

If the volume setting of the audio system is

high or the surrounding area is loud, it may

be difficult to hear the buzzer.

■

Voice notifications

In the following situations, voice notifica-

tions will not be output:

●

When it is estimated that no occupants
are on board

●

After opening a door and entering the

vehicle, until the hybrid system is started

●

When 3 minutes or more have elapsed

since the hybrid system was stopped

●

When the language setting of the center

display has been set to a language that

does not support voice notifications

●

When all of the doors have been locked

from outside the vehicle

●

When a door remains open for 1 minute

or more after the hybrid system is

stopped

●

When the ACC mode (



P.590) has

been enabled through a customize set-

ting on the center display and the hybrid

system has been stopped

●

When the parking assist volume setting

on the center display has been set to off

: For each seating position, judgment is

made based on the opening and closing
of a door, before driving for ingress and
after driving for egress.

■

Opening of a door can be canceled

when

Opening of a door can be canceled only

when the inside door opener switch is

pushed in. Opening of a door will not be

able to be canceled when the outside door

opener switch is used.

■

Customization

Some functions can be customized.

325

4-5. Using the driving support systems

Driving

(



P.590)

The safe exit assist can be enabled/dis-

abled on

of the center display.

(



P.590)

When the safe exit assist is off, the driv-
ing assist information indicator will illu-
minate. At this time, “Safe Exit Assist
OFF” will be displayed on the
multi-information display.
Each time the power switch is turned to
ON, the safe exit assist is enabled.

■

Objects that can be detected by the safe exit assist

When the safe exit assist detects the following vehicles or bicycles behind your
vehicle using a rear side radar sensor, the occupants of the vehicle are informed
through an outside rear view mirror indicator, buzzer, multi-information display,
and voice notification.

Vehicle or bicycle which has a high possibility of colliding with a door (other
than the back door) when opened

■

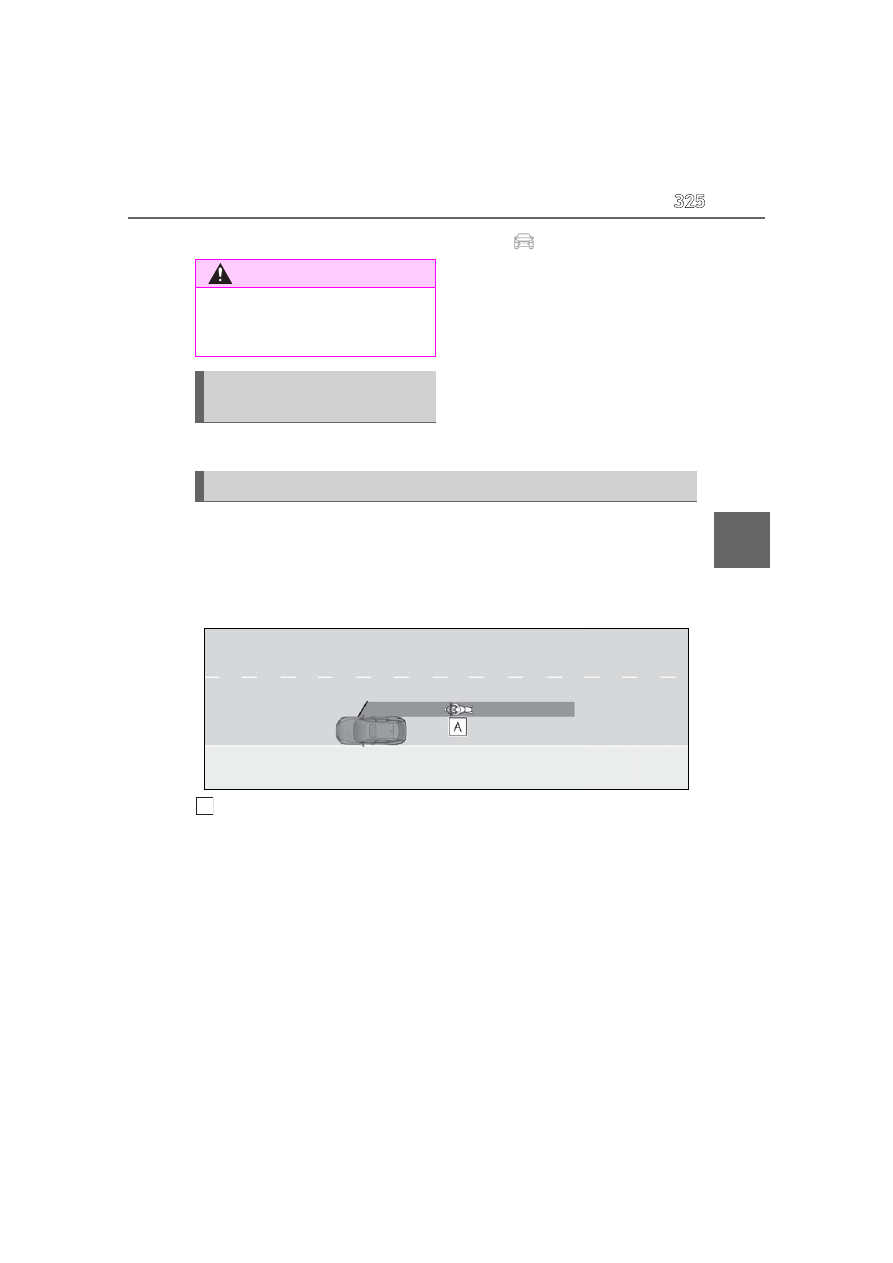

The safe exit assist detection areas

The areas that vehicles can be detected in are outlined below.

WARNING

■

To ensure the system can operate

properly



P.319

Turning the safe exit assist sys-
tem ON/OFF

Safe exit assist operation

326

4-5. Using the driving support systems

Approximately 145 ft. (45 m) rearward from the front door

: The faster a vehicle or bicycle is approaching, the distance at which an outside rear view

mirror indicator will illuminate or blink will become further.

■

The safe exit assist is operational when

The safe exit assist is operational when all of

the following conditions are met:

●

When the power switch is ON, less than

3 minutes have elapsed since the hybrid

system was off, or less than 3 minutes

have elapsed since a door was opened

and someone has entered the vehicle

(the time which operation is possible may

be extended if a door is opened and

closed)

●

Safe exit assist is on

●

The vehicle is stopped.

●

The shift position is in a position other

than R.

■

The safe exit assist will detect a vehicle

when

The safe exit assist will detect a vehicle

present in the detection area in the follow-

ing situations:

●

When the vehicle is stopped and a vehi-

cle or bicycle, which is traveling parallel

to the vehicle, is approaching within the

area that a door opens (other than the

back door)

■

Conditions under which the system will

not detect a vehicle

●

Safe exit assist does not detect the follow-

ing objects, vehicles, and bicycles:

• Vehicles or bicycles which are approach-

ing slowly

• Vehicles or bicycles which are deter-

mined to have a low possibility of colliding

with a door (other than the back door)
when opened

• Vehicles or bicycles which are approach-

ing from directly behind

• Vehicles or bicycles which are approach-

ing from the front

• Guardrails, walls, signs, parked vehicles,

and other stationary objects

• Pedestrians, animals, etc.

●

In situations such as the following, safe

exit assist will not operate:

• When 3 minutes or more have elapsed

since the hybrid system off (the time

which operation is possible may be

extended if a door is opened and closed)

• When your vehicle is not completely

stopped

: Depending on the conditions, detection

of a vehicle and/or object may occur.

■

Opening the doors when opening is

canceled by the system

Perform the following operation to open a

door.
After the approaching vehicle or bicycle

passes or changes direction, check the sur-

rounding area and press the inside door

opener switch again. Perform the following

only in an emergency, etc., to open a door

while the warning is operating, after check-

ing the safety of the area around your vehi-

cle.

●

Press and hold an inside door opener

327

4-5. Using the driving support systems

Driving

switch for approximately 3 seconds or

●

Press an inside door opener switch

quickly 3 times or more

●

Pull a manual release handle

■

Conditions under which the system may

not function correctly

●

The safe exit assist may not detect vehi-

cles correctly in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When a vehicle or bicycle approaches

from behind a nearby parked vehicle

• When an approaching vehicle or bicycle

suddenly changes direction

• Immediately after a vehicle or bicycle

starts moving

• When the back door is open

• When a bicycle carrier, ramp, or other

accessory is installed to the back of the

vehicle

• When a parked vehicle, wall, sign, person

or other stationary object is behind the

vehicle

• When the vehicle is stopped at an angle

to the road

• When a vehicle is traveling near an

approaching vehicle or bicycle

• When an approaching vehicle or bicycle

is traveling along a stationary object, such

a wall or sign

• When a vehicle or bicycle is approaching

at high speed

• When towing with the vehicle

• When stopped on a steep slope

• When stopped on a curve or at the exit of

a curve

●

Instances of the safe exit assist unneces-

sarily detecting a vehicle and/or object

may increase in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When a vehicle or bicycle approaches

from behind your vehicle at an angle

• When the vehicle is stopped at an angle

to the road

• When a vehicle or bicycle approaches

from behind a parked vehicle at an angle

• When a parked vehicle, wall, sign, person

or other stationary object is behind the

vehicle

• When an approaching vehicle or bicycle

suddenly changes direction

• When an approaching vehicle or bicycle

is traveling along a stationary object, such

a wall or sign

• When the back door is open

• When a bicycle carrier, ramp, or other

accessory is installed to the back of the

vehicle

• When a vehicle or bicycle is approaching

at high speed

• When towing with the vehicle

• When stopped on a steep slope

• When stopped on a curve or at the exit of

a curve

328

4-5. Using the driving support systems

: If equipped

■

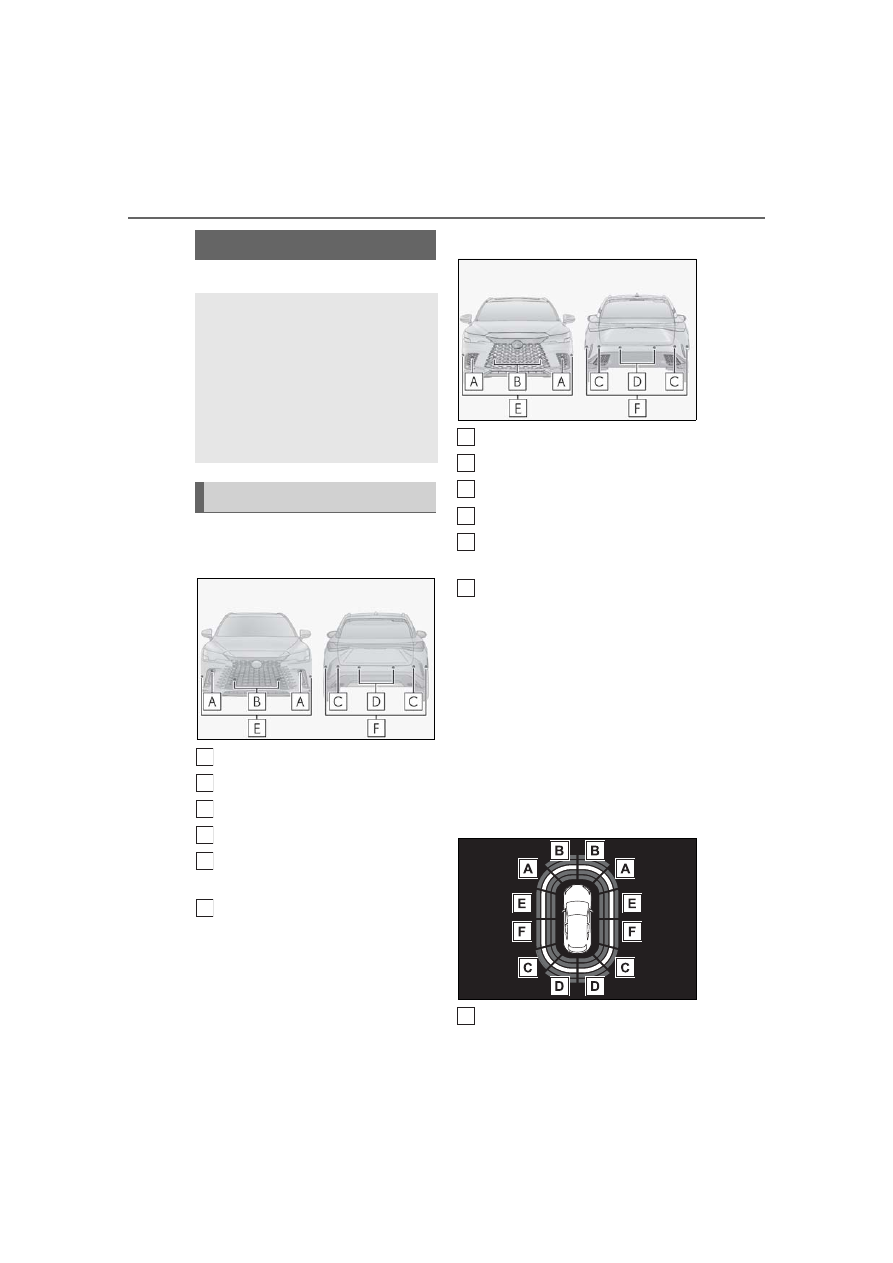

Types of sensors



Except F SPORT models

Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors
Front side sensors (vehicles with
Advanced Park)
Rear side sensors (vehicles with
Advanced Park)



F SPORT models

Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors
Front side sensors (vehicles with
Advanced Park)
Rear side sensors (vehicles with
Advanced Park)

■

Display

When the sensors detect an object,
such as a wall, a graphic is shown on
the center display depending on the
position and distance to the object.
For details regarding the center dis-
play, refer to the “MULTIMEDIA
OWNER’S MANUAL”.
Display example:

Front corner sensor detection

Intuitive parking assist

The distance from your vehicle to
objects, such as a wall, when paral-
lel parking or maneuvering into a
garage is measured by the sensors
and communicated via the center
display and a buzzer. Always check
the surrounding area when using
this system.

System components

A
B
C
D

329

4-5. Using the driving support systems

Driving

Front center sensor detection
Rear corner sensor detection
Rear center sensor detection
Front side sensor detection (vehi-
cles with Advanced Park)
Rear side sensor detection (vehi-
cles with Advanced Park)

The intuitive parking assist can be
enabled/disabled on

of the center

display. (



P.590)

When the intuitive parking assist function is
disabled, the intuitive parking assist OFF
indicator (



P.88) illuminates.

When turned off, the intuitive parking
assist will be disabled and will not be
enabled until the setting is changed to
on again in center display.
If disabled using this method, the sys-
tem will not be re-enabled by turning
the power switch off and then to ON.

Turning intuitive parking assist
on/off

WARNING

■

Cautions regarding the use of the sys-

tem

There is a limit to the degree of recogni-

tion accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’ surroundings and driving

safely.

B
C
D

■

To ensure the system can operate

properly

Observe the following precautions.

Failing to do so may result in the vehicle

being unable to be driven safely and pos-

sibly cause an accident.

●

Do not damage the sensors, and

always keep them clean.

●

Do not attach a sticker or install an

electronic component, such as a back-

lit license plate (especially fluorescent

type), fog lights, fender pole or wire-

less antenna near a radar sensor.

●

Do not subject the surrounding area of

the sensor to a strong impact. If sub-

jected to an impact, have the vehicle

inspected by your Lexus dealer. If the

front or rear bumper needs to be

removed/installed or replaced, con-

tact your Lexus dealer.

●

Do not modify, disassemble or paint

the sensors.

●

Do not attach a license plate cover.

●

Keep your tires properly inflated.

■

When to disable the function

In the following situations, disable the

function as it may operate even though

there is no possibility of a collision.

●

Failing to observe the warnings above.

●

A non-genuine Lexus suspension

(lowered suspension, etc.) is installed.

■

Notes when washing the vehicle

Do not apply intensive bursts of water or

steam to the sensor area.

Doing so may result in the sensor mal-

functioning.

●

When using a high pressure washer to

wash the vehicle, do not spray the sen-

sors directly, as doing so may cause a

sensor to malfunction.

330

4-5. Using the driving support systems

■

The system can be operated when

●

The power switch is ON.

●

Intuitive parking assist function is on.

●

The vehicle speed is less than about 6

mph (10 km/h).

●

A shift position other than P is selected.

■

If “Parking Assist Unavailable Sensor

Blocked” is displayed on the multi-infor-

mation display

A sensor may be covered with water drops,

ice, snow, dirt, etc.

Remove the water drops, ice, snow, dirt,

etc., from the sensor to return the system to

normal.
If a sensor is dirty, the position of the dirty

sensor will be shown on the display.
Also, due to ice forming on a sensor at low

temperatures, a warning message may be

displayed or the sensor may not be able to

detect an object. Once the ice melts, the

system will return to normal.
If a warning message is displayed even if the

sensor is clean, there may be a sensor mal-

function. Have the vehicle inspected by

your Lexus dealer.

■

Sensor detection information

●

The sensor’s detection areas are limited

to the areas around the vehicle’ front and

rear bumpers.

●

The following situations may occur

during use.

• Depending on the shape of the object

and other factors, the detection distance

may shorten, or detection may be impos-

sible.

• Detection may be impossible if static

objects draw too close to the sensor.

• There will be a short delay between static

object detection and display (warning

buzzer sounds). Even at low speeds,

there is a possibility that the object will

come within 1.0 ft. (30 cm) before the

display is shown and the warning buzzer

sounds.

• It might be difficult to hear the buzzer due

to the volume of the audio system or air

flow noise of the air conditioning system.

• It may be difficult to hear the sound of this

system due to the buzzers of other sys-

tems.

■

Objects which the system may not be

properly detected

The shape of the object may prevent the

sensor from detecting it. Pay particular

attention to the following objects:

●

Wires, fences, ropes, etc.

●

Cotton, snow and other materials that

absorb sound waves

●

Sharply-angled objects

●

Low objects

●

Tall objects with upper sections project-

ing outwards in the direction of your vehi-

cle

People may not be detected if they are

wearing certain types of clothing.

■

Situations in which the system may not

operate properly

Certain vehicle conditions and the sur-

rounding environment may affect the ability

of a sensor to correctly detect objects. Par-

ticular instances where this may occur are

listed below.

●

There is dirt, snow, water drops or ice on

a sensor. (Cleaning the sensors will

resolve this problem.)

●

A sensor is frozen. (Thawing the area will

resolve this problem.)

In especially cold weather, if a sensor is

frozen the sensor display may be dis-

played abnormally, or objects, such as a

wall, may not be detected.

●

When a sensor or the area around a sen-

sor is extremely hot or cold.

WARNING

●

When using steam to clean the vehicle,

do not direct steam too close to the

sensors as doing so may cause a sen-

sor to malfunction.

331

4-5. Using the driving support systems

Driving

●

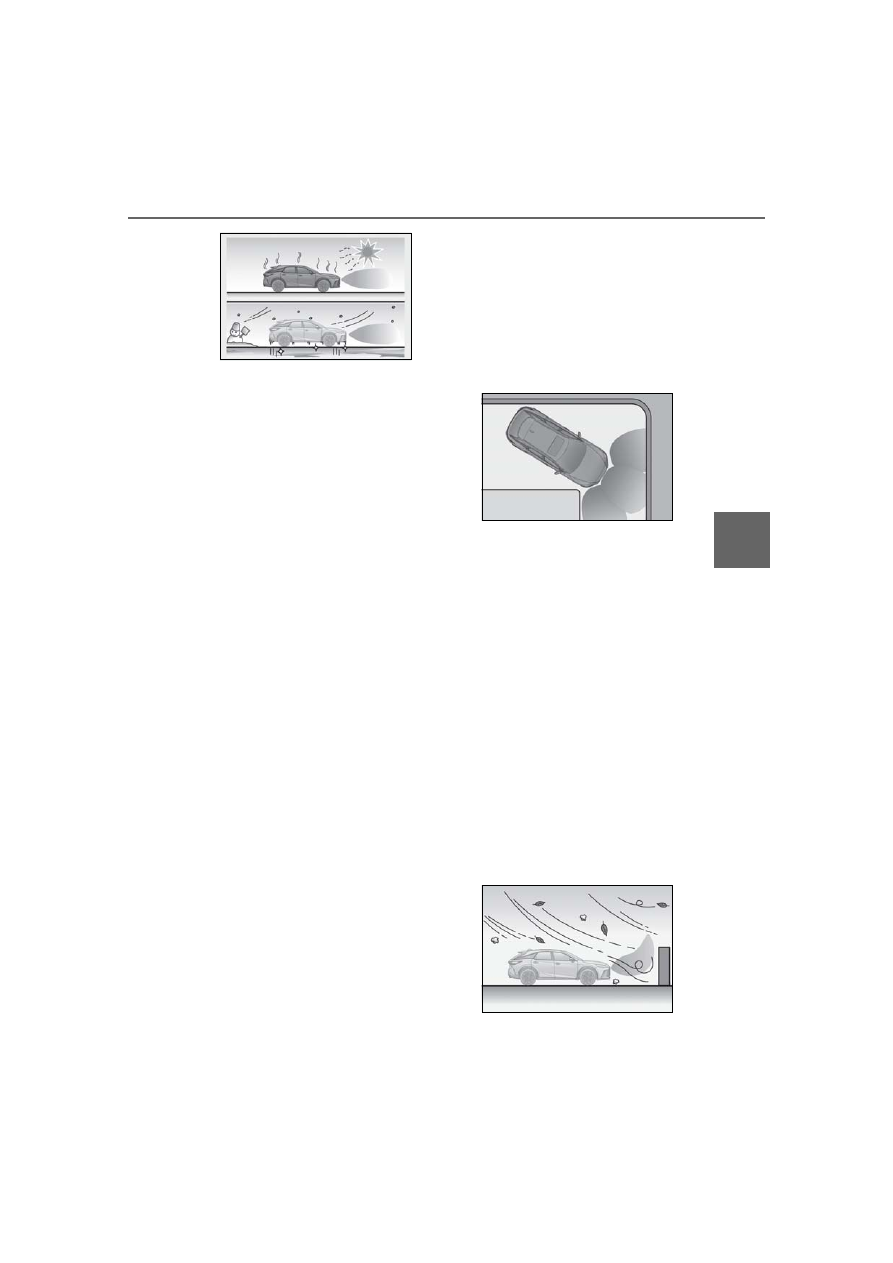

On an extremely bumpy road, on an

incline, on gravel, or on grass.

●

When vehicle horns, vehicle detectors,

motorcycle engines, air brakes of large

vehicles, the clearance sonar of other

vehicles or other devices which produce

ultrasonic waves are near the vehicle

●

A sensor is coated with a sheet of spray

or heavy rain.

●

If objects draw too close to the sensor.

●

When a pedestrian is wearing clothing

that does not reflect ultrasonic waves (ex.

skirts with gathers or frills).

●

When objects that are not perpendicular

to the ground, not perpendicular to the

vehicle traveling direction, uneven, or

waving are in the detection range.

●

Strong wind is blowing

●

When driving in inclement weather such

as fog, snow or a sandstorm

●

When an object that cannot be detected

is between the vehicle and a detected

object

●

If an object such as a vehicle, motorcycle,

bicycle or pedestrian cuts in front of the

vehicle or runs out from the side of the

vehicle

●

If the orientation of a sensor has been

changed due to a collision or other

impact

●

When equipment that may obstruct a

sensor is installed, such as a towing eye-

let, bumper protector (an additional trim

strip, etc.), bicycle carrier, or snow plow

●

If the front of the vehicle is raised or low-

ered due to the carried load

●

If the vehicle cannot be driven in a stable

manner, such as when the vehicle has

been in an accident or is malfunctioning

●

When a tire chains or compact spare tire

is used

■

Situations in which the system may

operate even if there is no possibility of a

collision

In some situations, such as the following, the

system may operate even though there is no

possibility of a collision.

●

When driving on a narrow road

●

When driving toward a banner, flag,

low-hanging branch or boom barrier

(such as those used at railroad crossings,

toll gates and parking lots)

●

When there is a rut or hole in the surface

of the road

●

When driving on a metal cover (grating),

such as those used for drainage ditches

●

When driving up or down a steep slope

●

If a sensor is hit by a large amount of

water, such as when driving on a flooded

road

●

There is dirt, snow, water drops or ice on

a sensor. (Cleaning the sensors will

resolve this problem.)

●

A sensor is coated with a sheet of spray

or heavy rain

●

When driving in inclement weather such

as fog, snow or a sandstorm

●

When strong winds are blowing

●

When vehicle horns, vehicle detectors,

332

4-5. Using the driving support systems

motorcycle engines, air brakes of large

vehicles, the clearance sonar of other

vehicles or other devices which produce

ultrasonic waves are near the vehicle

●

If the front of the vehicle is raised or low-

ered due to the carried load

●

When towing a trailer

●

If the orientation of a sensor has been

changed due to a collision or other

impact

●

The vehicle is approaching a tall or

curved curb

●

Driving close to columns (H-shaped steel

beams, etc.) in multi-story parking

garages, construction sites, etc.

●

If the vehicle cannot be driven in a stable

manner, such as when the vehicle has

been in an accident or is malfunctioning

●

On an extremely bumpy road, on an

incline, on gravel, or on grass

●

When a tire chains or compact spare tire

is used

■

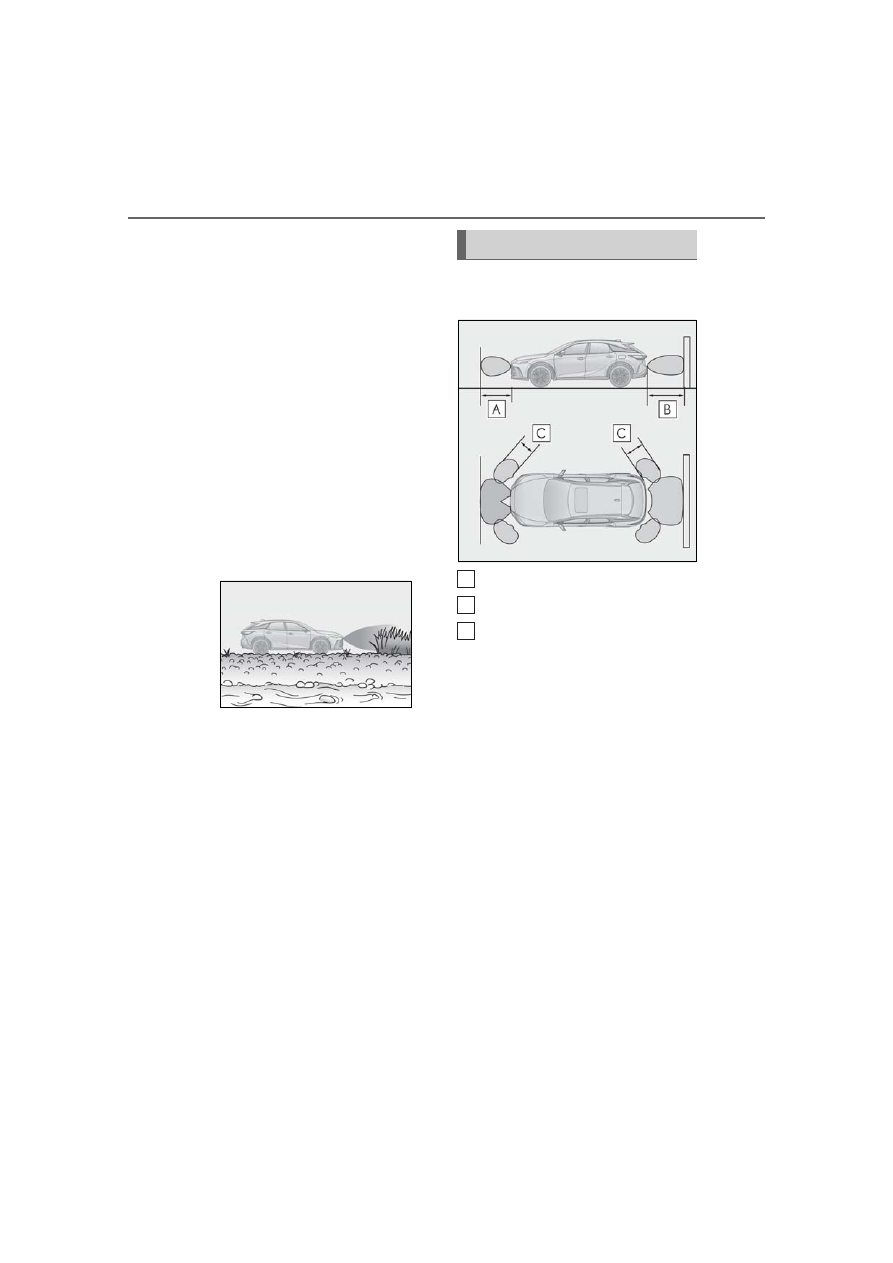

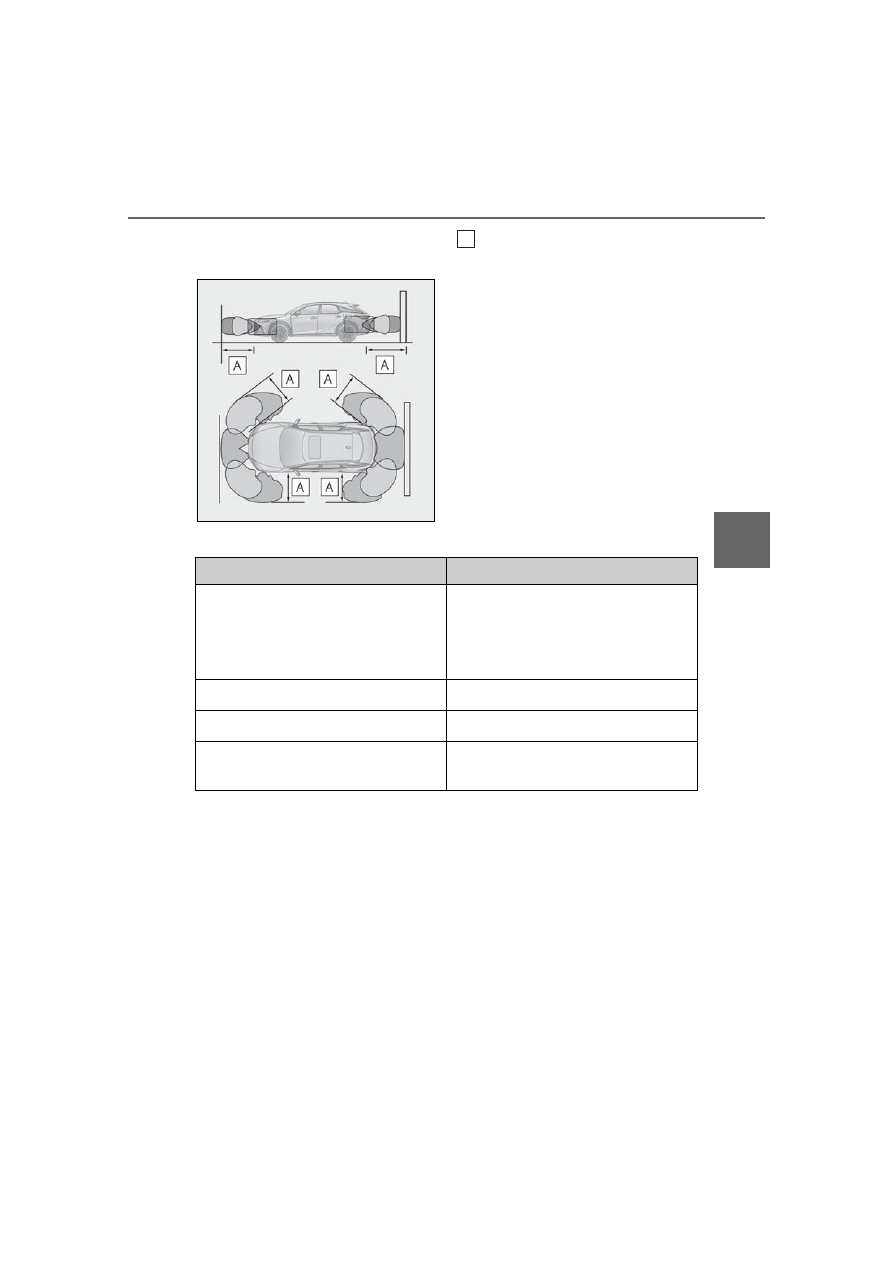

Detection range of the sensors
(vehicles without Advanced Park)

Approximately 3.3 ft. (100 cm)
Approximately 4.9 ft. (150 cm)
Approximately 2.0 ft. (60 cm)

The diagram shows the detection range of
the sensors. Note that the sensors cannot
detect objects that are extremely close to
the vehicle.
The range of the sensors may change
depending on the shape of the object, etc.

System detection range

A
B
C

333

4-5. Using the driving support systems

Driving

■

Detection range of the sensors
(vehicles with Advanced Park)

Approximately 6.6 ft (200 cm)

■

The distance and buzzer (vehicles without Advanced Park)

: Automatic buzzer mute function is enabled. (



P.334)

Approximate distance to obstacle

Buzzer

Front sensor: 3.3 ft. to 2.0 ft. (100 cm to 60
cm)

Rear sensor: 4.9 ft. to 2.0 ft. (150 cm to 60
cm)

Slow

2.0 ft. to 1.5 ft. (60 cm to 45 cm)

Medium

1.5 ft. to 1.0 ft. (45 cm to 30 cm)

Fast

Less than 1.0 ft. (30 cm),
Less than 0.5 ft. (15 cm)

Continuous

334

4-5. Using the driving support systems

■

The distance and buzzer (vehicles with Advanced Park)

: Automatic buzzer mute function is enabled. (



P.334)

■

Buzzer operation and distance to
an object

A buzzer sounds when the sensors are
operating.



The buzzer beeps faster as the vehi-
cle approaches an object.



When the vehicle comes within
approximately 1.0 ft (30 cm) of the
object, the buzzer sounds continu-
ously.



When 2 or more sensors simultane-
ously detect a static object, the
buzzer sounds for the nearest
object.



Even when the sensors are operat-
ing, the buzzer will be muted in
some situations. (automatic buzzer
mute function)

■

Adjusting the buzzer volume

The buzzer volume can be adjusted on

of the center display. (



P.590)

■

Muting a buzzer

A mute button will be displayed on the
center display when an object is
detected. To mute the buzzer, select a
mute button.
The buzzers for the intuitive parking

Approximate distance to obstacle

Buzzer

Front center sensor: 6.6 ft. to 3.3 ft. (200
cm to 100 cm)
Rear center sensor: 6.6 ft. to 4.9 ft. (200 cm
to 150 cm)
Side sensor: 6.6 ft. to 4.1 ft. (200 cm to 125
cm)
Corner sensor: 6.6 ft. to 2.0 ft (200 cm to
60 cm)

Does not sound (Display only)

Front center sensor: 3.3 ft. to 2.0 ft. (100 cm
to 60cm)

Rear center sensor: 4.9 ft. to 2.0 ft. (150 cm
to 60 cm)

Side sensor: 4.1 ft. to 2.0 ft. (125 cm to 60
cm)

Slow

2.0 ft. to 1.5 ft. (60 cm to 45 cm)

Medium

1.5 ft. to 1.0 ft. (45 cm to 30 cm)

Fast

Less than 1.0 ft. (30 cm),
Less than 0.5 ft. (15 cm)

Continuous

335

4-5. Using the driving support systems

Driving

assist, RCTA and RCD (if equipped)
function will be muted simultaneously.
Mute will be canceled automatically in
the following situations:



When the shift position is shifted.



When the vehicle speed exceeds a
certain speed.



When there is malfunction in a sen-
sor or the system is temporarily
unavailable.



When the operating function is dis-
abled manually.



When the power switch is turned
off.

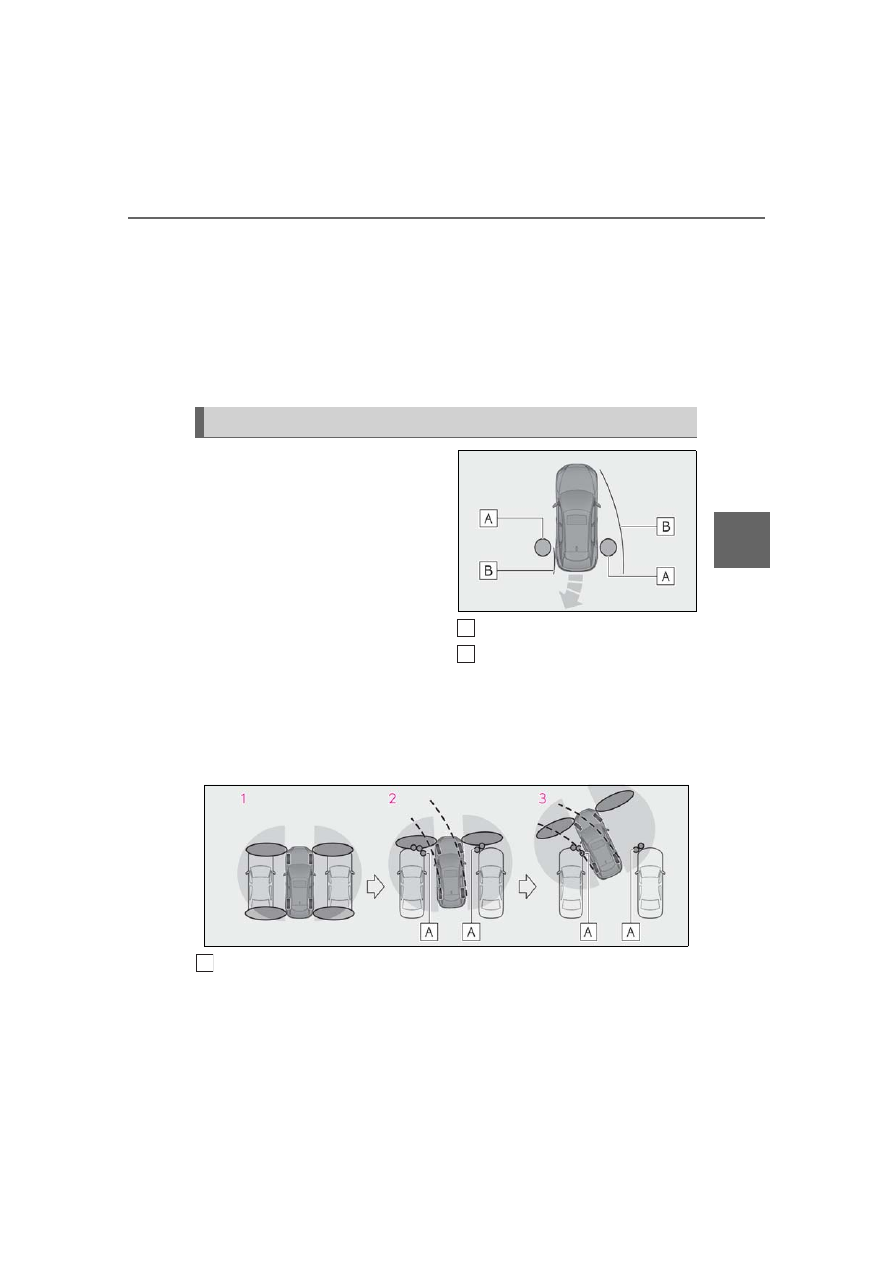

The object warning function informs
the driver of the existence of objects
along the side of the vehicle, using a
display and buzzer, if the objects are
within the estimated path of the vehicle.

Object
Calculated vehicle route

When the vehicle is moving, the side sensors or side cameras can detect objects.
While the vehicle is moving, if a detected object can no longer be detected by the
side sensors or side cameras, the location of the object relative to the vehicle is
estimated. If the object is determined to be in the estimated path of the vehicle, the
object warning function will operate.

Object detected by side sensors or side cameras

The vehicle is stopped and objects along the sides of the vehicle are not
detected.

Objects are detected as the vehicle is moving.

Object warning function (vehicles with Advanced Park)

A
B

336

4-5. Using the driving support systems

Even though the objects are outside of the detection area of the side sensors or
side cameras, a warning is displayed and a buzzer sounds.

■

Object warning function operating con-

ditions

The object warning function is operational

when the intuitive parking assist OFF indi-

cator is not illuminated or flashing and any

of the following conditions is met:

●

The Advanced Park is operating.

●

The vehicle moves approximately 23.0 ft.

(7 m) after the hybrid system is started.

●

The R shift position is selected.

●

After the D shift position has been

selected, the vehicle has moved 23.0 ft.

(7 m) or less.

●

Camera switch has been pressed and the

center display is displayed.

●

The front or rear sensor detects a station-

ary object.

■

Detection of objects along the sides of

the vehicle

●

Objects along the sides of the vehicle are

not instantaneously detected. The loca-

tion of objects in relation to the vehicle is

estimated after they are first detected by

the front or rear side sensors, or side

cameras. Therefore, after the power

switch is changed to ON, even if an

object is along the side of the vehicle, it

may not be detected until the vehicle has

been driven a small amount and the side

sensors or side cameras completely scan

the areas along the sides of the vehicle.

●

If a vehicle, person, animal, etc. is

detected by a side sensor or side camera,

but then leaves the detection area of the

side sensor or side camera, the system

will assume the object has not moved.

WARNING

■

Object warning function

In situations such as the following, the

function may not operate correctly, pos-

sibly leading to an accident. Proceed

carefully.

●

When starting off shortly after the

power switch is turned to ON and a

small vehicle or other object which

cannot be detected by a front side sen-

sor is next to the vehicle.

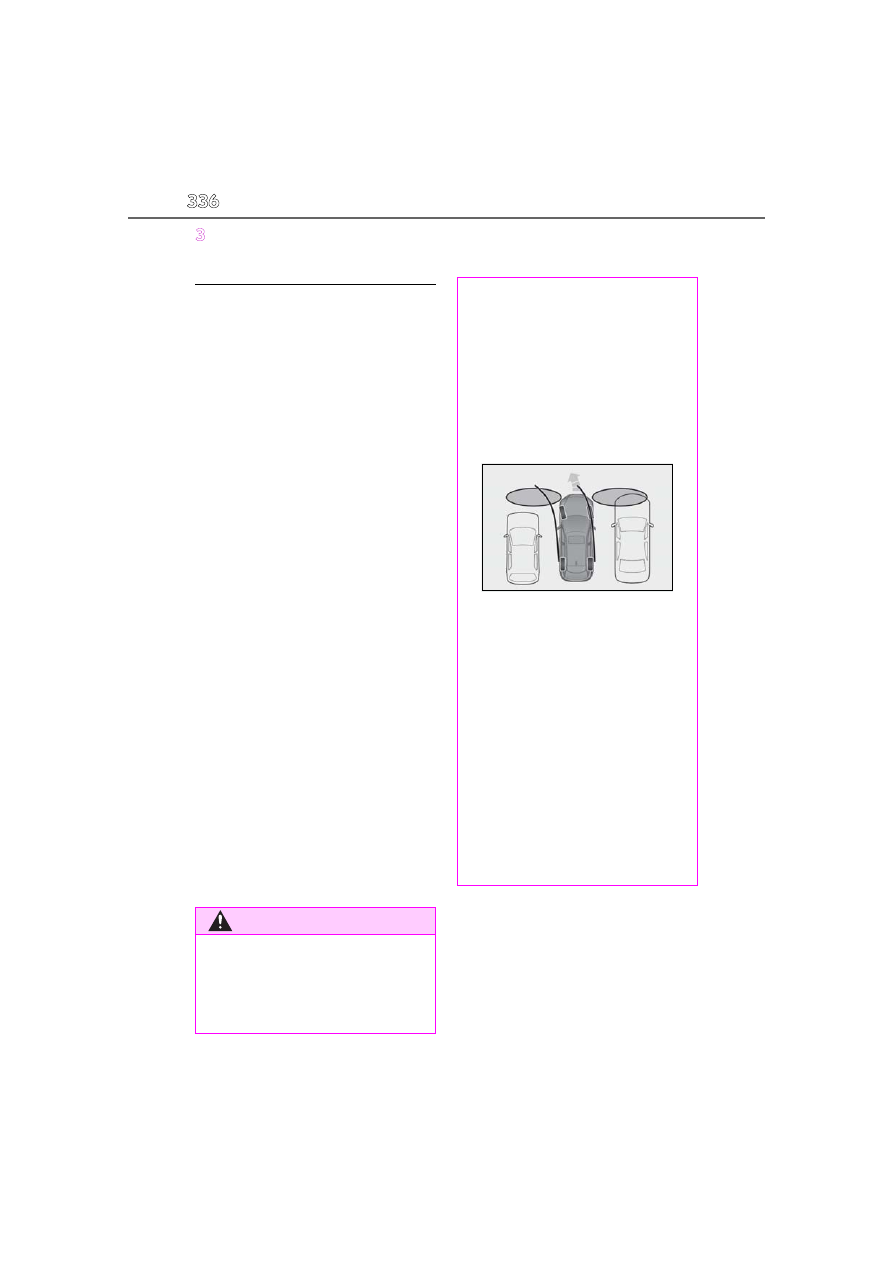

In the situation shown in the following
illustration, even if the vehicle starts off, as
the vehicle on the left will not be
detected and the object warning function
will not operate.

●

When an object or person is in a posi-

tion which cannot be detected by the

side sensors or side cameras.

●

When, after the side sensors or side

cameras have completed scanning the

areas along the sides of the vehicle, a

vehicle, person, or other object

approaches the side of the vehicle and

cannot be detected.

●

When the outside rear view mirror is

closed, the side sensors or side cam-

eras cannot detect objects.

●

If the 12-volt battery was discharged or

has been removed and installed, fold

and extend the outside rear view mir-

rors.

337

4-5. Using the driving support systems

Driving

Center display

Turning the RCTA function on/off in center

display. If a vehicle approaching from the
right or left at the rear of the vehicle is
detected, the RCTA icon (



P.338) for the

detected side will be displayed on the cen-
ter display. This illustration

shows an

example of a vehicle approaching from
both sides of the vehicle.

: Depending on the vehicle grade and

equipped options, the actual screen may
be different from this illustration.

Outside rear view mirror indicators

If a vehicle is detected as approaching
from the left or right behind the vehicle,
both outside rear view mirror indicators
will blink and a buzzer will sound.

Driving assist information indicator

Illuminates when the RCTA is turned off. At
this time, “Rear Cross Traffic Alert OFF”
will be displayed on the multi-information
display.

The RCTA can be enabled/disabled on

of the center display. (



P.590)

When the RCTA function is off, the
driving assist information indicator
(



P.88) will illuminate. At this time,

“Rear Cross Traffic Alert OFF” will be
displayed on the multi-information dis-
play. Each time the power switch is
turned to ON, the RCTA function is
enabled.

■

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

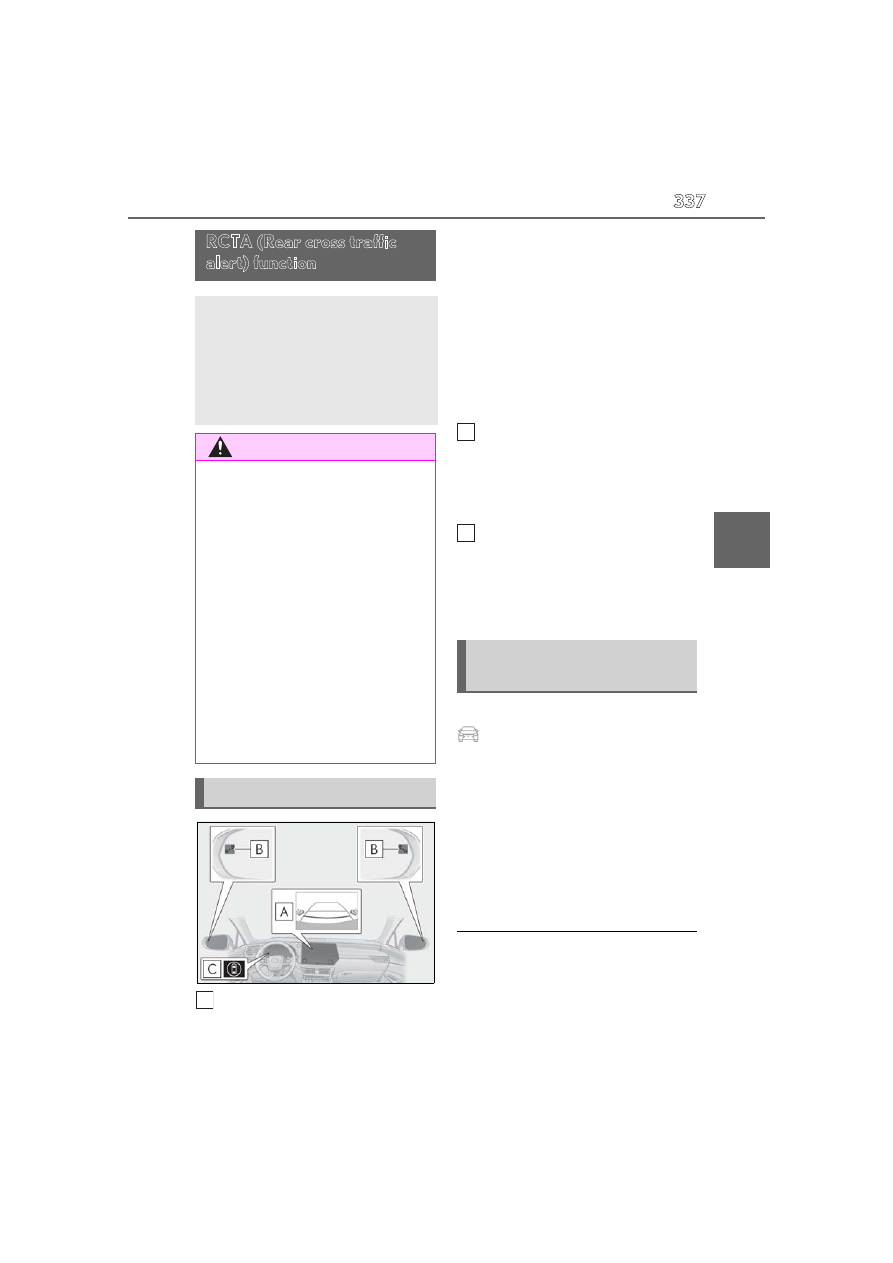

RCTA (Rear cross traffic
alert) function

The RCTA function uses the BSM
rear side radar sensors installed
behind the rear bumper. This func-
tion is intended to assist the driver
in checking areas that are not easily
visible when backing up.

WARNING

■

Cautions regarding the use of the sys-

tem

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings. The RCTA

function is only a supplementary function

which alerts the driver that a vehicle is

approaching from the right or left at the

rear of the vehicle. As the RCTA function

may not function correctly under certain

conditions, the driver’s own visual confir-

mation of safety is necessary. Over reli-

ance on this function may lead to an

accident resulting death or serious injury.

■

To ensure the system can operate

properly



P.319

System components

Turning the RCTA function
on/off

338

4-5. Using the driving support systems

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to hear

over loud noises, such as if the audio system

volume is high.

■

Rear side radar sensors



P.319

■

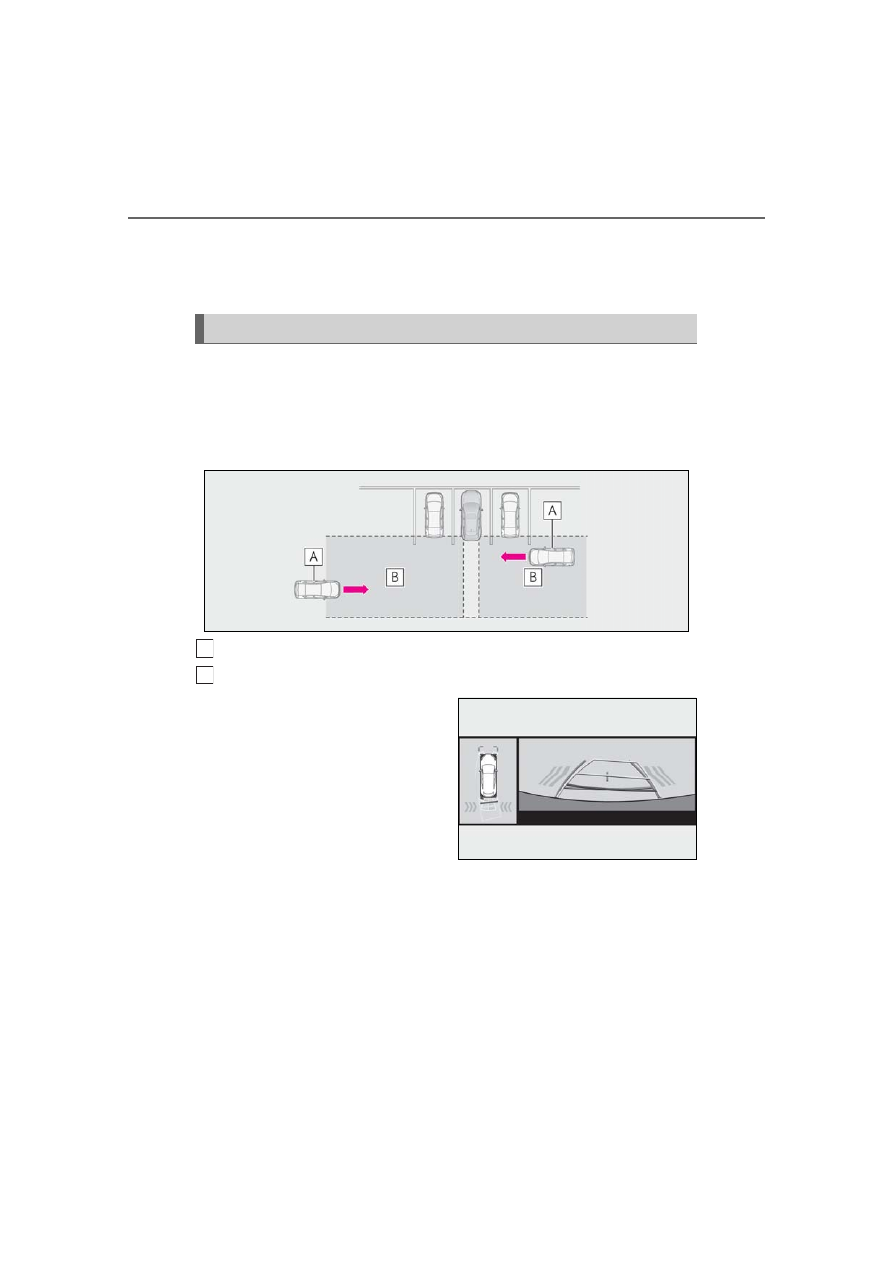

Operation of the RCTA function

The RCTA function uses rear side radar sensors to detect vehicles approaching
from the right or left at the rear of the vehicle and alerts the driver of the presence
of such vehicles by flashing the outside rear view mirror indicators and sounding a
buzzer.

Approaching vehicles
Detection areas of approaching vehicles

■

RCTA icon display

When a vehicle approaching from the
right or left at the rear of the vehicle is
detected, the following will be dis-
played on the center display.



Example (Panoramic view monitor)
(if equipped): Vehicles are
approaching from both sides of the
vehicle

■

RCTA function detection areas

The areas that vehicles can be detected in are outlined below.

RCTA function

A
B

339

4-5. Using the driving support systems

Driving

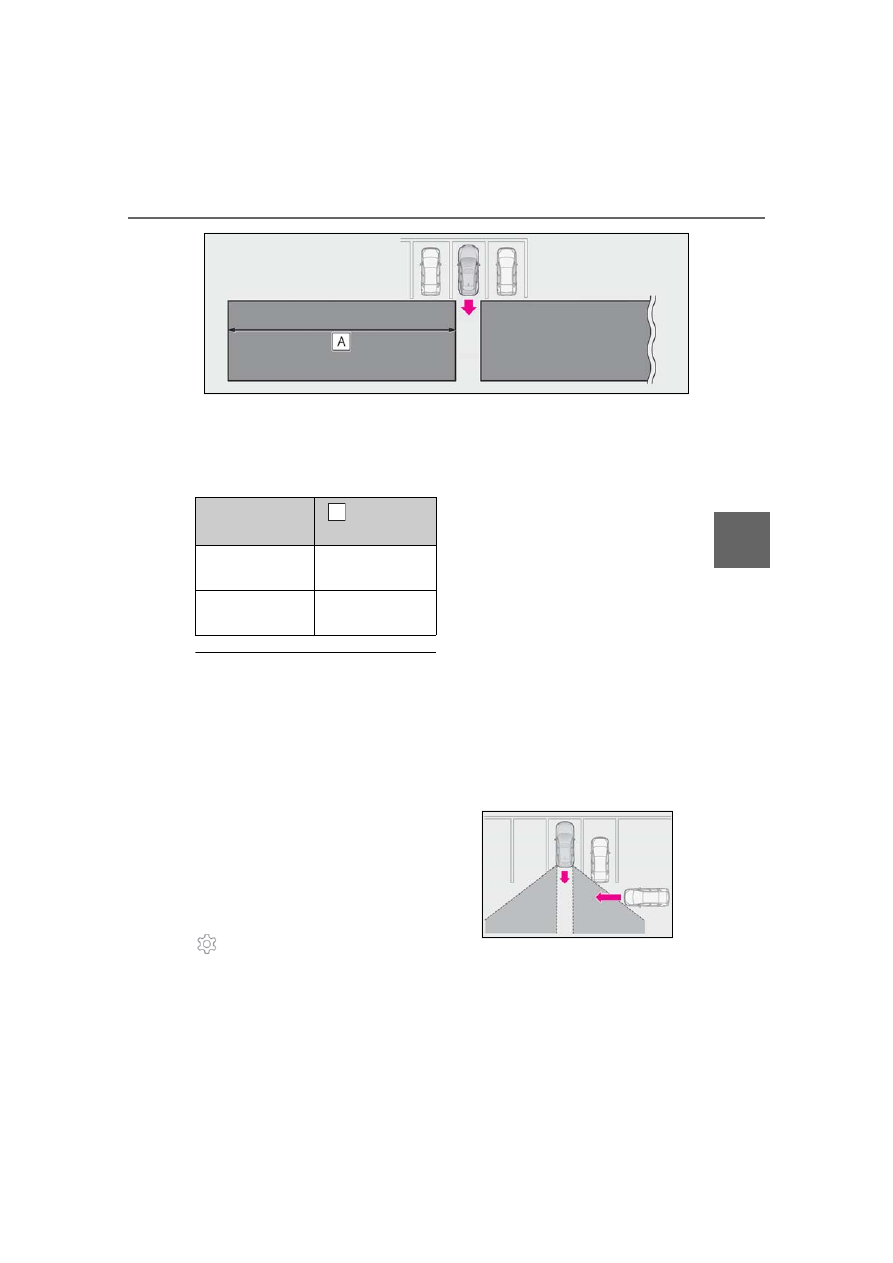

The buzzer can alert the driver of
faster vehicles approaching from far-
ther away.
Example:

■

The RCTA function is operational when

The RCTA function operates when all of the

following conditions are met:

●

The power switch is ON.

●

The RCTA function is on.

●

The shift position is in R.

●

The vehicle speed is less than approxi-

mately 9 mph (15 km/h).

●

The approaching vehicle speed is

between approximately 5 mph (8 km/h)

and 34 mph (56 km/h).

■

Setting the buzzer volume

The buzzer volume of the RCTA, intuitive

parking assist (if equipped) and RCD (if

equipped) can be adjusted all together on

of the center display. (



P.590)

■

Muting a buzzer temporarily

When an object is detected, the temporary

mute switch is displayed on the center dis-

play. Select the switch to mute the buzzer of

the intuitive parking assist (if equipped),

RCTA, and RCD (if equipped) all together.
Mute will be canceled automatically in the

following situations:

●

When the shift position is shifted.

●

When the vehicle speed exceeds a cer-

tain speed.

●

When there is a malfunction in a sensor

or the system is temporarily unavailable.

●

When the operating function is disabled

manually.

●

When the power switch is turned off.

■

Conditions under which the system will

not detect a vehicle

The RCTA function is not designed to

detect the following types of vehicles and/or

objects:

●

Vehicles approaching from directly

behind

●

Vehicles backing up in a parking space

next to your vehicle

●

Vehicles that the sensors cannot detect

due to obstructions

●

Guardrails, walls, signs, parked vehicles
and similar stationary objects

●

Small motorcycles, bicycles, pedestrians,
etc.

●

Vehicles moving away from your vehicle

Approaching vehi-

cle speed

Approximate

alert distance

34 mph (56 km/h)

(fast)

131 ft. (40 m)

5 mph (8 km/h)

(slow)

18 ft. (5.5 m)

340

4-5. Using the driving support systems

●

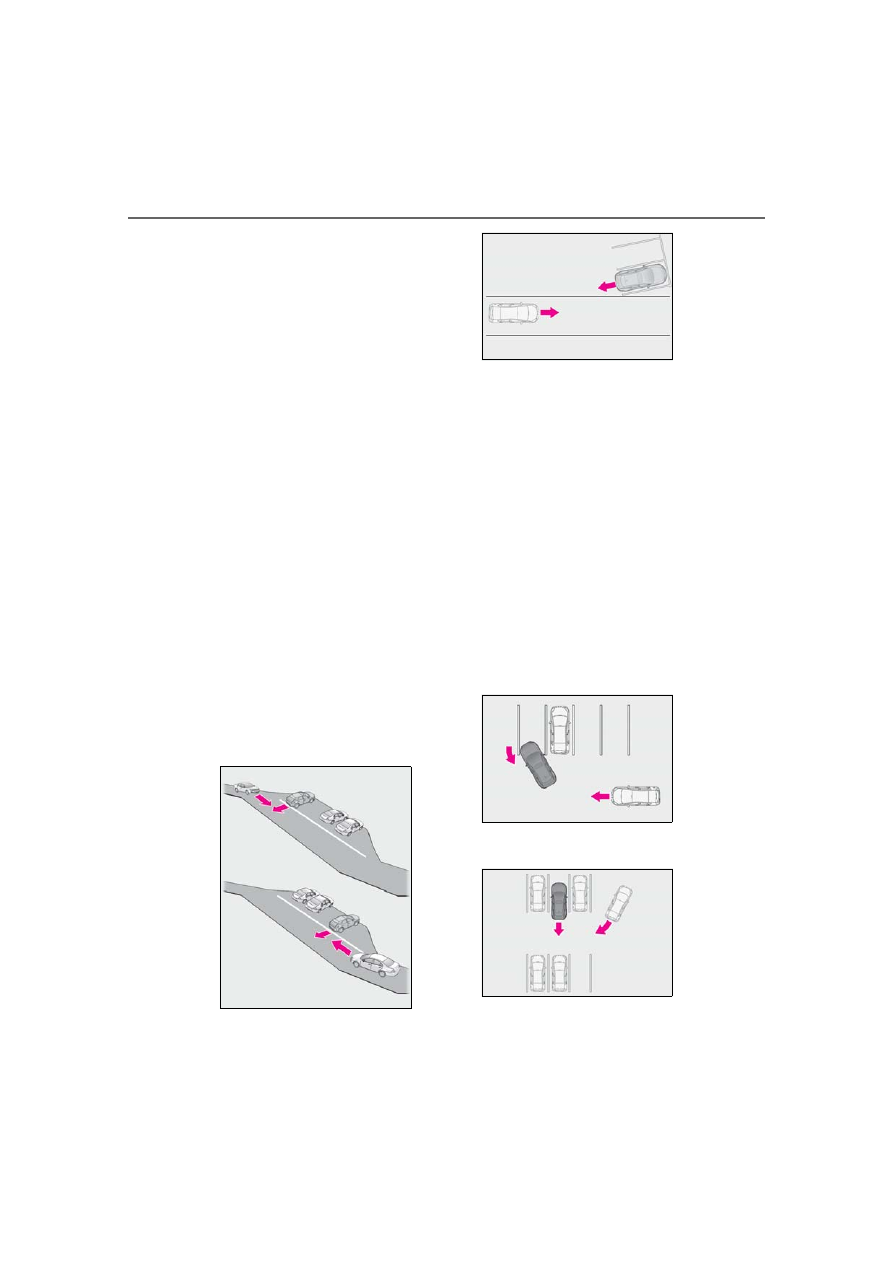

Vehicles approaching from the parking
spaces next to your vehicle

●

The distance between the sensor and

approaching vehicle gets too close

: Depending on the conditions, detection

of a vehicle and/or object may occur.

■

Situations in which the system may not

operate properly

The RCTA function may not detect vehicles

correctly in the following situations:

●

When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

●

When mud, snow, ice, a sticker, etc., is

covering the sensor or surrounding area

on the position above the rear bumper

●

When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

●

When multiple vehicles are approaching

with only a small gap between each vehi-

cle

●

When a vehicle is approaching at high

speed

●

When equipment that may obstruct a

sensor is installed, such as a towing eye-

let, bumper protector (an additional trim

strip, etc.), bicycle carrier, or snow plow

●

When backing up on a slope with a sharp

change in grade

●

When backing out of a sharp angle park-

ing spot

●

Immediately after the RCTA function is

turned on

●

Immediately after the hybrid system is

started with the RCTA function on

●

When the sensors cannot detect a vehi-

cle due to obstructions

●

When towing a trailer

●

When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

●

When a sensor or the area around a sen-

sor is extremely hot or cold

●

If the suspension has been modified or

tires of a size other than specified are

installed

●

If the front of the vehicle is raised or low-

ered due to the carried load

●

When turning while backing up

●

When a vehicle turns into the detection

area

341

4-5. Using the driving support systems

Driving

■

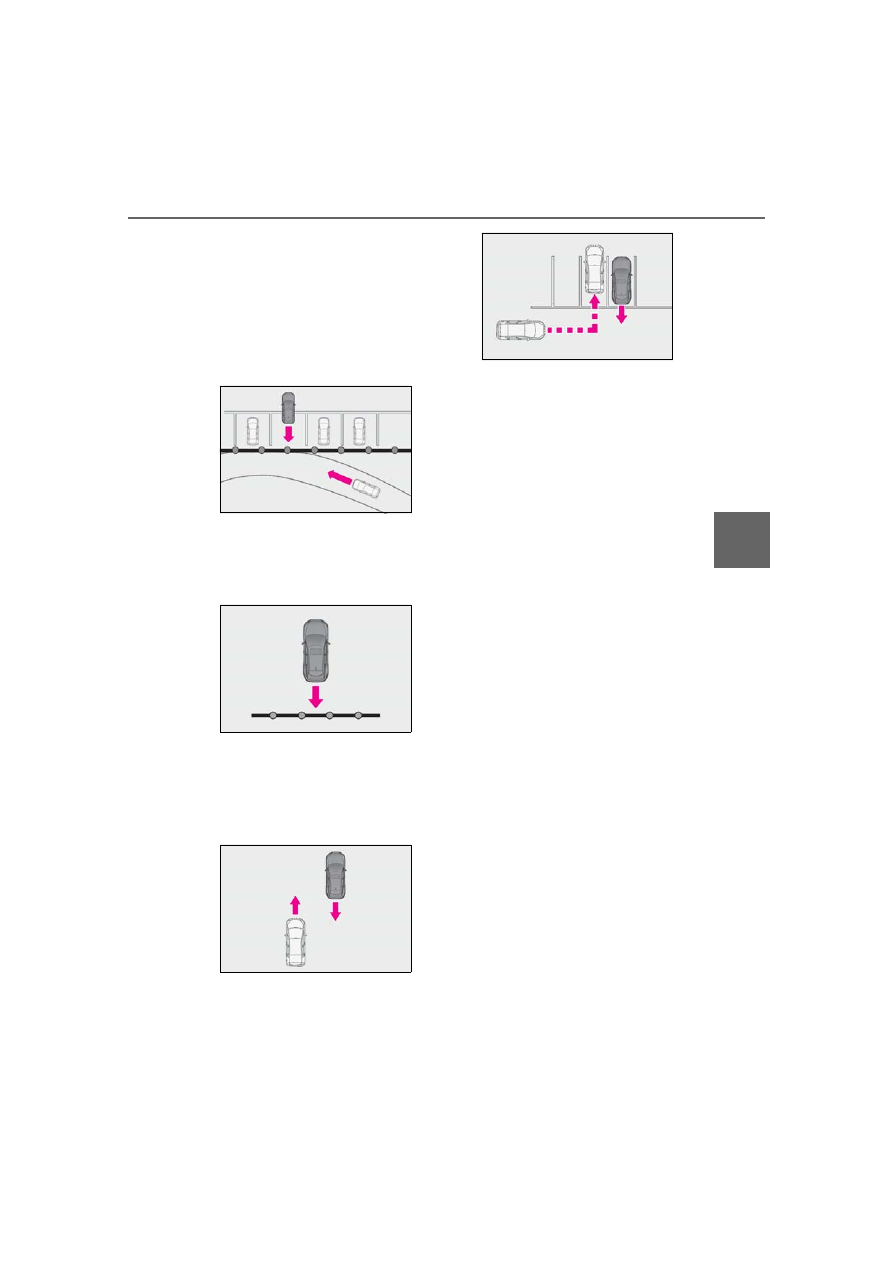

Situations in which the system may

operate even if there is no possibility of a

collision

Instances of the RCTA function unneces-

sary detecting a vehicle and/or object may

increase in the following situations:

●

When the parking space faces a street

and vehicles are being driven on the

street

●

When the distance between your vehicle

and metal objects, such as a guardrail,

wall, sigh, or parked vehicle, which may

reflect electrical waves toward the rear of

the vehicle, is short

●

When equipment that may obstruct a

sensor is installed, such as a towing eye-

let, bumper protector (an additional trim

strip, etc.), bicycle carrier, or snow plow

●

When a vehicle passes by the side of your

vehicle

●

When a detected vehicle turns while

approaching the vehicle

●

When there are spinning objects near

your vehicle such as the fan of an air con-

ditioning unit

●

When water is splashed or sprayed

toward the rear bumper, such as from a

sprinkler

●

Moving objects (flags, exhaust fumes,

large rain droplets or snowflakes, rain

water on the road surface, etc.)

●

When the distance between your vehicle

and a guardrail, wall, etc., that enters the

detection area is short

●

Gratings and gutters

●

When a sensor or the area around a sen-

sor is extremely hot or cold

●

If the suspension has been modified or

tires of a size other than specified are

installed

●

If the front of the vehicle is raised or low-

ered due to the carried load

342

4-5. Using the driving support systems

: If equipped

Pedestrian detection icon

Displayed automatically when a pedestrian
is detected.

The RCD can be enabled/disabled on

of the center display. (



P.590)

When the RCD function is off, the driv-
ing assist information indicator
(



P.88) will illuminate. At this time,

the message will be displayed on the
multi-information display.

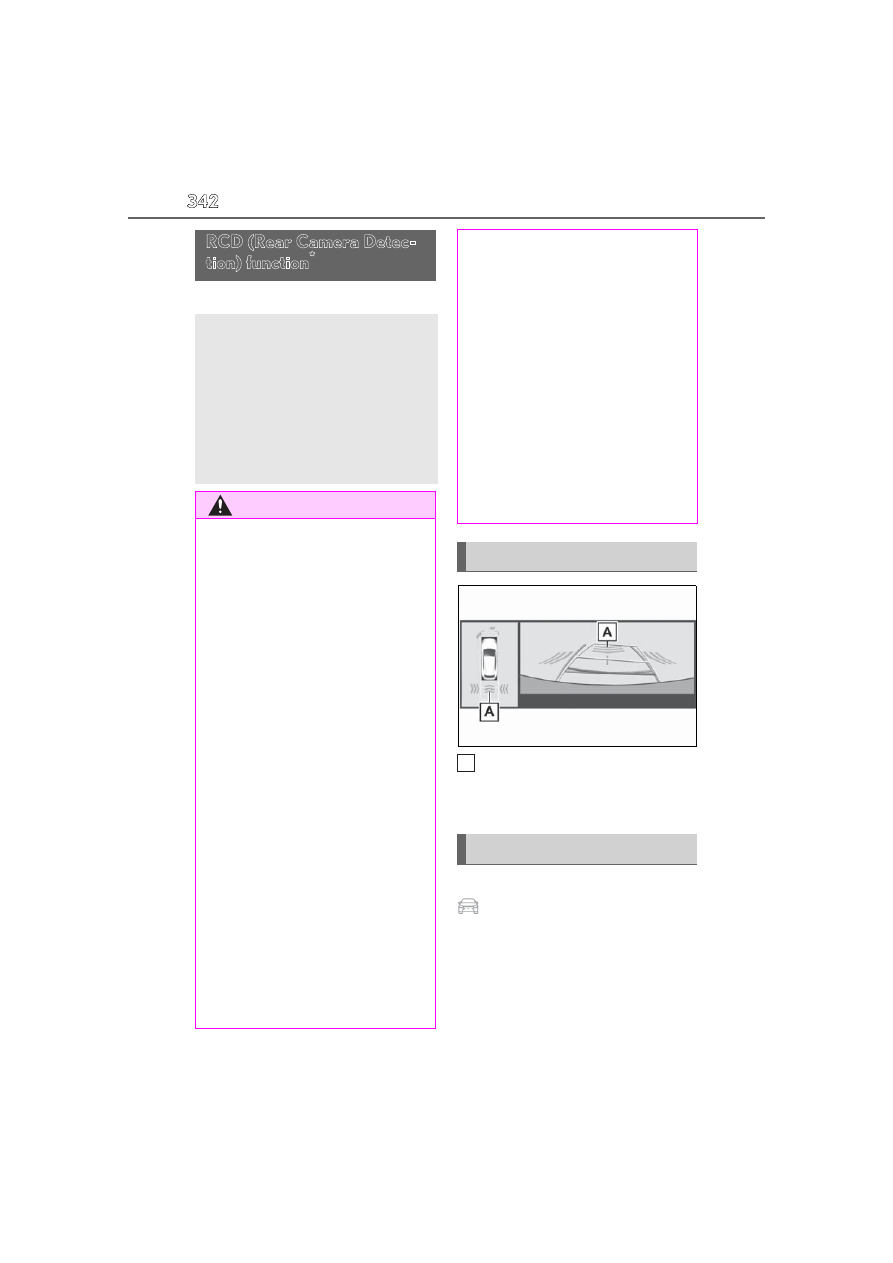

RCD (Rear Camera Detec-
tion) function

When the vehicle is backing up, the
rear camera detection function can
detect pedestrians in the detection
area behind the vehicle. If a pedes-
trian is detected, a buzzer will
sound and an icon will be displayed
on the center display to inform the
driver of the pedestrian.

WARNING

■

Cautions regarding the use of the sys-

tem

The recognition and control capabilities

for this system are limited.

The driver should always drive safely by

always being responsible without over

relying on the system and have a under-

standing of the surrounding situations.

■

To ensure the system can operate

properly

Observe the following, otherwise there is

the danger that could lead to an acci-

dent.

●

Always clean the camera with damag-

ing it.

●

Do not install market electronic parts

(such as illuminated license plate, fog

lamps, etc.) in the camera vicinity.

●

Do not subject the camera vicinity to

strong impacts. If the vicinity is sub-

jected to a strong impact, have the

vehicle inspected at your Lexus dealer.

●

Do not disassemble, remodel or paint

the camera.

●

Do not attach accessories or stickers

to the camera.

●

Do not install market protection parts

(bumper trim, etc.) to the rear bumper.

●

Maintain suitable tire air pressure.

●

Make sure the back door is completely

closed.

■

RCD function is turned off

In the following situations the system

turns off. The RCD function may not

operate properly and thus there is the

danger that an accident may occur.

●

The contents mentioned above are not

observed.

●

Suspensions other than genuine parts

are installed.

RCD display

Turning the RCD function on/off

343

4-5. Using the driving support systems

Driving

Each time the power switch is turned to
ON, the RCD function is enabled.

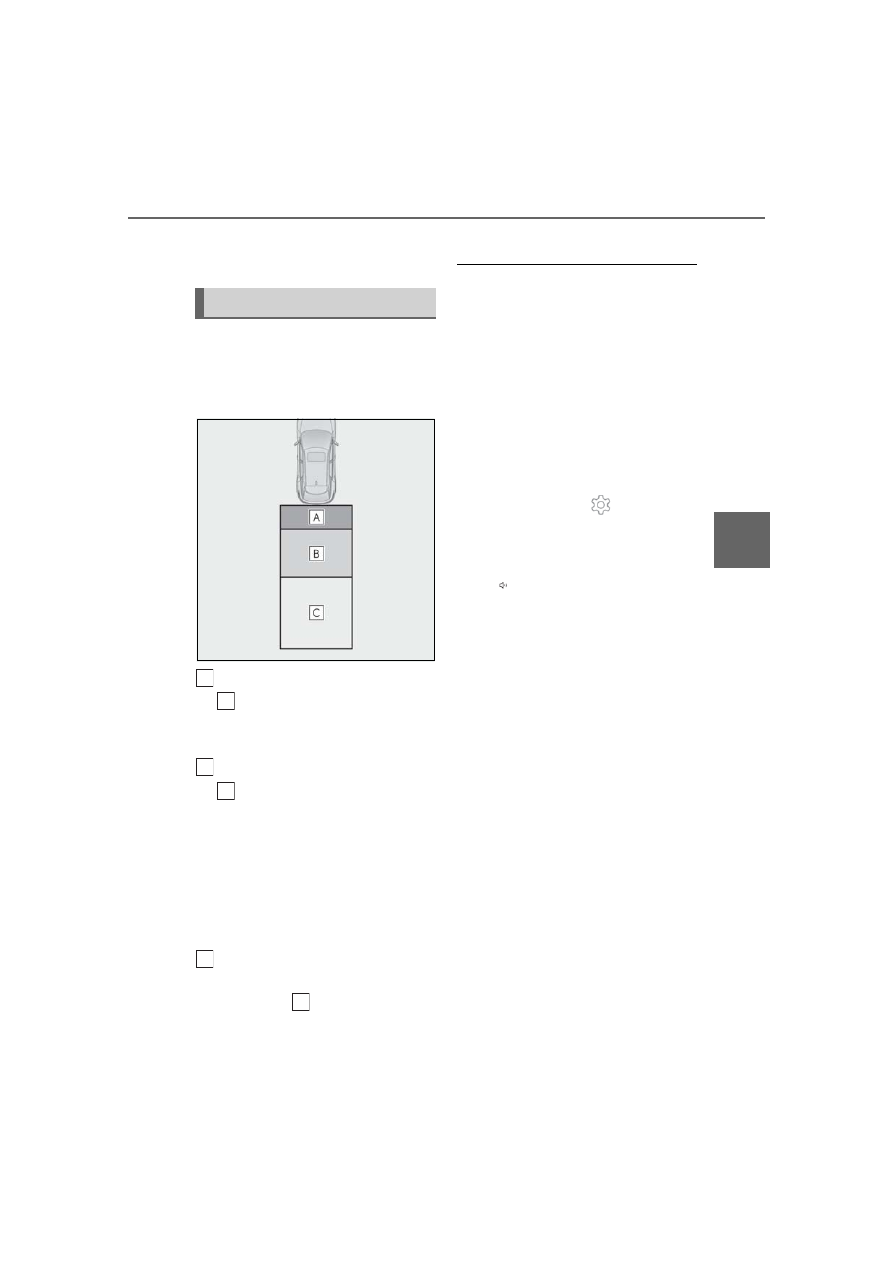

If the rear camera detection function
detects a pedestrian in the detection
area, the buzzer and pedestrian detec-
tion will operate as follows:

If a pedestrian is detected in area

Buzzer: Sounds repeatedly
Pedestrian detection icon: Blinks
If a pedestrian is detected in area

Buzzer (When the vehicle is sta-
tionary): Sounds 3 times
Buzzer (When the vehicle is back-
ing up, when a pedestrian
approaches the rear of the vehicle):
Sounds repeatedly
Pedestrian detection icon: Blinks
If the system determines that your
vehicle may collide with a pedes-
trian in area
Buzzer: Sounds repeatedly

Pedestrian detection icon: Blinks

■

The rear camera detection function is

operational when

●

The power switch is in ON.

●

RCD function is on.

●

The shift position is in R.

●

Advanced Park (if equipped) is not oper-

ating

■

Setting the buzzer volume

The buzzer volume can be adjusted on the

center display.
The buzzer volume of the intuitive parking

assist (if equipped), RCTA and RCD can be
adjusted all together on

of the center

display. (



P.590)

■

Muting a buzzer temporarily

When an object is detected, the temporary
mute (

) switch is displayed on the cen-

ter display. Select the switch to mute the

buzzer of the intuitive parking assist (if

equipped), RCTA, and RCD all together.
The buzzers for the intuitive parking assist,

RCTA and RCD function will be muted

simultaneously.
Mute will be canceled automatically in the

following situations:

●

When the shift position is shifted.

●

When the vehicle speed exceeds a cer-

tain speed.

●

When there is a malfunction in a sensor

or the system is temporarily unavailable.

●

When the operating function is disabled

manually.

●

When the power switch is turned off.

■

Situations in which the system may not

operate properly

●

Some pedestrians, such as the following,

may not be detected by the rear camera

detection function, preventing the func-

tion from operating properly:

• Pedestrians who are bending forward or

squatting

• Pedestrians who are lying down

• Pedestrians who are running

When a pedestrian is detected

344

4-5. Using the driving support systems

• Pedestrians who suddenly enter the

detection area

• People riding a bicycle, skateboard, or

other light vehicle

• Pedestrians wearing oversized clothing

such as a rain coat, long skirt, etc., making

their silhouette obscure

• Pedestrians whose body is partially hid-

den by an object, such as a cart or

umbrella

• Pedestrians which are obscured by dark-

ness, such as at night

●

In some situations, such as the following,

pedestrians may not be detected by the

rear camera detection function, prevent-

ing the function from operating properly:

• When backing up in inclement weather

(rain, snow, fog, etc.)

• When the rear camera is obscured (dirt,

snow, ice, etc. are attached) or scratched

• When a very bright light, such as the sun,

or the headlights of another vehicle,

shines directly into the rear camera

• When backing up in a place where the

surrounding brightness changes sud-

denly, such as at the entrance or exit of a

garage or underground parking lot

• When backing up in a dim environment

such as during dusk or in an underground

parking lot

• When the camera position and direction

are deviated

• When a towing hook is attached

• When towing with the vehicle

• When water droplets are flowing on the

camera lens

• When the vehicle height is extremely

changed (nose up, nose down)

• When a tire chains, compact spare tire or

an emergency tire puncture repair kit is

used

• If the suspension has been modified or

tires of a size other than specified are

installed

• When install market electronic parts

(such as Illuminated license plate, fog

lamps, etc.) in the camera vicinity

• If a bumper protector, such as an addi-

tional trim strip, is installed to the rear

bumper

■

Situations in which the system may

operate unexpectedly

●

Even though there are no pedestrians in

the detection area, some objects, such as

the following, may be detected, possibly

causing the rear camera detection func-

tion to operate.

• Three dimensional objects, such as a

pole, traffic cone, fence, or parked vehi-

cle

• Moving objects, such as a car or motor-

cycle

• Objects moving toward your vehicle

when backing up, such as flags or pud-

dles (or airborne matter, such as smoke,

steam, rain, or snow)

• Cobblestone or gravel roads, tram rails,

road repairs, white lines, pedestrian

crossings or fallen leaves on the road

• Metal covers (gratings), such as those

used for drainage ditches

• Objects reflected in a puddle or on a wet

road surface

• Shadows on the road

●

In some situations, such as the following,

the rear camera detection function may

operate even though there are no pedes-

trians in the detection area.

• When backing up toward the roadside or

a bump on the road

• When backing up toward an

incline/decline

• If the rear of the vehicle is raised or low-

ered due to the carried load

• When install market electronic parts

(such as Illuminated license plate, fog

lamps, etc.) in the camera vicinity

• If a bumper protector, such as an addi-

tional trim strip, is installed to the rear

bumper

• If the orientation of the rear camera has

been changed

• If a towing eyelet is installed to the rear of

the vehicle

• When towing with the vehicle

• When water is flowing over the rear cam-

era lens

• When the rear camera is obscured (dirt,

snow, ice, etc. are attached) or scratched

• If there is a flashing light in the detection

area, such as the emergency flashers of

another vehicle

• When a tire chains or an emergency tire

puncture repair kit is used

●

Situations in which the rear camera

detection function may be difficult to

Lexus RX500h (2023 year). Manual in english - page 10
