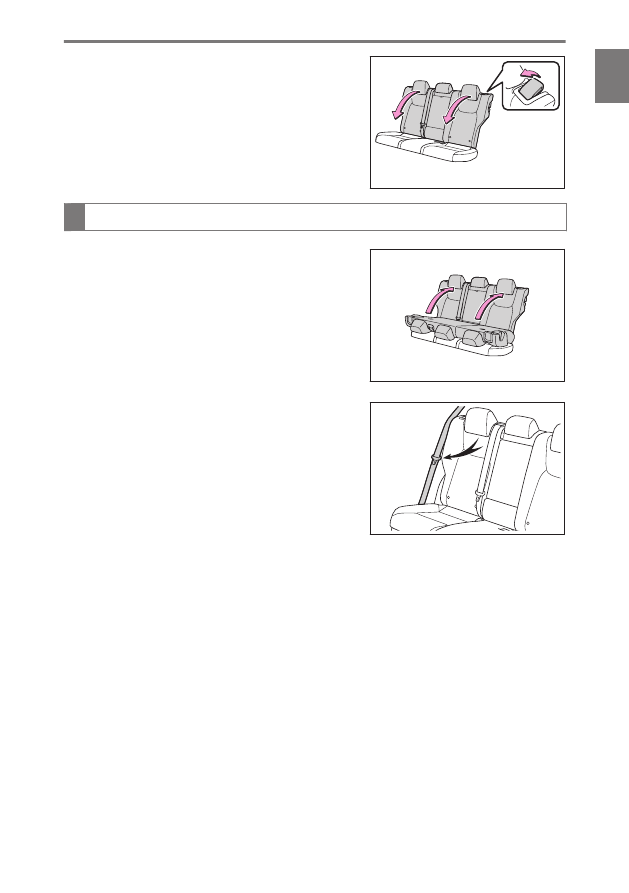

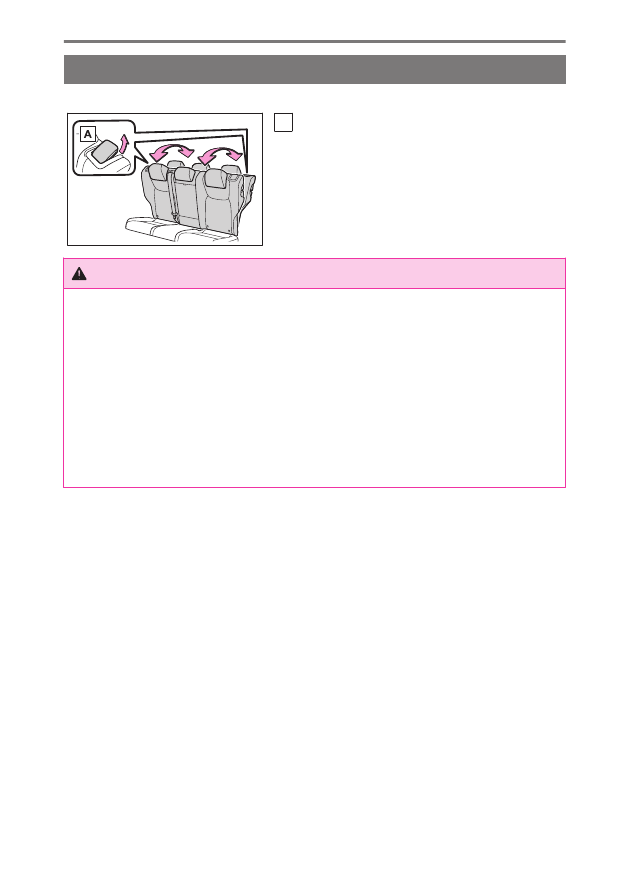

Pull the seatback angle adjustment lever and
fold down the seatback.

Return the rear seatbacks

Raise the rear seatback until it locks.

Check that the plate for each seat belt is on
the front side of the seat.

1-3. Entering/exiting the vehicle and loading luggage

Befor

e driving

Trailer towing (vehicles with towing package)

Trailer towing

Your vehicle is designed primarily as a passenger carrying vehicle. Towing a trailer
will have an adverse effect on handling, performance, braking, durability, and fuel
consumption. Your safety and satisfaction depend on the proper use of correct
equipment and cautious driving habits. For your safety and the safety of others,
do not overload the vehicle or trailer.To tow a trailer safely, use extreme care
and drive the vehicle in accordance with the trailer's characteristics and operating
conditions.Lexus warranties do not apply to damage or malfunction caused by
towing a trailer for commercial purposes.Ask your local authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer for further details before
towing, as there are additional legal requirements in some countries.

Weight limits

Check the allowable towing capacity, GVM (Gross Vehicle Mass), MPAC (Maxi-
mum Permissible Axle Capacity), and permissible draw bar load before towing.

Towing hitch/bracket

Lexus recommends the use of the Lexus hitch/bracket for your vehicle. Other
products of a suitable nature and comparable quality may also be used.
For vehicles where the towing device blocks any of the lights or license plate, the
following shall be observed:

●

Do not use towing devices that cannot be easily removed or repositioned.

●

Towing devices must be removed or repositioned when not in use.

Connecting trailer lights

Please consult at any authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer when installing trailer lights, as incorrect installation may cause
damage to the vehicle's lights. Please take care to comply with your state's laws
when installing trailer lights.

NOTICE

Do not directly splice trailer lights. Directly splicing trailer lights may damage your
vehicle's electrical system and cause a malfunction.

1-3. Entering/exiting the vehicle and loading luggage

Important points regarding trailer loads

■

Total trailer weight and permissible drawbar load

Total trailer weight
Weight of the trailer itself plus the trailer
load should be within the maximum towing
capacity. Exceeding this weight is danger-
ous.
When towing a trailer, use a friction coupler
or friction stabilizer (sway control device).

Permissible drawbar load
Allocate the trailer load so that the drawbar
load is greater than 25 kg (55.1 lb.) or 4% of
the towing capacity. Do not let the drawbar
load exceed the indicated weight

■

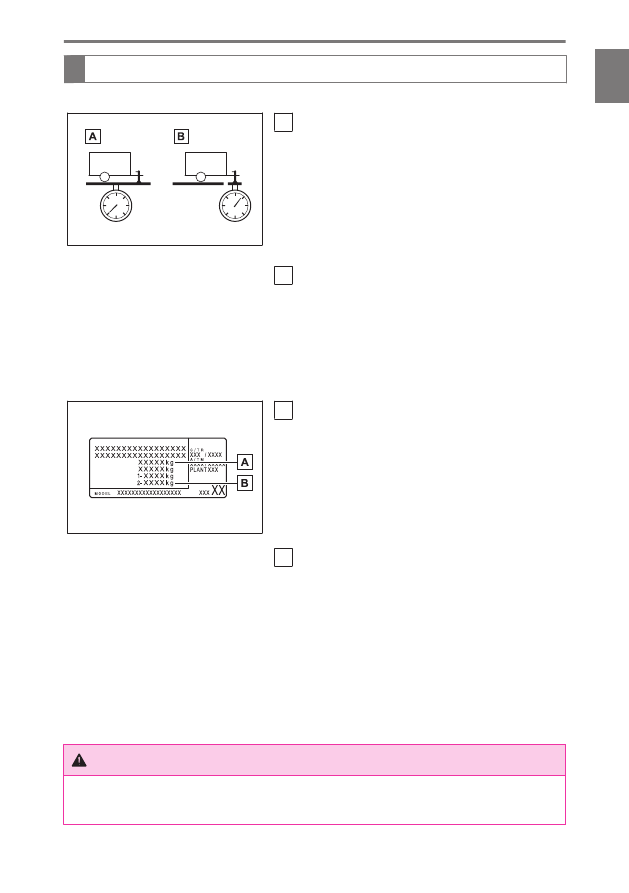

Information tag (manufacturer's label)

Gross vehicle mass
The combined weight of the driver, passen-
gers, luggage, towing hitch, total curb mass
and drawbar load should not exceed the
gross vehicle mass by more than 100 kg
(220.5 lb.). Exceeding this weight is dan-
gerous.

Maximum permissible rear axle capacity
The weight borne by the rear axle should
not exceed the maximum permissible axle
capacity by 15% or more. Exceeding this
weight is dangerous.
The values for towing capacity were derived
from testing conducted at sea level. Take
note that engine output and towing capacity
will be reduced at high altitudes.

WARNING

If the gross vehicle mass or maximum allowable axle capacity is exceeded, observe the
following:

1-3. Entering/exiting the vehicle and loading luggage

Befor

e driving

WARNING

●

Add an additional 20.0 kPa (0.2 kgf/cm

or bar, 3 psi) to the recommended tire

inflation pressure value.

●

Do not exceed the established speed limit for towing a trailer in built-up areas or 100
km/h (62 mph), whichever is lower.

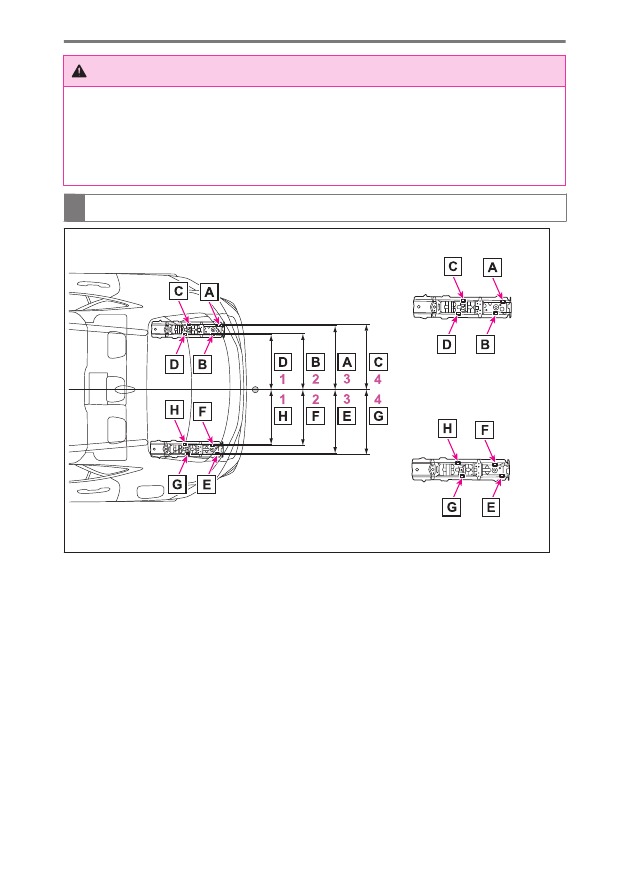

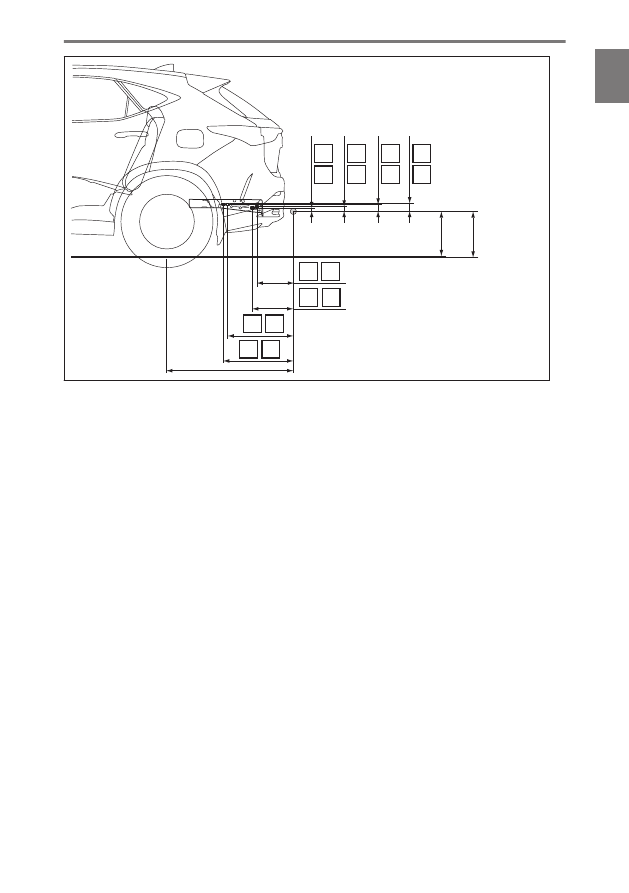

Installation positions for the towing hitch/bracket and hitch ball

1-3. Entering/exiting the vehicle and loading luggage

457 mm (18.0 in.)

461 mm (18.1 in.)

536 mm (21.1 in.)

538 mm (21.2 in.)

27 mm (1.1 in.)

38 mm (1.5 in.)

53 mm (2.1 in.)

59 mm (2.3 in.)

300 mm (11.8 in.)

338 mm (13.3 in.)

538 mm (21.2 in.)

569 mm (22.4 in.)

1036 mm (40.8 in.)

378 mm (14.9 in.)

389 mm (15.3 in.)

*1 :

Vehicles with 235/60R18 tires

*2 :

Vehicles with 235/50R20 tires

1-3. Entering/exiting the vehicle and loading luggage

Befor

e driving

INFORMATION

■

Tire information

●

Increase the tire inflation pressure to 20.0 kPa (0.2 kgf/cm

or bar, 3 psi) greater than

the recommended value when towing.

●

Increase the air pressure of the trailer tires in accordance with the total trailer weight
and according to the values recommended by the manufacturer of your trailer.

■

Trailer lights

Check that the turn signal lights and stop lights are operating correctly every time you
hitch up the trailer. Directly wiring up to your vehicle may damage the electrical system
and stop the lights from functioning correctly.

■

Break-in schedule

Lexus recommends that vehicles fitted with new power train components should not be
used for towing trailers for the first 800 km (500 miles).

■

Safety checks before towing

●

Check that the maximum load limit for the towing hitch/bracket and hitch ball is not
exceeded. Bear in mind that the coupling weight of the trailer will add to the load
exerted on the vehicle. Also make sure that the total load exerted on the vehicle is
within the range of the weight limits.

●

Ensure that the trailer load is secure.

●

Supplementary outside rear view mirrors should be added to the vehicle if the traffic
behind cannot be clearly seen with standard mirrors. Adjust the extending arms of
these mirrors on both sides of the vehicle so that they always provide maximum
visibility of the road behind.

■

Maintenance

●

Maintenance must be performed more frequently when using the vehicle for towing
due to the greater weight burden placed on the vehicle compared to normal driving.

●

Retighten all bolts securing the hitching ball and bracket after towing for approximate-
ly 1000 km (600 miles).

Guidance

Your vehicle will handle differently when towing a trailer. In order to avoid accident,
death or serious injury, keep the following in mind when towing:

■

Checking connections between trailer and lights

Stop the vehicle and check the operation of the connection between the trailer and
lights after driving for a brief period as well as before starting off.

1-3. Entering/exiting the vehicle and loading luggage

■

Practicing driving with a coupled trailer

●

Get the feel for turning, stopping and reversing with the trailer coupled by
practicing in an area with no or light traffic.

●

When reversing with a coupled trailer, hold the section of the steering wheel
nearest to you and rotate clockwise to turn the trailer left or counterclockwise
to turn it right. Always rotate a little at a time to prevent steering error. Have
someone guide you when reversing to lessen the risk of an accident.

■

Increasing vehicle-to-vehicle distance

At a speed of 10 km/h (6 mph), the distance to the vehicle running ahead of you
should be equivalent to or greater than the combined length of your vehicle and
trailer. Avoid sudden braking that may cause skidding. Otherwise, the vehicle may
spin out of control. This is especially true when driving on wet or slippery road
surfaces.

■

Sudden acceleration/steering input/cornering

Executing sharp turns when towing may result in the trailer colliding with your
vehicle. Decelerate well in advance when approaching turns and take them slowly
and carefully to avoid sudden braking.

■

Important points regarding turning

The wheels of the trailer will travel closer to the inside of the curve than the wheels
of the vehicle. To make allowance for this, take the turns wider than you would
normally do.

■

Important points regarding stability

Vehicle movement resulting from uneven road surfaces and strong crosswinds
will affect handling. The vehicle may also be rocked by passing buses or large
trucks. Frequently check behind when moving alongside such vehicles. As soon as
such vehicle movement occurs, immediately start to decelerate smoothly by slowly
applying the brakes. Always steer the vehicle straight ahead while braking.

■

Passing other vehicles

Consider the total combined length of your vehicle and trailer and ensure that the
vehicle-to-vehicle distance is sufficient before executing lane changes.

■

Transmission information

To maintain engine braking efficiency and charging system performance, when
using engine braking, do not use the transmission in D. If in the M mode, the
transmission shift range position must be in 6 or lower.

1-3. Entering/exiting the vehicle and loading luggage

Befor

e driving

■

If the engine overheats

Towing a loaded trailer up a long, steep incline in temperatures exceeding 30°C
(85°F) may result in the engine overheating. If the engine coolant temperature
gauge indicates that the engine is overheating. Turn the air conditioning off imme-
diately, leave the road and stop the vehicle in a safe place.

■

When parking the vehicle

Always place wheel chocks under the wheels of both the vehicle and trailer. Set the
parking brake and change the shift position to P.

WARNING

Follow all the instructions described in this section.

■

Trailer towing precautions

When towing, make sure that none of the weight limits are exceeded.

■

To avoid accident or injury

●

Vehicles with compact spare tire: Do not tow a trailer when the compact spare tire is
installed on your vehicle.

●

Do not use the following systems when trailer towing.

•

PCS (Pre-Collision System)

•

LTA (Lane Tracing Assist)

•

Dynamic radar cruise control

•

BSM (Blind Spot Monitor) (if equipped)

■

Vehicle speed in towing

Observe the legal maximum speeds for trailer towing.

■

Before descending hills or long declines

Reduce speed and downshift. However, never downshift suddenly while descending
steep or long downhill grades.

■

Operation of the brake pedal

Do not hold the brake pedal depressed often or for long periods of time. Doing so may
result in the brake overheating or reduce braking effects.

1-3. Entering/exiting the vehicle and loading luggage

Opening and closing the windows

WARNING

Observe the following precautions. The driver is responsible for all power window
operations, including the operation for the passengers.

●

Do not let a child operate the power windows. Operation by a child may cause a child
or other passengers to have a body part caught in a power window. Also, when riding
with a child, it is recommended to turn the window lock switch on.

●

Check to make sure that all passengers do not have any part of their body in a position
where it could be caught when a window is being operated.

●

When exiting the vehicle, turn the engine switch off, carry the key and exit the vehicle
along with the child. There may be accidental operation, due to mischief, etc., that may
possibly lead to an accident.

INFORMATION

■

Operating conditions of the power windows

The engine switch is in ON.

■

Operating the power windows after turning the engine off

The power windows can be operated for approximately 45 seconds after the engine
switch is turned to ACC or OFF.
They cannot, however, be operated once either front door is opened.

■

Using the voice control system

The following operations can be performed using the voice control system:

●

Opening/closing of all of the windows simultaneously

●

Opening/closing of each window individually

(Operation is possible only when the window lock switch is off.)
For details, refer to the "Multimedia owner's manual".

Functions which aid in safe opening and closing of the windows

The following functions aid in safe opening and closing of the windows.

●

Jam protection function
If an object becomes jammed between the window and the window frame while
the window is closing, window movement is stopped and the window is opened
slightly.

* :

If equipped

1-3. Entering/exiting the vehicle and loading luggage

●

Catch protection function
If an object becomes caught between the door and window while the window is
opening, window movement is stopped.

●

Power windows open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in
the instrument cluster when the engine switch is turned off and the driver’s door
is opened with the power windows open.

WARNING

■

Jam protection function

●

Never use any part of your body to intentionally activate the jam protection function.

●

The jam protection function may not work if something gets jammed just before the
window is fully closed.
Be careful not to get any part of your body jammed in the window.

■

Catch protection function

●

Never use any part of your body or clothing to intentionally activate the catch
protection function.

●

Be careful not to get any part of your body or clothing caught in the window. The catch
protection function may not work if something gets caught just before the window is
fully opened.

Operations using the power window switches

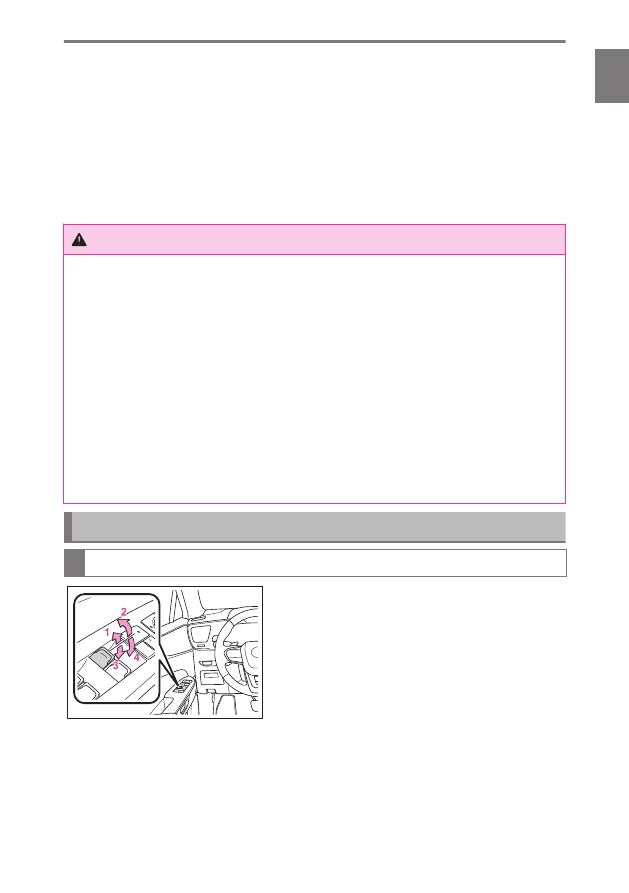

Opening/closing the windows using the power window switch

Lift the power window swich partway.
The window will close while the switch is
lifted.

Fully lift the power window swich.
The window will fully close automatically.

To stop the window partway, operate the switch
in the opposite direction.

Push the power window swich partway.
The window will open while the switch is
pushed.

Fully push the power window switch.
The window will fully open automatically.

1-3. Entering/exiting the vehicle and loading luggage

Befor

e driving

To stop the window partway, operate the switch
in the opposite direction.

Operations using the wireless remote control

The power windows can be opened and closed using the wireless remote control.

WARNING

When using the wireless remote control or to operate the power windows, operate the
power windows after making sure that there is no possibility of any passenger having any
of their body parts caught in a power window. Also do not let a child operate the windows
using the wireless remote control. Children and other passengers may get caught in the
power window.

Related Links

Customizable features(P. 650)

Open the windows using the wireless remote control

Using the wireless remote control, the doors can be unlocked and all of the
windows opened at the same time.

●

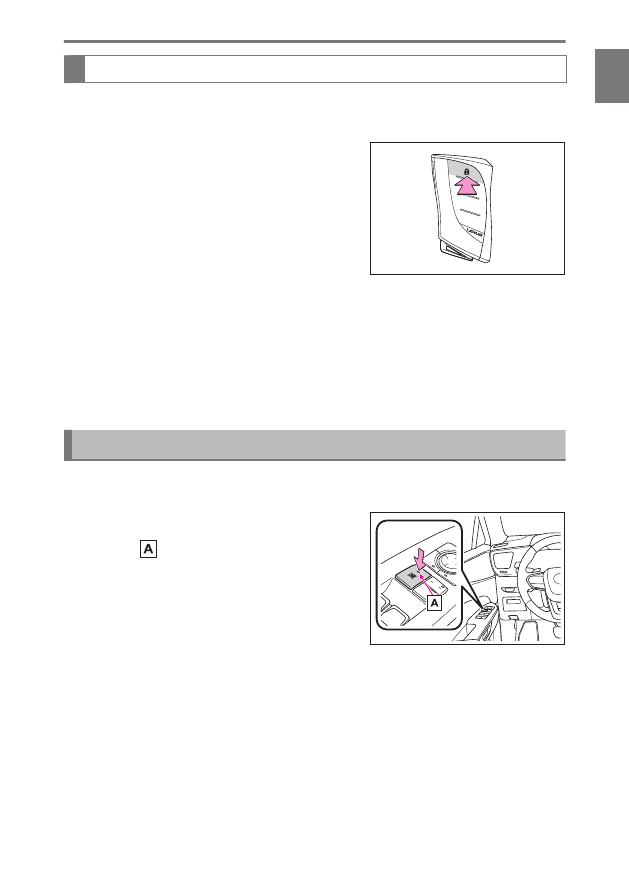

Push and hold the unlock switch on the wireless remote control.

The doors will unlock and the windows and moon roof

or panoramic moon roof

will

open.

A buzzer sounds to indicate that all of the windows and the moon roof

or panoramic

moon roof

are opening.

*1 :

These settings must be customized at any authorized Lexus retailer or Lexus author-

ized repairer, or any reliable repairer.

*2 :

This setting must be customized at any authorized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

* :

If equipped

1-3. Entering/exiting the vehicle and loading luggage

Close the windows using the wireless remote control

Using the wireless remote control, the doors can be locked and all of the windows
closed at the same time.

●

Press and hold the lock switch on the wireless remote control.

All of the doors will lock and the windows and moon roof

or panoramic moon roof

will

close.

A buzzer sounds to indicate that all of the windows and the moon roof

or panoramic

moon roof

are opening/closing.

Check that the doors are securely locked and the windows are fully closed.

Prevent accidental operation of the windows

The window lock switch is designed to prevent children from accidentally opening
or closing a window.
Press the window lock switch.

The indicator

will come on and the passenger

windows will be locked.

*3 :

This setting must be customized at any authorized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

* :

If equipped

1-3. Entering/exiting the vehicle and loading luggage

Befor

e driving

Obtaining the correct driving posture

Adjusting the seats

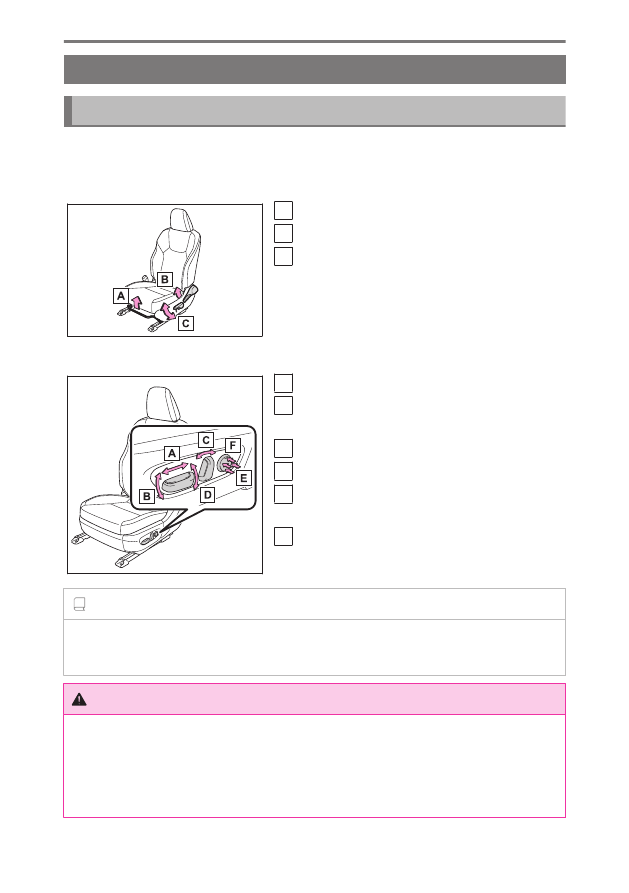

Adjusting the front seats

Adjust the seat forward/backward and up/down as necessary to obtain a correct
posture.

▶

Manual seat

Seat position adjustment lever

Seatback angle adjustment lever

Vertical height adjustment lever

▶

Power seat

Seat position adjustment switch

Seat cushion (front) angle adjustment
switch

Seatback angle adjustment switch

Vertical height adjustment switch

Lumbar support firmness adjustment switch
(for driver’s side)

Lumbar support height adjustment switch
(for driver’s side)

INFORMATION

■

When adjusting the seats

Take care so that a head restraint does not contact the ceiling or a sun visor.

WARNING

Observe the following when adjusting the seats.

●

Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.

●

Be careful so that the seat does not contact and injure a passenger.

* :

If equipped

1-4. Obtaining the correct driving posture

WARNING

●

Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident and the adjustment
mechanism may also be damaged.

●

Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.

●

To reduce the risk of sliding under the lap belt during a collision, do not recline the seat
more than necessary.
If the seat is reclined excessively, in a collision, one may slide under the lap belt and it
may apply restraint forces directly to the abdomen, etc., or their neck may contact the
shoulder belt.

●

Manual seat: After adjusting the seat, make sure that the seat is locked in position.

●

Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the effec-
tiveness of the seat belt and head restraint.

Adjusting the head restraints

Head restraints are provided for all seats.

WARNING

Observe the following precautions regarding the head restraints. Failure to do so may
result in death or serious injury.

●

Use the head restraints designed for each respective seat.

●

Adjust the head restraints to the correct position at all times.

●

After adjusting the head restraints, push down on them and make sure they are locked
in position.

●

Do not drive with the head restraints removed.

1-4. Obtaining the correct driving posture

Befor

e driving

■

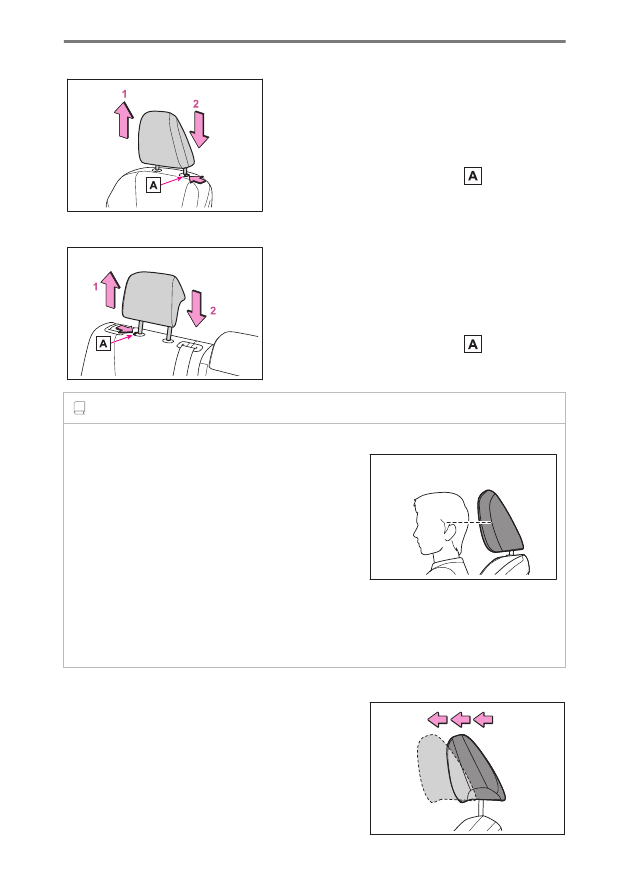

Adjusting the front seat head restraints vertically

Pull the head restraints up.

Down
Push the head restraint down while press-
ing the lock release button .

■

Adjusting the rear seat head restraints vertically

Pull the head restraints up.

Down
Push the head restraint down while press-
ing the lock release button .

INFORMATION

■

Adjusting the height of the head restraints (front seats)

Make sure that the head restraints are adjusted so
that the center of the head restraint is closest to the
top of your ears

■

Adjusting the height of the head restraints

When the rear seat is to be used, make sure the head restraint is at least one step above
the storage position.

■

Adjusting the front seat head restraints horizontally (F SPORT)

Adjustment can be performed in 4 steps.
If the head restraint is pulled forward from the
foremost position, it will return to the rearmost
position.

1-4. Obtaining the correct driving posture

100

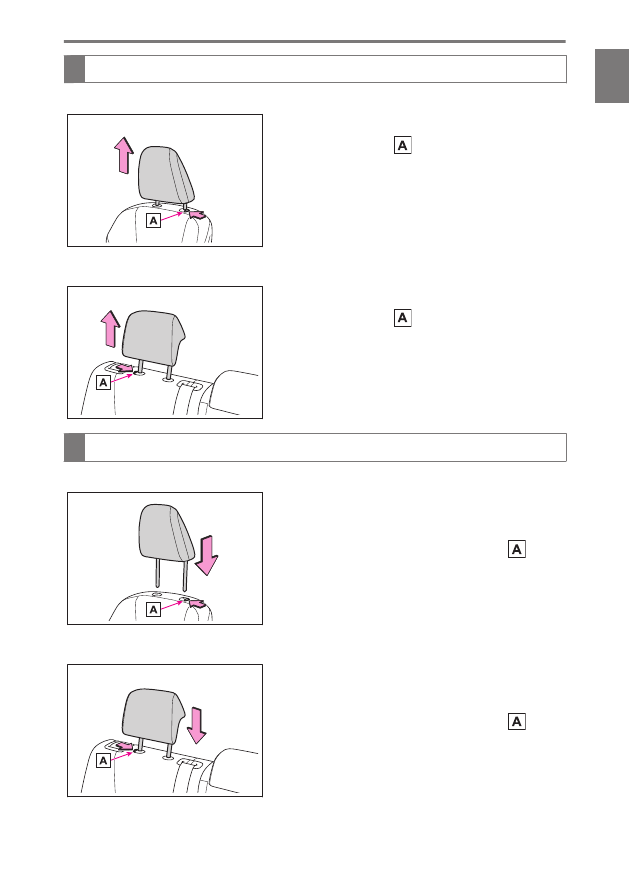

Removing the head restraints

▶

Front seats

Pull the head restraint up while pressing the
lock release button .

If the head restraint touches the ceiling, making the
removal difficult, change the seat height or angle.

▶

Rear seats

Pull the head restraint up while pressing the
lock release button .

Installing the head restraints

▶

Front seats

Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.

▶

Rear seats

Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.

1-4. Obtaining the correct driving posture

101

Befor

e driving

Adjusting the rear seats

Reclining adjustments and folding the seat backs can be done with the levers.

Reclining adjustment

WARNING

Observe the following when adjusting the seatbacks.

●

Keep other passengers from being hit with the seatback.

●

Do not bring your hands close to the moving parts or between the seats, as well as do
not let any part of your body get caught.

●

1-4. Obtaining the correct driving posture

102

Using the seat belts

●

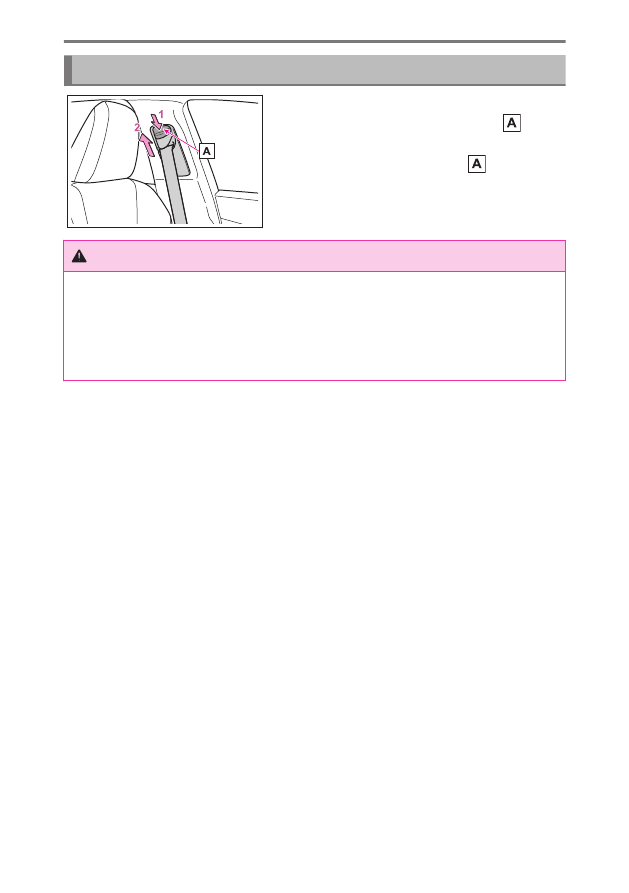

Extend the shoulder belt so that it comes fully over the shoulder, but does not
come into contact with the neck or slide off the shoulder.

●

Position the lap belt as low as possible over the hips.

●

Adjust the position of the seatback. Sit up straight and well back in the seat.

●

Do not twist the seat belt.

WARNING

Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident. Failing to do so may cause death or serious
injury.

●

Ensure that all passengers wear a seat belt.

●

Always wear a seat belt properly.

●

Each seat belt should be used by one person only.
Do not use a seat belt for more than one person at once, including children.

●

Lexus recommends that children be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system.

●

To achieve a proper seating position, do not recline the seat more than necessary. The
seat belt is most effective when the occupants are sitting up straight and well back in
the seats.

●

Do not wear the shoulder belt under your arm.

●

Always wear your seat belt low and snug across your hips.

1-4. Obtaining the correct driving posture

103

Befor

e driving

WARNING

●

Women who are pregnant should consult their
doctor for any precautions for wearing the seat
belt correctly.
Position the lap belt as low as possible over the
hips in the same manner as other occupants,
extending the shoulder belt completely over the
shoulder and avoiding belt contact with the round-
ing of the abdominal area.
If the seat belt is not worn properly, not only the
pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden brak-
ing or a collision.

●

Persons with a medical condition should consult their doctor for any precautions for
wearing the seat belt correctly.

●

Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do
not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an
occupant from death or serious injury.

●

Replace the seat assembly, including the belts, if your vehicle has been involved in a
serious accident, even if there’s no obvious damage.

●

Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer. Inappropriate handling may lead to
incorrect operation.

●

Do not allow children to play with the seat belt.
If the seat belt becomes twisted around a child's neck, it may lead to choking or other
serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.

INFORMATION

■

Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size.

●

Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt.

1-4. Obtaining the correct driving posture

104

●

When the child becomes large enough to properly wear the vehicle’s seat belt, follow
the instructions regarding seat belt usage.

■

Seat belt regulations

If seat belt regulations exist in the country where you reside, please contact any author-
ized Lexus retailer or Lexus authorized repairer, or any reliable repairer for seat belt
replacement or installation.

Fastening and releasing the seat belts

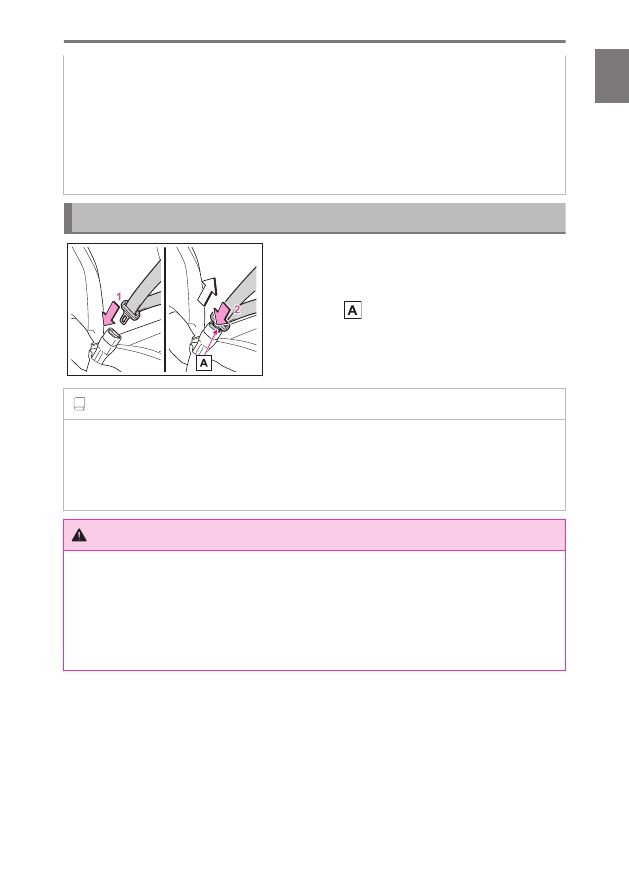

To fasten the seat belt, push the plate into
the buckle until a click sound is heard.

To release the seat belt, press the release
button .

INFORMATION

■

Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. When the seat belt locks, pull the belt strongly and then release
the belt, then a slow and easy pulling will allow the belt to extend.

WARNING

●

Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in the
door.

●

Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer.

1-4. Obtaining the correct driving posture

105

Befor

e driving

Adjusting the height of the front seat belts

Push the seat belt shoulder anchor down
while pressing the release button .

Push the seat belt shoulder anchor up while
pressing the release button .

Move the height adjuster up and down as need-
ed until you hear a click.

WARNING

■

Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your shoulder. The
belt should be kept away from your neck, but not falling off your shoulder. Failure to do so
could reduce the amount of protection in an accident and cause death or serious injuries
in the event of a sudden stop, sudden swerve or accident.

1-4. Obtaining the correct driving posture

106

Adjusting the position of the steering wheel and mirrors

Adjusting the position of the steering wheel horizontally/vertically
(Manual type)

WARNING

Do not adjust the steering wheel while driving.

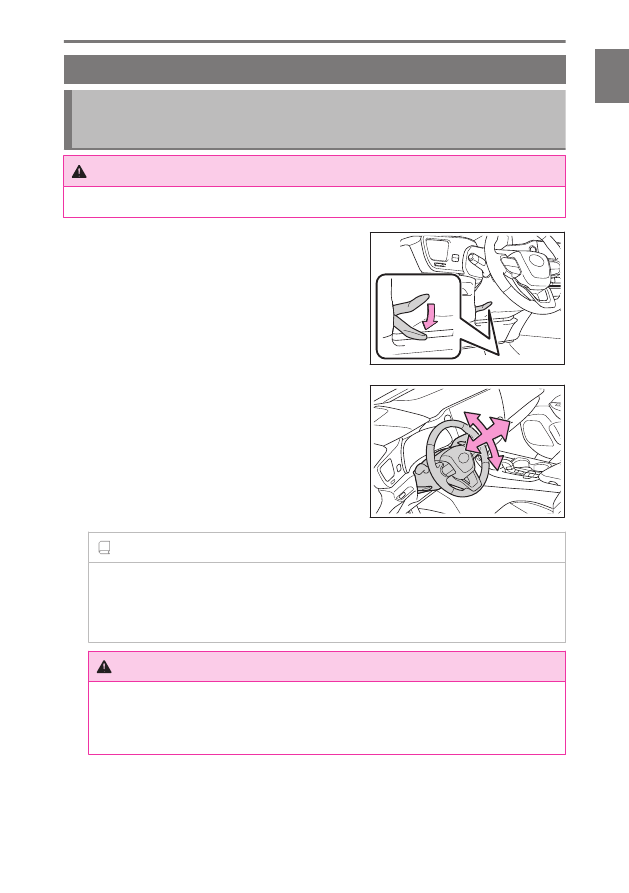

Hold the steering wheel and push the lever
down.

Adjust to the ideal position by moving the
steering wheel horizontally and vertically.

After adjustment, pull the lever up to secure the
steering wheel.

INFORMATION

■

After adjusting the steering wheel

Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.

WARNING

After adjusting the steering wheel, make sure that the steering wheel is securely
locked.
Otherwise, the steering wheel may move suddenly.

1-4. Obtaining the correct driving posture

107

Befor

e driving

Adjusting the position of the steering wheel horizontally/vertically
(Power type)

INFORMATION

■

The steering wheel can be adjusted when

The engine switch is in ACC or ON.

WARNING

Do not adjust the steering wheel while driving.

Operating the switch moves the steering wheel
in the following directions:

Down

Toward the driver

Away from the driver

INFORMATION

■

Automatic adjustment of the steering position

A desired steering position can be entered to memory and recalled automatically by the
driving position memory system.

■

Power easy access system

The steering wheel and driver’s seat move in accordance with engine switch mode and
the driver’s seat belt condition.

Adjusting the position of the inside rear view mirror

WARNING

Do not adjust the position of the mirror while driving.

Adjust the position of the inside rear view mirror so that the correct driving posture
can be achieved.

*1 :

If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of

engine switch mode.

1-4. Obtaining the correct driving posture

108

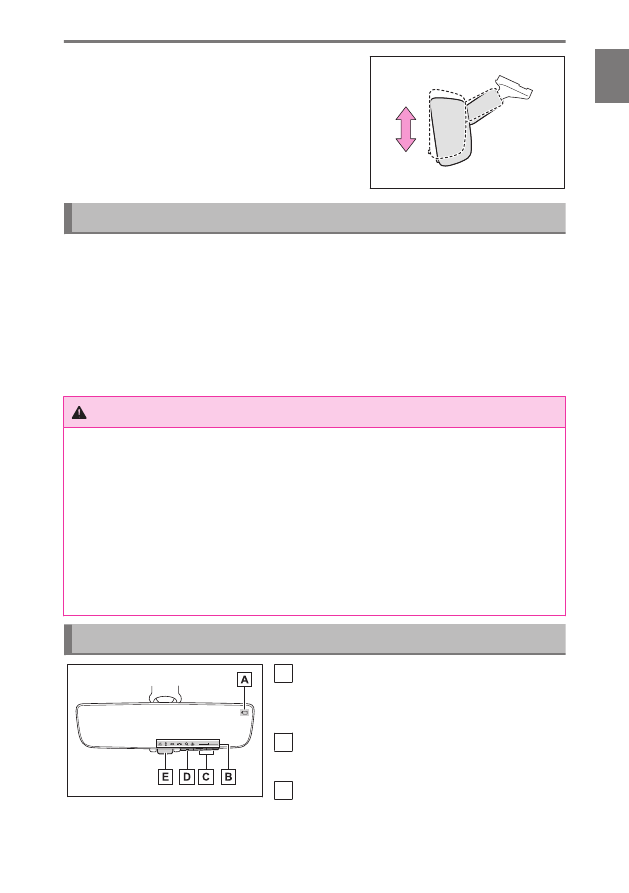

Adjust the inside rear view mirror vertically by
grasping and moving it.

Digital Rear-veiw mirror effort and caution

The Digital Rear-view Mirror is a system that uses the camera on the rear of the
vehicle and displays its image on the display of the Digital Rear-view Mirror.
The Digital Rear-view Mirror can be changed between optical mirror mode and
digital mirror mode by operating the lever.
The Digital Rear-view Mirror allows the driver to see the rear view despite obstruc-
tions, such as the head restraints or luggage, ensuring rear visibility. Also, the rear
seats are not displayed and privacy of the passengers is enhanced.

WARNING

Observe the following precautions. Failure to do so may result in death or serious injury.

■

Before using the Digital Rear-view Mirror

●

Make sure to adjust the mirror before driving.

•

Change to optical mirror mode and adjust the position of the Digital Rear-view
Mirror so that the area behind your vehicle can be viewed properly.

•

Change to digital mirror mode and adjust the display settings.

●

As the range of the image displayed by the Digital Rear-view Mirror is different from
that of the optical mirror, make sure to check this difference before driving.

System components of the Digital Rear-view Mirror

Camera indicator
Indicates that the camera is operating nor-
mally.

Icon display area
Displays icons, adjusting gauge, etc.

Select/adjust button

* :

If equipped

1-4. Obtaining the correct driving posture

109

Befor

e driving

Press to change the setting of the item you
want to adjust.

Menu button
Press to display the icon display area and
select the item you want to adjust.

Lever
Operate to change between digital mirror
mode and optical mirror mode.

Changing modes of the Digital Rear-view Mirror

Operate the lever to change between digital mirror mode and optical mirror
mode.

Digital mirror mode
Displays an image of the area behind the
vehicle.

[

] will illuminate in this mode.

Optical mirror mode
Turns off the display of the Digital Rearview
Mirror allows it to be used as an optical
mirror.

Digital mirror mode operating condition

The engine switch is turned to ON.
When the engine switch is changed from ON to OFF or ACC, the image will
disappear after several seconds.

Precautions about digital mirror mode

If it is difficult to see the displayed image due to light reflected off the Digital
Rear-view Mirror, the camera being dirty or covered with water droplets, dust, etc.,
or if lights of a vehicle behind your vehicle or the displayed image are bothering
you, change to optical mirror mode.
When it is raining, if the image is unclear due to water on the rear window, operate
the rear wiper.

1-4. Obtaining the correct driving posture

110

●

When the back door is open, the Digital Rear-view Mirror image may not
display properly. Before driving, make sure the back door is closed.

●

If the display is difficult to see due to reflected light, close the sunshade.

●

Any of the following conditions may occur when driving in the dark, such as at
night. None of them indicates that a malfunction has occurred.

•

Colors of objects in the displayed image may differ from their actual color.

•

Depending on the height of the lights of the vehicle behind, the area around the
vehicle may appear white and blurry.

•

Automatic image adjustment for brighter surrounding image may cause flickering.
If it is difficult to see the displayed image or flickering bothers you, change to optical
mirror mode.

●

The Digital Rear-view Mirror may become hot while it is in digital mirror mode.
This is not a malfunction.

●

Depending on your physical condition or age, it may take longer than usual to
focus on the displayed image. In this case, change to optical mirror mode.

●

Do not let passengers stare at the displayed image when the vehicle is being
driven, as doing so may cause motion sickness.

■

When the system malfunctions

If the symbol shown in the illustration is displayed
when using the Digital Rear-view Mirror in digital
mirror mode, the system may be malfunctioning.
The symbol will disappear in a few seconds.
Operate the lever, change to optical mirror
mode and have the vehicle inspected by any
authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Adjusting the Digital Rear-view Mirror

Settings of the display in the digital mirror mode, on/off operation of the automatic
anti-glare function, etc. can be changed.

1-4. Obtaining the correct driving posture

111

Befor

e driving

Press the menu button.

The icons will be displayed.

Press the menu button repeatedly and select the item you want to adjust.

Press [

] or [

]to change the setting.

The icons will disappear if a button is not operated for approximately 5 seconds or
more.

Icons

Settings

Select to adjust the brightness of the dis-
play.

Select to adjust the area displayed up/
down.

Select to adjust the area displayed to the
left/right.

Select to adjust the angle of the displayed
image.

Select to zoom in/out the displayed im-
age.

Select to enable/disable the automatic
anti-glare function.

Responding to the brightness of the
headlights of vehicles behind, the reflect-
ed light is automatically adjusted.
The automatic anti-glare function is en-
abled each time the engine switch is
changed to ON.

*2 :

This is a function for the optical mirror mode, however, the setting can also be changed

while using the digital mirror mode.

1-4. Obtaining the correct driving posture

112

Precautions when adjusting the Digital Rear-view Mirror

■

Display settings (digital mirror mode)

●

The icons will disappear if a button is not operated for approximately 5 seconds
or more.

●

If the displayed image is adjusted, it may appear distorted. This is not a malfunc-
tion.

●

If the brightness of the Digital Rear-view Mirror is set too high, it may cause eye
strain. Adjust the Digital Rear-view Mirror to an appropriate brightness. If your
eyes become tired, change to optical mirror mode.

●

The brightness of the Digital Rear-view Mirror will change automatically accord-
ing to the brightness of the area in front of your vehicle.

■

To prevent the light sensors from malfunctioning

To prevent the light sensors from malfunctioning,
do not touch or cover them.

WARNING

Observe the following precautions. Failure to do so may result in death or serious injury.

■

While driving

●

Do not adjust the position of the Digital Rear-view Mirror or adjust the display settings
while driving.
Stop the vehicle and operate the Digital Rear-view Mirror control switches. Failure
to do so may cause a steering wheel operation error, resulting in an unexpected
accident.

●

Always pay attention to the vehicle’s surroundings.
The size of the vehicles and other objects may look different when in digital mirror
mode and optical mirror mode. When backing up, make sure to directly check the
safety of the area around your vehicle, especially behind the vehicle. Additionally, if a
vehicle approaches from the rear in the dark, such as at night, the surrounding area
may appear dim.

1-4. Obtaining the correct driving posture

113

Befor

e driving

Cleaning the Digital Rear-view Mirror

■

Cleaning the mirror surface

If the mirror surface is dirty, the image on the display may be difficult to see. Wipe
the mirror surface gently using a soft dry cloth.

INFORMATION

■

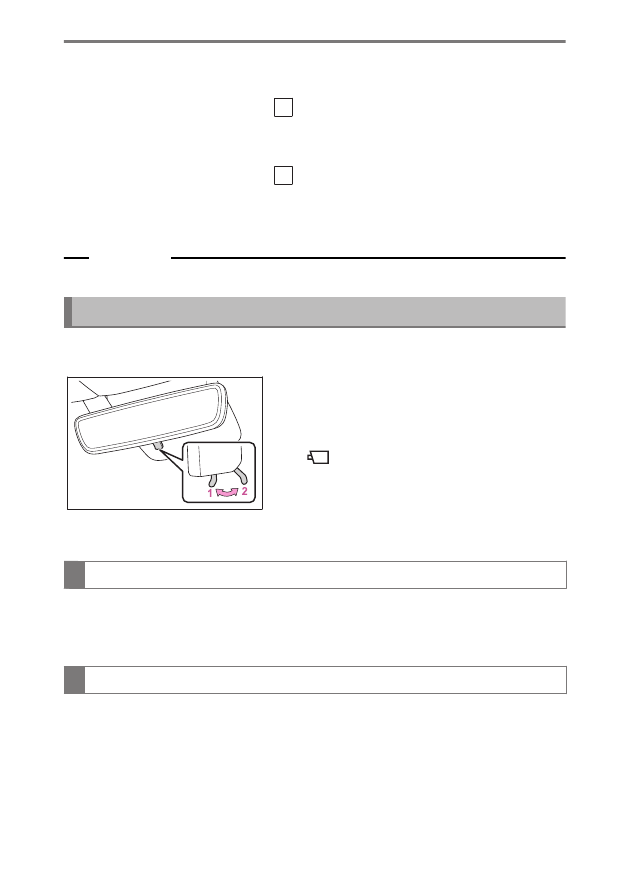

The camera

The camera for the Digital Rear-view Mirror is locat-
ed as shown.

NOTICE

■

To prevent the camera from malfunctioning

●

Observe the following precautions, otherwise the Digital Rear-view Mirror may not
operate properly.

•

Do not strike or hit the camera or subject it to a strong impact, as the camera
installation position and angle may be changed.

•

Do not remove, disassemble or modify the camera.

•

Do not allow an organic solvent, car wax, window cleaner or glass coating to
adhere to the camera. If this happens, wipe it off as soon as possible.

•

When applying colored film (including transparent film) to the rear window glass,
do not apply it to the area in front of the camera. If film is applied to the area in front
of the camera, the image from the camera may not display properly.

●

Do not subject the camera to a strong impact as this could cause a malfunction. If
this happens, have the vehicle inspected by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer as soon as possible.

1-4. Obtaining the correct driving posture

114

NOTICE

●

Do not block the vent holes of the mirror. Other-
wise, the mirror may be hot, leading to a malfunc-
tion or a fire.

If you notice any symptoms about the Digital Rear-view Mirror

If you notice any of the following symptoms, refer to the following table for the likely
cause and the solution.
If the symptom is not resolved by the solution, have the vehicle inspected by any
authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.

Symptom

Likely cause

Solution

The image is
difficult to see.

The mirror surface is dirty.

Wipe the mirror surface gently, using a
soft dry cloth.

Sunlight or headlights are
shining directly into the Digi-
tal Rear-view Mirror.

Change to optical mirror mode. (If the
light is coming through the moon roof
or panoramic moon roof, close the sun-
shade or electronic sunshade.)

1-4. Obtaining the correct driving posture

115

Befor

e driving

Symptom

Likely cause

Solution

The image is
difficult to see.

●

The vehicle is in a dark
area.

●

The vehicle is near a TV
tower, broadcasting sta-
tion, electric power plant,
or other location where
strong radio waves or
electrical noise may be
present.

●

The temperature around
the camera is extremely
high/low.

●

The ambient temperature
is extremely low.

●

It is raining or humid.

●

Sunlight or headlights are
shining directly into the
camera lens.

●

The vehicle is under flu-
orescent lights, sodium
lights, mercury lights, etc.

●

Exhaust gas is obstructing
the camera.

Change to optical mirror mode. (Change
back to digital mirror mode when the
conditions have improved.)

Foreign matters such as wa-
ter droplets or dust is on the
camera lens.

Have the vehicle inspected by any au-
thorized Lexus retailer or Lexus author-
ized repairer, or any reliable repairer

The luggage in the luggage
compartment is reflected off
the rear window glass and
obstructing the camera.

Change to optical mirror mode.
Move the luggage to a position where it
does not obstruct the camera or cover it
with a black cloth to reduce the amount it
is reflected off the rear window glass.

The rear window glass is fog-
ged up.

After defogging the rear window using
the rear window defogger, use the digital
mirror mode again.

The outside of the rear win-
dow glass is dirty.

Use the rear window wiper to remove
dirt.

1-4. Obtaining the correct driving posture

116

Lexus NX (2023 year). Manual in english - page 3
