7-2. Steps to take in an emergency

except in cases of emergency.

Press the parking brake switch to
check that the parking brake is set.
(



P.183)

Parking brake indicator will come on.

Turn the power switch to ACCES-
SORY mode.

Press and hold the power switch for
about 15 seconds while depressing
the brake pedal firmly.

Even if the hybrid system can be
started using the above steps, the sys-
tem may be malfunctioning. Have the
vehicle inspected by your Lexus dealer.

If you lose your keys

New genuine mechanical keys can
be made by your Lexus dealer using
another mechanical key and the
key number stamped on your key
number plate.

Keep the plate in a safe place such
as your wallet, not in the vehicle.

NOTICE

■

When an electronic key is lost

If the electronic key remains lost, the risk

of vehicle theft increases significantly.

Visit your Lexus dealer immediately with

all remaining electronic keys and the

card key (if equipped) that were pro-

vided with your vehicle.

473

7-2. Steps to take in an emergency

n t

ris

Remove the cover inside the trunk and
pull the lever.

■

When the electronic key does not work

properly

●

Make sure that the smart access system

with push-button start has not been dis-

abled at your Lexus dealer. If it has been

disabled, re-enable it.

●

Check if battery-saving mode is set. If it is

set, cancel the function. (



P.116)

■

Unlocking the door

Use the mechanical key (



P.100) in

order to perform the following opera-
tions:

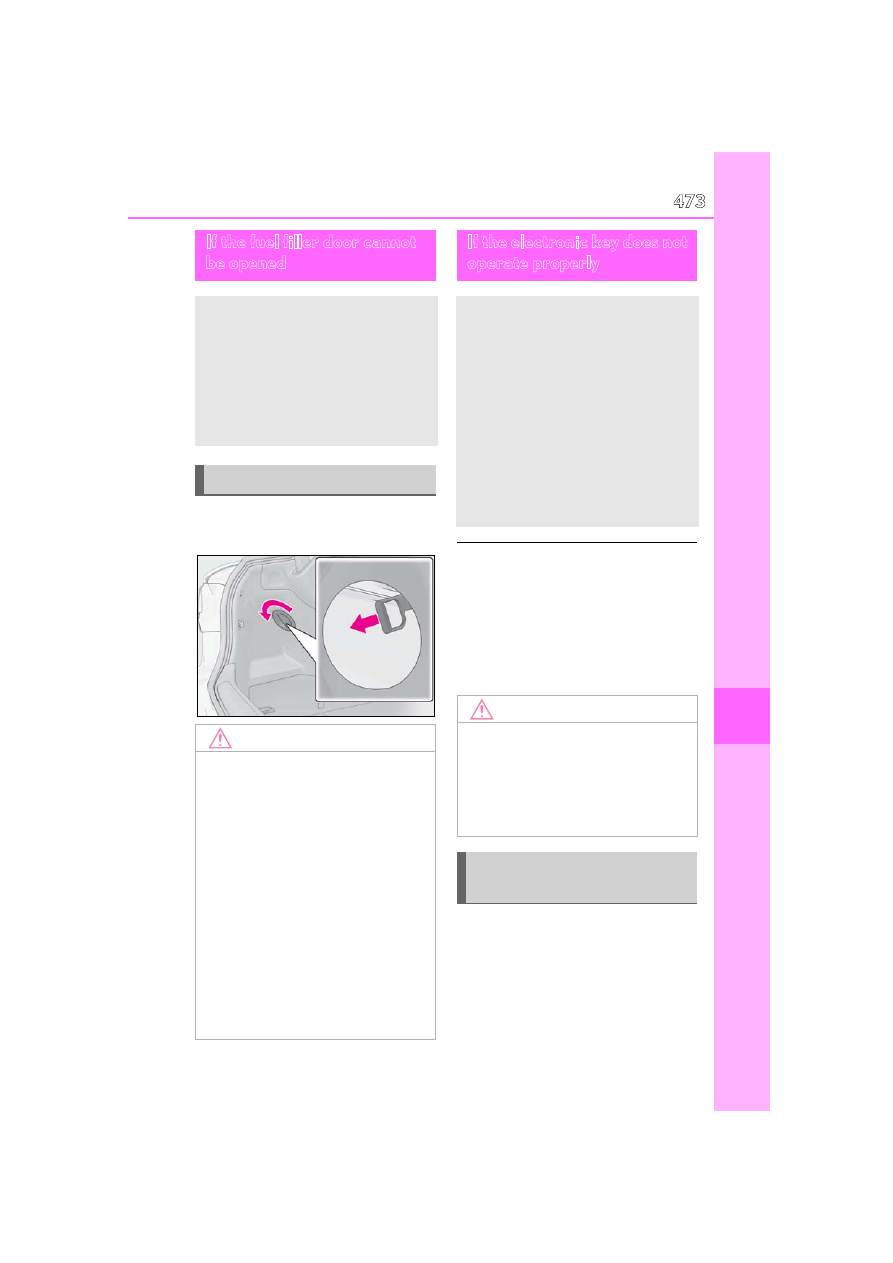

If the fuel filler door cannot
be opened

If the fuel filler door opener switch
cannot be operated, contact your
Lexus dealer to service the vehicle.
In case where refueling is urgently
necessary, the following procedure
can be used to open the fuel filler
door.

Opening the fuel filler door

NOTICE

■

When opening the fuel filler door

manually

●

Do not open the fuel filler door manu-

ally except in an emergency. Fuel may

overflow.

●

Using the lever to open the fuel filler

door may not allow for an adequate

reduction in fuel tank pressure before

refueling. To prevent fuel from spilling

out, turn the cap slowly when remov-

ing it.

●

During refueling, fuel may spill out

from the filler opening due to air being

discharged from inside the fuel tank.

Therefore, fill the fuel tank carefully

and slowly.

If the electronic key does not
operate properly

If communication between the
electronic key and vehicle is inter-
rupted (



P.116) or the electronic

key cannot be used because the
battery is depleted, the smart
access system with push-button
start and wireless remote control
cannot be used. In such cases, the
doors and trunk can be opened and
the hybrid system can be started by
following the procedure below.

NOTICE

■

In case of a smart access system with

push-button start malfunction or

other key-related problems

Take your vehicle with all the electronic

keys provided with your vehicle to your

Lexus dealer.

Locking and unlocking the
doors, unlocking the trunk

474

7-2. Steps to take in an emergency

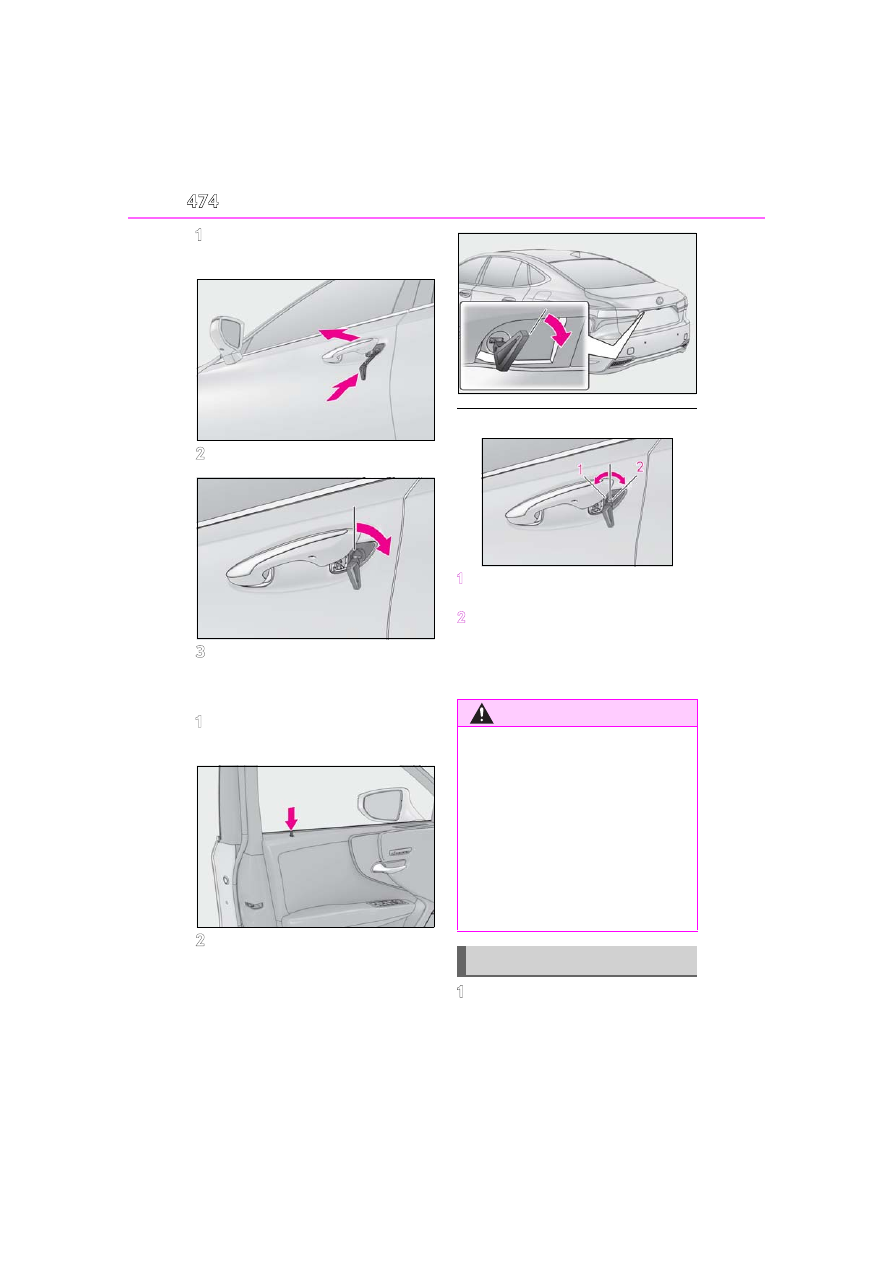

Pull the driver’s door handle and
insert the mechanical key.

Unlock the door.

Remove the key, return the handle,
and then pull the handle again.

■

Locking the door

With the door open, push down the
inside lock button.

Close the door.

■

Trunk

Turn the mechanical key clockwise to
open.

■

Key linked functions

Closes the windows and the moon roof
(turn and hold)

Opens the windows and the moon roof
(turn and hold)

These settings must be customized at your

Lexus dealer.

Depress the brake pedal.

WARNING

■

When using the mechanical key and

operating the power windows or

moon roof

Operate the power window or moon

roof after checking to make sure that

there is no possibility of any passenger

having any of their body parts caught in

the window or moon roof.

Also, do not allow children to operate the

mechanical key. It is possible for children

and other passengers to get caught in

the power window or moon roof.

Starting the hybrid system

475

7-2. Steps to take in an emergency

When trouble

ari

ses

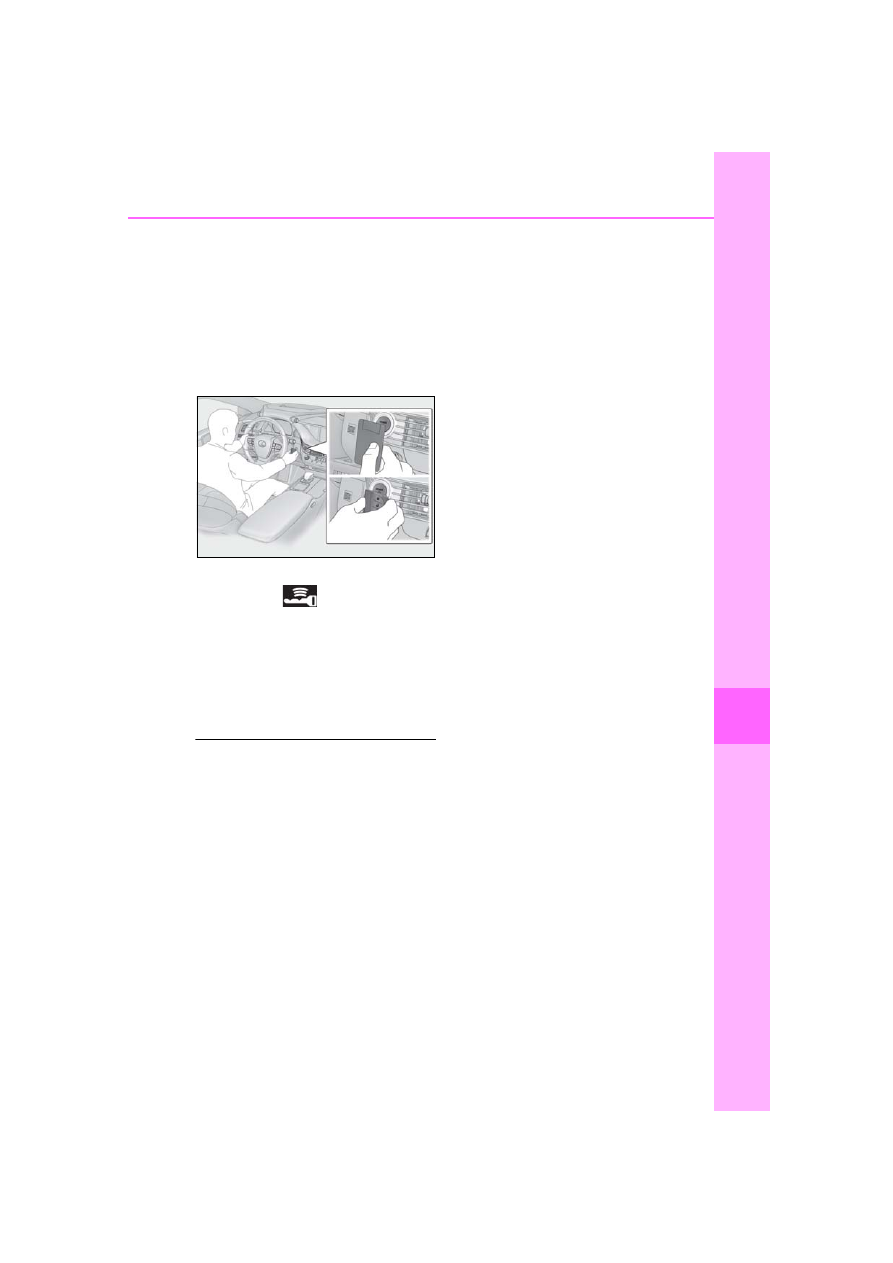

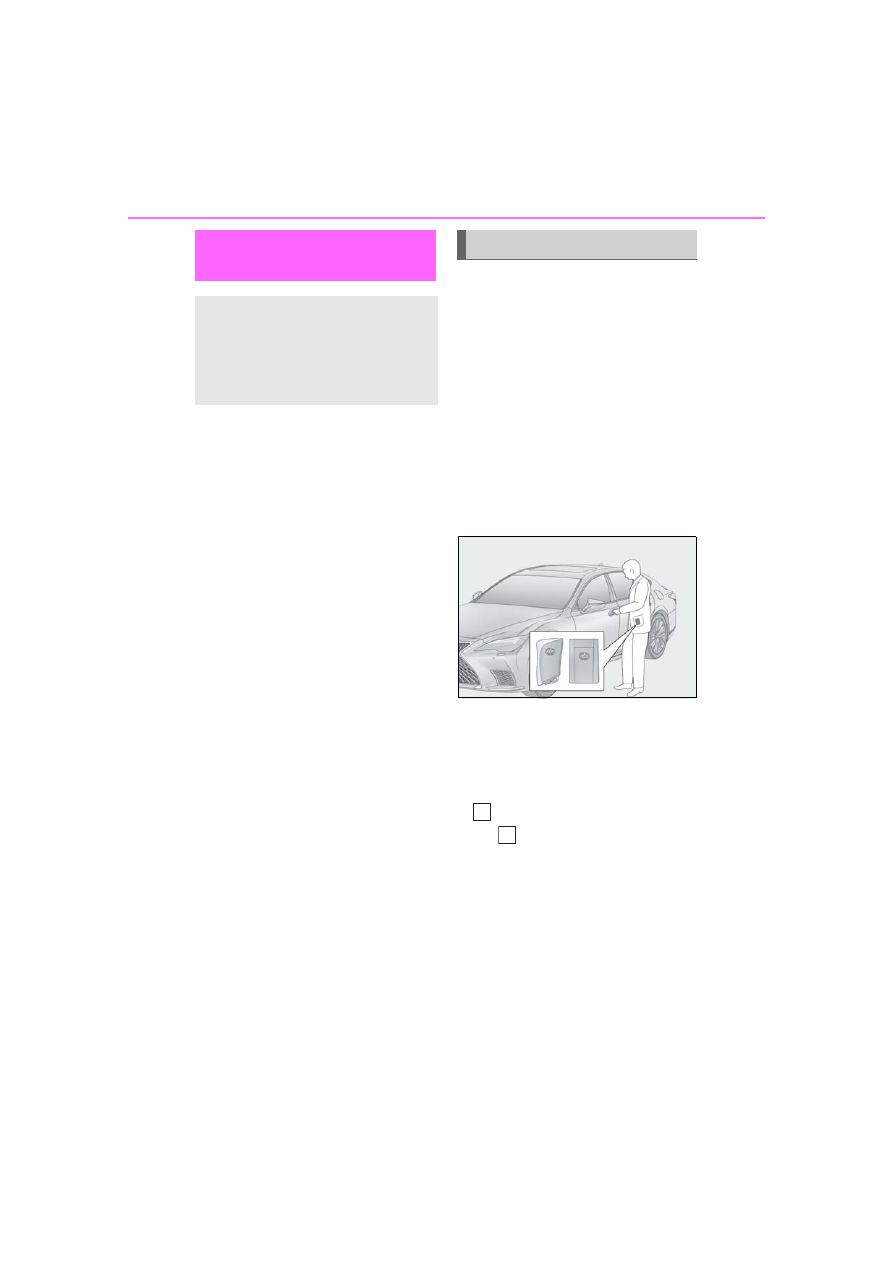

Touch the Lexus emblem side of the
electronic key to the power switch.

When the electronic key is detected, a

buzzer sounds and the power switch will

turn to ON mode.
When the smart access system with

push-button start is deactivated in custom-

ization setting, the power switch will turn to

ACCESSORY mode.

Firmly depress the brake pedal and
check that

is shown on the

multi-information display.

Press the power switch.

In the event that the hybrid system still
cannot be started, contact your Lexus
dealer.

■

Stopping the hybrid system

Set the parking brake, shift the shift position

to P and press the power switch as you nor-

mally do when stopping the hybrid system.

■

Electronic key battery

As the above procedure is a temporary

measure, it is recommended that the elec-

tronic key battery be replaced immediately

when the battery is depleted. (



P.439)

■

Alarm (for Canada)

If a door or trunk is unlocked using the

mechanical key when the alarm system is

set, the alarm may be triggered. (



P.73)

■

Changing power switch modes

Release the brake pedal and press the

power switch in step

above. The hybrid

system does not start and modes will be

changed each time the switch is pressed.

(



P.172)

476

7-2. Steps to take in an emergency

If you have a set of jumper (or booster)
cables and a second vehicle with a
12-volt battery, you can jump start your
vehicle by following the steps below.



Method connecting jumper (or
booster) cables to the 12-volt bat-
tery

Confirm that the electronic key is
being carried.

When connecting the jumper (or booster)

cables, depending on the situation, the

alarm may activate and doors locked.

(



P.74)

Open the trunk lid and remove the
luggage mat. (



P.376)

In the event that the trunk opener cannot

be used, use the mechanical key to open

the trunk. (



P.474)

Connect a positive jumper cable clamp to on your vehicle and connect the
clamp on the other end of the positive cable to on the second vehicle. Then,

If the 12-volt battery is dis-
charged

The following procedures may be
used to start the hybrid system if the
12-volt battery is discharged.
You can also call your Lexus dealer
or a qualified repair shop.

Restarting the hybrid system

477

7-2. Steps to take in an emergency

When trouble

ari

ses

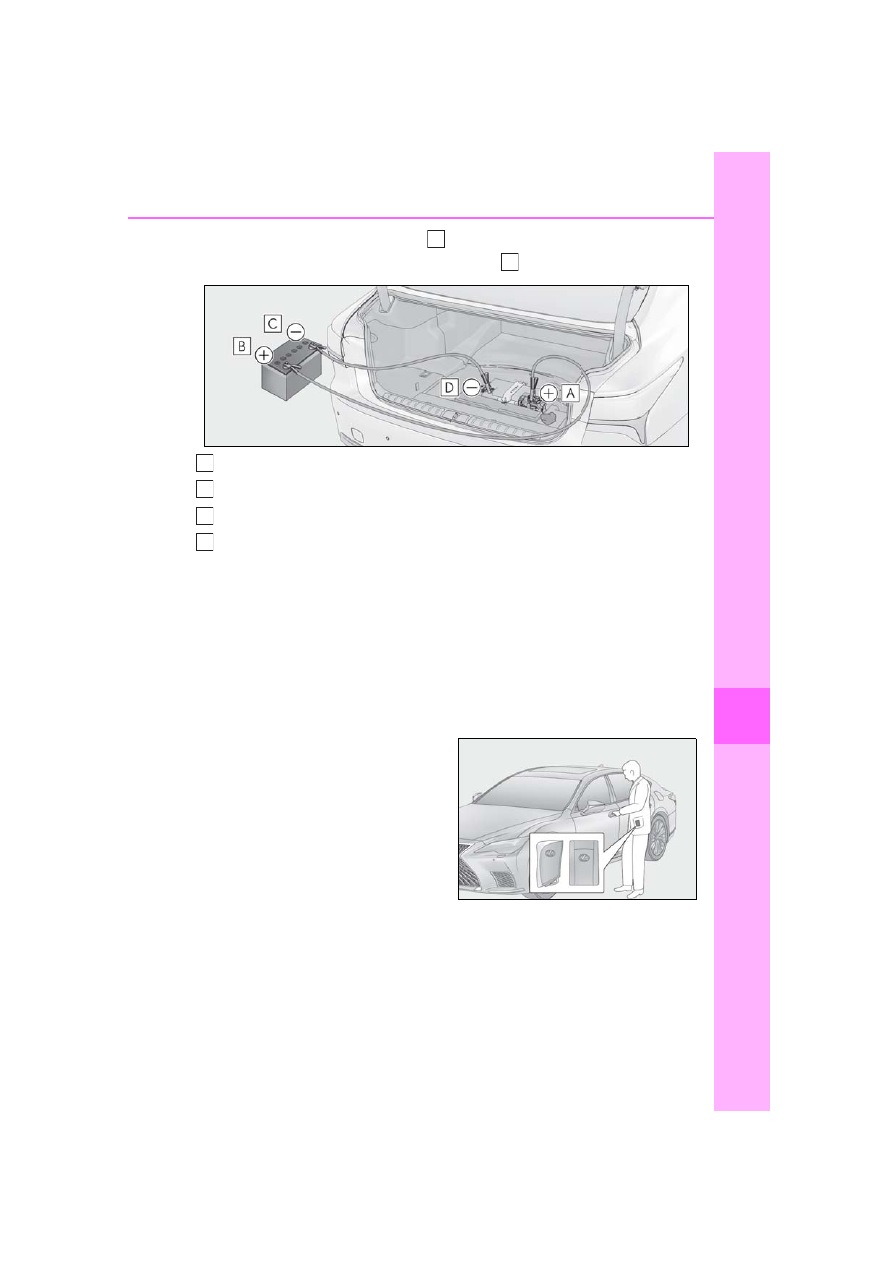

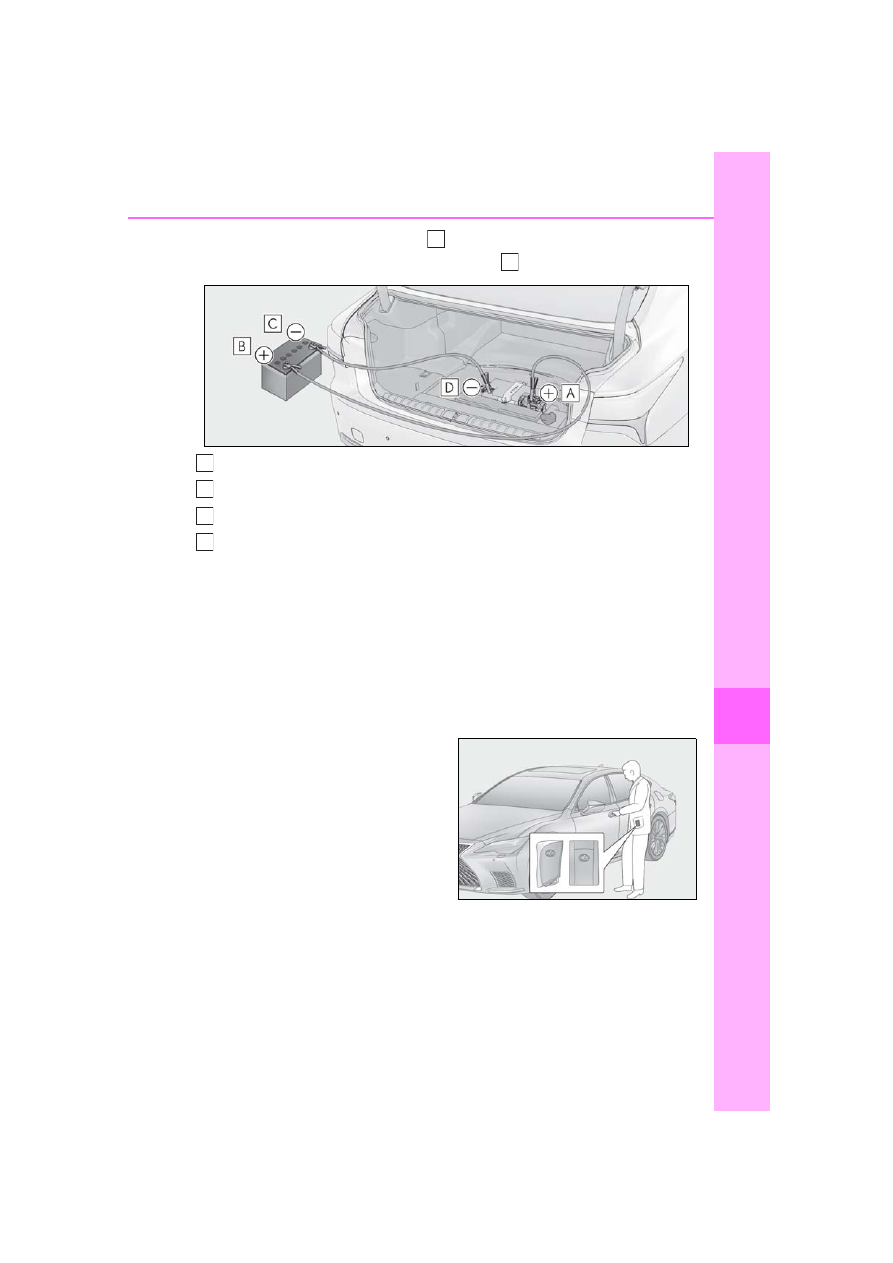

connect a negative cable clamp to on the second vehicle and connect the
clamp at the other end of the negative cable to .

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Negative (-) battery terminal (your vehicle)

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery of your
vehicle.

Open and close any of the doors of
your vehicle with the power switch
off.

Maintain the engine speed of the
second vehicle and start the hybrid
system of your vehicle by turning
the power switch to ON mode.

Make sure the “READY” indicator
comes on. If the indicator does not
come on, contact your Lexus
dealer.

Once the hybrid system has
started, remove the jumper cables
in the exact reverse order from
which they were connected.



Method connecting jumper (or
booster) cables to the exclusive
jump starting terminal

Confirm that the electronic key is
being carried.

When connecting the jumper (or booster)

cables, depending on the situation, the

alarm may activate and doors locked.

(



P.74)

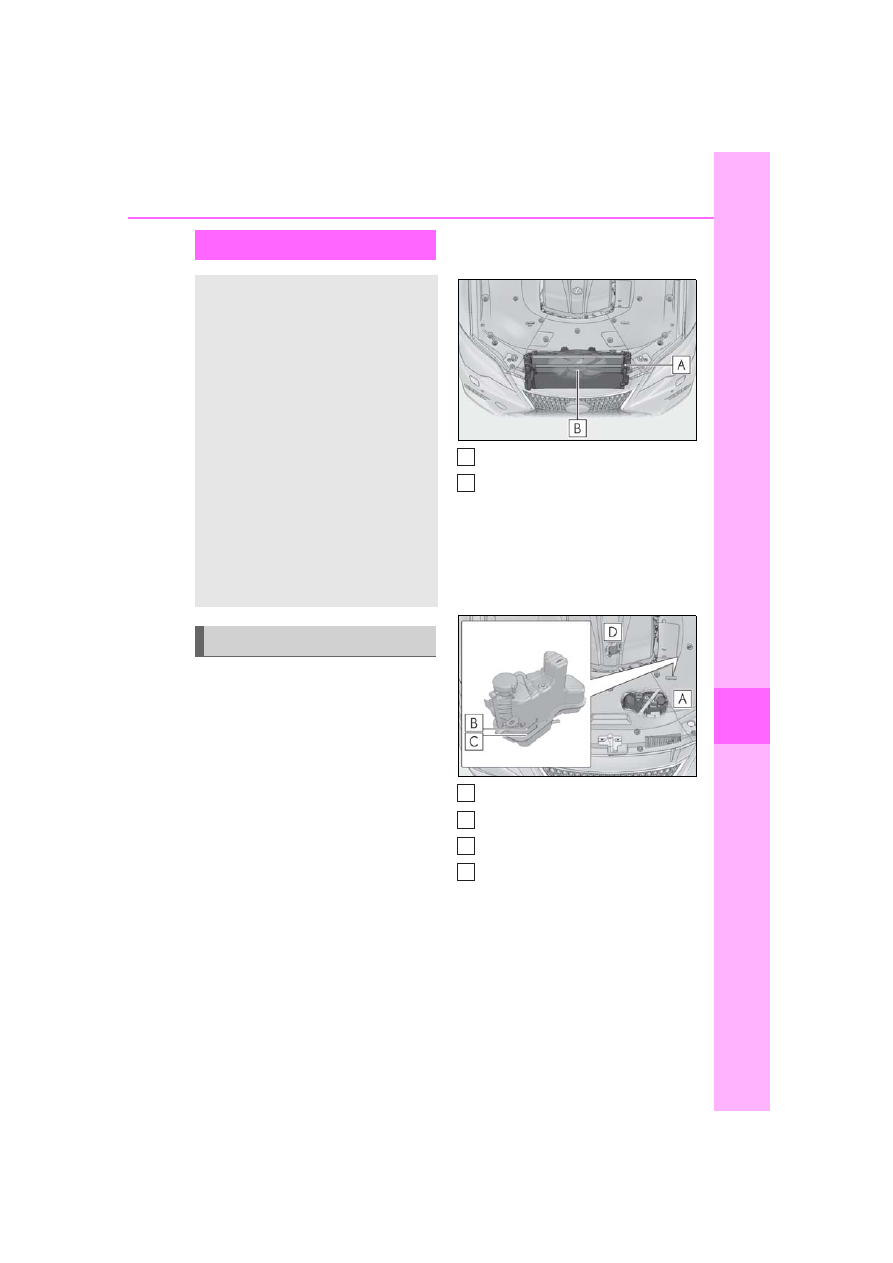

Open the hood. Remove the fuse
box cover. (



P.409)

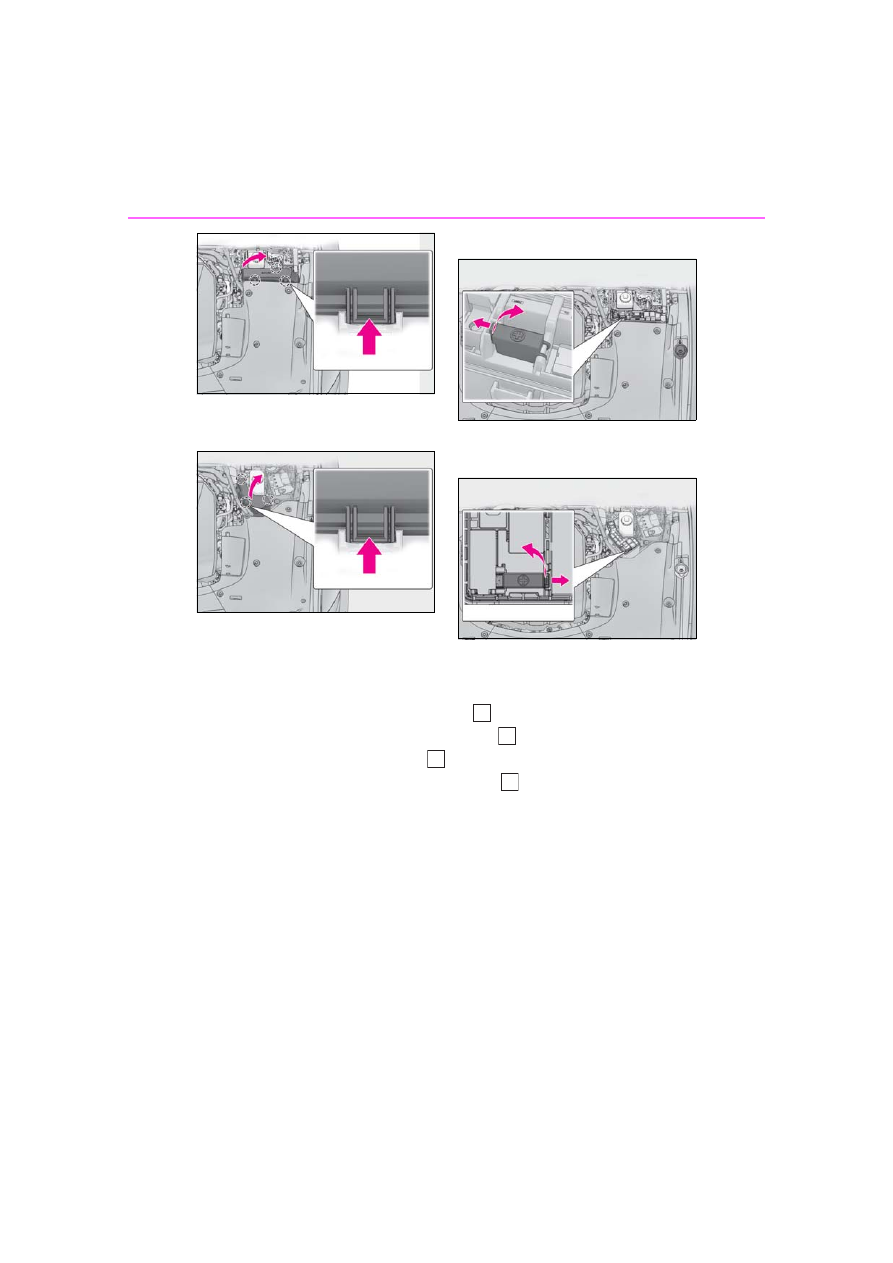

Push the tabs in and lift the lid off.



Vehicles without Lexus Teammate
Advanced Park

A
B
C
D

478

7-2. Steps to take in an emergency



Vehicles with Lexus Teammate
Advanced Park

Open the exclusive jump starting
terminal cover.



Vehicles without Lexus Teammate

Advanced Park



Vehicles with Lexus Teammate
Advanced Park

Remove the engine cover.
(



P.413)

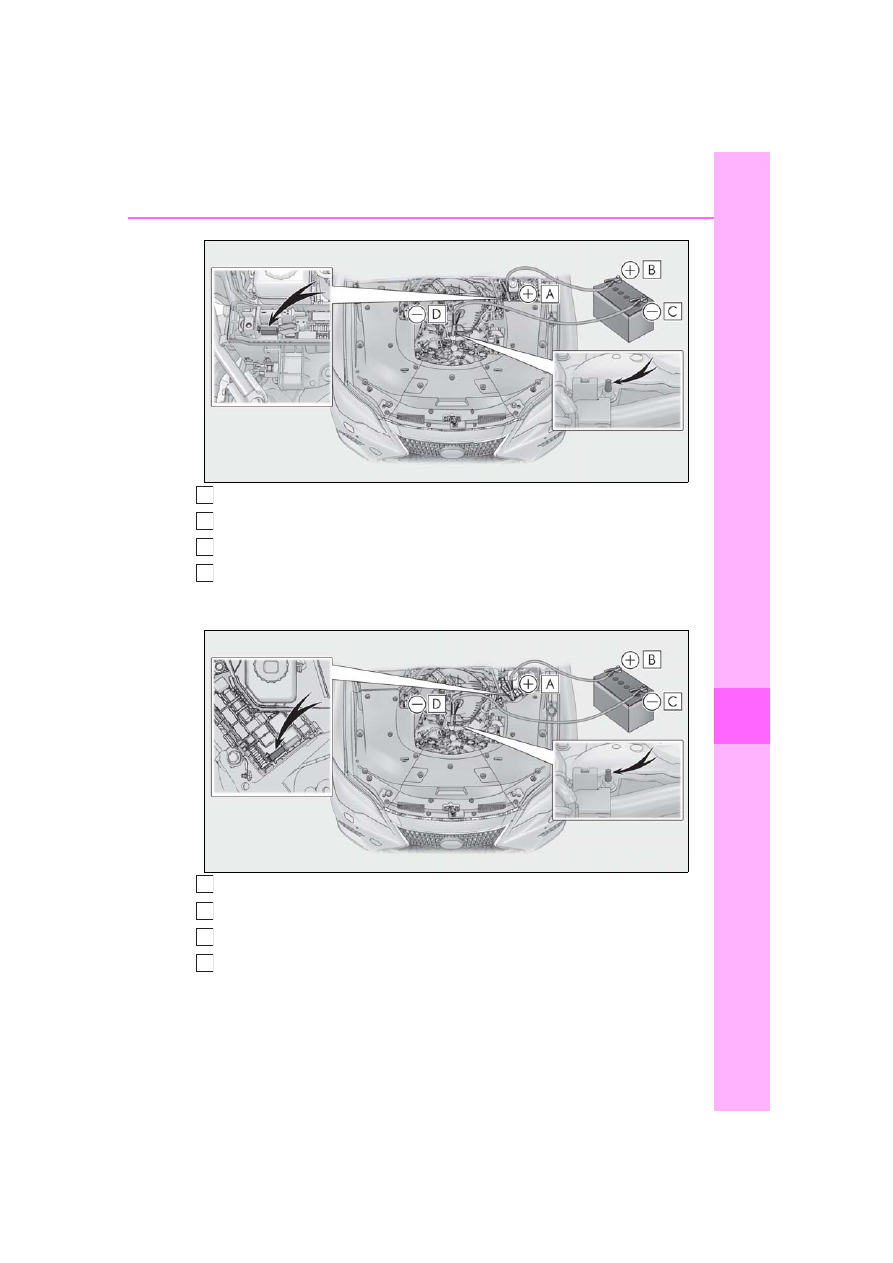

Connect a positive jumper cable clamp to   on your vehicle and connect the
clamp on the other end of the positive cable to   on the second vehicle. Then,
connect a negative cable clamp to   on the second vehicle and connect the
clamp at the other end of the negative cable to  .

Use jumper cables that can reach the specified terminals and connecting point.



Vehicles without Lexus Teammate Advanced Park

480

7-2. Steps to take in an emergency

Open and close any of the doors of
your vehicle with the power switch
off.

Maintain the engine speed of the
second vehicle and start the hybrid
system of your vehicle by turning
the power switch to ON mode.

Make sure the “READY” indicator
comes on. If the indicator does not
come on, contact your Lexus
dealer.

Once the hybrid system has
started, remove the jumper cables
in the exact reverse order from
which they were connected.

Close the exclusive jump starting
terminal cover and install the fuse
box cover and engine cover.
(



P.413)

Once the hybrid system starts, have
the vehicle inspected at your Lexus
dealer as soon as possible.

■

Starting the hybrid system when the

12-volt battery is discharged

The hybrid system cannot be started by

push-starting.

■

To prevent 12-volt battery discharge

●

Turn off the headlights and the audio sys-

tem while the hybrid system is off.

●

Turn off any unnecessary electrical com-

ponents when the vehicle is running at a

low speed for an extended period, such

as in heavy traffic.

■

When the 12-volt battery is removed or

discharged

●

Information stored in the ECU is cleared.

When the 12-volt battery is depleted,

have the vehicle inspected at your Lexus

dealer.

●

Some systems may require initialization.

(



P.524)

■

When removing the 12-volt battery ter-

minals

When the 12-volt battery terminals are

removed, the information stored in the

ECU is cleared. Before removing the

12-volt battery terminals, contact your

Lexus dealer.

■

Charging the 12-volt battery

The electricity stored in the 12-volt battery

will discharge gradually even when the

vehicle is not in use, due to natural dis-

charge and the draining effects of certain

electrical appliances. If the vehicle is left for

a long time, the 12-volt battery may dis-

charge, and the hybrid system may be

unable to start. (The 12-volt battery

recharges automatically while the hybrid

system is operating.)

■

When recharging or replacing the

12-volt battery

●

In some cases, it may not be possible to

unlock the doors using the smart access

system with push-button start when the

12-volt battery is discharged. Use the

wireless remote control or the mechani-

cal key to lock or unlock the doors.

●

The hybrid system may not start on the

first attempt after the 12-volt battery has

recharged but will start normally after the

second attempt. This is not a malfunction.

●

The power switch mode is memorized by

the vehicle. When the 12-volt battery is

reconnected, the system will return to the

mode it was in before the 12-volt battery

was discharged. Before disconnecting

the 12-volt battery, turn the power switch

off.

If you are unsure what mode the power

switch was in before the 12-volt battery

discharged, be especially careful when

reconnecting the 12-volt battery.

●

If the 12-volt battery discharges, it may

not be possible to shift the shift position to

other positions. In this case, the vehicle

cannnot be towed without lifting both

rear wheels because the rear wheels will

be locked.

481

7-2. Steps to take in an emergency

n t

ris

■

When replacing the 12-volt battery

●

Use a Central Degassing type 12-volt

battery (European Regulations).

●

Use a 12-volt battery with the same case

size as the previous 12-volt battery and an

equivalent 20 hour rate capacity (20HR)

or greater.

• If the sizes differ, the 12-volt battery can-

not be properly secured.

• If the 20 hour rate capacity is low, even if

the time period where the vehicle is not

used is a short time, the 12-volt battery

may discharge and the hybrid system

may not be able to start.

●

Use a 12-volt battery with a handle. If a

12-volt battery without a handle is used,

removal is more difficult.

●

After replacing, firmly attach the follow-

ing items to the exhaust hole of the

12-volt battery.

• Use the exhaust hose that was attached

to the 12-volt battery before replacing

and confirm that it is firmly connected to

the hole section of the vehicle.

• Use the exhaust hole plug included with

the 12-volt battery replaced or the one

installed on the 12-volt battery prior to

the replacement. (Depending on the

12-volt battery to be replaced, the

exhaust hole may be plugged.)

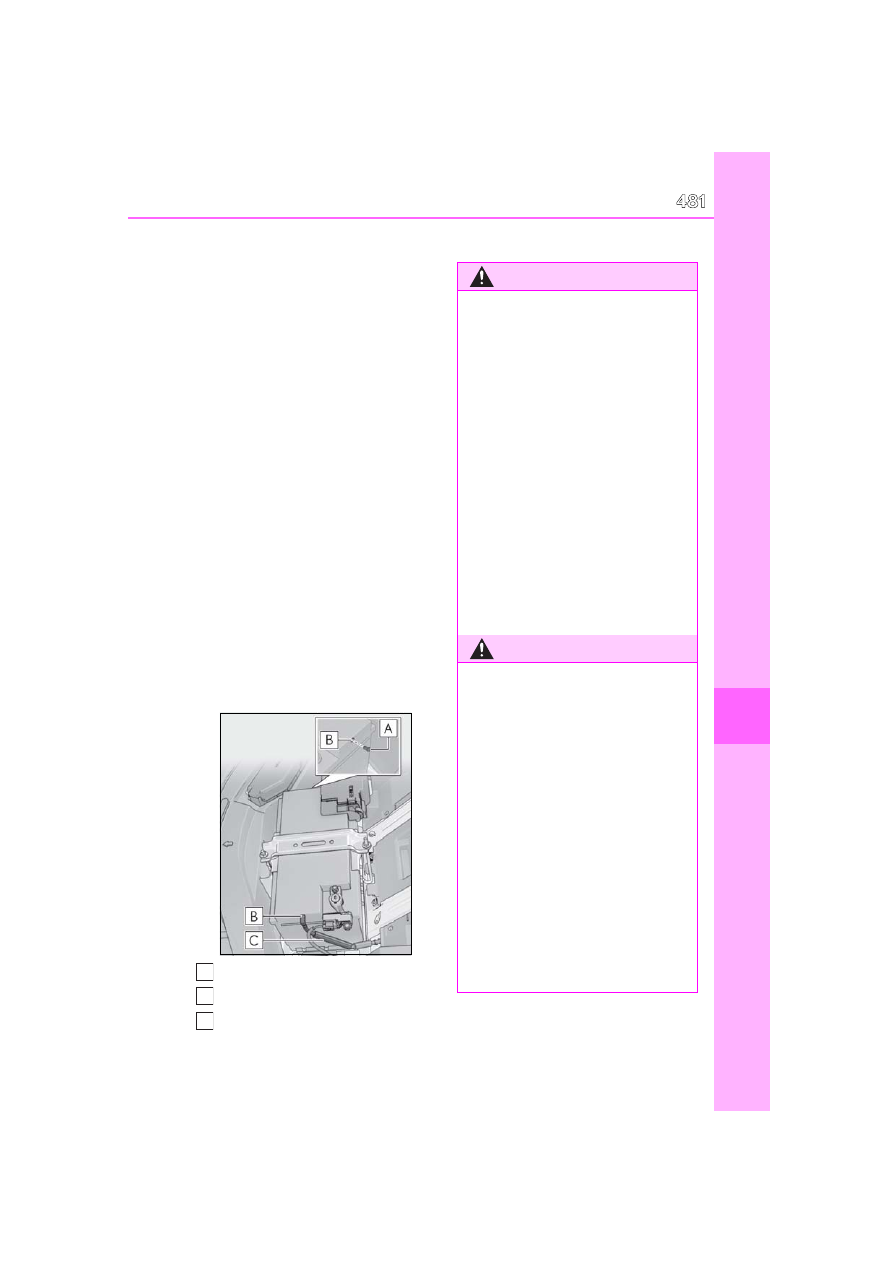

Exhaust hole plug
Exhaust hole
Exhaust hose

For details, consult your Lexus dealer.

WARNING

■

When removing the 12-volt battery

terminals

Always remove the negative (-) terminal

first. If the positive (+) terminal contacts

any metal in the surrounding area when

the positive (+) terminal is removed, a

spark may occur, leading to a fire in addi-

tion to electrical shocks and death or

serious injury.

■

Avoiding 12-volt battery fires or

explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the

12-volt battery:

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

WARNING

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

12-volt battery.

■

12-volt battery precautions

The 12-volt battery contains poisonous

and corrosive acidic electrolyte, while

related parts contain lead and lead com-

pounds. Observe the following precau-

tions when handling the 12-volt battery:

482

7-2. Steps to take in an emergency

●

When working with the 12-volt battery,

always wear safety glasses and take

care not to allow any battery fluids

(acid) to come into contact with skin,

clothing or the vehicle body.

●

Do not lean over the 12-volt battery.

●

In the event that battery fluid comes

into contact with the skin or eyes,

immediately wash the affected area

with water and seek medical attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after handling

the 12-volt battery support, terminals,

and other battery-related parts.

●

Do not allow children near the 12-volt

battery.

■

After recharging the 12-volt battery

Have the 12-volt battery inspected at

your Lexus dealer as soon as possible.

If the 12-volt battery is deteriorating, con-

tinued use may cause the 12-volt battery

to emit a malodorous gas, which may be

detrimental to the health of passengers.

■

When replacing the 12-volt battery

●

When the vent plug and indicator are

close to the hold down clamp, the bat-

tery fluid (sulfuric acid) may leak.

●

For information regarding 12-volt bat-

tery replacement, contact your Lexus

dealer.

●

After replacing, securely attach the

exhaust hose and exhaust hole plug to

the exhaust hole of the replaced

12-volt battery. If not properly installed,

gases (hydrogen) may leak into the

vehicle interior, and there is the possi-

ble danger of the gas igniting and

exploding.

NOTICE

■

When handling jumper cables

When connecting the jumper cables,

ensure that they do not become entan-

gled in the cooling fan or engine drive

belt.

■

When connecting jumper cables

Make sure to connect jumper cables to

the specified terminals and connecting

point. Failure to do so may adversely

affect the electronic devices or damage

to them.

■

To prevent damaging the vehicle

The exclusive jump starting terminal is to

be used when charging the 12-volt bat-

tery from another vehicle in an emer-

gency. It cannot be used to jump start

another vehicle.

483

7-2. Steps to take in an emergency

When trouble

ari

ses



If the engine coolant temperature
gauge enters the red zone or
“Engine Coolant Temp High Stop in
a Safe Place See Owner’s Manual”
is shown on the multi-information
display

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the hybrid system.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

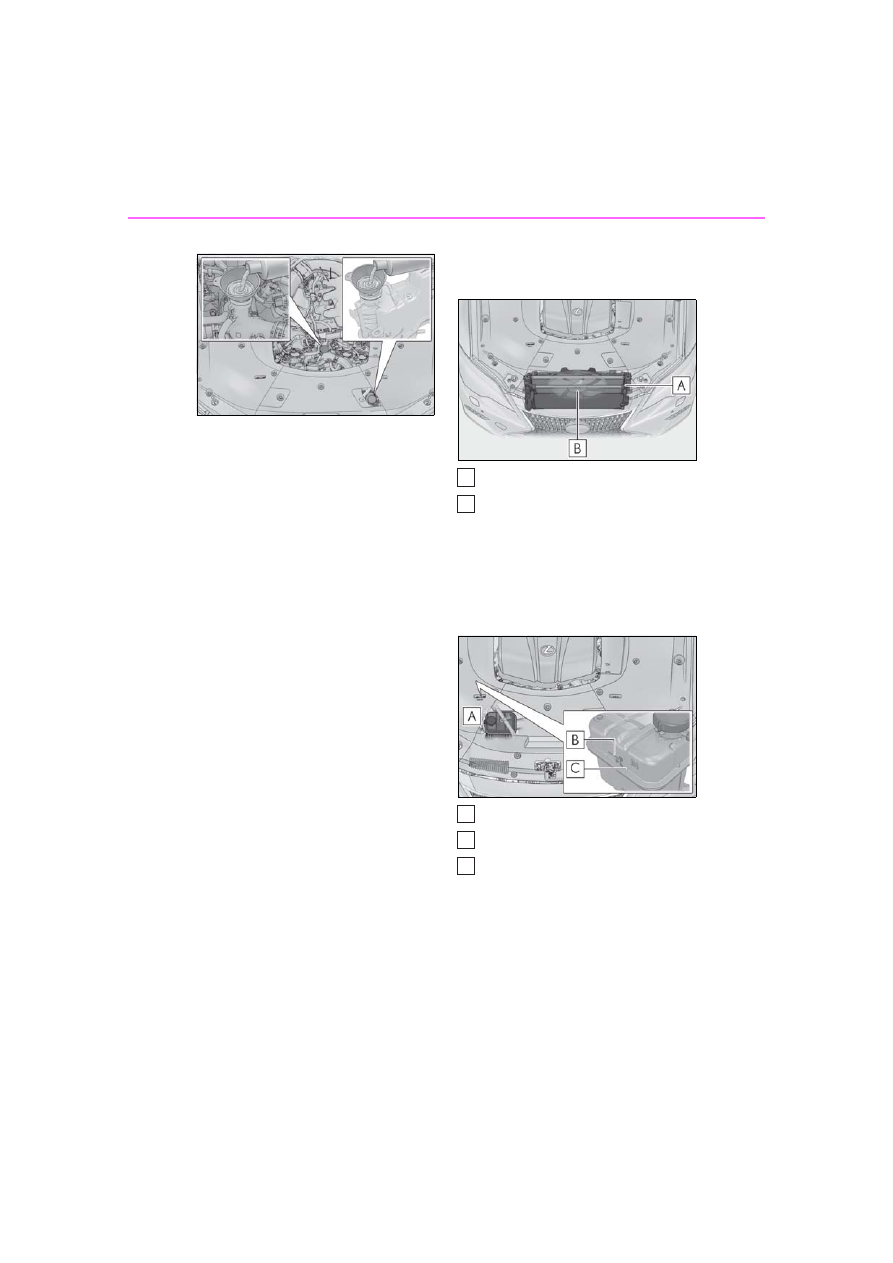

After the hybrid system has cooled
down sufficiently, inspect the hoses

and radiator core (radiator) for any
leaks.

Radiators
Cooling fan

If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.

Reservoir
“F” line
“L” line
Coolant inlet cap

Add coolant if necessary.
(



P.485)

Water can be used in an emergency if

If your vehicle overheats

The following may indicate that
your vehicle is overheating.



The engine coolant temperature
gauge (



P.80) is in the red zone

or a loss of hybrid system power is
experienced. (For example, the
vehicle speed does not increase.)



“Engine Coolant Temp High Stop
in a Safe Place See Owner’s
Manual” or “Hybrid System
Overheated Output Power
Reduced” is shown on the
multi-information display.



Steam comes out from under the
hood.

Correction procedures

A
B

A
B
C
D

484

7-2. Steps to take in an emergency

coolant is unavailable.

Start the hybrid system and turn the
air conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fan is operating

by checking the fan sound and air flow. If it

is difficult to check these, turn the air con-

ditioning system on and off repeatedly.

(The fan may not operate in freezing tem-

peratures.)

If the fan is not operating:
Stop the hybrid system immediately
and contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the
nearest Lexus dealer.



If “Hybrid System Overheated Out-
put Power Reduced” is shown on the
multi-information display

Stop the vehicle in a safe place.

Stop the hybrid system and care-
fully lift the hood.

After the hybrid system has cooled
down, inspect the hoses and radia-
tor core (radiator) for any leaks.

Radiator
Cooling fan

If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.

Reservoir
“F” line
“L” line

Remove the engine compartment
cover and add coolant if necessary.

Water can be used in an emergency if

A
B

A
B
C

485

7-2. Steps to take in an emergency

n t

ris

coolant is unavailable.

After stopping the hybrid system
and waiting for 5 minutes or more,
start the hybrid system again and
check for the multi-information dis-
play.
If the message does not disappear:
Stop the hybrid system and contact
your Lexus dealer.
If the message is not displayed:
The hybrid system temperature has
dropped and the vehicle may be
driven normally.

However, if the message appears again fre-

quently, contact your Lexus dealer.

■

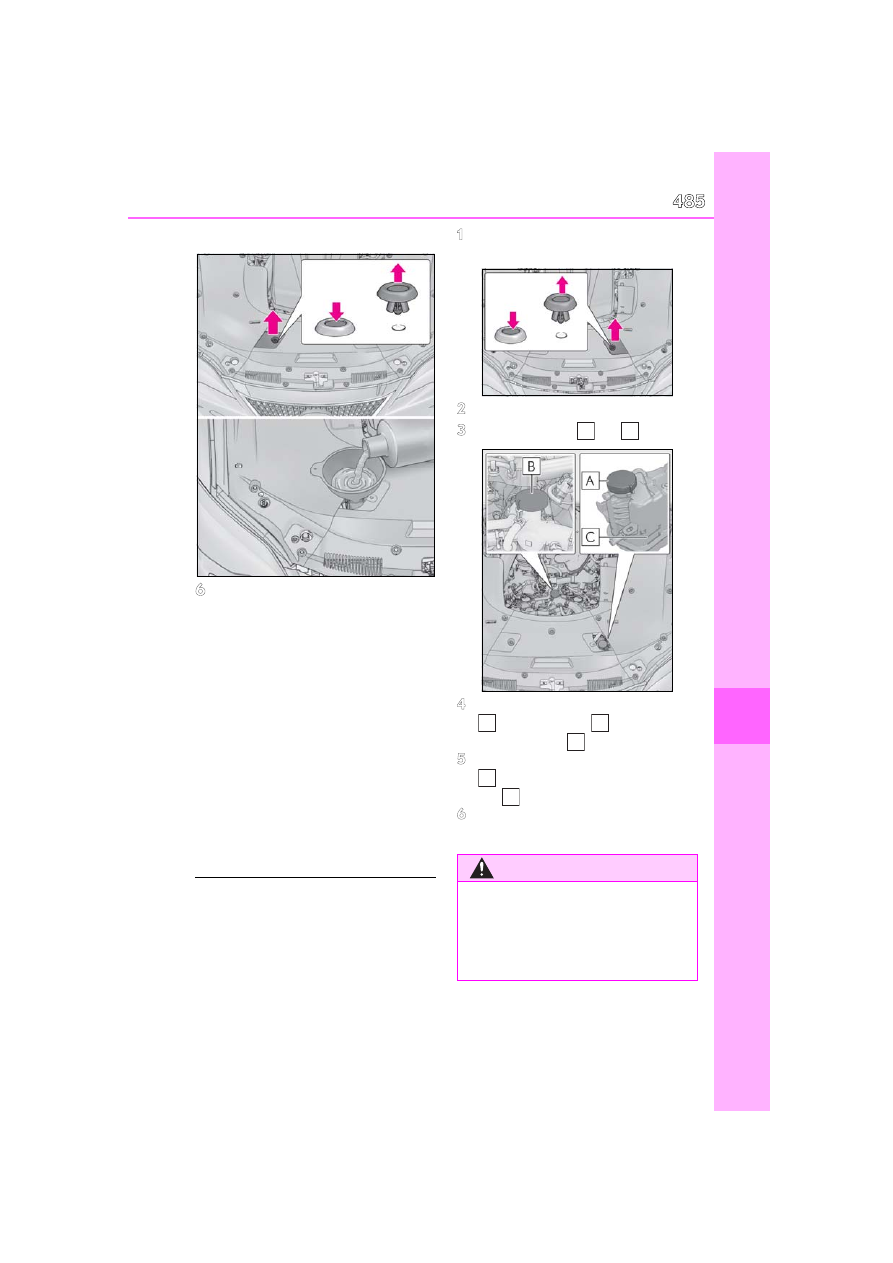

When adding engine coolant

Add coolant in accordance with the follow-

ing procedure.

Remove the engine compartment

cover.

Remove the engine cover. (



P.413)

Remove the caps

and

Add coolant through the inlet of the cap

up to the “F” line

, and then

replace the cap

Add coolant through the inlet of the cap

until it is full, and then replace the

cap .

Install the engine compartment cover

and engine cover. (



P.413)

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

486

7-2. Steps to take in an emergency

Stop the hybrid system. Set the
parking brake and shift the shift
position to P.

Remove the mud, snow or sand
from around the rear wheels.

Place wood, stones or some other
material under the rear wheels to
help provide traction.

Restart the hybrid system.

Shift the shift position to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

When it is difficult to free the vehicle

Press the

switch to turn off TRAC.

WARNING

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

After the hybrid system has been

turned off, check that the “READY”

indicator off.

When the hybrid system is operating,

the gasoline engine may automatically

start, or the cooling fan may suddenly

operate even if the gasoline engine

stops. Do not touch or approach rotat-

ing parts such as the fan, which may

lead to fingers or clothing (especially a

tie, a scarf or a muffler) getting caught,

resulting in serious injury.

●

Do not loosen the coolant inlet cap or

the coolant reservoir cap while the

hybrid system and radiator are hot.

High temperature steam or coolant

could spray out.

NOTICE

■

When adding engine/power control

unit coolant

Add coolant slowly after the hybrid sys-

tem has cooled down sufficiently. Adding

cool coolant to a hot hybrid system too

quickly can cause damage to the hybrid

system.

■

To prevent damage to the cooling sys-

tem

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

●

Do not use any coolant additive.

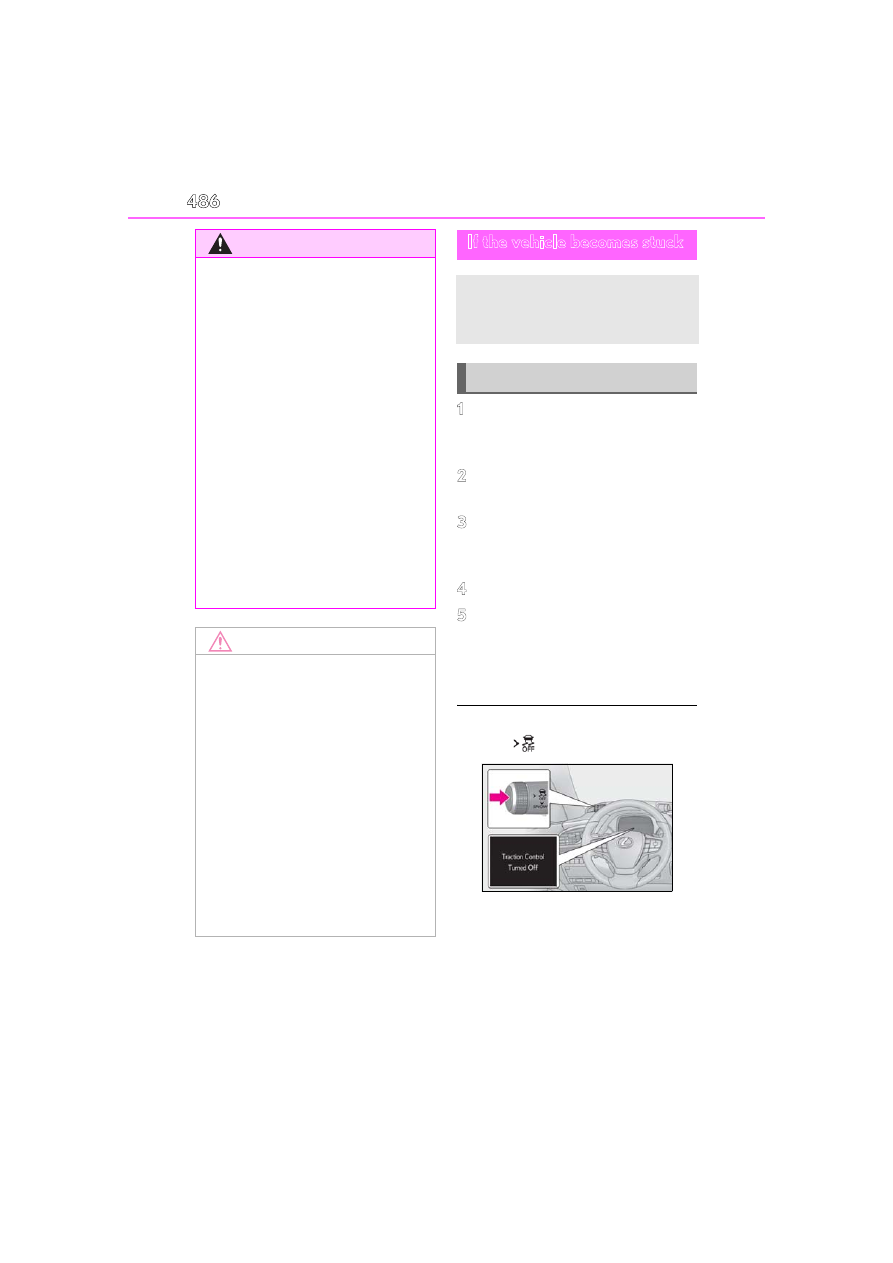

If the vehicle becomes stuck

Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

487

7-2. Steps to take in an emergency

n t

ris

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift position

Be careful not to shift the shift position

with the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the rear wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

489

Vehi

cle

spec

ifi

tions

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

490

Fuel information.........................

498

Tire information..........................

500

8-2. Customization

Customizable features............

509

8-3. Initialization

Items to initialize ........................

524

490

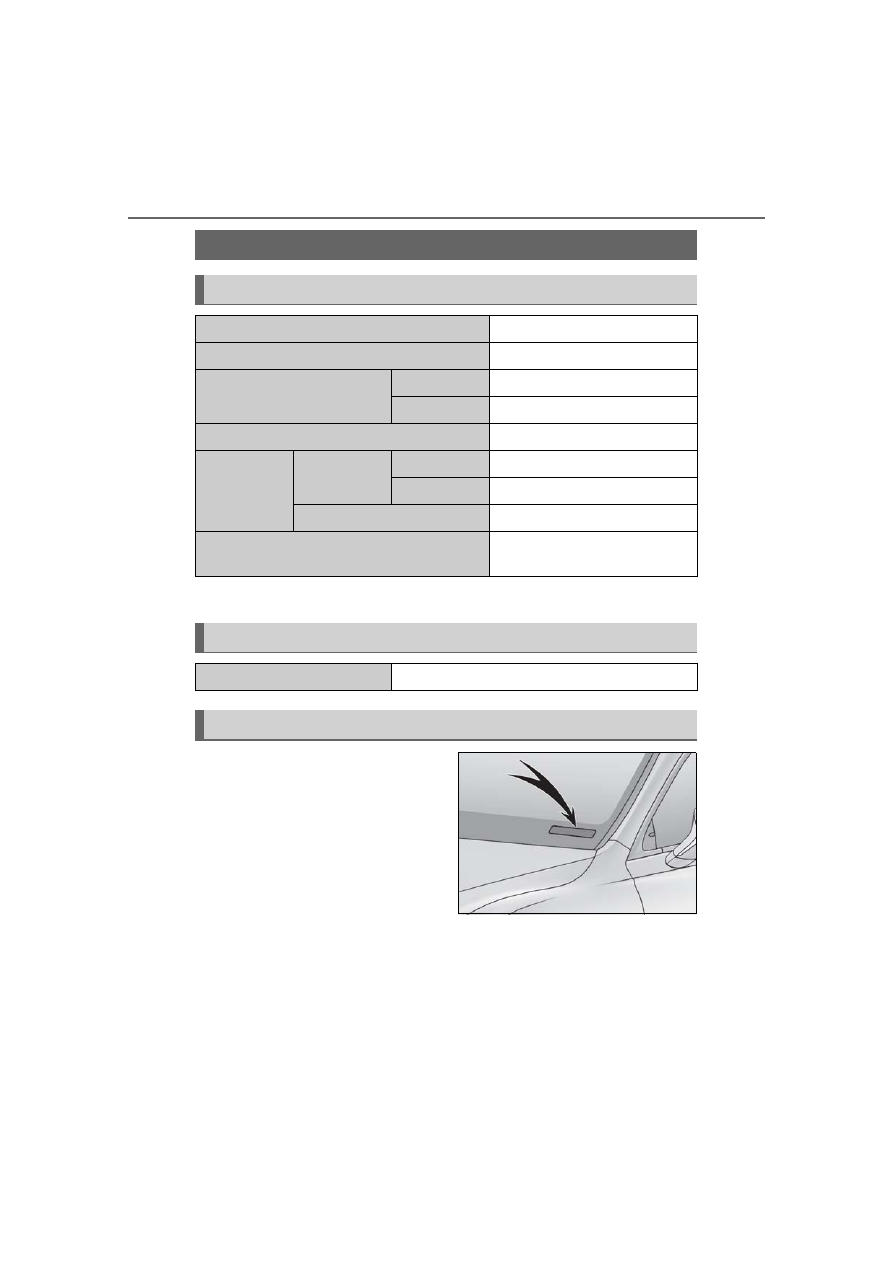

8-1. Specifications

8-1.Specifications

: Unladen vehicles

■

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel.

This number is also stamped under the
right-hand front seat.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

206.1 in. (5235 mm)

Overall width

74.8 in. (1900 mm)

Overall height

2WD models

57.1 in. (1450 mm)

AWD models

57.5 in. (1460 mm)

Wheelbase

123.0 in. (3125 mm)

Tread

Front

2WD models

64.2 in. (1630 mm)

AWD models

64.4 in. (1635 mm)

Rear

64.4 in. (1635 mm)

Vehicle capacity weight
(Occupants + luggage)

870 lb. (395 kg)

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

491

8-1. Specifications

Vehi

cle

spec

ifi

tions

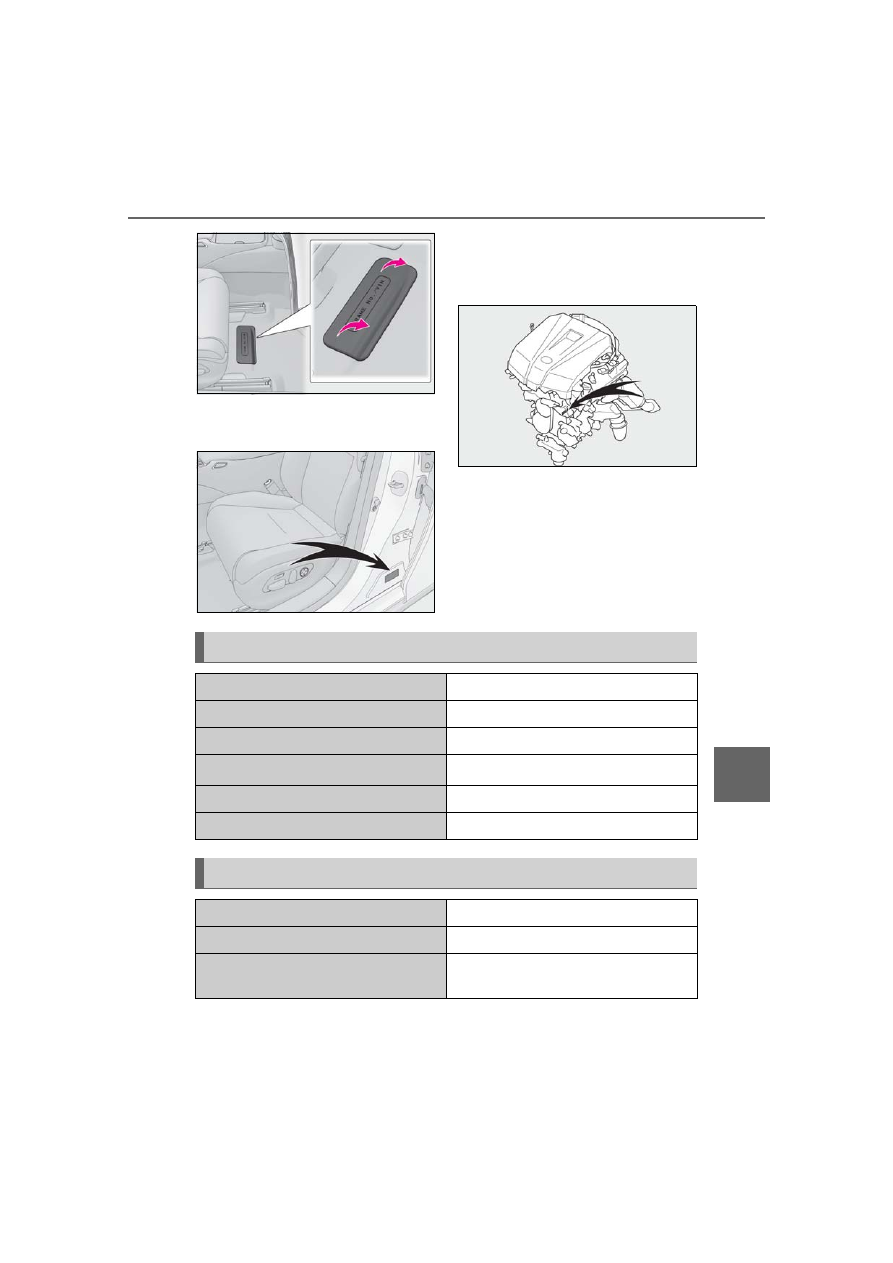

This number is also on the Certification
Label.

■

Engine number

The engine number is stamped on the
engine block as shown.

Engine

Model

3.5 L 6-cylinder (8GR-FXS) engine

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70



3.27 in. (94.0



83.0 mm)

Displacement

210.9 cu. in. (3456 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

91 (Research Octane Number 96) or higher

Fuel tank capacity
(Reference)

22.2 gal. (84.0 L, 18.5 Imp. gal.)

492

8-1. Specifications

■

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. Warm up the engine and turn
off the hybrid system, wait more than 5
minutes, and check the oil level on the
dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus

approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-6A multigrade
engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at
the next oil change.
Recommended viscosity (SAE):

Electric motor (traction motor)

Type

Permanent magnet synchronous motor

Maximum output

131.9 kW

Maximum torque

221.3 ft•lbf (300 N•m, 30.6 kgf•m)

Hybrid battery (traction battery)

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

4.3 Ah

Quantity

84 cells

Nominal voltage

310.8 V

Lubrication system

With filter



2WD models

6.0 qt. (5.7 L, 5.0 Imp. qt.)



AWD models

7.1 qt. (6.7 L, 5.9 Imp. qt.)

Without fil-
ter



2WD models

5.8 qt. (5.5 L, 4.8 Imp. qt.)



AWD models

6.8 qt. (6.4 L, 5.6 Imp. qt.)

493

8-1. Specifications

Vehi

cle

spec

ifi

tions

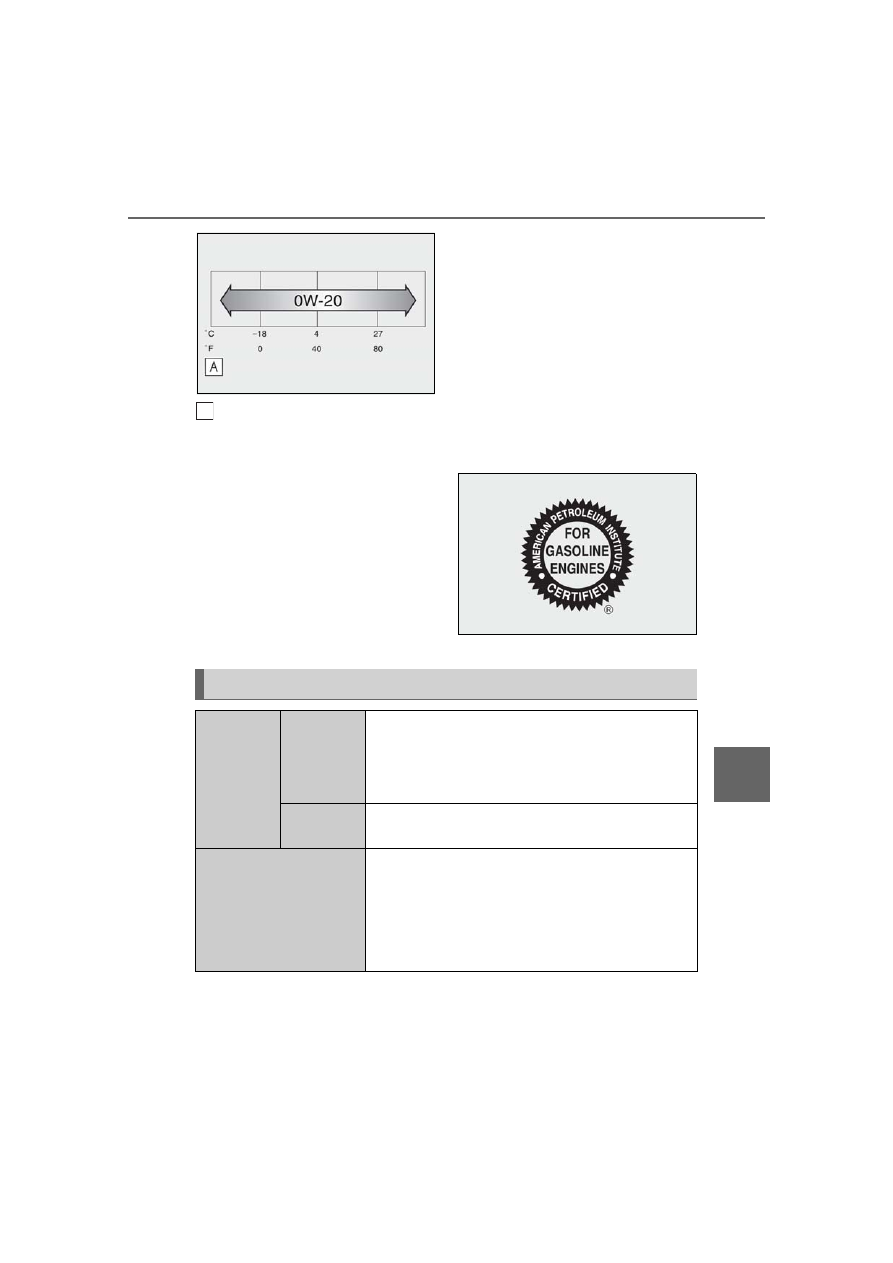

Outside temperature

Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 20 in 0W-20 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil

with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you
should use.

Cooling system

Capacity
(Reference)

Gasoline
engine



2WD models

11.7 qt. (11.1 L, 9.8 Imp. qt.)



AWD models

11.6 qt. (11.0 L, 9.7 Imp. qt.)

Power con-
trol unit

2.6 qt. (2.5 L, 2.2 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology

Do not use plain water alone.

494

8-1. Specifications

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

: Your Lexus vehicle is filled with Toyota genuine gear oil at the factory. Use Lexus

approved Toyota genuine gear oil or an equivalent of matching quality to satisfy the

Ignition system (spark plug)

Make

DENSO FK20HBR8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (12-volt battery)

Open voltage at 68°F (20°C):

12.0 V or higher
(Turn the power switch off and turn on the high
beam headlights for 30 seconds.)

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Hybrid transmission

Fluid capacity

7.2 qt. (6.8 L, 6.0 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-

tion, or ultimately damage the transmission of your vehicle.

Transfer (AWD models)

Oil capacity

0.74 qt. (0.70 L, 0.62 Imp. qt.)

Oil type and viscosity

Toyota Genuine Transfer gear oil LL 80 or equivalent

495

8-1. Specifications

Vehi

cle

spec

ifi

tions

above specification. Please contact your Lexus dealer for further details.

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of
matching quality to satisfy the above specification. Please contact your Lexus dealer for
further details.



2WD models



AWD models

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of
matching quality to satisfy the above specification. Please contact your Lexus dealer for
further details.

Front differential (AWD models)

Oil capacity

0.69 qt. (0.65 L, 0.57 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

Rear differential

Oil capacity

0.90 qt. (0.85 L, 0.75 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

Oil capacity

1.42 qt. (1.35 L, 1.19 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

Brakes

Pedal clearance

4.8 in. (122 mm) Min.

4.1 in. (105 mm) Min.

Pedal free play

0.04



0.24 in. (1



6 mm)

Brake pad wear limit

0.04 in. (1 mm)

Parking brake lining wear limit

0.04 in. (1 mm)

496

8-1. Specifications

: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51 kgf) while

the hybrid system is operating.
When performing the brake pedal inspection, also be sure to check that the brake sys-
tem warning light is not illuminated when the hybrid system is operating. (If the brake
system warning light is illuminated, refer to P.457.)

: Make sure to confirm that the brake warning light (yellow) does not illuminate. (If the

brake warning light illuminates, refer to P.457.)

: Vehicles without Advanced Park

: Vehicles with Advanced Park



19-inch tires

Parking brake indicator

When pushing the parking brake switch for 1 to 2
seconds: comes on
When pulling the parking brake switch for 1 to 2
seconds: turns off

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

245/50RF19 101V

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Driving at high speeds above 100 mph (160 km/h) (in
countries where such speeds are permitted by law)

Add 9 psi (60 kPa, 0.6 kgf/cm

or bar) to the front tires and

rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size



Wheel nut torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

497

8-1. Specifications

Vehi

cle

spec

ifi

tions



20-inch tires (type A)



20-inch tires (type B)

Tire size

245/45R20 99Y

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Driving at high speeds above 137 mph (220 km/h) (in
countries where such speeds are permitted by law)

Add 9 psi (60 kPa, 0.6 kgf/cm

or bar) to the front tires and

rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size



8 1/2J

Wheel nut torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

Tire size

245/45R20 99V

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Driving at high speeds above 100 mph (160 km/h) (in
countries where such speeds are permitted by law)

Add 9 psi (60 kPa, 0.6 kgf/cm

or bar) to the front tires and

rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size



8 1/2J

Wheel nut torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

498

8-1. Specifications

■

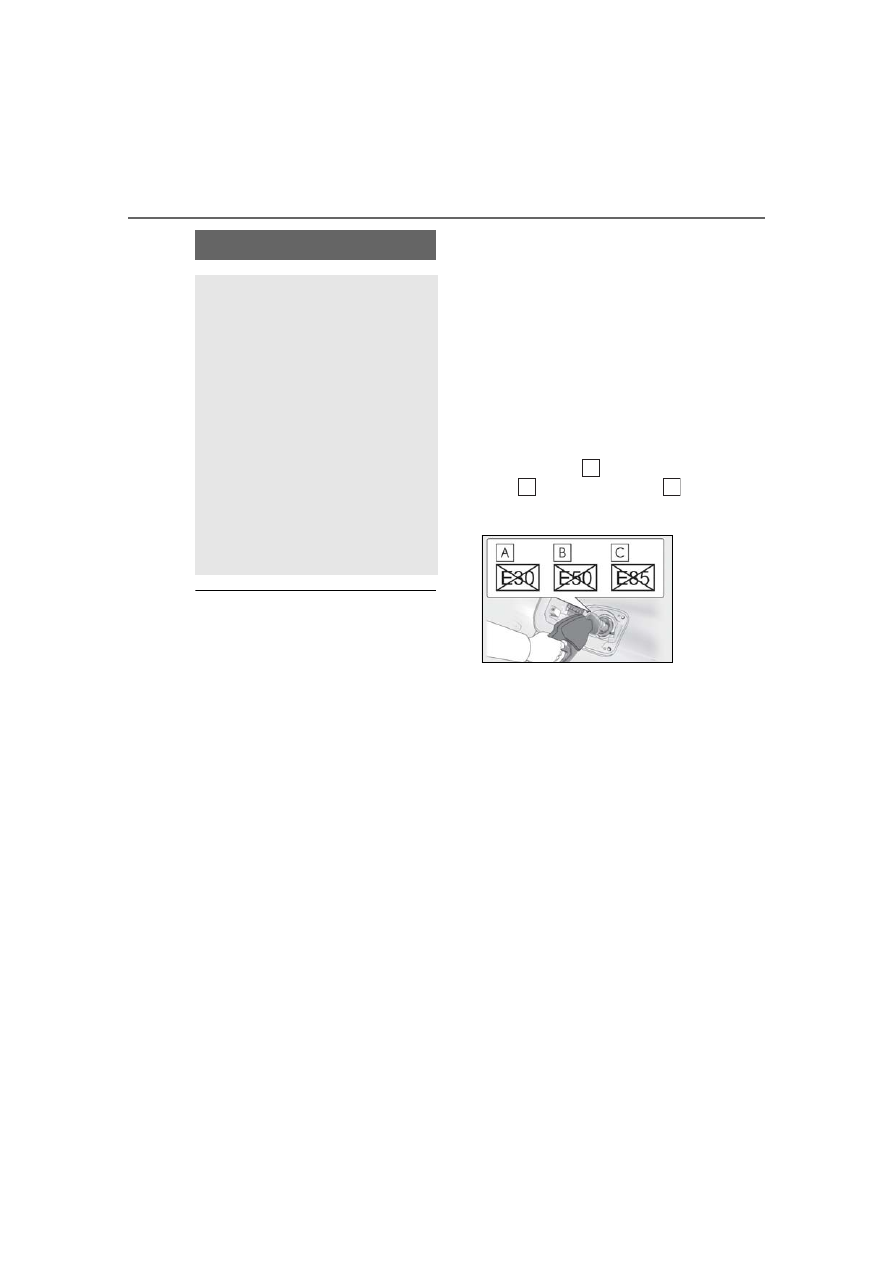

Gasoline quality

In very few cases, driveability problems may

be caused by the brand of gasoline you are

using. If driveability problems persist, try

changing the brand of gasoline. If this does

not correct the problem, consult your Lexus

dealer.

■

Recommendation of the use of gasoline

containing detergent additives

●

Lexus recommends the use of gasoline

that contains detergent additives to avoid

the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains

minimum detergent additives to clean

and/or keep clean intake systems, per

EPA’s lowest additives concentration pro-

gram.

●

Lexus strongly recommends the use of

Top Tier Detergent Gasoline. For more

information on Top Tier Detergent Gaso-

line and a list of marketers, please go to

the official website www.toptiergas.com.

■

Recommendation of the use of low

emissions gasoline

Gasolines containing oxygenates such as

ethers and ethanol, as well as reformulated

gasolines, are available in some cities.

These fuels are typically acceptable for use,

providing they meet other fuel require-

ments.
Lexus recommends these fuels, since the

formulations allow for reduced vehicle

emissions.

■

Non-recommendation of the use of

blended gasoline

●

Use only gasoline containing up to 15%

ethanol.

DO NOT use any flex-fuel or gasoline

that could contain more than 15% etha-

nol, including from any pump labeled
E30 (30% ethanol [

]), E50 (50%

ethanol [

]), E85 (85% ethanol [

])

(which are only some examples of fuel

containing more than 15% ethanol).

●

If you use gasohol in your vehicle, be sure

that it has an octane rating no lower than

91.

●

Lexus does not recommend the use of

gasoline containing methanol.

■

Non-recommendation of the use of gas-

oline containing MMT

Some gasoline contains an octane enhanc-

ing additive called MMT (Methylcyclopen-

tadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gas-

oline that contains MMT. If fuel containing

MMT is used, your emission control system

may be adversely affected.
The malfunction indicator lamp on the

instrument cluster may come on. If this hap-

pens, contact your Lexus dealer for service.

■

If your engine knocks

●

Consult your Lexus dealer.

●

You may occasionally notice light knock-

ing for a short time while accelerating or

Fuel information

You must only use unleaded gaso-
line.
Select premium unleaded gasoline
with an octane rating of 91
(Research Octane Number 96) or
higher required for optimum
engine performance and fuel econ-
omy.
If the octane rating is less than 91,
damage to the engine may occur
and may void the vehicle warranty.

At minimum, the gasoline you use
should meet the specifications of
ASTM D4814 in the U.S.A..

499

8-1. Specifications

icle

ific

atio

driving uphill. This is normal and there is

no need for concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper

fuels are used, the engine will be dam-

aged.

●

Do not use leaded gasoline.

Leaded gasoline can cause damage to

your vehicle’s three-way catalytic con-

verters causing the emission control

system to malfunction.

●

Do not use gasohol other than the type

previously stated.

Other gasohol may cause fuel system

damage or vehicle performance prob-

lems.

●

Using unleaded gasoline with an

octane number or rating lower than

the level previously stated may cause

persistent heavy knocking.

At worst, this may lead to engine dam-

age and will void the vehicle warranty.

■

When refueling with gasohol

Take care not to spill gasohol. It can dam-

age your vehicle’s paint.

■

Fuel-related poor driveability

If poor driveability (poor hot starting,

vaporization, engine knocking, etc.) is

encountered after using a different type

of fuel, discontinue the use of that type of

fuel.

500

8-1. Specifications

Tire size (



P.501)

Run-flat tire (RFT) (



P.470)

This vehicle is equipped with run-flat tires (RFT). A

mark is molded on the

sidewall of the run-flat tire.

DOT and Tire Identification Number (TIN) (



P.501)

Location of treadwear indicators (



P.420)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies
in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a
tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure (



P.421)

Maximum cold tire inflation pressure (



P.496)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires (



P.421)

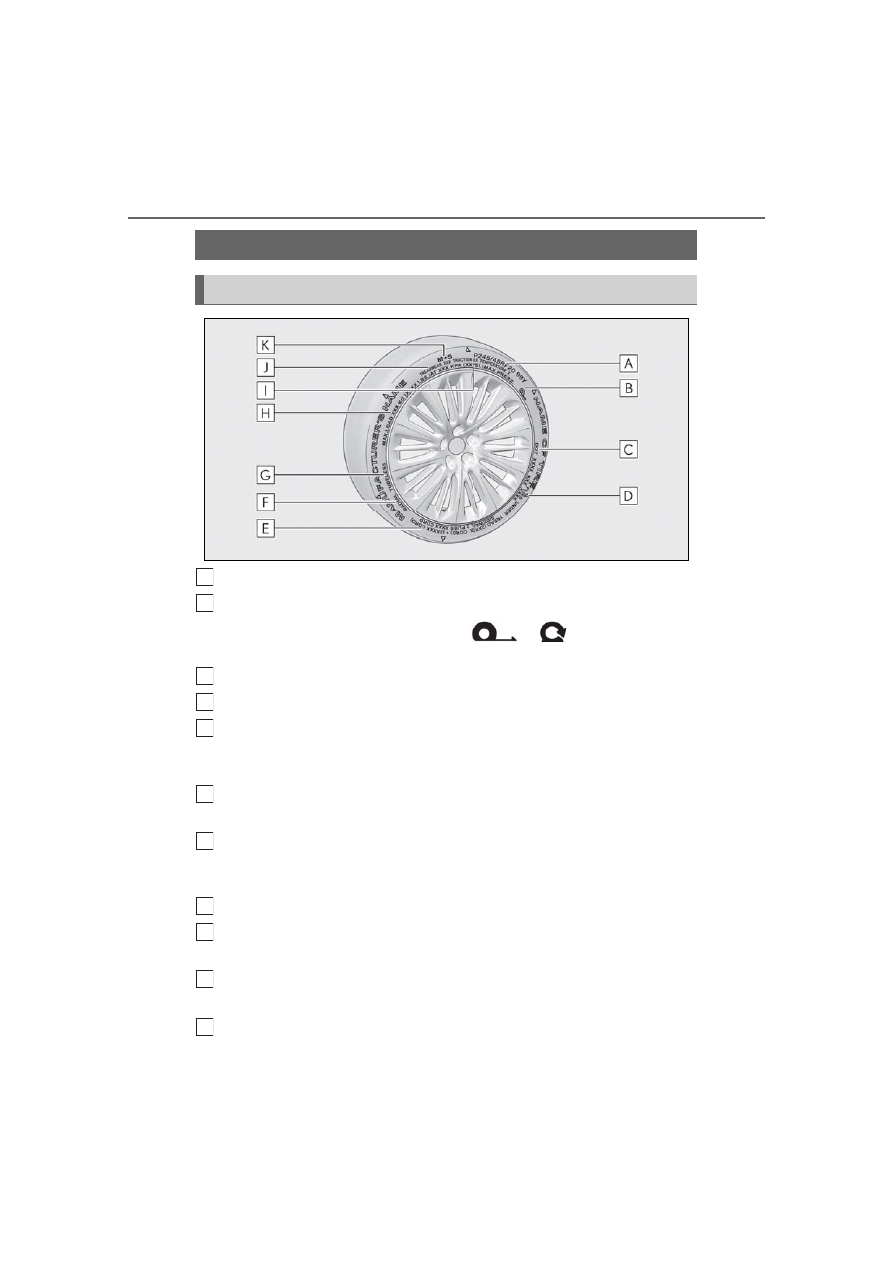

Tire information

Typical tire symbols

A
B

C
D

501

8-1. Specifications

Vehi

cle

spec

ifi

tions

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer tire.



Type A

DOT symbol

Tire Identification Number (TIN)
Tire manufacturer’s identification
mark
Tire size code
Manufacturer’s optional tire type
code (3 or 4 letters)
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.



Type B

DOT symbol

Tire Identification Number (TIN)
Tire manufacturer’s identification
mark
Manufacturer’s code
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.

■

Typical tire size information

The illustration indicates typical tire
size.

Tire use (P = Passenger car, T =
Temporary use)
Section width (millimeters)
Aspect ratio (tire height to section
width)
Tire construction code (R = Radial,
D = Diagonal)
Run-flat tire code
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol (alphabet with one

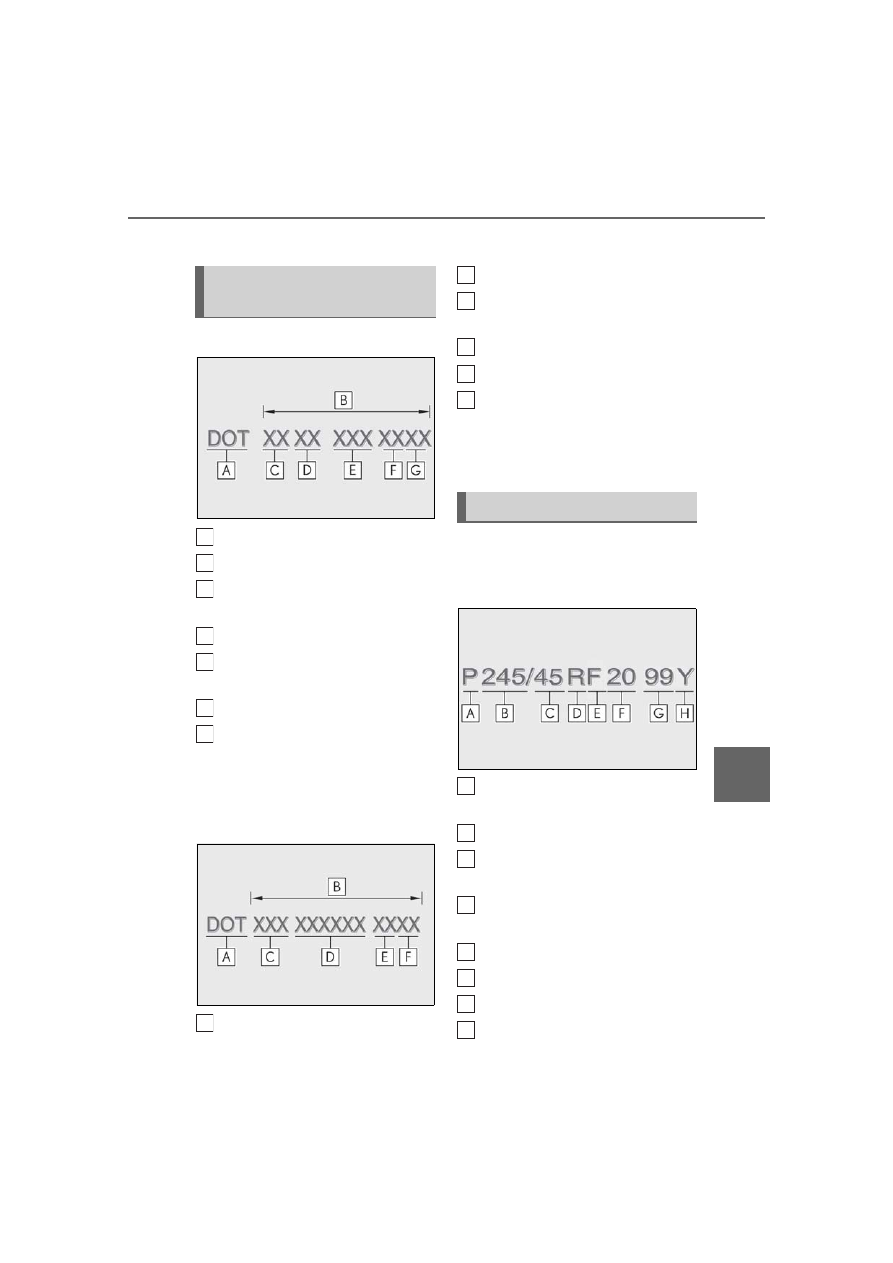

Typical DOT and Tire Identifica-
tion Number (TIN)

A
B
C

Tire size

B
C

E
F

B
C

E
F

502

8-1. Specifications

letter)

■

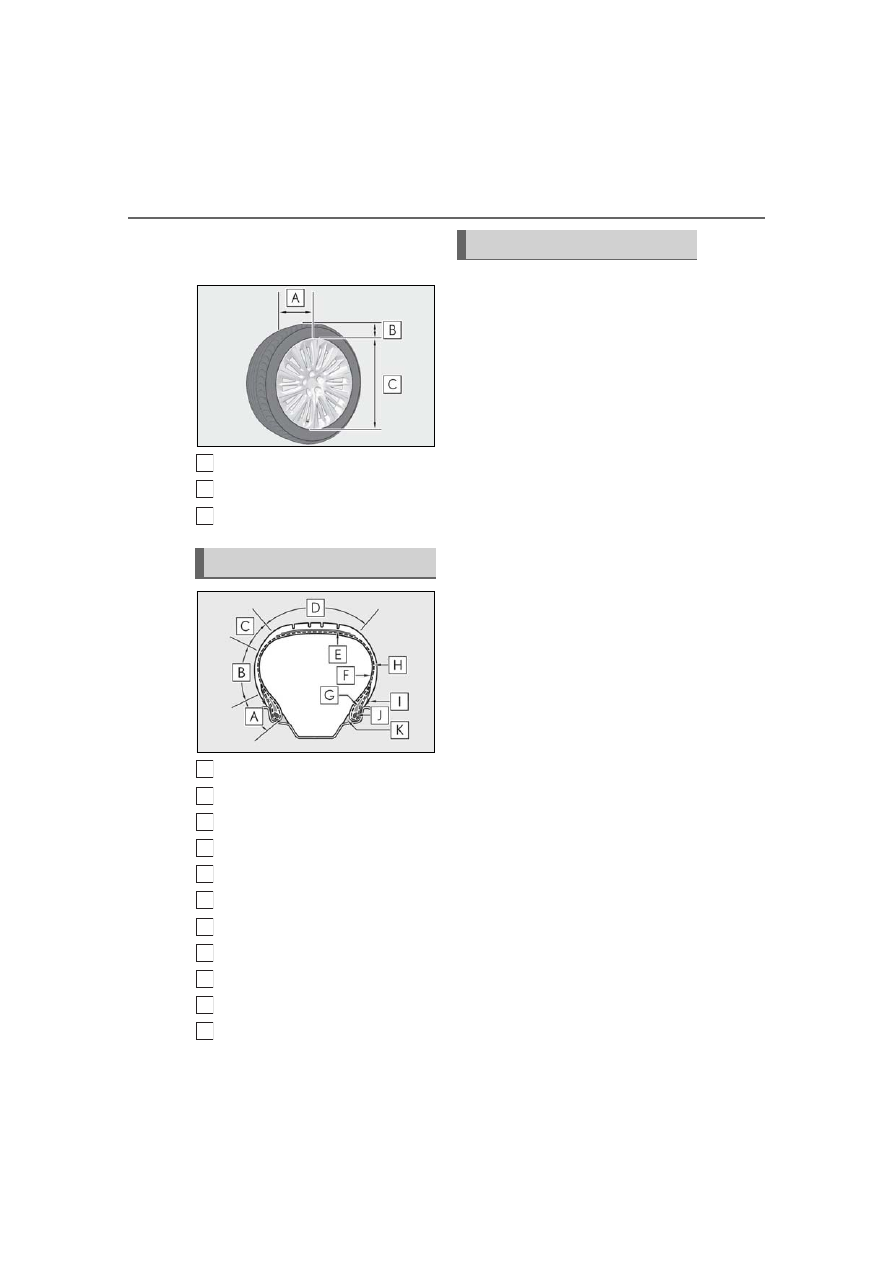

Tire dimensions

Section width
Tire height
Wheel diameter

Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer

This information has been prepared in
accordance with regulations issued by
the National Highway Traffic Safety
Administration of the U.S. Department
of Transportation.
It provides the purchasers and/or pro-
spective purchasers of Lexus vehicles
with information on uniform tire quality
grading.

Your Lexus dealer will help answer any
questions you may have as you read this
information.

■

DOT quality grades

All passenger vehicle tires must con-
form to Federal Safety Requirements in
addition to these grades. Quality
grades can be found where applicable
on the tire sidewall between tread
shoulder and maximum section width.

For example: Treadwear 200 Traction AA
Temperature A

■

Treadwear

The treadwear grade is a comparative
rating based on the wear rate of the tire
when tested under controlled condi-
tions on a specified government test
course.

For example, a tire graded 150 would wear
one and a half (1 - 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use.
Performance may differ significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.

Tire section names

A
B
C

A
B
C
D

E
F

Uniform Tire Quality Grading

503

8-1. Specifications

Vehi

cle

spec

ifi

tions

■

Traction AA, A, B, C

The traction grades, from highest to
lowest, are AA, A, B and C, and they
represent the tire’s ability to stop on
wet pavement as measured under con-
trolled conditions on specified govern-
ment test surfaces of asphalt and
concrete.

A tire marked C may have poor traction
performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.

■

Temperature A, B, C

The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat

when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.

Sustained high temperature can cause the
material of the tire to degenerate and
reduce tire life, and excessive temperature
can lead to sudden tire failure.
Grade C corresponds to a level of perfor-
mance which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.
Warning: The temperature grades of a tire
assume that it is properly inflated and not
overloaded.
Excessive speed, underinflation, or exces-
sive loading, either separately or in combi-
nation, can cause heat buildup and
possible tire failure.

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pressure

Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition

Maximum inflation pressure

The maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire

Recommended inflation pressure

Cold tire inflation pressure recommended by a
manufacturer

Accessory weight

The combined weight (in excess of those standard
items which may be replaced) of hybrid transmis-
sion, power steering, power brakes, power win-
dows, power seats, radio and heater, to the extent
that these items are available as factory-installed
equipment (whether installed or not)

Lexus LS500h (2023 year). Manual in english - page 15
