7-2. Steps to take in an emergency

When trouble

ises

If you have a set of jumper (or booster)
cables and a second vehicle with a
12-volt battery, you can jump start your
vehicle by following the steps below.



Method connecting jumper (or
booster) cables to the 12-volt bat-
tery

Confirm that the electronic key is
being carried.

Vehicles with an alarm: When connecting

the jumper (or booster) cables, depending

on the situation, the alarm may activate and

doors locked. (



P.95)

Open the trunk lid and remove the
luggage mat. (



P.420)

In the event that the trunk opener cannot

be used, use the mechanical key to open

the trunk. (



P.512)

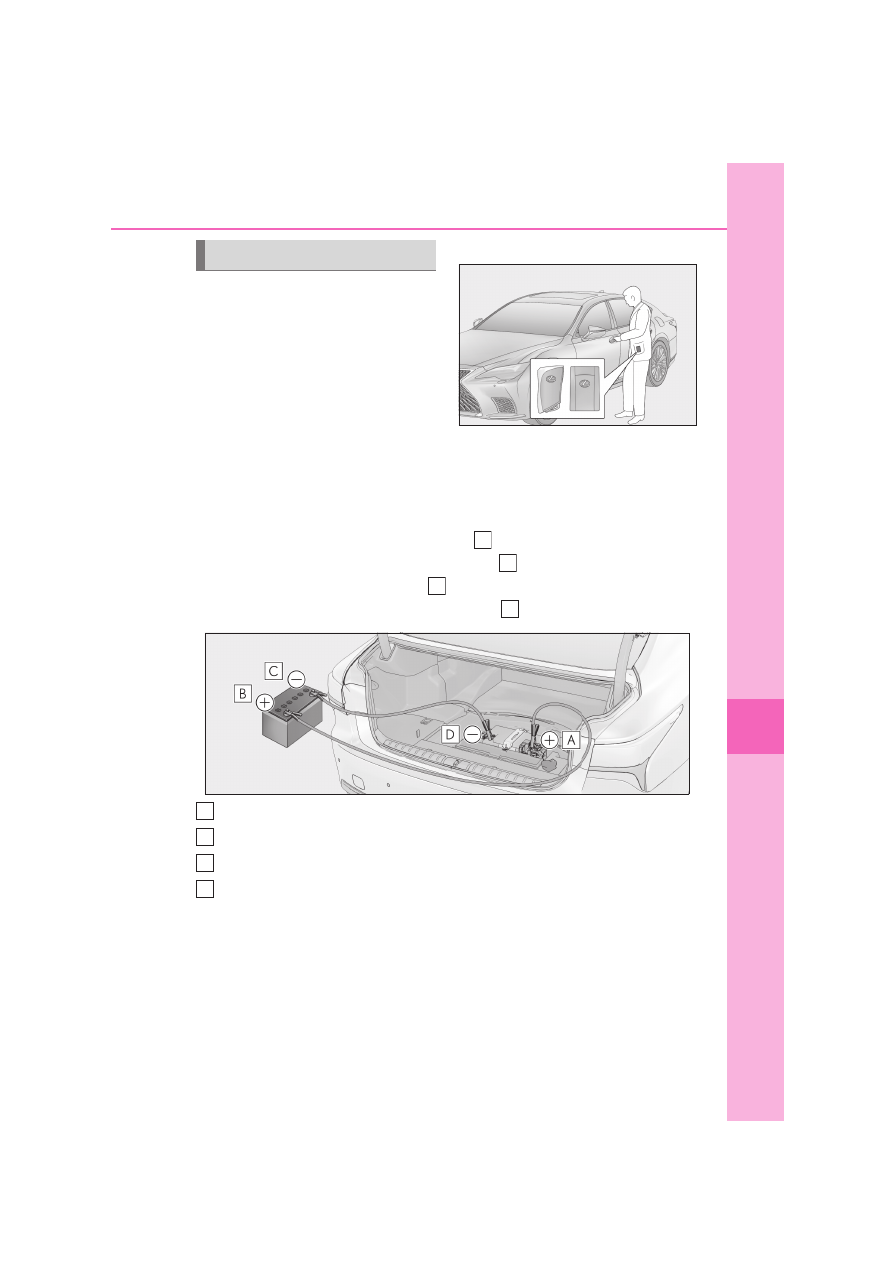

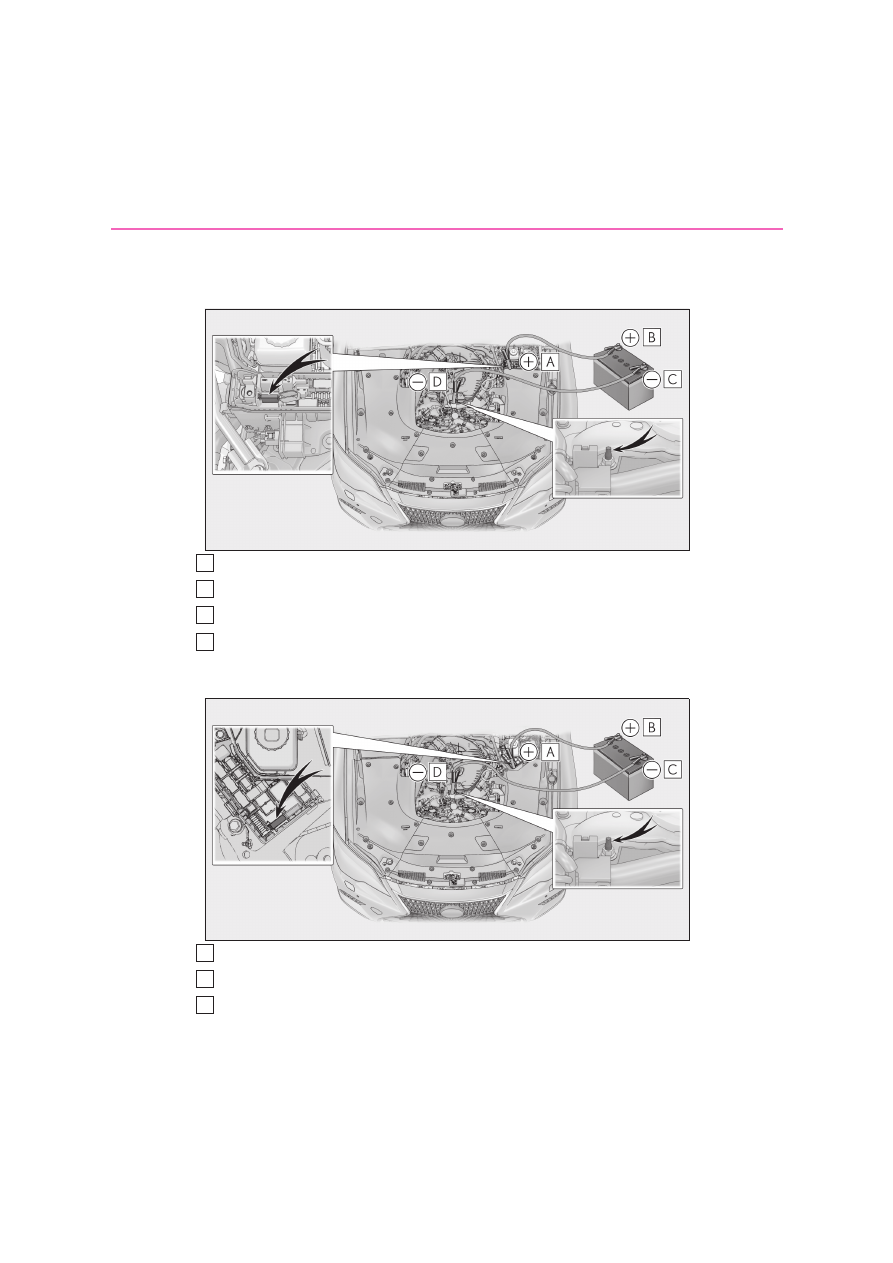

Connect a positive jumper cable clamp to   on your vehicle and connect the
clamp on the other end of the positive cable to   on the second vehicle. Then,
connect a negative cable clamp to   on the second vehicle and connect the
clamp at the other end of the negative cable to  .

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Negative (-) battery terminal (your vehicle)

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery of your
vehicle.

Open and close any of the doors of
your vehicle with the power switch
off.

Maintain the engine speed of the
second vehicle and start the hybrid

Restarting the hybrid system

A
B
C
D

516

7-2. Steps to take in an emergency

system of your vehicle by turning
the power switch to ON mode.

Make sure the “READY” indicator
comes on. If the indicator does not
come on, contact your Lexus
dealer.

Once the hybrid system has
started, remove the jumper cables
in the exact reverse order from
which they were connected.



Method connecting jumper (or
booster) cables to the exclusive
jump starting terminal

Confirm that the electronic key is
being carried.

Vehicles with an alarm: When connecting

the jumper (or booster) cables, depending

on the situation, the alarm may activate and

doors locked. (



P.95)

Open the hood. Remove the fuse
box cover. (



P.448)

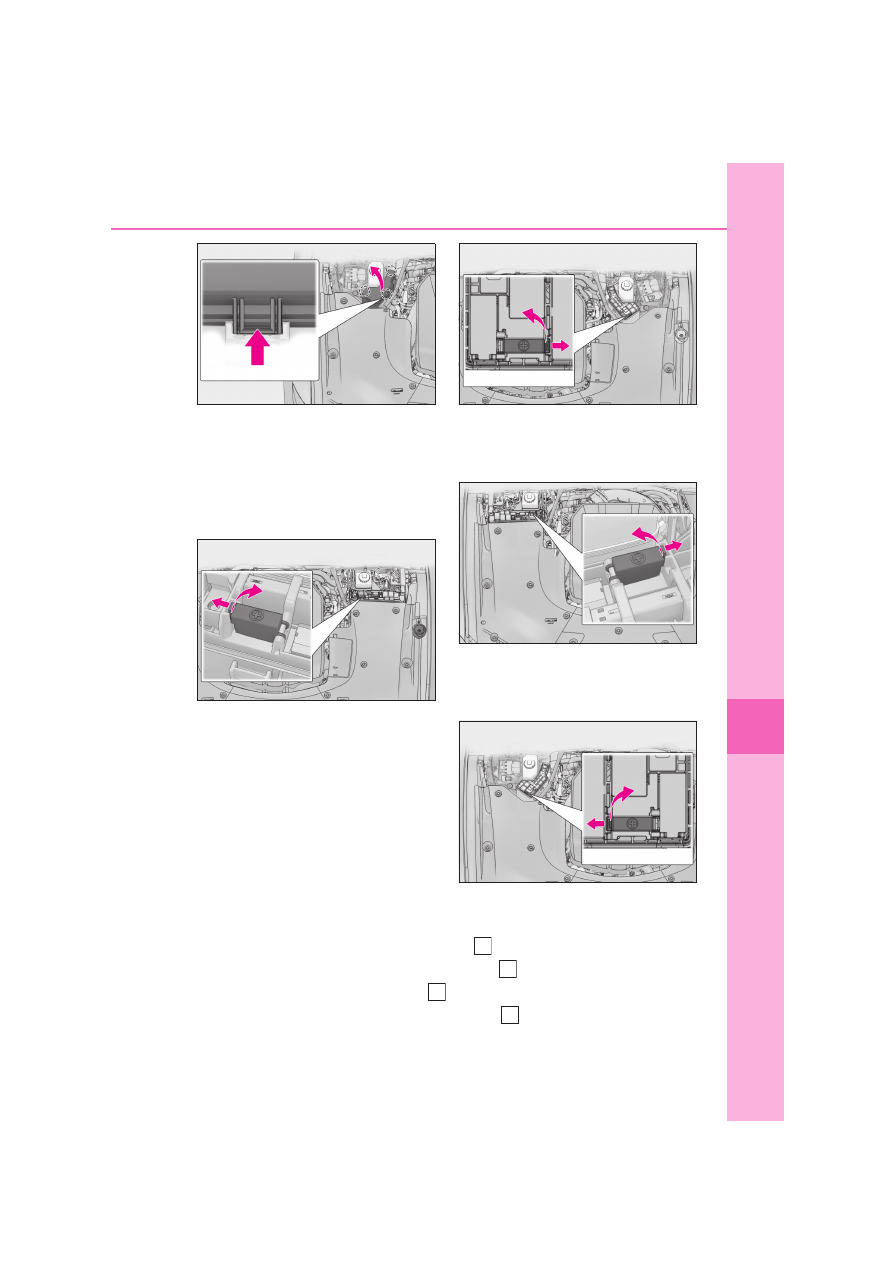

Push the tabs in and lift the lid off.



Left-hand drive vehicles (vehicles
without Lexus Teammate Advanced
Park)



Left-hand drive vehicles (vehicles
with Lexus Teammate Advanced
Park)



Right-hand drive vehicles (vehicles
without Lexus Teammate Advanced
Park)



Right-hand drive vehicles (vehicles
with Lexus Teammate Advanced
Park)

517

7-2. Steps to take in an emergency

When trouble

ises

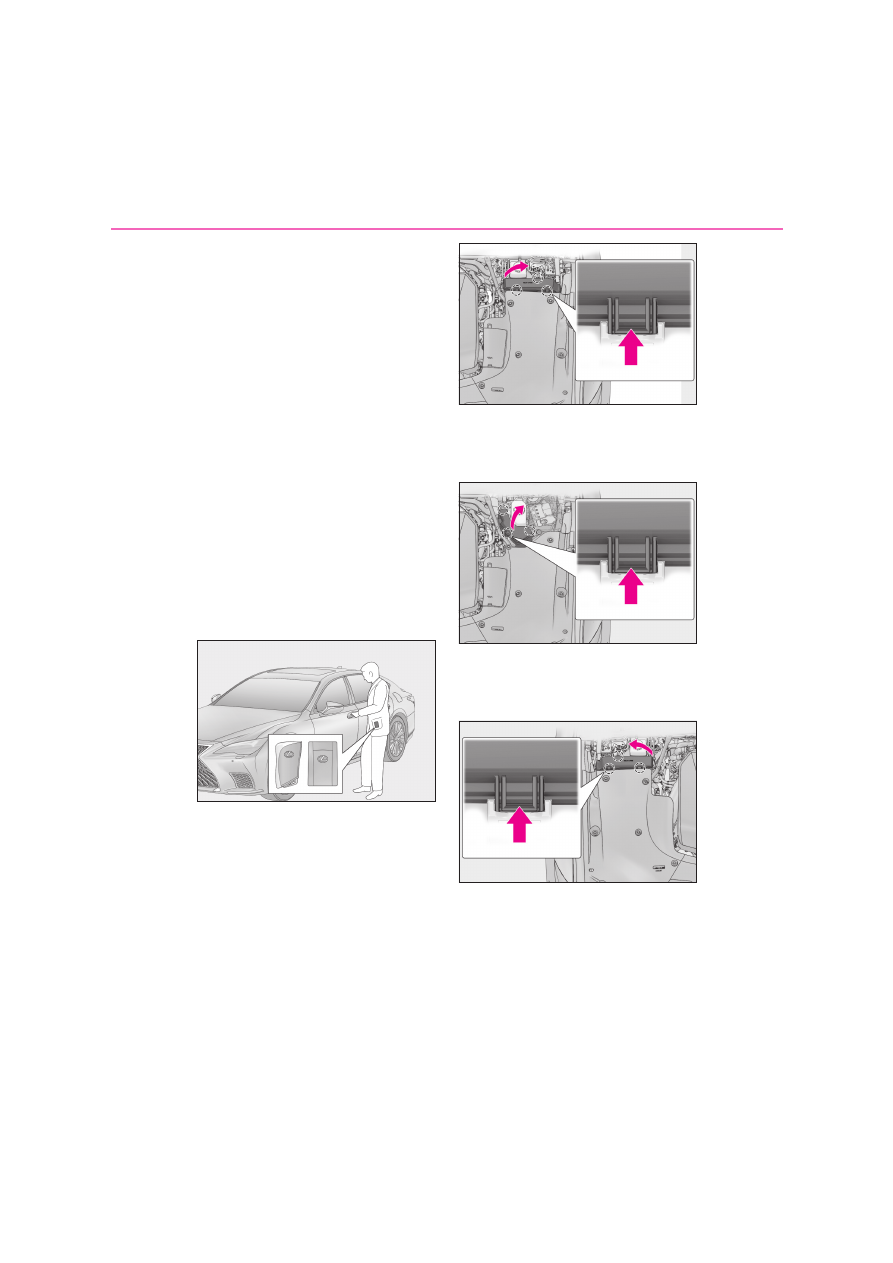

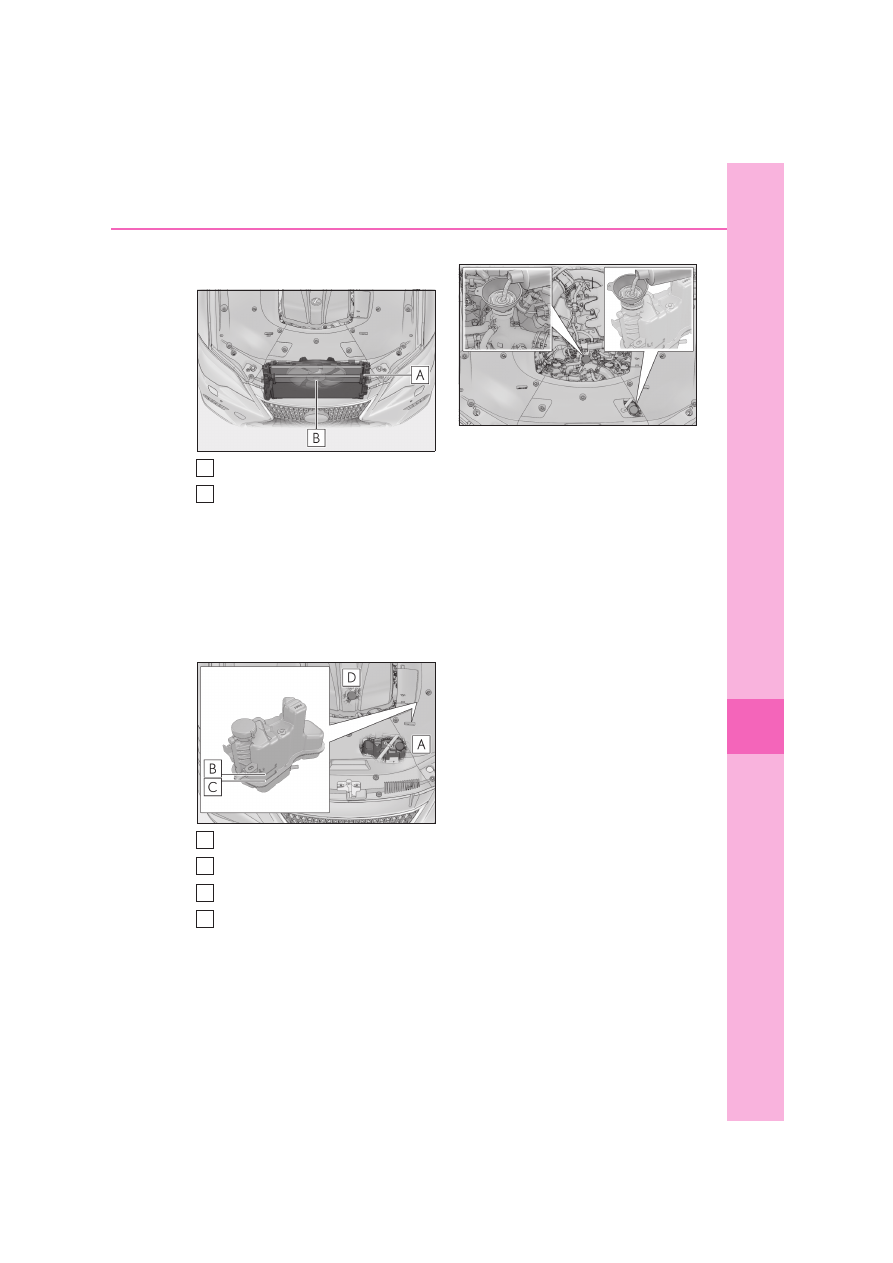

Open the exclusive jump starting
terminal cover.



Left-hand drive vehicles (vehicles
without Lexus Teammate Advanced
Park)



Left-hand drive vehicles (vehicles
with Lexus Teammate Advanced
Park)



Right-hand drive vehicles (vehicles
without Lexus Teammate Advanced
Park)



Right-hand drive vehicles (vehicles
with Lexus Teammate Advanced
Park)

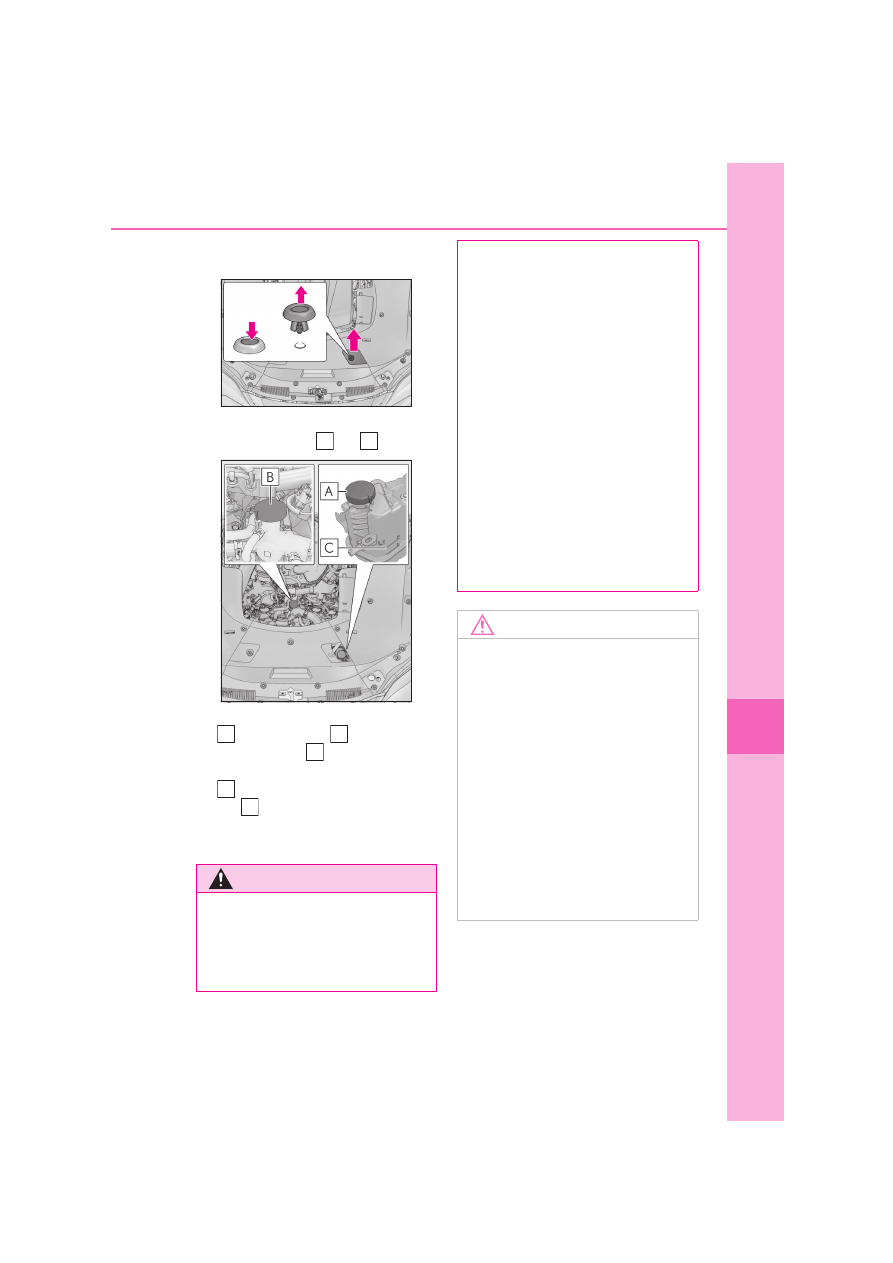

Remove the engine cover.
(



P.452)

519

7-2. Steps to take in an emergency

When trouble

ises

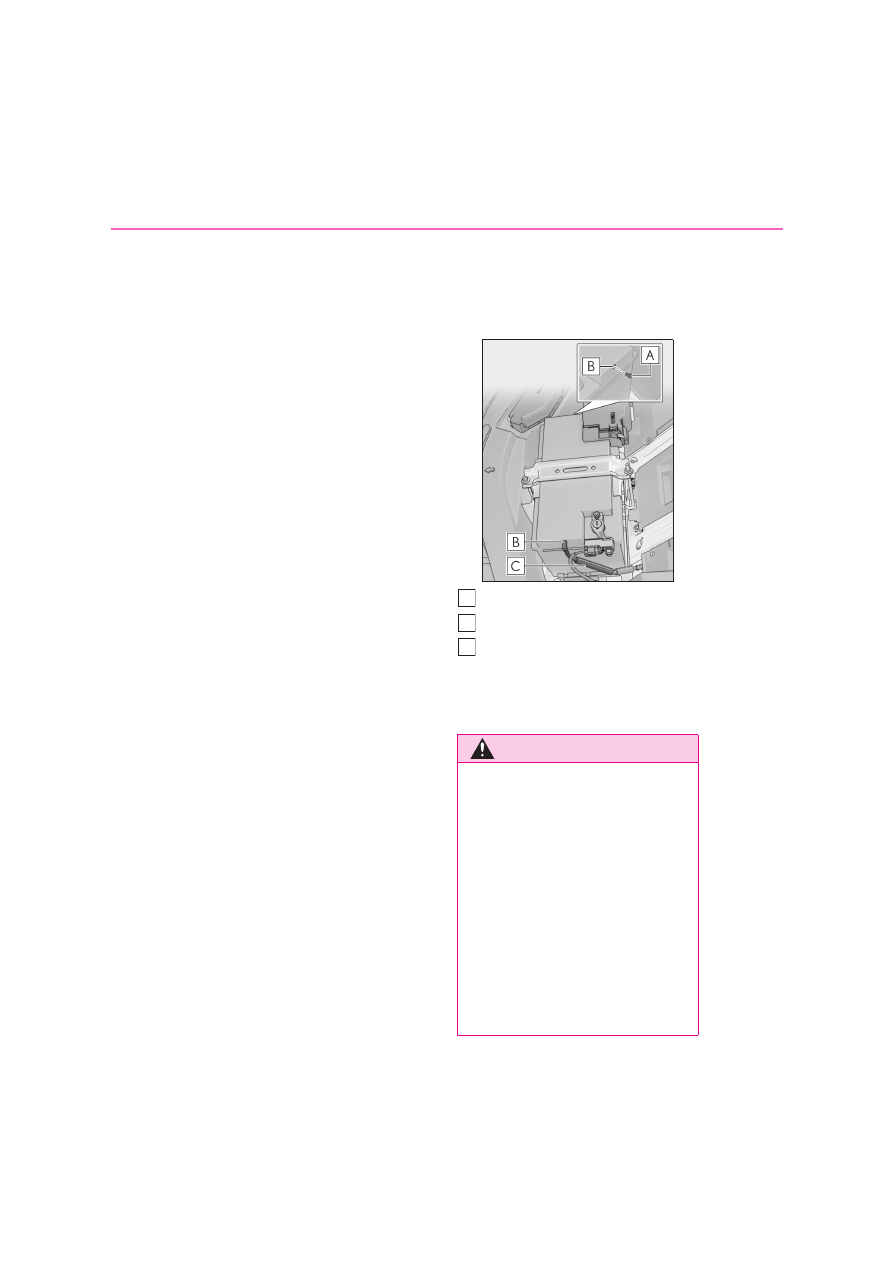

Metallic point shown in the illustration

For right-hand drive vehicles:

The fuse box near the windshield is located

on the opposite side of the engine com-

partment.

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery of your
vehicle.

Open and close any of the doors of
your vehicle with the power switch
off.

Maintain the engine speed of the
second vehicle and start the hybrid
system of your vehicle by turning
the power switch to ON mode.

Make sure the “READY” indicator
comes on. If the indicator does not
come on, contact any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Once the hybrid system has
started, remove the jumper cables
in the exact reverse order from
which they were connected.

Close the exclusive jump starting
terminal cover and install the fuse
box cover and engine cover.
(



P.452)

Once the hybrid system starts, have
the vehicle inspected at any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer as
soon as possible.

■

Starting the hybrid system when the

12-volt battery is discharged

The hybrid system cannot be started by

push-starting.

■

To prevent 12-volt battery discharge

●

Turn off the headlights and the audio sys-

tem while the hybrid system is off.

●

Turn off any unnecessary electrical com-

ponents when the vehicle is running at a

low speed for an extended period, such

as in heavy traffic.

■

When the 12-volt battery is removed or

discharged

●

Information stored in the ECU is cleared.

When the 12-volt battery is depleted,

have the vehicle inspected at any author-

ized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

●

Some systems may require initialization.

(



P.557)

■

When removing the 12-volt battery ter-

minals

When the 12-volt battery terminals are

removed, the information stored in the

ECU is cleared. Before removing the

12-volt battery terminals, contact any

authorized Lexus retailer or Lexus author-

ized repairer, or any reliable repairer as

soon as possible.

■

Charging the 12-volt battery

The electricity stored in the 12-volt battery

will discharge gradually even when the

vehicle is not in use, due to natural dis-

charge and the draining effects of certain

electrical appliances. If the vehicle is left for

a long time, the 12-volt battery may dis-

charge, and the hybrid system may be una-

ble to start. (The 12-volt battery recharges

automatically while the hybrid system is

operating.)

■

When recharging or replacing the

12-volt battery

●

In some cases, it may not be possible to

unlock the doors using the smart entry &

520

7-2. Steps to take in an emergency

start system when the 12-volt battery is

discharged. Use the wireless remote

control or the mechanical key to lock or

unlock the doors.

●

The hybrid system may not start on the

first attempt after the 12-volt battery has

recharged but will start normally after the

second attempt. This is not a malfunction.

●

The power switch mode is memorized by

the vehicle. When the 12-volt battery is

reconnected, the system will return to the

mode it was in before the 12-volt battery

was discharged. Before disconnecting

the 12-volt battery, turn the power switch

off.

If you are unsure what mode the power

switch was in before the 12-volt battery

discharged, be especially careful when

reconnecting the 12-volt battery.

●

If the 12-volt battery discharges, it may

not be possible to shift the shift position to

other positions. In this case, the vehicle

cannnot be towed without lifting both

rear wheels because the rear wheels will

be locked.

■

When replacing the 12-volt battery

●

Use a Central Degassing type 12-volt

battery (European Regulations).

●

Use a 12-volt battery with the same case

size as the previous 12-volt battery and an

equivalent 20 hour rate capacity (20HR)

or greater.

• If the sizes differ, the 12-volt battery can-

not be properly secured.

• If the 20 hour rate capacity is low, even if

the time period where the vehicle is not

used is a short time, the 12-volt battery

may discharge and the hybrid system

may not be able to start.

●

Use a 12-volt battery with a handle. If a

12-volt battery without a handle is used,

removal is more difficult.

●

After replacing, firmly attach the follow-

ing items to the exhaust hole of the

12-volt battery.

• Use the exhaust hose that was attached

to the 12-volt battery before replacing

and confirm that it is firmly connected to

the hole section of the vehicle.

• Use the exhaust hole plug included with

the 12-volt battery replaced or the one

installed on the 12-volt battery prior to

the replacement. (Depending on the

12-volt battery to be replaced, the

exhaust hole may be plugged.)

Exhaust hole plug
Exhaust hole
Exhaust hose

For details, consult any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.

WARNING

■

When removing the 12-volt battery

terminals

Always remove the negative (-) terminal

first. If the positive (+) terminal contacts

any metal in the surrounding area when

the positive (+) terminal is removed, a

spark may occur, leading to a fire in addi-

tion to electrical shocks and death or

serious injury.

■

Avoiding 12-volt battery fires or

explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the

12-volt battery:

A
B
C

521

7-2. Steps to take in an emergency

When trouble

ises

WARNING

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

12-volt battery.

■

12-volt battery precautions

The 12-volt battery contains poisonous

and corrosive acidic electrolyte, while

related parts contain lead and lead com-

pounds. Observe the following precau-

tions when handling the 12-volt battery:

●

When working with the 12-volt battery,

always wear safety glasses and take

care not to allow any battery fluids

(acid) to come into contact with skin,

clothing or the vehicle body.

●

Do not lean over the 12-volt battery.

●

In the event that battery fluid comes

into contact with the skin or eyes,

immediately wash the affected area

with water and seek medical attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after handling

the 12-volt battery support, terminals,

and other battery-related parts.

●

Do not allow children near the 12-volt

battery.

■

After recharging the 12-volt battery

Have the 12-volt battery inspected at any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer as soon as possible.

If the 12-volt battery is deteriorating, con-

tinued use may cause the 12-volt battery

to emit a malodorous gas, which may be

detrimental to the health of passengers.

■

When replacing the 12-volt battery

●

When the vent plug and indicator are

close to the hold down clamp, the bat-

tery fluid (sulfuric acid) may leak.

●

For information regarding 12-volt bat-

tery replacement, contact any author-

ized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

●

After replacing, securely attach the

exhaust hose and exhaust hole plug to

the exhaust hole of the replaced

12-volt battery. If not properly installed,

gases (hydrogen) may leak into the

vehicle interior, and there is the possi-

ble danger of the gas igniting and

exploding.

NOTICE

■

When handling jumper cables

When connecting the jumper cables,

ensure that they do not become entan-

gled in the cooling fan or engine drive

belt.

■

When connecting jumper cables

Make sure to connect jumper cables to

the specified terminals and connecting

point. Failure to do so may adversely

affect the electronic devices or damage

to them.

522

7-2. Steps to take in an emergency



If the engine coolant temperature
gauge enters the red zone or
“Engine Coolant Temp High Stop in
a Safe Place See Owner’s Manual”
is shown on the multi-information
display

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the hybrid system.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

After the hybrid system has cooled
down sufficiently, inspect the hoses

NOTICE

■

To prevent damaging the vehicle

The exclusive jump starting terminal is to

be used when charging the 12-volt bat-

tery from another vehicle in an emer-

gency. It cannot be used to jump start

another vehicle.

If your vehicle overheats

The following may indicate that
your vehicle is overheating.



The engine coolant temperature
gauge (



P.105, 109) is in the red

zone or a loss of hybrid system
power is experienced. (For exam-
ple, the vehicle speed does not
increase.)



“Engine Coolant Temp High Stop
in a Safe Place See Owner’s
Manual” or “Hybrid System
Overheated Output Power
Reduced” is shown on the
multi-information display.



Steam comes out from under the
hood.

Correction procedures

523

7-2. Steps to take in an emergency

When trouble

ises

and radiator core (radiator) for any
leaks.

Radiators
Cooling fan

If a large amount of coolant leaks, immedi-
ately contact any authorized Lexus retailer
or Lexus authorized repairer, or any relia-
ble repairer.

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.

Reservoir
“F” line
“L” line
Coolant inlet cap

Add coolant if necessary.
(



P.524)

Water can be used in an emergency if

coolant is unavailable.

Start the hybrid system and turn the
air conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fan is operating

by checking the fan sound and air flow. If it

is difficult to check these, turn the air con-

ditioning system on and off repeatedly.

(The fan may not operate in freezing tem-

peratures.)

If the fan is not operating:
Stop the hybrid system immediately
and contact any authorized Lexus
retailer or Lexus authorized
repairer, or any reliable repairer.
If the fan is operating:
Have the vehicle inspected at the
nearest any authorized Lexus
retailer or Lexus authorized
repairer, or any reliable repairer.



If “Hybrid System Overheated Out-
put Power Reduced” is shown on the
multi-information display

Stop the vehicle in a safe place.

Stop the hybrid system and care-
fully lift the hood.

A
B

A
B
C
D

524

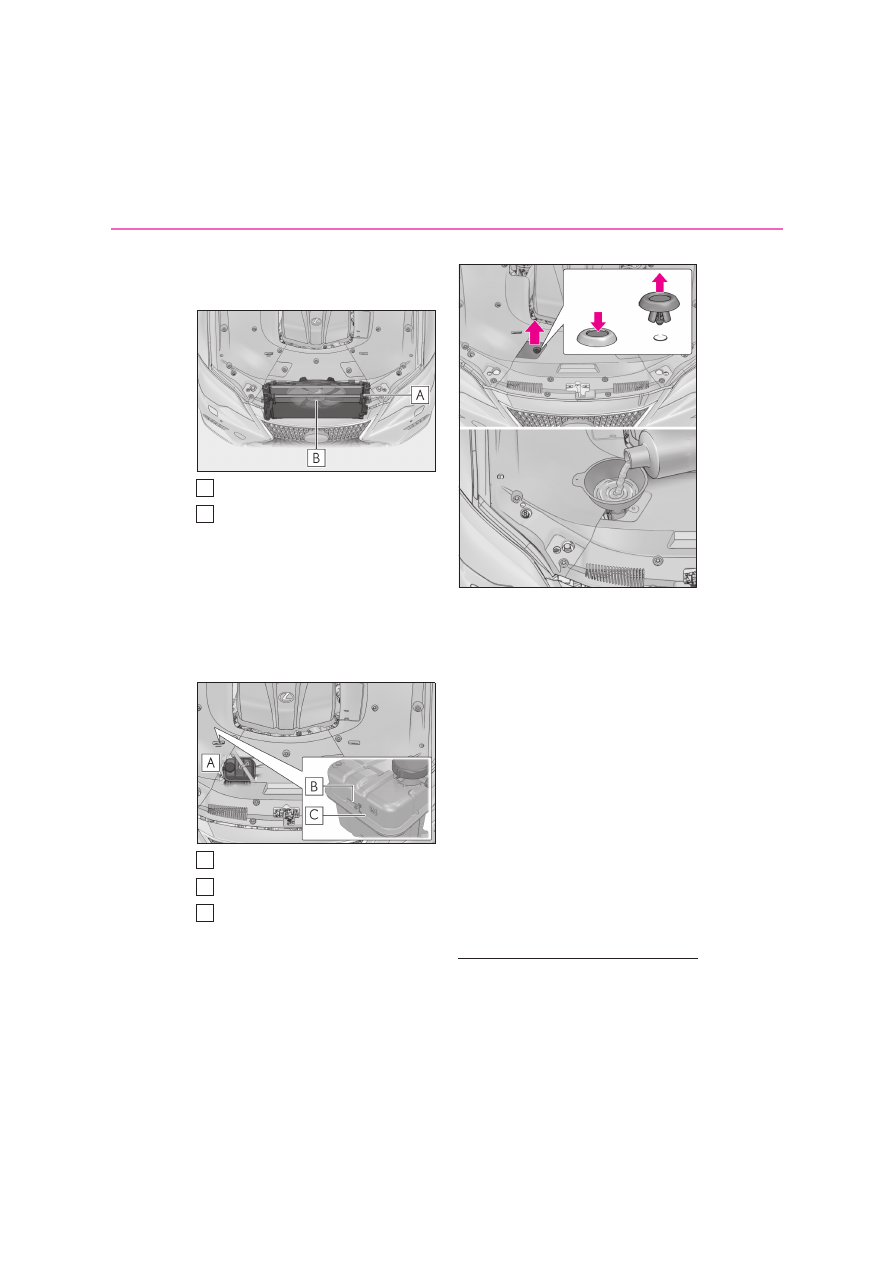

7-2. Steps to take in an emergency

After the hybrid system has cooled
down, inspect the hoses and radia-
tor core (radiator) for any leaks.

Radiator
Cooling fan

If a large amount of coolant leaks, immedi-
ately contact any authorized Lexus retailer
or Lexus authorized repairer, or any relia-
ble repairer.

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.

Reservoir
“F” line
“L” line

Remove the engine compartment
cover and add coolant if necessary.

Water can be used in an emergency if

coolant is unavailable.

After stopping the hybrid system
and waiting for 5 minutes or more,
start the hybrid system again and
check for the multi-information dis-
play.
If the message does not disappear:
Stop the hybrid system and contact
any authorized Lexus retailer or
Lexus authorized repairer, or any
reliable repairer.
If the message is not displayed:
The hybrid system temperature has
dropped and the vehicle may be
driven normally.

However, if the message appears again fre-

quently, contact any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer.

■

When adding engine coolant

Add coolant in accordance with the follow-

ing procedure.

A
B

A
B
C

525

7-2. Steps to take in an emergency

When trouble

ises

Remove the engine compartment

cover.

Remove the engine cover. (



P.452)

Remove the caps

and

Add coolant through the inlet of the cap

up to the “F” line

, and then

replace the cap

Add coolant through the inlet of the cap

until it is full, and then replace the

cap .

Install the engine compartment cover

and engine cover. (



P.452)

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

After the hybrid system has been

turned off, check that the “READY”

indicator off.

When the hybrid system is operating,

the gasoline engine may automatically

start, or the cooling fan may suddenly

operate even if the gasoline engine

stops. Do not touch or approach rotat-

ing parts such as the fan, which may

lead to fingers or clothing (especially a

tie, a scarf or a muffler) getting caught,

resulting in serious injury.

●

Do not loosen the coolant inlet cap or

the coolant reservoir cap while the

hybrid system and radiator are hot.

High temperature steam or coolant

could spray out.

NOTICE

■

When adding engine/power control

unit coolant

Add coolant slowly after the hybrid sys-

tem has cooled down sufficiently. Adding

cool coolant to a hot hybrid system too

quickly can cause damage to the hybrid

system.

■

To prevent damage to the cooling sys-

tem

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

●

Do not use any coolant additive.

526

7-2. Steps to take in an emergency

Stop the hybrid system. Set the
parking brake and shift the shift
position to P.

Remove the mud, snow or sand
from around the rear wheels.

Place wood, stones or some other
material under the rear wheels to
help provide traction.

Restart the hybrid system.

Shift the shift position to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

When it is difficult to free the vehicle

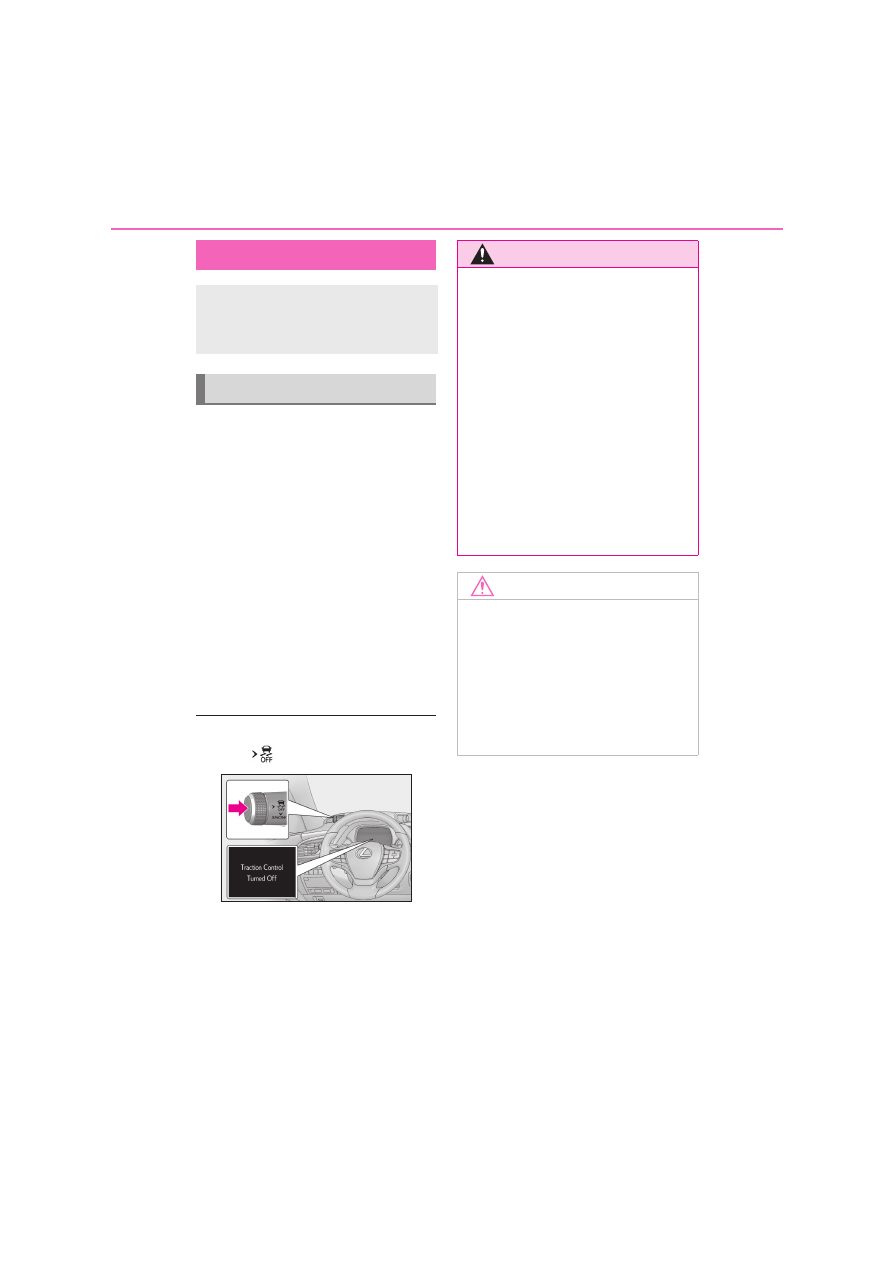

Press the

switch to turn off TRC.

If the vehicle becomes stuck

Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift position

Be careful not to shift the shift position

with the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the rear wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

528

8-1. Specifications

8-1.Specifications



Dimensions



Weights

: Unladen vehicles

: Except F SPORT models

: F SPORT models

: 2WD models

: AWD models

■

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in

registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel.

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

5235 mm (206.1 in.)

Overall width

1900 mm (74.8 in.)

Overall height

2WD models

1450 mm (57.1 in.)

AWD models

1460 mm (57.5 in.)

Wheelbase

3125 mm (123.0 in.)

Tread

Front

2WD models

1630 mm (64.2 in.)

AWD models

1635 mm (64.4 in.)

Rear

1635 mm (64.4 in.)

1615 mm (63.6 in.)

Gross vehicle mass

2725 kg (6008 lb.)

2800 kg (6173 lb.)

Maximum permissible axle capac-
ity

Front

1420 kg (3131 lb.)

Rear

1550 kg (3417 lb.)

Vehicle identification

529

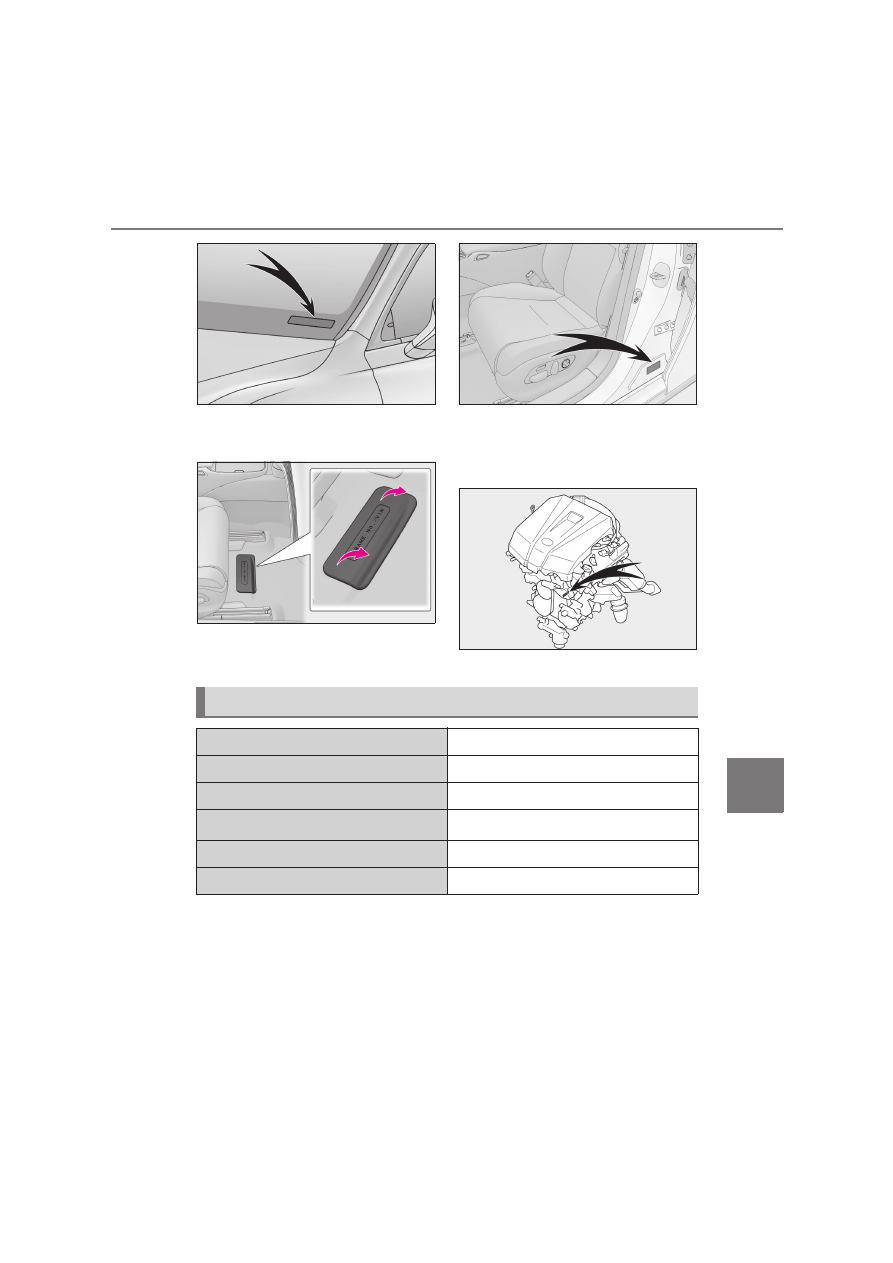

8-1. Specifications

Vehi

cle

ifica

tio

This number is also stamped under the
right-hand front seat.

This number is also on the manufac-
turer’s label.

■

Engine number

The engine number is stamped on the
engine block as shown.

Engine

Model

8GR-FXS

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

94.0



83.0 mm (3.70



3.27 in.)

Displacement

3456 cm

(210.9 cu. in.)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

530

8-1. Specifications

Fuel

Fuel type

When you find these types of fuel label at the
gas station, use only the fuel with one of the
following labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only

Research Octane Number

95 or higher

Fuel tank capacity
(Reference)

82.0 L (21.7 gal., 18.0 Imp. gal.)

Electric motor (traction motor)

Type

Permanent magnet synchronous motor

Maximum output

131.9 kW

Maximum torque

300 N•m (30.6 kgf•m, 221.3 ft•lbf)

Hybrid battery (traction battery)

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

4.3 Ah

Quantity

84 cells

Nominal voltage

310.8 V

531

8-1. Specifications

Vehi

cle

ifica

tio

■

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. Warm up the engine and turn
off the hybrid system, wait more than 5
minutes, and check the oil level on the
dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota
Genuine Motor Oil”. Another motor
oil of matching quality can also be
used.
Oil grade:
0W-20 and 5W-30:
API grade SM “Energy-Conserving”,
SN “Resource-Conserving”, SN PLUS
“Resource-Conserving” or SP
“Resource-Conserving”; or ILSAC
GF-6A multigrade engine oil

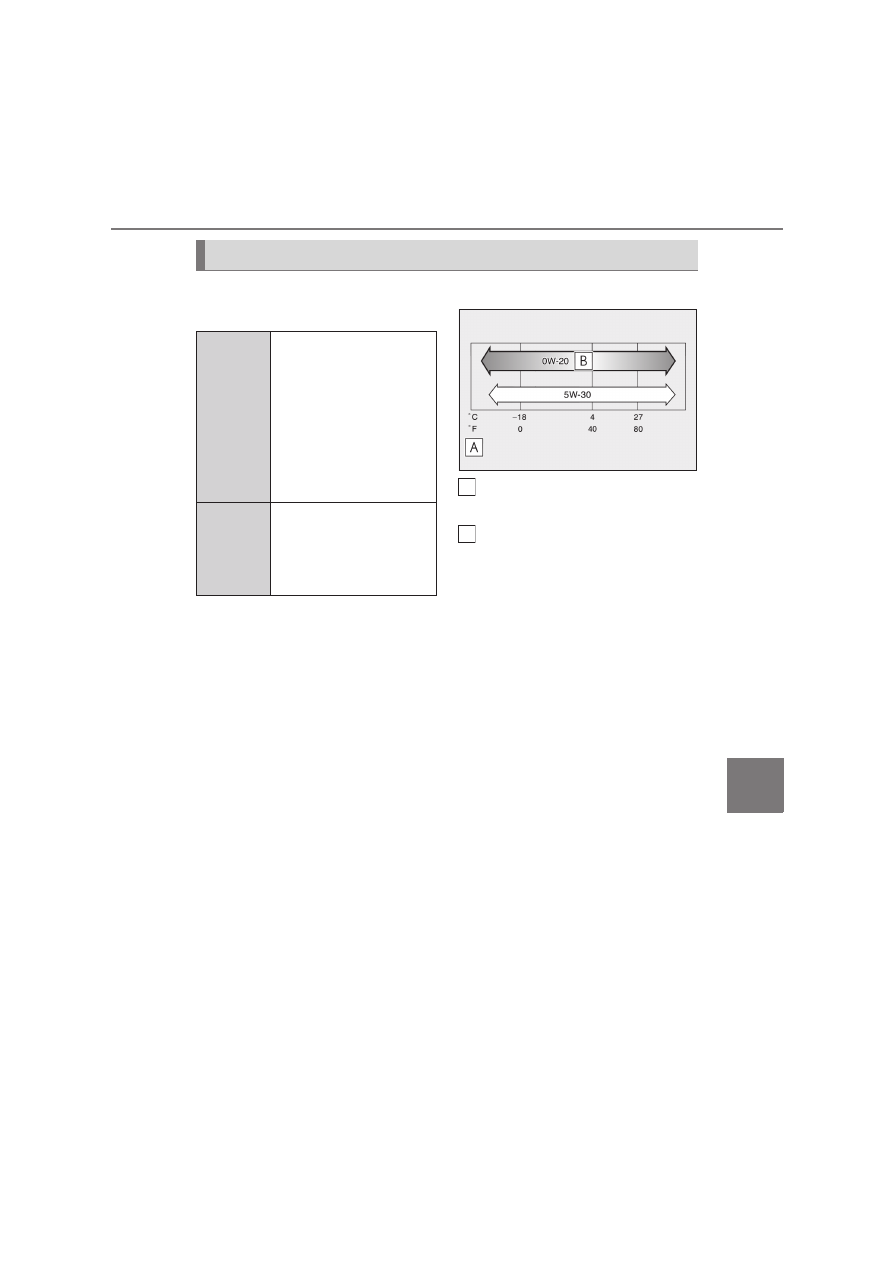

Recommended viscosity (SAE):

Temperature range anticipated
before next oil change
Preferred

SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the best
choice for good fuel economy and
good starting in cold weather. If SAE
0W-20 oil is not available, SAE
5W-30 oil may be used. However, it
should be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 20 in 0W-20 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-

Lubrication system

With filter



2WD models (vehicles
without engine oil cooler)

5.7 L (6.0 qt., 5.0 Imp. qt.)



2WD models (vehicles
with engine oil cooler)

5.8 L (6.1 qt., 5.1 Imp. qt.)



AWD models

6.7 L (7.1 qt., 5.9 Imp. qt.)

Without fil-
ter



2WD models

5.5 L (5.8 qt., 4.8 Imp. qt.)



AWD models

6.4 L (6.8 qt., 5.6 Imp. qt.)

532

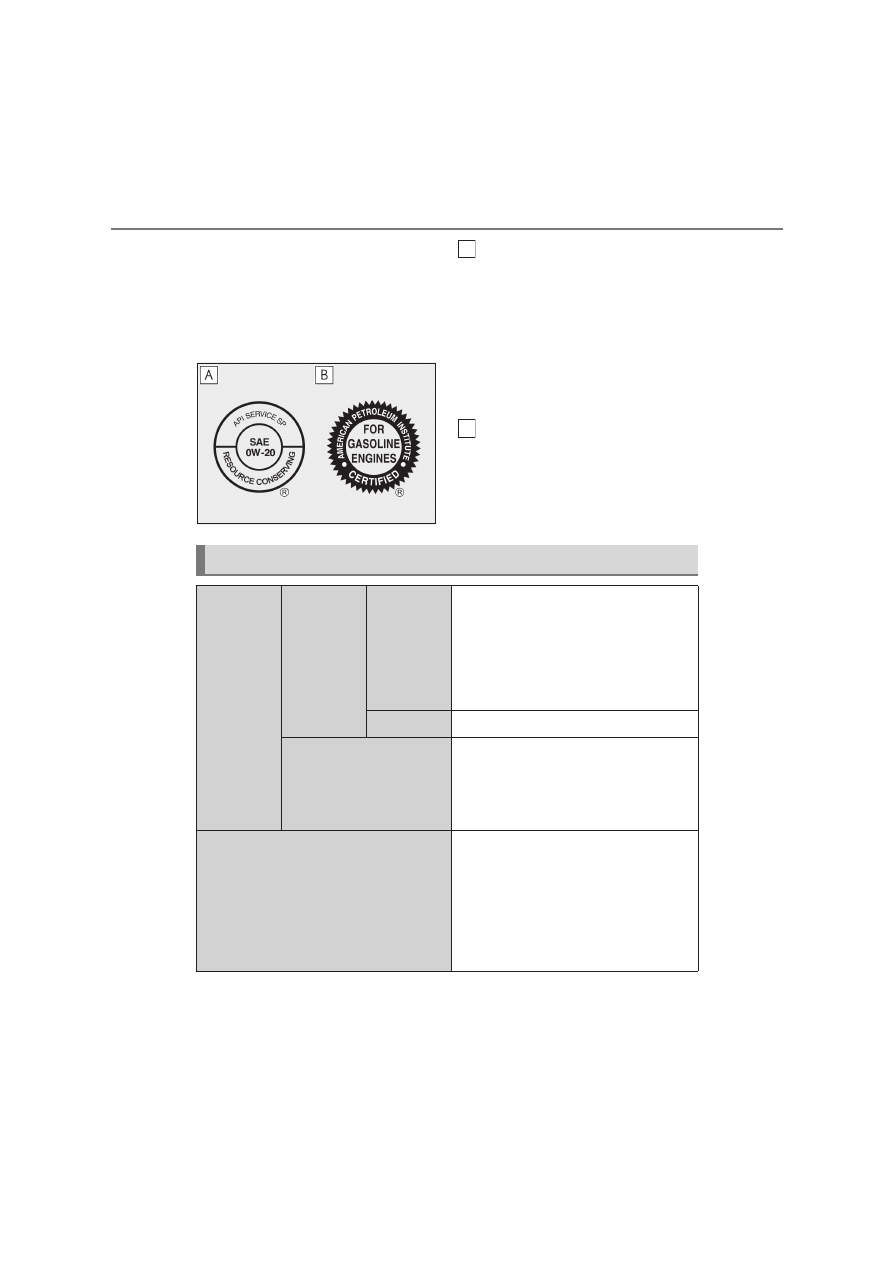

8-1. Specifications

ditions.

How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should use.

API Service Symbol

Top portion: “API SERVICE SP” means the
oil quality designation by American Petro-
leum Institute (API).
Center portion: “SAE 0W-20” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and envi-
ronmental protection capabilities.

ILSAC Certification Mark

The International Lubricant Specification
Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the
container.

: Left-hand drive vehicles

: Right-hand drive vehicles

Cooling system

Capacity
(Reference)

Gasoline
engine

2WD models



Vehicles without engine oil cooler

11.1 L (11.7 qt., 9.8 Imp. qt.)

11.0 L (11.6 qt., 9.7 Imp. qt.)



Vehicles with engine oil cooler

11.3 L (11.9 qt., 9.9 Imp. qt.)

AWD models 11.0 L (11.6 qt., 9.7 Imp. qt.)

Power control unit



Left-hand drive vehicles

2.5 L (2.6 qt., 2.2 Imp. qt.)



Right-hand drive vehicles

2.4 L (2.5 qt., 2.1 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene gly-
col-based non-silicate, non-amine,
non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology

Do not use plain water alone.

533

8-1. Specifications

Vehi

cle

ifica

tio

: The fluid capacity is a reference quantity.

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Ignition system (spark plug)

Make

DENSO FK20HBR8

Gap

0.8 mm (0.031 in.)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (12-volt battery)

Open voltage at 20°C (68°F):

12.0 V or higher
(Turn the power switch off and turn on the high
beam headlights for 30 seconds.)

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Hybrid transmission

Fluid capacity

6.8 L (7.2 qt., 6.0 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-

tion, or ultimately damage the transmission of your vehicle.

Transfer (AWD models)

Oil capacity

0.70 L (0.74 qt., 0.62 Imp. qt.)

Oil type and viscosity

Toyota Genuine Transfer gear oil LL 80 or equivalent

534

8-1. Specifications

: Your Lexus vehicle is filled with Toyota genuine gear oil at the factory. Use Lexus

approved Toyota genuine gear oil or an equivalent of matching quality to satisfy the
above specification. Please contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer for further details.

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of
matching quality to satisfy the above specification. Please contact any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer for further details.



2WD models



AWD models

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Front differential (AWD models)

Oil capacity

0.65 L (0.69 qt., 0.57 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

Rear differential

Oil capacity

0.85 L (0.90 qt., 0.75 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

Oil capacity

1.35 L (1.42 qt., 1.19 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

535

8-1. Specifications

Vehi

cle

ifica

tio

: Minimum pedal clearance when depressed with a force of 500 N (51 kgf, 112 lbf) while

the hybrid system is operating.
When performing the brake pedal inspection, also be sure to check that the brake sys-
tem warning light is not illuminated when the hybrid system is operating. (If the brake
system warning light is illuminated, refer to P.495.)

: Make sure to confirm that the brake warning light (yellow) does not illuminate. (If the

brake warning light illuminates, refer to P.495.)

: Vehicles without Advanced Park

: Left-hand drive vehicles with Advanced Park

: Right-hand drive vehicles with Advanced Park

Brakes

Pedal clearance

122 mm (4.8 in.) Min.

105 mm (4.1 in.) Min.

102 mm (4.0 in.) Min.

Pedal free play



6 mm (0.04



0.24 in.)

Brake pad wear limit

1 mm (0.04 in.)

Parking brake indicator

When pushing the parking brake switch for 1 to 2
seconds: comes on
When pulling the parking brake switch for 1 to 2
seconds: turns off

Fluid type

SAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4

Steering

Free play

Less than 30 mm (1.2 in.)

536

8-1. Specifications



19-inch tires (type A)



19-inch tires (type B)



20-inch tires (type A)

Tires and wheels

Tire size

245/50R19 101W

Tire inflation pressure
(Recommended cold
tire inflation pressure)

Vehicle speed

Front wheel

kPa (kgf/cm

or bar,

psi)

Rear wheel

kPa (kgf/cm

or bar,

psi)

More than 190 km/h

(118 mph)

310 (3.1, 45)

190 km/h (118 mph)

or less

250 (2.5, 36)

Wheel size



Wheel nut torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

Tire size

245/50RF19 101W

Tire inflation pressure
(Recommended cold
tire inflation pressure)

Vehicle speed

Front wheel

kPa (kgf/cm

or bar,

psi)

Rear wheel

kPa (kgf/cm

or bar,

psi)

More than 190 km/h

(118 mph)

310 (3.1, 45)

190 km/h (118 mph)

or less

250 (2.5, 36)

Wheel size



Wheel nut torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

Tire size

245/45R20 99Y

537

8-1. Specifications

Vehi

cle

ifica

tio



20-inch tires (type B)



20-inch tires (type C)

Tire inflation pressure
(Recommended cold
tire inflation pressure)

Vehicle speed

Front wheel

kPa (kgf/cm

or bar,

psi)

Rear wheel

kPa (kgf/cm

or bar,

psi)

More than 220 km/h

(137 mph)

310 (3.1, 45)

220 km/h (137 mph)

or less

250 (2.5, 36)

Wheel size



8 1/2J

Wheel nut torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

Tire size

245/45RF20 99Y

Tire inflation pressure
(Recommended cold
tire inflation pressure)

Vehicle speed

Front wheel

kPa (kgf/cm

or bar,

psi)

Rear wheel

kPa (kgf/cm

or bar,

psi)

More than 220 km/h

(137 mph)

310 (3.1, 45)

220 km/h (137 mph)

or less

250 (2.5, 36)

Wheel size



8 1/2J

Wheel nut torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

Tire size

Front tires: 245/45RF20 99Y

Rear tires: 275/40RF20 102Y

Tire inflation pressure
(Recommended cold
tire inflation pressure)

Vehicle speed

Front wheel

kPa (kgf/cm

or bar,

psi)

Rear wheel

kPa (kgf/cm

or bar,

psi)

More than 220 km/h

(137 mph)

310 (3.1, 45)

220 km/h (137 mph)

or less

250 (2.5, 36)

Wheel size

Front wheels: 20



8 1/2J

Rear wheels: 20



9 1/2J

Wheel nut torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

539

8-1. Specifications

Vehi

cle

ifica

tio

■

Use of ethanol blended gasoline in a

gasoline engine

Lexus allows the use of ethanol blended

gasoline where the ethanol content is up to

10%. Make sure that the ethanol blended

gasoline to be used has a Research Octane

Number that follows the above.

■

If your engine knocks

●

Consult any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer.

●

You may occasionally notice light knock-

ing for a short time while accelerating or

driving uphill. This is normal and there is

no need for concern.

Fuel information

When you find these types of fuel
label at the gas station, use only the
fuel with one of the following labels.

EU area:
You must only use unleaded gaso-
line conforming to European stand-
ard EN228.
Select premium unleaded gasoline
with a Research Octane Number of
95 or higher for optimum engine
performance.

Except EU area:
You must only use unleaded gaso-
line.
Select premium unleaded gasoline
with a Research Octane Number of
95 or higher for optimum engine
performance.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper

fuels are used, the engine will be dam-

aged.

●

Do not use gasoline with metallic addi-

tives, for example manganese, iron or

lead, otherwise it may cause damage

on your engine or emission control

system.

●

Do not add aftermarket fuel additives

which contain metallic additives.

●

EU area: Bioethanol fuel sold under

names such as “E50” or “E85” and

fuel containing a large amount of etha-

nol should not be used. The use of

these fuels will damage the vehicle’s

fuel system. In case of any doubt, ask

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

●

Except EU area: Bioethanol fuel sold

under names such as “E50” or “E85”

and fuel containing a large amount of

ethanol should not be used. Your vehi-

cle can use gasoline mixed with 10%

max ethanol. The use of fuel with more

than 10% ethanol content (E10) will

damage the vehicle’s fuel system. You

must ensure that refueling is carried

out only from a source where fuel

specification and quality can be guar-

anteed. In case of any doubt, ask any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

●

Do not use the methanol blended gas-

oline such as M15, M85, M100.

The use of gasoline containing metha-

nol may cause engine damage or fail-

ure.

540

8-2. Customization

8-2.Customization

■

Changing by using the meter con-
trol switches

Press

to select

Operate the meter control
switches to select the desired item
to be customized.

According to the display, select the
desired setting and then press

To go back to the previous screen or exit
the customize mode, press

■

Changing by using the Center Dis-
play

Select

on the main menu.

Select “Vehicle customise” or
“Driving assist”.

Select the item to change the set-
tings of from the list.

For functions that can be turned on/off,
select

(on) /

(off).

For functions whose level can be adjusted,

such as volume, sensor sensitivity, etc.,

slide the icon on the bar.

■

Changing by using the Rear Multi
Operation Panel (if equipped)

Display the home screen on the
Rear Multi Operation Panel and
then touch “Seat”.

Touch “Left” or “Right”.

Touch .

Touch a button to change the set-
ting.

■

When customizing using the Ceter Dis-

play

Stop the vehicle in a safe place, apply the

parking brake, and shift the shift position to

P. Also, to prevent 12-volt battery discharge,

leave the hybrid system operating while

customizing the features.

Customizable features

Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. The
settings of these features can be
changed by using the meter control
switches, the Center Display, Rear
Multi Operation Panel or at any
authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

Customizing vehicle features

WARNING

■

During customization

As the hybrid system needs to be operat-

ing during customization, ensure that the

vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During customization

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while customizing features.

541

8-2. Customization

Vehi

cle

ifica

tio

Some function settings are changed simultaneously with other functions being cus-
tomized. Contact any authorized Lexus retailer or Lexus authorized repairer, or
any reliable repairer for further details.

Settings that can be changed using the Ceter Display
Settings that can be changed using the meter control switches
Settings that can be changed using the Rear Multi Operation Panel (if
equipped)
Settings that can be changed by any authorized Lexus retailer or Lexus author-
ized repairer, or any reliable repairer

Definition of symbols: O = Available, — = Not available

■

Seat belts (



P.36)

: If equipped

: Vehicles with Active Assist for seat belts

Customizable features

Function

Default setting

Customized set-

ting

Easy Access Buckle

Off

—

Retraction of front seat belts
when vehicle speed reaches
approximately 20 km/h (12
mph)

Off

—

Retraction of front seat belt
when corresponding front
door is opened or seat belt is
released

Off

—

A
B
C

542

8-2. Customization

■

Gauges, meters and multi-information display (



P.105, 109, 114)

Function

Default setting

Customized set-

ting

Language

English

French

—

German

Spanish

Italian

Russian

Traditional Chi-

nese

Turkish

Arabic

Korean

Ukrainian

Units

km (L/100 km)

km (km/L)

—

miles (MPG)

Drive information 1

Current fuel con-

sumption

Customizable
items:



P.116

—

Average fuel

economy (after

reset)

Drive information 2

Distance (driving

range)

Average vehicle

speed (after

reset)

Clock

24-hour display

12-hour display

—

Pop-up display

Off

—

543

8-2. Customization

Vehi

cle

ifica

tio

: For details about each function:



P.118

: The default setting varies according to country.

: The customized setting varies according to country.

: F SPORT models

■

Head-up Display

(



P.120)

: If equipped

Tachometer setting

Change accord-

ing to driving

mode

Always tachome-

ter

—

Always Hybrid

System Indicator

Rev indicator

4000 r/min.

2000 - 6600

r/min.

—

Off

Rev peak

Off

—

EV indicator

Off

—

Suggestion function

On (when the

vehicle is
stopped)

—

Off

Function

Default setting

Customized set-

ting

Gauge information

Hybrid System

Indicator

Tachometer

—

No content

Route guidance to destina-
tion/street name

Off

—

Driving support system dis-
play

Off

—

Compass

Off

—

Audio system operation sta-
tus

Off

—

Function

Default setting

Customized set-

ting

544

8-2. Customization

■

Door lock (



P.132, 137, 512)

■

Rear seat reminder function (



P.134)

■

Smart entry & start system and wireless remote control (



P.132, 144)

Function

Default setting

Customized set-

ting

Unlocking using a mechani-
cal key

All doors

unlocked in one

step

Driver’s door

unlocked in one

step, all doors

unlocked in two

step

—

Speed linked door locking
function

Off

—

Shift position linked door
locking function

Off

—

Shift position linked door
unlocking function

Off

—

Driver’s door linked door
unlocking function

Off

—

Locking/unlocking of the
trunk when all doors are
locked/unlocked

Off

—

Function

Default setting

Customized set-

ting

Rear seat reminder function

Off

—

Function

Default setting

Customized set-

ting

Operation signal (Emer-
gency flashers)

Off

—

Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being unlocked

30 seconds

60 seconds

—

120 seconds

Open door warning buzzer

Off

—

545

8-2. Customization

Vehi

cle

ifica

tio

■

Smart entry & start system (



P.132, 144)

■

Wireless remote control (



P.130, 132, 137)

■

Trunk (



P.137)

: If equipped

Function

Default setting

Customized set-

ting

Smart entry & start system

Off

—

Smart door unlocking

All the doors

Driver’s door

—

Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle

2 seconds

Off

—

1.5 seconds

2.5 seconds

Number of consecutive door
lock operations

As many as

desired

2 times

—

Function

Default setting

Customized set-

ting

Wireless remote control

Off

—

Unlocking operation

All doors

unlocked in one

step

Driver’s door

unlocked in one

step, all doors

unlocked in two

step

—

Trunk unlocking operation

Press and hold

(short)

One short press

—

Push twice

Press and hold

(long)

Off

Function

Default setting

Customized set-

ting

Hands Free Power Trunk Lid
(kick sensor)

Off

—

546

8-2. Customization

■

Front seats (



P.149)

: If equipped

■

Power rear seats

(



P.156)

: If equipped

■

Driving position memory (



P.161)

Function

Default setting

Customized set-

ting

Driver’s seat position linked
head restraint height opera-
tion

Off

—

Function

Default setting

Customized set-

ting

Automatic rear seat opera-
tion (door-linked rear seat
return function and
shift-linked rear seat reclining
function)

Off

—

Door linked rear seat with
ottoman seatback position for
exiting

More upright

than upright posi-

tion

Upright position

—

Shift-linked rear seat reclining
function

Off

—

Function

Default setting

Customized set-

ting

Selecting doors linked to the
memory recall function

Driver’s door

All doors

—

Driver’s seat slide movement
when exiting the vehicle

Full

Off

—

Partial

Driver’s seat height move-
ment when exiting the vehicle

Off

Full

—

Partial

Lexus LS (2023 year). Manual in english - page 16
