7-2. Steps to take in an emergency

n t

ise

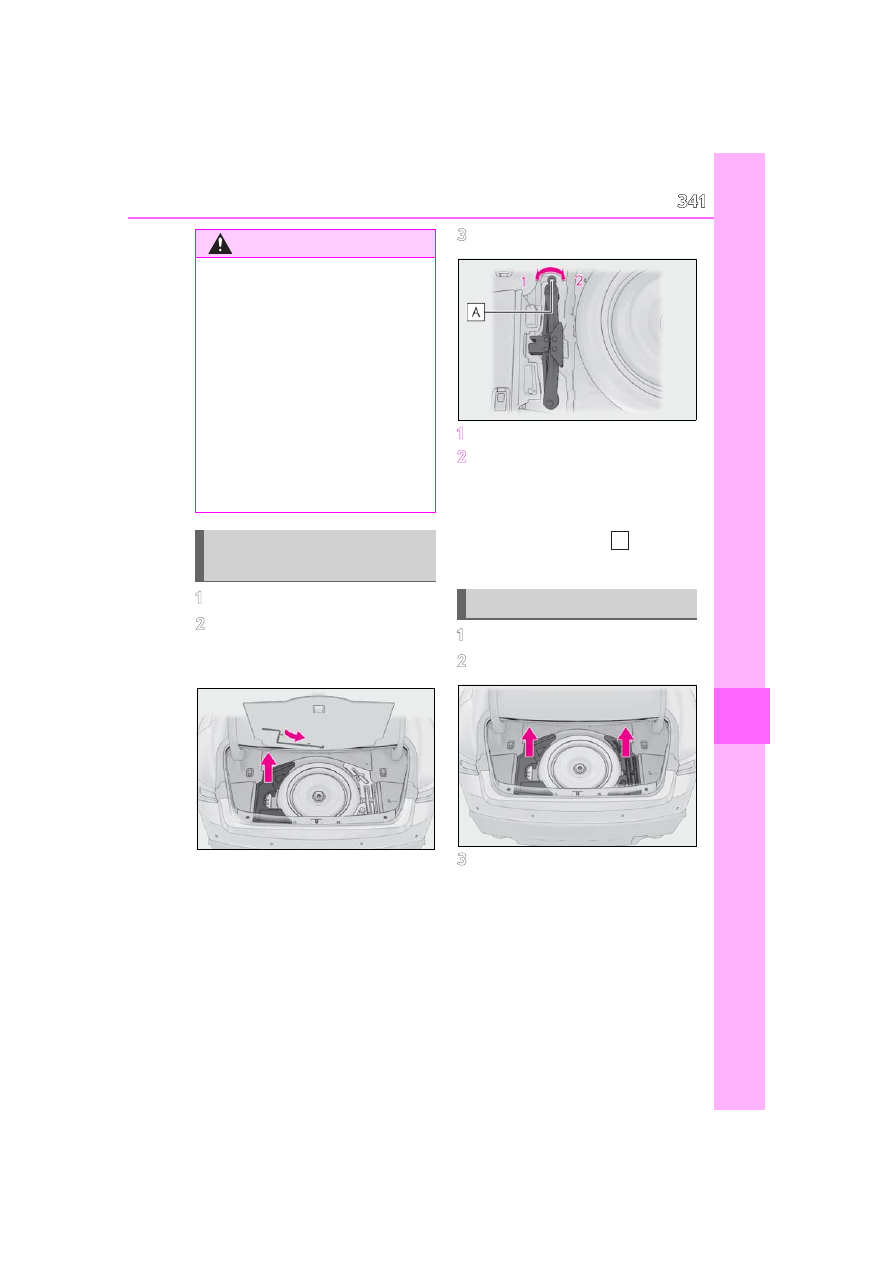

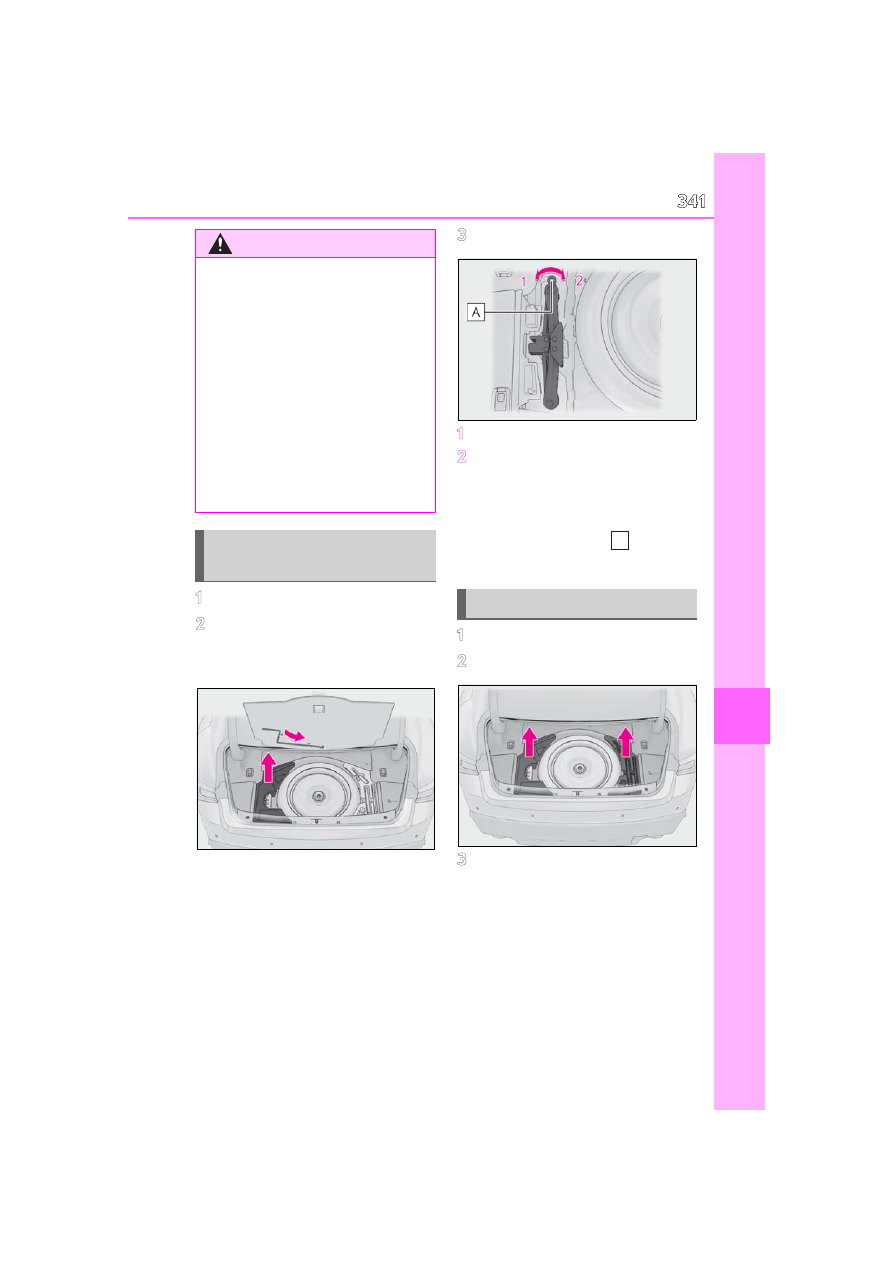

Remove the luggage mat.

Take out the jack handle from the
reverse side of the luggage mat.
Remove the spacer.

Take out the jack.

For tightening

For loosening

If the jack is too tightly installed to be
removed by hand, insert a tool, such as the
screwdriver included with the vehicle, into
the hole of the jack (portion

) and

loosen the jack.

Remove the luggage mat.

Remove the spacer and tool tray.

Loosen the center fastener that
secures the spare tire.

If the center fastener cannot be turned by

hand, use the wheel bolt wrench that is

stored in the trunk. (To secure the tire,

tighten the center fastener by hand. Do not

WARNING

●

Do not raise the vehicle while some-

one is inside.

●

When raising the vehicle, do not put an

object on or under the jack.

●

Do not raise the vehicle to a height

greater than that required to replace

the tire.

●

Use a jack stand if it is necessary to get

under the vehicle.

●

When lowering the vehicle, make sure

that there is no-one near the vehicle. If

there are people nearby, warn them

vocally before lowering.

Taking out the jack and jack han-
dle

Taking out the spare tire

342

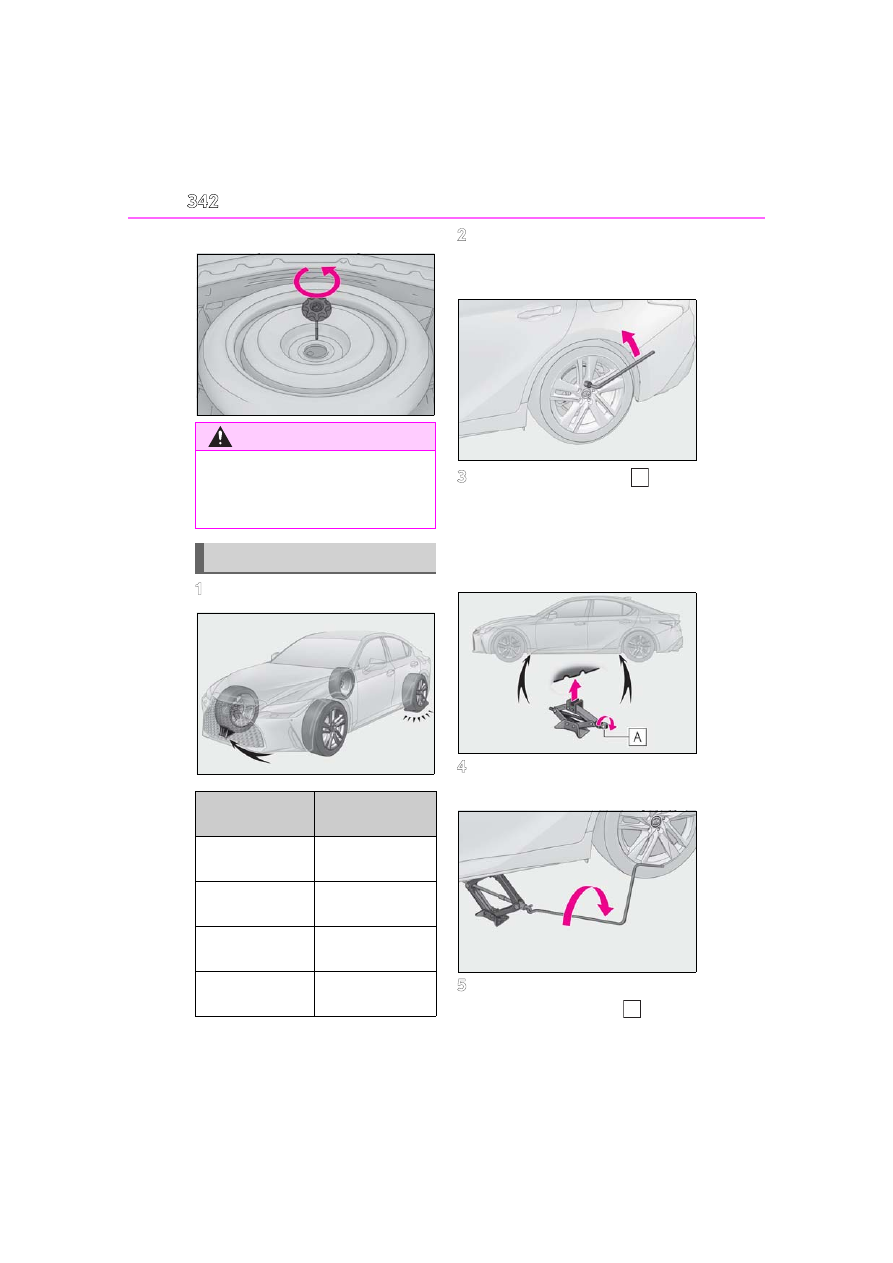

7-2. Steps to take in an emergency

use the wrench or other tools.)

Chock the tires.

Using a wheel bolt wrench, slightly
loosen the wheel bolts (approxi-
mately one turn).

Turn the tire jack portion by
hand until the notch of the jack is in
contact with the jack point.

The jack point guides are located under

the rocker panel. They indicate the jack

point positions.

Raise the vehicle until the tire is
slightly raised off the ground.

Remove the uppermost wheel bolt
and install the guide pin by
hand.

WARNING

■

When storing the spare tire

Be careful not to catch fingers or other

body parts between the spare tire and

the body of the vehicle.

Replacing a flat tire

Flat tire

Wheel chock posi-

tions

Front left-hand side

Behind the rear
right-hand side tire

Front right-hand
side

Behind the rear
left-hand side tire

Rear left-hand side

In front of the front
right-hand side tire

Rear right-hand side

In front of the front
left-hand side tire

343

7-2. Steps to take in an emergency

n t

ise

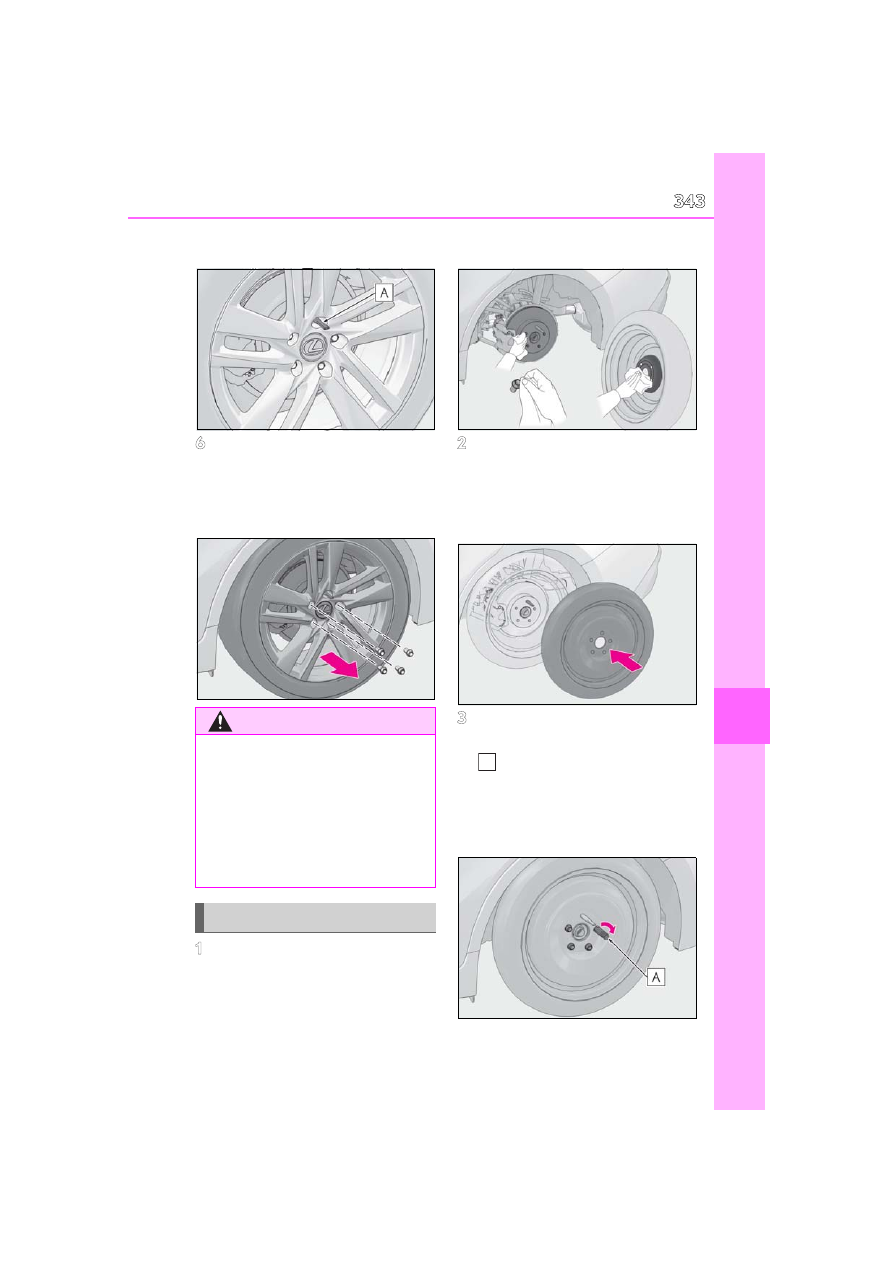

Turn the guide pin clockwise to tighten it

until it stops.

Remove all the wheel bolts and the
tire.

When resting the tire on the ground, place

the tire so that the wheel design faces up to

avoid scratching the wheel surface.

Remove any dirt or foreign matter
from the wheel contact surfaces
and wheel bolts.

If foreign matter is on the wheel contact

surface, the wheel bolts may loosen while

the vehicle is in motion, causing the tire to

come off.

Align a wheel bolt hole on the spare
tire with the guide pin, and set the
spare tire on the guide pin.

Securely set the spare tire so that its wheel

is touching the contact surface.

Loosely tighten each wheel bolt by
hand or using a wheel bolt socket

Push the spare tire to prevent it from falling.
Do not use the wheel bolt socket for any-

thing other than loosely tightening the

wheel bolts by hand.

WARNING

■

Replacing a flat tire

Do not touch the disc wheels or the area

around the brakes immediately after the

vehicle has been driven. After the vehicle

has been driven the disc wheels and the

area around the brakes will be extremely

hot. Touching these areas with hands,

feet or other body parts while changing a

tire, etc. may result in burns.

Installing the spare tire

344

7-2. Steps to take in an emergency

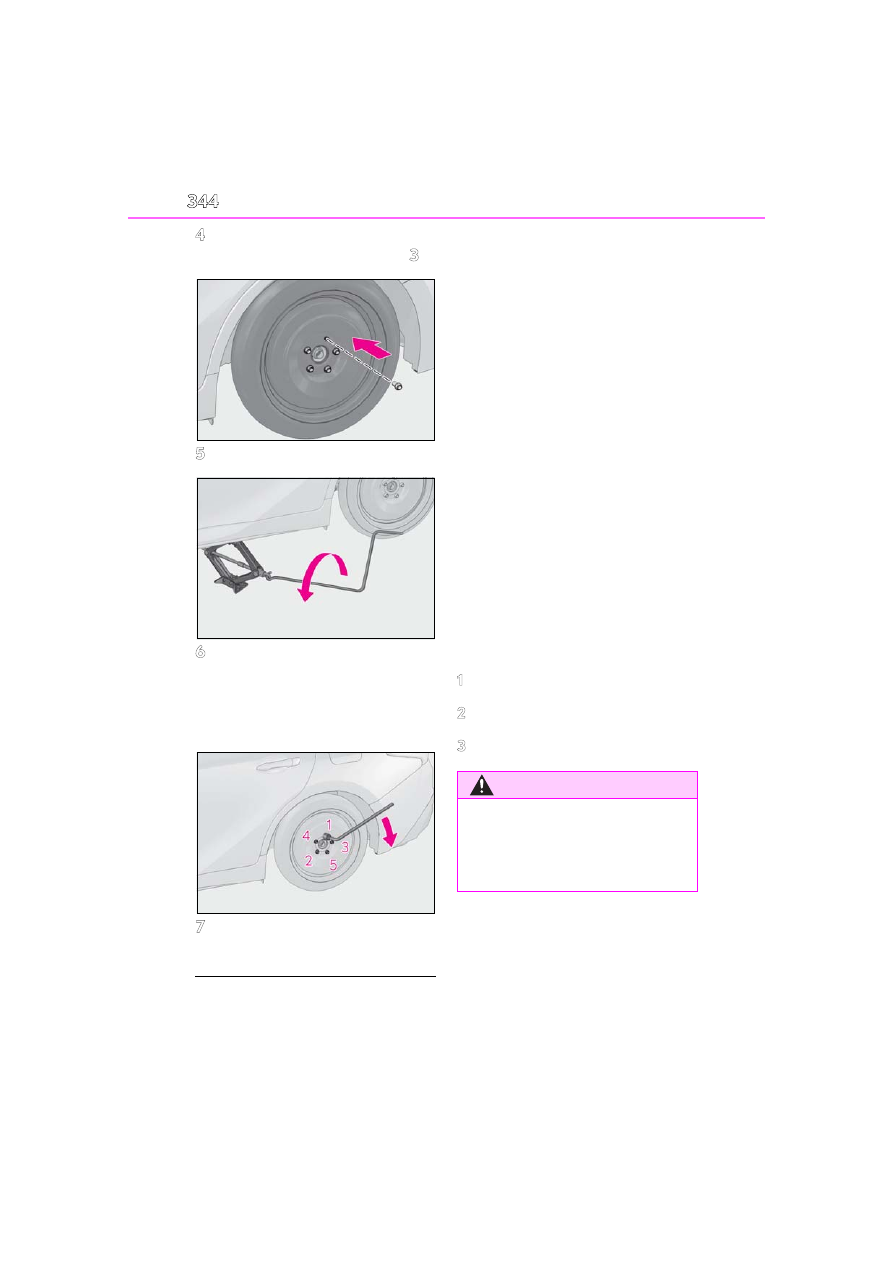

Remove the guide pin and loosely
tighten the wheel bolt as in step

Lower the vehicle.

Firmly tighten each wheel bolt in
the order shown in the illustration
two or three times.

Tightening torque:

103 ft•lbf (140 N•m, 14.3 kgf•m)

Stow the flat tire, tire jack and all
tools.

■

The compact spare tire

●

The compact spare tire is identified by the

label “TEMPORARY USE ONLY” on

the tire sidewall.

●

Use the compact spare tire temporarily,

and only in an emergency.

●

Make sure to check the tire inflation pres-

sure of the compact spare tire. (



P.370)

■

When using the compact spare tire

As the compact spare tire is not equipped

with a tire pressure warning valve and trans-

mitter, low inflation pressure of the spare

tire will not be indicated by the tire pressure

warning system. Also, if you replace the

compact spare tire after the tire pressure

warning light comes on, the light remains

on.

■

When the compact spare tire is

equipped

The vehicle becomes lower when driving

with the compact spare tire compared to

when driving with standard tires.

■

If you have a flat rear tire on a road cov-

ered with snow or ice (vehicles with

front and rear tires of the same size)

Install the compact spare tire on one of the

front wheels of the vehicle. Perform the fol-

lowing steps and fit tire chains to the rear

tires:

Replace a front tire with the compact

spare tire.

Replace the flat rear tire with the tire

removed from the front of the vehicle.

Fit tire chains to the rear tires.

WARNING

■

Installing the compact spare tire

Failure to follow these precautions could

cause the wheel bolts to loosen and the

tire to fall off, resulting in death or serious

injury.

345

7-2. Steps to take in an emergency

n t

ise

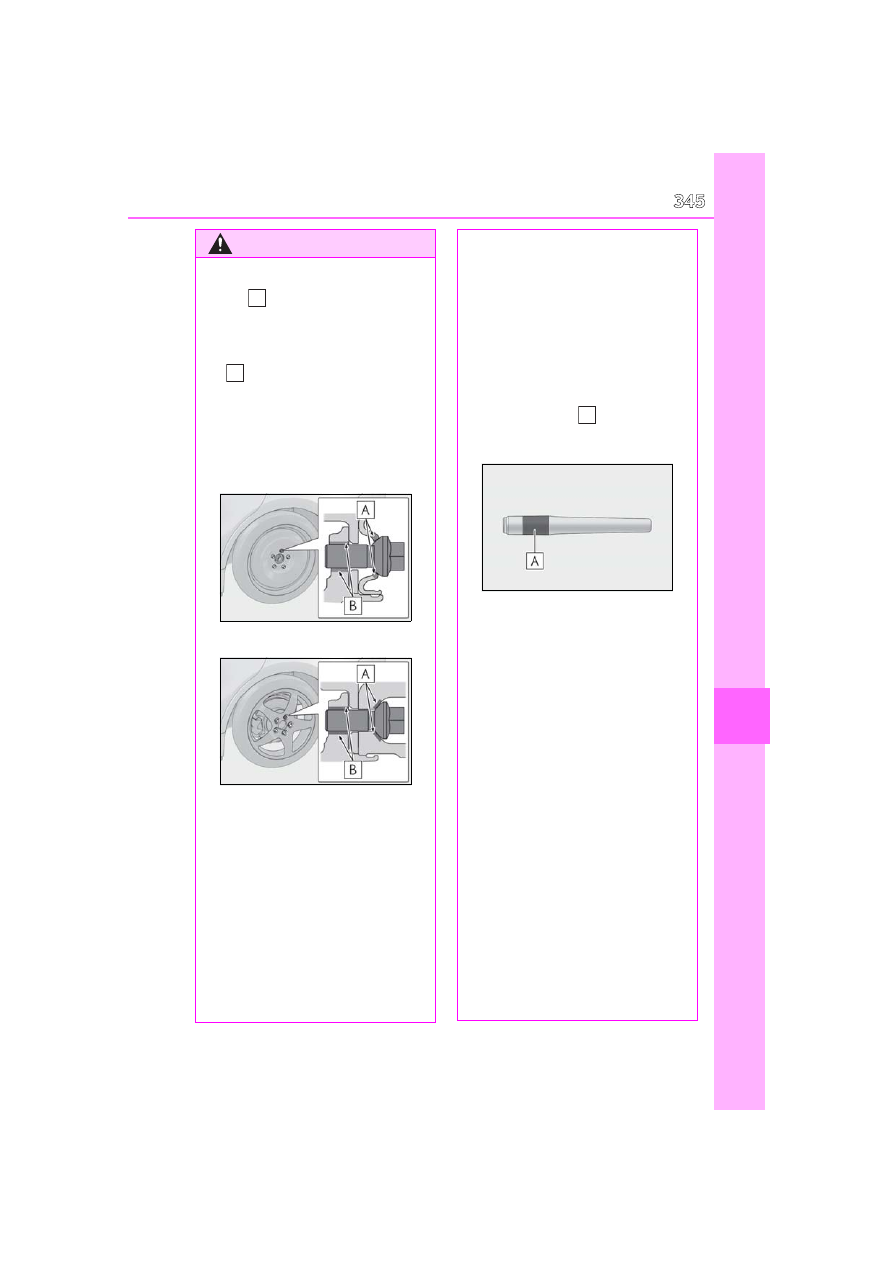

WARNING

●

Never apply oil or grease to the wheel

bolts or their contact surface on the

wheel

Doing so may cause the wheel bolts to

be tightened excessively, leading to

damage to the wheel bolts, the

threaded portion the wheel bolts install

, or the wheel.

Also, the wheel bolts may come loose,

possibly leading to the wheel coming

off, causing a serious accident.

If oil or grease is attached to either of

these parts, remove it.



Steel wheel



Aluminum wheel

●

When installing a wheel, use the same

wheel bolts that were removed with

the wheel. Also, do not use any wheel

bolts other than Lexus Genuine wheel

bolts.

●

Do not attach a heavily damaged

wheel ornament, as it may fly off the

wheel while the vehicle is moving.

●

If a wheel bolt hole in a wheel or the

threads of a wheel bolt or the wheel

hub are deformed, cracked, rusty or

otherwise damaged, have the vehicle

inspected by your Lexus dealer.

■

When tightening the wheel bolts

Do not tighten the wheel bolts exces-

sively. Doing so may cause the wheel

bolts, the threads of the wheel hub, or the

wheel to be damaged.

■

Guide pin

When removing or installing a tire, make

sure to use the guide pin.

Also, the guide pin is made of resin. It

may be damaged if the wheel is placed

anywhere other than

or if a large

amount of force is applied to the guide

pin.

■

When using the compact spare tire

●

Remember that the compact spare tire

provided is specifically designed for

use with your vehicle. Do not use your

compact spare tire on another vehicle.

●

Do not use more than one compact

spare tires simultaneously.

●

Replace the compact spare tire with a

standard tire as soon as possible.

●

Avoid sudden acceleration, abrupt

steering, sudden braking and shifting

operations that cause sudden engine

braking.

■

When the compact spare tire is

attached

The vehicle speed may not be correctly

detected, and the following systems may

not operate correctly:

• ABS & Brake assist

• VSC

• TRAC

346

7-2. Steps to take in an emergency

WARNING

• Dynamic radar cruise control with

full-speed range

• PCS

• EPS

• Tire pressure warning system

• Adaptive Variable Suspension System

(if equipped)

• LTA (Lane Tracing Assist)

• Lexus parking assist monitor

• Panoramic view monitor (if equipped)

• Intuitive parking assist (if equipped)

• PKSB (Parking Support Brake) (if

equipped)

• BSM (Blind Spot Monitor)

• Navigation system (if equipped)

Also, not only can the following system

not be utilized fully, but it may even nega-

tively affect the drive-train components:

• AWD system

■

Speed limit when using the compact

spare tire

Do not drive at speeds in excess of 50

mph (80 km/h) when a compact spare

tire is installed on the vehicle.
The compact spare tire is not designed

for driving at high speeds. Failure to

observe this precaution may lead to an

accident causing death or serious injury.

■

After using the tools and jack

Before driving, make sure all the tools

and jack are securely in place in their

storage location to reduce the possibility

of personal injury during a collision or

sudden braking.

NOTICE

■

Be careful when driving over bumps

with the compact spare tire installed

on the vehicle

When driving with the compact spare

tire installed, the vehicle height will be

different than when driving with standard

tires. Be careful when driving over

uneven road surfaces, etc.

■

Driving with tire chains and the com-

pact spare tire

Do not fit tire chains to the compact

spare tire.

Tire chains may damage the vehicle body

and adversely affect driving perfor-

mance.

■

When replacing the tires

When removing or fitting the wheels,

tires or the tire pressure warning valve

and transmitter, contact your Lexus

dealer as the tire pressure warning valve

and transmitter may be damaged if not

handled correctly.

347

7-2. Steps to take in an emergency

When trouble

ari

ses

One of the following may be the cause
of the problem:



There may not be sufficient fuel in
the vehicle’s tank.
Refuel the vehicle.



The engine may be flooded.
Try to restart the engine again fol-
lowing correct starting procedures.
(



P.130)



There may be a malfunction in the
engine immobilizer system.
(



P.60)

One of the following may be the cause
of the problem:



The battery may be discharged.
(



P.351)



The battery terminal connections
may be loose or corroded.
(



P.292)

The engine starting system may be
malfunctioning due to an electrical
problem such as electronic key battery
depletion or a blown fuse. However, an
interim measure is available to start the
engine. (



P.347)

One of the following may be the cause
of the problem:



One or both of the battery terminals
may be disconnected. (



P.292)



The battery may be discharged.
(



P.351)

Contact your Lexus dealer if the problem
cannot be repaired, or if repair procedures
are unknown.

When the engine does not start, the
following steps can be used as an
interim measure to start the engine if
the engine switch is functioning nor-
mally:

Push the parking brake switch to
check that the parking brake is set.
(



P.139)

Parking brake indicator will come on.

Shift the shift lever to P.

If the engine will not start

If the engine will not start even
though correct starting procedures
are being followed (



P.130), con-

sider each of the following points:

The engine will not start even
though the starter motor oper-
ates normally.

The starter motor turns over
slowly, the interior lights and
headlights are dim, or the horn
does not sound or sounds at a low
volume.

The starter motor does not turn
over

The starter motor does not turn
over, the interior lights and head-
lights do not turn on, or the horn
does not sound.

Starting the engine in an emer-
gency

348

7-2. Steps to take in an emergency

Turn the engine switch to ACCES-
SORY mode.

Press and hold the engine switch
for about 15 seconds while
depressing the brake pedal firmly.

Even if the engine can be started using
the above steps, the system may be
malfunctioning. Have the vehicle
inspected by your Lexus dealer.

If you lose your keys

New genuine mechanical keys can
be made by your Lexus dealer using
another mechanical key and the
key number stamped on your key
number plate.

Keep the plate in a safe place such
as your wallet, not in the vehicle.

NOTICE

■

When an electronic key is lost

If the electronic key remains lost, the risk

of vehicle theft increases significantly.

Visit your Lexus dealer immediately with

all remaining electronic keys and the

card key that were provided with your

vehicle.

349

7-2. Steps to take in an emergency

n t

ise

Remove the cover inside the trunk and
pull the lever.

■

When the electronic key does not work

properly

●

Make sure that the smart access system

with push-button start has not been deac-

tivated in the customization setting. If it is

off, turn the function on.

●

Check if battery-saving mode is set. If it is

set, cancel the function. (



P.98)

■

Doors

Use the mechanical key (



P.88) in

order to perform the following opera-
tions:

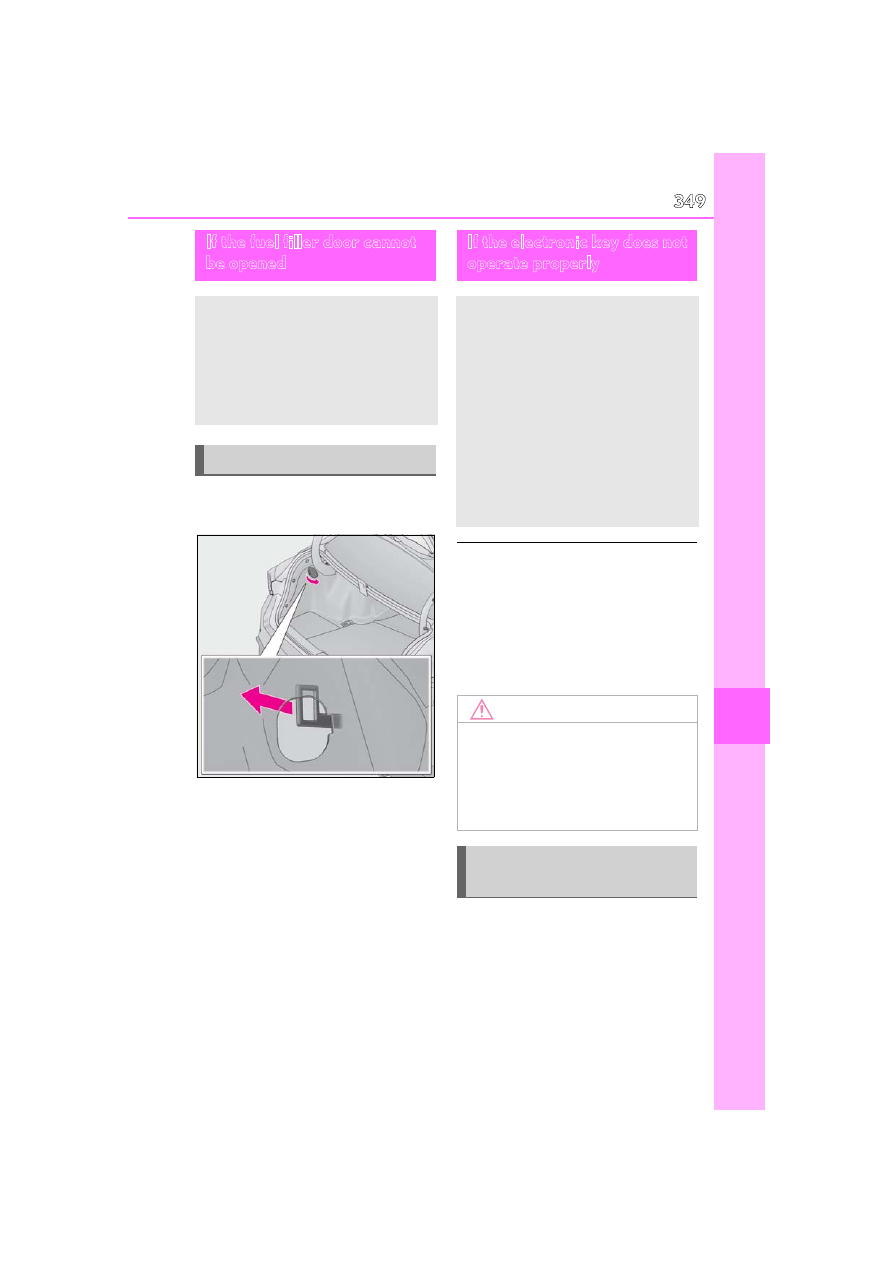

If the fuel filler door cannot
be opened

If the fuel filler door cannot be
opened by pressing the center of
the rear edge of the fuel filler door
with the doors unlocked, the follow-
ing procedure can be used to open
the fuel filler door.

Opening the fuel filler door

If the electronic key does not
operate properly

If communication between the
electronic key and vehicle is inter-
rupted (



P.98) or the electronic

key cannot be used because the
battery is depleted, the smart
access system with push-button
start and wireless remote control
cannot be used. In such cases, the
doors and trunk can be opened and
the engine can be started by follow-
ing the procedure below.

NOTICE

■

In case of a smart access system with

push-button start malfunction or

other key-related problems

Take your vehicle with all the electronic

keys provided with your vehicle to your

Lexus dealer.

Locking and unlocking the
doors, unlocking the trunk

350

7-2. Steps to take in an emergency

Locks all the doors

Unlocks the door

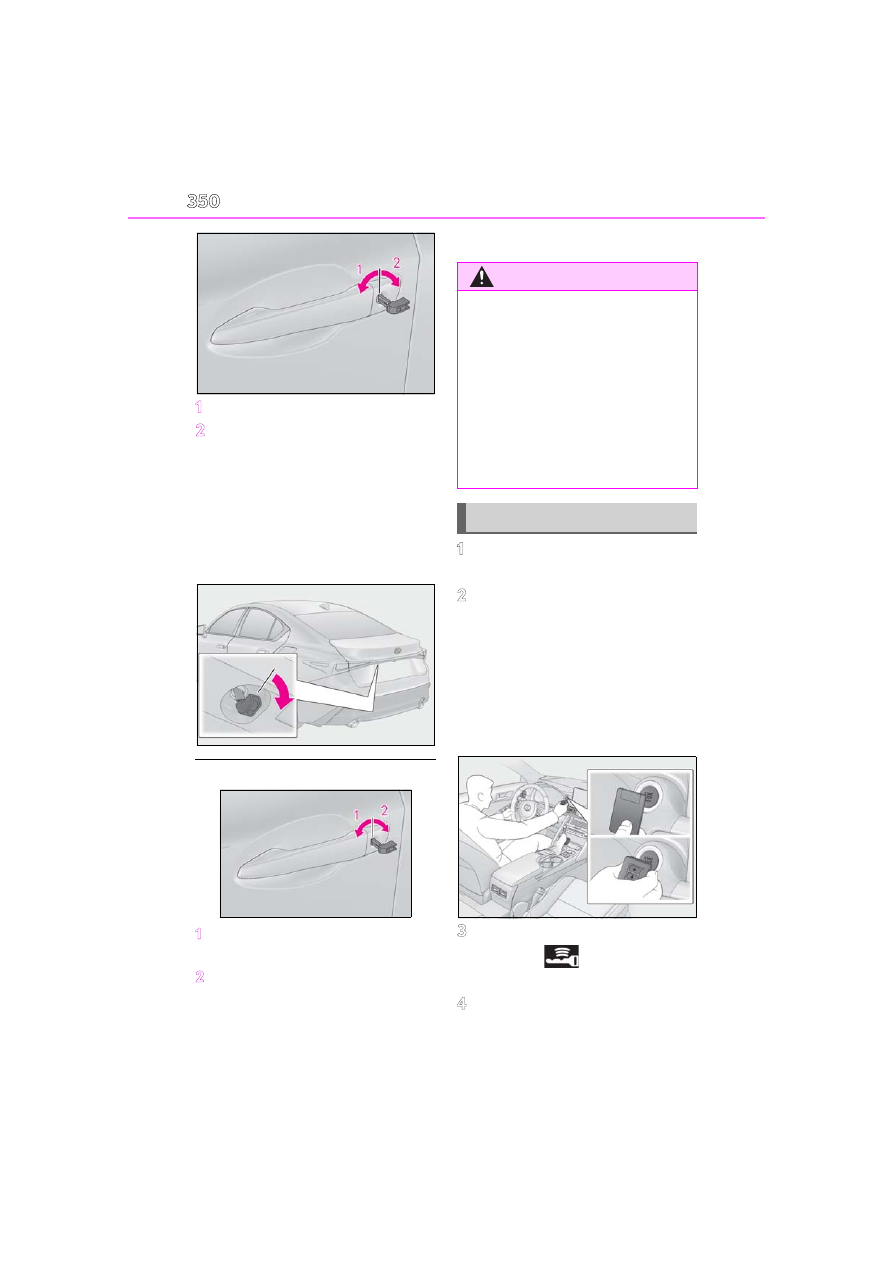

Turning the key rearward unlocks the
driver’s door. Turning the key once again
within 5 seconds unlocks the other doors.

■

Trunk

Turn the mechanical key clockwise to
open. (



P.61)

■

Key linked functions

Closes the windows and moon roof

(turn and hold)

Opens the windows and moon roof

(turn and hold)

This setting must be customized at your

Lexus dealer.

: If equipped

Ensure that the shift lever is in P and
depress the brake pedal.

Touch the Lexus emblem side of the
electronic key to the engine switch.

When the electronic key is detected, a

buzzer sounds and the engine switch will

turn to IGNITION ON mode.
When the smart access system with

push-button start is deactivated in custom-

ization setting, the engine switch will turn

to ACCESSORY mode.

Firmly depress the brake pedal and
check that

is shown on the

multi-information display.

Press the engine switch.

In the event that the engine still cannot

WARNING

■

When using the mechanical key and

operating the power windows or

moon roof

Operate the power window or moon

roof after checking to make sure that

there is no possibility of any passenger

having any of their body parts caught in

the window or moon roof.

Also, do not allow children to operate the

mechanical key. It is possible for children

and other passengers to get caught in

the power window or moon roof.

Starting the engine

351

7-2. Steps to take in an emergency

When trouble

ari

ses

be started, contact your Lexus dealer.

■

Stopping the engine

Shift the shift lever to P and press the engine

switch as you normally do when stopping

the engine.

■

Replacing the key battery

As the above procedure is a temporary

measure, it is recommended that the elec-

tronic key battery be replaced immediately

when the battery is depleted. (



P.307)

■

Changing engine switch modes

Release the brake pedal and press the

engine switch in step

above. The engine

does not start and modes will be changed

each time the switch is pressed. (



P.131)

If the vehicle battery is dis-
charged

The following procedures may be
used to start the engine if the vehi-
cle’s battery is discharged.
You can also call your Lexus dealer
or a qualified repair shop.

352

7-2. Steps to take in an emergency

If you have a set of jumper (or booster)
cables and a second vehicle with a
12-volt battery, you can jump start your
vehicle by following the steps below.

Confirm that the electronic key is
being carried.

When connecting the jumper (or booster)

cables, depending on the situation, the

alarm may activate and doors locked.

(



P.62)

Open the hood. (



P.283)

IS500: Remove the engine cover.

Raise the rear of the engine cover to

remove the rear clip, and then raise the

front of the engine cover to remove the

front clips.

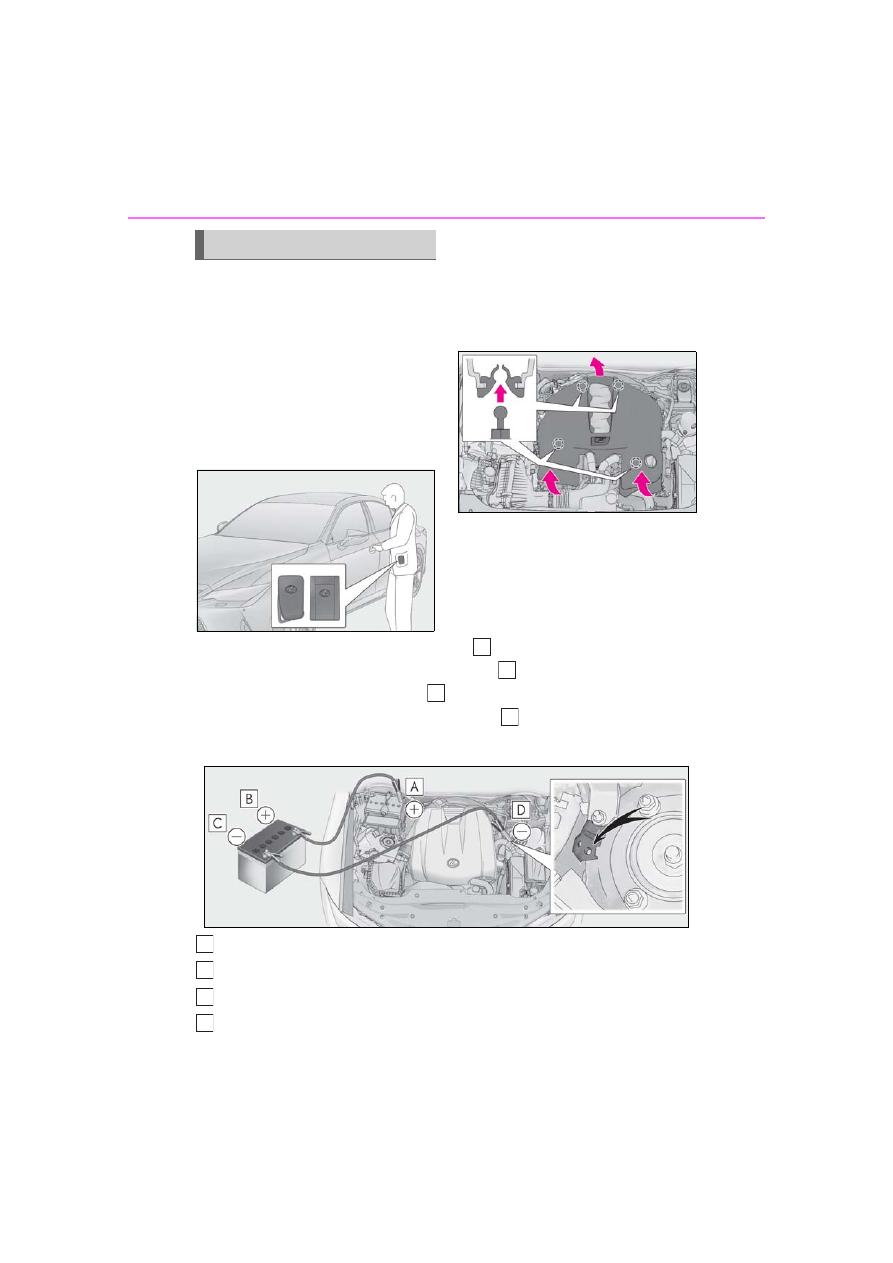

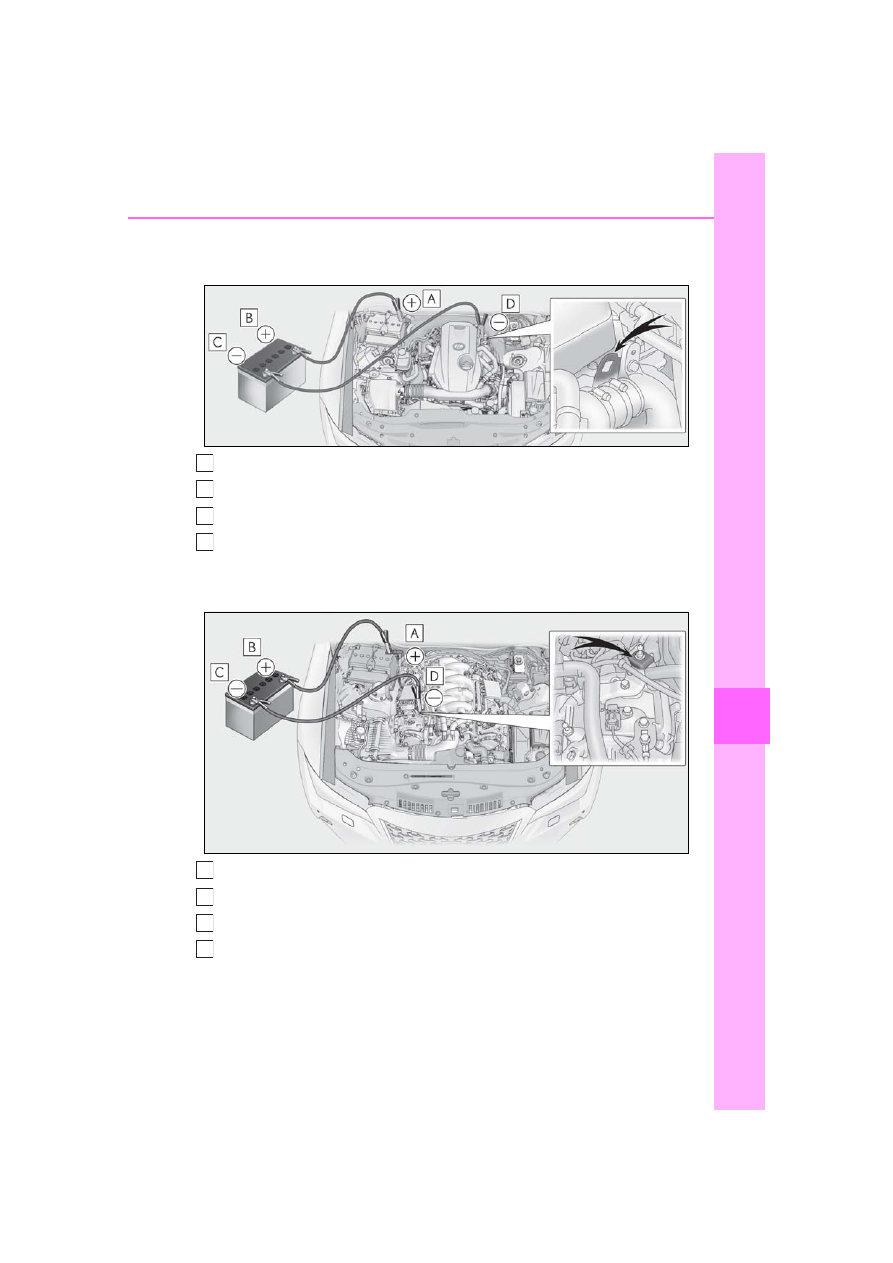

Connect a positive jumper cable clamp to   on your vehicle and connect the
clamp on the other end of the positive cable to   on the second vehicle. Then,
connect a negative cable clamp to   on the second vehicle and connect the
clamp at the other end of the negative cable to  .



IS350 AWD/IS350/IS300 AWD

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the battery and any mov-

Restarting the engine

A
B
C
D

353

7-2. Steps to take in an emergency

When trouble

ari

ses

ing parts as shown in the illustration



IS300



IS500

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for

approximately 5 minutes to
recharge the battery of your vehi-
cle.

A
B
C
D

354

7-2. Steps to take in an emergency

Open and close any of the doors of
your vehicle with the engine switch
off.

Maintain the engine speed of the
second vehicle and start the engine
of your vehicle by turning the
engine switch to IGNITION ON
mode.

Once the vehicle’s engine has
started, remove the jumper cables
in the exact reverse order from
which they were connected.

Once the engine starts, have the vehi-
cle inspected at your Lexus dealer as
soon as possible.

■

Starting the engine when the battery is

discharged

The engine cannot be started by push-start-

ing.

■

To prevent battery discharge

●

Turn off the headlights and the audio sys-

tem while the engine is off.

●

Turn off any unnecessary electrical com-

ponents when the vehicle is running at a

low speed for an extended period, such

as in heavy traffic.

■

Charging the battery

The electricity stored in the battery will dis-

charge gradually even when the vehicle is

not in use, due to natural discharge and the

draining effects of certain electrical appli-

ances. If the vehicle is left for a long time,

the battery may discharge, and the engine

may be unable to start. (The battery

recharges automatically during driving.)

■

When recharging or replacing the bat-

tery

●

In some cases, it may not be possible to

unlock the doors using the smart access

system with push-button start when the

battery is discharged. Use the wireless

remote control or the mechanical key to

lock or unlock the doors.

●

The engine may not start on the first

attempt after the battery has recharged

but will start normally after the second

attempt. This is not a malfunction.

●

The engine switch mode is memorized by

the vehicle. When the battery is recon-

nected, the system will return to the

mode it was in before the battery was dis-

charged. Before disconnecting the bat-

tery, turn the engine switch off. If you are

unsure what mode the engine switch was

in before the battery discharged, be

especially careful when reconnecting the

battery.

WARNING

■

Avoiding battery fires or explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the bat-

tery:

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

battery.

■

Battery precautions

The battery contains poisonous and cor-

rosive acidic electrolyte, while related

parts contain lead and lead compounds.

Observe the following precautions when

handling the battery:

355

7-2. Steps to take in an emergency

n t

ise

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the engine.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

After the engine has cooled down
sufficiently, inspect the hoses and
radiator core (radiator) for any
leaks.

WARNING

●

When working with the battery, always

wear safety glasses and take care not

to allow any battery fluids (acid) to

come into contact with skin, clothing

or the vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid comes

into contact with the skin or eyes,

immediately wash the affected area

with water and seek medical attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after handling

the battery support, terminals, and

other battery-related parts.

●

Do not allow children near the battery.

NOTICE

■

When handling jumper cables

When connecting the jumper cables,

ensure that they do not become entan-

gled in the cooling fans or engine drive

belt.

If your vehicle overheats

The following may indicate that
your vehicle is overheating.



The needle of the engine coolant
temperature gauge (



P.69)

enters the red zone or a loss of
engine power is experienced.
(For example, the vehicle speed
does not increase.)



“Engine Coolant Temp High Stop
in a Safe Place See Owner’s
Manual” is shown on the
multi-information display.



Steam comes out from under the
hood.

Correction procedures

356

7-2. Steps to take in an emergency



IS350 AWD/IS350/IS300
AWD/IS300

Radiator
Cooling fans

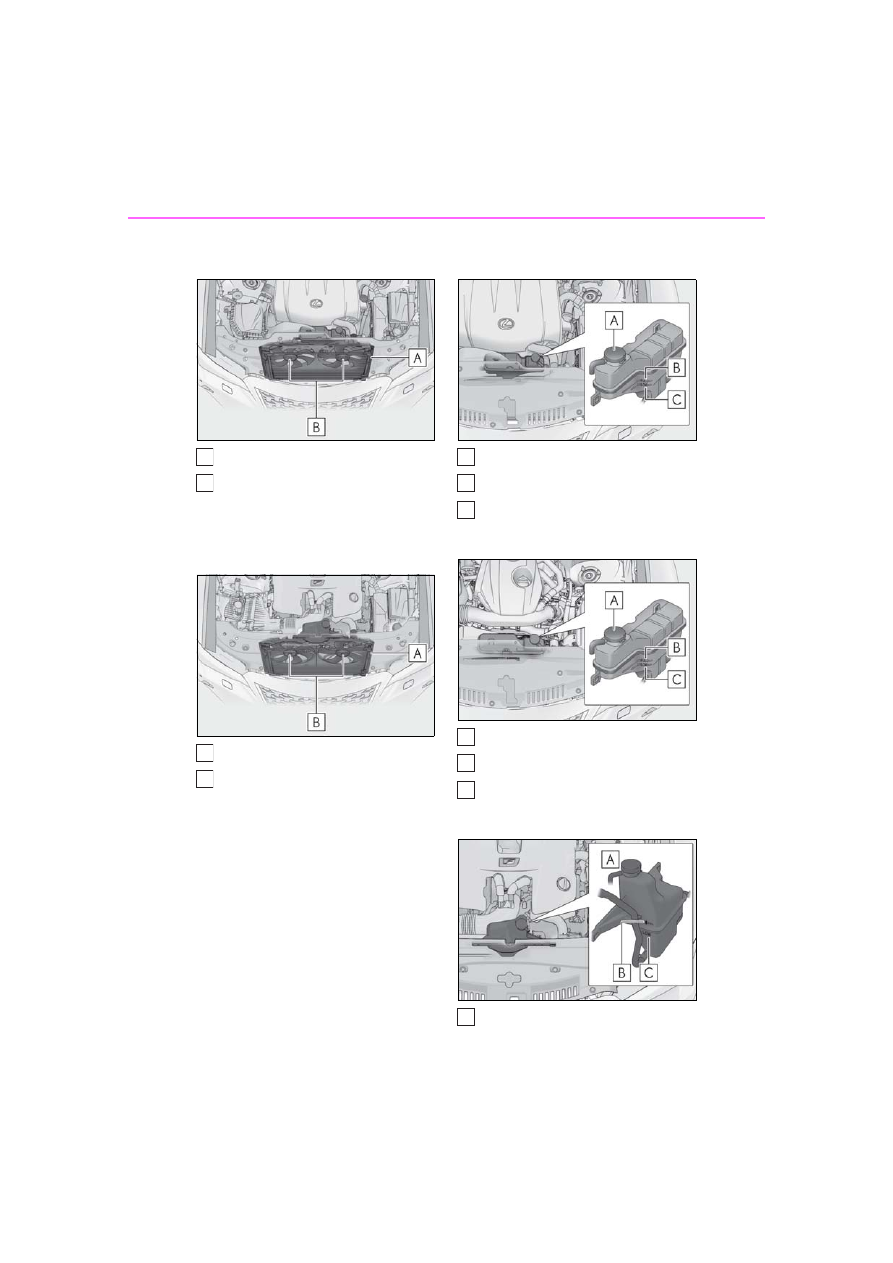

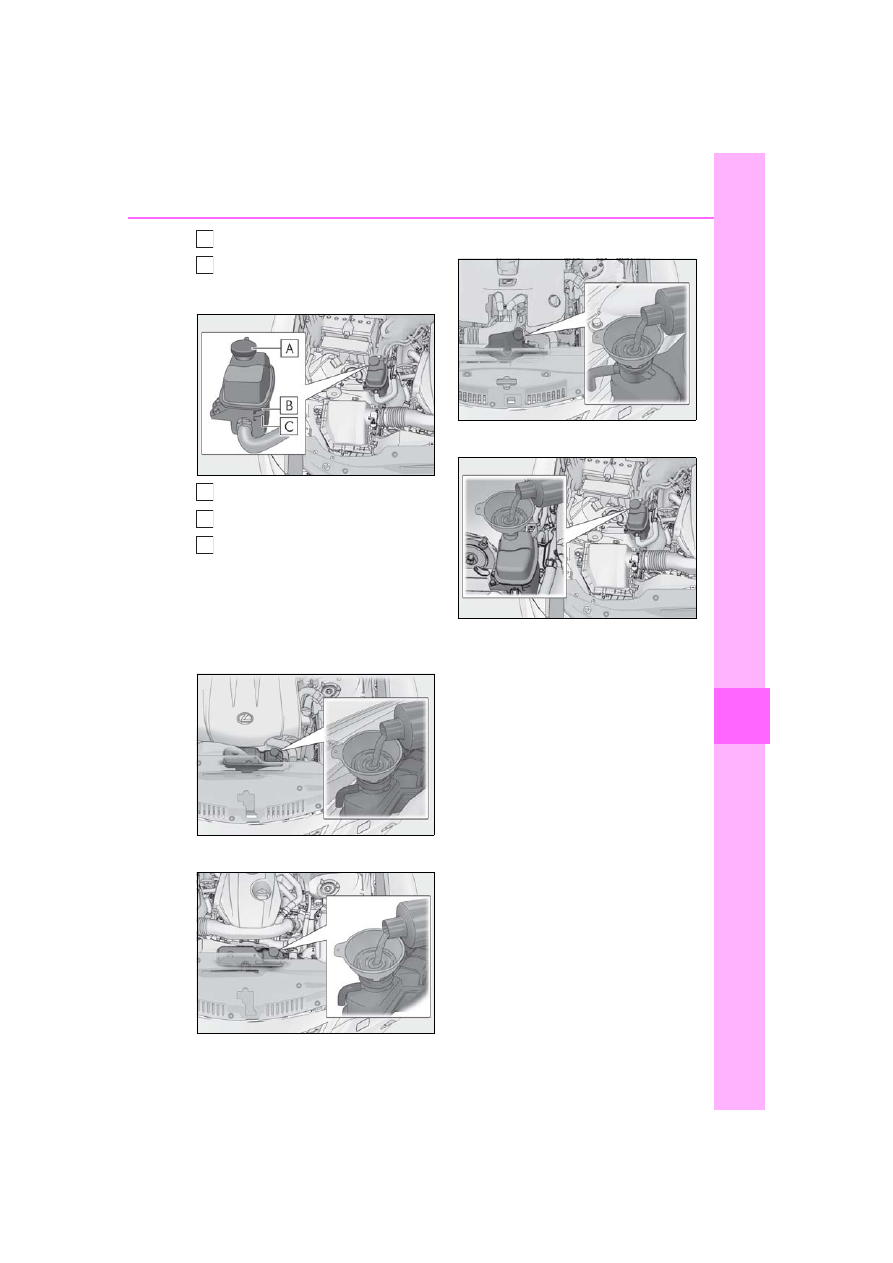

If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.



IS500

Radiator
Cooling fans

If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.

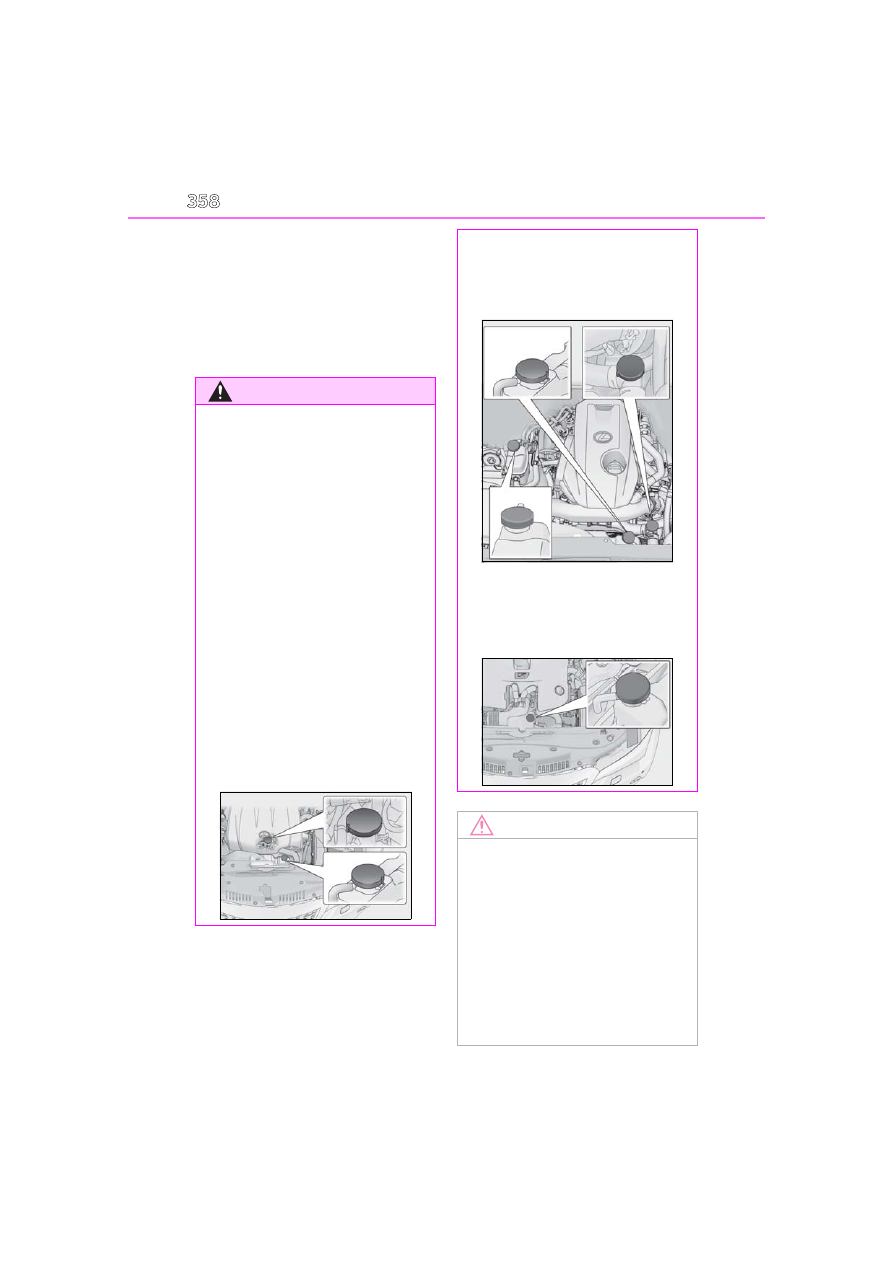

The coolant level is satisfactory if it
is between the “FULL” or “F” and
“LOW” or “L” lines on the reservoir.



Engine (IS350
AWD/IS350/IS300 AWD)

Reservoir cap
“FULL” line
“LOW” line



Engine (IS300)

Reservoir cap
“FULL” line
“LOW” line



Engine (IS500)

Reservoir cap

A
B

A
B
C

357

7-2. Steps to take in an emergency

When trouble

ari

ses

“FULL” line
“LOW” line



Intercooler (IS300)

Reservoir cap
“F” line
“L” line

Add coolant if necessary.

Water can be used in an emergency if

coolant is unavailable.



Engine (IS350
AWD/IS350/IS300 AWD)



Engine (IS300)



Engine (IS500)



Intercooler (IS300)

Start the engine and turn the air
conditioning system on to check
that the radiator cooling fans oper-
ate and to check for coolant leaks
from the radiator or hoses.

The fans operate when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fans are oper-

ating by checking the fan sound and air

flow. If it is difficult to check these, turn the

air conditioning system on and off repeat-

edly. (The fans may not operate in freezing

temperatures.)

If the fans are not operating:
Stop the engine immediately and
contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the
nearest Lexus dealer.

Check if “Engine Coolant Temp
High Stop in a Safe Place See
Owner’s Manual” is shown on the

B
C

A
B
C

358

7-2. Steps to take in an emergency

multi-information display.
If the message does not disappear:
Stop the engine and contact your
Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the
nearest Lexus dealer.

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

Keep hands and clothing (especially a

tie, a scarf or a muffler) away from the

fans and belts.

Failure to do so may cause the hands

or clothing to be caught, resulting in

serious injury.

●

IS350 AWD/IS350/IS300 AWD:

Do not loosen the coolant inlet cap or

coolant reservoir cap while the engine

and radiator are hot. (The coolant inlet

cap is located under the engine cover.)

High temperature steam or coolant

could spray out.

●

IS300: Do not loosen the coolant inlet

cap, coolant reservoir cap, or inter-

cooler reservoir cap while the engine

and radiator are hot. High tempera-

ture steam or coolant could spray out.

●

IS500: Do not loosen the coolant inlet

cap or coolant reservoir cap while the

engine and radiator are hot. High tem-

perature steam or coolant could spray

out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the engine has

cooled down sufficiently. Adding cool

coolant to a hot engine too quickly can

cause damage to the engine.

■

To prevent damage to the cooling sys-

tem

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

359

7-2. Steps to take in an emergency

n t

ise

Stop the engine. Set the parking
brake and shift the shift lever to P.

Remove the mud, snow or sand
from around the rear wheels.

Place wood, stones or some other
material under the rear wheels to
help provide traction.

Restart the engine.

Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

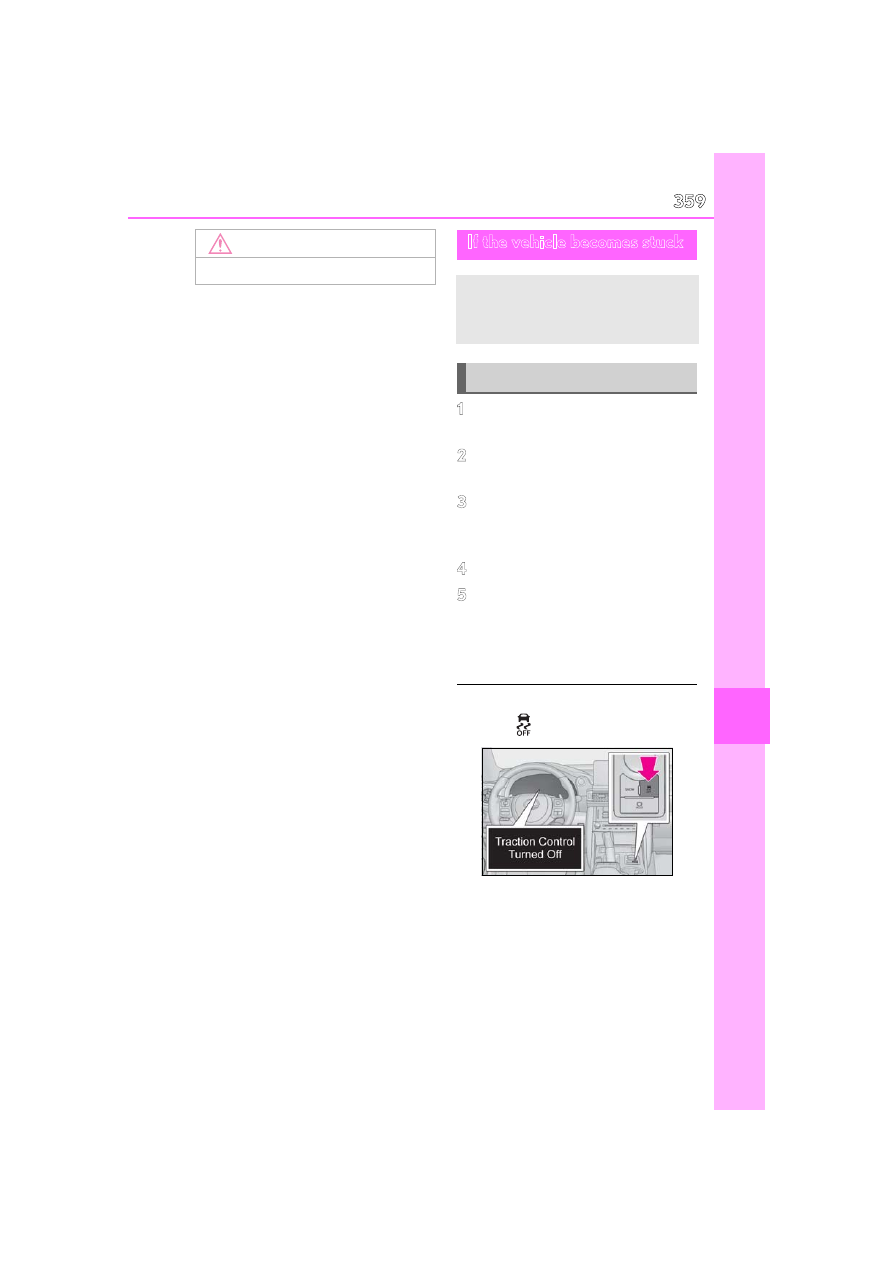

When it is difficult to free the vehicle

Press the

switch to turn off TRAC.

NOTICE

●

Do not use any coolant additive.

If the vehicle becomes stuck

Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

360

7-2. Steps to take in an emergency

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with

the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the rear wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

361

Vehi

cle

spec

ifi

tions

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

362

Fuel information.........................

374

Tire information..........................

376

8-2. Customization

Customizable features............

386

8-3. Initialization

Items to initialize ........................

396

362

8-1. Specifications

8-1.Specifications

: IS350 AWD/IS350/IS300 AWD/IS300

: IS500

: Unladen vehicles

: 2WD models

: AWD models

: Vehicles with 235/45R18 or 235/40R19 rear tires

: Vehicles with 265/35R19 rear tires

■

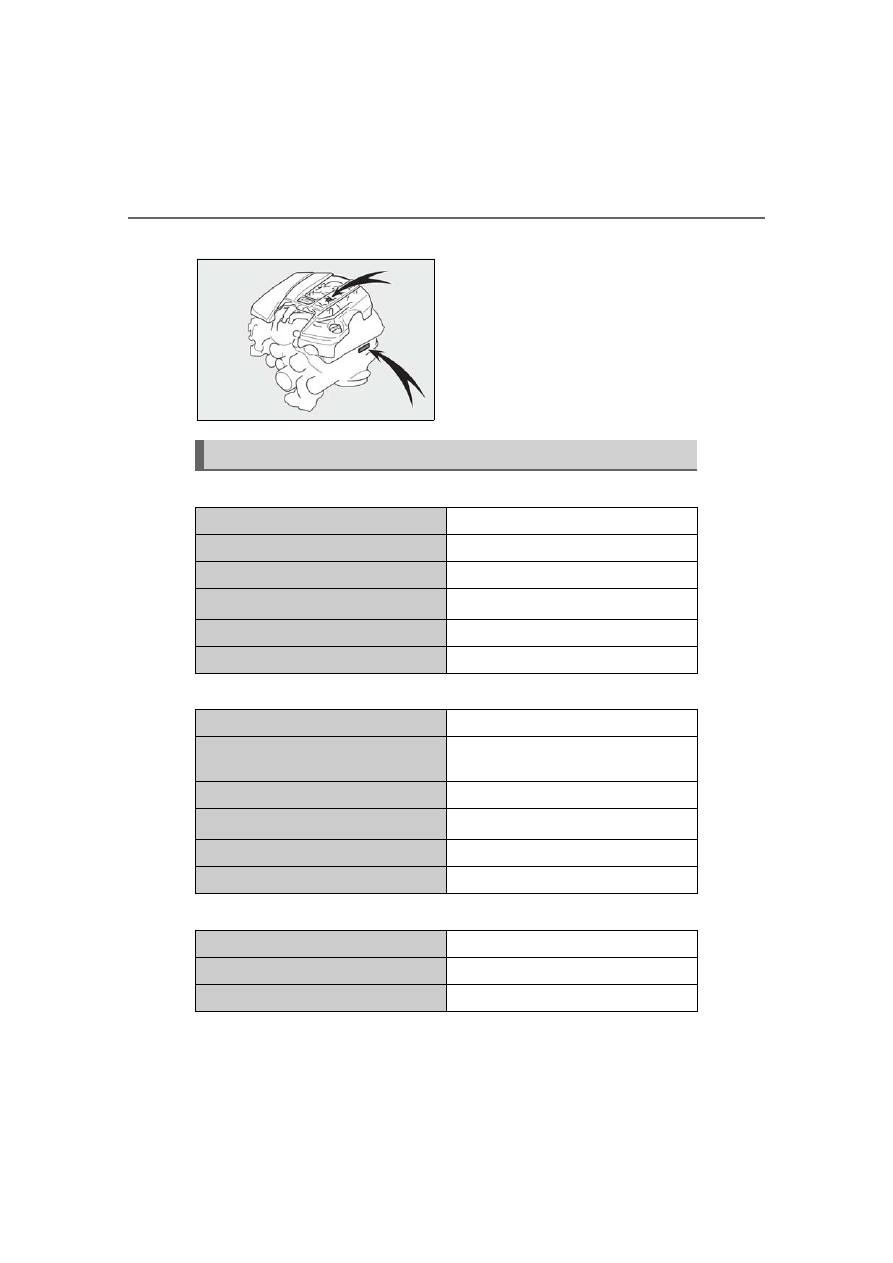

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in

registering the ownership of your vehi-
cle.

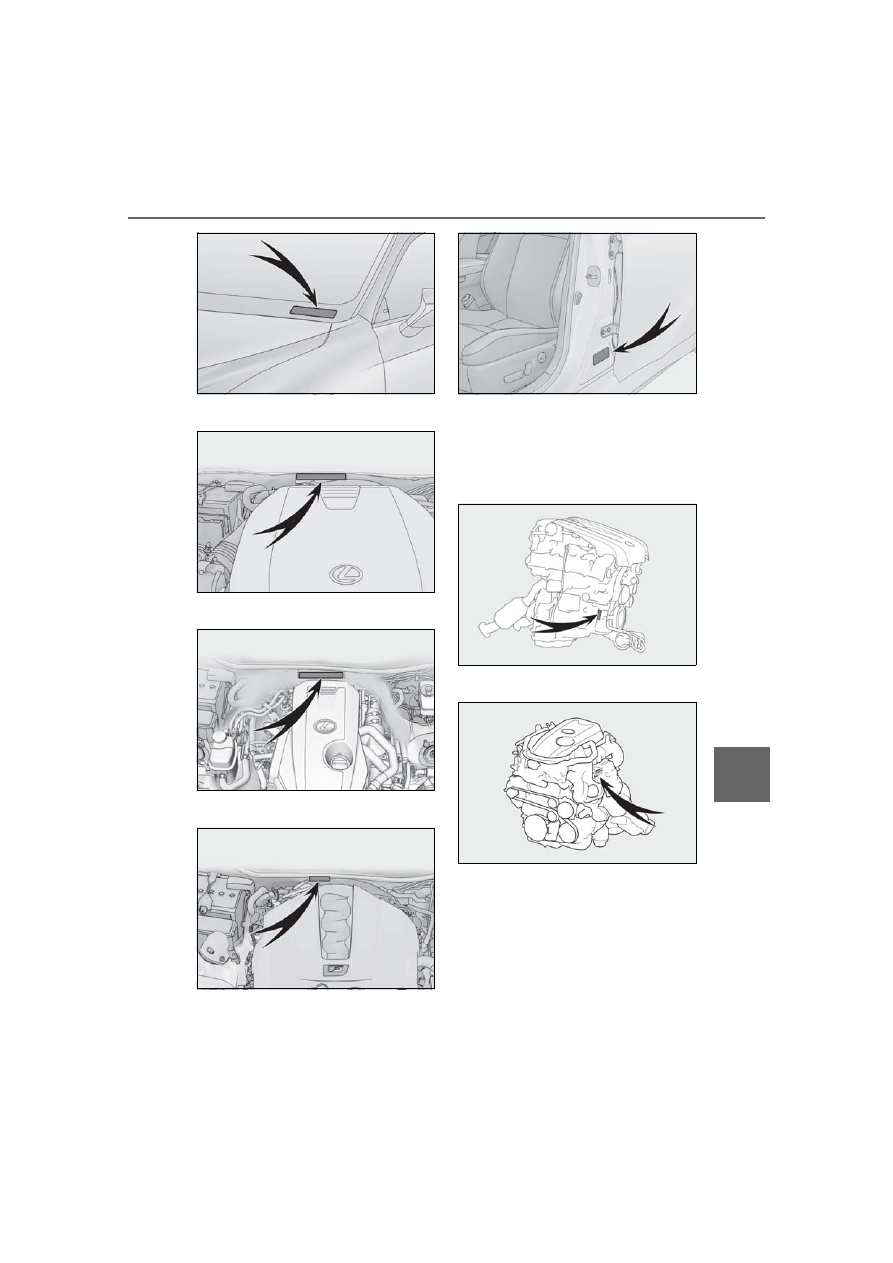

This number is stamped on the top left
of the instrument panel and in the
engine compartment.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

185.4 in. (4710 mm)

187.3 in. (4758 mm)

Overall width

72.4 in. (1840 mm)

Overall height

56.5 in. (1435 mm)

56.7 in. (1440 mm)

Wheelbase

110.2 in. (2800 mm)

Tread

Front

62.2 in. (1580 mm)

Rear

63.0 in. (1600 mm)

61.8 in. (1570 mm)

Vehicle capacity weight
(Occupants + luggage)

825 lb. (375 kg)

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

364

8-1. Specifications



IS500



IS350 AWD/IS350/IS300 AWD



IS300



IS500

Engine

Model

3.5 L 6-cylinder (2GR-FKS) engine

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70



3.27 in. (94.0



83.0 mm)

Displacement

210.9 cu. in. (3456 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Model

2.0 L 4-cylinder (8AR-FTS) engine

Type

4-cylinder in line, 4-cycle, gasoline (with tur-
bocharger)

Bore and stroke

3.39



3.39 in. (86.0



86.0 mm)

Displacement

121.9 cu. in. (1998 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Model

5.0 L 8-cylinder (2UR-GSE) engine

Type

8-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70



3.52 in. (94.0



89.5 mm)

365

8-1. Specifications

Vehi

cle

spec

ifi

tions

■

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.

■

Engine oil selection (IS350
AWD/IS350/IS300
AWD/IS300)

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-6A multigrade
engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at
the next oil change.

Displacement

303.2 cu. in. (4969 cm

)

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

91 (Research Octane Number 96) or higher

Fuel tank capacity
(Reference)

17.5 gal. (66.5 L, 14.6 Imp. gal.)

Lubrication system

With filter



IS350 (2WD)

6.0 qt. (5.7 L, 5.0 Imp. qt.)



IS350 AWD/IS300
AWD (AWD)

6.8 qt. (6.4 L, 5.6 Imp. qt.)



IS300

4.9 qt. (4.6 L, 4.0 Imp. qt.)



IS500

9.1 qt. (8.6 L, 7.6 Imp. qt.)

Without fil-

ter



IS350 (2WD)

5.8 qt. (5.5 L, 4.8 Imp. qt.)



IS350 AWD/IS300
AWD (AWD)

6.3 qt. (6.0 L, 5.3 Imp. qt.)



IS300

4.5 qt. (4.3 L, 3.8 Imp. qt.)



IS500

8.3 qt. (7.9 L, 7.0 Imp. qt.)

366

8-1. Specifications

Outside temperature

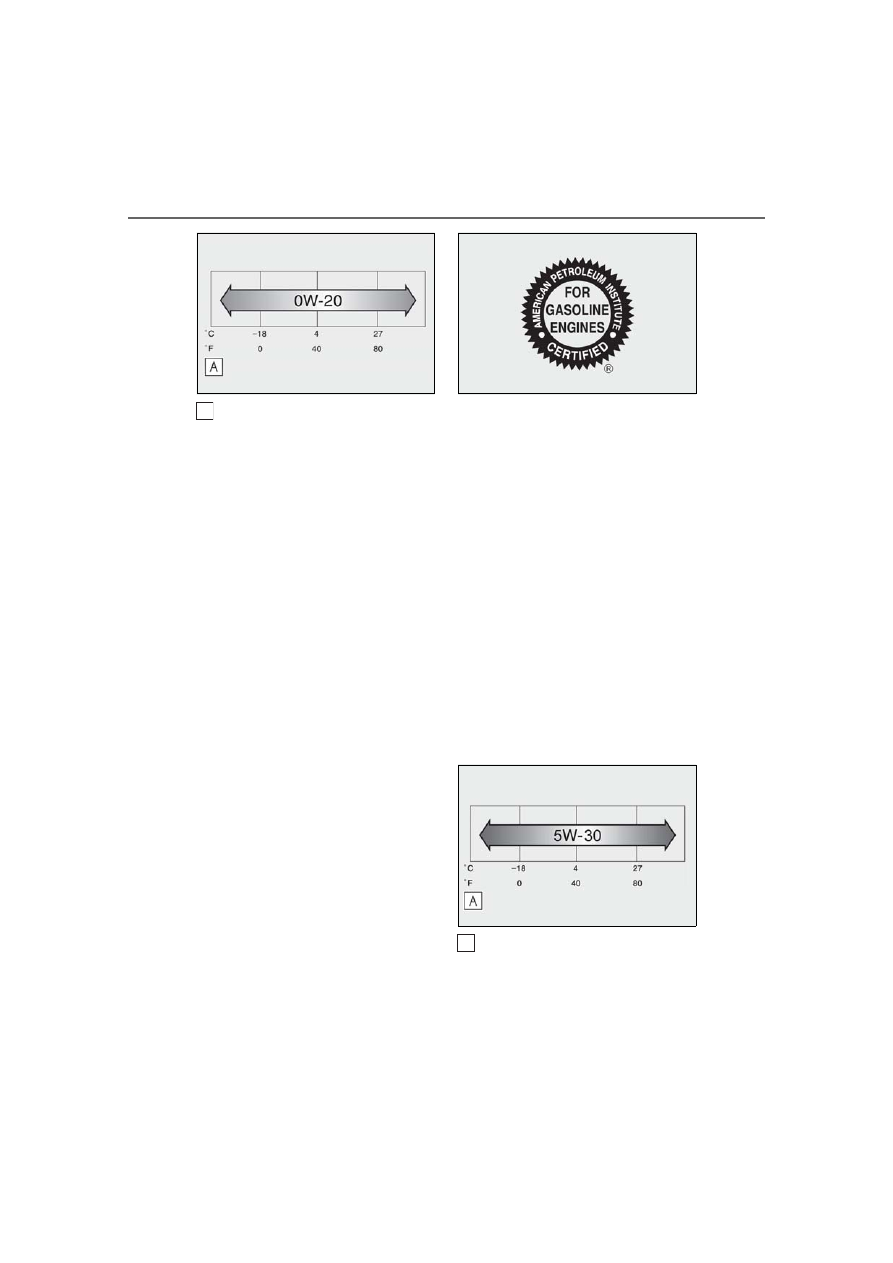

Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 20 in 0W-20 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

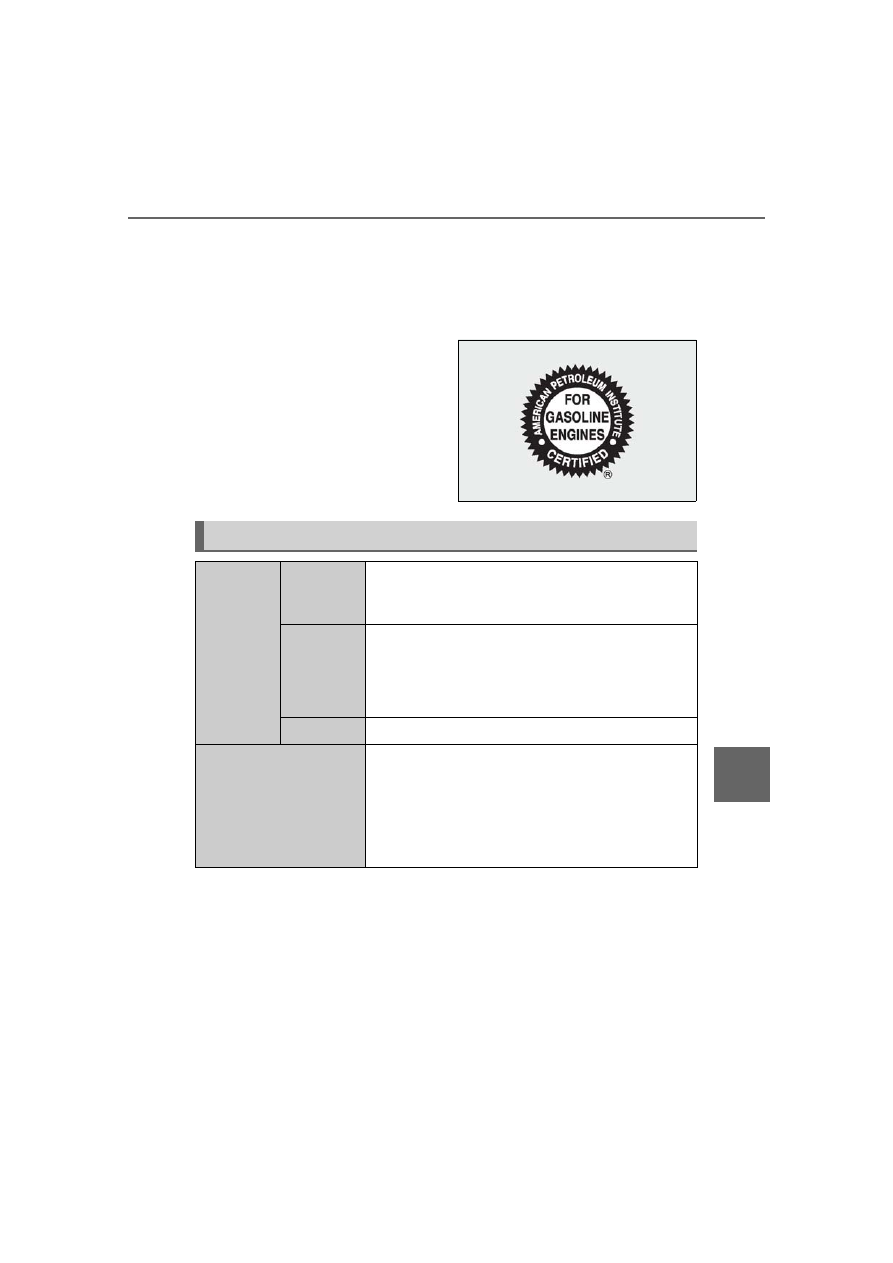

How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you
should use.

■

Engine oil selection (IS500)

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-6A multigrade
engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 oil may be used. However, it
should be replaced with SAE 5W- 30
at the next oil change.

Outside temperature

Oil viscosity (5W-30 is explained here
as an example):
• The 5W in 5W-30 indicates the

characteristic of the oil which allows

367

8-1. Specifications

Vehi

cle

spec

ifi

tions

cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 30 in 5W-30 indicates the vis-

How to read oil container label:

The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you
should use.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

Cooling system

Capacity*

IS350
AWD/IS350
/IS300 AWD

9.8 qt. (9.3 L, 8.2 Imp. qt.)

IS300



Engine

9.1 qt. (8.6 L, 7.6 Imp. qt.)



Intercooler

3.0 qt. (2.8 L, 2.5 Imp. qt.)

IS500

12.0 qt. (11.4 L, 10.0 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology

Do not use plain water alone.

368

8-1. Specifications

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

Ignition system (spark plug)

IS350

AWD/IS350/IS300

AWD

IS300

IS500

Make

DENSO FK20HBR8

NGK DILFR7K9G

DENSO FK20HBR-J8

Gap

0.031 in. (0.8 mm)

0.035 in. (0.9 mm)

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (battery)

Open voltage at 68°F (20°C):

12.3 V or higher
(Check the voltage 20 minutes after the engine
and all lights are turned off.)
If the voltage is lower than the standard value,
charge the battery.

Charging rates

5 A max.

Automatic transmission

Fluid capacity

IS350 (2WD)

10.0 qt. (9.5 L, 8.4 Imp. qt.)

IS350
AWD/IS300
AWD (AWD)

10.6 qt. (10.0 L, 8.8 Imp. qt.)

IS300

9.2 qt. (8.7 L, 7.7 Imp. qt.)

IS500

11.4 qt. (10.8 L, 9.5 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-

tion, or damage the transmission of your vehicle.

369

8-1. Specifications

Vehi

cle

spec

ifi

tions

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of
matching quality to satisfy the above specification. Please contact your Lexus dealer for
further details.



IS350 AWD/IS350 (vehicles without LSD [Limited Slip Differential])/IS300
AWD/IS300



IS500/IS350 (vehicles with LSD [Limited Slip Differential])

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of
matching quality to satisfy the above specification. Please contact your Lexus dealer for
further details.

Front differential (AWD models)

Oil capacity

0.74 qt. (0.70 L, 0.61 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil GL-5 or equiva-
lent
Above 0°F (-18°C): SAE90
Below 0°F (-18°C): SAE80W or SAE80W-90

Rear differential

Oil capacity

1.42 qt. (1.35 L, 1.19 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

Oil capacity

1.42 qt. (1.35 L, 1.19 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LX 75W-85
GL-5 or equivalent

Brakes

Pedal clearance

IS350

AWD/IS350/IS300

AWD/IS300



2WD

3.8 in. (97 mm) Min.



AWD

4.2 in. (107 mm) Min.

IS500

3.8 in. (97 mm) Min.

370

8-1. Specifications

: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N, 51.0 kgf)

while the engine is running.



Type A

Pedal free play

0.04



0.24 in. (1.0



6.0 mm)

Brake pad wear limit

0.04 in. (1 mm)

Parking brake lining wear limit

0.04 in. (1 mm)

Fluid type

SAE J1703 or FMVSS No. 116 DOT 3, or
SAE J1704 or FMVSS No. 116 DOT 4

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

235/45R18 94Y, T155/70D17 110M (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Front: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare: 60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds above 100 mph (160 km/h) (in
countries where such speeds are permitted by law)

Add 4 psi (30 kPa, 0.3 kgf/cm

or bar) to the front tires and

rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size



8 1/2J, 17



4T (spare)

Wheel bolt torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

371

8-1. Specifications

Vehi

cle

spec

ifi

tions



Type B



Type C



Type D

Tire size

235/45R18 94V, T155/70D17 110M (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Front: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare: 60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds above 100 mph (160 km/h) (in
countries where such speeds are permitted by law)

Add 4 psi (30 kPa, 0.3 kgf/cm

or bar) to the front tires and

rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size



8 1/2J, 17



4T (spare)

Wheel bolt torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

Tire size

235/40R19 96Y, T155/70D17 110M (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Front: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Spare: 60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size



8 1/2J, 17



4T (spare)

Wheel bolt torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

Tire size

235/40R19 92V, T155/70D17 110M (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Front: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Spare: 60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size



8 1/2J, 17



4T (spare)

Wheel bolt torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

372

8-1. Specifications



Type E



Type F



Type G

Tire size

235/40R19 92Y, T155/70D17 110M (spare)

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Front: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Spare: 60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size



8 1/2J, 17



4T (spare)

Wheel bolt torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

Tire size

Front tires: 235/40R19 92Y
Rear tires: 265/35R19 94Y
Spare tire: T155/70D17 110M

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Front: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Spare: 60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size

Front wheels: 19



8 1/2J

Rear wheels: 19



9 1/2J

Spare wheels: 17



Wheel bolt torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

Tire size

Front tires: 235/40R19 92V
Rear tires: 265/35R19 94V
Spare tire: T155/70D17 110M

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Front: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Spare: 60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size

Front wheels: 19



8 1/2J

Rear wheels: 19



9 1/2J

Spare wheels: 17



Wheel bolt torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

Lexus IS300 (2023 year). Manual in english - page 11
