1-2. Child safety

1

For
safety

and
security

WARNING

●

Firmly attach the top tether strap and

make sure that the belt is not twisted.

●

Do not attach the top tether strap to

anything other than the anchor

bracket.

●

Follow all installation instructions pro-

vided by the child restraint system

manufacturer.

●

When installing the child restraint sys-

tem with the head restraint being

raised, after the head restraint has

been raised and then the anchor

bracket has been fixed, do not lower

the head restraint.

●

If the seat is adjusted, reconfirm the

security of the child restraint system.

NOTICE

■

Anchor brackets (for top tether

strap)

When not in use, make certain to close

the lid. If it remains open, the lid may be

damaged.

54

1-3. Lexus Enform

1-3.Lexus Enform

*

: If  equipped

“SOS” button
LED light indicators
Microphone

Lexus Enform Safety Con-
nect

*

Safety Connect is a subscrip-
tion-based telematics service that
uses Global Positioning System
(GPS) data and embedded cellular
technology to provide safety and
security features to subscribers.
Safety Connect is supported by
Lexus’ designated response center,
which operates 24 hours per day, 7
days per week.

Safety Connect service is available
by subscription on select, telemat-
ics hardware-equipped vehicles.

By using the Safety Connect ser-
vice, you are agreeing to be bound
by the Telematics Subscription Ser-
vice Agreement and its Terms and
Conditions, as in effect and
amended from time to time, a cur-
rent copy of which is available at
Lexus.com. All use of the Safety
Connect service is subject to such
then-applicable Terms and Condi-
tions.

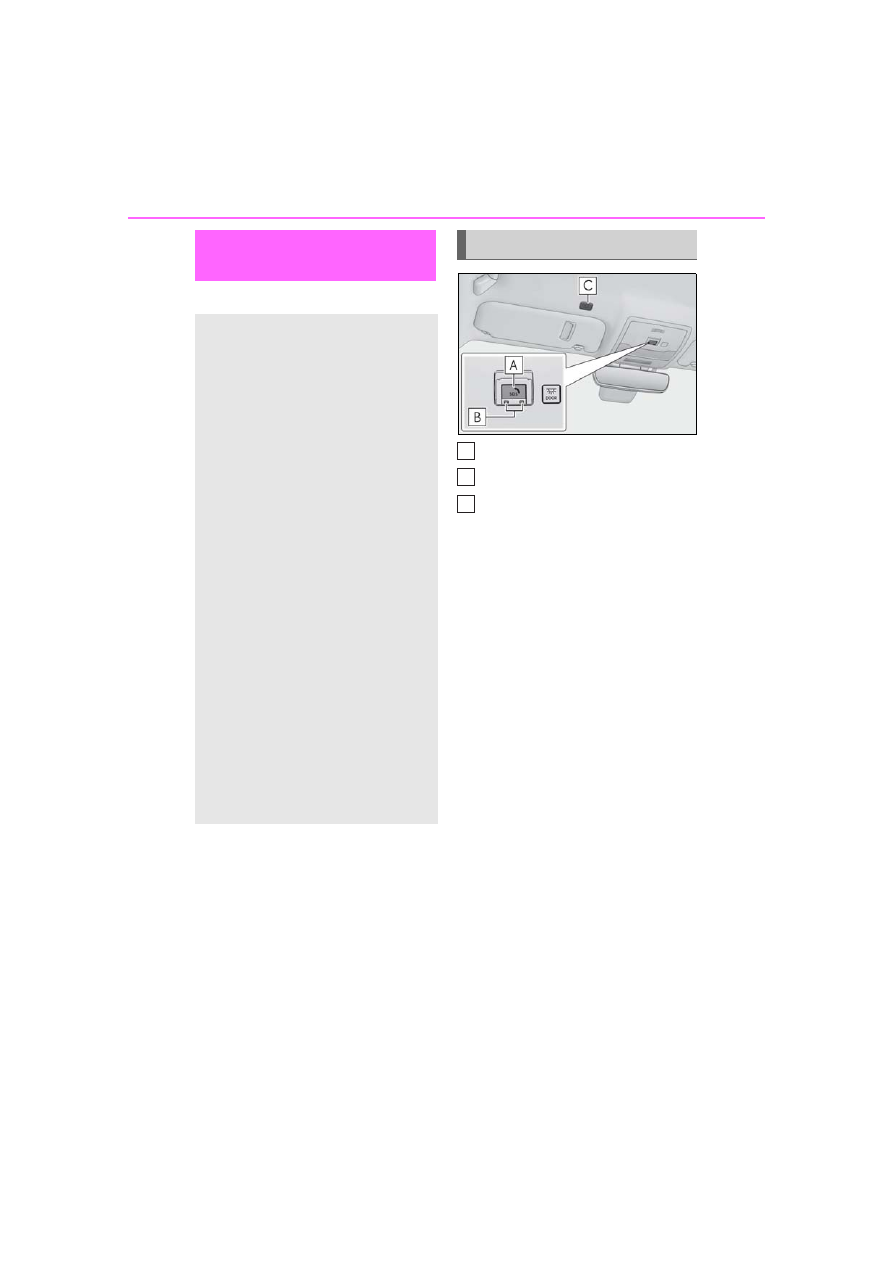

System components

A
B
C

55

1-3. Lexus Enform

1

For safety and security

■

Certification for Lexus Enform with Safety Connect

56

1-3. Lexus Enform

Subscribers have the following Safety
Connect services available:



Automatic Collision Notification

*

Helps drivers receive necessary response
from emergency service providers.
(



P.57)

*

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle theft.
(



P.57)



Emergency Assistance Button
(“SOS”)

Connects drivers to response-center sup-
port. (



P.57)



Enhanced Roadside Assistance

Provides drivers various on-road assis-
tance. (



P.57)

After you have signed the Telematics
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.



The United States

1-800-25-LEXUS (1-800-255-3987)



Canada

1-800-26-LEXUS (1-800-265-3987)



Puerto Rico

1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicles Blue-
tooth

®

 technology will not be possible

during Safety Connect.

Services

Subscription

57

1-3. Lexus Enform

1

For safety and security

●

Safety Connect is available beginning Fall

2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

When the engine switch is turned to
IGNITION ON mode, the red indica-
tor light comes on for 2 seconds then
turns off. Afterward, the green indica-
tor light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:



Green indicator light on = Active
service



Green indicator light flashing =
Safety Connect call in process



Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)



No indicator light (off) = Safety
Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the

Safety Connect LED light Indi-
cators

Safety Connect services

58

1-3. Lexus Enform

location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect

response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

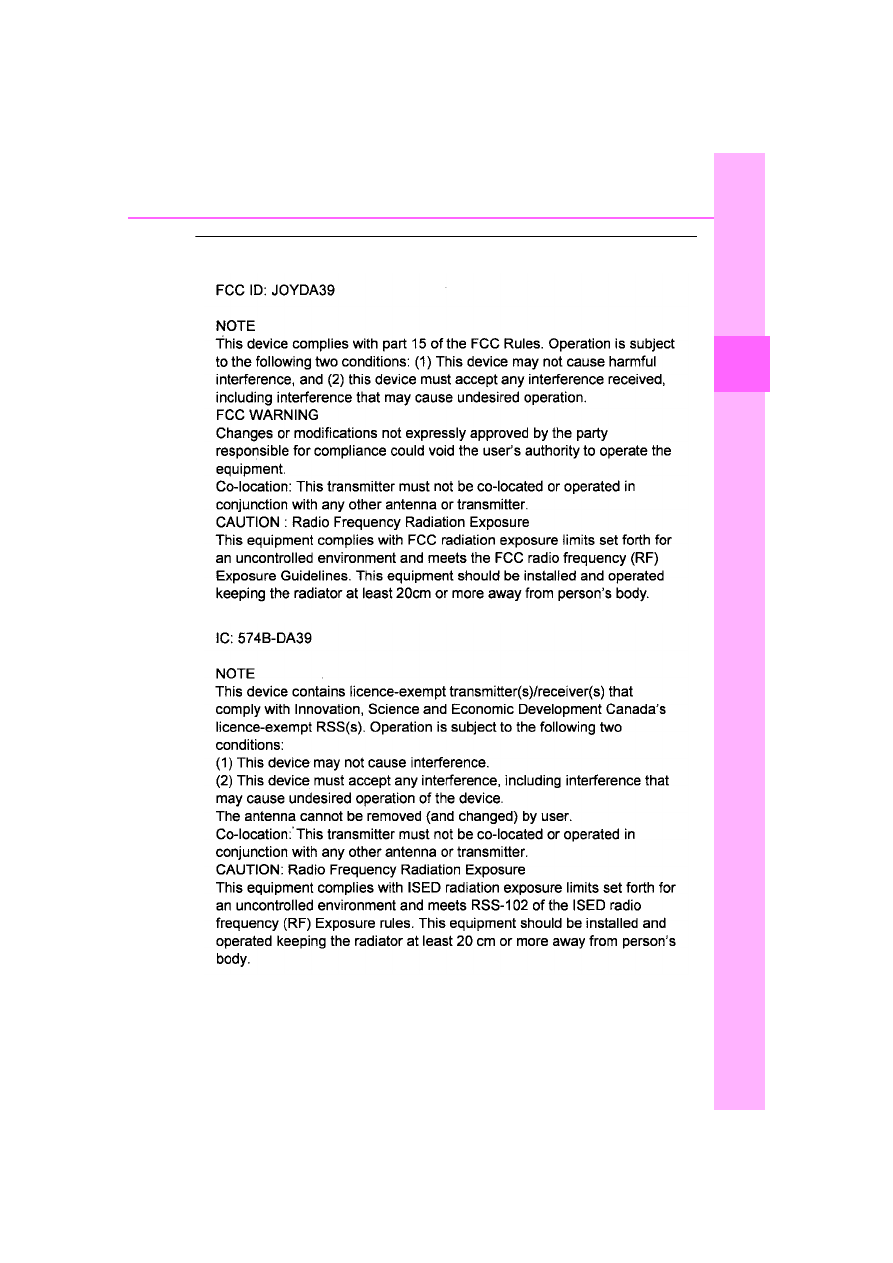

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.



ANSI (American National Stan-
dards Institute) C95.1 [1992]



NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]



ICNIRP (International Commission
on Non-Ionizing Radiation Protec-
tion) [1996]

Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over

Safety information for Safety
Connect

59

1-3. Lexus Enform

1

For safety and security

120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-
plies with the FCC guidelines in addi-
tion to those standards.

60

1-4. Theft deterrent system

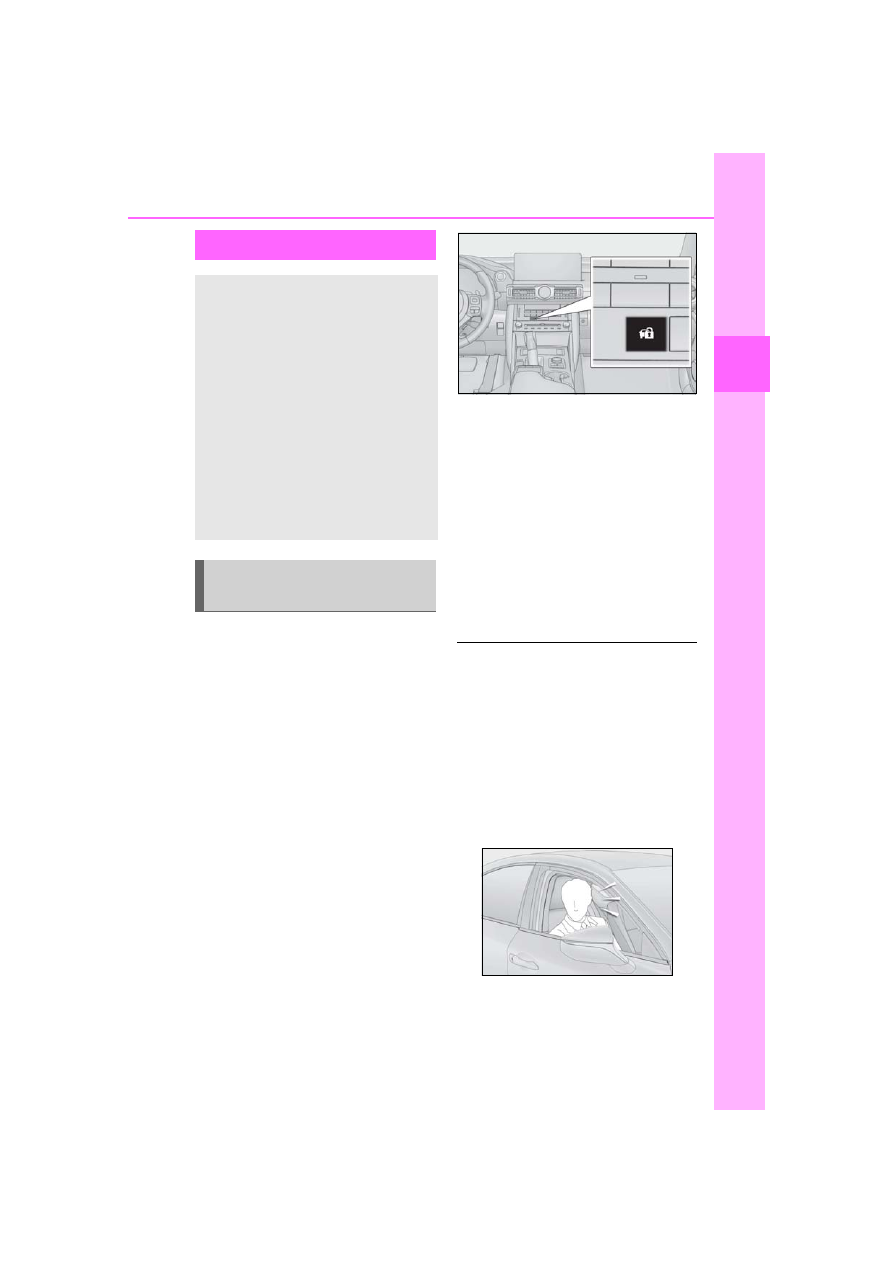

1-4.Theft deterrent system

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.

■

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

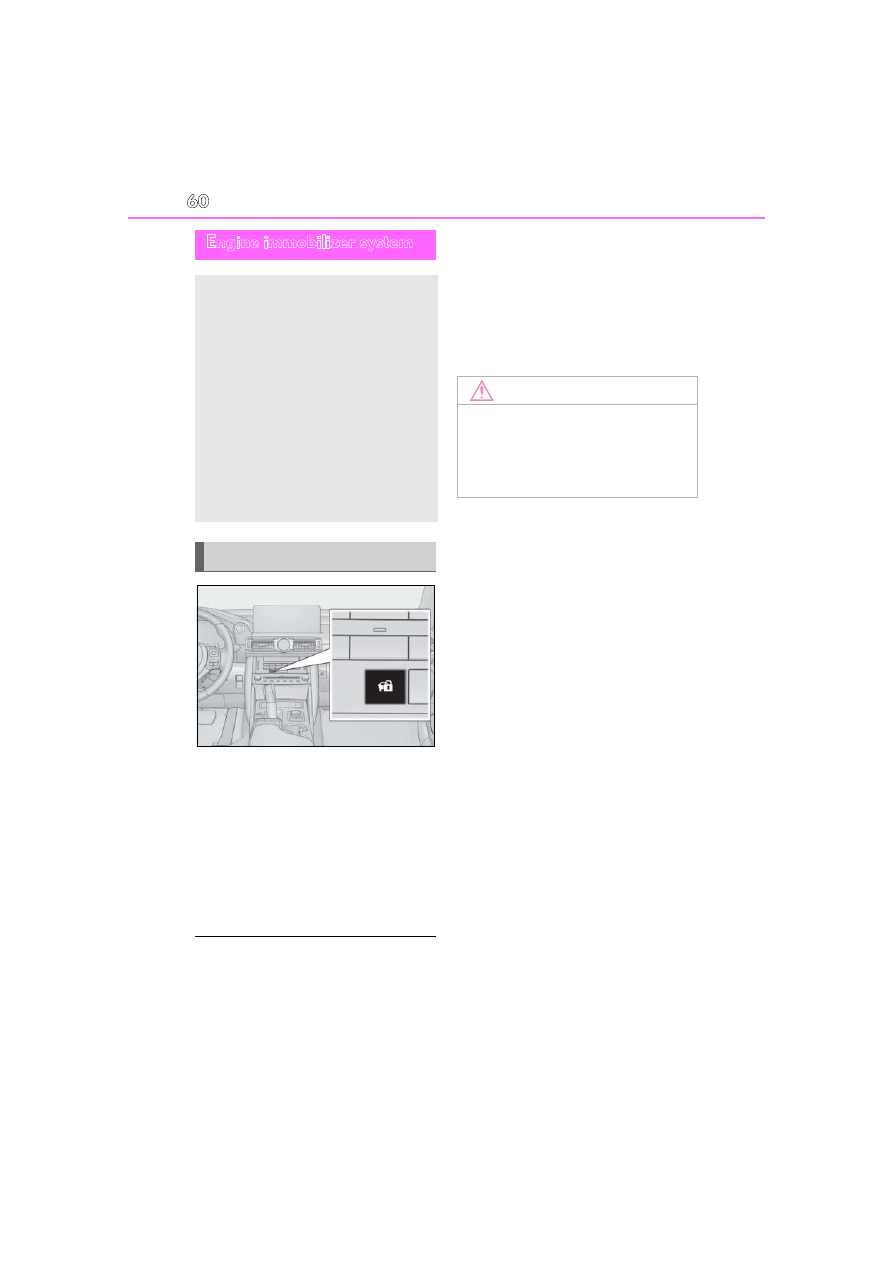

Engine immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.

Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.

Operating the system

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

61

1-4. Theft deterrent system

1

For safety and security

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows and moon roof (if
equipped) are closed before the
alarm is set.



No valuables or other personal
items are left in the vehicle.

■

Setting

Close the doors, trunk and hood, and
lock all the doors. The system will be
set automatically after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.

■

Deactivating or stopping

Do one of the following to deactivate
or stop the alarm:



Unlock the doors.



Open the trunk.



Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

A person inside the vehicle opens a door

or the trunk or hood, or unlocks the vehi-

cle.

●

The battery is recharged or replaced

when the vehicle is locked. (



P.354)

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



A locked door or trunk is
unlocked or opened in any way
other than using the entry func-
tion, wireless remote control or
mechanical key. (The doors will
lock again automatically.)



The hood is opened.

Setting/deactivating/stopping
the alarm system

62

1-4. Theft deterrent system

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

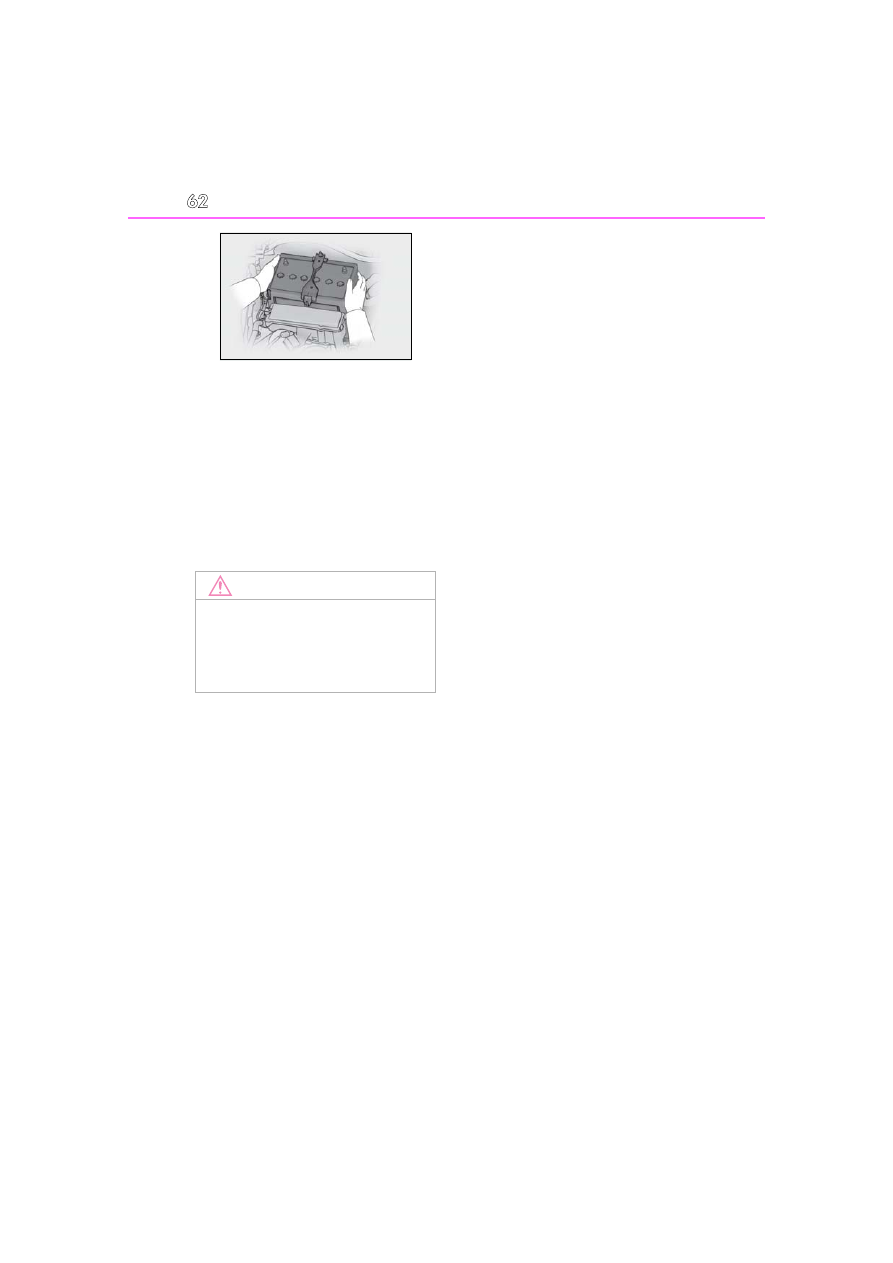

When recharging or replacing the bat-

tery

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

63

2

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

.

2-1. Instrument cluster

Warning lights and indicators

...........................................................

64

Gauges and meters ....................

69

Multi-information display..........

76

Fuel consumption information

...........................................................

82

64

2-1. Instrument cluster

2-1.Instrument cluster

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.



Except F SPORT models



F SPORT models

The location of warning lights and indicators may differ depending on the selected main
meter location.

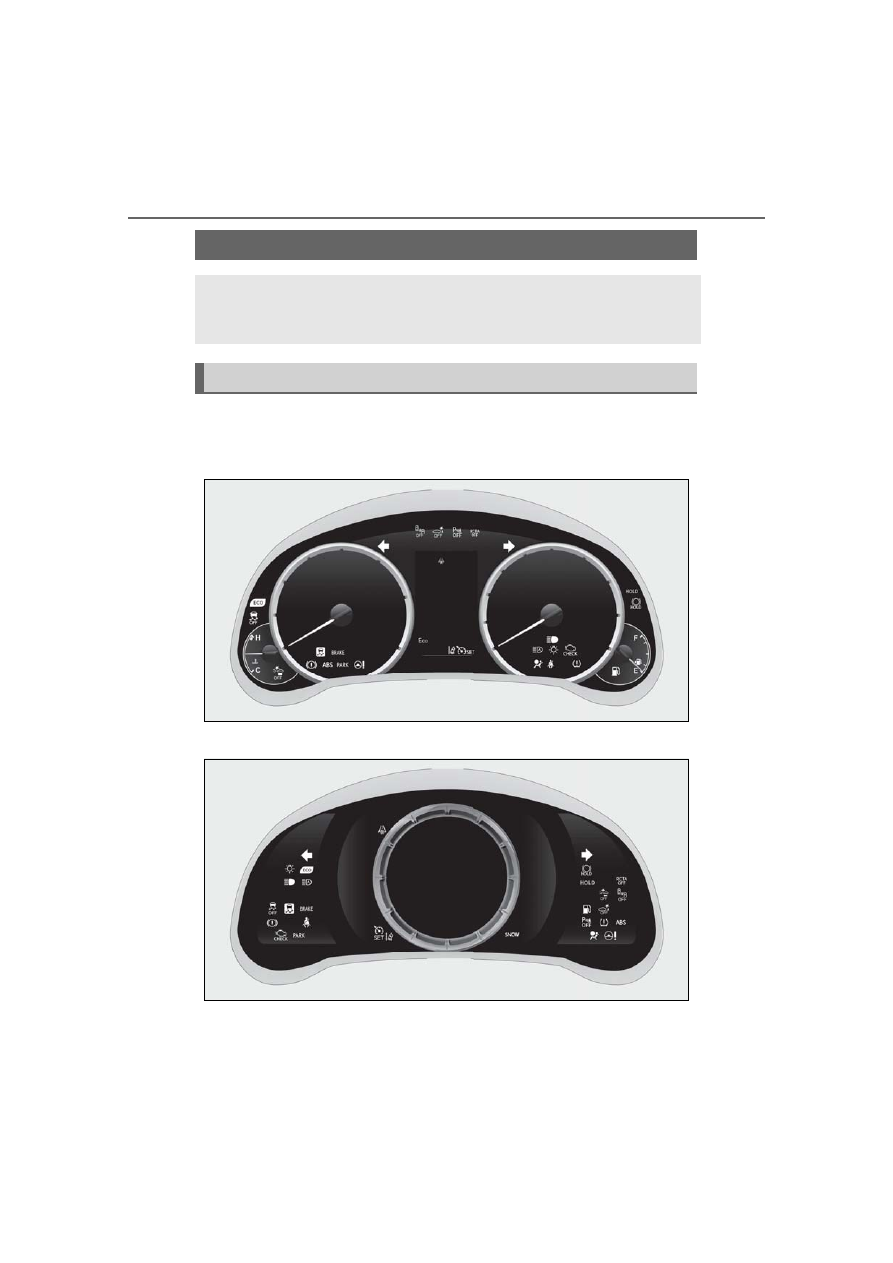

Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.

Warning lights and indicators displayed on the instrument cluster

65

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.

*1

: These lights come on when the engine

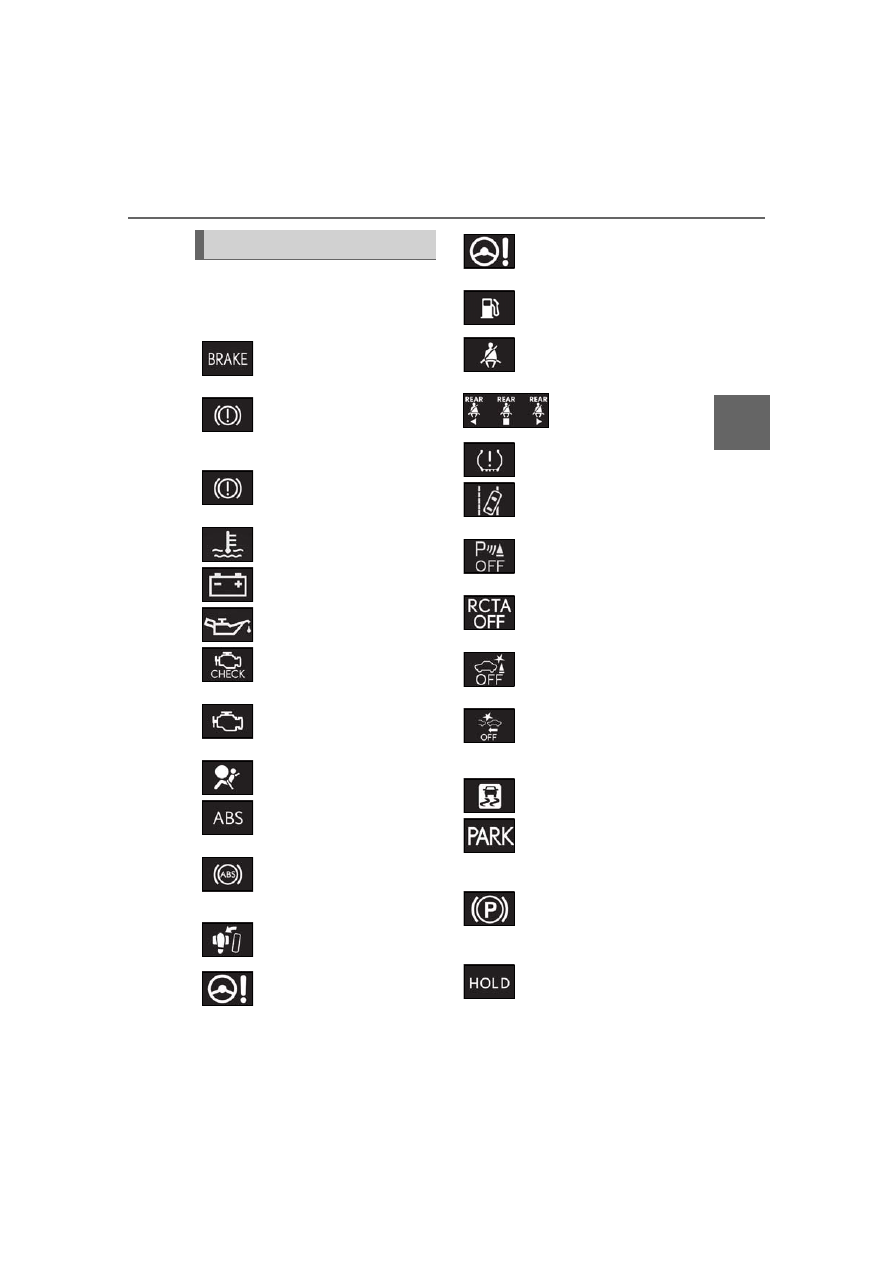

Warning lights

(U.S.A.)

Brake system warning light

*1



(



P.327)

(red)

(Canada)

Brake system warning light

*1



(



P.327)

(yellow)

Brake system warning light

*1



(



P.327)

High coolant temperature
warning light

*2

 (



P.327)

Charging system warning
light

*2

 (



P.328)

Low engine oil pressure warn-
ing light

*2

 (



P.328)

(U.S.A.)

Malfunction indicator lamp

*1



(



P.328)

(Canada)

Malfunction indicator lamp

*1



(



P.328)

SRS warning light

*1

 (



P.328)

(U.S.A.)

ABS warning light

*1

 (



P.329)

(Canada)

ABS warning light

*1

 (



P.329)

Brake Override System warn-
ing light/Drive-Start Control
warning light

*2

 (



P.329)

(red)

Electric power steering system
warning light

*1

 (



P.330)

(yellow)

Electric power steering system
warning light

*1

 (



P.330)

Low fuel level warning light
(



P.330)

Driver’s and front passenger’s
seat belt reminder light
(



P.330)

Rear passengers’ seat
belt reminder lights

*3



(



P.330)

Tire pressure warning light

*1



(



P.331)

(orange)

LTA indicator (



P.331)

(flashes)

Intuitive parking assist OFF
indicator (if equipped)
(



P.331)

(flashes)

RCTA OFF indicator

*1



(



P.332)

(flashes)

PKSB OFF indicator

*1

 (if

equipped) (



P.332)

(flashes or

illuminates)

PCS warning light

*1

 (



P.332)

Slip indicator

*1

 (



P.333)

(flashes)

(U.S.A.)

Parking brake indicator
(



P.333)

(flashes)

(Canada)

Parking brake indicator
(



P.333)

(flashes)

Brake hold operated indicator

*1



(



P.333)

66

2-1. Instrument cluster

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: This light illuminates on the multi-infor-

mation display.

*3

: This light illuminates on the center

panel.

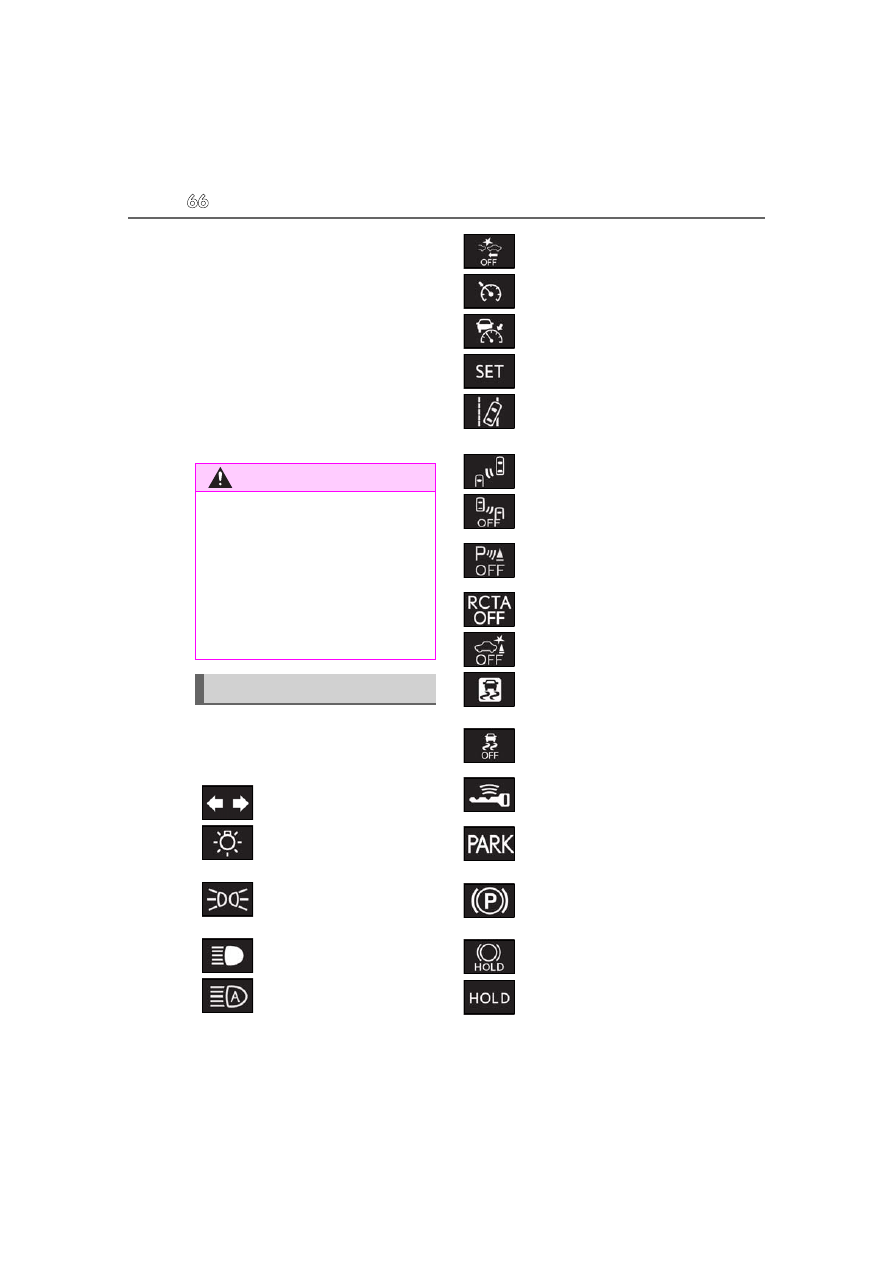

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine, this could

mean that these systems are not available

to help protect you in an accident, which

could result in death or serious injury.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

Indicators

Turn signal indicator (



P.138)

(U.S.A.)

Headlight indicator (



P.145)

(Canada)

Tail light indicator (



P.145)

Headlight high beam indicator
(



P.146)

Automatic High Beam indicator
(



P.147)

PCS warning light

*1, 2

 (



P.168)

Cruise control indicator
(



P.194)

Dynamic radar cruise control
indicator (



P.187)

Cruise control “SET” indicator
(



P.187)

*8

LTA indicator (



P.165, 180)

BSM outside rear view mirror
indicators

*3, 4

 (



P.197, 210)

BSM OFF indicator

*1, 2



(



P.197)

Intuitive parking assist OFF
indicator

*2

(if equipped)

(



P.204)

RCTA OFF indicator

*1, 2



(



P.210)

PKSB OFF indicator

*1, 2

 (if

equipped) (



P.217)

(flashes)

Slip indicator

*1

 (



P.230)

VSC OFF indicator

*1, 2



(



P.230)

Smart access system with
push-button start indicator

*5



(



P.130)

(U.S.A.)

Parking brake indicator
(



P.139)

(Canada)

Parking brake indicator
(



P.139)

Brake hold standby indicator

*1



(



P.142)

Brake hold operated indicator

*1



(



P.142)

67

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators



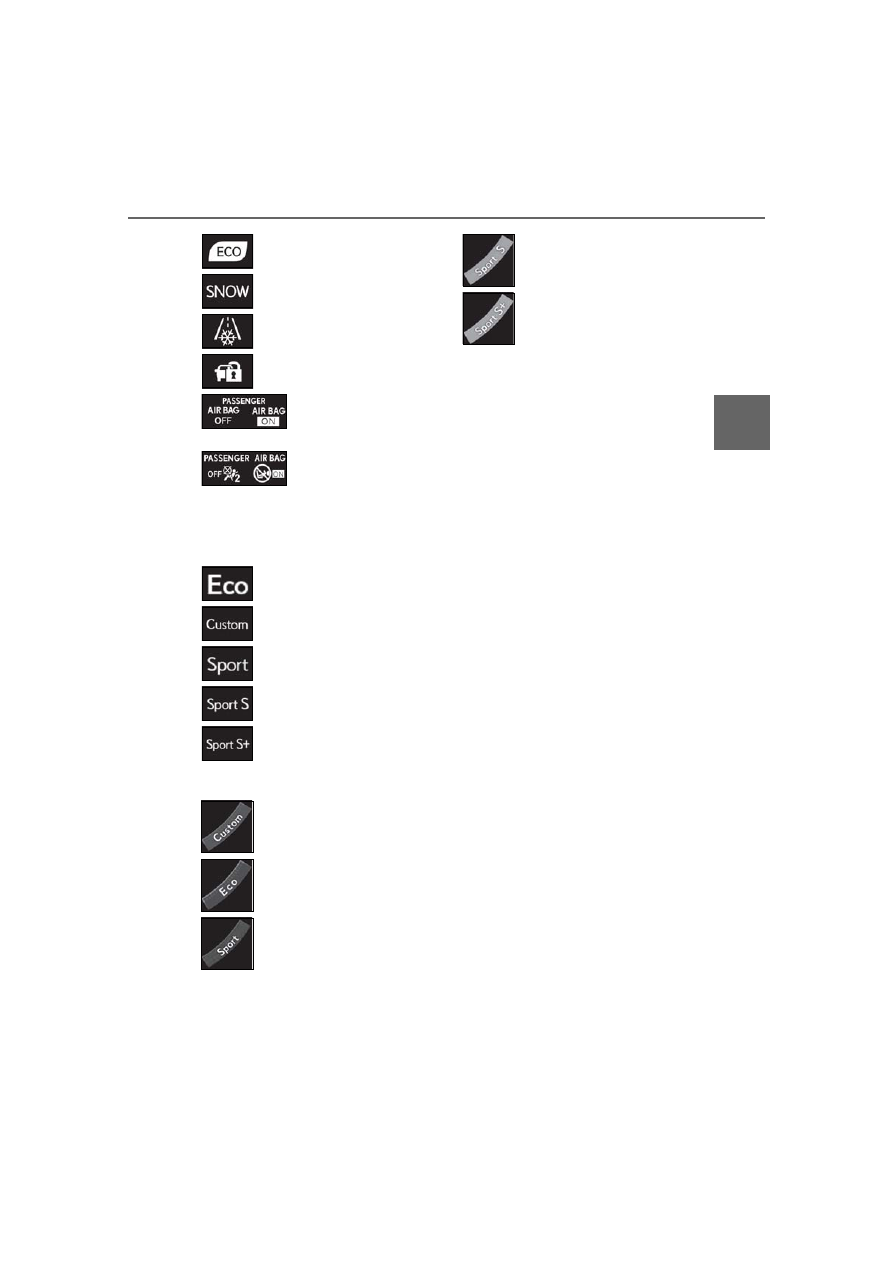

Drive mode indicators



Except F SPORT models



F SPORT models

*1

: These lights come on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: This light comes on when the system is

turned off.

*3

: This light illuminates on the outside rear

view mirrors.

*4

: In order to confirm operation, the BSM

outside rear view mirror indicators illu-
minate in the following situations:

• When the engine switch is turned to

IGNITION ON mode while the
BSM main switch is turned on.

• When the BSM main switch is

turned on while the engine switch is
in IGNITION ON mode.

If the system is functioning correctly, the
BSM outside rear view mirror indicators
will turn off after a few seconds. If the BSM
outside rear view mirror indicators do not
illuminate or do not turn off, there may be a
malfunction in the system. If this occurs,
have the vehicle inspected by your Lexus
dealer.

*5

: This light illuminates on the multi-infor-

mation display.

*6

: When the outside temperature is

approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10

Eco Driving Indicator Light

*1



(



P.79)

Snow mode indicator (



P.135)

Low outside temperature indi-
cator

*6

 (



P.69)

Security indicator

*7

 (



P.60,

61)

(U.S.A.)

“AIR BAG ON/OFF”
indicator

*1, 7

 (



P.36)

(Canada)

“AIR BAG ON/OFF”
indicator

*1, 7

 (



P.36)

Eco drive mode indicator
(



P.227)

Custom mode indicator (if
equipped) (



P.227)

Sport mode indicator (if
equipped) (



P.227)

SPORT S mode indicator (if
equipped) (



P.227)

Sport S+ mode indicator (if
equipped) (



P.227)

Custom mode indicator (if
equipped) (



P.227)

Eco drive mode indicator
(



P.227)

Sport mode indicator (if
equipped) (



P.227)

Sport S mode indicator (if
equipped) (



P.227)

Sport S+ mode indicator (if
equipped) (



P.227)

68

2-1. Instrument cluster

seconds, then stay on.

*7

: This light illuminates on the center

panel.

*8

: Depending on the operating condition,

the color and illuminating/flashing state
of the light change.

69

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

■

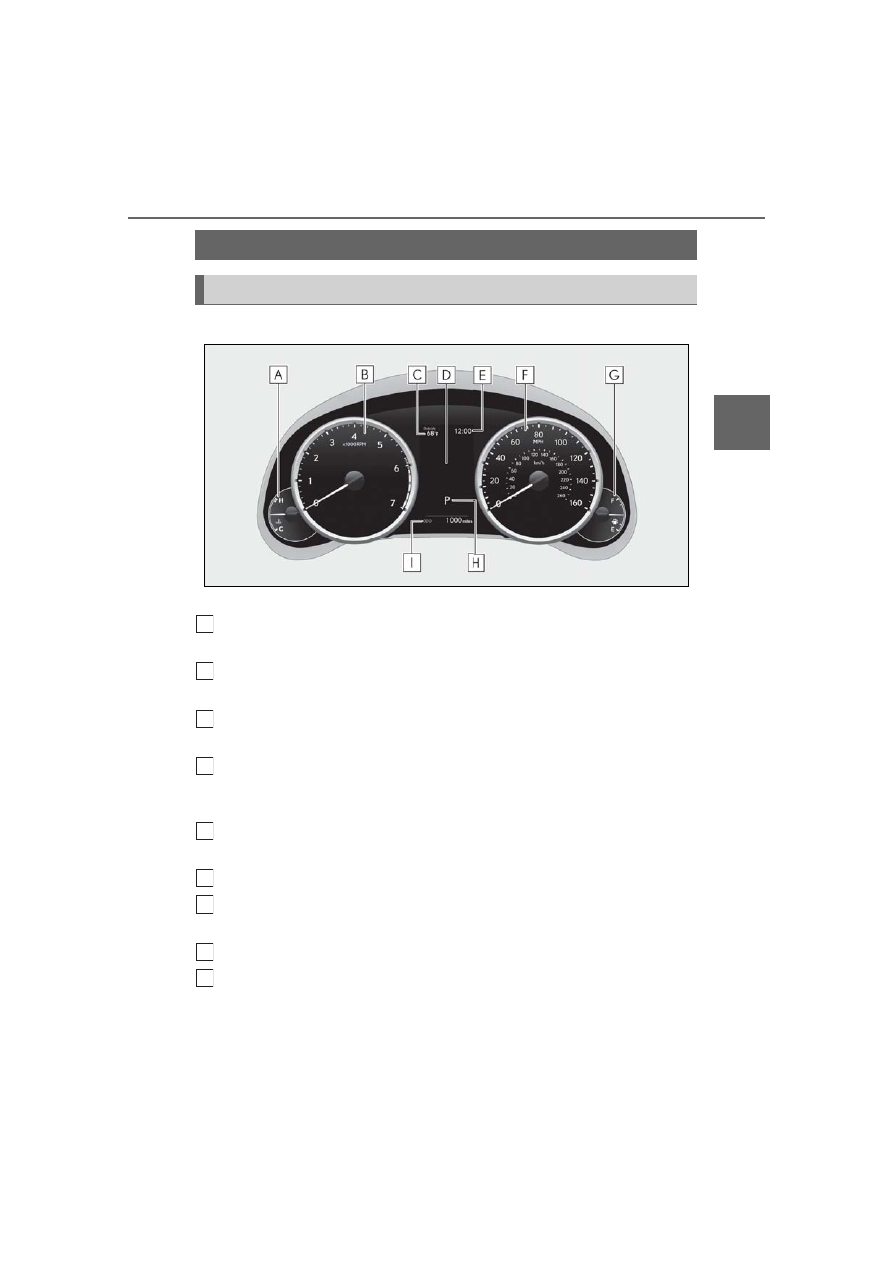

Locations of gauges and meters (except F SPORT models)

The units of measure may differ depending on the intended destination of the vehicle.

Engine coolant temperature gauge

Displays the engine coolant temperature

Tachometer

Displays the engine speed in revolutions per minute

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Multi-information display

Presents the driver with a variety of vehicle data (



P.76)

Displays warning messages if a malfunction occurs (



P.336)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.259)

Speedometer
Fuel gauge

Displays the quantity of fuel remaining in the tank

Shift position and gear position (



P.133)

Odometer and trip meter display (



P.74)

Gauges and meters

Meter display

A

B

C

D

E

F

G

H

I

70

2-1. Instrument cluster

■

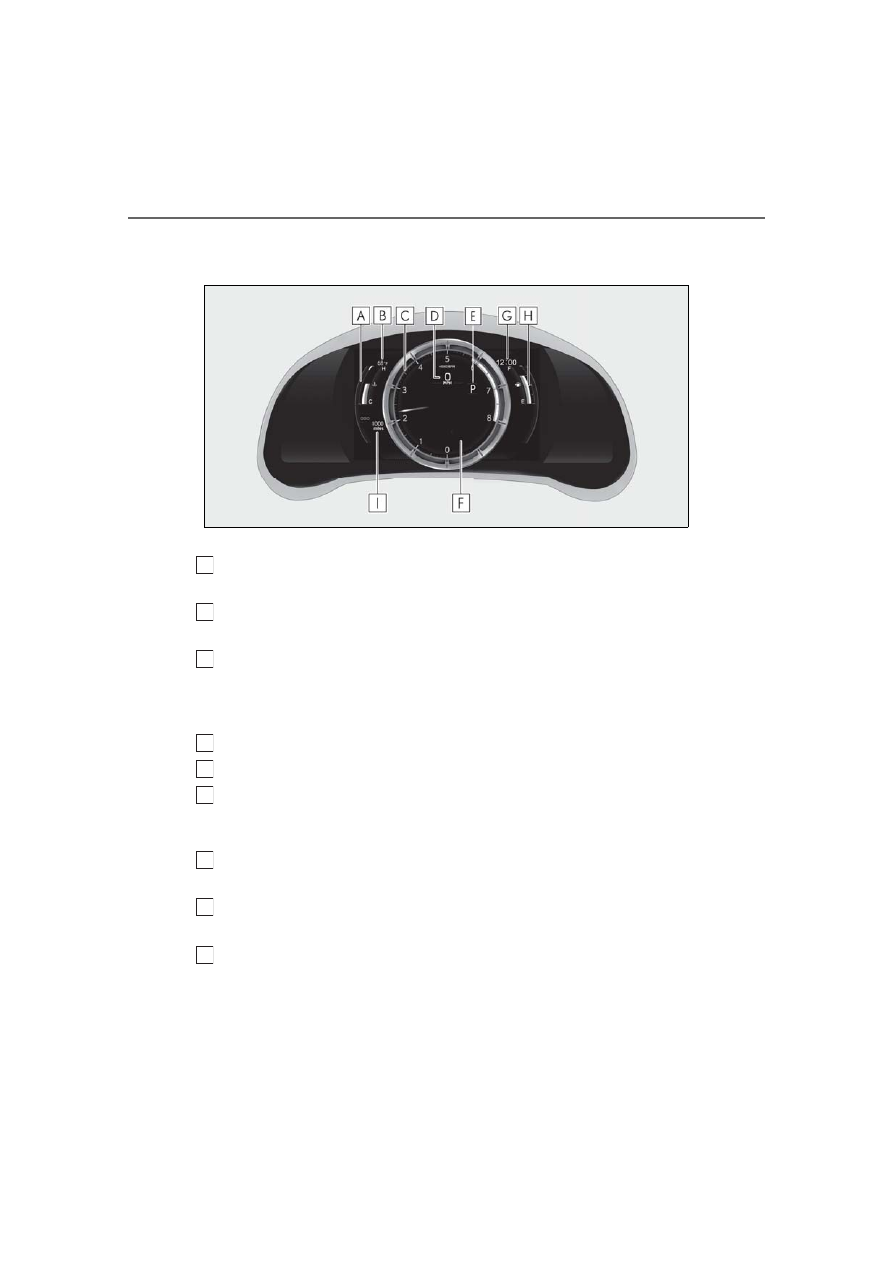

Locations of gauges and meters (F SPORT models)



Main meter in center position (IS350 AWD/IS350/IS300 AWD/IS300)

The units of measure may differ depending on the intended destination of the vehicle.

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Speedometer
Shift position and gear position (



P.133)

Multi-information display

Presents the driver with a variety of vehicle data (



P.76)

Displays warning messages if a malfunction occurs (



P.336)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.259)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer and trip meter display (



P.74)

A

B

C

D

E
F

G

H

I

71

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators



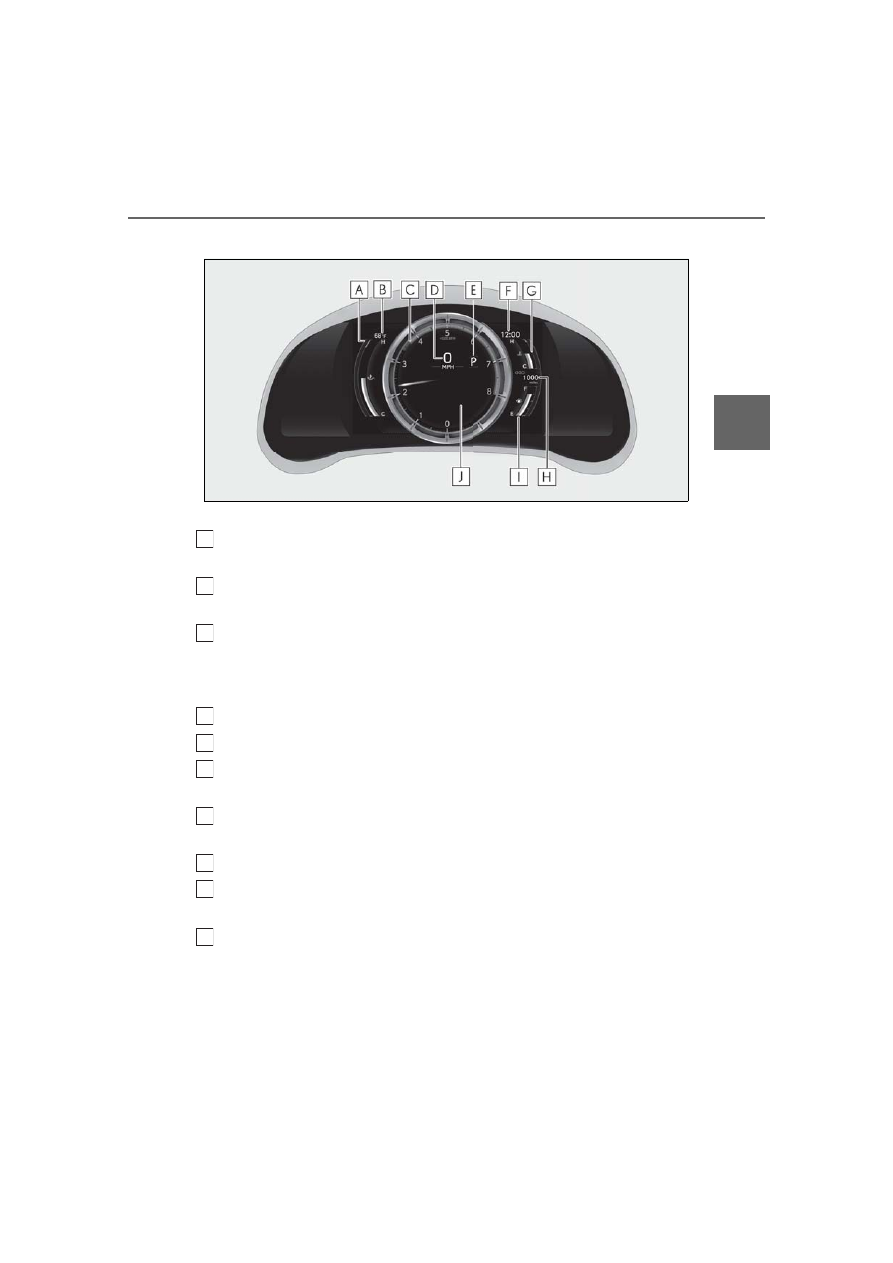

Main meter in center position (IS500)

The units of measure may differ depending on the intended destination of the vehicle.

Engine oil temperature gauge

Displays the engine oil temperature

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Speedometer
Shift position and gear position (



P.133)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.259)

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.74)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Multi-information display

Presents the driver with a variety of vehicle data (



P.76)

Displays warning messages if a malfunction occurs (



P.336)

A

B

C

D

E
F

G

H

I

J

72

2-1. Instrument cluster



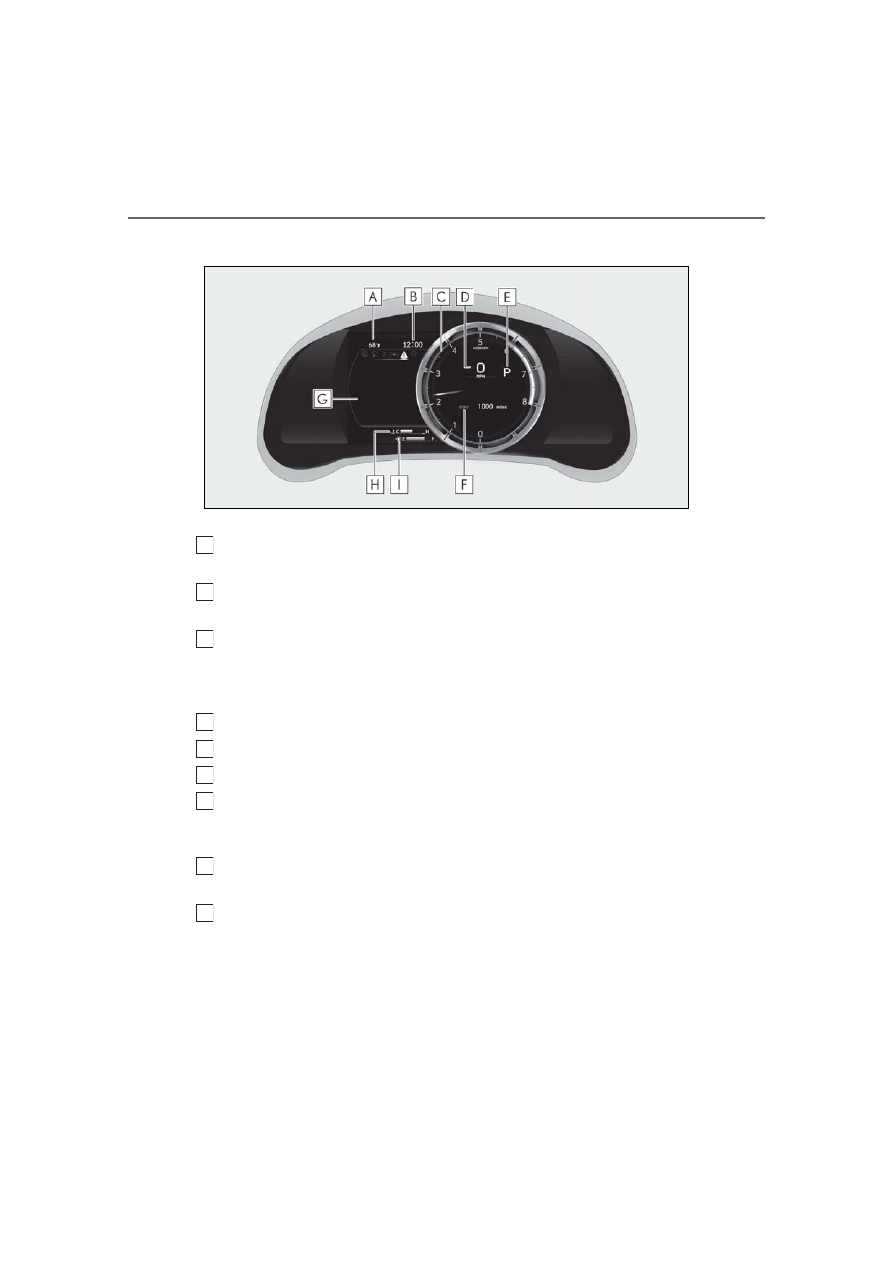

Main meter moved to the right

The units of measure may differ depending on the intended destination of the vehicle.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.259)

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Speedometer
Shift position and gear position (



P.133)

Odometer and trip meter display (



P.74)

Multi-information display

Presents the driver with a variety of vehicle data (



P.76)

Displays warning messages if a malfunction occurs (



P.336)

Engine coolant temperature gauge

Displays the engine coolant temperature

Fuel gauge

Displays the quantity of fuel remaining in the tank

■

Rev indicator (F SPORT models)

When the engine speed reaches a set
speed, a ring-shaped indicator will be
displayed on the tachometer.

A

B

C

D

E
F

G

H

I

73

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

The desired engine speed at which the Rev
indicator will begin to be displayed can be
set on

 of the multi-information display.

■

Rev peak (F SPORT models)

The engine speed reaches or exceeds
5000 rpm, an afterimage of the
tachometer will be displayed at the
highest engine speed for approxi-
mately 0.5 seconds.

■

The meters and display illuminate when

The engine switch is in IGNITION ON

mode.

■

Variable red zone (IS500)

To help protect the engine, the engine

speed is controlled by starting the red zone

of the tachometer at different engine

speeds ranging from 3700 rpm to 7300

rpm depending on the engine coolant tem-

perature. Before driving under extremely

high load conditions, make sure to suffi-

ciently warm up the engine.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “_ _”or “E” is displayed, the system

may be malfunctioning.

Take your vehicle to your Lexus dealer.

■

Pop-up display

●

In some situations, such as when a switch

operation is performed, a pop-up display

will be temporarily displayed on the

multi-information display or the odome-

ter/trip meter screen (F SPORT models).

●

Some pop-up displays can be set on/off.

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

■

Customization

The meter display can be customized on

the multi-information display. (



P.386)

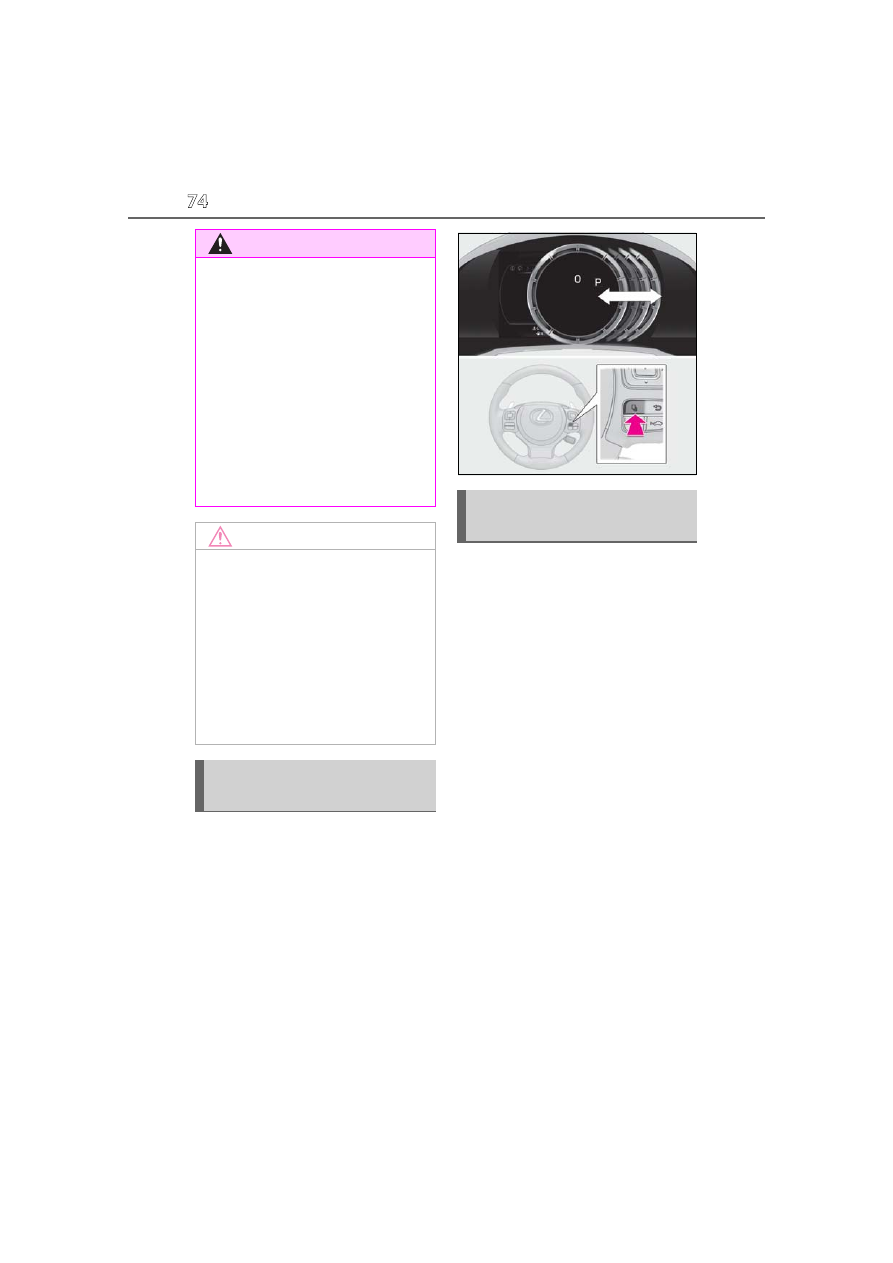

74

2-1. Instrument cluster

Moves between center and right-side
positions.

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.
For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.355)

Changing the main meter loca-
tion (F SPORT models)

Odometer and trip meter dis-
play

75

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

■

Pop-up display

Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

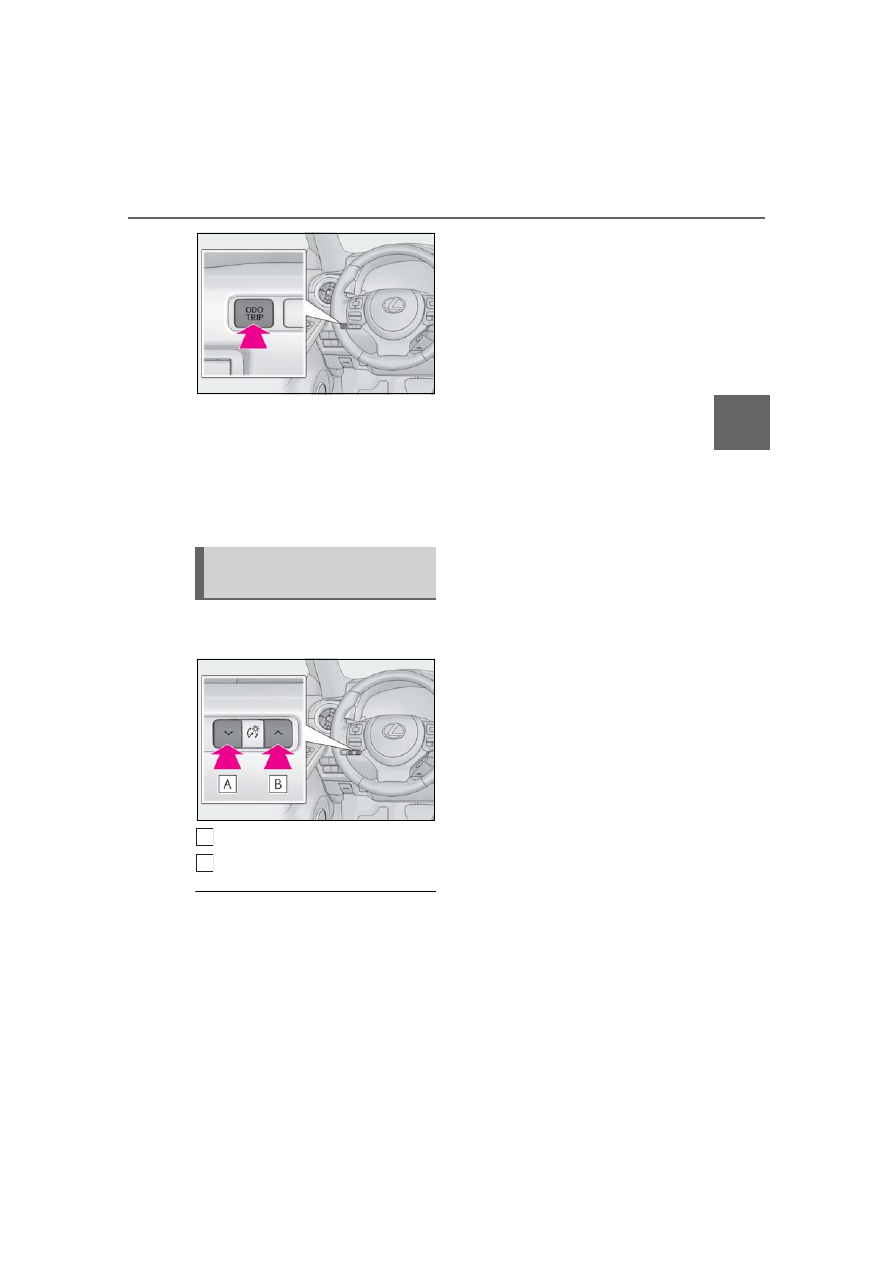

The brightness of the instrument panel
lights can be adjusted.

Darker
Brighter

■

Brightness of the meters (day mode and

night mode)

The brightness of the meters changes

between day mode and night mode.

●

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

Changing the instrument panel
light brightness

A
B

76

2-1. Instrument cluster

■

Display (except F SPORT models)

By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or advice pop-up displays are
also displayed in certain situations.

■

Display (F SPORT models)



Main meter in center position

The multi-information display presents
the driver with a variety of driv-
ing-related information.
Warning or advice pop-up displays are
also displayed in certain situations.



Main meter moved to the right

By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or advice pop-up displays are
also displayed in certain situations.

■

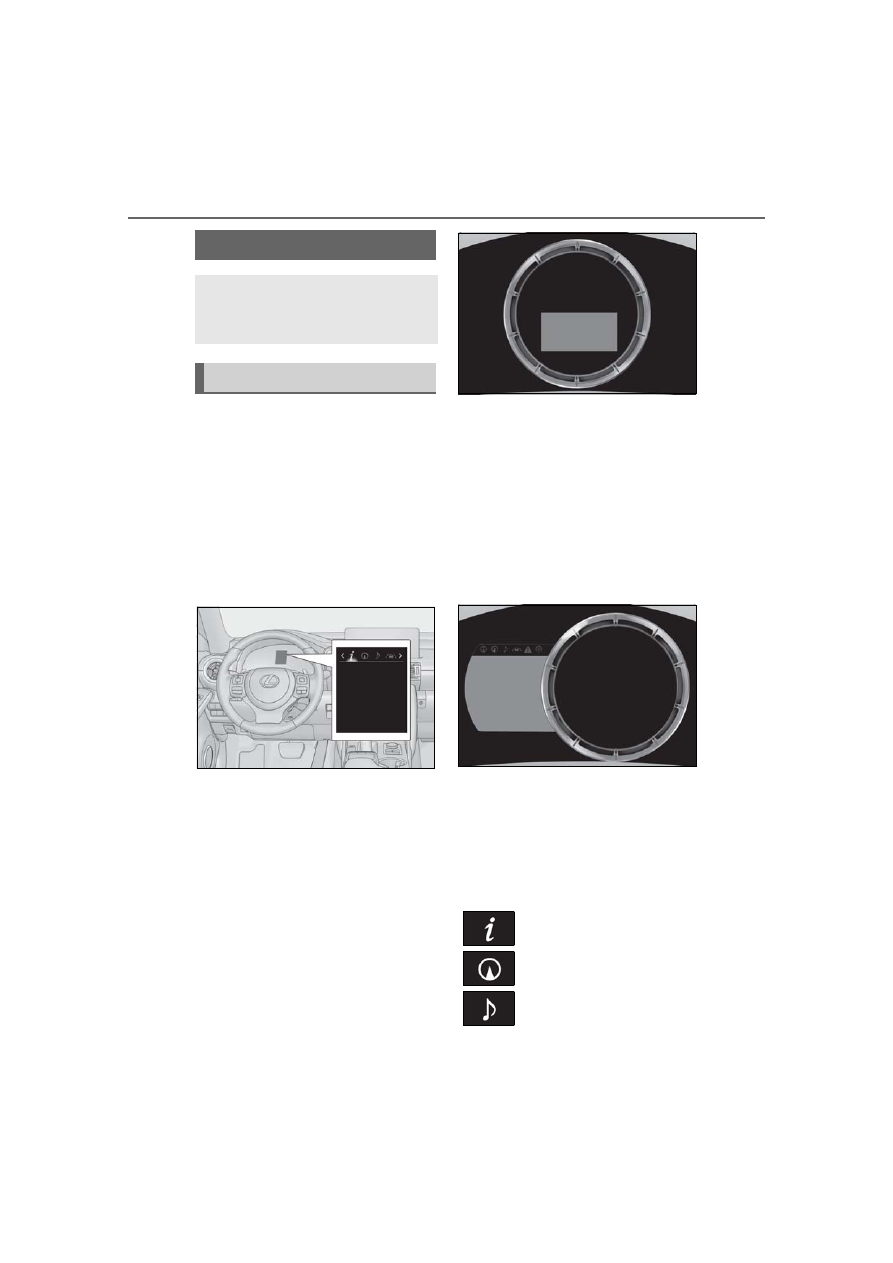

Menu icons

Select a menu icon to display its con-
tent.

F SPORT models: The menu icons can be
displayed when the main meter is moved to
the right.

Multi-information display

The multi-information display pres-
ents the driver with a variety of
vehicle data.

Display and menu icons

Driving information (



P.78)

Navigation system-linked dis-
play (if equipped) (



P.81)

Audio system-linked display
(



P.81)

77

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on

an

d

indic
ators

■

Liquid crystal display



P.73

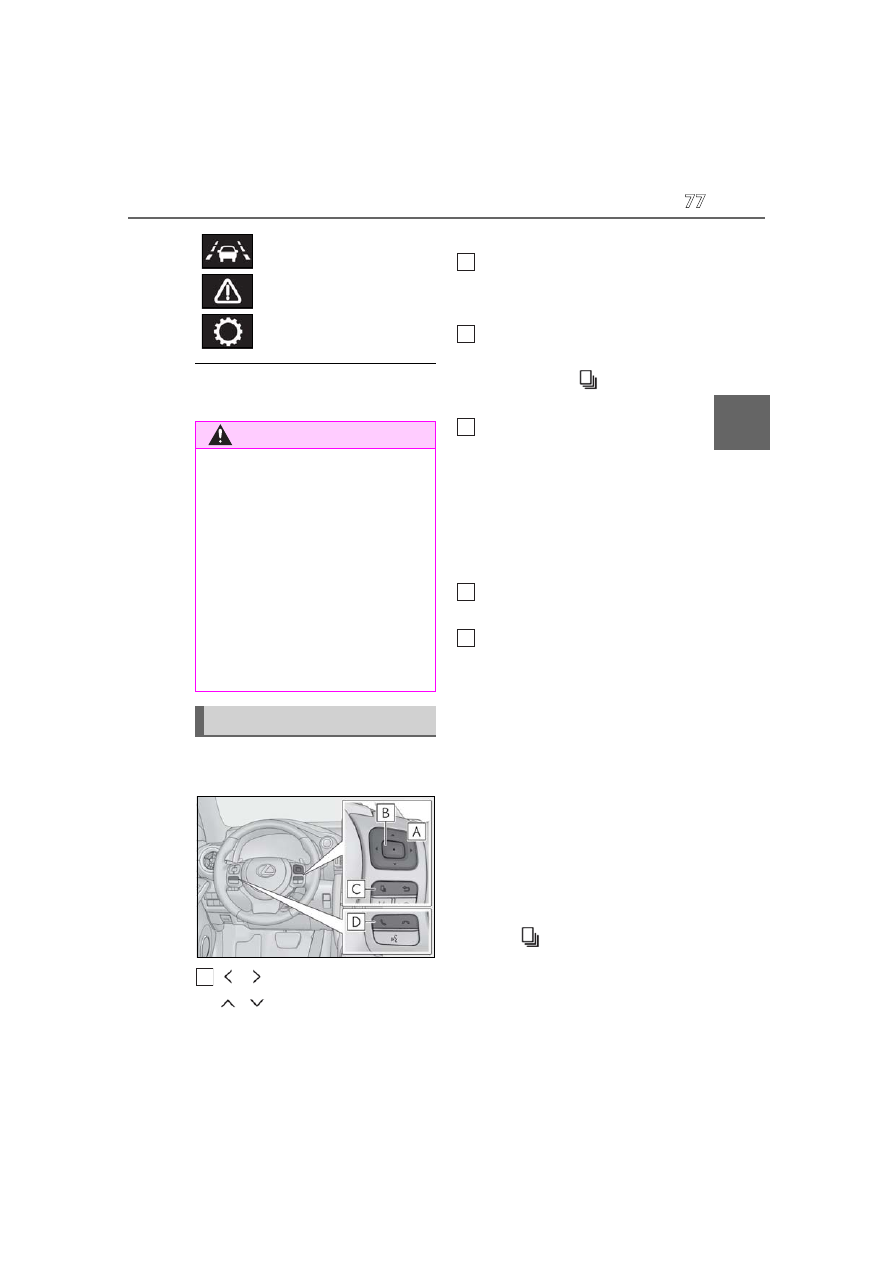

The multi-information display is oper-
ated using the meter control switches.

/

: Select menu icons

/

: Change displayed con-

tent, scroll up/down the screen and

move the cursor up/down
Press: Enter/Set
Press and hold: Reset



Except F SPORT models

Display the top screen and return
to the previous screen
Press and hold

: Register cur-

rent screen as the top screen
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.



F SPORT models

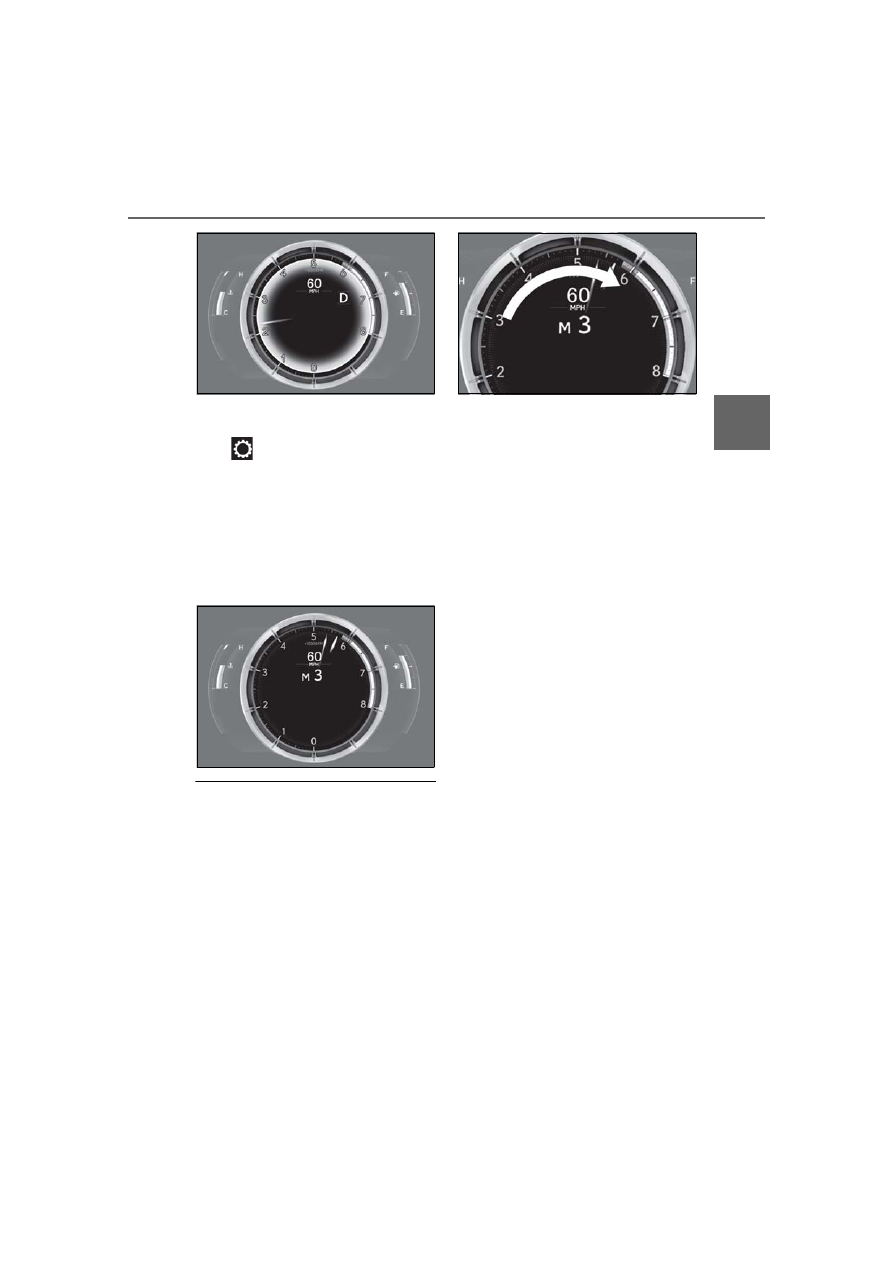

Move the main meter and return to
the previous screen
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

■

Registering a top screen (except F
SPORT models)

The displayed top screen can be
changed to a registered screen of your
choice.
To register a screen as the top screen,
display the desired screen and press
and hold

.

Driving support system infor-
mation display (



P.81)

Warning message display
(



P.336)

Settings display (



P.81)

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

■

The information display at low tem-

peratures



P.74

Changing the meter display

A

B

C

D

C

D

78

2-1. Instrument cluster

■

Display items (except F SPORT
models)

Press

 or

 of the meter control

switch and select

. Then press



or

 to display the following items:



Drive information 1



Drive information 2



Drive information 3



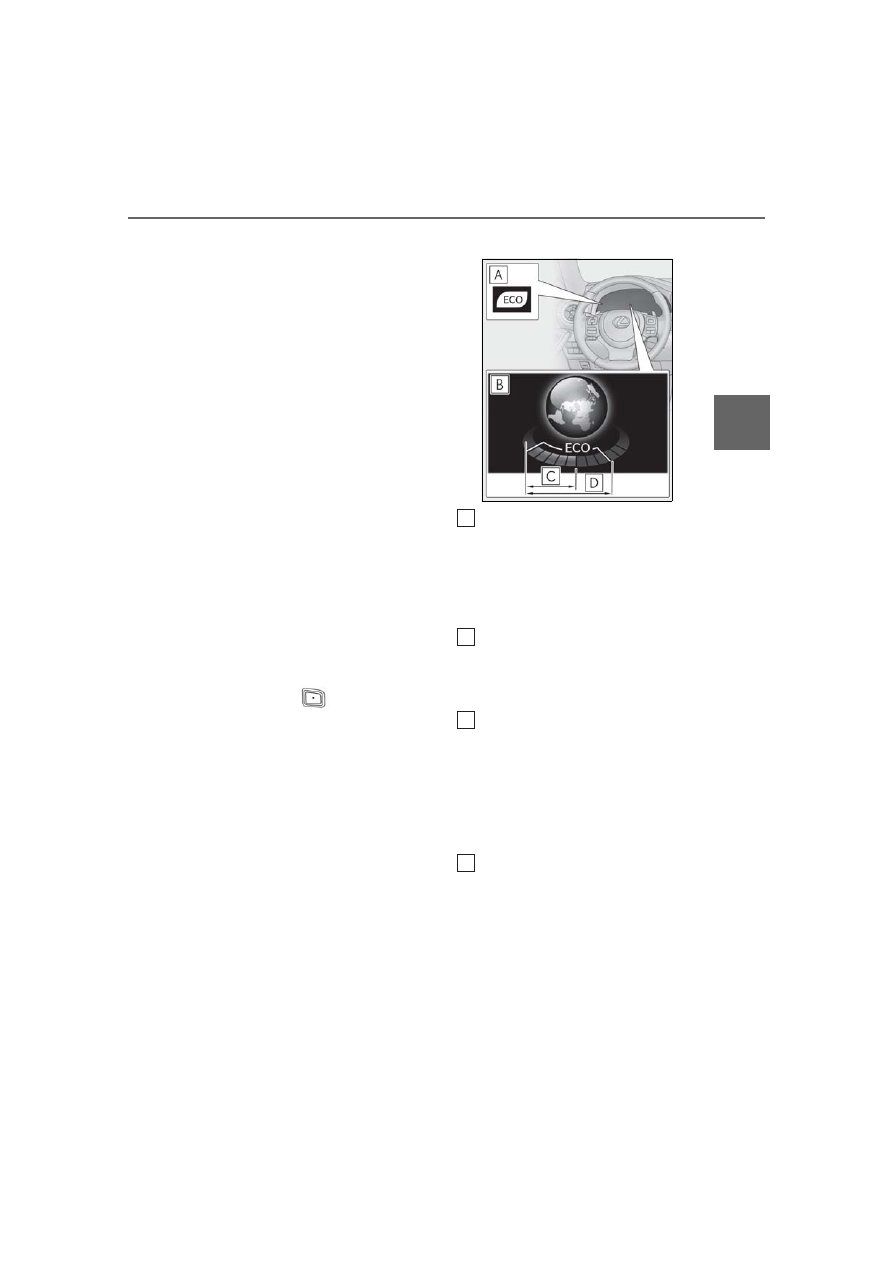

Eco Driving Indicator



Speedometer display



Tire pressure (



P.297)



Gear Position



Display off

■

Display items (F SPORT models)



Main meter in center position

Press

 or

 of the meter control

switch to display the following items:



Drive information 1



Drive information 2



Tire pressure (



P.297)



Gear Position



Units



Display off



Main meter moved to the right

Press

 or

 of the meter control

switch and select

. Then press



or

 to display the following items:



Drive information 1



Drive information 2



Eco Driving Indicator



Boost gauge/engine oil tempera-
ture gauge/engine oil pressure
gauge (if equipped)



G-force



Gear Position



Tire pressure (



P.297)



Display off

■

Drive information 1/Drive infor-
mation 2/Drive information 3

Displays drive information such as the
following:

Use the displayed values as a reference
only.



Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)



Drive information 3

*

• Average fuel economy (after refuel)
• Elapsed time (after start)

*

: Except  F  SPORT  models

Displayed items (listed below) can be
changed on

. (



P.81)



Current fuel consumption

Bar type: Displays instantaneous current
fuel consumption



Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

*1

After start: Displays average fuel con-
sumption since engine start

Content of driving information

79

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

After refuel: Displays average fuel con-
sumption since refuel



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

*1

After start: Displays average vehicle speed
since engine start



Elapsed time

After reset: Displays elapsed time since the
display was reset

*1

After start: Displays elapsed time since
engine start



Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven
since engine start



Other

Blank: No item

*1

: To reset, display the desired item and

press and hold

 of the meter con-

trol switch.

*2

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

*3

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.

■

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.

Zone of Eco driving

■

Speedometer (except F SPORT
models)

Displays the vehicle speed.

A

B

C

D

80

2-1. Instrument cluster

■

Boost gauge/engine oil tempera-
ture gauge/engine oil pressure
gauge (if equipped)

*

Boost gauge

Displays the boost pressure. The display
will change color if the specified pressure is
exceeded.

Engine oil temperature gauge

Displays the engine oil temperature. The
display will flash if the engine oil tempera-
ture exceeds 284 °F (140 °C).

Engine oil pressure gauge

Displays the engine oil pressure. A buzzer
will sound and warning message will be
displayed if the engine oil pressure
becomes low. (



P.338)

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

*

: For F SPORT models, this item is not

available when the main meter is in the
center position.

■

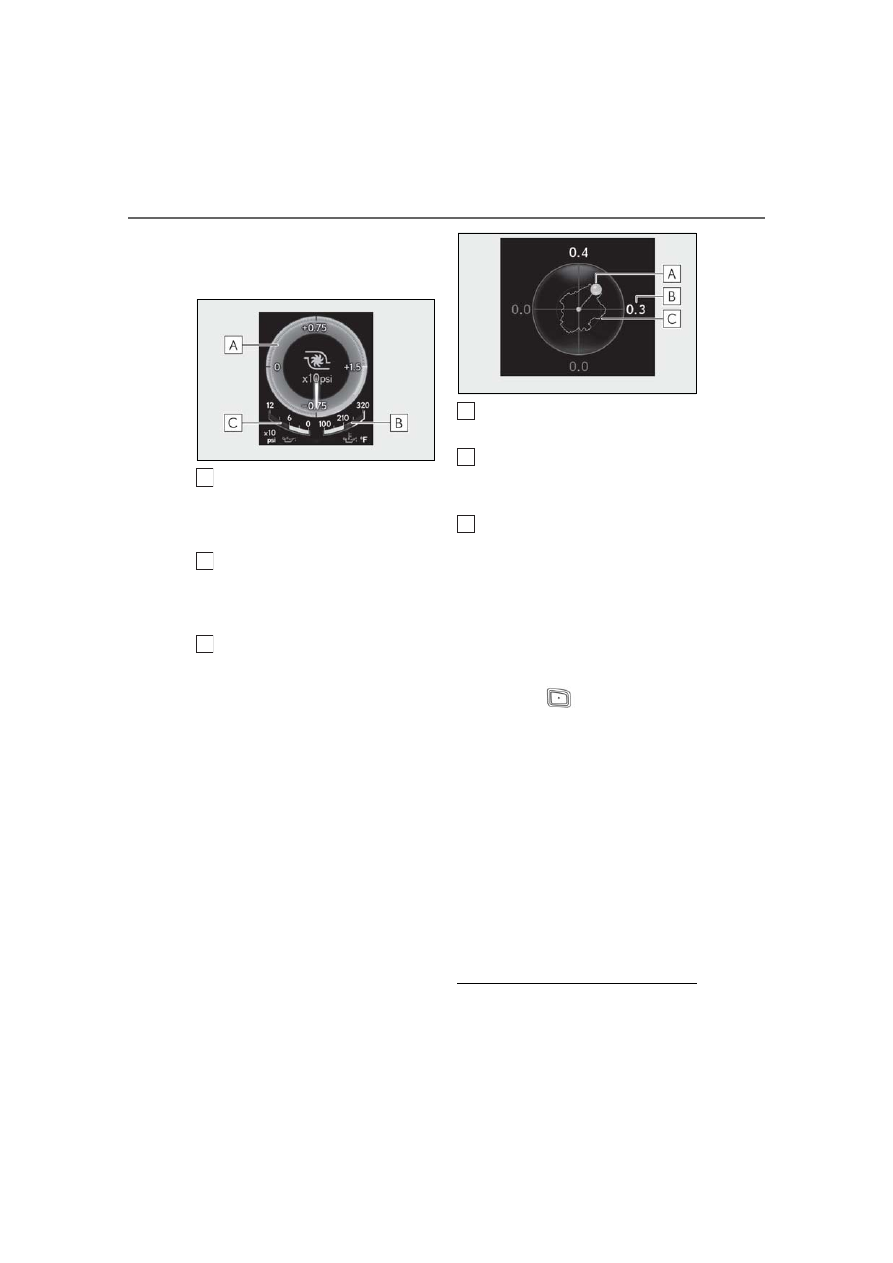

G-force (F SPORT models)

*

Displays lateral G-forces on the vehi-
cle.

Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.



Resetting the record of maximum
G-forces

Press and hold

 of the meter control

switch to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

*

: For F SPORT models, this item is not

available when the main meter is in the
center position.

■

Gear Position

Displays the current shift range or gear
position when the shift position is in D
or M.

■

Eco Driving Indicator

Eco Driving Indicator will not operate

under the following conditions:

A

B

C

A

B

C

81

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

●

The shift lever is in position other than D.

●

A paddle shift switch is operated.

●

Neither normal mode nor Eco drive

mode is selected. (



P.227)

●

The vehicle speed is approximately 80

mph (130 km/h) or higher.

■

G-force display

The G-force values may not be zero even

when the vehicle is parked, such as when it

is parked on an incline.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display (heading-up dis-
play)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist) (



P.175)



RSA (Road Sign Assist) (if
equipped) (



P.184)



Dynamic radar cruise control with
full-speed range (



P.187)

■

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display (except F
SPORT models)

Select to set the display of the speedome-
ter to digital/analog/both digital and ana-
log.



Drive information 1/Drive informa-
tion 2/Drive information 3

Select to select up to 2 items (



P.78) that

will be displayed on each Drive information
screen (Drive information 1 screen, Drive
information 2 screen and Drive informa-
tion 3 screen) respectively.



Clock

Select to switch between 12-hour display
and 24-hour display.



Pop-up display

Select to enable/disable pop-up displays
for each relevant system.



Accent color

Select to change the accent color on the
screen, such as the cursor color.



Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.



Rev peak (F SPORT models)

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

Settings display

82

2-1. Instrument cluster

Select to enable/disable the rev peak.



Eco Driving Indicator Light

Select to enable/disable the Eco Driving
Indicator Light.



Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed



P.386

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Center Display
“MENU” button
Touchpad

■

Trip information

Press the “MENU” button on the

WARNING

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

Fuel consumption informa-
tion

Fuel consumption information can
be displayed on the Center Display.

Vehicles with a navigation system
(10.3-inch display): The fuel con-
sumption information can be dis-
played and operated on the side
display.

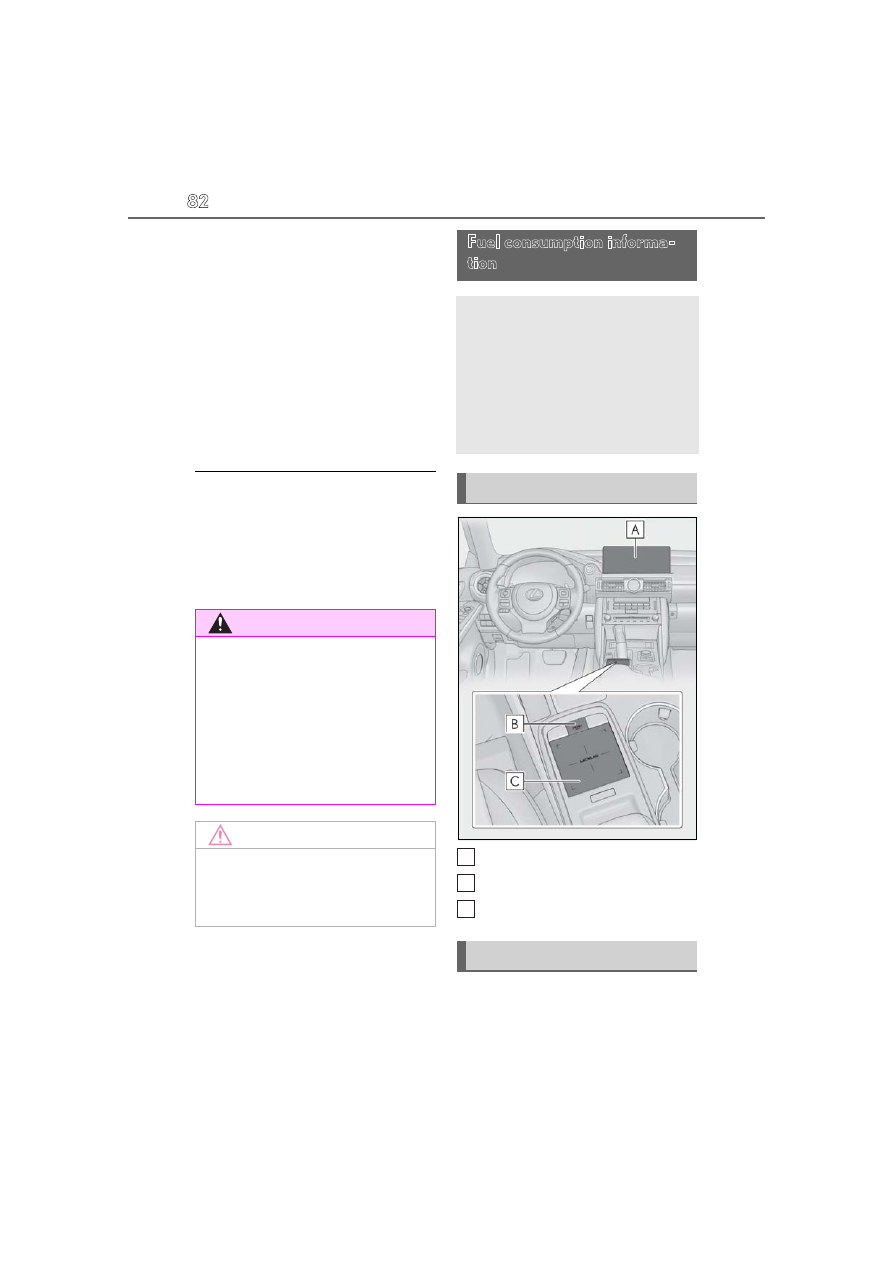

System components

Consumption

A

B

C

83

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

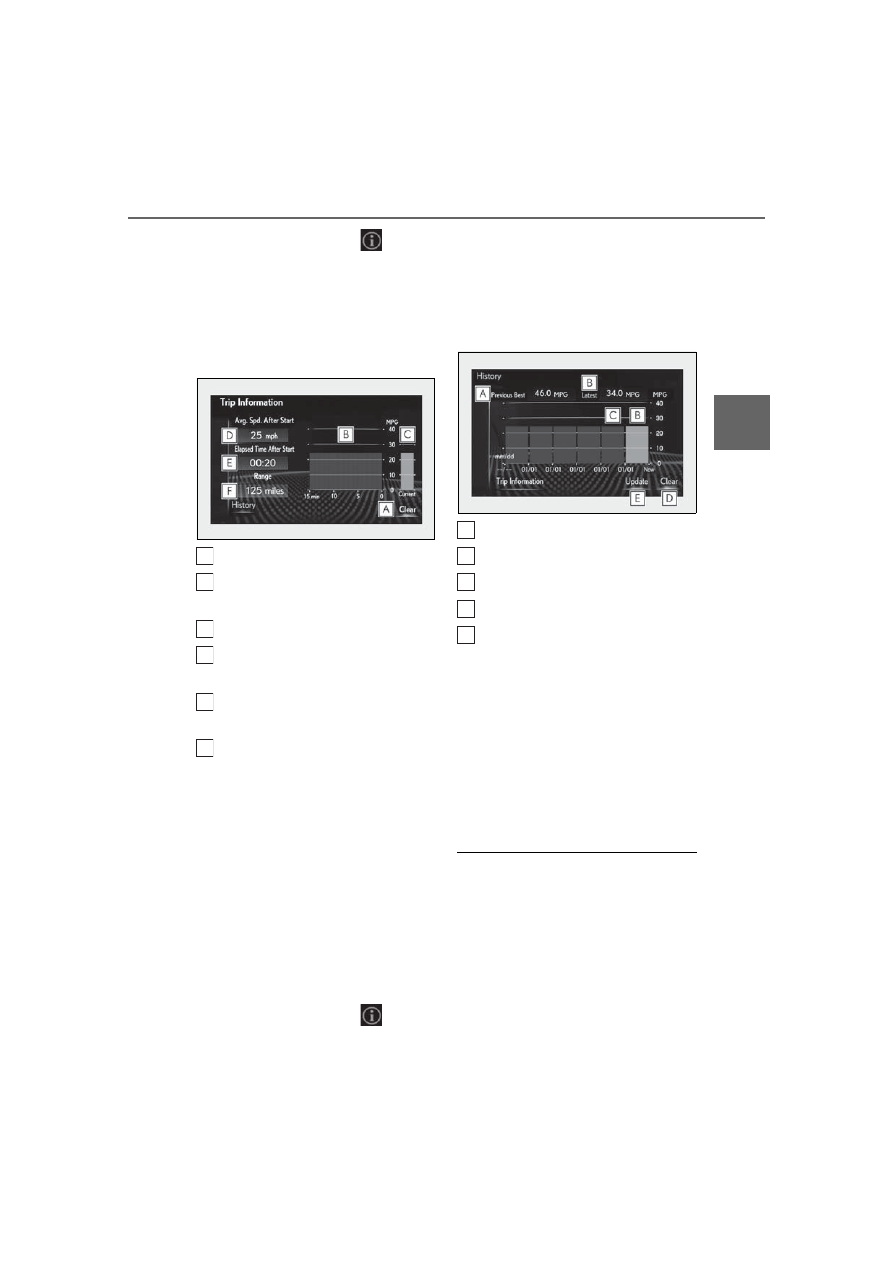

Remote Touch, then select

 on the

menu screen.
If a screen other than “Trip Information”
is displayed, select “Trip Information”.
This system can also be operated by
the touch screen.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range

Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

History

Press the “MENU” button on the
Remote Touch, then select

 on the

menu screen.
If a screen other than “History” is dis-
played, select “History”.
This system can also be operated by
the touch screen.

Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data

The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

A
B

C
D

E

F

A
B
C
D

E

84

2-1. Instrument cluster

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

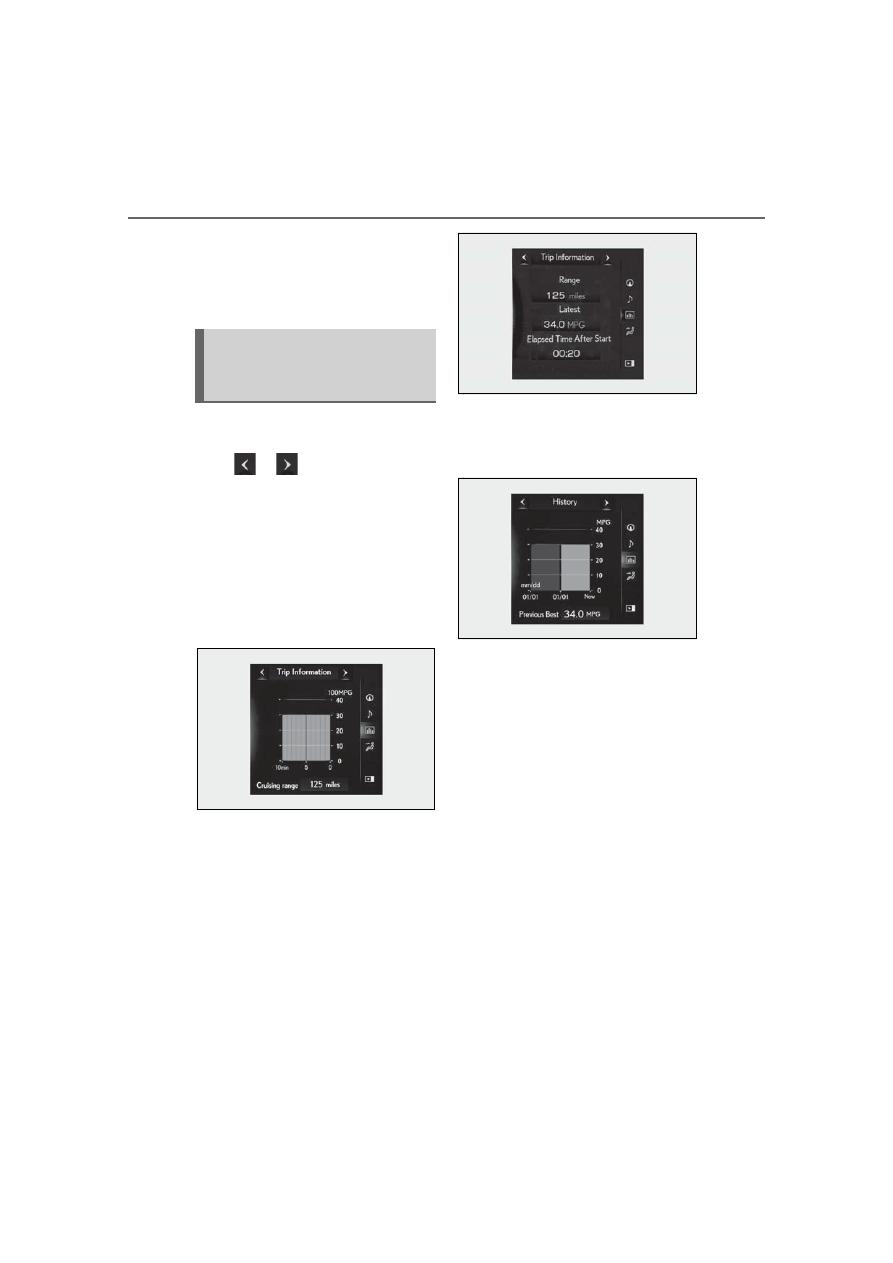

Vehicle information can be displayed
on the side display (



P.240), then

select

 or

 to select the desired

screen.
The image is an example only, and may
vary slightly from actual conditions.

■

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

■

Trip information (type B)

Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the engine was
started.

■

History

Displays the average fuel consumption
and highest fuel consumption.

Using the side display (vehicles
with a navigation system
[10.3-inch display])
