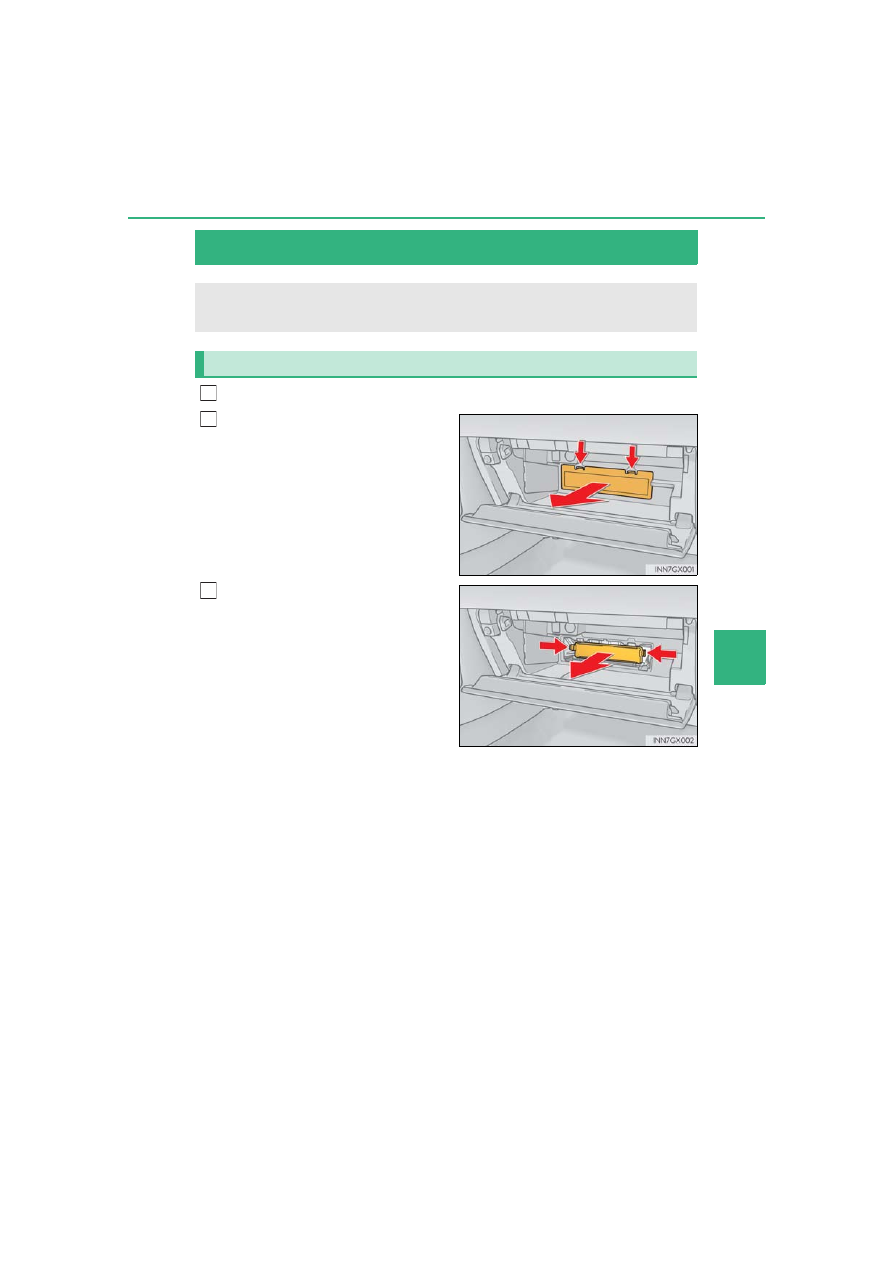

Air conditioning filter

Turn the engine switch off.
Open the glove box and remove the
glove box cover.

Remove the filter cover.

The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.

Removal method

506

GX460_OM_OM60R43U_(U)

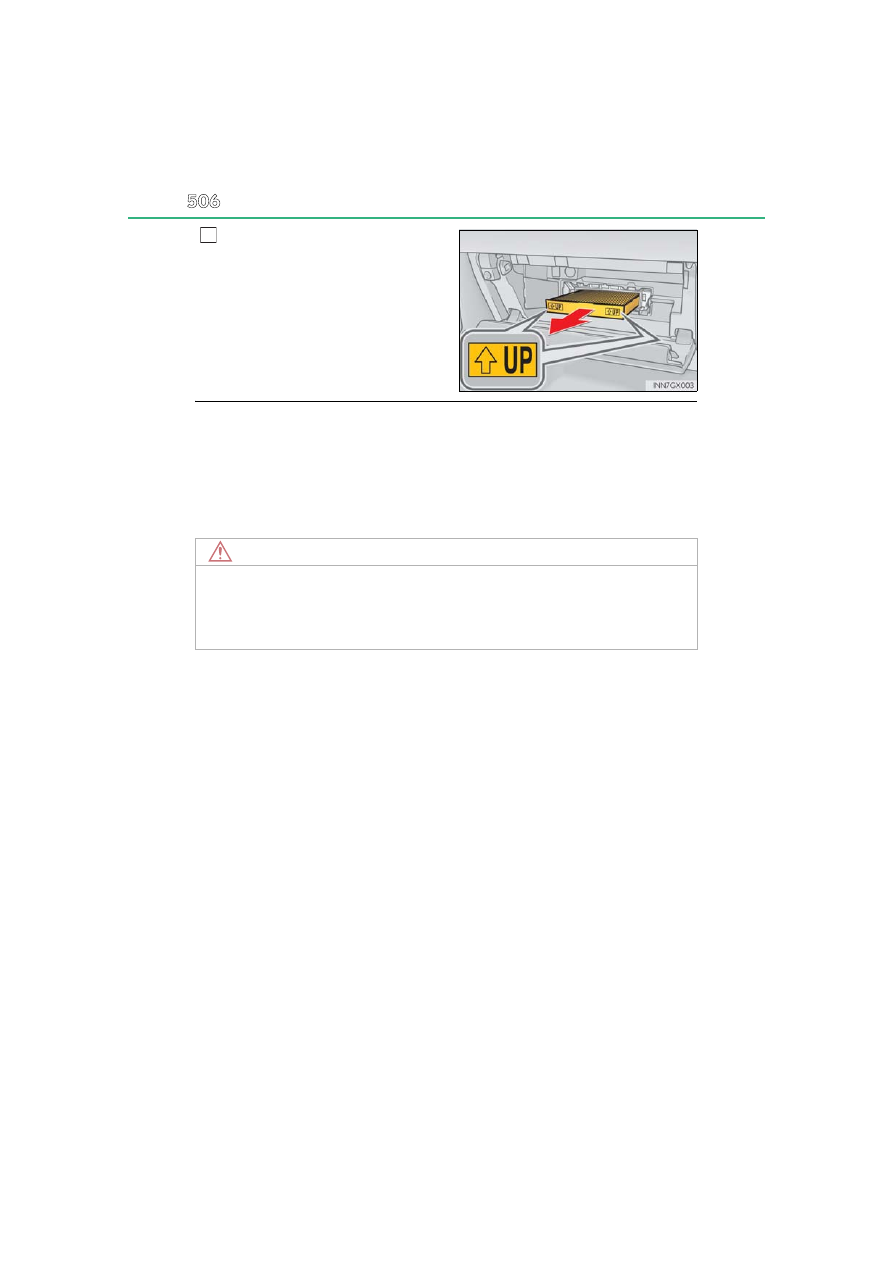

Slide and pull out the filter. Replace
the filter with a new one.

The “



UP” marks shown on the filter

should be pointing up.

■

Changing interval

Inspect and replace the air conditioning filter according to the maintenance schedule. In

dusty areas or areas with heavy traffic flow, early replacement may be required.

(For scheduled maintenance information, please refer to the “Owner’s Manual

Supplement” or “Scheduled Maintenance”.)

■

If air flow from the vents decreases dramatically

The filter may be clogged. Check the filter and replace if necessary.

NOTICE

■

When using the air conditioning system

Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.

507

GX460_OM_OM60R43U_(U)

Main

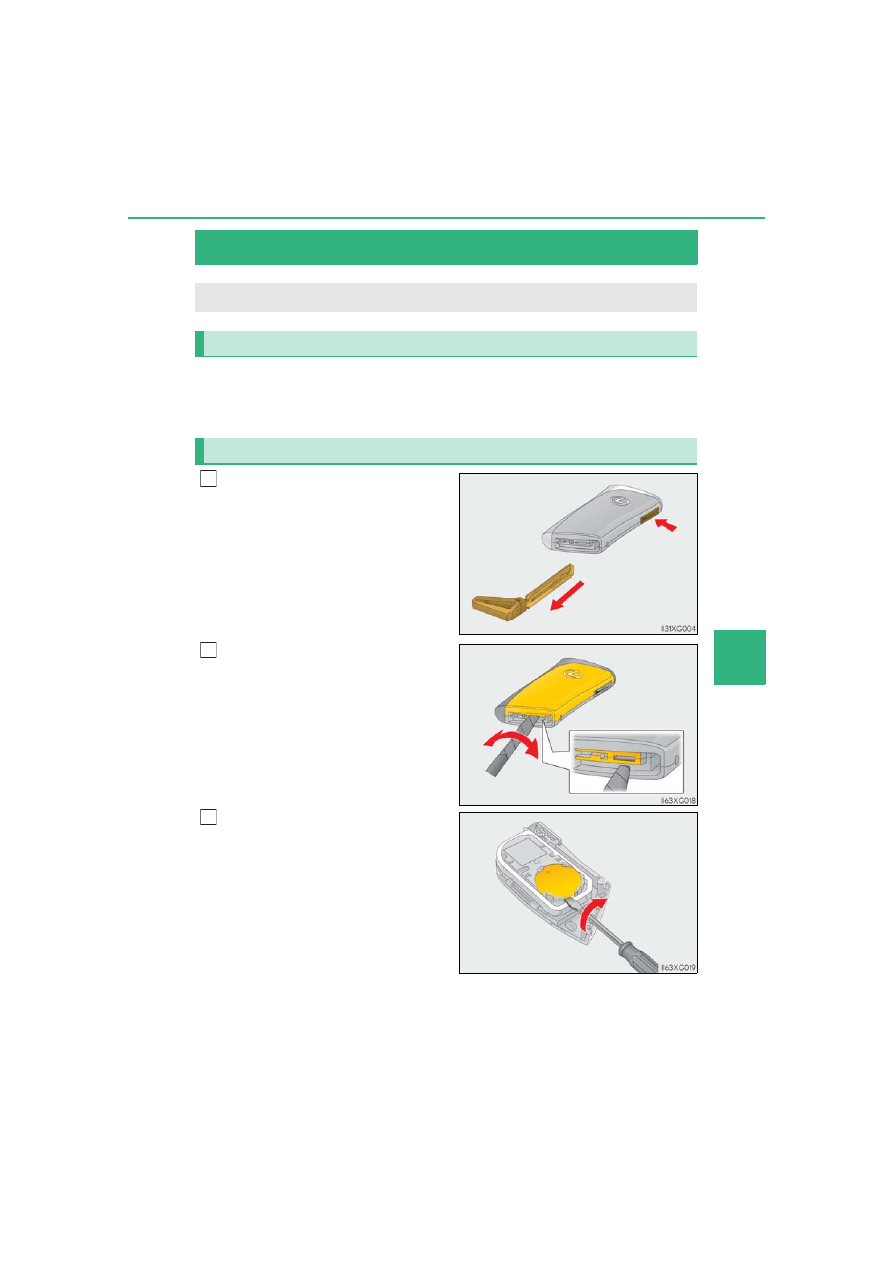

Electronic key battery

●

Flathead screwdriver

●

Small flathead screwdriver

●

Lithium battery CR2032

Take out the mechanical key.

Remove the cover.

To prevent damage to the key, cover the

tip of the screwdriver with tape.

Remove the depleted battery.

Insert a new battery with the “+” termi-

nal facing up.

Replace the battery with a new one if it is depleted.

You will need the following items:

Replacing the battery

508

GX460_OM_OM60R43U_(U)

■

Use a CR2032 lithium battery

●

Batteries can be purchased at your Lexus dealer, local electrical appliance shops or

camera stores.

●

Replace only with the same or equivalent type recommended by the manufacturer.

●

Dispose of used batteries according to the local laws.

■

If the electronic key battery is depleted

The following symptoms may occur:

●

The smart access system with push-button start and wireless remote control will not

function properly.

●

The operational range will be reduced.

WARNING

■

Battery precautions

Observe the following precautions.

Failure to do so may result in death or serious injury.

●

Do not swallow the battery. Doing so may cause chemical burns.

●

A coin battery or button battery is used in the electronic key. If a battery is swallowed,

it may cause severe chemical burns in as little as 2 hours and may result in death or

serious injury.

●

Keep away new and removed batteries from children.

●

If the cover cannot be firmly closed, stop using the electronic key and stow the key in

the place where children cannot reach, and then contact your Lexus dealer.

●

If you accidentally swallow a battery or put a battery into a part of your body, get

emergency medical attention immediately.

■

To prevent battery explosion or leakage of flammable liquid or gas

●

Replace the battery with a new battery of the same type. If a wrong type of battery is

used, it may explode.

●

Do not expose batteries to extremely low pressure due to high altitude or extremely

high temperatures.

●

Do not burn, break or cut a battery.

NOTICE

■

For normal operation after replacing the battery

Observe the following precautions to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery to rust.

●

Do not touch or move any other component inside the remote control.

●

Do not bend either of the battery terminals.

509

GX460_OM_OM60R43U_(U)

Main

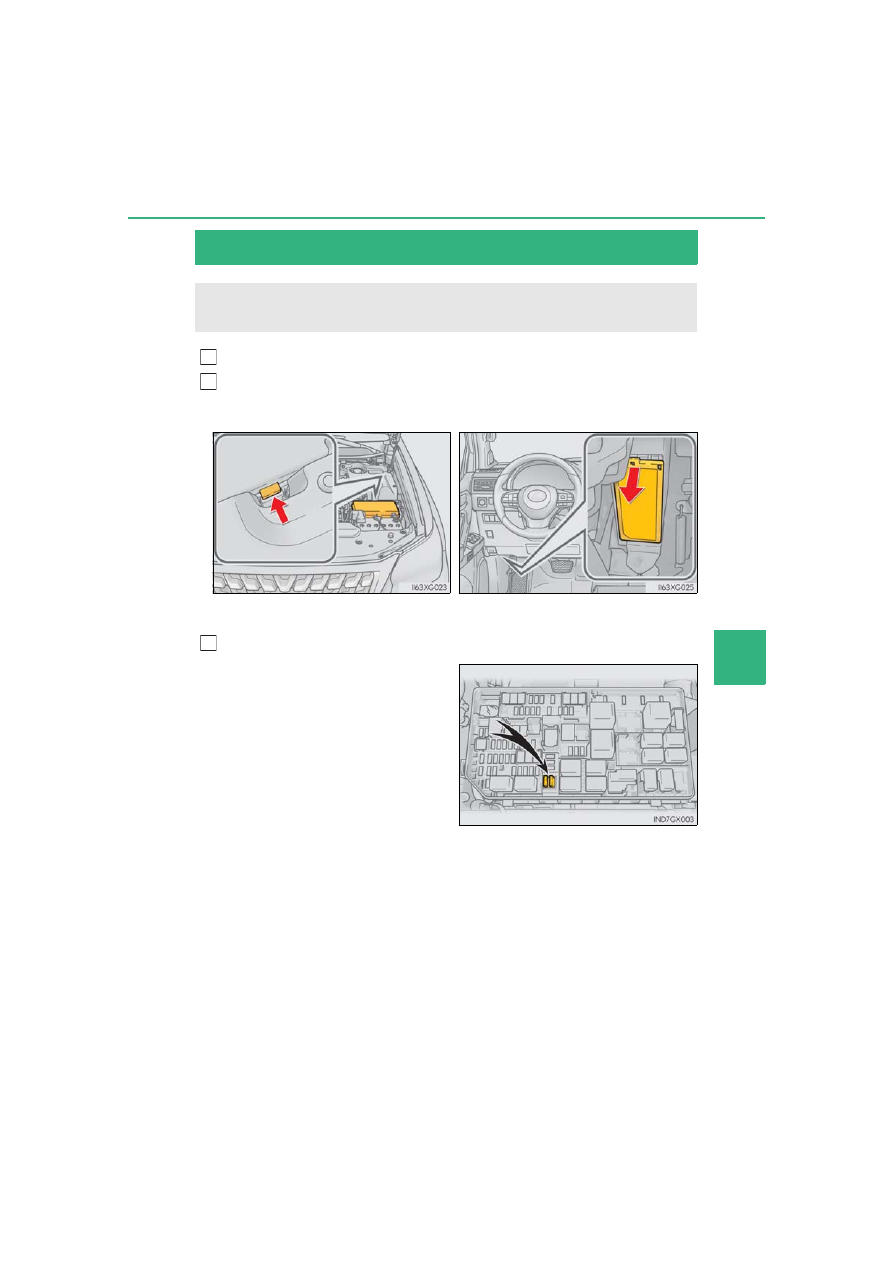

Checking and replacing fuses

Turn the engine switch off.
Open the fuse box cover.

Remove the fuse with the pull-out tool.

Only type A fuse can be removed using
the pull-out tool.

If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.



Engine compartment



Driver’s side instrument panel

Push the tab in and lift the lid off.

Remove the lid.

510

GX460_OM_OM60R43U_(U)

Check if the fuse is blown.

Normal fuse
Blown fuse

Type A:

Replace the blown fuse with a new fuse of an appropriate amperage rating. The

amperage rating can be found on the fuse box lid.
Type B, C and D:

Contact your Lexus dealer.



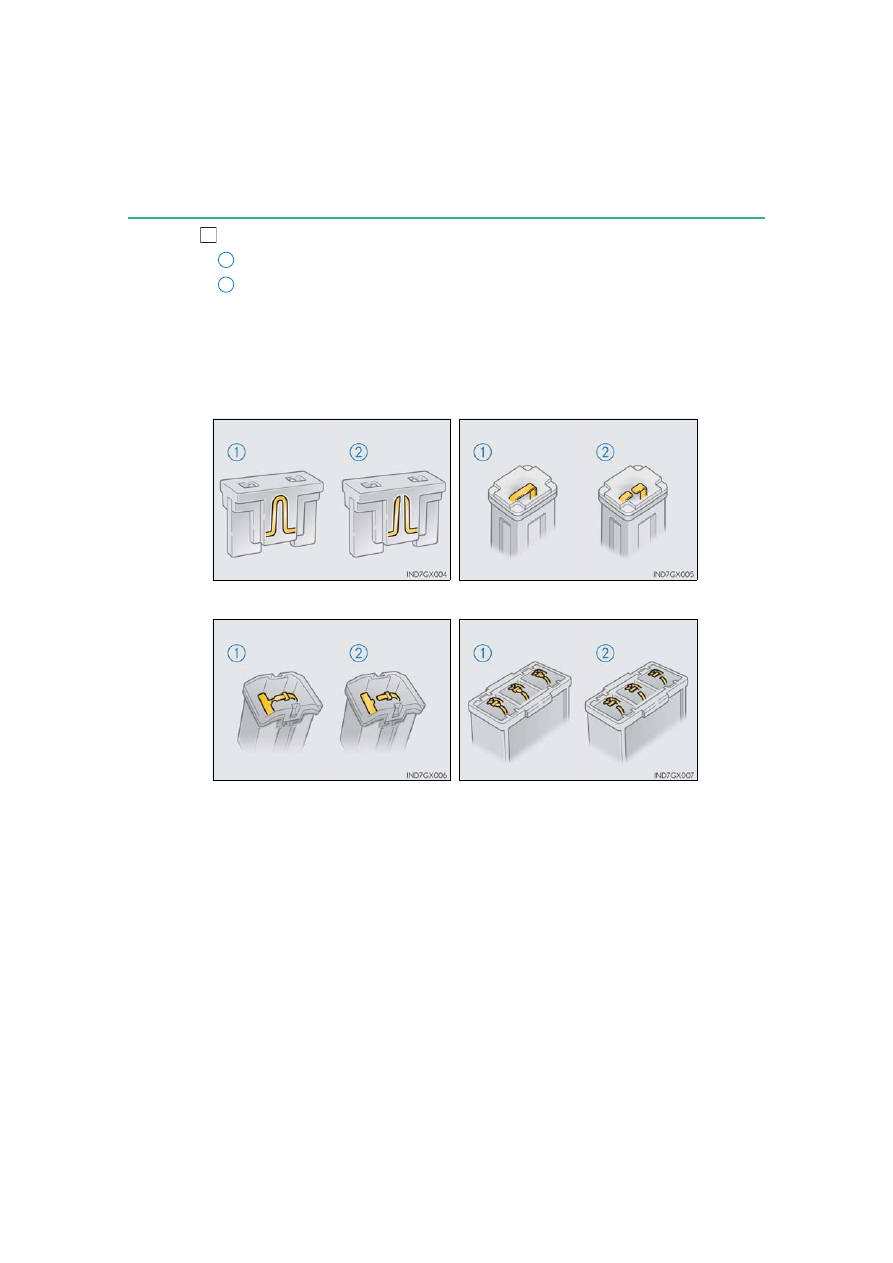

Type A



Type B



Type C



Type D

GX460_OM_OM60R43U_(U)

511

Main

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb may need

replacement. (

P. 514)

●

If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.

■

If there is an overload in a circuit

The fuses are designed to blow, protecting the wiring harness from damage.

WARNING

■

To prevent system breakdowns and vehicle fire

Observe the following precautions.

Failure to do so may cause damage to the vehicle, and possibly a fire or injury.

●

Never use a fuse of a higher amperage rating than indicated, or use any other object

in place of a fuse.

●

Always use a genuine Lexus fuse or equivalent.

Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuses or the fuse boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical overload determined and repaired by your Lexus dealer,

as soon as possible.

512

GX460_OM_OM60R43U_(U)

Headlight aim

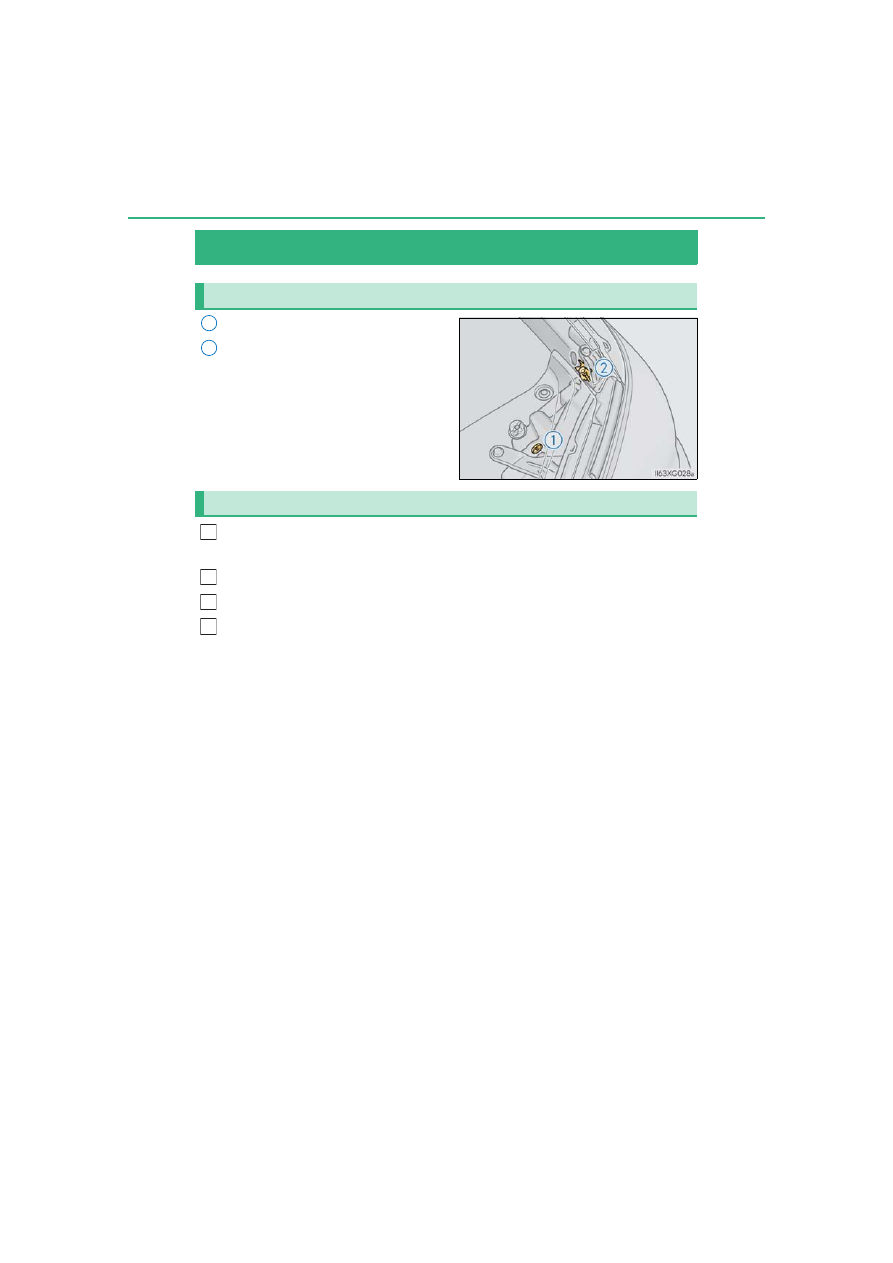

Adjustment bolt A
Adjustment bolt B

Make sure the vehicle has a full tank of gasoline and the area around the
headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.

Vertical movement adjusting bolts

Before checking the headlight aim

2
3
4

GX460_OM_OM60R43U_(U)

513

Main

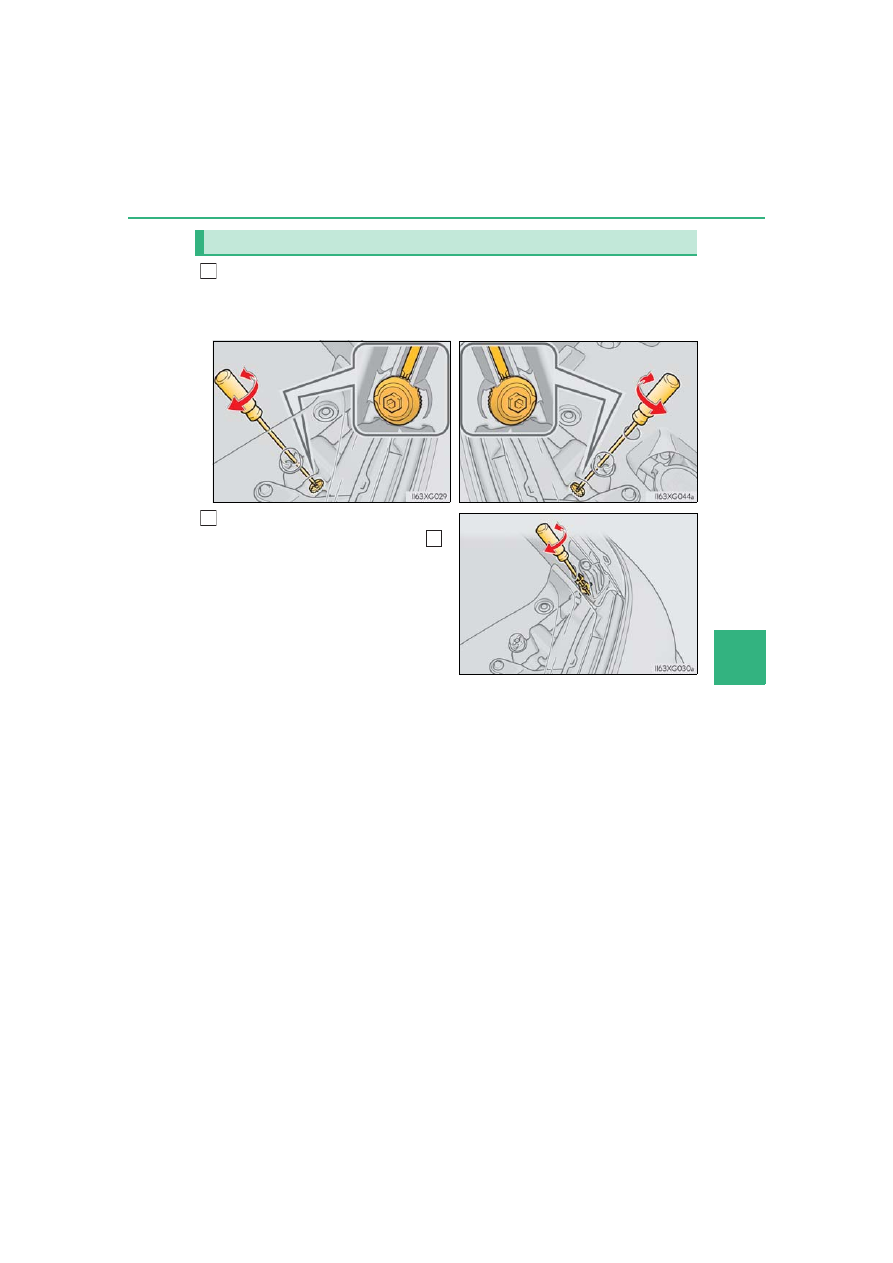

Using a Phillips-head screwdriver, turn bolt A in either direction.

Remember the turning direction and the number of turns.

Turn bolt B the same number of turns
and in the same direction as step .

If the headlight cannot be adjusted using

this procedure, take the vehicle to your

Lexus dealer to adjust the headlight aim.

Adjusting the headlight aim



Left-hand side



Right-hand side

514

GX460_OM_OM60R43U_(U)

Light bulbs

Check the wattage and color of the light bulb being replaced. (

P. 589)

■

Front

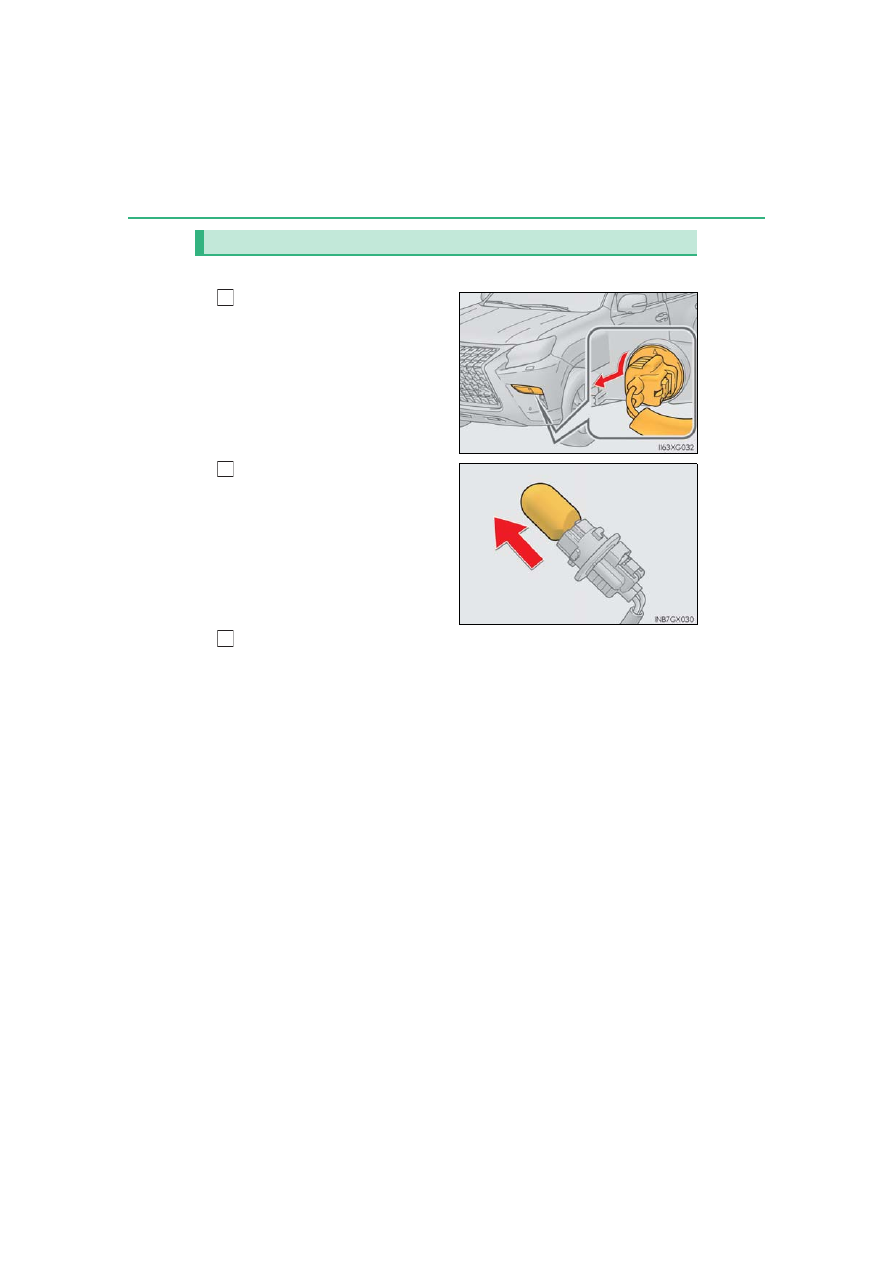

Front turn signal light

You may replace the following bulbs yourself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.

Preparing for light bulb replacement

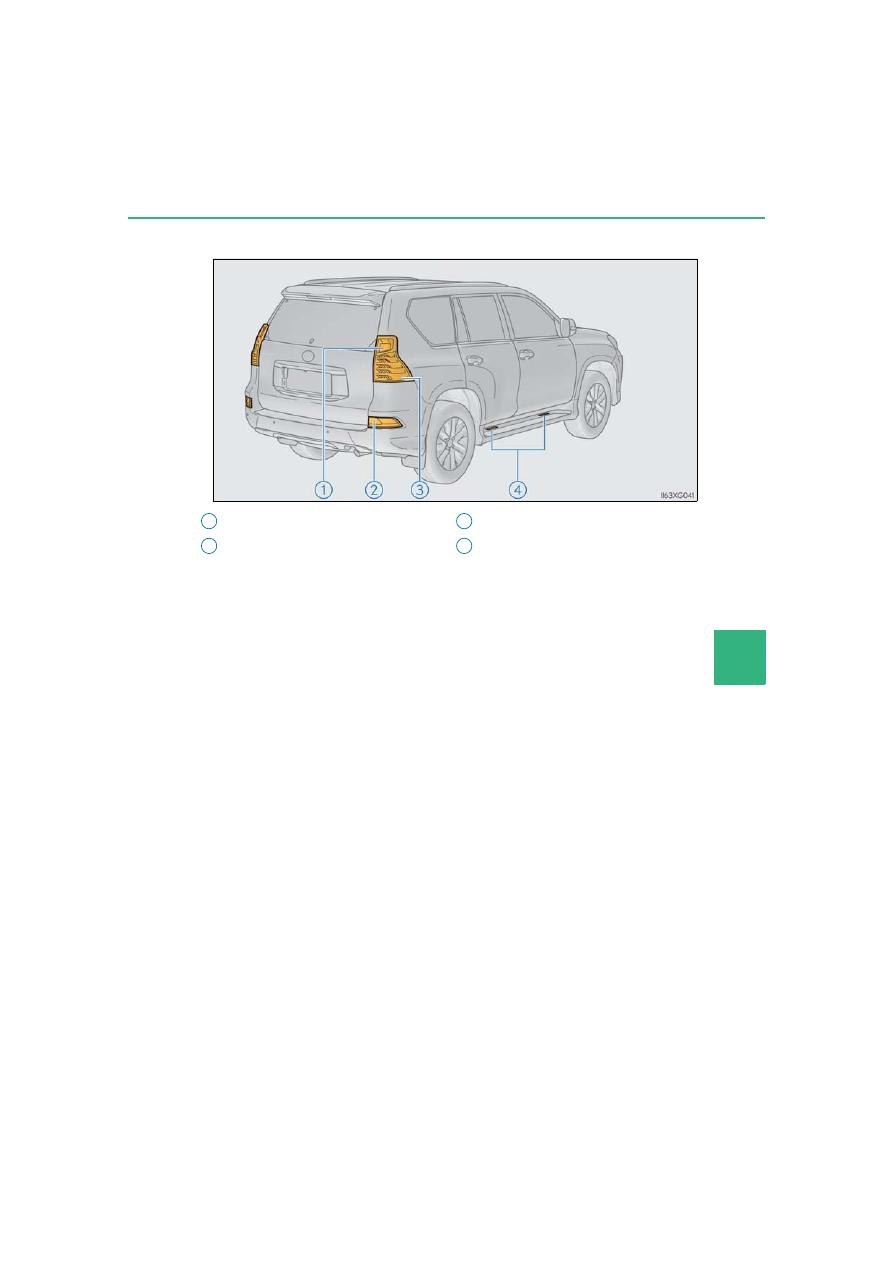

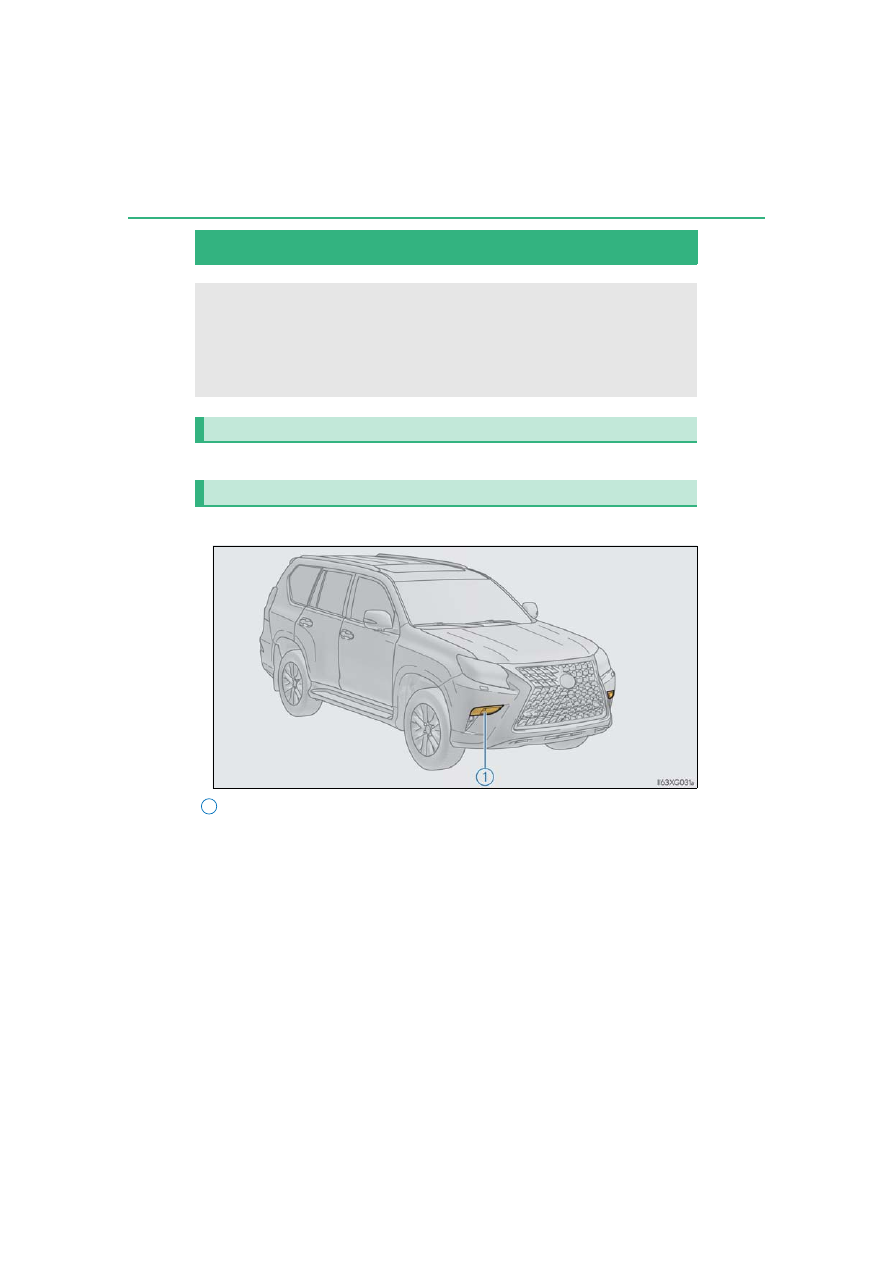

Bulb locations

GX460_OM_OM60R43U_(U)

517

Main

■

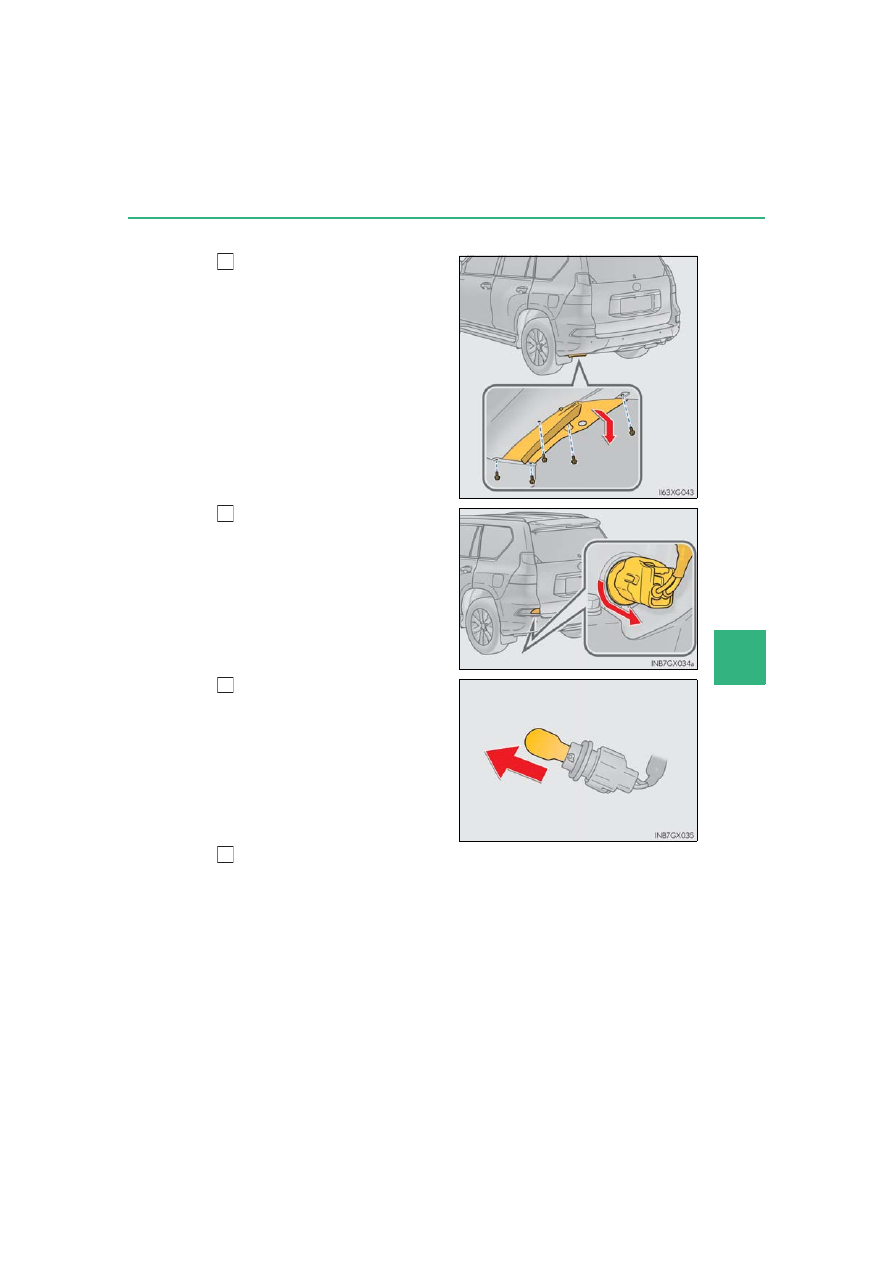

Rear turn signal lights and rear side marker lights

Open the back door.



Left-hand side

Remove the bolts and lamp assem-
bly.



Right-hand side

Remove the bolts.

Close the back door half way
and remove the lamp assem-
bly.

518

GX460_OM_OM60R43U_(U)

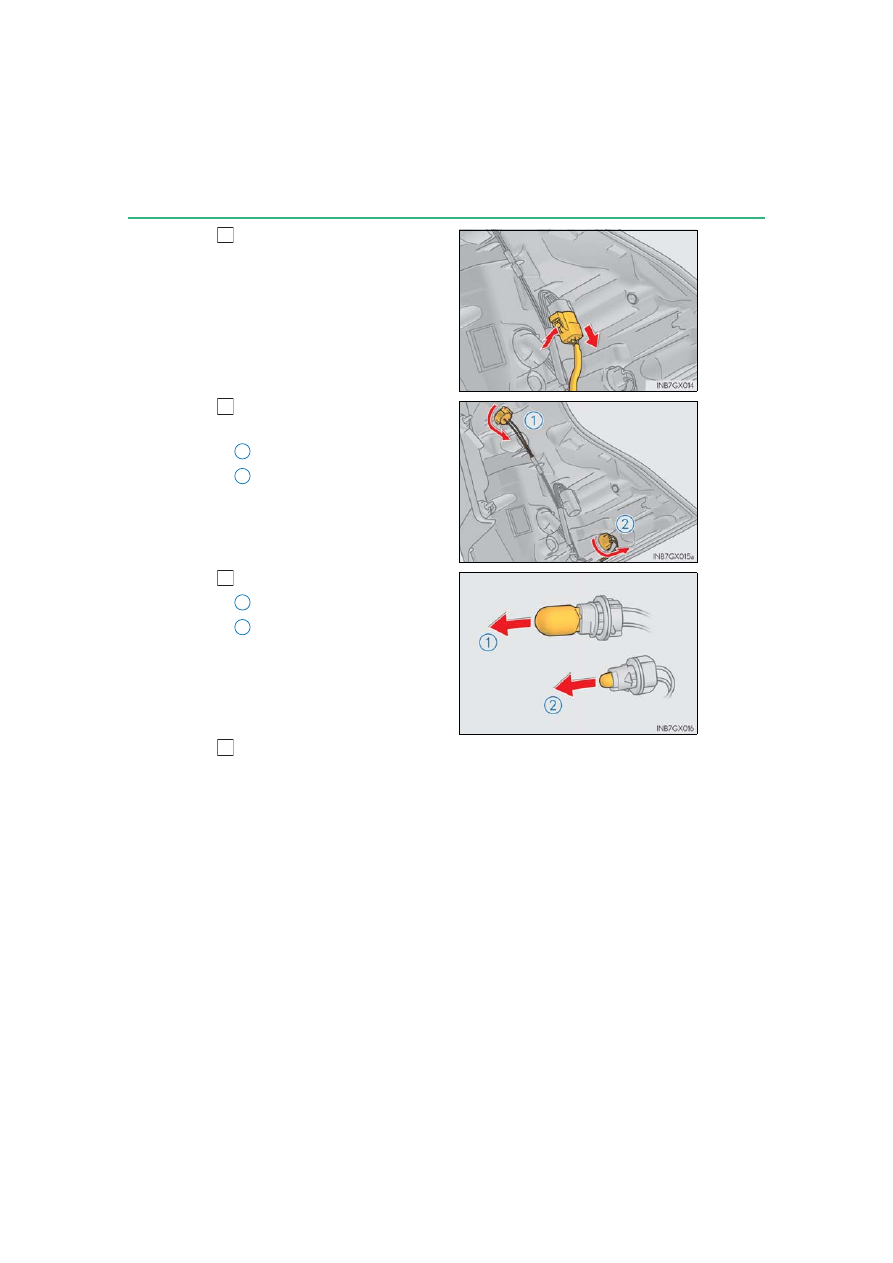

Unplug the connector while
pushing the lock release.

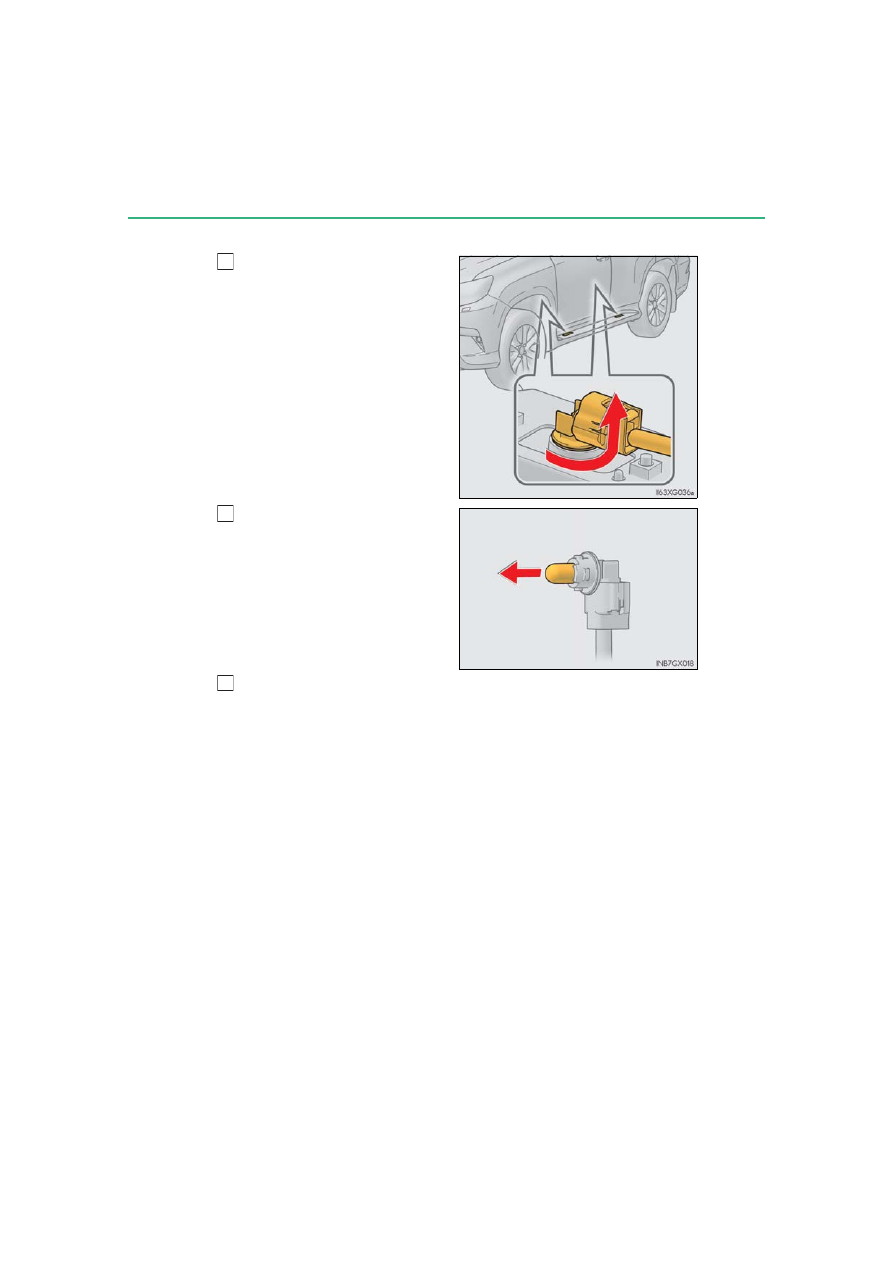

Turn the bulb bases counter-
clockwise.

Rear turn signal light
Rear side marker light

Remove the light bulb.

Rear turn signal light
Rear side marker light

When installing, reverse the steps listed.

GX460_OM_OM60R43U_(U)

519

Main

■

Back-up lights

Remove the bolts and pull down
the under cover.

Turn the bulb base counterclock-
wise.

Remove the light bulb.

When installing, reverse the steps listed.

520

GX460_OM_OM60R43U_(U)

■

Running board lights

Turn the bulb bases counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

■

Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer.

●

Headlights

●

Parking lights/daytime running lights

●

Front side marker lights

●

Fog lights (if equipped)

●

Side turn signal lights

●

High mounted stoplight

●

Stop/tail lights

●

License plate lights

GX460_OM_OM60R43U_(U)

521

Main

■

LED lights

The headlights, parking lights/daytime running lights, front side marker lights, fog lights,

side turn signal lights, high mounted stoplight, stop/tail lights and license plate lights con-

sist of a number of LEDs. If any of the LEDs burn out, take your vehicle to your Lexus

dealer to have the light replaced.

■

Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the headlight lens does not indicate a

malfunction. Contact your Lexus dealer for more information in the following situations:

●

Large drops of water are built up on the inside of the lens.

●

Water has built up inside the headlight.

WARNING

■

Replacing light bulbs

●

Turn off the headlights. Do not attempt to replace the bulb immediately after turning

off the headlights.

The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is unavoid-

able to hold the glass portion, use and hold with a clean dry cloth to avoid getting

moisture and oils on the bulb.

Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failure to do so may result

in heat damage, fire, or water entering the headlight unit. This may damage the head-

lights or cause condensation to build up on the lens.

●

Do not attempt to repair or disassemble light bulbs, connectors, electric circuits or

component parts.

Doing so may result in death or serious injury due to electric shock.

■

To prevent damage or fire

●

Make sure bulbs are fully seated and locked.

●

Check the wattage of the bulb before installing to prevent heat damage.

523

GX460_OM_OM60R43U_(U)

When trouble arises

7-1. Essential information

Emergency flashers ..................524
If your vehicle has

to be stopped in
an emergency ..........................525

If the vehicle is submerged

or water on the road
is rising.........................................526

7-2. Steps to take in an emergency

If your vehicle needs

to be towed................................528

If you think something is

wrong...........................................533

Fuel pump shut off system......534
If a warning light turns

on or a warning buzzer
sounds..........................................535

If a warning message is

displayed.....................................544

If you have a flat tire ..................548
If the engine will not start ........565
If the electronic key does

not operate properly .............567

If the vehicle battery is

discharged.................................570

If your vehicle overheats.........573
If the vehicle becomes

stuck .............................................576

524

GX460_OM_OM60R43U_(U)

Emergency flashers

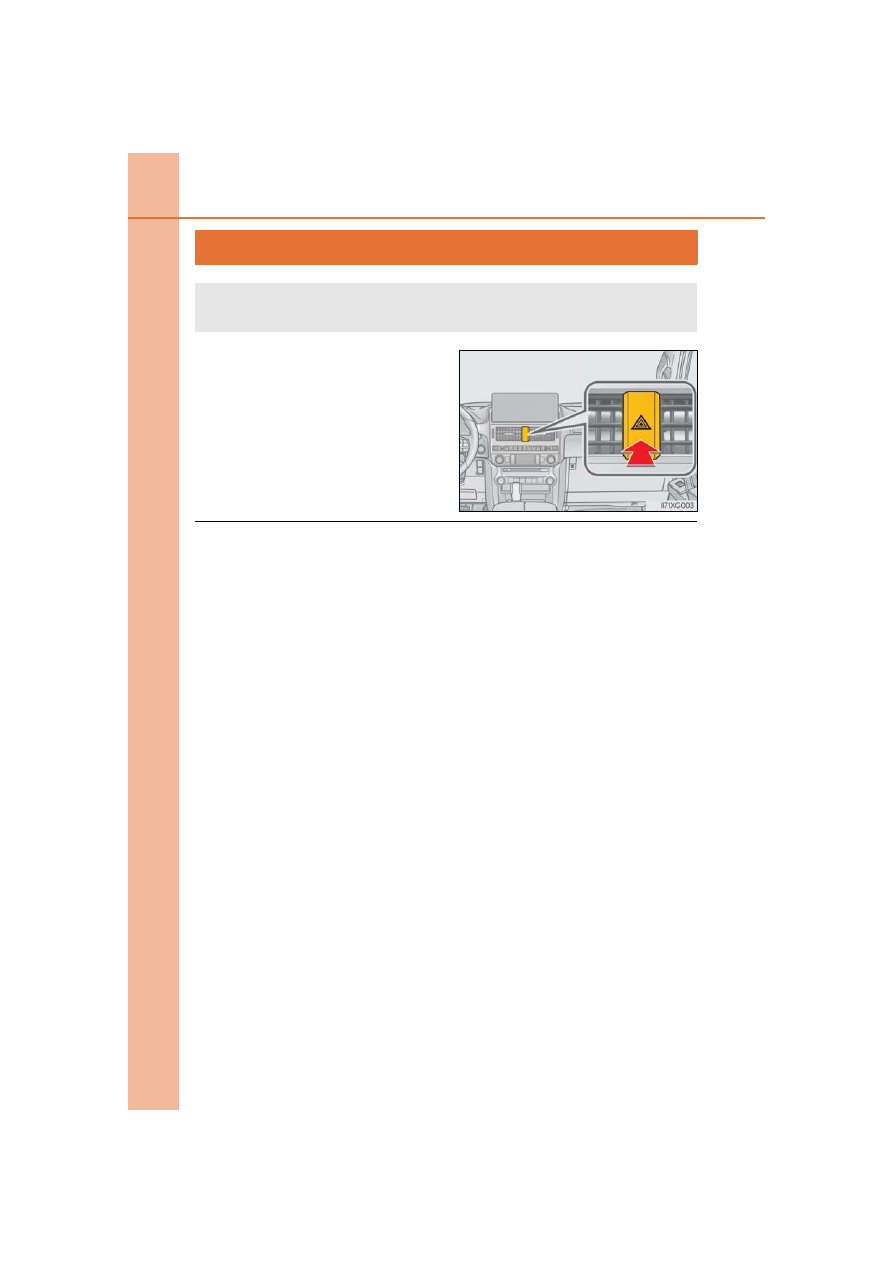

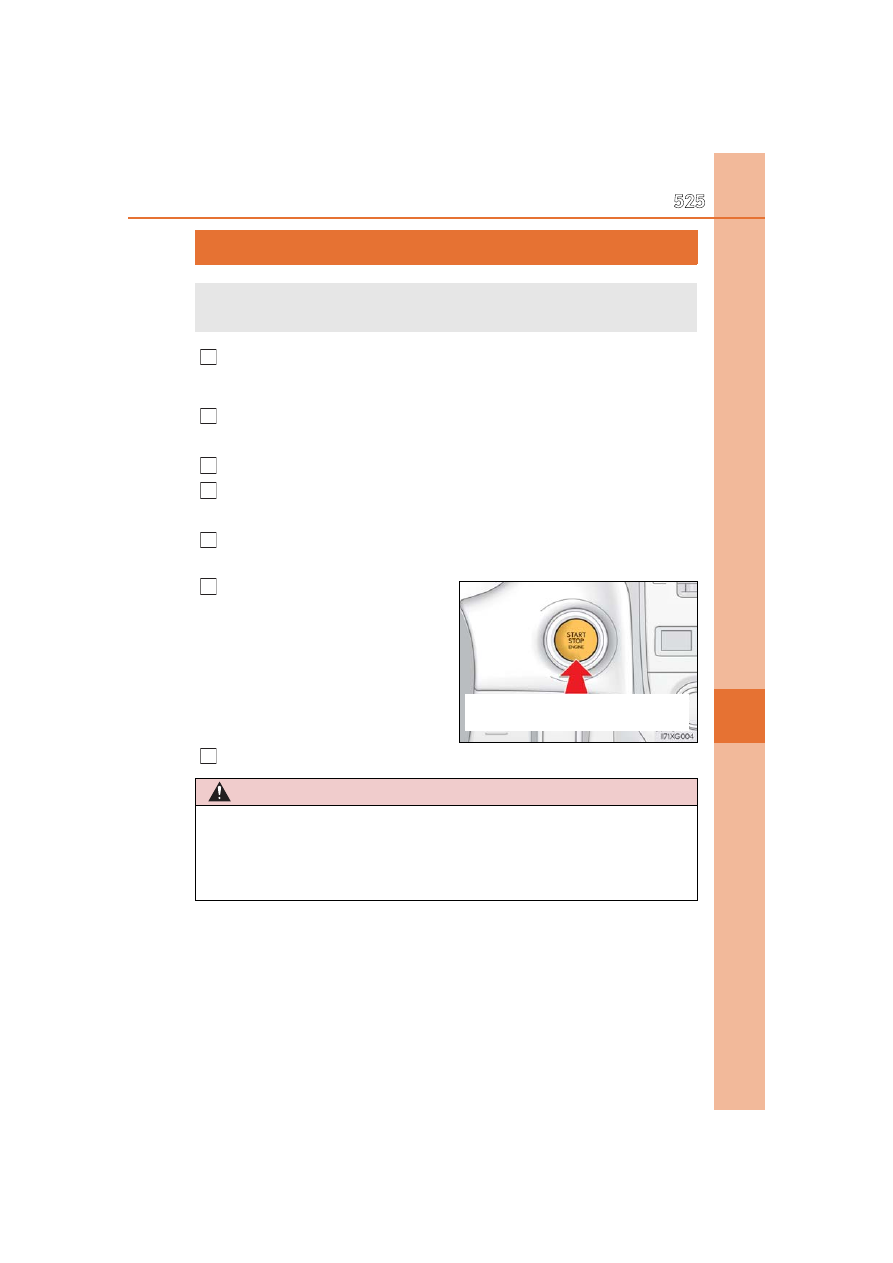

Press the switch.

All the turn signals will flash.

To turn them off, press the switch once

again.

■

Emergency flashers

If the emergency flashers are used for a long time while the engine is not operating, the

battery may discharge.

The emergency flashers are used to warn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.

525

GX460_OM_OM60R43U_(U)

When trouble

If your vehicle has to be stopped in an emergency

Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort required to

slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.



If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as
much as possible.
To stop the engine, press and hold
the engine switch for 2 consecutive
seconds or more, or press it briefly 3
times or more in succession.

Stop the vehicle in a safe place by the road.

Only in an emergency, such as if it becomes impossible to stop the vehicle in
the normal way, stop the vehicle using the following procedure:

3
4

Press and hold for 2 seconds or more,
or press briefly 3 times or more

WARNING

■

If the engine has to be turned off while driving

Power assist for the brakes and steering wheel will be lost, making the brake pedal

harder to depress and the steering wheel heavier to turn. Decelerate as much as possi-

ble before turning off the engine.

526

GX460_OM_OM60R43U_(U)

If the vehicle is submerged or water on the road is
rising

●

If the door can be opened, open the door and exit the vehicle.

●

If the door can not be opened, open the window using the power window
switch and ensure an escape route.

●

If the window can be opened, exit the vehicle through the window.

●

If the door and window cannot be opened due to the rising water, remain
calm, wait until the water level inside the vehicle rises to the point that the
water pressure inside of the vehicle equals the water pressure outside of the
vehicle and then open the door after waiting for the rising water to enter the
vehicle, and exit the vehicle. When the outside water level exceeds half the
height of the door, the door cannot be opened from the inside due to water
pressure.

■

Water level exceeds the floor

When the water level exceeds the floor and time has passed, the electrical equipment

will get damaged, the power windows will not operate, the engine stop, and the vehicle

may not be able to get moving.

■

Using an emergency escape hammer

Laminated glass

is used in the windshield and the windows on this vehicle.

Laminated glass cannot be shattered with an emergency hammer

: Contact your Lexus dealer or aftermarket accessory manufacturer for further infor-

mation about an emergency hammer.

: If equipped

This vehicle is not designed to be able to drive on roads that are deeply
flooded with water. Do not drive on roads where the roads may be submerged
or the water may be rising. It is dangerous to remain in the vehicle, if it antici-
pated that the vehicle will be flooded or set a drift. Remain calm and follow the
following.

527

GX460_OM_OM60R43U_(U)

When trouble

■

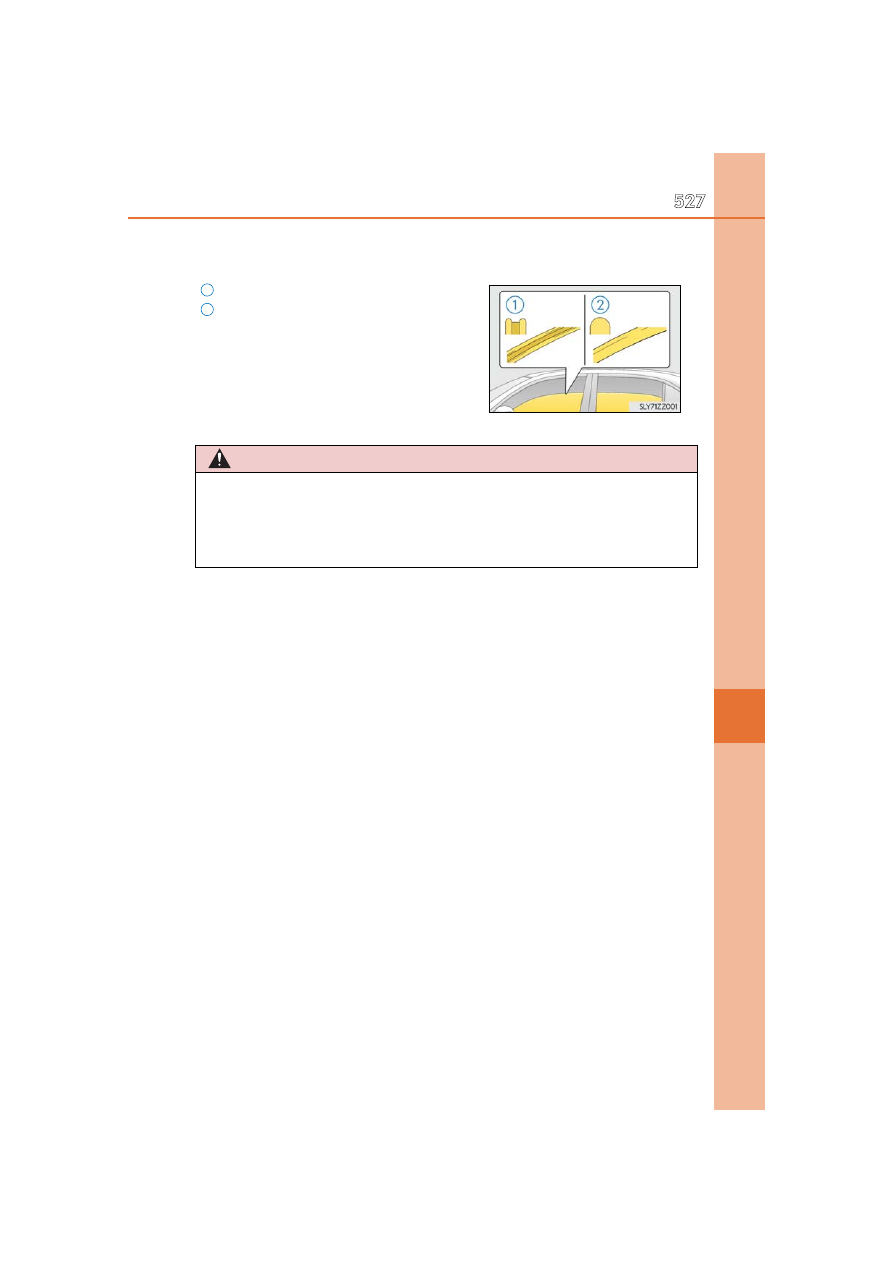

How to distinguish laminated glass

When looking from the cross-sectional view point, laminated glass is two sheets of glass

pasted together.

Laminated glass
Tempered glass

WARNING

■

Caution while driving

Do not drive on roads where the roads may be submerged or the water may be rising.

Otherwise the vehicle may be damaged and cannot move, as well as become flooded

and set a drift, which may lead to death.

528

GX460_OM_OM60R43U_(U)

If your vehicle needs to be towed

The following may indicate a problem with your transmission. Contact your
Lexus dealer or commercial towing service before towing.

●

The engine is running but the vehicle does not move.

●

The vehicle makes an abnormal sound.

If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or commercial towing service, using a wheel-lift type truck or
flatbed truck.
Use a safety chain system for all towing, and abide by all state/provincial and
local laws.
If towing your vehicle with a wheel-lift type truck, use a towing dolly.
(



P. 529, 531)

Situations when it is necessary to contact dealers before towing

529

GX460_OM_OM60R43U_(U)

When trouble

When using a flatbed truck to transport the vehicle, use tire strapping belts. Refer
to the owner’s manual of the flatbed truck for the tire strapping method.
In order to suppress vehicle movement during transportation, set the parking
brake and turn the engine switch off.

If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using cables or chains secured to the emergency towing hooks. This
should only be attempted on hard surfaced roads for at most 50 miles (80 km)
at under 18 mph (30 km/h).
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.

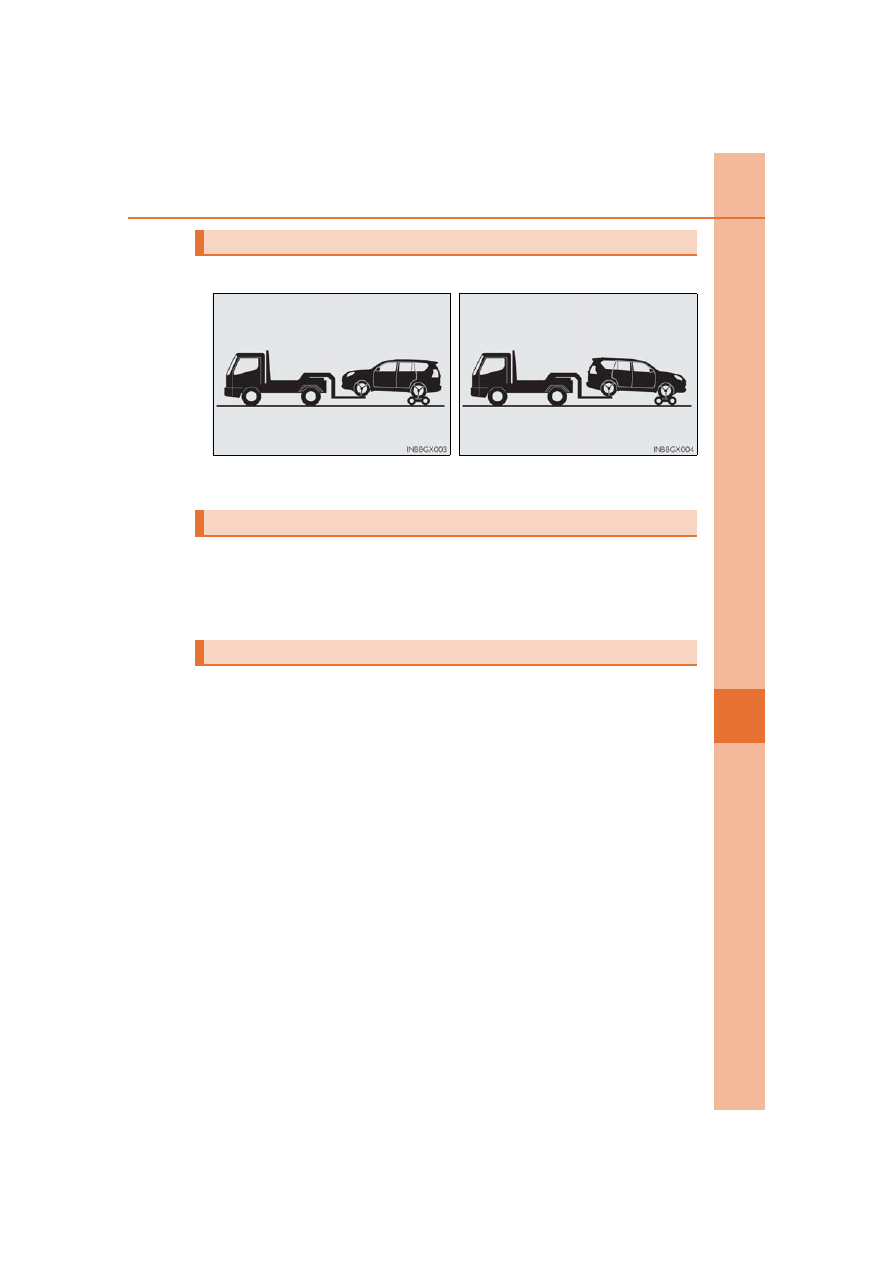

Towing with a wheel-lift type truck



From the front



From the rear

Use a towing dolly under the rear
wheels.

Use a towing dolly under the front
wheels.

Using a flatbed truck

Emergency towing

530

GX460_OM_OM60R43U_(U)

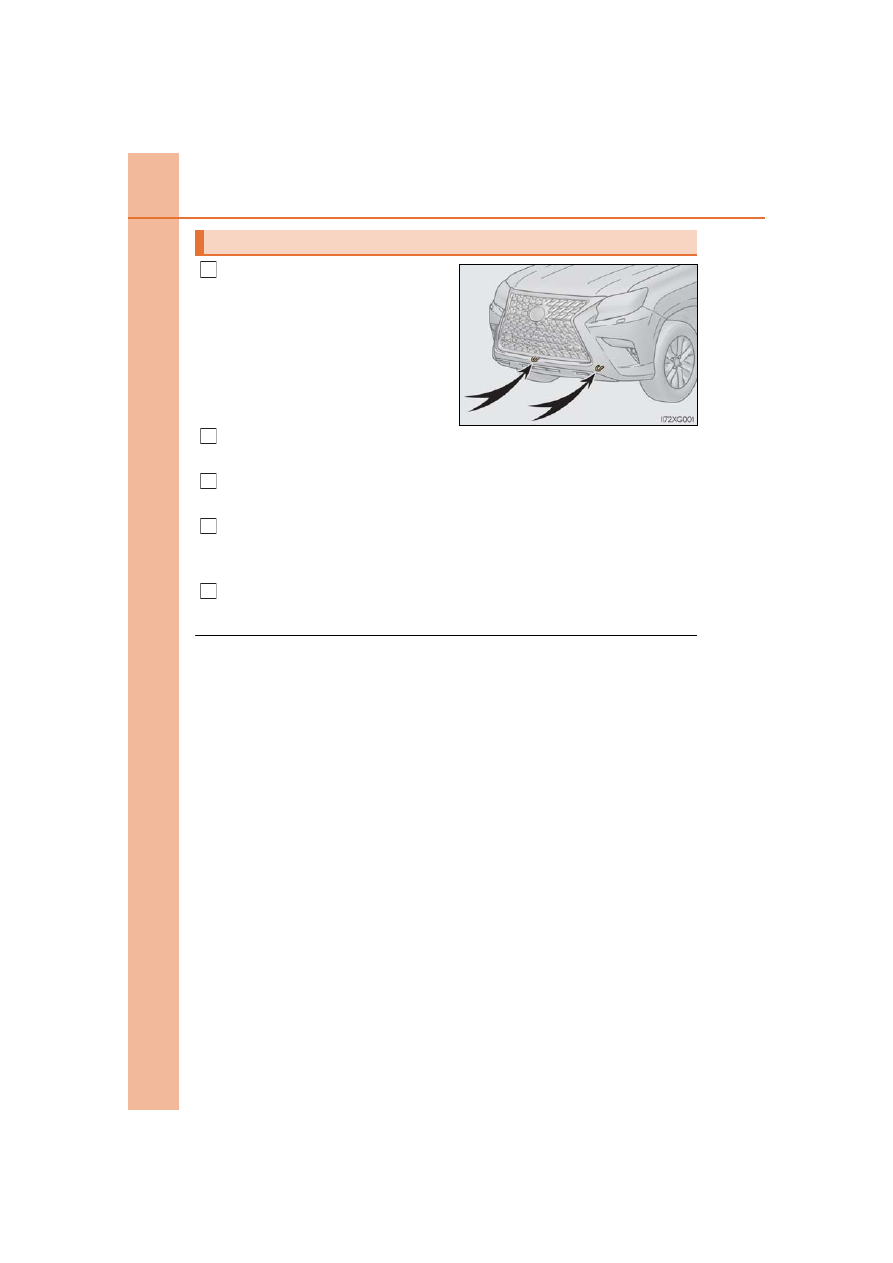

Securely attach cables or chains to
the towing hooks.

Take care not to damage the vehicle

body.

Enter the vehicle being towed and start the engine.
If the engine does not start, turn the engine switch to IGNITION ON mode.
Set the four-wheel drive control switch in H4 and push the center differential
lock/unlock switch to unlock the center differential. (



P. 357)

For models with the rear height control air suspension: Change the vehicle
height to N (normal) mode and end the vehicle height control operation.
(

P. 352)

Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted:

P. 209

■

While towing

If the engine is not running, the power assist for the brakes and steering will not function,

making steering and braking more difficult.

Emergency towing procedure

531

GX460_OM_OM60R43U_(U)

When trouble

WARNING

Observe the following precautions.

Failure to do so may result in death or serious injury.

■

When towing the vehicle

■

While towing

●

When towing using cables or chains, avoid sudden starts, etc. which place excessive

stress on the towing eyelets, cables or chains. The towing eyelets, cables or chains

may become damaged, broken debris may hit people, and cause serious damage.

●

For models with the rear height control air suspension: Make sure to disable all func-

tions of the vehicle height control of the rear height control air suspension. Other-

wise, the vehicle height may change and part of your body may be caught under the

vehicle, possibly causing injury. (



P. 352)

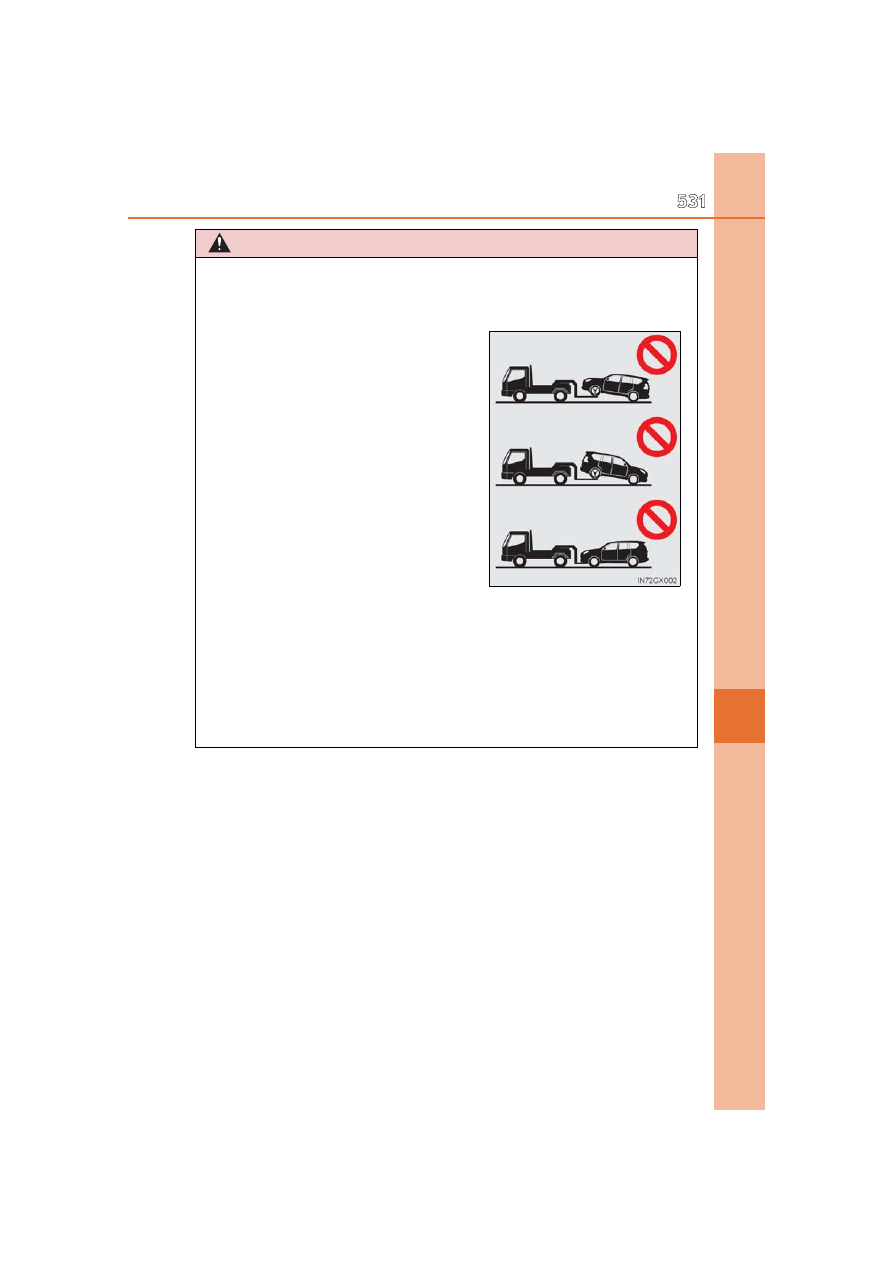

Be sure to transport the vehicle with all four

wheels raised off the ground. If the vehicle is

towed with the tires contacting the ground, the

drivetrain or related parts may be damaged,

the vehicle may fly off the truck.

532

GX460_OM_OM60R43U_(U)

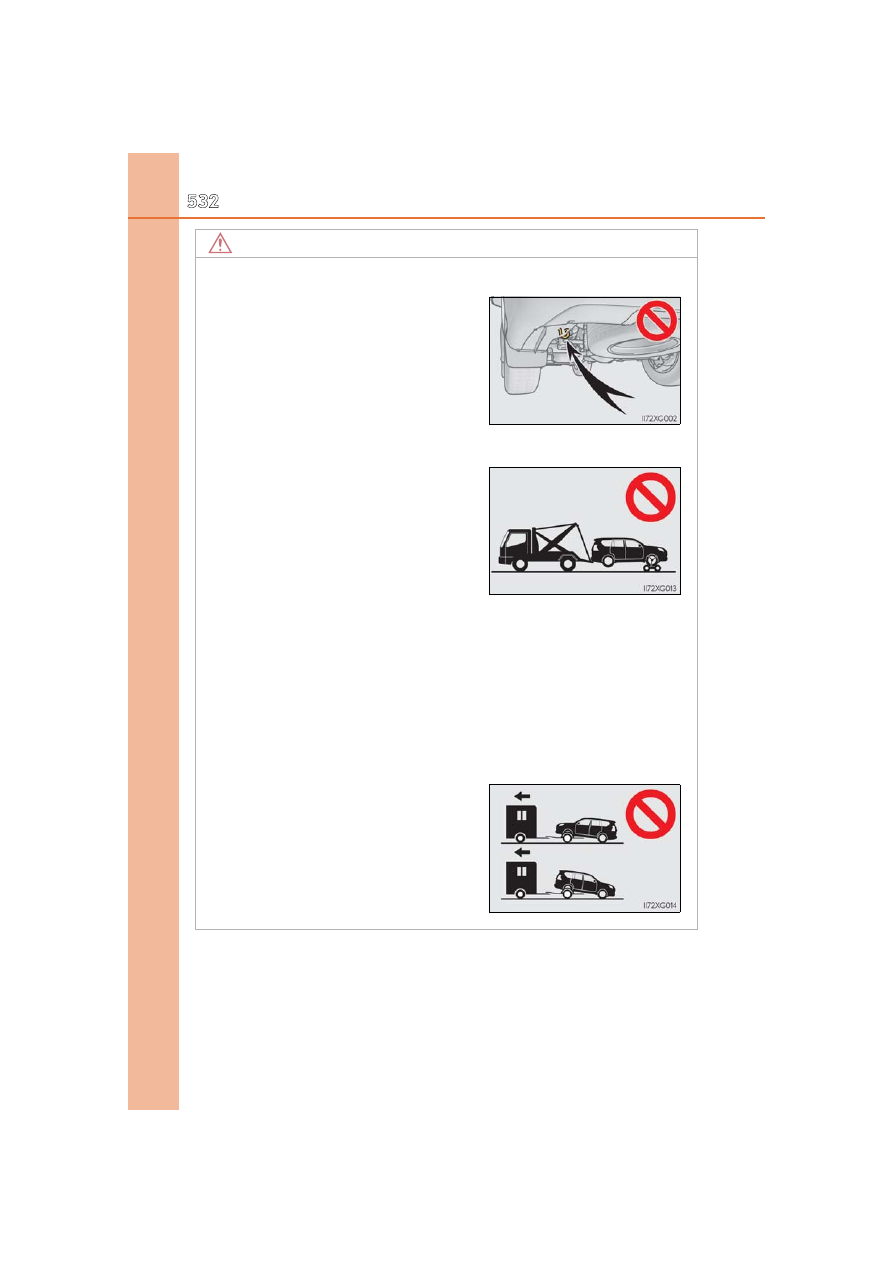

NOTICE

■

To avoid serious damage to your vehicle

■

Towing with a sling-type truck

■

To prevent damage to the vehicle when towing using a wheel-lift type truck

When raising the vehicle, ensure adequate ground clearance for towing at the oppo-

site end of the raised vehicle. Without adequate clearance, the vehicle could be dam-

aged while being towed.

■

To prevent damage to the vehicle when towing with a sling-type truck

Do not tow with a sling-type truck, either from the front or rear.

■

To prevent damage to the vehicle during emergency towing

Do not secure cables or chains to the suspension components.

■

Recreational towing (behind motor home, etc.)

Do not use the rear emergency towing hook.

Do not tow with a sling-type truck to prevent

body damage.

Never dinghy tow your vehicle to prevent caus-

ing serious damage to the Four-wheel drive

system and transmission. (



P. 199)

533

GX460_OM_OM60R43U_(U)

When trouble

If you think something is wrong

●

Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)

●

Flat-looking tires or uneven tire wear

●

Engine coolant temperature gauge needle continually points higher than nor-
mal

●

Changes in exhaust sound

●

Excessive tire squeal when cornering

●

Strange noises related to the suspension system

●

Pinging or other noises related to the engine

●

Engine missing, stumbling or running roughly

●

Appreciable loss of power

●

Vehicle pulls heavily to one side when braking

●

Vehicle pulls heavily to one side when driving on a level road

●

Loss of brake effectiveness, spongy feeling, pedal almost touches the floor

If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

534

GX460_OM_OM60R43U_(U)

Fuel pump shut off system

Follow the procedure below to restart the engine after the system is activated.

Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.

To minimize the risk of fuel leakage when the engine stalls or when an airbag
inflates upon collision, the fuel pump shut off system stops the supply of fuel to
the engine.

NOTICE

■

Before starting the engine

Inspect the ground under the vehicle.

If you find that fuel has leaked onto the ground, the fuel system has been damaged and

is in need of repair. Do not restart the engine.

535

GX460_OM_OM60R43U_(U)

When trouble

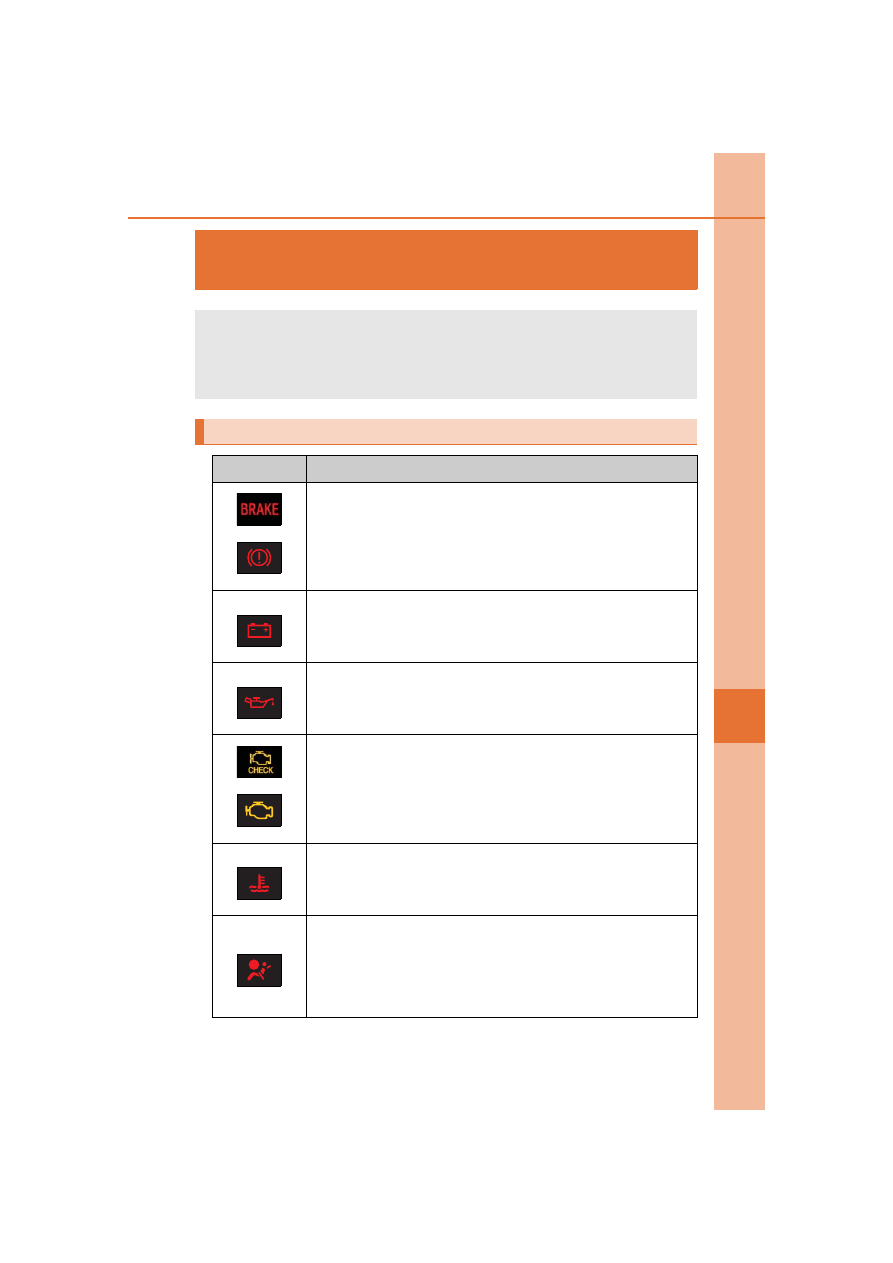

If a warning light turns on or a warning buzzer
sounds

Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by your Lexus dealer.

Warning light and warning buzzer list

Warning light

Warning light/Details/Actions

(U.S.A.)

(Canada)

Brake system warning light (warning buzzer)

Indicates that:

• The brake fluid level is low; or

• The brake system is malfunctioning.



Immediately stop the vehicle in a safe place and contact your

Lexus dealer. Continuing to drive the vehicle may be dangerous.

Charging system warning light

Indicates a malfunction in the vehicle’s charging system



Immediately stop the vehicle in a safe place and contact your

Lexus dealer.

Low engine oil pressure warning light

Indicates that the engine oil pressure is too low



Immediately stop the vehicle in a safe place and contact your

Lexus dealer.

(U.S.A.)

(Canada)

Malfunction indicator lamp

Indicates a malfunction in:

• The electronic engine control system;

• The electronic throttle control system; or

• The electronic automatic transmission control system



Have the vehicle inspected by your Lexus dealer immediately.

High coolant temperature warning light (warning buzzer)

Indicates that the engine coolant temperature is too high



Immediately stop the vehicle in a safe place. Handling method

(

P. 573)

SRS warning light

Indicates a malfunction in:

• The SRS airbag system;

• The front passenger occupant classification system; or

• The seat belt pretensioner system



Have the vehicle inspected by your Lexus dealer immediately.

536

GX460_OM_OM60R43U_(U)

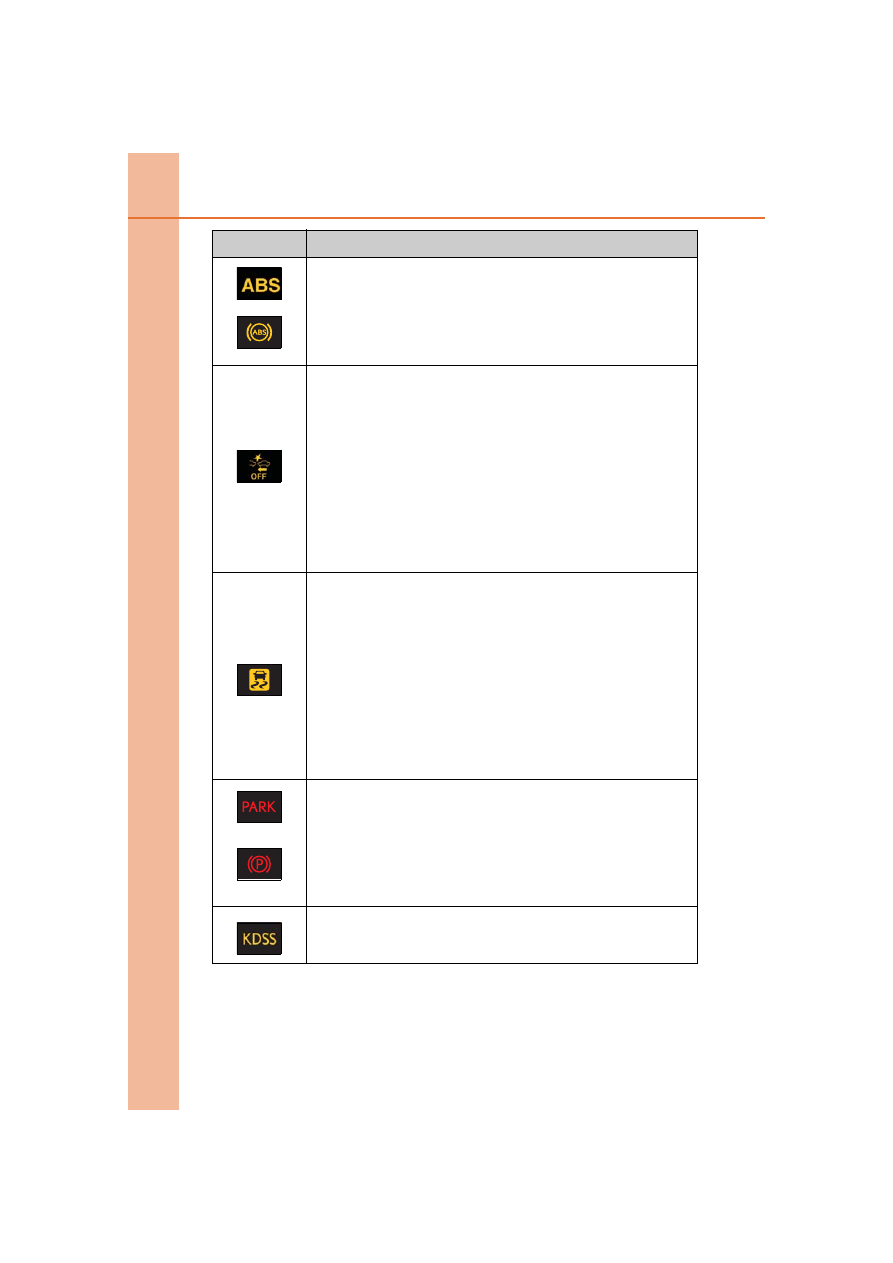

(U.S.A.)

(Canada)

ABS warning light

Indicates a malfunction in:

• The ABS; or

• The brake assist system



Have the vehicle inspected by your Lexus dealer immediately.

(Flashes or illuminates)

PCS warning light

When a buzzer sounds simultaneously:

Indicates a malfunction has occurred in the PCS (Pre-Collision

System).



Have the vehicle inspected by your Lexus dealer immediately.

When a buzzer does not sound:

The PCS (Pre-Collision System) has become temporarily unavail-

able, corrective action may be necessary.



Follow the instructions displayed on the multi-information dis-

play. (
