6-1. Basic operation of the Remote Touch screen

Vehicles with 8-inch display

Vehicles with 12.3-inch display

Remote Touch

: If equipped

The Remote Touch can be used to operate the Remote Touch screens.
For details, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

497

6-1. Basic operation of the Remote Touch screen

6

Inte
rior fe

ature

s

RX350/RX350L_U

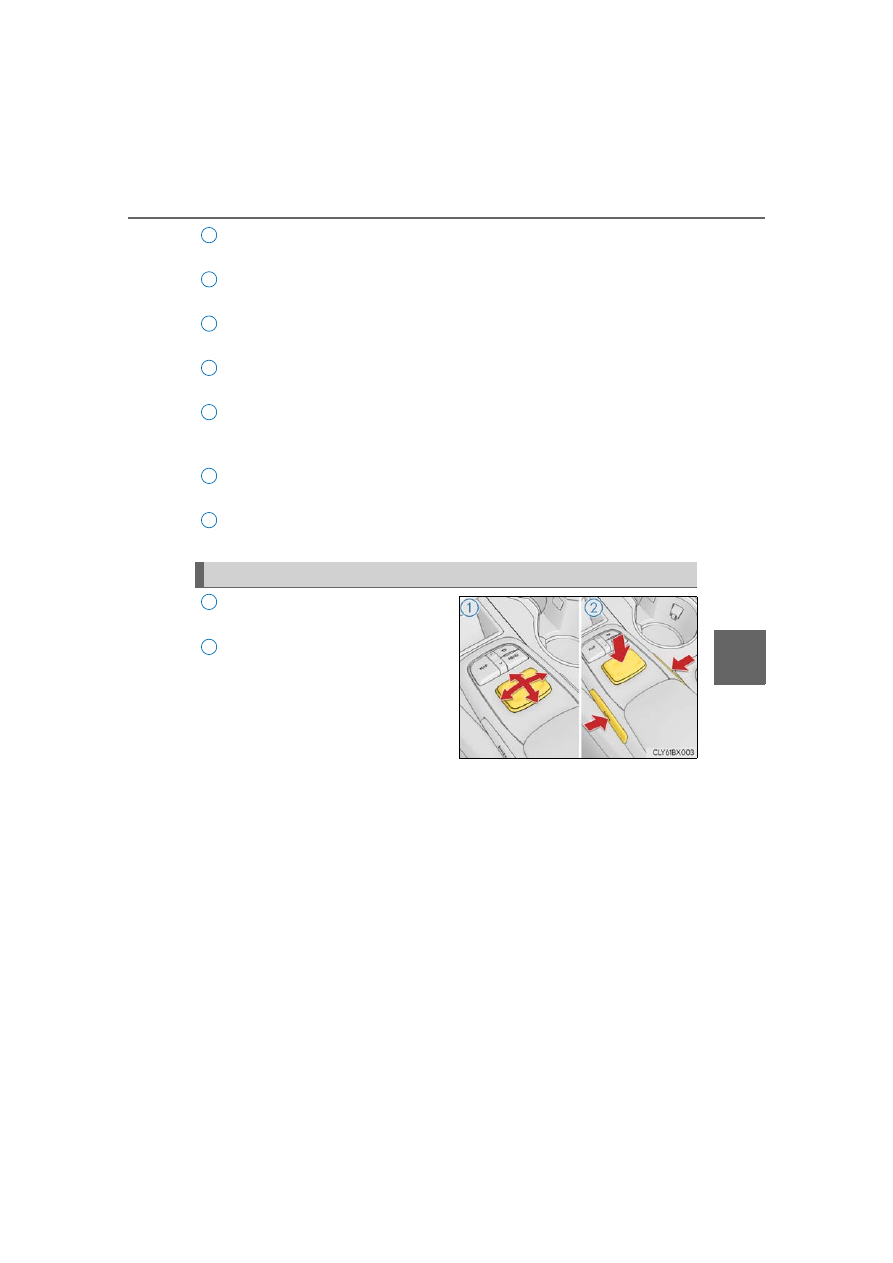

“HOME” button

Press this button to display the home screen.

“

•” button

Press this button to change map scale and scroll through lists.

Back button

Press to display the previous screen.

“MENU” button

Press to display the “Menu” screen. (

P. 499)

Remote Touch knob

Move in the desired direction to select a function, letter and screen button.
Press the knob to enter the selected function, letter or screen button.

“ENTER” button

Press to enter the selected function, letter or screen button.

“MAP” button

Press this button to display the vehicle’s current position.

Select: Move the Remote Touch
knob in the desired direction.
Enter: Push the Remote Touch knob
or an “ENTER” button.

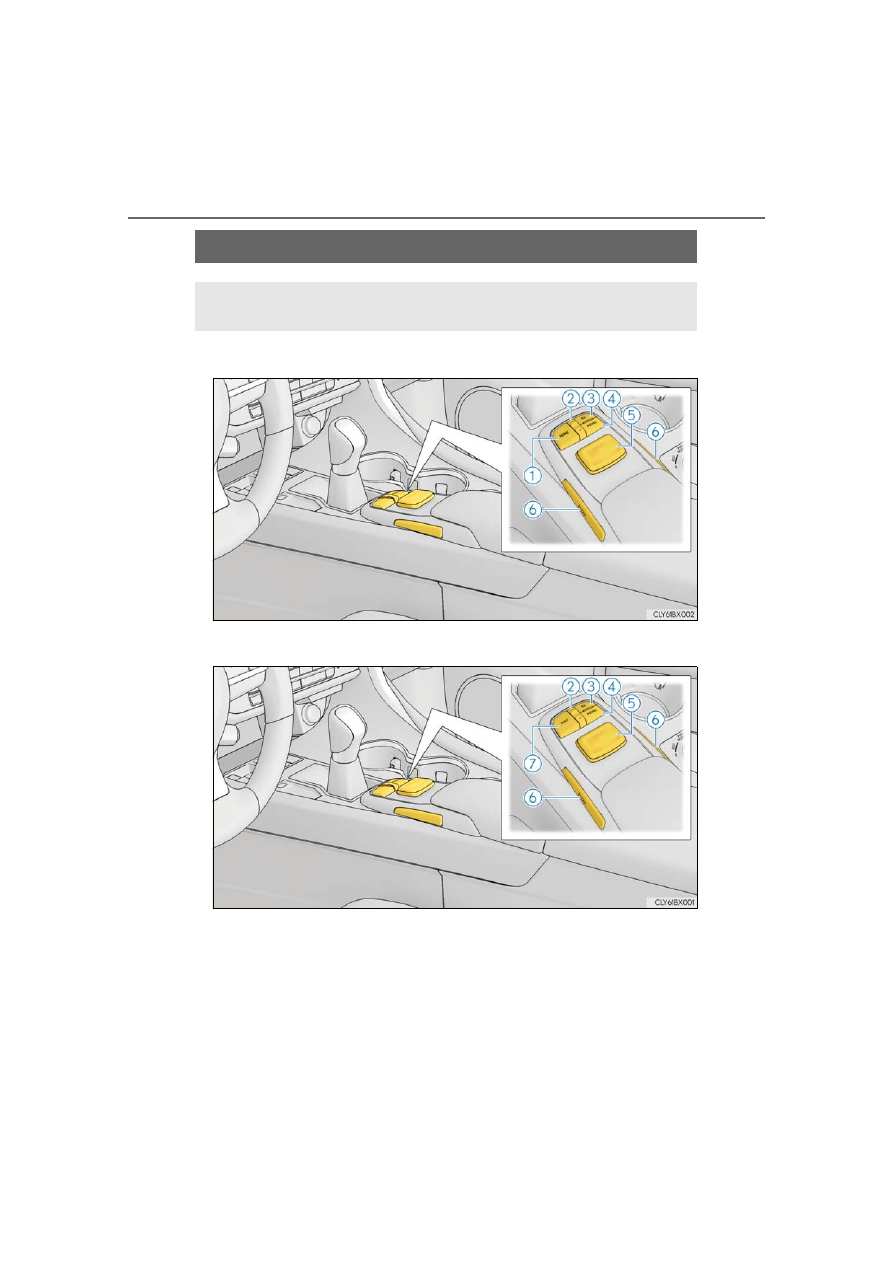

Remote Touch operation

1

2

3

4

5

6

7

1

2

498

6-1. Basic operation of the Remote Touch screen

RX350/RX350L_U

■

Screen display during low temperatures
When the ambient temperature is extremely low, screen response may be delayed even

if the Remote Touch is operated.

WARNING

■

When using the Remote Touch

●

Do not allow fingers, fingernails or hair to become caught in the Remote Touch as this

may cause an injury.

●

Be careful when selecting the Remote Touch in extreme temperatures as it may

become very hot or cold due to the temperature inside the vehicle.

NOTICE

■

To prevent damage to the Remote Touch

●

Do not allow the Remote Touch to come into contact with food, liquid, stickers or lit

cigarettes as doing so may cause it to change color, emit a strange odor or stop func-

tioning.

●

Do not subject the Remote Touch to excessive pressure or strong impact as the knob

may bend or break off.

●

Do not allow coins, contact lenses or other such items to become caught in the

Remote Touch as this may cause it to stop functioning.

●

Items of clothing may rip if they become caught on the Remote Touch knob.

●

If your hand or any object is on the Remote Touch knob when the engine switch is in

ACCESSORY mode, the Remote Touch knob may not operate properly.

499

6-1. Basic operation of the Remote Touch screen

6

Inte
rior fe

ature

s

RX350/RX350L_U

Press the “MENU” button on the Remote Touch to display the “Menu” screen.
The display may differ depending on the type of the system.

Vehicles with 12.3-inch display: When the split-screen display is selected, the “Menu”

screen will be displayed on the main display. (

P. 500)

*

: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

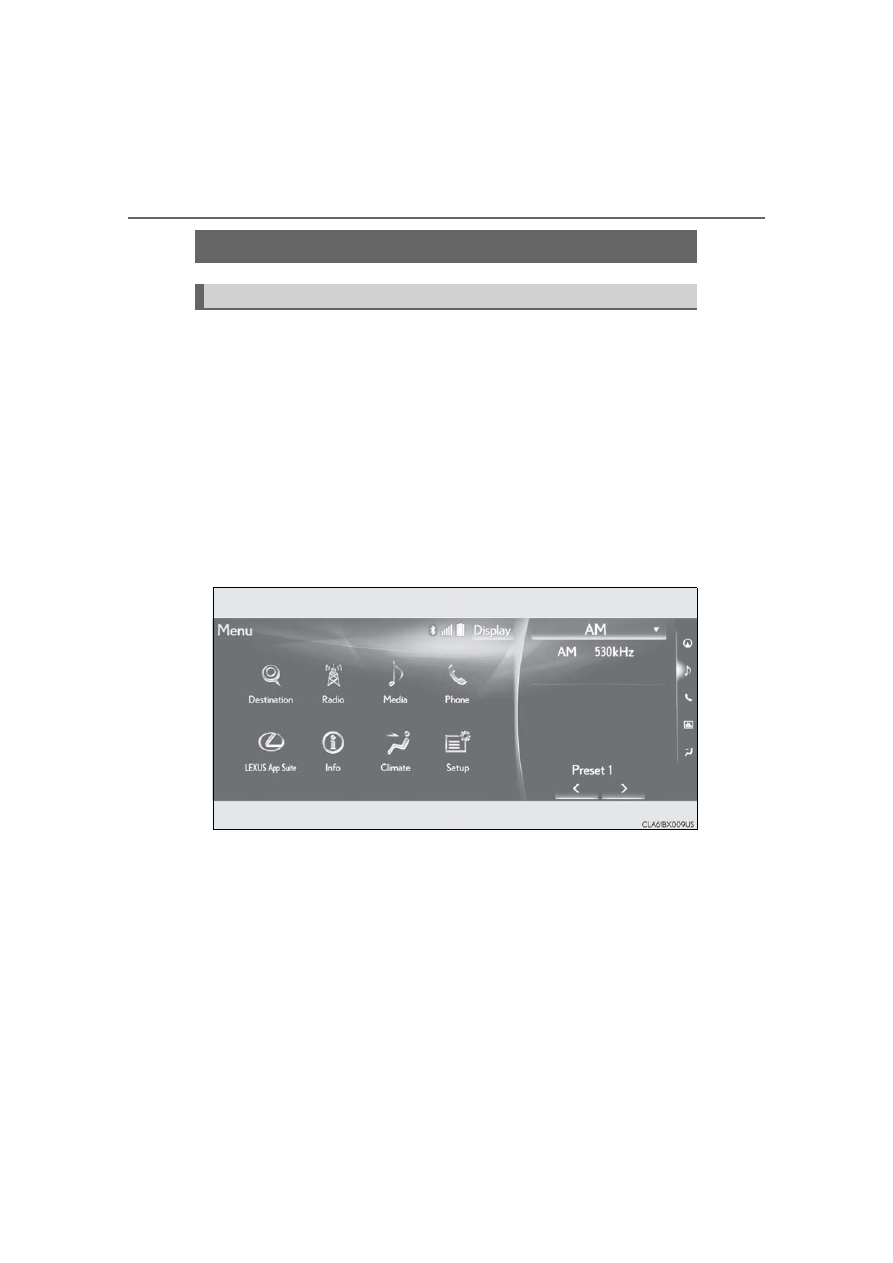

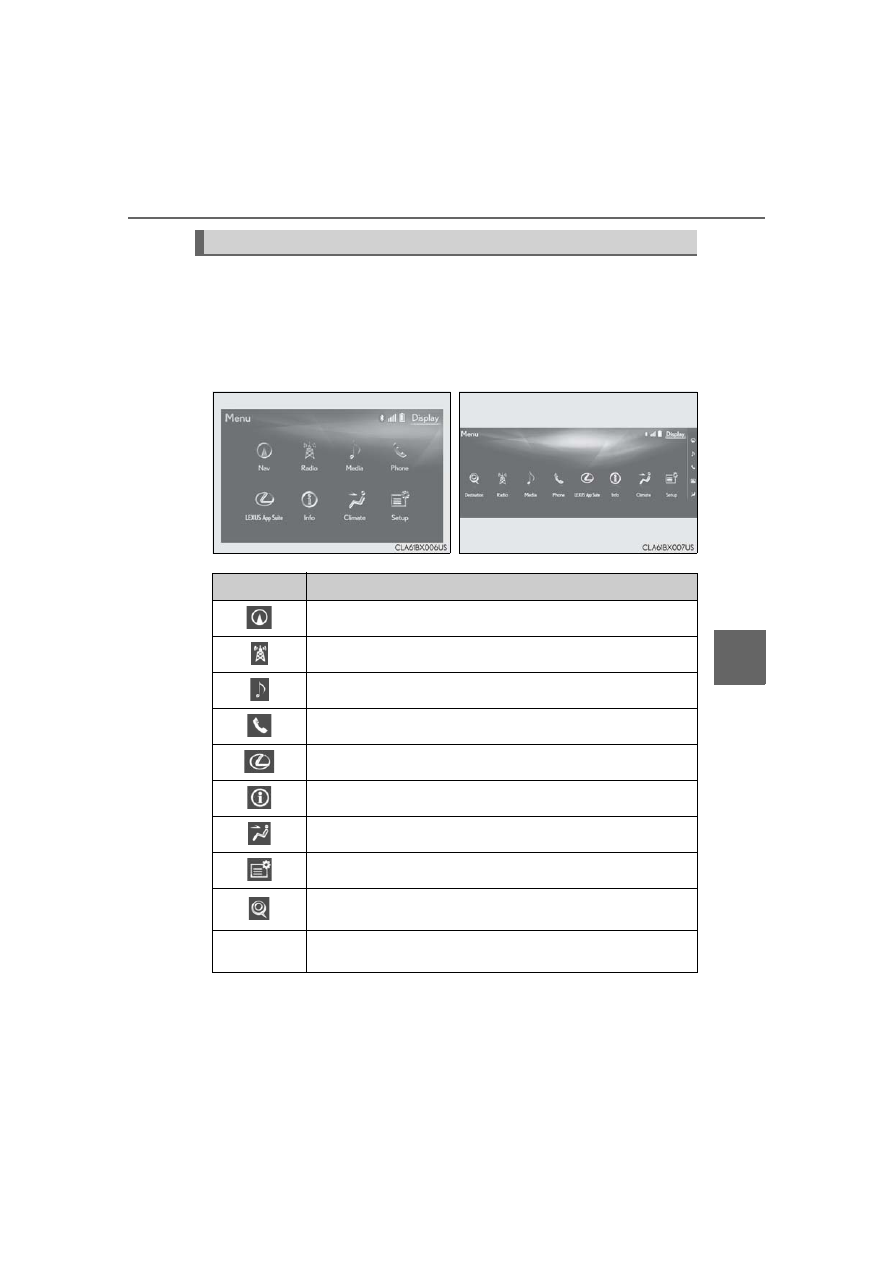

“Menu” screen

Vehicles with 8-inch display

Vehicles with 12.3-inch display

Switch

Function

Select to display the map screen (Vehicles with 8-inch display).

*

Select to display the radio control screen.

*

Select to display the media control screen.

*

Select to display the hands-free operation screen.

*

Select to display the “LEXUS App Suite” screen.

*

Select to display the “Information” screen.

*

Select to display the air conditioning control screen. (

P. 506, 508)

Select to display the “Setup” screen.

*

Select to display the “Destination” screen (Vehicles with 12.3-inch

display).

*

“Display”

Select to adjust the contrast and brightness of the screens, turn the

screen off, etc.

*

500

6-1. Basic operation of the Remote Touch screen

RX350/RX350L_U

■

Full screen display
The following functions can be displayed full screen:

• Initial screen
• “Menu”  screen  (

P. 499)

• Map screen

*

*

: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

■

Split-screen display
Different information can be displayed on the left and right of the screen. For
example, audio screen can be displayed and operated while the fuel con-
sumption information screen is being displayed. The large screen on the left of
the display is called the main display, and the small screen to the right is called
the side display.

12.3-inch display

: If equipped

12.3-inch display overview

501

6-1. Basic operation of the Remote Touch screen

6

Inte
rior fe

ature

s

RX350/RX350L_U

■

 Selecting the operation screen
When selecting the main display, move the Remote Touch knob to the left.
When selecting the side display, move the Remote Touch knob to the right.

■

Main display
For details about the functions and operation of the main display, refer to the
respective section and “NAVIGATION SYSTEM OWNER’S MANUAL”.

■

Side display

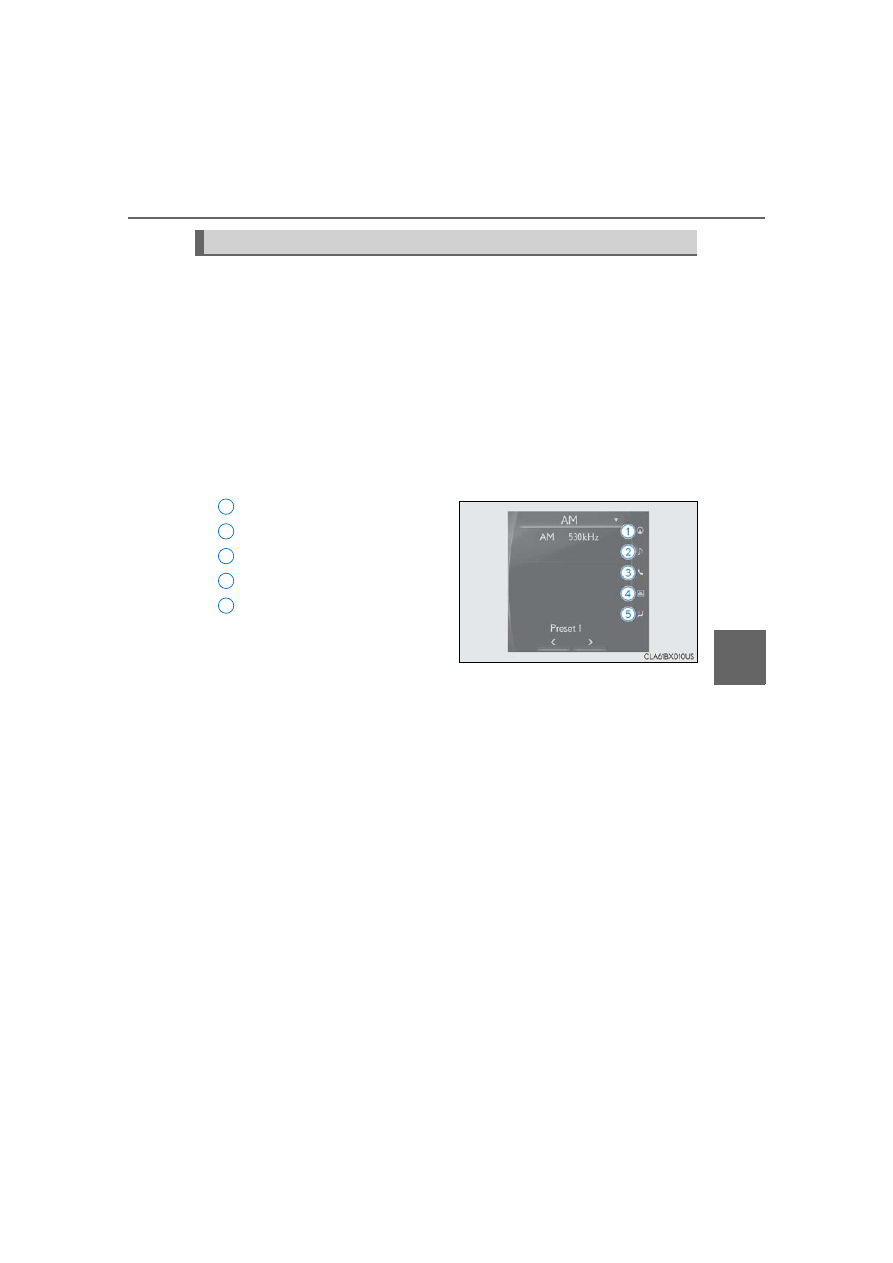

Basic screens

To change the screen displayed on the side display, use the screen buttons on
the right side of the display.

Navigation system

*

Audio

*

Phone

*

Vehicle information (

P. 118)

Air conditioning system
(

P. 509)

Interruption screens

Each of the following screens is displayed automatically in accordance with
conditions.

• Intuitive parking assist (if equipped) (

P. 327)

• Phone

*

• Destination Assist

*

• Driving  mode  (

P. 373)

*

: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

Split-screen display operation

1

2
3
4
5

502

RX350/RX350L_U

6-2. Using the air conditioning system and defogger

Front automatic air conditioning system (

P. 510)

Set the air conditioning system to automatic mode.

The temperature for the driver’s seat and front passenger’s seat can be adjusted indi-

vidually.

Seat heaters and ventilators (

P. 522, 523)

Select “AUTO” mode on each seat.

Seat heater or ventilation is automatically selected according to the set temperature

of the air conditioning system, outside temperature, etc.

Lexus Climate Concierge

: If equipped

The climate control seats are automatically controlled according to the set
temperature of the air conditioning system, outside temperature, cabin tem-
perature, etc. Lexus Climate Concierge allows a comfortable condition to be
maintained without adjusting each system.

1

2

503

6-2. Using the air conditioning system and defogger

6

Inte
rior fe

ature

s

RX350/RX350L_U

RX350

RX350L

Front automatic air conditioning system

Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
Vehicles with a Lexus Display Audio system: Press the “MENU” button on the
Lexus Display Audio controller, then select “Climate” to display the air condi-
tioning control screen.
For details on the Lexus Display Audio controller, refer to “Lexus Display
Audio controller” on P. 396.
Vehicles with a navigation system: Press the “MENU” button on the Remote
Touch, then select

 to display the air conditioning control screen.

Vehicles with a navigation system (12.3-inch display): The air conditioning sys-
tem can be displayed and operated on the side display. (

P. 501)

For details on the Remote Touch, refer to the “NAVIGATION SYSTEM
OWNER’S MANUAL”.

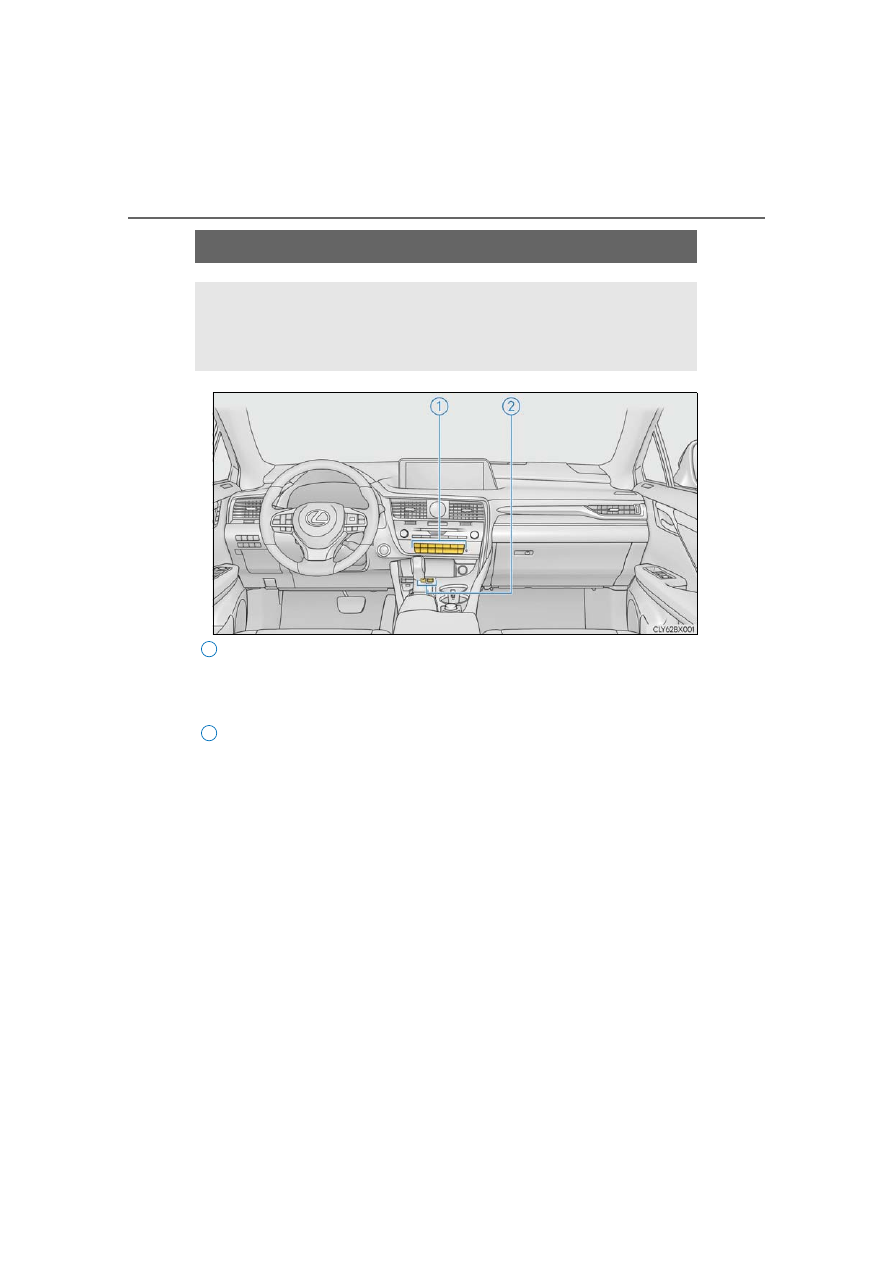

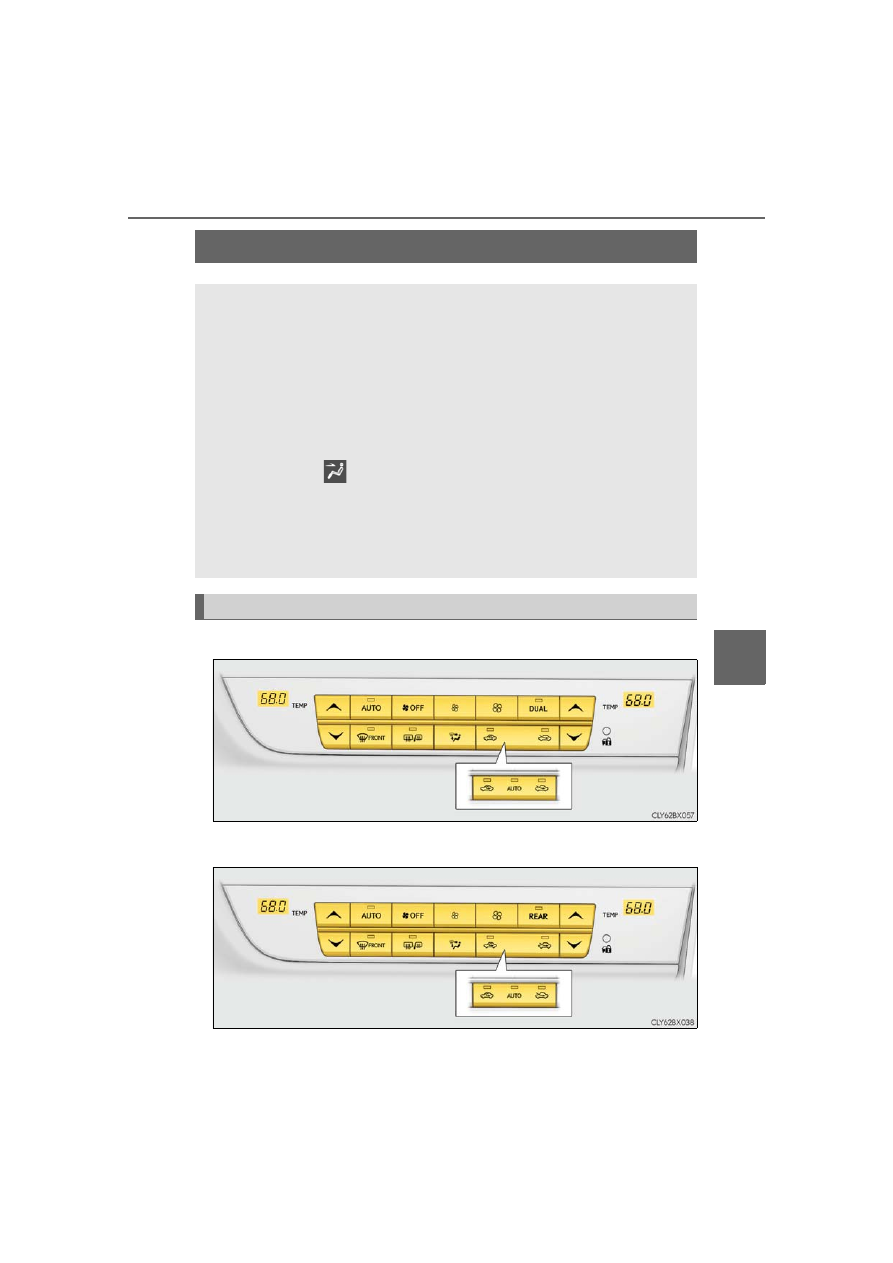

Control panel

504

6-2. Using the air conditioning system and defogger

RX350/RX350L_U

■

Adjusting the temperature setting

Press

 to increase the temperature and

 to decrease the tem-

perature.

■

Adjusting the fan speed setting

Press

 to increase the fan speed and

 to decrease the fan speed.

Press the “OFF” button to turn the fan off.

505

6-2. Using the air conditioning system and defogger

6

Inte
rior fe

ature

s

RX350/RX350L_U

■

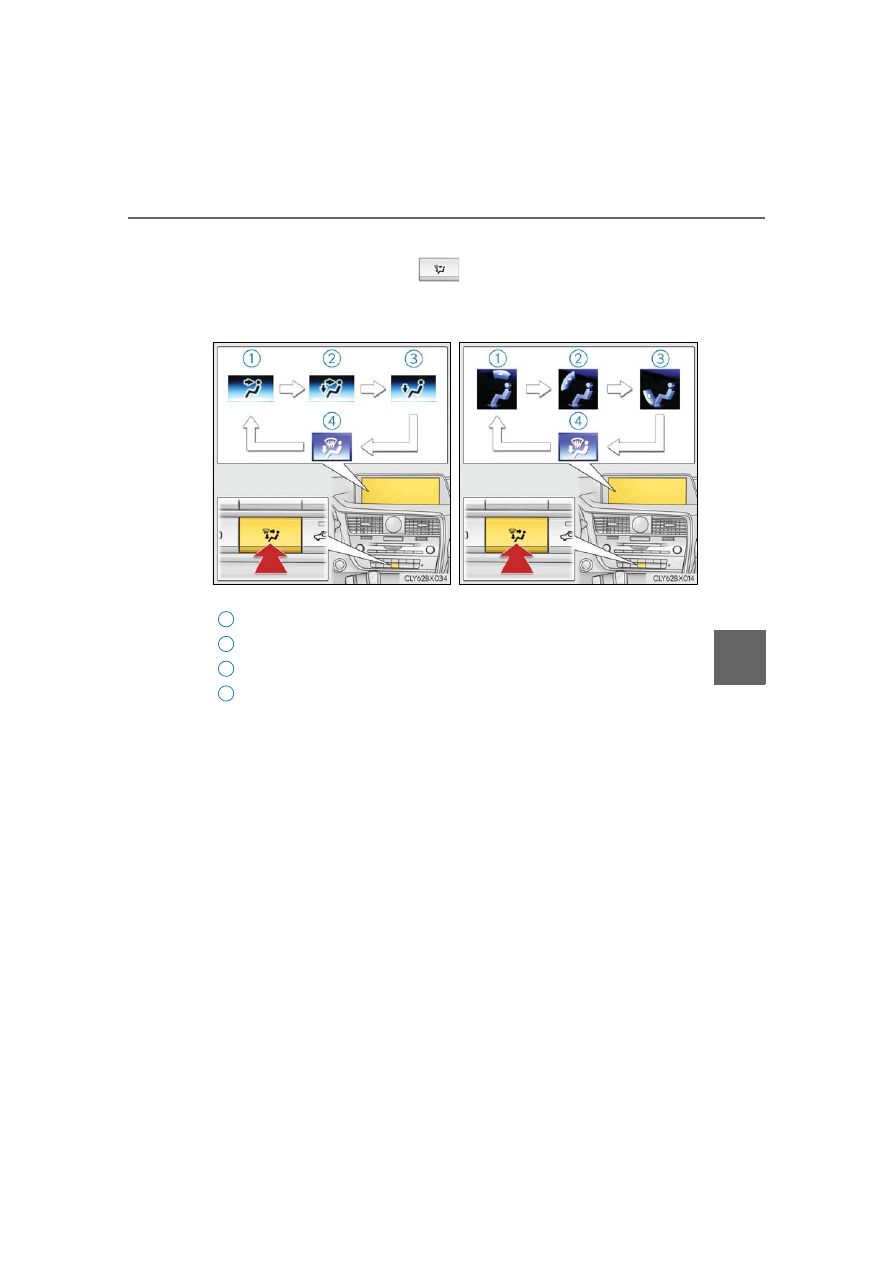

Change the airflow mode

To change the air outlets, press

.

The air outlets used are switched each time the button is pressed.

Air flows to the upper body.
Air flows to the upper body and feet.
Air flows to the feet.
Air flows to the feet and the windshield defogger operates.

■

Other functions

●

Switching between outside air and recirculated air modes (

P. 513)

●

Defogging the windshield (

P. 513)

●

Defogging the rear window and outside rear view mirrors (

P. 513)

Vehicles with a Lexus Display
Audio system

Vehicles with a navigation system

1

2
3
4

506

6-2. Using the air conditioning system and defogger

RX350/RX350L_U

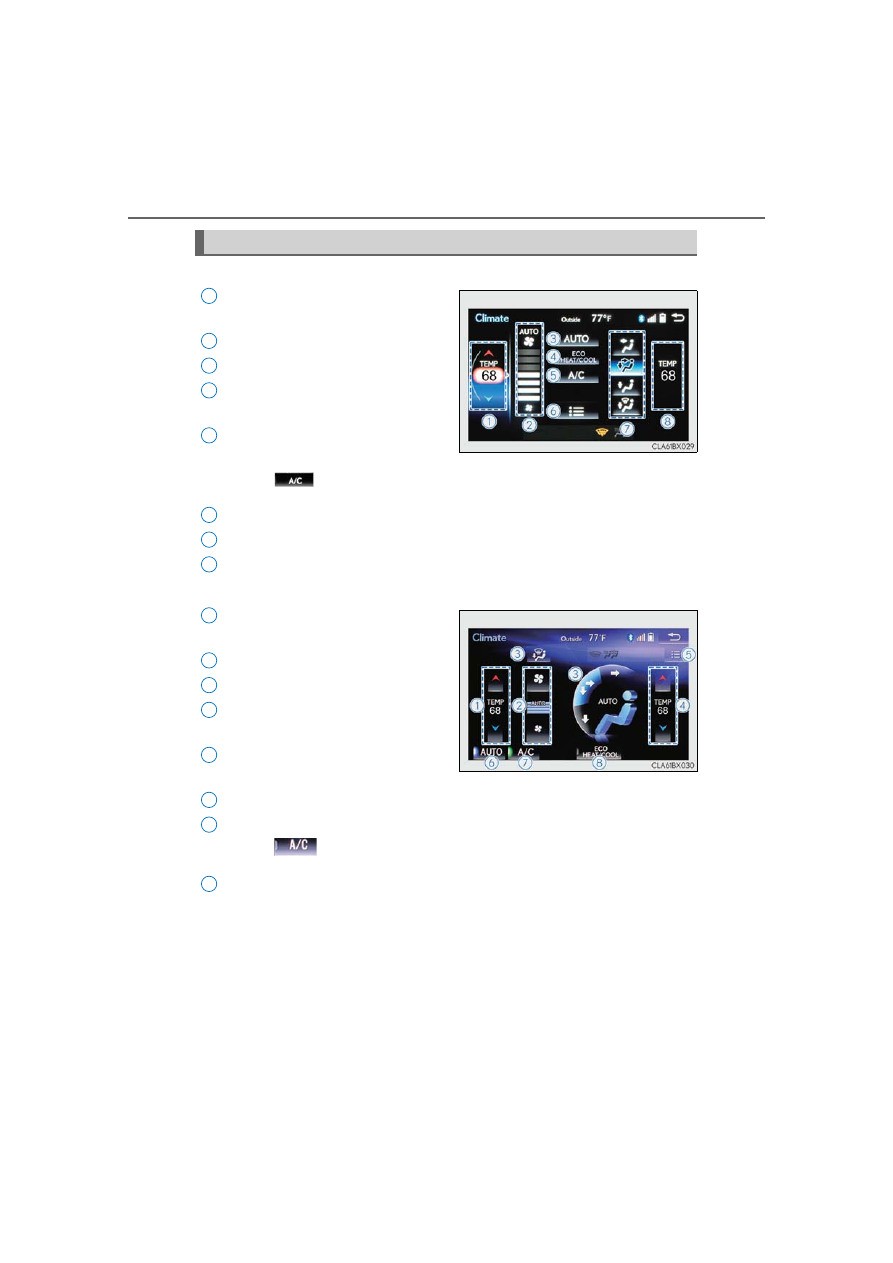

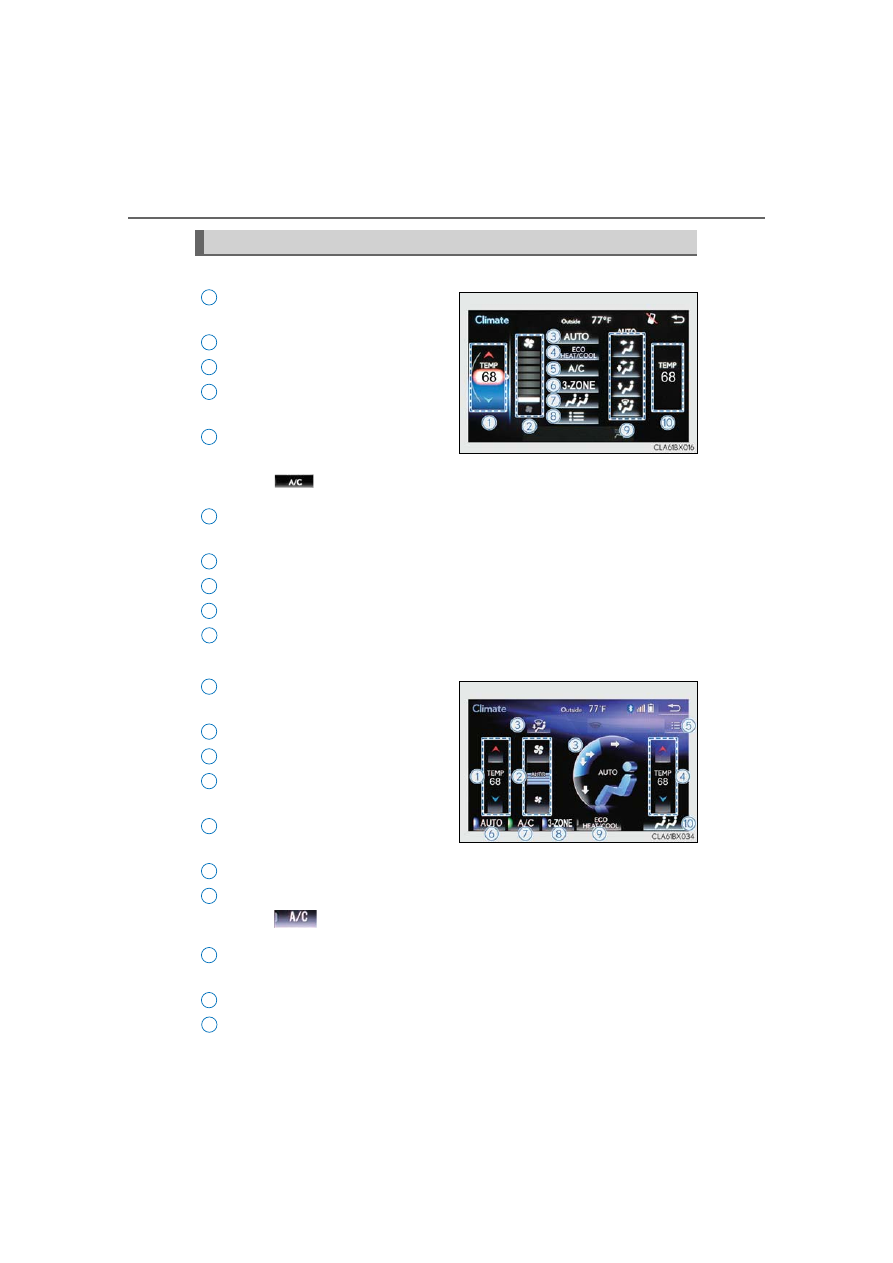

Lexus Display Audio screen
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select to set auto mode on/off
Select to set eco mode on/off
(

P. 516)

Select to set cooling and dehumidifi-
cation function on/off

If the

 indicator is turned off, the system will blow ambient temperature air

or heated air.

Display the option control screen (

P. 507)

Select the air flow mode
Adjust the right-hand side temperature setting

Navigation system screen
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select the air flow mode
Adjust the right-hand side tempera-
ture setting
Display the option control screen
(

P. 507)

Select to set automatic mode on/off
Select to set cooling and dehumidification function on/off

If the

 indicator is turned off, the system will blow ambient temperature air

or heated air.

Select to set eco mode on/off (

P. 516)

Control screen (RX350)

1

2
3
4

5

6
7
8

1

2
3
4

5

6
7

8

507

6-2. Using the air conditioning system and defogger

6

Inte
rior fe

ature

s

RX350/RX350L_U

■

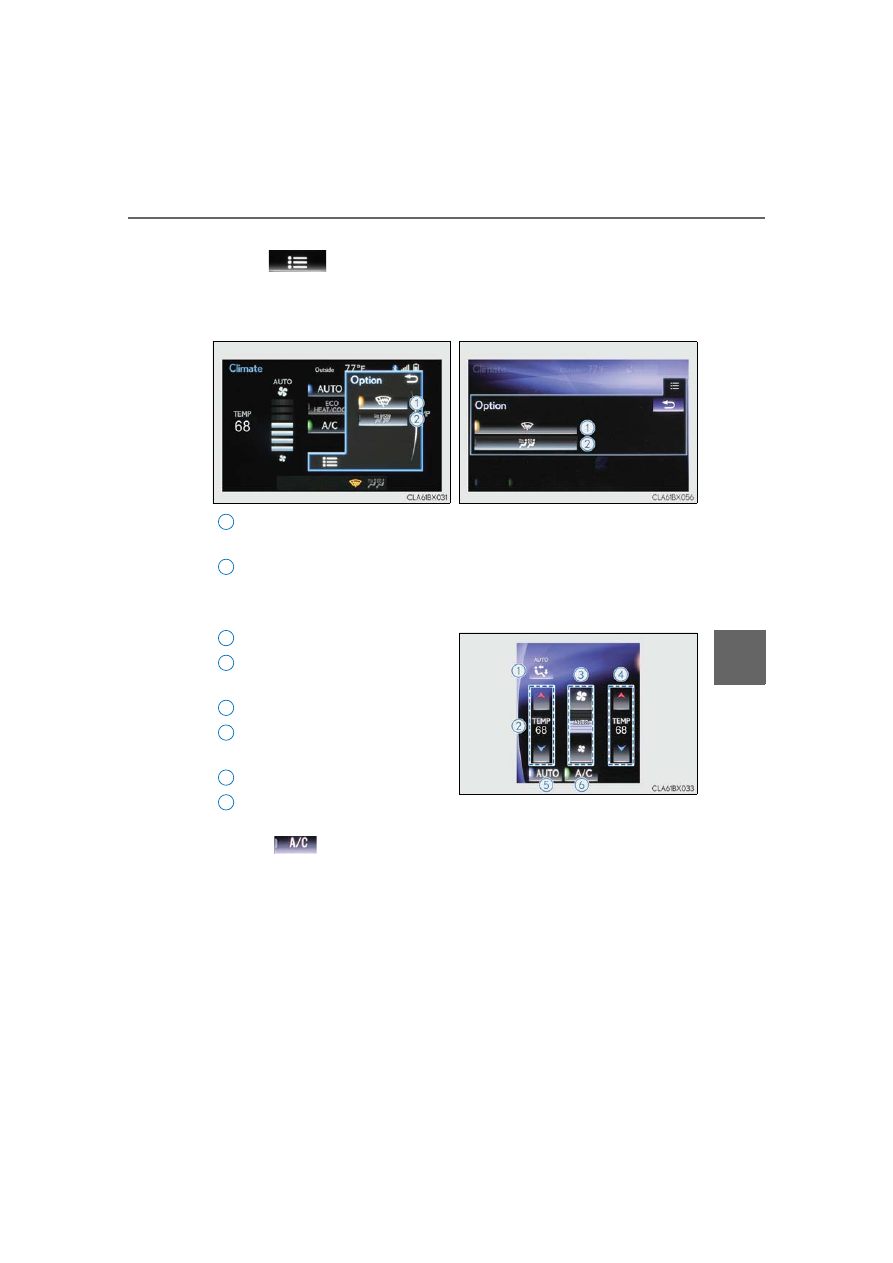

Option control screen
Select

 on the air conditioning control screen to display the option

control screen. The functions can be switched on and off.

Prevent ice from building up on the windshield and wiper blades (if
equipped) (

P. 513)

Select to set S-FLOW mode (

P. 511)

■

Side display operation screen (Vehicles with a navigation system [12.3-inch
display])

Select the air flow mode
Adjust the left-hand side tem-
perature setting
Adjust the fan speed setting
Adjust the right-hand side tem-
perature setting
Select to set auto mode on/off
Select to set cooling and dehu-
midification function on/off

If the

 indicator is turned off, the system will blow ambient temperature air

or heated air.

Lexus Display Audio screen

Navigation system screen

1

2

1

2

3
4

5
6

508

6-2. Using the air conditioning system and defogger

RX350/RX350L_U

Lexus Display Audio screen
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select to set auto mode on/off
Select to set eco mode on/off
(

P. 516)

Select to set cooling and dehumidifi-
cation function on/off

If the

 indicator is turned off, the system will blow ambient temperature air

or heated air.

Adjust the temperature for driver, passenger and rear seats separately (“3-
ZONE” mode) (

P. 510)

Display the rear air conditioning control screen (

P. 512)

Display the option control screen (

P. 509)

Select the air flow mode
Adjust the right-hand side temperature setting

Navigation system screen
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select the air flow mode
Adjust the right-hand side tempera-
ture setting
Display the option control screen
(

P. 509)

Select to set automatic mode on/off
Select to set cooling and dehumidification function on/off

If the

 indicator is turned off, the system will blow ambient temperature air

or heated air.

Adjust the temperature for driver, passenger and rear seats separately (“3-
ZONE” mode) (

P. 510)

Select to set eco mode on/off (

P. 516)

Display the rear air conditioning control screen (

P. 512)

Control screen (RX350L)

1

2
3
4

5

6

7

8
9

10

1

2
3
4

5

6
7

8

9

10















Content   ..  29  30  31  32   ..
