5-2. Using the air conditioning system and defogger

LEXUS NX300 Owners Manu-

al_USA_M78285_en

5-2.Using the air conditioning system and defogger

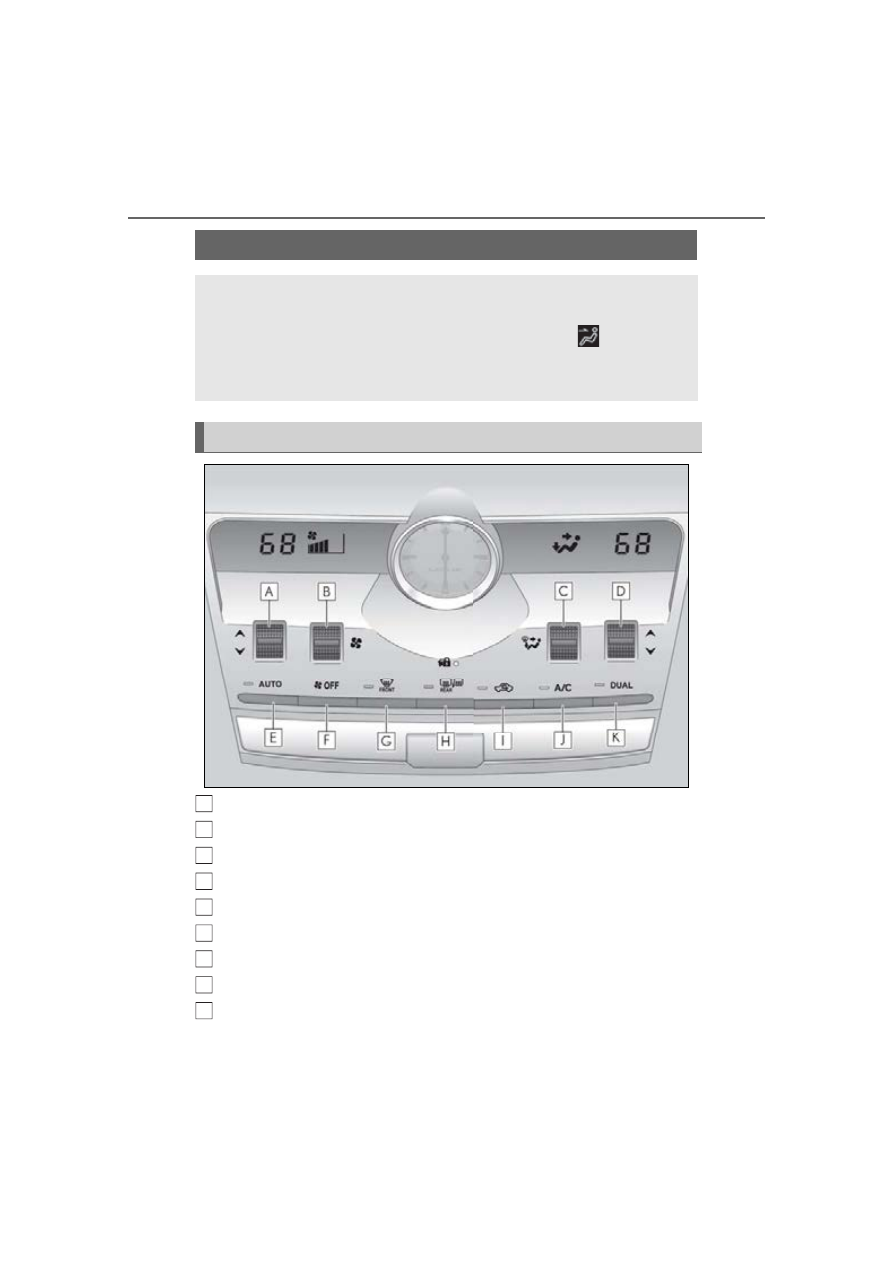

Left-hand side temperature control switch
Fan speed control switch
Airflow mode control switch
Right-hand side temperature control switch
Automatic mode switch
Off switch
Front windshield defogger switch
Rear windshield and outside rear view mirror defogger switch
Outside/recirculated air mode switch

Automatic air conditioning system

Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
Press the “MENU” button on the Remote Touch, then select

to display the

air conditioning control screen.
The air conditioning system can be displayed and operated on the side display.

Air conditioning controls

A
B
C
D

E
F

253

5-2. Using the air conditioning system and defogger

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Interio

r fe

atures

A/C switch
DUAL switch

■

Adjusting the temperature setting

Operate the temperature control
switch upwards to increase the tem-
perature and downwards to decrease
the temperature.
If “A/C” switch is not pressed, the sys-
tem will blow ambient temperature air
or heated air.

■

Adjusting the fan speed setting

Operate the fan speed control switch
upwards to increase the fan speed and
downwards to decrease the fan speed.
Press the off switch to turn the fan off.

■

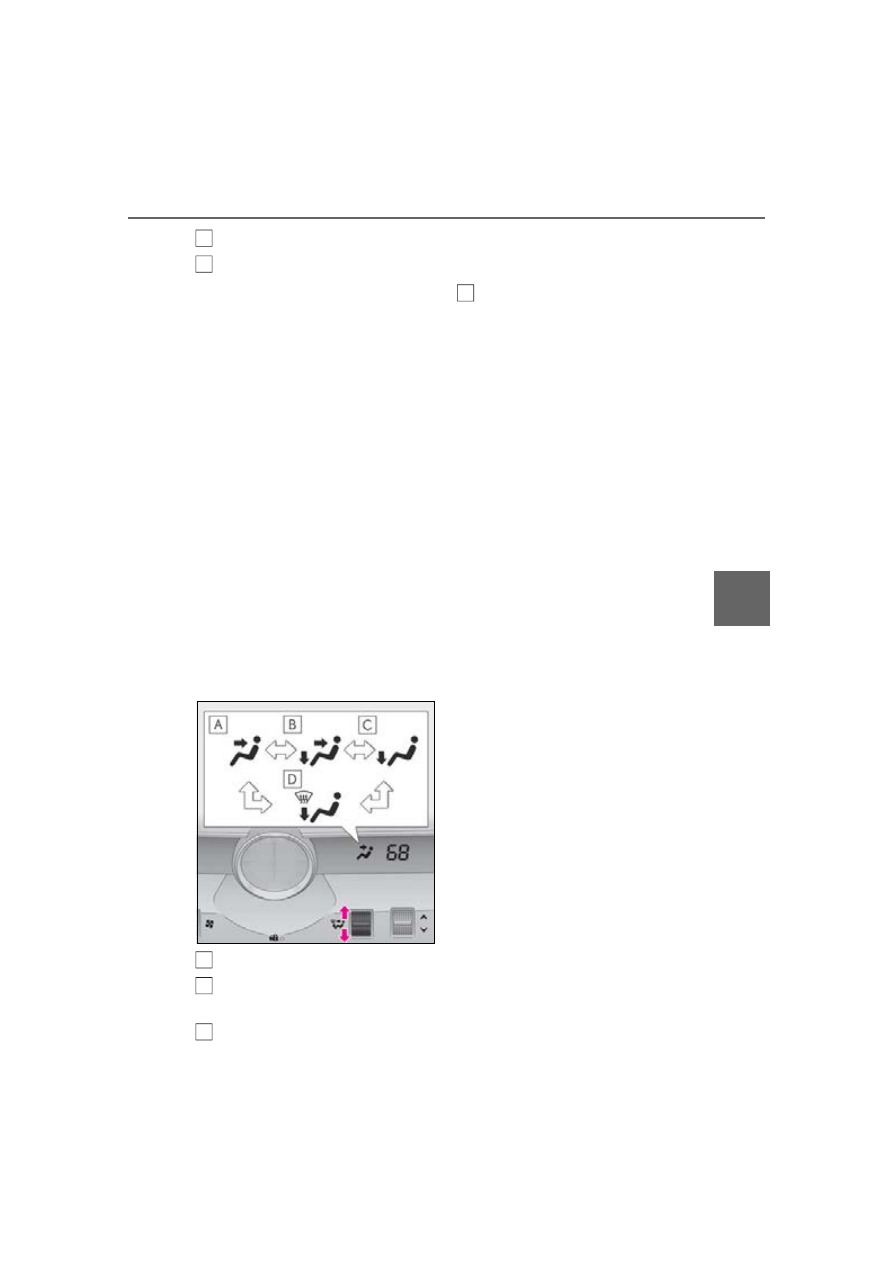

Change the airflow mode

Operate the airflow mode control
switch upwards or downwards.

The mode changes as follows each time
the switch is operated.

Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.

Air flows to the feet and the wind-
shield defogger operates.

■

Switching between outside air and
recirculated air modes

Press the outside/recirculated air
mode switch.

The mode switches between outside air
mode (the indicator is off) and recirculated
air mode (the indicator is on) each time the
button is pressed.

■

Defogging the windshield

Defoggers are used to defog the wind-
shield and front side windows.
Press the front windshield defogger
switch.

Set the outside/recirculated air mode
switch to outside air mode if the recircu-
lated air mode is used. (It may switch auto-
matically.)
To defog the windshield and the side win-
dows early, turn the air flow and tempera-
ture up.
To return to the previous mode, press the
front windshield defogger switch again
when the windshield is defogged.

■

Defogging the rear window and
outside rear view mirrors

Defoggers are used to defog the rear
window and to remove raindrops, dew
and frost from the outside rear view
mirrors.
Press the rear windshield and outside
rear view mirror defogger switch.

The defoggers will automatically turn off
after a period of time.

A
B

254

5-2. Using the air conditioning system and defogger

LEXUS NX300 Owners Manu-

al_USA_M78285_en

■

Windshield wiper de-icer (if
equipped)

P.257

■

When the outside temperature exceeds

75°F (24°C) and the air conditioning

system is on

●

In order to reduce the air conditioning

power consumption, the air conditioning

system may switch to recirculated air

mode automatically.

This may also reduce fuel consumption.

●

Recirculated air mode is selected as a

default mode when the engine switch is

turned to IGNITION ON mode.

●

It is possible to switch to outside air mode

at any time by pressing the outside/recir-

culated air mode switch.

■

Fogging up of the windows

●

The windows will easily fog up when the

humidity in the vehicle is high. Pressing

“A/C” button or selecting “A/C” will

dehumidify the air from the outlets and

defog the windshield effectively.

●

If you turn “A/C” off, the windows may

fog up more easily.

●

The windows may fog up if the recircu-

lated air mode is used.

■

Outside/recirculated air mode

●

When driving on dusty roads such as tun-

nels or in heavy traffic, set the outside/

recirculated air mode switch to the recir-

culated air mode. This is effective in pre-

venting outside air from entering the

vehicle interior. During cooling opera-

tion, setting the recirculated air mode will

also cool the vehicle interior effectively.

●

Outside/recirculated air mode may auto-

matically switch depending on the tem-

perature setting or the inside

temperature.

■

Registering air conditioning settings to

electronic keys (vehicles with driving

position memory)

●

Unlocking the vehicle using an electronic

key and turning the engine switch to

IGNITION ON mode will recall that

key’s registered air conditioning settings.

●

When the engine switch is turned off, the

current air conditioning settings will auto-

matically be registered to the electronic

key that was used to unlock the vehicle.

●

The system may not operate correctly if

more than one electronic key is in the

vicinity or if the smart access system with

push-button start is used to unlock a pas-

senger door.

●

The doors that can recall the air condi-

tioning setting when unlocked using the

smart access system with push-button
start can be changed.

For details, con-

tact your Lexus dealer.

: The doors that can recall the driving posi-

tion memory are changed at the same
time.

■

Operation of the air conditioning sys-

tem in Eco mode

●

In the Eco mode, the air conditioning sys-

tem is controlled as follows to prioritize

fuel efficiency

• Engine speed and compressor operation

controlled to restrict heating/cooling

capacity

• Fan speed restricted when automatic

mode is selected

●

To improve air conditioning performance,

perform the following operations

• Adjust the fan speed

• Adjust the temperature setting

• Turn off Eco mode

●

Even when the driving mode is set to Eco

mode, the air conditioning eco mode can

be turned off by selecting the

■

When the outside temperature is low

The dehumidification function may not

operate even when “A/C” is pressed or “A/

C” is selected.

■

Ventilation and air conditioning odors

●

To let fresh air in, set the air conditioning

system to the outside air mode.

●

During use, various odors from inside and

outside the vehicle may enter into and

accumulate in the air conditioning sys-

255

5-2. Using the air conditioning system and defogger

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Interio

r fe

atures

tem. This may then cause odor to be

emitted from the vents.

●

To reduce potential odors from occur-

ring:

• It is recommended that the air condition-

ing system be set to outside air mode

prior to turning the vehicle off.

• The start timing of the blower may be

delayed for a short period of time imme-

diately after the air conditioning system is

started in automatic mode.

■

Air conditioning filter

P.331

■

Customization

Settings (e.g. A/C automatic mode switch

operation) can be changed.

(Customizable features:

P.401)

■

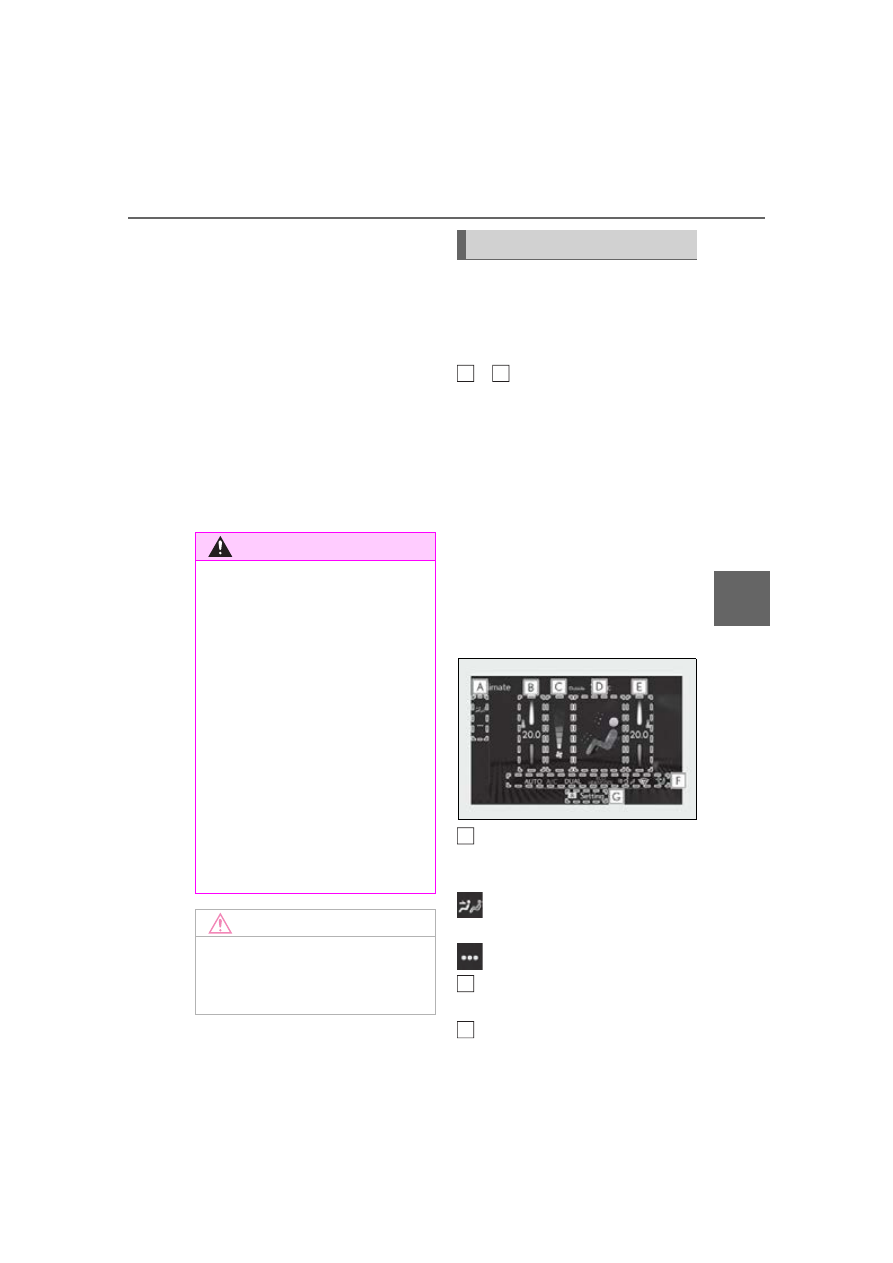

Main control screen

Using the touchpad of the Remote
Touch (

P.248), select the button on

the screen.

to can be adjusted by perform-

ing the following operations.
Flick operation: Move the pointer to
the desired item and flick the touchpad
up or down.

The item can be adjusted by one level.

Trace operation: After selecting the
desired item, slide your finger up or
down.

The item can be adjusted by the amount
that you trace.
Trace operation cannot be used while driv-
ing.

Sub menu

Selecting the sub menu item to switch the
main screen.

: Display the air conditioning control

screen

: Display the option control screen

Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting

WARNING

■

To prevent the windshield from fog-

ging up

●

Do not use the front windshield defog-

ger switch during cool air operation in

extremely humid weather. The differ-

ence between the temperature of the

outside air and that of the windshield

can cause the outer surface of the

windshield to fog up, blocking your

vision.

■

To prevent burns

●

Do not touch the rear view mirror sur-

faces when the outside rear view mir-

ror defoggers are on.

●

Vehicles with windshield wiper de-

icer: Do not touch the glass at lower

part of the windshield or to the side of

the front pillars when the windshield

wiper de-icer is on.

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning system

on longer than necessary when the

engine is off.

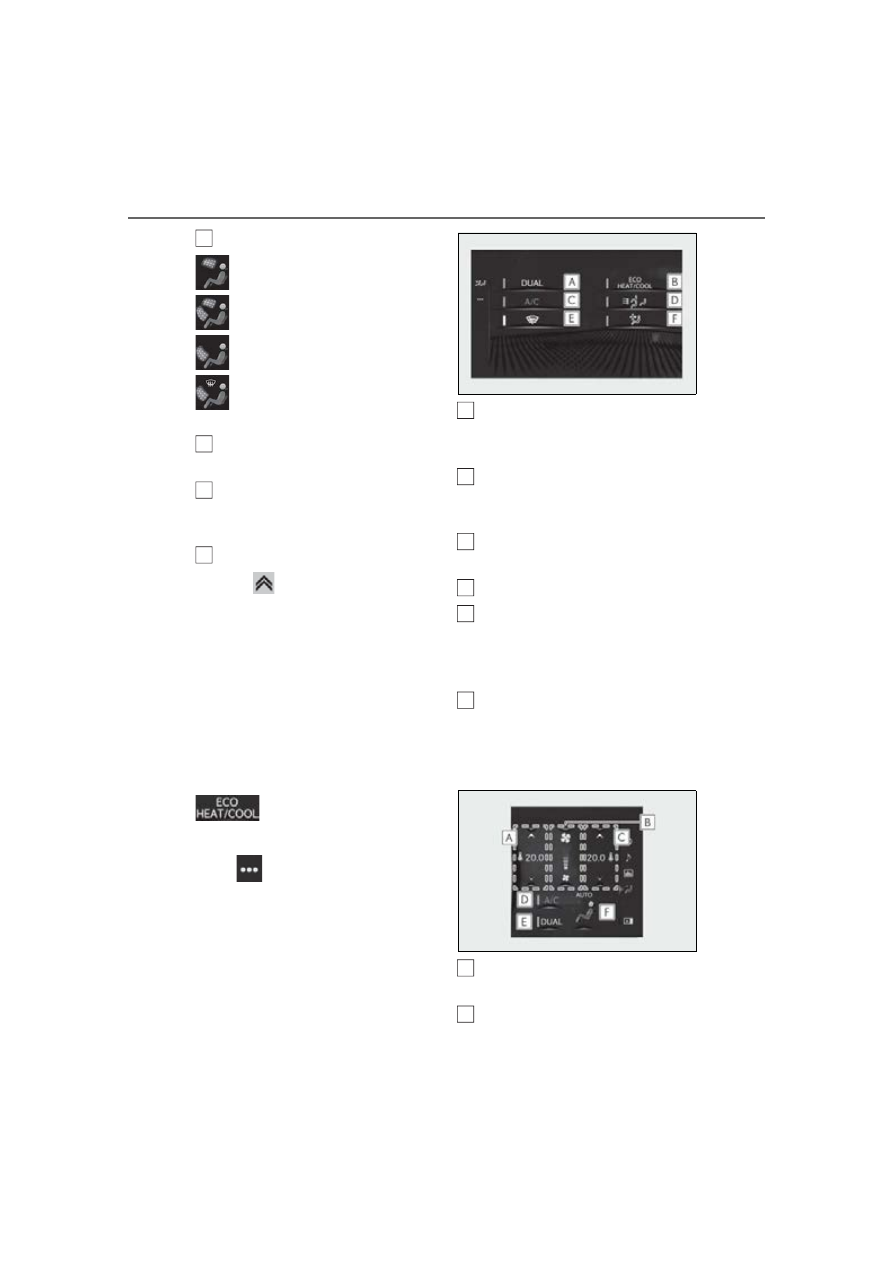

Air conditioning control screen

256

5-2. Using the air conditioning system and defogger

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Select the air flow mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

: Air flows to the feet and the wind-

shield defogger operates

Adjust the right-hand side tem-
perature setting
Function on/off indicators

When the function is on, the indicator illu-
minates on the control screen.

Sub function menu

When the

button on the Remote

Touch is pressed, the following functions
can be switched on and off.
“AUTO”: Set automatic mode on/off
(

P.257)

“OFF”: Turn the fan off
“A/C”: Set cooling and dehumidification
function
“DUAL”: Adjust the temperature for driver
and passenger seats separately (“DUAL”
mode) (

P.258)

: Set eco air conditioning mode

■

Option control screen

Select

on the sub menu to display

the option control screen.

The functions can be switched on and off.
When the function is on, the indicator illu-
minates on the screen.

Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode) (

P.258)

Set eco air conditioning mode

Air conditioning and heater output is lim-
ited to prioritize fuel economy.

Cooling and dehumidification func-
tion
Select S-FLOW mode (

P.257)

Prevent ice from building up on the
windshield and wiper blades
(Windshield wiper de-icer) (if
equipped)
Removing pollen from the air
(Micro dust and pollen filter)

■

Side display (Vehicles with naviga-
tion system)

Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting

257

5-2. Using the air conditioning system and defogger

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Interio

r fe

atures

Adjust the right-hand side tem-
perature setting
Set cooling and dehumidification
function on/off
Adjust the temperature for the
driver’s and front passenger’s seats
separately (“DUAL” mode)
(

P.258)

Select the air flow mode

■

Fogging up of the windows

●

The windows will easily fog up when the

humidity in the vehicle is high. Pressing

“A/C” button or selecting “A/C” will

dehumidify the air from the outlets and

defog the windshield effectively.

●

If you turn “A/C” off, the windows may

fog up more easily.

●

The windows may fog up if the recircu-

lated air mode is used.

■

Windshield wiper de-icer (if equipped)

This feature is used to prevent ice from
building up on the windshield and wiper
blades.
Select

on the option control screen.

When the windshield wiper de-icer is on,

is displayed on the air conditioning

control screen.
The windshield wiper de-icer will automati-
cally turn off after a period of time.

■

Eco air conditioning mode

When Eco mode is selected using the driv-

ing mode select switch, eco air conditioning

mode turns on.
When a driving mode other than Eco mode

is selected, eco air conditioning mode may

turn off.

■

S-FLOW mode

Priority for airflow is given to the front seats,
and the airflow and air conditioning for the
rear seats is effectively controlled.

Select

on the option control screen.

The indicator comes on when S-FLOW
mode is on.
Select

again to return to the previ-

ous mode.

■

Micro dust and pollen filter

Pollen is removed from the air and the air

flows to the upper part of the body.
Select

on the option control screen.

When the micro dust and pollen filter is on,

is displayed on the air conditioning

control screen.
In order to prevent the windshield from fog-
ging up when the outside air is cold, the
dehumidification function may operate.
The pollens are filtered out even if the micro
dust and pollen filter is turned off.

Press the “AUTO” button.

Adjust the temperature setting.

To stop the operation, press the
“OFF” button.

If the fan speed setting or air flow
modes are operated, the automatic
mode indicator goes off. However,
automatic mode for functions other
than that operated is maintained.

■

Using automatic mode

Fan speed is adjusted automatically accord-

ing to the temperature setting and the

ambient conditions.

WARNING

■

To prevent burns (vehicles with wind-

shield wiper de-icer)

Do not touch the glass at lower part of

the windshield or to the side of the front

pillars when the windshield wiper de-icer

is on.

Using automatic mode

258

5-2. Using the air conditioning system and defogger

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-

ately after the “AUTO” button is pressed or

“AUTO” is selected.

■

Windshield fog detection function (vehi-

cles with a humidity sensor)

When automatic mode is set, the humidity

sensor (

P.258) detects fog on the wind-

shield and controls the air conditioning sys-

tem to prevent fog.

■

Air conditioning filter

P.331

■

Customization

Settings (e.g. A/C automatic mode switch

operation) can be changed.

(Customizable features:

P.401)

To turn on the “DUAL” mode, perform
any of the following procedures:

 Press the “DUAL” button.
 Select “DUAL” on the option con-

trol screen.

 Adjust the temperature setting of

the passenger side with the passen-
ger side temperature adjustment
button.

The indicator comes on when the “DUAL”
mode is on.

■

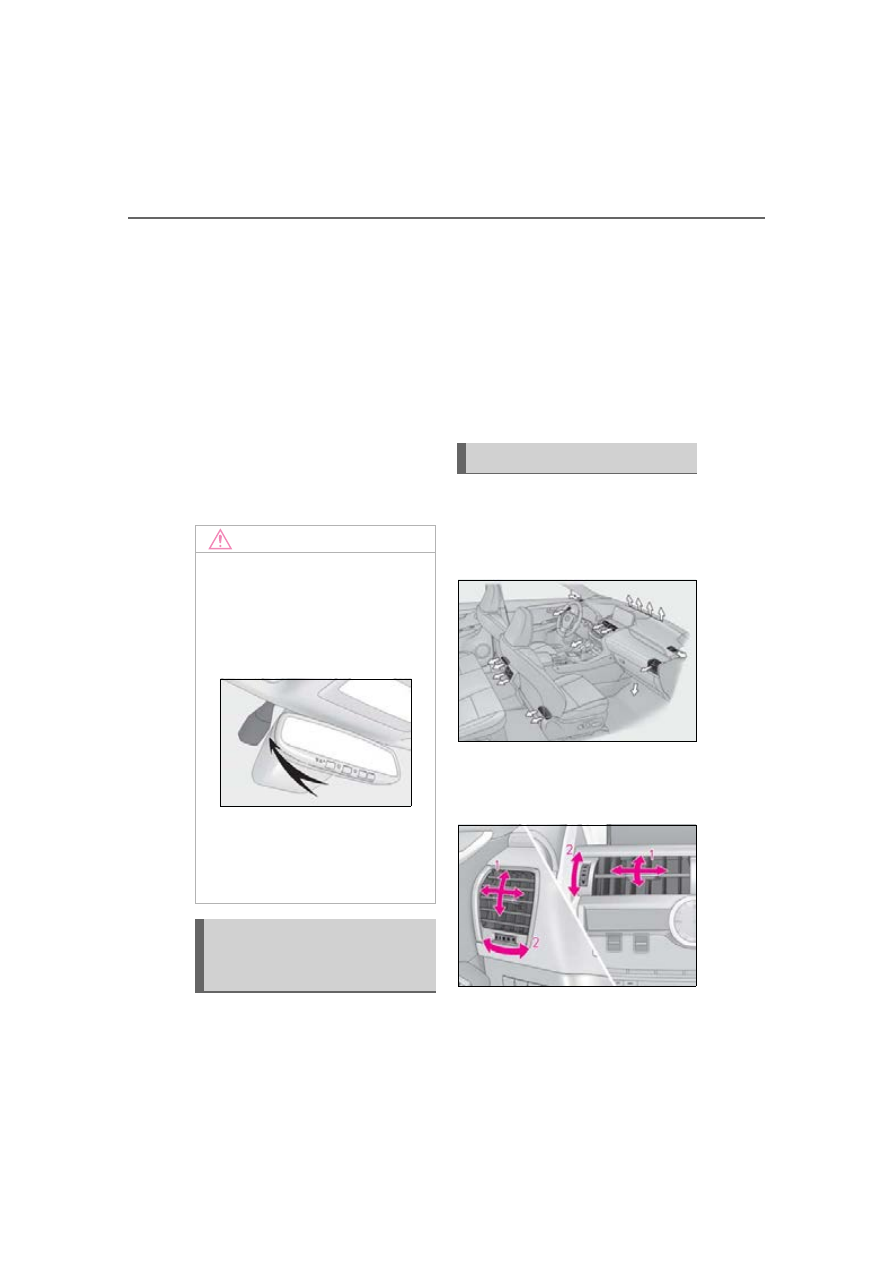

Location of air outlets

The air outlets and air volume changes
according to the selected air flow
mode.

■

Adjusting the position of and open-
ing and closing the air outlets



Front

Direct air flow to the left or right, up
or down

NOTICE

■

Humidity sensor (if equipped)

In order to detect fog on the windshield,

a sensor which monitors the temperature

of the windshield, the surround humidity,

etc., is installed.

Follow these points to avoid damaging

the sensor:

●

Do not disassemble the sensor

●

Do not spray the glass cleaner on the

sensor or subject it to strong impacts

●

Do not stick anything on the sensor

Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode)

Air outlet layout and operations

259

5-2. Using the air conditioning system and defogger

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Interio

r fe

atures

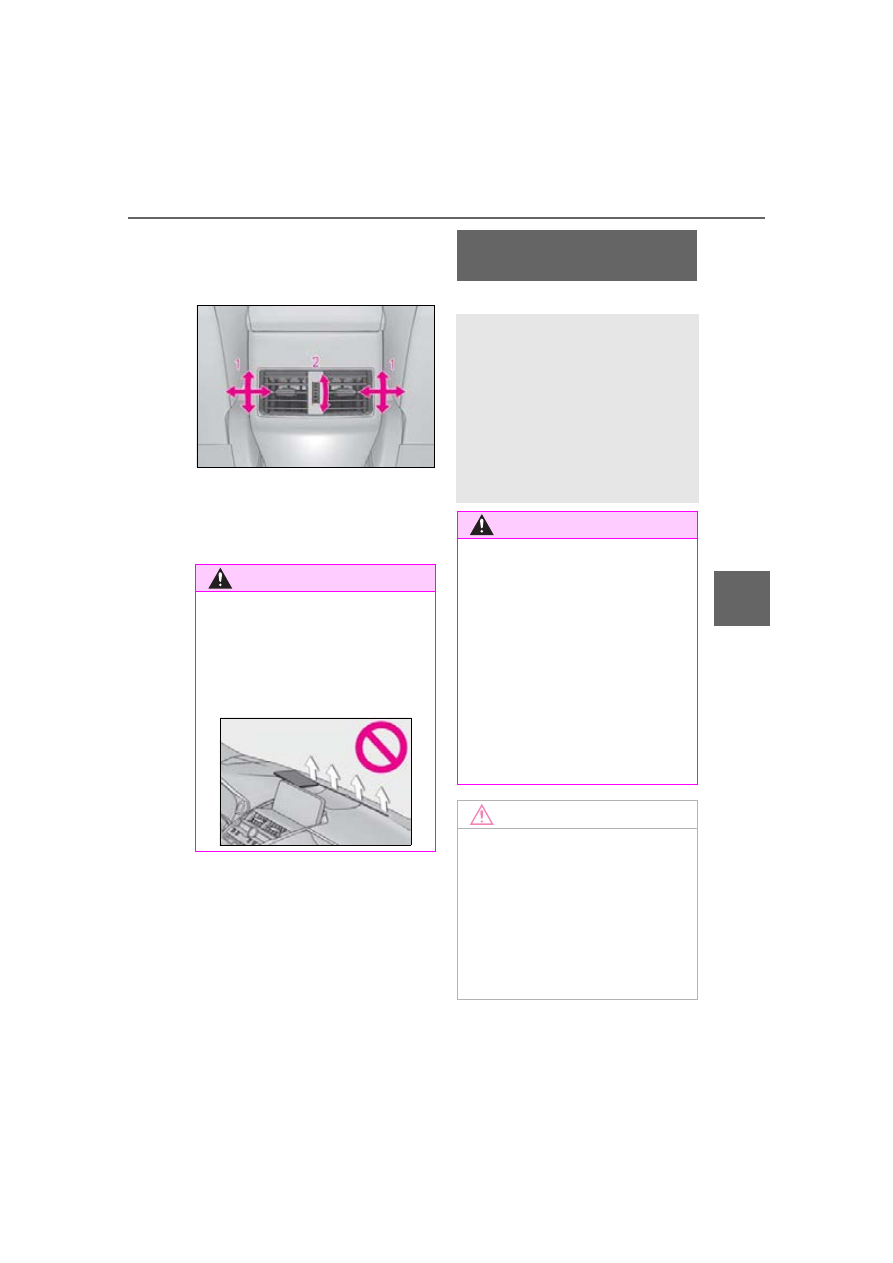

Turn the knob to open or close the
vent



Rear

Direct air flow to the left or right, up
or down

Turn the knob to open or close the
vent

: If equipped

WARNING

■

To not interrupt the windshield defog-

ger from operating

Do not place anything on the instrument

panel which may cover the air outlets.

Otherwise, air flow may be obstructed,

preventing the windshield defoggers

from defogging.

Heated steering wheel

/seat

heaters

/seat ventilators

 Heated steering wheel

Warm up the side grips of the steering
wheel

 Seat heaters

Warm up the seat upholstery

 Seat ventilators

Maintain good airflow on the seat uphol-
stery by blowing air from the seats

WARNING

■

To prevent minor burn injuries

Care should be taken if anyone in the fol-

lowing categories comes in contact with

the steering wheel or seats when the

heater is on:

●

Babies, small children, the elderly, the

sick and the physically challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alcohol or

drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

NOTICE

■

To prevent damage to the seat heat-

ers and seat ventilators

Do not put heavy objects that have an

uneven surface on the seat and do not

stick sharp objects (needles, nails, etc.)

into the seat.

■

To prevent battery discharge

Do not use the functions when the

engine is off.

260

5-2. Using the air conditioning system and defogger

LEXUS NX300 Owners Manu-

al_USA_M78285_en

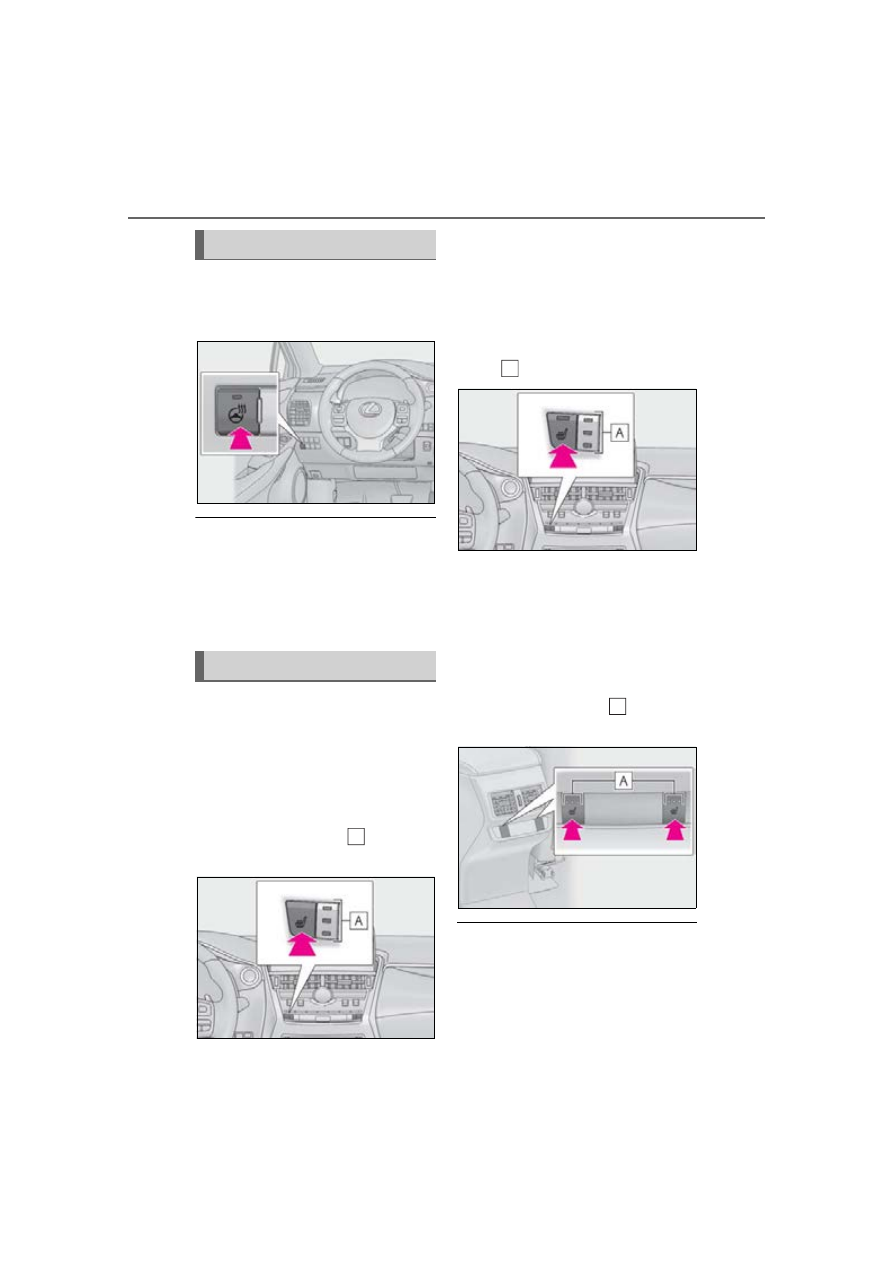

Turns the heated steering wheel on/off

The indicator light comes on when the
heated steering wheel is operating.

■

Operation condition

The engine switch is in IGNITION ON

mode.

■

Timer function

The heated steering wheel will automati-

cally turn off after about 30 minutes.

■

Front



Vehicles with out seat ventilators

Each time the switch is pressed, the opera-
tion condition changes as follows.
Hi (3 segments lit)

 Mid (2 segments lit)

 Lo (1 segment lit)  Off

The level indicator (amber)

light up

during operation.



Vehicles with seat ventilators

Each time the switch is pressed, the opera-
tion condition changes as follows.
Hi (3 segments lit)

 Mid (2 segments lit)

 Lo (1 segment lit)  Off

The indicator (amber) and level indicator
(green)

light up during operation.

■

Rear

Each time the switch is pressed, the
operation condition changes as fol-
lows.
Hi (3 segments lit)

 Mid (2 segments

lit)

 Lo (1 segment lit)  Off

The level indicator (amber)

lights up

during operation.

■

Operation condition

The seat heaters can be used when the

engine switch is in IGNITION ON mode.

Heated steering wheel

Seat heaters

261

5-2. Using the air conditioning system and defogger

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Interio

r fe

atures

Each time the switch is pressed, the
operation condition changes as fol-
lows.
Hi (3 segments lit)

 Mid (2 segments

lit)

 Lo (1 segment lit)  Off

The indicator (green) and level indicator
(green)

light up during operation.

■

Operation condition

The engine switch is in IGNITION ON

mode.

WARNING

■

To prevent causes of overheating and

minor burn injuries

Observe the following precautions when

using a seat heater

●

Do not cover the seat with a blanket or

cushion when using the seat heater.

●

Do not use seat heater more than nec-

essary.

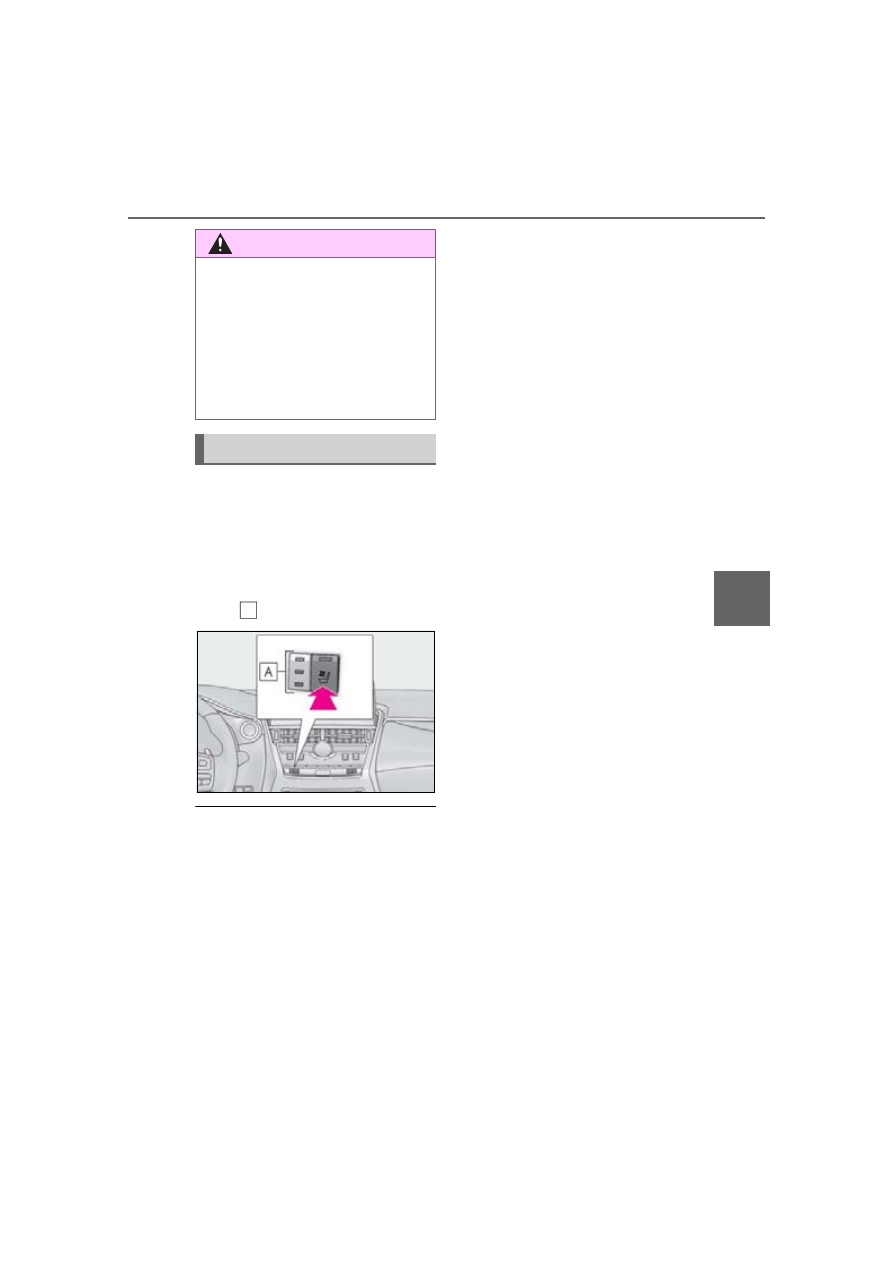

Seat ventilators (Front)

262

5-3. Using the interior lights

LEXUS NX300 Owners Manu-

al_USA_M78285_en

5-3.Using the interior lights

Outer foot lights
Personal lights (

P.263)

Front interior light (

P.263)

Rear interior light (

P.263)

Footwell lights

• When the engine switch is in IGNITION ON mode, the footwell lights will turn on.

However, if the instrument panel light control switch is turned to minimum, the

footwell lights will turn off. (

P.71

)

• When the shift lever is in a position other than P, the brightness of the footwell light will

reduce intensity.

■

Personal lights automatic on/off

●

Illuminated entry system: The lights auto-

matically turn on/off according to engine

switch mode, the presence of the elec-

tronic key, whether the doors are locked/

unlocked, and whether the doors are

opened/closed.

●

If the interior lights remain on when the

engine switch is turned off, the lights will

go off automatically after 20 minutes.

■

When front interior lights and personal

lights do not respond as normal

●

When water, dirt, etc., have adhered to

the lens surface

●

When operated with a wet hand

●

When wearing gloves, etc.

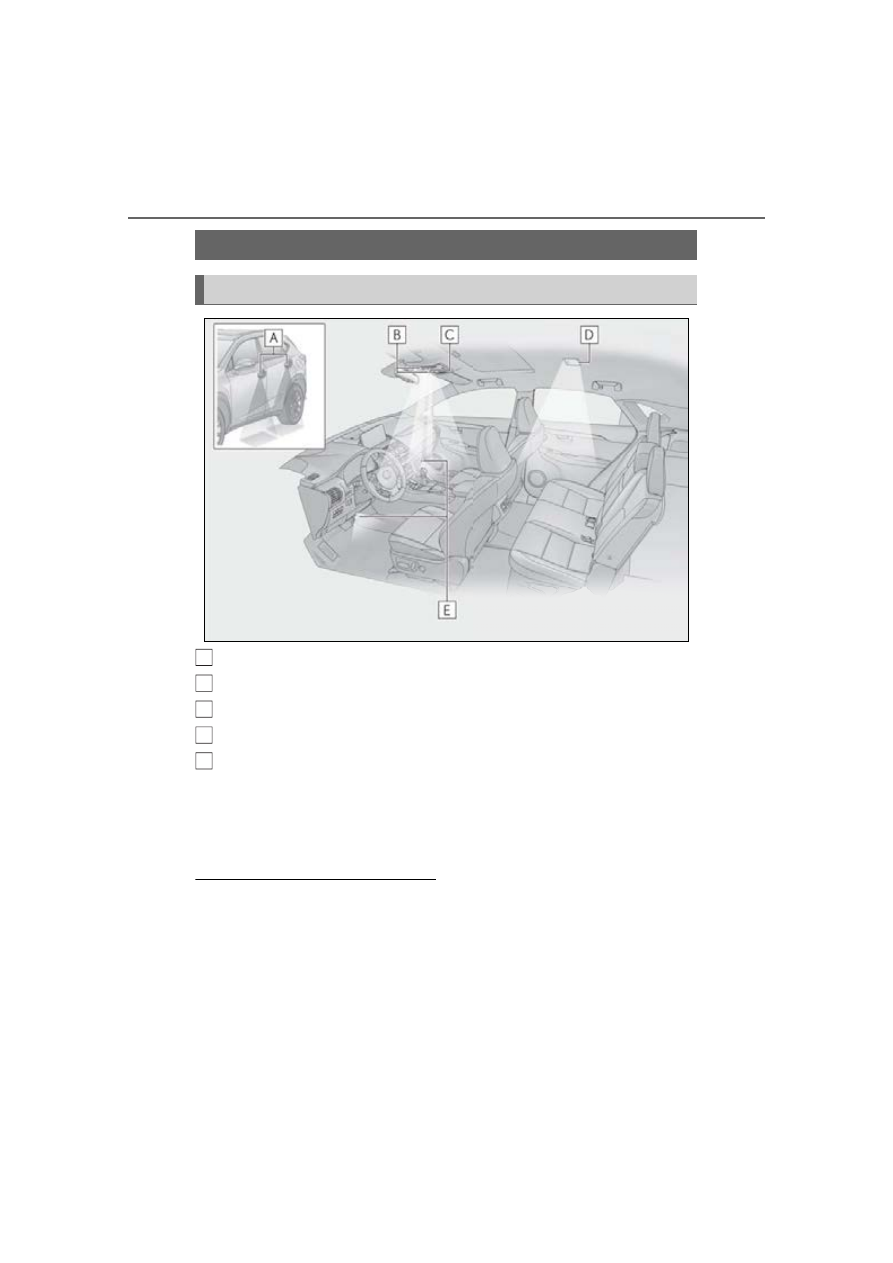

Interior lights list

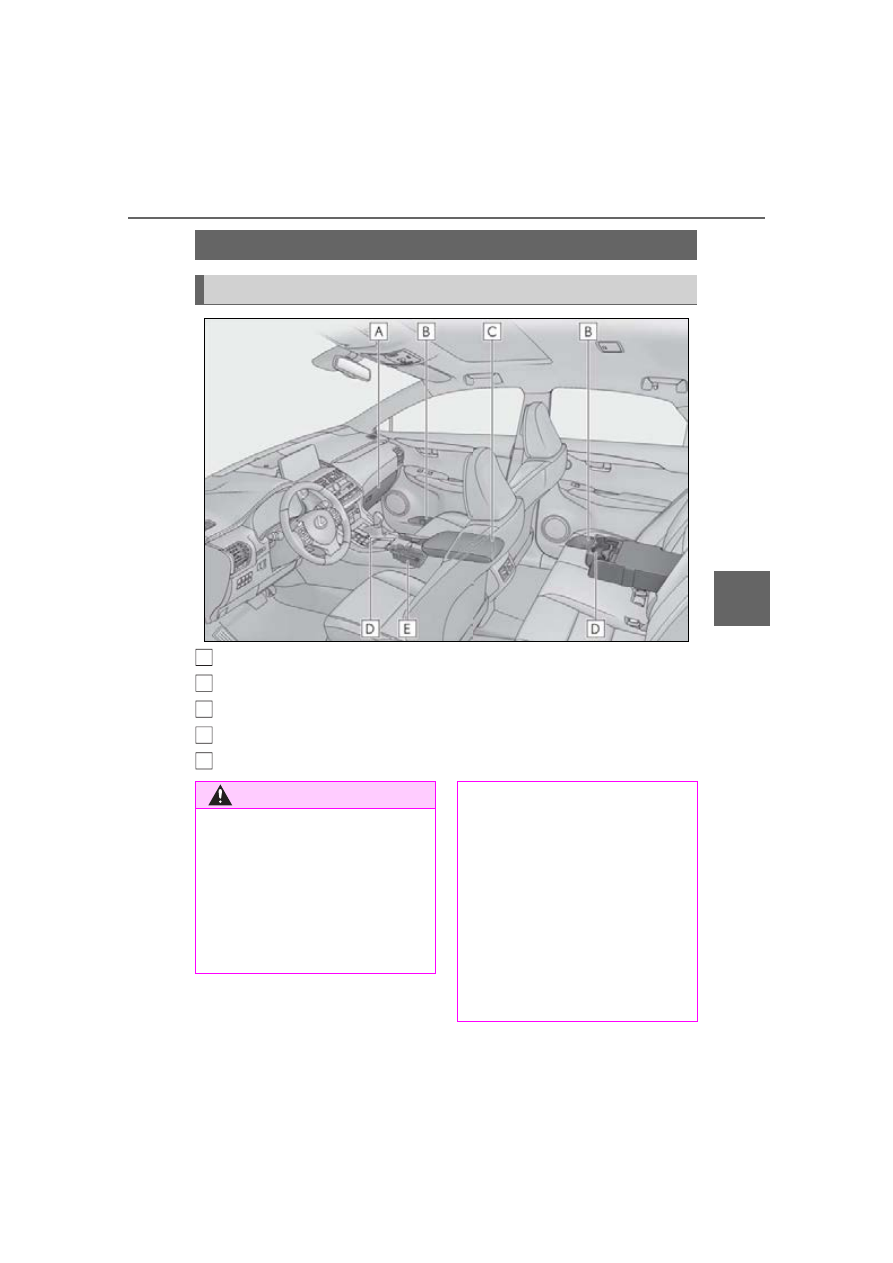

Location of the interior lights

A
B
C
D

263

5-3. Using the interior lights

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Interio

r fe

atures

■

Customization

Setting (e.g. the time elapsed before lights

turn off) can be changed. (Customizable

features:

P.401)

■

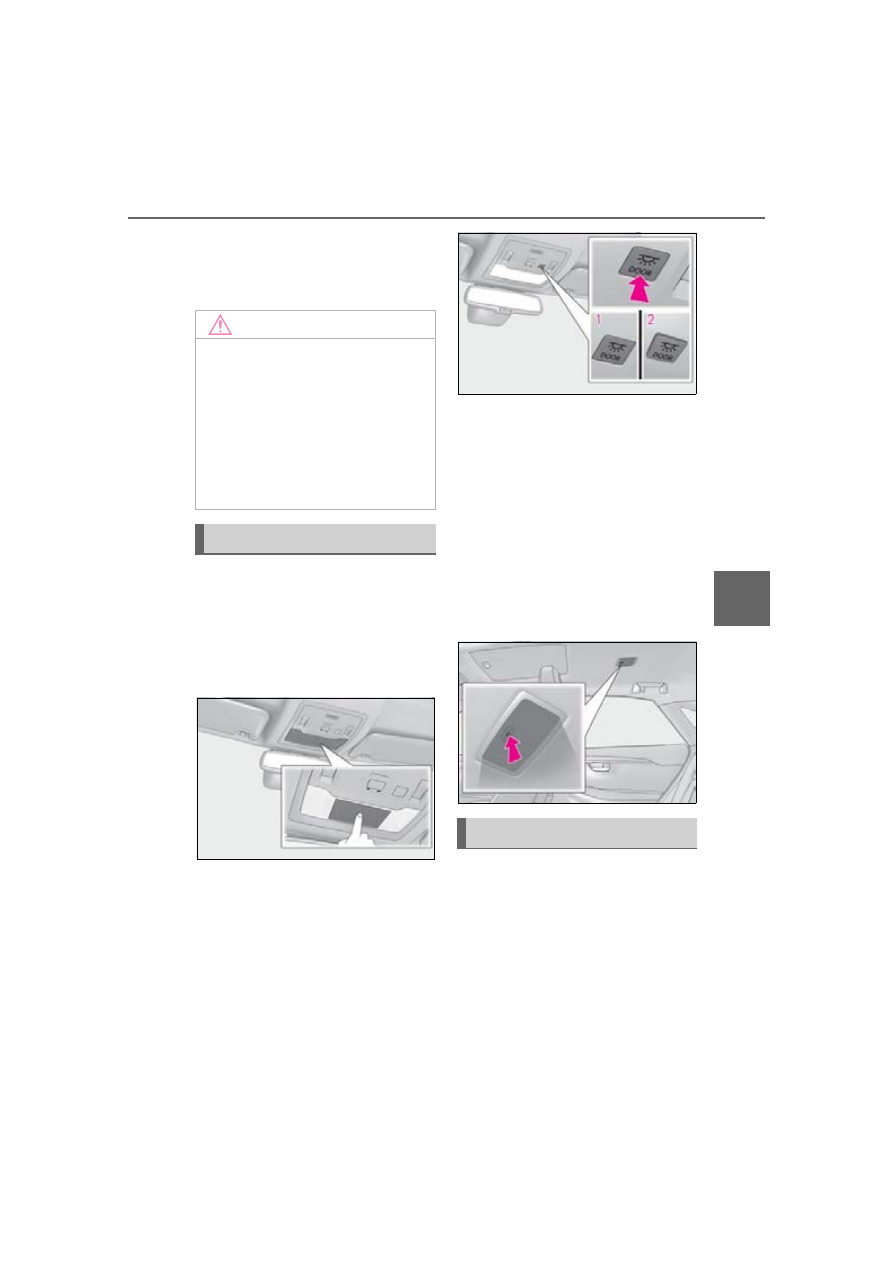

Front interior light

Turns the light on/off (touch the light)

The rear interior light also turns on/off.
However, when the rear interior light has
already been turned on, it will not be con-
trolled by front interior light operations.

Turns the door position on/off

The front and rear interior lights turn on/
off when a door is opened/closed.

Off

■

Rear interior light

Turns the light on/off

The rear interior light is also turned on/ off
by the front interior light operations.
If the light is turned on by front interior light
operation, the rear interior light cannot
turn off by pressing the switch.

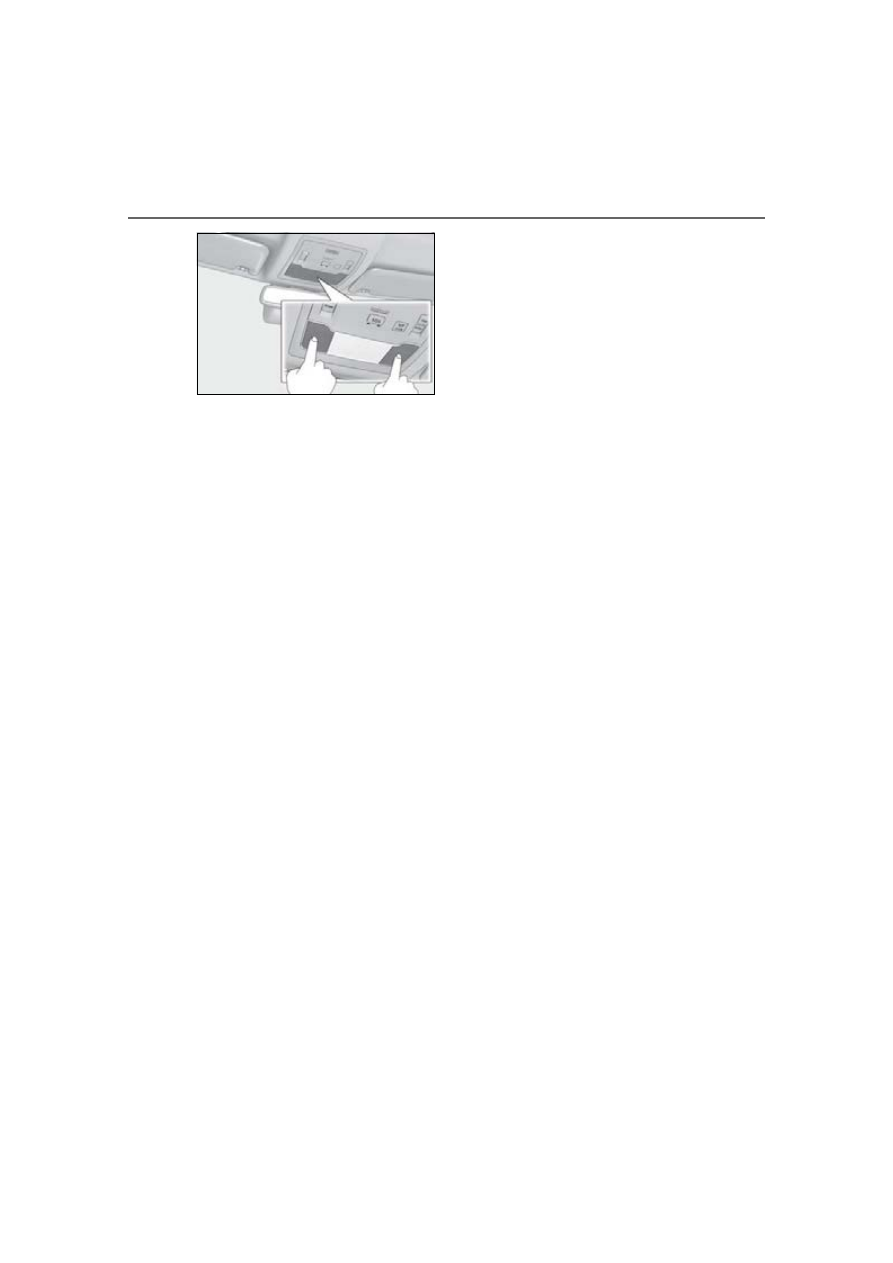

Turns the lights on/off (touch the lights)

NOTICE

■

Removing light lenses

Never remove the lens for the front inte-

rior light and personal lights. Otherwise,

the lights will be damaged. If the lens

need to remove, contact your Lexus

dealer.

■

To prevent battery discharge

Do not leave the lights on longer than

necessary when the engine is off.

Operating interior lights

Operating personal lights

264

5-3. Using the interior lights

LEXUS NX300 Owners Manu-

al_USA_M78285_en

265

5-4. Using the storage features

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Interio

r fe

atures

5-4.Using the storage features

Glove box (

P.266)

Bottle holders (

P.266)

Console box (

P.266)

Cup holders (

P.266)

Sunglass holder (

P.267)

List of storage features

Location of the storage features

A
B
C
D

WARNING

■

Items that should not be left in the

vehicle

Do not leave glasses, lighters or spray

cans in the storage spaces, as this may

cause the following when cabin tempera-

ture becomes high:

●

Glasses may be deformed by heat or

cracked if they come into contact with

other stored items.

●

Lighters or spray cans may explode. If

they come into contact with other

stored items, the lighter may catch fire

or the spray can may release gas,

causing a fire hazard.

■

When storage compartments are not

in use

When driving or when the glove box and

the console box are not in use, keep it

closed.

In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by an open lid

or the items stored inside.

266

5-4. Using the storage features

LEXUS NX300 Owners Manu-

al_USA_M78285_en

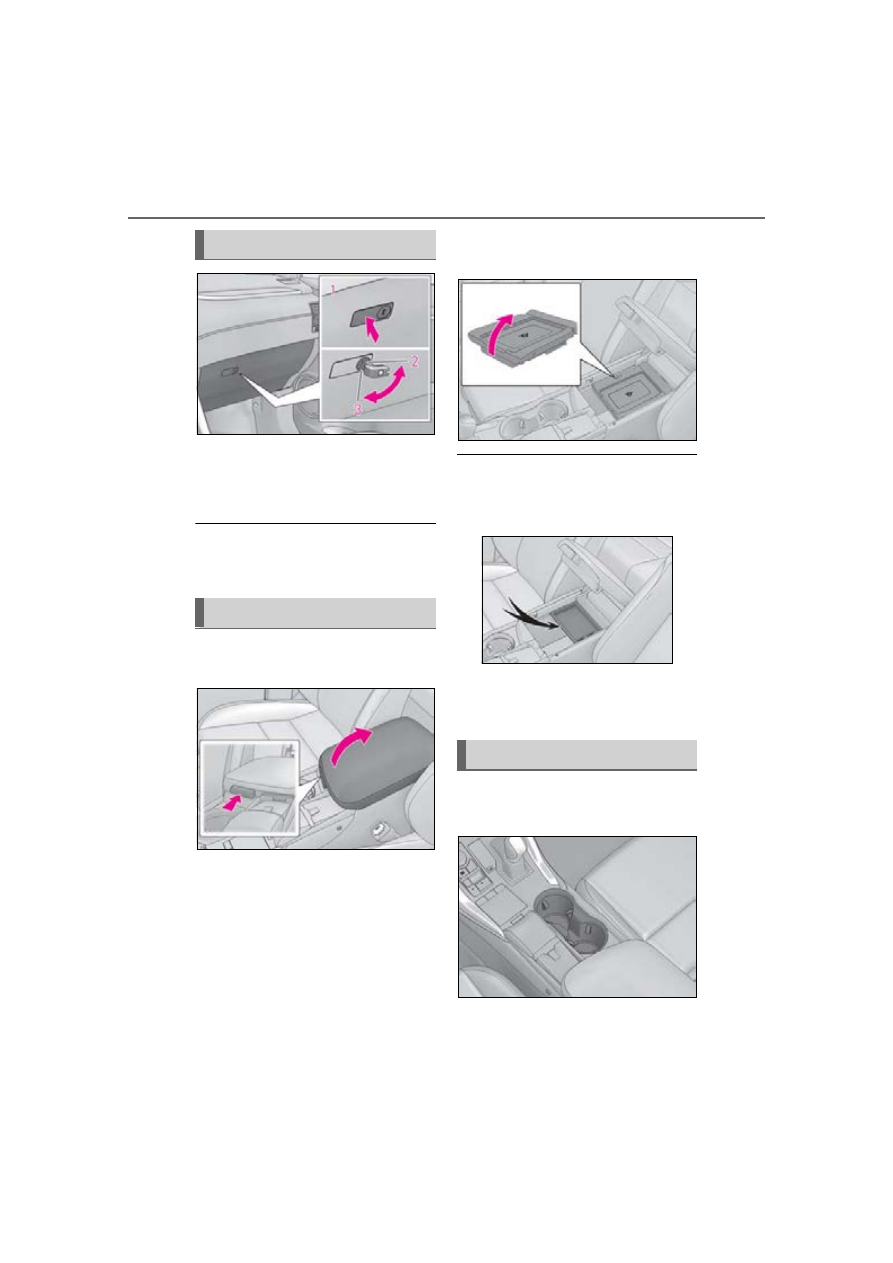

Open (press the button)

Unlock with the mechanical key

Lock with the mechanical key

■

Glove box light

The glove box light turns on when the tail

lights are on.

Lift the lid while pushing the button
to release the lock.

Vehicles with wireless charger: Lift
the wireless charger.

■

Console box tray (vehicles without wire-

less charger)

The tray slides forward/backward and can

be removed.

■

Console box light

The console box light turns on when the tail

lights are on.

■

Cup holders



Front

Glove box

Console box

Cup holders/bottle holders

267

5-4. Using the storage features

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Interio

r fe

atures



Rear

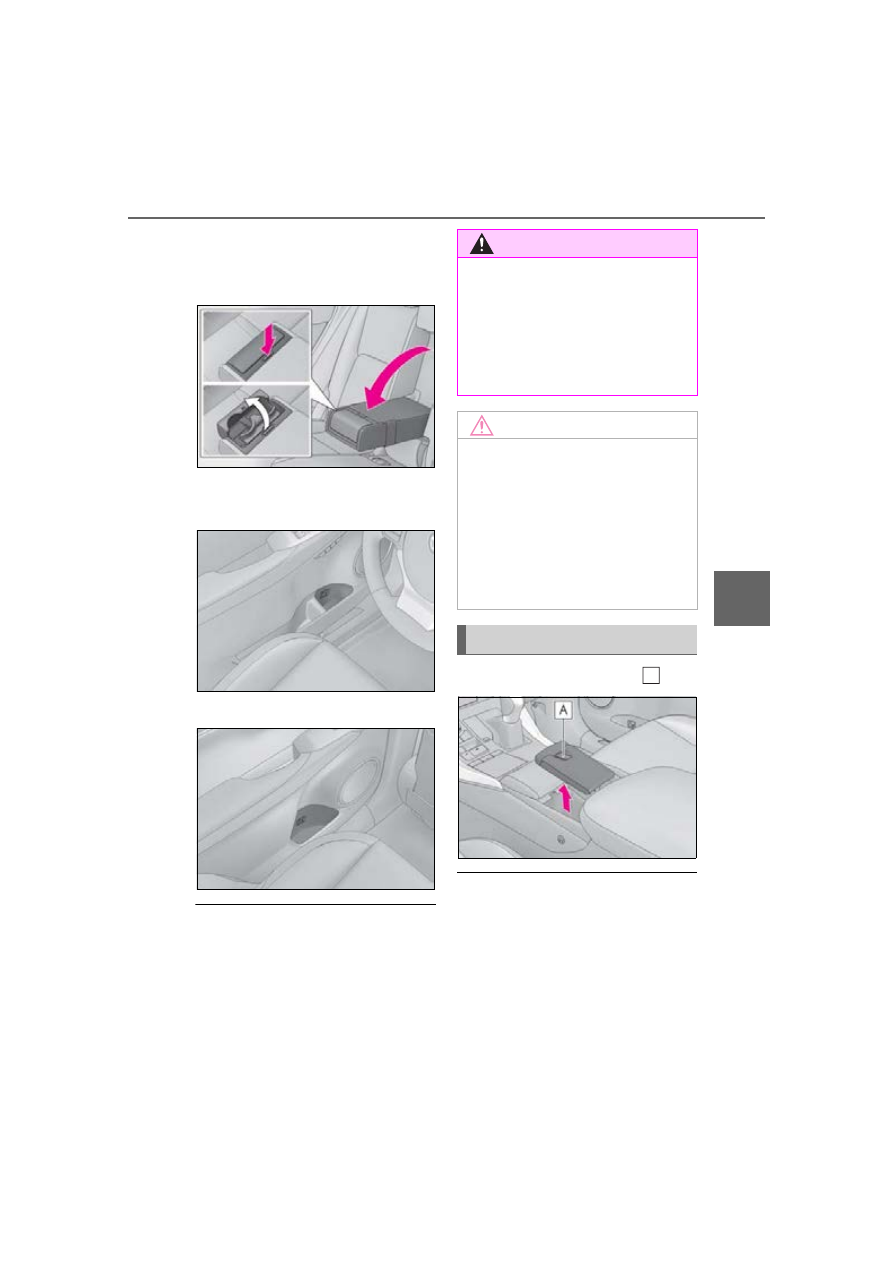

Pull down the armrest and push the
release button.

■

Bottle holders



Front



Rear

■

Cup holders/bottle holders

●

When storing a bottle, close the cap.

●

The bottle may not be stored depending

on its size or shape.

Remove the lid using the strap .

■

Sunglass holder lid

●

The removed sunglass holder lid can be

stored on the tray in the console box.

WARNING

■

Items unsuitable for the cup holders/

bottle holders

Do not place anything other than cups or

aluminum cans in the cup holders.

Other items may be thrown out of the

holders in the event of an accident or

sudden braking, causing injury. If possi-

ble, cover hot drinks to prevent burns.

NOTICE

■

To prevent damage to the rear cup

holder

Stow the cup holder before stowing the

armrest.

■

Bottle holders

Do not place open bottles or glass and

paper cups containing liquid in the bottle

holders. The contents may spill and

glasses may break.

Sunglass holder

Content .. 14 15 16 17 ..
