Crawl Control

Press the ON/OFF switch while Crawl Control is operating. If the switch is
turned off, the slip indicator and the Turn Assist indicator will go off (if the Turn
Assist function is in use), the Crawl Control indicator will flash until the system
has turned off completely, and a message stating that Crawl Control has been
turned off will be displayed on the multi-information display for several seconds.
When turning off Crawl Control while driving, stop the vehicle before the Crawl
Control indicator turns off, or drive extremely carefully.



Turn Assist function

Press the Turn Assist switch while the Turn Assist function is operating. When the
switch is pressed, the Turn Assist indicator will go off, and a message stating that
the Turn Assist function has been turned off will be displayed on the multi-infor-
mation display for several seconds.

■

The Crawl Control and Turn Assist function can be operated when



Crawl Control

●

The engine is running.

●

The shift lever is in any gear other than P or N.

●

The four-wheel drive control switch is in L4.

●

The driver’s door is closed.



Turn Assist function

●

Crawl Control is operating.

●

The center differential is not locked.

●

The accelerator and brake are not being operated.

●

The shift lever is in any gear other than P, R or N.

●

The steering wheel is turned very far.

When the system is turned off

316

4-5. Using the driving support systems

■

Automatic system cancelation



Crawl Control

In the following situations, the buzzer will sound intermittently and Crawl Control will be

canceled automatically. In this event, the Crawl Control indicator will flash and then go

off, the Turn Assist indicator will go off (if the Turn Assist function is in use), and a message

stating that Crawl Control has been turned off will be displayed on the multi-information

display for several seconds.

●

When the shift lever is moved to P or N.

●

When the four-wheel drive control switch is in H4.

●

When the driver’s door is opened.



Turn Assist function

When the center differential is locked, the buzzer will sound intermittently and the Turn

Assist function will be canceled automatically. In this event, the Turn Assist indicator will

go off, and a message stating that the Turn Assist function has been turned off will be dis-

played on the multi-information display for several seconds.

■

Function limitations



Crawl Control

●

In the following situations, brake control can be used to drive downhill at a constant

speed. However, engine control is not available when driving uphill at a constant speed.
• When switched to second start mode.

●

In the following situation, engine control and brake control will stop temporarily. In this

event, the Crawl Control indicator will flash.
• When the vehicle speed exceeds approximately 15 mph (25 km/h).



Turn Assist function

In the following situations, the Turn Assist function will stop temporarily. In this event, the

Turn Assist indicator will flash.

●

When the vehicle speed exceeds approximately 6 mph (10 km/h).

●

When the shift lever is moved to R.

■

When the Crawl Control system is operated continuously

●

If Crawl Control is used continuously for a long time, the buzzer will sound, a malfunc-

tion notification will be displayed on the multi-information display, the Crawl Control

indicator will go off, and Crawl Control will be temporarily inoperable as a result of the

brake system overheating. In this event, stop the vehicle immediately in a safe place,

and allow the brake system to cool down sufficiently until the TRAC OFF indicator

goes off. (In the meantime, normal driving is possible.)

●

If Crawl Control is used continuously for a long time, the buzzer will sound, the system

will be temporarily canceled, and a malfunction notification will be displayed on the

multi-information display as a result of the automatic transmission system overheating.

Stop the vehicle in a safe place until the display goes off.

■

When depressing the accelerator pedal while the Crawl Control is operating
Multi-terrain Select operates in AUTO mode. (

P. 319)

317

4-5. Using the driving support systems

iving

■

Sounds and vibrations caused by the Crawl Control system

●

A sound may be heard from the engine compartment when the engine is started or just

after the vehicle begins to move. This sound does not indicate that a malfunction has

occurred in Crawl Control system.

●

Either of the following conditions may occur when the Crawl Control system is operat-

ing. None of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.

• A motor sound may be heard after the vehicle comes to a stop.

■

When there is a malfunction in the system
Warning lights and/or warning messages will turn on. (

P. 523, 531)

WARNING

■

When using Crawl Control and Turn Assist function
Do not rely solely on the Crawl Control and Turn Assist function. This function does not

extend the vehicle’s performance limitations. Always thoroughly check the road condi-

tions, and drive safely.

■

These conditions may cause the system not to operate properly
When driving on the following surfaces, the system may not be able to maintain a fixed

low speed, which may result in an accident:

●

Extremely steep inclines.

●

Extremely uneven surfaces.

●

Snow-covered roads, or other slippery surfaces.

NOTICE

■

When using Turn Assist function
The Turn Assist function is a function to assist turning performance when driving off

road. The function may be less effective on paved road surfaces.

318

4-5. Using the driving support systems

Multi-terrain Select



When the Crawl Control is turned off

Select a mode that most closely matches the type of terrain on which you are
driving from among 5 modes.
Brake control can be optimized in accordance with the selected mode.



When the Crawl Control is turned on

A mode which matches the road conditions is automatically selected by
depressing the accelerator pedal (AUTO mode).

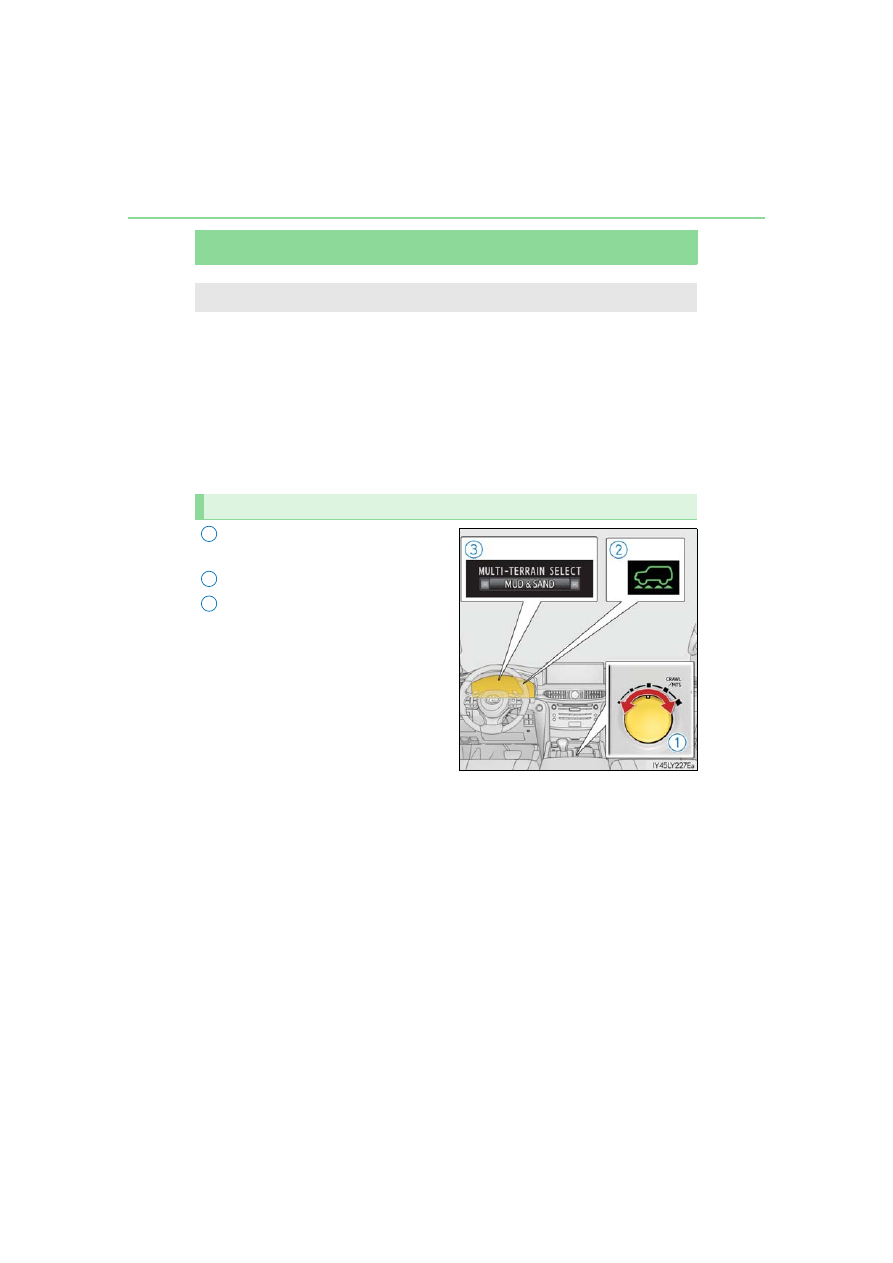

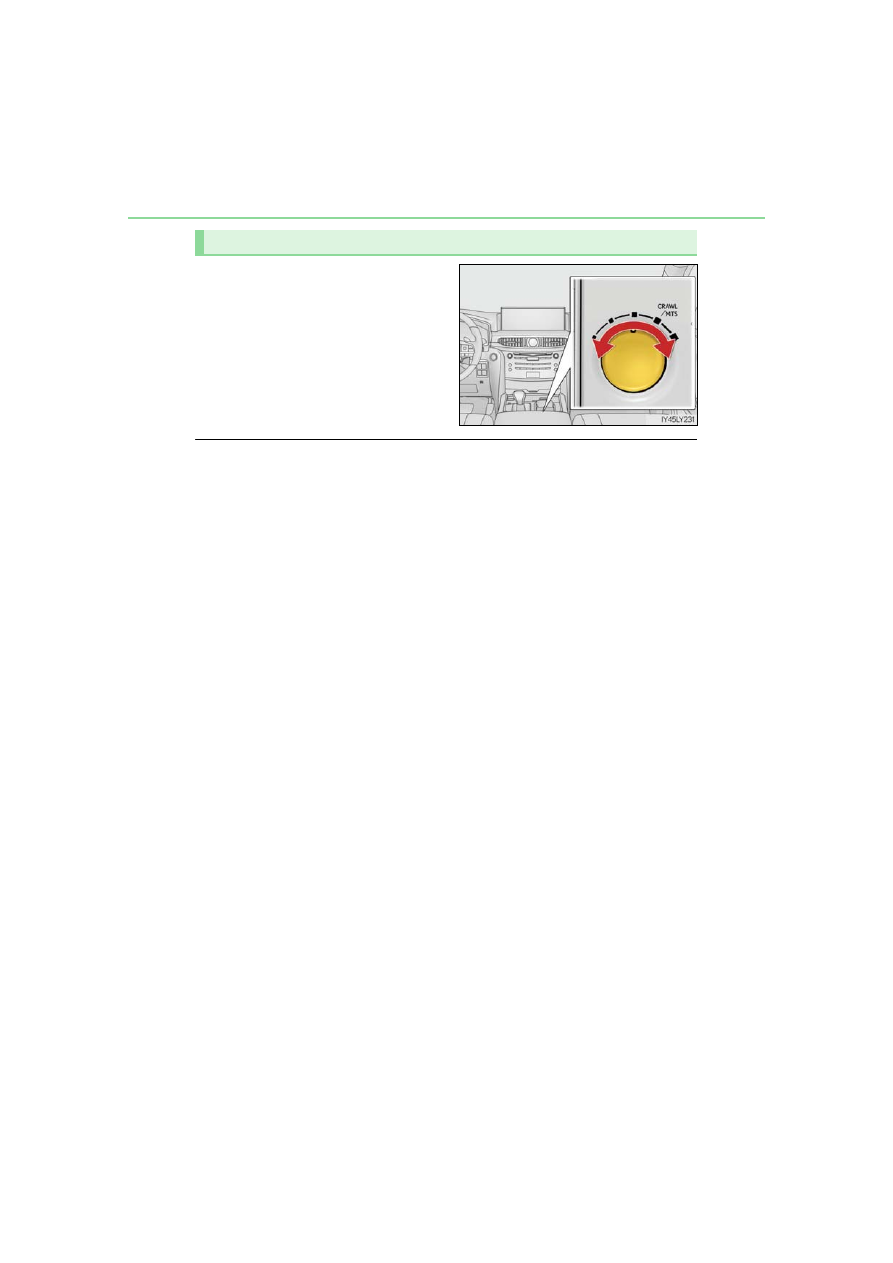

Multi-terrain Select mode selector
switch
Multi-terrain Select indicator
Multi-information display
Displays status information including
operating status and road type
selection.

Multi-terrain Select is a system that helps drivability in off-road situations.

Multi-terrain Select switch/indicators

2
3

319

4-5. Using the driving support systems

iving

When the Crawl Control is turned off, a
mode which matches the road condi-
tions can be selected from among the
following 5 modes.

MUD & SAND
LOOSE ROCK
MOGUL
ROCK & DIRT
ROCK

When the Crawl Control is turned on, the most suitable mode is automatically
selected according to the Crawl Control mode selected.

When all of the following conditions are satisfied, the Multi-terrain Select indica-
tor will come on, the mode select screen will be displayed on the multi-informa-
tion display, and Multi-terrain Select control will begin.

●

The four-wheel drive control switch is in “L4”.

●

Both Active TRAC and VSC are not off.

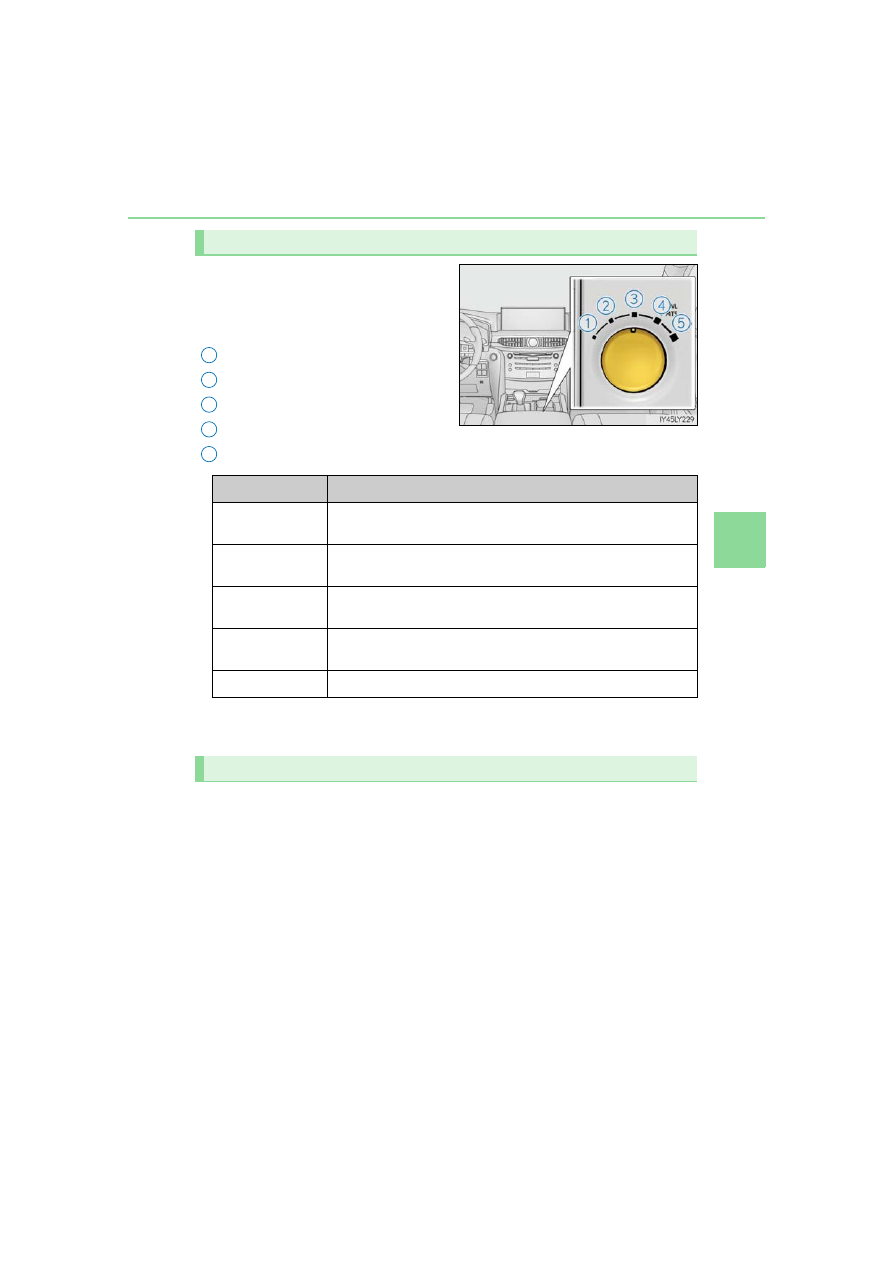

Selectable modes

2
3
4
5

Mode

Road Conditions

MUD & SAND

Suitable for muddy roads, sandy roads, snow-covered roads, dirt

trails and other slippery or dirty conditions

LOOSE ROCK Suitable for slippery conditions consisting of mixtures of earth

and loose rock

MOGUL

Suitable for a wide range of off-road conditions, particularly very

bumpy conditions

ROCK & DIRT

Suitable for very bumpy road conditions, such as mogul or rocky

roads.

ROCK

Suitable for rocky terrain

Multi-terrain Select control starting conditions

320

4-5. Using the driving support systems

Operate the Multi-terrain Select mode
selector switch during Multi-terrain
Select control to select a mode.

Once the mode is confirmed, the mode

name will be displayed and the control

will switch.

■

Automatic system cancelation
In the following situations, the Multi-terrain Select indicator will go off, and Multi-terrain

Select will be canceled automatically.

●

When the four-wheel drive control switch is in H4.

●

When Active TRAC and VSC are off.

■

When it is difficult to generate traction
MUD & SAND mode provides the largest amount of tire slippage, followed by LOOSE

ROCK, MOGUL, ROCK & DIRT and ROCK mode.

Drivability can be improved by selecting a mode which provides a smaller amount of tire

slippage than the current mode when the amount of tire slippage is large, or conversely

selecting a mode which provides a larger amount of tire slippage than the current mode

when the amount of tire slippage is small.

■

When the vehicle is stuck
Switching the transfer and differential

For the operation of the following functions, refer to the following pages.

●

Four-wheel drive system (

P. 309)

●

Center differential lock (

P. 310)

■

When the brake system operates continuously
The brake system may overheat. In this case, a buzzer will sound, the TRAC OFF indica-

tor will flash, and Multi-terrain Select will be temporarily inoperable. In this event, stop

the vehicle immediately in a safe place, and allow the brake system to cool down suffi-

ciently. (There is no problem with continuing normal driving.)

After a short time, the TRAC OFF indicator will go off, and you will be able to use Multi-

terrain Select.

■

When there is a malfunction in the system
The slip indicator light will come on. Have the vehicle inspected by your Lexus dealer

immediately.

Switching modes

321

4-5. Using the driving support systems

iving

WARNING

■

When using the Multi-terrain Select
Observe the following precautions to avoid an accident that could result in death or

serious injuries:

●

There is a chance that the selected mode may not be the most appropriate in terms of

road conditions such as pitch, slipperiness, undulation, etc. (

P. 319)

●

Multi-terrain Select is not intended to expand the limits of the vehicle. Check the road

conditions thoroughly beforehand, and drive safely and carefully.

NOTICE

■

Precaution for use
The Multi-terrain Select is intended for use during off-road driving. Do not use the sys-

tem at any other time.

322

4-5. Using the driving support systems

Multi-terrain Monitor

The following screens can be selected according to driving conditions.

• Screens that can be selected vary depending on conditions such as shift posi-

tion and vehicle speed. (

P. 328)

• Depending on the displayed screen, the display can be switched from normal

to wide view display.

The Multi-terrain Monitor helps the driver to check the vehicle surroundings.
It assists in determining the conditions around the driver in a variety of situa-
tions, such as when judging conditions during off-road driving or checking for
obstacles when parking.

WARNING

■

When using the Multi-terrain Monitor system
Observe the following precautions to avoid an accident that could result in death or

serious injuries.

●

Never rely solely on the Multi-terrain Monitor. As with unequipped vehicles, drive

carefully while directly confirming the safety of your surroundings and the area to the

rear of the vehicle. Take particular care to avoid parked cars and other obstacles.

●

Due to the characteristics of the camera lens, the actual position and distance of peo-

ple and other obstacles will differ from those shown on the Multi-terrain Monitor

screen. Directly confirm the safety of your surroundings before driving.

●

Do not drive while only looking at the screen. When driving, make sure to directly

confirm the safety of your surroundings, such as by visually checking the area and

using the vehicle’s mirrors.

●

In low temperatures, the screen may darken or the images may become faint.

Images of moving objects in particular may distort or disappear from the screen.

Therefore, make sure to drive carefully while directly visually confirming the safety of

your surroundings.

Multi-terrain Monitor screens

323

4-5. Using the driving support systems

iving

■

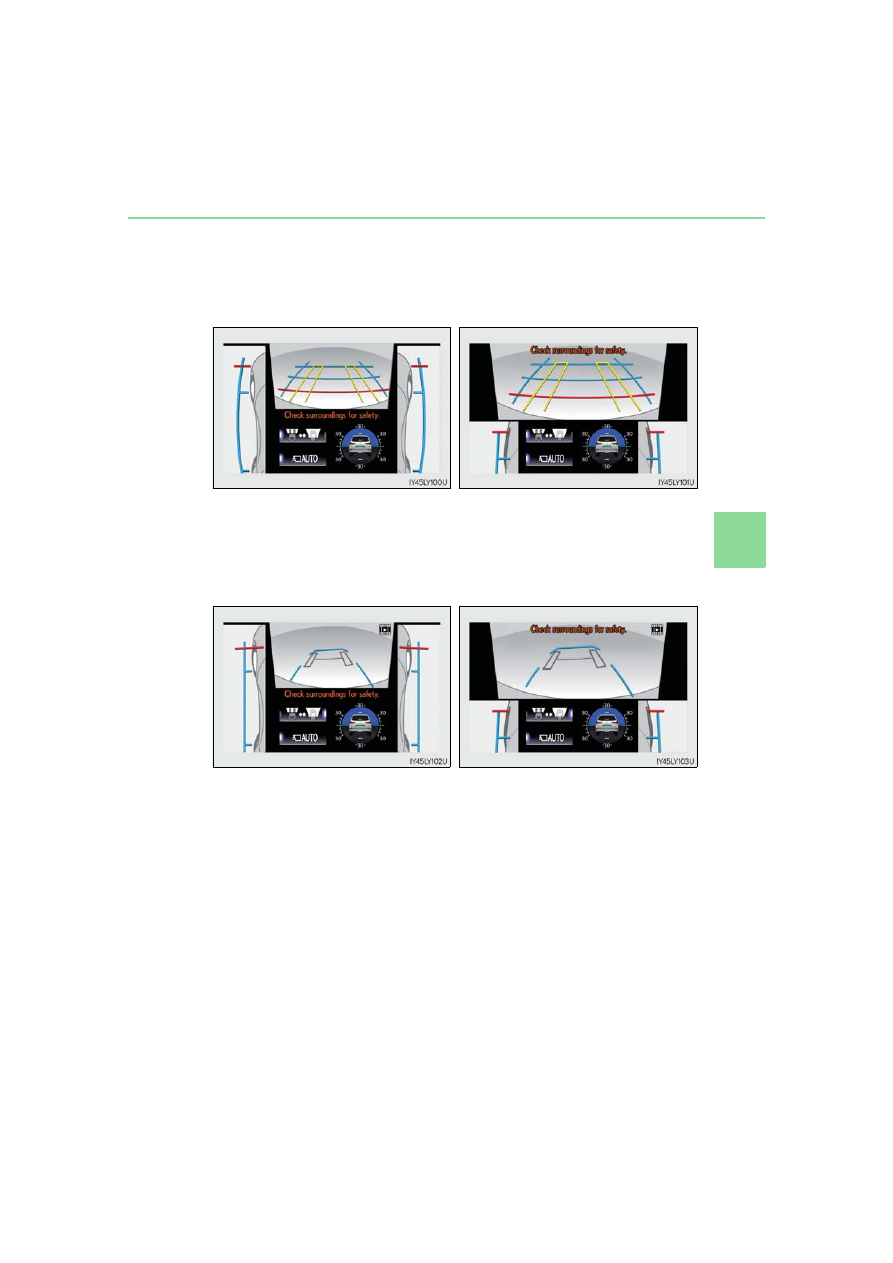

Screens when the four-wheel drive control switch is in L4

●

When checking the area to the front and sides of the vehicle

●

When checking the condition of the road surface under the vehicle



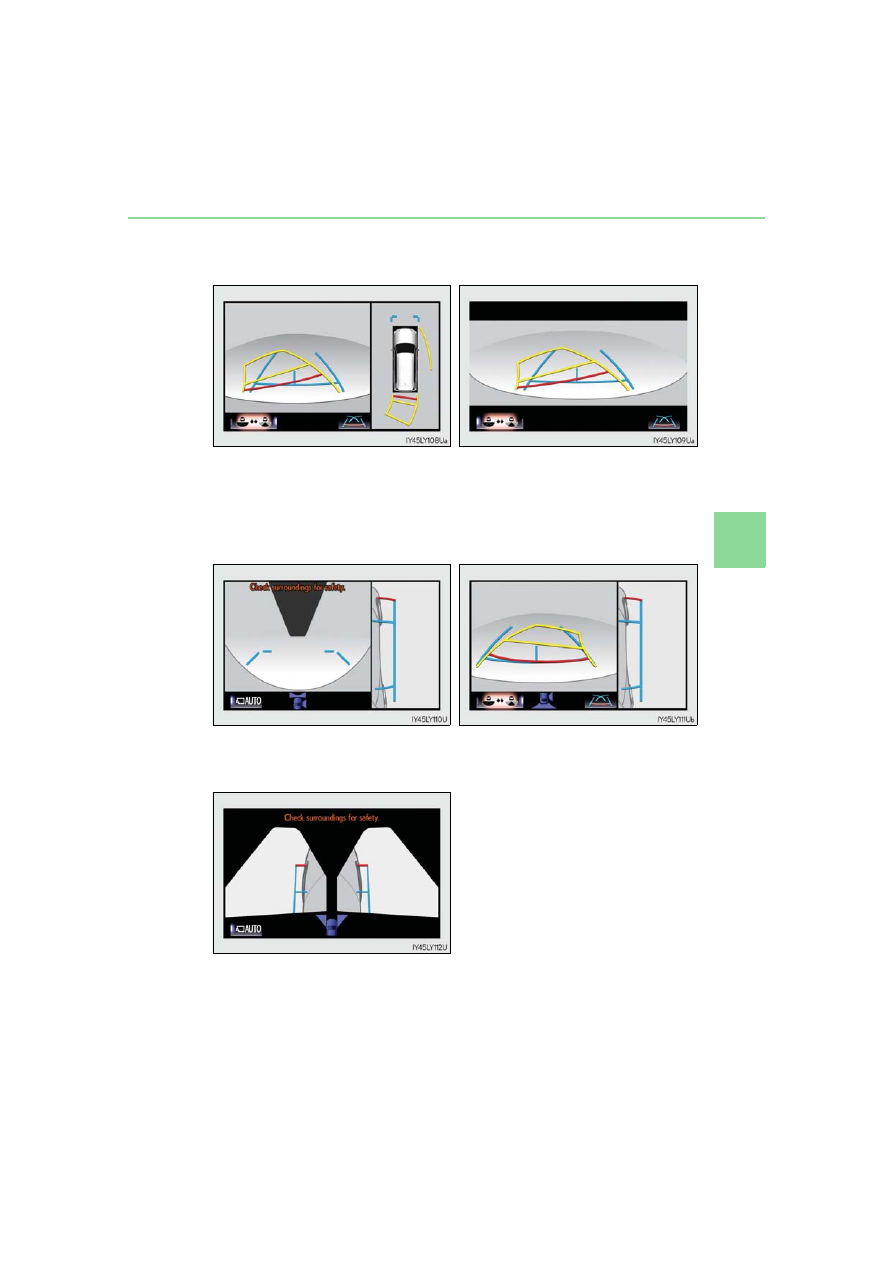

Front view & dual side view



Front view & dual side view (front
magnified)

P. 331



Under vehicle terrain view & dual
side view



Under vehicle terrain view & dual
side view (front magnified)

P. 335

324

4-5. Using the driving support systems

●

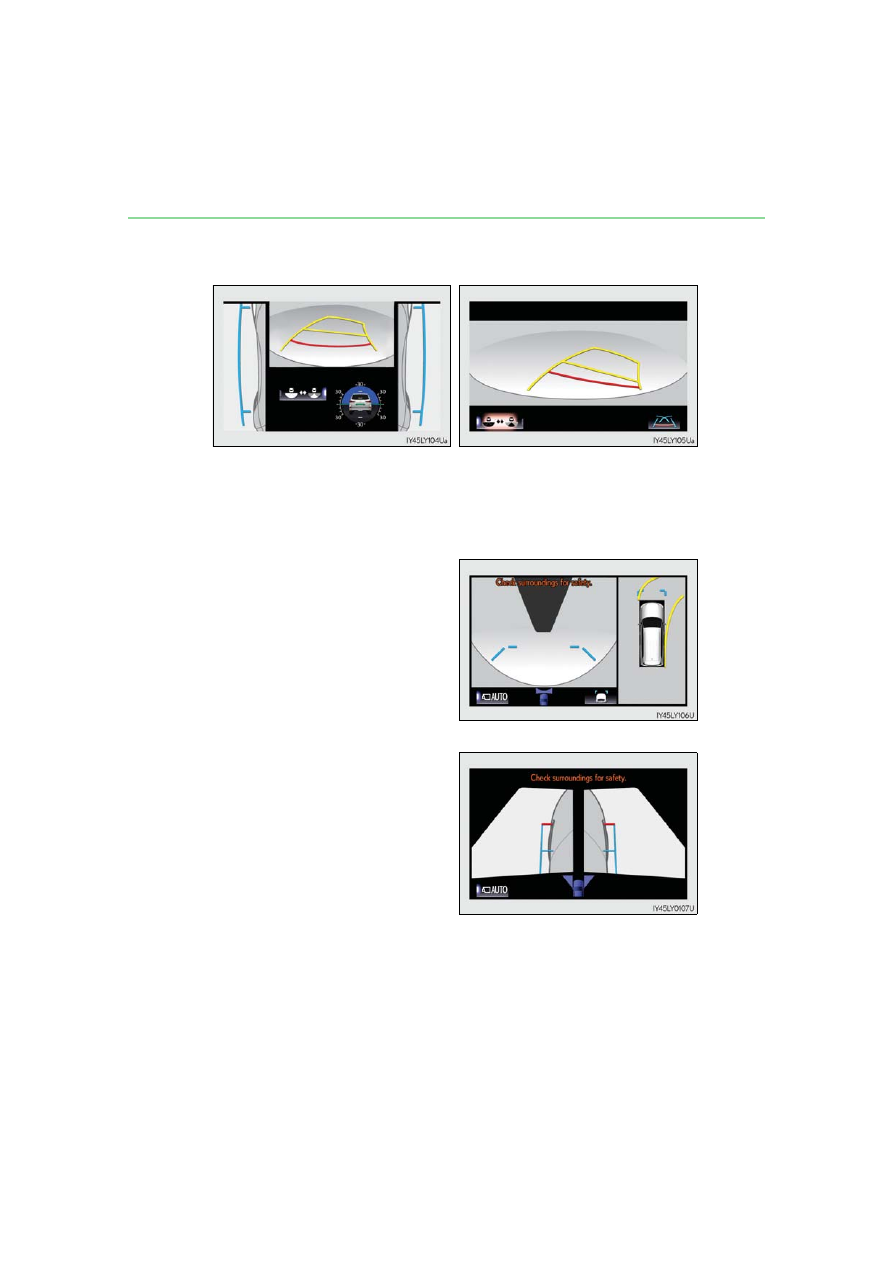

When checking the area to the rear of the vehicle

■

Screens when the four-wheel drive control switch is in H4

●

When checking the area to the front of the vehicle (panoramic view & wide
front view)
P. 339

●

When checking the area to the sides of the vehicle (side views)
P. 341



Rear view & dual side view



Wide rear view

P. 337

325

4-5. Using the driving support systems

iving

●

When checking the area to the rear of the vehicle

●

When checking the area to the sides, front and rear of the vehicle (with out-
side rear view mirrors retracted)



Panoramic view & rear view



Wide rear view

P. 344



Wide front view & side view



Rear view & side view

P. 350



Side views

P. 350

326

4-5. Using the driving support systems

■

Displaying the Multi-terrain Monitor screen
The Multi-terrain Monitor screen will be displayed when the VIEW switch is
pressed while the engine switch is in IGNITION ON mode.

When the vehicle speed exceeds a certain value for a specific amount of time, the

display returns to the navigation or information display screen.
The amount of time that the Multi-terrain Monitor is displayed differs depending

on conditions such as the vehicle speed. (

P. 331)

VIEW switch
Display

Using the Multi-terrain Monitor screen

327

4-5. Using the driving support systems

iving

■

Switch operations
On some screens, the display mode or display settings can be changed using
the switches.

●

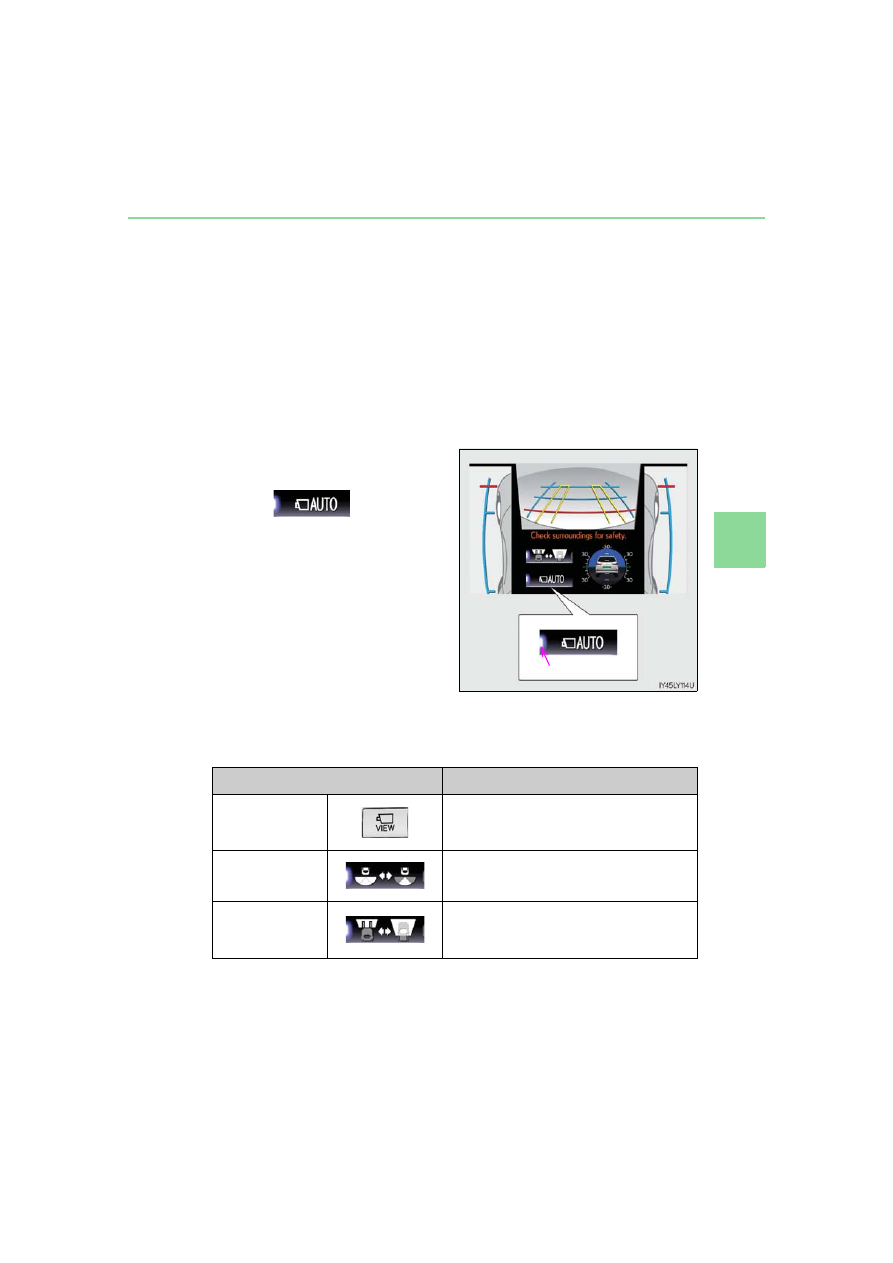

Automatic display mode switch
When automatic display mode is turned on, the Multi-terrain Monitor
screen is displayed in the following conditions, even if the VIEW switch has
not been operated.

• The shift lever is shifted to D or N
• While driving, the vehicle speed drops to approximately 6 mph (10 km/h)

or less (except when the shift lever is in R)

The automatic display mode
switches between on and off each

time

is selected.

When automatic display mode is
on, an indicator illuminates on the
icon.
Even when automatic display
mode is on, the display can still be
switched by pressing the VIEW
switch.

●

Display selection switches
The following switches can be pressed or selected to switch the Multi-ter-
rain Monitor display screen and to switch from normal to wide view display.

Indicator

Switch

Switch Function

VIEW switch

Changing a display (

P. 328)

Angle mode

selection switch

Switches between the wide rear view and

wide view display (

P. 337, 344)

Under vehicle ter-

rain view selection

switch

Switches between the front view and under

vehicle terrain view (

P. 331, 335)

328

4-5. Using the driving support systems

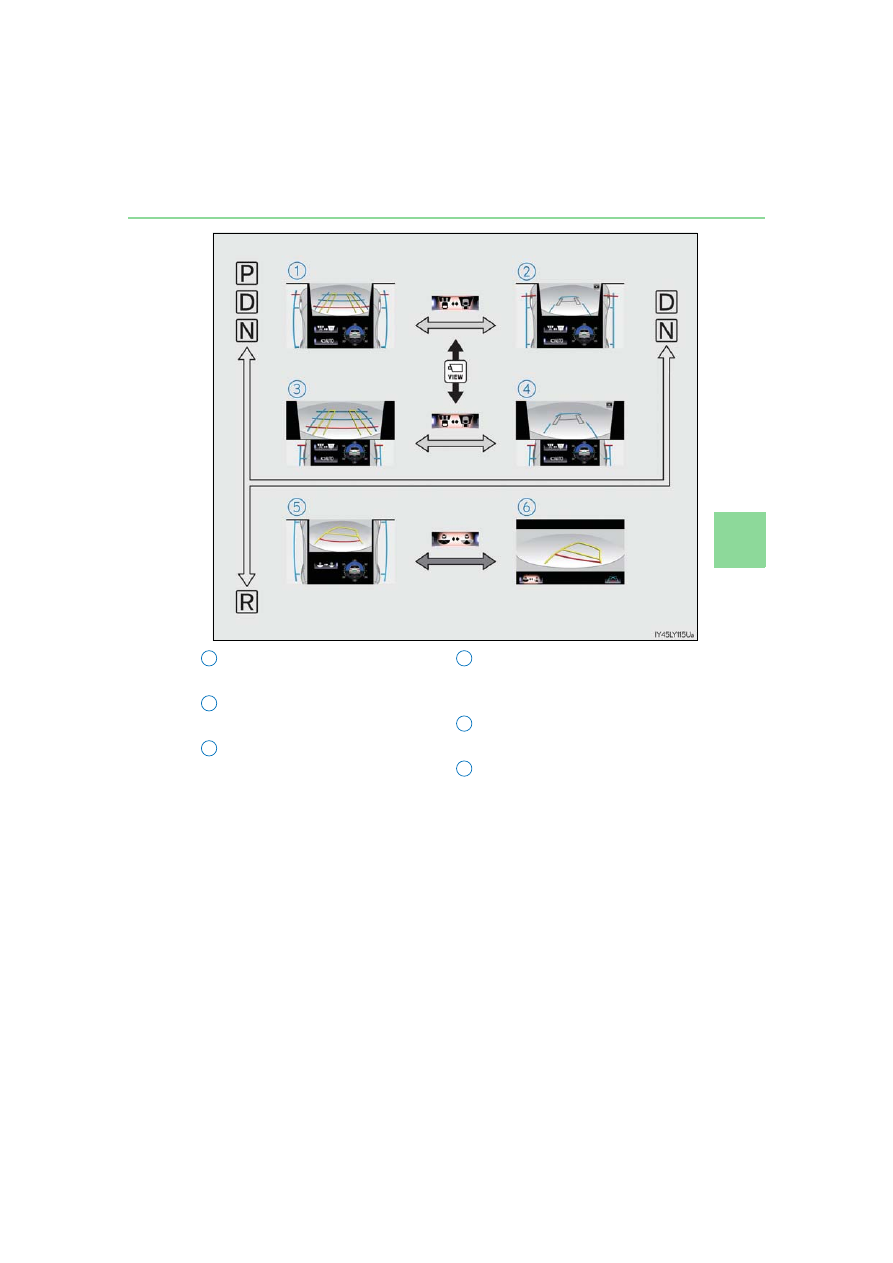

The screen display can be switched by operating the switches as follows while
the Multi-terrain Monitor screen is displayed. (Screens that can be displayed will
vary depending on the positions of the shift lever and four-wheel drive control
switch)

■

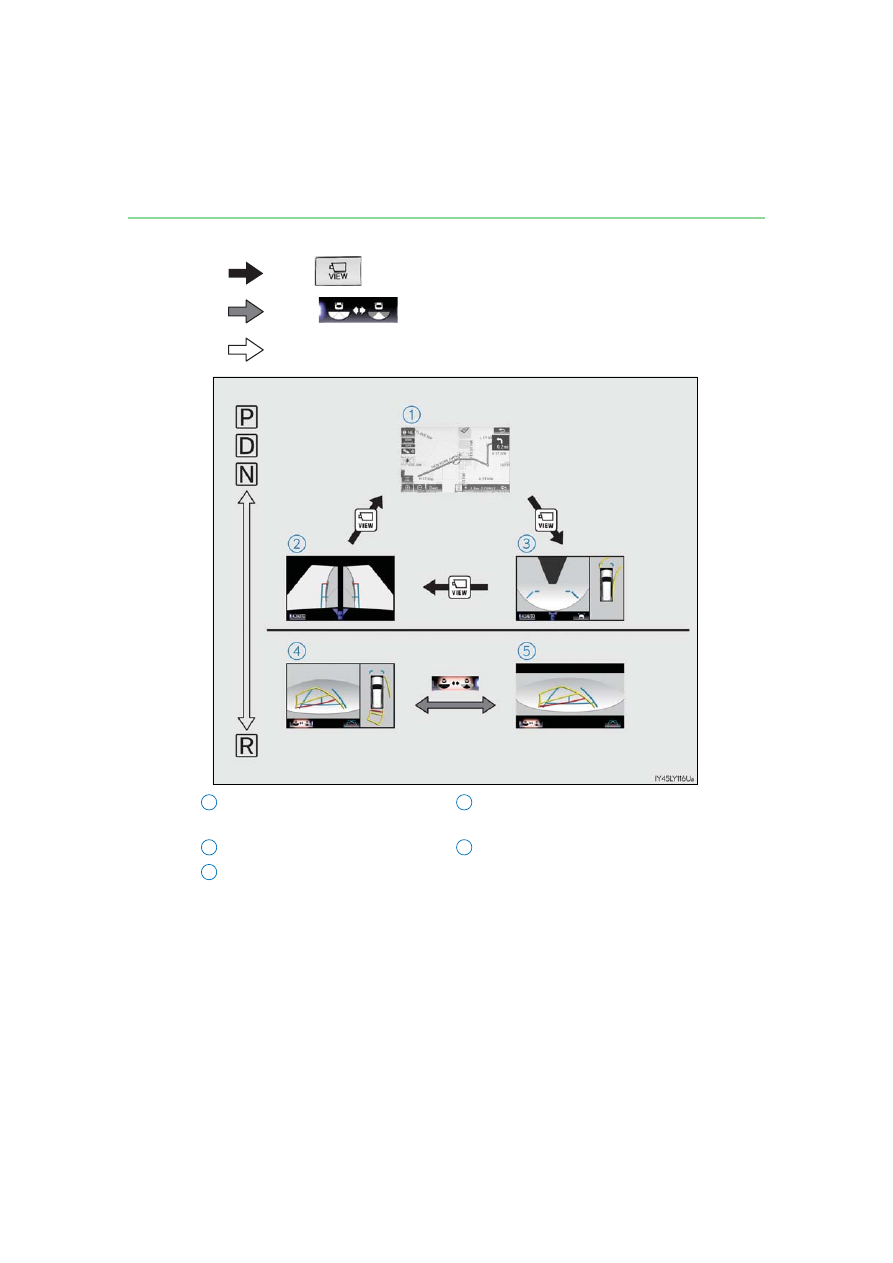

Screens when the four-wheel drive control switch is in L4

: Press

: Select

: Operate the shift lever

Changing the Multi-terrain Monitor screen
