Lexus RX300 (MCU15). Service manual - part 559

F01260

F01261

SST

R11163

SST

SA2351

SST

SA2352

SA–76

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

LEXUS RX300   (RM785E)

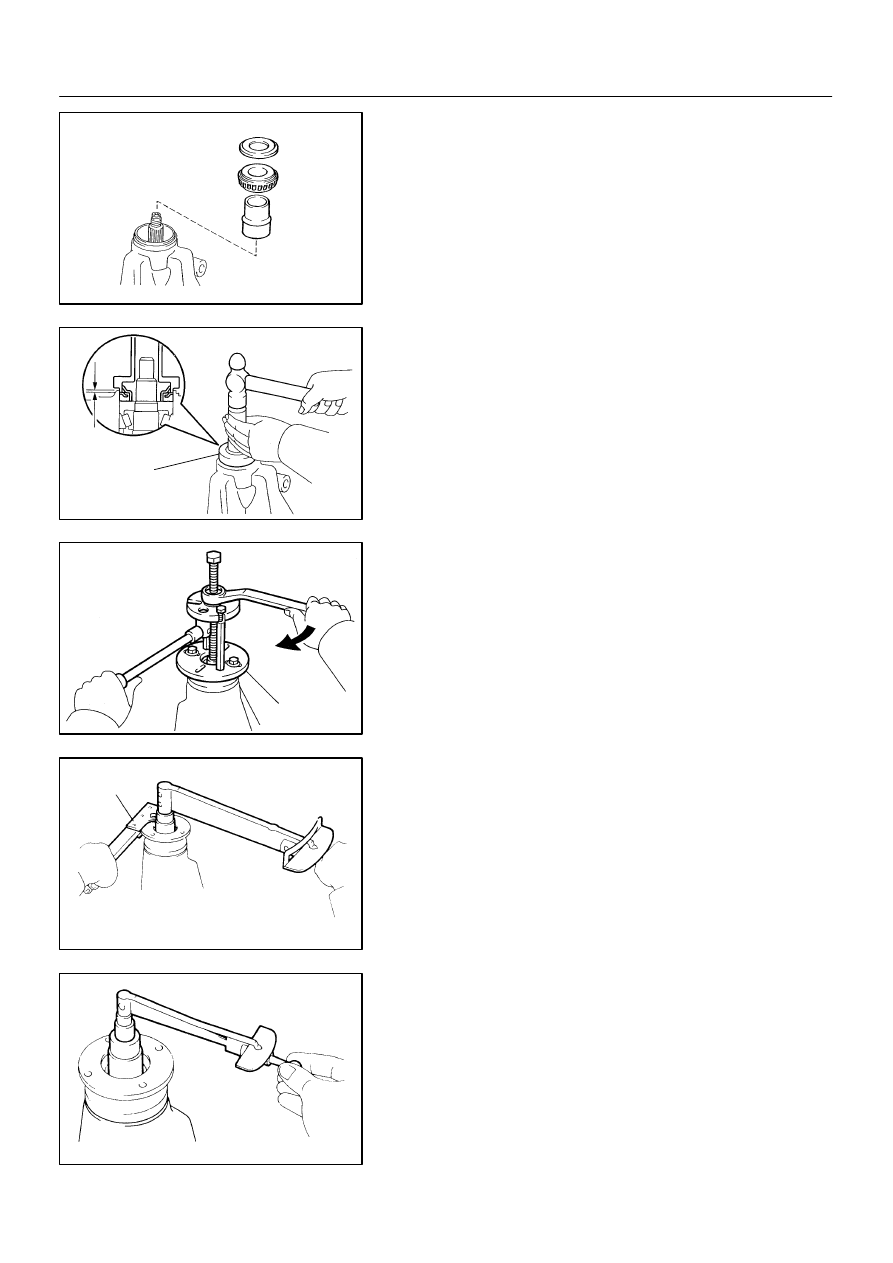

13.

REMOVE COMPANION FLANGE (See page SA–63)

14.

REMOVE FRONT BEARING (See page SA–63)

15.

INSTALL NEW BEARING SPACER AND FRONT
BEARING

Install a new bearing spacer and front bearing on the drive pin-
ion.
16.

INSTALL OIL SLINGER

17.

INSTALL NEW FRONT OIL SEAL

(a)

Using SST and hammer, install a new oil seal.
SST

09554–22010

Oil seal drive in depth: 2.0 mm (0.079 in.)

(b)

Coat MP grease to the oil seal lip.

18.

INSTALL COMPANION FLANGE

(a)

Using SST, install the companion flange on the drive pin-
ion.
SST

09950–30011 (09951–03010, 09953–03010,
09954–03010,  09955–03030, 09956–03020)

(b)

Coat the threads of a new nut with hypoid gear oil.

(c)

Using SST to hold the flange, torque the nut.
SST

09330–00021

Torque: 108 N·m (1,100 kgf·cm, 80 ft·lbf)

19.

CHECK DRIVE PINION PRELOAD

Using a torque wrench, measure the preload of the backlash
between the drive pinion and ring gear.

Preload (at starting):
New bearing:
1.1 – 1.7 N·m (11 – 17 kgf·cm, 9.6 – 14.8 in.·lbf)
Reused bearing:
0.6 – 0.9 N·m (6 – 9 kgf·cm, 5.2 – 7.8 in.·lbf)

SA2352

F01262

SST

F01263

F03983

1 – 2 mm
(0.04 – 0.08 in.)

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

SA–77

LEXUS RX300   (RM785E)

S

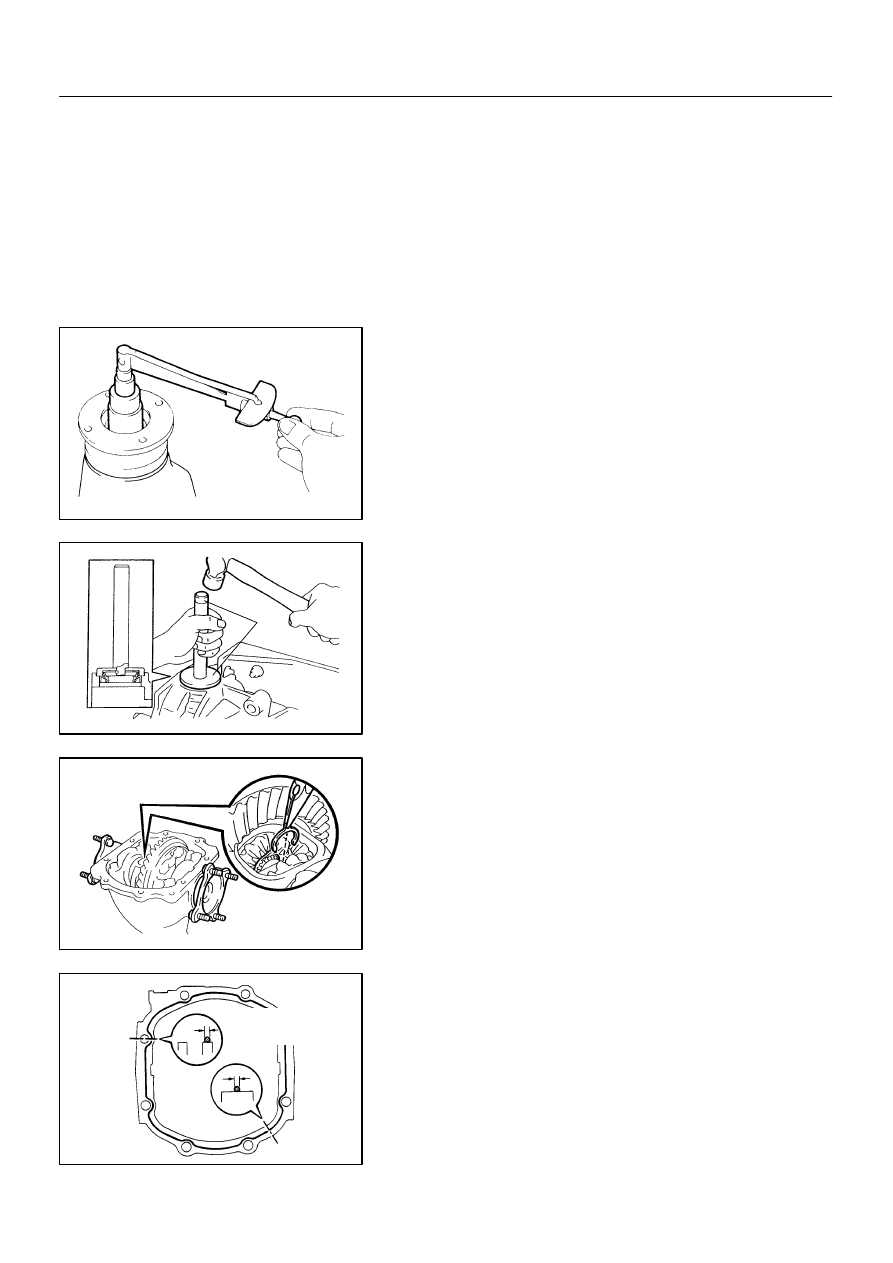

If the preload is greater than the specification, re-
place the bearing spacer.

S

If the preload is less than the specification, retorque
the nut with 13 N·m (130 kgf·cm, 9 ft·lbf) of torque
at a time until the specified preload is reached.

Torque: 235 N·m (2,400 kgf·cm, 174 ft·lbf) or less

S

If the maximum torque is exceeded while retighten-
ing the nut, replace the bearing spacer and repeat
the preload adjusting procedure. Do not loosen the
pinion nut to reduce the preload.

20.

RECHECK TOTAL PRELOAD (See step 11)

21.

RECHECK RING GEAR BACKLASH (See step 9)

22.

RECHECK TOOTH CONTACT BETWEEN RING GEAR
AND DRIVE PINION (See step 12)

23.

CHECK COMPANION FLANGE RUNOUT
(See page SA–63)

24.

STAKE DRIVE PINION NUT

25.

INSTALL SIDE GEAR SHAFT OIL SEALS

(a)

Using SST and a hammer, install 2 new oil seals until they
are flush with the carrier end surface.
SST

09550–00032, 09950–70010 (09951–07150)

(b)

Coat MP grease to the oil seal lip.

26.

INSTALL SIDE GEAR SHAFTS

(a)

Install the 2 side gear shafts to the differential case.

(b)

Using needle nose pliers, install 2 new snap rings to the
2 side gear shafts.

27.

INSTALL DIFFERENTIAL CARRIER COVER

(a)

Install the oil deflector and bolt to the carrier cover.
Torque: 7.4 N·m (75 kgf·cm, 65 ft·lbf)

(b)

Install the breather plug to the carrier cover.
Torque: 21 N·m (210 kgf·cm, 15 ft·lbf)

(c)

Clean contacting surfaces of any residual FIPG material
using gasoline or alcohol.

(d)

Apply FIPG to the carrier.

SA–78

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

LEXUS RX300   (RM785E)

FIPG:
Part No.08826–00090, THREE BOND 1281 or equiva-
lent

HINT:
Install the carrier cover within 3 minutes after applying FIPG.
(e)

Install the carrier cover with the 8 bolts.
Torque: 47 N·m (475 kgf·cm, 34 ft·lbf)

SA0UN–05

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

SA–79

LEXUS RX300   (RM785E)

INSTALLATION

Installation is in the reverse order of removal (See page SA–62).
HINT:
After installation, fill differential with the hypoid gear oil (See page SA–58)
