SUSPENSION AND AXLE
FRONT STABILIZER BAR
LEXUS RX300 (RM785E)
REMOVAL
1.
REMOVE LEFT AND RIGHT FRONT WHEELS
Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf)
2.

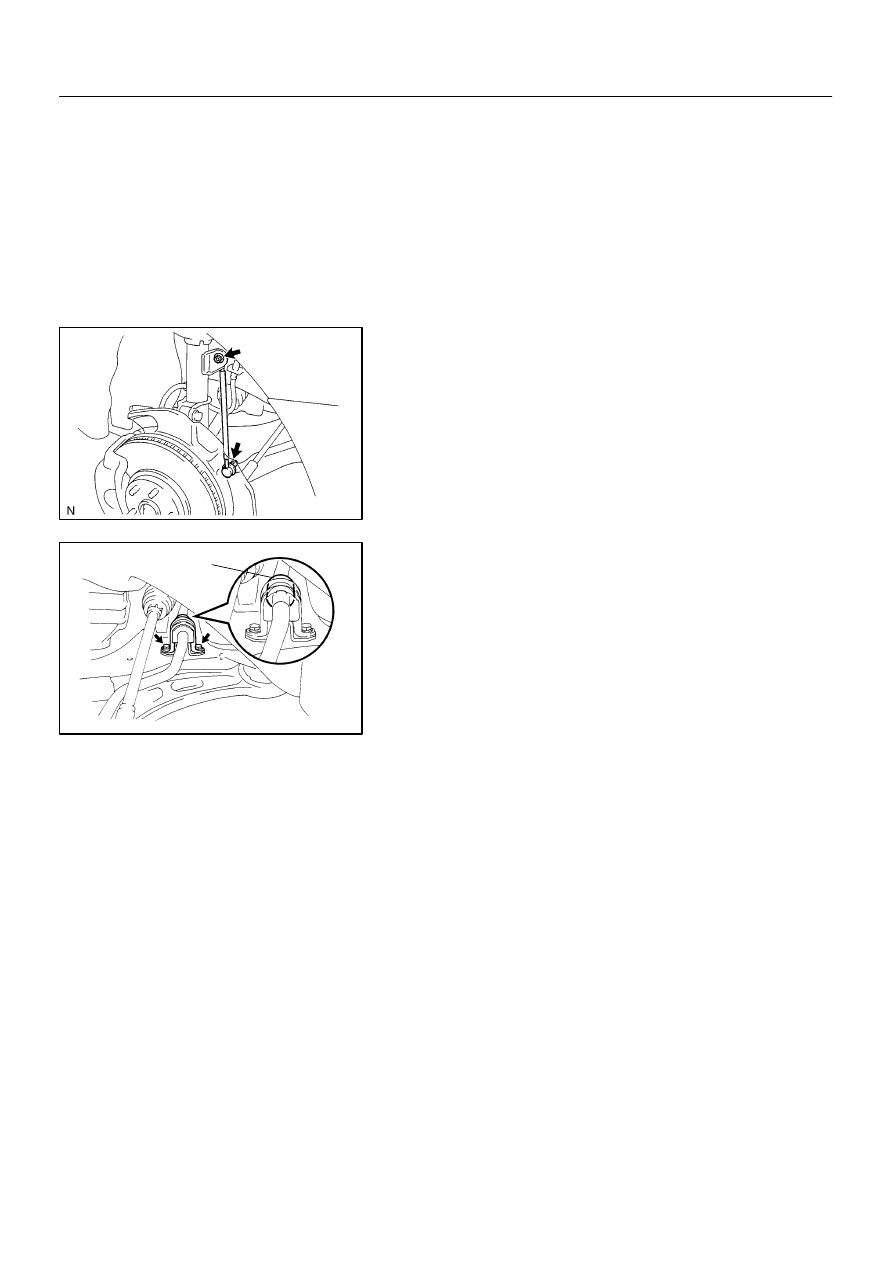

REMOVE LEFT AND RIGHT STABILIZER BAR LINKS
(a)
Remove the 2 nuts and stabilizer bar link.
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)
HINT:

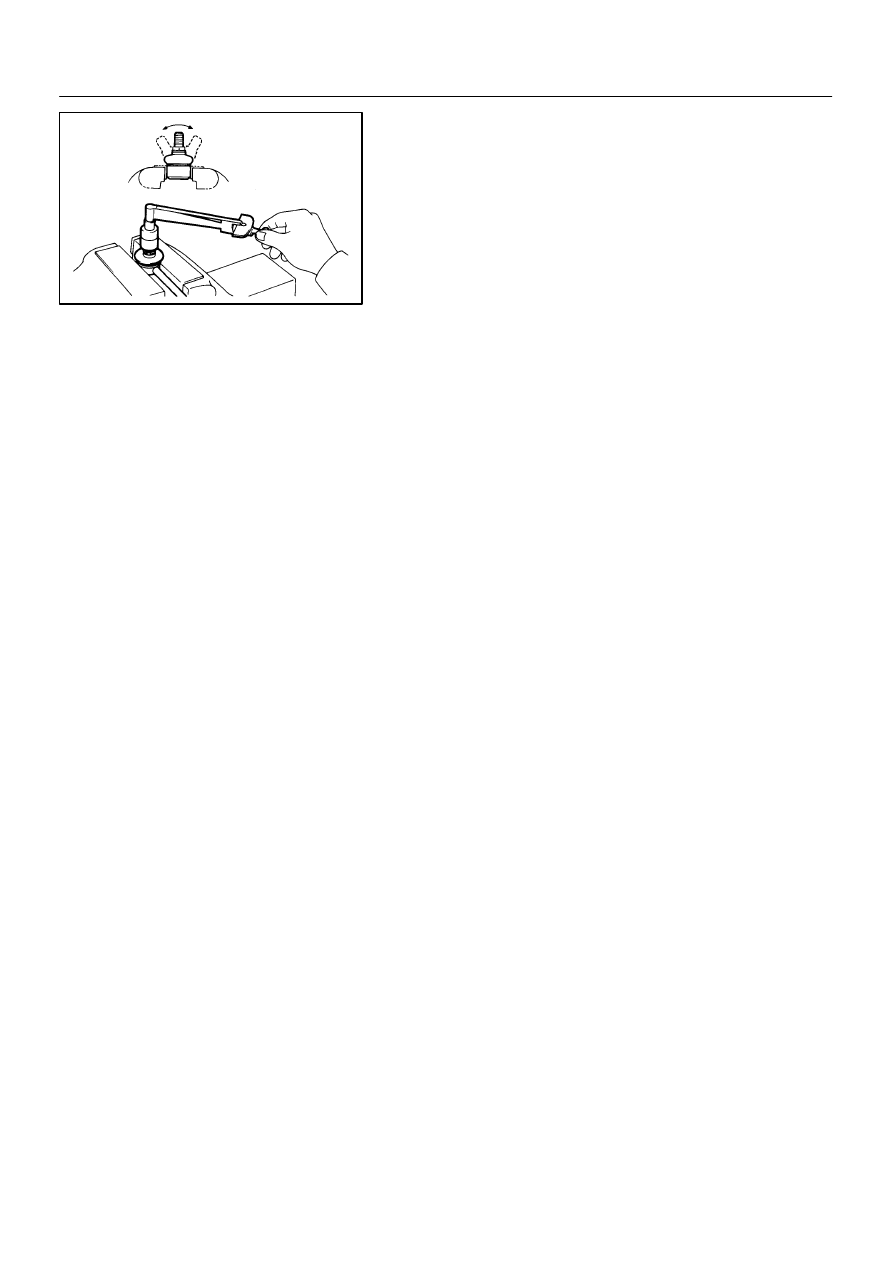

If the ball joint turns together with the nut, use a 5 mm hexagon
wrench to hold the stud.
(b)
Employ the same manner described above to the other
side.
3.
REMOVE LEFT AND RIGHT STABILIZER BAR
BRACKETS AND BUSHINGS
(a)
Remove the 2 bolts, bracket and bushing.
Torque: 19 N·m (195 kgf·cm, 14 ft·lbf)
HINT:
At the time of installation, install the bushing to the outside of
the bushing stopper on the stabilizer bar.
(b)
Employ the same manner described above to the other
side.
4.
REMOVE STABILIZER BAR
HINT:
At the time of installation, set the stabilizer bar with colored side
at LH side.
5.
REMOVE STOPPER CLAMP AND BUSHING STOP-
PER IF NECESSARY
(a)
Using a screwdriver, remove the stopper clamp.
(b)
Remove the bushing stopper.
