IG09O–01

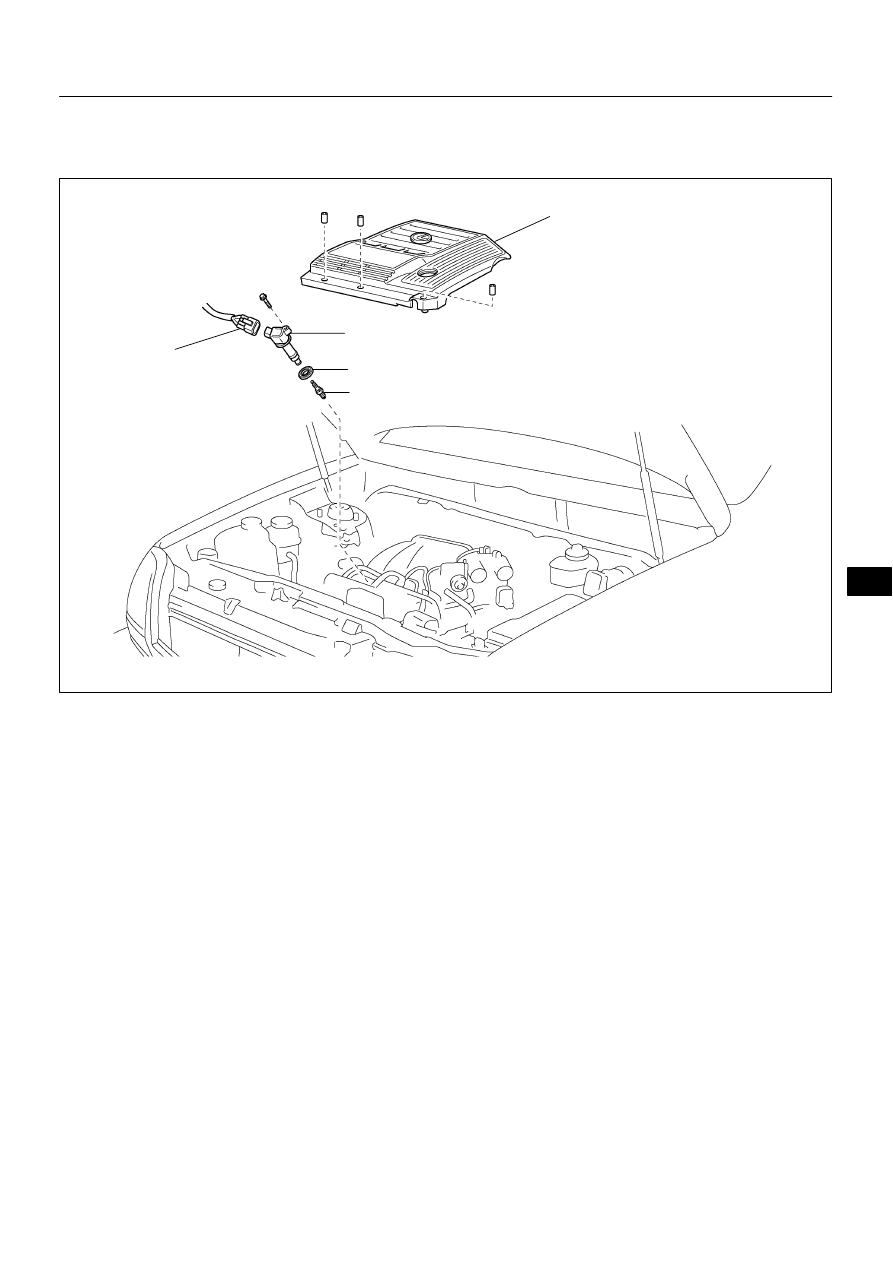

A06079

V–Bank Cover

Ignition Coil

Ignition Coil
Connector

Gasket

Spark Plug

–

IGNITION

IGNITION COIL

IG–5

LEXUS RX300   (RM785E)

IGNITION COIL

COMPONENTS

IG024–04

B12305

IG–6

–

IGNITION

IGNITION COIL

LEXUS RX300   (RM785E)

REMOVAL

1.

DISCONNECT CONNECTORS FROM
IGNITION COILS (See page IG–1)

2.

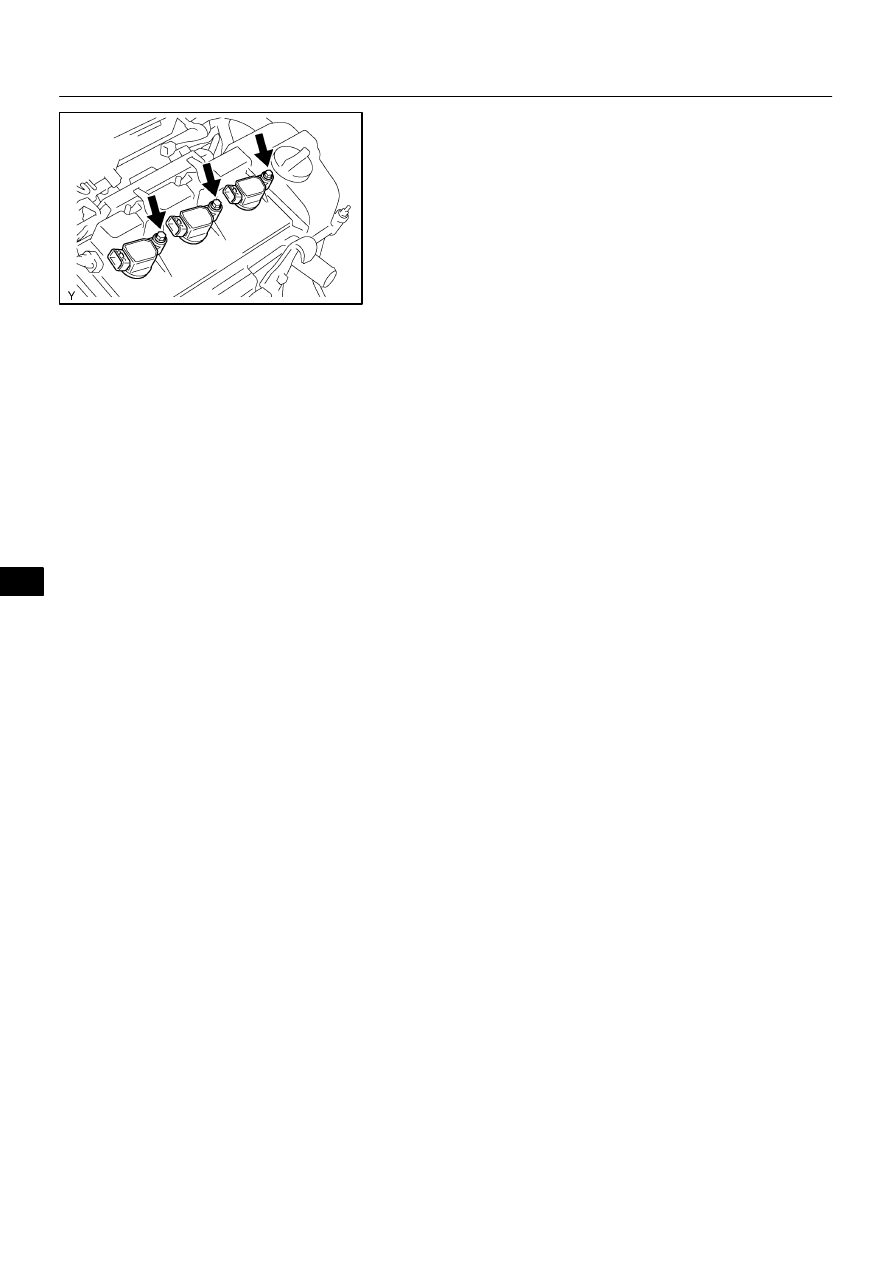

REMOVE IGNITION COILS

(a)

Disconnect the 3 connectors from the ignition coil.

(b)

Remove the 3 bolts and 3 ignition coils from the LH cylin-
der head.
Torque: 8 N·m (80 kgf·cm, 69 in.·lbf)

HINT:
Arrange the ignition coils in correct order.

IG025–02

–

IGNITION

IGNITION COIL

IG–7

LEXUS RX300   (RM785E)

INSTALLATION

Installation is in the reverse order of removal (See page IG–6).

IG09Q–01

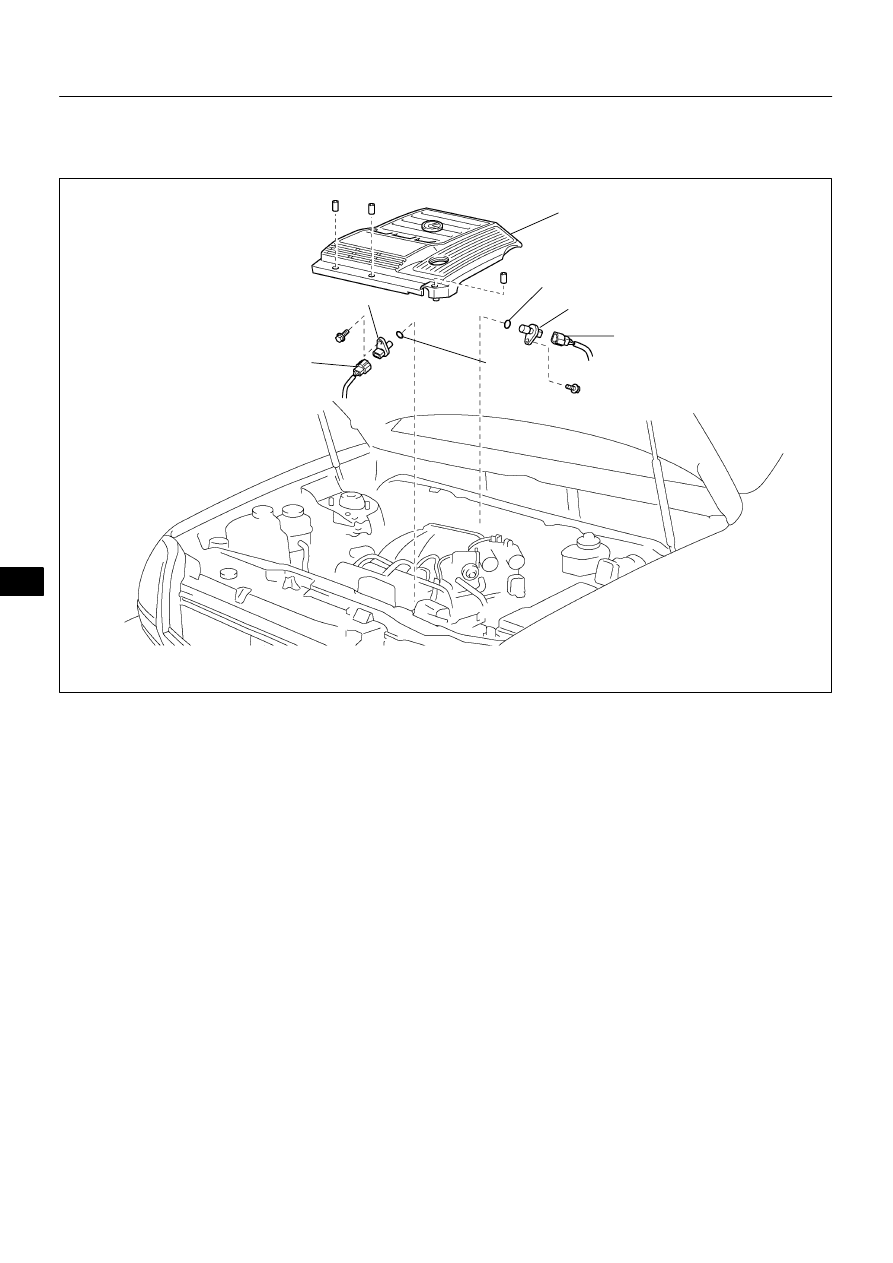

A06080

Camshaft Position
Sensor (Bank 2)

V–Bank Cover

z

 O–Ring

z

 O–Ring

z

 Non–reusable part

Camshaft Position Sensor (Bank 1)

Camshaft Position Sensor
Connector

Camshaft Position Sensor
Connector

IG–8

–

IGNITION

CAMSHAFT POSITION SENSOR

LEXUS RX300   (RM785E)

CAMSHAFT POSITION SENSOR

COMPONENTS
